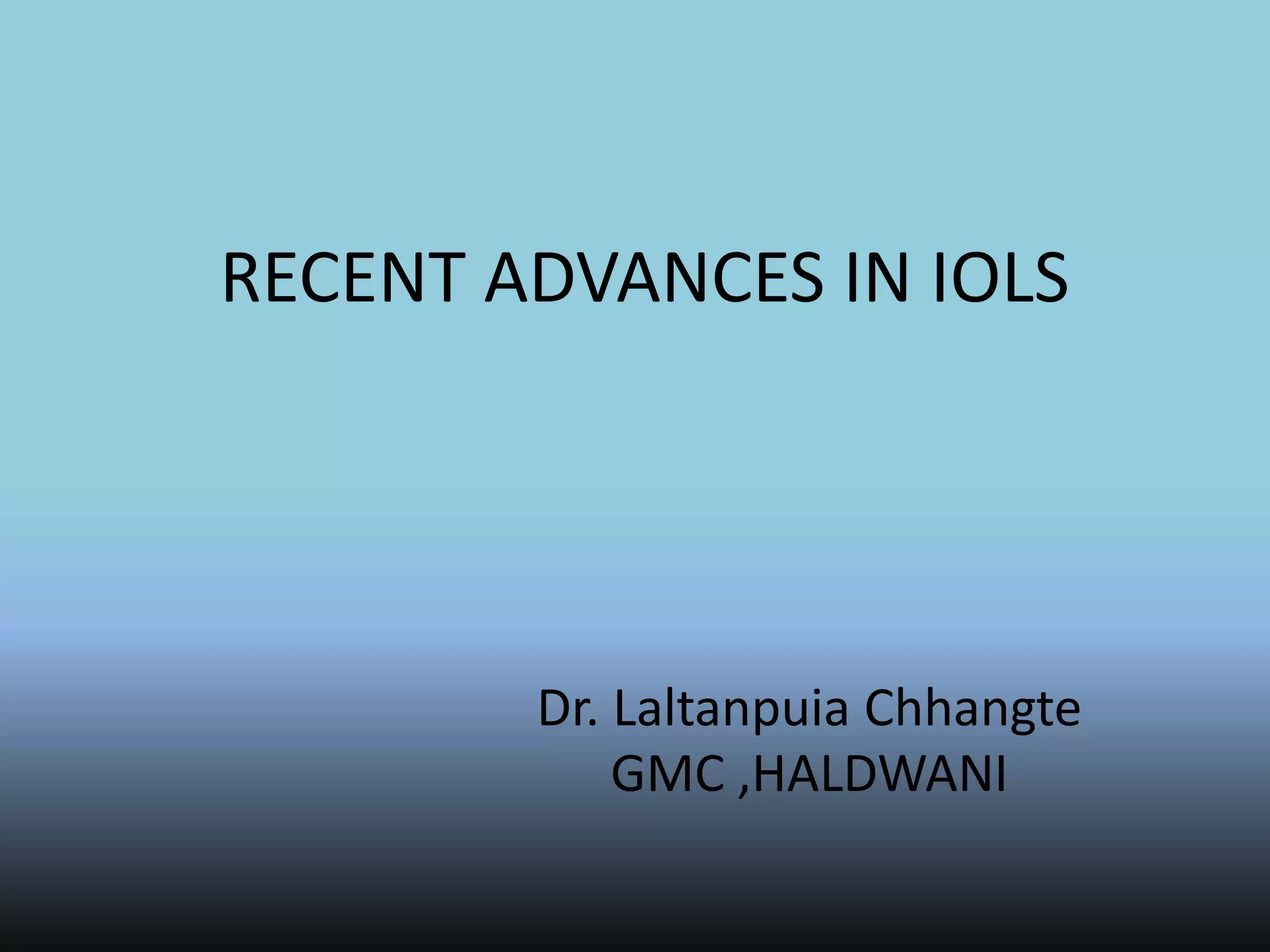

RECENT ADVANCES IN IOLS Dr. Laltanpuia Chhangte GMC ,HALDWANI

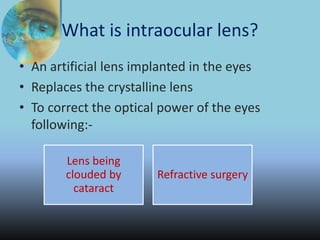

What is intraocular lens? • An artificial lens implanted in the eyes • Replaces the crystalline lens • To correct the optical power of the eyes following:- Lens being clouded by cataract Refractive surgery

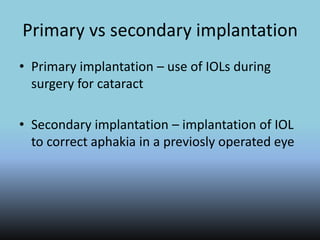

Primary vs secondary implantation • Primary implantation – use of IOLs during surgery for cataract • Secondary implantation – implantation of IOL to correct aphakia in a previosly operated eye

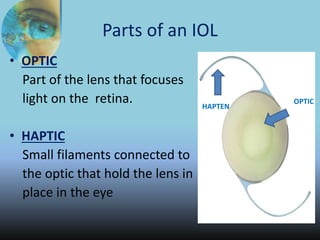

Parts of an IOL • OPTIC Part of the lens that focuses light on the retina. • HAPTIC Small filaments connected to the optic that hold the lens in place in the eye HAPTEN OPTIC

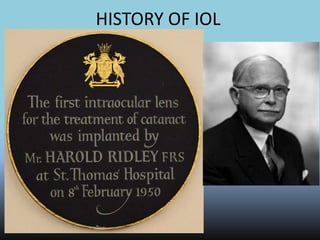

HISTORY OF IOL • K
THE FIRST IOL!! • PMMA made lens – 45 year old female after performing extracapsular cataract extraction • Disc shaped bi-convex design • Site- posterior chamber • First generation IOL

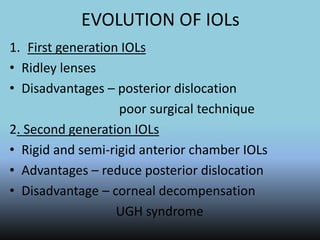

EVOLUTION OF IOLs 1. First generation IOLs • Ridley lenses • Disadvantages – posterior dislocation poor surgical technique 2. Second generation IOLs • Rigid and semi-rigid anterior chamber IOLs • Advantages – reduce posterior dislocation • Disadvantage – corneal decompensation UGH syndrome

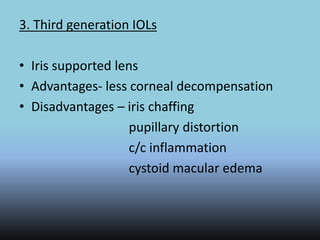

3. Third generation IOLs • Iris supported lens • Advantages- less corneal decompensation • Disadvantages – iris chaffing pupillary distortion c/c inflammation cystoid macular edema

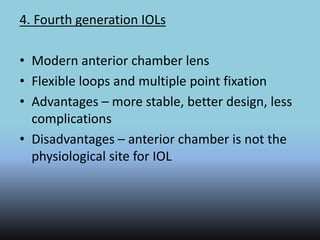

4. Fourth generation IOLs • Modern anterior chamber lens • Flexible loops and multiple point fixation • Advantages – more stable, better design, less complications • Disadvantages – anterior chamber is not the physiological site for IOL

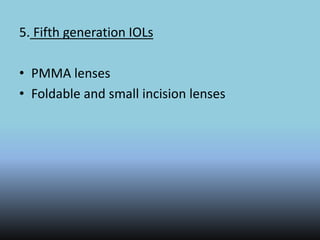

5. Fifth generation IOLs • PMMA lenses • Foldable and small incision lenses

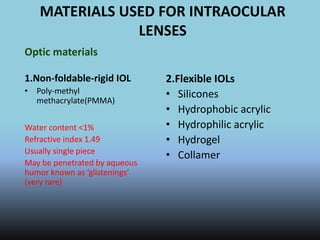

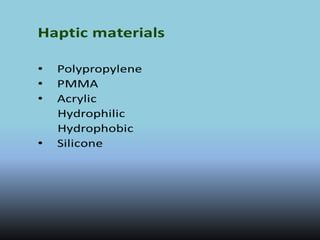

MATERIALS USED FOR INTRAOCULAR LENSES Optic materials 1.Non-foldable-rigid IOL • Poly-methyl methacrylate(PMMA) Water content <1% Refractive index 1.49 Usually single piece May be penetrated by aqueous humor known as ‘glistenings’ (very rare) 2.Flexible IOLs • Silicones • Hydrophobic acrylic • Hydrophilic acrylic • Hydrogel • Collamer

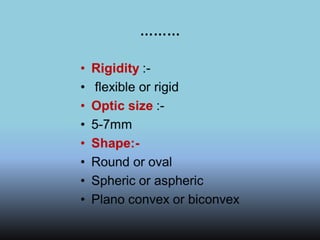

Features of IOL

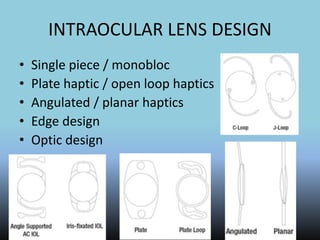

INTRAOCULAR LENS DESIGN • Single piece / monobloc • Plate haptic / open loop haptics • Angulated / planar haptics • Edge design • Optic design

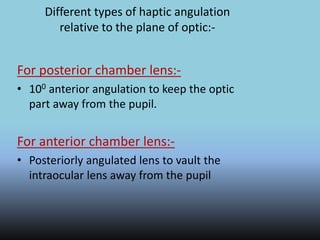

Different types of haptic angulation relative to the plane of optic:- For posterior chamber lens:- • 100 anterior angulation to keep the optic part away from the pupil. For anterior chamber lens:- • Posteriorly angulated lens to vault the intraocular lens away from the pupil

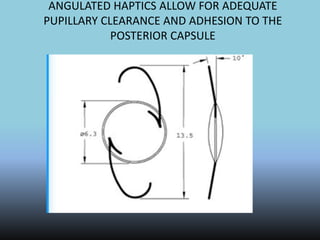

ANGULATED HAPTICS ALLOW FOR ADEQUATE PUPILLARY CLEARANCE AND ADHESION TO THE POSTERIOR CAPSULE
………

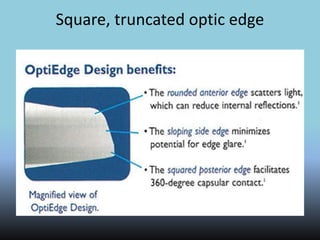

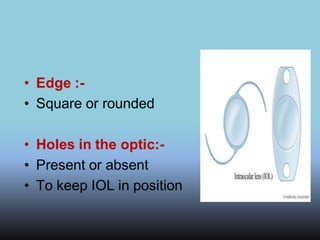

Square, truncated optic edge
Suitable position for implanting IOL in eye • Best placed in posterior chamber in the capsular bag.

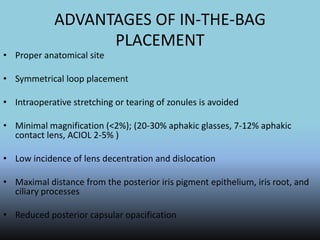

ADVANTAGES OF IN-THE-BAG PLACEMENT • Proper anatomical site • Symmetrical loop placement • Intraoperative stretching or tearing of zonules is avoided • Minimal magnification (<2%); (20-30% aphakic glasses, 7-12% aphakic contact lens, ACIOL 2-5% ) • Low incidence of lens decentration and dislocation • Maximal distance from the posterior iris pigment epithelium, iris root, and ciliary processes • Reduced posterior capsular opacification

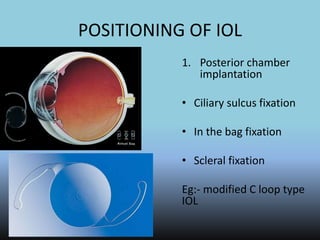

POSITIONING OF IOL 1. Posterior chamber implantation • Ciliary sulcus fixation • In the bag fixation • Scleral fixation Eg:- modified C loop type IOL

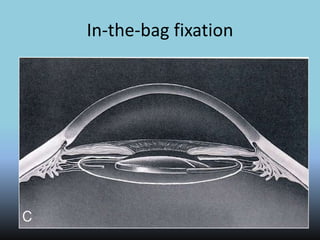

In-the-bag fixation

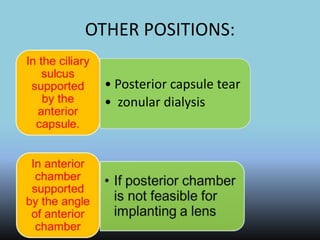

OTHER POSITIONS: • Posterior capsule tear • zonular dialysis

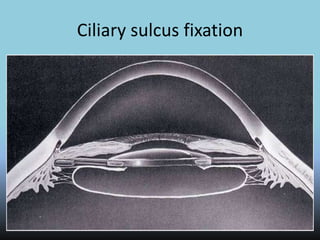

Ciliary sulcus fixation

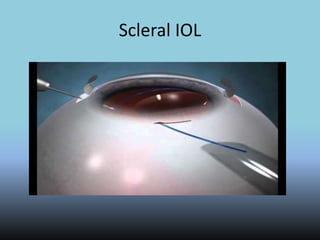

Scleral IOL

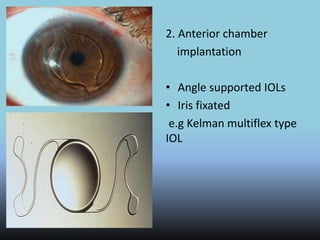

2. Anterior chamber implantation • Angle supported IOLs • Iris fixated e.g Kelman multiflex type IOL

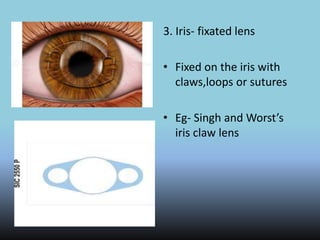

3. Iris- fixated lens • Fixed on the iris with claws,loops or sutures • Eg- Singh and Worst’s iris claw lens

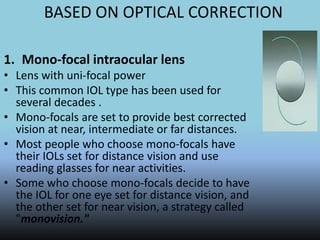

BASED ON OPTICAL CORRECTION 1. Mono-focal intraocular lens • Lens with uni-focal power • This common IOL type has been used for several decades . • Mono-focals are set to provide best corrected vision at near, intermediate or far distances. • Most people who choose mono-focals have their IOLs set for distance vision and use reading glasses for near activities. • Some who choose mono-focals decide to have the IOL for one eye set for distance vision, and the other set for near vision, a strategy called "monovision."

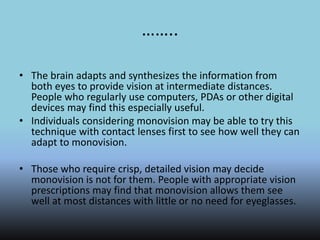

…….. • The brain adapts and synthesizes the information from both eyes to provide vision at intermediate distances. People who regularly use computers, PDAs or other digital devices may find this especially useful. • Individuals considering monovision may be able to try this technique with contact lenses first to see how well they can adapt to monovision. • Those who require crisp, detailed vision may decide monovision is not for them. People with appropriate vision prescriptions may find that monovision allows them see well at most distances with little or no need for eyeglasses.

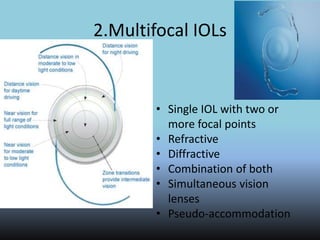

2.Multifocal IOLs • Single IOL with two or more focal points • Refractive • Diffractive • Combination of both • Simultaneous vision lenses • Pseudo-accommodation
Multifocal IOLs • Multifocal iols have the advantage of providing patients with functional vision at near ,far and at intermediate distances. • Patients can have a traditional monofocal iol with a refractive target of emmetropia,mild myopia,or monovision(1 eye distance,1eye near) • The Array (AMO),Santa ana CA multifocal silicone PCIOL was the first multifocal IOL to be granted fda approval in US. • Three mutifocal lenses are currently FDA approved for use after cataract extraction: • ReZoom lens(AMO),The Acrysof ResTOR(alcon) and Technis(AMO) multifocal iols

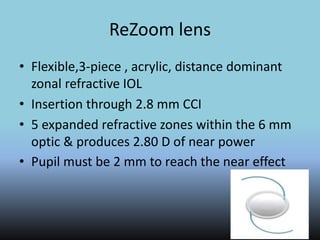

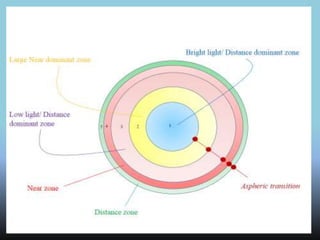

ReZoom lens • Flexible,3-piece , acrylic, distance dominant zonal refractive IOL • Insertion through 2.8 mm CCI • 5 expanded refractive zones within the 6 mm optic & produces 2.80 D of near power • Pupil must be 2 mm to reach the near effect

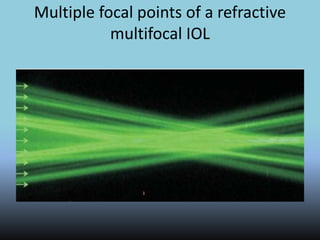

Multiple focal points of a refractive multifocal IOL

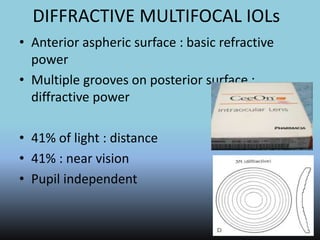

DIFFRACTIVE MULTIFOCAL IOLs • Anterior aspheric surface : basic refractive power • Multiple grooves on posterior surface : diffractive power • 41% of light : distance • 41% : near vision • Pupil independent

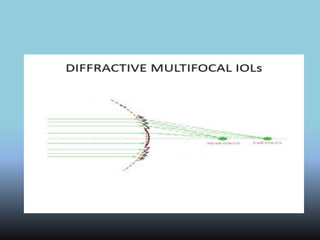

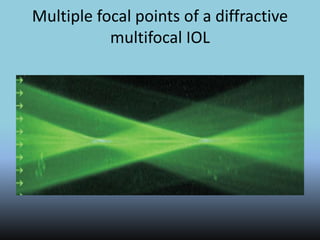

Multiple focal points of a diffractive multifocal IOL
Acrysof ReSTOR lens(alcon lab) • FDA approved in 2005 • 1/3 piece ,acrylic ,aspheric ,foldable ,diffractive lens that simultaneously focuses light on both near and distance targets • Central 3.6mm difrractive zone is mainly for near and outside that is for distant vision • Loss of 6%-19% light which affects contrast sensitivity esp in patients with smaller pupils • ReSTOR IOL is manufactured with +4.00 D+3.00D add at IOL plane. • Patients who received +4.00D expressed dissatisfaction with the near focal point being too close

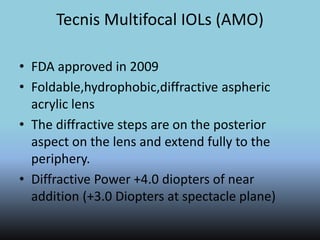

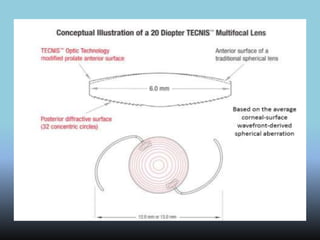

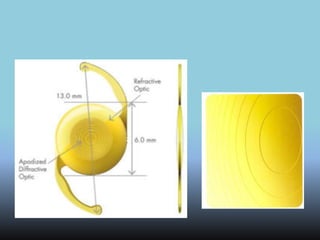

Tecnis Multifocal IOLs (AMO) • FDA approved in 2009 • Foldable,hydrophobic,diffractive aspheric acrylic lens • The diffractive steps are on the posterior aspect on the lens and extend fully to the periphery. • Diffractive Power +4.0 diopters of near addition (+3.0 Diopters at spectacle plane)

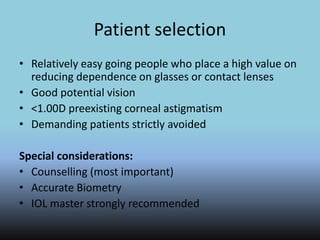

Patient selection • Relatively easy going people who place a high value on reducing dependence on glasses or contact lenses • Good potential vision • <1.00D preexisting corneal astigmatism • Demanding patients strictly avoided Special considerations: • Counselling (most important) • Accurate Biometry • IOL master strongly recommended

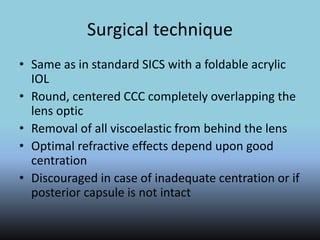

Surgical technique • Same as in standard SICS with a foldable acrylic IOL • Round, centered CCC completely overlapping the lens optic • Removal of all viscoelastic from behind the lens • Optimal refractive effects depend upon good centration • Discouraged in case of inadequate centration or if posterior capsule is not intact

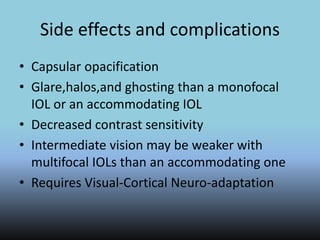

Side effects and complications • Capsular opacification • Glare,halos,and ghosting than a monofocal IOL or an accommodating IOL • Decreased contrast sensitivity • Intermediate vision may be weaker with multifocal IOLs than an accommodating one • Requires Visual-Cortical Neuro-adaptation

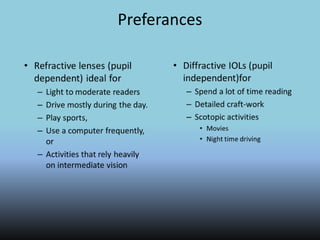

Preferances

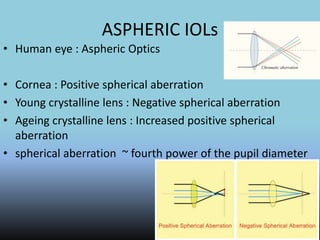

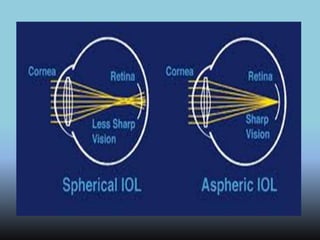

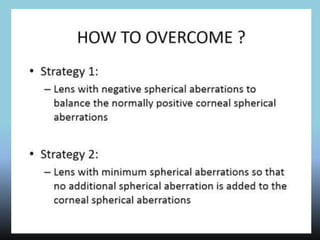

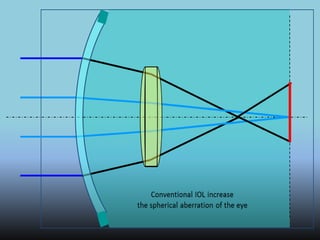

ASPHERIC IOLs • Human eye : Aspheric Optics • Cornea : Positive spherical aberration • Young crystalline lens : Negative spherical aberration • Ageing crystalline lens : Increased positive spherical aberration • spherical aberration ~ fourth power of the pupil diameter

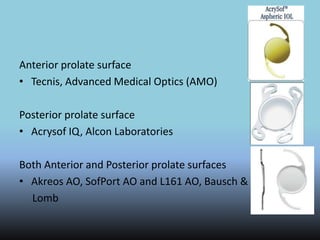

Anterior prolate surface • Tecnis, Advanced Medical Optics (AMO) Posterior prolate surface • Acrysof IQ, Alcon Laboratories Both Anterior and Posterior prolate surfaces • Akreos AO, SofPort AO and L161 AO, Bausch & Lomb

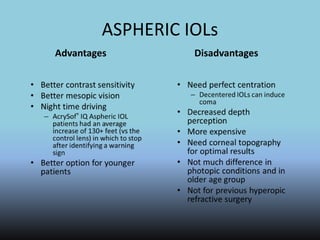

ASPHERIC IOLs Advantages Disadvantages

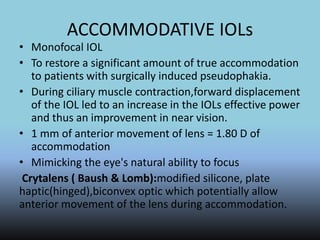

ACCOMMODATIVE IOLs • Monofocal IOL • To restore a significant amount of true accommodation to patients with surgically induced pseudophakia. • During ciliary muscle contraction,forward displacement of the IOL led to an increase in the IOLs effective power and thus an improvement in near vision. • 1 mm of anterior movement of lens = 1.80 D of accommodation • Mimicking the eye's natural ability to focus Crytalens ( Baush & Lomb):modified silicone, plate haptic(hinged),biconvex optic which potentially allow anterior movement of the lens during accommodation.

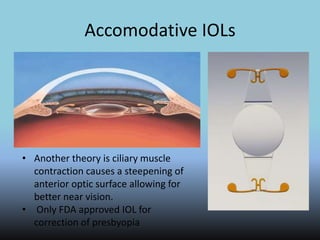

Accomodative IOLs • Another theory is ciliary muscle contraction causes a steepening of anterior optic surface allowing for better near vision. • Only FDA approved IOL for correction of presbyopia

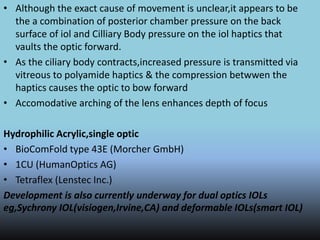

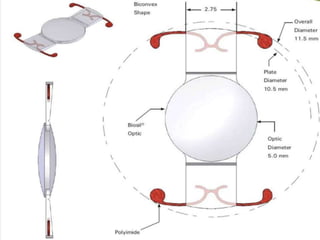

• Although the exact cause of movement is unclear,it appears to be the a combination of posterior chamber pressure on the back surface of iol and Cilliary Body pressure on the iol haptics that vaults the optic forward. • As the ciliary body contracts,increased pressure is transmitted via vitreous to polyamide haptics & the compression betwwen the haptics causes the optic to bow forward • Accomodative arching of the lens enhances depth of focus Hydrophilic Acrylic,single optic • BioComFold type 43E (Morcher GmbH) • 1CU (HumanOptics AG) • Tetraflex (Lenstec Inc.) Development is also currently underway for dual optics IOLs eg,Sychrony IOL(visiogen,Irvine,CA) and deformable IOLs(smart IOL)

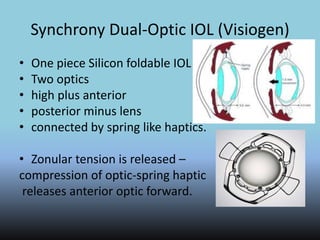

Synchrony Dual-Optic IOL (Visiogen) • One piece Silicon foldable IOL • Two optics • high plus anterior • posterior minus lens • connected by spring like haptics. • Zonular tension is released – compression of optic-spring haptic releases anterior optic forward.

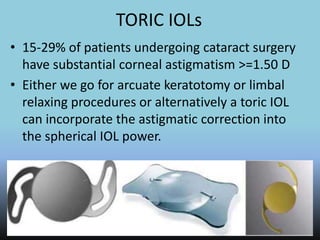

TORIC IOLs • 15-29% of patients undergoing cataract surgery have substantial corneal astigmatism >=1.50 D • Either we go for arcuate keratotomy or limbal relaxing procedures or alternatively a toric IOL can incorporate the astigmatic correction into the spherical IOL power.

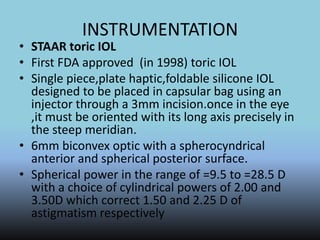

INSTRUMENTATION • STAAR toric IOL • First FDA approved (in 1998) toric IOL • Single piece,plate haptic,foldable silicone IOL designed to be placed in capsular bag using an injector through a 3mm incision.once in the eye ,it must be oriented with its long axis precisely in the steep meridian. • 6mm biconvex optic with a spherocyndrical anterior and spherical posterior surface. • Spherical power in the range of =9.5 to =28.5 D with a choice of cylindrical powers of 2.00 and 3.50D which correct 1.50 and 2.25 D of astigmatism respectively

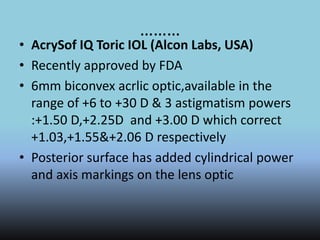

……… • AcrySof IQ Toric IOL (Alcon Labs, USA) • Recently approved by FDA • 6mm biconvex acrlic optic,available in the range of +6 to +30 D & 3 astigmatism powers :+1.50 D,+2.25D and +3.00 D which correct +1.03,+1.55&+2.06 D respectively • Posterior surface has added cylindrical power and axis markings on the lens optic

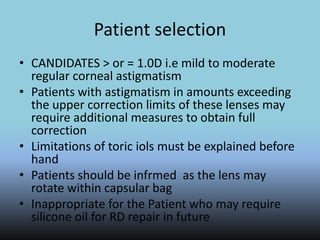

Patient selection • CANDIDATES > or = 1.0D i.e mild to moderate regular corneal astigmatism • Patients with astigmatism in amounts exceeding the upper correction limits of these lenses may require additional measures to obtain full correction • Limitations of toric iols must be explained before hand • Patients should be infrmed as the lens may rotate within capsular bag • Inappropriate for the Patient who may require silicone oil for RD repair in future

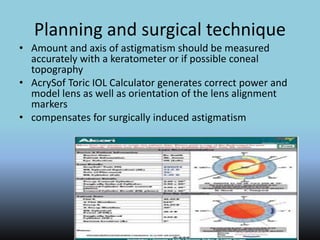

Planning and surgical technique • Amount and axis of astigmatism should be measured accurately with a keratometer or if possible coneal topography • AcrySof Toric IOL Calculator generates correct power and model lens as well as orientation of the lens alignment markers • compensates for surgically induced astigmatism

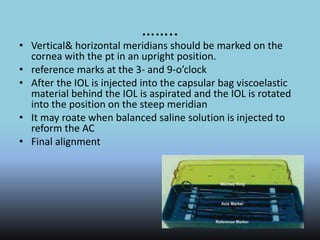

…….. • Vertical& horizontal meridians should be marked on the cornea with the pt in an upright position. • reference marks at the 3- and 9-o’clock • After the IOL is injected into the capsular bag viscoelastic material behind the IOL is aspirated and the IOL is rotated into the position on the steep meridian • It may roate when balanced saline solution is injected to reform the AC • Final alignment
Complications • Possibility of IOL rotation as full correction is not achieved unless the IOL is properly aligned in the axis of astigmatism According to STAAR,a 10 degree off axis rotation reduces the correction by approx. 1/3rd • 20degree by 2/3rd • And an off axis correction of more than 30 dregree can actually increase the cylindrical refractive error. • When a plate haptic toric IOL is used,surgeon should take care when performing Nd:Yag capsulotomy .if the capsulotomy is too large a plate haptic may prolapse posteriorly Typically a misaligned IOL is recognized within days of surgery,it should be repositioned before permanent fibrosis occurs within capsular bag.

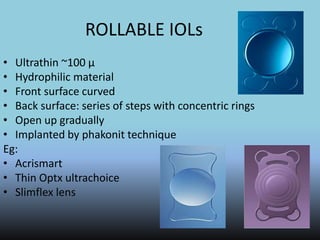

ROLLABLE IOLs • Ultrathin ~100 µ • Hydrophilic material • Front surface curved • Back surface: series of steps with concentric rings • Open up gradually • Implanted by phakonit technique Eg: • Acrismart • Thin Optx ultrachoice • Slimflex lens

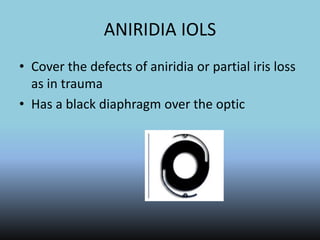

ANIRIDIA IOLS • Cover the defects of aniridia or partial iris loss as in trauma • Has a black diaphragm over the optic

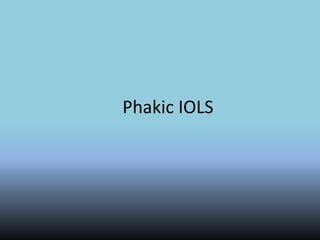

Phakic IOLS

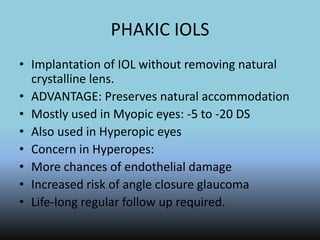

PHAKIC IOLS • Implantation of IOL without removing natural crystalline lens. • ADVANTAGE: Preserves natural accommodation • Mostly used in Myopic eyes: -5 to -20 DS • Also used in Hyperopic eyes • Concern in Hyperopes: • More chances of endothelial damage • Increased risk of angle closure glaucoma • Life-long regular follow up required.

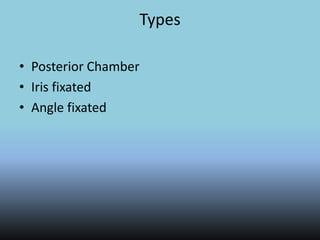

Types • Posterior Chamber • Iris fixated • Angle fixated

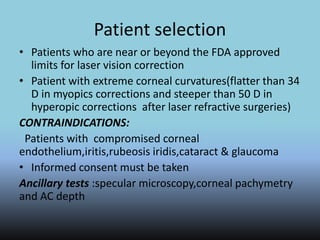

Patient selection • Patients who are near or beyond the FDA approved limits for laser vision correction • Patient with extreme corneal curvatures(flatter than 34 D in myopics corrections and steeper than 50 D in hyperopic corrections after laser refractive surgeries) CONTRAINDICATIONS: Patients with compromised corneal endothelium,iritis,rubeosis iridis,cataract & glaucoma • Informed consent must be taken Ancillary tests :specular microscopy,corneal pachymetry and AC depth

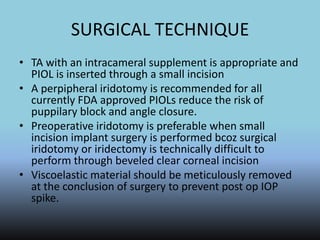

SURGICAL TECHNIQUE • TA with an intracameral supplement is appropriate and PIOL is inserted through a small incision • A perpipheral iridotomy is recommended for all currently FDA approved PIOLs reduce the risk of puppilary block and angle closure. • Preoperative iridotomy is preferable when small incision implant surgery is performed bcoz surgical iridotomy or iridectomy is technically difficult to perform through beveled clear corneal incision • Viscoelastic material should be meticulously removed at the conclusion of surgery to prevent post op IOP spike.

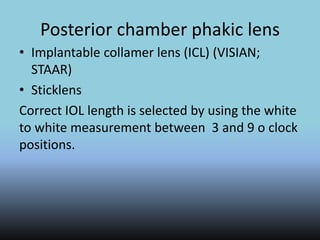

Posterior chamber phakic lens • Implantable collamer lens (ICL) (VISIAN; STAAR) • Sticklens Correct IOL length is selected by using the white to white measurement between 3 and 9 o clock positions.

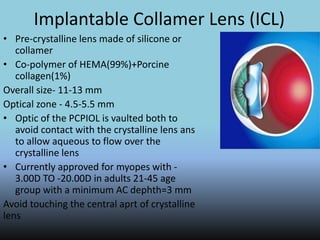

Implantable Collamer Lens (ICL) • Pre-crystalline lens made of silicone or collamer • Co-polymer of HEMA(99%)+Porcine collagen(1%) Overall size- 11-13 mm Optical zone - 4.5-5.5 mm • Optic of the PCPIOL is vaulted both to avoid contact with the crystalline lens ans to allow aqueous to flow over the crystalline lens • Currently approved for myopes with - 3.00D TO -20.00D in adults 21-45 age group with a minimum AC dephth=3 mm Avoid touching the central aprt of crystalline lens

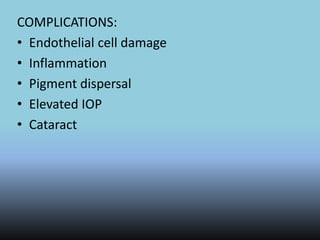

COMPLICATIONS: • Endothelial cell damage • Inflammation • Pigment dispersal • Elevated IOP • Cataract

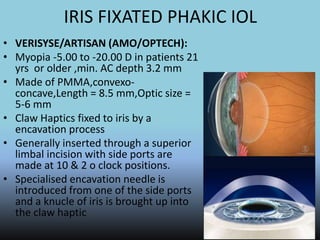

IRIS FIXATED PHAKIC IOL • VERISYSE/ARTISAN (AMO/OPTECH): • Myopia -5.00 to -20.00 D in patients 21 yrs or older ,min. AC depth 3.2 mm • Made of PMMA,convexo- concave,Length = 8.5 mm,Optic size = 5-6 mm • Claw Haptics fixed to iris by a encavation process • Generally inserted through a superior limbal incision with side ports are made at 10 & 2 o clock positions. • Specialised encavation needle is introduced from one of the side ports and a knucle of iris is brought up into the claw haptic

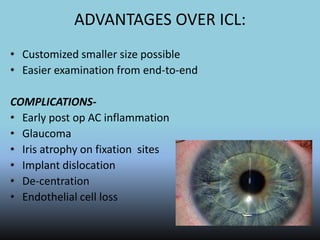

ADVANTAGES OVER ICL: • Customized smaller size possible • Easier examination from end-to-end COMPLICATIONS- • Early post op AC inflammation • Glaucoma • Iris atrophy on fixation sites • Implant dislocation • De-centration • Endothelial cell loss

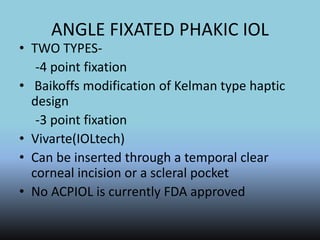

ANGLE FIXATED PHAKIC IOL • TWO TYPES- -4 point fixation • Baikoffs modification of Kelman type haptic design -3 point fixation • Vivarte(IOLtech) • Can be inserted through a temporal clear corneal incision or a scleral pocket • No ACPIOL is currently FDA approved

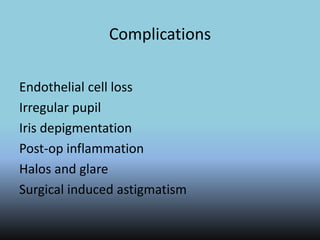

Complications Endothelial cell loss Irregular pupil Iris depigmentation Post-op inflammation Halos and glare Surgical induced astigmatism

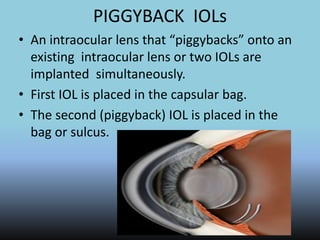

PIGGYBACK IOLs • An intraocular lens that “piggybacks” onto an existing intraocular lens or two IOLs are implanted simultaneously. • First IOL is placed in the capsular bag. • The second (piggyback) IOL is placed in the bag or sulcus.

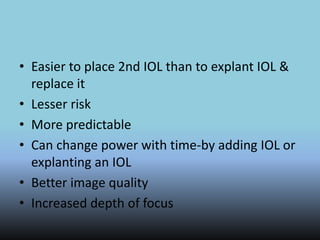

• Easier to place 2nd IOL than to explant IOL & replace it • Lesser risk • More predictable • Can change power with time-by adding IOL or explanting an IOL • Better image quality • Increased depth of focus

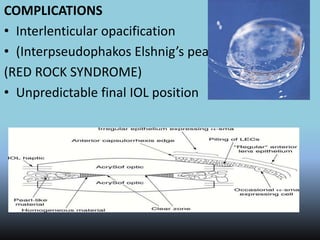

COMPLICATIONS • Interlenticular opacification • (Interpseudophakos Elshnig’s pearls) (RED ROCK SYNDROME) • Unpredictable final IOL position

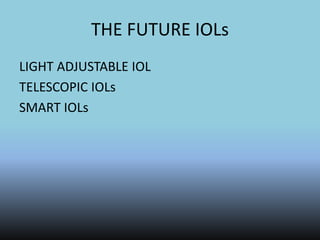

THE FUTURE IOLs LIGHT ADJUSTABLE IOL TELESCOPIC IOLs SMART IOLs

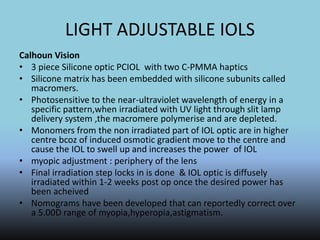

LIGHT ADJUSTABLE IOLS Calhoun Vision • 3 piece Silicone optic PCIOL with two C-PMMA haptics • Silicone matrix has been embedded with silicone subunits called macromers. • Photosensitive to the near-ultraviolet wavelength of energy in a specific pattern,when irradiated with UV light through slit lamp delivery system ,the macromere polymerise and are depleted. • Monomers from the non irradiated part of IOL optic are in higher centre bcoz of induced osmotic gradient move to the centre and cause the IOL to swell up and increases the power of IOL • myopic adjustment : periphery of the lens • Final irradiation step locks in is done & IOL optic is diffusely irradiated within 1-2 weeks post op once the desired power has been acheived • Nomograms have been developed that can reportedly correct over a 5.00D range of myopia,hyperopia,astigmatism.

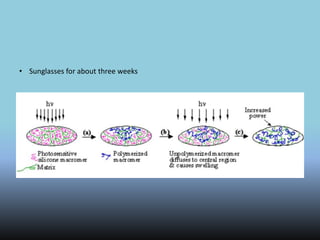

• Sunglasses for about three weeks

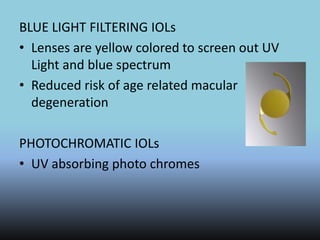

BLUE LIGHT FILTERING IOLs • Lenses are yellow colored to screen out UV Light and blue spectrum • Reduced risk of age related macular degeneration PHOTOCHROMATIC IOLs • UV absorbing photo chromes

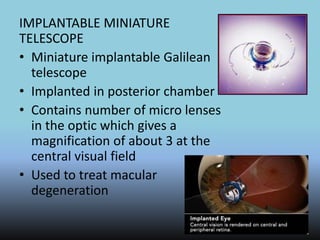

IMPLANTABLE MINIATURE TELESCOPE • Miniature implantable Galilean telescope • Implanted in posterior chamber • Contains number of micro lenses in the optic which gives a magnification of about 3 at the central visual field • Used to treat macular degeneration

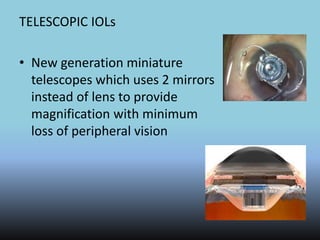

TELESCOPIC IOLs • New generation miniature telescopes which uses 2 mirrors instead of lens to provide magnification with minimum loss of peripheral vision

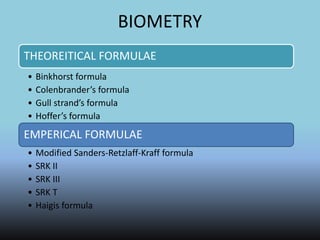

BIOMETRY THEOREITICAL FORMULAE • Binkhorst formula • Colenbrander’s formula • Gull strand’s formula • Hoffer’s formula EMPERICAL FORMULAE • Modified Sanders-Retzlaff-Kraff formula • SRK II • SRK III • SRK T • Haigis formula

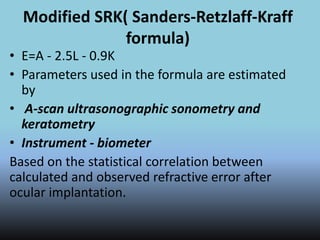

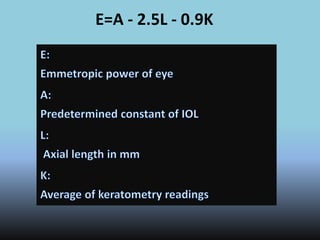

Modified SRK( Sanders-Retzlaff-Kraff formula) • E=A - 2.5L - 0.9K • Parameters used in the formula are estimated by • A-scan ultrasonographic sonometry and keratometry • Instrument - biometer Based on the statistical correlation between calculated and observed refractive error after ocular implantation.
E=A - 2.5L - 0.9K

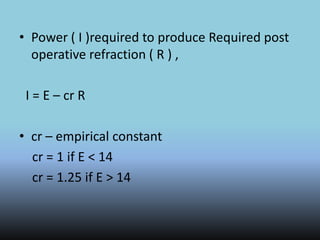

• Power ( I )required to produce Required post operative refraction ( R ) , I = E – cr R • cr – empirical constant cr = 1 if E < 14 cr = 1.25 if E > 14

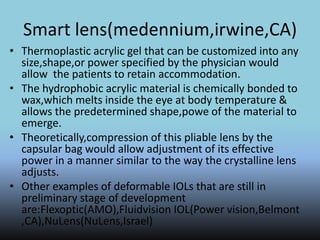

Smart lens(medennium,irwine,CA) • Thermoplastic acrylic gel that can be customized into any size,shape,or power specified by the physician would allow the patients to retain accommodation. • The hydrophobic acrylic material is chemically bonded to wax,which melts inside the eye at body temperature & allows the predetermined shape,powe of the material to emerge. • Theoretically,compression of this pliable lens by the capsular bag would allow adjustment of its effective power in a manner similar to the way the crystalline lens adjusts. • Other examples of deformable IOLs that are still in preliminary stage of development are:Flexoptic(AMO),Fluidvision IOL(Power vision,Belmont ,CA),NuLens(NuLens,Israel)

RECENT ADVANCES IN INTRAOCULAR LENS

More Related Content

PPT
IOL Selection- What to Ask and What to Tell Patients
bypresmedaustralia

PPTX
Newer IOLs
byDr. Ajay Kumar Singh

PDF
Intraocular lens
byVASIUR RAHMAN

PPTX
Mutifocal iols
bysri kiran eye institue

PDF
Types of IOL and Microlentics-2.pdf iol p
byraveenkumari262

PPTX
Multifocal IOL
byAsad Zaman

PPTX
Intra Oular Lenses
byslidenka

PPTX
Update in intraocular lenses
byÁlvaro Rodríguez-Ratón

IOL Selection- What to Ask and What to Tell Patients
bypresmedaustralia

Newer IOLs
byDr. Ajay Kumar Singh

Intraocular lens
byVASIUR RAHMAN

Mutifocal iols
bysri kiran eye institue

Types of IOL and Microlentics-2.pdf iol p
byraveenkumari262

Multifocal IOL
byAsad Zaman

Intra Oular Lenses
byslidenka

Update in intraocular lenses
byÁlvaro Rodríguez-Ratón


What's hot

PPT
10-subluxated-lens.ppt
byAdel930879

PPTX
Anophthalmic socket
bySivateja Challa

PPTX
Epiretinal membrane
byPushkal Katara

PPTX
keratoprosthesis
bySivateja Challa

PPTX
Macular hole
byDr Samarth Mishra

PPTX
Vitreous substitutes
bySSSIHMS-PG

PPTX
Anterior segment OCT & UBM
byDinesh Madduri

PPTX
Pseudoexfoliation syndrome
byGloria George

PPTX
Types of iol
byRohit Rao

PPTX
Penetrating Keratoplasty
byJigyasa Sahu

PPTX
Minimally invasive glaucoma surgery
byaditisingh77985

PPTX
Intra Ocular lens
bydipusarkar2

PPTX
Phakic Intraocular lens
byrumi das

PPTX
Implantable Collamer (Contact) Lens
byDr Mohd Najmussadiq Khan

PPTX
Diagnosis of pre perimetric glaucoma
bySadhwini Harish

PPTX
Iridodialysis repair
byArchanaShetty28

PPTX
The limbus
byMohmmad Dmour , MD

PPT
laser lenses for retinal diseases
bynalini2218

PPTX
Tissue Adhesive In Ophthalmology
byDiyarAlzubaidy

PPTX
Multifocal iols
bySSSIHMS-PG

10-subluxated-lens.ppt
byAdel930879

Anophthalmic socket
bySivateja Challa

Epiretinal membrane
byPushkal Katara

keratoprosthesis
bySivateja Challa

Macular hole
byDr Samarth Mishra

Vitreous substitutes
bySSSIHMS-PG

Anterior segment OCT & UBM
byDinesh Madduri

Pseudoexfoliation syndrome
byGloria George

Types of iol
byRohit Rao

Penetrating Keratoplasty
byJigyasa Sahu

Minimally invasive glaucoma surgery
byaditisingh77985

Intra Ocular lens
bydipusarkar2

Phakic Intraocular lens
byrumi das

Implantable Collamer (Contact) Lens
byDr Mohd Najmussadiq Khan

Diagnosis of pre perimetric glaucoma
bySadhwini Harish

Iridodialysis repair
byArchanaShetty28

The limbus
byMohmmad Dmour , MD

laser lenses for retinal diseases
bynalini2218

Tissue Adhesive In Ophthalmology
byDiyarAlzubaidy

Multifocal iols
bySSSIHMS-PG


Viewers also liked

PPTX
Intraocular lenses
bySumeet Agrawal

PPT
Cachet Secoir
byINSTITUTO DE OFTALMOLOGIA AVANZADA

PPTX
IOL power calculation special situations
byLaxmi Eye Institute

PPTX
Biometry & Iol calculations
byrakesh jaiswal

PPTX
Ocular viscoelastic devices(OVD)
bySivateja Challa

PPT
IOL Power Calculation in Normal Eyes
byAmirhossein Mirfendereski

PPTX
Ocular viscosurgical devices
byNikhil Rp

PPTX
IOL power calculation formulae
bypujarai

PPT
Biometry for Cataract
byDevin Prabhakar

PPTX
Biometry
byHossein Mirzaie

Intraocular lenses
bySumeet Agrawal

Cachet Secoir
byINSTITUTO DE OFTALMOLOGIA AVANZADA

IOL power calculation special situations
byLaxmi Eye Institute

Biometry & Iol calculations
byrakesh jaiswal

Ocular viscoelastic devices(OVD)
bySivateja Challa

IOL Power Calculation in Normal Eyes
byAmirhossein Mirfendereski

Ocular viscosurgical devices
byNikhil Rp

IOL power calculation formulae
bypujarai

Biometry for Cataract
byDevin Prabhakar

Biometry
byHossein Mirzaie


Similar to RECENT ADVANCES IN INTRAOCULAR LENS

PPTX
Types of IOL. Cataract instruments used it
bykanishkakathir1

PPTX
TYPES OF IOL in ophthalmology- recent advances
byDhvaniNaik1

PPTX
IOL IN CATARACT SURGERY.pptx
byDshri Sankar

PPT
NW2012 Intraocular Lens Design and Effects on Vision
byNawat Watanachai

PPTX
The Right Contact
bytherightcontact

PPTX
The Right Contact
bytherightcontact

PPTX
APHACIC IOL
byAlshymaa Moustafa

PPTX
Presbyopia ( Part 1 / lenticular approach )..Types of MFIOL
byDiyarAlzubaidy

PPTX
Let's learn everything about MULTIFOCAL IOL .pptx
byranjitaamanatya111

PPTX
Intra ocular lens
byVishnu Narayanan

ODP
Accommodative and multifocal intraocular lenses
byBijan Farpour

PDF
Accommodative Intraocular Lenses-Crimson Publishers
byCrimsonpublishersMedical

PPTX
Cataract Surgery . IOL s.pptx types of IOLs
byMamataStephen

PPT
Optical rehabilitation or Correction of Aphakia
byNikhil Bansal

PPT
Pre And Postoperative Care Of The Modern Cataract Patient
byDr. Dean Dornic

PPT
Advances in presbyopia treatment
byperfectvision

PPTX
Premium intraocular lenses The past, present and-3.pptx
byMushtaq Ahmad

PPTX
Intraocular lens
bySai Sandeep

PPTX
Evolution, types, materials of iol
byBipin Bista

PPTX
Phakic IOL
byGauree Gattani

Types of IOL. Cataract instruments used it
bykanishkakathir1

TYPES OF IOL in ophthalmology- recent advances
byDhvaniNaik1

IOL IN CATARACT SURGERY.pptx
byDshri Sankar

NW2012 Intraocular Lens Design and Effects on Vision
byNawat Watanachai

The Right Contact
bytherightcontact

The Right Contact
bytherightcontact

APHACIC IOL
byAlshymaa Moustafa

Presbyopia ( Part 1 / lenticular approach )..Types of MFIOL
byDiyarAlzubaidy

Let's learn everything about MULTIFOCAL IOL .pptx
byranjitaamanatya111

Intra ocular lens
byVishnu Narayanan

Accommodative and multifocal intraocular lenses
byBijan Farpour

Accommodative Intraocular Lenses-Crimson Publishers
byCrimsonpublishersMedical

Cataract Surgery . IOL s.pptx types of IOLs
byMamataStephen

Optical rehabilitation or Correction of Aphakia
byNikhil Bansal

Pre And Postoperative Care Of The Modern Cataract Patient
byDr. Dean Dornic

Advances in presbyopia treatment
byperfectvision

Premium intraocular lenses The past, present and-3.pptx
byMushtaq Ahmad

Intraocular lens
bySai Sandeep

Evolution, types, materials of iol
byBipin Bista

Phakic IOL
byGauree Gattani


More from Dr Laltanpuia Chhangte

PDF
A case of odontogenic orbital cellulitis causing blindness in young male
byDr Laltanpuia Chhangte

PDF
Epidemiological and microbiological profile of infectious corneal ulcers in t...
byDr Laltanpuia Chhangte

PPTX
Complications of cataract surgery
byDr Laltanpuia Chhangte

PPTX
Anterior uveitis
byDr Laltanpuia Chhangte

PPTX
Sensory evaluation of squint
byDr Laltanpuia Chhangte

PPTX
Optic nerve head evaluation in glaucoma
byDr Laltanpuia Chhangte

A case of odontogenic orbital cellulitis causing blindness in young male
byDr Laltanpuia Chhangte

Epidemiological and microbiological profile of infectious corneal ulcers in t...
byDr Laltanpuia Chhangte

Complications of cataract surgery
byDr Laltanpuia Chhangte

Anterior uveitis
byDr Laltanpuia Chhangte

Sensory evaluation of squint
byDr Laltanpuia Chhangte

Optic nerve head evaluation in glaucoma
byDr Laltanpuia Chhangte


Recently uploaded

PPTX
BRONCHIAL ASTHMA.pptx by gokulakrishnan
byGOKULAKRISHNAN JANARTHANAN

PPTX
EQUIPMENT USED IN HEMATOLOGY LABORATORY.pptx
byKISMAT ALI

PPTX
DNS deviated nasal septum ent ward s.pptx
bysyedahiba121

PPTX
WHEN NOT TO DO TENDOACHILLES TENOTOMY.pptx
byUmeshPrasadChoudhary

PPTX
cardiac transplantation vp copy copy.pptx
byabay35110

PDF
Key Pharmaceutical Advisory Firms for Early-Stage Biotech Businesses
byk kumar

PDF
SEMINARIO BIOMOL.pdf (Samuel Cantillo y Karen Bohorquez)
bySamuelCantillo7

PPTX
Left Ventricular Assist Devices.(New Gen)
bySyedFaisalAhmed12

PPTX
CATARACT SURGERY... KAL AAJ AUR KAL... THE PAST, THE PRESENT AND THE FUTURE.
byirfanrawal

PPTX
CTEV [ clubfoot] DR ARUN LAL ,DR MOHAMED ASHRAF travancore medical college k...
bydrashraf369

PPTX
Formulation Development & Evaluation of Polyherbal Soap
bypurwaborkar@gmail.com

PDF
Dr. David Ford Wilson - Provides Holistic Mental Health Care
byDr. David Ford Wilson

PPTX
Acute kidney injury and its management.pptx
byrozhnuraddin

PPT
Rethinking Pulmonary Fibrosis: From Fine-Tuning Diagnosis to Illuminating Nov...
byPVI, PeerView Institute for Medical Education

PPTX
Journal club on cross trial gastric.pptx
byKishore Chandra Korada

PPTX
EMPHYSEMA.cardio pptx by gokulakrishnan sports
byGOKULAKRISHNAN JANARTHANAN

PPTX
IDENTIFICATION OF BACTERIA.by Molecular methods
byAmeenKhan59

PDF
The Doctor's Balance Sheet By Dr Kanhu Charan Patro
byKanhu Charan

PPTX
PRODUCTION OF ANTIBIOTICS e.g (Penicillin)
bySadaqat Ahmed

PPTX
Recent and update advances in RMNCAH+N.pptx
bypoornimatomar21

BRONCHIAL ASTHMA.pptx by gokulakrishnan
byGOKULAKRISHNAN JANARTHANAN

EQUIPMENT USED IN HEMATOLOGY LABORATORY.pptx
byKISMAT ALI

DNS deviated nasal septum ent ward s.pptx
bysyedahiba121

WHEN NOT TO DO TENDOACHILLES TENOTOMY.pptx
byUmeshPrasadChoudhary

cardiac transplantation vp copy copy.pptx
byabay35110

Key Pharmaceutical Advisory Firms for Early-Stage Biotech Businesses
byk kumar

SEMINARIO BIOMOL.pdf (Samuel Cantillo y Karen Bohorquez)
bySamuelCantillo7

Left Ventricular Assist Devices.(New Gen)
bySyedFaisalAhmed12

CATARACT SURGERY... KAL AAJ AUR KAL... THE PAST, THE PRESENT AND THE FUTURE.
byirfanrawal

CTEV [ clubfoot] DR ARUN LAL ,DR MOHAMED ASHRAF travancore medical college k...
bydrashraf369

Formulation Development & Evaluation of Polyherbal Soap
bypurwaborkar@gmail.com

Dr. David Ford Wilson - Provides Holistic Mental Health Care
byDr. David Ford Wilson

Acute kidney injury and its management.pptx
byrozhnuraddin

Rethinking Pulmonary Fibrosis: From Fine-Tuning Diagnosis to Illuminating Nov...
byPVI, PeerView Institute for Medical Education

Journal club on cross trial gastric.pptx
byKishore Chandra Korada

EMPHYSEMA.cardio pptx by gokulakrishnan sports
byGOKULAKRISHNAN JANARTHANAN

IDENTIFICATION OF BACTERIA.by Molecular methods
byAmeenKhan59

The Doctor's Balance Sheet By Dr Kanhu Charan Patro
byKanhu Charan

PRODUCTION OF ANTIBIOTICS e.g (Penicillin)
bySadaqat Ahmed

Recent and update advances in RMNCAH+N.pptx
bypoornimatomar21


RECENT ADVANCES IN INTRAOCULAR LENS

  • 1.
    RECENT ADVANCES INIOLS Dr. Laltanpuia Chhangte GMC ,HALDWANI
  • 2.
    What is intraocularlens? • An artificial lens implanted in the eyes • Replaces the crystalline lens • To correct the optical power of the eyes following:- Lens being clouded by cataract Refractive surgery
  • 3.
    Primary vs secondaryimplantation • Primary implantation – use of IOLs during surgery for cataract • Secondary implantation – implantation of IOL to correct aphakia in a previosly operated eye
  • 4.
    Parts of anIOL • OPTIC Part of the lens that focuses light on the retina. • HAPTIC Small filaments connected to the optic that hold the lens in place in the eye HAPTEN OPTIC
  • 5.
  • 6.
    THE FIRST IOL!! •PMMA made lens – 45 year old female after performing extracapsular cataract extraction • Disc shaped bi-convex design • Site- posterior chamber • First generation IOL
  • 7.
    EVOLUTION OF IOLs 1.First generation IOLs • Ridley lenses • Disadvantages – posterior dislocation poor surgical technique 2. Second generation IOLs • Rigid and semi-rigid anterior chamber IOLs • Advantages – reduce posterior dislocation • Disadvantage – corneal decompensation UGH syndrome
  • 8.
    3. Third generationIOLs • Iris supported lens • Advantages- less corneal decompensation • Disadvantages – iris chaffing pupillary distortion c/c inflammation cystoid macular edema
  • 9.
    4. Fourth generationIOLs • Modern anterior chamber lens • Flexible loops and multiple point fixation • Advantages – more stable, better design, less complications • Disadvantages – anterior chamber is not the physiological site for IOL
  • 10.
    5. Fifth generationIOLs • PMMA lenses • Foldable and small incision lenses
  • 11.
    MATERIALS USED FORINTRAOCULAR LENSES Optic materials 1.Non-foldable-rigid IOL • Poly-methyl methacrylate(PMMA) Water content <1% Refractive index 1.49 Usually single piece May be penetrated by aqueous humor known as ‘glistenings’ (very rare) 2.Flexible IOLs • Silicones • Hydrophobic acrylic • Hydrophilic acrylic • Hydrogel • Collamer
  • 13.
  • 14.
    INTRAOCULAR LENS DESIGN •Single piece / monobloc • Plate haptic / open loop haptics • Angulated / planar haptics • Edge design • Optic design
  • 15.
    Different types ofhaptic angulation relative to the plane of optic:- For posterior chamber lens:- • 100 anterior angulation to keep the optic part away from the pupil. For anterior chamber lens:- • Posteriorly angulated lens to vault the intraocular lens away from the pupil
  • 16.
    ANGULATED HAPTICS ALLOWFOR ADEQUATE PUPILLARY CLEARANCE AND ADHESION TO THE POSTERIOR CAPSULE
  • 17.
  • 19.
  • 21.
    Suitable position forimplanting IOL in eye • Best placed in posterior chamber in the capsular bag.
  • 22.
    ADVANTAGES OF IN-THE-BAG PLACEMENT •Proper anatomical site • Symmetrical loop placement • Intraoperative stretching or tearing of zonules is avoided • Minimal magnification (<2%); (20-30% aphakic glasses, 7-12% aphakic contact lens, ACIOL 2-5% ) • Low incidence of lens decentration and dislocation • Maximal distance from the posterior iris pigment epithelium, iris root, and ciliary processes • Reduced posterior capsular opacification
  • 23.
    POSITIONING OF IOL 1.Posterior chamber implantation • Ciliary sulcus fixation • In the bag fixation • Scleral fixation Eg:- modified C loop type IOL
  • 24.
  • 25.
    OTHER POSITIONS: • Posteriorcapsule tear • zonular dialysis
  • 26.
  • 27.
  • 28.
    2. Anterior chamber implantation •Angle supported IOLs • Iris fixated e.g Kelman multiflex type IOL
  • 29.
    3. Iris- fixatedlens • Fixed on the iris with claws,loops or sutures • Eg- Singh and Worst’s iris claw lens
  • 30.
    BASED ON OPTICALCORRECTION 1. Mono-focal intraocular lens • Lens with uni-focal power • This common IOL type has been used for several decades . • Mono-focals are set to provide best corrected vision at near, intermediate or far distances. • Most people who choose mono-focals have their IOLs set for distance vision and use reading glasses for near activities. • Some who choose mono-focals decide to have the IOL for one eye set for distance vision, and the other set for near vision, a strategy called "monovision."
  • 31.
    …….. • The brainadapts and synthesizes the information from both eyes to provide vision at intermediate distances. People who regularly use computers, PDAs or other digital devices may find this especially useful. • Individuals considering monovision may be able to try this technique with contact lenses first to see how well they can adapt to monovision. • Those who require crisp, detailed vision may decide monovision is not for them. People with appropriate vision prescriptions may find that monovision allows them see well at most distances with little or no need for eyeglasses.
  • 32.
    2.Multifocal IOLs • SingleIOL with two or more focal points • Refractive • Diffractive • Combination of both • Simultaneous vision lenses • Pseudo-accommodation
  • 33.
    Multifocal IOLs • Multifocaliols have the advantage of providing patients with functional vision at near ,far and at intermediate distances. • Patients can have a traditional monofocal iol with a refractive target of emmetropia,mild myopia,or monovision(1 eye distance,1eye near) • The Array (AMO),Santa ana CA multifocal silicone PCIOL was the first multifocal IOL to be granted fda approval in US. • Three mutifocal lenses are currently FDA approved for use after cataract extraction: • ReZoom lens(AMO),The Acrysof ResTOR(alcon) and Technis(AMO) multifocal iols
  • 34.
    ReZoom lens • Flexible,3-piece, acrylic, distance dominant zonal refractive IOL • Insertion through 2.8 mm CCI • 5 expanded refractive zones within the 6 mm optic & produces 2.80 D of near power • Pupil must be 2 mm to reach the near effect
  • 36.
    Multiple focal pointsof a refractive multifocal IOL
  • 37.
    DIFFRACTIVE MULTIFOCAL IOLs •Anterior aspheric surface : basic refractive power • Multiple grooves on posterior surface : diffractive power • 41% of light : distance • 41% : near vision • Pupil independent
  • 38.
    Multiple focal pointsof a diffractive multifocal IOL
  • 40.
    Acrysof ReSTOR lens(alconlab) • FDA approved in 2005 • 1/3 piece ,acrylic ,aspheric ,foldable ,diffractive lens that simultaneously focuses light on both near and distance targets • Central 3.6mm difrractive zone is mainly for near and outside that is for distant vision • Loss of 6%-19% light which affects contrast sensitivity esp in patients with smaller pupils • ReSTOR IOL is manufactured with +4.00 D+3.00D add at IOL plane. • Patients who received +4.00D expressed dissatisfaction with the near focal point being too close
  • 41.
    Tecnis Multifocal IOLs(AMO) • FDA approved in 2009 • Foldable,hydrophobic,diffractive aspheric acrylic lens • The diffractive steps are on the posterior aspect on the lens and extend fully to the periphery. • Diffractive Power +4.0 diopters of near addition (+3.0 Diopters at spectacle plane)
  • 44.
    Patient selection • Relativelyeasy going people who place a high value on reducing dependence on glasses or contact lenses • Good potential vision • <1.00D preexisting corneal astigmatism • Demanding patients strictly avoided Special considerations: • Counselling (most important) • Accurate Biometry • IOL master strongly recommended
  • 45.
    Surgical technique • Sameas in standard SICS with a foldable acrylic IOL • Round, centered CCC completely overlapping the lens optic • Removal of all viscoelastic from behind the lens • Optimal refractive effects depend upon good centration • Discouraged in case of inadequate centration or if posterior capsule is not intact
  • 46.
    Side effects andcomplications • Capsular opacification • Glare,halos,and ghosting than a monofocal IOL or an accommodating IOL • Decreased contrast sensitivity • Intermediate vision may be weaker with multifocal IOLs than an accommodating one • Requires Visual-Cortical Neuro-adaptation
  • 47.
  • 48.
    ASPHERIC IOLs • Humaneye : Aspheric Optics • Cornea : Positive spherical aberration • Young crystalline lens : Negative spherical aberration • Ageing crystalline lens : Increased positive spherical aberration • spherical aberration ~ fourth power of the pupil diameter
  • 53.
    Anterior prolate surface •Tecnis, Advanced Medical Optics (AMO) Posterior prolate surface • Acrysof IQ, Alcon Laboratories Both Anterior and Posterior prolate surfaces • Akreos AO, SofPort AO and L161 AO, Bausch & Lomb
  • 54.
  • 55.
    ACCOMMODATIVE IOLs • MonofocalIOL • To restore a significant amount of true accommodation to patients with surgically induced pseudophakia. • During ciliary muscle contraction,forward displacement of the IOL led to an increase in the IOLs effective power and thus an improvement in near vision. • 1 mm of anterior movement of lens = 1.80 D of accommodation • Mimicking the eye's natural ability to focus Crytalens ( Baush & Lomb):modified silicone, plate haptic(hinged),biconvex optic which potentially allow anterior movement of the lens during accommodation.
  • 56.
    Accomodative IOLs • Anothertheory is ciliary muscle contraction causes a steepening of anterior optic surface allowing for better near vision. • Only FDA approved IOL for correction of presbyopia
  • 57.
    • Although theexact cause of movement is unclear,it appears to be the a combination of posterior chamber pressure on the back surface of iol and Cilliary Body pressure on the iol haptics that vaults the optic forward. • As the ciliary body contracts,increased pressure is transmitted via vitreous to polyamide haptics & the compression betwwen the haptics causes the optic to bow forward • Accomodative arching of the lens enhances depth of focus Hydrophilic Acrylic,single optic • BioComFold type 43E (Morcher GmbH) • 1CU (HumanOptics AG) • Tetraflex (Lenstec Inc.) Development is also currently underway for dual optics IOLs eg,Sychrony IOL(visiogen,Irvine,CA) and deformable IOLs(smart IOL)
  • 59.
    Synchrony Dual-Optic IOL(Visiogen) • One piece Silicon foldable IOL • Two optics • high plus anterior • posterior minus lens • connected by spring like haptics. • Zonular tension is released – compression of optic-spring haptic releases anterior optic forward.
  • 60.
    TORIC IOLs • 15-29%of patients undergoing cataract surgery have substantial corneal astigmatism >=1.50 D • Either we go for arcuate keratotomy or limbal relaxing procedures or alternatively a toric IOL can incorporate the astigmatic correction into the spherical IOL power.
  • 61.
    INSTRUMENTATION • STAAR toricIOL • First FDA approved (in 1998) toric IOL • Single piece,plate haptic,foldable silicone IOL designed to be placed in capsular bag using an injector through a 3mm incision.once in the eye ,it must be oriented with its long axis precisely in the steep meridian. • 6mm biconvex optic with a spherocyndrical anterior and spherical posterior surface. • Spherical power in the range of =9.5 to =28.5 D with a choice of cylindrical powers of 2.00 and 3.50D which correct 1.50 and 2.25 D of astigmatism respectively
  • 62.
    ……… • AcrySof IQToric IOL (Alcon Labs, USA) • Recently approved by FDA • 6mm biconvex acrlic optic,available in the range of +6 to +30 D & 3 astigmatism powers :+1.50 D,+2.25D and +3.00 D which correct +1.03,+1.55&+2.06 D respectively • Posterior surface has added cylindrical power and axis markings on the lens optic
  • 63.
    Patient selection • CANDIDATES> or = 1.0D i.e mild to moderate regular corneal astigmatism • Patients with astigmatism in amounts exceeding the upper correction limits of these lenses may require additional measures to obtain full correction • Limitations of toric iols must be explained before hand • Patients should be infrmed as the lens may rotate within capsular bag • Inappropriate for the Patient who may require silicone oil for RD repair in future
  • 64.
    Planning and surgicaltechnique • Amount and axis of astigmatism should be measured accurately with a keratometer or if possible coneal topography • AcrySof Toric IOL Calculator generates correct power and model lens as well as orientation of the lens alignment markers • compensates for surgically induced astigmatism
  • 65.
    …….. • Vertical& horizontalmeridians should be marked on the cornea with the pt in an upright position. • reference marks at the 3- and 9-o’clock • After the IOL is injected into the capsular bag viscoelastic material behind the IOL is aspirated and the IOL is rotated into the position on the steep meridian • It may roate when balanced saline solution is injected to reform the AC • Final alignment
  • 67.
    Complications • Possibility ofIOL rotation as full correction is not achieved unless the IOL is properly aligned in the axis of astigmatism According to STAAR,a 10 degree off axis rotation reduces the correction by approx. 1/3rd • 20degree by 2/3rd • And an off axis correction of more than 30 dregree can actually increase the cylindrical refractive error. • When a plate haptic toric IOL is used,surgeon should take care when performing Nd:Yag capsulotomy .if the capsulotomy is too large a plate haptic may prolapse posteriorly Typically a misaligned IOL is recognized within days of surgery,it should be repositioned before permanent fibrosis occurs within capsular bag.
  • 68.
    ROLLABLE IOLs • Ultrathin~100 µ • Hydrophilic material • Front surface curved • Back surface: series of steps with concentric rings • Open up gradually • Implanted by phakonit technique Eg: • Acrismart • Thin Optx ultrachoice • Slimflex lens
  • 70.
    ANIRIDIA IOLS • Coverthe defects of aniridia or partial iris loss as in trauma • Has a black diaphragm over the optic
  • 71.
  • 72.
    PHAKIC IOLS • Implantationof IOL without removing natural crystalline lens. • ADVANTAGE: Preserves natural accommodation • Mostly used in Myopic eyes: -5 to -20 DS • Also used in Hyperopic eyes • Concern in Hyperopes: • More chances of endothelial damage • Increased risk of angle closure glaucoma • Life-long regular follow up required.
  • 73.
    Types • Posterior Chamber •Iris fixated • Angle fixated
  • 74.
    Patient selection • Patientswho are near or beyond the FDA approved limits for laser vision correction • Patient with extreme corneal curvatures(flatter than 34 D in myopics corrections and steeper than 50 D in hyperopic corrections after laser refractive surgeries) CONTRAINDICATIONS: Patients with compromised corneal endothelium,iritis,rubeosis iridis,cataract & glaucoma • Informed consent must be taken Ancillary tests :specular microscopy,corneal pachymetry and AC depth
  • 75.
    SURGICAL TECHNIQUE • TAwith an intracameral supplement is appropriate and PIOL is inserted through a small incision • A perpipheral iridotomy is recommended for all currently FDA approved PIOLs reduce the risk of puppilary block and angle closure. • Preoperative iridotomy is preferable when small incision implant surgery is performed bcoz surgical iridotomy or iridectomy is technically difficult to perform through beveled clear corneal incision • Viscoelastic material should be meticulously removed at the conclusion of surgery to prevent post op IOP spike.
  • 76.
    Posterior chamber phakiclens • Implantable collamer lens (ICL) (VISIAN; STAAR) • Sticklens Correct IOL length is selected by using the white to white measurement between 3 and 9 o clock positions.
  • 77.
    Implantable Collamer Lens(ICL) • Pre-crystalline lens made of silicone or collamer • Co-polymer of HEMA(99%)+Porcine collagen(1%) Overall size- 11-13 mm Optical zone - 4.5-5.5 mm • Optic of the PCPIOL is vaulted both to avoid contact with the crystalline lens ans to allow aqueous to flow over the crystalline lens • Currently approved for myopes with - 3.00D TO -20.00D in adults 21-45 age group with a minimum AC dephth=3 mm Avoid touching the central aprt of crystalline lens
  • 78.
    COMPLICATIONS: • Endothelial celldamage • Inflammation • Pigment dispersal • Elevated IOP • Cataract
  • 79.
    IRIS FIXATED PHAKICIOL • VERISYSE/ARTISAN (AMO/OPTECH): • Myopia -5.00 to -20.00 D in patients 21 yrs or older ,min. AC depth 3.2 mm • Made of PMMA,convexo- concave,Length = 8.5 mm,Optic size = 5-6 mm • Claw Haptics fixed to iris by a encavation process • Generally inserted through a superior limbal incision with side ports are made at 10 & 2 o clock positions. • Specialised encavation needle is introduced from one of the side ports and a knucle of iris is brought up into the claw haptic
  • 80.
    ADVANTAGES OVER ICL: •Customized smaller size possible • Easier examination from end-to-end COMPLICATIONS- • Early post op AC inflammation • Glaucoma • Iris atrophy on fixation sites • Implant dislocation • De-centration • Endothelial cell loss
  • 81.
    ANGLE FIXATED PHAKICIOL • TWO TYPES- -4 point fixation • Baikoffs modification of Kelman type haptic design -3 point fixation • Vivarte(IOLtech) • Can be inserted through a temporal clear corneal incision or a scleral pocket • No ACPIOL is currently FDA approved
  • 82.
    Complications Endothelial cell loss Irregularpupil Iris depigmentation Post-op inflammation Halos and glare Surgical induced astigmatism
  • 83.
    PIGGYBACK IOLs • Anintraocular lens that “piggybacks” onto an existing intraocular lens or two IOLs are implanted simultaneously. • First IOL is placed in the capsular bag. • The second (piggyback) IOL is placed in the bag or sulcus.
  • 84.
    • Easier toplace 2nd IOL than to explant IOL & replace it • Lesser risk • More predictable • Can change power with time-by adding IOL or explanting an IOL • Better image quality • Increased depth of focus
  • 85.
    COMPLICATIONS • Interlenticular opacification •(Interpseudophakos Elshnig’s pearls) (RED ROCK SYNDROME) • Unpredictable final IOL position
  • 86.
    THE FUTURE IOLs LIGHTADJUSTABLE IOL TELESCOPIC IOLs SMART IOLs
  • 87.
    LIGHT ADJUSTABLE IOLS CalhounVision • 3 piece Silicone optic PCIOL with two C-PMMA haptics • Silicone matrix has been embedded with silicone subunits called macromers. • Photosensitive to the near-ultraviolet wavelength of energy in a specific pattern,when irradiated with UV light through slit lamp delivery system ,the macromere polymerise and are depleted. • Monomers from the non irradiated part of IOL optic are in higher centre bcoz of induced osmotic gradient move to the centre and cause the IOL to swell up and increases the power of IOL • myopic adjustment : periphery of the lens • Final irradiation step locks in is done & IOL optic is diffusely irradiated within 1-2 weeks post op once the desired power has been acheived • Nomograms have been developed that can reportedly correct over a 5.00D range of myopia,hyperopia,astigmatism.
  • 88.
    • Sunglasses forabout three weeks
  • 89.
    BLUE LIGHT FILTERINGIOLs • Lenses are yellow colored to screen out UV Light and blue spectrum • Reduced risk of age related macular degeneration PHOTOCHROMATIC IOLs • UV absorbing photo chromes
  • 90.
    IMPLANTABLE MINIATURE TELESCOPE • Miniatureimplantable Galilean telescope • Implanted in posterior chamber • Contains number of micro lenses in the optic which gives a magnification of about 3 at the central visual field • Used to treat macular degeneration
  • 91.
    TELESCOPIC IOLs • Newgeneration miniature telescopes which uses 2 mirrors instead of lens to provide magnification with minimum loss of peripheral vision
  • 92.
    BIOMETRY THEOREITICAL FORMULAE • Binkhorstformula • Colenbrander’s formula • Gull strand’s formula • Hoffer’s formula EMPERICAL FORMULAE • Modified Sanders-Retzlaff-Kraff formula • SRK II • SRK III • SRK T • Haigis formula
  • 93.
    Modified SRK( Sanders-Retzlaff-Kraff formula) •E=A - 2.5L - 0.9K • Parameters used in the formula are estimated by • A-scan ultrasonographic sonometry and keratometry • Instrument - biometer Based on the statistical correlation between calculated and observed refractive error after ocular implantation.
  • 94.
    E=A - 2.5L- 0.9K
  • 95.
    • Power (I )required to produce Required post operative refraction ( R ) , I = E – cr R • cr – empirical constant cr = 1 if E < 14 cr = 1.25 if E > 14
  • 96.
    Smart lens(medennium,irwine,CA) • Thermoplasticacrylic gel that can be customized into any size,shape,or power specified by the physician would allow the patients to retain accommodation. • The hydrophobic acrylic material is chemically bonded to wax,which melts inside the eye at body temperature & allows the predetermined shape,powe of the material to emerge. • Theoretically,compression of this pliable lens by the capsular bag would allow adjustment of its effective power in a manner similar to the way the crystalline lens adjusts. • Other examples of deformable IOLs that are still in preliminary stage of development are:Flexoptic(AMO),Fluidvision IOL(Power vision,Belmont ,CA),NuLens(NuLens,Israel)

Editor's Notes

  • #3 In conditions
  • #33  BASED ON EITHER REFRACTIVE OR DIFFRACTIVE OPTICS
  • #36 Zone 1,3 and 5 : distance 60% distance, 40% near and intermediate Zone 2 and 4 : near
  • #41 Depending upon pupil size,
  • #44 Apodization literally means "removing the foot“ To remove or smooth a discontinuity at the edges
  • #45 Better to avoid demanding patients
  • #46 Use is discouraged..and a monofocal lens should be placed instead
  • #47 Cap opacification is of greater concern as minimal changes in the capsule may lead to early deterioration of vision Complaints of halos tend to subside over months due to patients neural adaptation.
  • #54 Lengh is more at poles than equatorial axis ..improves image quality and visual performance
  • #56 Its an attempt to restore That’s y ACIOLS have lower A constant than PCIOL. However few studies have questioned the amplitude of true accommodation being d sole reason as ,,pupil zsize,with the rule astigmatism & mild myopid may also contribute to near vision
  • #57 Plate hinged haptics
  • #61 Either v go for arcuate keratotomy or limbal relaxing procedures during or after cat surgery.ie lasik,
  • #62 Iols are available with spherical power in the range
  • #64 Like implantation of toric iol will not eliminate the need for reading glasses And may require anither surgery to reposition it As staar is a silicone iol..while acrysof would still b an option
  • #66 As any misalignment resulting from the torsional globe rotation that sometimes may occur wih movement in supine position
  • #77 Alternative methods beng high f USG/anterior segment OCT ,slit beam or laser inferometry
  • #78 Vaulting can be confir biomicroscopymed at the slit lamp as well as with USG..
  • #88 In Mypoia instead of periphery ,central part is irradiated bczo of reduction in central thickness of iol
  • #92 No loss of peripheral vision
