Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial Use
This document provides an overview of programmable logic controllers (PLCs). It describes the basic components of a PLC including the central processing unit, input and output modules, power supply, and programming software. PLCs were developed to provide flexibility compared to traditional hardwired control systems. The document discusses PLC applications, advantages such as ease of programming and modification, as well as some disadvantages like proprietary aspects. It also covers PLC size, history, and leading manufacturers.
The document provides information about programmable logic controllers (PLCs). It defines a PLC as a digital computer used to automate electromechanical processes. The document then discusses the key advantages of PLCs like being cost-effective, flexible, and able to operate reliably for years. It also describes the basic architecture of a PLC including input and output modules, a central processing unit, and a programming device. Examples of ladder logic programming are also included to illustrate how PLCs can be programmed to control processes like starting motors in forward and reverse directions.
This document provides an overview of a seminar on programmable logic controllers (PLCs). The objectives are to describe PLC components, interpret specifications, apply troubleshooting techniques, convert relay logic to PLC languages, and operate and program PLCs. The contents include the history of PLCs, relay logic, PLC architecture such as CPU and I/O systems, programming concepts, applications, and troubleshooting. PLCs were developed to replace relay-based control systems and are now widely used in industrial automation.
PLC ARCHITECTURE AND HARDWARE COMPONENTSAkshay Dhole
Explains about the basics of PLC ARCHITECTURE AND HARDWARE COMPONENTS.
A Programmable Logic Controller (PLC) is a specialized computing system used for control of industrial machines and processes.
A PLC is a computer designed to work in an industrial environment
PowerPoint Presentation on Industrial Automation In which we discuss About PLCs, SCADA,HMI,VFD and various tools of Automation which is used in Industries.
Like Comment & Share
A programmable logic controller or programmable controller is an industrial computer that has been ruggedized and adapted for the control of manufacturing processes, such as assembly lines, machines, robotic devices, or any activity that requires high reliability, ease of programming, and process fault diagnosis
The document discusses automation and tools used for automation including PLCs and SCADA systems. It provides an overview of what PLCs and SCADA are, including their components and programming. PLCs are microprocessor-based devices that interface inputs and outputs to control industrial automation applications. SCADA systems are used for supervisory control and data acquisition in industrial processes allowing remote monitoring and control. Common PLC and SCADA manufacturers and software are also mentioned.
Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial Use
This document provides an overview of programmable logic controllers (PLCs). It describes the basic components of a PLC including the central processing unit, input and output modules, power supply, and programming software. PLCs were developed to provide flexibility compared to traditional hardwired control systems. The document discusses PLC applications, advantages such as ease of programming and modification, as well as some disadvantages like proprietary aspects. It also covers PLC size, history, and leading manufacturers.
The document provides information about programmable logic controllers (PLCs). It defines a PLC as a digital computer used to automate electromechanical processes. The document then discusses the key advantages of PLCs like being cost-effective, flexible, and able to operate reliably for years. It also describes the basic architecture of a PLC including input and output modules, a central processing unit, and a programming device. Examples of ladder logic programming are also included to illustrate how PLCs can be programmed to control processes like starting motors in forward and reverse directions.
This document provides an overview of a seminar on programmable logic controllers (PLCs). The objectives are to describe PLC components, interpret specifications, apply troubleshooting techniques, convert relay logic to PLC languages, and operate and program PLCs. The contents include the history of PLCs, relay logic, PLC architecture such as CPU and I/O systems, programming concepts, applications, and troubleshooting. PLCs were developed to replace relay-based control systems and are now widely used in industrial automation.
PLC ARCHITECTURE AND HARDWARE COMPONENTSAkshay Dhole
Explains about the basics of PLC ARCHITECTURE AND HARDWARE COMPONENTS.
A Programmable Logic Controller (PLC) is a specialized computing system used for control of industrial machines and processes.
A PLC is a computer designed to work in an industrial environment
PowerPoint Presentation on Industrial Automation In which we discuss About PLCs, SCADA,HMI,VFD and various tools of Automation which is used in Industries.
Like Comment & Share
A programmable logic controller or programmable controller is an industrial computer that has been ruggedized and adapted for the control of manufacturing processes, such as assembly lines, machines, robotic devices, or any activity that requires high reliability, ease of programming, and process fault diagnosis
The document discusses automation and tools used for automation including PLCs and SCADA systems. It provides an overview of what PLCs and SCADA are, including their components and programming. PLCs are microprocessor-based devices that interface inputs and outputs to control industrial automation applications. SCADA systems are used for supervisory control and data acquisition in industrial processes allowing remote monitoring and control. Common PLC and SCADA manufacturers and software are also mentioned.
TRAINING REPORT ON INDUSTRIAL AUTOMATION- PLC SCADA, VARIABLE FREQUENCY DRIVEAKSHAY SACHAN
This document provides an overview of a training report on PLC, SCADA, and automation submitted by Akshay Sachan to the Electrical Engineering Department of the National Institute of Technology in Kurukshetra. The report includes an introduction to automation concepts, the history and introduction of programmable logic controllers, the architecture of PLCs including ladder diagrams, programming PLCs using ladder diagrams, applications of PLCs and SCADA systems, SCADA software and architecture, applications of SCADA, variable frequency drives, and a conclusion. Diagrams are provided to illustrate PLC internal architecture, simplified PLC structure, basic PLC sections, and ladder diagrams.
The document discusses programmable logic controllers (PLCs). It defines a PLC as a specialized computer used to control machines and industrial processes. PLCs can be programmed by people without computer programming skills. They work by receiving input from sensors, executing programmed logic to determine outputs, and sending output signals to control devices. PLCs have evolved from conventional computers in the 1960s-1970s and are now widely used in industrial applications like manufacturing due to benefits like flexibility, reliability, and cost effectiveness compared to custom controllers. The document outlines the main components and programming of PLCs including ladder logic.
This document provides information about programmable logic controllers (PLCs). It discusses what a PLC is, its applications in machine control and process control, advantages like speed and cost effectiveness. It describes PLC types based on memory and I/O range. The core components of a PLC are described including the central processing unit, input/output modules, power supply and bus system. Programming standards for PLCs like IEC 61131-3 are also mentioned. Selection criteria for PLCs versus distributed control systems includes factors like cost, reliability, flexibility and standard compliance.
The presentation gives you the basics of Programmable logic controller(PLC) and its use in industrial Automation along with
Supervisory control and Data Acquisition(SCADA).
contact for any info "nikhilbrahmas@gmail.com"
This document discusses Programmable Logic Controllers (PLCs). It provides a brief history of PLCs, describing how they were introduced in the 1960s as replacements for relay logic and have since evolved with the integration of microprocessors. The key components of a PLC like the power supply, processor, I/O modules, and programming device are defined. Common PLC programming languages including ladder logic are explained and examples are provided. Advantages like reliability and flexibility and disadvantages such as proprietary aspects are reviewed. Finally, common industrial applications and leading PLC brands are listed.
The document provides information about Programmable Logic Controllers (PLCs) including:
(1) An overview of PLCs, their history and components. PLCs were developed to replace relays and are used to automate industrial processes.
(2) Details on how PLCs work, including their main components like the CPU, power supply, and input/output modules. Programs are written and stored in memory to control inputs and outputs.
(3) Examples of ladder logic programming including basic logic elements, timers, counters, and latching circuits. Ladder diagrams provide a visual way to program sequences of operations and control flows.
The document discusses automation and programmable logic controllers (PLCs). It describes how automation delegates human control functions to equipment to achieve higher productivity, superior product quality, efficient energy usage, and improved safety. It then defines PLCs, explaining that they are industrial computers that monitor inputs, make decisions based on programs, and control outputs to automate processes. PLCs have input and output modules, a central processing unit, memory, and power supply. They use ladder logic programming and have advantages like increased reliability but also disadvantages like high initial costs. The document also briefly introduces supervisory control and data acquisition (SCADA) systems.
This document provides an overview of PLC and SCADA systems. It defines PLC as an industrial computer that monitors inputs, makes decisions based on its program, and controls outputs to automate processes. The history and components of PLCs are described, including the power supply, I/O modules, processor, and programming devices. Programming languages for PLCs include ladder logic, functional block diagrams, and sequential function charts. SCADA is defined as software used for process control that allows users to monitor, control, generate alarms and acquire data from remote facilities. The document discusses the composition, advantages, and applications of SCADA systems.
Industrial automation is the use of control systems, such as computers or robots, and information technologies for handling different processes and machineries in an industry to replace a human being. It is the second step beyond mechanization in the scope of industrialization.
Increase Quality and Flexibility in Your Manufacturing Process
Earlier the purpose of automation was to increase productivity (since automated systems can work 24 hours a day), and to reduce the cost associated with human operators (i.e. wages & benefits). However, today, the focus of automation has shifted to increasing quality and flexibility in a manufacturing process. In the automobile industry, the installation of pistons into the engine used to be performed manually with an error rate of 1-1.5%. Presently, this task is performed using automated machinery with an error rate of 0.00001%.
Advantages of Industrial Automation
Lower operating cost: Industrial automation eliminates healthcare costs and paid leave and holidays associated with a human operator. Further, industrial automation does not require other employee benefits such as bonuses, pension coverage etc. Above all, although it is associated with a high initial cost it saves the monthly wages of the workers which leads to substantial cost savings for the company. The maintenance cost associated with machinery used for industrial automation is less because it does not often fail. If it fails, only computer and maintenance engineers are required to repair it.
Programmable logic controllers (PLCs) have been an integral part of factory automation and industrial process control for decades. PLCs control a wide array of applications from simple lighting functions to environmental systems to chemical processing plants. These systems perform many functions, providing a variety of analog and digital input and output interfaces; signal processing; data conversion; and various communication protocols. All of the PLC's components and functions are centered around the controller, which is programmed for a specific task.
The basic PLC module must be sufficiently flexible and configurable to meet the diverse needs of different factories and applications. Input stimuli (either analog or digital) are received from machines, sensors, or process events in the form of voltage or current. The PLC must accurately interpret and convert the stimulus for the CPU which, in turn, defines a set of instructions to the output systems that control actuators on the factory floor or in another industrial environment
This document discusses industrial automation using programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems. It describes the Mecstech group which provides industrial automation training and services. PLCs are microprocessor-based controllers that can be programmed to automate industrial processes by replacing mechanical relays. SCADA systems allow users to create visualizations of industrial processes using data collected from PLCs to monitor and control the system remotely. The document provides an overview of PLC and SCADA components, programming, communication between the two, and benefits of automation.
PLC is an industrial computer designed for multiple inputs and output arrangements. It is capable of storing the instructions to implement control functions such as sequencing, timing, counting, arithmetic, data manipulation and communication.
Unlock full featured course with 250+ Video Lectures at 20% Discount for "Learn 5 PLC's in a Day" lifetime E-Learning course for 39 USD only: https://www.udemy.com/nfi-plc-online-leaning/?couponCode=slideshare2016
Enroll for Advanced Industrial Automation Training with PLC, HMI and Drive Combo with 300+ Video Lecture for 69.3 USD only: http://online.nfiautomation.org/catalog/1769?couponCode=LEARNING_MADE_EASY
What Is a Programmable Logic Controller (PLC)yogesh8418
The document provides information on programmable logic controllers (PLCs), including common brands of PLCs, the basic components and functions of a PLC, why PLCs are used, advantages over electromechanical relays, differences from PCs, digital and analog I/O devices, programming languages, applications, safety considerations, and key terms. It discusses inputs, logic processing, outputs, and the PLC scan cycle in detail.
PLC Ladder Diagram basics, with two solved examples
For more information go to
http://shrutizpresentations.blogspot.in/2014/04/plc-ladder-diagram-basics.html
Programmable Logic Controller and ladder logic programmingseema Vishwakarma
This document provides an introduction to programmable logic controllers (PLCs) and ladder logic programming. It defines a PLC as a small computer used to automate industrial processes by monitoring inputs and making decisions to control outputs based on a stored program. The document outlines the basic components of a PLC including input and output modules and the central processing unit. It then introduces ladder logic as the most common programming language for PLCs, describing the basic symbols of ladder diagrams including contacts, coils, and rungs. Finally, it provides examples of ladder logic programs for AND, OR, and NOT logic operations as well as timers and counters.
Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial automation process,
This document provides an overview of industrial automation through programmable logic controllers (PLCs). It discusses what a PLC is and how it works, including the main units of a PLC system like the central processing unit, memory, input/output modules, and programming. The document also covers advantages of PLCs over relay logic, common PLC applications, installation/maintenance, troubleshooting, and selecting a PLC. It aims to introduce the basic concepts of PLCs and how they are used for industrial automation.
The document discusses the history and use of programmable logic controllers (PLCs) in industrial automation. It notes that PLCs were first specified in 1968 by General Motors to provide a solid-state, reusable system for controlling industrial processes more flexibly than relay-based systems. A PLC consists of a central processing unit, power supply, programming unit, memory, and input/output interfacing circuitry. It scans inputs, executes user-programmed logic instructions, and updates outputs on a continuous cycle. Common programming methods for PLCs include ladder logic, functional block diagrams, and structured text. PLCs communicate with field devices and one another using various interfaces and protocols.
This document provides an overview of programmable logic controllers (PLCs). It defines a PLC as a digital computer used for industrial control systems. The document outlines the history of PLCs, their major components including the processor, power supply, and I/O modules. It describes the operational sequence of a PLC including input scan, logic solve, and output scan. Programming methods like ladder logic and functional block diagrams are discussed. Examples are provided of ladder logic programs for starting and stopping a motor. Advantages of PLCs include reliability, flexibility, and cost effectiveness. The document concludes by listing some common industrial applications of PLCs.
A PLC is a digital operating electronic apparatus.
Which uses a programmable memory for internal storage of instruction for implementing specific function such as logic, sequencing, timing, counting and arithmetic to control through analog or digital input/output modules various types of machines or process.
TRAINING REPORT ON INDUSTRIAL AUTOMATION- PLC SCADA, VARIABLE FREQUENCY DRIVEAKSHAY SACHAN
This document provides an overview of a training report on PLC, SCADA, and automation submitted by Akshay Sachan to the Electrical Engineering Department of the National Institute of Technology in Kurukshetra. The report includes an introduction to automation concepts, the history and introduction of programmable logic controllers, the architecture of PLCs including ladder diagrams, programming PLCs using ladder diagrams, applications of PLCs and SCADA systems, SCADA software and architecture, applications of SCADA, variable frequency drives, and a conclusion. Diagrams are provided to illustrate PLC internal architecture, simplified PLC structure, basic PLC sections, and ladder diagrams.
The document discusses programmable logic controllers (PLCs). It defines a PLC as a specialized computer used to control machines and industrial processes. PLCs can be programmed by people without computer programming skills. They work by receiving input from sensors, executing programmed logic to determine outputs, and sending output signals to control devices. PLCs have evolved from conventional computers in the 1960s-1970s and are now widely used in industrial applications like manufacturing due to benefits like flexibility, reliability, and cost effectiveness compared to custom controllers. The document outlines the main components and programming of PLCs including ladder logic.
This document provides information about programmable logic controllers (PLCs). It discusses what a PLC is, its applications in machine control and process control, advantages like speed and cost effectiveness. It describes PLC types based on memory and I/O range. The core components of a PLC are described including the central processing unit, input/output modules, power supply and bus system. Programming standards for PLCs like IEC 61131-3 are also mentioned. Selection criteria for PLCs versus distributed control systems includes factors like cost, reliability, flexibility and standard compliance.
The presentation gives you the basics of Programmable logic controller(PLC) and its use in industrial Automation along with
Supervisory control and Data Acquisition(SCADA).
contact for any info "nikhilbrahmas@gmail.com"
This document discusses Programmable Logic Controllers (PLCs). It provides a brief history of PLCs, describing how they were introduced in the 1960s as replacements for relay logic and have since evolved with the integration of microprocessors. The key components of a PLC like the power supply, processor, I/O modules, and programming device are defined. Common PLC programming languages including ladder logic are explained and examples are provided. Advantages like reliability and flexibility and disadvantages such as proprietary aspects are reviewed. Finally, common industrial applications and leading PLC brands are listed.
The document provides information about Programmable Logic Controllers (PLCs) including:
(1) An overview of PLCs, their history and components. PLCs were developed to replace relays and are used to automate industrial processes.
(2) Details on how PLCs work, including their main components like the CPU, power supply, and input/output modules. Programs are written and stored in memory to control inputs and outputs.
(3) Examples of ladder logic programming including basic logic elements, timers, counters, and latching circuits. Ladder diagrams provide a visual way to program sequences of operations and control flows.
The document discusses automation and programmable logic controllers (PLCs). It describes how automation delegates human control functions to equipment to achieve higher productivity, superior product quality, efficient energy usage, and improved safety. It then defines PLCs, explaining that they are industrial computers that monitor inputs, make decisions based on programs, and control outputs to automate processes. PLCs have input and output modules, a central processing unit, memory, and power supply. They use ladder logic programming and have advantages like increased reliability but also disadvantages like high initial costs. The document also briefly introduces supervisory control and data acquisition (SCADA) systems.
This document provides an overview of PLC and SCADA systems. It defines PLC as an industrial computer that monitors inputs, makes decisions based on its program, and controls outputs to automate processes. The history and components of PLCs are described, including the power supply, I/O modules, processor, and programming devices. Programming languages for PLCs include ladder logic, functional block diagrams, and sequential function charts. SCADA is defined as software used for process control that allows users to monitor, control, generate alarms and acquire data from remote facilities. The document discusses the composition, advantages, and applications of SCADA systems.
Industrial automation is the use of control systems, such as computers or robots, and information technologies for handling different processes and machineries in an industry to replace a human being. It is the second step beyond mechanization in the scope of industrialization.
Increase Quality and Flexibility in Your Manufacturing Process
Earlier the purpose of automation was to increase productivity (since automated systems can work 24 hours a day), and to reduce the cost associated with human operators (i.e. wages & benefits). However, today, the focus of automation has shifted to increasing quality and flexibility in a manufacturing process. In the automobile industry, the installation of pistons into the engine used to be performed manually with an error rate of 1-1.5%. Presently, this task is performed using automated machinery with an error rate of 0.00001%.
Advantages of Industrial Automation
Lower operating cost: Industrial automation eliminates healthcare costs and paid leave and holidays associated with a human operator. Further, industrial automation does not require other employee benefits such as bonuses, pension coverage etc. Above all, although it is associated with a high initial cost it saves the monthly wages of the workers which leads to substantial cost savings for the company. The maintenance cost associated with machinery used for industrial automation is less because it does not often fail. If it fails, only computer and maintenance engineers are required to repair it.
Programmable logic controllers (PLCs) have been an integral part of factory automation and industrial process control for decades. PLCs control a wide array of applications from simple lighting functions to environmental systems to chemical processing plants. These systems perform many functions, providing a variety of analog and digital input and output interfaces; signal processing; data conversion; and various communication protocols. All of the PLC's components and functions are centered around the controller, which is programmed for a specific task.
The basic PLC module must be sufficiently flexible and configurable to meet the diverse needs of different factories and applications. Input stimuli (either analog or digital) are received from machines, sensors, or process events in the form of voltage or current. The PLC must accurately interpret and convert the stimulus for the CPU which, in turn, defines a set of instructions to the output systems that control actuators on the factory floor or in another industrial environment
This document discusses industrial automation using programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems. It describes the Mecstech group which provides industrial automation training and services. PLCs are microprocessor-based controllers that can be programmed to automate industrial processes by replacing mechanical relays. SCADA systems allow users to create visualizations of industrial processes using data collected from PLCs to monitor and control the system remotely. The document provides an overview of PLC and SCADA components, programming, communication between the two, and benefits of automation.
PLC is an industrial computer designed for multiple inputs and output arrangements. It is capable of storing the instructions to implement control functions such as sequencing, timing, counting, arithmetic, data manipulation and communication.
Unlock full featured course with 250+ Video Lectures at 20% Discount for "Learn 5 PLC's in a Day" lifetime E-Learning course for 39 USD only: https://www.udemy.com/nfi-plc-online-leaning/?couponCode=slideshare2016
Enroll for Advanced Industrial Automation Training with PLC, HMI and Drive Combo with 300+ Video Lecture for 69.3 USD only: http://online.nfiautomation.org/catalog/1769?couponCode=LEARNING_MADE_EASY
What Is a Programmable Logic Controller (PLC)yogesh8418
The document provides information on programmable logic controllers (PLCs), including common brands of PLCs, the basic components and functions of a PLC, why PLCs are used, advantages over electromechanical relays, differences from PCs, digital and analog I/O devices, programming languages, applications, safety considerations, and key terms. It discusses inputs, logic processing, outputs, and the PLC scan cycle in detail.
PLC Ladder Diagram basics, with two solved examples
For more information go to
http://shrutizpresentations.blogspot.in/2014/04/plc-ladder-diagram-basics.html
Programmable Logic Controller and ladder logic programmingseema Vishwakarma
This document provides an introduction to programmable logic controllers (PLCs) and ladder logic programming. It defines a PLC as a small computer used to automate industrial processes by monitoring inputs and making decisions to control outputs based on a stored program. The document outlines the basic components of a PLC including input and output modules and the central processing unit. It then introduces ladder logic as the most common programming language for PLCs, describing the basic symbols of ladder diagrams including contacts, coils, and rungs. Finally, it provides examples of ladder logic programs for AND, OR, and NOT logic operations as well as timers and counters.
Seminar Presentation on Programmeble Logic Controller , By an Engineering Student For doing Professional Presentation like Business Presentation, Industrial automation process,
This document provides an overview of industrial automation through programmable logic controllers (PLCs). It discusses what a PLC is and how it works, including the main units of a PLC system like the central processing unit, memory, input/output modules, and programming. The document also covers advantages of PLCs over relay logic, common PLC applications, installation/maintenance, troubleshooting, and selecting a PLC. It aims to introduce the basic concepts of PLCs and how they are used for industrial automation.
The document discusses the history and use of programmable logic controllers (PLCs) in industrial automation. It notes that PLCs were first specified in 1968 by General Motors to provide a solid-state, reusable system for controlling industrial processes more flexibly than relay-based systems. A PLC consists of a central processing unit, power supply, programming unit, memory, and input/output interfacing circuitry. It scans inputs, executes user-programmed logic instructions, and updates outputs on a continuous cycle. Common programming methods for PLCs include ladder logic, functional block diagrams, and structured text. PLCs communicate with field devices and one another using various interfaces and protocols.
This document provides an overview of programmable logic controllers (PLCs). It defines a PLC as a digital computer used for industrial control systems. The document outlines the history of PLCs, their major components including the processor, power supply, and I/O modules. It describes the operational sequence of a PLC including input scan, logic solve, and output scan. Programming methods like ladder logic and functional block diagrams are discussed. Examples are provided of ladder logic programs for starting and stopping a motor. Advantages of PLCs include reliability, flexibility, and cost effectiveness. The document concludes by listing some common industrial applications of PLCs.
A PLC is a digital operating electronic apparatus.
Which uses a programmable memory for internal storage of instruction for implementing specific function such as logic, sequencing, timing, counting and arithmetic to control through analog or digital input/output modules various types of machines or process.
PLC(Programmable Logic Controller)-Control system Engineering.Tahmid Rongon
PLC(Programmable Logic Controller)
Programmable Logic Controller (PLC) is an industrial computer that monitors inputs, makes decisions based on its program and controls outputs to automate a process or machine.
The automation of many different processes , such as controlling machines or factory assembly lines, is done through the use of small computers called a programmable logic controllers(PLCs).
The document discusses stepper motor control using a PLC. It provides details about how stepper motors operate by energizing electromagnets in sequence to rotate the motor shaft in steps. It then discusses PLC components, applications, types available and specifications of a Siemens CPU 226 PLC that can be used to control a stepper motor.
This document provides an overview of programmable logic controllers (PLCs). It discusses how PLCs improved upon earlier relay logic control systems by being more reliable, flexible, and efficient. The key components of a PLC are described, including the programming device, input/output tables, processor, memory, and power supply. PLCs operate on scan cycles that read inputs, run the user program to determine outputs, and refresh the outputs. Common PLC manufacturers are then listed.
The document provides an overview of programmable logic controllers (PLCs). It discusses that PLCs are digital computers used to control electromechanical processes in factories. PLCs have a CPU, power supply, programming device, memory, and input/output sections. The PLC program is executed in a repetitive scan cycle that reads inputs, runs the program, performs diagnostics, updates outputs, and repeats. PLCs offer advantages like flexibility, ease of changes, reliability, and security, but also have disadvantages such as high initial costs and requiring skilled workers.
This ladder logic diagram controls an automated process and consists of 11 rungs. It uses a timer and counter to control different phases of the process. The counter value is checked against limits to determine which lamps should be on and to advance through three phases of the process. When the counter reaches the final preset value, it resets to begin the cycle again.
This document provides an overview of programmable logic controllers (PLCs). It discusses the history of PLCs, how they were developed to replace relay-based control systems. The key components of a PLC including the processor, memory, and input/output modules are described. Examples of PLC programming languages and applications in industrial automation like machine control, food/beverage processing, and material handling are provided. Advantages of PLCs include fast operation, modularity, ease of maintenance, and improved productivity. Disadvantages include initial high costs and difficulty changing or replacing systems. PLCs have become widely used in industrial automation applications ranging from simple to complex control systems.
A stepper motor converts electrical pulses into discrete mechanical movements of its shaft. The shaft rotates in discrete step increments that correspond directly to the sequence and frequency of input pulses. There are three main types of stepper motors: variable-reluctance, permanent magnet, and hybrid. Stepper motors provide controlled movement and are well-suited for applications that require control of rotation angle, speed, position, and synchronization. They have advantages like full torque at standstill and excellent response to starting, stopping, and reversing.
This presentation provides an introduction to programmable logic controllers (PLCs). It defines a PLC as a solid state electronic device that can be programmed to control machines and processes. The presentation outlines the typical components of a PLC including the power supply, input and output modules, processor, and programming device. It also discusses PLC sizes, common applications in manufacturing and industry, and provides an example of how a PLC could control a tank used to mix two liquids.
The document discusses programmable logic controllers (PLCs). It describes what a PLC is, how it implements logic control functions through programming, and compares PLC systems to traditional control systems. The document outlines the basic components and structure of a PLC, including the processor, input/output devices, power supply, and communication ports. It also discusses ladder logic diagrams, PLC programming, and common PLC applications in automation and industrial processes.
Programmable logic controllers (PLCs) are digital electronic devices used to automate industrial processes. A PLC consists of a central processing unit, input/output modules, and a programming device. PLCs scan their program continuously and cyclically to monitor inputs and control outputs. They are programmed using ladder logic to perform functions like timing, counting, and controlling relays. PLCs are used widely in applications like process control, machinery control, and some CNC machine functions. Factors like the number of I/O points, memory, and scan time are considered when selecting a suitable PLC for an application.
This document discusses jump instructions in PLC ladder logic. Jump instructions allow a PLC program to break its normal sequential execution and move to another part of the program. The key points covered are:
- Jump instructions work with label instructions to redirect program flow. The jump instruction moves execution to the rung with a matching label number.
- Jumps can move execution forward or backward within a program. Multiple jumps can target the same label. Jumps can also be nested within other jumps.
- Advantages of jumps include allowing a PLC to run multiple programs, jumping sections during faults to reduce downtime, and improving scan time performance.
- An example is provided demonstrating a parking lot control system
This document is a project report on programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems by Ishank Ranjan, an 8th semester undergraduate student at Hindustan College of Science and Technology in Mathura, India. The report provides an acknowledgment, certificate of training, preface, table of contents, and 15 sections that describe features of PLCs, ladder logic programming, SCADA systems, and potential benefits of using PLCs and SCADA for industrial automation and process control.
This document is a lecture on programmable logic controllers (PLCs) that discusses their basic structure, input/output processing, programming formats including ladder logic and function block diagrams, and applications of timers, counters, and shift registers. It provides examples of how PLCs can be programmed and configured to control processes like a belt sanding machine, transfer station, and conveyor rejection system.
AfL takes place both inside and outside the classroom. Students use personal learning checklists (PLCs) outside the classroom to inform teachers about areas they need help with. There are two types of PLCs - ones based on skills students need to learn, and ones based on specific knowledge objectives. The PLC process involves diagnosis of student understanding, providing therapy or improvement, testing knowledge, and tracking progress over time using a scoreboard. Examples of PLCs from different subjects are provided.
The document outlines a project to supply and install Modicon Quantum PLCs and FactoryLink SCADA systems for Arcelor Mittal's Continuous Casting plant in Vanderbijlpark, South Africa. AGE Technologies secured the contract to design, project manage and commission the automation system over a five month preparation period requiring three man-months to execute during a planned plant shutdown in order to minimize disruption.
This document provides an introduction to Programmable Logic Controllers (PLCs). It discusses the history and evolution of control systems from humans to relays to PLCs. The key components of a PLC including the input/output modules, central processing unit, memory, and programming terminal are described. Programming methods for PLCs such as ladder logic, Boolean expressions, and mnemonics are also introduced. Examples of using timers, counters, and internal relays in PLC programs are provided.
Programmable Logic Controllers (PLCs) were developed to control industrial machinery in a programmable and reliable way. A PLC has a processor that executes stored instructions to control inputs and outputs based on ladder logic programming. It includes a power supply, memory to store the user program, and I/O modules to interface with field devices. PLCs offer advantages over hardwired control systems like easier programming, flexibility, and communication capabilities. They are used widely in industrial applications for tasks like sequencing, timing, counting, and analog control.
This document provides an overview of programmable logic controllers (PLCs). It discusses the history of PLCs, the need for them to replace hardwired control panels, and defines a PLC as a specialized computer used for industrial machine and process control. The key components of a PLC are described as the processor, memory, power supply, I/O modules, and programming device. Advantages include less wiring, increased reliability, and flexibility, while disadvantages include proprietary architectures. PLCs are widely used to control industrial applications and machinery.
The document provides an overview of programmable logic controllers (PLCs). It discusses that PLCs were developed to replace relay-based control systems, describing some advantages as being reprogrammable, easier troubleshooting, and able to control complex systems. The document outlines the typical parts of a PLC including the power supply, processor, memory, I/O modules, and communication modules. It also compares PLCs to personal computers and describes how PLCs operate using ladder logic programming.
The document provides an introduction to programmable logic controllers (PLCs). It begins by stating the objectives of understanding PLC terminology, history, functions, advantages, and basic programming. It then explains what a PLC is and discusses its terminology, historical background, functions, advantages, basic components and instructions. Specific topics covered include the evolution of PLCs since 1968; their uses in various industries; how they can replace hard-wired relay systems; and how programming PLCs involves using ladder logic diagrams to represent circuits.
The document provides an overview of programmable logic controllers (PLCs). It discusses what PLCs are, how control systems operated before PLCs using relays, and the advantages PLCs provide over relay-based systems including easier programming and modification. The document also outlines the typical components of a PLC including the power supply, CPU, memory, I/O modules, and how ladder logic is used to program PLC operations. It provides examples of PLC programming for motor controls.
Advanced plc programming & scada system designlakshanwalpita
The document provides an overview of programmable logic controllers (PLCs) and SCADA systems. It discusses the history and evolution of PLCs from relay-based control systems to modern PLCs that can be programmed using software on PCs. A PLC works by continuously scanning its program in a loop, checking input statuses, executing the user program, and updating outputs. The document also covers common PLC components, programming methods, and input/output connection types.
Programmable Logic Controllers Paper (PLC) SM54Subhash Mahla
This document discusses programmable logic controllers (PLCs). It begins by defining a PLC as a digitally operating electronic apparatus that uses programmable memory to implement logic, sequencing, timing and other functions to control machines and processes. The document then describes the basic components of a PLC, including I/O modules, a processor, power supply, memory unit and network interface. It explains how PLCs are programmed using programming units connected to computers and the transfer of programs to PLC memory using EEPROM chips.
The document discusses programmable logic controllers (PLCs) and their components and applications. It defines a PLC as a solid-state industrial controller that performs logic functions to control machines and processes. The key components of a PLC include input/output modules that interface with field devices, a processor with memory and programming capabilities, and a power supply. PLCs can be unitary or modular in design. They are widely used in industrial automation to control functions like conveyor systems. The document outlines the history, advantages, and types of PLCs as well as their programming and applications in industrial processes.
This document provides an overview of automation and programmable logic controllers (PLCs). It discusses the introduction of automation, its advantages and disadvantages. It then discusses PLCs in detail, including their history, architecture, programming languages used, and applications. The key points are:
1) Automation uses control systems like computers to reduce human intervention in industrial processes. It increases productivity and quality while reducing costs.
2) PLCs were developed to replace relay control systems. They have a CPU, memory, input/output modules and power supply. Ladder logic, function block diagrams and structured text are common programming languages.
3) PLCs are used widely in industrial automation to control devices like
1 introduction to plc and its programming-1VishalGupta969
A PLC is used for industrial automation and control. It was developed to replace mechanical and relay-based controls. A typical PLC has a processor unit, power supply, input/output section, and a programmable memory. It monitors sensors and devices, runs programmed logic operations, and controls outputs like motors and valves. PLCs offer advantages like reliability, flexibility, and cost savings over traditional controls. They are widely used in industries like manufacturing, facilities control, and processing.
This is a small project on Siemens PLC Step 7 models. The project required lot of lateral thinking and logical decision making in order to develop programs for the traffic light management for the entire chandigarh city. The project is known as Total Traffic Security & Management (TTSM)
Implementation of T-Junction Traffic Light Control System Using Simatic S7-20...IJERA Editor
A conventional traffic light control system is designed by using devices such as timers, relays and
contactors etc. The critical timing operation is required to be carried out under the existence of heavy
traffic situations. This conventional practice leads to many problems that need additional maintenance
cost and subsequent delay for a long time. With the help of a PLC, the requirement of fast automation
and effective optimization of traffic light control system can be achieved. Use of PLC helps us to
develop this process not only for traffic signal on the roads, but also on the movement of trains and
the transfer of containers in ports in maritime works. In order to provide a solution to the above
problem, this paper introduces an execution and implementation of T-junction traffic control system
using SEIMENS S7-200 PLC. Programming in PLC is written in ladder logic with the help of STEP7
MICROWIN software
This document describes an automatic mixing and filling bottle system that uses a Siemens S7-1200 PLC as the controller. The system uses submersible pumps to transfer water and flavoring from containers into a mixing container. A mixing motor mixes the contents and a solenoid valve fills bottles on a conveyor belt. The PLC programming is done using ladder logic in TIA Portal software. The project aims to design an appropriate model and program the PLC to control the system components for automatic mixing and filling of bottles.
This chapter discusses PLC programming methods. It describes the ladder logic programming method which uses symbols like normally open contacts, normally closed contacts, and output coils to represent switches, relays, and control circuits. Ladder logic is a graphical programming language that resembles a ladder with power rails and rungs representing circuit logic. The chapter provides examples of simple ladder diagrams with two inputs and defines the basic symbols used in ladder logic programming. It also briefly mentions two other PLC programming methods: control system flowchart and statement list.
The document reports on industrial automation based on programmable logic controllers (PLCs). It discusses how PLCs were developed to provide flexible control through programming rather than wiring. PLCs have replaced relays and hardwired controls in many industrial applications. They allow processes to be more easily programmed and modified. The document covers the basic components and functions of PLCs, including the CPU, memory, input/output modules, and ladder logic programming. It also discusses some common industrial applications of PLC automation.
The document provides an overview of programmable logic controllers (PLCs). It discusses that PLCs are digital electronic devices that use programmable memory to implement control functions like logic, sequencing, timing, counting, and arithmetic. The key components of a PLC include input/output modules, a power supply, a central processing unit, memory, and a programming device. PLCs work by continuously scanning programs in a cycle that involves reading inputs, executing the program logic, and updating outputs. This allows PLCs to control machines and processes.
The document discusses programmable logic controllers (PLCs), which are microprocessor-based devices used to control machinery on the shop floor. Early PLCs were designed to replace relay logic systems and were programmed using ladder logic to resemble relay diagrams. Modern PLCs can communicate over networks and use various programming languages according to standards. PLCs read sensors and control actuators to automate industrial processes, and are well-suited for applications requiring customized control systems that may need to change over time.
This document provides an overview of programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems. It discusses the history and evolution of automation and PLCs, describes common PLC components and programming, and reviews the MicroLogix 1000 PLC and RSLogix5000 programming software. Key features of SCADA systems are also summarized, including dynamic graphics, alarms, recipe management, security, connectivity, databases, and scripting. The document is submitted by Nitish Kumar Singh for review by KL Pursnani and covers automation, PLCs, ladder logic, MicroLogix1000, and SCADA systems at a high level.
1. Valves measure and control fluid pressure and flow in hydraulic circuits. Common valves include relief valves, reducing valves, unloading valves, sequence valves, and counterbalance valves.
2. Relief valves open to discharge fluid and prevent excess pressure when inlet pressure reaches a set point. Reducing valves lower pressure to a controlled outlet value. Sequence valves control the order of actuators based on preset pressure levels. Counterbalance valves maintain pressure on one side of a system until another reaches a threshold.
The document discusses different types of pumps used in fluid flow creation and hydraulics applications. It distinguishes between positive displacement pumps, which displace a fixed volume of fluid per revolution, and non-positive displacement pumps, which use fluid inertia to displace fluid. The document goes on to describe various positive displacement pump types including gear pumps, vane pumps, piston pumps, and how their principles of operation differ. It also covers classifications such as fixed vs variable displacement and pressure compensation in pumps.
This document provides formulas, constants, and conversions for various scientific and engineering topics. It includes sections on SI and imperial units for distance, area, volume, mass, density, and other physical quantities. It also includes mathematical formulas, trigonometry, geometry, mechanics, thermodynamics, fluid mechanics, and electricity. The document is intended for use by students and examination candidates as a reference for various physical constants and formulae.
The document discusses different types of hydraulic cylinders and rotary actuators. It describes single acting cylinders that work in one direction, double acting cylinders that work in both directions, and telescopic cylinders for large strokes or limited spaces. It also covers properties of cylinders, calculations, buckling checks, and cushioning cylinders at the end of strokes. Rotary actuators discussed include vane, piston, and limited angle types.
Heat engines transform heat into work using two energy reservoirs at different temperatures. They include car, truck, jet, and rocket engines as well as steam engines and turbines. Heat engines have a maximum possible thermal efficiency known as the Carnot efficiency, which depends on the temperatures of the reservoirs. Refrigerators, which are heat engines run in reverse, also have a maximum coefficient of performance given by the Carnot coefficient of performance. The most efficient heat engines and refrigerators are Carnot engines, which operate through reversible cycles between the reservoirs. Common heat engine cycles include the Otto, Diesel, Brayton, and Stirling cycles. Steam turbines are widely used to generate electricity and use the Brayton cycle.
The document discusses sensors, actuators, and input/output devices used in computer-controlled processes. It describes:
1) Sensors that measure continuous and discrete process variables and transmit signals to computers.
2) Actuators that receive signals from computers to control continuous and discrete process parameters.
3) Analog-to-digital and digital-to-analog conversion devices that allow computers to interface with analog sensors and actuators.
4) Input/output devices that allow computers to interface with discrete and pulse data from processes.
How to Manage Your Lost Opportunities in Odoo 17 CRMCeline George
Odoo 17 CRM allows us to track why we lose sales opportunities with "Lost Reasons." This helps analyze our sales process and identify areas for improvement. Here's how to configure lost reasons in Odoo 17 CRM
This presentation includes basic of PCOS their pathology and treatment and also Ayurveda correlation of PCOS and Ayurvedic line of treatment mentioned in classics.
বাংলাদেশের অর্থনৈতিক সমীক্ষা ২০২৪ [Bangladesh Economic Review 2024 Bangla.pdf] কম্পিউটার , ট্যাব ও স্মার্ট ফোন ভার্সন সহ সম্পূর্ণ বাংলা ই-বুক বা pdf বই " সুচিপত্র ...বুকমার্ক মেনু 🔖 ও হাইপার লিংক মেনু 📝👆 যুক্ত ..
আমাদের সবার জন্য খুব খুব গুরুত্বপূর্ণ একটি বই ..বিসিএস, ব্যাংক, ইউনিভার্সিটি ভর্তি ও যে কোন প্রতিযোগিতা মূলক পরীক্ষার জন্য এর খুব ইম্পরট্যান্ট একটি বিষয় ...তাছাড়া বাংলাদেশের সাম্প্রতিক যে কোন ডাটা বা তথ্য এই বইতে পাবেন ...
তাই একজন নাগরিক হিসাবে এই তথ্য গুলো আপনার জানা প্রয়োজন ...।
বিসিএস ও ব্যাংক এর লিখিত পরীক্ষা ...+এছাড়া মাধ্যমিক ও উচ্চমাধ্যমিকের স্টুডেন্টদের জন্য অনেক কাজে আসবে ...
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
A review of the growth of the Israel Genealogy Research Association Database Collection for the last 12 months. Our collection is now passed the 3 million mark and still growing. See which archives have contributed the most. See the different types of records we have, and which years have had records added. You can also see what we have for the future.
हिंदी वर्णमाला पीपीटी, hindi alphabet PPT presentation, hindi varnamala PPT, Hindi Varnamala pdf, हिंदी स्वर, हिंदी व्यंजन, sikhiye hindi varnmala, dr. mulla adam ali, hindi language and literature, hindi alphabet with drawing, hindi alphabet pdf, hindi varnamala for childrens, hindi language, hindi varnamala practice for kids, https://www.drmullaadamali.com
A workshop hosted by the South African Journal of Science aimed at postgraduate students and early career researchers with little or no experience in writing and publishing journal articles.
Thinking of getting a dog? Be aware that breeds like Pit Bulls, Rottweilers, and German Shepherds can be loyal and dangerous. Proper training and socialization are crucial to preventing aggressive behaviors. Ensure safety by understanding their needs and always supervising interactions. Stay safe, and enjoy your furry friends!
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
How to Fix the Import Error in the Odoo 17Celine George
An import error occurs when a program fails to import a module or library, disrupting its execution. In languages like Python, this issue arises when the specified module cannot be found or accessed, hindering the program's functionality. Resolving import errors is crucial for maintaining smooth software operation and uninterrupted development processes.
1. Chapter 5
Programmable Logic Controller (PLC)
Contents:-
5.1 Introduction
5.2 Brief History of PLC
5.3 Area of Application of a PLC
5.4 How works PLC
5.5 Types of PLC
5.5.1Fixed PLCs
5.5.2Modular PLCs
5.6 Basic Components of PLC
5.6.1Processor (Control Processing Unit)
5.6.2Input/output system
5.6.3Memory unit
5.6.4Programming language & device
5.6.5Power supply

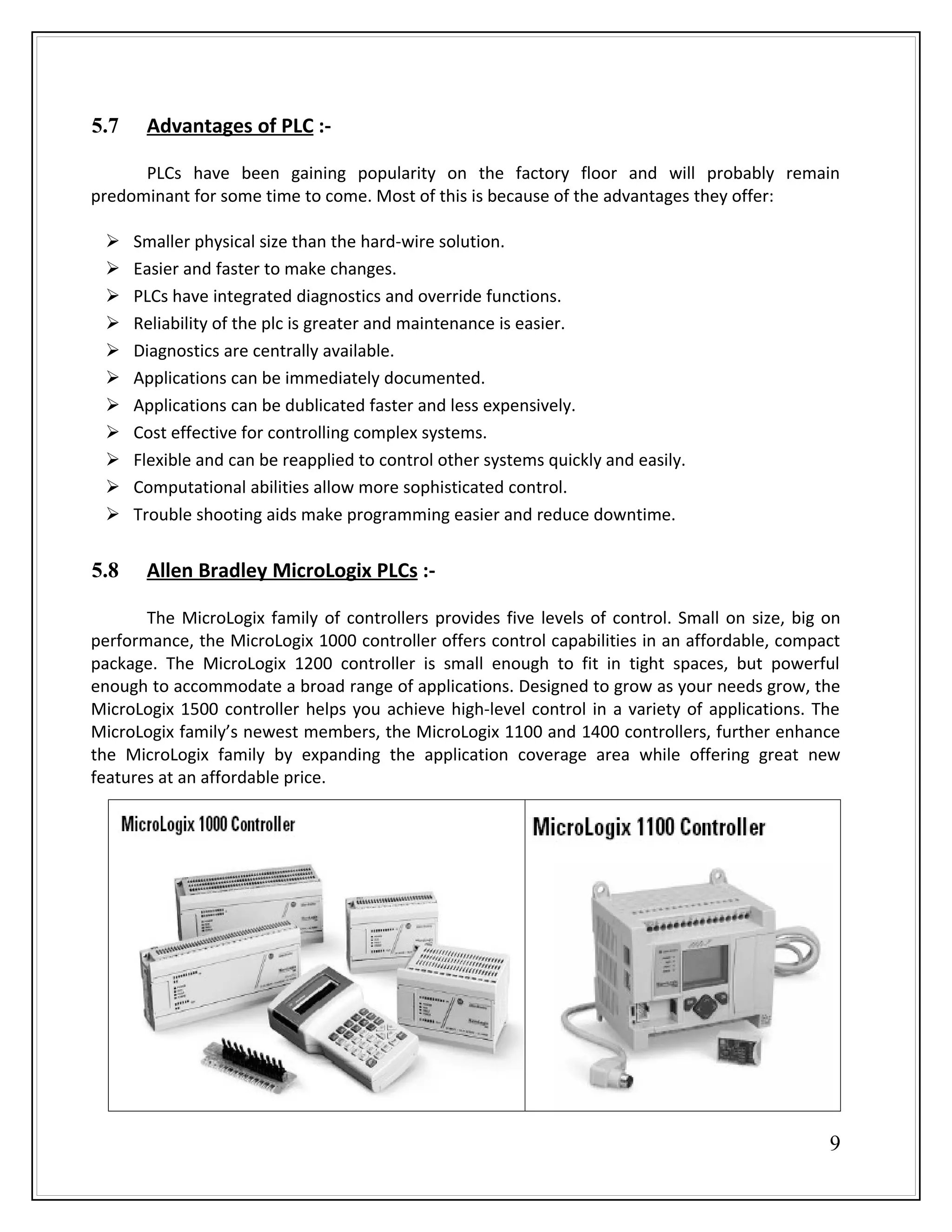

5.7 Advantages

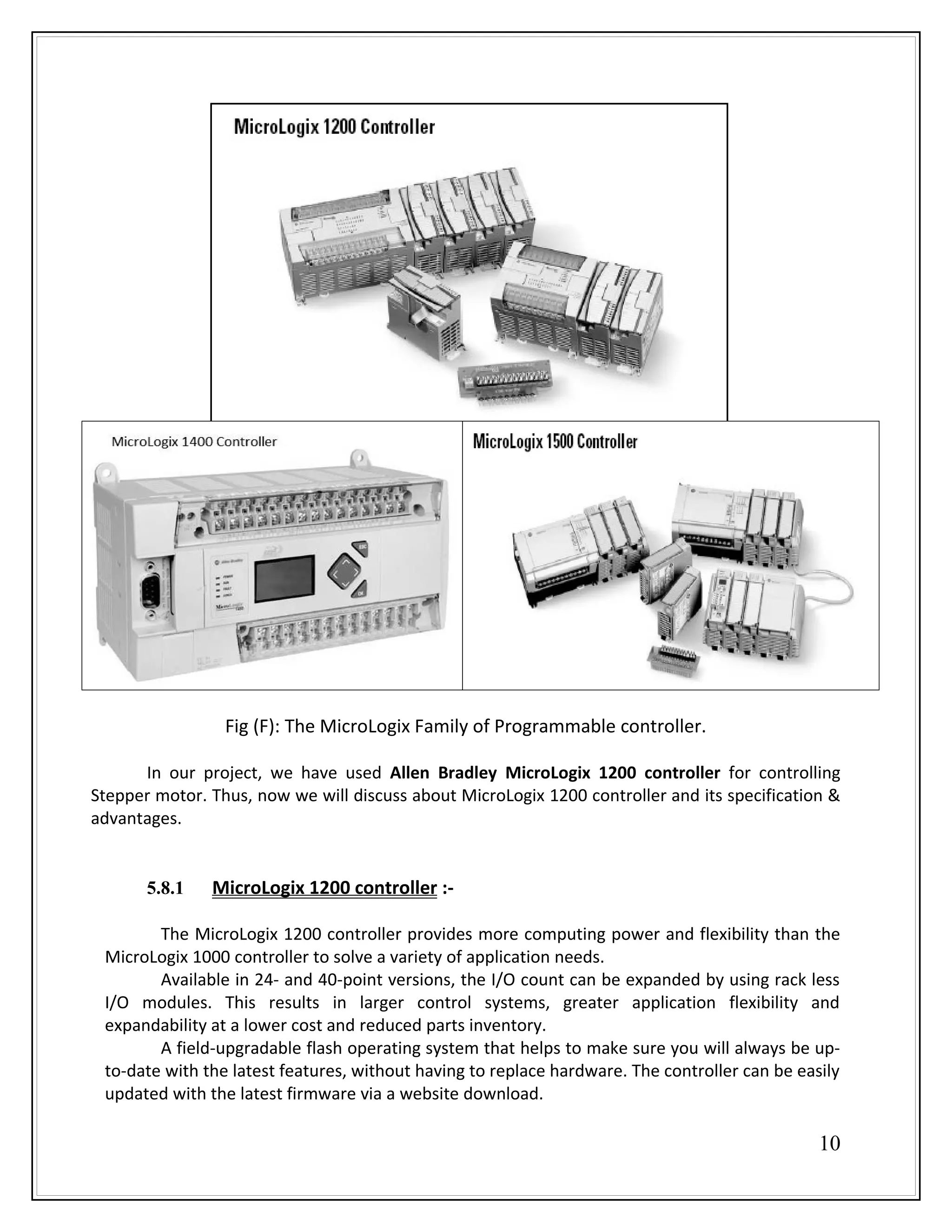

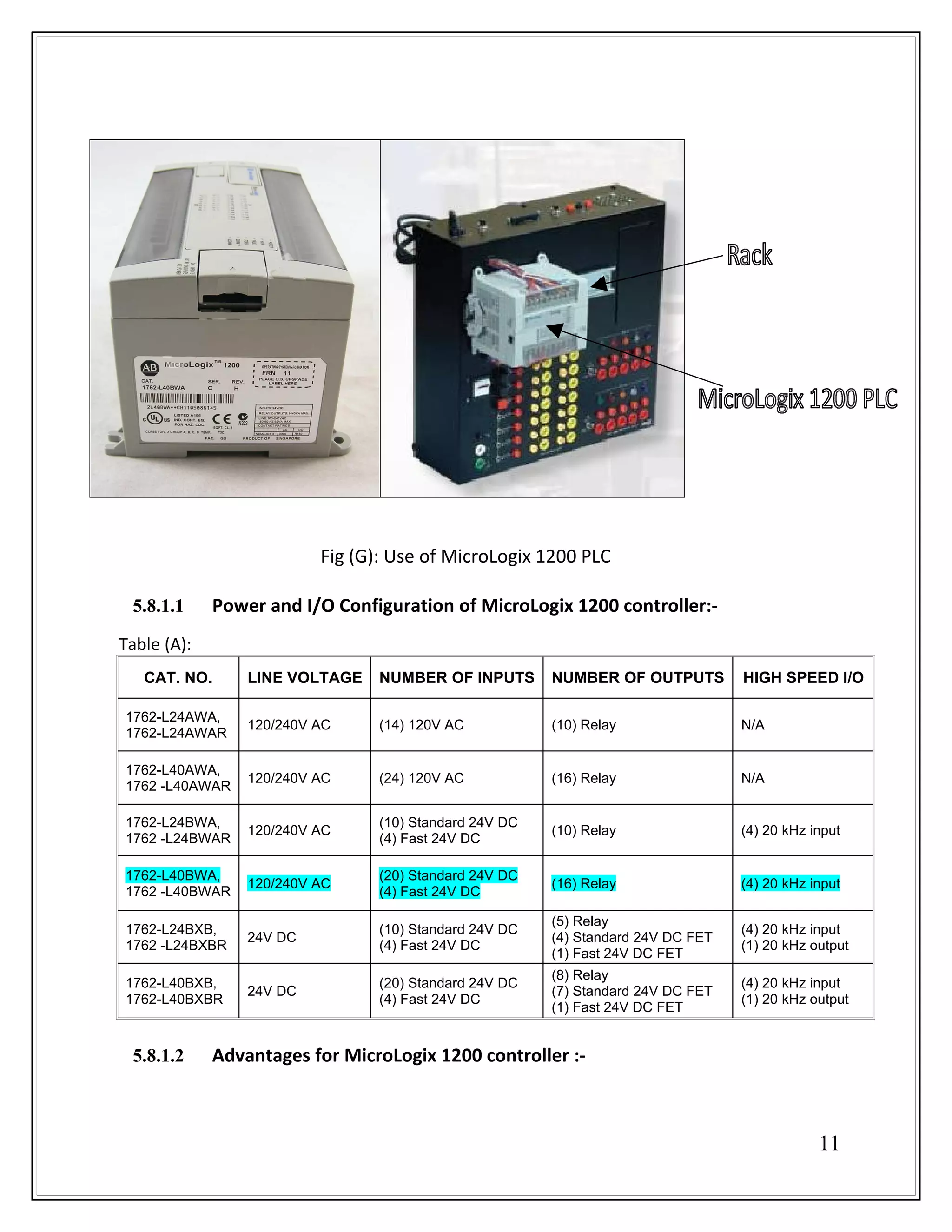

5.8 Allen Bradley MicroLogix
5.8.1MicroLogix 1200 controller
5.8.1.1Power and I/O Configuration of MicroLogix 1200 controller
5.8.1.2Advantages for MicroLogix 1200 controller
5.9 PLC programming

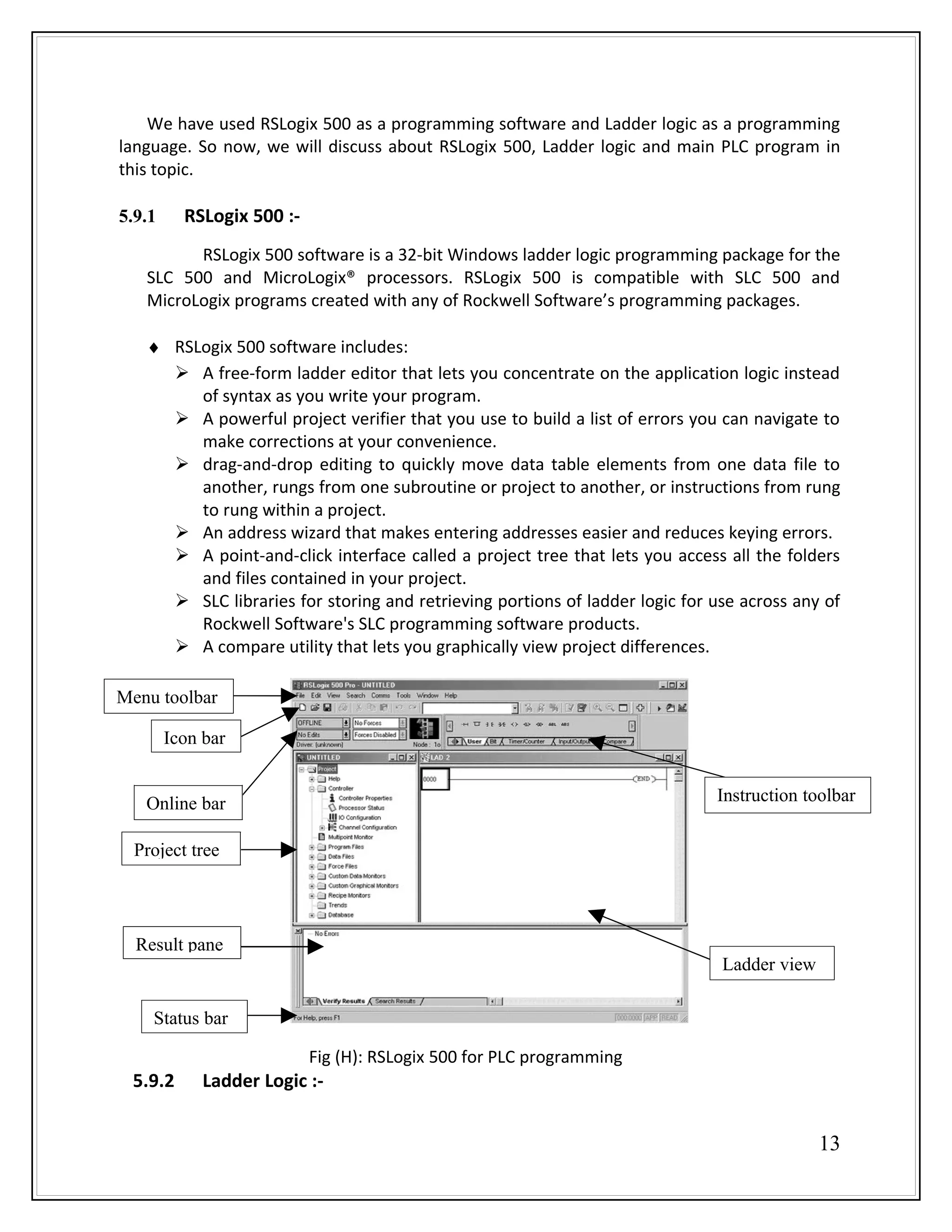

5.9.1RSLogix 500

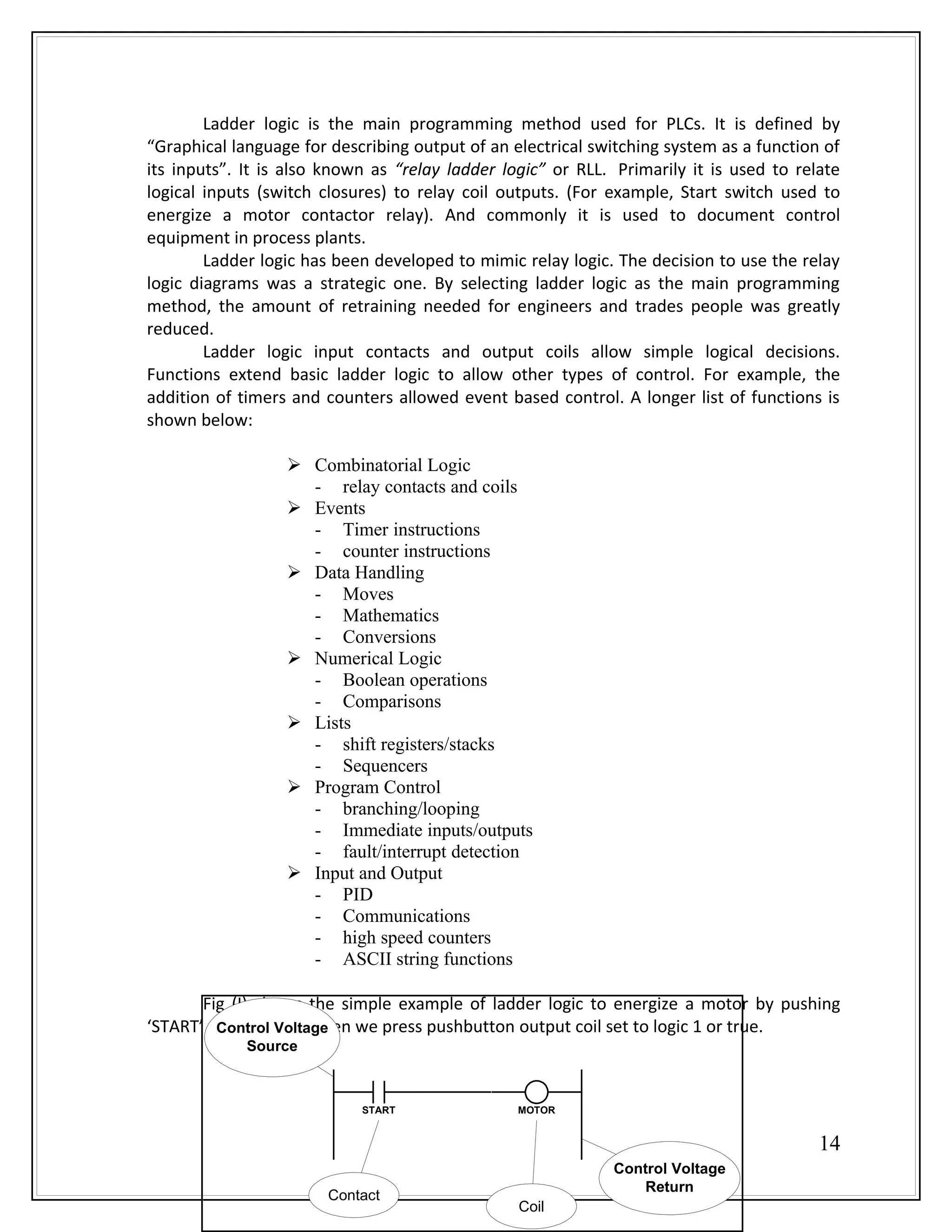

5.9.2Ladder Logic

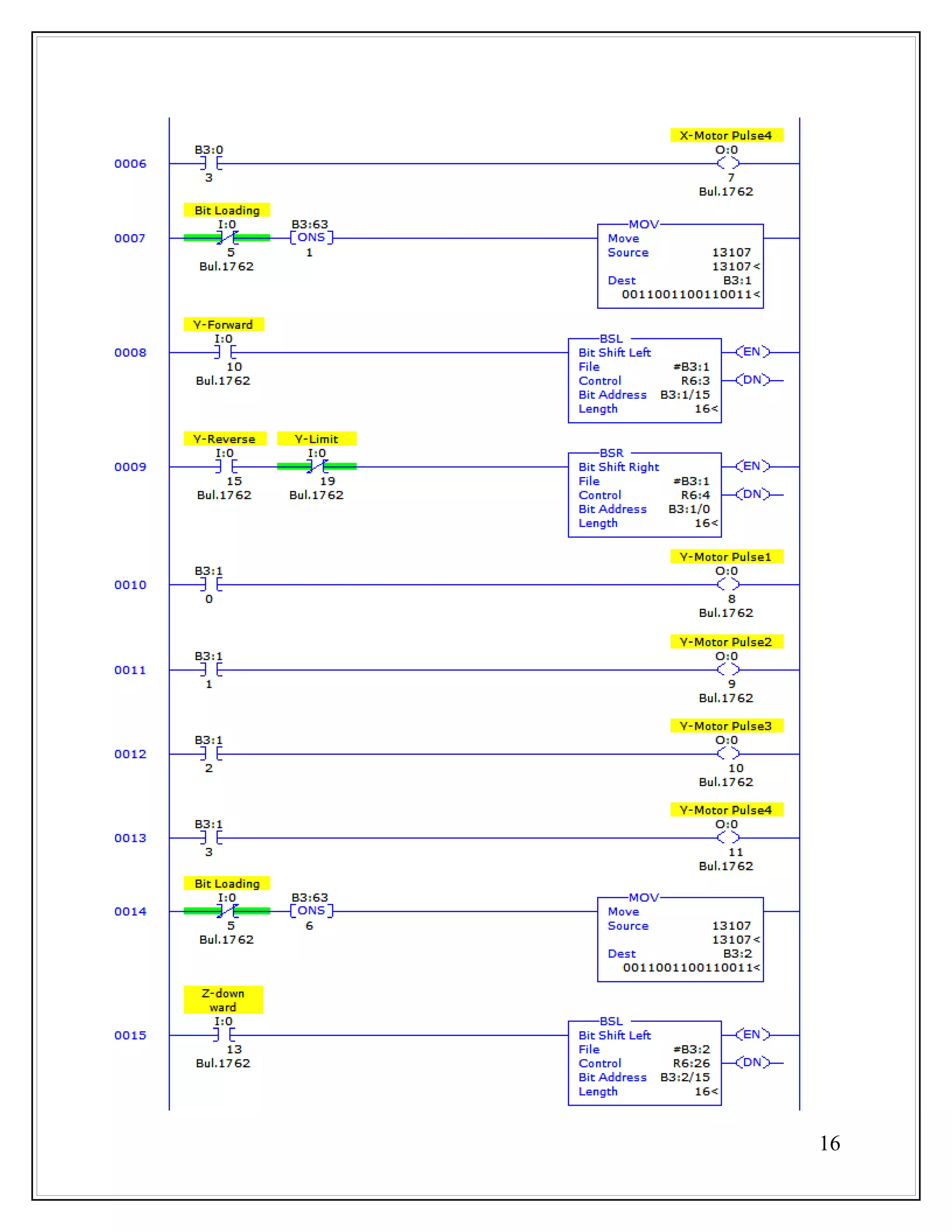

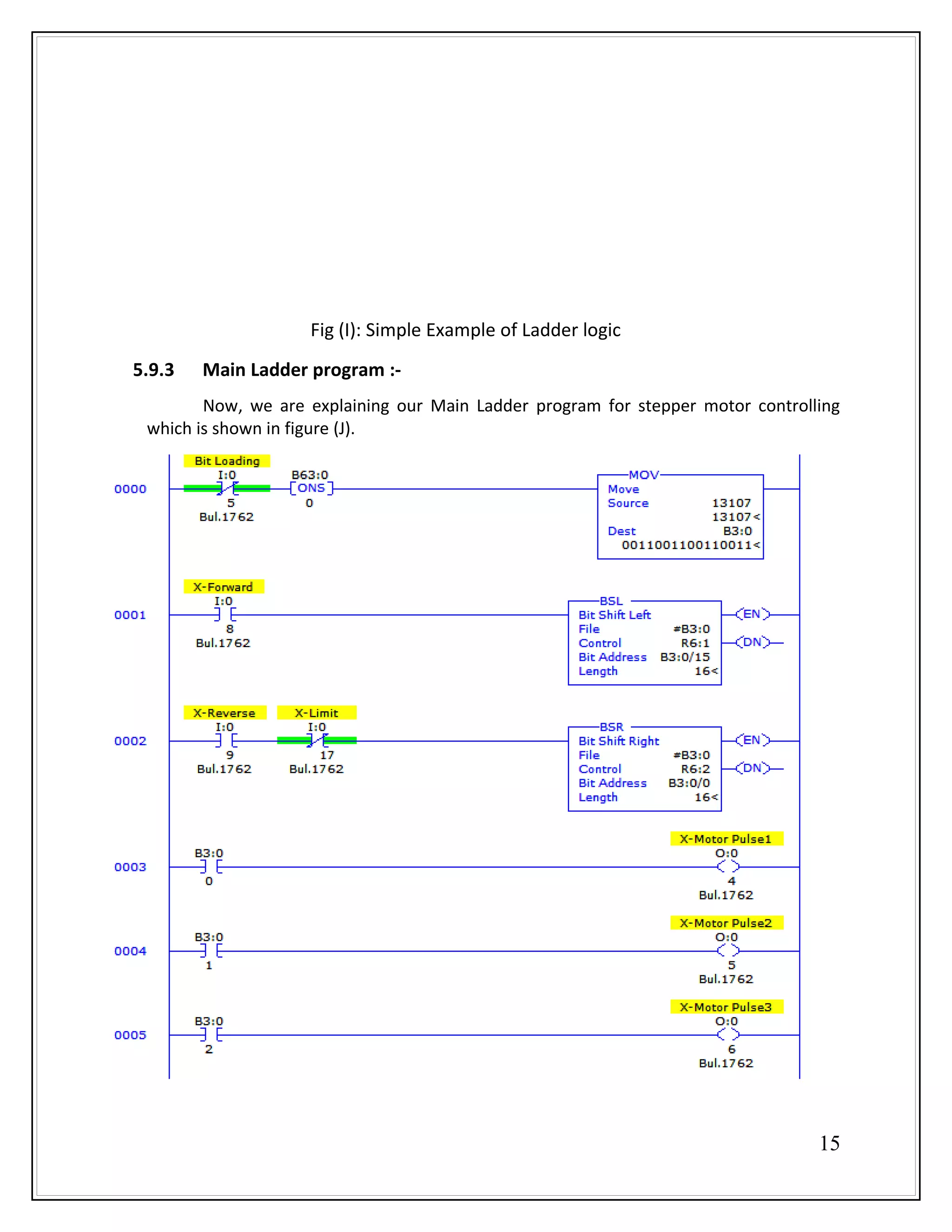

5.9.3Main Ladder Program
5.9.4Explanation of Program

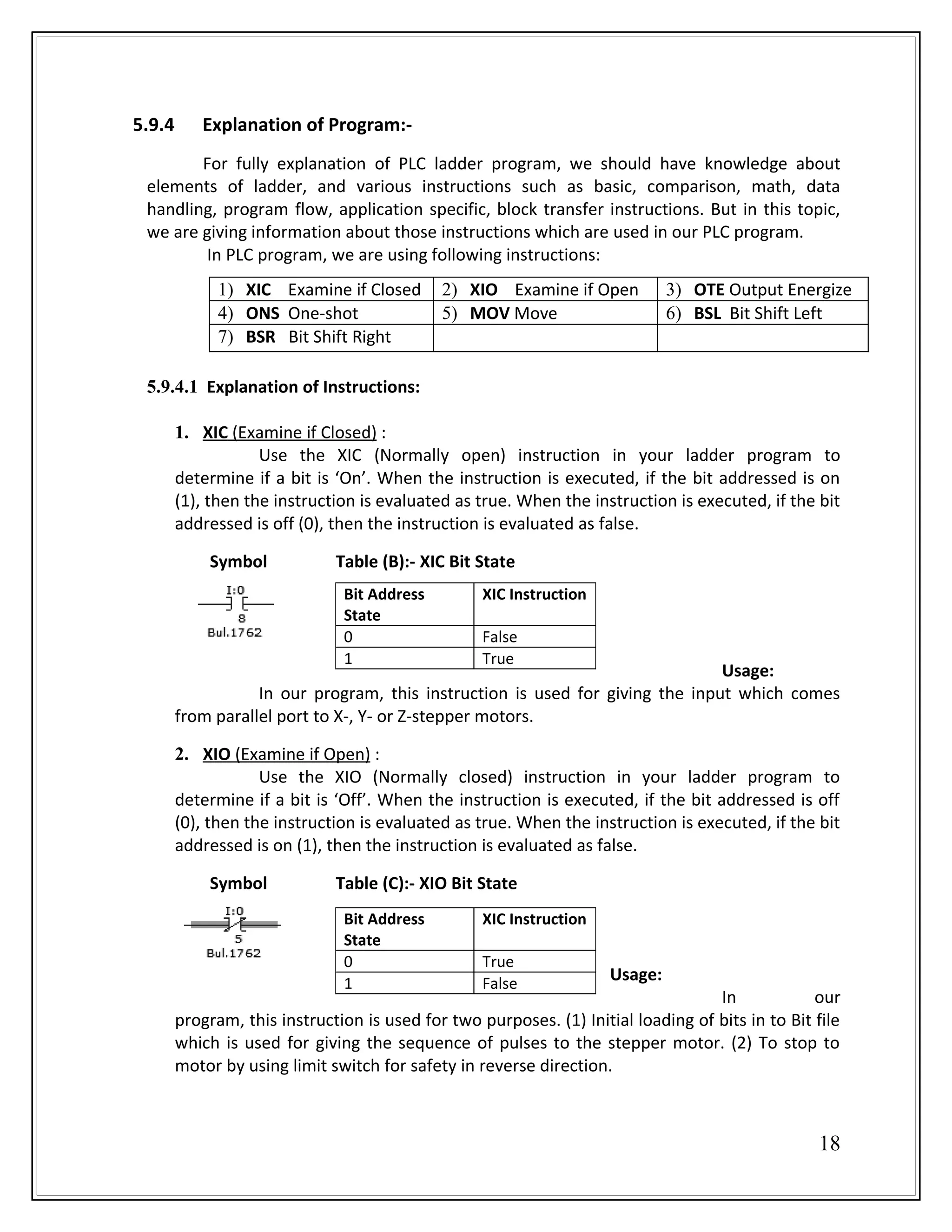

5.9.4.1Explanation of Instructions
5.9.4.2Explaining of Control of X-Motor
5.9.4.3Explaining of Control of Electromechanical Gripper
1

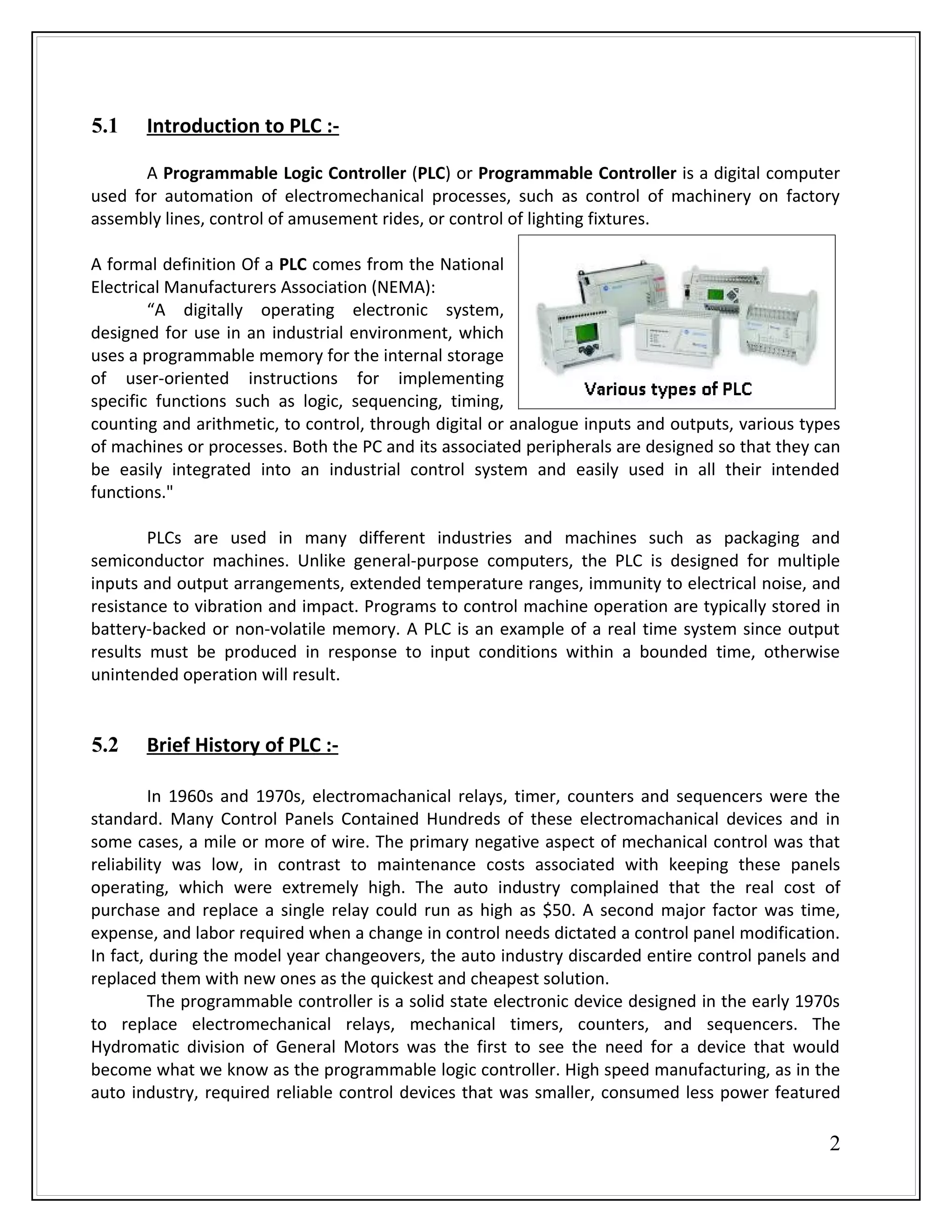

2. 5.1 Introduction to PLC :-
A Programmable Logic Controller (PLC) or Programmable Controller is a digital computer
used for automation of electromechanical processes, such as control of machinery on factory
assembly lines, control of amusement rides, or control of lighting fixtures.
A formal definition Of a PLC comes from the National
Electrical Manufacturers Association (NEMA):
“A digitally operating electronic system,
designed for use in an industrial environment, which
uses a programmable memory for the internal storage
of user-oriented instructions for implementing
specific functions such as logic, sequencing, timing,
counting and arithmetic, to control, through digital or analogue inputs and outputs, various types
of machines or processes. Both the PC and its associated peripherals are designed so that they can
be easily integrated into an industrial control system and easily used in all their intended
functions."
PLCs are used in many different industries and machines such as packaging and
semiconductor machines. Unlike general-purpose computers, the PLC is designed for multiple
inputs and output arrangements, extended temperature ranges, immunity to electrical noise, and
resistance to vibration and impact. Programs to control machine operation are typically stored in
battery-backed or non-volatile memory. A PLC is an example of a real time system since output
results must be produced in response to input conditions within a bounded time, otherwise
unintended operation will result.
5.2 Brief History of PLC :-
In 1960s and 1970s, electromachanical relays, timer, counters and sequencers were the
standard. Many Control Panels Contained Hundreds of these electromachanical devices and in
some cases, a mile or more of wire. The primary negative aspect of mechanical control was that
reliability was low, in contrast to maintenance costs associated with keeping these panels
operating, which were extremely high. The auto industry complained that the real cost of
purchase and replace a single relay could run as high as $50. A second major factor was time,
expense, and labor required when a change in control needs dictated a control panel modification.
In fact, during the model year changeovers, the auto industry discarded entire control panels and
replaced them with new ones as the quickest and cheapest solution.
The programmable controller is a solid state electronic device designed in the early 1970s
to replace electromechanical relays, mechanical timers, counters, and sequencers. The
Hydromatic division of General Motors was the first to see the need for a device that would
become what we know as the programmable logic controller. High speed manufacturing, as in the
auto industry, required reliable control devices that was smaller, consumed less power featured
2
3. fast switching, and were quickly and easily changeable. These devices must also be able to
withstand the harsh industrial environment. Keep in mind that the first PLCs were little more than
relay replacers.
5.3 Area of Application of a PLC :-
Every system or machine has a controller. Depending on the type of technology used,
controllers can be divided into pneumatic, hydraulic, electrical and electronic controllers.
Frequently, a combination of different technologies is used. Furthermore, differentiation is made
between hard-wired programmable (e.g. wiring of electro-mechanical or electronic components)
and programmable logic controllers. The first is used primarily in cases, where any reprogramming
by the user is out of the question and the job size warrants the development of a special
controller. Typical applications for such controllers can be found in automatic washing machines,
video cameras, and cars.

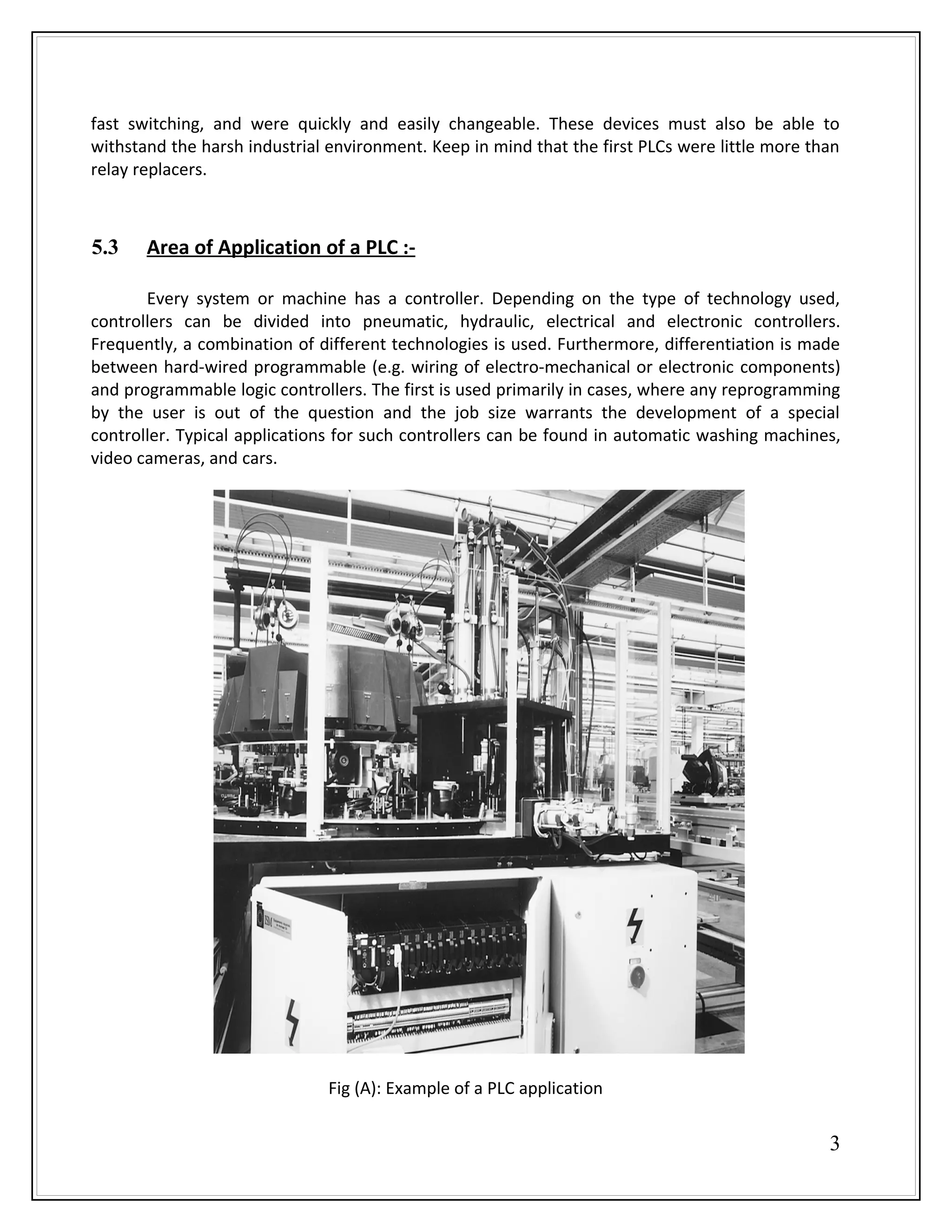

Fig (A): Example of a PLC application
3

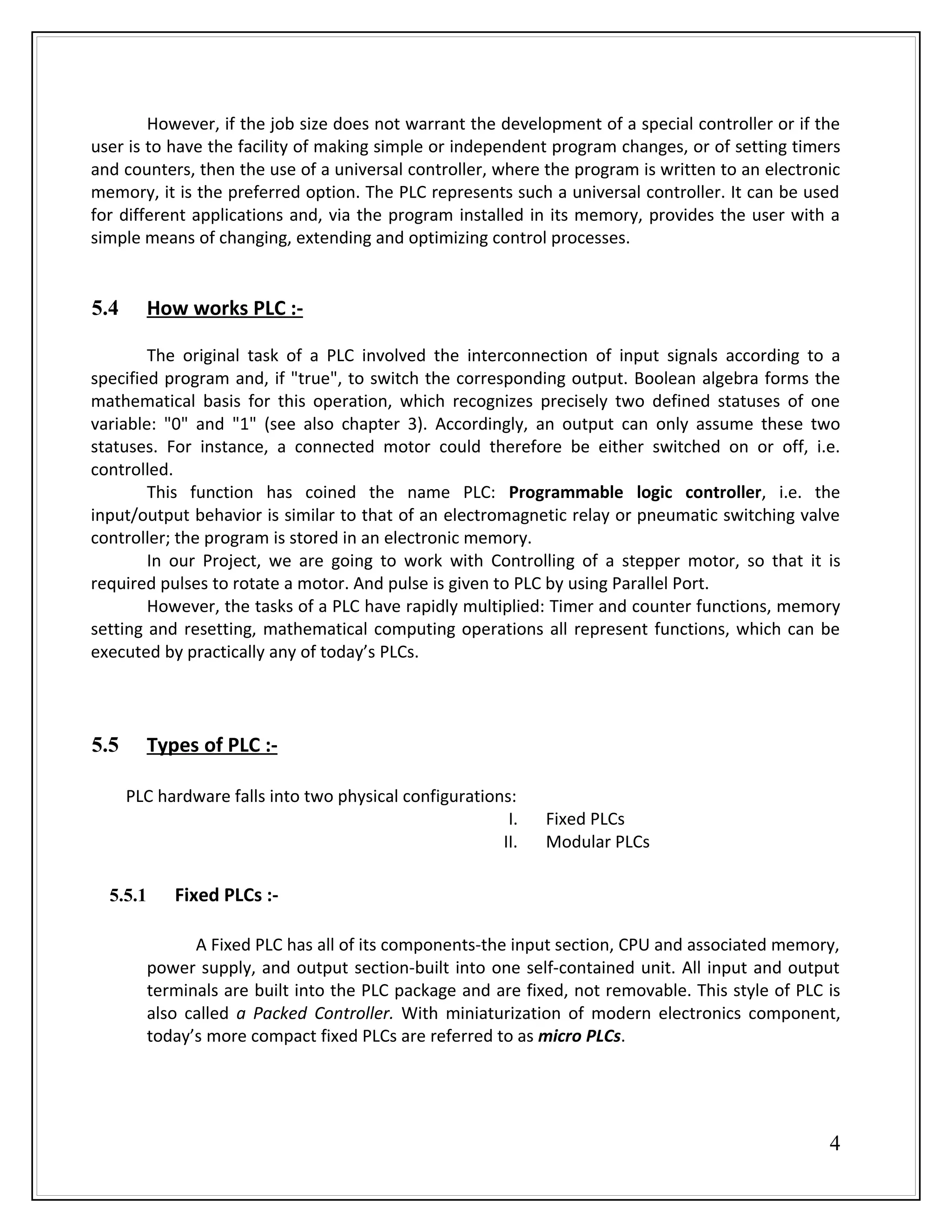

4. However, if the job size does not warrant the development of a special controller or if the
user is to have the facility of making simple or independent program changes, or of setting timers
and counters, then the use of a universal controller, where the program is written to an electronic
memory, it is the preferred option. The PLC represents such a universal controller. It can be used
for different applications and, via the program installed in its memory, provides the user with a
simple means of changing, extending and optimizing control processes.
5.4 How works PLC :-
The original task of a PLC involved the interconnection of input signals according to a
specified program and, if "true", to switch the corresponding output. Boolean algebra forms the
mathematical basis for this operation, which recognizes precisely two defined statuses of one
variable: "0" and "1" (see also chapter 3). Accordingly, an output can only assume these two
statuses. For instance, a connected motor could therefore be either switched on or off, i.e.
controlled.
This function has coined the name PLC: Programmable logic controller, i.e. the
input/output behavior is similar to that of an electromagnetic relay or pneumatic switching valve
controller; the program is stored in an electronic memory.
In our Project, we are going to work with Controlling of a stepper motor, so that it is
required pulses to rotate a motor. And pulse is given to PLC by using Parallel Port.
However, the tasks of a PLC have rapidly multiplied: Timer and counter functions, memory
setting and resetting, mathematical computing operations all represent functions, which can be
executed by practically any of today’s PLCs.
5.5 Types of PLC :-
PLC hardware falls into two physical configurations:
I. Fixed PLCs
II. Modular PLCs
5.5.1 Fixed PLCs :-
A Fixed PLC has all of its components-the input section, CPU and associated memory,
power supply, and output section-built into one self-contained unit. All input and output
terminals are built into the PLC package and are fixed, not removable. This style of PLC is
also called a Packed Controller. With miniaturization of modern electronics component,
today’s more compact fixed PLCs are referred to as micro PLCs.
4

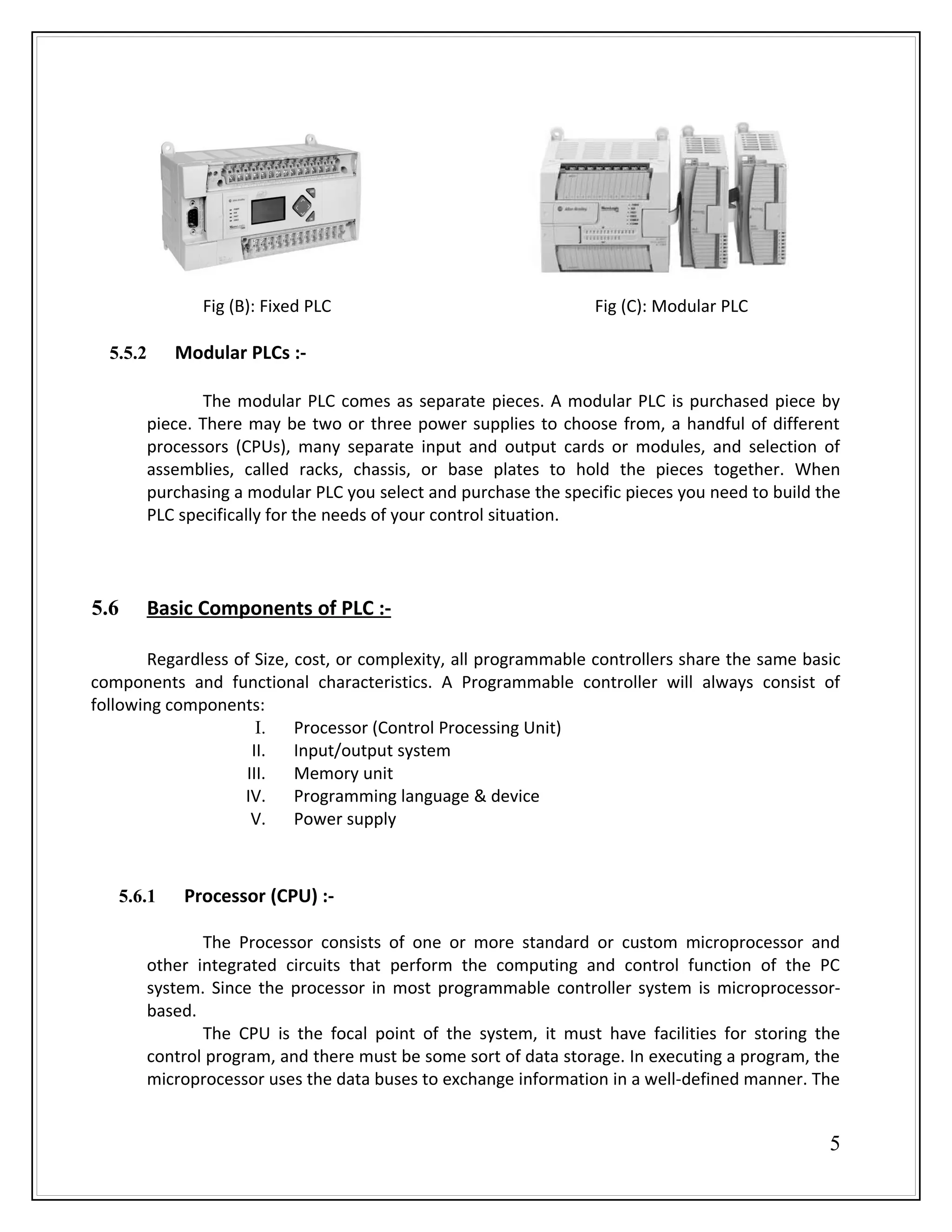

5. Fig (B): Fixed PLC Fig (C): Modular PLC
5.5.2 Modular PLCs :-
The modular PLC comes as separate pieces. A modular PLC is purchased piece by
piece. There may be two or three power supplies to choose from, a handful of different
processors (CPUs), many separate input and output cards or modules, and selection of
assemblies, called racks, chassis, or base plates to hold the pieces together. When
purchasing a modular PLC you select and purchase the specific pieces you need to build the
PLC specifically for the needs of your control situation.
5.6 Basic Components of PLC :-
Regardless of Size, cost, or complexity, all programmable controllers share the same basic
components and functional characteristics. A Programmable controller will always consist of
following components:
I. Processor (Control Processing Unit)
II. Input/output system
III. Memory unit
IV. Programming language & device
V. Power supply
5.6.1 Processor (CPU) :-
The Processor consists of one or more standard or custom microprocessor and
other integrated circuits that perform the computing and control function of the PC
system. Since the processor in most programmable controller system is microprocessor-
based.
The CPU is the focal point of the system, it must have facilities for storing the
control program, and there must be some sort of data storage. In executing a program, the
microprocessor uses the data buses to exchange information in a well-defined manner. The
5

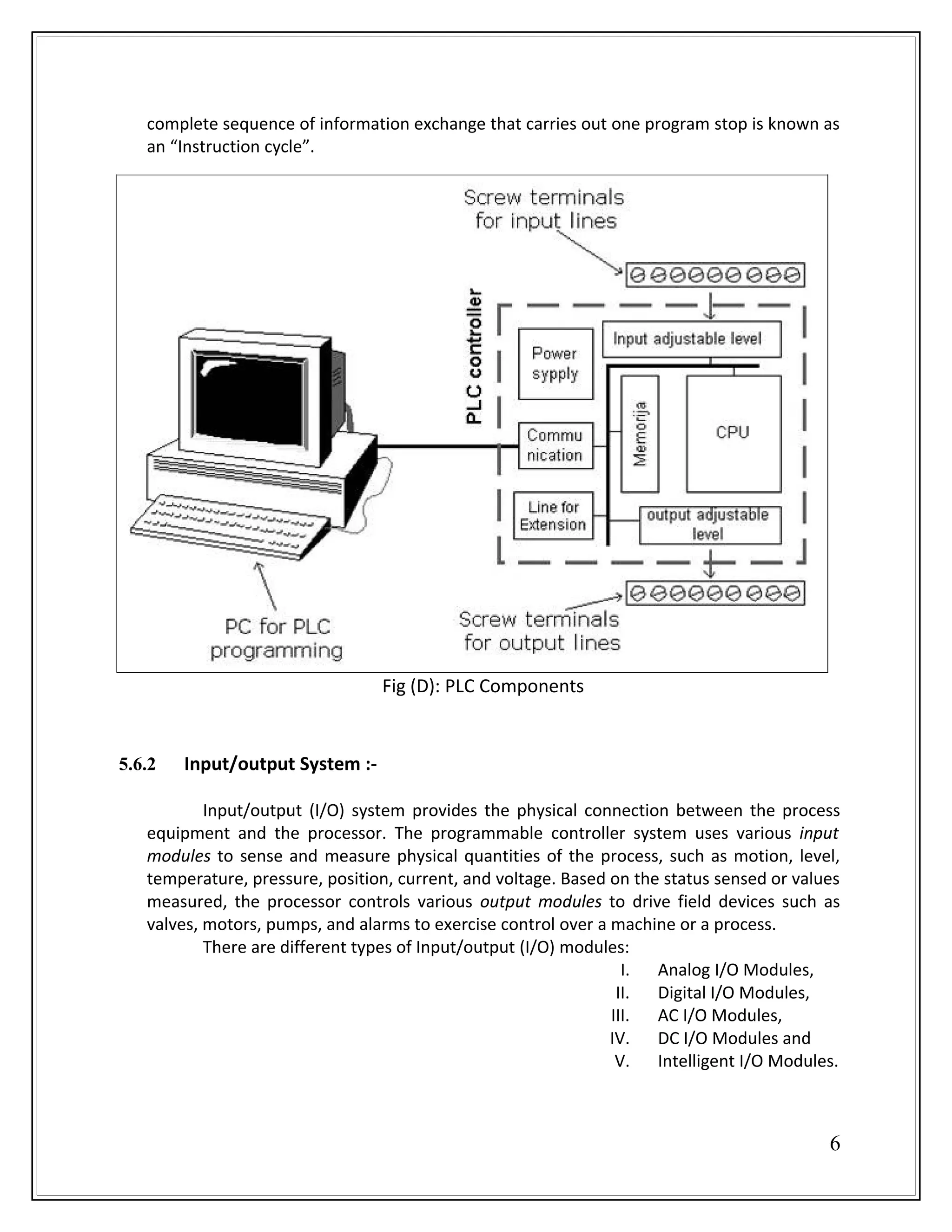

6. complete sequence of information exchange that carries out one program stop is known as
an “Instruction cycle”.
Fig (D): PLC Components
5.6.2 Input/output System :-
Input/output (I/O) system provides the physical connection between the process
equipment and the processor. The programmable controller system uses various input
modules to sense and measure physical quantities of the process, such as motion, level,
temperature, pressure, position, current, and voltage. Based on the status sensed or values
measured, the processor controls various output modules to drive field devices such as
valves, motors, pumps, and alarms to exercise control over a machine or a process.
There are different types of Input/output (I/O) modules:
I. Analog I/O Modules,
II. Digital I/O Modules,
III. AC I/O Modules,
IV. DC I/O Modules and
V. Intelligent I/O Modules.
6

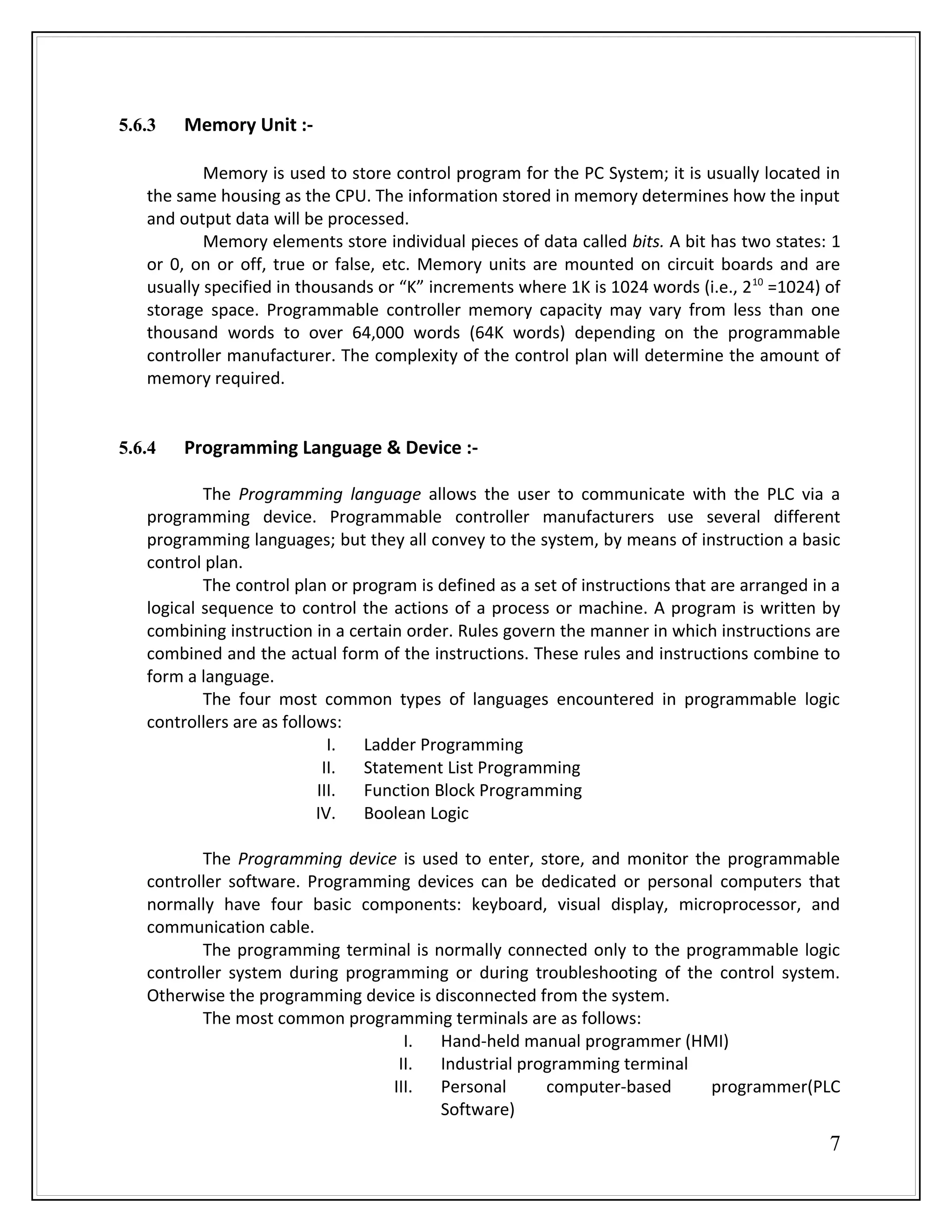

7. 5.6.3 Memory Unit :-
Memory is used to store control program for the PC System; it is usually located in
the same housing as the CPU. The information stored in memory determines how the input
and output data will be processed.
Memory elements store individual pieces of data called bits. A bit has two states: 1
or 0, on or off, true or false, etc. Memory units are mounted on circuit boards and are
usually specified in thousands or “K” increments where 1K is 1024 words (i.e., 2 10 =1024) of
storage space. Programmable controller memory capacity may vary from less than one
thousand words to over 64,000 words (64K words) depending on the programmable
controller manufacturer. The complexity of the control plan will determine the amount of
memory required.
5.6.4 Programming Language & Device :-
The Programming language allows the user to communicate with the PLC via a
programming device. Programmable controller manufacturers use several different
programming languages; but they all convey to the system, by means of instruction a basic
control plan.
The control plan or program is defined as a set of instructions that are arranged in a
logical sequence to control the actions of a process or machine. A program is written by
combining instruction in a certain order. Rules govern the manner in which instructions are
combined and the actual form of the instructions. These rules and instructions combine to
form a language.
The four most common types of languages encountered in programmable logic
controllers are as follows:
I. Ladder Programming
II. Statement List Programming
III. Function Block Programming
IV. Boolean Logic
The Programming device is used to enter, store, and monitor the programmable
controller software. Programming devices can be dedicated or personal computers that
normally have four basic components: keyboard, visual display, microprocessor, and
communication cable.
The programming terminal is normally connected only to the programmable logic
controller system during programming or during troubleshooting of the control system.
Otherwise the programming device is disconnected from the system.
The most common programming terminals are as follows:
I. Hand-held manual programmer (HMI)
II. Industrial programming terminal
III. Personal computer-based programmer(PLC
Software)
7

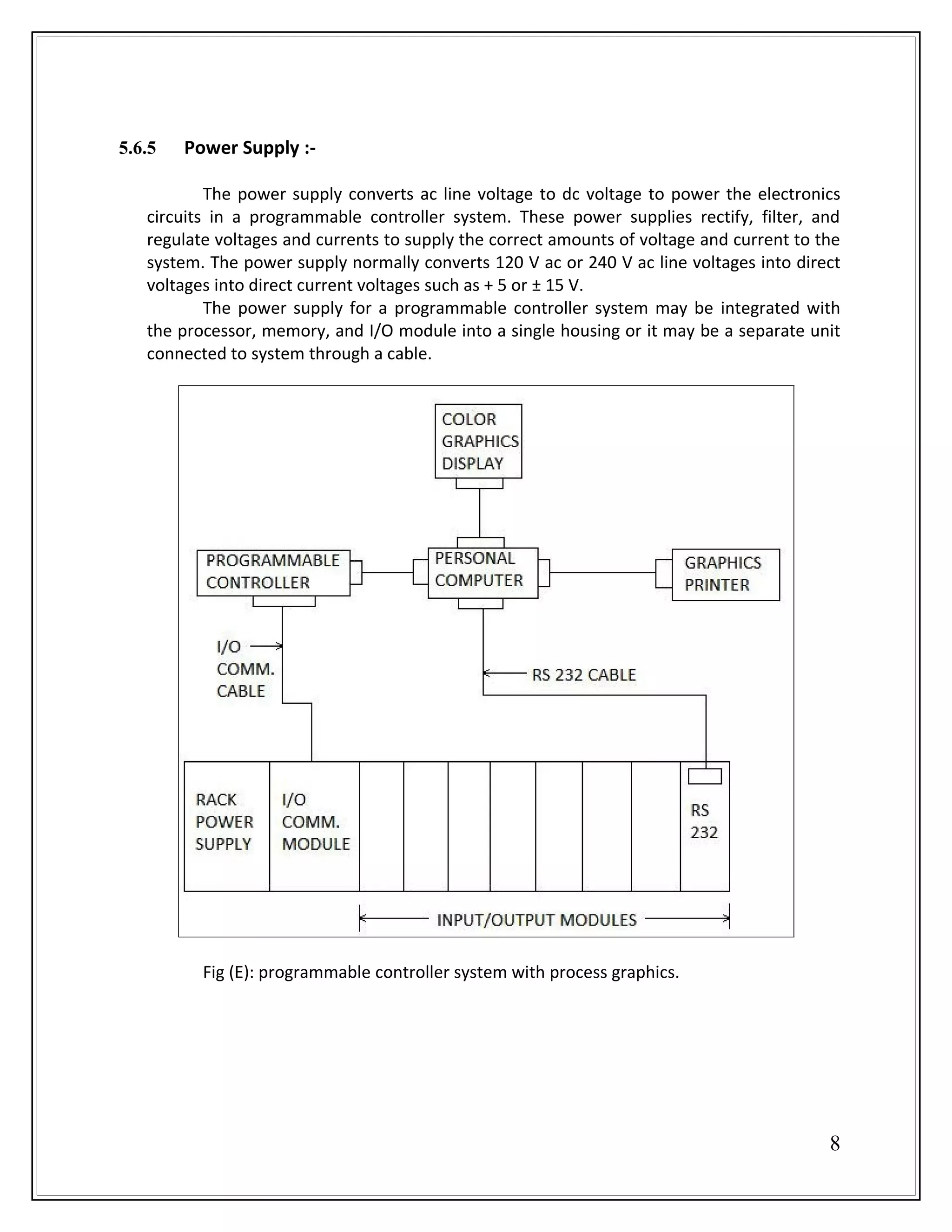

8. 5.6.5 Power Supply :-
The power supply converts ac line voltage to dc voltage to power the electronics
circuits in a programmable controller system. These power supplies rectify, filter, and
regulate voltages and currents to supply the correct amounts of voltage and current to the
system. The power supply normally converts 120 V ac or 240 V ac line voltages into direct
voltages into direct current voltages such as + 5 or ± 15 V.
The power supply for a programmable controller system may be integrated with
the processor, memory, and I/O module into a single housing or it may be a separate unit
connected to system through a cable.
Fig (E): programmable controller system with process graphics.
8
9. 5.7 Advantages of PLC :-
PLCs have been gaining popularity on the factory floor and will probably remain
predominant for some time to come. Most of this is because of the advantages they offer:
Smaller physical size than the hard-wire solution.
Easier and faster to make changes.
PLCs have integrated diagnostics and override functions.
Reliability of the plc is greater and maintenance is easier.
Diagnostics are centrally available.
Applications can be immediately documented.
Applications can be dublicated faster and less expensively.
Cost effective for controlling complex systems.
Flexible and can be reapplied to control other systems quickly and easily.
Computational abilities allow more sophisticated control.
Trouble shooting aids make programming easier and reduce downtime.
5.8 Allen Bradley MicroLogix PLCs :-
The MicroLogix family of controllers provides five levels of control. Small on size, big on
performance, the MicroLogix 1000 controller offers control capabilities in an affordable, compact
package. The MicroLogix 1200 controller is small enough to fit in tight spaces, but powerful
enough to accommodate a broad range of applications. Designed to grow as your needs grow, the
MicroLogix 1500 controller helps you achieve high-level control in a variety of applications. The
MicroLogix family’s newest members, the MicroLogix 1100 and 1400 controllers, further enhance
the MicroLogix family by expanding the application coverage area while offering great new
features at an affordable price.
9
10. Fig (F): The MicroLogix Family of Programmable controller.
In our project, we have used Allen Bradley MicroLogix 1200 controller for controlling
Stepper motor. Thus, now we will discuss about MicroLogix 1200 controller and its specification &
advantages.
5.8.1 MicroLogix 1200 controller :-
The MicroLogix 1200 controller provides more computing power and flexibility than the
MicroLogix 1000 controller to solve a variety of application needs.
Available in 24- and 40-point versions, the I/O count can be expanded by using rack less
I/O modules. This results in larger control systems, greater application flexibility and
expandability at a lower cost and reduced parts inventory.
A field-upgradable flash operating system that helps to make sure you will always be up-
to-date with the latest features, without having to replace hardware. The controller can be easily
updated with the latest firmware via a website download.
10
11. Fig (G): Use of MicroLogix 1200 PLC
5.8.1.1 Power and I/O Configuration of MicroLogix 1200 controller:-
Table (A):
CAT. NO. LINE VOLTAGE NUMBER OF INPUTS NUMBER OF OUTPUTS HIGH SPEED I/O
1762-L24AWA,
120/240V AC (14) 120V AC (10) Relay N/A
1762-L24AWAR
1762-L40AWA,
120/240V AC (24) 120V AC (16) Relay N/A
1762 -L40AWAR
1762-L24BWA, (10) Standard 24V DC
120/240V AC (10) Relay (4) 20 kHz input
1762 -L24BWAR (4) Fast 24V DC
1762-L40BWA, (20) Standard 24V DC
120/240V AC (16) Relay (4) 20 kHz input
1762 -L40BWAR (4) Fast 24V DC
(5) Relay
1762-L24BXB, (10) Standard 24V DC (4) 20 kHz input
24V DC (4) Standard 24V DC FET
1762 -L24BXBR (4) Fast 24V DC (1) 20 kHz output
(1) Fast 24V DC FET
(8) Relay
1762-L40BXB, (20) Standard 24V DC (4) 20 kHz input
24V DC (7) Standard 24V DC FET
1762-L40BXBR (4) Fast 24V DC (1) 20 kHz output
(1) Fast 24V DC FET
5.8.1.2 Advantages for MicroLogix 1200 controller :-
11

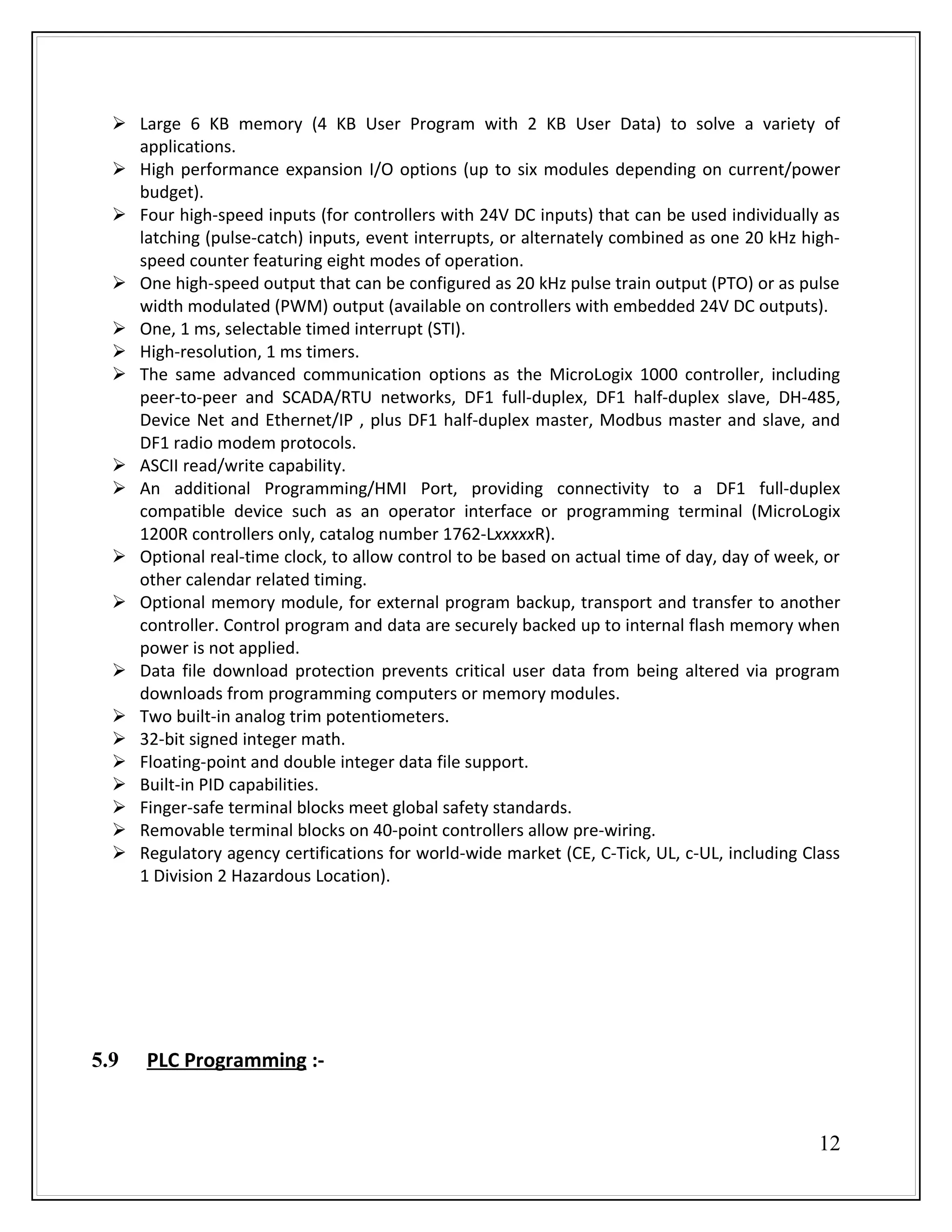

12. Large 6 KB memory (4 KB User Program with 2 KB User Data) to solve a variety of
applications.
High performance expansion I/O options (up to six modules depending on current/power
budget).
Four high-speed inputs (for controllers with 24V DC inputs) that can be used individually as
latching (pulse-catch) inputs, event interrupts, or alternately combined as one 20 kHz high-
speed counter featuring eight modes of operation.
One high-speed output that can be configured as 20 kHz pulse train output (PTO) or as pulse
width modulated (PWM) output (available on controllers with embedded 24V DC outputs).
One, 1 ms, selectable timed interrupt (STI).
High-resolution, 1 ms timers.
The same advanced communication options as the MicroLogix 1000 controller, including
peer-to-peer and SCADA/RTU networks, DF1 full-duplex, DF1 half-duplex slave, DH-485,
Device Net and Ethernet/IP , plus DF1 half-duplex master, Modbus master and slave, and
DF1 radio modem protocols.
ASCII read/write capability.
An additional Programming/HMI Port, providing connectivity to a DF1 full-duplex
compatible device such as an operator interface or programming terminal (MicroLogix
1200R controllers only, catalog number 1762-LxxxxxR).
Optional real-time clock, to allow control to be based on actual time of day, day of week, or
other calendar related timing.
Optional memory module, for external program backup, transport and transfer to another
controller. Control program and data are securely backed up to internal flash memory when
power is not applied.
Data file download protection prevents critical user data from being altered via program
downloads from programming computers or memory modules.
Two built-in analog trim potentiometers.
32-bit signed integer math.
Floating-point and double integer data file support.
Built-in PID capabilities.
Finger-safe terminal blocks meet global safety standards.
Removable terminal blocks on 40-point controllers allow pre-wiring.
Regulatory agency certifications for world-wide market (CE, C-Tick, UL, c-UL, including Class
1 Division 2 Hazardous Location).
5.9 PLC Programming :-
12
13. We have used RSLogix 500 as a programming software and Ladder logic as a programming
language. So now, we will discuss about RSLogix 500, Ladder logic and main PLC program in
this topic.
5.9.1 RSLogix 500 :-
RSLogix 500 software is a 32-bit Windows ladder logic programming package for the
SLC 500 and MicroLogix® processors. RSLogix 500 is compatible with SLC 500 and
MicroLogix programs created with any of Rockwell Software’s programming packages.
♦ RSLogix 500 software includes:
A free-form ladder editor that lets you concentrate on the application logic instead
of syntax as you write your program.
A powerful project verifier that you use to build a list of errors you can navigate to
make corrections at your convenience.
drag-and-drop editing to quickly move data table elements from one data file to
another, rungs from one subroutine or project to another, or instructions from rung
to rung within a project.
An address wizard that makes entering addresses easier and reduces keying errors.
A point-and-click interface called a project tree that lets you access all the folders
and files contained in your project.
SLC libraries for storing and retrieving portions of ladder logic for use across any of
Rockwell Software's SLC programming software products.
A compare utility that lets you graphically view project differences.
Menu toolbar
Icon bar
Online bar Instruction toolbar
Project tree
Result pane
Ladder view
Status bar
Fig (H): RSLogix 500 for PLC programming
5.9.2 Ladder Logic :-
13
14. Ladder logic is the main programming method used for PLCs. It is defined by
“Graphical language for describing output of an electrical switching system as a function of
its inputs”. It is also known as “relay ladder logic” or RLL. Primarily it is used to relate
logical inputs (switch closures) to relay coil outputs. (For example, Start switch used to
energize a motor contactor relay). And commonly it is used to document control
equipment in process plants.
Ladder logic has been developed to mimic relay logic. The decision to use the relay
logic diagrams was a strategic one. By selecting ladder logic as the main programming
method, the amount of retraining needed for engineers and trades people was greatly
reduced.
Ladder logic input contacts and output coils allow simple logical decisions.
Functions extend basic ladder logic to allow other types of control. For example, the
addition of timers and counters allowed event based control. A longer list of functions is
shown below:
Combinatorial Logic
- relay contacts and coils
Events
- Timer instructions
- counter instructions
Data Handling
- Moves
- Mathematics
- Conversions
Numerical Logic
- Boolean operations
- Comparisons
Lists
- shift registers/stacks
- Sequencers
Program Control
- branching/looping
- Immediate inputs/outputs
- fault/interrupt detection
Input and Output
- PID
- Communications
- high speed counters
- ASCII string functions
Fig (I) shows the simple example of ladder logic to energize a motor by pushing
‘START’ pushbutton. When we press pushbutton output coil set to logic 1 or true.
Control Voltage
Source
START MOTOR
14
Control Voltage
Return
Contact
Coil
15. Fig (I): Simple Example of Ladder logic
5.9.3 Main Ladder program :-
Now, we are explaining our Main Ladder program for stepper motor controlling
which is shown in figure (J).
15

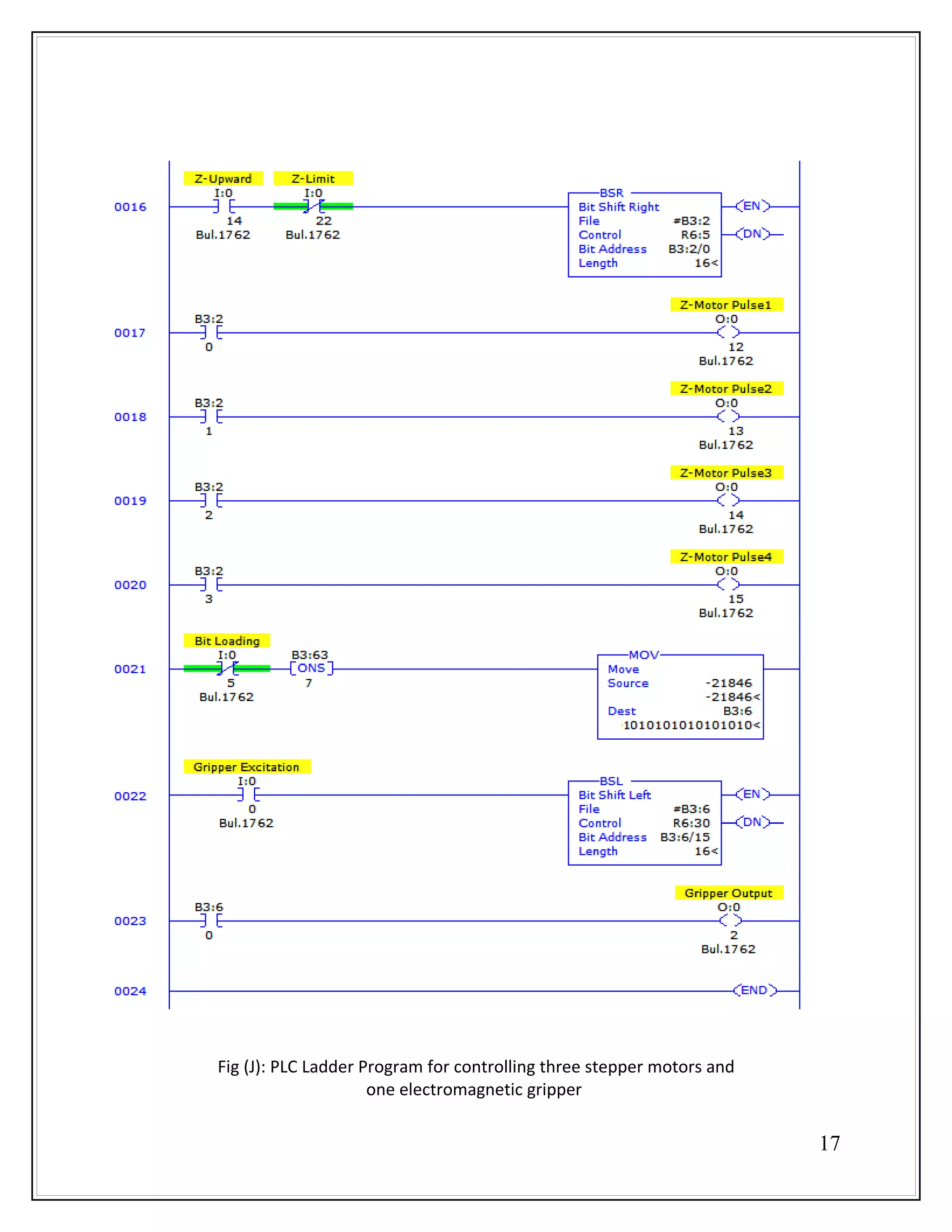

17. Fig (J): PLC Ladder Program for controlling three stepper motors and
one electromagnetic gripper
17
18. 5.9.4 Explanation of Program:-
For fully explanation of PLC ladder program, we should have knowledge about
elements of ladder, and various instructions such as basic, comparison, math, data
handling, program flow, application specific, block transfer instructions. But in this topic,
we are giving information about those instructions which are used in our PLC program.
In PLC program, we are using following instructions:
1) XIC Examine if Closed 2) XIO Examine if Open 3) OTE Output Energize
4) ONS One-shot 5) MOV Move 6) BSL Bit Shift Left
7) BSR Bit Shift Right
5.9.4.1 Explanation of Instructions:
1. XIC (Examine if Closed) :
Use the XIC (Normally open) instruction in your ladder program to
determine if a bit is ‘On’. When the instruction is executed, if the bit addressed is on
(1), then the instruction is evaluated as true. When the instruction is executed, if the bit
addressed is off (0), then the instruction is evaluated as false.
Symbol Table (B):- XIC Bit State
Bit Address XIC Instruction
State
0 False
1 True
Usage:
In our program, this instruction is used for giving the input which comes
from parallel port to X-, Y- or Z-stepper motors.
2. XIO (Examine if Open) :
Use the XIO (Normally closed) instruction in your ladder program to
determine if a bit is ‘Off’. When the instruction is executed, if the bit addressed is off
(0), then the instruction is evaluated as true. When the instruction is executed, if the bit
addressed is on (1), then the instruction is evaluated as false.
Symbol Table (C):- XIO Bit State
Bit Address XIC Instruction
State
0 True
1 False Usage:
In our
program, this instruction is used for two purposes. (1) Initial loading of bits in to Bit file
which is used for giving the sequence of pulses to the stepper motor. (2) To stop to
motor by using limit switch for safety in reverse direction.
18

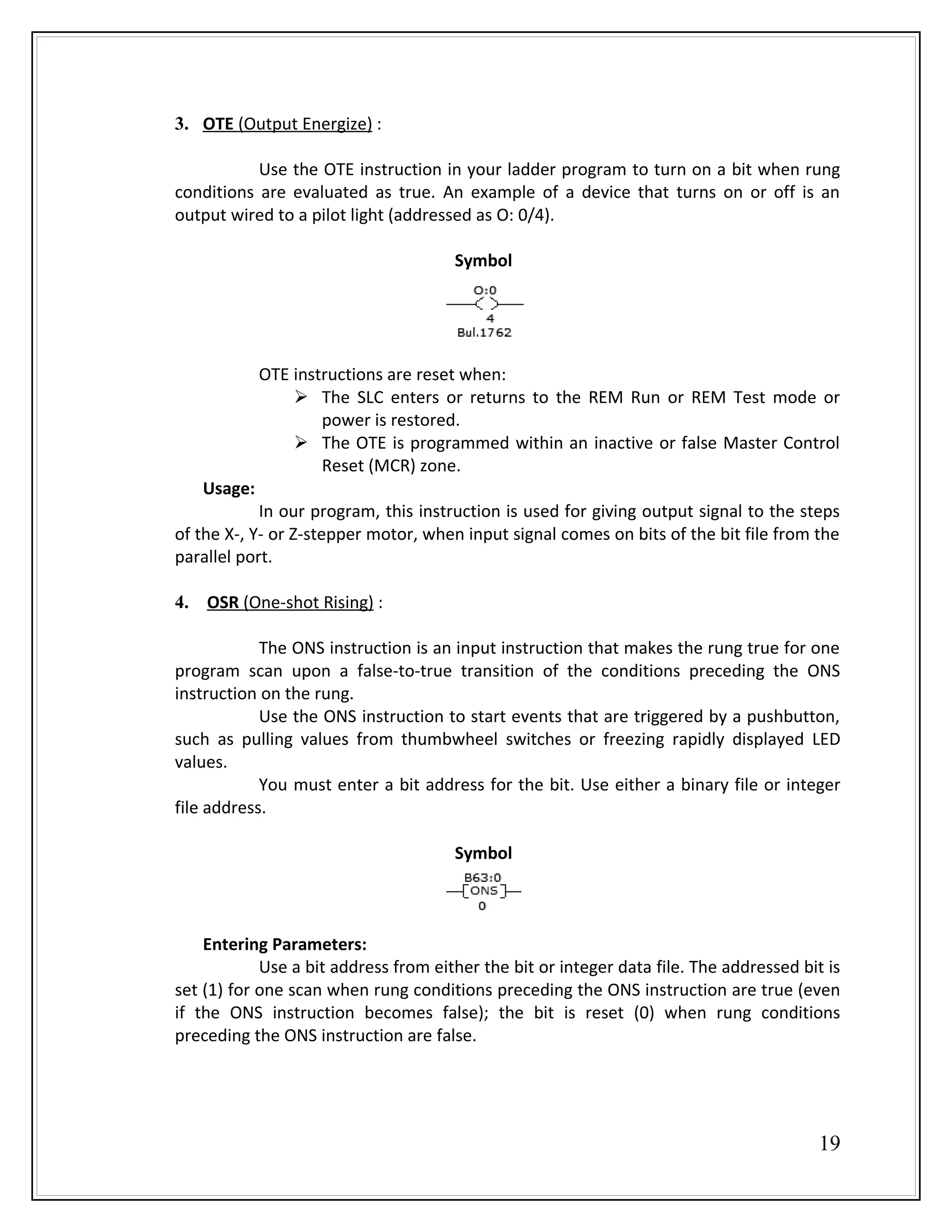

19. 3. OTE (Output Energize) :
Use the OTE instruction in your ladder program to turn on a bit when rung
conditions are evaluated as true. An example of a device that turns on or off is an
output wired to a pilot light (addressed as O: 0/4).
Symbol
OTE instructions are reset when:
The SLC enters or returns to the REM Run or REM Test mode or
power is restored.
The OTE is programmed within an inactive or false Master Control
Reset (MCR) zone.
Usage:
In our program, this instruction is used for giving output signal to the steps
of the X-, Y- or Z-stepper motor, when input signal comes on bits of the bit file from the
parallel port.

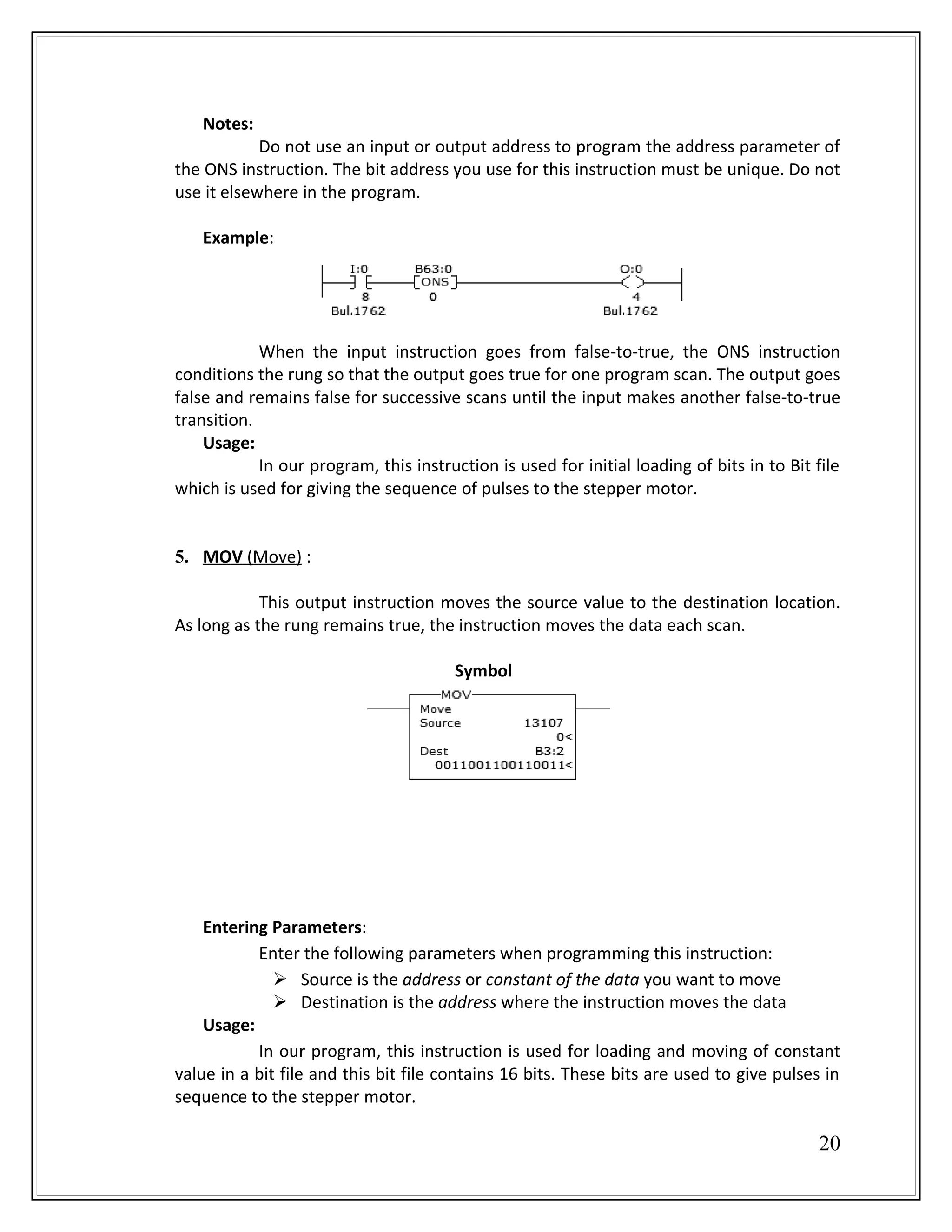

4. OSR (One-shot Rising) :
The ONS instruction is an input instruction that makes the rung true for one
program scan upon a false-to-true transition of the conditions preceding the ONS
instruction on the rung.
Use the ONS instruction to start events that are triggered by a pushbutton,
such as pulling values from thumbwheel switches or freezing rapidly displayed LED
values.
You must enter a bit address for the bit. Use either a binary file or integer
file address.
Symbol
Entering Parameters:
Use a bit address from either the bit or integer data file. The addressed bit is
set (1) for one scan when rung conditions preceding the ONS instruction are true (even
if the ONS instruction becomes false); the bit is reset (0) when rung conditions
preceding the ONS instruction are false.
19
20. Notes:
Do not use an input or output address to program the address parameter of
the ONS instruction. The bit address you use for this instruction must be unique. Do not
use it elsewhere in the program.
Example:
When the input instruction goes from false-to-true, the ONS instruction
conditions the rung so that the output goes true for one program scan. The output goes
false and remains false for successive scans until the input makes another false-to-true
transition.
Usage:
In our program, this instruction is used for initial loading of bits in to Bit file
which is used for giving the sequence of pulses to the stepper motor.
5. MOV (Move) :
This output instruction moves the source value to the destination location.
As long as the rung remains true, the instruction moves the data each scan.
Symbol
Entering Parameters:
Enter the following parameters when programming this instruction:
Source is the address or constant of the data you want to move
Destination is the address where the instruction moves the data
Usage:
In our program, this instruction is used for loading and moving of constant
value in a bit file and this bit file contains 16 bits. These bits are used to give pulses in
sequence to the stepper motor.
20

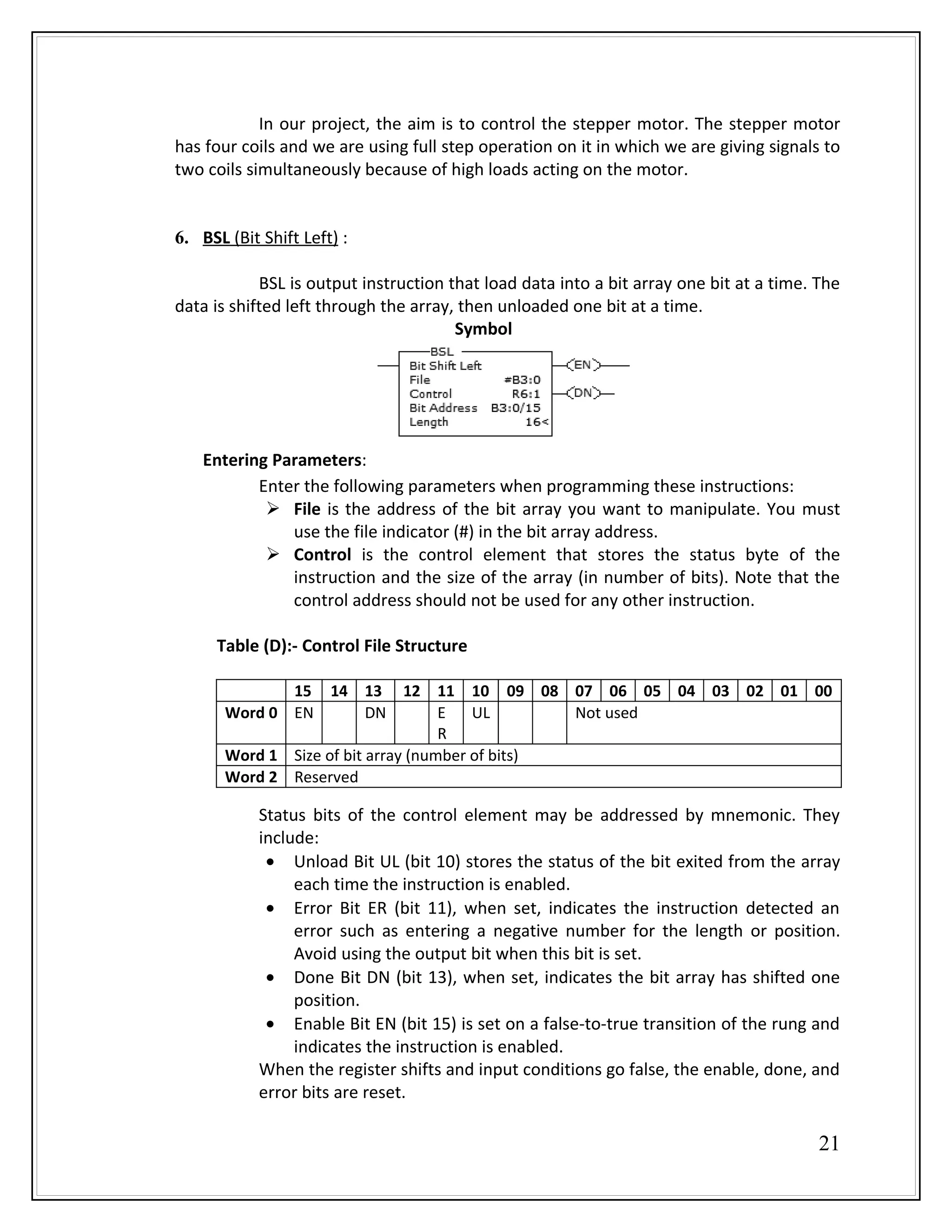

21. In our project, the aim is to control the stepper motor. The stepper motor
has four coils and we are using full step operation on it in which we are giving signals to
two coils simultaneously because of high loads acting on the motor.
6. BSL (Bit Shift Left) :
BSL is output instruction that load data into a bit array one bit at a time. The
data is shifted left through the array, then unloaded one bit at a time.
Symbol
Entering Parameters:
Enter the following parameters when programming these instructions:
File is the address of the bit array you want to manipulate. You must
use the file indicator (#) in the bit array address.
Control is the control element that stores the status byte of the
instruction and the size of the array (in number of bits). Note that the
control address should not be used for any other instruction.
Table (D):- Control File Structure
15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
Word 0 EN DN E UL Not used
R
Word 1 Size of bit array (number of bits)
Word 2 Reserved
Status bits of the control element may be addressed by mnemonic. They
include:
• Unload Bit UL (bit 10) stores the status of the bit exited from the array
each time the instruction is enabled.
• Error Bit ER (bit 11), when set, indicates the instruction detected an
error such as entering a negative number for the length or position.
Avoid using the output bit when this bit is set.
• Done Bit DN (bit 13), when set, indicates the bit array has shifted one
position.
• Enable Bit EN (bit 15) is set on a false-to-true transition of the rung and
indicates the instruction is enabled.
When the register shifts and input conditions go false, the enable, done, and
error bits are reset.
21

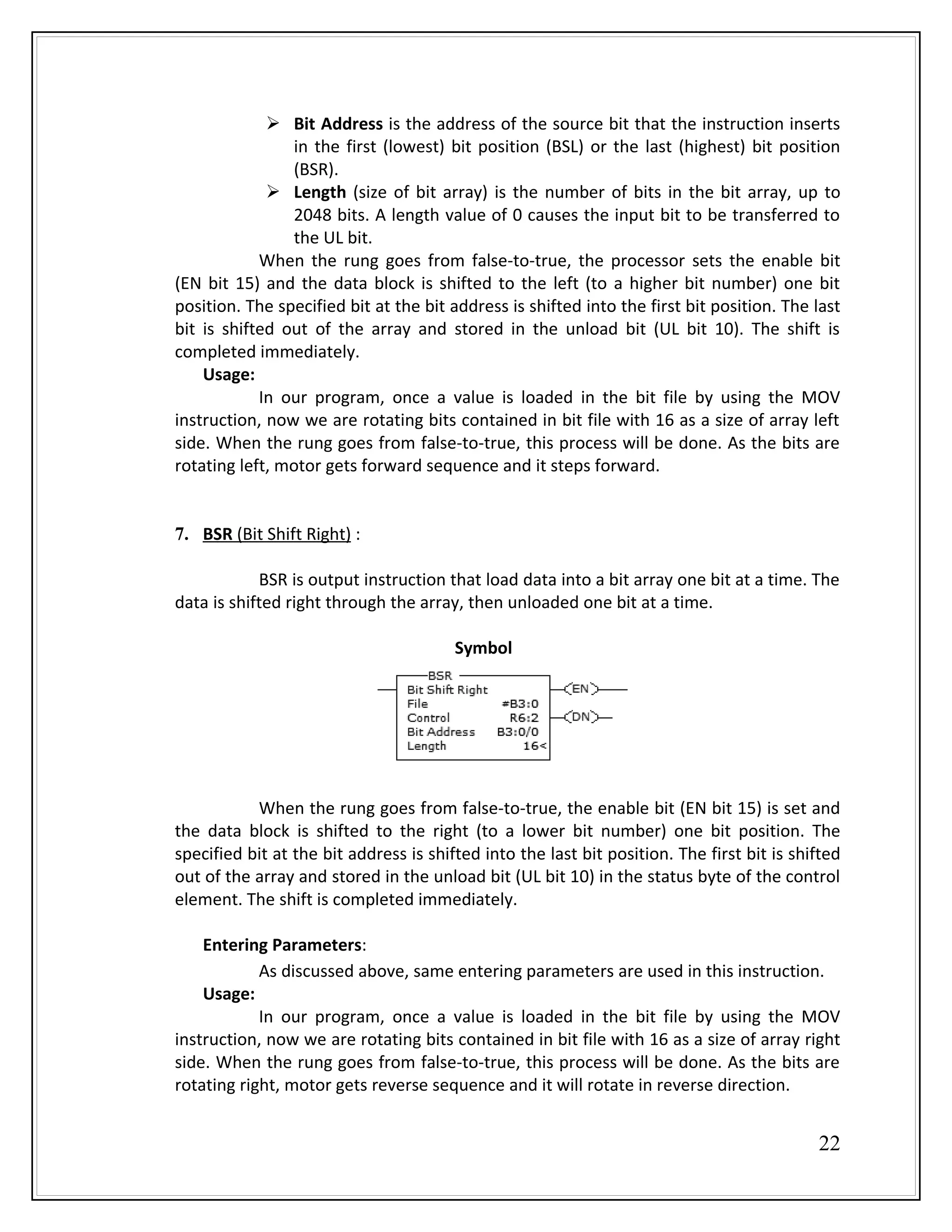

22. Bit Address is the address of the source bit that the instruction inserts
in the first (lowest) bit position (BSL) or the last (highest) bit position
(BSR).
Length (size of bit array) is the number of bits in the bit array, up to
2048 bits. A length value of 0 causes the input bit to be transferred to
the UL bit.
When the rung goes from false-to-true, the processor sets the enable bit
(EN bit 15) and the data block is shifted to the left (to a higher bit number) one bit
position. The specified bit at the bit address is shifted into the first bit position. The last
bit is shifted out of the array and stored in the unload bit (UL bit 10). The shift is
completed immediately.
Usage:
In our program, once a value is loaded in the bit file by using the MOV
instruction, now we are rotating bits contained in bit file with 16 as a size of array left
side. When the rung goes from false-to-true, this process will be done. As the bits are
rotating left, motor gets forward sequence and it steps forward.
7. BSR (Bit Shift Right) :
BSR is output instruction that load data into a bit array one bit at a time. The
data is shifted right through the array, then unloaded one bit at a time.
Symbol
When the rung goes from false-to-true, the enable bit (EN bit 15) is set and
the data block is shifted to the right (to a lower bit number) one bit position. The
specified bit at the bit address is shifted into the last bit position. The first bit is shifted
out of the array and stored in the unload bit (UL bit 10) in the status byte of the control
element. The shift is completed immediately.
Entering Parameters:
As discussed above, same entering parameters are used in this instruction.
Usage:
In our program, once a value is loaded in the bit file by using the MOV
instruction, now we are rotating bits contained in bit file with 16 as a size of array right
side. When the rung goes from false-to-true, this process will be done. As the bits are
rotating right, motor gets reverse sequence and it will rotate in reverse direction.
22

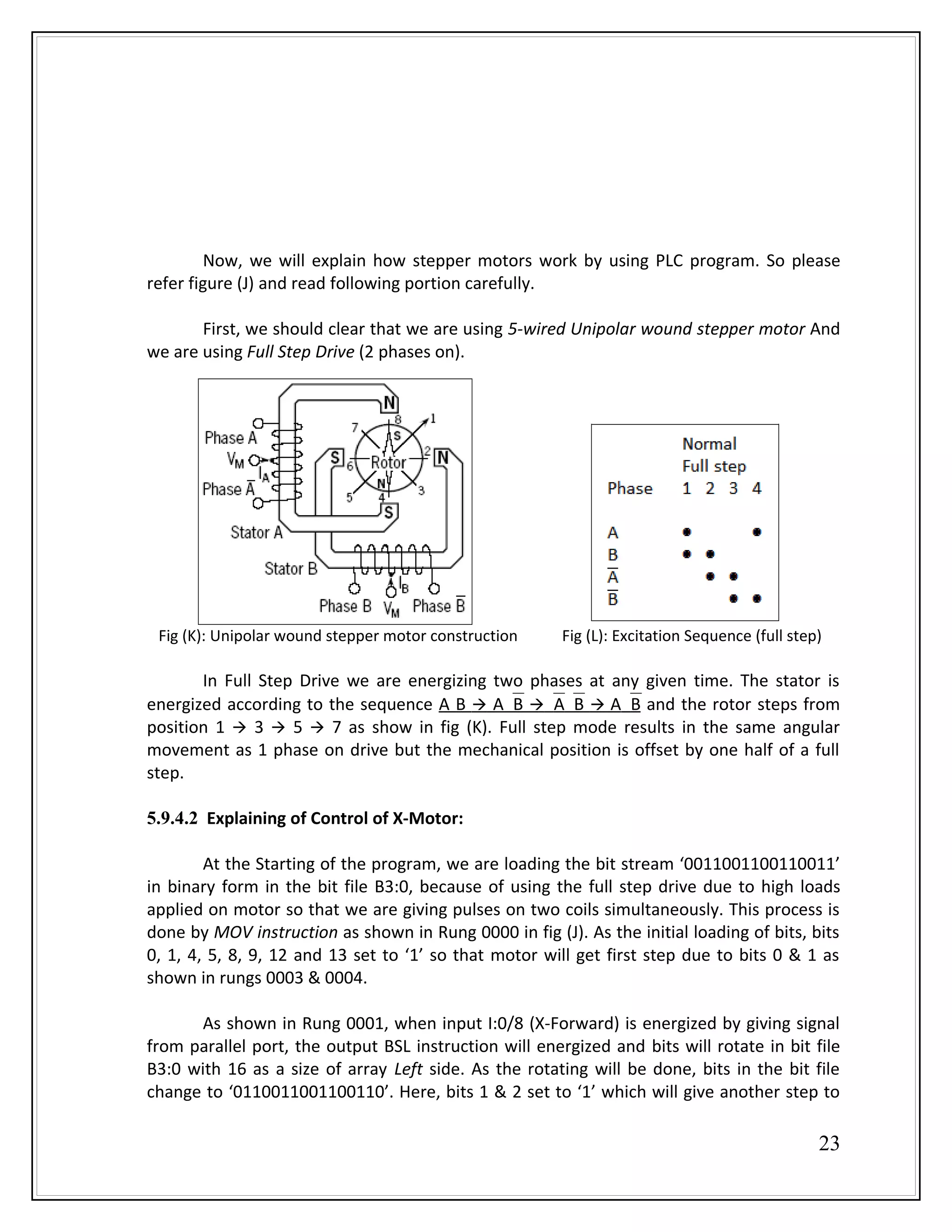

23. Now, we will explain how stepper motors work by using PLC program. So please
refer figure (J) and read following portion carefully.
First, we should clear that we are using 5-wired Unipolar wound stepper motor And
we are using Full Step Drive (2 phases on).
Fig (K): Unipolar wound stepper motor construction Fig (L): Excitation Sequence (full step)
In Full Step Drive we are energizing two phases at any given time. The stator is
energized according to the sequence A B AB AB AB and the rotor steps from
position 1 3 5 7 as show in fig (K). Full step mode results in the same angular
movement as 1 phase on drive but the mechanical position is offset by one half of a full
step.
5.9.4.2 Explaining of Control of X-Motor:
At the Starting of the program, we are loading the bit stream ‘0011001100110011’
in binary form in the bit file B3:0, because of using the full step drive due to high loads
applied on motor so that we are giving pulses on two coils simultaneously. This process is
done by MOV instruction as shown in Rung 0000 in fig (J). As the initial loading of bits, bits
0, 1, 4, 5, 8, 9, 12 and 13 set to ‘1’ so that motor will get first step due to bits 0 & 1 as
shown in rungs 0003 & 0004.
As shown in Rung 0001, when input I:0/8 (X-Forward) is energized by giving signal
from parallel port, the output BSL instruction will energized and bits will rotate in bit file
B3:0 with 16 as a size of array Left side. As the rotating will be done, bits in the bit file
change to ‘0110011001100110’. Here, bits 1 & 2 set to ‘1’ which will give another step to
23

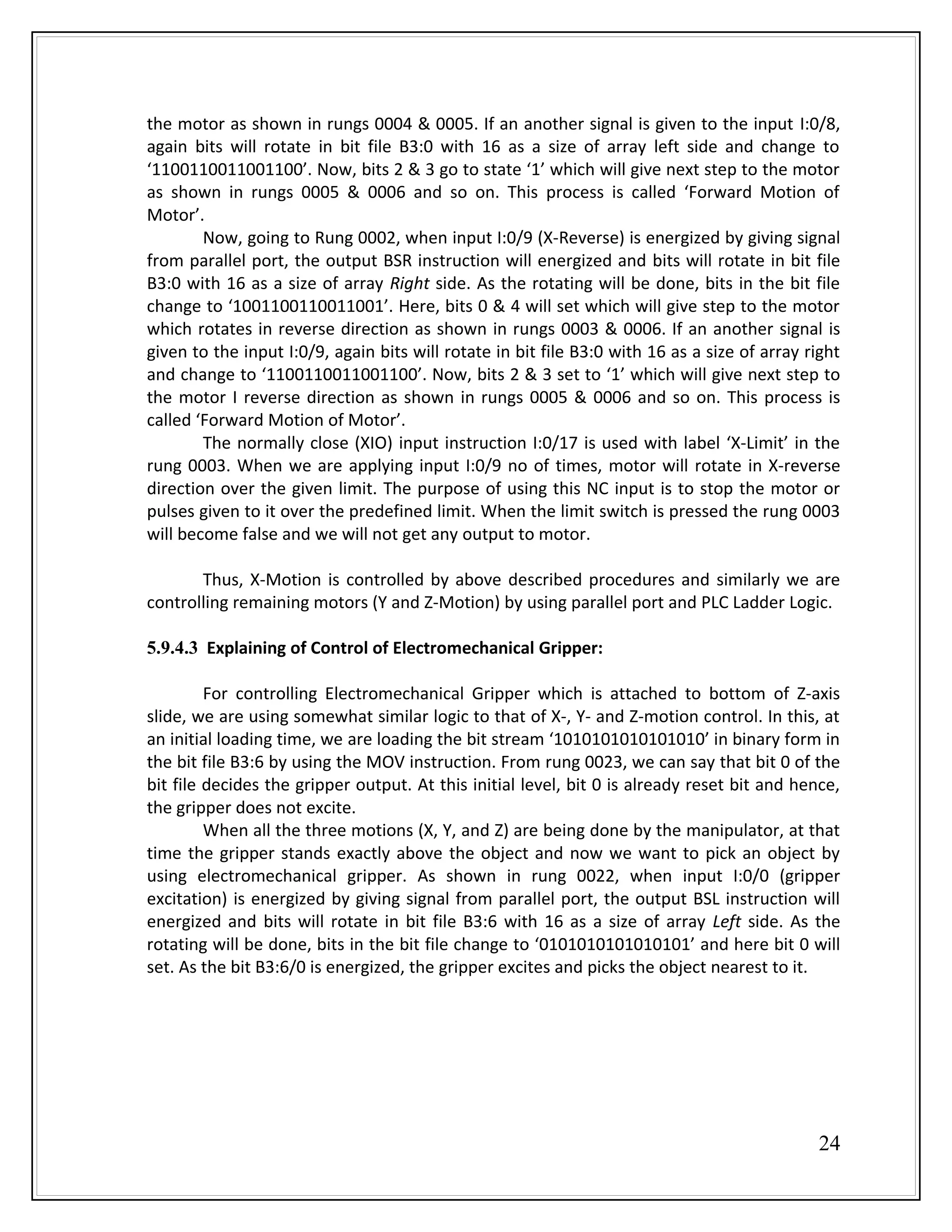

24. the motor as shown in rungs 0004 & 0005. If an another signal is given to the input I:0/8,
again bits will rotate in bit file B3:0 with 16 as a size of array left side and change to
‘1100110011001100’. Now, bits 2 & 3 go to state ‘1’ which will give next step to the motor
as shown in rungs 0005 & 0006 and so on. This process is called ‘Forward Motion of
Motor’.
Now, going to Rung 0002, when input I:0/9 (X-Reverse) is energized by giving signal
from parallel port, the output BSR instruction will energized and bits will rotate in bit file
B3:0 with 16 as a size of array Right side. As the rotating will be done, bits in the bit file
change to ‘1001100110011001’. Here, bits 0 & 4 will set which will give step to the motor
which rotates in reverse direction as shown in rungs 0003 & 0006. If an another signal is
given to the input I:0/9, again bits will rotate in bit file B3:0 with 16 as a size of array right
and change to ‘1100110011001100’. Now, bits 2 & 3 set to ‘1’ which will give next step to
the motor I reverse direction as shown in rungs 0005 & 0006 and so on. This process is
called ‘Forward Motion of Motor’.
The normally close (XIO) input instruction I:0/17 is used with label ‘X-Limit’ in the
rung 0003. When we are applying input I:0/9 no of times, motor will rotate in X-reverse
direction over the given limit. The purpose of using this NC input is to stop the motor or
pulses given to it over the predefined limit. When the limit switch is pressed the rung 0003
will become false and we will not get any output to motor.
Thus, X-Motion is controlled by above described procedures and similarly we are
controlling remaining motors (Y and Z-Motion) by using parallel port and PLC Ladder Logic.
5.9.4.3 Explaining of Control of Electromechanical Gripper:
For controlling Electromechanical Gripper which is attached to bottom of Z-axis
slide, we are using somewhat similar logic to that of X-, Y- and Z-motion control. In this, at
an initial loading time, we are loading the bit stream ‘1010101010101010’ in binary form in
the bit file B3:6 by using the MOV instruction. From rung 0023, we can say that bit 0 of the
bit file decides the gripper output. At this initial level, bit 0 is already reset bit and hence,
the gripper does not excite.
When all the three motions (X, Y, and Z) are being done by the manipulator, at that
time the gripper stands exactly above the object and now we want to pick an object by
using electromechanical gripper. As shown in rung 0022, when input I:0/0 (gripper
excitation) is energized by giving signal from parallel port, the output BSL instruction will
energized and bits will rotate in bit file B3:6 with 16 as a size of array Left side. As the
rotating will be done, bits in the bit file change to ‘0101010101010101’ and here bit 0 will
set. As the bit B3:6/0 is energized, the gripper excites and picks the object nearest to it.
24

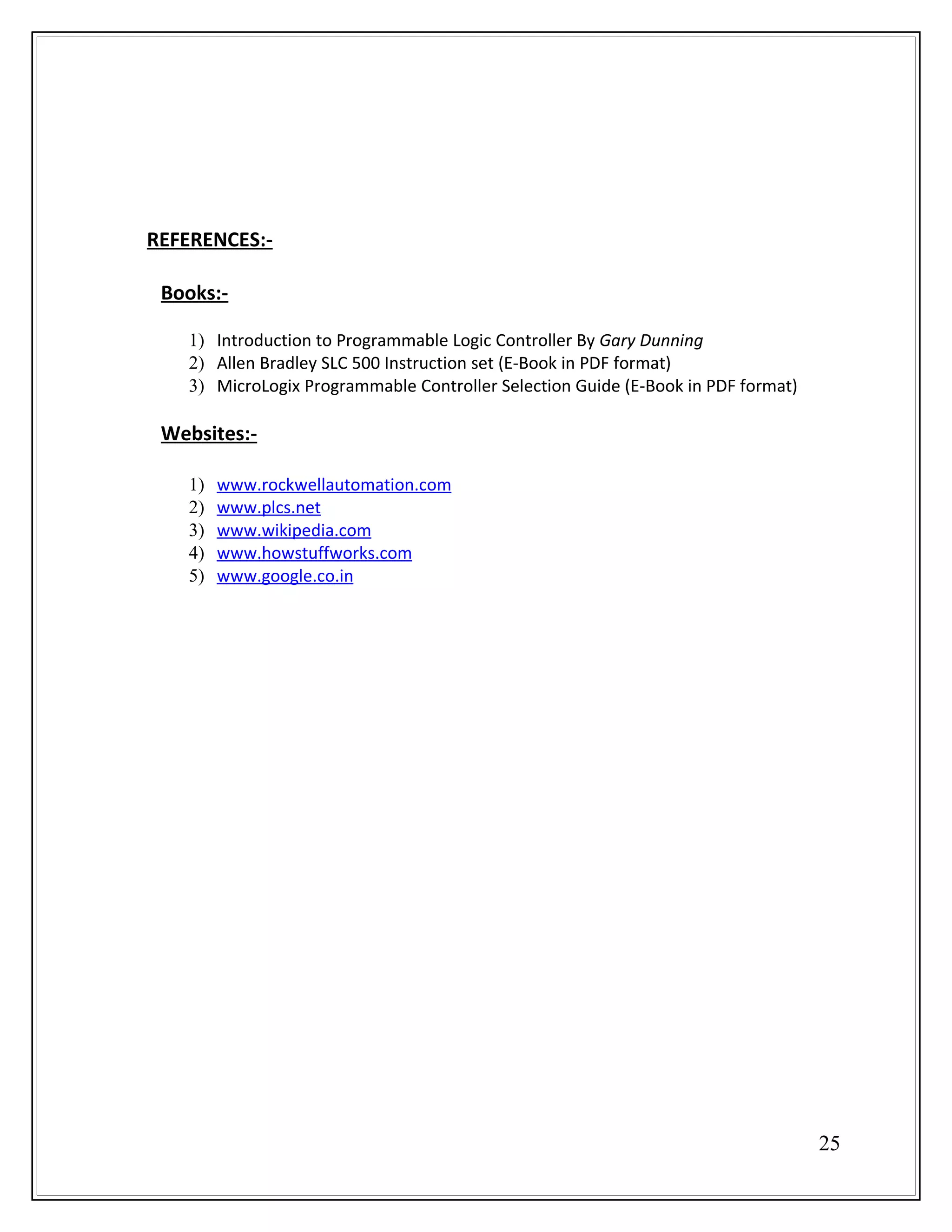

25. REFERENCES:-
Books:-
1) Introduction to Programmable Logic Controller By Gary Dunning
2) Allen Bradley SLC 500 Instruction set (E-Book in PDF format)
3) MicroLogix Programmable Controller Selection Guide (E-Book in PDF format)
Websites:-
1) www.rockwellautomation.com
2) www.plcs.net
3) www.wikipedia.com
4) www.howstuffworks.com
5) www.google.co.in
25

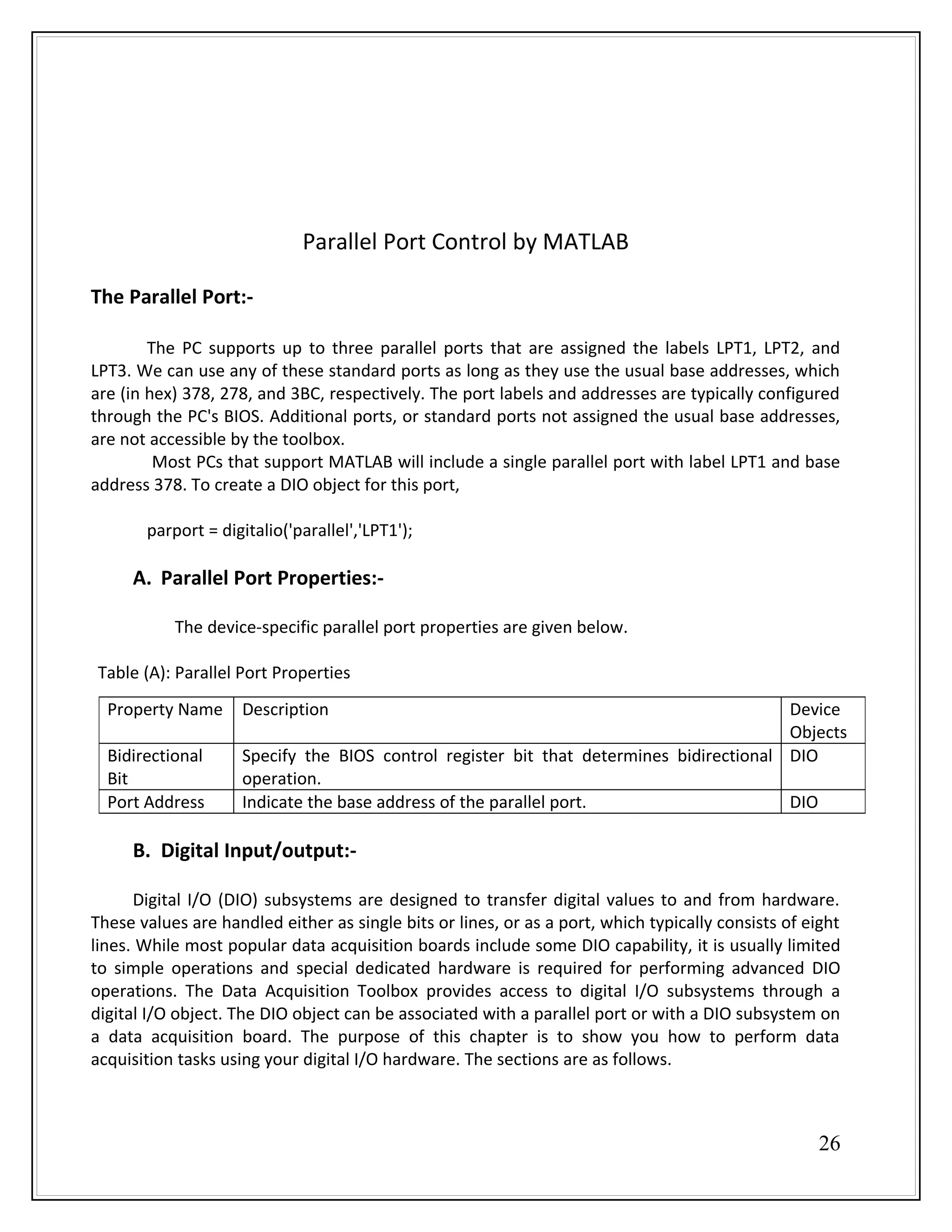

26. Parallel Port Control by MATLAB
The Parallel Port:-
The PC supports up to three parallel ports that are assigned the labels LPT1, LPT2, and
LPT3. We can use any of these standard ports as long as they use the usual base addresses, which
are (in hex) 378, 278, and 3BC, respectively. The port labels and addresses are typically configured
through the PC's BIOS. Additional ports, or standard ports not assigned the usual base addresses,
are not accessible by the toolbox.
Most PCs that support MATLAB will include a single parallel port with label LPT1 and base
address 378. To create a DIO object for this port,
parport = digitalio('parallel','LPT1');
A. Parallel Port Properties:-
The device-specific parallel port properties are given below.
Table (A): Parallel Port Properties
Property Name Description Device
Objects
Bidirectional Specify the BIOS control register bit that determines bidirectional DIO
Bit operation.
Port Address Indicate the base address of the parallel port. DIO
B. Digital Input/output:-
Digital I/O (DIO) subsystems are designed to transfer digital values to and from hardware.
These values are handled either as single bits or lines, or as a port, which typically consists of eight
lines. While most popular data acquisition boards include some DIO capability, it is usually limited
to simple operations and special dedicated hardware is required for performing advanced DIO
operations. The Data Acquisition Toolbox provides access to digital I/O subsystems through a
digital I/O object. The DIO object can be associated with a parallel port or with a DIO subsystem on
a data acquisition board. The purpose of this chapter is to show you how to perform data
acquisition tasks using your digital I/O hardware. The sections are as follows.
26

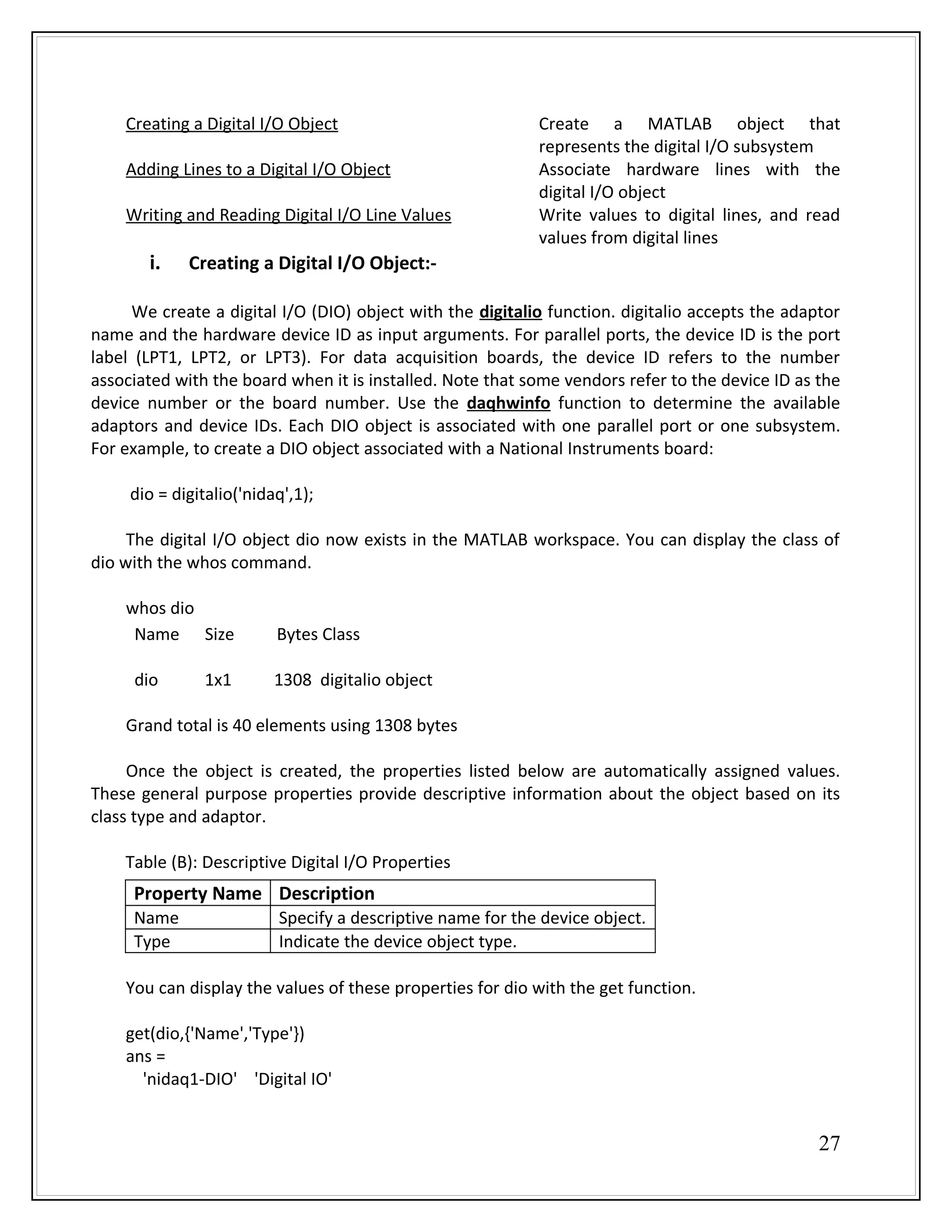

27. Creating a Digital I/O Object Create a MATLAB object that
represents the digital I/O subsystem
Adding Lines to a Digital I/O Object Associate hardware lines with the
digital I/O object
Writing and Reading Digital I/O Line Values Write values to digital lines, and read
values from digital lines
i. Creating a Digital I/O Object:-
We create a digital I/O (DIO) object with the digitalio function. digitalio accepts the adaptor
name and the hardware device ID as input arguments. For parallel ports, the device ID is the port
label (LPT1, LPT2, or LPT3). For data acquisition boards, the device ID refers to the number
associated with the board when it is installed. Note that some vendors refer to the device ID as the
device number or the board number. Use the daqhwinfo function to determine the available
adaptors and device IDs. Each DIO object is associated with one parallel port or one subsystem.
For example, to create a DIO object associated with a National Instruments board:
dio = digitalio('nidaq',1);
The digital I/O object dio now exists in the MATLAB workspace. You can display the class of
dio with the whos command.
whos dio
Name Size Bytes Class
dio 1x1 1308 digitalio object
Grand total is 40 elements using 1308 bytes
Once the object is created, the properties listed below are automatically assigned values.
These general purpose properties provide descriptive information about the object based on its
class type and adaptor.
Table (B): Descriptive Digital I/O Properties
Property Name Description
Name Specify a descriptive name for the device object.
Type Indicate the device object type.
You can display the values of these properties for dio with the get function.
get(dio,{'Name','Type'})
ans =
'nidaq1-DIO' 'Digital IO'
27

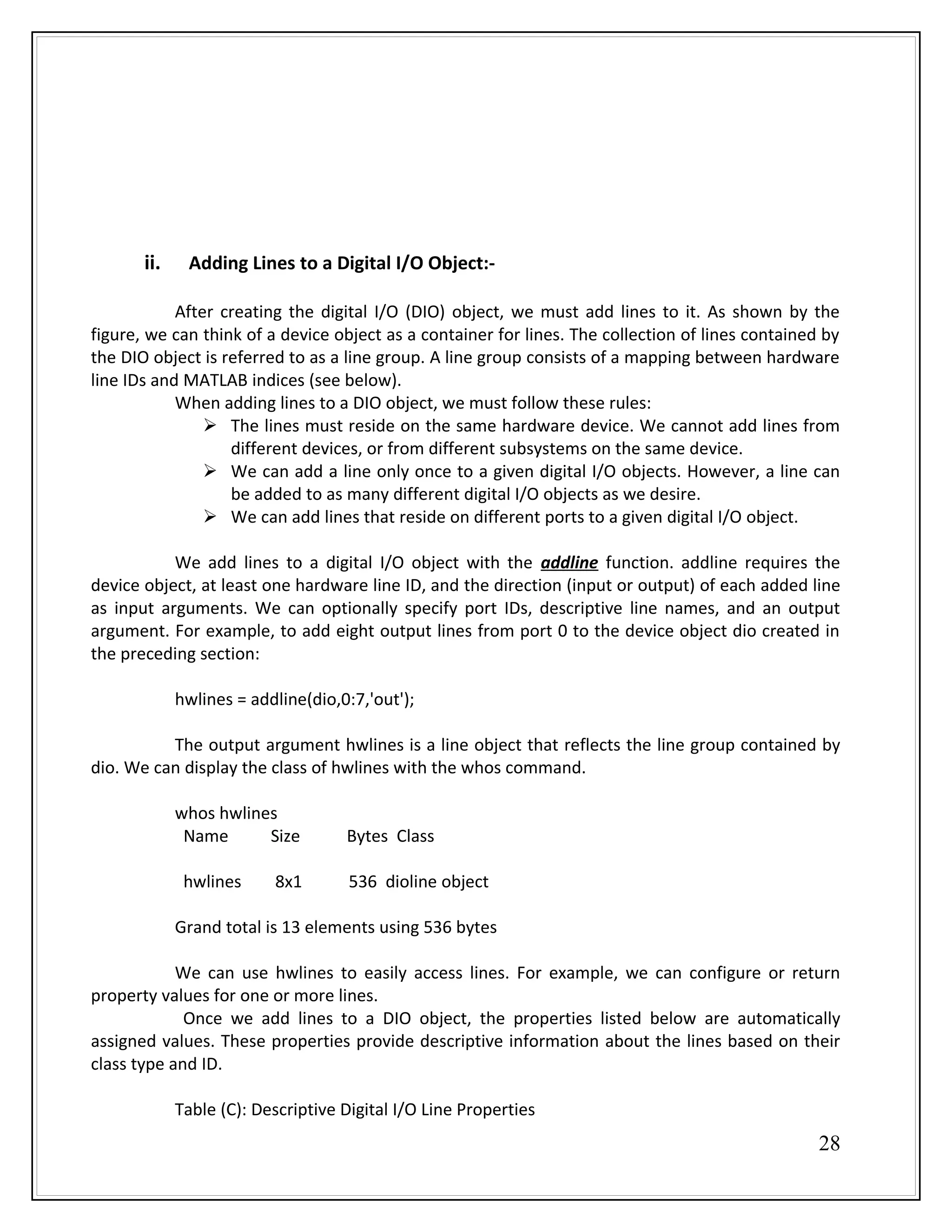

28. ii. Adding Lines to a Digital I/O Object:-
After creating the digital I/O (DIO) object, we must add lines to it. As shown by the
figure, we can think of a device object as a container for lines. The collection of lines contained by
the DIO object is referred to as a line group. A line group consists of a mapping between hardware
line IDs and MATLAB indices (see below).
When adding lines to a DIO object, we must follow these rules:
The lines must reside on the same hardware device. We cannot add lines from
different devices, or from different subsystems on the same device.
We can add a line only once to a given digital I/O objects. However, a line can
be added to as many different digital I/O objects as we desire.
We can add lines that reside on different ports to a given digital I/O object.
We add lines to a digital I/O object with the addline function. addline requires the
device object, at least one hardware line ID, and the direction (input or output) of each added line
as input arguments. We can optionally specify port IDs, descriptive line names, and an output
argument. For example, to add eight output lines from port 0 to the device object dio created in
the preceding section:
hwlines = addline(dio,0:7,'out');
The output argument hwlines is a line object that reflects the line group contained by
dio. We can display the class of hwlines with the whos command.
whos hwlines
Name Size Bytes Class
hwlines 8x1 536 dioline object
Grand total is 13 elements using 536 bytes
We can use hwlines to easily access lines. For example, we can configure or return
property values for one or more lines.
Once we add lines to a DIO object, the properties listed below are automatically
assigned values. These properties provide descriptive information about the lines based on their
class type and ID.
Table (C): Descriptive Digital I/O Line Properties
28

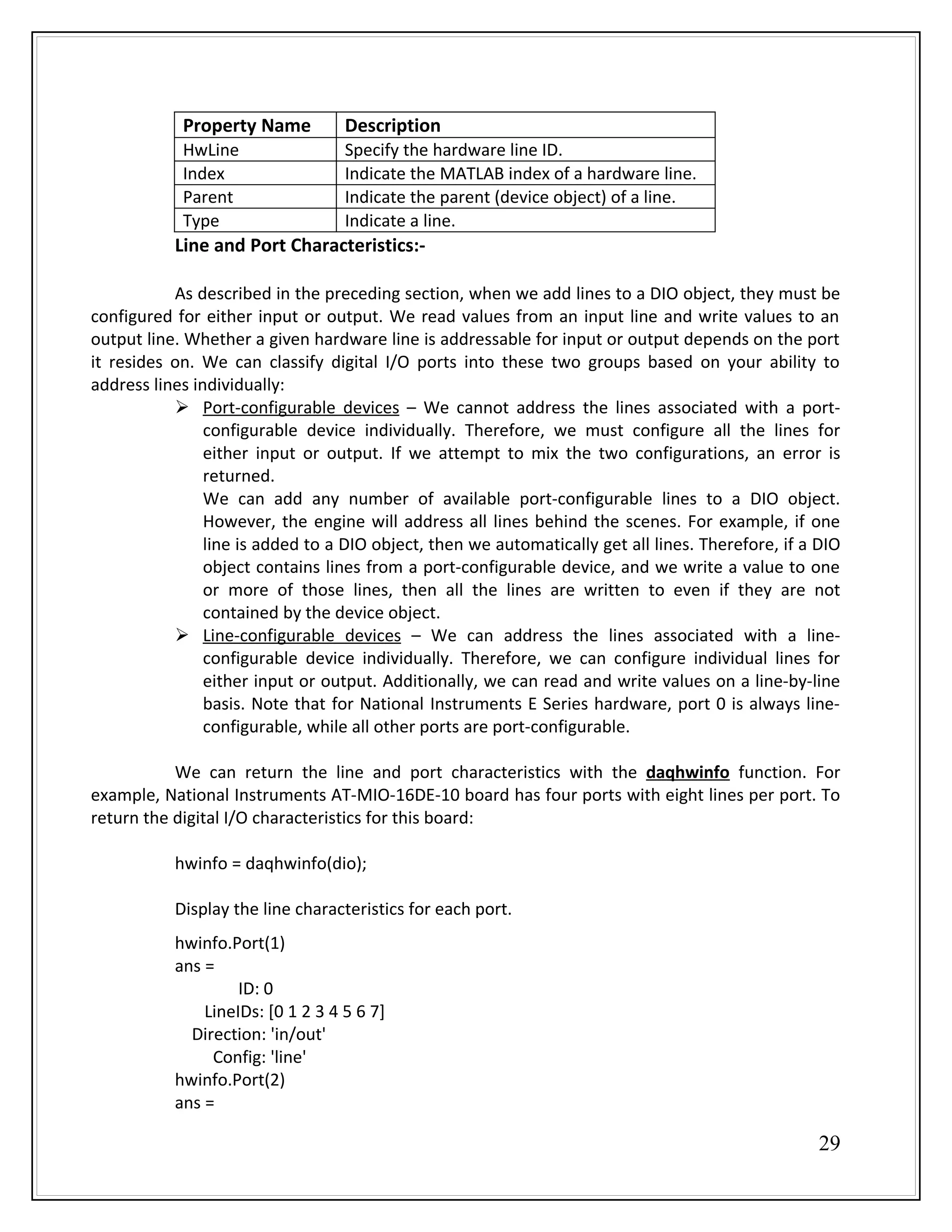

29. Property Name Description
HwLine Specify the hardware line ID.
Index Indicate the MATLAB index of a hardware line.
Parent Indicate the parent (device object) of a line.
Type Indicate a line.
Line and Port Characteristics:-
As described in the preceding section, when we add lines to a DIO object, they must be
configured for either input or output. We read values from an input line and write values to an
output line. Whether a given hardware line is addressable for input or output depends on the port
it resides on. We can classify digital I/O ports into these two groups based on your ability to
address lines individually:
Port-configurable devices – We cannot address the lines associated with a port-
configurable device individually. Therefore, we must configure all the lines for
either input or output. If we attempt to mix the two configurations, an error is
returned.
We can add any number of available port-configurable lines to a DIO object.
However, the engine will address all lines behind the scenes. For example, if one
line is added to a DIO object, then we automatically get all lines. Therefore, if a DIO
object contains lines from a port-configurable device, and we write a value to one
or more of those lines, then all the lines are written to even if they are not
contained by the device object.
Line-configurable devices – We can address the lines associated with a line-
configurable device individually. Therefore, we can configure individual lines for
either input or output. Additionally, we can read and write values on a line-by-line
basis. Note that for National Instruments E Series hardware, port 0 is always line-
configurable, while all other ports are port-configurable.
We can return the line and port characteristics with the daqhwinfo function. For
example, National Instruments AT-MIO-16DE-10 board has four ports with eight lines per port. To
return the digital I/O characteristics for this board:
hwinfo = daqhwinfo(dio);
Display the line characteristics for each port.
hwinfo.Port(1)
ans =
ID: 0
LineIDs: [0 1 2 3 4 5 6 7]
Direction: 'in/out'
Config: 'line'
hwinfo.Port(2)
ans =
29

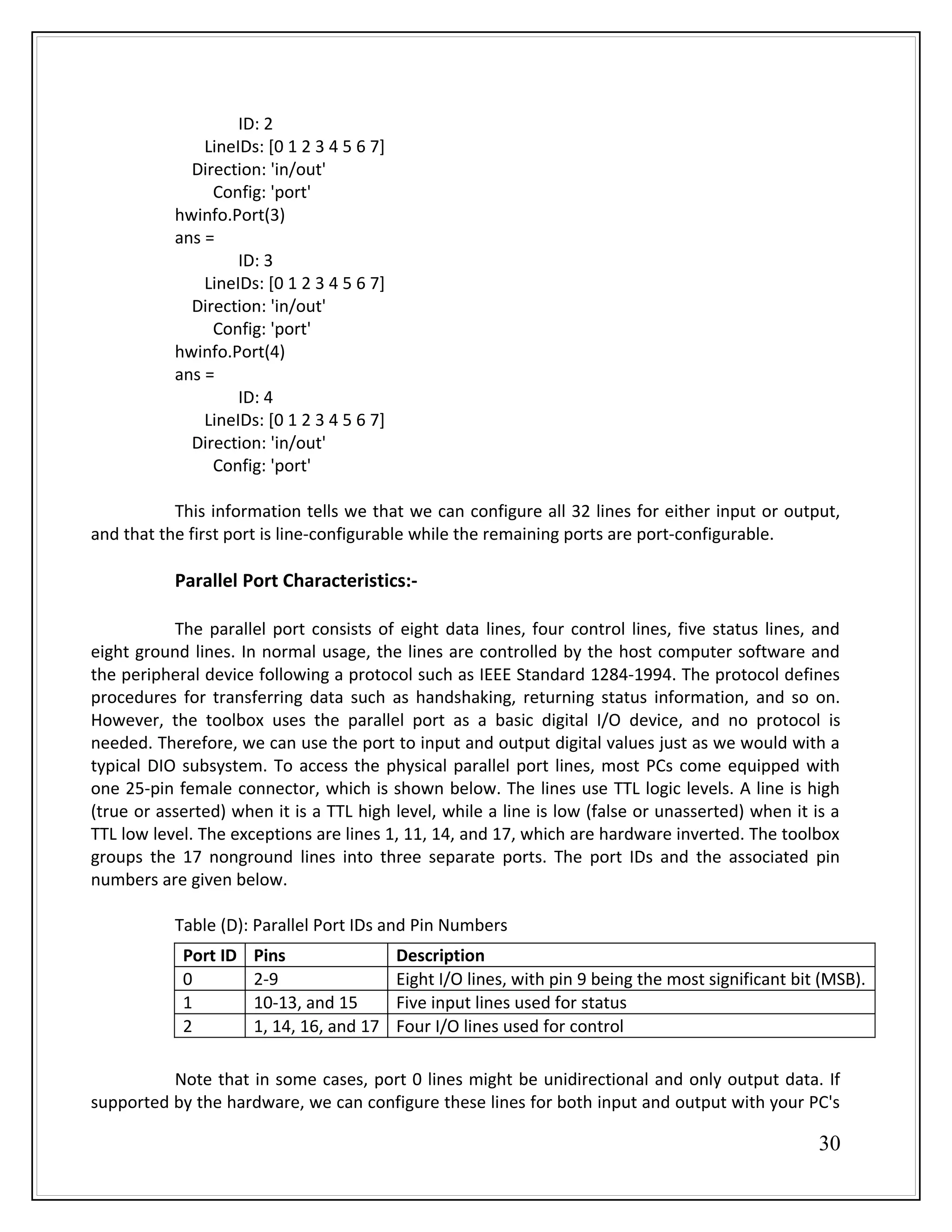

30. ID: 2
LineIDs: [0 1 2 3 4 5 6 7]
Direction: 'in/out'
Config: 'port'
hwinfo.Port(3)
ans =
ID: 3
LineIDs: [0 1 2 3 4 5 6 7]
Direction: 'in/out'
Config: 'port'
hwinfo.Port(4)
ans =
ID: 4
LineIDs: [0 1 2 3 4 5 6 7]
Direction: 'in/out'
Config: 'port'
This information tells we that we can configure all 32 lines for either input or output,
and that the first port is line-configurable while the remaining ports are port-configurable.
Parallel Port Characteristics:-
The parallel port consists of eight data lines, four control lines, five status lines, and
eight ground lines. In normal usage, the lines are controlled by the host computer software and
the peripheral device following a protocol such as IEEE Standard 1284-1994. The protocol defines
procedures for transferring data such as handshaking, returning status information, and so on.
However, the toolbox uses the parallel port as a basic digital I/O device, and no protocol is
needed. Therefore, we can use the port to input and output digital values just as we would with a
typical DIO subsystem. To access the physical parallel port lines, most PCs come equipped with
one 25-pin female connector, which is shown below. The lines use TTL logic levels. A line is high
(true or asserted) when it is a TTL high level, while a line is low (false or unasserted) when it is a
TTL low level. The exceptions are lines 1, 11, 14, and 17, which are hardware inverted. The toolbox
groups the 17 nonground lines into three separate ports. The port IDs and the associated pin
numbers are given below.
Table (D): Parallel Port IDs and Pin Numbers
Port ID Pins Description
0 2-9 Eight I/O lines, with pin 9 being the most significant bit (MSB).
1 10-13, and 15 Five input lines used for status
2 1, 14, 16, and 17 Four I/O lines used for control
Note that in some cases, port 0 lines might be unidirectional and only output data. If
supported by the hardware, we can configure these lines for both input and output with your PC's
30

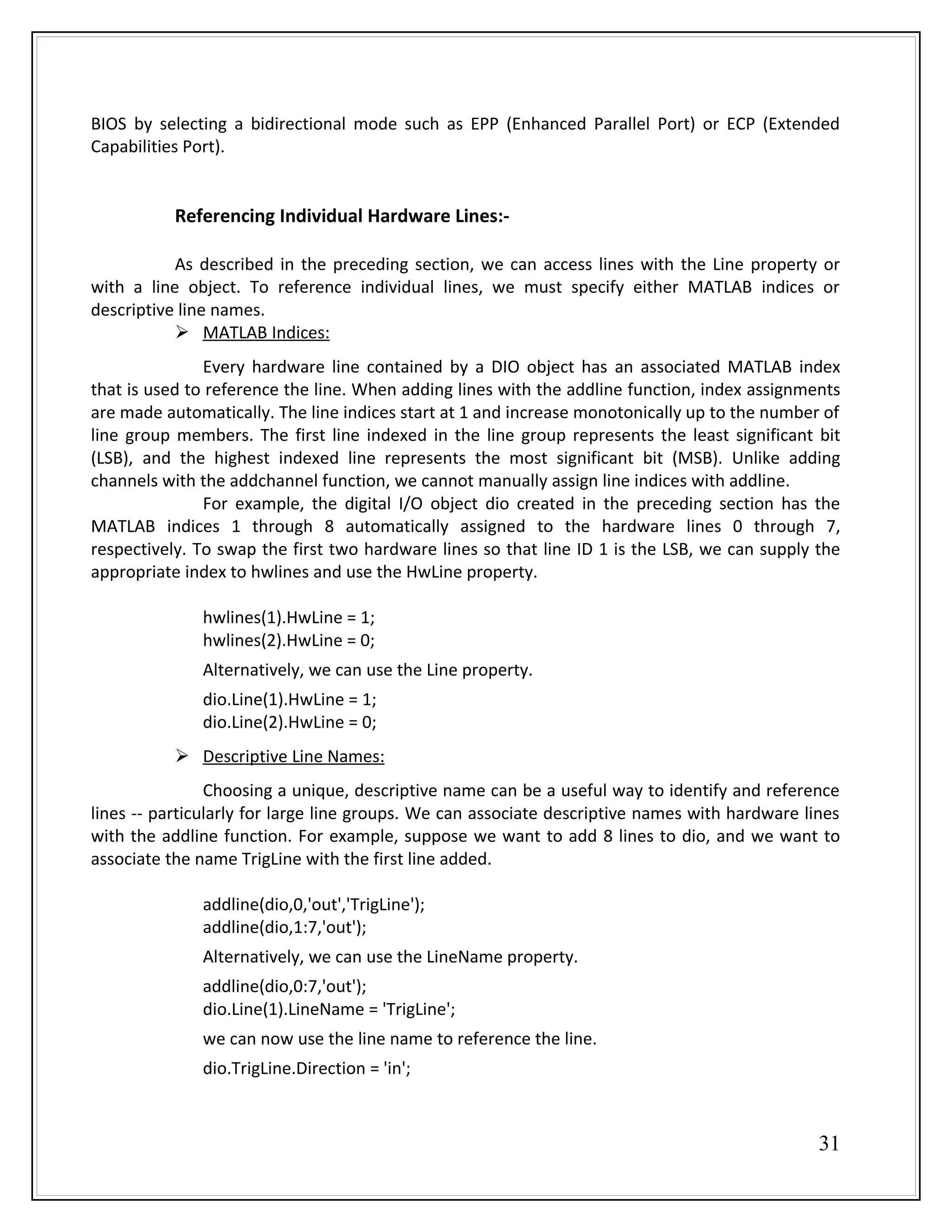

31. BIOS by selecting a bidirectional mode such as EPP (Enhanced Parallel Port) or ECP (Extended
Capabilities Port).
Referencing Individual Hardware Lines:-
As described in the preceding section, we can access lines with the Line property or
with a line object. To reference individual lines, we must specify either MATLAB indices or
descriptive line names.
MATLAB Indices:
Every hardware line contained by a DIO object has an associated MATLAB index
that is used to reference the line. When adding lines with the addline function, index assignments
are made automatically. The line indices start at 1 and increase monotonically up to the number of
line group members. The first line indexed in the line group represents the least significant bit
(LSB), and the highest indexed line represents the most significant bit (MSB). Unlike adding
channels with the addchannel function, we cannot manually assign line indices with addline.
For example, the digital I/O object dio created in the preceding section has the
MATLAB indices 1 through 8 automatically assigned to the hardware lines 0 through 7,
respectively. To swap the first two hardware lines so that line ID 1 is the LSB, we can supply the
appropriate index to hwlines and use the HwLine property.
hwlines(1).HwLine = 1;
hwlines(2).HwLine = 0;
Alternatively, we can use the Line property.
dio.Line(1).HwLine = 1;
dio.Line(2).HwLine = 0;
Descriptive Line Names:
Choosing a unique, descriptive name can be a useful way to identify and reference
lines -- particularly for large line groups. We can associate descriptive names with hardware lines
with the addline function. For example, suppose we want to add 8 lines to dio, and we want to
associate the name TrigLine with the first line added.
addline(dio,0,'out','TrigLine');
addline(dio,1:7,'out');
Alternatively, we can use the LineName property.
addline(dio,0:7,'out');
dio.Line(1).LineName = 'TrigLine';
we can now use the line name to reference the line.
dio.TrigLine.Direction = 'in';
31

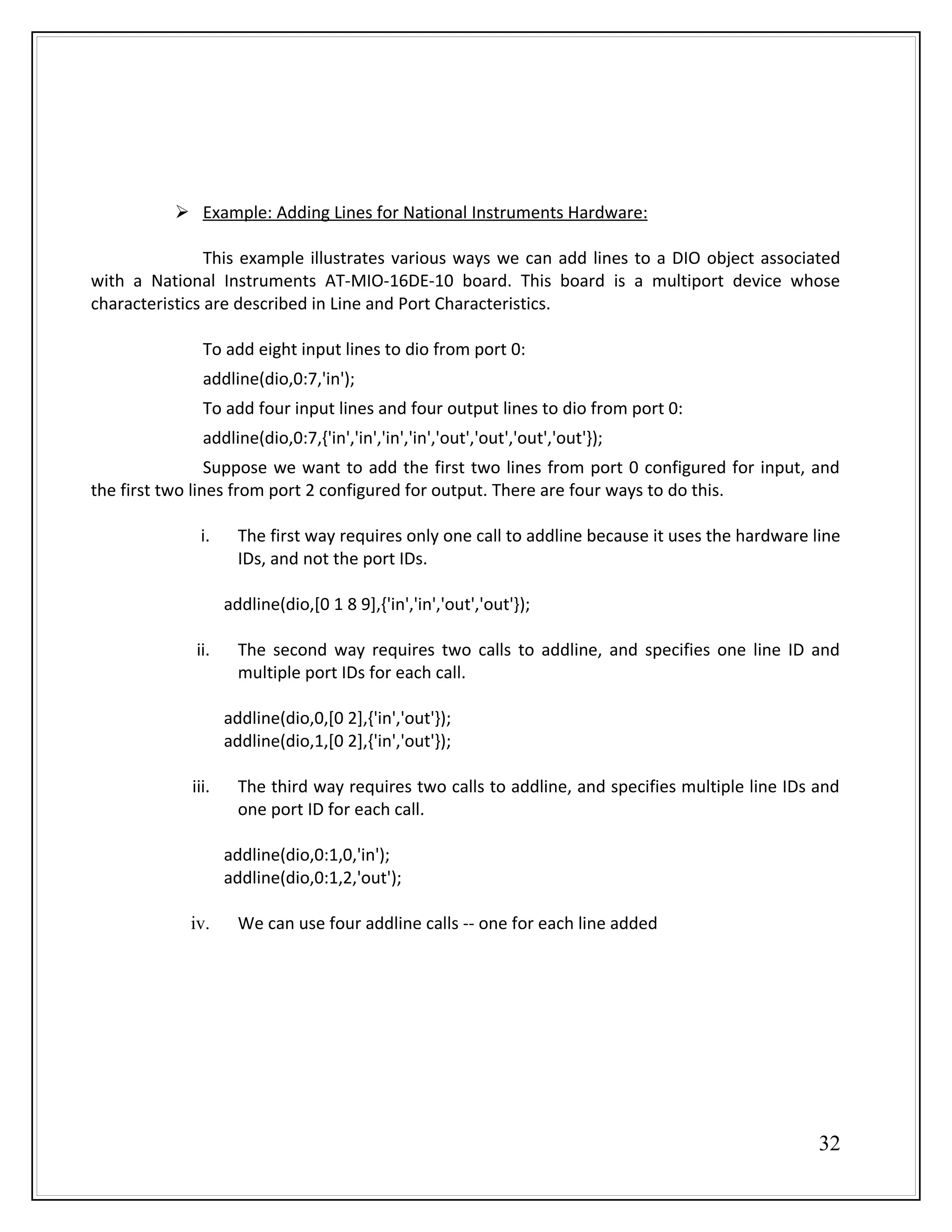

32. Example: Adding Lines for National Instruments Hardware:
This example illustrates various ways we can add lines to a DIO object associated
with a National Instruments AT-MIO-16DE-10 board. This board is a multiport device whose
characteristics are described in Line and Port Characteristics.
To add eight input lines to dio from port 0:
addline(dio,0:7,'in');
To add four input lines and four output lines to dio from port 0:
addline(dio,0:7,{'in','in','in','in','out','out','out','out'});
Suppose we want to add the first two lines from port 0 configured for input, and
the first two lines from port 2 configured for output. There are four ways to do this.
i. The first way requires only one call to addline because it uses the hardware line
IDs, and not the port IDs.
addline(dio,[0 1 8 9],{'in','in','out','out'});
ii. The second way requires two calls to addline, and specifies one line ID and
multiple port IDs for each call.
addline(dio,0,[0 2],{'in','out'});
addline(dio,1,[0 2],{'in','out'});
iii. The third way requires two calls to addline, and specifies multiple line IDs and
one port ID for each call.
addline(dio,0:1,0,'in');
addline(dio,0:1,2,'out');
iv. We can use four addline calls -- one for each line added
32

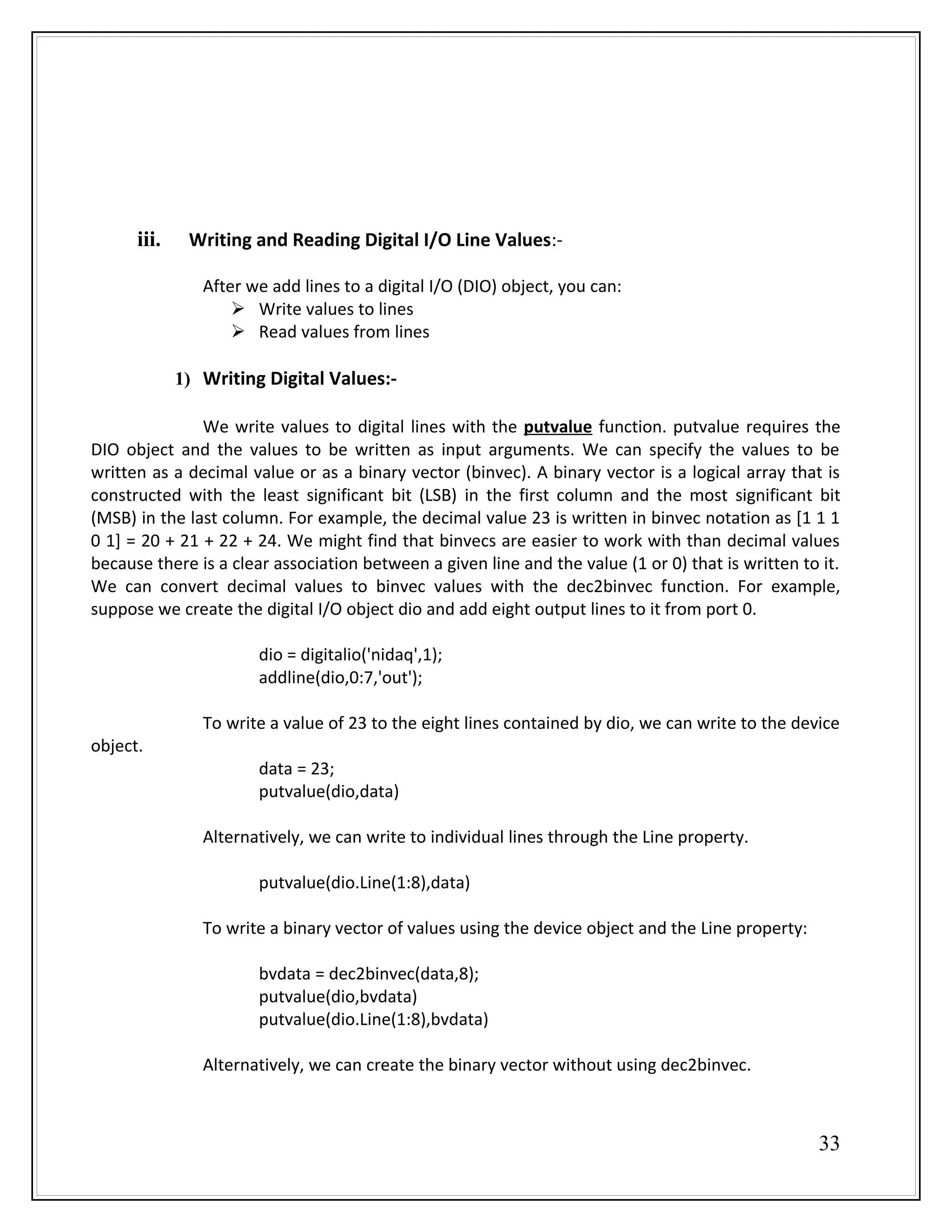

33. iii. Writing and Reading Digital I/O Line Values:-
After we add lines to a digital I/O (DIO) object, you can:
Write values to lines
Read values from lines
1) Writing Digital Values:-
We write values to digital lines with the putvalue function. putvalue requires the
DIO object and the values to be written as input arguments. We can specify the values to be
written as a decimal value or as a binary vector (binvec). A binary vector is a logical array that is
constructed with the least significant bit (LSB) in the first column and the most significant bit
(MSB) in the last column. For example, the decimal value 23 is written in binvec notation as [1 1 1
0 1] = 20 + 21 + 22 + 24. We might find that binvecs are easier to work with than decimal values
because there is a clear association between a given line and the value (1 or 0) that is written to it.
We can convert decimal values to binvec values with the dec2binvec function. For example,
suppose we create the digital I/O object dio and add eight output lines to it from port 0.
dio = digitalio('nidaq',1);
addline(dio,0:7,'out');
To write a value of 23 to the eight lines contained by dio, we can write to the device
object.
data = 23;
putvalue(dio,data)
Alternatively, we can write to individual lines through the Line property.
putvalue(dio.Line(1:8),data)
To write a binary vector of values using the device object and the Line property:
bvdata = dec2binvec(data,8);
putvalue(dio,bvdata)
putvalue(dio.Line(1:8),bvdata)
Alternatively, we can create the binary vector without using dec2binvec.
33

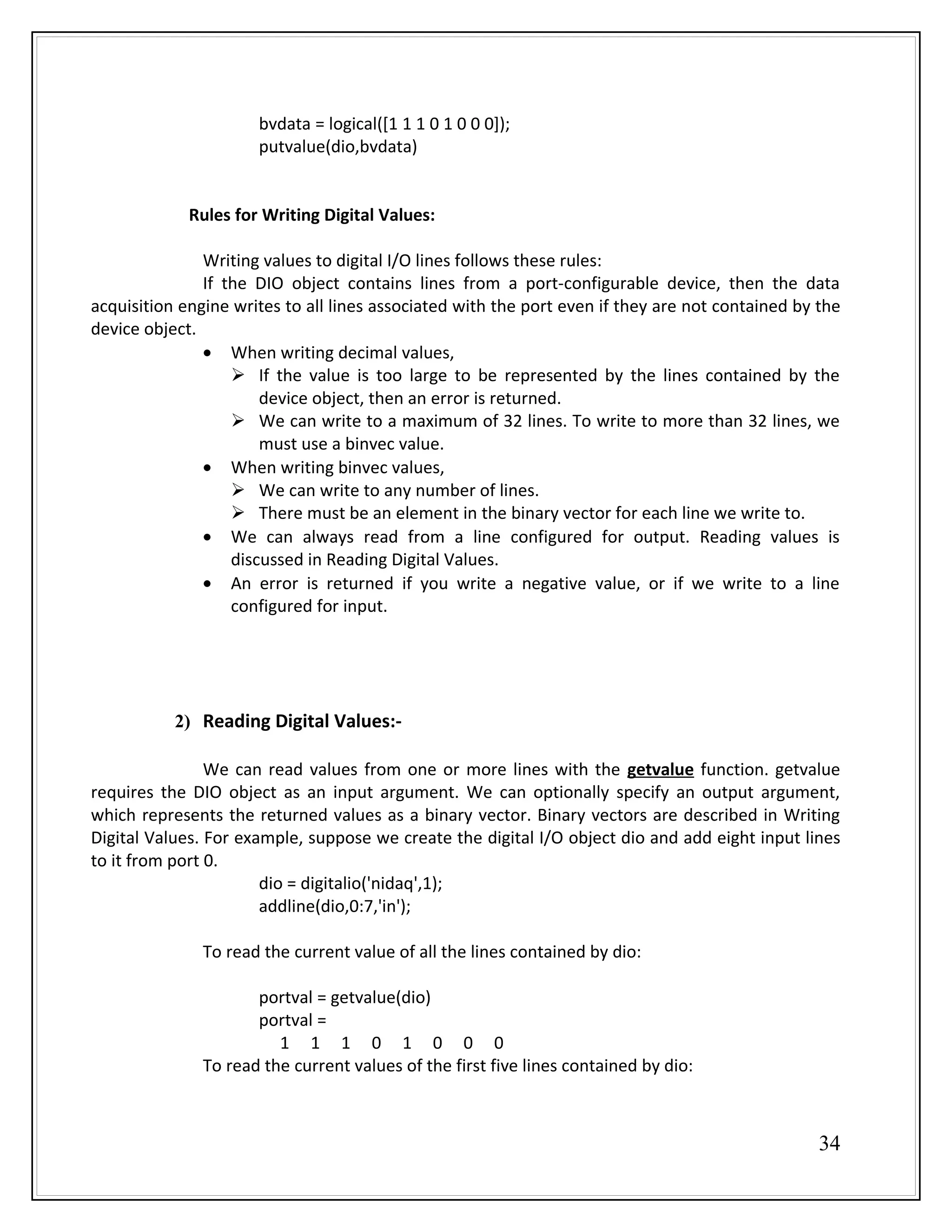

34. bvdata = logical([1 1 1 0 1 0 0 0]);
putvalue(dio,bvdata)
Rules for Writing Digital Values:
Writing values to digital I/O lines follows these rules:
If the DIO object contains lines from a port-configurable device, then the data
acquisition engine writes to all lines associated with the port even if they are not contained by the
device object.
• When writing decimal values,
If the value is too large to be represented by the lines contained by the
device object, then an error is returned.
We can write to a maximum of 32 lines. To write to more than 32 lines, we
must use a binvec value.
• When writing binvec values,
We can write to any number of lines.
There must be an element in the binary vector for each line we write to.
• We can always read from a line configured for output. Reading values is
discussed in Reading Digital Values.
• An error is returned if you write a negative value, or if we write to a line
configured for input.
2) Reading Digital Values:-
We can read values from one or more lines with the getvalue function. getvalue
requires the DIO object as an input argument. We can optionally specify an output argument,
which represents the returned values as a binary vector. Binary vectors are described in Writing
Digital Values. For example, suppose we create the digital I/O object dio and add eight input lines
to it from port 0.
dio = digitalio('nidaq',1);
addline(dio,0:7,'in');
To read the current value of all the lines contained by dio:
portval = getvalue(dio)
portval =
1 1 1 0 1 0 0 0
To read the current values of the first five lines contained by dio:
34

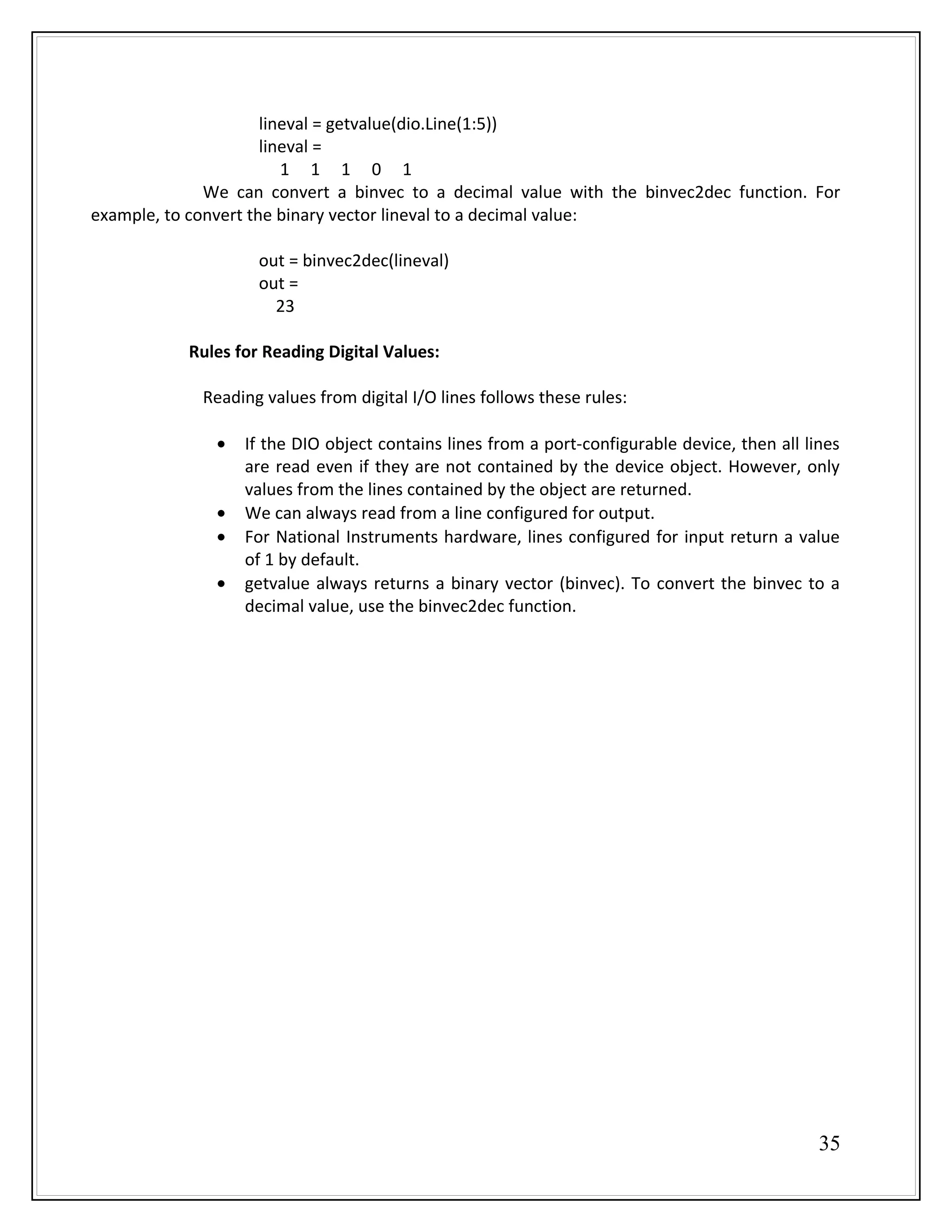

35. lineval = getvalue(dio.Line(1:5))
lineval =
1 1 1 0 1
We can convert a binvec to a decimal value with the binvec2dec function. For
example, to convert the binary vector lineval to a decimal value:
out = binvec2dec(lineval)
out =
23
Rules for Reading Digital Values:
Reading values from digital I/O lines follows these rules:
• If the DIO object contains lines from a port-configurable device, then all lines
are read even if they are not contained by the device object. However, only
values from the lines contained by the object are returned.
• We can always read from a line configured for output.
• For National Instruments hardware, lines configured for input return a value
of 1 by default.
• getvalue always returns a binary vector (binvec). To convert the binvec to a
decimal value, use the binvec2dec function.
35
