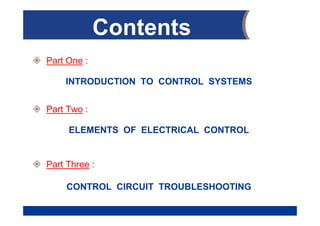

Contents
 Part One :
INTRODUCTION TO CONTROL SYSTEMS
 Part Two :
ELEMENTS OF ELECTRICAL CONTROL
 Part Three :
CONTROL CIRCUIT TROUBLESHOOTING

3. Eng. AHMED M. HEGAB
Oct. 2019

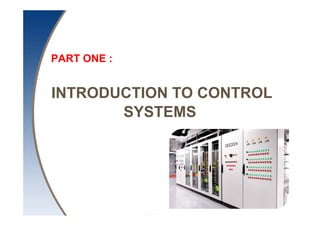

INTRODUCTION TO CONTROL
SYSTEMS
PART ONE :

4. Eng. AHMED M. HEGAB
Oct. 2019
1. Introduction and Background
2. Open Loop and Closed Loop
3. Control Systems Classifications
4. Basics Electrical Relations
Main Headlines
4

5. Eng. AHMED M. HEGAB
Oct. 2019
1. Introduction and Background
2. Open Loop and Closed Loop
3. Control Systems Classifications
4. Basics Electrical Relations
Main Headlines
5

6. Eng. AHMED M. HEGAB
Oct. 2019
Introduction and Background
6

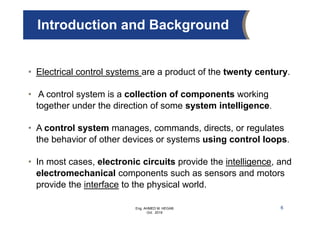

• Electrical control systems are a product of the twenty century.
• A control system is a collection of components working
together under the direction of some system intelligence.
• A control system manages, commands, directs, or regulates
the behavior of other devices or systems using control loops.
• In most cases, electronic circuits provide the intelligence, and
electromechanical components such as sensors and motors
provide the interface to the physical world.

7. Eng. AHMED M. HEGAB
Oct. 2019
7
Introduction and Background

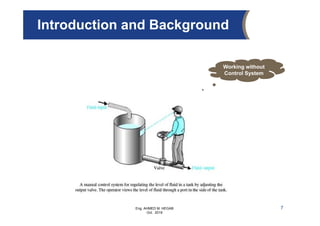

Working without
Control System

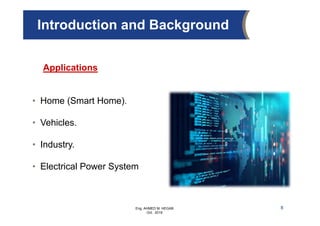

8. Eng. AHMED M. HEGAB
Oct. 2019
8
Applications
• Home (Smart Home).
• Vehicles.
• Industry.
• Electrical Power System
Introduction and Background

9. Eng. AHMED M. HEGAB
Oct. 2019
Three – Layered Structure of Power System
9
Introduction and Background

10. Eng. AHMED M. HEGAB
Oct. 2019
Introduction and Background
10

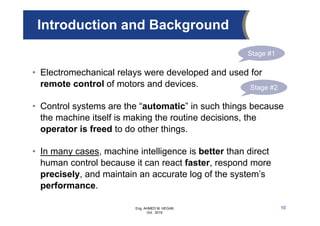

• Electromechanical relays were developed and used for
remote control of motors and devices.
• Control systems are the “automatic” in such things because
the machine itself is making the routine decisions, the
operator is freed to do other things.
• In many cases, machine intelligence is better than direct
human control because it can react faster, respond more
precisely, and maintain an accurate log of the system’s
performance.
Stage #1
Stage #2

11. Eng. AHMED M. HEGAB
Oct. 2019
1. Introduction and Background
2. Open Loop and Closed Loop
3. Control Systems Classifications
4. Basics Electrical Relations
Main Headlines
11

12. Eng. AHMED M. HEGAB
Oct. 2019
12
Open Loop and Closed Loop
• Control action from the controller is independent of the process
variable (No Feedback).
• This system absolutely depends on the controller knowing the
operating characteristics of the system
• An example of this is a central heating boiler controlled only by a
timer (switching on/off regardless boiler temperature).
More
Examples !!
I- Open Loop Control System

13. Eng. AHMED M. HEGAB
Oct. 2019
13
Open Loop and Closed Loop

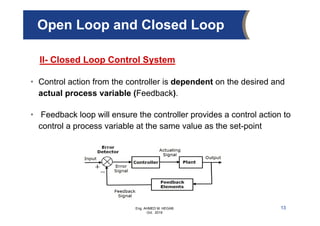

• Control action from the controller is dependent on the desired and
actual process variable (Feedback).
• Feedback loop will ensure the controller provides a control action to
control a process variable at the same value as the set-point
II- Closed Loop Control System

14. Eng. AHMED M. HEGAB
Oct. 2019
14
Open Loop and Closed Loop
• For this reason, closed-loop controllers are also called feedback
controllers.
• Feedback systems, a control loop including sensors, control
algorithms, and actuators is arranged in an attempt to regulate a
variable at a set-point
• Boiler example too, utilizing a thermostat to monitor the
temperature, and feed back a signal to ensure the controller output
maintains the temperature close to that set on the thermostat.
II- Closed Loop Control System
More
Examples !!

15. Eng. AHMED M. HEGAB
Oct. 2019

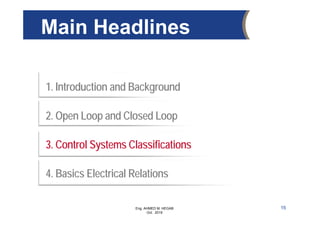

1. Introduction and Background
2. Open Loop and Closed Loop
3. Control Systems Classifications
4. Basics Electrical Relations
Main Headlines
15

16. Eng. AHMED M. HEGAB
Oct. 2019
16

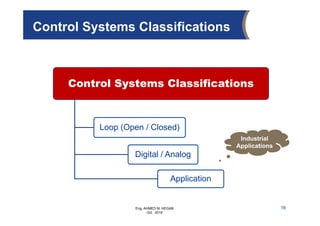

Control Systems Classifications
Loop (Open / Closed)
Digital / Analog
Application
Control Systems Classifications
Industrial
Applications

17. Eng. AHMED M. HEGAB
Oct. 2019
17
Control Systems Classifications

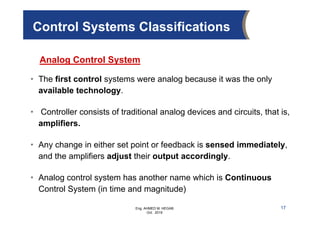

• The first control systems were analog because it was the only
available technology.
• Controller consists of traditional analog devices and circuits, that is,
amplifiers.
• Any change in either set point or feedback is sensed immediately,
and the amplifiers adjust their output accordingly.
• Analog control system has another name which is Continuous
Control System (in time and magnitude)
Analog Control System

18. Eng. AHMED M. HEGAB
Oct. 2019
18
Control Systems Classifications

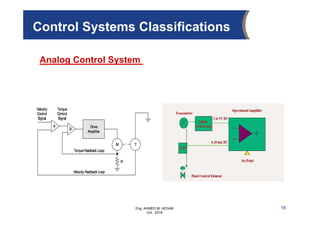

Analog Control System

19. Eng. AHMED M. HEGAB
Oct. 2019
19
Control Systems Classifications

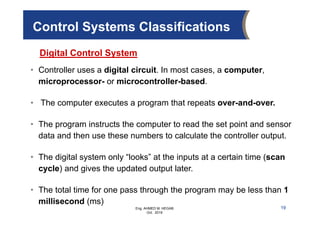

• Controller uses a digital circuit. In most cases, a computer,
microprocessor- or microcontroller-based.
• The computer executes a program that repeats over-and-over.
• The program instructs the computer to read the set point and sensor
data and then use these numbers to calculate the controller output.
• The digital system only “looks” at the inputs at a certain time (scan
cycle) and gives the updated output later.
• The total time for one pass through the program may be less than 1
millisecond (ms)
Digital Control System

20. Eng. AHMED M. HEGAB
Oct. 2019
20
Control Systems Classifications
Digital Control System
• If an input changes just after the computer looked at it, that change
will remain undetected until the next scan.
• This is fundamentally different than the analog system, which is
continuous and responds immediately to any changes.

21. Eng. AHMED M. HEGAB
Oct. 2019
21
Control Systems Classifications
Control Systems Applications
Process
Control
Sequential
Control
Motion
Control

22. Eng. AHMED M. HEGAB
Oct. 2019
22
Control Systems Classifications
1- Process Control

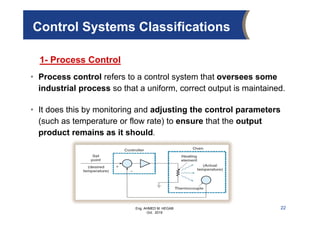

• Process control refers to a control system that oversees some
industrial process so that a uniform, correct output is maintained.
• It does this by monitoring and adjusting the control parameters
(such as temperature or flow rate) to ensure that the output
product remains as it should.

23. Eng. AHMED M. HEGAB
Oct. 2019
23
Control Systems Classifications
1- Process Control

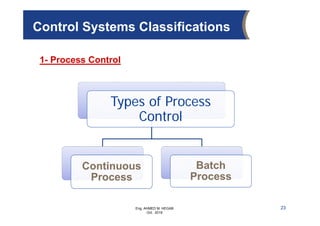

Types of Process
Control
Continuous
Process
Batch
Process

24. Eng. AHMED M. HEGAB
Oct. 2019
24
Control Systems Classifications

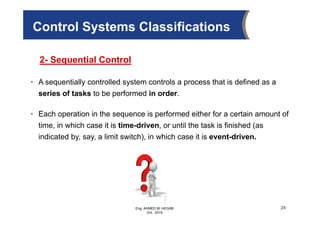

2- Sequential Control
• A sequentially controlled system controls a process that is defined as a
series of tasks to be performed in order.
• Each operation in the sequence is performed either for a certain amount of
time, in which case it is time-driven, or until the task is finished (as
indicated by, say, a limit switch), in which case it is event-driven.

25. Eng. AHMED M. HEGAB
Oct. 2019
25
Control Systems Classifications
2- Sequential Control

26. Eng. AHMED M. HEGAB
Oct. 2019
26
Control Systems Classifications

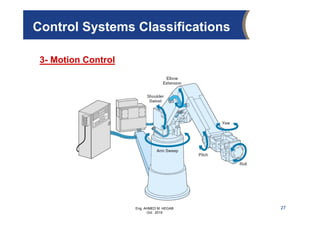

3- Motion Control
• This system typically includes a motor, mechanical parts that move, and
(in many cases) feedback sensor(s).
• Automatic assembling machines, industrial robots, and numerical
control machines are examples

27. Eng. AHMED M. HEGAB
Oct. 2019
27
Control Systems Classifications
3- Motion Control

28. Eng. AHMED M. HEGAB
Oct. 2019
1. Introduction and Background
2. Open Loop and Closed Loop
3. Control Systems Classifications
4. Basics Electrical Relations
Main Headlines
28

29. Eng. AHMED M. HEGAB
Oct. 2019

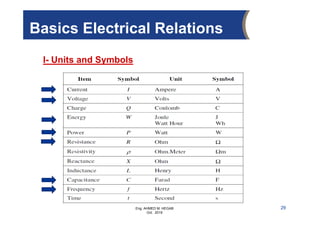

Basics Electrical Relations
I- Units and Symbols
29

30. Eng. AHMED M. HEGAB
Oct. 2019
 Ampere, I (A)
 Voltage, V (V).
 Resistance, R (Ω)
II- Ohm’s Law
V = I * R
30
Basics Electrical Relations

31. Eng. AHMED M. HEGAB
Oct. 2019

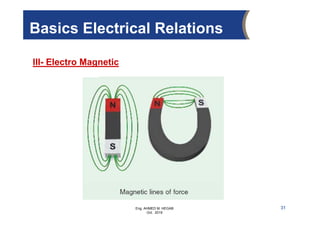

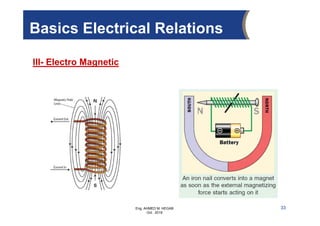

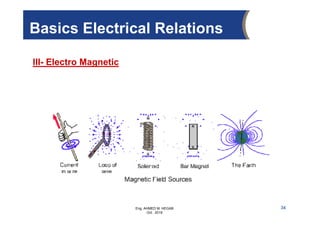

III- Electro Magnetic
31
Basics Electrical Relations

32. Eng. AHMED M. HEGAB
Oct. 2019
III- Electro Magnetic
32
Basics Electrical Relations

33. Eng. AHMED M. HEGAB
Oct. 2019
III- Electro Magnetic
33
Basics Electrical Relations

34. Eng. AHMED M. HEGAB
Oct. 2019
III- Electro Magnetic
34
Basics Electrical Relations

35. Eng. AHMED M. HEGAB
Oct. 2019
ELEMENTS OF ELECTRICAL
CONTROL
PART TWO:

36. Eng. AHMED M. HEGAB
Oct. 2019

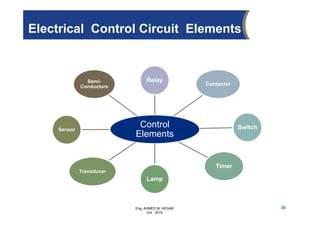

Control
Elements
Relay
Contactor
Switch
Timer
Lamp
Transducer
Sensor
Semi-
Conductors
Electrical Control Circuit Elements
36

37. Eng. AHMED M. HEGAB
Oct. 2019

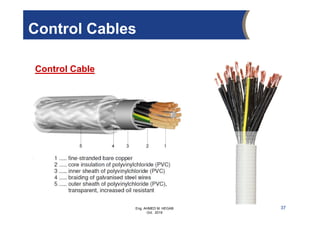

Control Cables
Control Cable
37

38. Eng. AHMED M. HEGAB
Oct. 2019

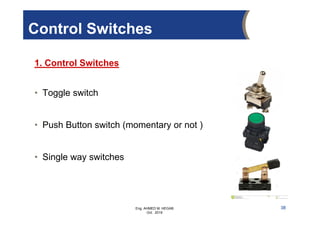

1. Control Switches
• Toggle switch
• Push Button switch (momentary or not )
• Single way switches
38
Control Switches

39. Eng. AHMED M. HEGAB
Oct. 2019
1. Control Switches

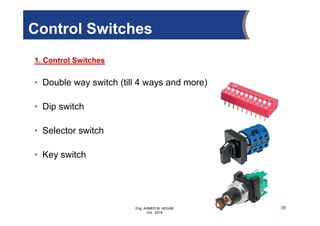

• Double way switch (till 4 ways and more)
• Dip switch
• Selector switch
• Key switch
39
Control Switches

40. Eng. AHMED M. HEGAB
Oct. 2019

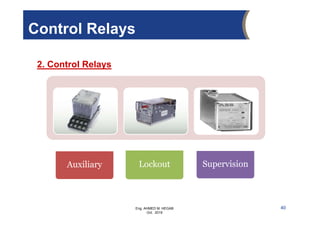

2. Control Relays
Auxiliary Lockout Supervision
40
Control Relays

41. Eng. AHMED M. HEGAB
Oct. 2019

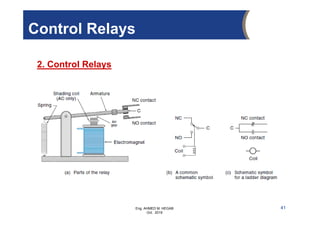

2. Control Relays
41
Control Relays

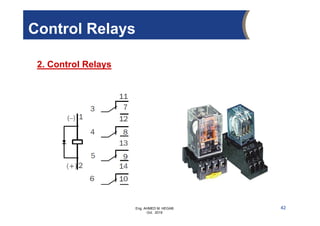

42. Eng. AHMED M. HEGAB
Oct. 2019
2. Control Relays
42
Control Relays

43. Eng. AHMED M. HEGAB
Oct. 2019

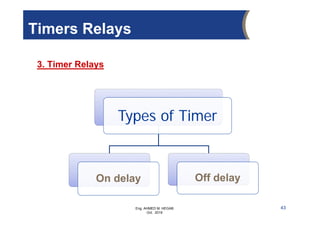

3. Timer Relays
Types of Timer
On delay Off delay
43
Timers Relays

44. Eng. AHMED M. HEGAB
Oct. 2019

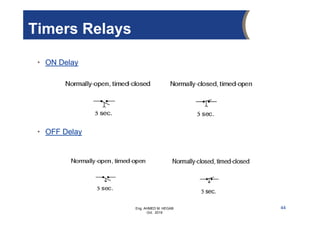

• ON Delay
• OFF Delay
44
Timers Relays

45. Eng. AHMED M. HEGAB
Oct. 2019

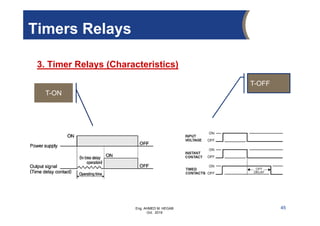

3. Timer Relays (Characteristics)
45
Timers Relays
T-OFF
T-ON

46. Eng. AHMED M. HEGAB
Oct. 2019

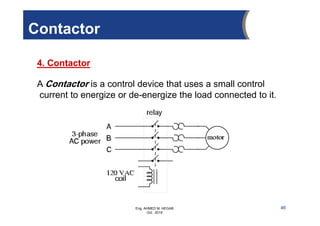

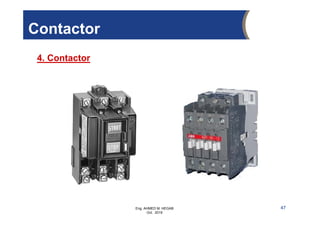

4. Contactor
A Contactor is a control device that uses a small control
current to energize or de-energize the load connected to it.
46
Contactor

47. Eng. AHMED M. HEGAB
Oct. 2019
4. Contactor
47
Contactor

48. Eng. AHMED M. HEGAB
Oct. 2019

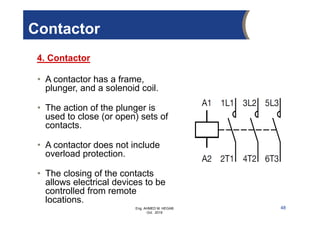

• A contactor has a frame,
plunger, and a solenoid coil.
• The action of the plunger is
used to close (or open) sets of
contacts.
• A contactor does not include
overload protection.
• The closing of the contacts
allows electrical devices to be
controlled from remote
locations.
4. Contactor
48
Contactor

49. Eng. AHMED M. HEGAB
Oct. 2019
Transducers

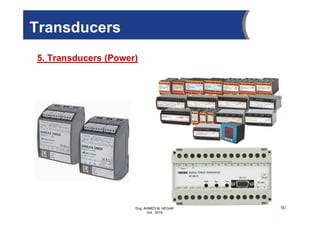

5. Transducers (Power)
Types of Power Transducers
Power Current Voltage Frequency
Power
Factor
49

50. Eng. AHMED M. HEGAB
Oct. 2019
Transducers
5. Transducers (Power)
50

51. Eng. AHMED M. HEGAB
Oct. 2019

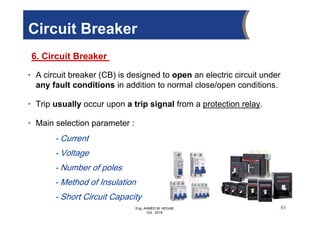

• A circuit breaker (CB) is designed to open an electric circuit under
any fault conditions in addition to normal close/open conditions.
• Trip usually occur upon a trip signal from a protection relay.
• Main selection parameter :
- Current
- Voltage
- Number of poles
- Method of Insulation
- Short Circuit Capacity

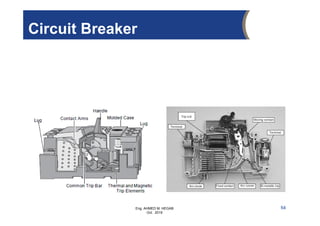

6. Circuit Breaker
51
Circuit Breaker

52. Eng. AHMED M. HEGAB
Oct. 2019

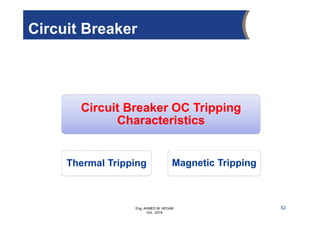

Circuit Breaker OC Tripping
Characteristics
Thermal Tripping Magnetic Tripping
52
Circuit Breaker

53. Eng. AHMED M. HEGAB
Oct. 2019

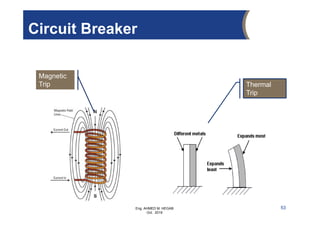

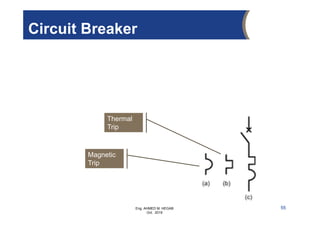

Thermal
Trip
Magnetic
Trip
53
Circuit Breaker

54. Eng. AHMED M. HEGAB
Oct. 2019
54
Circuit Breaker

55. Eng. AHMED M. HEGAB
Oct. 2019
Magnetic
Trip
Thermal
Trip
55
Circuit Breaker

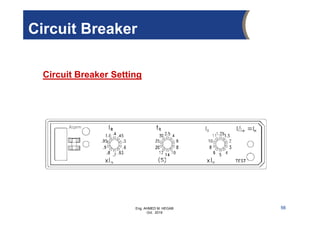

56. Eng. AHMED M. HEGAB
Oct. 2019
Circuit Breaker Setting
56
Circuit Breaker

57. Eng. AHMED M. HEGAB
Oct. 2019

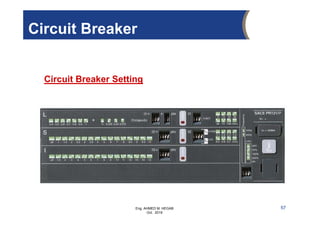

Circuit Breaker Setting
57
Circuit Breaker

58. Eng. AHMED M. HEGAB
Oct. 2019

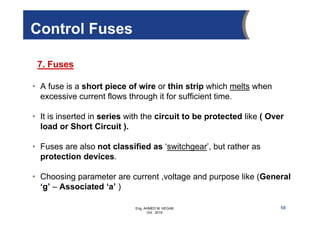

• A fuse is a short piece of wire or thin strip which melts when
excessive current flows through it for sufficient time.
• It is inserted in series with the circuit to be protected like ( Over
load or Short Circuit ).
• Fuses are also not classified as ‘switchgear’, but rather as
protection devices.
• Choosing parameter are current ,voltage and purpose like (General
‘g’ – Associated ‘a’ )
Control Fuses
7. Fuses
58

59. Eng. AHMED M. HEGAB
Oct. 2019

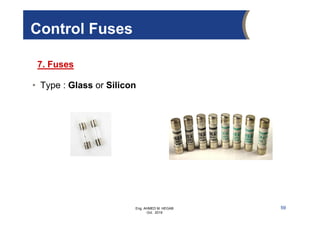

• Type : Glass or Silicon
7. Fuses
59
Control Fuses

60. Eng. AHMED M. HEGAB
Oct. 2019
7. Fuses
60
Control Fuses

61. Eng. AHMED M. HEGAB
Oct. 2019
Sensors
8. Sensors
61
Sensors Applications
Position
Sensor
Velocity
Sensor
Temperature
Sensor
Level Sensor
Flow Sensor Load Sensor Proximity
Sensor
Pressure
Sensor

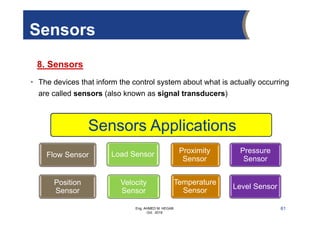

• The devices that inform the control system about what is actually occurring
are called sensors (also known as signal transducers)

62. Eng. AHMED M. HEGAB
Oct. 2019
Sensors

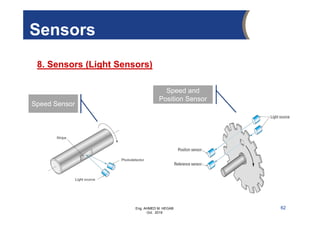

8. Sensors (Light Sensors)
62
Speed Sensor
Speed and
Position Sensor

63. Eng. AHMED M. HEGAB
Oct. 2019
Sensors

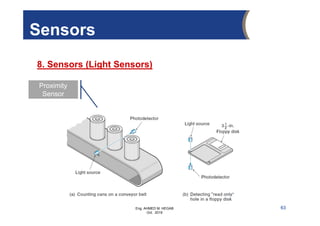

8. Sensors (Light Sensors)
63
Proximity
Sensor

64. Eng. AHMED M. HEGAB
Oct. 2019
Sensors

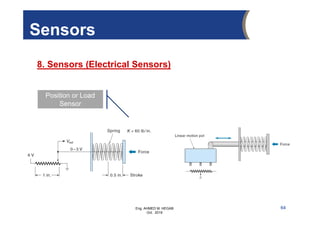

8. Sensors (Electrical Sensors)
64
Position or Load
Sensor

65. Eng. AHMED M. HEGAB
Oct. 2019
Sensors

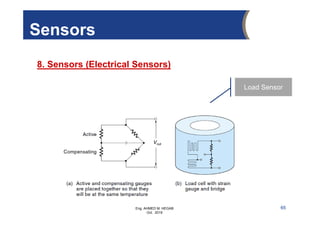

8. Sensors (Electrical Sensors)
65
Load Sensor

66. Eng. AHMED M. HEGAB
Oct. 2019
Sensors

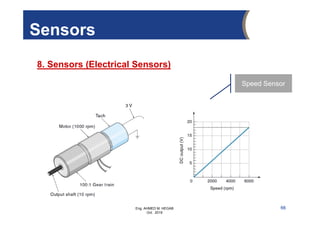

8. Sensors (Electrical Sensors)
66
Speed Sensor

67. Eng. AHMED M. HEGAB
Oct. 2019
Sensors
8. Sensors (Electrical Sensors)
67
Temperature
Sensor (PT100)

68. Eng. AHMED M. HEGAB
Oct. 2019
Sensors
8. Sensors (Level Sensors)
68

69. Eng. AHMED M. HEGAB
Oct. 2019
Semi-Conductors

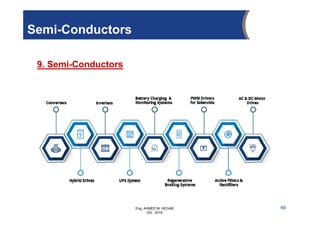

9. Semi-Conductors
69

70. Eng. AHMED M. HEGAB
Oct. 2019
9. Semi-Conductors
70
Semi-Conductors

71. Eng. AHMED M. HEGAB
Oct. 2019

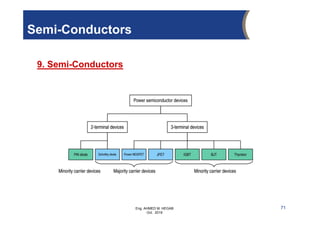

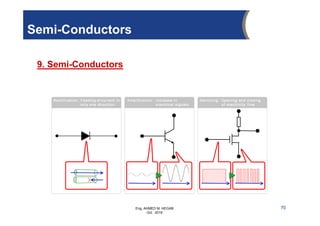

9. Semi-Conductors
71
Semi-Conductors

72. Eng. AHMED M. HEGAB
Oct. 2019

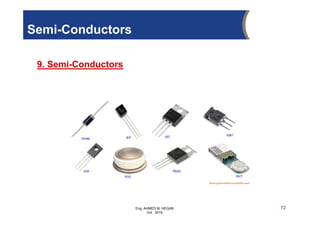

9. Semi-Conductors
72
Semi-Conductors

73. Eng. AHMED M. HEGAB
Oct. 2019
CONTROL CIRCUIT
TROUBLESHOOTING
PART THREE:

74. Eng. AHMED M. HEGAB
Oct. 2019
Main Headlines
1. Introduction
2. Aids for Prober Troubleshooting
3. Basic Tests for Troubleshooting
4. Electrical Testing Devices
74

75. Eng. AHMED M. HEGAB
Oct. 2019
Main Headlines
1. Introduction
2. Aids for Prober Troubleshooting
3. Basic Tests for Troubleshooting
4. Electrical Testing Devices
75

76. Eng. AHMED M. HEGAB
Oct. 2019
Introduction
• The main task of troubleshooting is to define the abnormal
condition and correct it.
• This can be done properly using the following steps in order :
 Review the system operation and components.
 Analyze the symptom.
 Detect and Isolate the trouble.
 Correct the trouble and test the work.
76

77. Eng. AHMED M. HEGAB
Oct. 2019
Introduction

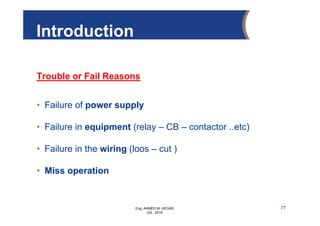

Trouble or Fail Reasons
• Failure of power supply
• Failure in equipment (relay – CB – contactor ..etc)
• Failure in the wiring (loos – cut )
• Miss operation
77

78. Eng. AHMED M. HEGAB
Oct. 2019
Main Headlines
1. Introduction
2. Aids for Prober Troubleshooting
3. Basic Tests for Troubleshooting
4. Electrical Testing Devices
78

79. Eng. AHMED M. HEGAB
Oct. 2019

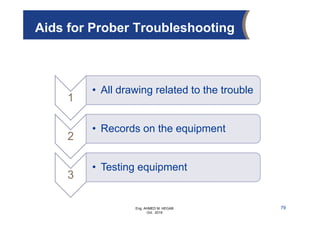

Aids for Prober Troubleshooting
1
• All drawing related to the trouble
2
• Records on the equipment
3
• Testing equipment
79

80. Eng. AHMED M. HEGAB
Oct. 2019
Main Headlines
1. Introduction
2. Aids for Prober Troubleshooting
3. Basic Tests for Troubleshooting
4. Electrical Testing Devices
80

81. Eng. AHMED M. HEGAB
Oct. 2019
Basic Tests for Troubleshooting

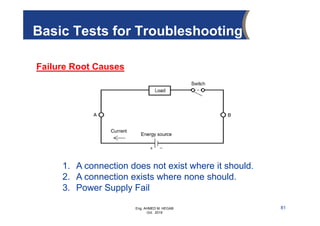

Failure Root Causes
1. A connection does not exist where it should.
2. A connection exists where none should.
3. Power Supply Fail
81

82. Eng. AHMED M. HEGAB
Oct. 2019

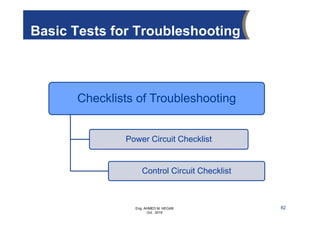

Checklists of Troubleshooting
Power Circuit Checklist
Control Circuit Checklist
Basic Tests for Troubleshooting
82

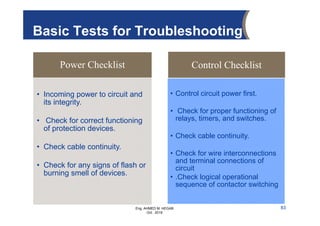

83. Eng. AHMED M. HEGAB
Oct. 2019
Power Checklist
• Incoming power to circuit and
its integrity.
• Check for correct functioning
of protection devices.
• Check cable continuity.
• Check for any signs of flash or
burning smell of devices.
Control Checklist
• Control circuit power first.
• Check for proper functioning of
relays, timers, and switches.
• Check cable continuity.
• Check for wire interconnections
and terminal connections of
circuit
• .Check logical operational
sequence of contactor switching
Basic Tests for Troubleshooting
83

84. Eng. AHMED M. HEGAB
Oct. 2019

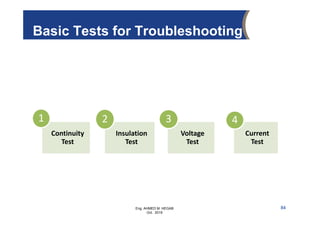

Continuity
Test
1
Insulation
Test
2
Voltage
Test
3
Current
Test
4
Basic Tests for Troubleshooting
84

85. Eng. AHMED M. HEGAB
Oct. 2019
Main Headlines
1. Introduction
2. Aids for Prober Troubleshooting
3. Basic Tests for Troubleshooting
4. Electrical Testing Devices
85

86. Eng. AHMED M. HEGAB
Oct. 2019

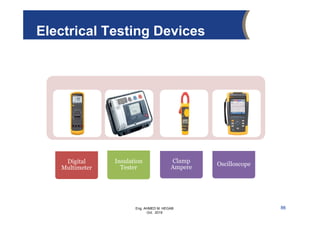

Electrical Testing Devices
Digital
Multimeter
Insulation
Tester
Clamp
Ampere
Oscilloscope
86

87. 87
