2. Contents
About the Mecstech group
Automation
PLC
SCADA
Conclusion

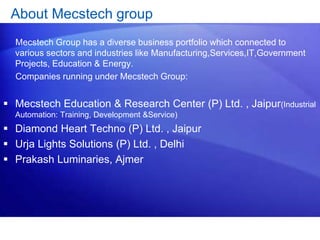

3. About Mecstech group
Mecstech Group has a diverse business portfolio which connected to
various sectors and industries like Manufacturing,Services,IT,Government
Projects, Education & Energy.
Companies running under Mecstech Group:
Mecstech Education & Research Center (P) Ltd. , Jaipur(Industrial
Automation: Training, Development &Service)
Diamond Heart Techno (P) Ltd. , Jaipur
Urja Lights Solutions (P) Ltd. , Delhi
Prakash Luminaries, Ajmer
4. What is AUTOMATION
• Making products under the control of
computers and programmable controllers is
known as automation.
• Manufacturing assembly lines as well as
stand alone machine tools and robotic
devices fall into this category.
• It is delegation of human control functions to
technical equipment for increasing the
productivity, quality, and increasing the
safety in working conditions thereby
reducing the manpower and cost.

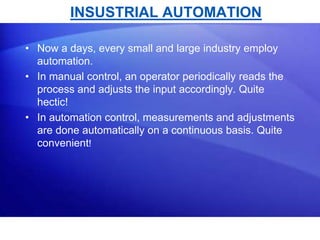

5. INSUSTRIAL AUTOMATION
• Now a days, every small and large industry employ
automation.
• In manual control, an operator periodically reads the
process and adjusts the input accordingly. Quite
hectic!
• In automation control, measurements and adjustments
are done automatically on a continuous basis. Quite
convenient!
6. Types of Control Systems used in INDUSTRIAL
AUTOMATION
• PID controller based control system
• PLC based control system
• DCS based control system
• PC based control system
7. PLC(Programmable Logic Controller)
• It is microprocessor based solid state/industrial
computer that perform discrete or sequential logic.
• It was developed to replace mechanical relays,
timers, counters.
• The early PLC’s were used to reduce the
changeover time, wiring/re-wiring.
• The PLC programming procedures replaced the
rewiring a panel full of wires, relays, timers,
counters etc.
8. Advantages
• Reliability in operation.
• Flexibility in control and programming techniques.
• Online offline modifications.
• Small physical size, shorter project time.
• In house simulation and testing of project.
• Speed of operation.
• Ease of maintenance and troubleshooting.
• Ability to communicate and networking with computer system
in plant.
• Documentation and security.
• Designed to work in all types of industrial conditions.

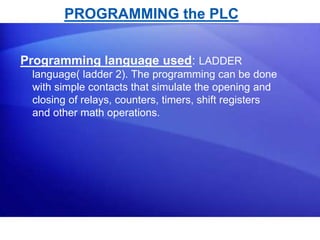

13. PROGRAMMING the PLC
Programming language used: LADDER
language( ladder 2). The programming can be done
with simple contacts that simulate the opening and
closing of relays, counters, timers, shift registers
and other math operations.
21. SCADA
• Supervisory Control And Data Acquisition
• It is a software through which we can create visualization
of any industrial process.
• Earlier, PLC’s were programmed, download the program
in it and it used to run for years
• The problem- no one knew what’s happening inside the
PLC.
• Solution= PLC+SCADA
23. FEATURES OF SCADA
Dynamic process graphic
Alarm
Database connectivity
Real time trend and historical trend view
Security
Device connectivity
26. Alarms
Every plant needs proper monitoring and control of
the process parameters.
Alarms represent warnings of process conditions that
could cause problems, and require an operator
response
27. Security
Every SCADA software has various levels of security
for securing the application by avoiding unauthorized
access.
28. Creating An Application InTouch
Steps in creating an application includes:
Create an application
Create the window in which application will run
Creating graphics images of different parts of our
process
Breathing life into graphics
6
36. CONCLUSION
1.Automation and its usefullness and advantages in
industry to make process error free and accurate.
2.Scada helps us for supervising the industry.
3.Learn how scada can control the whole process of
industry.
4.Get the knowledge of plc and its programming.
5.Learn the process of communicating between plc
and scada.
29
