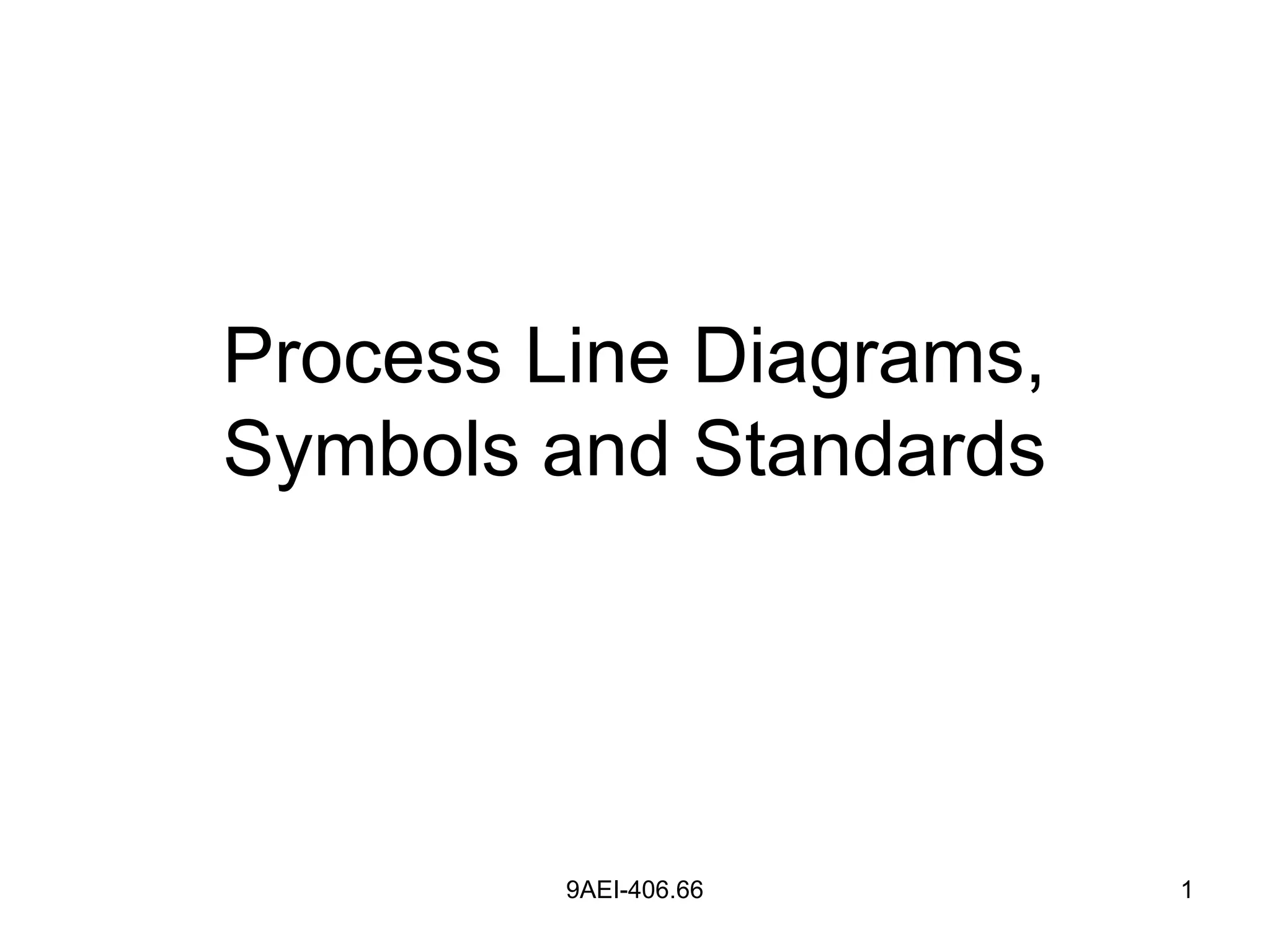

The document provides information on process line diagrams, symbols, and standards. It discusses general instruments and how they are represented with a balloon and internal code. It also covers symbols for different types of transmitters, valves, controllers, and line diagrams. Guidelines are provided for instrument identification and procedures in piping and instrumentation diagrams. Letter codes used for instrument identification and examples are also included.
Introduction of process control, Process control, Example of controlled process, Feedback control system, Feed forward control system,Classification of variables in chemical process, Components of control system
Introduction of process control, Process control, Example of controlled process, Feedback control system, Feed forward control system,Classification of variables in chemical process, Components of control system
Pneumatic control valve
Actual Pneumatic Control Valve
Typical Actuator & Valve
introduction to actuator
Actuator power
Actuator Fluids
Diaphragm Actuator
Positioner Indicator
Valve Body
Valve Plugs
Reverse & Direct Actuators
Air-To-Open vs. Air-To-Close
control valve
Controller Tuning
Selection of controller modes
Tuning Rules
Ziegler – Nichols Controller Settings
Process Control Fundamentals and How to read P&IDsAhmed Deyab
Types of Process Control, Feedback control, feed-forward control loops, ratio control loop, split range control. How to read Piping and Instrumentation Diagram for Process Engineers
CONTENTS
Measurements
Significance of Measurement system
Fundamental methods of Measurement
The generalized measurement system
Definitions & basic concepts
Errors in Measurements
Sources of errors
Accuracy Precision
Resolution
Linearity
Hysteresis
Impedance loading
Introduction to Transducers
Classification of transducers
Capacitive
Inductive
Resistive
Electromagnetic
Piezoelectric
Photoconductive
Photovoltaic
In this presentation how flow rate, pressure, temperature and level in tank measure in refinery or any industry with different instrument are discussed.
In this day and age of automated computer control valve sizing, the logic and theories behind it are invisible. In his presentation, Al Holton of Allagash Valve & Controls will look at the basic principles that apply and how they affect the application and installation of a wide range of control valve types. He will also review the reasoning behind valve type selection.
Pneumatic control valve
Actual Pneumatic Control Valve
Typical Actuator & Valve
introduction to actuator
Actuator power
Actuator Fluids
Diaphragm Actuator
Positioner Indicator
Valve Body
Valve Plugs
Reverse & Direct Actuators
Air-To-Open vs. Air-To-Close
control valve
Controller Tuning
Selection of controller modes
Tuning Rules
Ziegler – Nichols Controller Settings
Process Control Fundamentals and How to read P&IDsAhmed Deyab
Types of Process Control, Feedback control, feed-forward control loops, ratio control loop, split range control. How to read Piping and Instrumentation Diagram for Process Engineers
CONTENTS
Measurements
Significance of Measurement system
Fundamental methods of Measurement
The generalized measurement system
Definitions & basic concepts
Errors in Measurements
Sources of errors
Accuracy Precision
Resolution
Linearity
Hysteresis
Impedance loading
Introduction to Transducers
Classification of transducers
Capacitive
Inductive
Resistive
Electromagnetic
Piezoelectric
Photoconductive
Photovoltaic
In this presentation how flow rate, pressure, temperature and level in tank measure in refinery or any industry with different instrument are discussed.
In this day and age of automated computer control valve sizing, the logic and theories behind it are invisible. In his presentation, Al Holton of Allagash Valve & Controls will look at the basic principles that apply and how they affect the application and installation of a wide range of control valve types. He will also review the reasoning behind valve type selection.
A process flow diagram (PFD) is a diagram commonly used in chemical and process engineering to indicate the general flow of plant processes and equipment.
Overview of Badger Meter's Flo-tech range of hydraulic turbine flow meters. Flo-tech products are used in hydraulic testing and analysis and on equipment in a variety of industries, including; agriculture, automotive, construction, forestry, marine and mining.
AERONDI is a start-up company, born to offer non-destructive services (NDT-NDI), mainly focused on Aerospace Industry.
Besides the main activity, consisting in Non-Destructive Inspections on structural and engine parts, made of metallic or composite materials, the company offers a wide range of Technical Support services in the Special Processes area other than in Testing Processes.
The Company owns from the start a strong technical knowledge, due to the synergic convergence of many subjects having multi-decades experience in the field.
• A competent professional with over 8 years of rich & versatile experience in Quality Control & Inspection and Instrument Maintenance commissioning-pre commissioning Operations (Onshore) in India & Middle East across Oil & Gas industry
• Well versed with the concepts of process control, calibration, loop checking, pre-commissioning, commissioning and troubleshooting for Pneumatic, Electro-Pneumatic & Smart Instruments
• Holds the merit of working with renowned organizations like Supreme Group FZE (Fuels), Qatar Engineering & Construction Company W.L.L., Petromar (Saipem) Soyo Base, Hofincons Infotech Industrial Services, J Ray Mc Dermott Middle East Inc. and Sabero Organics Gujarat Ltd.
Process load,process lag,self regulation,error,control lag,dead time,cycling,discontinious control modes,two position control modes,flaoting control modes,propotional band,offset,propotional control, integral control,derivative control,pid control,pi control,pd control,tuning of pid control
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
2. 29AEI-406.66 2
General Instruments
• General instruments can be represented in a circle
called balloon.
• Inside the balloon will be a code.
• Code gives the information regarding the function and
nature of the device.
3. 39AEI-406.66 3
1. Instrument - Locally mounted
2. Instrument - At control centre
3. Instrument - Bifunctional / Two services
4. Instrument - Transmitting
13. 139AEI-406.66
Symbols for Different types of
Transmitters
S.No: Name of the Transmitter Symbol
1 Pressure transmitter
2 Flow transmitter
3 Level transmitter
PT
FT
LT
∫
∫
18. 189AEI-406.67 18
S. No Name of the valve
1 Electrically operated control
valve
symbol
2.Hydraulically operated
control valve
Basic Symbols for Different types of Control
Valves
23. 239AEI-406.67 23
S.No Name of the controller symbol
1. Pneumatic flow controller ∫ // //
2. Pneumatic pressure controller ∫ // //
3. Electronic flow controller ∫
4. Level controller
FC
PC
FC
LC
26. 269AEI-406.68 26
• Process line
• Point of measurement
• Orifice installed line
• Sonic or U V radiation
• Undefined signal line
Line Diagrams
27. 279AEI-406.68
• Electro magnetic or sonic signal
• Internal system links
• Mechanical link
• Electric binary signal ------------------
• Pneumatic binary signal
Line Diagrams
29. AEI-504.7029
Procedures &Instructions
• For combination instruments that measured more than
one kind of variable or that provide more than one kind
of function, each portion of the combination shall have its
own Identification.
• The Instrument or equipment common to two processes
shall utilize both identification. For example, a
combination recorder for flow and pressure would be
PR-1 & FR-5.
30. AEI-504.7030
• Multiple or point instruments with all points of same
general service, and all providing the same functions,
shall have one identification.
• The separate elements and their components shall be
identified by suffix numbers added to the number of the
item. Ex: TR-1-1, TR-1-2 etc.
31. AEI-504.7031
• For remote transmission instruments both the receiver
and the transmitter shall have the same identification , in
agreement with over all service and function of the item.
• Each control valve shall have the identification as the
control instrument by which it is activated.
• When more than one valve is activated by the same
controller ,they shall be identified by suffix letters added
to the number of the item.
Ex : TRC-1a,TRC-1b etc.
32. AEI-504.7032
• Where Accessories such as
• valve Positioners
• air sets
• switches
relays etc., requires identification, they shall be
assigned the same identification as the instrument
to which they connect or with which they are used.
33. AEI-504.7033
• Primary measuring elements shall be assigned the same
identifications as the instruments to which they connect.
• Where an element does not connect to any instrument ,
such isolated item shall be assigned separate primary
element identification.
34. 9AEI-406.7134
P&I DIAGRAM
• A standard form and set of symbols are used in the
preparation of drawings of process control systems
• The drawing is often referred to as piping &
instrumentation ( P & I ) drawing
• The diagram is called as P&I diagram
35. 9AEI-406.7135
• The P&ID are definitive and comprehensive diagrams
showing all of the equipment, piping, valves and
instrumentation.
• All items must be identified using a standard numbering
system.
• The number should include a size, material and fluid
contents.
36. 9AEI-406.7136
• P & ID is a detailed graphical representation of a process
including the hardware and software
(ex: piping, equipment, instrumentation) necessary to
design, construct and operate the facility
37. 9AEI-406.7137
Use of letter code in identification of
instruments
The following rules and instructions are used in use of
letter code for identification of instruments.
• Letters of English alphabet are used in letter code.
• All identifying letters shall in all cases be written in
upper case.
38. 9AEI-406.7138
• The maximum number of identifying letters in any
combination shall be three. The only exception is in the
use of PH
or chemical symbols such co2 pair is treated as
a single letter.
• A letter shall have only one identification or significance in
its use as a “first” letter in any combination to define the
process variable.
39. 9AEI-406.7139
• A letter shall have only one definition or significance when
used as either the “second” or the “third” letter in
combination to defined type of device.
• No hyphens shall be used between letter or combinations
of letters.
• Use of letter codes and their significance of first, second or
third place can be easily understand by the given table.
40. 9AEI-406.7140
TABLE
Meanings of Identification Letters
Identificati
on Letters
First Place
(Measured or
Initiating
Variable)
Second Place
(Read out or
Passive
function)
Third Place
(Output
function)
A Analysis Alarm -
B Burner, flame User 's choice User's choice
C Conductivity -
control /
controller
41. 9AEI-406.7141
E Voltage
Primary element
(sensor) -
F Flow rate/ Flow -
-
G Gaging
Glass, viewing
device -
H Hand (manually Initiated) -
-
I Current
Indicate/ Indicator /
Indicating -
D
Density or specific
gravity
-
-
42. 9AEI-406.7142
J Power - -
K Time - control Station
L Level Light -
M Moisture - -
N User's choice User 's choice User's choice
O User's choice Orifice / Restriction -
P
Pressure or
vacuum
Point / Test
connection
-
Q Quantity - -
44. 9AEI-406.7144
V Vibration / Viscosity Valve/ Damper -
W Weight, Force Well -
Y
Event
/State/Presence
Relay /compute/
convert
-
Z Position, Dimension
Driver, Actuator,
(Final Control
Element)
45. 9AEI-406.7145
EXAMPLES
S.NO TAG NAME NAME OF THE INSTRUMENT
1 PA PRESSURE ALARM
2 SR SPEED RECORDER
3 FE FLOW SENSOR
4 TI TEMPERATURE INDICATOR
5 TW TEMPERATRE WELL
6 FT FLOW TRANSMITTER
46. 9AEI-406.7146
S.NO TAG NAME NAME OF THE INSTRUMENT
1 PIC PRESSURE INDICATING CONTROLER
2 HCV HAND CONTROLLED VALVE
3 PCV PRESSURE CONTROL VALVE
Note: Generally the second letter represents read out /
passive function followed by out put function letter. But the
exception is that the output letter C (control) precedes the
out put letter V (valve)
E.g.. HCV, PCV
48. 9AEI-406.7248
• The Indian standards Institution (ISI) was set up in 1947
after independence as a registered society under a Govt
of India resolution .
• Due to fast changing socio-economic scenario Govt
recognized the need for strengthening the activities of ISI
and changed the name as BIS (Bureau of Indian
standards) on 1st
April 1987
History
49. 9AEI-406.7249
Objectives of Bureau of Indian Standards
• Development of standardization, marking and quality
certification (By checking incoming raw material and
outgoing finished products at different levels of
production)
• To provide new thrust to standardization and quality
Control
50. 9AEI-406.7250
Objectives of Bureau of Indian Standards…
• To evolve a national strategy for according recognition to
standards and integrating them with growth and development of
production and exports.
51. 9AEI-406.7251
• In BIS the ISI mark gives guarantee to the purchaser that
the goods with this mark have been manufactured under a
well defined system of quality control.
Importance
52. 9AEI-406.7252
Some of BIS standards
• IS QC 440000: 1994
Thermistors –General specifications
• IS 12762 : Part1 : 1989
Measurement of photovoltaic current voltage
Characteristics
53. 9AEI-406.7253
• IS 6804 : 1972
Glass electrodes for direct reading PH meters
• IS 7358 : 1984
Specifications for thermocouple
Some of BIS standards cont….
55. 9AEI 504.7355
American National Standard Institute
(ANSI)
• American National Standard Institute abbreviated as ANSI
• It is a private non profit organization.
• It oversees the development of standards for products,
processes, systems & personnel in the united states.
57. 9AEI 504.7358
• The institute represents the interest of more than
1,25,000 companies & 3.5 million professionals.
• ANSI actively engaged in programmes like
ISO 9000 ( Quality )
ISO 14,000 ( Environment )
58. 9AEI 504.7359
• ANSI is the official U.S representative to International
Organisation for Standardisation (ISO) International
Electrotechnical Commission (IEC).
• ANSI is also member of the International Accreditation Forum
(IAF).
59. 9AEI 504.7360
Document No Document File
C37.1-1994 IEEE standard definition, specification &
analysis of systems used for
supervisory control, Data Acquisition &
automatic control
C39.4-1966 Specification for Automatic Null
balancing Electrical measuring
Instruments
C42.100-1972 Directory of Electrical & Electronics
C39.2-1964 Direct Acting Electrical Recording
Instruments
Publications of ANSI
60. 9AEI-504.7461
British Standard Institution
• British Standard Institution abbreviated as BSI
• It is worlds first national standard organization
• It serves the interest of a wide range of industry sectors
as well as governments ,consumers, employees and
society
61. 9AEI-504.7462
• British standard is the UK’s National standards Body (NSB).
• There are over 27,000 current British Standards available.
• Every year nearly 1700 standards are revised or newly
developed by BSI.
• BSI is raising standard over 100 countries world wide.
63. 9AEI-504.7464
BSI provides the following Standards also:
• ISO 9001(Quality)
• ISO 14001(Environmental )
• OHSA5 18001(Occupational Health &Safety )
64. 9AEI-504.7465
• BSEN 60584-3 : 2008
Thermocouples (extension & compensating cables).
• BSEN 60770-1
Transmitters for use in industrial process control system.
Some of the standards of BSI:
65. 9AEI-504.7566
• ISA is an organization of engineers, technicians & others
who work in the field of Instrumentation, measurement&
control of Industrial Processes.
• ISA is a non profit organization that helps its 30,000
world wide members to solve difficult technical problems.
• It was founded in 1945
Instrumentation system & Automation society
69. 9AEI-504.7570
S.no. Name of the
standard
Description
01 ISA-5.1 Instrumentation symbols &
Identification
02 ISA-5.3 Graphic symbols for distributed
control
03 ISA-5.4 Instrument loop diagram
04 ISA-5.5 Graphic symbols for process
display
05 ISA-5.20 Standards for Industrial
Automation & control
06 ISA-75 Control valve standards
Some of the Standards of ISA
70. 9AEI-504.7571
DIN
• DIN; in English, the German Institute for Standardization
is the German national organization for standardization
and is that country's ISO member body.
72. 9AEI-504.7573
• DIN is a registered association founded in 1917,
originally as Normenausschuss der deutschen Industries
(NADI, Standardization Committee of German Industry).
• In 1926 the NADI was renamed Deutscher
Normenausschuss (DNA, German Standardization
Committee) in order to indicate that standardization now
covered many fields, not just industrial products.
73. 9AEI-504.7574
• In 1975 the DNA was finally renamed DIN.
• Its headquarters is in Berlin.
• Since 1975 it has been recognized by the German
government as the national standards body and
represents German interests at international and
European level.
74. 9AEI-504.7575
List of DIN standards
• DIN 476: international paper sizes (now ISO 216 or DIN
EN ISO 216).
• DIN 946: Determination of coefficient of friction of
bolt/nut assemblies under specified conditions.
• DIN 1451: typeface used by German railways and on
traffic signs.
• DIN 31635: transliteration of the Arabic language.
• DIN 72552: electric terminal numbers in automobiles.
