A/CH/CHST/AEI/FW/MNG/MET/IT/TT/PKG–107
4005
BOARD DIPLOMA EXAMINATION, (C–14)
OCT/NOV—2016
FIRST YEAR EXAMINATION
ENGINEERING DRAWING
Time : 3 hours ] [ Total Marks : 60
PART—A 5×4=20
Instructions : (1) Answer all questions.
(2) Each question carries five marks.
(3) All dimensions are in mm.
(4) Take suitable scale whenever required.
1. Print the following in single-stroke vertical capital lettering of
10 mm size :
‘‘CREATIVITY IS THE KEY TO SUCCESS’’
2. Redraw the following figure to full-scale and dimension by aligned
dimensioning method :
/4005 1 [ Contd...
* 4 0 0 5 *

2. 046
046
046
046
*
*
*

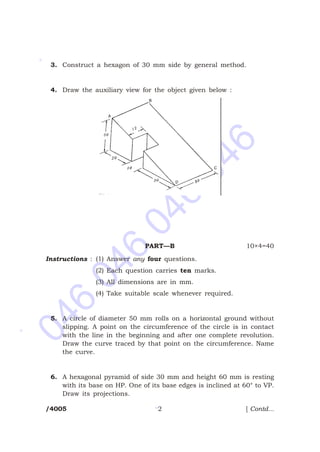

3. Construct a hexagon of 30 mm side by general method.
4. Draw the auxiliary view for the object given below :
PART—B 10×4=40
Instructions : (1) Answer any four questions.
(2) Each question carries ten marks.
(3) All dimensions are in mm.
(4) Take suitable scale whenever required.
5. A circle of diameter 50 mm rolls on a horizontal ground without
slipping. A point on the circumference of the circle is in contact
with the line in the beginning and after one complete revolution.
Draw the curve traced by that point on the circumference. Name
the curve.
6. A hexagonal pyramid of side 30 mm and height 60 mm is resting
with its base on HP. One of its base edges is inclined at 60° to VP.
Draw its projections.
/4005 2 [ Contd...

3. 046
046
046
046
*
*
*
7. Draw the front, top and right side views of the object shown in
figure below :
8. Draw the full sectional front view and top view of the object shown
in figure below :
/4005 3 [ Contd...

4. 046
046
046
046
*
*
*

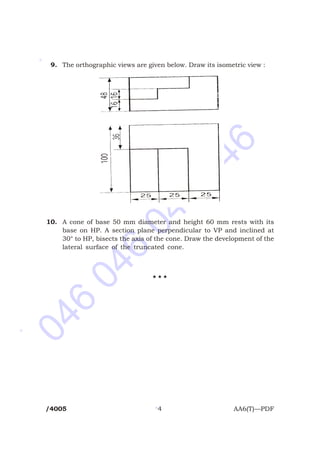

9. The orthographic views are given below. Draw its isometric view :
10. A cone of base 50 mm diameter and height 60 mm rests with its
base on HP. A section plane perpendicular to VP and inclined at
30° to HP, bisects the axis of the cone. Draw the development of the
lateral surface of the truncated cone.
H H H
/4005 4 AA6(T)—PDF
