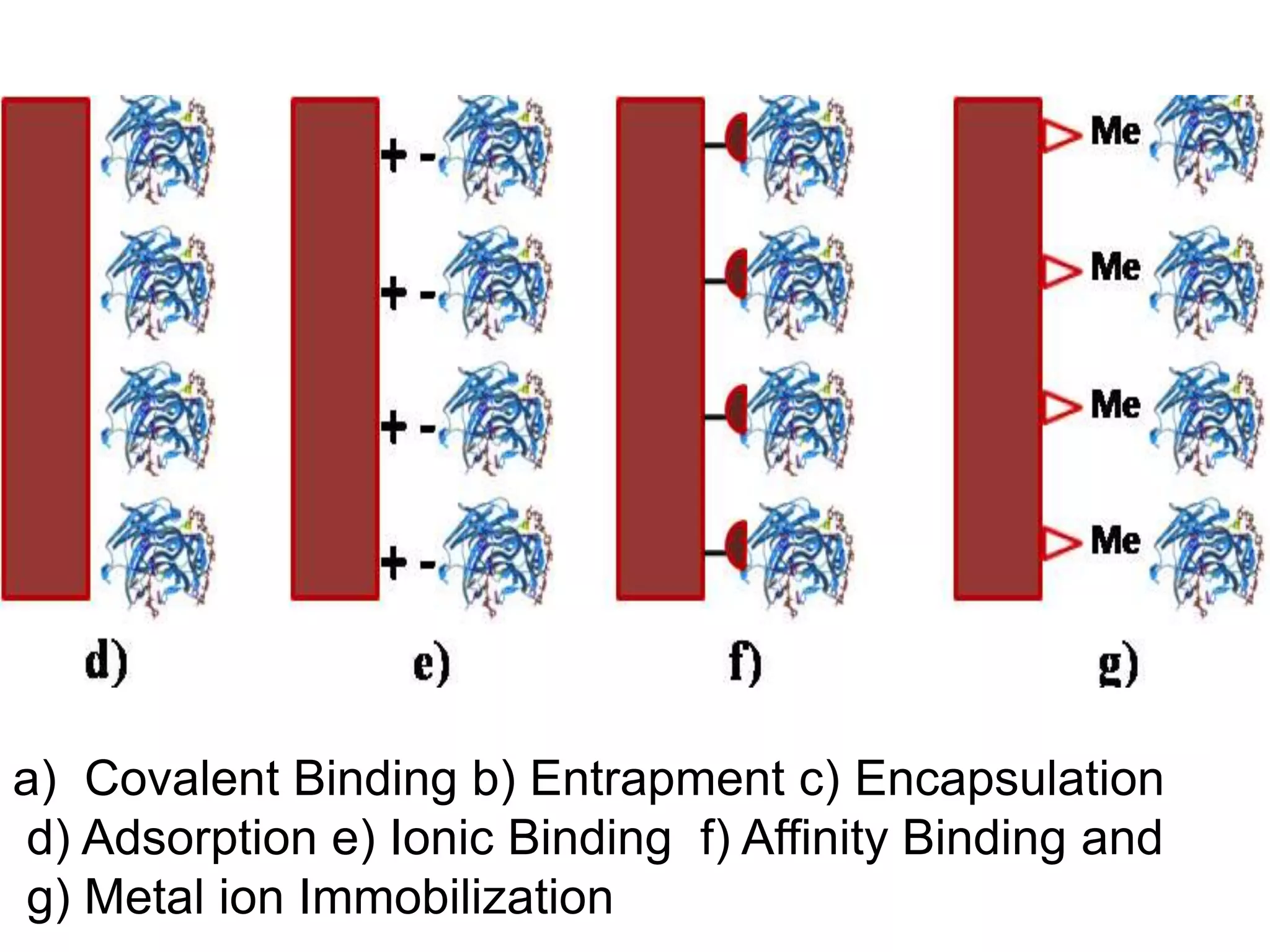

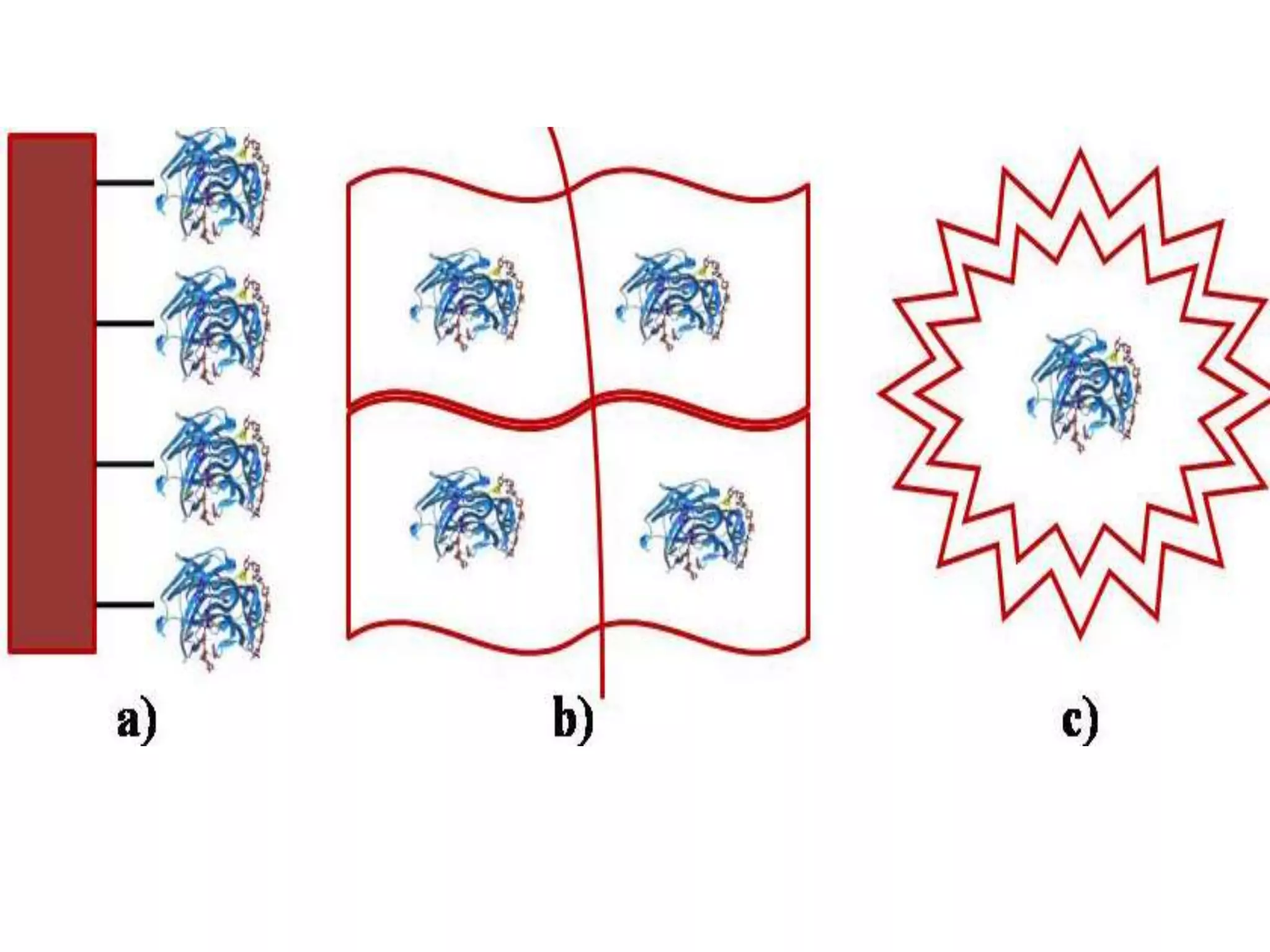

a) Covalent Binding b) Entrapment c) Encapsulation
d) Adsorption e) Ionic Binding f) Affinity Binding and
g) Metal ion Immobilization

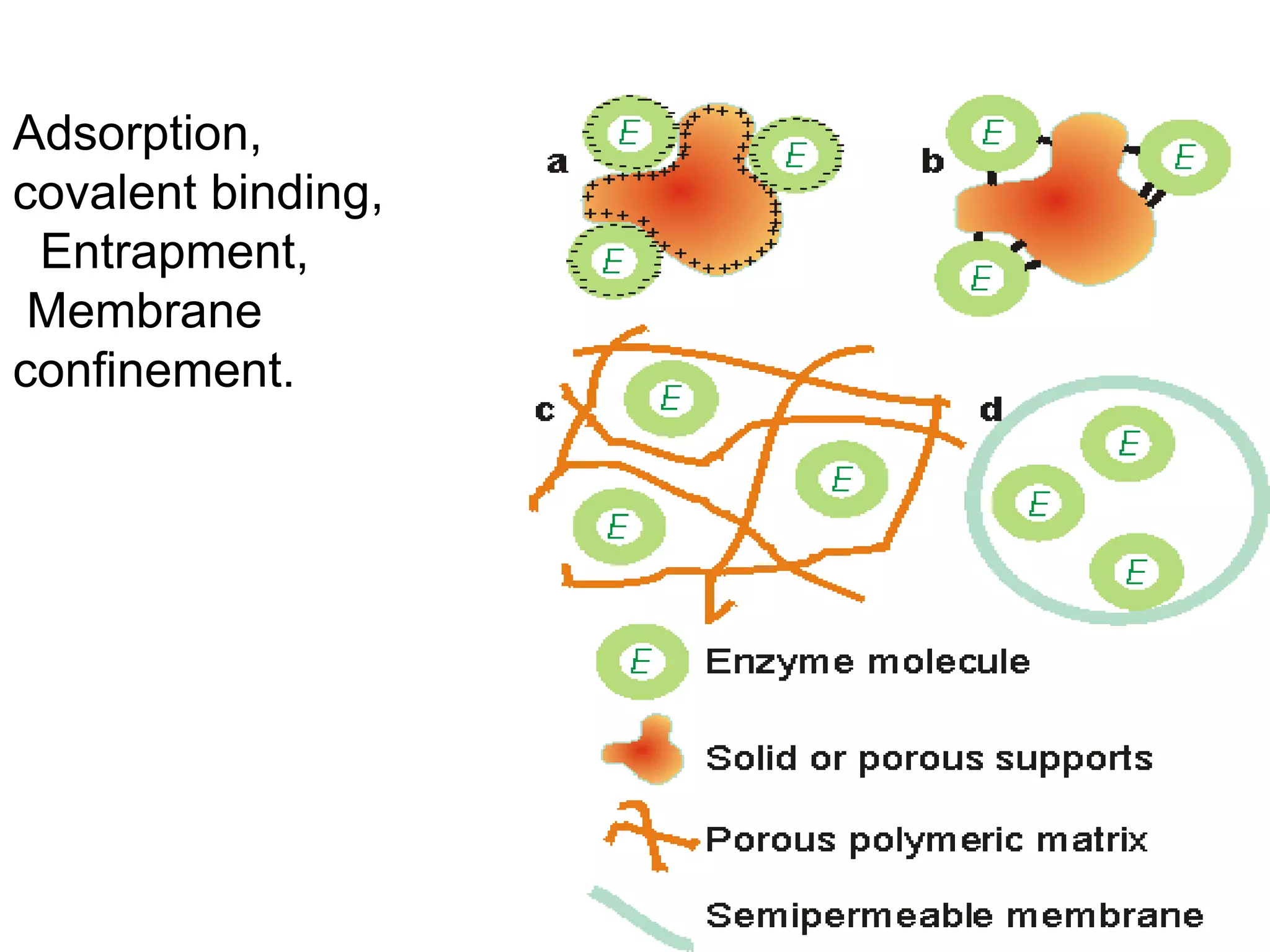

Adsorption,
covalent binding,
Entrapment,
Membrane
confinement.

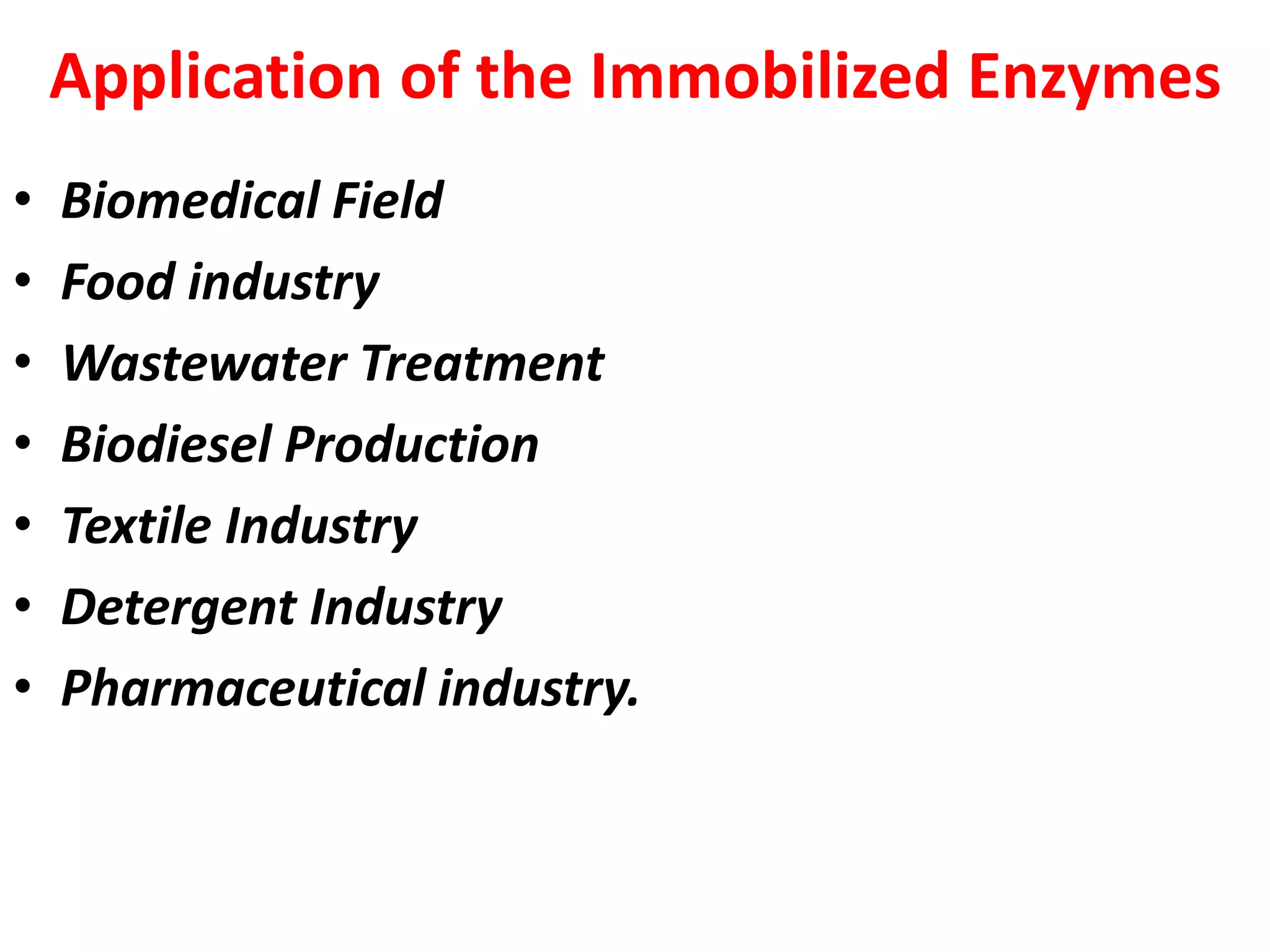

Application of the Immobilized Enzymes
• Biomedical Field
• Food industry
• Wastewater Treatment
• Biodiesel Production
• Textile Industry
• Detergent Industry
• Pharmaceutical industry.

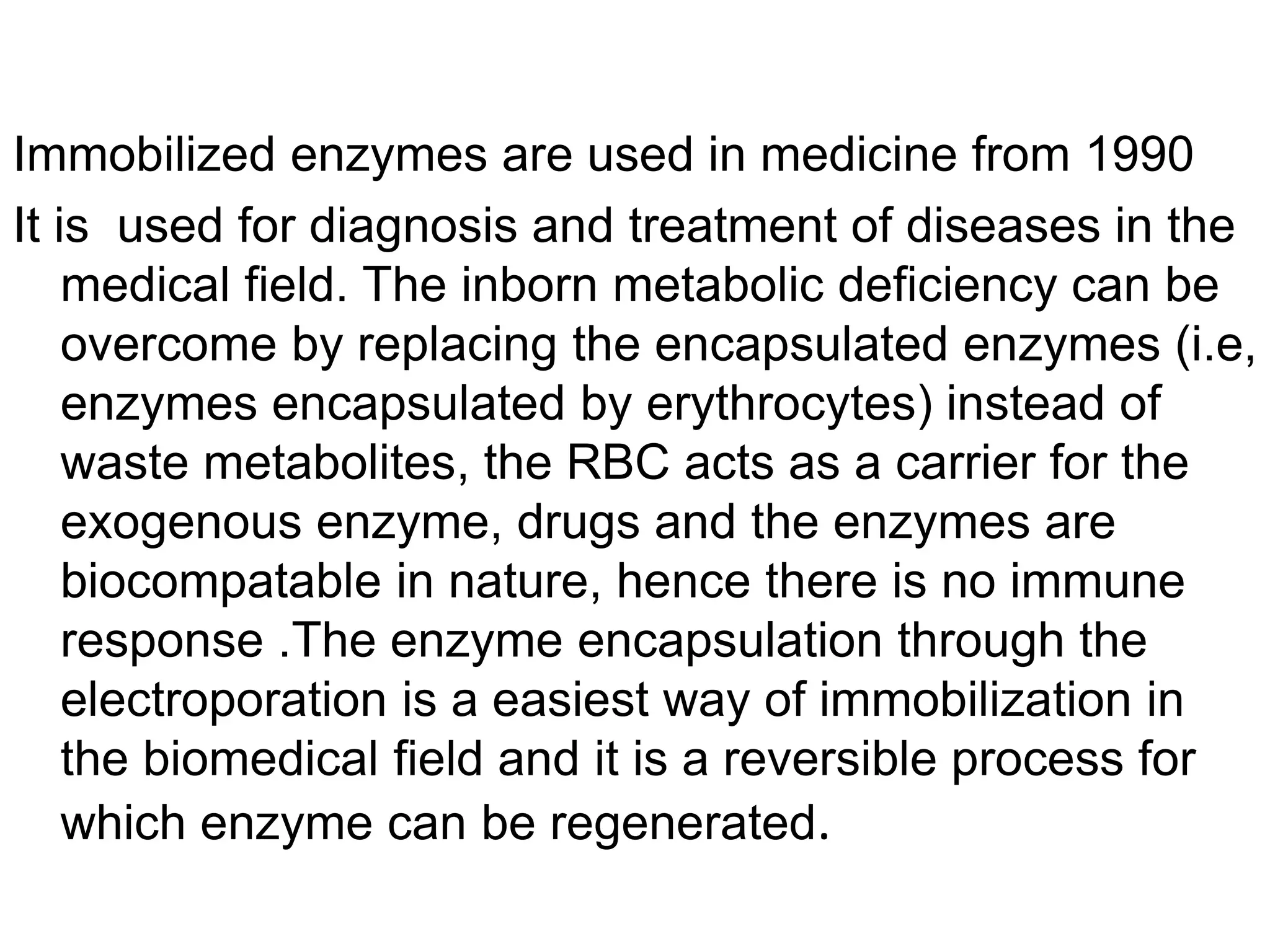

Immobilized enzymes are used in medicine from 1990
It is used for diagnosis and treatment of diseases in the
medical field. The inborn metabolic deficiency can be
overcome by replacing the encapsulated enzymes (i.e,
enzymes encapsulated by erythrocytes) instead of
waste metabolites, the RBC acts as a carrier for the
exogenous enzyme, drugs and the enzymes are
biocompatable in nature, hence there is no immune
response .The enzyme encapsulation through the
electroporation is a easiest way of immobilization in
the biomedical field and it is a reversible process for
which enzyme can be regenerated.

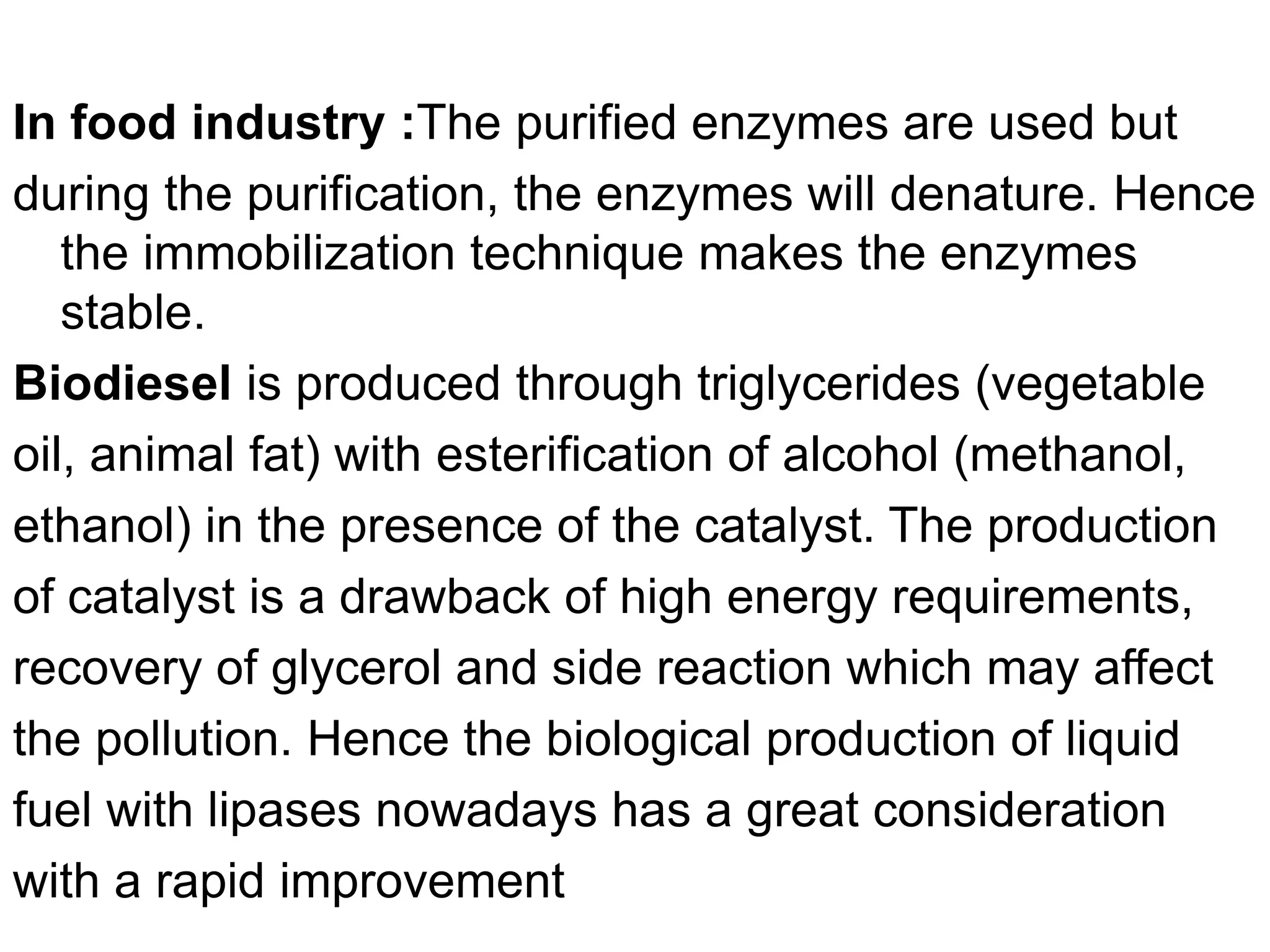

In food industry :The purified enzymes are used but
during the purification, the enzymes will denature. Hence
the immobilization technique makes the enzymes
stable.
Biodiesel is produced through triglycerides (vegetable
oil, animal fat) with esterification of alcohol (methanol,
ethanol) in the presence of the catalyst. The production
of catalyst is a drawback of high energy requirements,
recovery of glycerol and side reaction which may affect
the pollution. Hence the biological production of liquid
fuel with lipases nowadays has a great consideration
with a rapid improvement

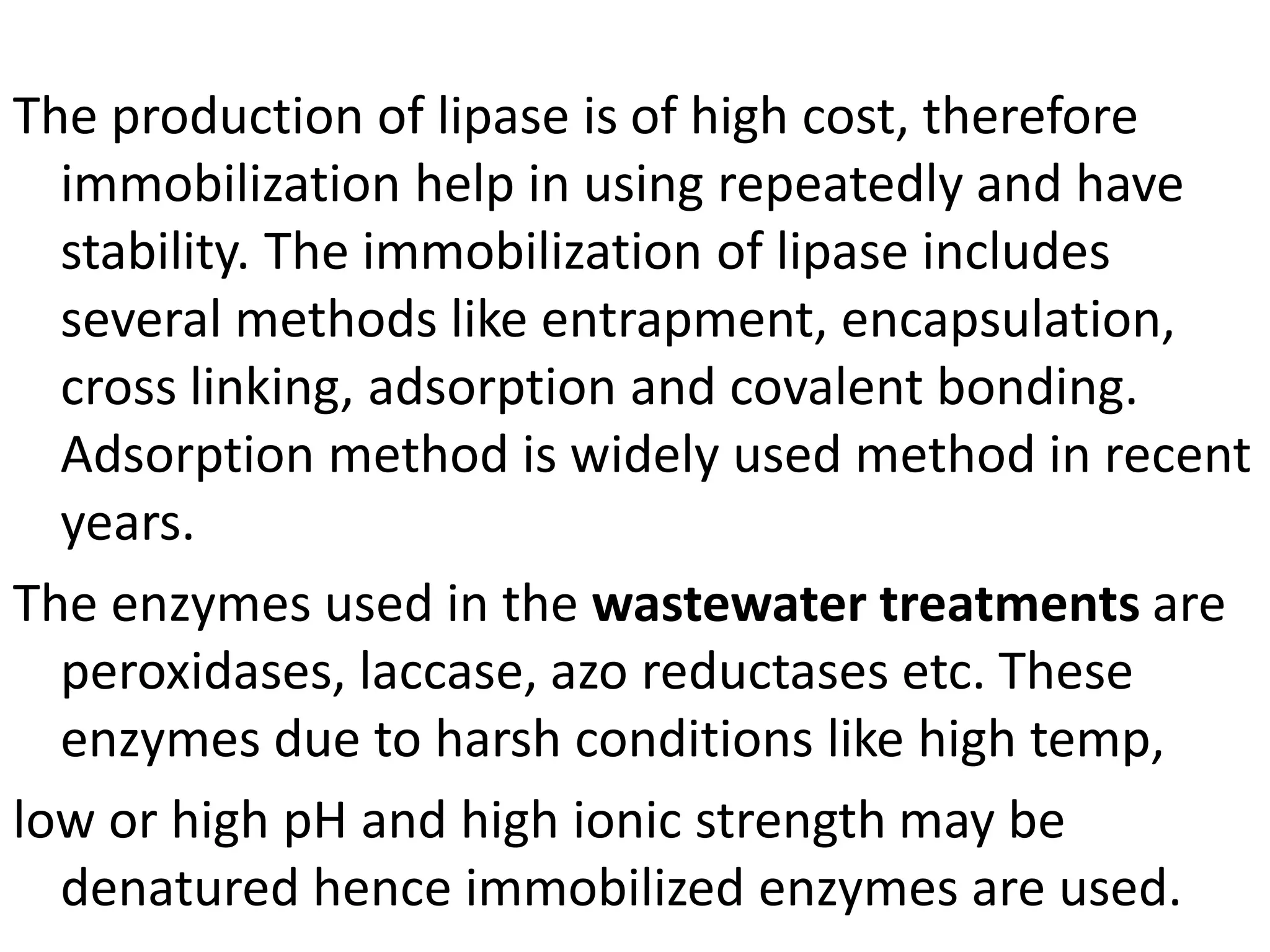

The production of lipase is of high cost, therefore
immobilization help in using repeatedly and have
stability. The immobilization of lipase includes
several methods like entrapment, encapsulation,
cross linking, adsorption and covalent bonding.
Adsorption method is widely used method in recent
years.
The enzymes used in the wastewater treatments are
peroxidases, laccase, azo reductases etc. These
enzymes due to harsh conditions like high temp,
low or high pH and high ionic strength may be
denatured hence immobilized enzymes are used.

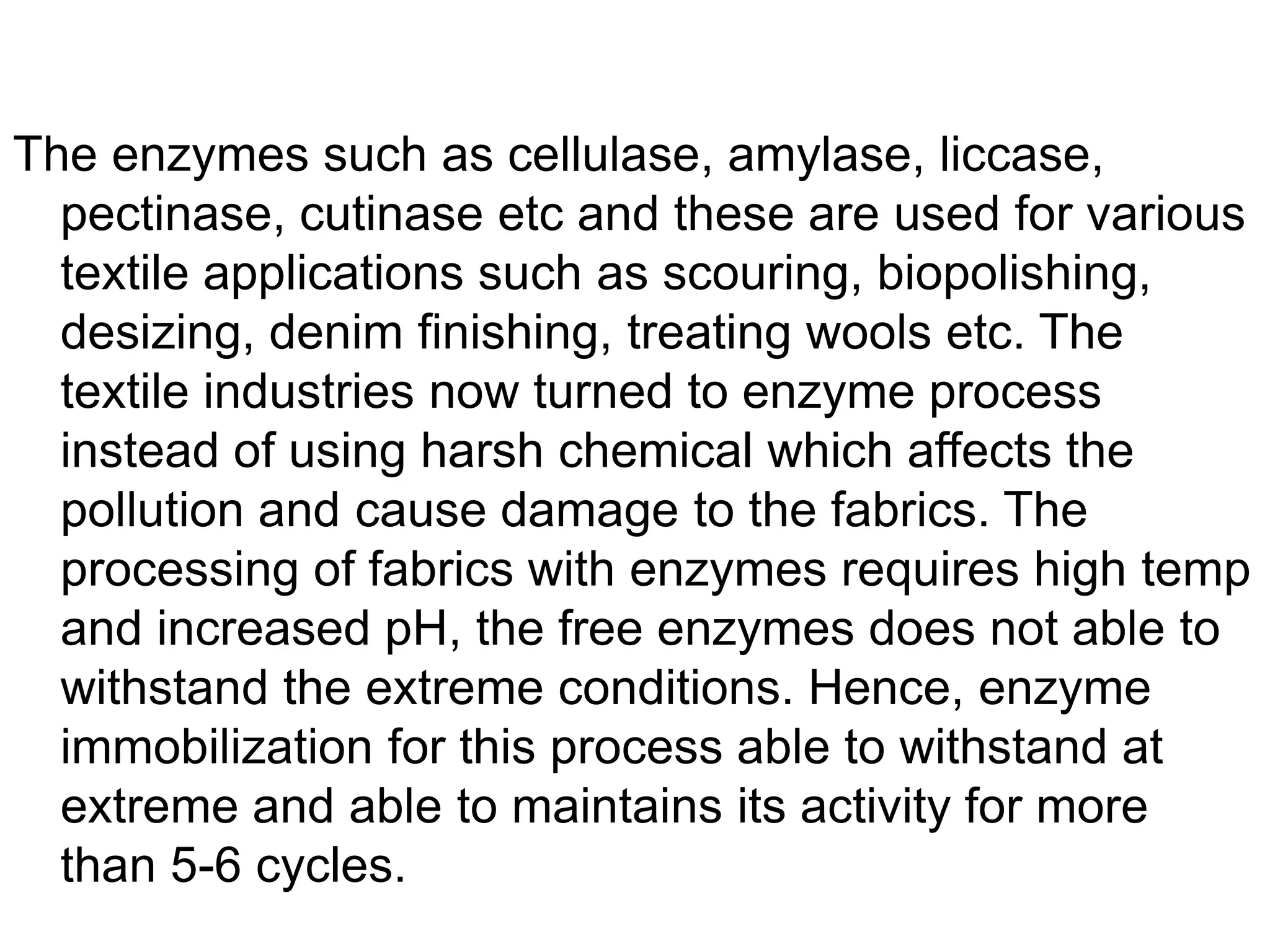

The enzymes such as cellulase, amylase, liccase,
pectinase, cutinase etc and these are used for various
textile applications such as scouring, biopolishing,
desizing, denim finishing, treating wools etc. The
textile industries now turned to enzyme process
instead of using harsh chemical which affects the
pollution and cause damage to the fabrics. The
processing of fabrics with enzymes requires high temp
and increased pH, the free enzymes does not able to
withstand the extreme conditions. Hence, enzyme
immobilization for this process able to withstand at
extreme and able to maintains its activity for more
than 5-6 cycles.

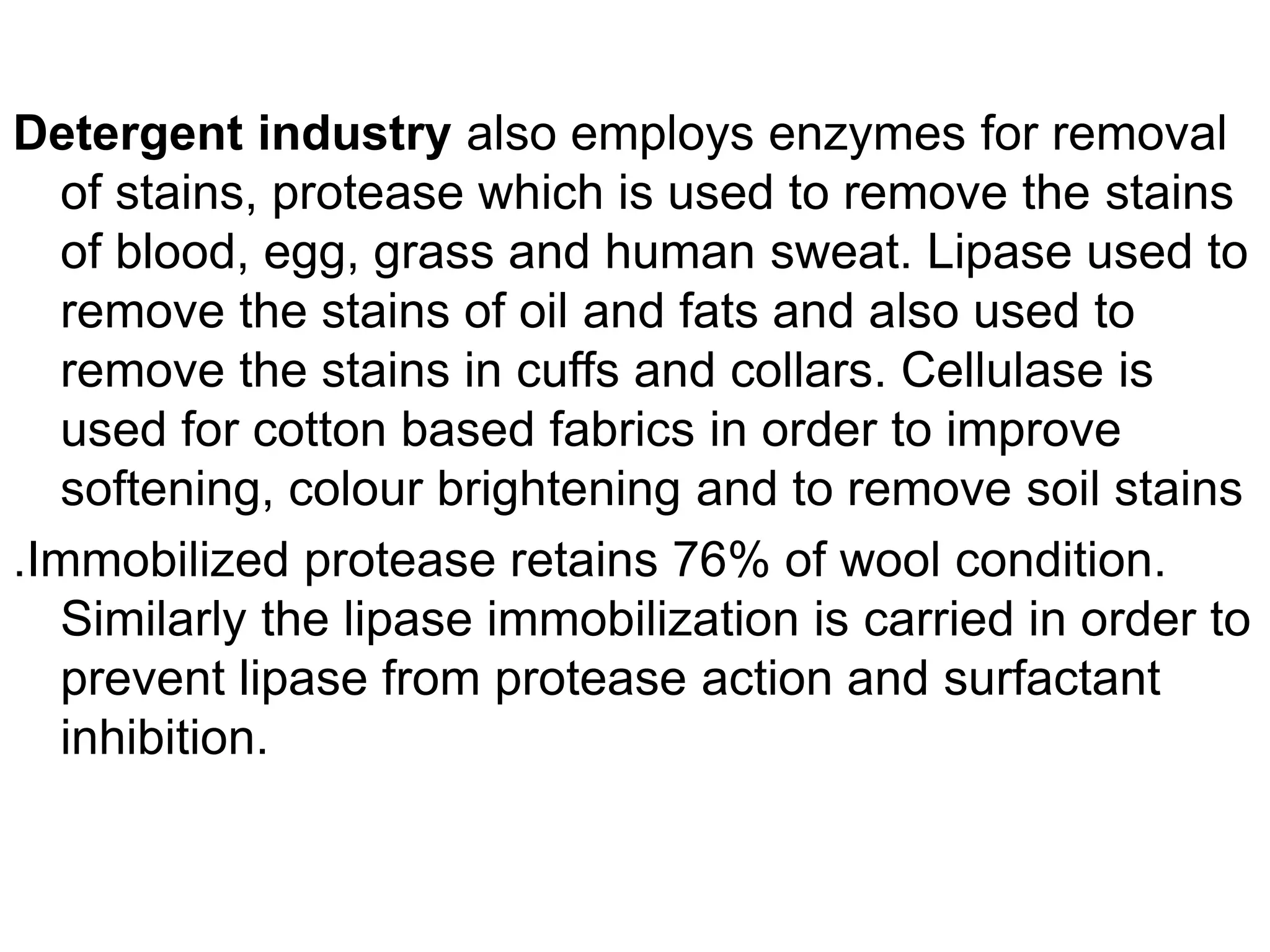

Detergent industry also employs enzymes for removal
of stains, protease which is used to remove the stains
of blood, egg, grass and human sweat. Lipase used to
remove the stains of oil and fats and also used to
remove the stains in cuffs and collars. Cellulase is
used for cotton based fabrics in order to improve
softening, colour brightening and to remove soil stains
.Immobilized protease retains 76% of wool condition.
Similarly the lipase immobilization is carried in order to
prevent lipase from protease action and surfactant
inhibition.

More Related Content

Viewers also liked

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization
Ashwini

Enzyme Immobilization and Applications
Enzyme Immobilization and ApplicationsEnzyme Immobilization and Applications
Enzyme Immobilization and Applications
Madhukar Vedantham

0 immobilization of laccase
0 immobilization of laccase0 immobilization of laccase
0 immobilization of laccase
Rajesh Dahiya

Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60
Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60
Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60
VTT Technical Research Centre of Finland Ltd

Laccase sources and their applications in environmental pollution
Laccase sources and their applications in environmental pollutionLaccase sources and their applications in environmental pollution
Laccase sources and their applications in environmental pollution
SSR Institute of International Journal of Life Sciences

Enzyme Immobilization_ 2
Enzyme Immobilization_ 2Enzyme Immobilization_ 2
Enzyme Immobilization_ 2Esam Yahya

Food rauf
Food raufFood rauf
Food rauf
Rauf222

Immobilization
ImmobilizationImmobilization
Immobilization
FaraZ AhmaD

Screening and Production of Protease Enzyme from Marine Microorganism and Its...
Screening and Production of Protease Enzyme from Marine Microorganism and Its...Screening and Production of Protease Enzyme from Marine Microorganism and Its...
Screening and Production of Protease Enzyme from Marine Microorganism and Its...
iosrjce

Radiation. Plants Immunity. Toxicity of Plants after irradiation.
Radiation. Plants Immunity. Toxicity of Plants after irradiation.Radiation. Plants Immunity. Toxicity of Plants after irradiation.
Radiation. Plants Immunity. Toxicity of Plants after irradiation.
Dmitri Popov

Aqa digestive system tmid
Aqa  digestive system tmidAqa  digestive system tmid
Aqa digestive system tmid
Teresa Middleton

Complex enzyme plus
Complex enzyme plusComplex enzyme plus
Complex enzyme plus
Artlife India

Immobilization techniques for dna biosensor
Immobilization techniques for dna biosensorImmobilization techniques for dna biosensor
Immobilization techniques for dna biosensor
Green University of Al Qasim

How to produce enzyme based products at home: cleaning & Personal care
How to produce enzyme based products at home: cleaning & Personal careHow to produce enzyme based products at home: cleaning & Personal care
How to produce enzyme based products at home: cleaning & Personal care
Murray Hunter

C26 Digestion In Human
C26 Digestion In HumanC26 Digestion In Human
C26 Digestion In Human
Carolyn Khoo

enzyme catalysis
enzyme catalysisenzyme catalysis
3D Food Printing Presentation
3D Food Printing Presentation3D Food Printing Presentation
3D Food Printing PresentationAnkita Singh


Viewers also liked (20)

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization

Enzyme Immobilization and Applications
Enzyme Immobilization and ApplicationsEnzyme Immobilization and Applications
Enzyme Immobilization and Applications

1-s2.0-S1381117714002598-main
1-s2.0-S1381117714002598-main1-s2.0-S1381117714002598-main
1-s2.0-S1381117714002598-main

0 immobilization of laccase
0 immobilization of laccase0 immobilization of laccase
0 immobilization of laccase

Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60
Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60
Action of laccase on mechanical softwood pulps. Stina Grönqvist. VTT Science 60

Laccase sources and their applications in environmental pollution
Laccase sources and their applications in environmental pollutionLaccase sources and their applications in environmental pollution
Laccase sources and their applications in environmental pollution

Enzyme Immobilization_ 2
Enzyme Immobilization_ 2Enzyme Immobilization_ 2
Enzyme Immobilization_ 2

Food rauf
Food raufFood rauf
Food rauf

Immobilization
ImmobilizationImmobilization
Immobilization

Screening and Production of Protease Enzyme from Marine Microorganism and Its...
Screening and Production of Protease Enzyme from Marine Microorganism and Its...Screening and Production of Protease Enzyme from Marine Microorganism and Its...
Screening and Production of Protease Enzyme from Marine Microorganism and Its...

Radiation. Plants Immunity. Toxicity of Plants after irradiation.
Radiation. Plants Immunity. Toxicity of Plants after irradiation.Radiation. Plants Immunity. Toxicity of Plants after irradiation.
Radiation. Plants Immunity. Toxicity of Plants after irradiation.

Aqa digestive system tmid
Aqa  digestive system tmidAqa  digestive system tmid
Aqa digestive system tmid

Enzymes
Enzymes Enzymes
Enzymes

Suresh Shinde. ppt
Suresh Shinde. pptSuresh Shinde. ppt
Suresh Shinde. ppt

Complex enzyme plus
Complex enzyme plusComplex enzyme plus
Complex enzyme plus

Immobilization techniques for dna biosensor
Immobilization techniques for dna biosensorImmobilization techniques for dna biosensor
Immobilization techniques for dna biosensor

How to produce enzyme based products at home: cleaning & Personal care
How to produce enzyme based products at home: cleaning & Personal careHow to produce enzyme based products at home: cleaning & Personal care
How to produce enzyme based products at home: cleaning & Personal care

C26 Digestion In Human
C26 Digestion In HumanC26 Digestion In Human
C26 Digestion In Human

enzyme catalysis
enzyme catalysisenzyme catalysis
enzyme catalysis

3D Food Printing Presentation
3D Food Printing Presentation3D Food Printing Presentation
3D Food Printing Presentation


Similar to Presentation1immbol

APPLICATION OF IE.ppt
APPLICATION OF IE.pptAPPLICATION OF IE.ppt
APPLICATION OF IE.ppt
EstherShobhaR

immobilized enzyme.pdf
immobilized enzyme.pdfimmobilized enzyme.pdf
immobilized enzyme.pdf
khushbukumari602992

ENZYME IMMOBILIZATION
ENZYME IMMOBILIZATIONENZYME IMMOBILIZATION
ENZYME IMMOBILIZATION
ArkadebBhuinya

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization
Amrita Sutradhar

Industrial enzymes ( naringinase )
Industrial enzymes ( naringinase )Industrial enzymes ( naringinase )
Industrial enzymes ( naringinase )
M.pooya naghshbandi

APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx
APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptxAPPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx
APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx
AATHILAKSHMI URUMANATHAN

Immobilized enzymes
Immobilized enzymesImmobilized enzymes
Immobilized enzymes
JasmineJuliet

Enzymes in foods
Enzymes in foodsEnzymes in foods
Enzymes in foods
Ranjani thirumalai

Immobilization various techniques and it's therapeutic applications
Immobilization various techniques and it's therapeutic applicationsImmobilization various techniques and it's therapeutic applications
Immobilization various techniques and it's therapeutic applications
ananyaroy878073

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization
Greeta Rose

Immobilised enzymes ppt presentation - dr. r. mallika
Immobilised enzymes ppt presentation - dr. r. mallikaImmobilised enzymes ppt presentation - dr. r. mallika
Immobilised enzymes ppt presentation - dr. r. mallika
mallikaswathi

Application of Bio technology in Textile Wet Processing
Application of Bio technology  in Textile Wet ProcessingApplication of Bio technology  in Textile Wet Processing
Application of Bio technology in Textile Wet Processing
Md. Shahiduzzaman Shuvo

Cell distribution
Cell distribution Cell distribution
Cell distribution
AbdalrhmanAltoom1

Enzymes on textile proccesing
Enzymes on textile proccesingEnzymes on textile proccesing
Enzymes on textile proccesing
taameb

Immobilization of enzymes
Immobilization of enzymesImmobilization of enzymes
Immobilization of enzymes
Alen Shaji

Enzyme of immobilization by kk sahu
Enzyme of immobilization by kk sahuEnzyme of immobilization by kk sahu
Enzyme of immobilization by kk sahu
KAUSHAL SAHU

Bio- catalysis.pptx
Bio- catalysis.pptxBio- catalysis.pptx
Bio- catalysis.pptx
Nitin Pandey

5. Production of enzyme in biotechnolgy.pptx
5. Production of enzyme in biotechnolgy.pptx5. Production of enzyme in biotechnolgy.pptx
5. Production of enzyme in biotechnolgy.pptx
Harshadaa bafna

IMMOBILIZATION OF ENZYMES
IMMOBILIZATION OF ENZYMESIMMOBILIZATION OF ENZYMES
IMMOBILIZATION OF ENZYMES
ISF COLLEGE OF PHARMACY MOGA


Similar to Presentation1immbol (20)

APPLICATION OF IE.ppt
APPLICATION OF IE.pptAPPLICATION OF IE.ppt
APPLICATION OF IE.ppt

immobilized enzyme.pdf
immobilized enzyme.pdfimmobilized enzyme.pdf
immobilized enzyme.pdf

ENZYME IMMOBILIZATION
ENZYME IMMOBILIZATIONENZYME IMMOBILIZATION
ENZYME IMMOBILIZATION

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization

Industrial enzymes ( naringinase )
Industrial enzymes ( naringinase )Industrial enzymes ( naringinase )
Industrial enzymes ( naringinase )

APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx
APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptxAPPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx
APPLICATION OF ENZYMES FOR PHARMACEUTICAL INDUSTRIES.pptx

Immobilized enzymes
Immobilized enzymesImmobilized enzymes
Immobilized enzymes

Enzymes in foods
Enzymes in foodsEnzymes in foods
Enzymes in foods

Immobilization various techniques and it's therapeutic applications
Immobilization various techniques and it's therapeutic applicationsImmobilization various techniques and it's therapeutic applications
Immobilization various techniques and it's therapeutic applications

Enzyme immobilization
Enzyme immobilizationEnzyme immobilization
Enzyme immobilization

BIOCATALYST
BIOCATALYSTBIOCATALYST
BIOCATALYST

Immobilised enzymes ppt presentation - dr. r. mallika
Immobilised enzymes ppt presentation - dr. r. mallikaImmobilised enzymes ppt presentation - dr. r. mallika
Immobilised enzymes ppt presentation - dr. r. mallika

Application of Bio technology in Textile Wet Processing
Application of Bio technology  in Textile Wet ProcessingApplication of Bio technology  in Textile Wet Processing
Application of Bio technology in Textile Wet Processing

Cell distribution
Cell distribution Cell distribution
Cell distribution

Enzymes on textile proccesing
Enzymes on textile proccesingEnzymes on textile proccesing
Enzymes on textile proccesing

Immobilization of enzymes
Immobilization of enzymesImmobilization of enzymes
Immobilization of enzymes

Enzyme of immobilization by kk sahu
Enzyme of immobilization by kk sahuEnzyme of immobilization by kk sahu
Enzyme of immobilization by kk sahu

Bio- catalysis.pptx
Bio- catalysis.pptxBio- catalysis.pptx
Bio- catalysis.pptx

5. Production of enzyme in biotechnolgy.pptx
5. Production of enzyme in biotechnolgy.pptx5. Production of enzyme in biotechnolgy.pptx
5. Production of enzyme in biotechnolgy.pptx

IMMOBILIZATION OF ENZYMES
IMMOBILIZATION OF ENZYMESIMMOBILIZATION OF ENZYMES
IMMOBILIZATION OF ENZYMES


More from Genevia Vincent (20)

Transmission electron microscopeppt
Transmission electron microscopepptTransmission electron microscopeppt
Transmission electron microscopeppt

Spinal muscular atrophyppt
Spinal muscular atrophypptSpinal muscular atrophyppt
Spinal muscular atrophyppt

Sexlinked1
Sexlinked1Sexlinked1
Sexlinked1

Scanning electron microscopyppt
Scanning electron microscopypptScanning electron microscopyppt
Scanning electron microscopyppt

Rotenoneppt
RotenonepptRotenoneppt
Rotenoneppt

Rotenoneppt
RotenonepptRotenoneppt
Rotenoneppt

Retinoblastomappt
RetinoblastomapptRetinoblastomappt
Retinoblastomappt

Pyrethroids
PyrethroidsPyrethroids
Pyrethroids

Presentation1gee3
Presentation1gee3Presentation1gee3
Presentation1gee3

Pptgee
PptgeePptgee
Pptgee

Ppt toxicology
Ppt toxicologyPpt toxicology
Ppt toxicology

Ppt idc fam
Ppt idc famPpt idc fam
Ppt idc fam

Poliomyelitis1
Poliomyelitis1Poliomyelitis1
Poliomyelitis1

Poliomyelitis1
Poliomyelitis1Poliomyelitis1
Poliomyelitis1

Nucleusppt
NucleuspptNucleusppt
Nucleusppt

Nuclear ppt3
Nuclear ppt3Nuclear ppt3
Nuclear ppt3

Mitodiseaseppt
MitodiseasepptMitodiseaseppt
Mitodiseaseppt

Microscopes.ppt(1)
Microscopes.ppt(1)Microscopes.ppt(1)
Microscopes.ppt(1)

Microscope3
Microscope3Microscope3
Microscope3

Microscope(222)
Microscope(222)Microscope(222)
Microscope(222)


Presentation1immbol

  • 1.

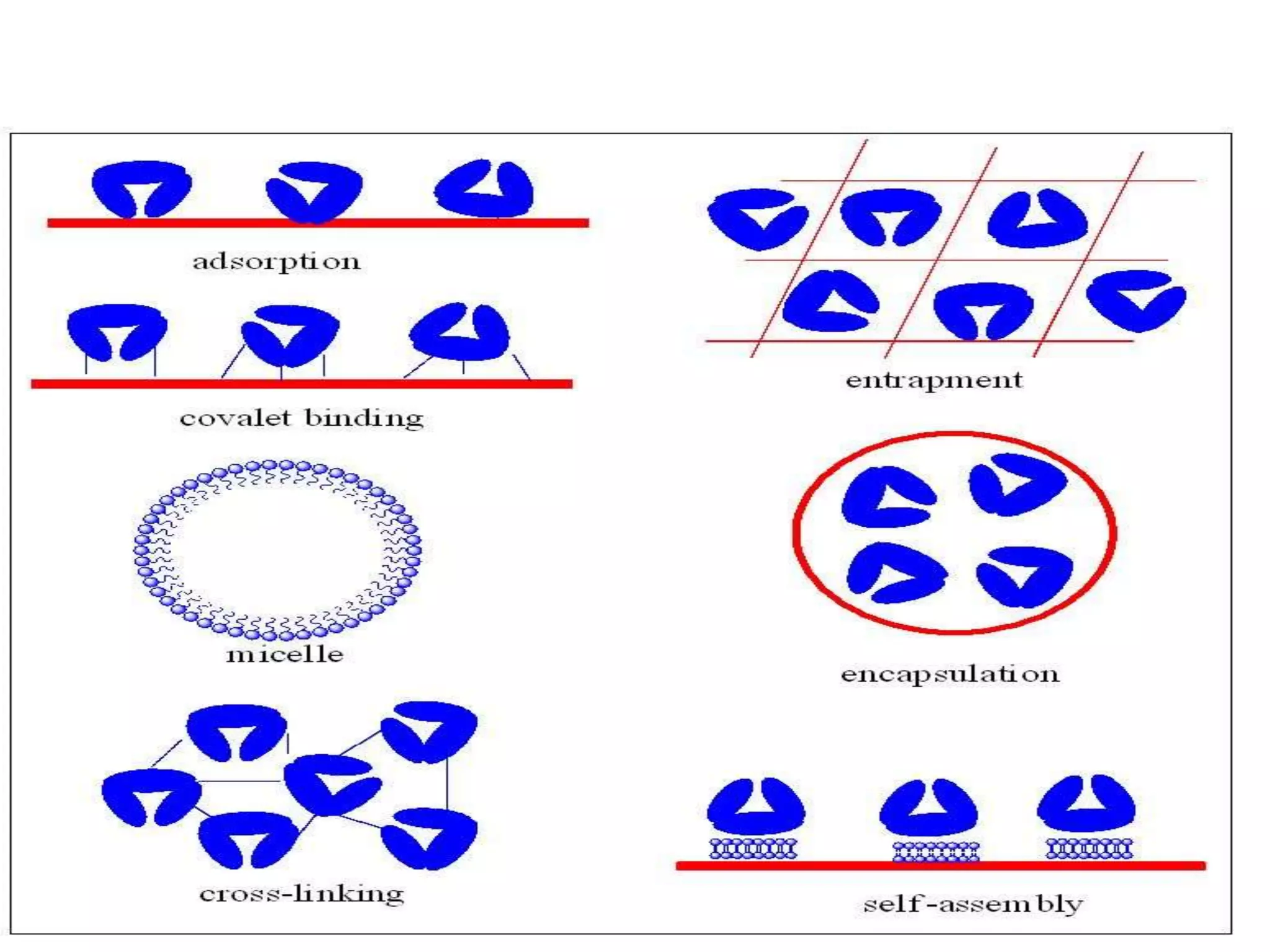

  • 2. a) Covalent Binding b) Entrapment c) Encapsulation d) Adsorption e) Ionic Binding f) Affinity Binding and g) Metal ion Immobilization
  • 3.
  • 5. Application of the Immobilized Enzymes • Biomedical Field • Food industry • Wastewater Treatment • Biodiesel Production • Textile Industry • Detergent Industry • Pharmaceutical industry.
  • 6. Immobilized enzymes are used in medicine from 1990 It is used for diagnosis and treatment of diseases in the medical field. The inborn metabolic deficiency can be overcome by replacing the encapsulated enzymes (i.e, enzymes encapsulated by erythrocytes) instead of waste metabolites, the RBC acts as a carrier for the exogenous enzyme, drugs and the enzymes are biocompatable in nature, hence there is no immune response .The enzyme encapsulation through the electroporation is a easiest way of immobilization in the biomedical field and it is a reversible process for which enzyme can be regenerated.
  • 7. In food industry :The purified enzymes are used but during the purification, the enzymes will denature. Hence the immobilization technique makes the enzymes stable. Biodiesel is produced through triglycerides (vegetable oil, animal fat) with esterification of alcohol (methanol, ethanol) in the presence of the catalyst. The production of catalyst is a drawback of high energy requirements, recovery of glycerol and side reaction which may affect the pollution. Hence the biological production of liquid fuel with lipases nowadays has a great consideration with a rapid improvement
  • 8. The production of lipase is of high cost, therefore immobilization help in using repeatedly and have stability. The immobilization of lipase includes several methods like entrapment, encapsulation, cross linking, adsorption and covalent bonding. Adsorption method is widely used method in recent years. The enzymes used in the wastewater treatments are peroxidases, laccase, azo reductases etc. These enzymes due to harsh conditions like high temp, low or high pH and high ionic strength may be denatured hence immobilized enzymes are used.
  • 9. The enzymes such as cellulase, amylase, liccase, pectinase, cutinase etc and these are used for various textile applications such as scouring, biopolishing, desizing, denim finishing, treating wools etc. The textile industries now turned to enzyme process instead of using harsh chemical which affects the pollution and cause damage to the fabrics. The processing of fabrics with enzymes requires high temp and increased pH, the free enzymes does not able to withstand the extreme conditions. Hence, enzyme immobilization for this process able to withstand at extreme and able to maintains its activity for more than 5-6 cycles.
  • 10. Detergent industry also employs enzymes for removal of stains, protease which is used to remove the stains of blood, egg, grass and human sweat. Lipase used to remove the stains of oil and fats and also used to remove the stains in cuffs and collars. Cellulase is used for cotton based fabrics in order to improve softening, colour brightening and to remove soil stains .Immobilized protease retains 76% of wool condition. Similarly the lipase immobilization is carried in order to prevent lipase from protease action and surfactant inhibition.
