The document discusses the Portable Executable (PE) file format used in Windows operating systems. It describes the basic structure of a PE file which includes sections for executable code, data, resources, exports, imports, and debugging. It also explains the DOS header and stub, the PE file header containing signatures and metadata, and the image and optional headers containing addresses and alignments. Sections are described as containing code, data, resources, and other essential information.

1. By Saurabh & Chinmaya

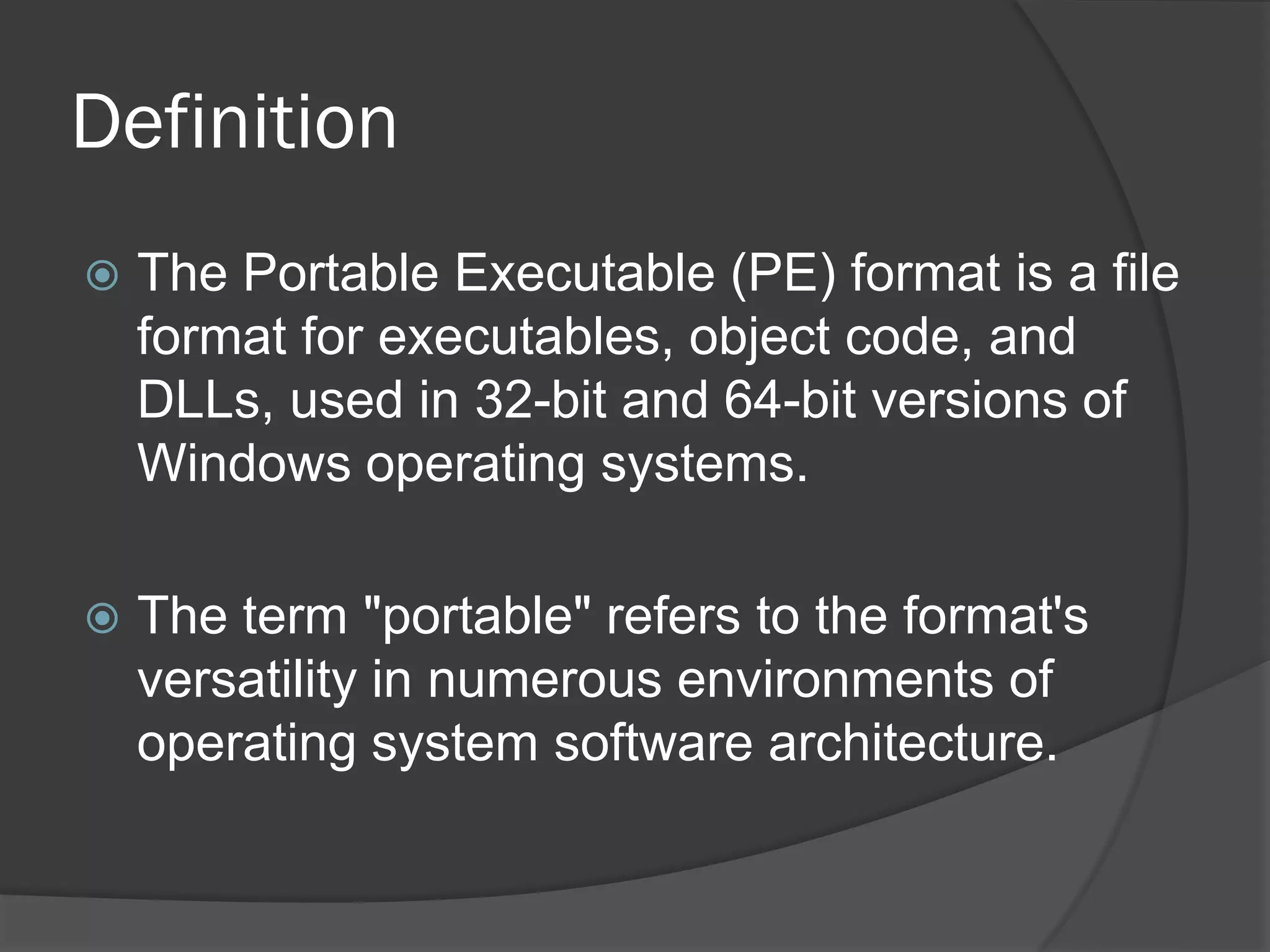

2. Definition
 The Portable Executable (PE) format is a file
format for executables, object code, and
DLLs, used in 32-bit and 64-bit versions of
Windows operating systems.
 The term "portable" refers to the format's
versatility in numerous environments of
operating system software architecture.

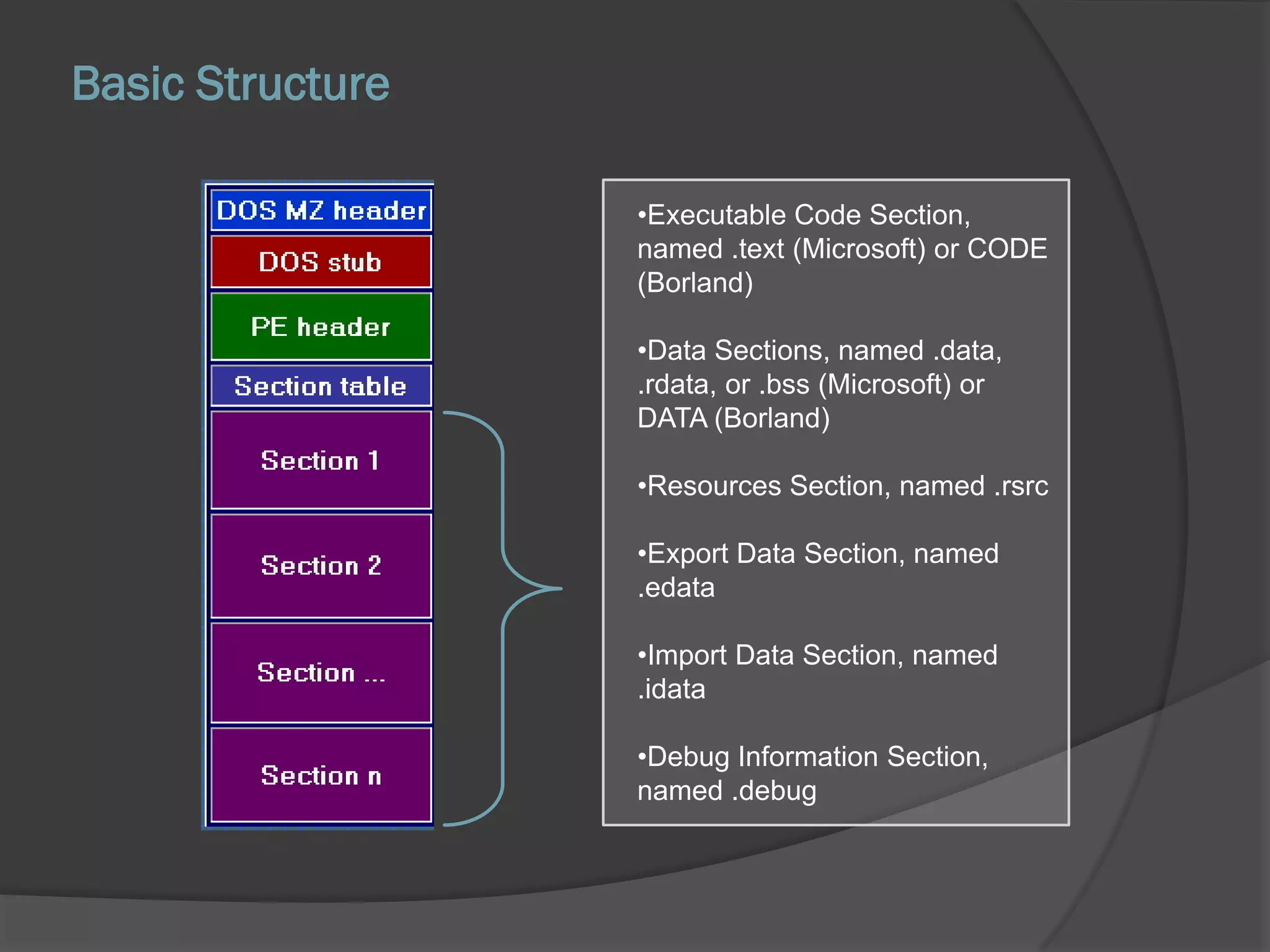

3. Basic Structure
•Executable Code Section,
named .text (Microsoft) or CODE
(Borland)
•Data Sections, named .data,
.rdata, or .bss (Microsoft) or
DATA (Borland)
•Resources Section, named .rsrc
•Export Data Section, named
.edata
•Import Data Section, named
.idata
•Debug Information Section,
named .debug

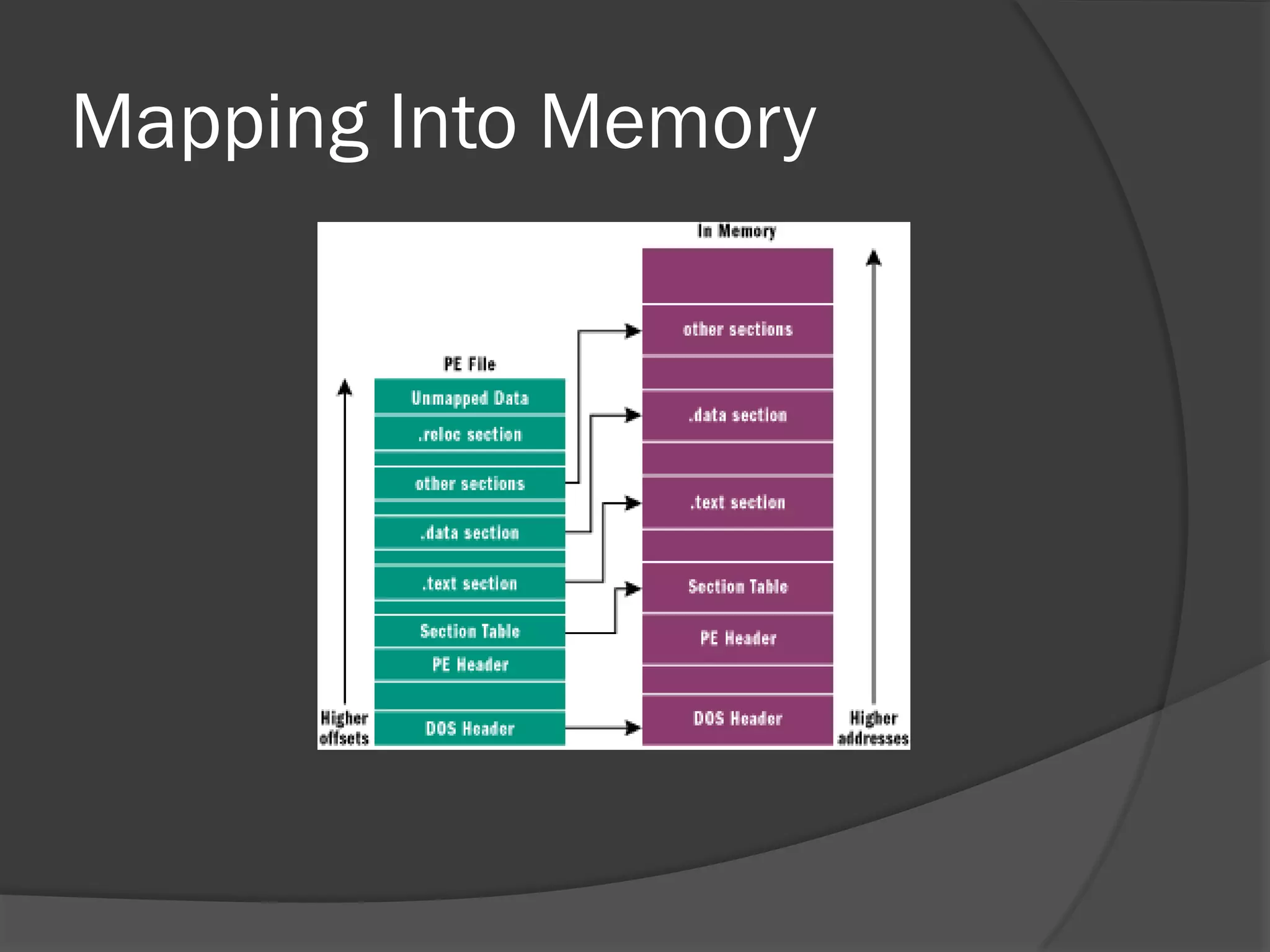

4. Mapping Into Memory

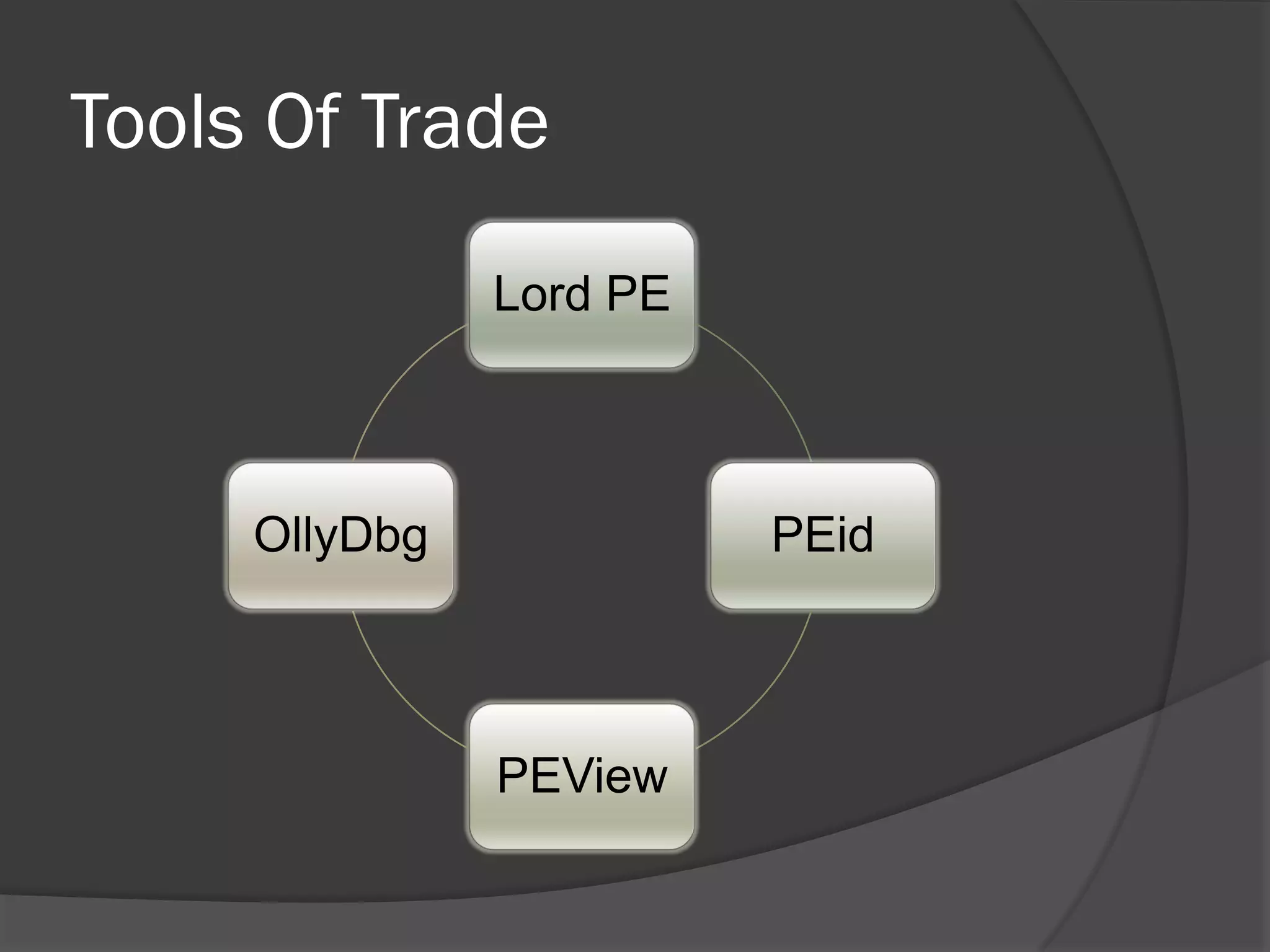

5. Tools Of Trade
Lord PE
PEid
PEView
OllyDbg

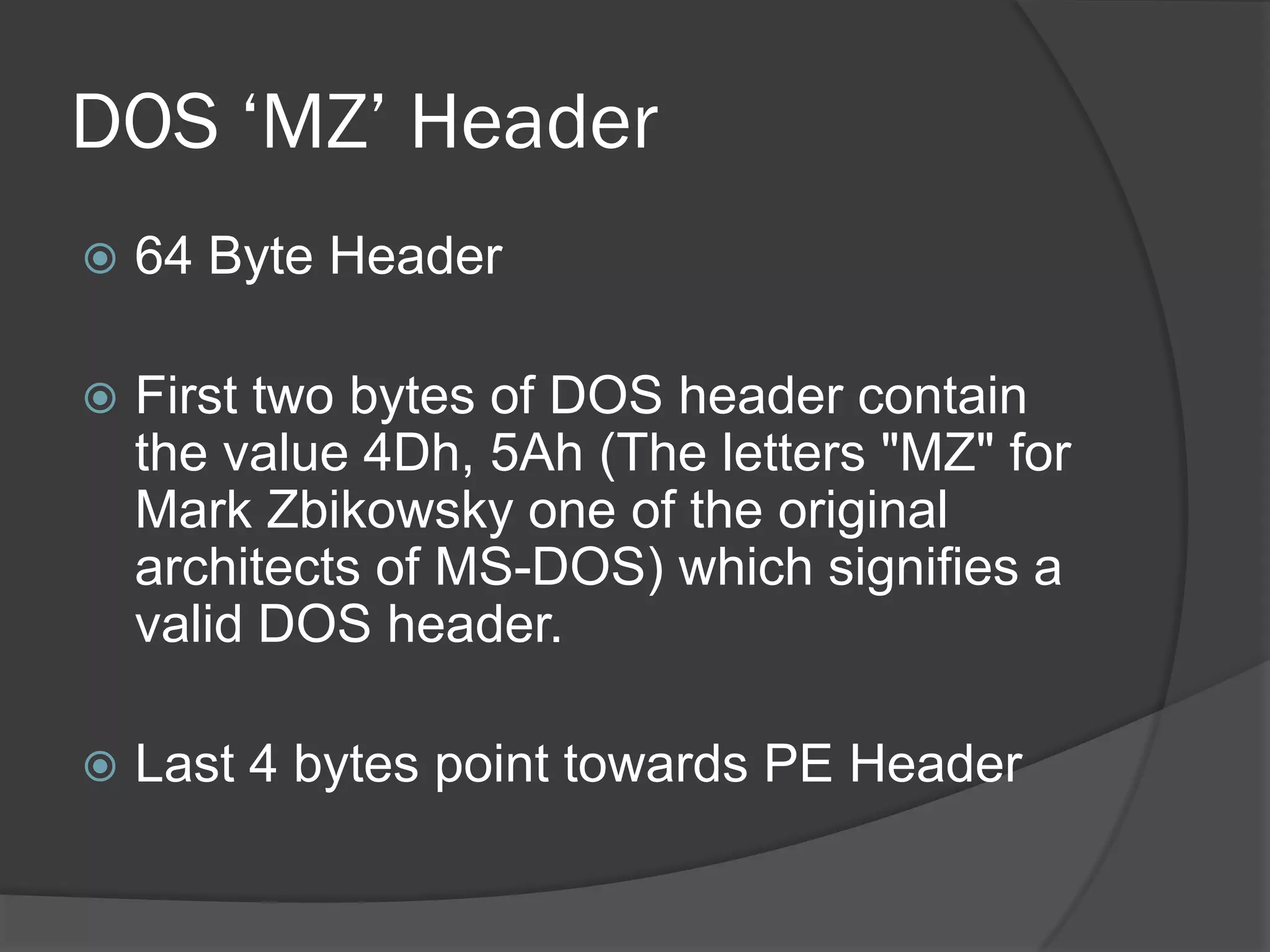

6. DOS ‘MZ’ Header
 64 Byte Header
 First two bytes of DOS header contain
the value 4Dh, 5Ah (The letters "MZ" for
Mark Zbikowsky one of the original
architects of MS-DOS) which signifies a
valid DOS header.
 Last 4 bytes point towards PE Header

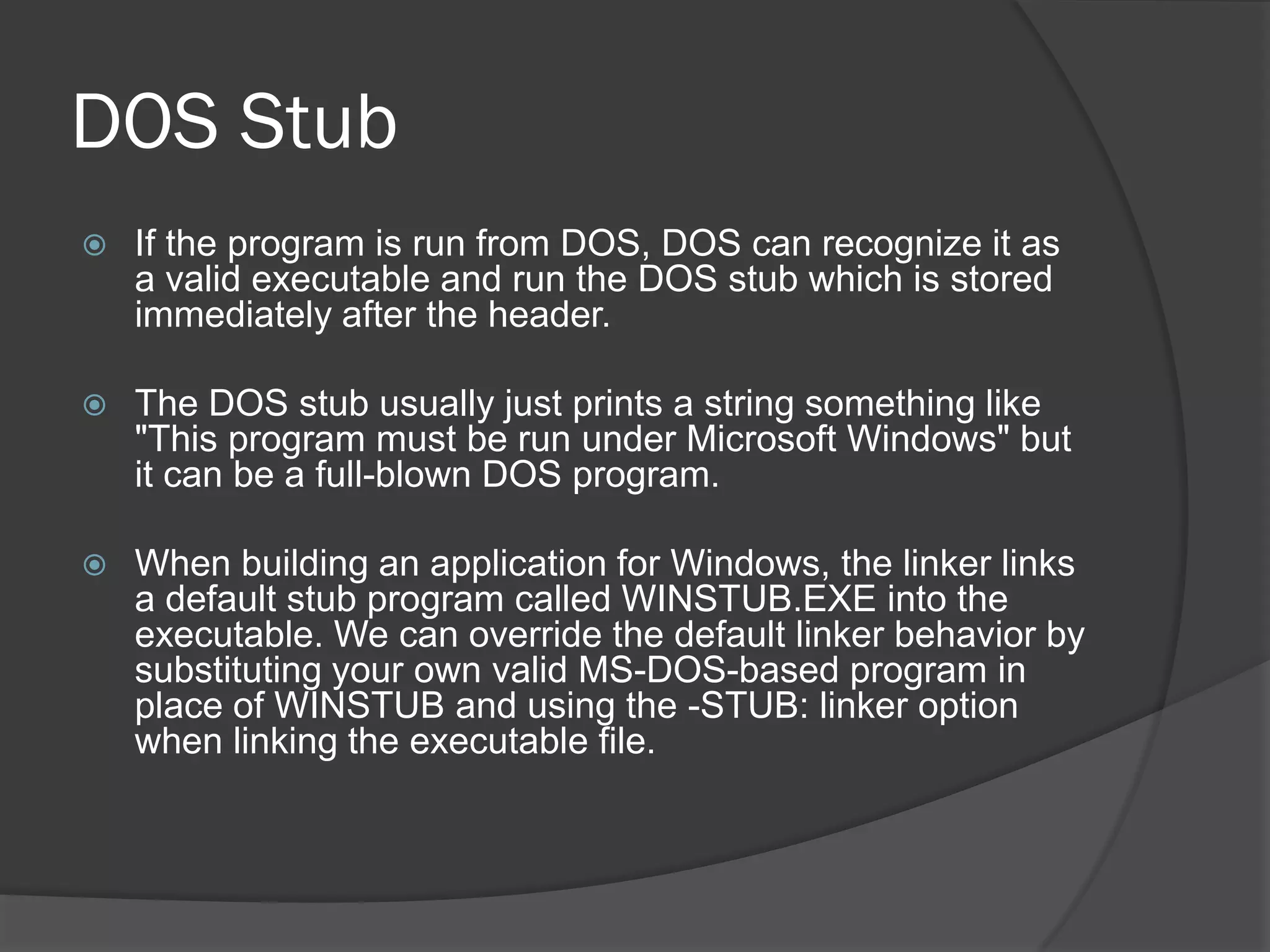

7. DOS Stub
 If the program is run from DOS, DOS can recognize it as
a valid executable and run the DOS stub which is stored
immediately after the header.
 The DOS stub usually just prints a string something like
"This program must be run under Microsoft Windows" but
it can be a full-blown DOS program.
 When building an application for Windows, the linker links
a default stub program called WINSTUB.EXE into the
executable. We can override the default linker behavior by
substituting your own valid MS-DOS-based program in
place of WINSTUB and using the -STUB: linker option
when linking the executable file.

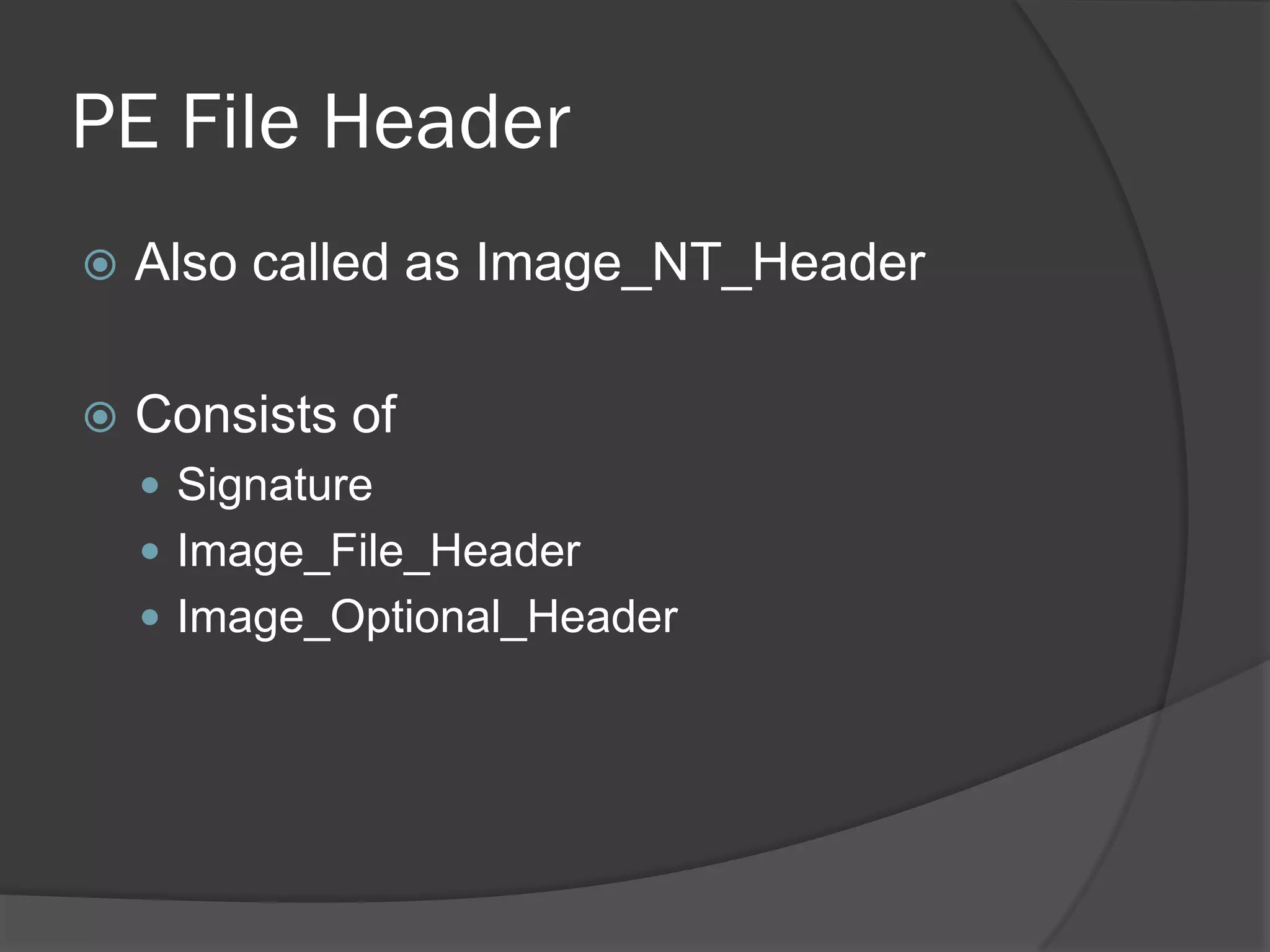

8. PE File Header
 Also called as Image_NT_Header
 Consists of
 Signature
 Image_File_Header
 Image_Optional_Header

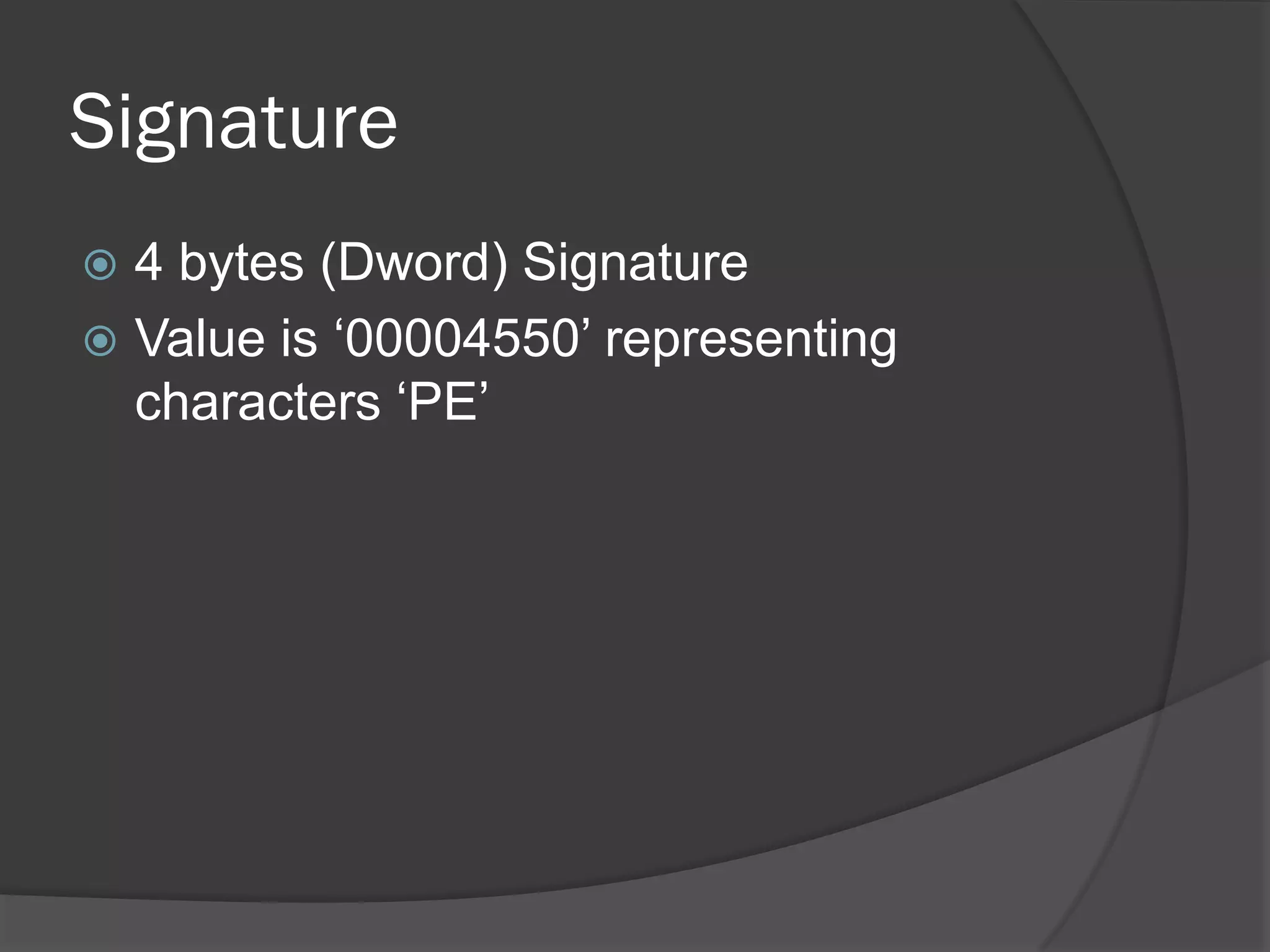

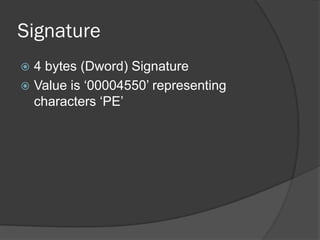

9. Signature
 4 bytes (Dword) Signature
 Value is ‘00004550’ representing
characters ‘PE’

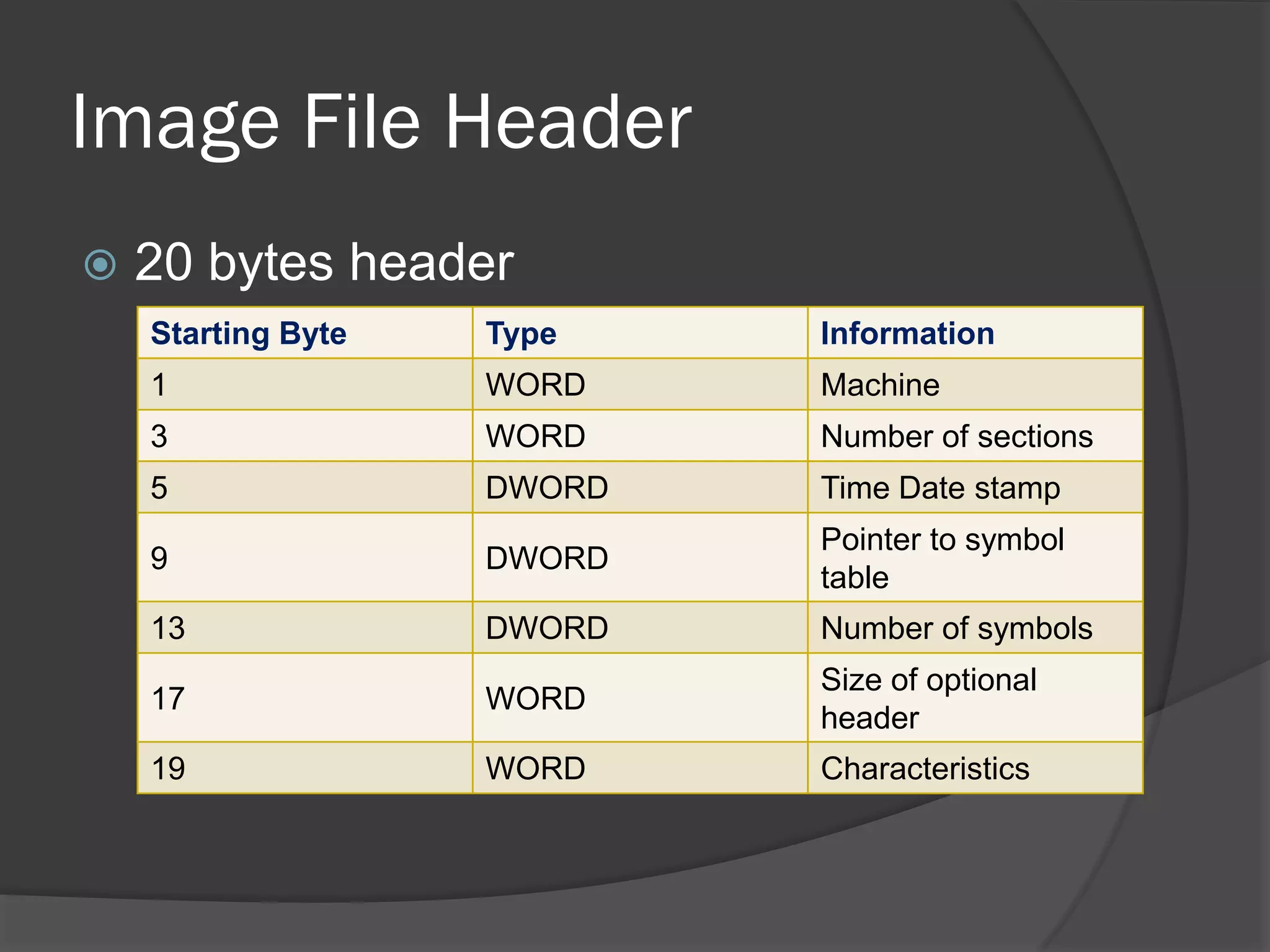

10. Image File Header
 20 bytes header
Starting Byte Type Information
1 WORD Machine
3 WORD Number of sections
5 DWORD Time Date stamp
9 DWORD
Pointer to symbol
table
13 DWORD Number of symbols
17 WORD
Size of optional
header
19 WORD Characteristics

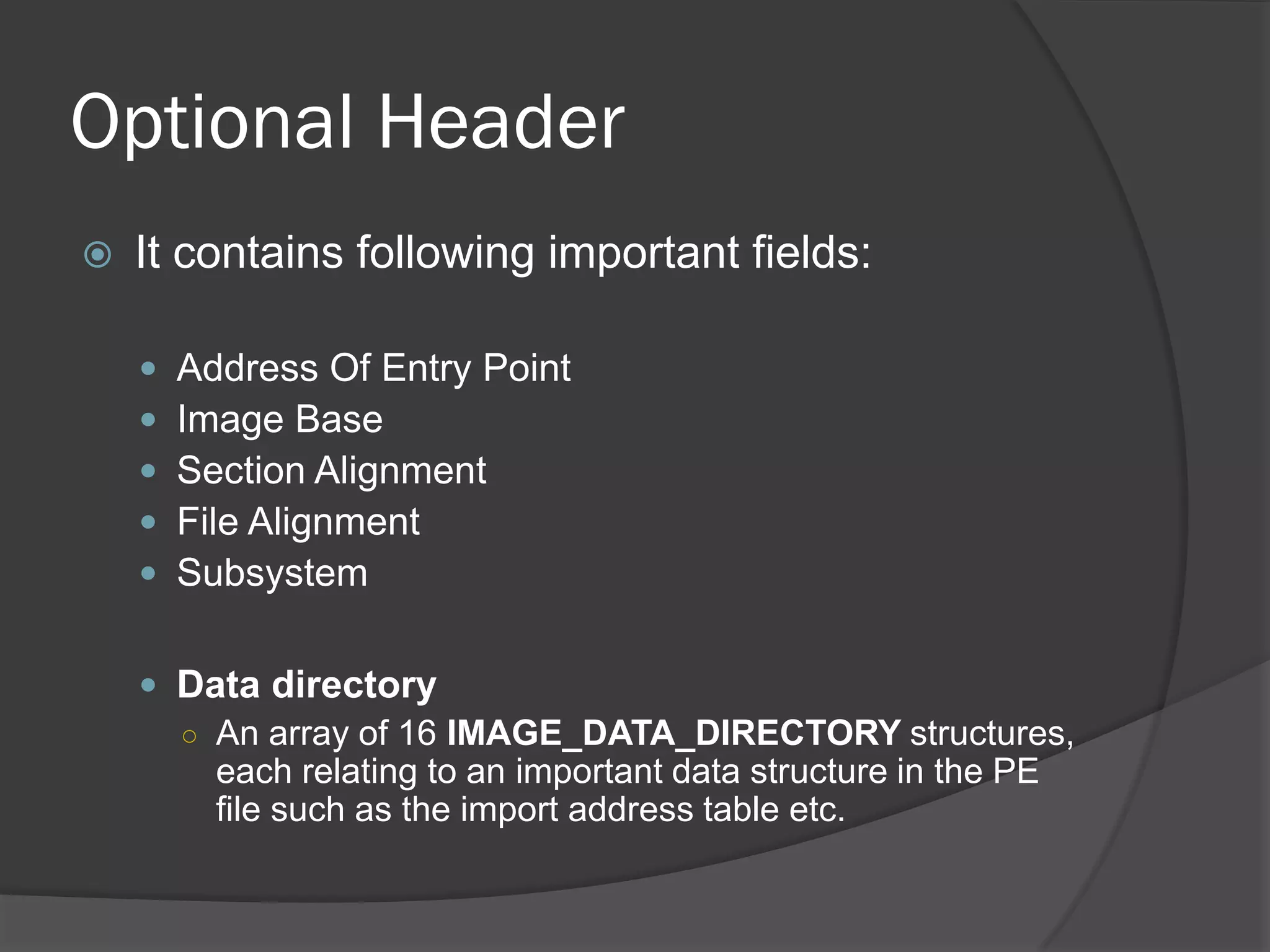

11. Optional Header
 It contains following important fields:
 Address Of Entry Point
 Image Base
 Section Alignment
 File Alignment
 Subsystem
 Data directory
○ An array of 16 IMAGE_DATA_DIRECTORY structures,
each relating to an important data structure in the PE
file such as the import address table etc.

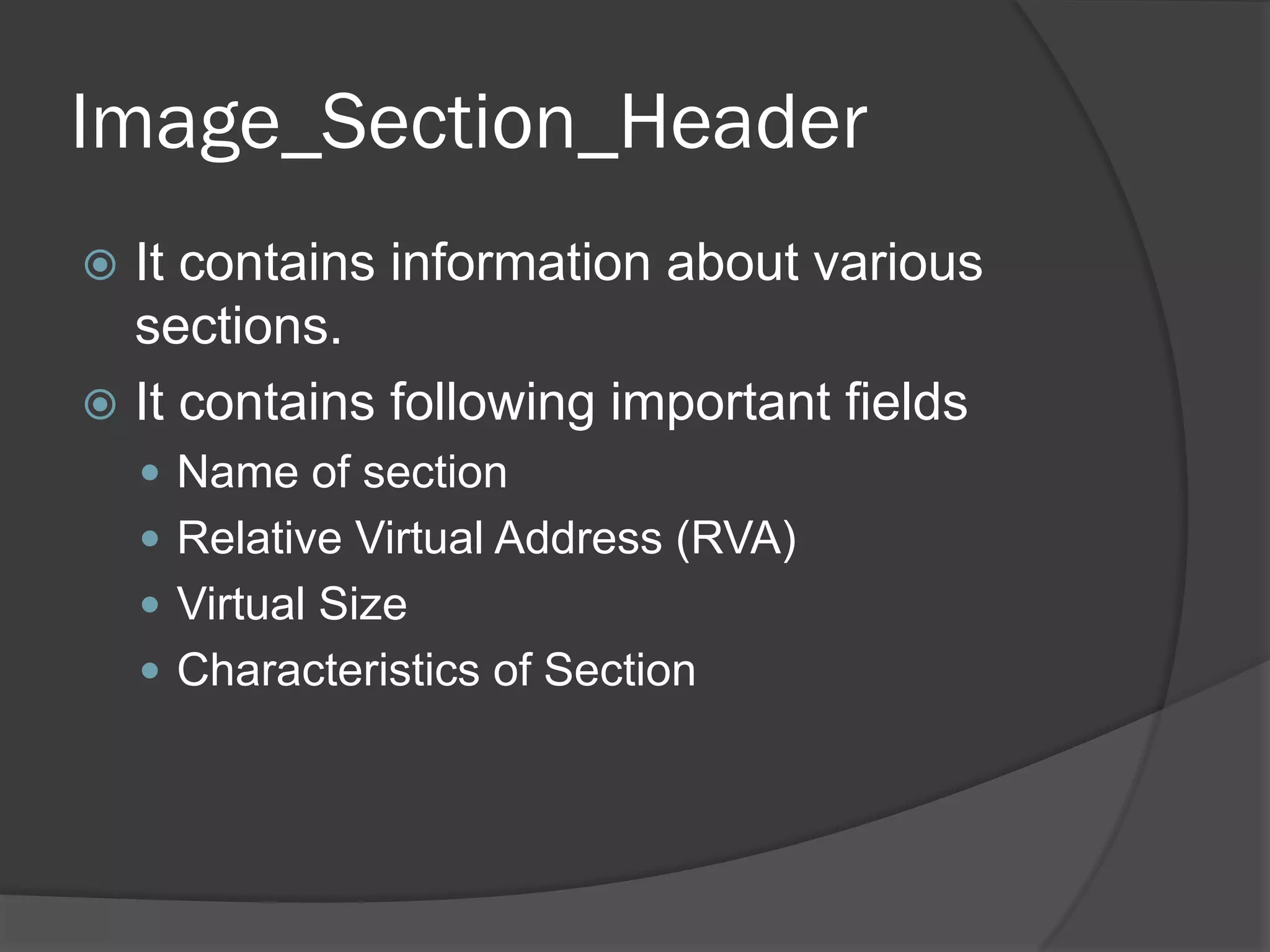

12. Image_Section_Header
 It contains information about various
sections.
 It contains following important fields
 Name of section
 Relative Virtual Address (RVA)
 Virtual Size
 Characteristics of Section

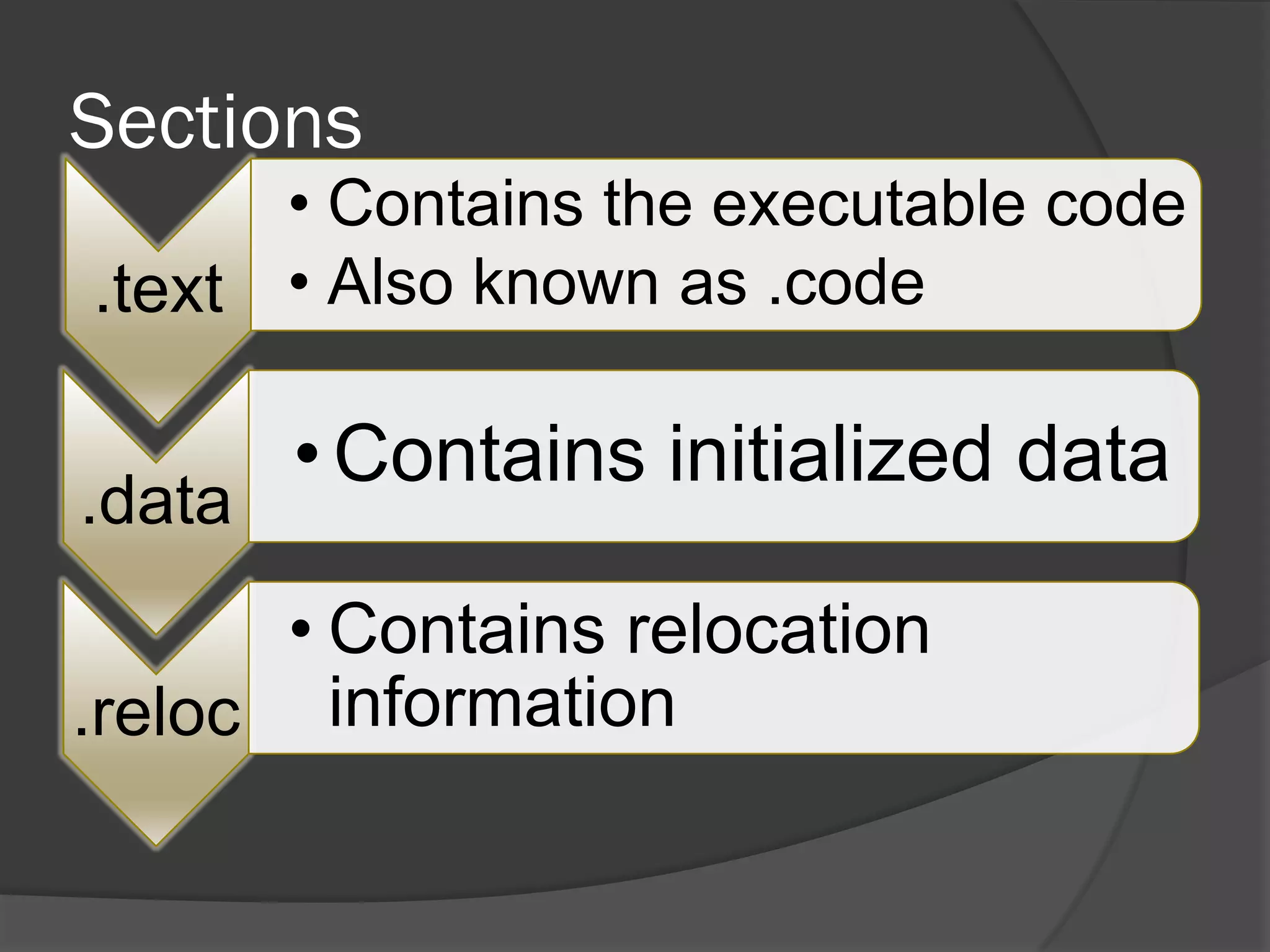

13. Sections
.text
• Contains the executable code
• Also known as .code
.data
• Contains initialized data
.reloc
• Contains relocation
information

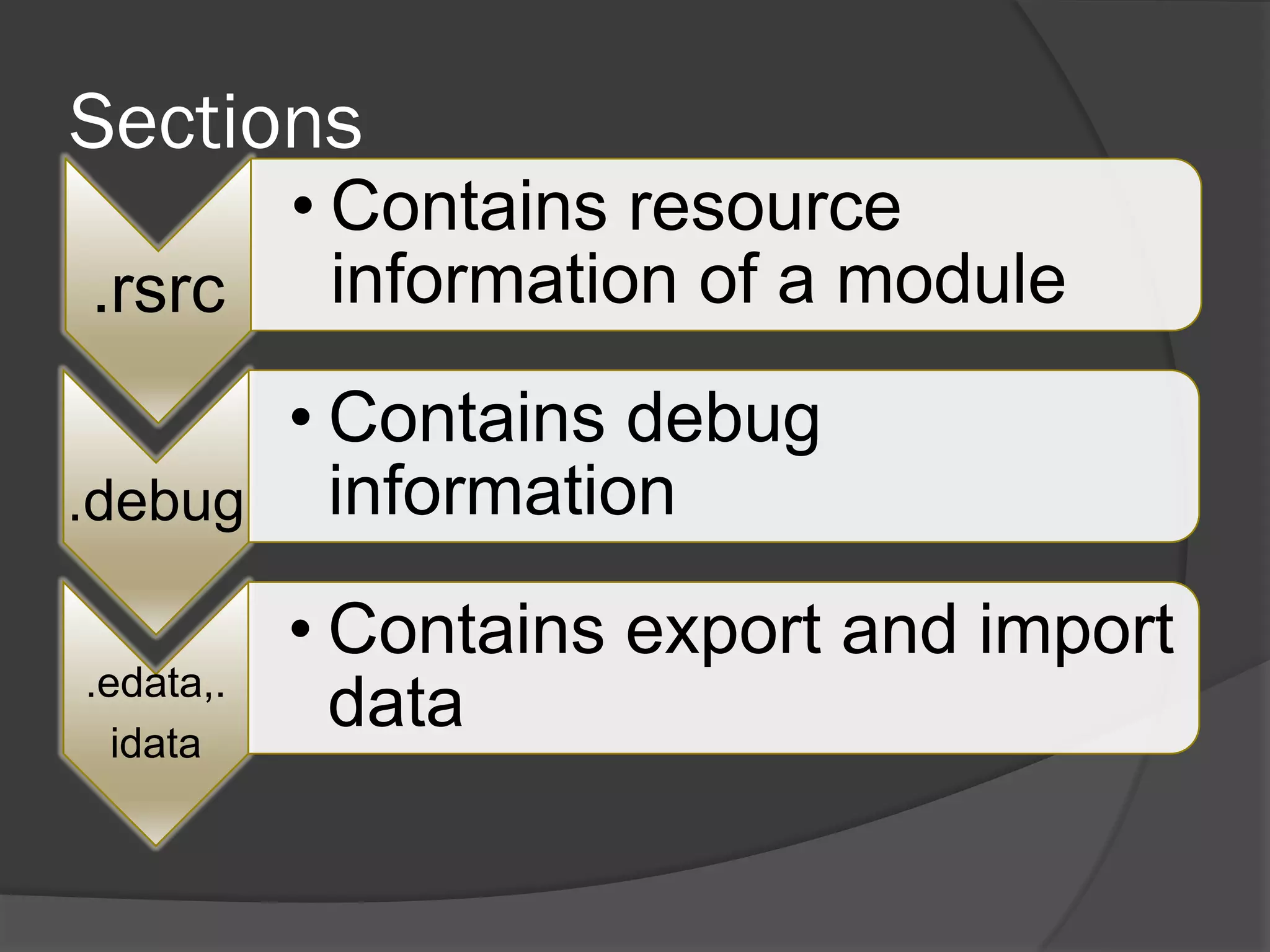

14. Sections
.rsrc
• Contains resource
information of a module
.debug
• Contains debug
information
.edata,.
idata
• Contains export and import
data

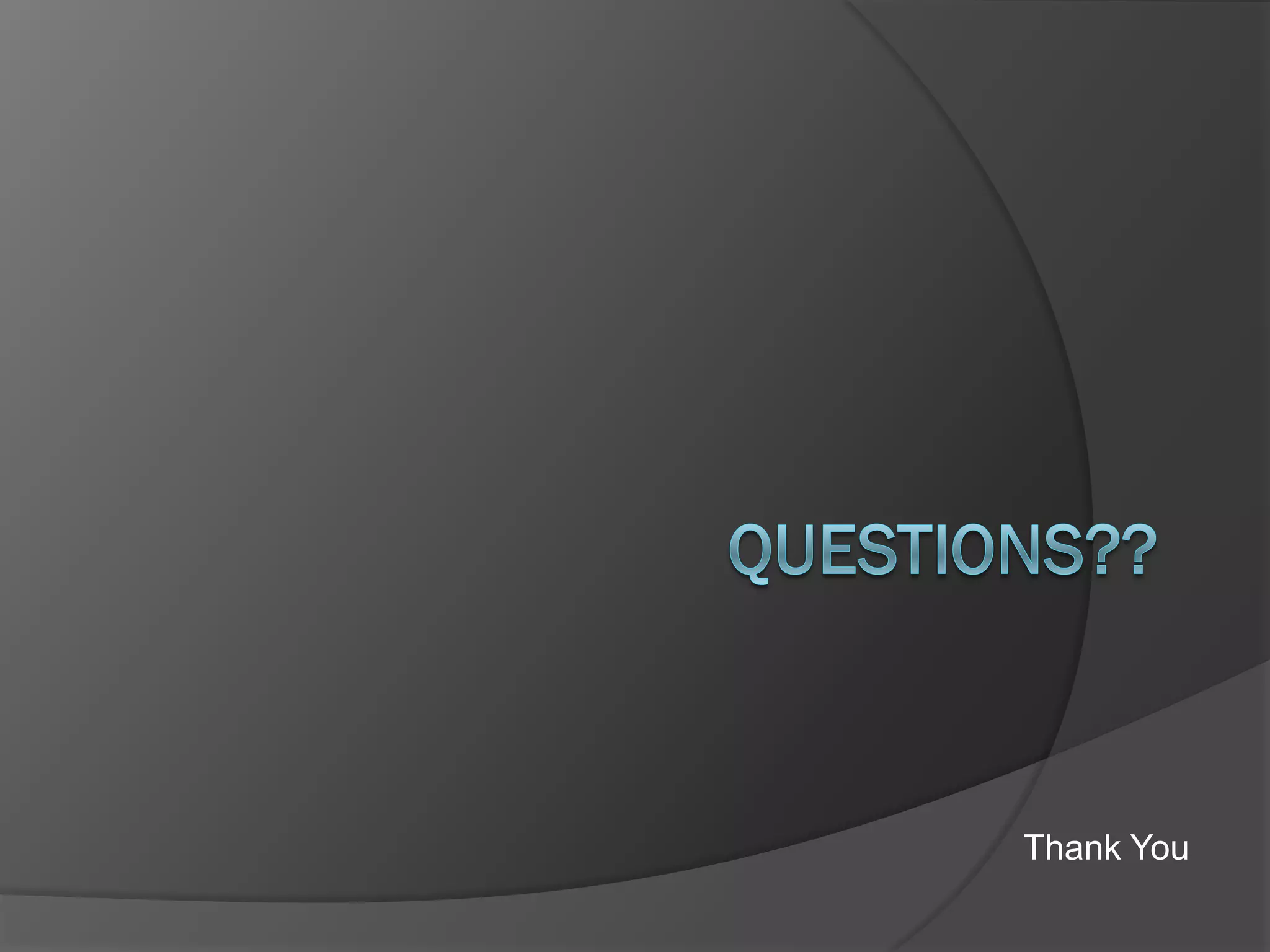

15. Thank You
