This document provides an overview of the Portable Executable (PE) file format by exploring examples of simple, compiled, DLL, driver, and .NET binaries. It discusses the key components of a PE including the DOS header, PE header, optional header, data directories, sections, imports, and resources. It also briefly explains how the format is similar on 64-bit and ARM architectures with only minor changes needed.

1. Exploring
the Portable Executable
format
London, England
Ange Albertini 2013/09/13

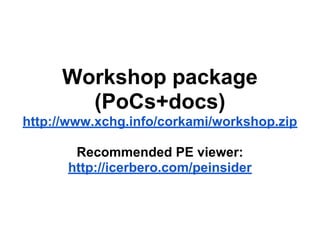

2. Workshop package
(PoCs+docs)
http://www.xchg.info/corkami/workshop.zip
Recommended PE viewer:
http://icerbero.com/peinsider

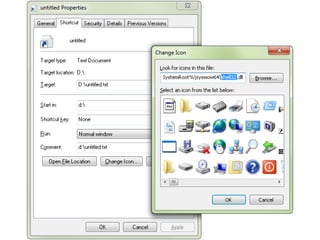

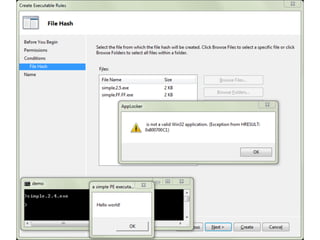

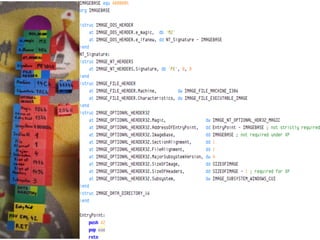

16. a handmade PE
simple.exe
a first real example
working minimal

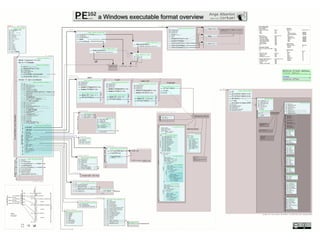

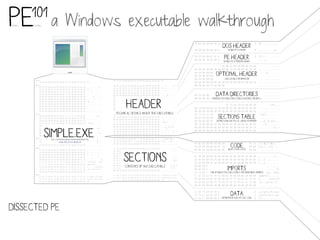

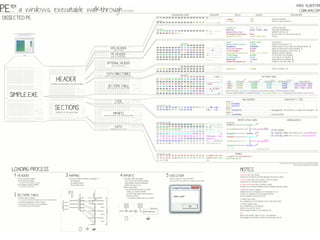

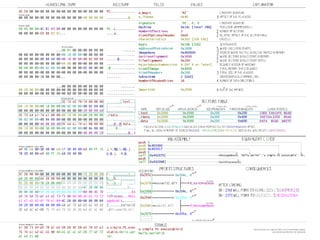

20. detailed
walkthrough

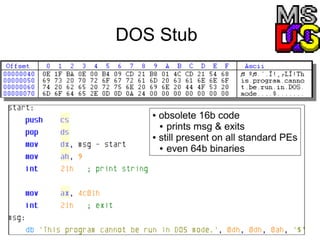

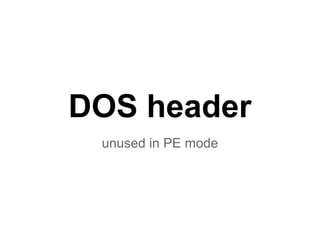

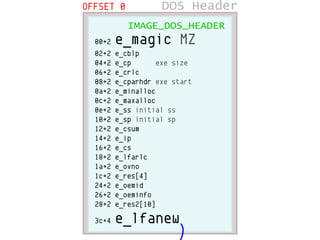

22. DOS header
unused in PE mode

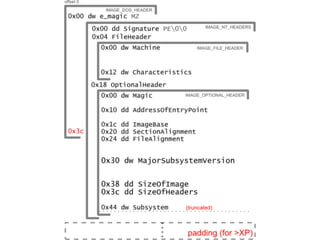

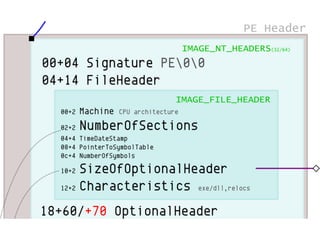

24. PE header
PE signature

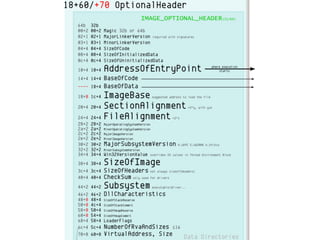

26. Optional Header
NOT optional in executables

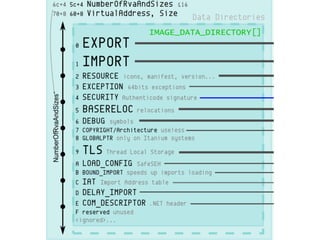

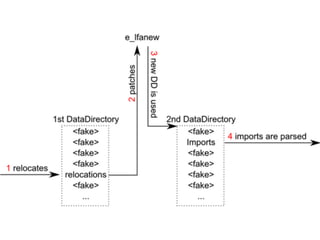

28. DataDirectories
end of OptionalHeader
16 (max) * [RVA, Size]
each entry interpreted differently

30. Sections

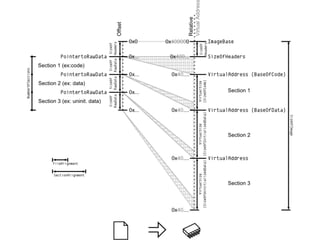

memory mapping

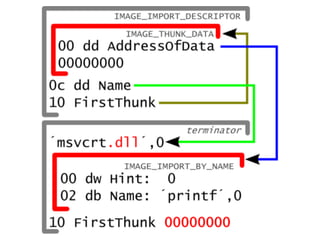

33. Imports
standard loader mechanism
NOT required
load DLL, locate APIs

35. compiled PE
compiled.exe
closer to reality
extra non-critical structure

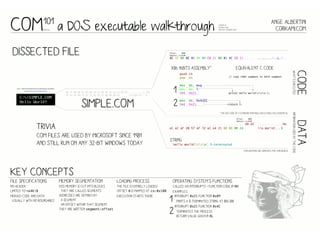

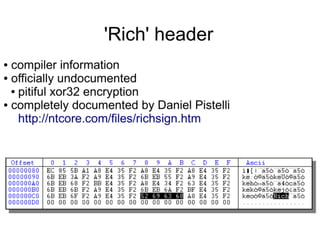

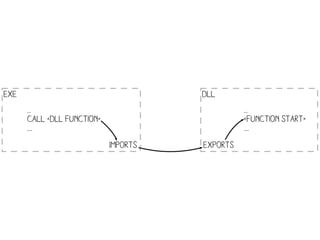

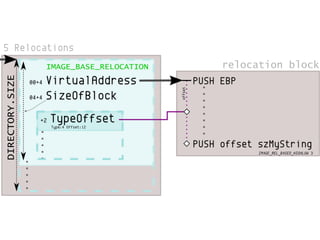

39. DLL
exports
relocations

42. driver
subsystem, checksum
low alignments mapping

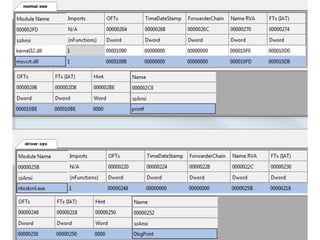

different imports

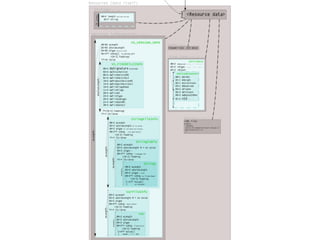

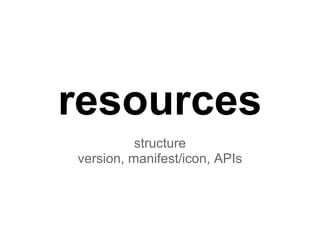

44. resources

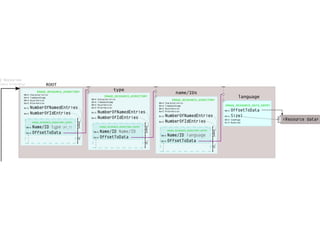

structure
version, manifest/icon, APIs

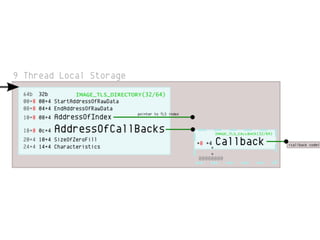

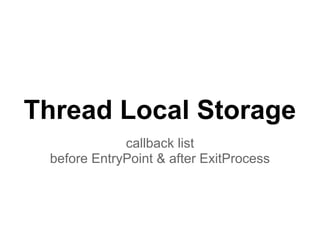

47. Thread Local Storage
callback list
before EntryPoint & after ExitProcess

49. .Net
different and integrated binary
2nd loader

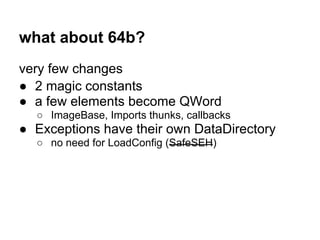

51. what about 64b?
very few changes
● 2 magic constants
● a few elements become QWord
○ ImageBase, Imports thunks, callbacks
● Exceptions have their own DataDirectory
○ no need for LoadConfig (SafeSEH)

52. and ARM
● a different magic constant
● still 16b DOS Stub !
● nothing special, PE wise
○ the beauty of ‘Portability’

53. trivial
