Intro reverse engineering

Intro to Reverse Engineering

INF0ANU

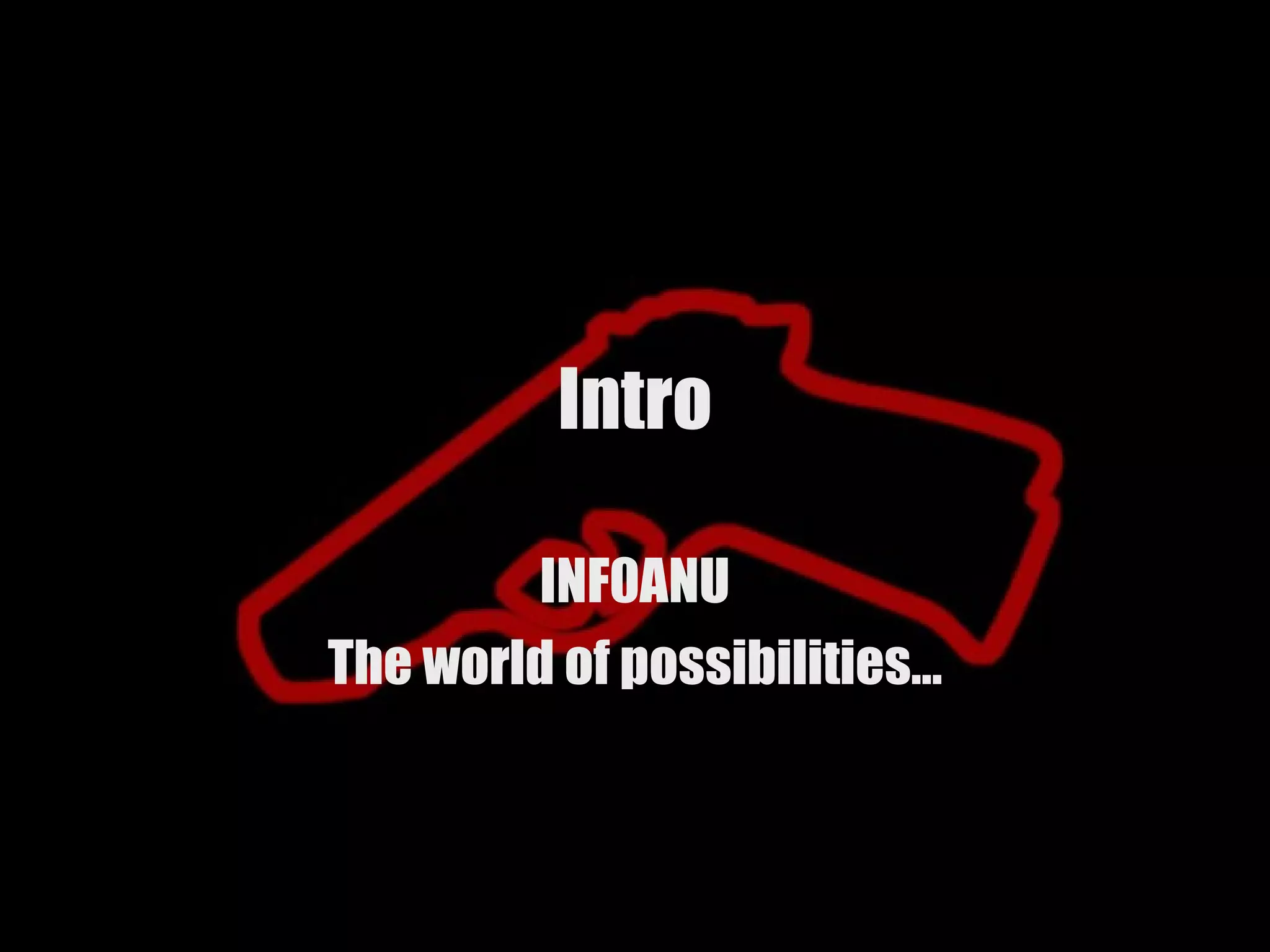

The world of possibilities…

Intro

INF0ANU

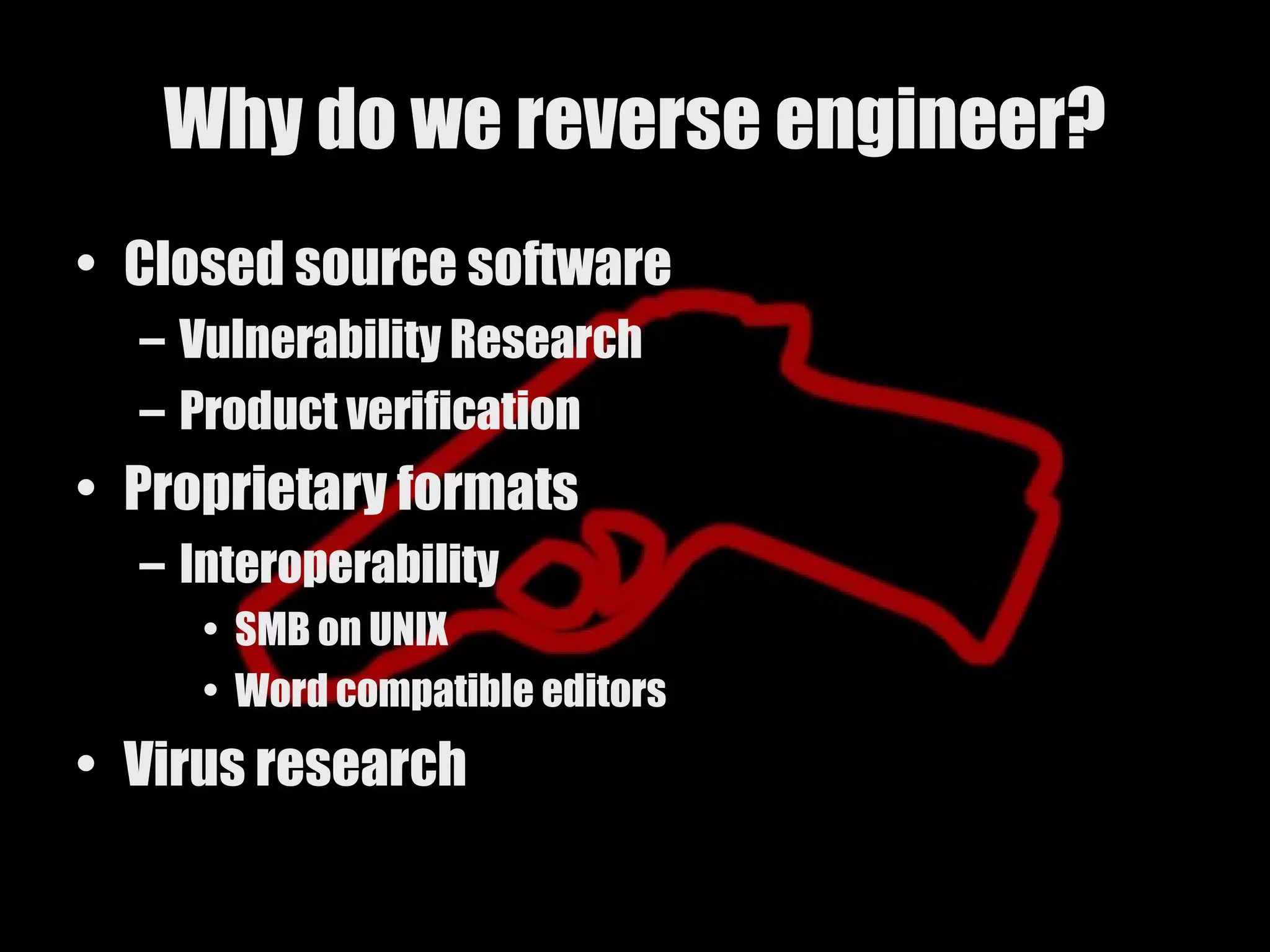

Why do we reverse engineer?
• Closed source software
– Vulnerability Research
– Product verification
• Proprietary formats
– Interoperability
• SMB on UNIX
• Word compatible editors
• Virus research

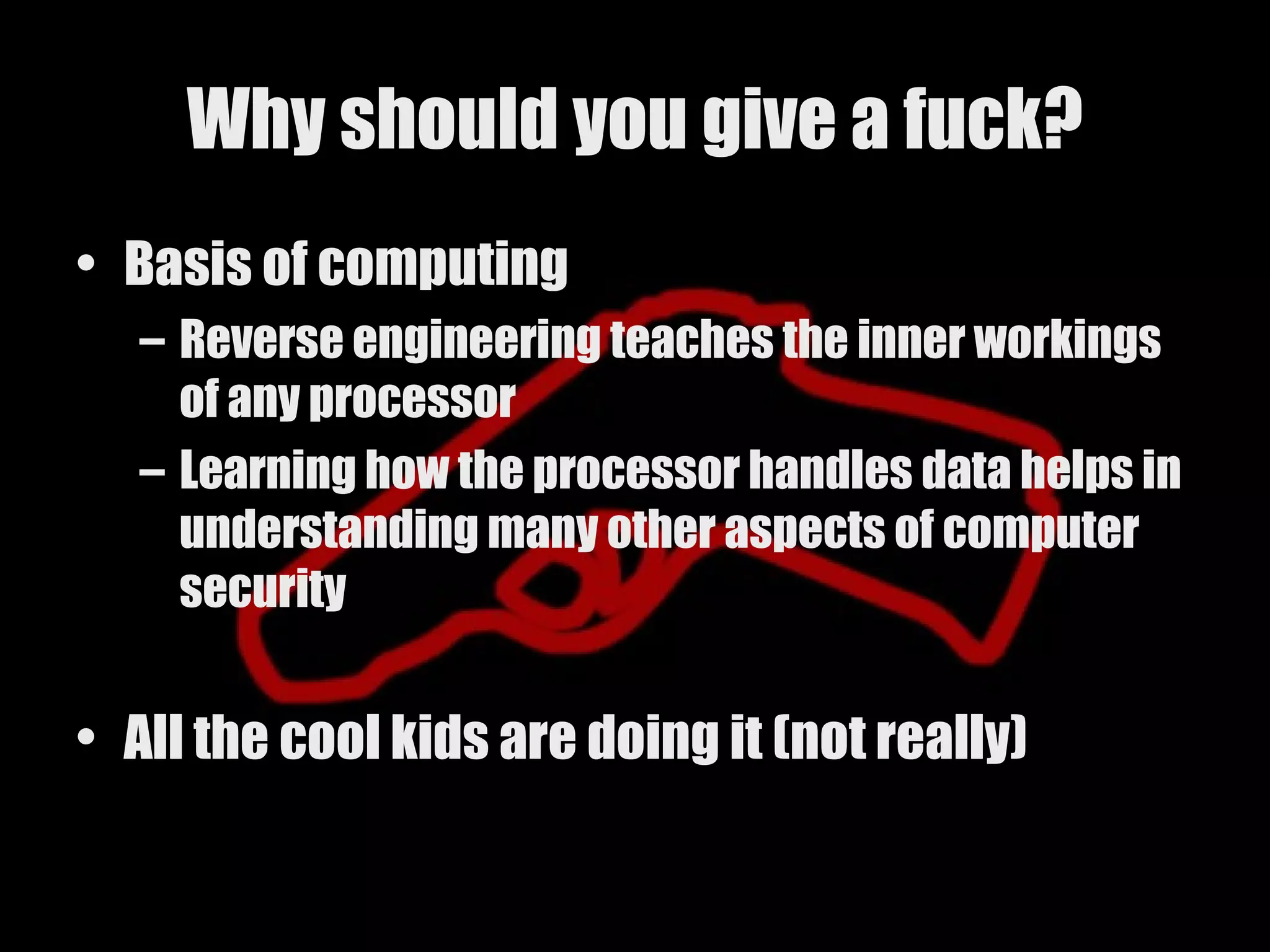

Why should you give a fuck?
• Basis of computing
– Reverse engineering teaches the inner workings
of any processor
– Learning how the processor handles data helps in
understanding many other aspects of computer
security

• All the cool kids are doing it (not really)

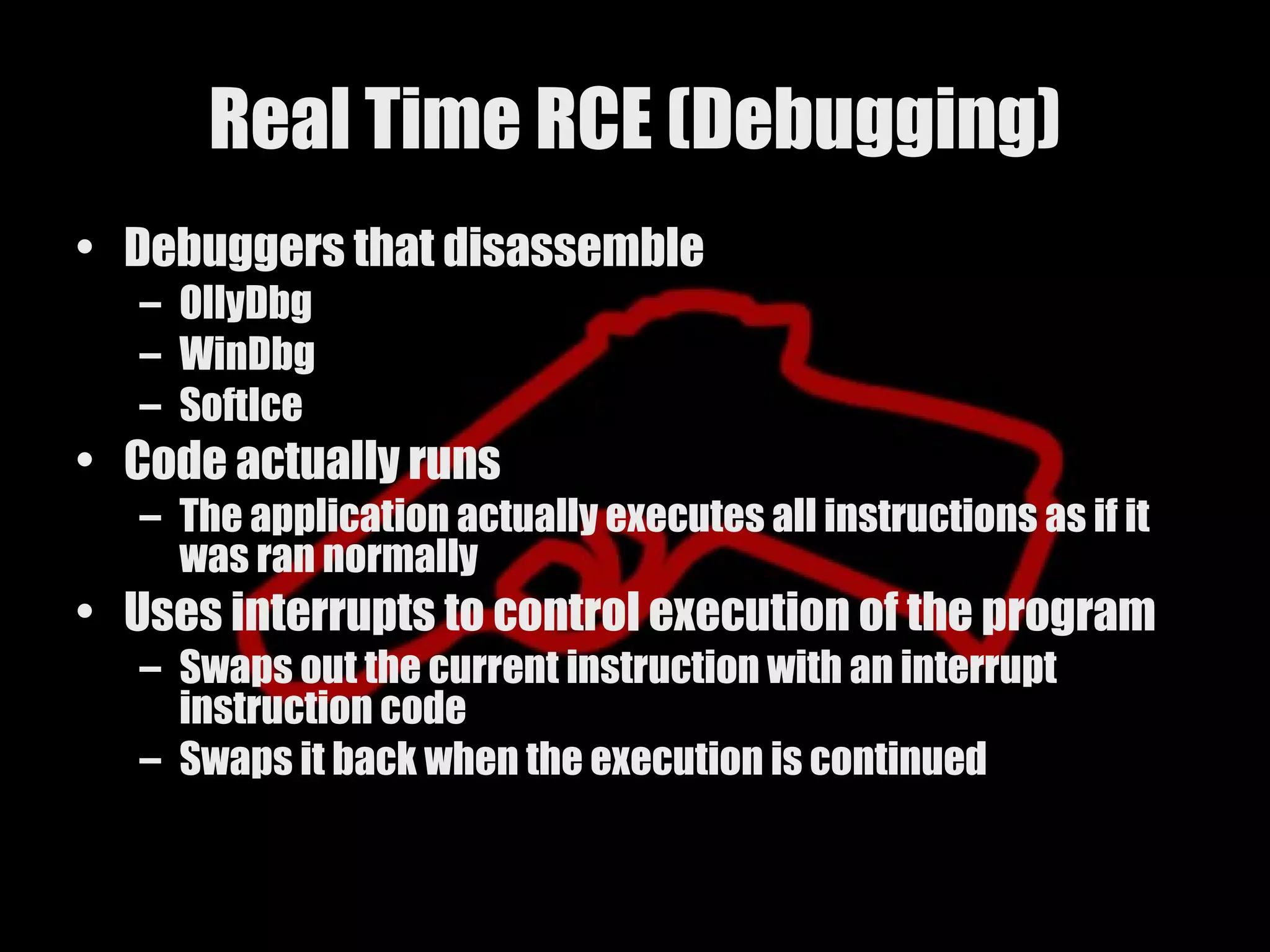

Real Time RCE (Debugging)
• Debuggers that disassemble
– OllyDbg
– WinDbg
– SoftIce
• Code actually runs
– The application actually executes all instructions as if it
was ran normally
• Uses interrupts to control execution of the program
– Swaps out the current instruction with an interrupt
instruction code
– Swaps it back when the execution is continued

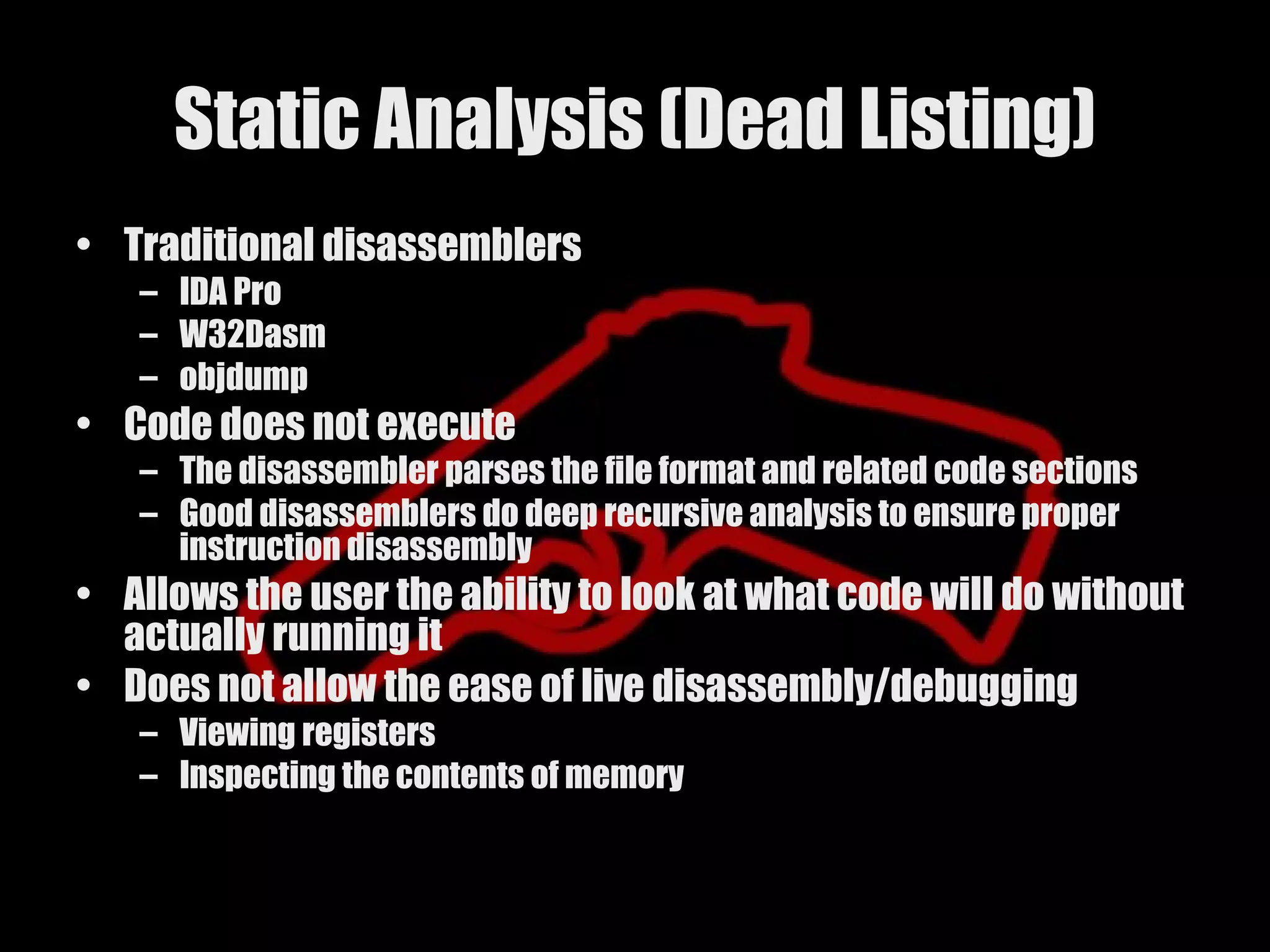

Static Analysis (Dead Listing)
• Traditional disassemblers
– IDA Pro
– W32Dasm
– objdump
• Code does not execute
– The disassembler parses the file format and related code sections
– Good disassemblers do deep recursive analysis to ensure proper
instruction disassembly
• Allows the user the ability to look at what code will do without
actually running it
• Does not allow the ease of live disassembly/debugging
– Viewing registers
– Inspecting the contents of memory

File Formats

INF0ANU

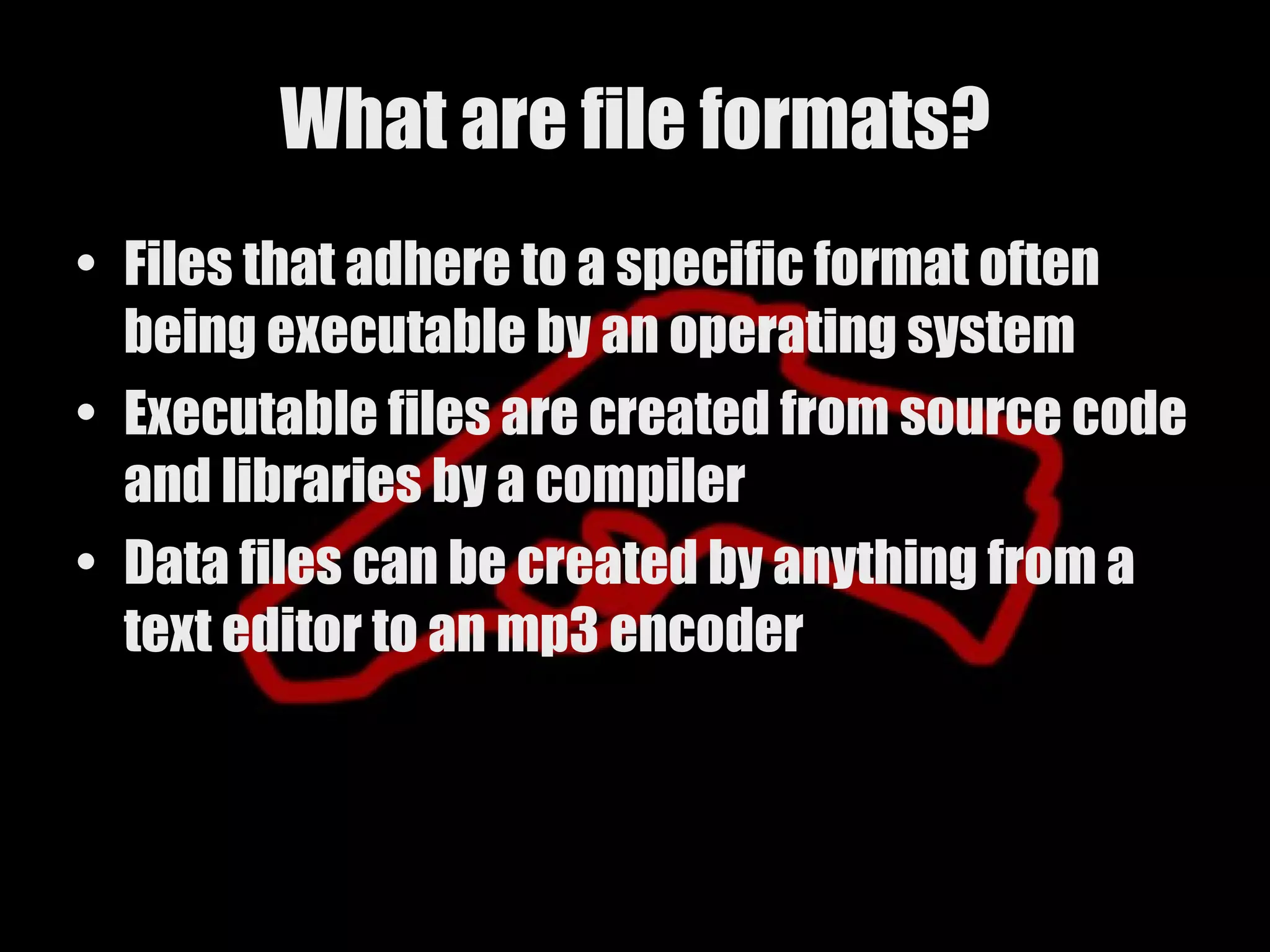

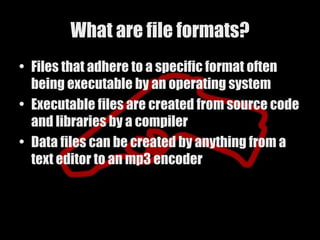

What are file formats?
• Files that adhere to a specific format often
being executable by an operating system
• Executable files are created from source code
and libraries by a compiler
• Data files can be created by anything from a
text editor to an mp3 encoder

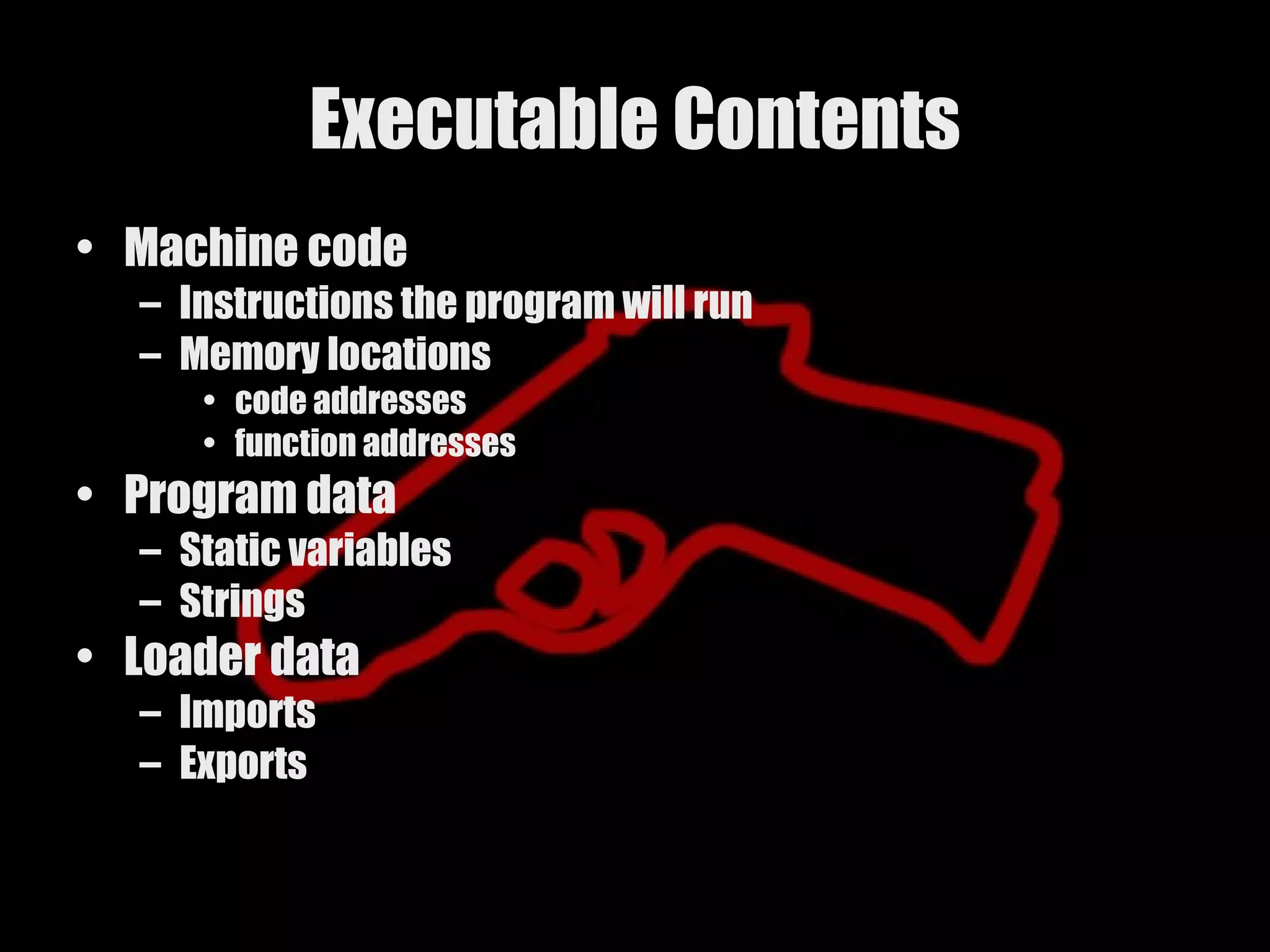

Executable Contents
• Machine code
– Instructions the program will run
– Memory locations
• code addresses
• function addresses
• Program data
– Static variables
– Strings
• Loader data
– Imports
– Exports

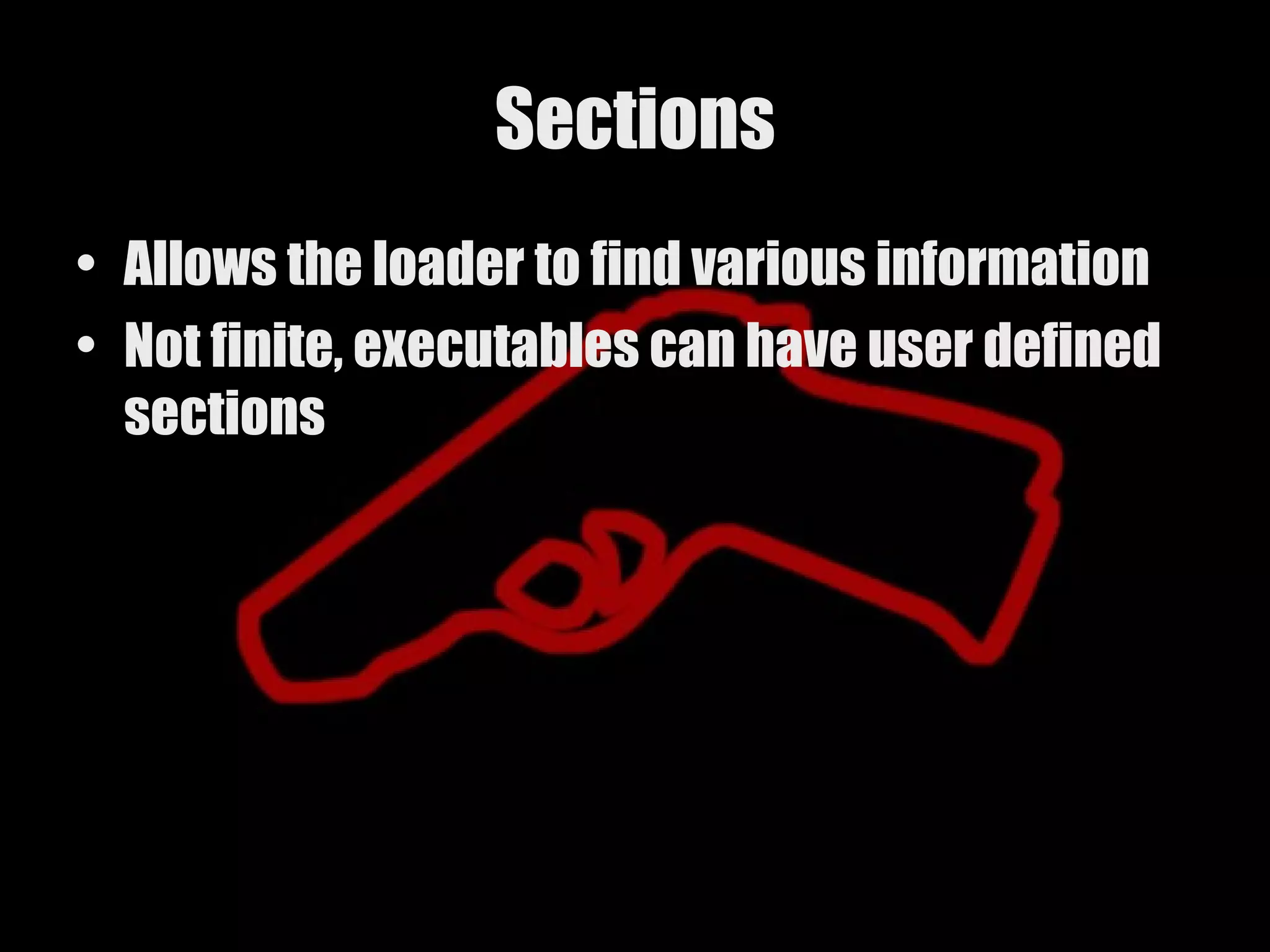

Sections
• Allows the loader to find various information
• Not finite, executables can have user defined
sections

Executable Formats

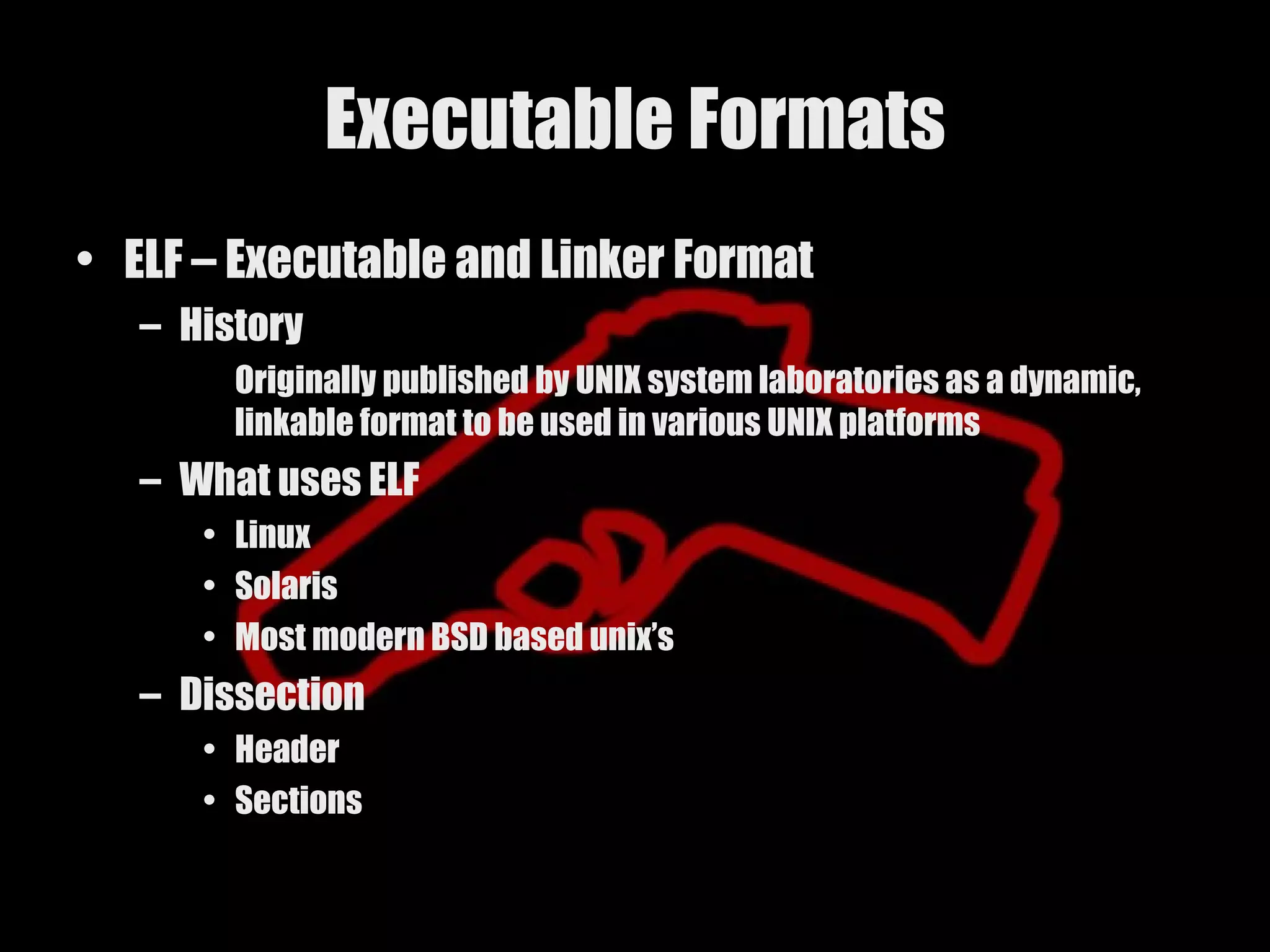

• ELF – Executable and Linker Format
– History
Originally published by UNIX system laboratories as a dynamic,
linkable format to be used in various UNIX platforms
– What uses ELF
• Linux
• Solaris
• Most modern BSD based unix’s
– Dissection
• Header
• Sections

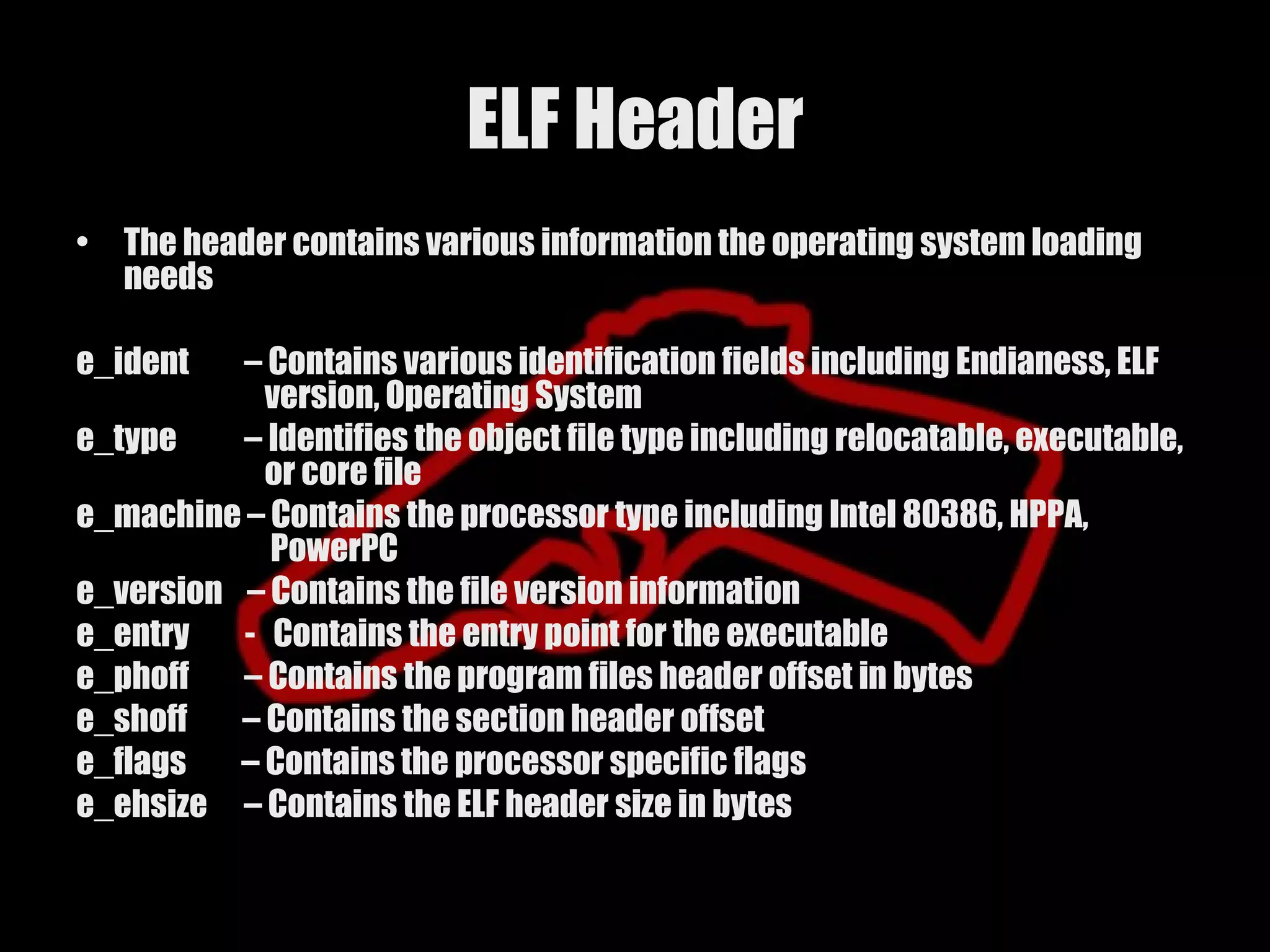

ELF Header
• The header contains various information the operating system loading
needs

e_ident – Contains various identification fields including Endianess, ELF
version, Operating System
e_type – Identifies the object file type including relocatable, executable,
or core file
e_machine – Contains the processor type including Intel 80386, HPPA,
PowerPC
e_version – Contains the file version information
e_entry - Contains the entry point for the executable
e_phoff – Contains the program files header offset in bytes
e_shoff – Contains the section header offset
e_flags – Contains the processor specific flags
e_ehsize – Contains the ELF header size in bytes

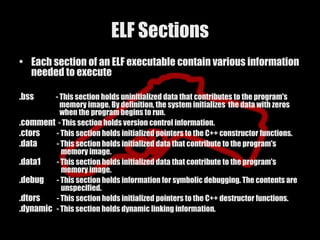

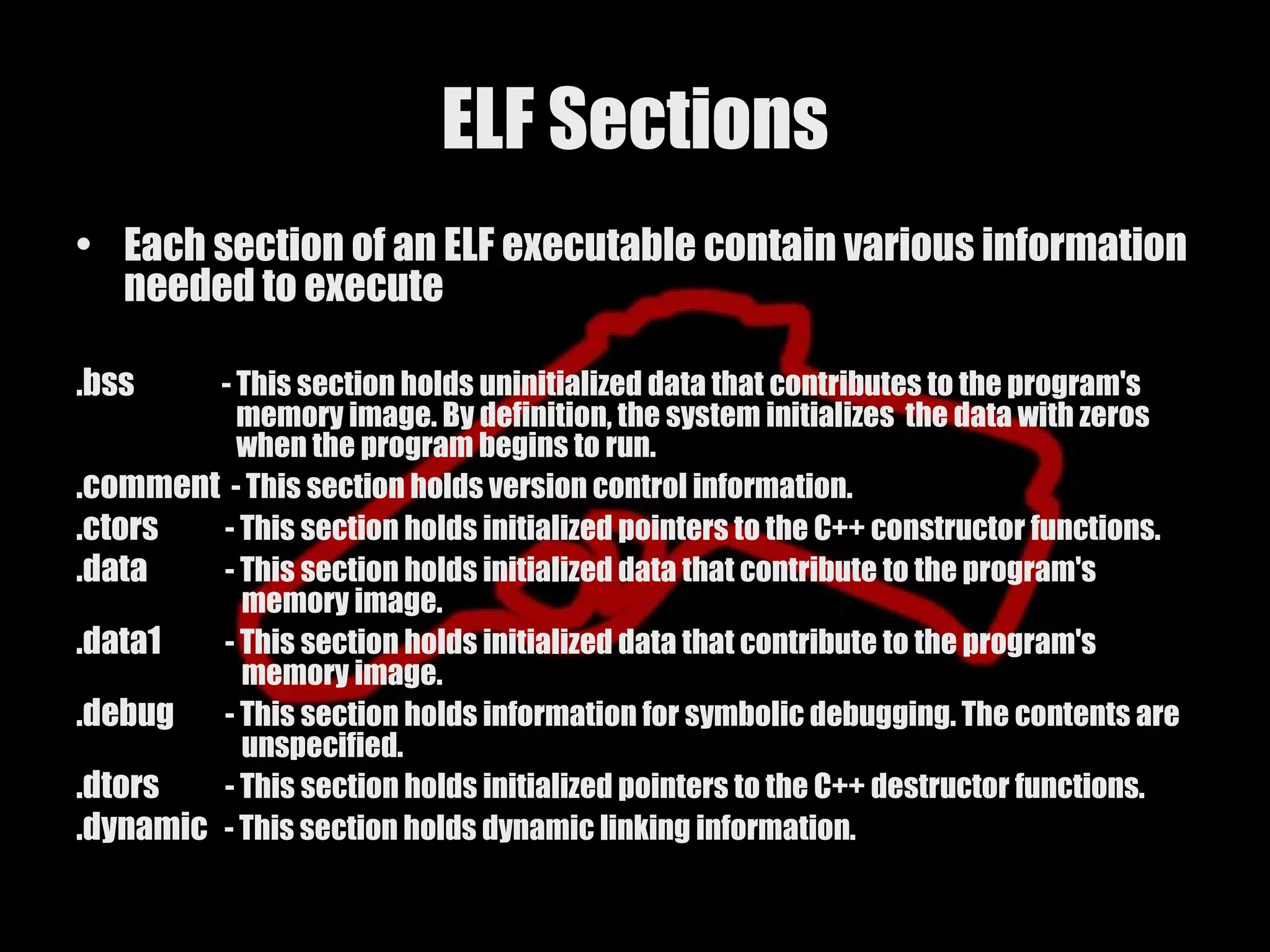

ELF Sections
• Each section of an ELF executable contain various information
needed to execute

.bss - This section holds uninitialized data that contributes to the program's
memory image. By definition, the system initializes the data with zeros
when the program begins to run.
.comment - This section holds version control information.
.ctors - This section holds initialized pointers to the C++ constructor functions.
.data - This section holds initialized data that contribute to the program's
memory image.
.data1 - This section holds initialized data that contribute to the program's
memory image.
.debug - This section holds information for symbolic debugging. The contents are
unspecified.
.dtors - This section holds initialized pointers to the C++ destructor functions.
.dynamic - This section holds dynamic linking information.

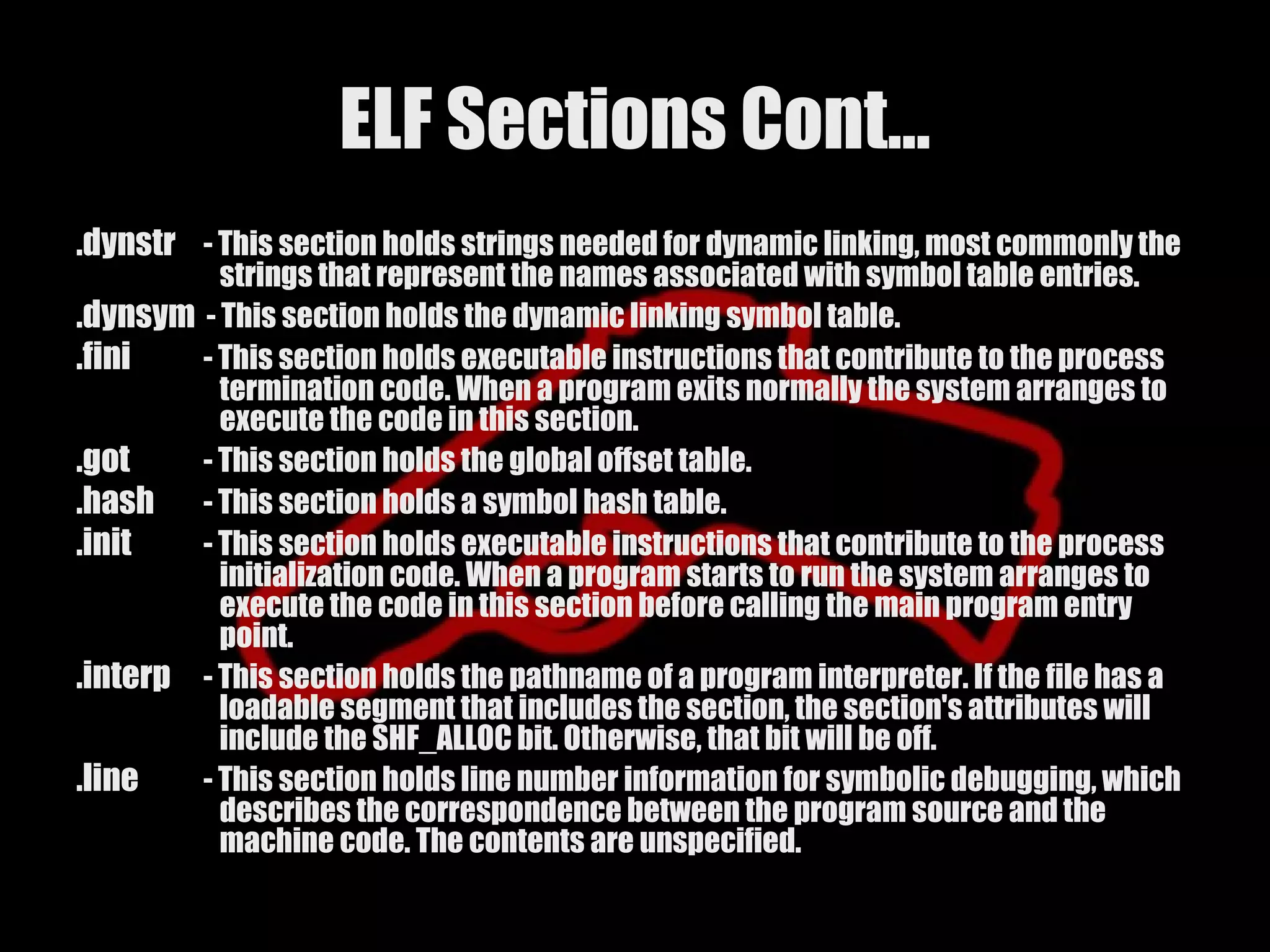

ELF Sections Cont…
.dynstr - This section holds strings needed for dynamic linking, most commonly the
strings that represent the names associated with symbol table entries.
.dynsym - This section holds the dynamic linking symbol table.
.fini - This section holds executable instructions that contribute to the process
termination code. When a program exits normally the system arranges to
execute the code in this section.
.got - This section holds the global offset table.
.hash - This section holds a symbol hash table.
.init - This section holds executable instructions that contribute to the process
initialization code. When a program starts to run the system arranges to
execute the code in this section before calling the main program entry
point.
.interp - This section holds the pathname of a program interpreter. If the file has a
loadable segment that includes the section, the section's attributes will
include the SHF_ALLOC bit. Otherwise, that bit will be off.
.line - This section holds line number information for symbolic debugging, which
describes the correspondence between the program source and the
machine code. The contents are unspecified.

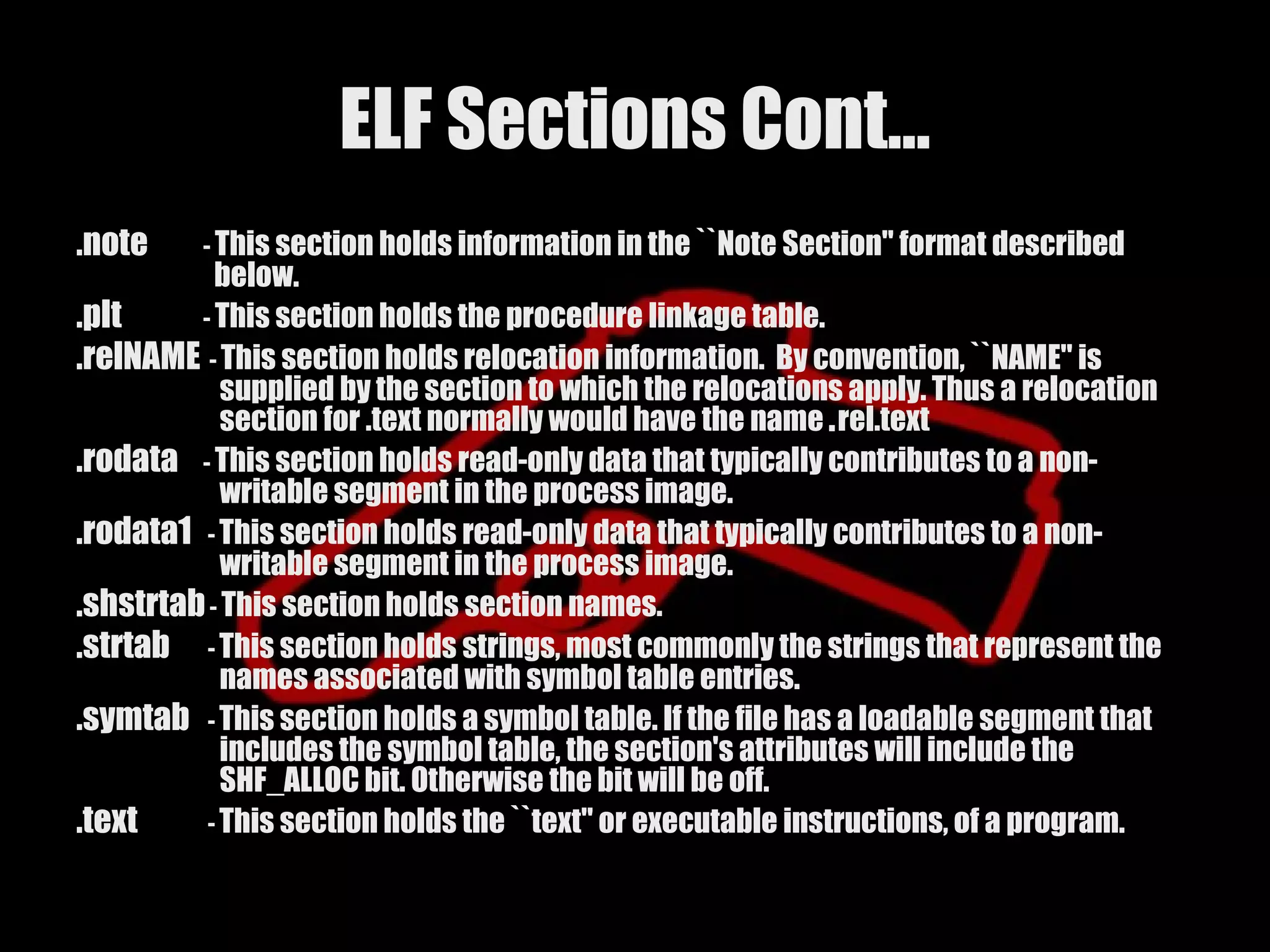

ELF Sections Cont…
.note - This section holds information in the ``Note Section'' format described
below.
.plt - This section holds the procedure linkage table.
.relNAME - This section holds relocation information. By convention, ``NAME'' is
supplied by the section to which the relocations apply. Thus a relocation
section for .text normally would have the name .rel.text
.rodata - This section holds read-only data that typically contributes to a non-
writable segment in the process image.
.rodata1 - This section holds read-only data that typically contributes to a non-
writable segment in the process image.
.shstrtab - This section holds section names.
.strtab - This section holds strings, most commonly the strings that represent the
names associated with symbol table entries.
.symtab - This section holds a symbol table. If the file has a loadable segment that
includes the symbol table, the section's attributes will include the
SHF_ALLOC bit. Otherwise the bit will be off.
.text - This section holds the ``text'' or executable instructions, of a program.

Executable Formats Cont…

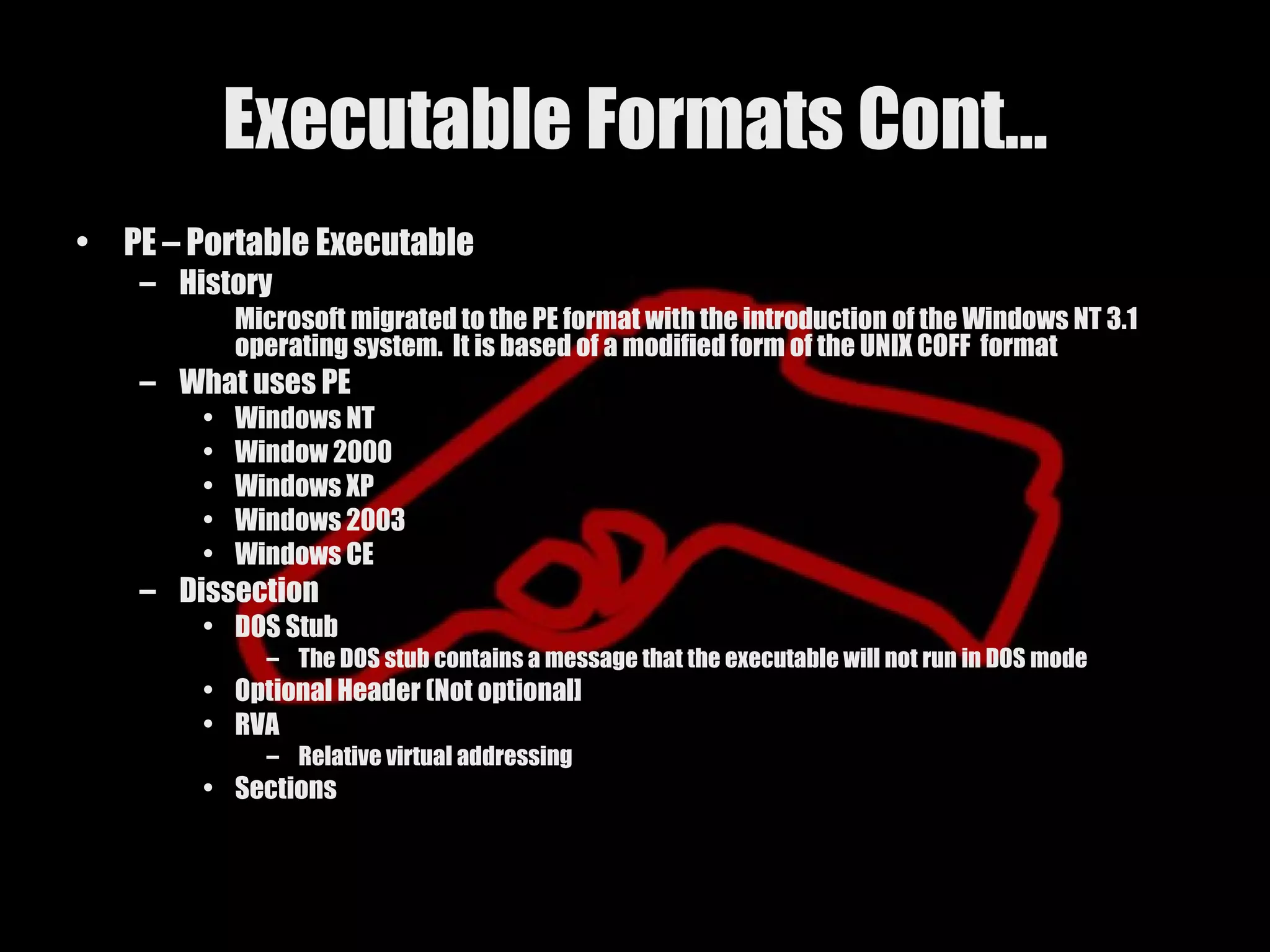

• PE – Portable Executable
– History
Microsoft migrated to the PE format with the introduction of the Windows NT 3.1
operating system. It is based of a modified form of the UNIX COFF format
– What uses PE
• Windows NT
• Window 2000
• Windows XP
• Windows 2003
• Windows CE
– Dissection
• DOS Stub
– The DOS stub contains a message that the executable will not run in DOS mode
• Optional Header (Not optional]
• RVA
– Relative virtual addressing
• Sections

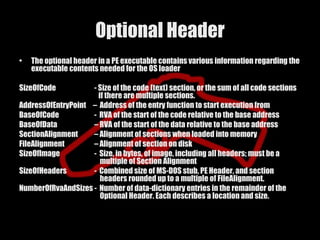

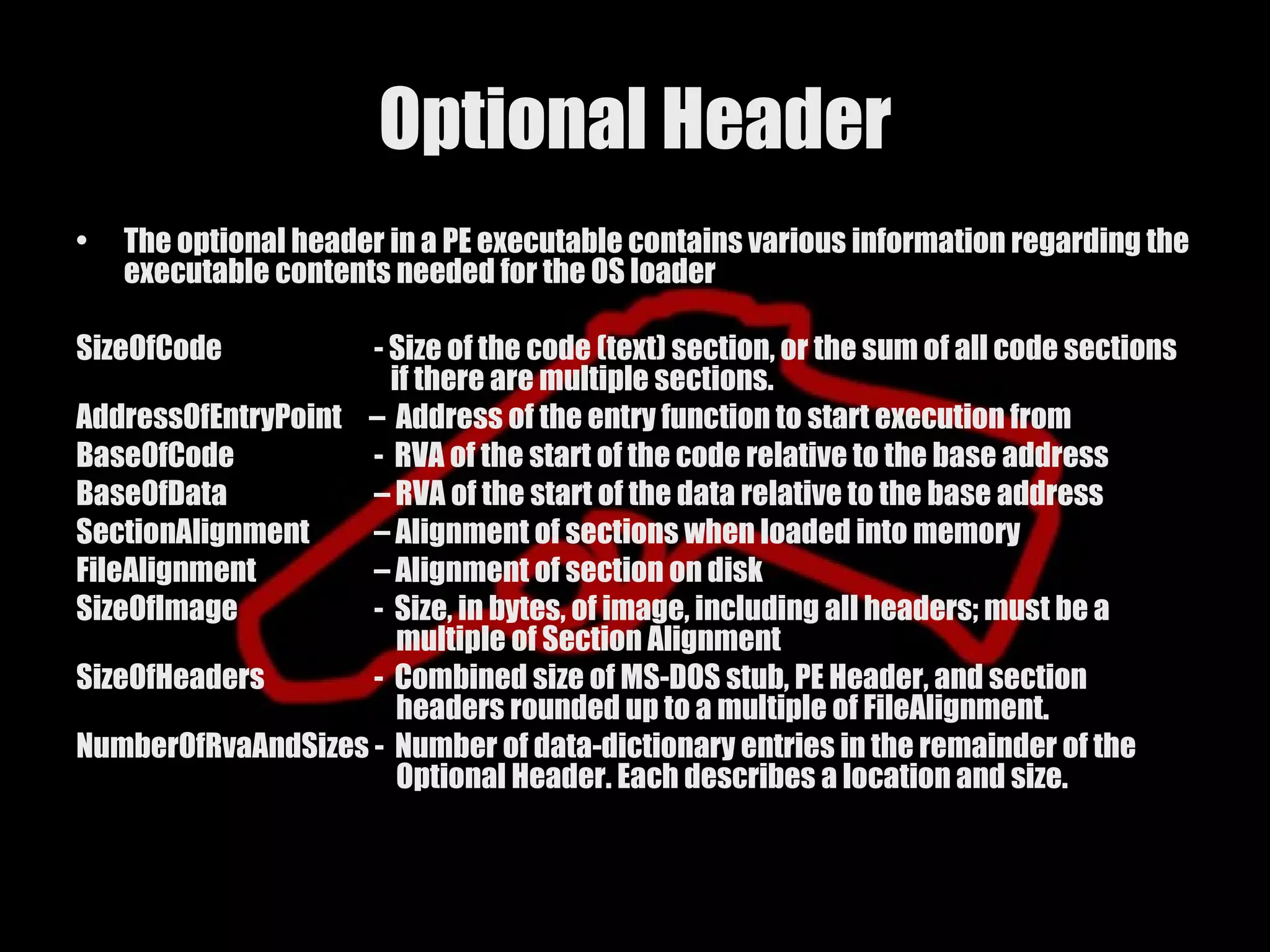

Optional Header
• The optional header in a PE executable contains various information regarding the
executable contents needed for the OS loader

SizeOfCode - Size of the code (text) section, or the sum of all code sections
if there are multiple sections.
AddressOfEntryPoint – Address of the entry function to start execution from
BaseOfCode - RVA of the start of the code relative to the base address
BaseOfData – RVA of the start of the data relative to the base address
SectionAlignment – Alignment of sections when loaded into memory
FileAlignment – Alignment of section on disk
SizeOfImage - Size, in bytes, of image, including all headers; must be a
multiple of Section Alignment
SizeOfHeaders - Combined size of MS-DOS stub, PE Header, and section
headers rounded up to a multiple of FileAlignment.
NumberOfRvaAndSizes - Number of data-dictionary entries in the remainder of the
Optional Header. Each describes a location and size.

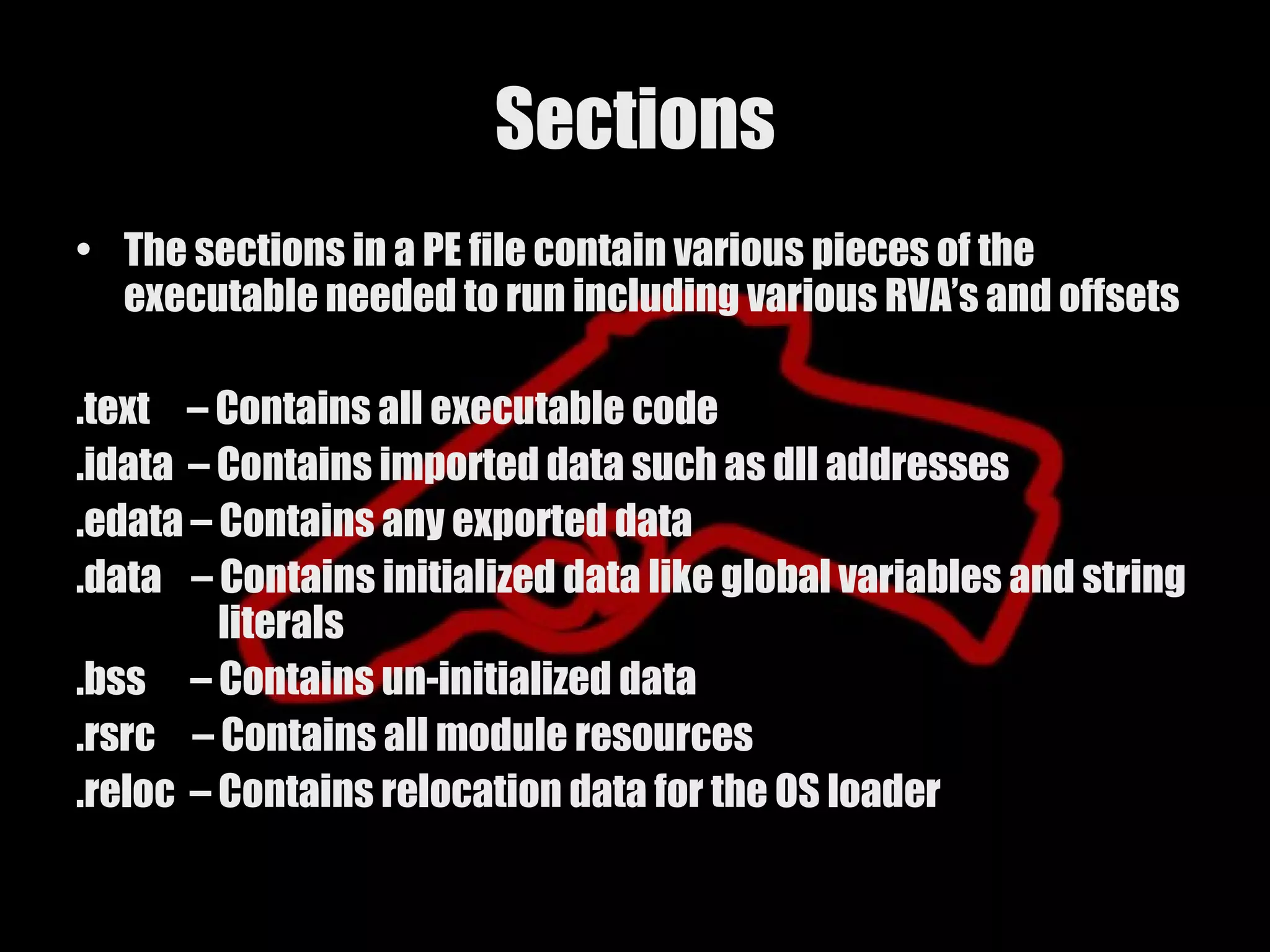

Sections
• The sections in a PE file contain various pieces of the
executable needed to run including various RVA’s and offsets

.text – Contains all executable code
.idata – Contains imported data such as dll addresses
.edata – Contains any exported data
.data – Contains initialized data like global variables and string
literals
.bss – Contains un-initialized data
.rsrc – Contains all module resources
.reloc – Contains relocation data for the OS loader

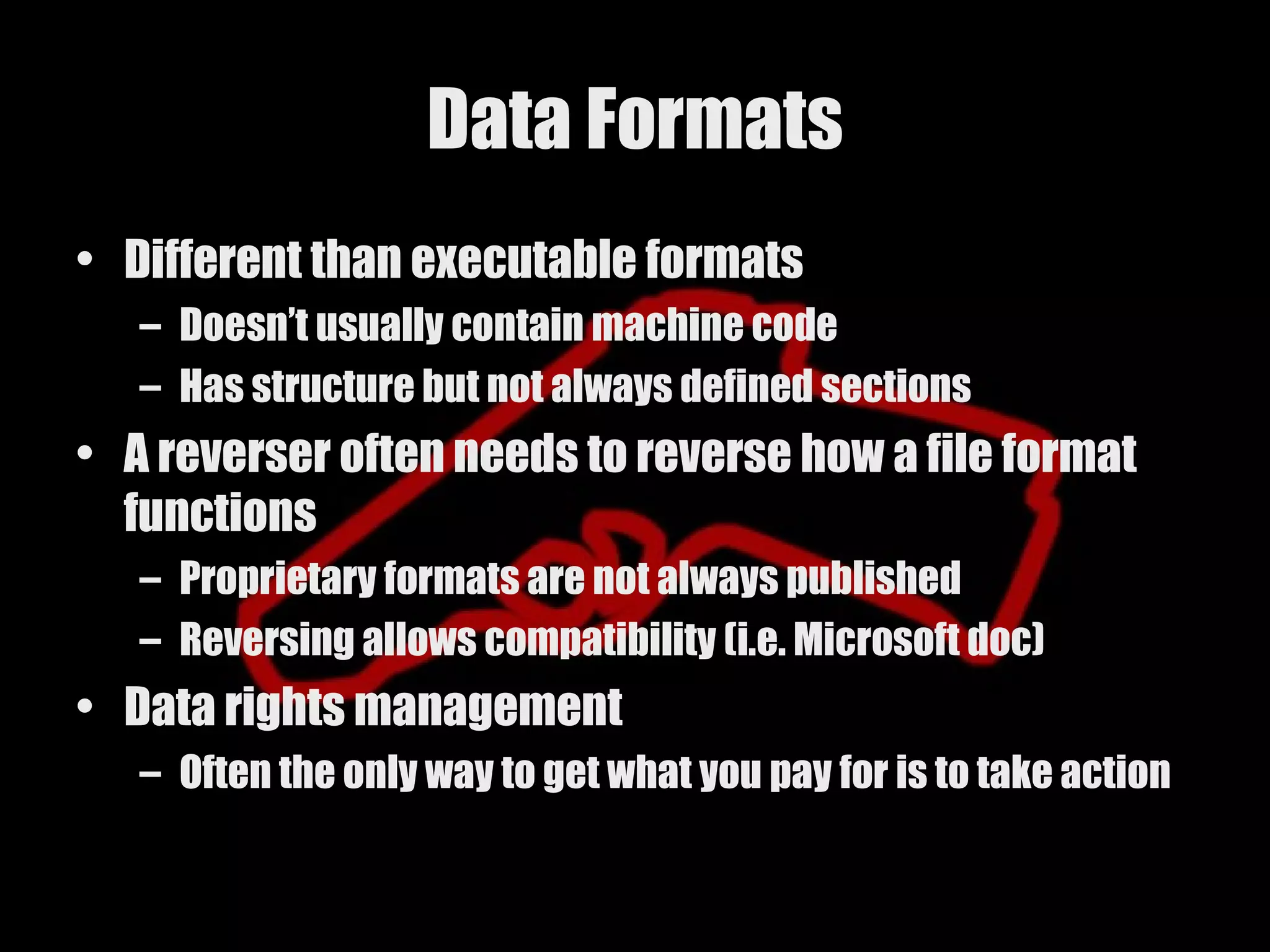

Data Formats
• Different than executable formats
– Doesn’t usually contain machine code
– Has structure but not always defined sections
• A reverser often needs to reverse how a file format
functions
– Proprietary formats are not always published
– Reversing allows compatibility (i.e. Microsoft doc)
• Data rights management
– Often the only way to get what you pay for is to take action

Assembly Language

INF0ANU

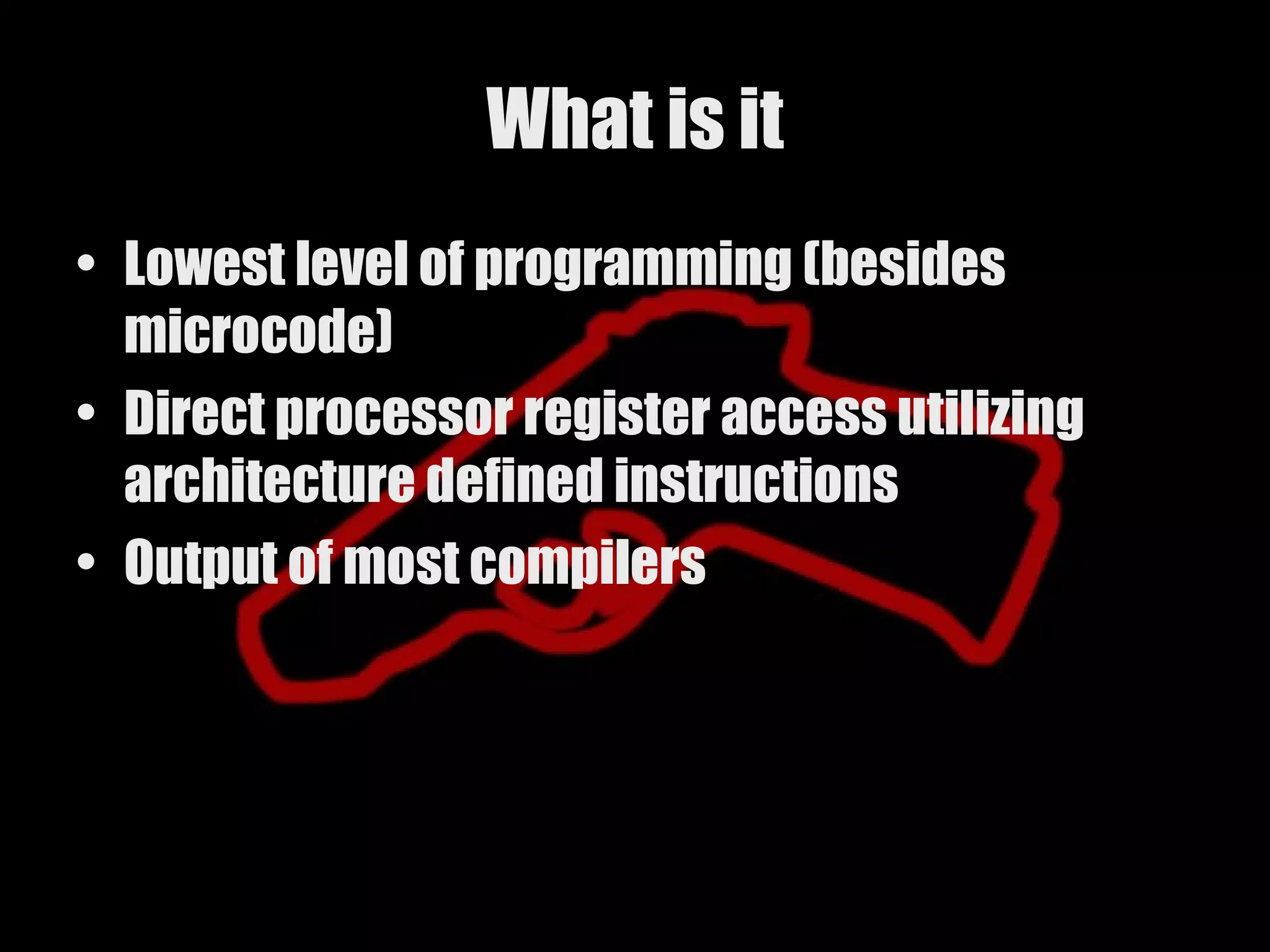

What is it
• Lowest level of programming (besides
microcode)
• Direct processor register access utilizing
architecture defined instructions
• Output of most compilers

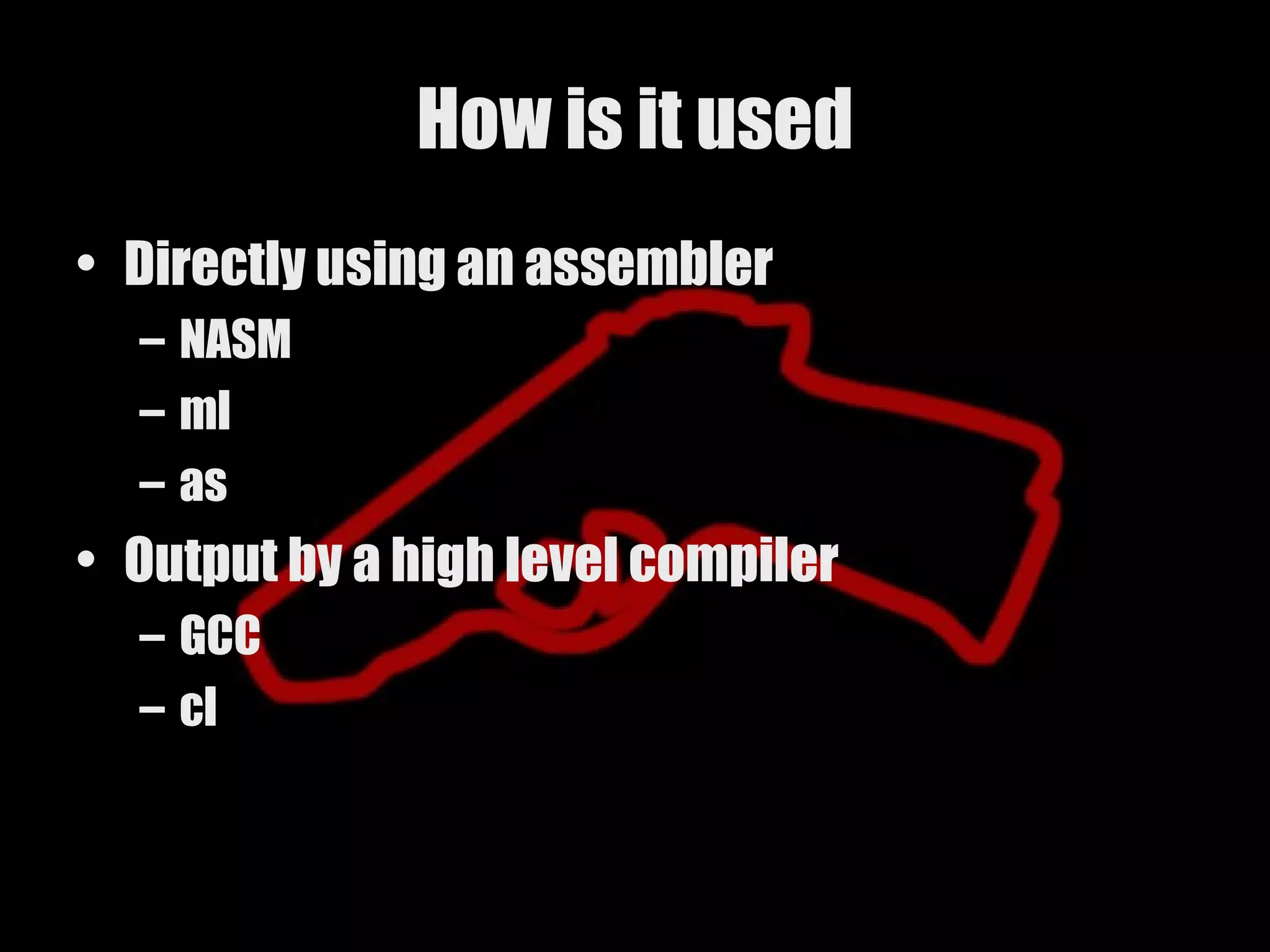

How is it used
• Directly using an assembler
– NASM
– ml
– as
• Output by a high level compiler
– GCC
– cl

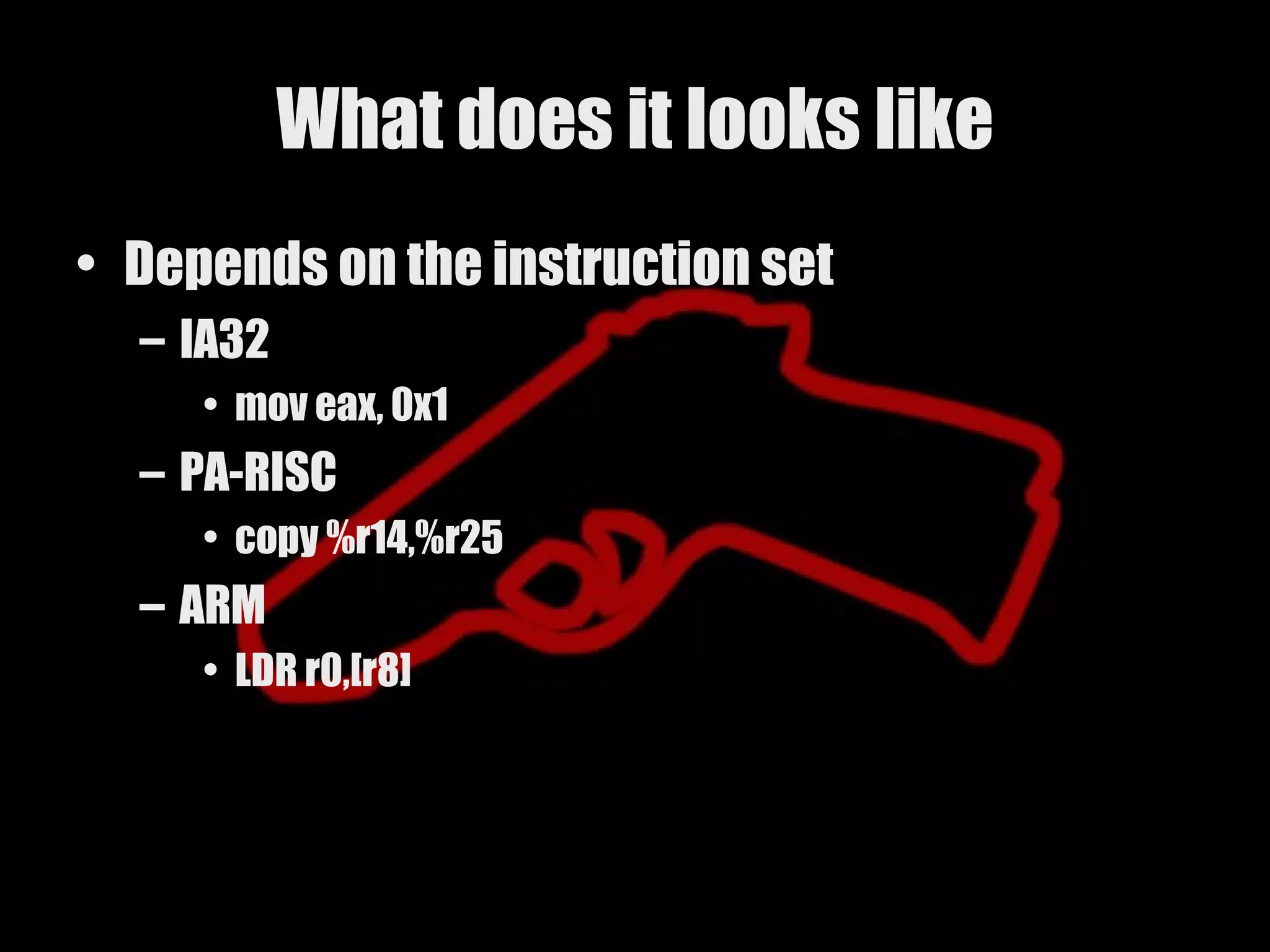

What does it looks like
• Depends on the instruction set
– IA32
• mov eax, 0x1
– PA-RISC
• copy %r14,%r25
– ARM
• LDR r0,[r8]

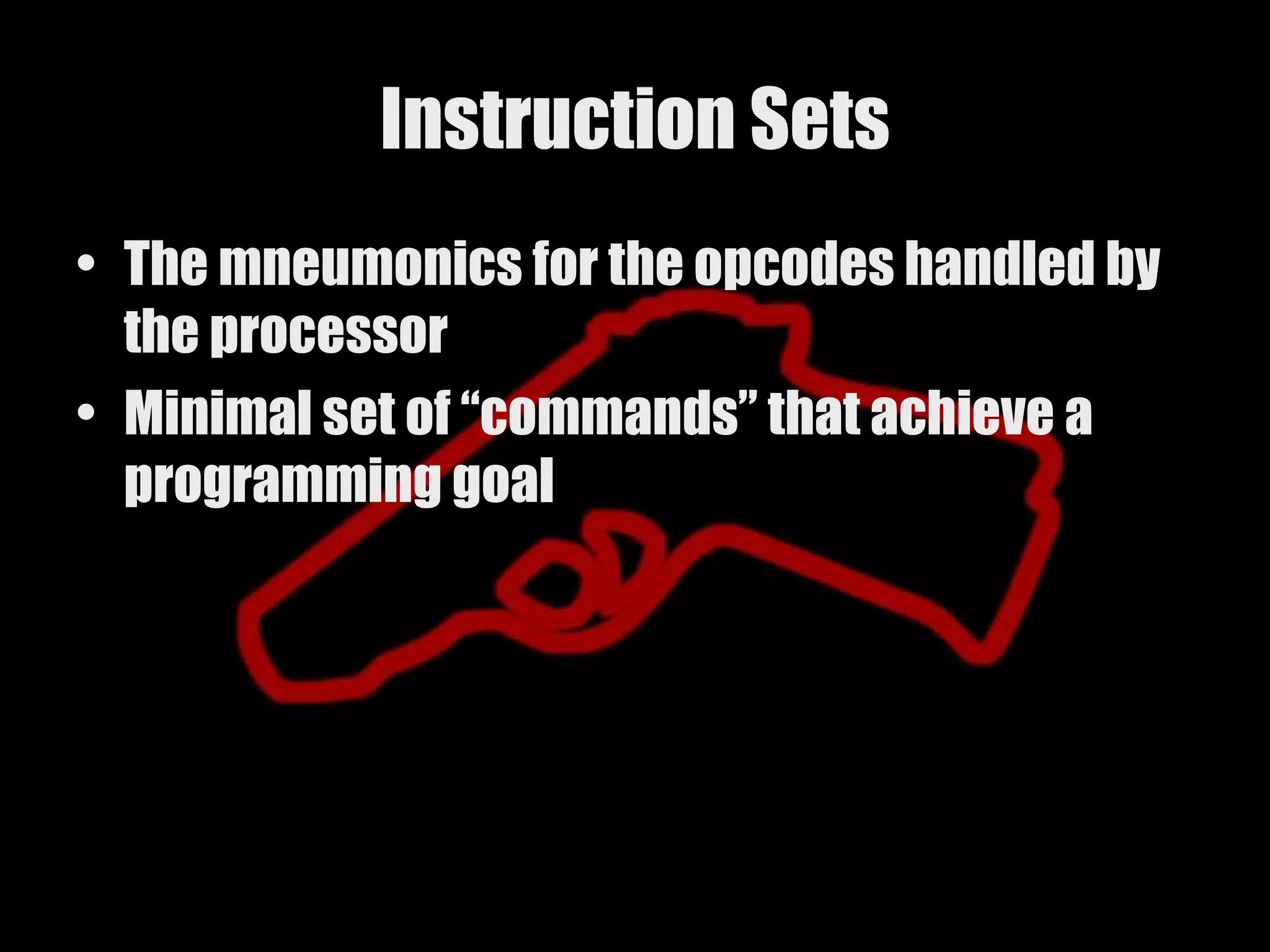

Instruction Sets
• The mneumonics for the opcodes handled by
the processor
• Minimal set of “commands” that achieve a
programming goal

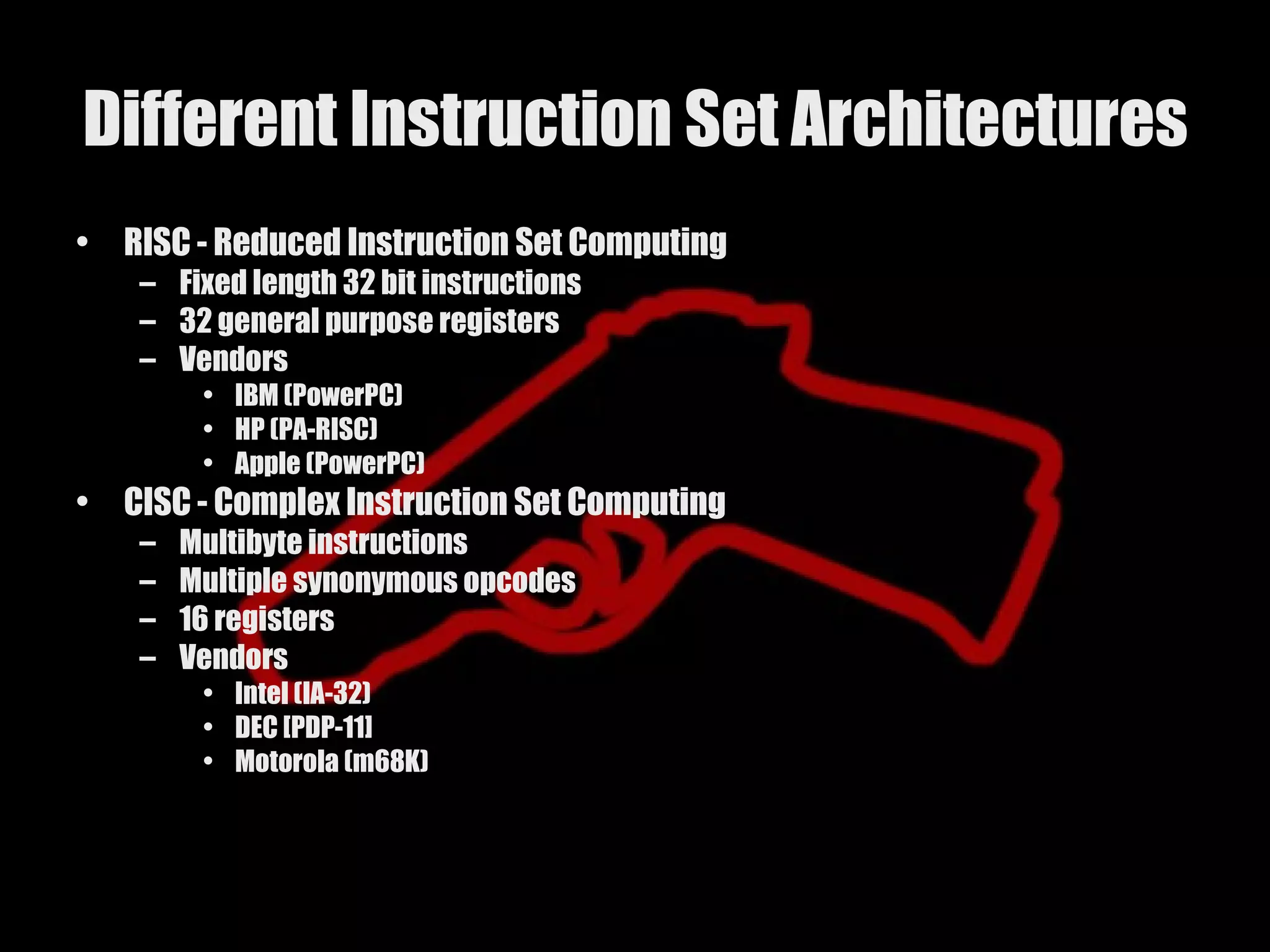

Different Instruction Set Architectures
• RISC - Reduced Instruction Set Computing
– Fixed length 32 bit instructions
– 32 general purpose registers
– Vendors
• IBM (PowerPC)
• HP (PA-RISC)
• Apple (PowerPC)
• CISC - Complex Instruction Set Computing
– Multibyte instructions
– Multiple synonymous opcodes
– 16 registers
– Vendors
• Intel (IA-32)
• DEC [PDP-11]
• Motorola (m68K)

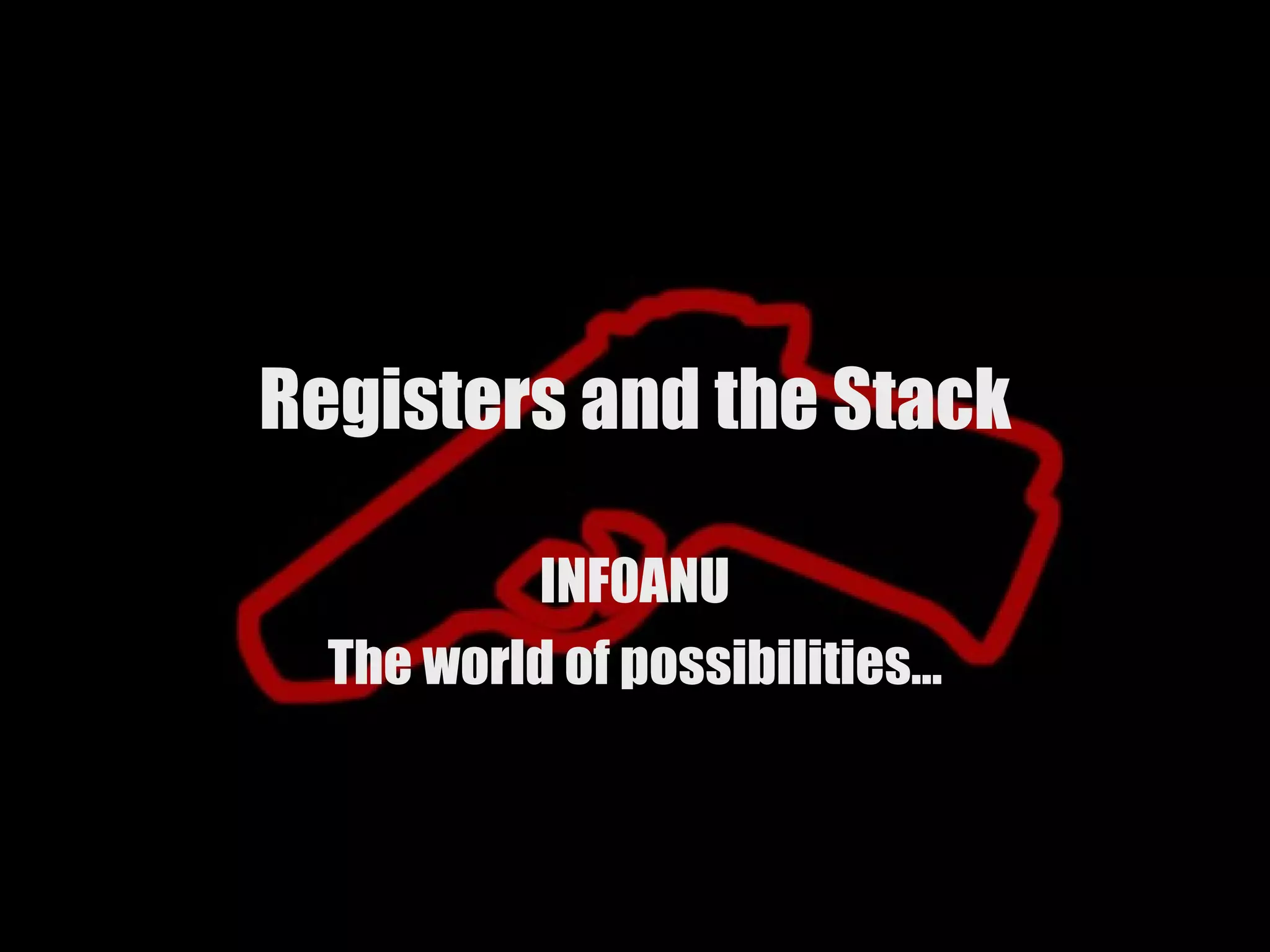

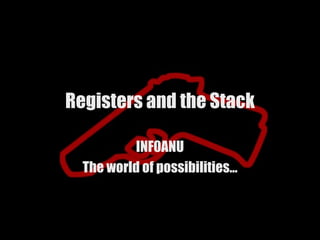

Registers and the Stack

INF0ANU

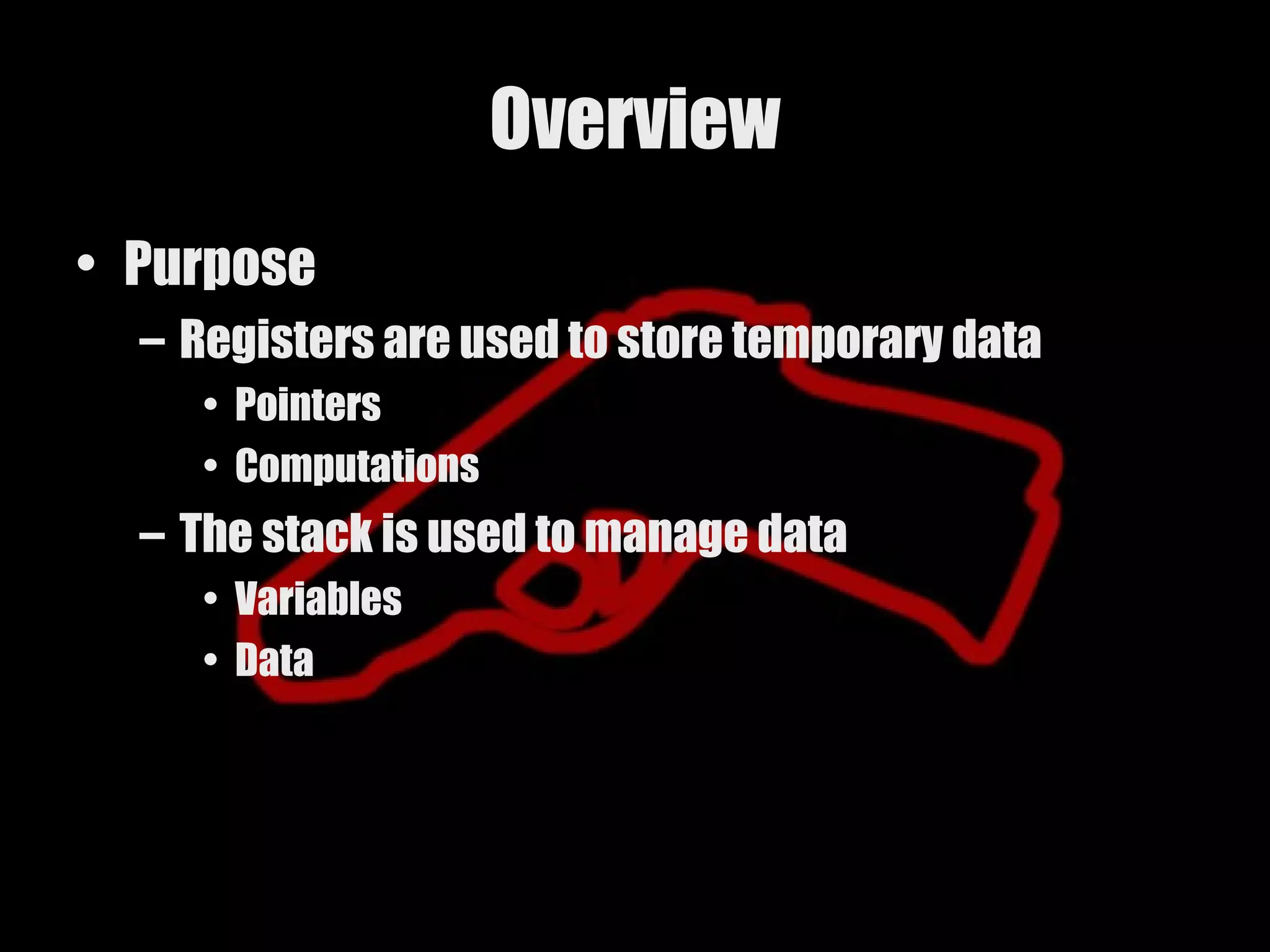

Overview
• Purpose
– Registers are used to store temporary data
• Pointers
• Computations
– The stack is used to manage data
• Variables
• Data

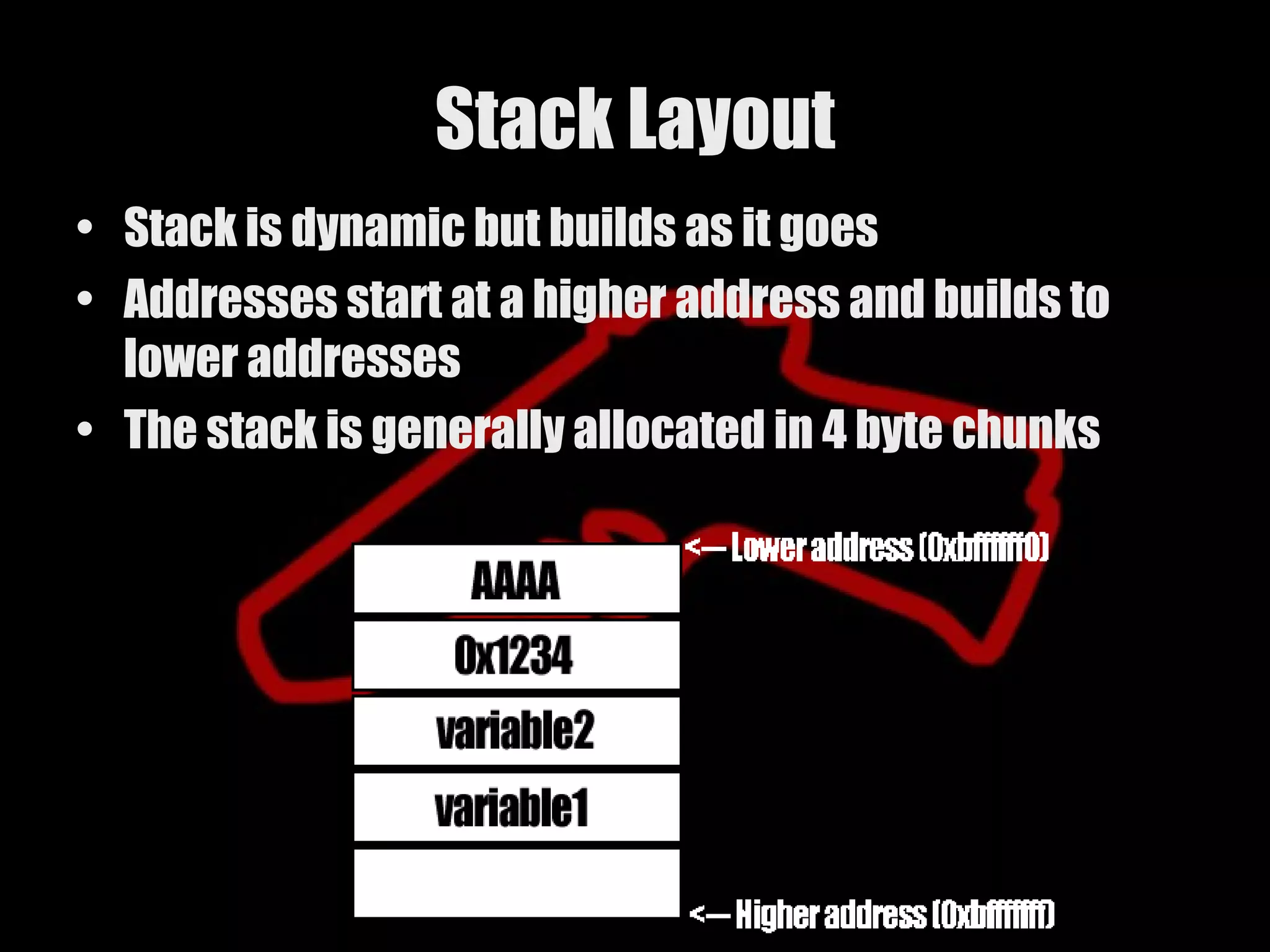

Stack Layout
• Stack is dynamic but builds as it goes
• Addresses start at a higher address and builds to
lower addresses
• The stack is generally allocated in 4 byte chunks

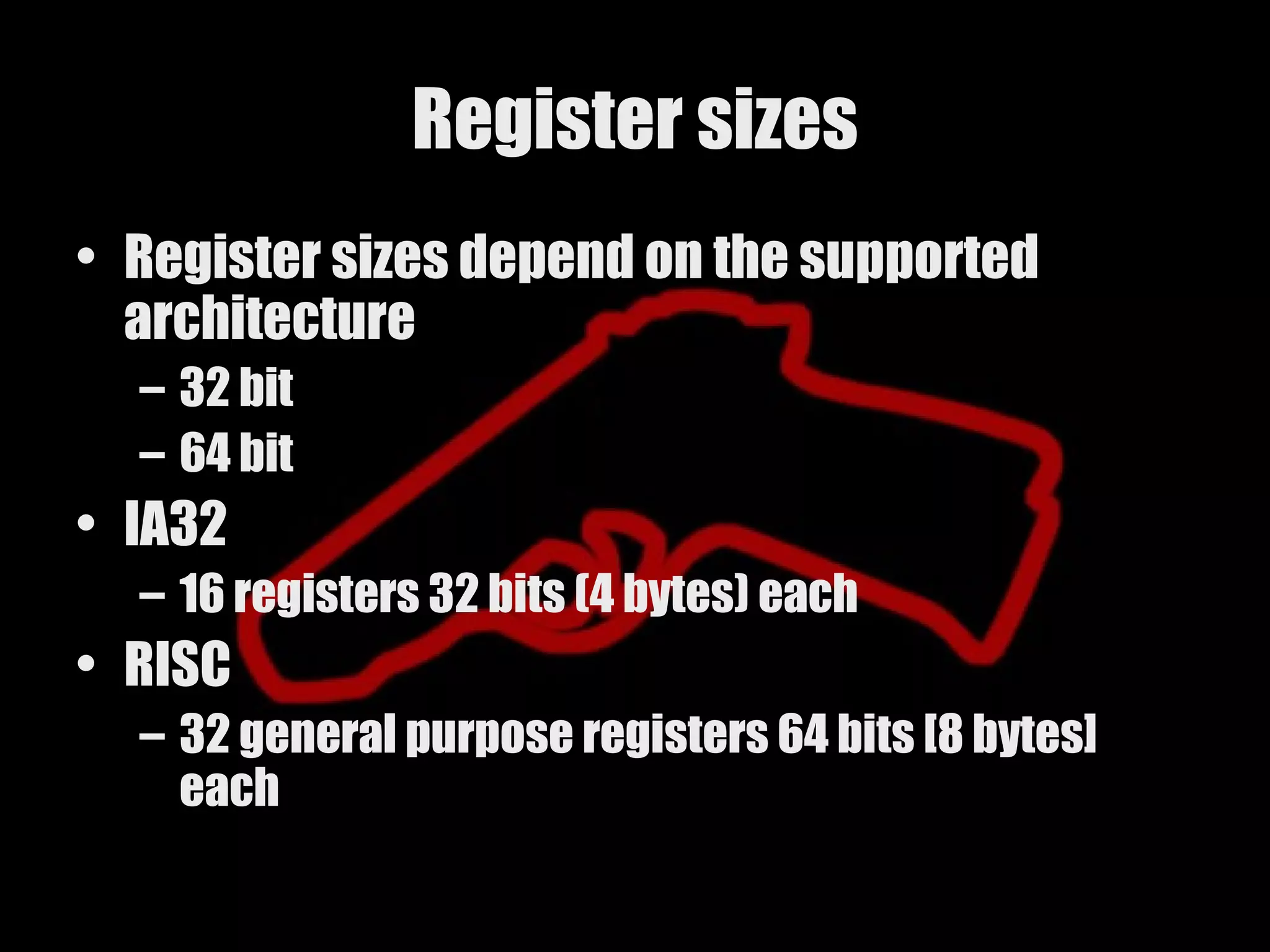

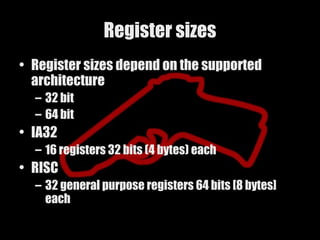

Register sizes
• Register sizes depend on the supported
architecture
– 32 bit
– 64 bit
• IA32
– 16 registers 32 bits (4 bytes) each
• RISC
– 32 general purpose registers 64 bits [8 bytes]
each

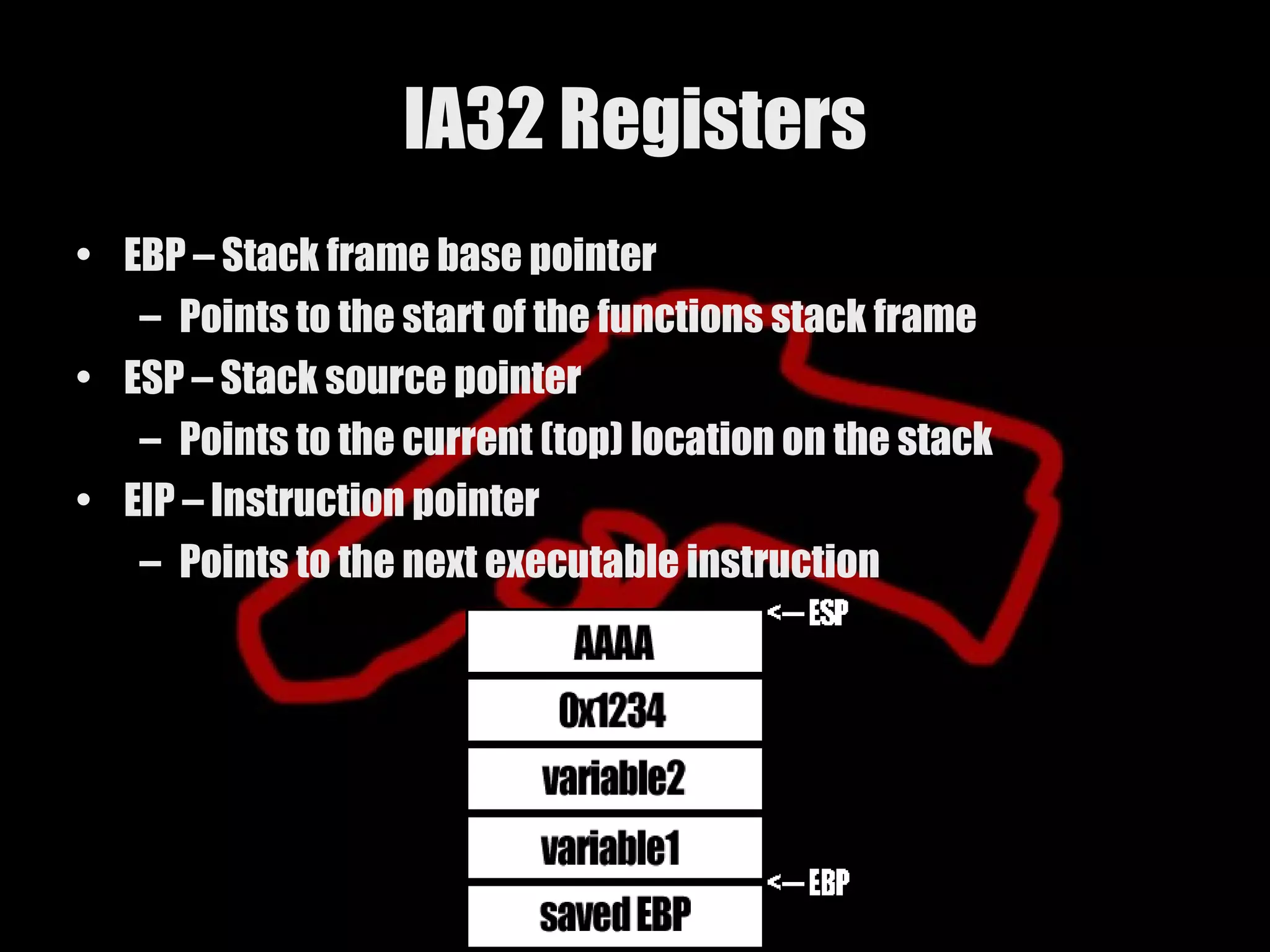

IA32 Registers
• EBP – Stack frame base pointer
– Points to the start of the functions stack frame
• ESP – Stack source pointer
– Points to the current (top) location on the stack
• EIP – Instruction pointer
– Points to the next executable instruction

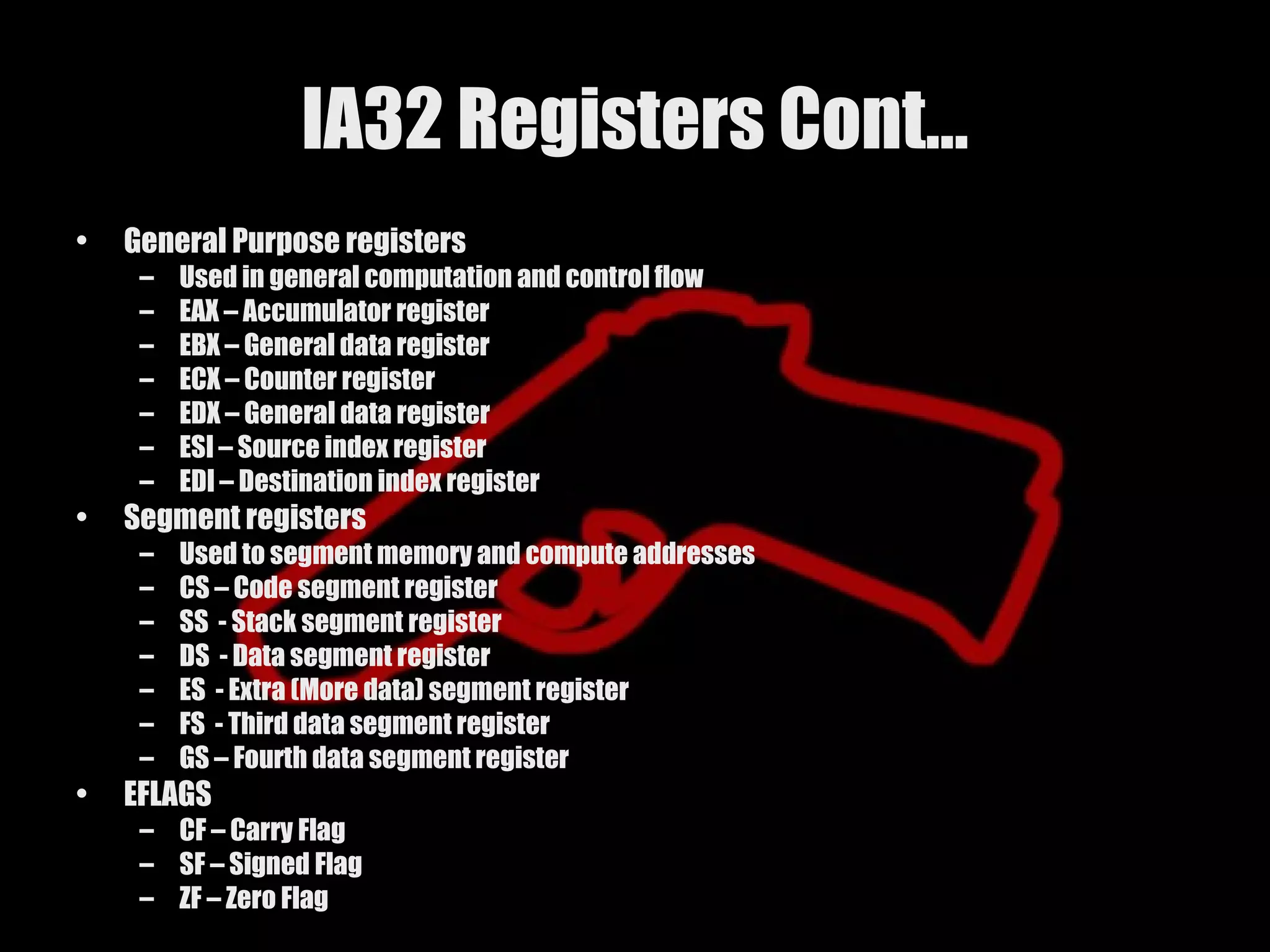

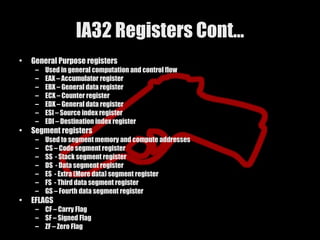

IA32 Registers Cont…
• General Purpose registers
– Used in general computation and control flow
– EAX – Accumulator register
– EBX – General data register
– ECX – Counter register
– EDX – General data register
– ESI – Source index register
– EDI – Destination index register
• Segment registers
– Used to segment memory and compute addresses
– CS – Code segment register
– SS - Stack segment register
– DS - Data segment register
– ES - Extra (More data) segment register
– FS - Third data segment register
– GS – Fourth data segment register
• EFLAGS
– CF – Carry Flag
– SF – Signed Flag
– ZF – Zero Flag

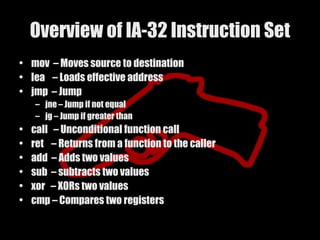

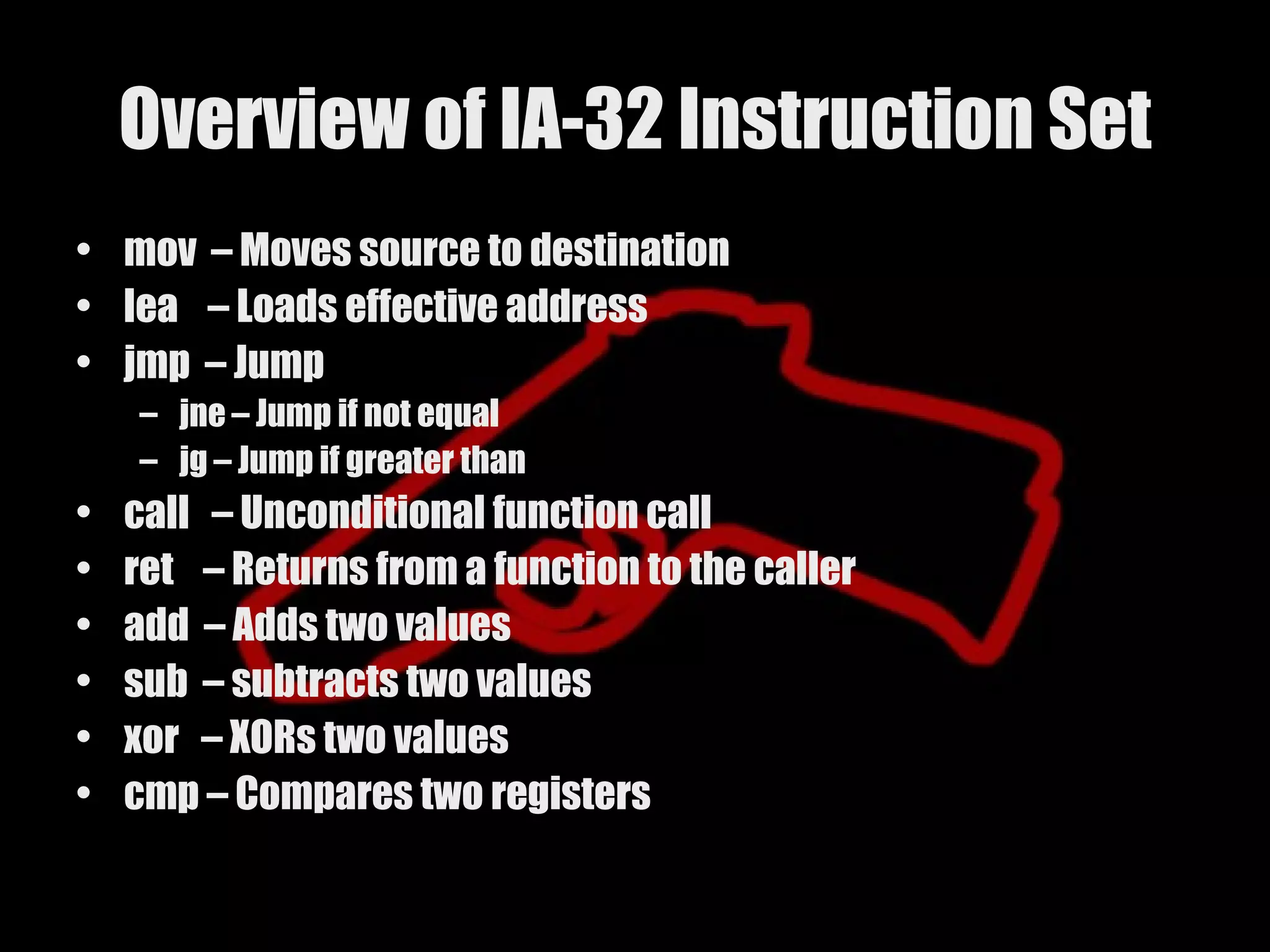

Overview of IA-32 Instruction Set
• mov – Moves source to destination
• lea – Loads effective address
• jmp – Jump
– jne – Jump if not equal
– jg – Jump if greater than
• call – Unconditional function call
• ret – Returns from a function to the caller
• add – Adds two values
• sub – subtracts two values
• xor – XORs two values
• cmp – Compares two registers

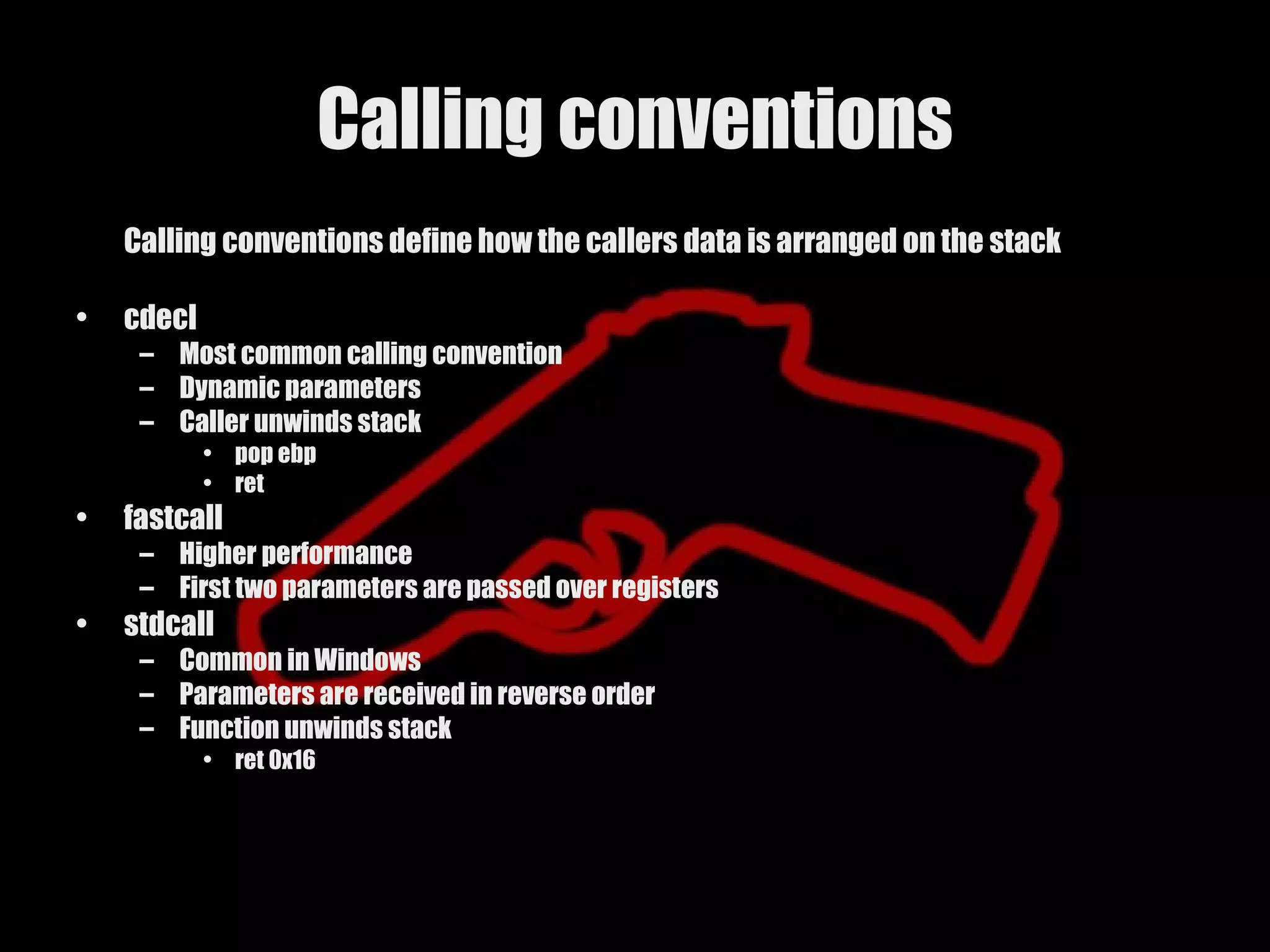

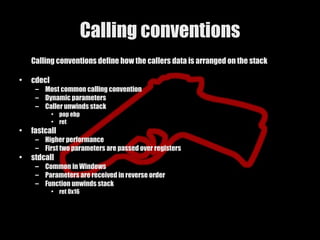

Calling conventions
Calling conventions define how the callers data is arranged on the stack

• cdecl
– Most common calling convention
– Dynamic parameters
– Caller unwinds stack
• pop ebp
• ret
• fastcall
– Higher performance
– First two parameters are passed over registers
• stdcall
– Common in Windows
– Parameters are received in reverse order
– Function unwinds stack
• ret 0x16

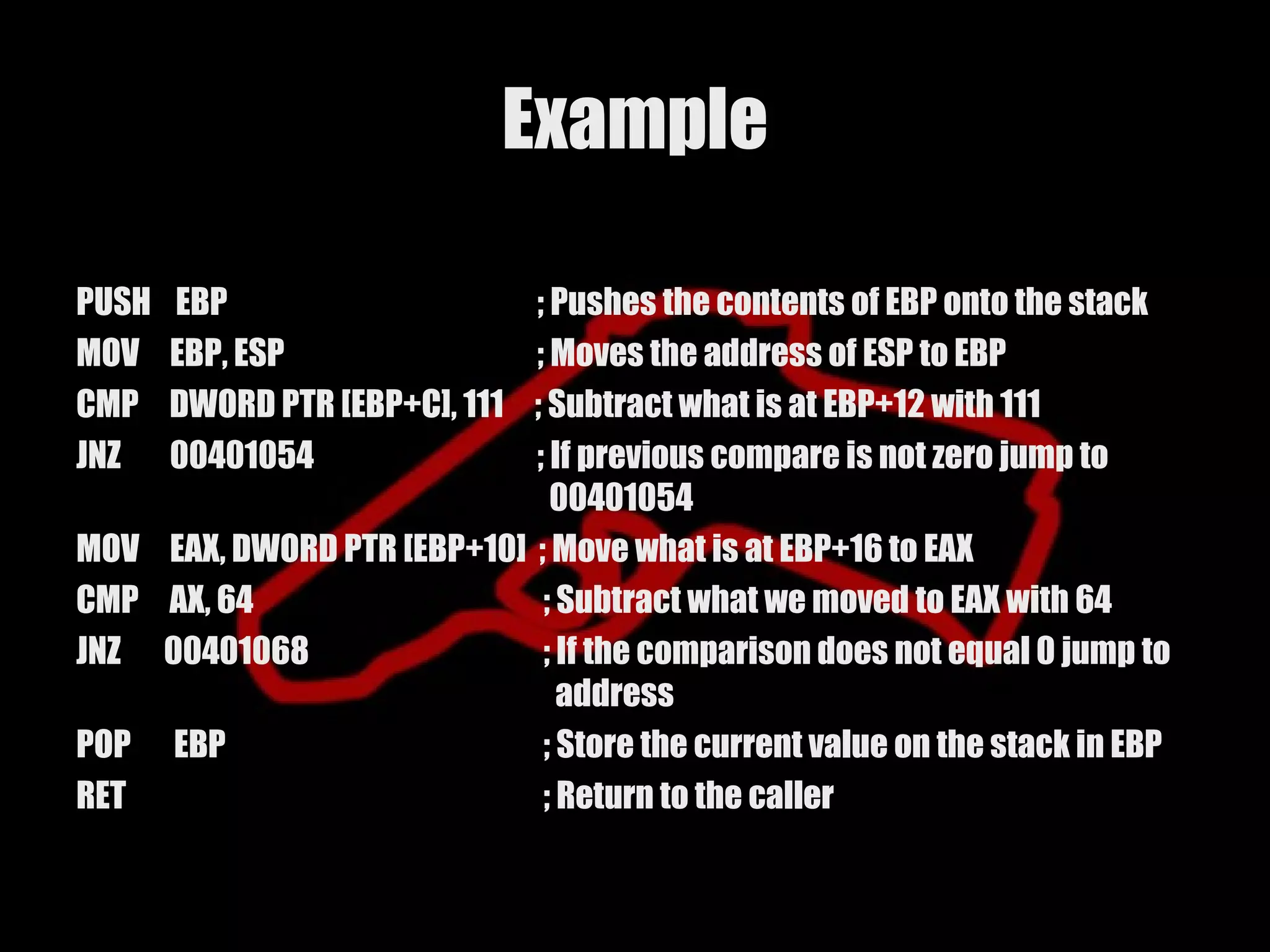

Example

PUSH EBP ; Pushes the contents of EBP onto the stack
MOV EBP, ESP ; Moves the address of ESP to EBP
CMP DWORD PTR [EBP+C], 111
; Subtract what is at EBP+12 with 111
JNZ 00401054 ; If previous compare is not zero jump to
00401054
MOV EAX, DWORD PTR [EBP+10] ; Move what is at EBP+16 to EAX
CMP AX, 64 ; Subtract what we moved to EAX with 64
JNZ 00401068 ; If the comparison does not equal 0 jump to
address
POP EBP ; Store the current value on the stack in EBP
RET ; Return to the caller

OllyDbg

INF0ANU

Overview

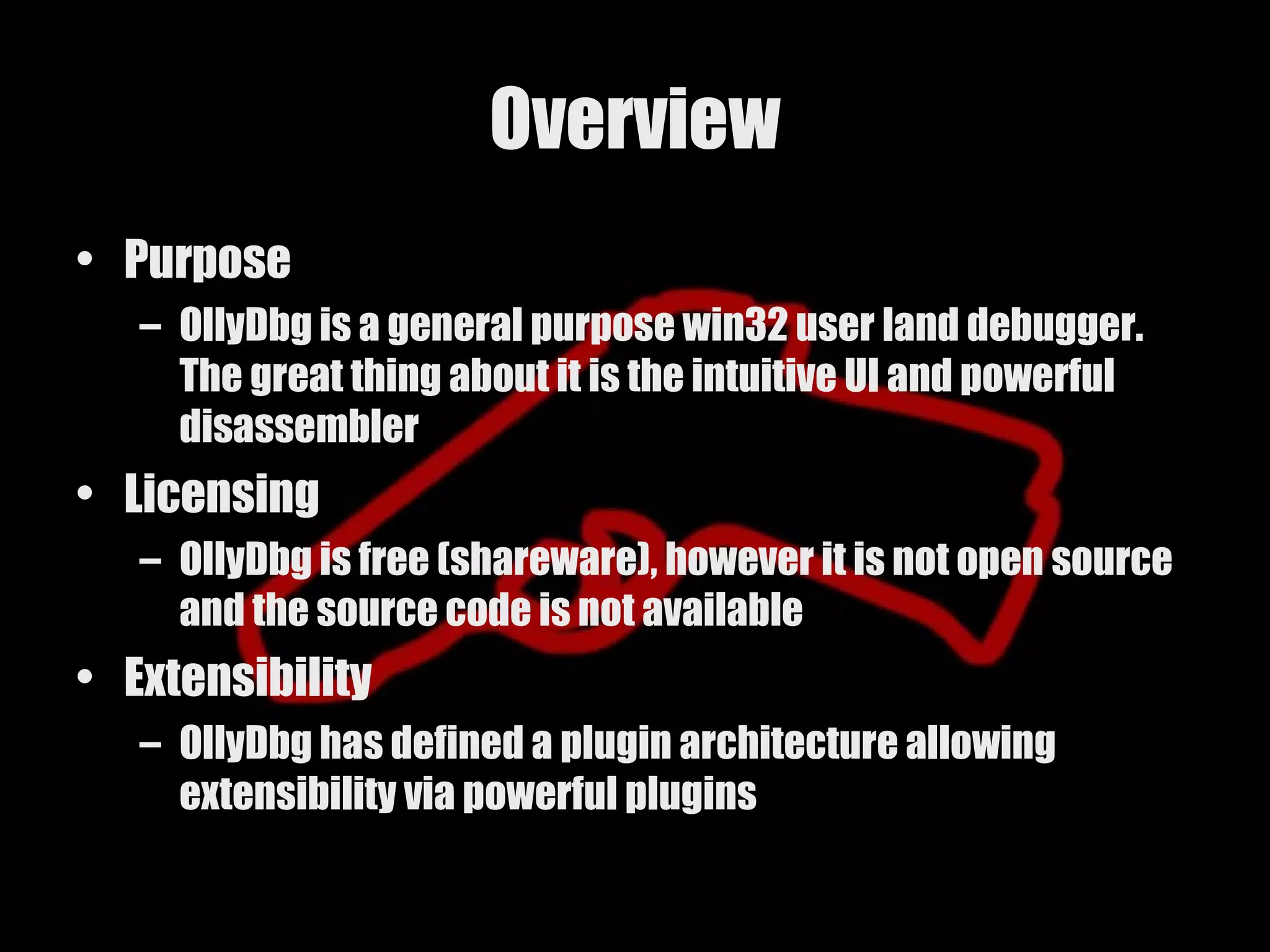

• Purpose
– OllyDbg is a general purpose win32 user land debugger.
The great thing about it is the intuitive UI and powerful
disassembler
• Licensing
– OllyDbg is free (shareware), however it is not open source
and the source code is not available
• Extensibility
– OllyDbg has defined a plugin architecture allowing
extensibility via powerful plugins

Window Layouts

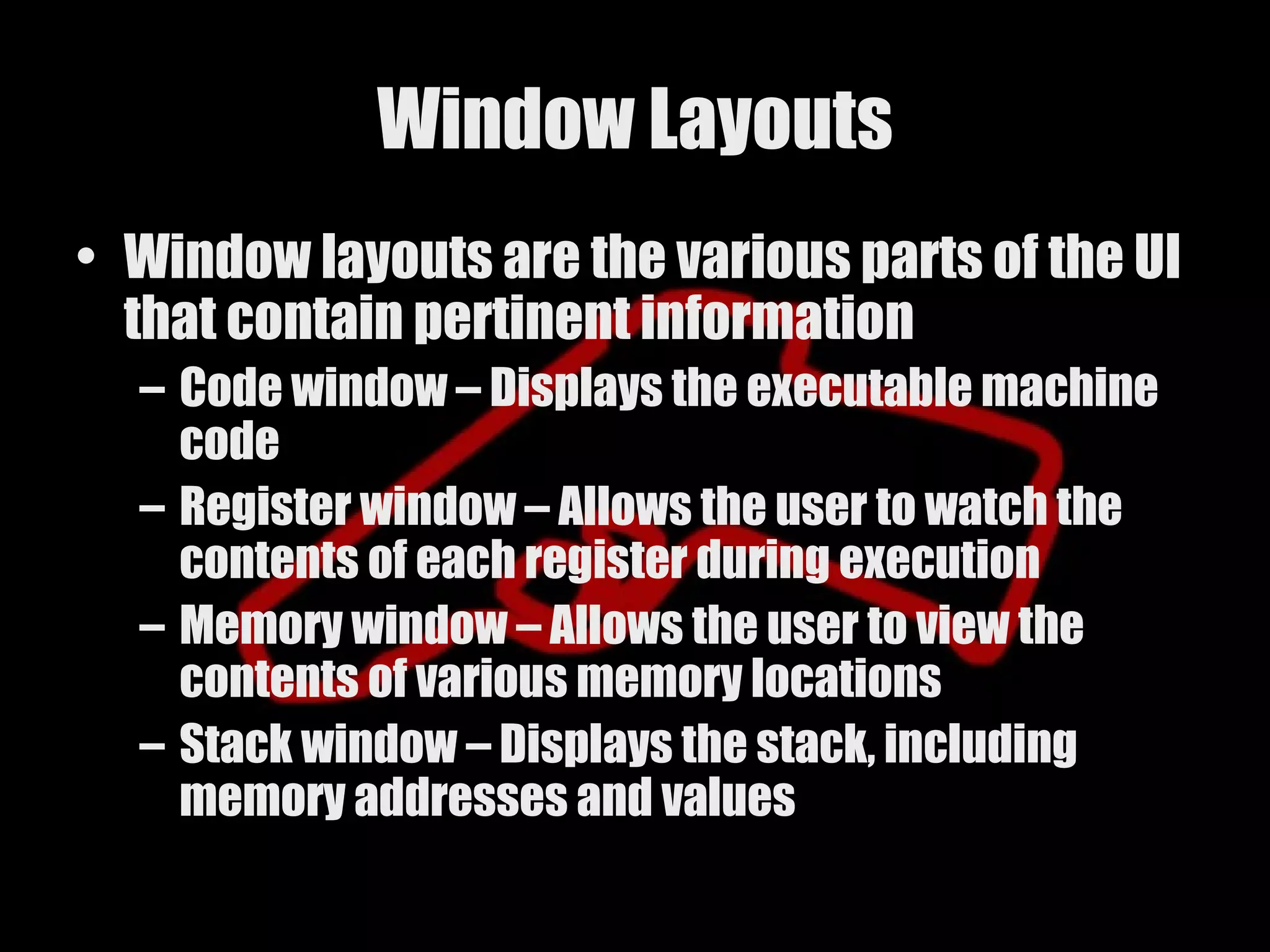

• Window layouts are the various parts of the UI
that contain pertinent information
– Code window – Displays the executable machine
code
– Register window – Allows the user to watch the
contents of each register during execution
– Memory window – Allows the user to view the
contents of various memory locations
– Stack window – Displays the stack, including
memory addresses and values

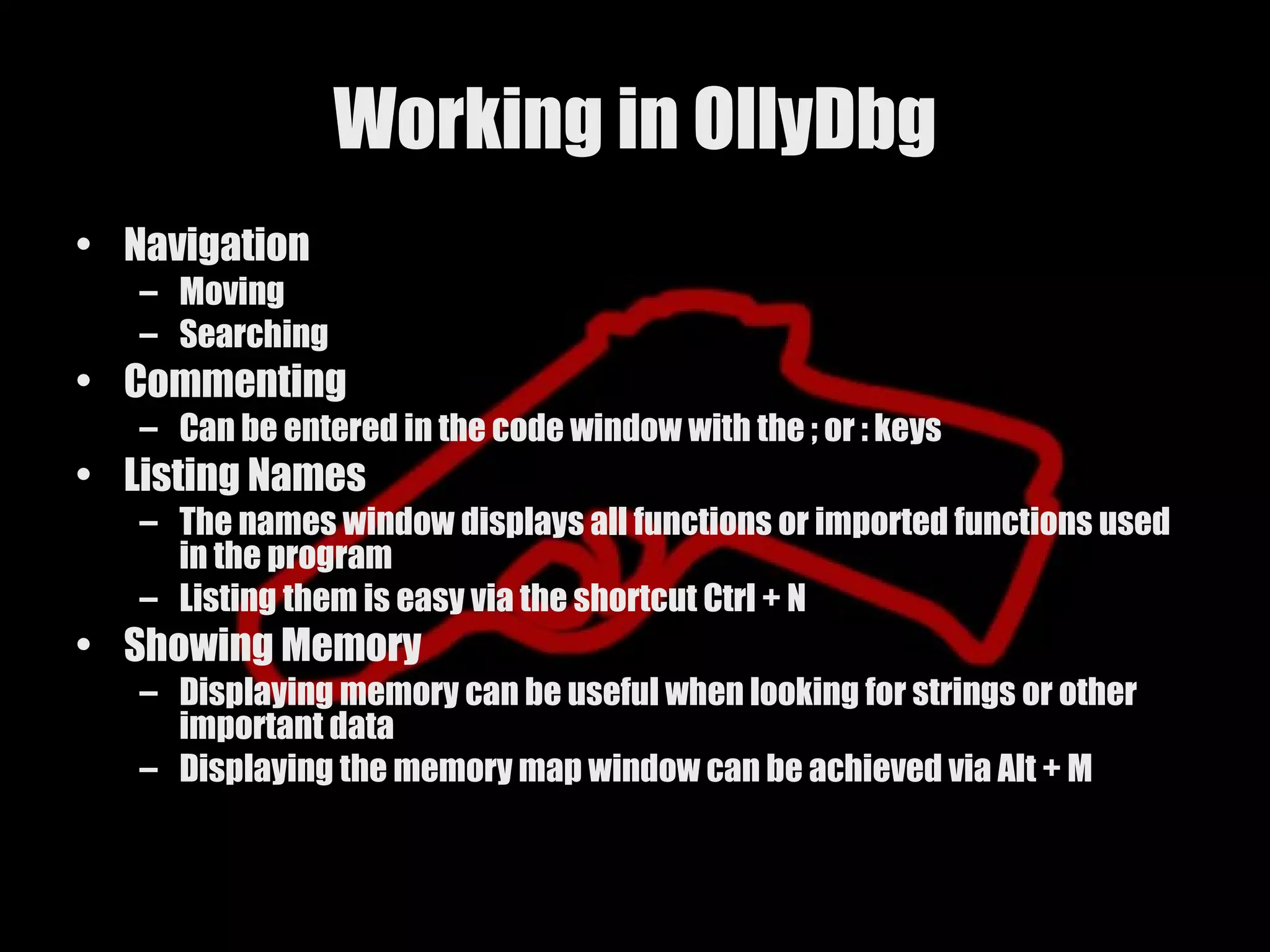

Working in OllyDbg

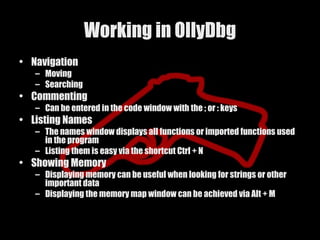

• Navigation
– Moving
– Searching
• Commenting
– Can be entered in the code window with the ; or : keys
• Listing Names
– The names window displays all functions or imported functions used
in the program
– Listing them is easy via the shortcut Ctrl + N
• Showing Memory
– Displaying memory can be useful when looking for strings or other
important data
– Displaying the memory map window can be achieved via Alt + M

Working in OllyDbg Cont…

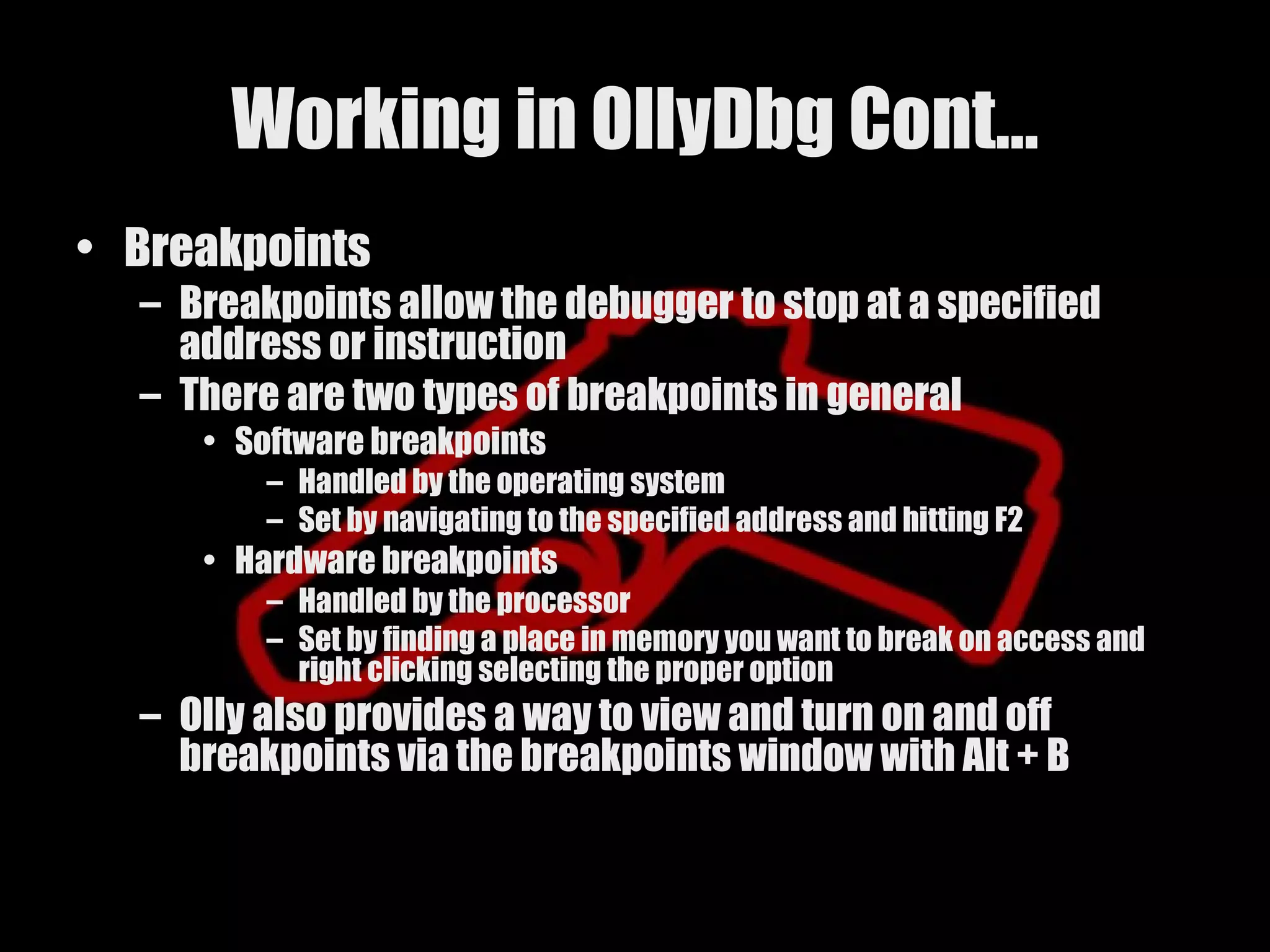

• Breakpoints
– Breakpoints allow the debugger to stop at a specified
address or instruction
– There are two types of breakpoints in general
• Software breakpoints
– Handled by the operating system
– Set by navigating to the specified address and hitting F2
• Hardware breakpoints
– Handled by the processor
– Set by finding a place in memory you want to break on access and
right clicking selecting the proper option
– Olly also provides a way to view and turn on and off
breakpoints via the breakpoints window with Alt + B

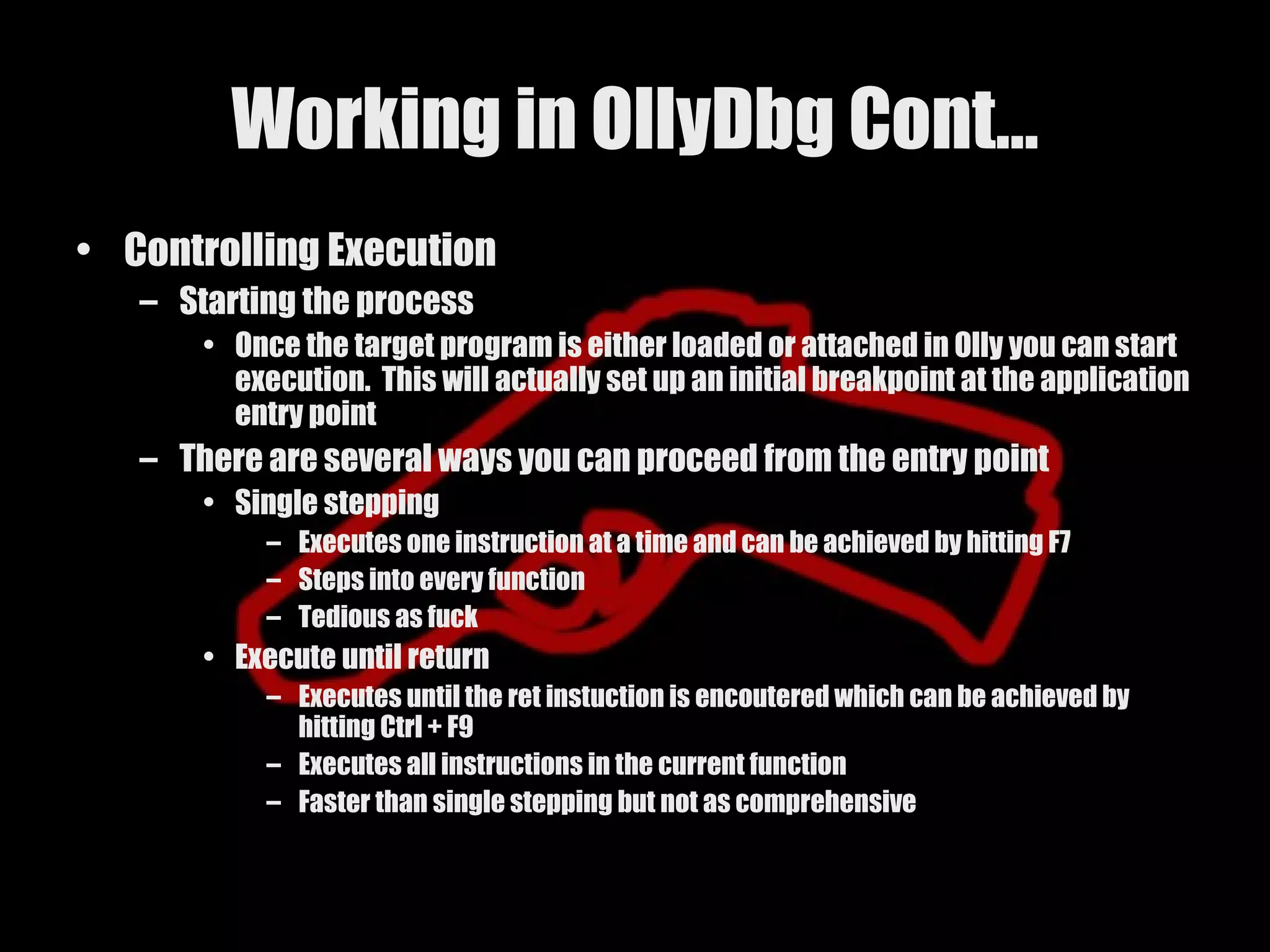

• Controlling Execution
– Starting the process
• Once the target program is either loaded or attached in Olly you can start
execution. This will actually set up an initial breakpoint at the application
entry point
– There are several ways you can proceed from the entry point
• Single stepping
– Executes one instruction at a time and can be achieved by hitting F7
– Steps into every function
– Tedious as fuck
• Execute until return
– Executes until the ret instuction is encoutered which can be achieved by
hitting Ctrl + F9
– Executes all instructions in the current function
– Faster than single stepping but not as comprehensive

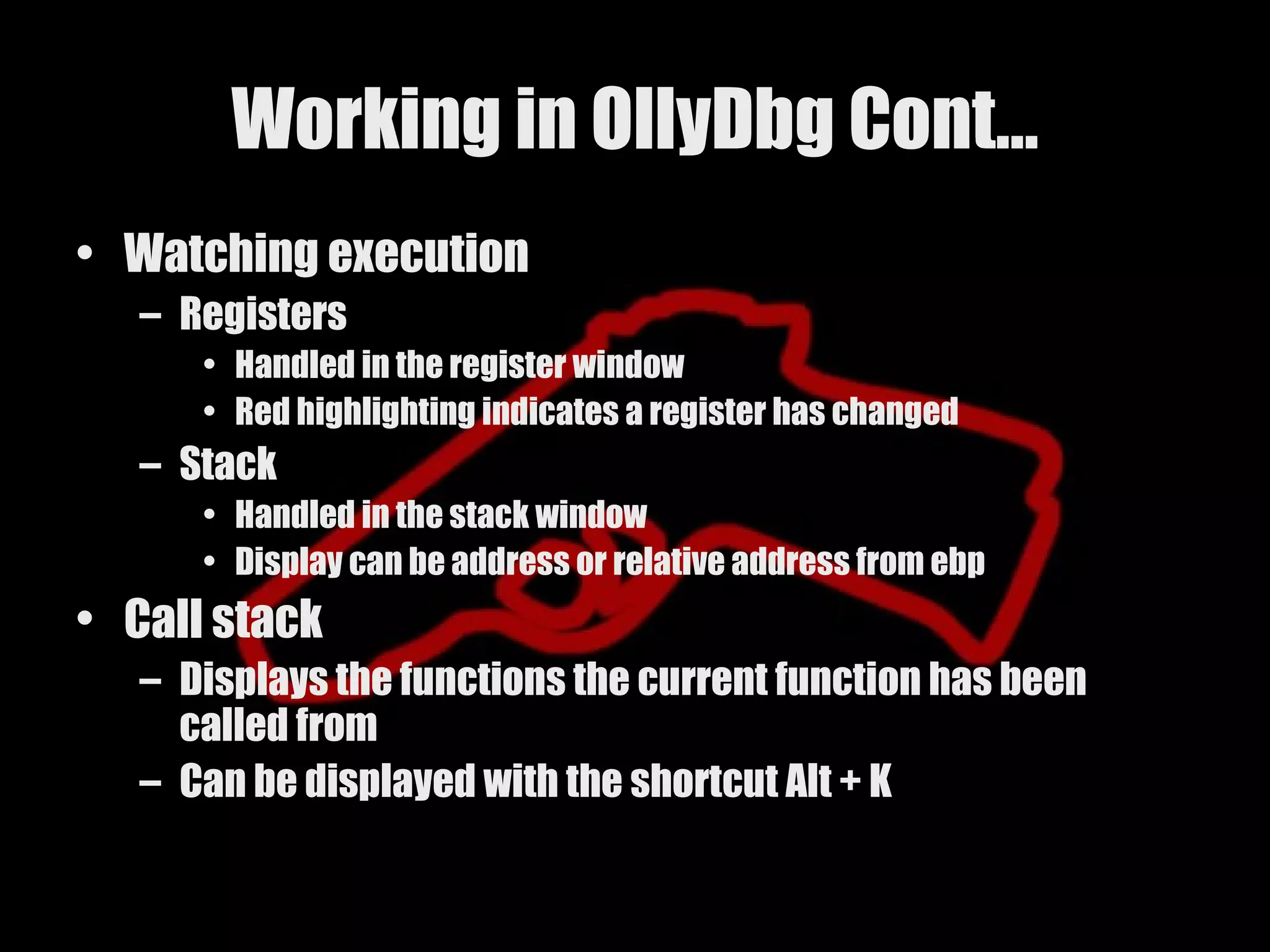

• Watching execution
– Registers
• Handled in the register window
• Red highlighting indicates a register has changed
– Stack
• Handled in the stack window
• Display can be address or relative address from ebp
• Call stack
– Displays the functions the current function has been
called from
– Can be displayed with the shortcut Alt + K

OllyDbg Case Study*
(smarty word for demo)

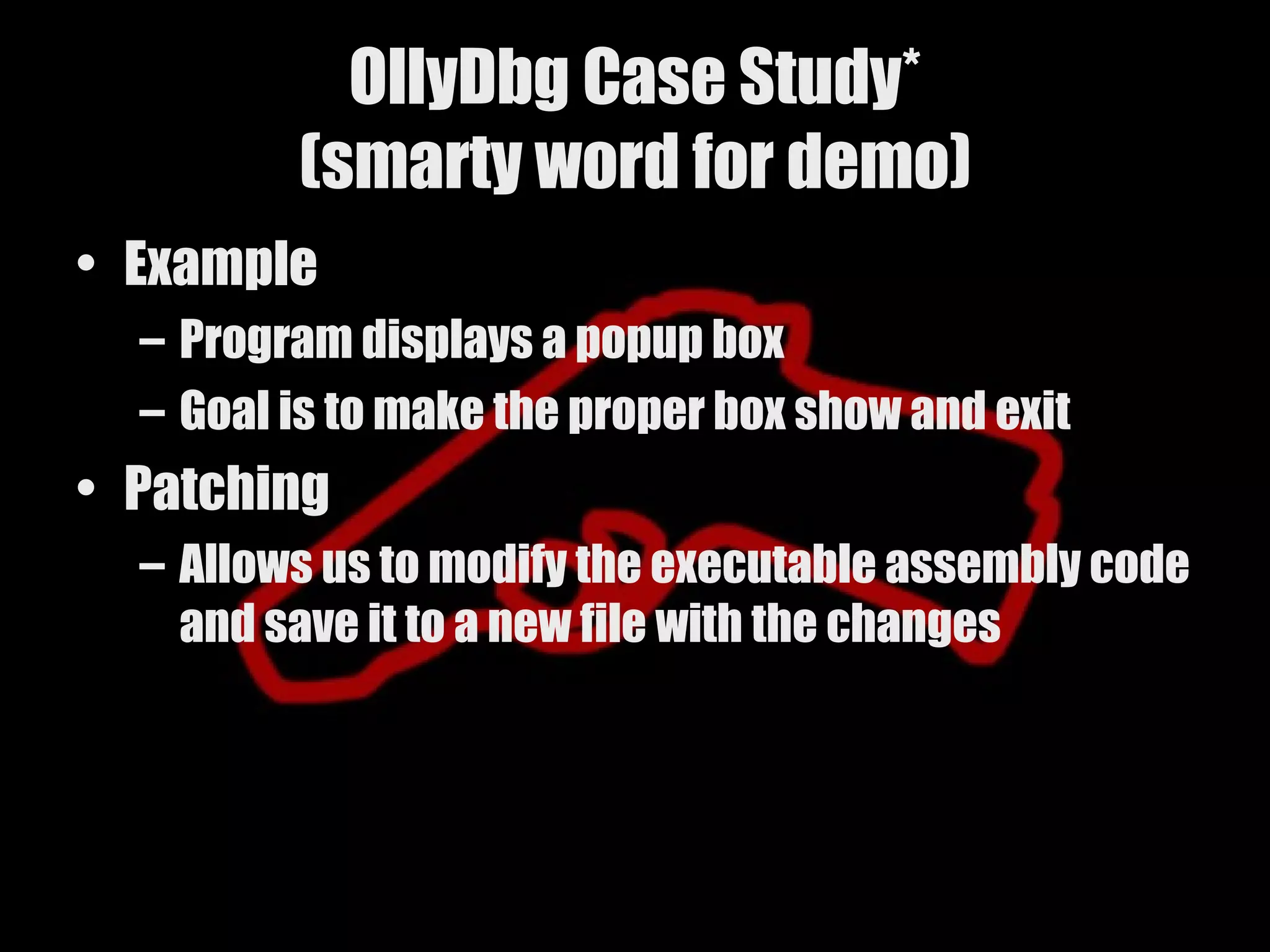

• Example
– Program displays a popup box
– Goal is to make the proper box show and exit
• Patching
– Allows us to modify the executable assembly code
and save it to a new file with the changes

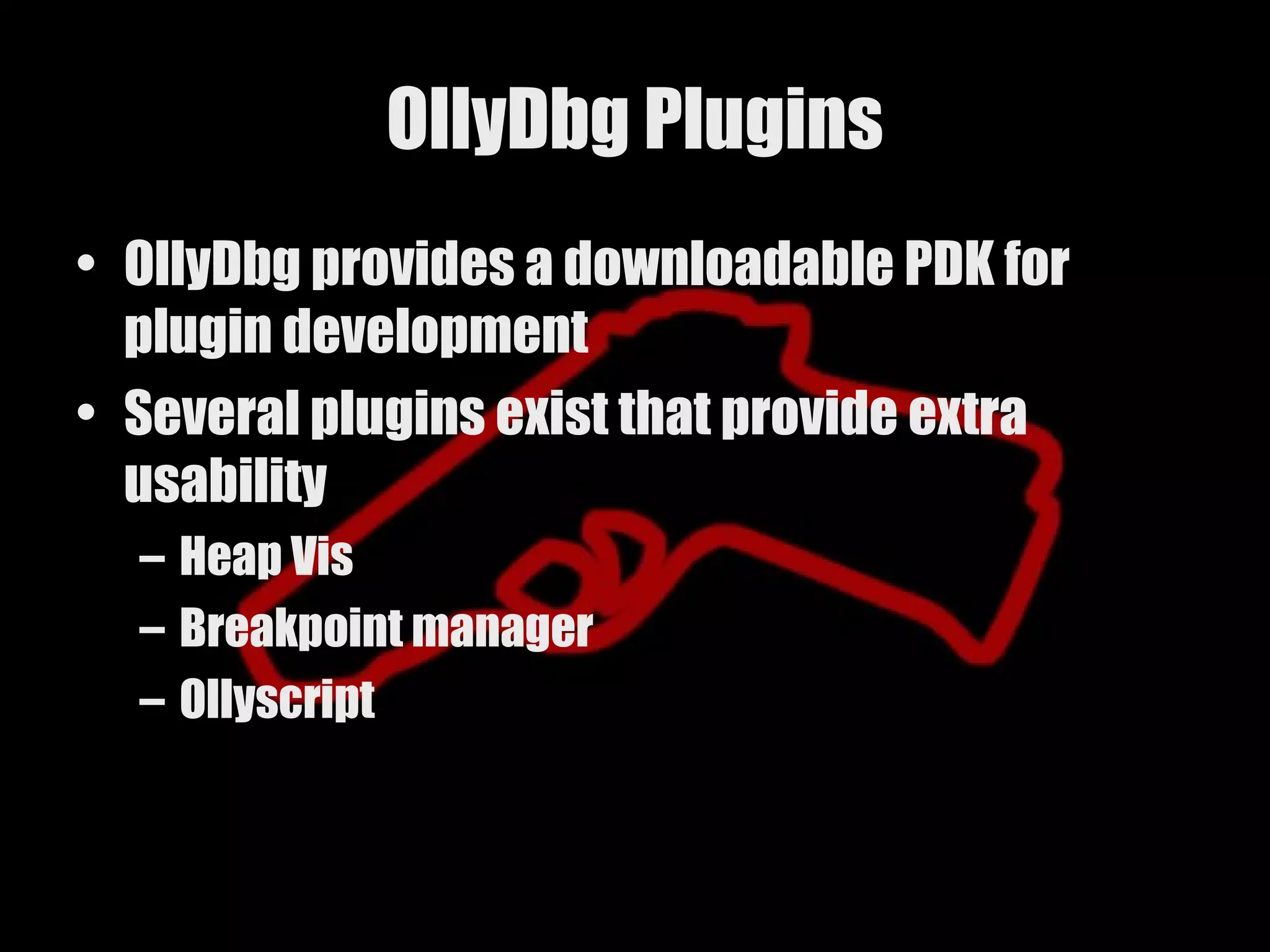

OllyDbg Plugins
• OllyDbg provides a downloadable PDK for
plugin development
• Several plugins exist that provide extra
usability
– Heap Vis
– Breakpoint manager
– Ollyscript

IDA Pro

INF0ANU

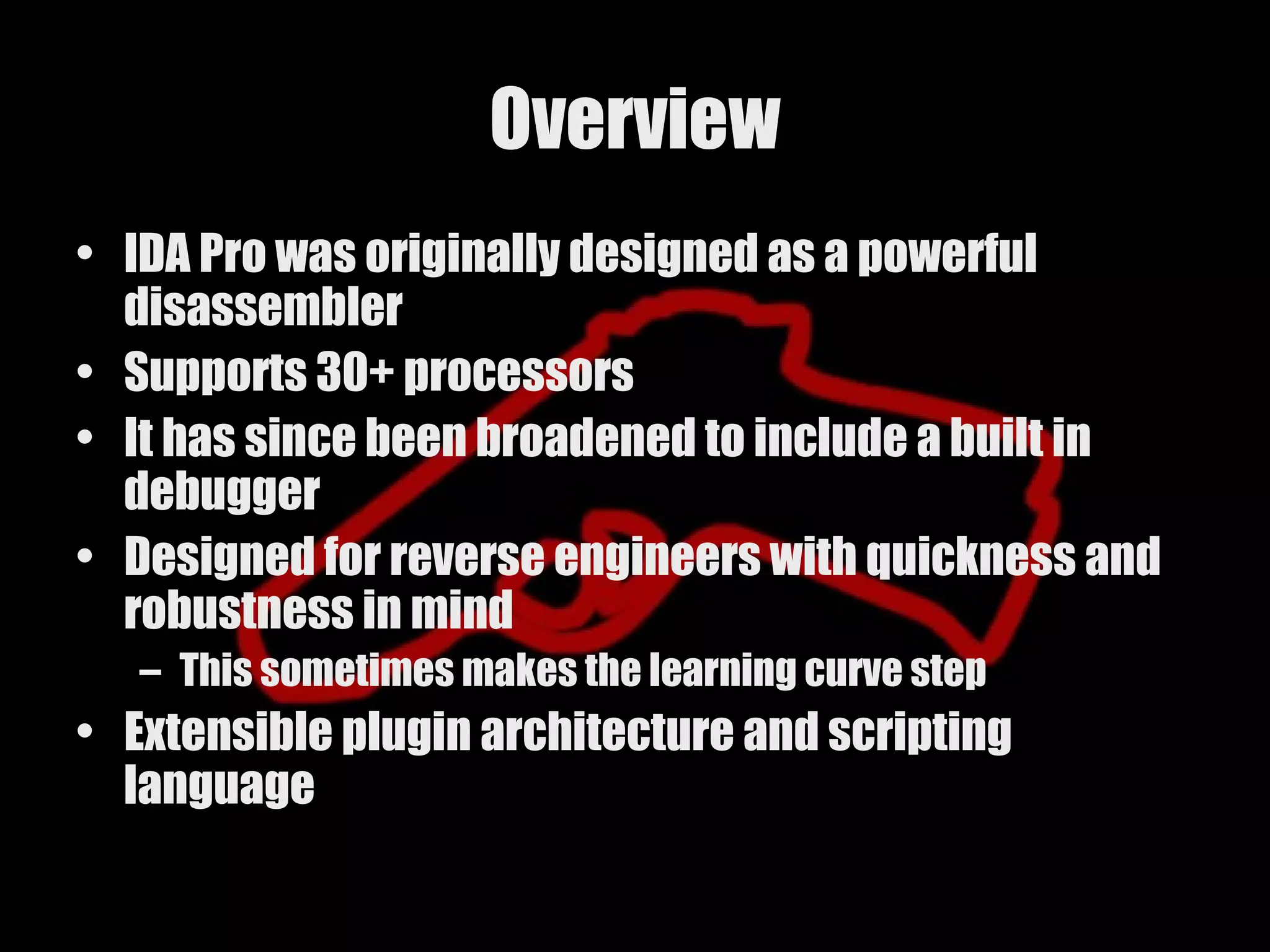

Overview

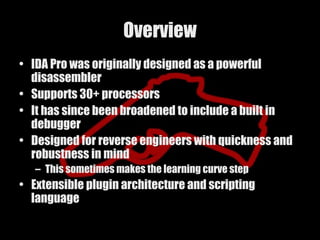

• IDA Pro was originally designed as a powerful
disassembler
• Supports 30+ processors
• It has since been broadened to include a built in
debugger
• Designed for reverse engineers with quickness and
robustness in mind
– This sometimes makes the learning curve step
• Extensible plugin architecture and scripting
language

Window Layouts

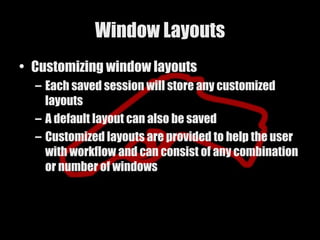

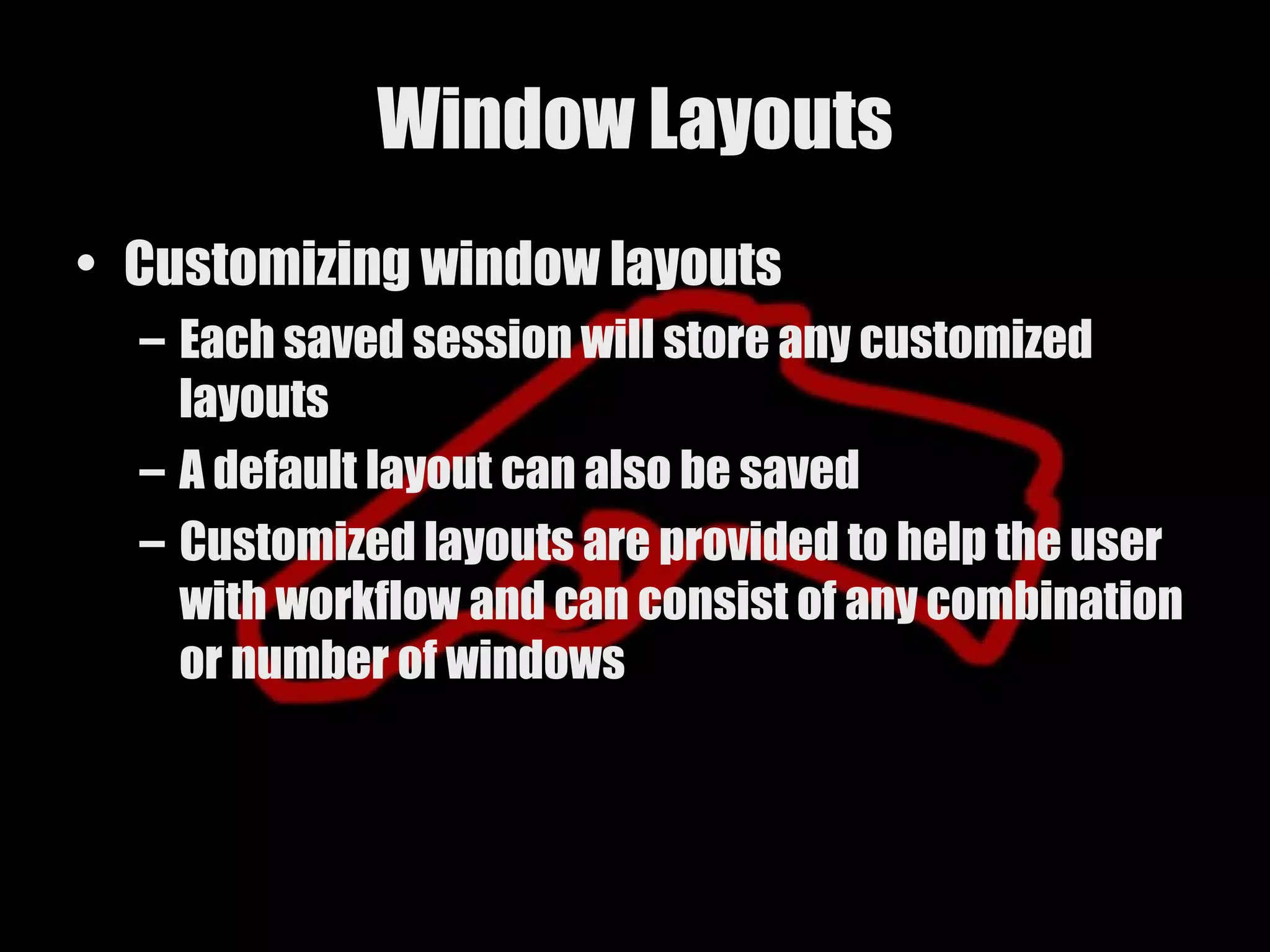

• Customizing window layouts
– Each saved session will store any customized
layouts
– A default layout can also be saved
– Customized layouts are provided to help the user
with workflow and can consist of any combination
or number of windows

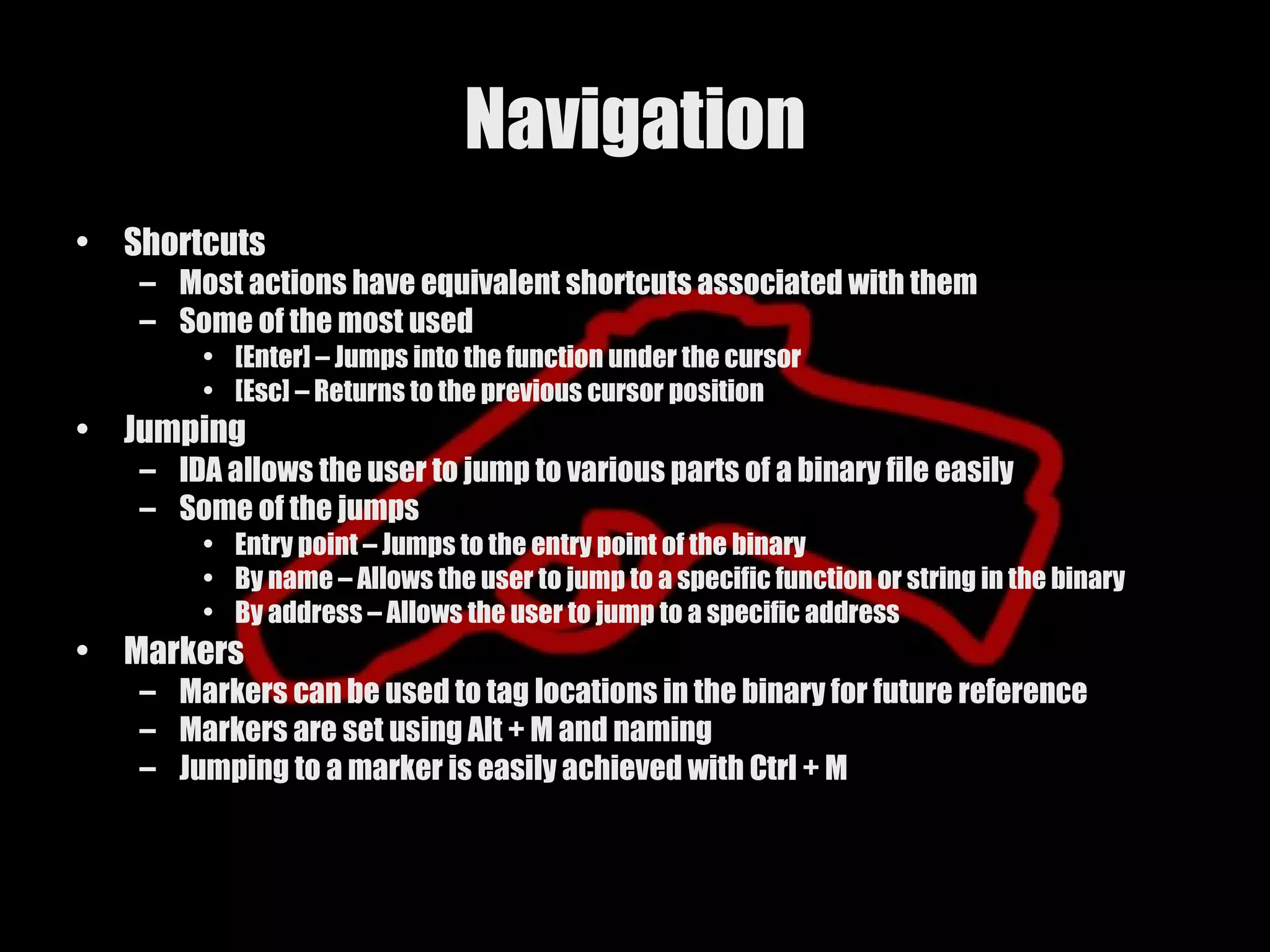

Navigation
• Shortcuts
– Most actions have equivalent shortcuts associated with them
– Some of the most used
• [Enter] – Jumps into the function under the cursor
• [Esc] – Returns to the previous cursor position
• Jumping
– IDA allows the user to jump to various parts of a binary file easily
– Some of the jumps
• Entry point – Jumps to the entry point of the binary
• By name – Allows the user to jump to a specific function or string in the binary
• By address – Allows the user to jump to a specific address
• Markers
– Markers can be used to tag locations in the binary for future reference
– Markers are set using Alt + M and naming
– Jumping to a marker is easily achieved with Ctrl + M

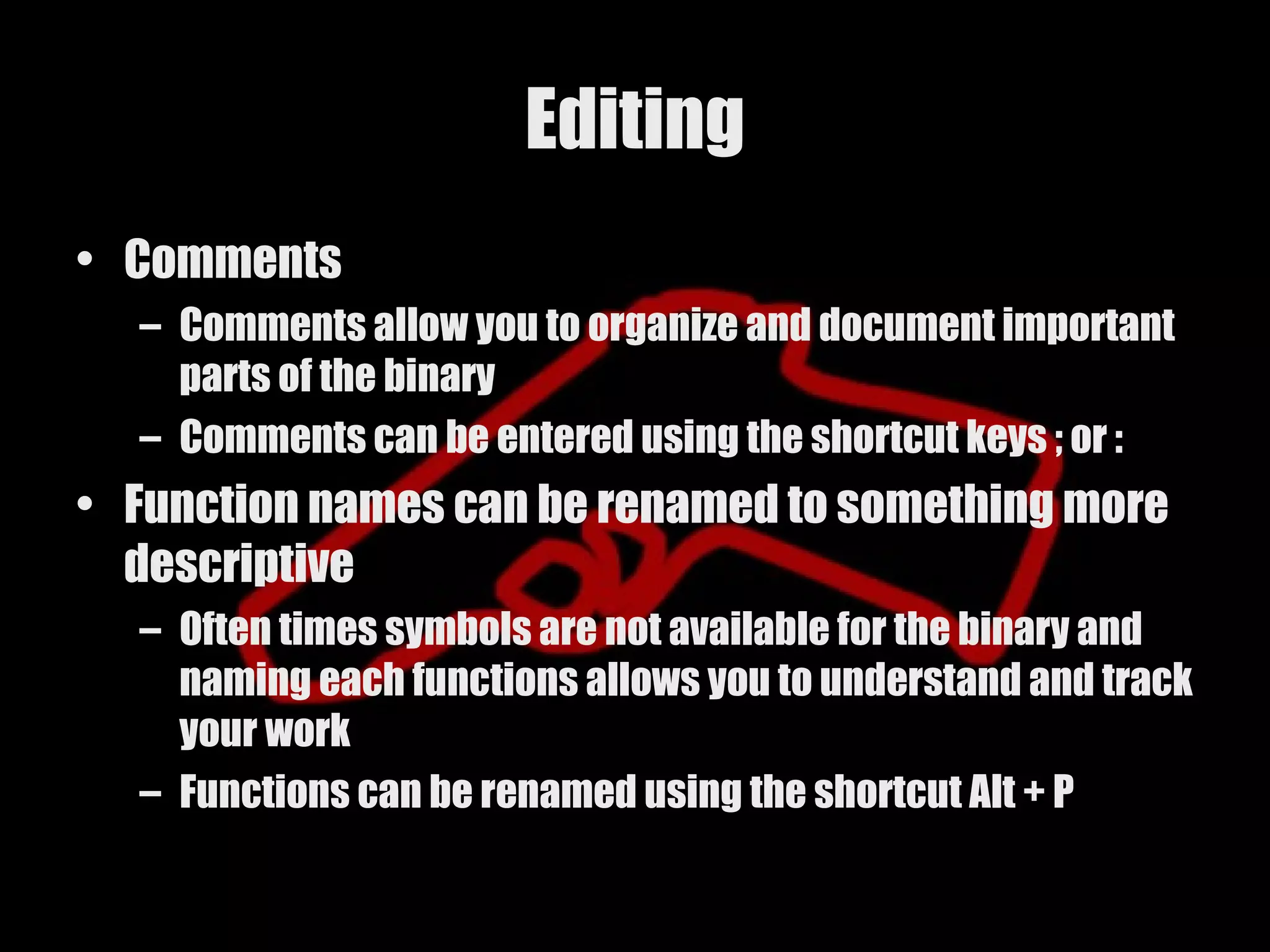

Editing

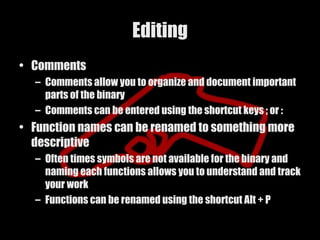

• Comments
– Comments allow you to organize and document important
parts of the binary
– Comments can be entered using the shortcut keys ; or :
• Function names can be renamed to something more
descriptive
– Often times symbols are not available for the binary and
naming each functions allows you to understand and track
your work
– Functions can be renamed using the shortcut Alt + P

Windows

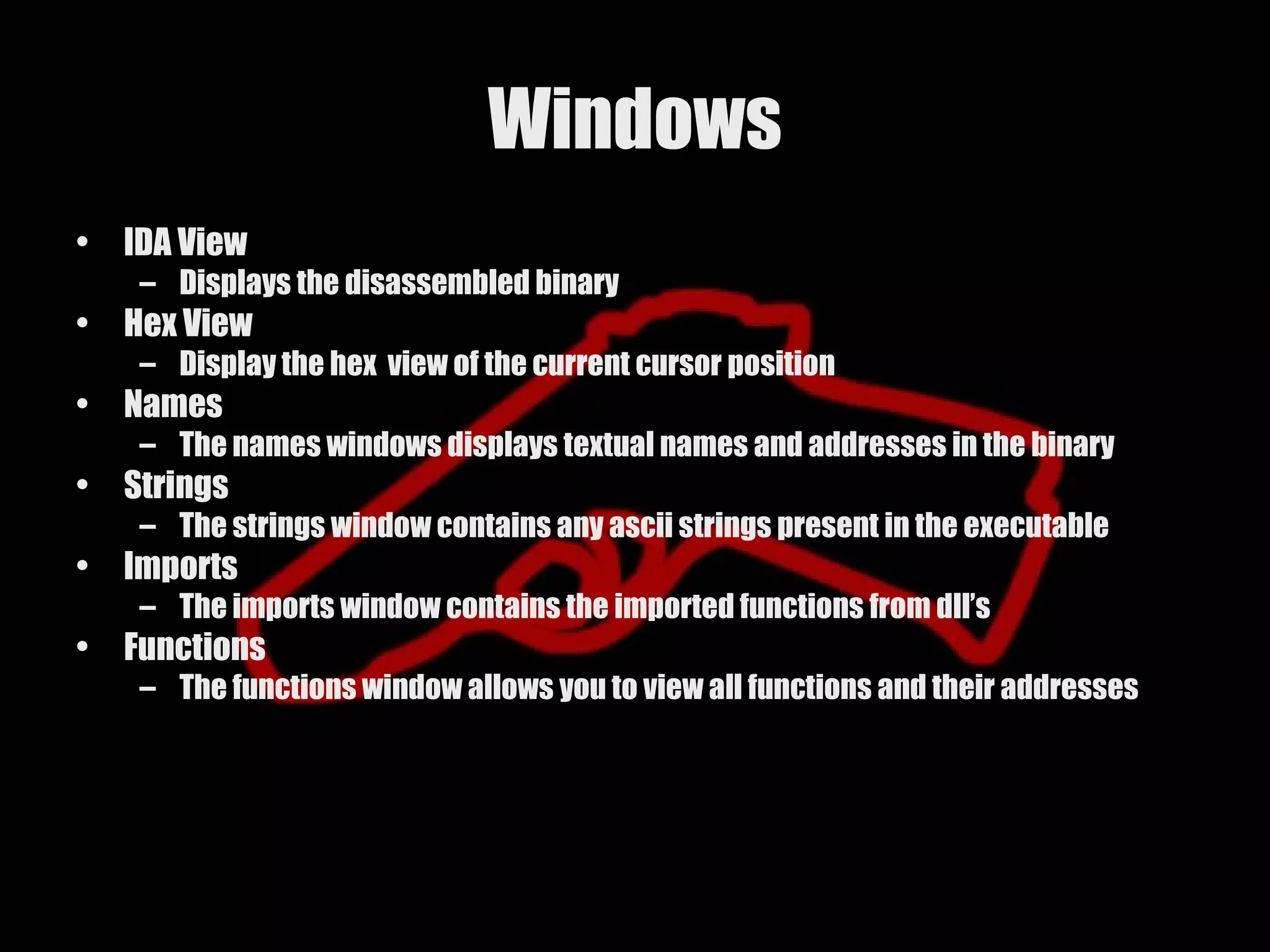

• IDA View
– Displays the disassembled binary
• Hex View
– Display the hex view of the current cursor position
• Names
– The names windows displays textual names and addresses in the binary
• Strings
– The strings window contains any ascii strings present in the executable
• Imports
– The imports window contains the imported functions from dll’s
• Functions
– The functions window allows you to view all functions and their addresses

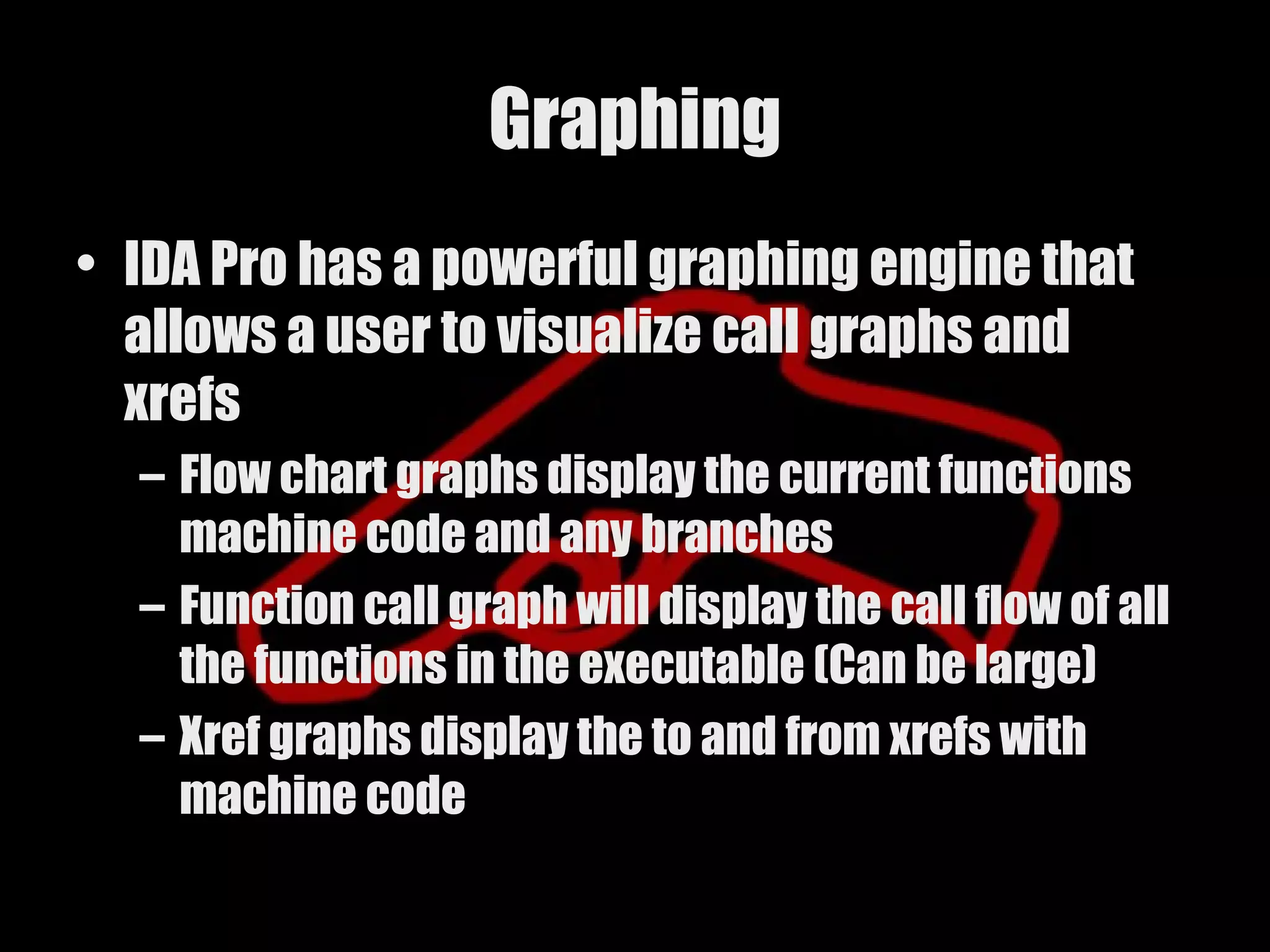

Graphing
• IDA Pro has a powerful graphing engine that
allows a user to visualize call graphs and
xrefs
– Flow chart graphs display the current functions
machine code and any branches
– Function call graph will display the call flow of all
the functions in the executable (Can be large)
– Xref graphs display the to and from xrefs with
machine code

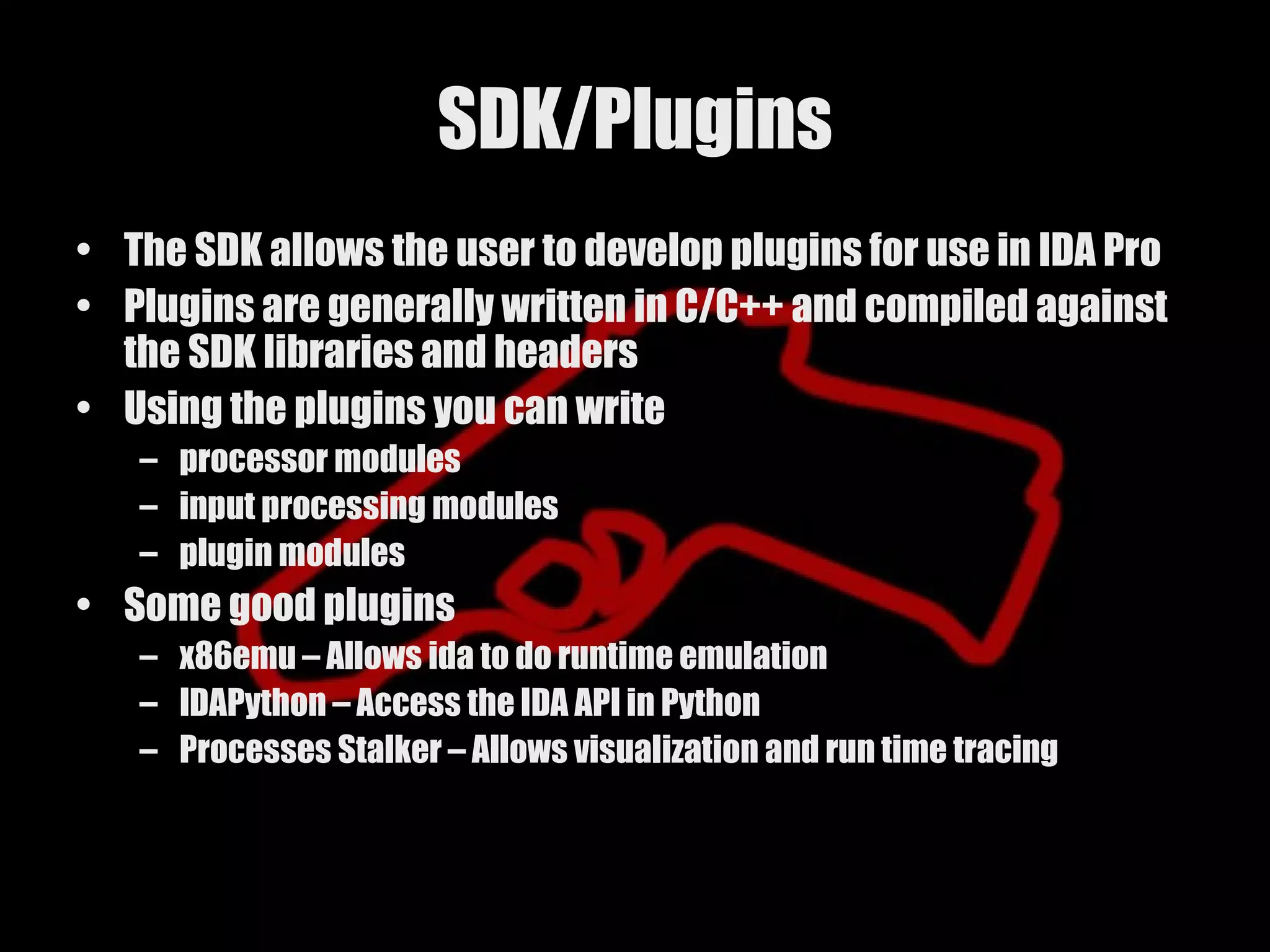

SDK/Plugins
• The SDK allows the user to develop plugins for use in IDA Pro
• Plugins are generally written in C/C++ and compiled against
the SDK libraries and headers
• Using the plugins you can write
– processor modules
– input processing modules
– plugin modules
• Some good plugins
– x86emu – Allows ida to do runtime emulation
– IDAPython – Access the IDA API in Python
– Processes Stalker – Allows visualization and run time tracing

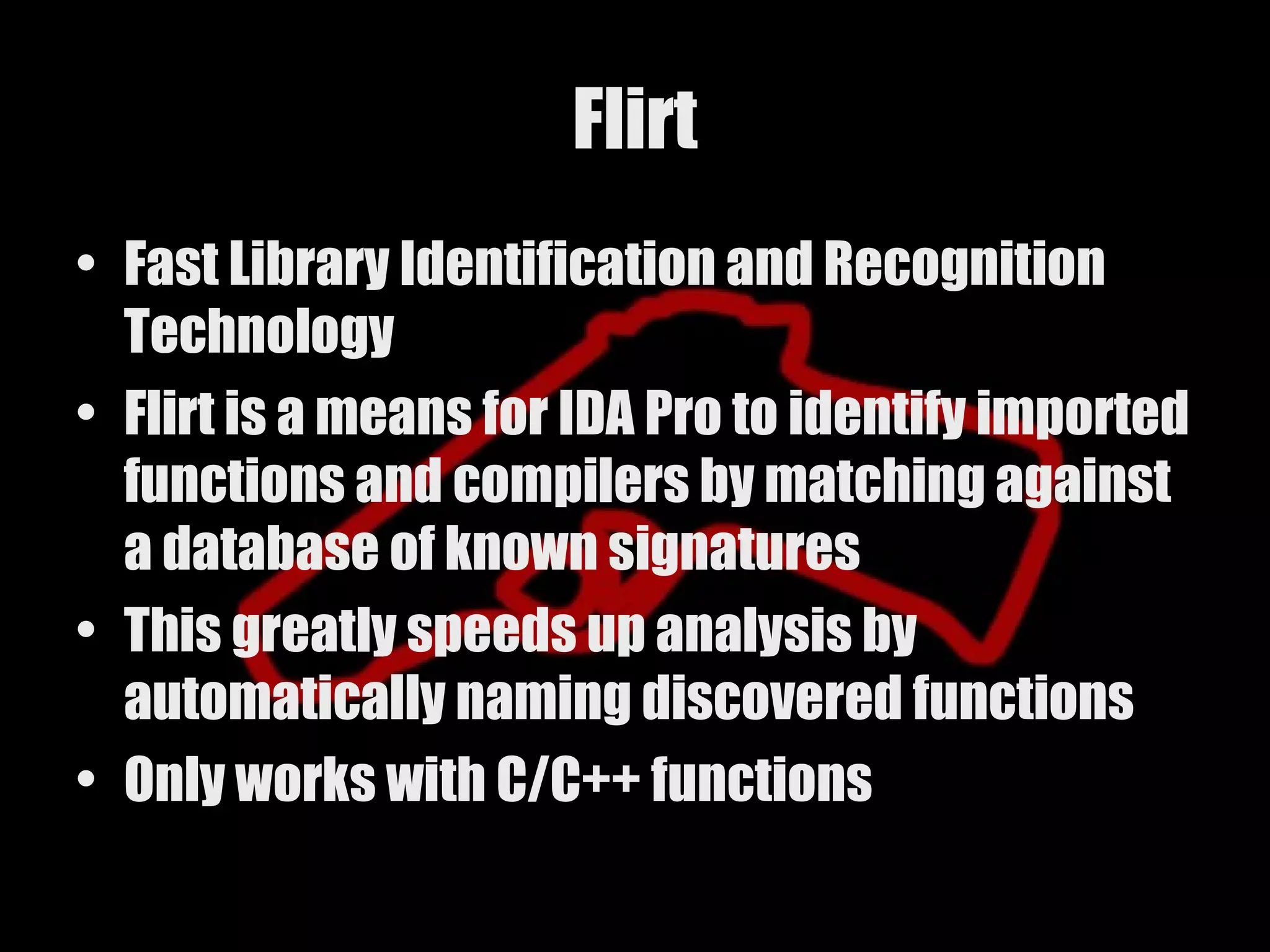

Flirt
• Fast Library Identification and Recognition
Technology
• Flirt is a means for IDA Pro to identify imported
functions and compilers by matching against
a database of known signatures
• This greatly speeds up analysis by
automatically naming discovered functions
• Only works with C/C++ functions

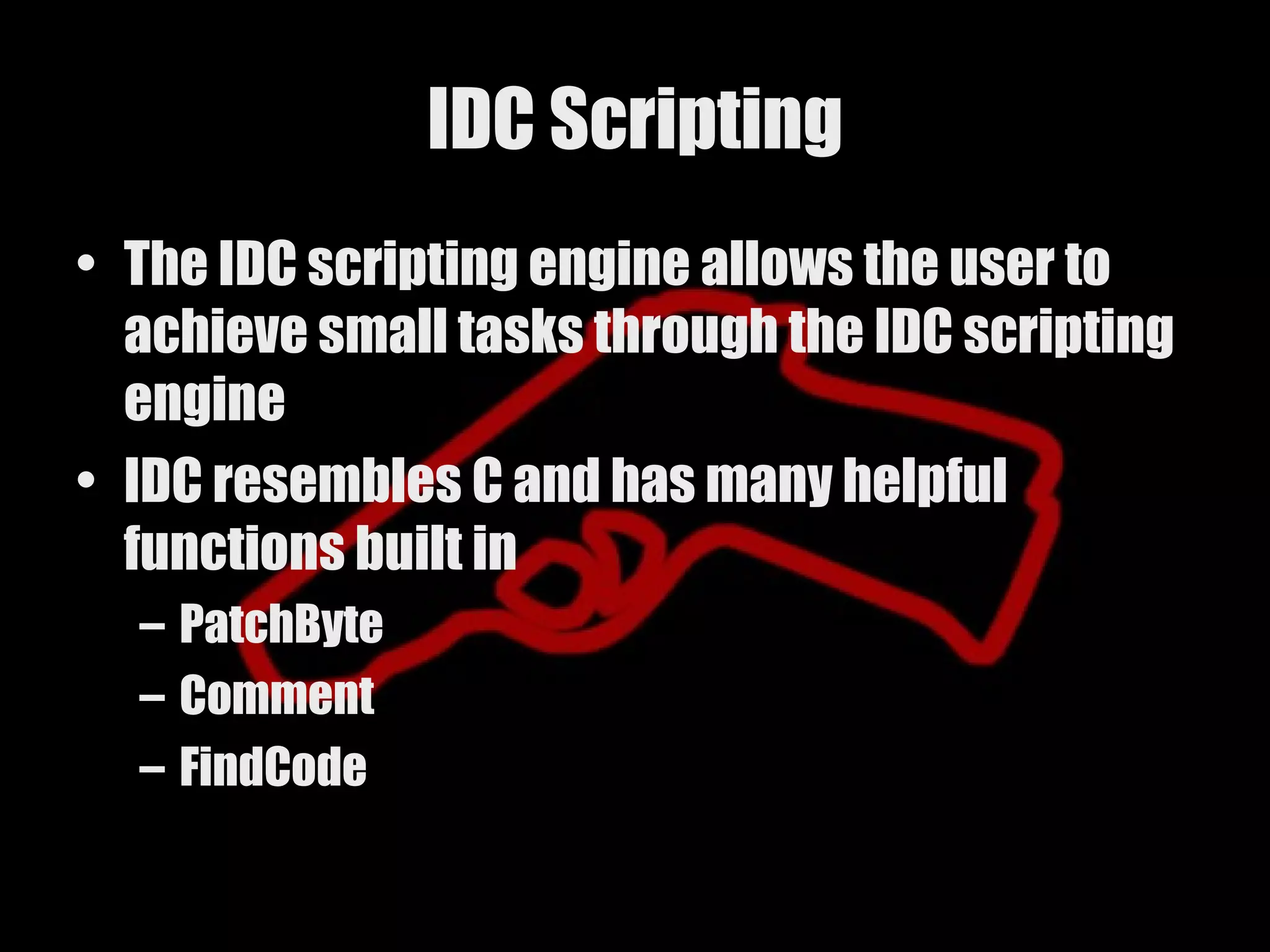

IDC Scripting
• The IDC scripting engine allows the user to
achieve small tasks through the IDC scripting
engine
• IDC resembles C and has many helpful
functions built in
– PatchByte
– Comment
– FindCode

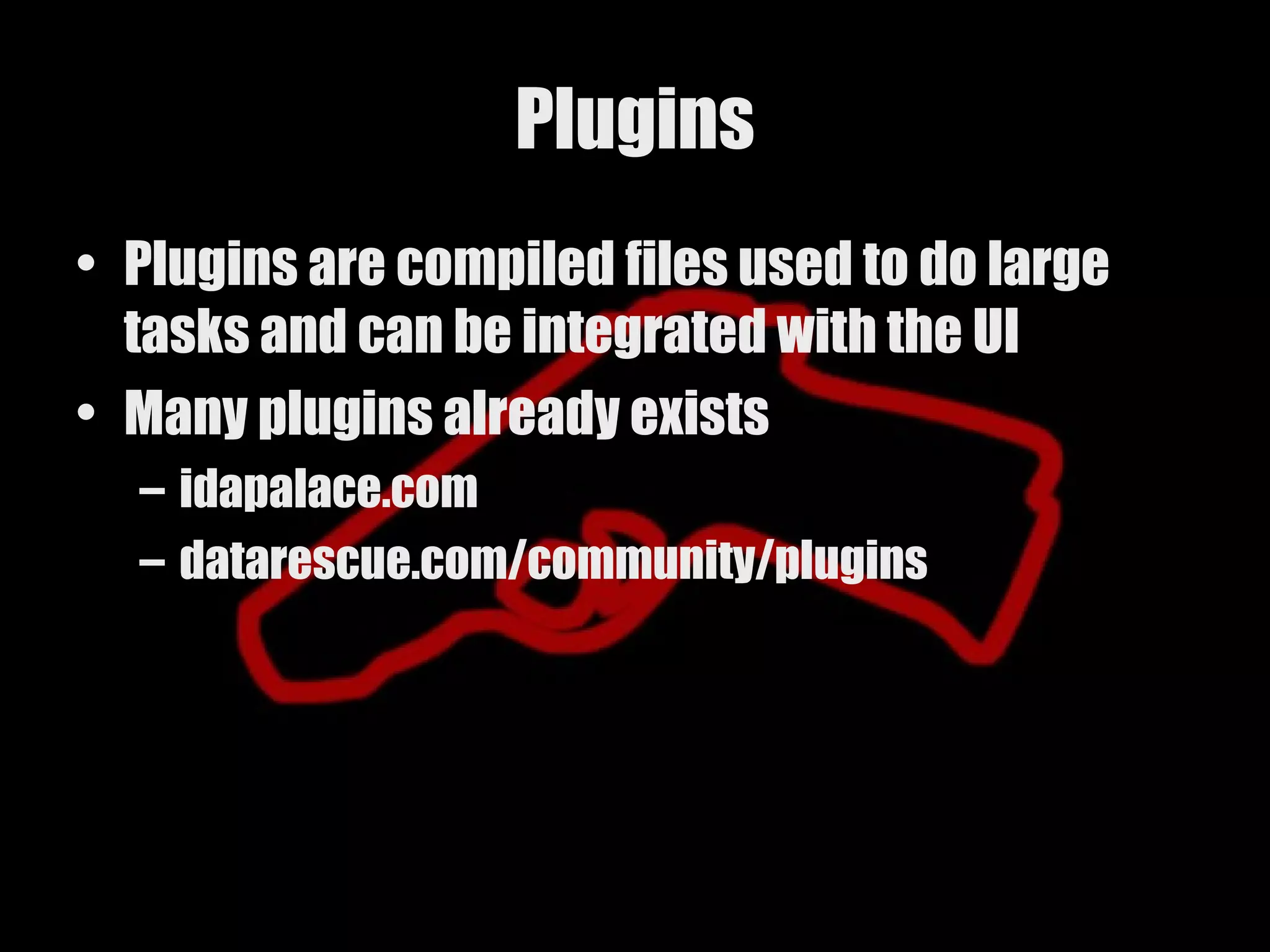

Plugins
• Plugins are compiled files used to do large
tasks and can be integrated with the UI
• Many plugins already exists
– idapalace.com
– datarescue.com/community/plugins

Decompiling

INF0ANU

Overview

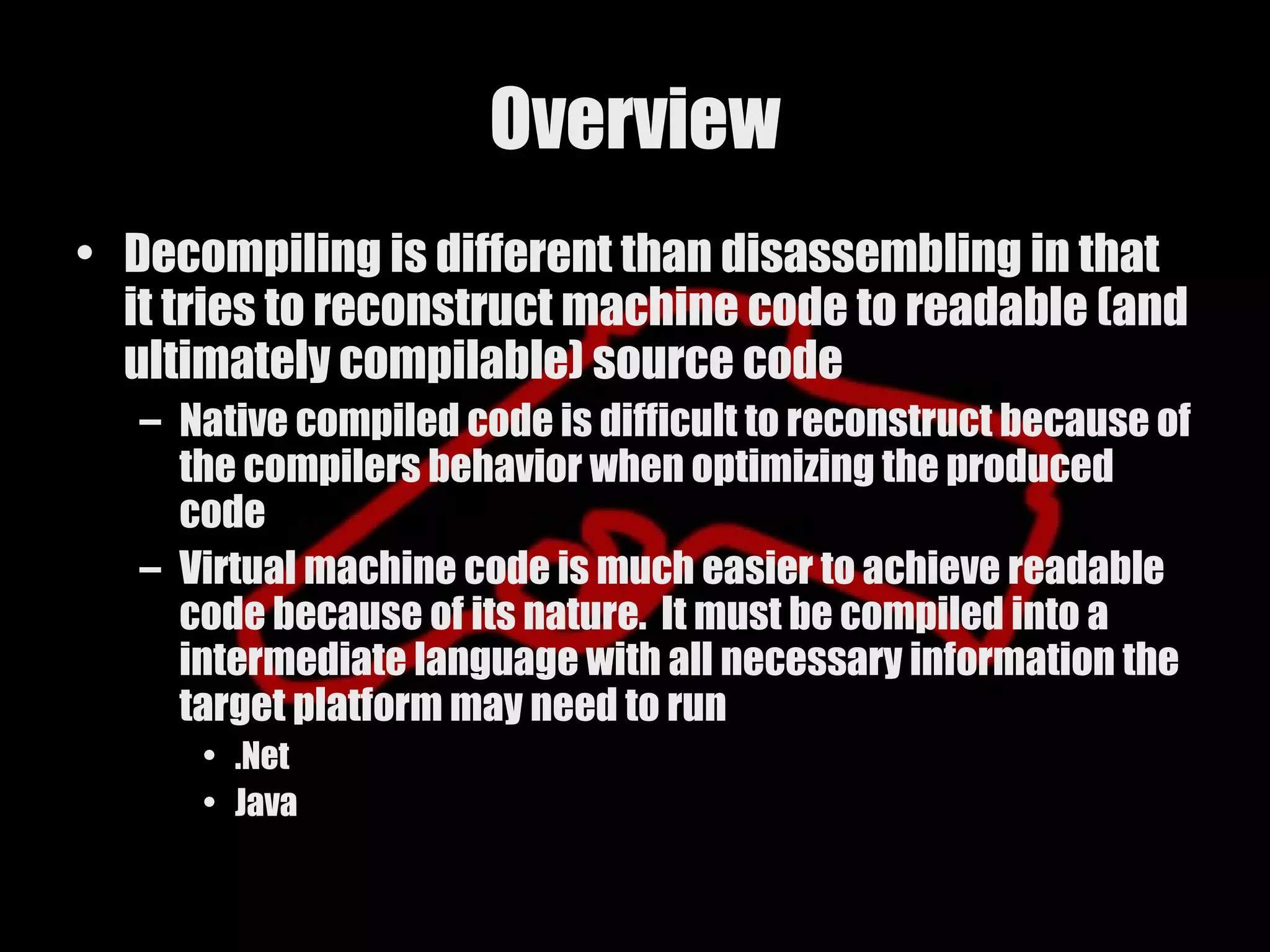

• Decompiling is different than disassembling in that
it tries to reconstruct machine code to readable (and
ultimately compilable) source code
– Native compiled code is difficult to reconstruct because of
the compilers behavior when optimizing the produced
code
– Virtual machine code is much easier to achieve readable
code because of its nature. It must be compiled into a
intermediate language with all necessary information the
target platform may need to run
• .Net
• Java

.Net

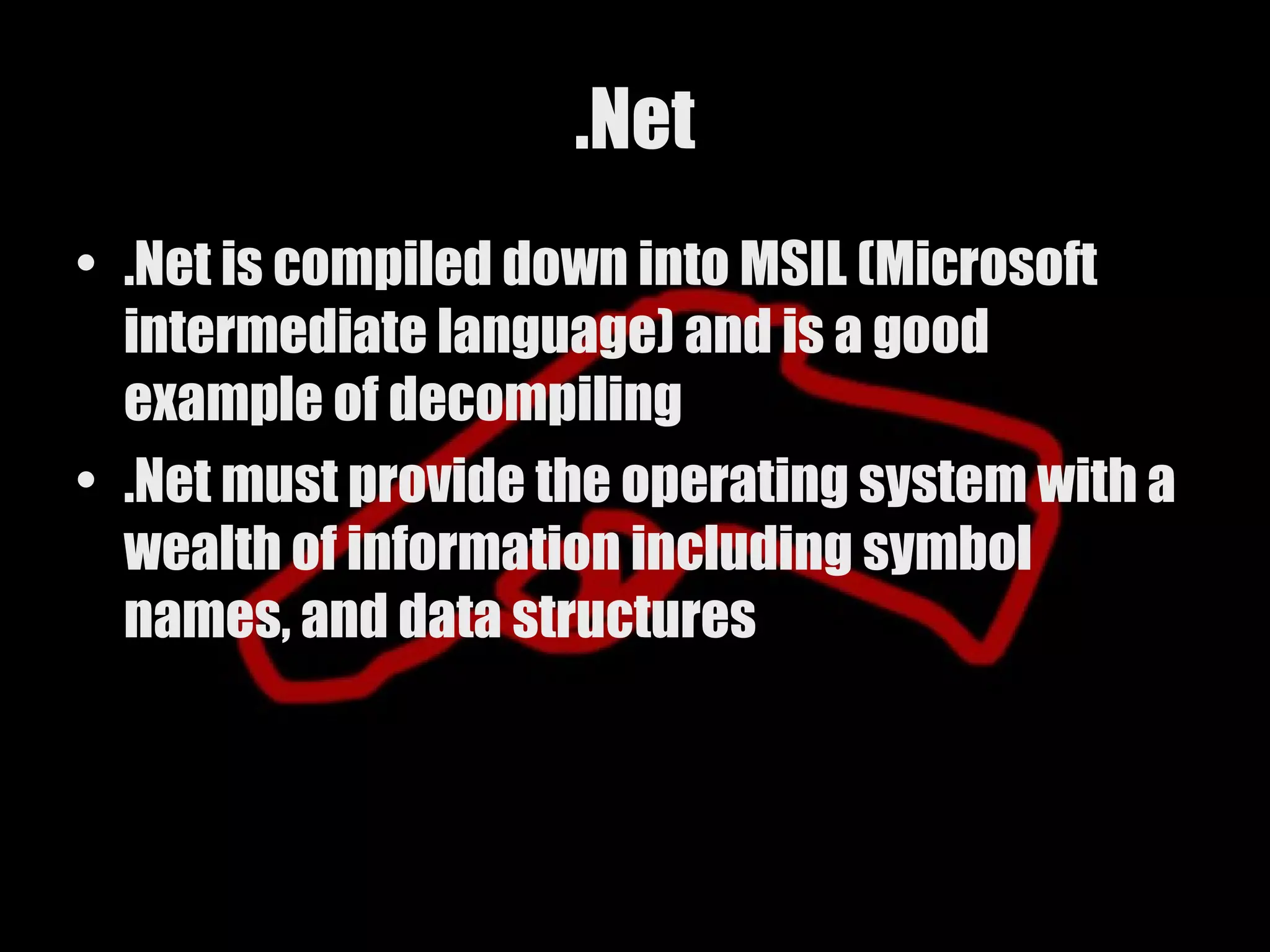

• .Net is compiled down into MSIL (Microsoft
intermediate language) and is a good
example of decompiling
• .Net must provide the operating system with a
wealth of information including symbol
names, and data structures

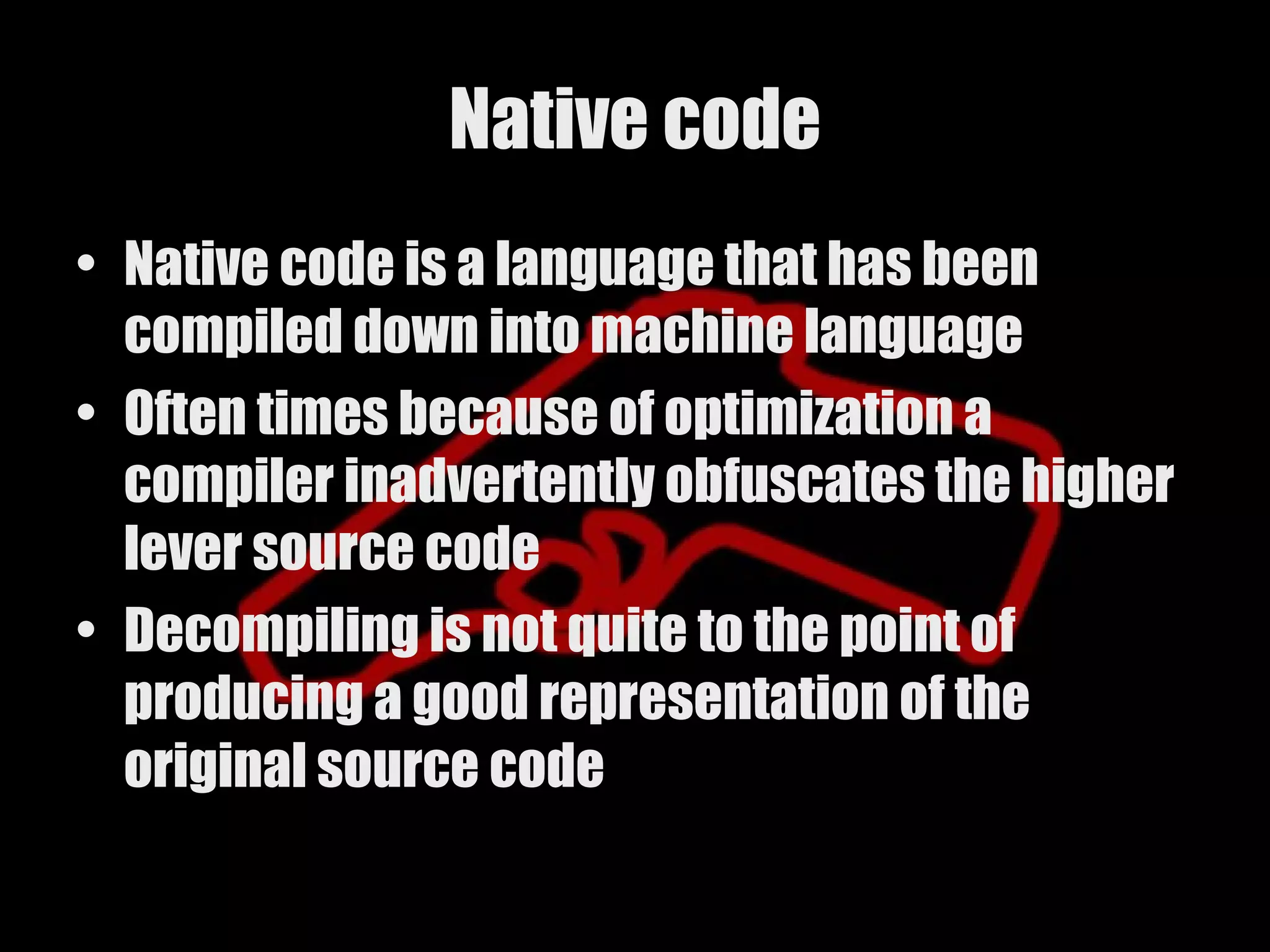

Native code
• Native code is a language that has been
compiled down into machine language
• Often times because of optimization a
compiler inadvertently obfuscates the higher
lever source code
• Decompiling is not quite to the point of
producing a good representation of the
original source code

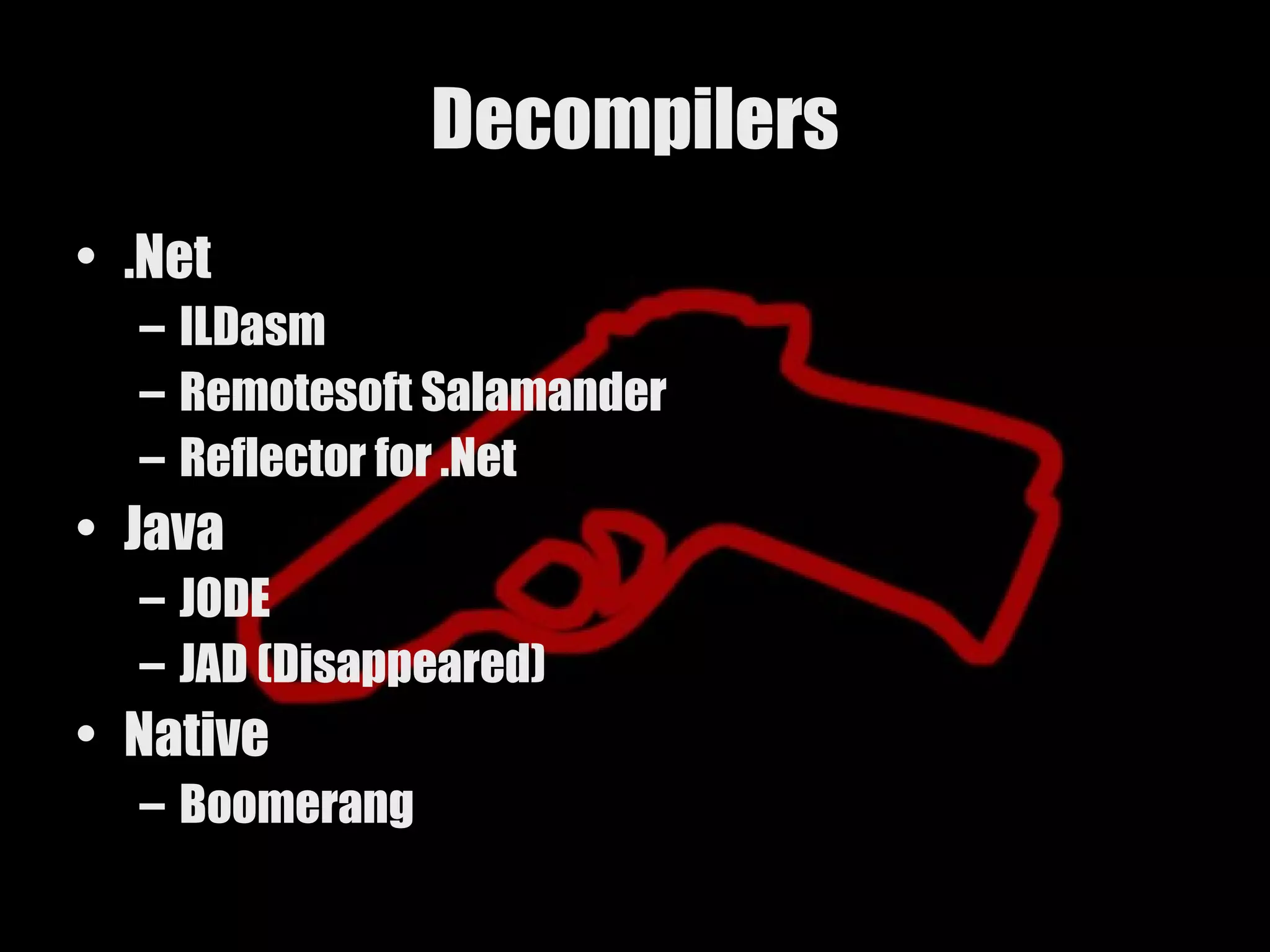

Decompilers
• .Net
– ILDasm
– Remotesoft Salamander
– Reflector for .Net
• Java
– JODE
– JAD (Disappeared)
• Native
– Boomerang

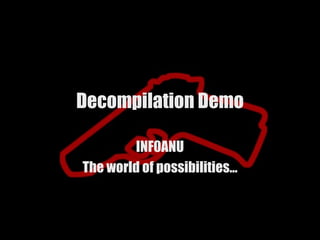

Decompilation Demo

INF0ANU

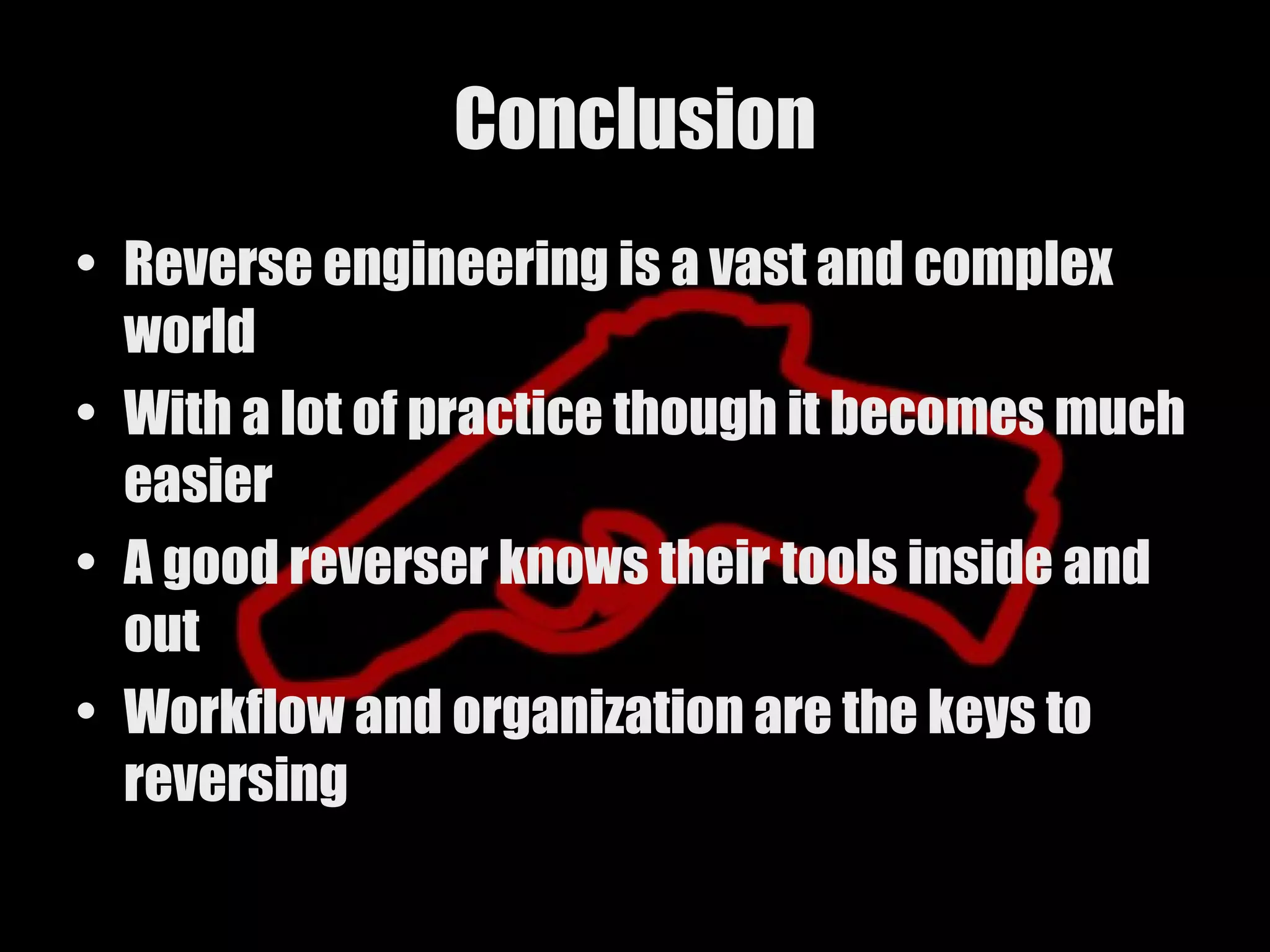

Conclusion
• Reverse engineering is a vast and complex
world
• With a lot of practice though it becomes much
easier
• A good reverser knows their tools inside and
out
• Workflow and organization are the keys to
reversing

Shirt Quiz

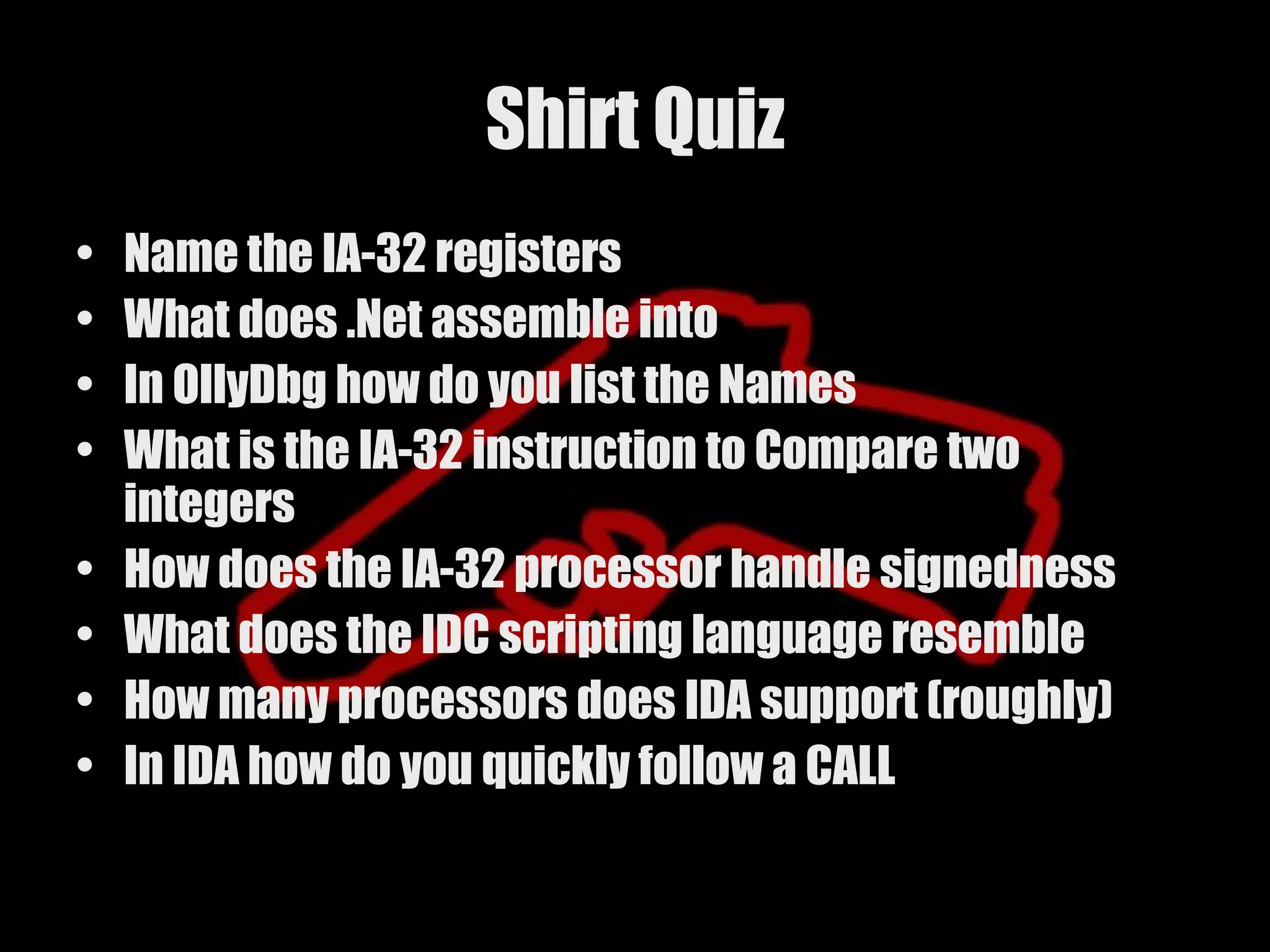

• Name the IA-32 registers
• What does .Net assemble into
• In OllyDbg how do you list the Names
• What is the IA-32 instruction to Compare two
integers
• How does the IA-32 processor handle signedness
• What does the IDC scripting language resemble
• How many processors does IDA support (roughly)
• In IDA how do you quickly follow a CALL

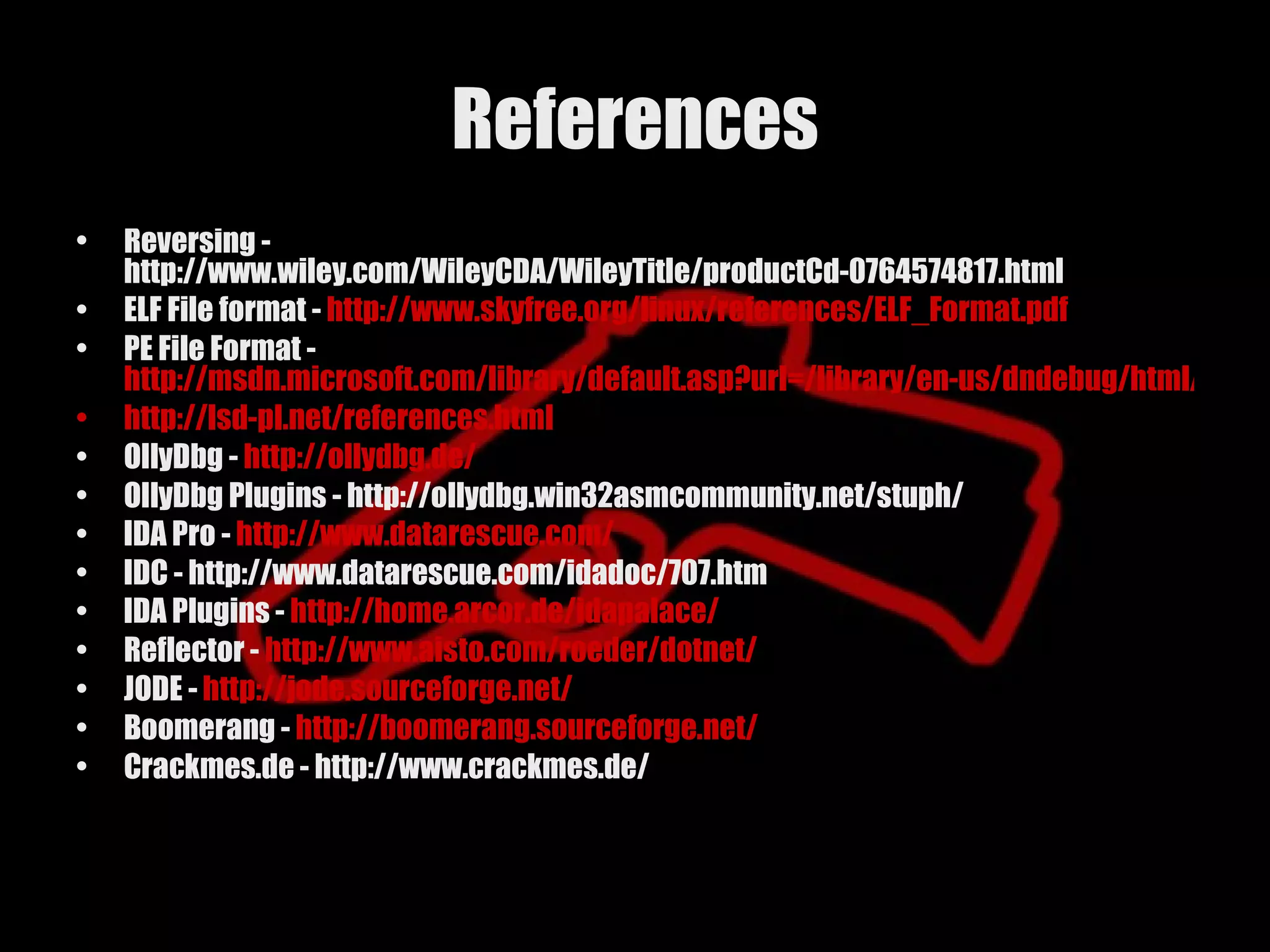

References
• Reversing -
http://www.wiley.com/WileyCDA/WileyTitle/productCd-0764574817.html
• ELF File format - http://www.skyfree.org/linux/references/ELF_Format.pdf
• PE File Format -
http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dndebug/html/msdn
• http://lsd-pl.net/references.html
• OllyDbg - http://ollydbg.de/
• OllyDbg Plugins - http://ollydbg.win32asmcommunity.net/stuph/
• IDA Pro - http://www.datarescue.com/
• IDC - http://www.datarescue.com/idadoc/707.htm
• IDA Plugins - http://home.arcor.de/idapalace/
• Reflector - http://www.aisto.com/roeder/dotnet/
• JODE - http://jode.sourceforge.net/
• Boomerang - http://boomerang.sourceforge.net/
• Crackmes.de - http://www.crackmes.de/

Intro reverse engineering

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Intro reverse engineering

Similar to Intro reverse engineering (20)

Recently uploaded

Recently uploaded (20)

Intro reverse engineering
