1. PLC Fundamental
wiring
and Sink/Source

2. PLC Fundamantel
• What Is PLC ?????
Programmable Logic Controller
Hardware
- Ladder Logic
- FBD
- SFC
Reprogramming
• Let's come next page how to use thsi system parcticaly

3. PLC Fundamantel

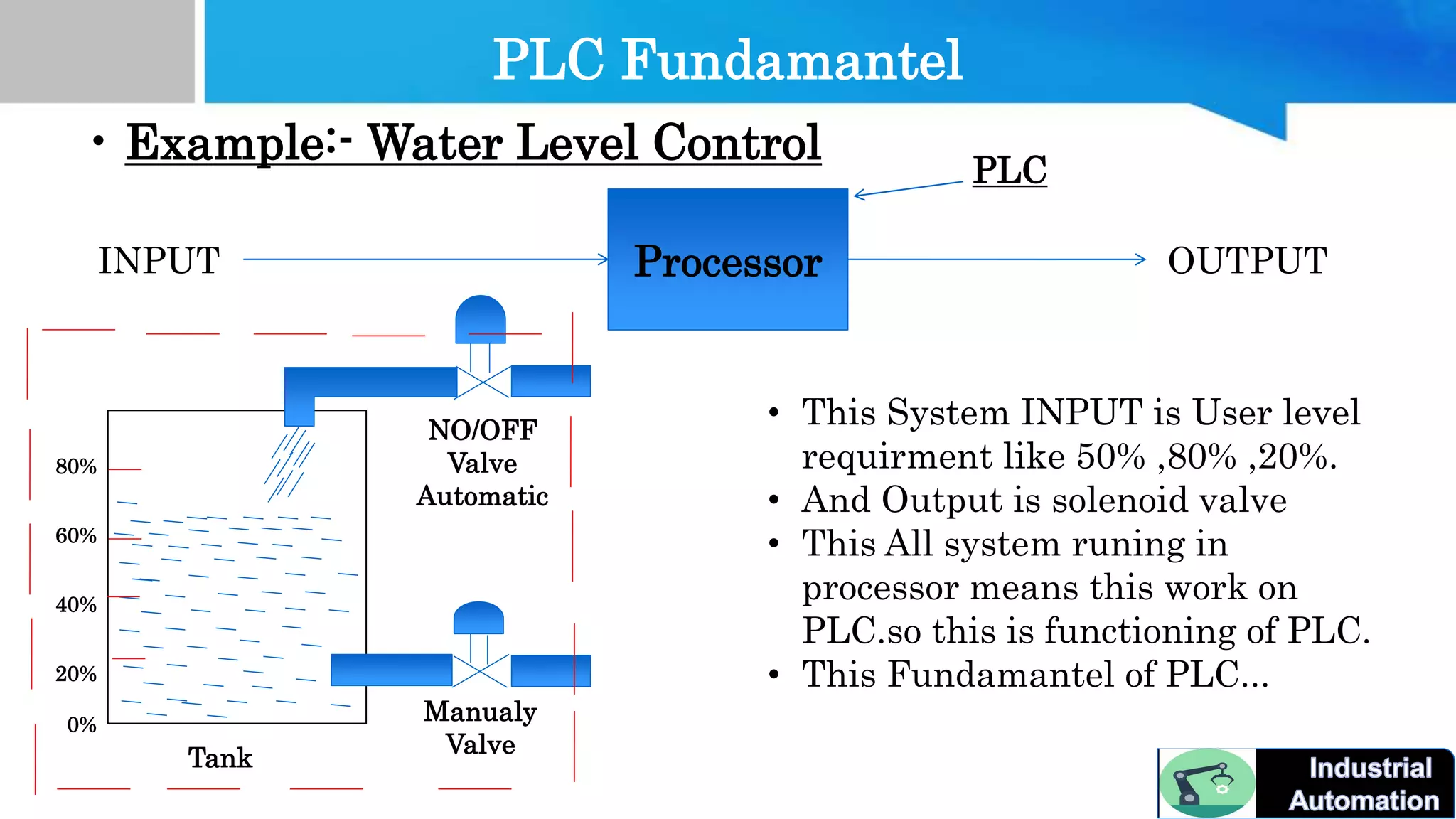

• Example:- Water Level Control
INPUT OUTPUTProcessor
PLC
80%
60%
40%
20%
0%
NO/OFF
Valve
Automatic
Manualy
ValveTank
• This System INPUT is User level
requirment like 50% ,80% ,20%.
• And Output is solenoid valve
• This All system runing in
processor means this work on
PLC.so this is functioning of PLC.
• This Fundamantel of PLC...

4. PLC INPUT Wiring

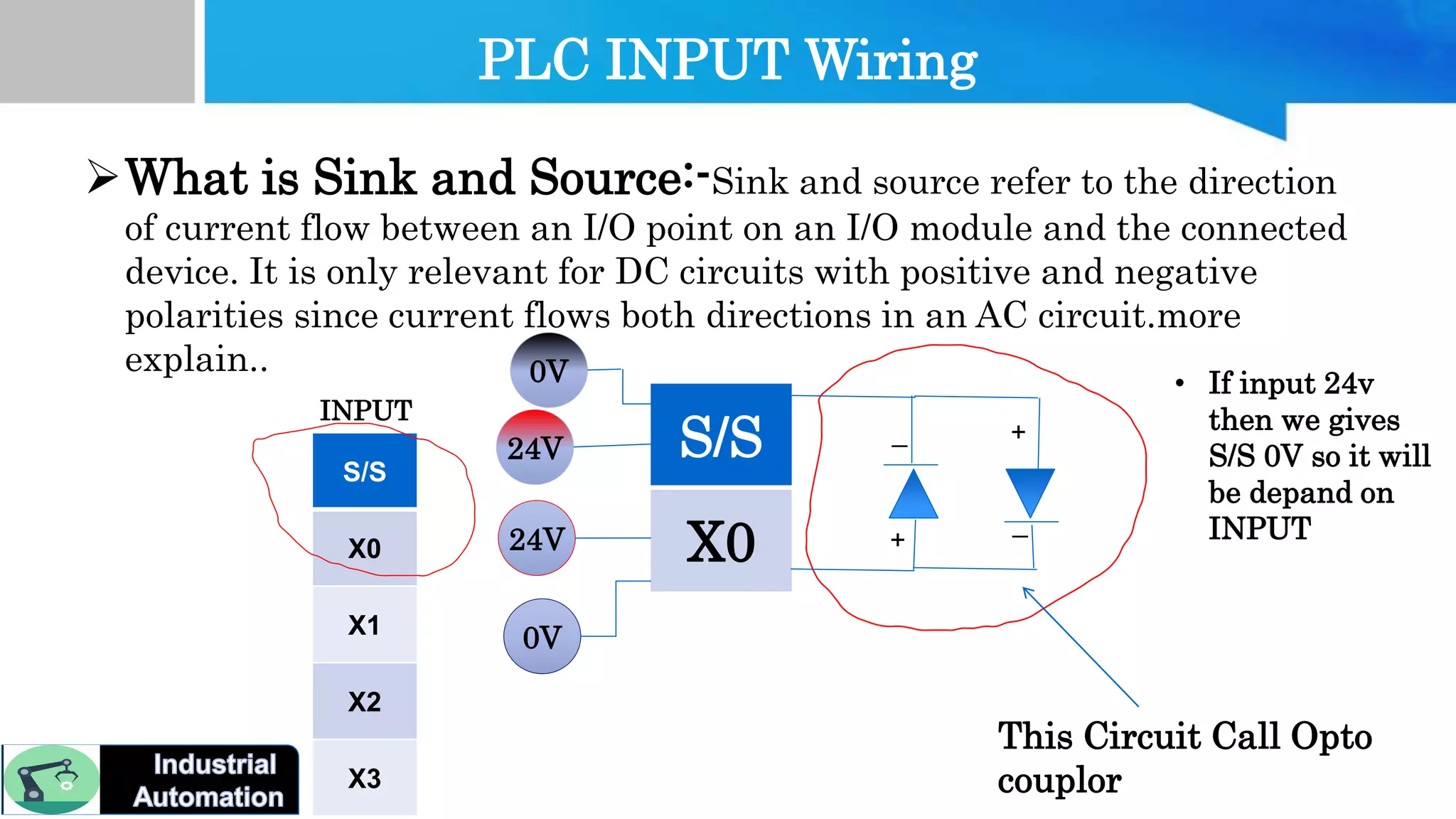

What is Sink and Source:-Sink and source refer to the direction
of current flow between an I/O point on an I/O module and the connected
device. It is only relevant for DC circuits with positive and negative
polarities since current flows both directions in an AC circuit.more
explain..
S/S
X0
X1
X2
X3
INPUT
S/S
X0
0V
24V
24V
0V
_
+
_
+
This Circuit Call Opto
couplor
• If input 24v
then we gives
S/S 0V so it will
be depand on
INPUT

5. PLC INPUT Wiring
S/S
X0
X1
X2
X3
INPUT
24V
0V
 If your are gives 24v in
S/S pin and it should be
gives in X0 pin 0V.

6. PLC INPUT Wirnig
Here Is Three types of INPUT sensor.
PNP Sensor
NPN Sensor
Universal Sensor
24V
0V
24V or 0V
Explain Each Sensor Details

7. PLC INPUT Wiring
NPN Proximatary Sensor.
24V
0V
S/S
X1
24V
3 Wire NPN
Sensor

8. PLC INPUT Wiring

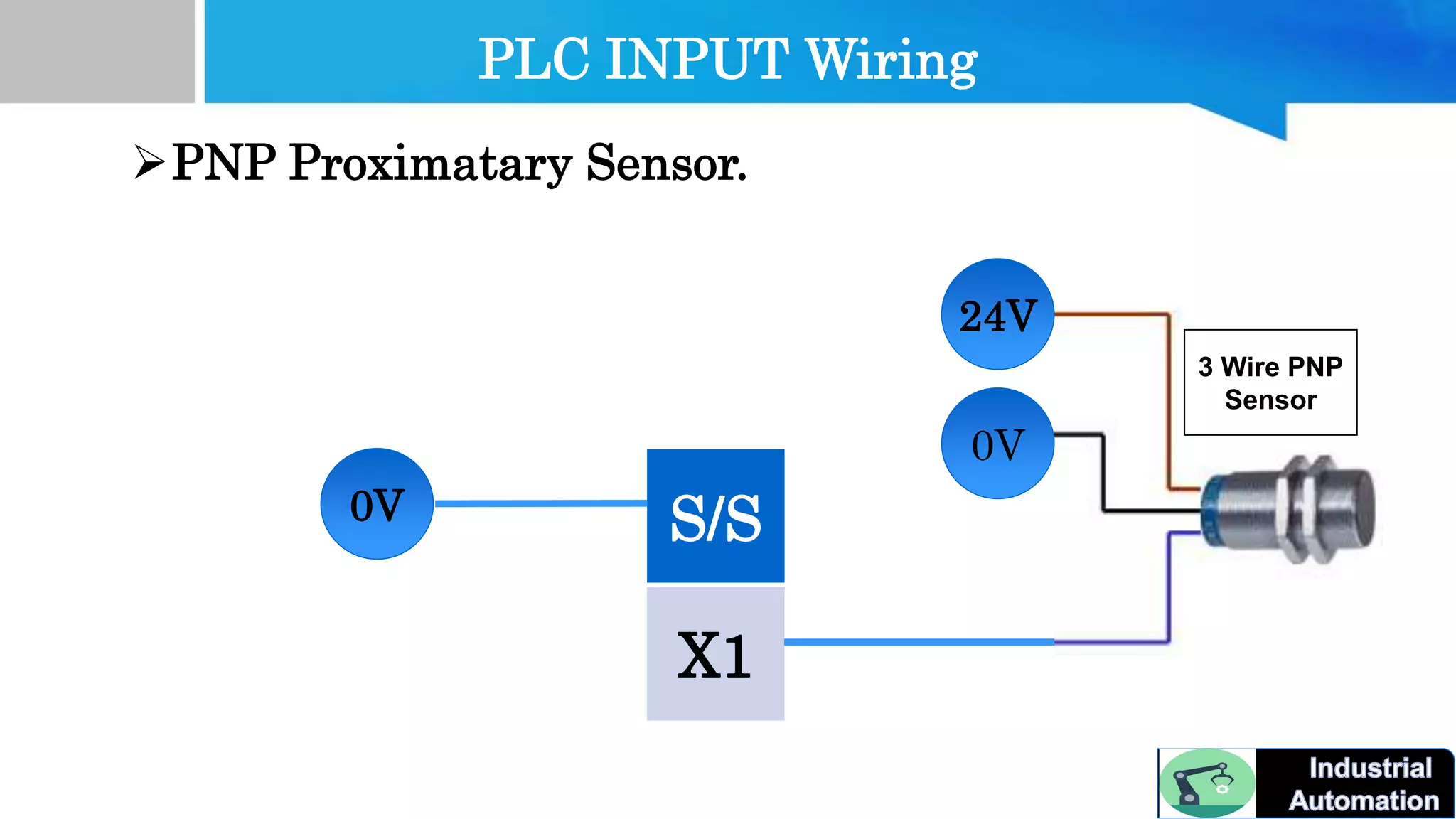

PNP Proximatary Sensor.
24V
0V
S/S
X1
0V
3 Wire PNP
Sensor

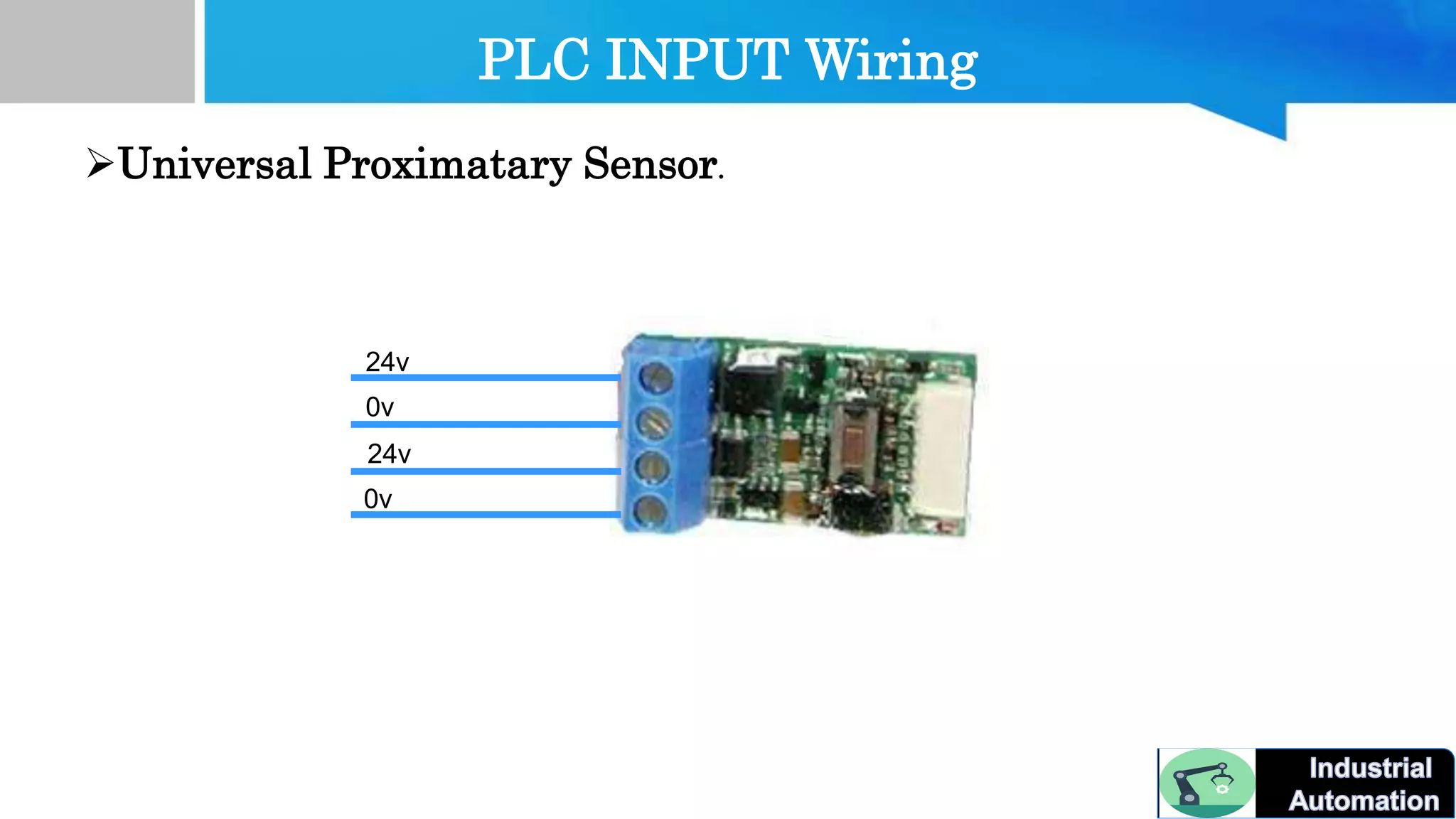

9. PLC INPUT Wiring
Universal Proximatary Sensor.
24v
0v
24v
0v

10. PLC OUTPUT Wiring

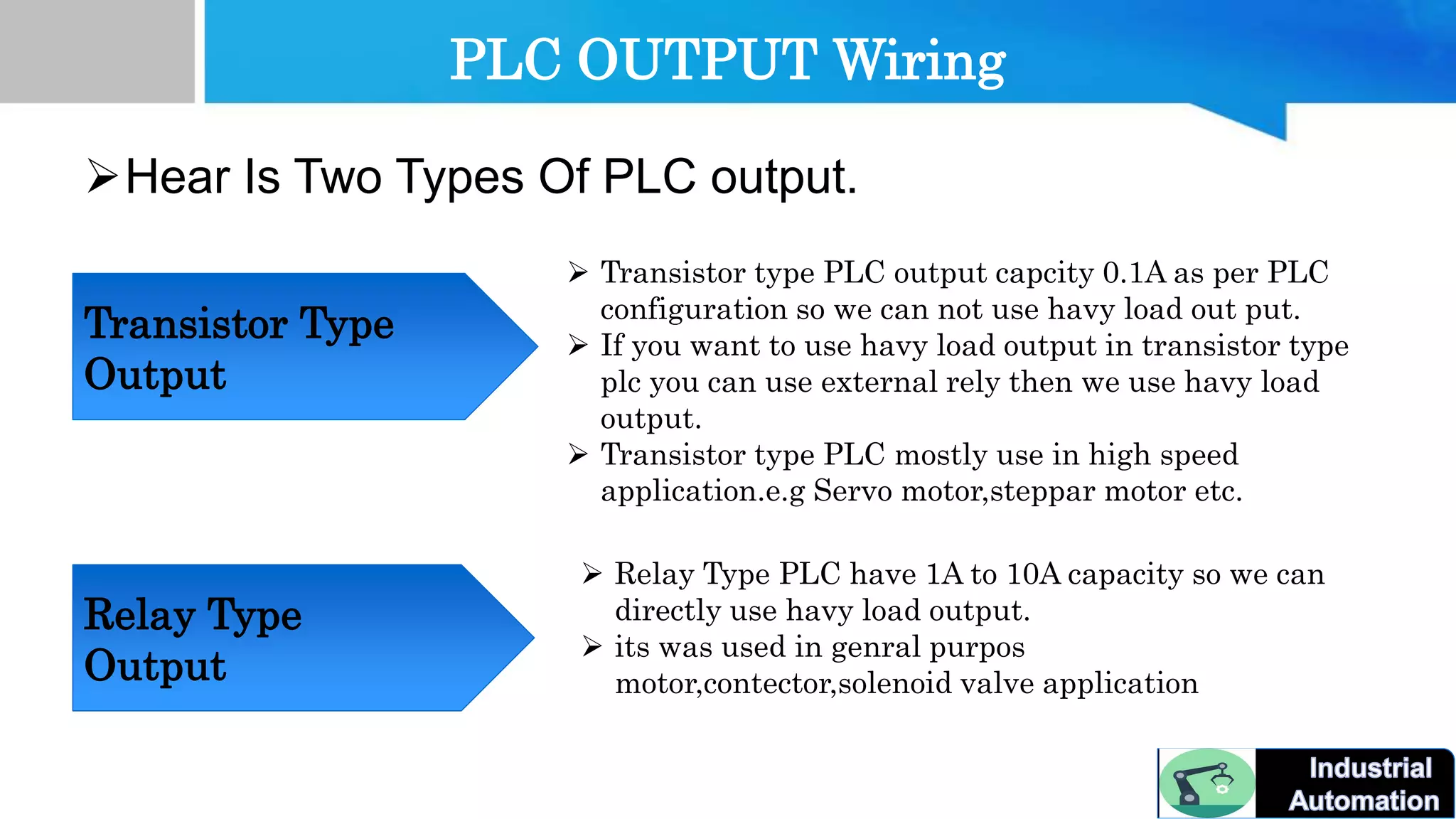

Hear Is Two Types Of PLC output.
Transistor Type
Output
Relay Type
Output
 Transistor type PLC output capcity 0.1A as per PLC
configuration so we can not use havy load out put.
 If you want to use havy load output in transistor type
plc you can use external rely then we use havy load
output.
 Transistor type PLC mostly use in high speed
application.e.g Servo motor,steppar motor etc.
 Relay Type PLC have 1A to 10A capacity so we can
directly use havy load output.
 its was used in genral purpos
motor,contector,solenoid valve application

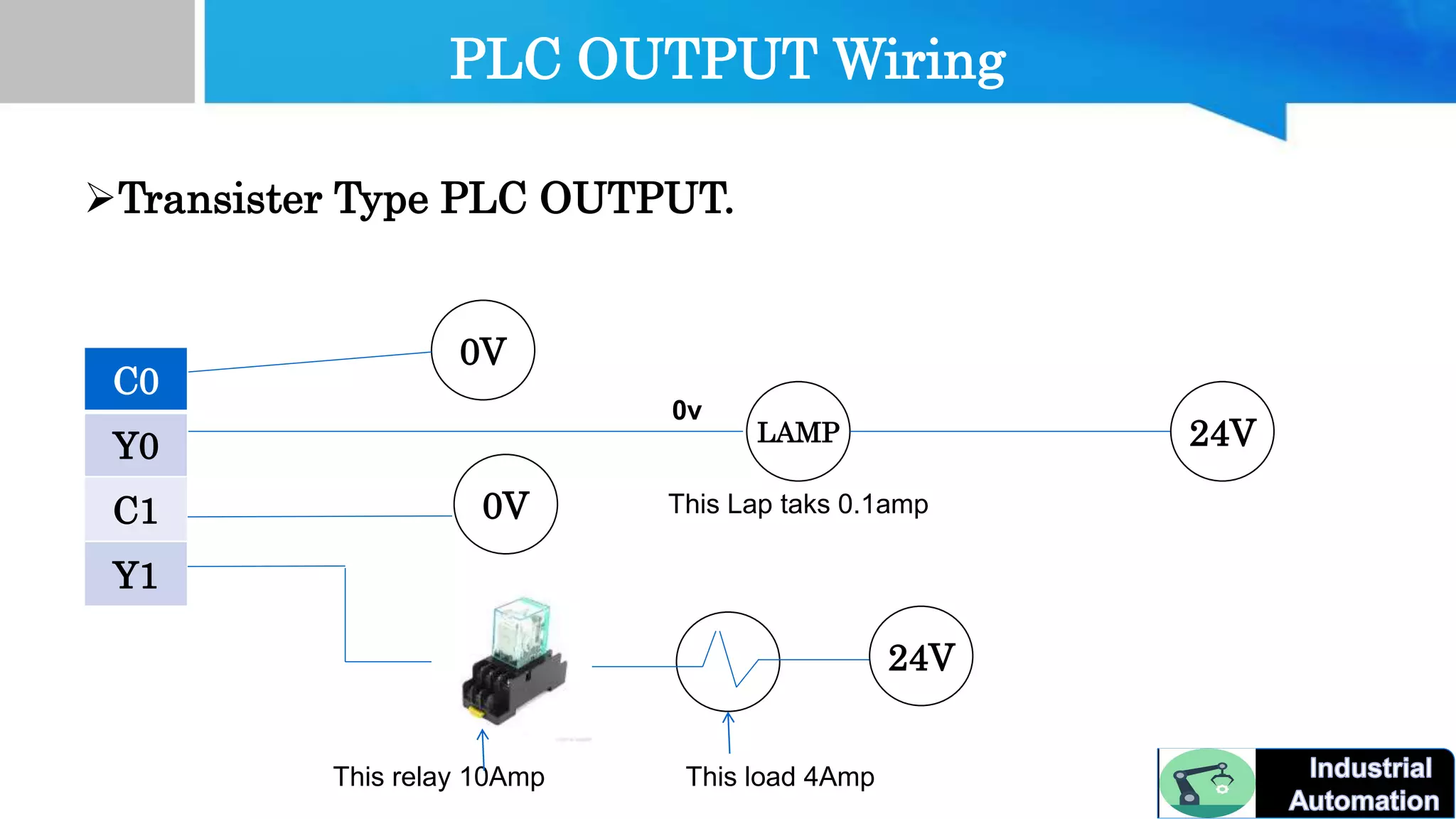

11. PLC OUTPUT Wiring
0V
LAMP 24V
0v
This Lap taks 0.1amp
Transister Type PLC OUTPUT.
C0
Y0
C1
Y1
0V
This load 4AmpThis relay 10Amp
24V

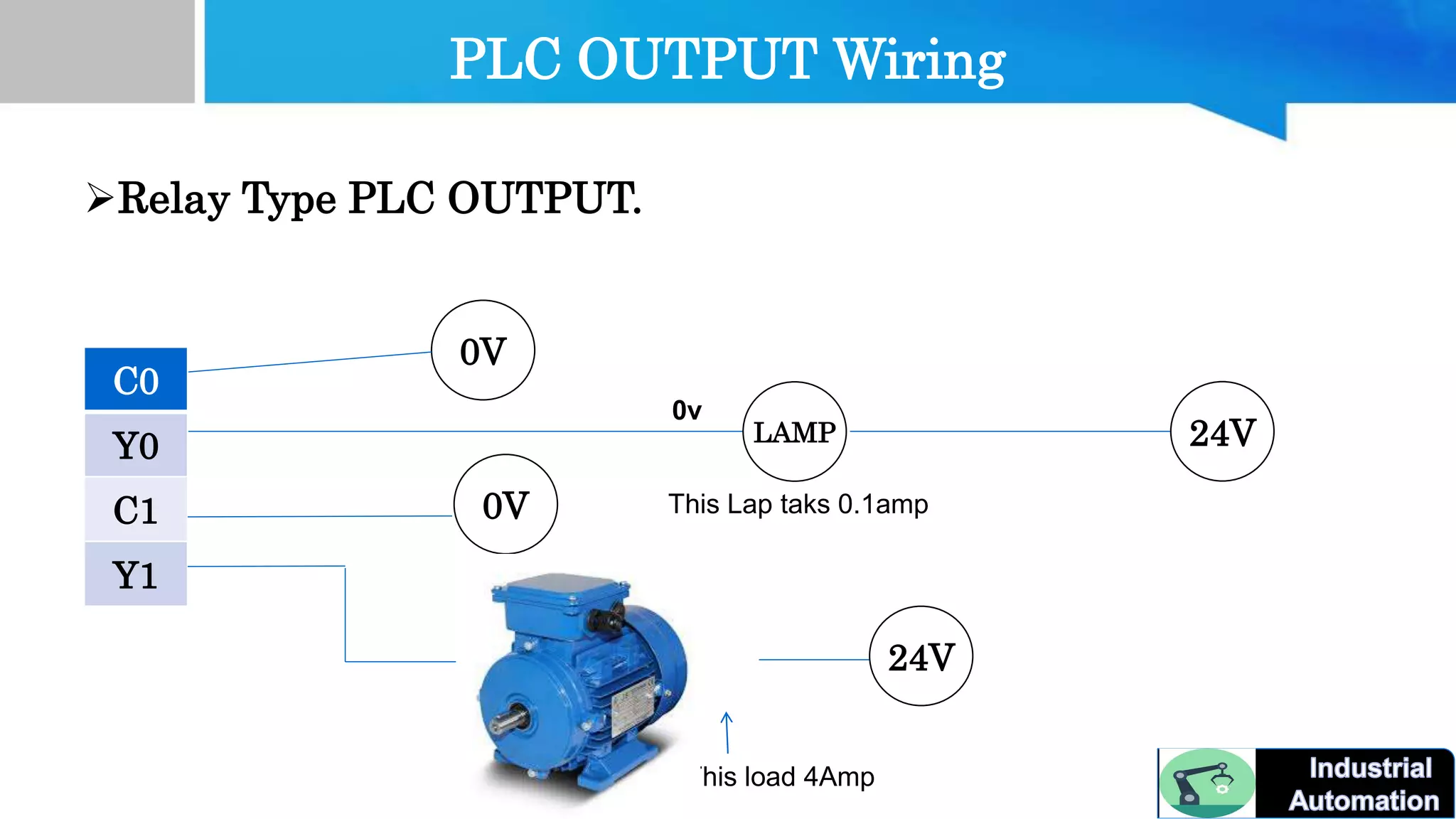

12. PLC OUTPUT Wiring
0V
LAMP 24V
0v
This Lap taks 0.1amp
Relay Type PLC OUTPUT.
C0
Y0
C1
Y1
0V
This load 4Amp
24V

13. Next Video Topic
 How PLC Wiring and Programming....
