Part 11 How to use binary concept In PLC. hello Friend I this video we learn about of how to use logic gates in PLC programming.

1. How to use
Binary Logic Function in
PLC

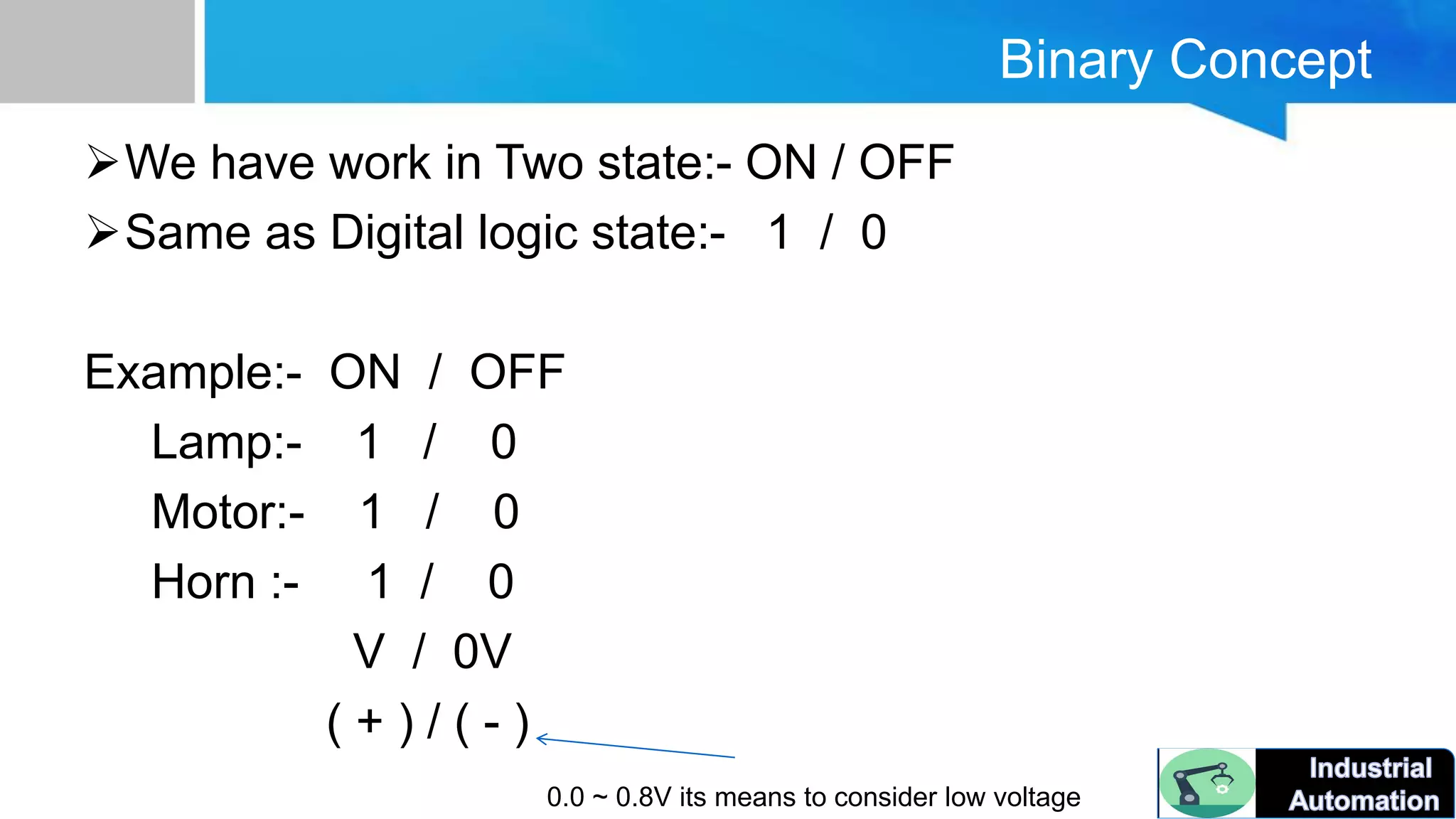

2. Binary Concept
We have work in Two state:- ON / OFF
Same as Digital logic state:- 1 / 0
Example:- ON / OFF
Lamp:- 1 / 0
Motor:- 1 / 0
Horn :- 1 / 0
V / 0V
( + ) / ( - )
0.0 ~ 0.8V its means to consider low voltage

3. Logic Gates
 AND Gate:-
A
B
Y
INPUT
OUTPUT
AND Gate Truth Table
AND LOGIC GATE
A B Y
0 0 0
0 1 0
1 0 0
1 1 1

4. • AND GATE Electrical Realization.
Logic Gates
L N
AND Gate Truth Table
A B
LAMP
Electrical Circuit
A B LAMP
0 0 0
0 1 0
1 0 0
1 1 1

5. • AND GATE IN PLC Programming.
Logic Gates
AND Gate Truth Table
Ladder LOGIC
L N
A B Y
A B Y
0 0 0
0 1 0
1 0 0
1 1 1

6. Logic Gates
 OR Gate:-
OR Gate Truth Table
OR LOGIC GATE
OUTPUT
INPUT
A
B
Y
A B Y
0 0 0
0 1 1
1 0 1
1 1 1

7. • OR GATE Electrical Realization.
Logic Gates
L N
OR Gate Truth Table
A
B
LAMP
Electrical Circuit
A B LAMP
0 0 0
0 1 1
1 0 1
1 1 1

8. • OR GATE IN PLC Programming.
Logic Gates
OR Gate Truth Table
Ladder LOGIC
L N
A
B
Y
A B Y
0 0 0
0 1 1
1 0 1
1 1 1

9. Logic Gates
 NOT Gate:-
NOT Gate Truth Table
OR LOGIC GATE
OUTPUT
INPUT
A
Y
A Y
0 1
1 0

10. • OR GATE Electrical Realization.
Logic Gates
L N
LAMP
Electrical Circuit
NOT Gate Truth Table
R
R
NC
NO
R
R
A LAMP
0 1
1 0

11. • NOT GATE IN PLC Programming.
Logic Gates
Ladder LOGIC
L N
A
Y
NOT Gate Truth Table
A LAMP
0 1
1 0

12. Logic Gates
NAND Gate:-
A
B
Y
INPUT
OUTPUT
NAND Gate Truth Table
NAND LOGIC GATE
A B Y
0 0 1
0 1 1
1 0 1
1 1 0

13. • NAND GATE IN PLC Programming.
Logic Gates
NAND Gate Truth Table
A B Y
0 0 1
0 1 1
1 0 1
1 1 0
Ladder LOGIC
L N
A
B
Y

14. Logic Gates
NOR Gate Truth Table
NOR LOGIC GATE
OUTPUT
INPUT
A
B
Y
A B Y
0 0 1
0 1 0
1 0 0
1 1 0
 NOR Gate:-

15. • NOR GATE IN PLC Programming.
Logic Gates
NOR Gate Truth Table
Ladder LOGIC
L N
A B Y
A B Y
0 0 1
0 1 0
1 0 0
1 1 0
NC

16. Logic Gates
NOR Gate Truth Table
EX-OR LOGIC GATE
A B Y
0 0 0
0 1 1
1 0 1
1 1 0
 EX-OR Gate:-
INPUT
OUTPUT

17. • EX-OR GATE IN PLC Programming.
Logic Gates
EX-OR Gate Truth Table
Ladder LOGIC
L N
A B Y
A B Y
0 0 0
0 1 1
1 0 1
1 1 0A B

18. Logic Gates
EX-NOR Gate Truth Table
EX-NOR LOGIC GATE
A B Y
0 0 1
0 1 0
1 0 0
1 1 1
 EX-NOR Gate:-
OUTPUT
INPUT
Y

19. • EX-OR GATE IN PLC Programming.
Logic Gates
EX-OR Gate Truth Table
Ladder LOGIC
L N
A B Y
A B Y
0 0 1
0 1 0
1 0 0
1 1 1A B

20. Next Video Topic
 How to use Boolean function using in PLC...
