This document is a dissertation submitted by Raj Kumar Thenua for the degree of Master of Technology in electronics and communication engineering from Sobhasaria Engineering College in Sikar, India. The dissertation investigates simulation and hardware implementation of the NLMS adaptive filtering algorithm on a TMS320C6713 digital signal processor. It includes an introduction, literature review, overview of adaptive filtering algorithms like LMS, NLMS and RLS, MATLAB simulation of these algorithms, Simulink model design for hardware implementation, real-time implementation on the TMS320C6713 processor and results and discussion.
This document summarizes a presentation on active noise control fundamentals and recent advances. It discusses the history of active noise control from the 1930s to present day, covering milestones such as the first patent in 1936, emerging analog devices in the 1950s, the introduction of adaptive noise cancellation using digital signal processing in the 1970s, and the development of digital active noise control systems and applications from the 1980s onward. It also outlines topics to be covered on active noise control fundamentals and recent advances in two parts of the presentation.
Metastability occurs when the inputs to a flip-flop violate the setup and hold timing requirements around the clock edge. This can cause the output to momentarily exist in an unstable intermediate state between logic 0 and 1. The likelihood of metastability increases when asynchronous inputs are sampled by a synchronous system. Well-designed synchronizers use multiple flip-flops in series to resolve metastability within the clock period and avoid failures. The mean time between synchronizer failures depends on factors like clock speed and input transition rate.
Vikas Kumar has experience in designing and implementing various digital and analog circuits including a 32-bit RISC CPU using Verilog, an integrated round robin arbiter on an FPGA board, asynchronous and synchronous FIFOs for clock domain crossing, a two-stage op-amp using UMC 180nm technology, and a bandgap reference circuit. He has worked as an intern at KeenHeads Technologies and IISc Bangalore developing projects related to analog design, layout design, and an embedded security system. Vikas has skills in RTL coding, digital and analog design, layout design, Verilog, C/C++, MATLAB, and uses tools including Xilinx Vivado, Cad
This document presents a project report on the design of a signal jammer. It was submitted by four students - Aryan Kumar, Karthikeyan R, M Aditya, and Nikhil Kumar - to Visvesvaraya Technological University in partial fulfillment of their Bachelor of Engineering degree in Electronics and Communication Engineering. The report provides background on signal jammers, their working mechanism, a literature survey on relevant technologies like GSM, and a detailed design of the jammer system implemented by the students including the power supply, IF section, RF section, and results of testing the jammer on different mobile networks in India.
Precision current sources - Low noise current mirrorsJaved G S, PhD
Design techniques and methods to design precision current mirrors, precision current sources. In this work, I have discussed methods to reduce noise and variations in the reference current generation.
1. Negative feedback control
2. Applying filters in the design
3. Calibration
4. Resister Trimming
The document discusses the development of a gesture-controlled robot. It describes how the robot works using an accelerometer to detect hand gestures, an encoder and transmitter to wirelessly send the gesture data, a receiver and decoder to interpret the data, and a microcontroller and motor driver to control motors based on the gestures. The robot is intended to help disabled people control devices with gestures instead of physical inputs. The system aims to provide a simple and affordable design for potential wide applications.
To understand the basic features and functions to create and debug a project in CCS v3.3
To get familar with CCS v3.3
More in-depth explanations of Code Composer Studio’s various features .
Ex: Breakpoints,watch window, single stepping, memory etc..,
Finally, you will able to work with CCS v3.3
This document summarizes a presentation on active noise control fundamentals and recent advances. It discusses the history of active noise control from the 1930s to present day, covering milestones such as the first patent in 1936, emerging analog devices in the 1950s, the introduction of adaptive noise cancellation using digital signal processing in the 1970s, and the development of digital active noise control systems and applications from the 1980s onward. It also outlines topics to be covered on active noise control fundamentals and recent advances in two parts of the presentation.
Metastability occurs when the inputs to a flip-flop violate the setup and hold timing requirements around the clock edge. This can cause the output to momentarily exist in an unstable intermediate state between logic 0 and 1. The likelihood of metastability increases when asynchronous inputs are sampled by a synchronous system. Well-designed synchronizers use multiple flip-flops in series to resolve metastability within the clock period and avoid failures. The mean time between synchronizer failures depends on factors like clock speed and input transition rate.
Vikas Kumar has experience in designing and implementing various digital and analog circuits including a 32-bit RISC CPU using Verilog, an integrated round robin arbiter on an FPGA board, asynchronous and synchronous FIFOs for clock domain crossing, a two-stage op-amp using UMC 180nm technology, and a bandgap reference circuit. He has worked as an intern at KeenHeads Technologies and IISc Bangalore developing projects related to analog design, layout design, and an embedded security system. Vikas has skills in RTL coding, digital and analog design, layout design, Verilog, C/C++, MATLAB, and uses tools including Xilinx Vivado, Cad
This document presents a project report on the design of a signal jammer. It was submitted by four students - Aryan Kumar, Karthikeyan R, M Aditya, and Nikhil Kumar - to Visvesvaraya Technological University in partial fulfillment of their Bachelor of Engineering degree in Electronics and Communication Engineering. The report provides background on signal jammers, their working mechanism, a literature survey on relevant technologies like GSM, and a detailed design of the jammer system implemented by the students including the power supply, IF section, RF section, and results of testing the jammer on different mobile networks in India.
Precision current sources - Low noise current mirrorsJaved G S, PhD
Design techniques and methods to design precision current mirrors, precision current sources. In this work, I have discussed methods to reduce noise and variations in the reference current generation.
1. Negative feedback control
2. Applying filters in the design
3. Calibration
4. Resister Trimming
The document discusses the development of a gesture-controlled robot. It describes how the robot works using an accelerometer to detect hand gestures, an encoder and transmitter to wirelessly send the gesture data, a receiver and decoder to interpret the data, and a microcontroller and motor driver to control motors based on the gestures. The robot is intended to help disabled people control devices with gestures instead of physical inputs. The system aims to provide a simple and affordable design for potential wide applications.
To understand the basic features and functions to create and debug a project in CCS v3.3
To get familar with CCS v3.3
More in-depth explanations of Code Composer Studio’s various features .
Ex: Breakpoints,watch window, single stepping, memory etc..,
Finally, you will able to work with CCS v3.3
This presentation covers types of noise in communication system, noise modelling, thermal noise, shot noise, experimental determination of noise figure, noise figure, friss formula with numerical.
Iot attendance system using fingerprint module AjinkyaMore29
An Internet of Things (IoT) based portable biometric
attendance system can prove to be of great value to educational institutions in
this regard as it proves to be highly efficient and secure. The cost involved in
making this system is quite less, when compared to conventional biometric
attendance system. The use of cloud computing to store the attendance records
makes all the data easy to access and retrieve as end when required by the
teachers. The use of fingerprint scanner ensures the reliability of the attendance
record.
Flip-flops can enter a metastable state where the output oscillates between 0 and 1 if setup and hold times are violated, such as with asynchronous signals, skewed clocks between domains, or changing inputs in the critical timing window. To resolve metastability, the flip-flop output will eventually settle to a stable 0 or 1 state, though the time to resolve can vary by technology. Cascading multiple flip-flops can help avoid metastable states.
This document appears to be from a textbook. It includes an introduction chapter that discusses various topics and concepts. Subsequent chapters focus on specific design considerations like manufacturability and testability. The document provides solutions to exercises at the end of relevant chapters.
I made this presentation for you , I hope its useful for you all, and I hate Plagiarism please, I also used some slides here but I mentioned all in the last slide :)
Hope you can get benefits from it
This document discusses various designs for digital multipliers. It begins by reviewing the basic building blocks used in digital circuits and how binary multiplication works by adding partial products. It then describes approaches for implementing multiplication, including right shift and add serial multipliers and faster parallel array and tree multipliers. Booth encoding is introduced as a technique to reduce the number of stages in a multiplier. Implementation details are provided for array and Wallace tree multipliers, including the use of compression cells like the (4,2) counter. Optimization goals for multipliers differ from adders in emphasizing reducing the critical path.
This document provides a summary of Kumar Chandan and Mayank Kumar's summer internship report on RTL design, Verilog, and FPGA programming at Tevatron Technology in Noida, India. It includes an acknowledgements section thanking their mentor and institution for supporting the project. The abstract indicates that the main objective was to study digital circuit behavior and design using Xilinx software. An introduction is provided on topics like VLSI, HDLs, Verilog, modeling styles in Verilog, and system tasks.
Allen Bradley is a manufacturer of programmable logic controllers (PLCs). They produce hardware such as central processing units, input/output modules, and power supplies. Their PLCs range from small compact models to larger modular systems. Allen Bradley PLCs use ladder logic programming and support protocols like RS-232 and DH-485 for communication. Memory in the PLC is organized into program and data files that are used to store ladder logic and input/output status information.
Manage Xilinx ISE 14.5 licence for Windows 8 and 8.1Dhaval Kaneria
To manage a Xilinx ISE 14.5 license for Windows 8 and 8.1, the document outlines 4 steps:
1) Make a copy of the libportabilityNOSH.dll file in the same directory as the other .dll files. Rename the files to have 3 files.
2) Rename the copy of libportabilityNOSH.dll to libportability.dll.
3) Copy libportabilityNOSH.dll to another location.
4) Start Xilinx ISE 14.5, go to the license manager, and copy the cracked license file to manage the license.
The document presents on the topic of VLSI technology. It is introduced by Mst. Abida Sultana. VLSI allows thousands of transistors to be integrated into a single microchip, as seen in microprocessors. It provides advantages like compactness, reliability, and lower power consumption by effectively using space. Previously, VLSI had high costs but prices have reduced. It finds applications in computers, communication networks, digital signal processing, automobiles, and medicine.
The VLSI design flow consists of three domains - behavioral, structural, and physical - and multiple levels from system to circuit level. The front-end design includes logic synthesis to generate a netlist from HDL code through technology mapping and optimization. Back-end physical design involves floorplanning, placement of cells, routing of interconnects, and simulation to verify functionality and timing.
The document discusses the history and development of integrated circuits (ICs). It begins by defining an IC as a semiconductor wafer containing thousands or millions of tiny resistors, capacitors, and transistors. It then discusses:
- Jack Kilby and Robert Noyce independently inventing the IC in the late 1950s.
- The types of ICs including analog, digital, and mixed signal, as well as classifications based on component count such as SSI, MSI, LSI, VLSI, and ULSI.
- The advantages of ICs including low cost, low power consumption, smaller size, faster operation, mass production capability, and easy integration into applications.
- The evolution of Intel micro
This presentation provides an overview of microcontrollers. It defines a microcontroller as an integrated chip that includes a microprocessor, memory, and input/output ports. It discusses the evolution of microcontrollers from early models using EPROM memory to modern ones using flash memory. The presentation contrasts RISC and CISC architectures and describes the programming, interfacing, and interrupt features of microcontrollers. Popular microcontrollers including AVR, PIC, and Intel/Motorola models are highlighted. The presentation concludes by discussing potential future aspects like using MRAM and migrating to 32-bit microcontrollers.
This document is a training report submitted by Priya Hada to her faculty supervisor, Ms. Pushpa Gothwal, on the topics of PLC and SCADA. It includes an introduction to automation, sections on PLC components and operation, ladder logic programming, SCADA features and applications. It also describes two student projects using a PLC to automate a pharmaceutical plant and using SCADA software to automate a bottle filling and capping station.
Very Large Scale Integration is the technology used now a day everywhere. Diploma as well as degree students can refer this
(For Downloads, send me mail
agarwal.avanish@yahoo.com)
Bosch engineering and business solutions ltdbhanu7161
Bosch Engineering and Business Solutions Ltd is a private company founded in 1886 in Germany by Robert Bosch. It has many subsidiaries and has achieved several milestones in automotive and engineering technology over the decades. Bosch offers mobility, innovation, digital, embedded, and business solutions and competes with companies like Techtronic Industries, Whirlpool, Honeywell, and Siemens. Bosch focuses on research, engineering, the Internet of Things, and manufacturing pathways.
This document contains 4 problems related to interfacing an ADC to an 8051 microcontroller and displaying temperature readings. Problem 1 describes converting a binary number to BCD. Problem 2 shows displaying the BCD digits. Problem 3 involves reading the ADC every 1 second using a timer interrupt. Problem 4 integrates it all to read a temperature sensor and display the temperature continuously in degrees Celsius.
The document provides an overview of programmable logic controllers (PLCs) and their programming. It discusses what a PLC is, its basic components like the CPU, I/O modules, and power supply. It also covers PLC programming languages and common types of programs like ladder logic. The document then presents examples of interfacing sensors and output devices to PLC I/O modules. It discusses digital and analog I/O modules and how devices are connected via sinking and sourcing configurations. Finally, it provides guidance on setting up a basic PLC system by selecting components based on I/O counts and power requirements.
FPGAs were introduced in 1984 as a programmable alternative to PLDs. They fill the gap between discrete logic and smaller PLDs on the low end and more expensive ASICs on the high end. The basic elements of an FPGA are configurable logic blocks (CLBs), configurable I/O blocks (IOBs), and a programmable interconnect. FPGAs from vendors like Xilinx and Altera have a regular architecture of CLBs surrounded by IOBs and connected via a hierarchy of programmable interconnects.
This document provides an overview of programming the 8051 microcontroller in C. It discusses machine language, assembly language, and high-level languages. It then demonstrates how to create a hex file using a compiler, burn it to a microcontroller, and use ISP and a universal programmer. Several examples of 8051 C code are provided, including toggling port bits, using data types like unsigned char, delay loops, and reading/writing port values.
Noice canclellation using adaptive filters with adpative algorithms(LMS,NLMS,...Brati Sundar Nanda
This document discusses and compares various adaptive filtering algorithms for noise cancellation, including LMS, NLMS, RLS, and APA. It finds that RLS converges the fastest but has the highest complexity, while LMS converges the slowest but is simplest. NLMS and APA provide a balance between convergence speed and complexity. The document implements these algorithms on a noise cancellation problem and finds that RLS achieves the highest SNR improvement and best noise cancellation, followed by APA, NLMS, and LMS.
The document discusses adaptive filters, which can automatically adjust their parameters to filter signals whose exact frequency response is unknown. It defines adaptive filters as having an input signal, filter structure, adjustable parameters, and adaptive algorithm. The goal of adaptive filtering is to minimize the error between the filter's output and a desired response. It describes common adaptive filtering problems and solutions like using gradient descent algorithms and the mean squared error cost function to adjust the filter parameters over time and minimize error.
This presentation covers types of noise in communication system, noise modelling, thermal noise, shot noise, experimental determination of noise figure, noise figure, friss formula with numerical.
Iot attendance system using fingerprint module AjinkyaMore29
An Internet of Things (IoT) based portable biometric
attendance system can prove to be of great value to educational institutions in
this regard as it proves to be highly efficient and secure. The cost involved in
making this system is quite less, when compared to conventional biometric
attendance system. The use of cloud computing to store the attendance records
makes all the data easy to access and retrieve as end when required by the
teachers. The use of fingerprint scanner ensures the reliability of the attendance
record.
Flip-flops can enter a metastable state where the output oscillates between 0 and 1 if setup and hold times are violated, such as with asynchronous signals, skewed clocks between domains, or changing inputs in the critical timing window. To resolve metastability, the flip-flop output will eventually settle to a stable 0 or 1 state, though the time to resolve can vary by technology. Cascading multiple flip-flops can help avoid metastable states.
This document appears to be from a textbook. It includes an introduction chapter that discusses various topics and concepts. Subsequent chapters focus on specific design considerations like manufacturability and testability. The document provides solutions to exercises at the end of relevant chapters.
I made this presentation for you , I hope its useful for you all, and I hate Plagiarism please, I also used some slides here but I mentioned all in the last slide :)
Hope you can get benefits from it
This document discusses various designs for digital multipliers. It begins by reviewing the basic building blocks used in digital circuits and how binary multiplication works by adding partial products. It then describes approaches for implementing multiplication, including right shift and add serial multipliers and faster parallel array and tree multipliers. Booth encoding is introduced as a technique to reduce the number of stages in a multiplier. Implementation details are provided for array and Wallace tree multipliers, including the use of compression cells like the (4,2) counter. Optimization goals for multipliers differ from adders in emphasizing reducing the critical path.
This document provides a summary of Kumar Chandan and Mayank Kumar's summer internship report on RTL design, Verilog, and FPGA programming at Tevatron Technology in Noida, India. It includes an acknowledgements section thanking their mentor and institution for supporting the project. The abstract indicates that the main objective was to study digital circuit behavior and design using Xilinx software. An introduction is provided on topics like VLSI, HDLs, Verilog, modeling styles in Verilog, and system tasks.
Allen Bradley is a manufacturer of programmable logic controllers (PLCs). They produce hardware such as central processing units, input/output modules, and power supplies. Their PLCs range from small compact models to larger modular systems. Allen Bradley PLCs use ladder logic programming and support protocols like RS-232 and DH-485 for communication. Memory in the PLC is organized into program and data files that are used to store ladder logic and input/output status information.
Manage Xilinx ISE 14.5 licence for Windows 8 and 8.1Dhaval Kaneria
To manage a Xilinx ISE 14.5 license for Windows 8 and 8.1, the document outlines 4 steps:
1) Make a copy of the libportabilityNOSH.dll file in the same directory as the other .dll files. Rename the files to have 3 files.
2) Rename the copy of libportabilityNOSH.dll to libportability.dll.
3) Copy libportabilityNOSH.dll to another location.
4) Start Xilinx ISE 14.5, go to the license manager, and copy the cracked license file to manage the license.
The document presents on the topic of VLSI technology. It is introduced by Mst. Abida Sultana. VLSI allows thousands of transistors to be integrated into a single microchip, as seen in microprocessors. It provides advantages like compactness, reliability, and lower power consumption by effectively using space. Previously, VLSI had high costs but prices have reduced. It finds applications in computers, communication networks, digital signal processing, automobiles, and medicine.
The VLSI design flow consists of three domains - behavioral, structural, and physical - and multiple levels from system to circuit level. The front-end design includes logic synthesis to generate a netlist from HDL code through technology mapping and optimization. Back-end physical design involves floorplanning, placement of cells, routing of interconnects, and simulation to verify functionality and timing.
The document discusses the history and development of integrated circuits (ICs). It begins by defining an IC as a semiconductor wafer containing thousands or millions of tiny resistors, capacitors, and transistors. It then discusses:
- Jack Kilby and Robert Noyce independently inventing the IC in the late 1950s.
- The types of ICs including analog, digital, and mixed signal, as well as classifications based on component count such as SSI, MSI, LSI, VLSI, and ULSI.
- The advantages of ICs including low cost, low power consumption, smaller size, faster operation, mass production capability, and easy integration into applications.
- The evolution of Intel micro
This presentation provides an overview of microcontrollers. It defines a microcontroller as an integrated chip that includes a microprocessor, memory, and input/output ports. It discusses the evolution of microcontrollers from early models using EPROM memory to modern ones using flash memory. The presentation contrasts RISC and CISC architectures and describes the programming, interfacing, and interrupt features of microcontrollers. Popular microcontrollers including AVR, PIC, and Intel/Motorola models are highlighted. The presentation concludes by discussing potential future aspects like using MRAM and migrating to 32-bit microcontrollers.
This document is a training report submitted by Priya Hada to her faculty supervisor, Ms. Pushpa Gothwal, on the topics of PLC and SCADA. It includes an introduction to automation, sections on PLC components and operation, ladder logic programming, SCADA features and applications. It also describes two student projects using a PLC to automate a pharmaceutical plant and using SCADA software to automate a bottle filling and capping station.
Very Large Scale Integration is the technology used now a day everywhere. Diploma as well as degree students can refer this
(For Downloads, send me mail
agarwal.avanish@yahoo.com)
Bosch engineering and business solutions ltdbhanu7161
Bosch Engineering and Business Solutions Ltd is a private company founded in 1886 in Germany by Robert Bosch. It has many subsidiaries and has achieved several milestones in automotive and engineering technology over the decades. Bosch offers mobility, innovation, digital, embedded, and business solutions and competes with companies like Techtronic Industries, Whirlpool, Honeywell, and Siemens. Bosch focuses on research, engineering, the Internet of Things, and manufacturing pathways.
This document contains 4 problems related to interfacing an ADC to an 8051 microcontroller and displaying temperature readings. Problem 1 describes converting a binary number to BCD. Problem 2 shows displaying the BCD digits. Problem 3 involves reading the ADC every 1 second using a timer interrupt. Problem 4 integrates it all to read a temperature sensor and display the temperature continuously in degrees Celsius.
The document provides an overview of programmable logic controllers (PLCs) and their programming. It discusses what a PLC is, its basic components like the CPU, I/O modules, and power supply. It also covers PLC programming languages and common types of programs like ladder logic. The document then presents examples of interfacing sensors and output devices to PLC I/O modules. It discusses digital and analog I/O modules and how devices are connected via sinking and sourcing configurations. Finally, it provides guidance on setting up a basic PLC system by selecting components based on I/O counts and power requirements.
FPGAs were introduced in 1984 as a programmable alternative to PLDs. They fill the gap between discrete logic and smaller PLDs on the low end and more expensive ASICs on the high end. The basic elements of an FPGA are configurable logic blocks (CLBs), configurable I/O blocks (IOBs), and a programmable interconnect. FPGAs from vendors like Xilinx and Altera have a regular architecture of CLBs surrounded by IOBs and connected via a hierarchy of programmable interconnects.
This document provides an overview of programming the 8051 microcontroller in C. It discusses machine language, assembly language, and high-level languages. It then demonstrates how to create a hex file using a compiler, burn it to a microcontroller, and use ISP and a universal programmer. Several examples of 8051 C code are provided, including toggling port bits, using data types like unsigned char, delay loops, and reading/writing port values.
Noice canclellation using adaptive filters with adpative algorithms(LMS,NLMS,...Brati Sundar Nanda
This document discusses and compares various adaptive filtering algorithms for noise cancellation, including LMS, NLMS, RLS, and APA. It finds that RLS converges the fastest but has the highest complexity, while LMS converges the slowest but is simplest. NLMS and APA provide a balance between convergence speed and complexity. The document implements these algorithms on a noise cancellation problem and finds that RLS achieves the highest SNR improvement and best noise cancellation, followed by APA, NLMS, and LMS.
The document discusses adaptive filters, which can automatically adjust their parameters to filter signals whose exact frequency response is unknown. It defines adaptive filters as having an input signal, filter structure, adjustable parameters, and adaptive algorithm. The goal of adaptive filtering is to minimize the error between the filter's output and a desired response. It describes common adaptive filtering problems and solutions like using gradient descent algorithms and the mean squared error cost function to adjust the filter parameters over time and minimize error.
Simulation and hardware implementation of Adaptive algorithms on tms320 c6713...Raj Kumar Thenua
Raj Kumar Thenua presented his dissertation on "Simulation and Hardware Implementation of NLMS algorithm on TMS320C6713 Digital Signal Processor". The presentation outlined the introduction to adaptive noise cancellation, various adaptive algorithms like LMS, NLMS and RLS. MATLAB simulation results were analyzed for tone signals comparing the performance of algorithms. The best performing NLMS algorithm was implemented on a TMS320C6713 DSP processor. Results for tone signals and ECG signals showed improvement in SNR. The dissertation concluded the real-time implementation enabled analysis of actual signals and provided better noise reduction than simulation.
The document discusses the NLMS adaptive filter algorithm. The LMS algorithm adjusts the coefficients of a filter to minimize the mean square error between the desired and actual output signals. The NLMS algorithm normalizes the step-size parameter based on the input signal power to overcome issues from changing input power levels. A result is shown comparing actual and estimated filter weights using the NLMS algorithm.
Real-Time Active Noise Cancellation with Simulink and Data Acquisition ToolboxIDES Editor
This paper presents the feasibility of implementing
single channel negative feedback Active Noise Cancellation
technique using adaptive filters in Real-time environment[1].
In order to establish the suitability and credibility of LMS
Algorithm for adaptive filtering in real world scenario, its
efficiency was tested beyond system based ideal simulations.
Within the MATLAB® software environment two different
methods were used to perform Real-time ANC namely
Simulink® and Data Acquisition ToolboxTM. Human voice is
used as test signal. For processing and performing adaptive
filtering, Block LMS Filter was utilised in Simulink and Error
Normalised Step Size algorithm was used in between input
and output of Signals by DAQ (Data Acquisition) toolbox
interface. A general method of using DAQ commands has been
employed which also allows for almost any kind of complex
real-time audio processing and is quite easy to follow.
The document provides an overview of adaptive filters. It discusses that adaptive filters are digital filters that have self-adjusting characteristics to changes in input signals. They have two main components: a digital filter with adjustable coefficients and an adaptive algorithm. Common adaptive algorithms are LMS and RLS. Adaptive filters are used for applications like noise cancellation, system identification, channel equalization, and signal prediction. The key aspects of adaptive filter theory and algorithms like LMS, RLS, Wiener filters are also covered.
echo types, how to cancel echo in each type, which is more complex, echo cancellation implementation in matlab
prepared by : OLA MASHAQI ,, SUHAD MALAYSHE
Hardware Implementation of Adaptive Noise Cancellation over DSP Kit TMS320C6713CSCJournals
In noisy acoustic environment, audio signal in speech communication from mobile phone, moving car, train, aero plane, or over a noisy telephone channel is corrupted by additive random noise. The noise is unwanted signal and it is desirable to remove noise from original signal. Since noise is random process and varying at every instant of time, we need to estimate noise at every instant to remove it from original signal. There are many schemes for noise removal but most effective scheme to accomplish noise cancellation is to use adaptive filters. In this paper, we have carried out simulations for different adaptive algorithms (LMS, NLMS and RLS) and compared their performance for noise cancellation in noisy environment. Real time implementation of adaptive algorithm over DSP kit (TMS320C6713) is also presented in this paper. Performance of adaptive algorithm over hardware is also presented. Developed system incorporating best performance adaptive filter in any noisy environment can be used for noise cancellation.
This document provides an overview of adaptive filtering techniques. It discusses digital filters and classifications such as linear/nonlinear and finite impulse response (FIR)/infinite impulse response (IIR). It then covers Wiener filters, including how they minimize mean square error. The method of steepest descent is presented as an approach to solve the Wiener-Hopf equations to find optimal filter weights. Finally, it discusses how the least mean squares (LMS) algorithm can be used for adaptive filtering by updating filter weights recursively in the direction that reduces mean square error.
This document discusses using an adaptive filter for noise cancellation in a laboratory duct. It aims to design and implement an active noise control system using a feedforward topology with an adaptive filter. Active noise control introduces a secondary anti-noise source to destructively interfere with and cancel primary noise. Adaptive filters automatically adjust their filter coefficients using algorithms like the least mean squares algorithm to optimize noise cancellation in response to changing environments. The proposed approach would implement this active noise cancellation system using a laboratory duct model and an adaptive filtered-X algorithm.
ACTIVE NOISE CANCELLATION IN A LABORATORY DUCT USING FUZZY LOGIC AND NEURAL ...Rishikesh .
The main goal of this paper is to present a simulation scheme to simulate an adaptive filter using LMS (Least mean square) adaptive algorithm for noise cancellation. The main objective of the noise cancellation is to estimate the noise signal and to subtract it from original input signal plus noise signal and hence to obtain the noise free signal. There is an alternative method called adaptive noise cancellation for estimating a speech signal corrupted by an additive noise or interference. This method uses a primary input signal that contains the speech signal and a reference input containing noise. The reference input is adaptively filtered and subtracted from the primary input signal to obtain the estimated signal. In this method the desired signal corrupted by an additive noise can be recovered by an adaptive noise canceller using LMS (least mean square) algorithm. This adaptive noise canceller is useful to improve the S/N ratio. Here we estimate the adaptive filter using Labview /MATLAB/SIMULINK environment . For achieving the goal we also use modern algorithms like ANFIS, FIS and Neural Network and compare the PSD of all the algorithms.
The TMS320C4672 is a six-Core DSP from Texas Instrument that can be cascaded into larger system and interface to a FPGA from doing Real-World connectivity.
This presentation provide some Application example for MultiCore DSP solutions
This document discusses the design of a cabin noise cancellation system for cars. It begins by explaining how active noise cancellation works using a secondary sound wave to destructively interfere with and cancel the original noise. It then describes the various sources of noise in a car cabin and the two main approaches for noise cancellation - feedforward and feedback control. The rest of the document details the methodology, results and conclusions of designing a cabin noise cancellation system for cars to reduce noise and improve passenger comfort. It analyzes the relationships between engine specifications, noise frequency, sound power level and RPM to understand how to effectively design a noise cancellation system.
This document discusses smart antenna technology and algorithms. It begins with an introduction to smart antennas, including their ability to adaptively steer beams toward desired signals and null interfering signals. It then describes two common smart antenna algorithms - Least Mean Squares (LMS) and Sample Matrix Inversion (SMI). Simulation results are presented comparing the performance of LMS and SMI for interference cancellation. SMI provides deeper nulls but requires matrix inversion, while LMS converges more slowly but is computationally simpler. Overall, the document analyzes and compares smart antenna beamforming algorithms.
Here are the key points about the differences in antioxidant activity and compounds between vinegars and their source fruits:
- Fruits contain numerous antioxidant compounds like phenolics, flavonoids, anthocyanins etc. that contribute to their high antioxidant activity.
- During fermentation and production of vinegar, some of these compounds degrade or change form. For example, anthocyanins are not stable in acidic conditions.
- New compounds are also formed during fermentation. For example, acetobacter oxidation of ethanol produces acetic acid which contributes to vinegar's antioxidant activity.
- The end profile of antioxidant compounds in a vinegar depends on the source fruit. For example, berries will yield a vinegar higher in phenolics and anthocyan
The benefits noise cancellation offers for travel and daily commutes, there are still many misconceptions about noise cancelling headphone and noise cancelling earphone technology. Learn more at https://www.phiaton.com/products/tag/noise-cancelling/
In many situations, the Electrocardiogram (ECG) is
recorded during ambulatory or strenuous conditions such that the
signal is corrupted by different types of noise, sometimes
originating from another physiological process of the body. Hence,
noise removal is an important aspect of signal processing. Here five
different filters i.e. median, Low Pass Butter worth, FIR, Weighted
Moving Average and Stationary Wavelet Transform (SWT) with
their filtering effect on noisy ECG are presented. Comparative
analyses among these filtering techniques are described and
statically results are evaluated.
VEDA Climate Change Solutions Ltd is implementing an agroforestry project in Kenya to improve rural livelihoods through carbon sequestration. [1] The project involves planting trees on 1607.7 hectares of degraded land with 1590 smallholder farmers. [2] The project communicates with farmers about climate change and carbon sequestration using pamphlets, workshops and community meetings. [3] It provides financial benefits to farmers through additional income from tree plantations over 30 years, while sequestering carbon and restoring degraded land, without compromising food security.
This document outlines the agenda for a two-day workshop on the TMS320C6745 digital signal processor. Day 1 covers introductions to DSP architecture and the CCS development environment, as well as tutorials on waveform generation, UART interfaces, and image processing techniques. Day 2 focuses on additional image processing topics like discrete wavelet transforms and filters, as well as a valedictory session. The document provides context about the instructor and includes specifications about the TMS320C6745 processor.
This document is a thesis submitted by Surendra Singh in partial fulfillment of the requirements for a Master of Technology degree in Machine Design from the Indian Institute of Technology Guwahati. The thesis addresses two problems using topology optimization: designing stiff structures under loading conditions and designing structures for optimal natural frequencies. It presents literature on truss and continuum topology optimization, as well as frequency optimization approaches. The thesis then describes applying topology optimization to maximize and minimize structural stiffness and frequency, and developing intuitive low-frequency designs based on the results.
This document is a project report on implementing built-in self-test (BIST) for testing combinational circuits using an FPGA. It discusses linear feedback shift registers (LFSRs) that can generate pseudo-random test patterns, describes various combinational circuits that can serve as the circuit under test, and analyzes output response analyzers like multiple input signature registers (MISRs) that can compress the circuit's output responses. It also covers different types of read-only memory that can be used to store test patterns or results. Simulation results and schematic diagrams are provided to validate the BIST approach.
The literature survey discusses two papers that propose methods to improve MapReduce performance in Hadoop clusters. The first paper designs a data placement approach that initially distributes data files to nodes based on their computing capacity. It also includes algorithms to redistribute data to address skew caused by dynamic changes. The second paper presents an adaptive slot allocation mechanism called TuMM that dynamically tunes the map and reduce slot ratios based on prior job characteristics to minimize job completion times. Both papers aim to improve resource utilization and reduce job completion times in Hadoop clusters.
This document summarizes an internship report on designing an RS-232 to E1 converter. It provides an overview of the company Efftronics where the internship took place, describing their products, organization structure, and quality management system. It then discusses communications standards including E1, RS-232, and serial protocols. The report details the design of an FPGA-based framed mode implementation in an RS-232 to E1 converter. Testing was performed on framed and unframed modes at various baud rates to verify data integrity.
The document discusses Robert Dale Walstrom's master's thesis on system-level design refinement using SystemC, including an overview of SpecC and SystemC modeling languages, models of computation in each language, and a proposed top-down refinement methodology for refining SystemC models through different levels of abstraction. The methodology is demonstrated through implementation of functionally equivalent SpecC and SystemC models of a digital camera system.
This document is a project report submitted by four students at the Institute of Engineering and Technology in Lucknow, India. It describes their work to improve the gain of an operational amplifier designed using 90nm technology. The students declare that the work is original and was conducted under the guidance of Dr. Tanmay Dubey. The report includes an abstract, introduction on operational amplifiers, description of the CMOS design process, simulation results, and conclusions on matching calculations to simulations. The head of the electronics department certifies that the project fulfills requirements for a Bachelor of Technology degree.
The document is a dissertation submitted for a Master of Technology degree focused on ATM basics for WCDMA networks. It includes a title page, certificate of approval from the supervisor, candidate's declaration, acknowledgements, table of contents, lists of abbreviations and symbols, and 12 chapters covering topics like ATM standards, the physical layer, ATM layer, adaptation layer, signaling, traffic descriptors, and quality of service parameters. The dissertation provides an in-depth technical overview of Asynchronous Transfer Mode (ATM) networking concepts as they relate to Wideband Code Division Multiple Access (WCDMA) wireless networks.
This document is a dissertation submitted for a Master of Technology degree focused on ATM basics for WCDMA networks. It includes a title page, certificate of approval from the supervisor, candidate's declaration, acknowledgements, table of contents, lists of abbreviations and symbols, and 12 chapters covering topics like ATM standards, the physical layer, ATM layer, adaptation layer, signaling, traffic descriptors, and quality of service parameters. The dissertation provides a comprehensive overview of Asynchronous Transfer Mode (ATM) technology as it relates to 3G wireless networks.
Report star topology using noc router Vikas Tiwari
This document appears to be a major project report submitted by three students - Shivam Saini, Vikas Tiwari, and Vinod Kumar Deolal - for their bachelor's degree in electronics and communication engineering. The project involves implementing a star topology for a network-on-chip router using Verilog. The report includes chapters on introductions to NOC routers, Verilog, the design of the router modules like the arbiter, routing engine, crossbar switch, and FIFO buffer. It also provides simulations and results for the individual modules and the combined router design, along with code appendices.
This document is the preface to a textbook on embedded systems that aims to provide students with an overview of both hardware and software aspects of embedded systems from basics to latest trends. The author discusses the challenges in writing about this vast field and their approach of starting from hardware basics, popular processors, important systems, and software aspects, ending with an embedded design perspective. The intended audience is students who have taken introductory courses in digital logic and microprocessors/microcontrollers.
This document provides the course structure and syllabus for a Bachelor of Technology in Computer Science and Engineering (B.Tech CSE) program at Jawaharlal Nehru Technological University Hyderabad. It outlines the courses required for each semester across 4 years of the program, including course codes, titles, credit hours and brief descriptions. In the first year, courses cover general topics in mathematics, chemistry, physics and basic electrical engineering. In later years, courses focus on computer science topics such as programming, data structures, operating systems, databases, algorithms and electives in areas like machine learning, cryptography and data mining. The document also lists the program outcomes, which include the ability to understand and apply essential computer science
2016-17_BE Electronics Engineering-Course Book 2016 RCOEM.pdfMarshalsubash
The document provides details about the Department of Electronics Engineering at Shri Ramdeobaba College of Engineering and Management in Nagpur, India. It includes information about the department's establishment, accreditation, programs offered, vision, mission, facilities, teaching scheme and syllabus for the Bachelor of Engineering in Electronics Engineering program. The department aims to provide state-of-the-art technical education and facilitate research in electronics engineering. It has 15 labs with over Rs. 2 crores invested in equipment and software. The teaching scheme outlines the courses, credits and examination scheme for each semester of the 4-year B.E. Electronics Engineering program.
This document describes a major project submitted by four students to fulfill the requirements for a Bachelor of Engineering degree in Electronics and Communication. The project is about designing a TV remote to function as a cordless mouse for a computer. The remote would send infrared signals that are received by an IR sensor connected to a microcontroller. The microcontroller would then send the signals to the computer through a serial port to control mouse functions like cursor movement and clicks. The project aims to allow wireless mouse operation without sitting near the computer.
This document summarizes Setiawan Soekamtoputra's academic projects from 2009-2010 during his Master's degree program. It describes eight projects involving digital circuit design and computer architecture. The projects include designing a pipelined CPU with a multiplier accumulator unit, developing a monitor program for the MC68000 processor, creating a pipelined MIPS processor, and analyzing SRAM bitcell designs. Simulation tools like Verilog, VHDL, and SystemC were used to implement and verify the designs.
This document describes a project to develop a detection and warning system for fireworks warehouses using wireless sensor networks. The system will detect fires using sensors and send alerts via GSM. It will be implemented using a microcontroller, fire sensor, GSM module, LCD display, relay switch and other hardware. The microcontroller will monitor the sensor for fire detection and control the relay switch to activate a water sprinkler. It will also send alerts to registered mobile numbers via the GSM module. The project aims to provide fire safety and security in industrial warehouses.
Semi-custom Layout Design and Simulation of CMOS NAND GateIJEEE
In this paper a CMOS NAND gate layout has been designed and simulated using 90 nm technology. The layout has been designed using two approaches namely fully automatic and semicustom. In fully automatic technique NAND gate schematic is developed which is converted into its equivalent verilog file for automatic layout generation. In semicustom technique layout has been developed manually to optimize area and power. It can be observed from the simulated results that semicustom layout results in 74% saving in area consumption by consuming almost same power as compared to fully automatic design.
Optimized Layout Design of Priority Encoder using 65nm TechnologyIJEEE
This document compares the power efficiency and area of a 4-bit priority encoder designed using a fully automatic layout versus a semi-custom layout on 65nm technology. Simulation results show that the semi-custom design has improved power efficiency by 29.61μW and reduced area by 253.8μm2 compared to the fully automatic design. The semi-custom design manually draws the layout of the CMOS circuit, while the fully automatic design generates the layout from a Verilog file.
Netlist Optimization for CMOS Place and Route in MICROWINDIRJET Journal
This document discusses netlist optimization for CMOS place and route in the MICROWIND tool. It presents an algorithm to rearrange the Verilog netlist generated in DSCH to optimize the layout generated in MICROWIND. The algorithm first extracts interconnect wire nodes from the netlist and calculates fan-out of each gate. It then rearranges the netlist by placing lines with the highest fan-out wires together to minimize interconnect length. Alternatively, it can rearrange the netlist by logic gate type to group similar gates together. Experimental results on circuits like an ADC show the optimized netlists reduce total area and number of metal layers compared to the original netlist. The optimization logic aims to generate more efficient layouts in MICROW
Designing of 8 BIT Arithmetic and Logical Unit and implementing on Xilinx Ver...Rahul Borthakur
The main objective of this project was to design and verify different operations of Arithmetic and Logical Unit (ALU). To implement ALU, the coding was written in VHDL (VHSIC Hardware Description Language) and verified in ModelSim. The device was configured and using FPGA (Field-programmable gate array) verification, debugging was done.
This document provides information about a digital signal processing laboratory manual, including:
- An index listing 12 experiments covering topics like DSP chip architecture, linear and circular convolution, FIR and IIR filter design, FFT implementation, frequency response analysis, and power spectral density computation.
- General instructions for successfully completing experiments within the 3-hour laboratory period and guidance for laboratory reports.
- Procedures for working with MATLAB and Code Composer Studio software to execute experiments and programs on a DSP processor.
- An introduction to digital signal processors and an overview of the architecture of the TMS320C67xx DSP chip used, including its CPU, memory, peripherals, and advanced parallel processing capabilities
Similar to M.Tech Thesis on Simulation and Hardware Implementation of NLMS algorithm on TMS320C6713 Digital Signal Processor (20)
A review of the growth of the Israel Genealogy Research Association Database Collection for the last 12 months. Our collection is now passed the 3 million mark and still growing. See which archives have contributed the most. See the different types of records we have, and which years have had records added. You can also see what we have for the future.
How to Manage Your Lost Opportunities in Odoo 17 CRMCeline George
Odoo 17 CRM allows us to track why we lose sales opportunities with "Lost Reasons." This helps analyze our sales process and identify areas for improvement. Here's how to configure lost reasons in Odoo 17 CRM
Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...Diana Rendina
Librarians are leading the way in creating future-ready citizens – now we need to update our spaces to match. In this session, attendees will get inspiration for transforming their library spaces. You’ll learn how to survey students and patrons, create a focus group, and use design thinking to brainstorm ideas for your space. We’ll discuss budget friendly ways to change your space as well as how to find funding. No matter where you’re at, you’ll find ideas for reimagining your space in this session.
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxEduSkills OECD
Iván Bornacelly, Policy Analyst at the OECD Centre for Skills, OECD, presents at the webinar 'Tackling job market gaps with a skills-first approach' on 12 June 2024
हिंदी वर्णमाला पीपीटी, hindi alphabet PPT presentation, hindi varnamala PPT, Hindi Varnamala pdf, हिंदी स्वर, हिंदी व्यंजन, sikhiye hindi varnmala, dr. mulla adam ali, hindi language and literature, hindi alphabet with drawing, hindi alphabet pdf, hindi varnamala for childrens, hindi language, hindi varnamala practice for kids, https://www.drmullaadamali.com
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPRAHUL
This Dissertation explores the particular circumstances of Mirzapur, a region located in the
core of India. Mirzapur, with its varied terrains and abundant biodiversity, offers an optimal
environment for investigating the changes in vegetation cover dynamics. Our study utilizes
advanced technologies such as GIS (Geographic Information Systems) and Remote sensing to
analyze the transformations that have taken place over the course of a decade.
The complex relationship between human activities and the environment has been the focus
of extensive research and worry. As the global community grapples with swift urbanization,
population expansion, and economic progress, the effects on natural ecosystems are becoming
more evident. A crucial element of this impact is the alteration of vegetation cover, which plays a
significant role in maintaining the ecological equilibrium of our planet.Land serves as the foundation for all human activities and provides the necessary materials for
these activities. As the most crucial natural resource, its utilization by humans results in different
'Land uses,' which are determined by both human activities and the physical characteristics of the
land.
The utilization of land is impacted by human needs and environmental factors. In countries
like India, rapid population growth and the emphasis on extensive resource exploitation can lead
to significant land degradation, adversely affecting the region's land cover.
Therefore, human intervention has significantly influenced land use patterns over many
centuries, evolving its structure over time and space. In the present era, these changes have
accelerated due to factors such as agriculture and urbanization. Information regarding land use and
cover is essential for various planning and management tasks related to the Earth's surface,
providing crucial environmental data for scientific, resource management, policy purposes, and
diverse human activities.
Accurate understanding of land use and cover is imperative for the development planning
of any area. Consequently, a wide range of professionals, including earth system scientists, land
and water managers, and urban planners, are interested in obtaining data on land use and cover
changes, conversion trends, and other related patterns. The spatial dimensions of land use and
cover support policymakers and scientists in making well-informed decisions, as alterations in
these patterns indicate shifts in economic and social conditions. Monitoring such changes with the
help of Advanced technologies like Remote Sensing and Geographic Information Systems is
crucial for coordinated efforts across different administrative levels. Advanced technologies like
Remote Sensing and Geographic Information Systems
9
Changes in vegetation cover refer to variations in the distribution, composition, and overall
structure of plant communities across different temporal and spatial scales. These changes can
occur natural.
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
it describes the bony anatomy including the femoral head , acetabulum, labrum . also discusses the capsule , ligaments . muscle that act on the hip joint and the range of motion are outlined. factors affecting hip joint stability and weight transmission through the joint are summarized.
Chapter wise All Notes of First year Basic Civil Engineering.pptxDenish Jangid
Chapter wise All Notes of First year Basic Civil Engineering
Syllabus
Chapter-1
Introduction to objective, scope and outcome the subject
Chapter 2
Introduction: Scope and Specialization of Civil Engineering, Role of civil Engineer in Society, Impact of infrastructural development on economy of country.
Chapter 3
Surveying: Object Principles & Types of Surveying; Site Plans, Plans & Maps; Scales & Unit of different Measurements.
Linear Measurements: Instruments used. Linear Measurement by Tape, Ranging out Survey Lines and overcoming Obstructions; Measurements on sloping ground; Tape corrections, conventional symbols. Angular Measurements: Instruments used; Introduction to Compass Surveying, Bearings and Longitude & Latitude of a Line, Introduction to total station.
Levelling: Instrument used Object of levelling, Methods of levelling in brief, and Contour maps.
Chapter 4
Buildings: Selection of site for Buildings, Layout of Building Plan, Types of buildings, Plinth area, carpet area, floor space index, Introduction to building byelaws, concept of sun light & ventilation. Components of Buildings & their functions, Basic concept of R.C.C., Introduction to types of foundation
Chapter 5
Transportation: Introduction to Transportation Engineering; Traffic and Road Safety: Types and Characteristics of Various Modes of Transportation; Various Road Traffic Signs, Causes of Accidents and Road Safety Measures.
Chapter 6
Environmental Engineering: Environmental Pollution, Environmental Acts and Regulations, Functional Concepts of Ecology, Basics of Species, Biodiversity, Ecosystem, Hydrological Cycle; Chemical Cycles: Carbon, Nitrogen & Phosphorus; Energy Flow in Ecosystems.
Water Pollution: Water Quality standards, Introduction to Treatment & Disposal of Waste Water. Reuse and Saving of Water, Rain Water Harvesting. Solid Waste Management: Classification of Solid Waste, Collection, Transportation and Disposal of Solid. Recycling of Solid Waste: Energy Recovery, Sanitary Landfill, On-Site Sanitation. Air & Noise Pollution: Primary and Secondary air pollutants, Harmful effects of Air Pollution, Control of Air Pollution. . Noise Pollution Harmful Effects of noise pollution, control of noise pollution, Global warming & Climate Change, Ozone depletion, Greenhouse effect
Text Books:
1. Palancharmy, Basic Civil Engineering, McGraw Hill publishers.
2. Satheesh Gopi, Basic Civil Engineering, Pearson Publishers.
3. Ketki Rangwala Dalal, Essentials of Civil Engineering, Charotar Publishing House.
4. BCP, Surveying volume 1
Leveraging Generative AI to Drive Nonprofit InnovationTechSoup
In this webinar, participants learned how to utilize Generative AI to streamline operations and elevate member engagement. Amazon Web Service experts provided a customer specific use cases and dived into low/no-code tools that are quick and easy to deploy through Amazon Web Service (AWS.)
M.Tech Thesis on Simulation and Hardware Implementation of NLMS algorithm on TMS320C6713 Digital Signal Processor

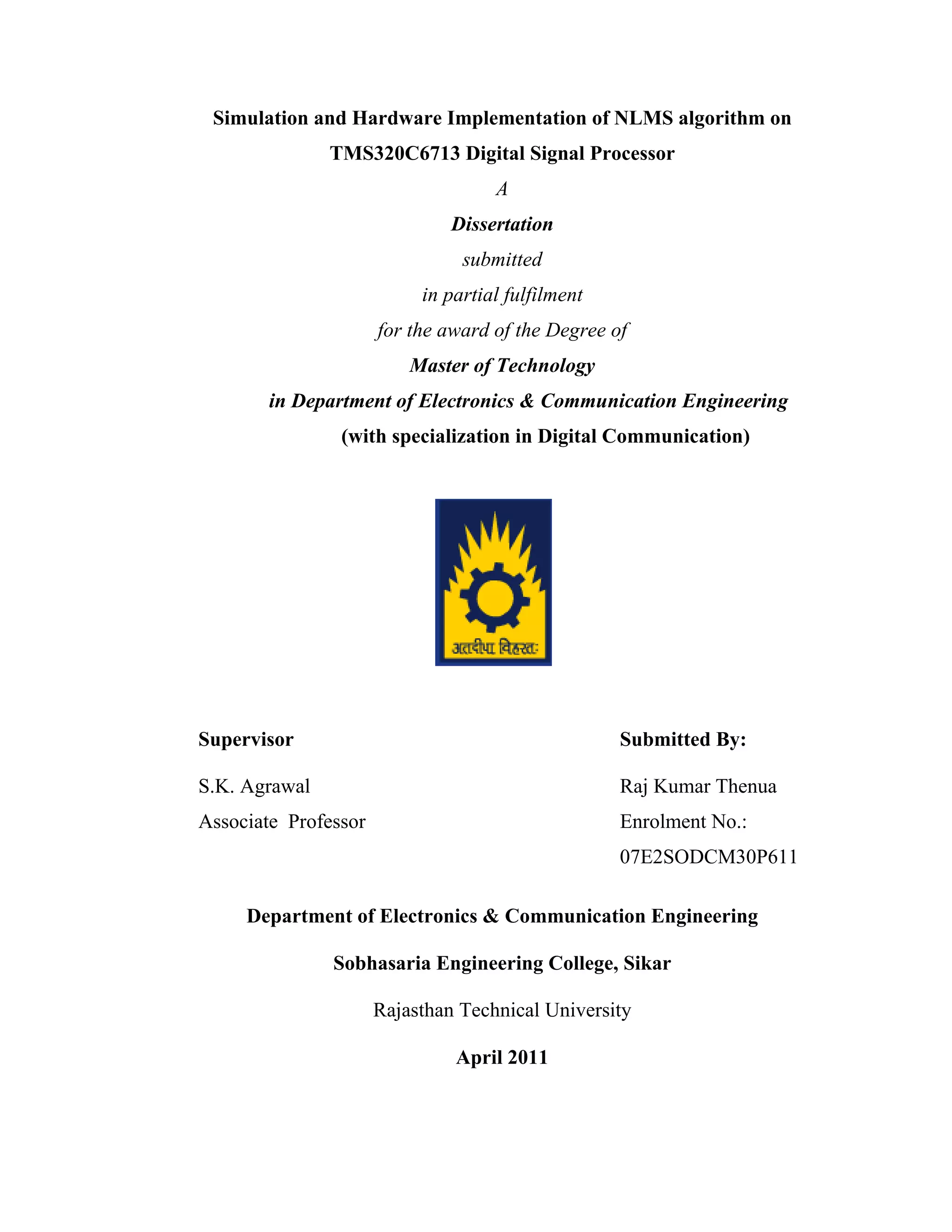

1. Simulation and Hardware Implementation of NLMS algorithm on
TMS320C6713 Digital Signal Processor
A
Dissertation
submitted
in partial fulfilment
for the award of the Degree of
Master of Technology
in Department of Electronics & Communication Engineering
(with specialization in Digital Communication)
Supervisor
Submitted By:
S.K. Agrawal
Raj Kumar Thenua
Associate Professor
Enrolment No.:
07E2SODCM30P611
Department of Electronics & Communication Engineering
Sobhasaria Engineering College, Sikar
Rajasthan Technical University
April 2011

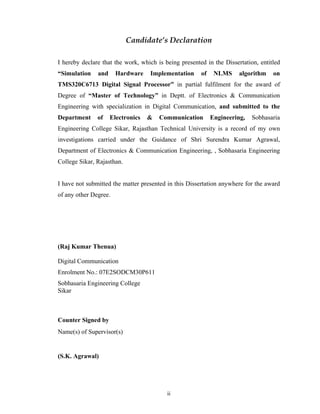

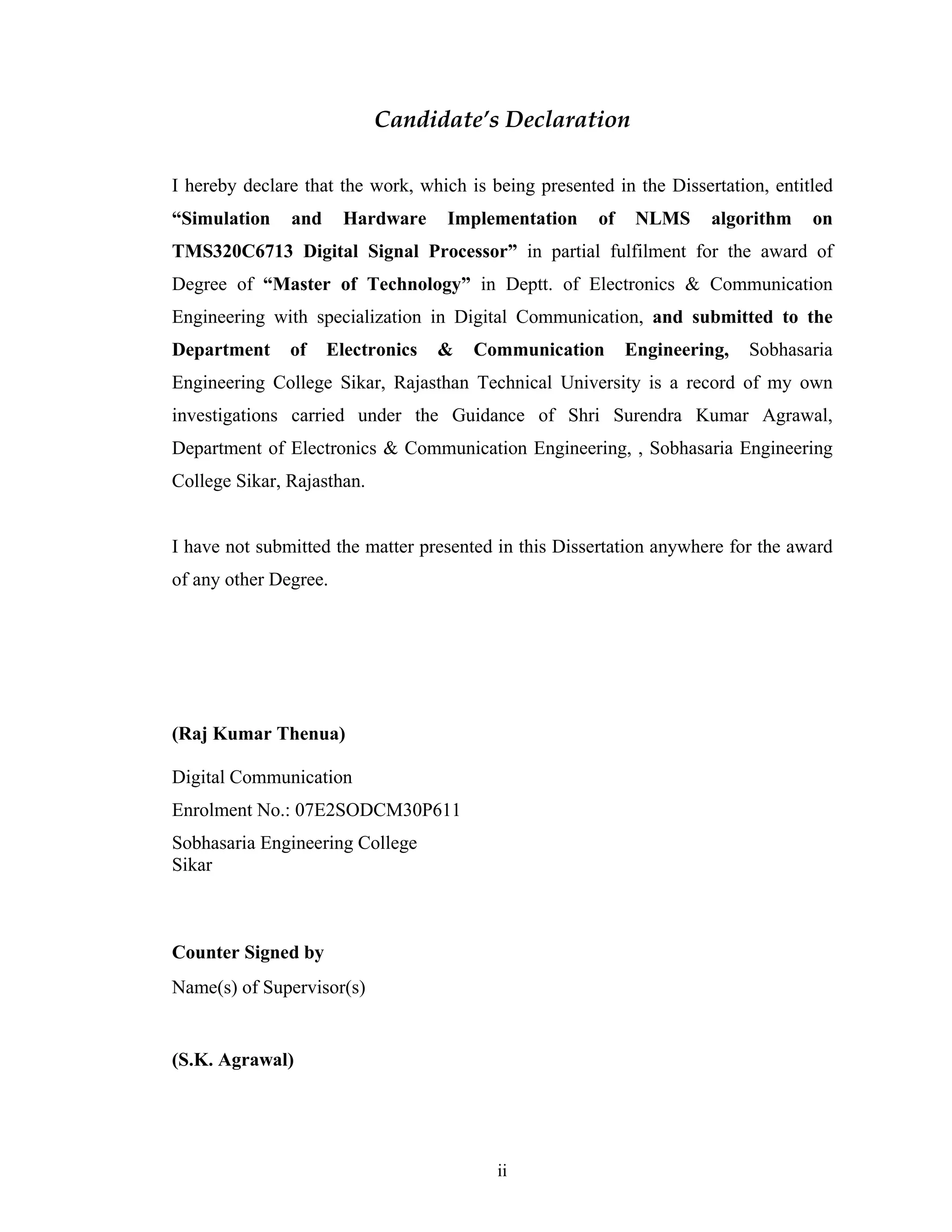

2. Candidate’s Declaration
I hereby declare that the work, which is being presented in the Dissertation, entitled
“Simulation
and
Hardware
Implementation
of
NLMS
algorithm
on
TMS320C6713 Digital Signal Processor” in partial fulfilment for the award of
Degree of “Master of Technology” in Deptt. of Electronics & Communication
Engineering with specialization in Digital Communication, and submitted to the
Department
of
Electronics
&
Communication
Engineering,
Sobhasaria
Engineering College Sikar, Rajasthan Technical University is a record of my own
investigations carried under the Guidance of Shri Surendra Kumar Agrawal,
Department of Electronics & Communication Engineering, , Sobhasaria Engineering
College Sikar, Rajasthan.
I have not submitted the matter presented in this Dissertation anywhere for the award
of any other Degree.
(Raj Kumar Thenua)
Digital Communication
Enrolment No.: 07E2SODCM30P611
Sobhasaria Engineering College
Sikar
Counter Signed by
Name(s) of Supervisor(s)
(S.K. Agrawal)
ii

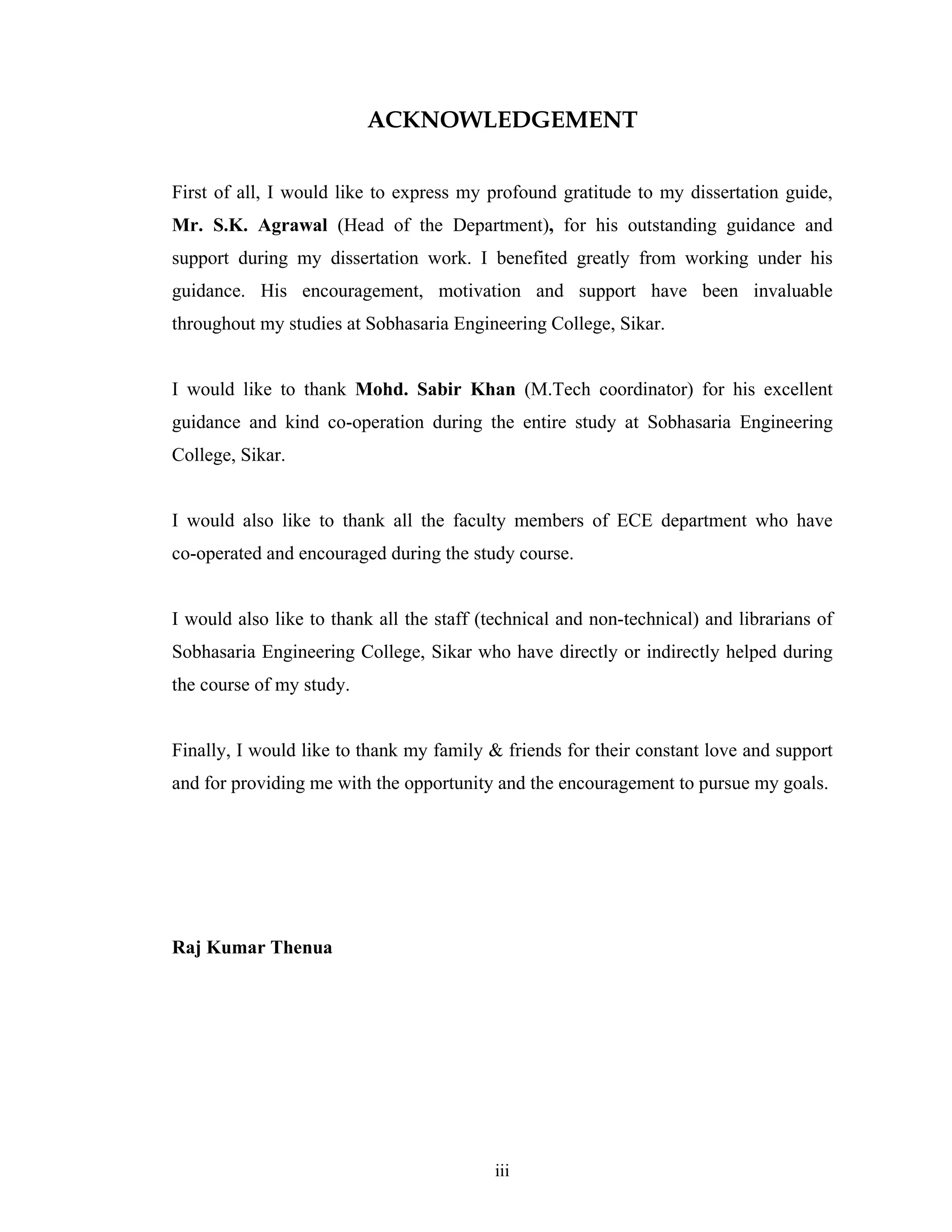

3. ACKNOWLEDGEMENT
First of all, I would like to express my profound gratitude to my dissertation guide,
Mr. S.K. Agrawal (Head of the Department), for his outstanding guidance and
support during my dissertation work. I benefited greatly from working under his
guidance. His encouragement, motivation and support have been invaluable
throughout my studies at Sobhasaria Engineering College, Sikar.
I would like to thank Mohd. Sabir Khan (M.Tech coordinator) for his excellent
guidance and kind co-operation during the entire study at Sobhasaria Engineering
College, Sikar.
I would also like to thank all the faculty members of ECE department who have
co-operated and encouraged during the study course.
I would also like to thank all the staff (technical and non-technical) and librarians of
Sobhasaria Engineering College, Sikar who have directly or indirectly helped during
the course of my study.
Finally, I would like to thank my family & friends for their constant love and support
and for providing me with the opportunity and the encouragement to pursue my goals.
Raj Kumar Thenua
iii

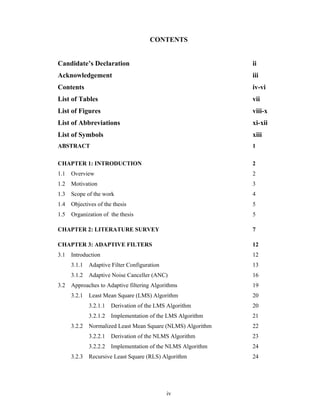

4. CONTENTS
Candidate’s Declaration
ii
Acknowledgement
iii
Contents
iv-vi

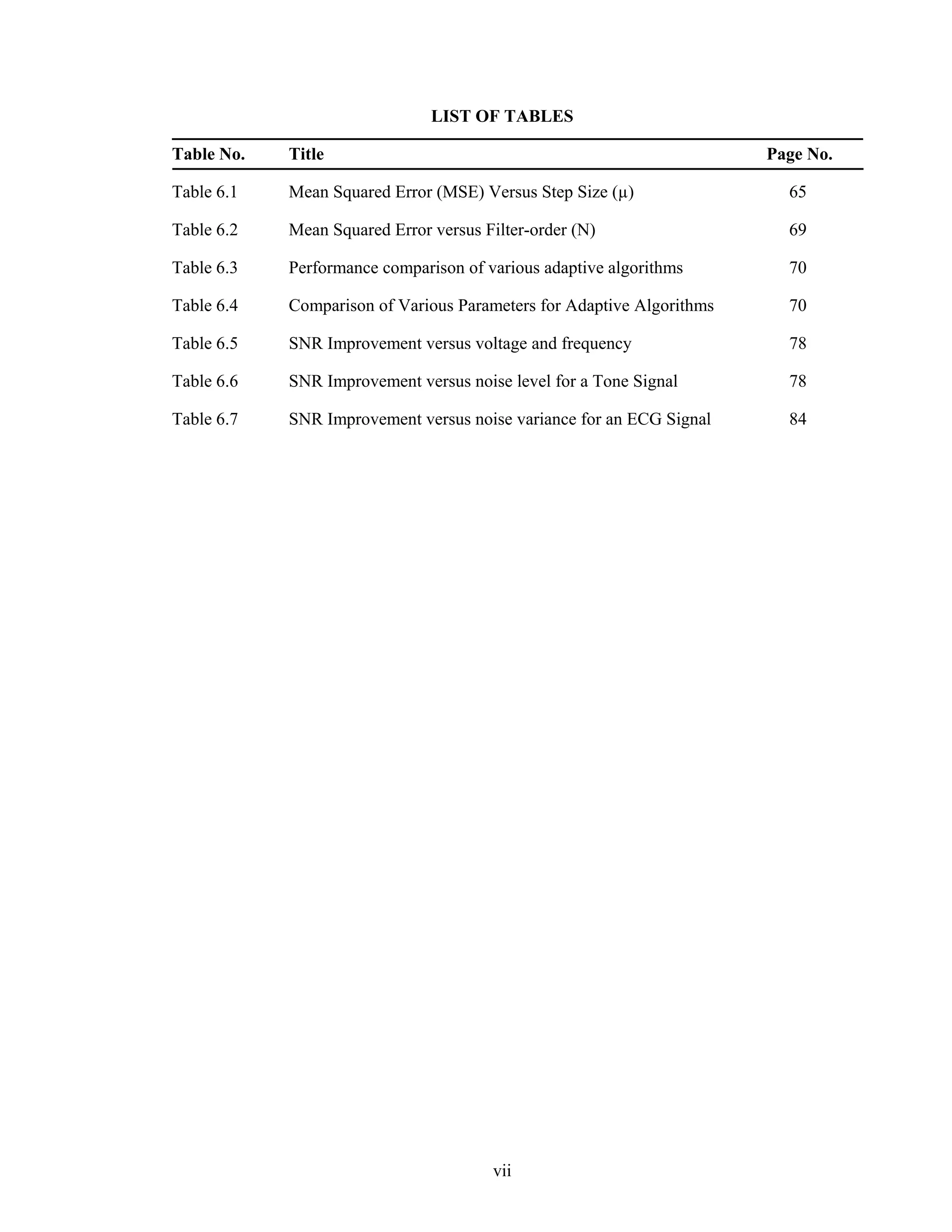

List of Tables
vii

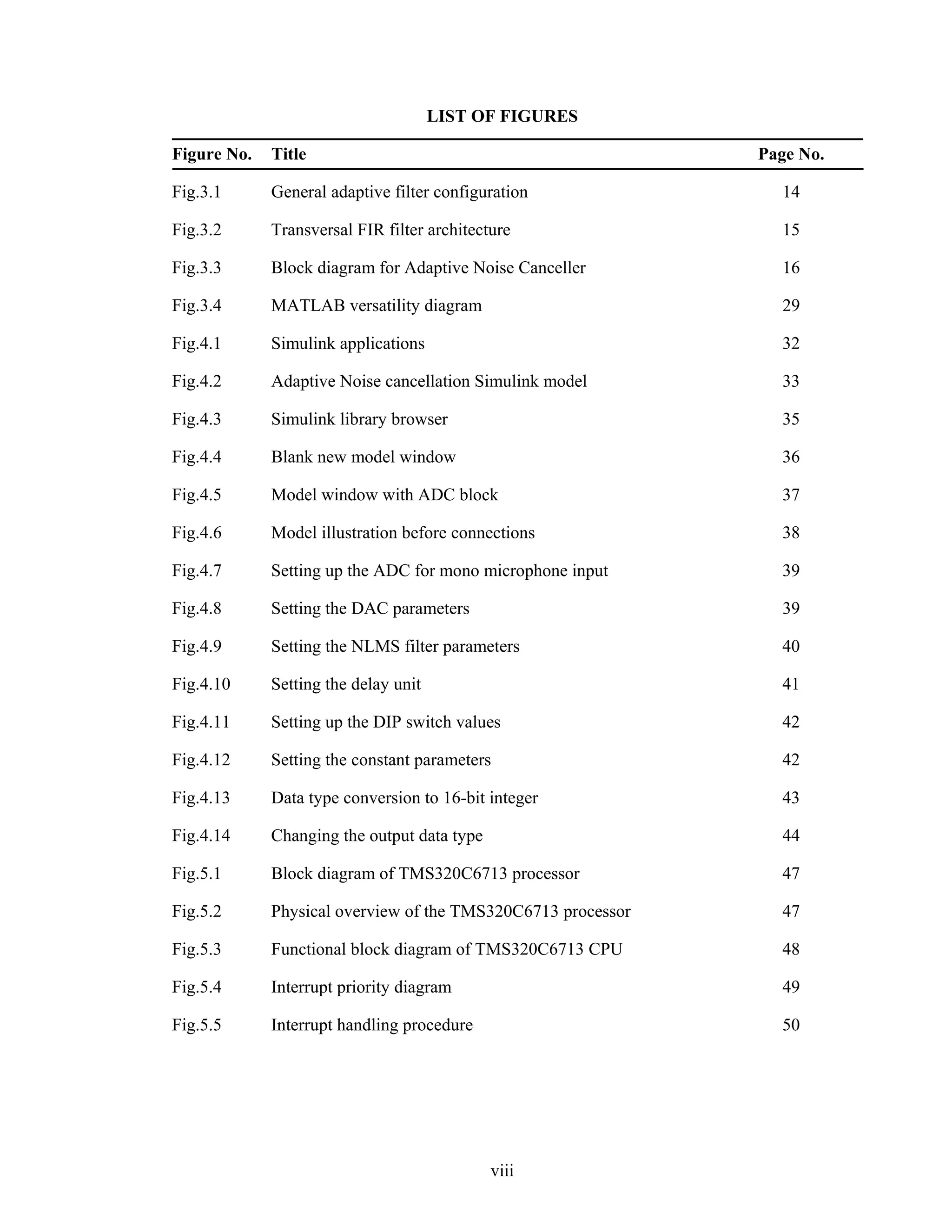

List of Figures
viii-x

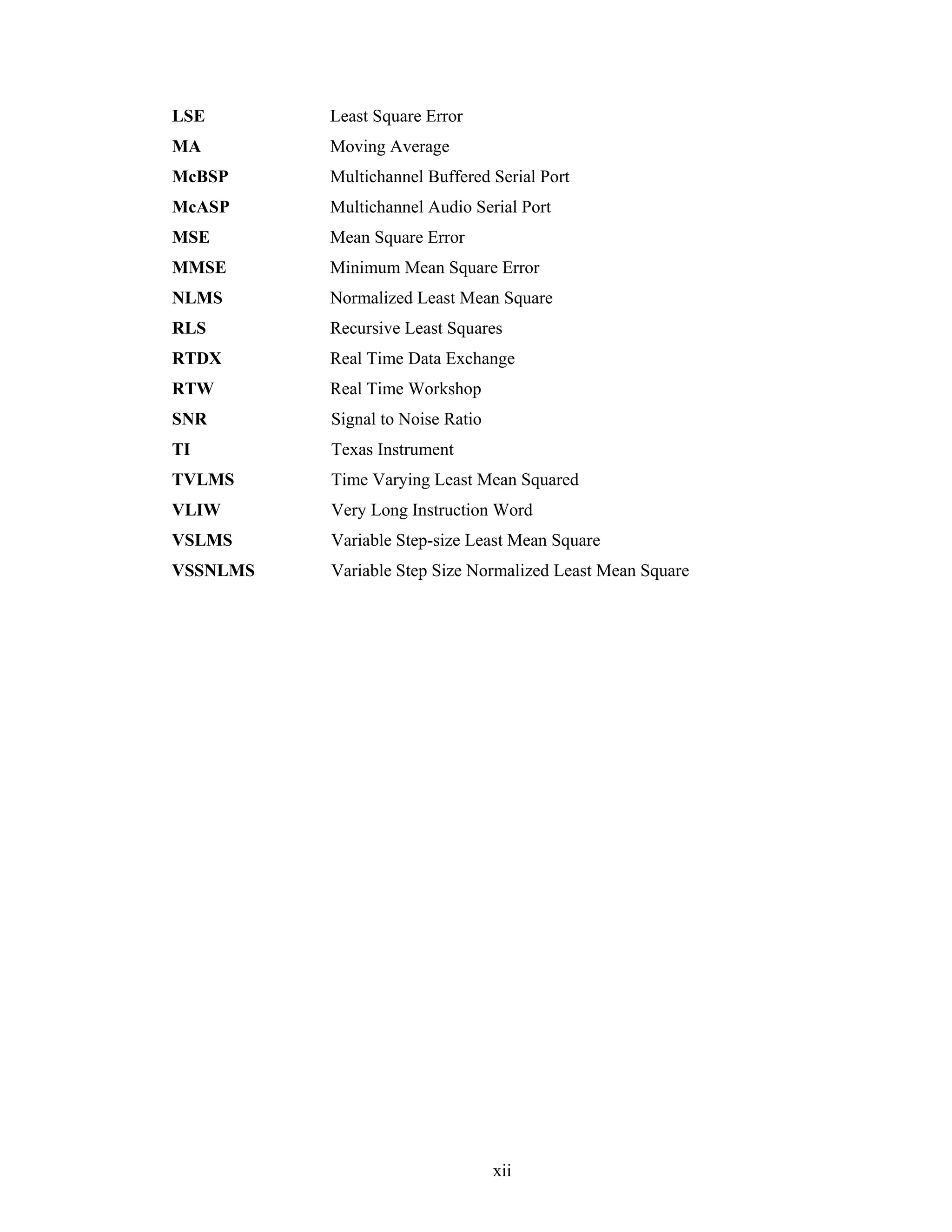

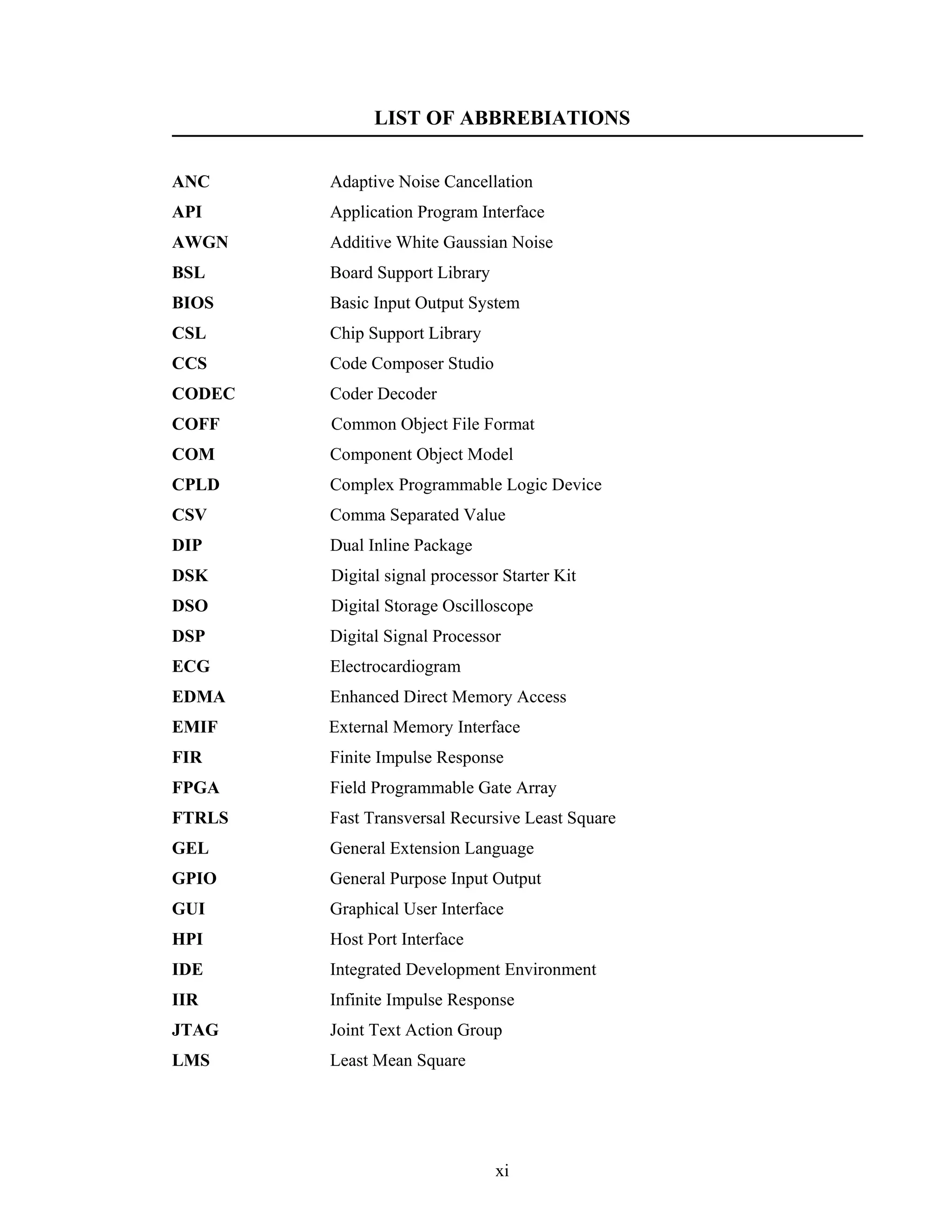

List of Abbreviations
xi-xii
List of Symbols
xiii

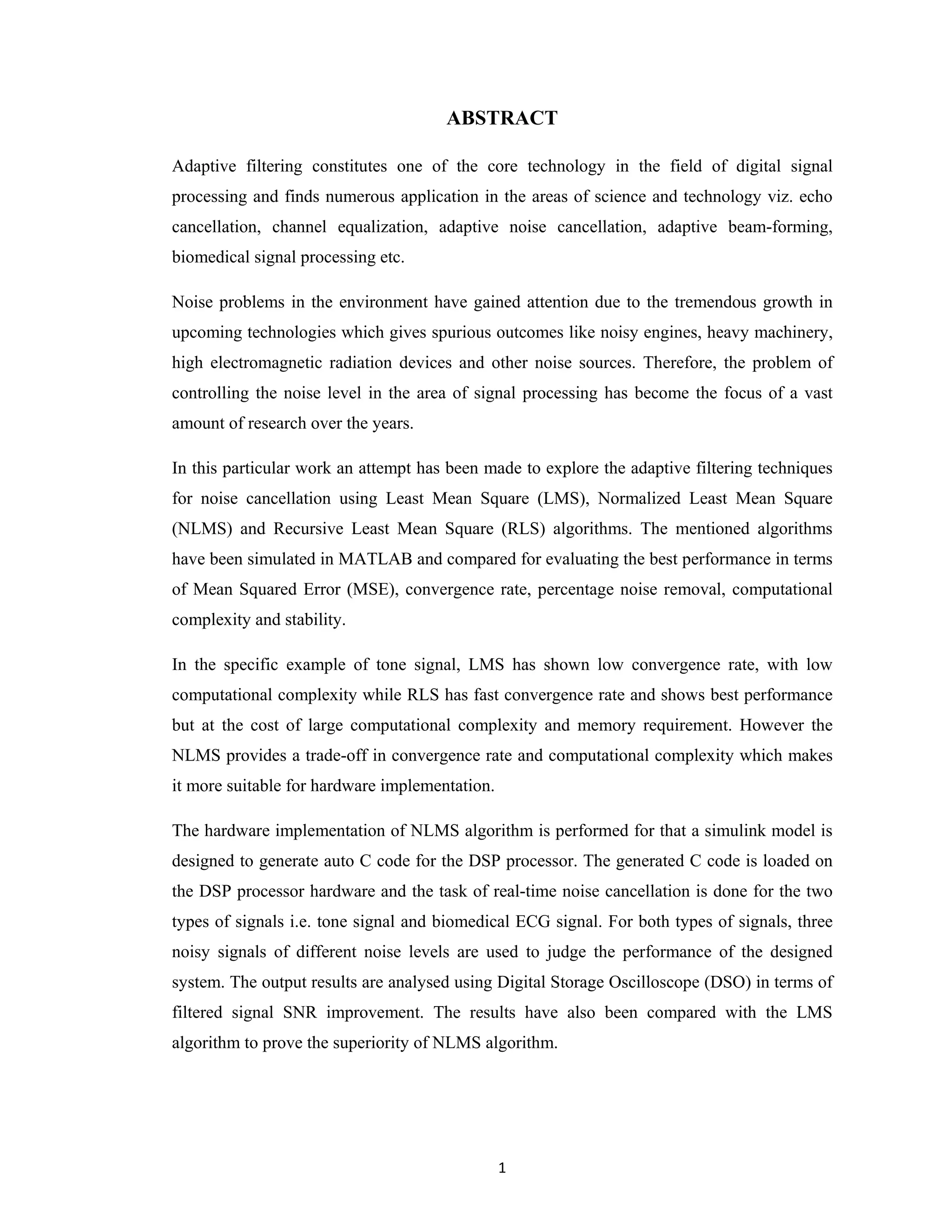

ABSTRACT
1
CHAPTER 1: INTRODUCTION
2
1.1
Overview
2
1.2

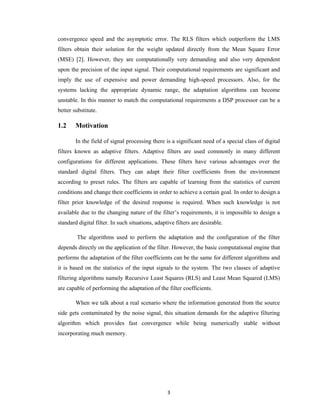

Motivation
3

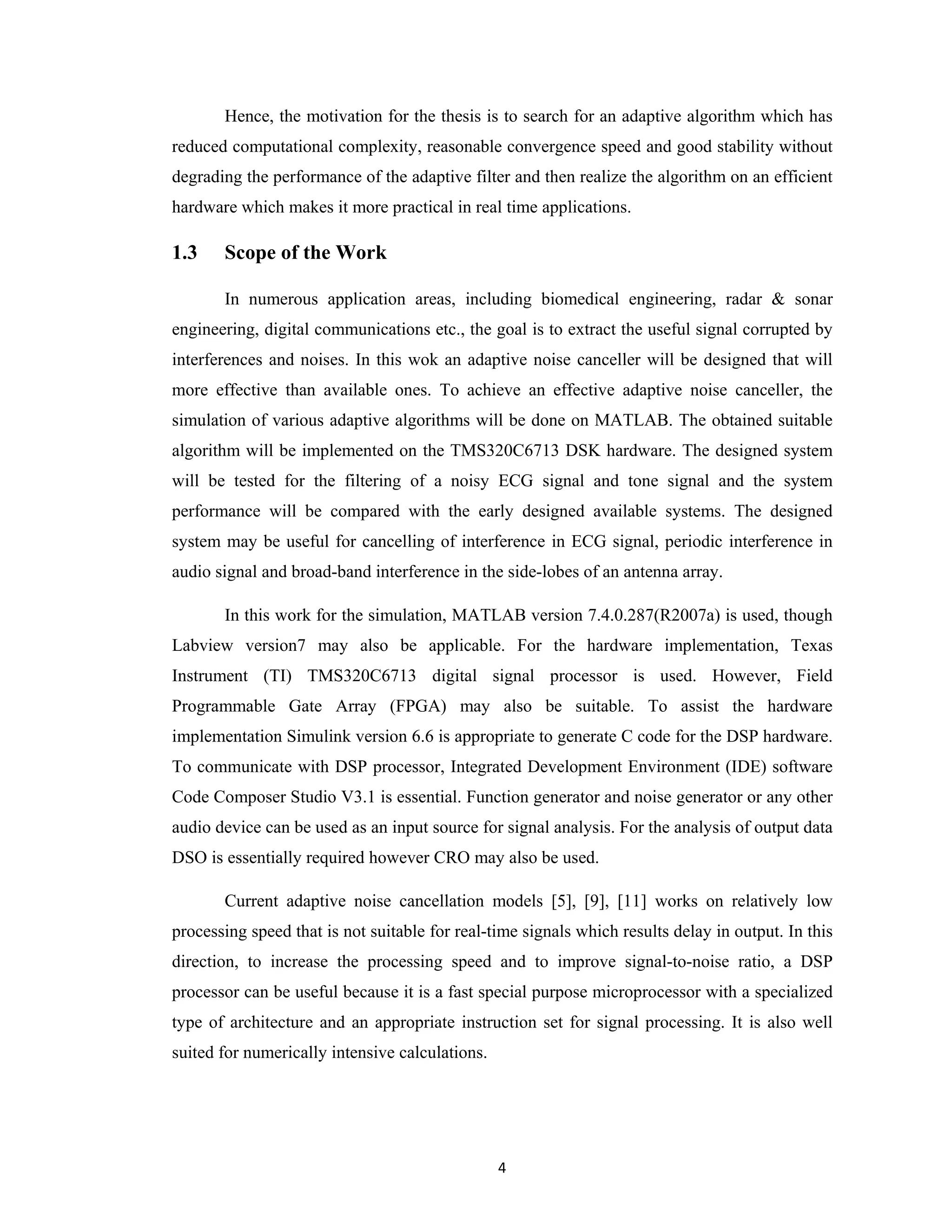

1.3
Scope of the work
4
1.4

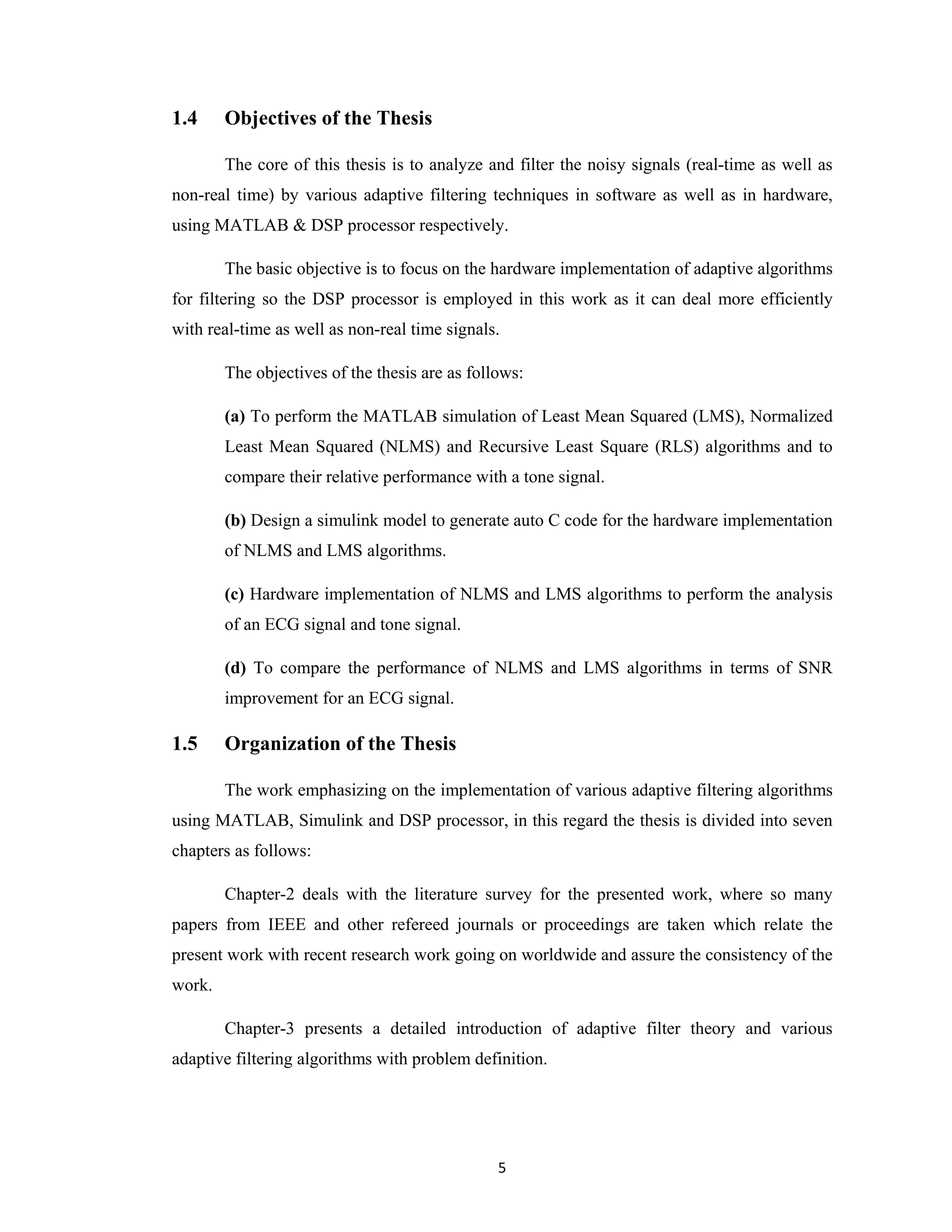

Objectives of the thesis
5
1.5
Organization of the thesis
5

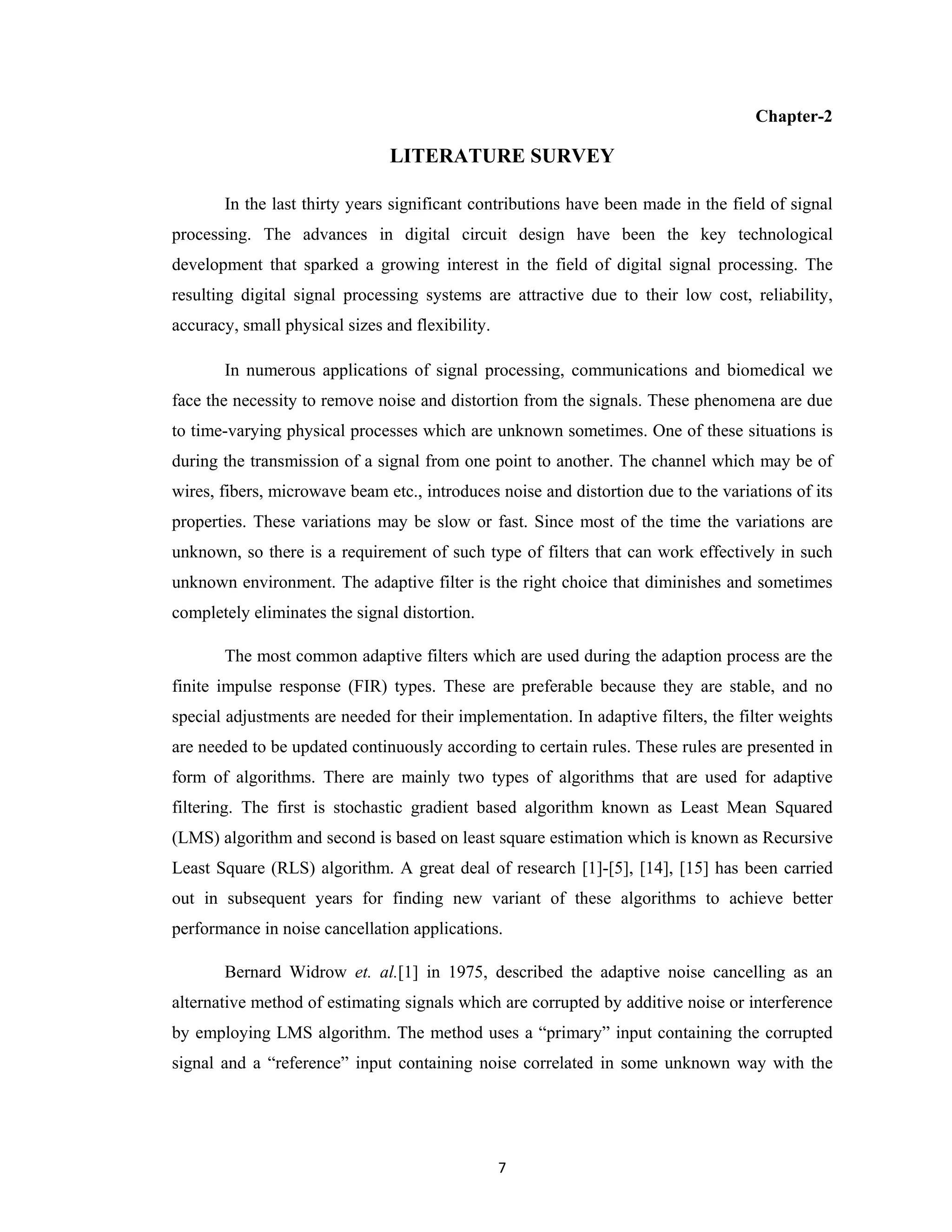

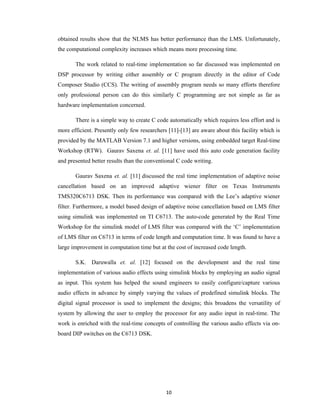

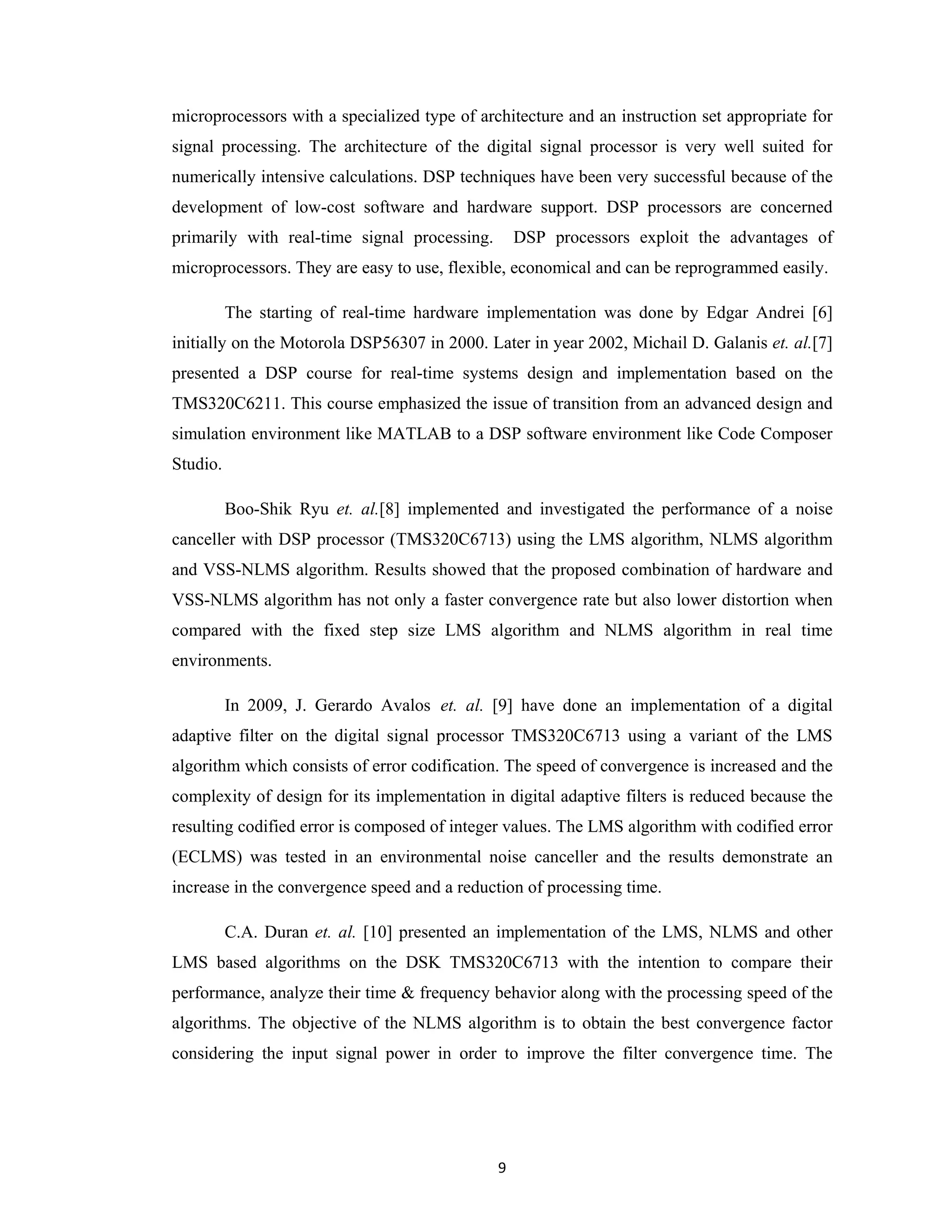

CHAPTER 2: LITERATURE SURVEY
7

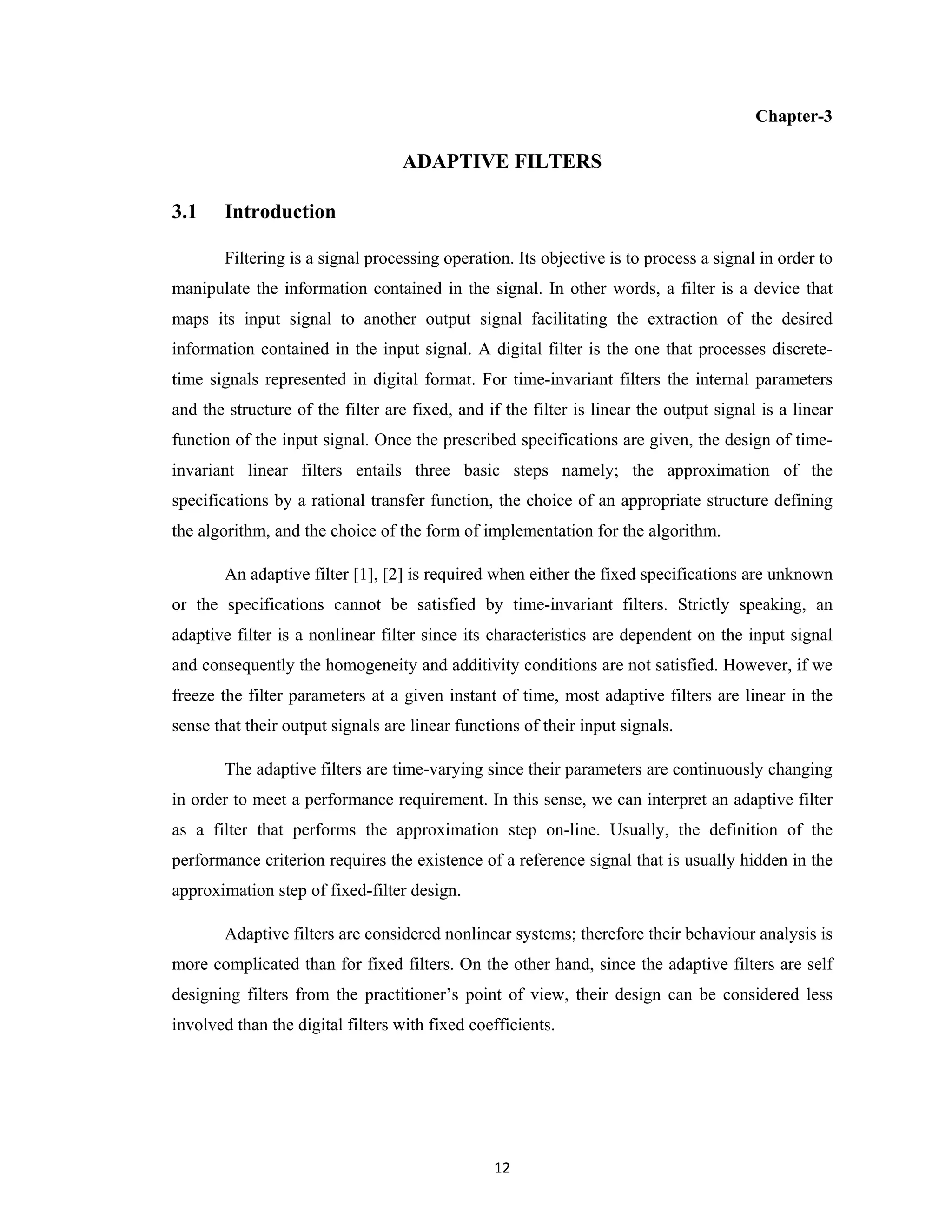

CHAPTER 3: ADAPTIVE FILTERS
12
3.1
Introduction
12

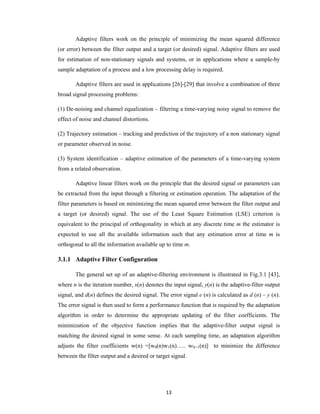

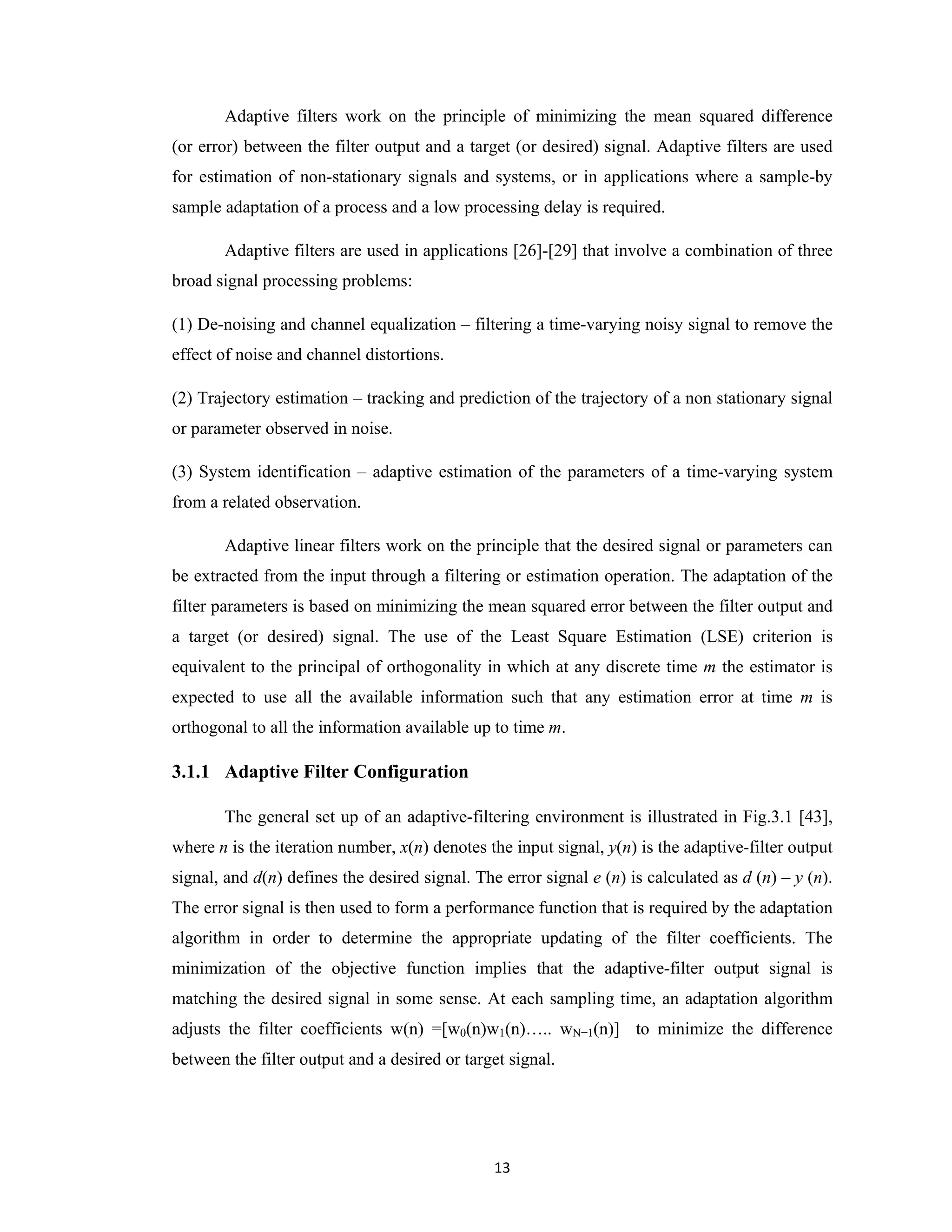

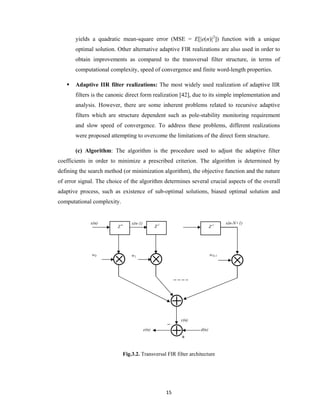

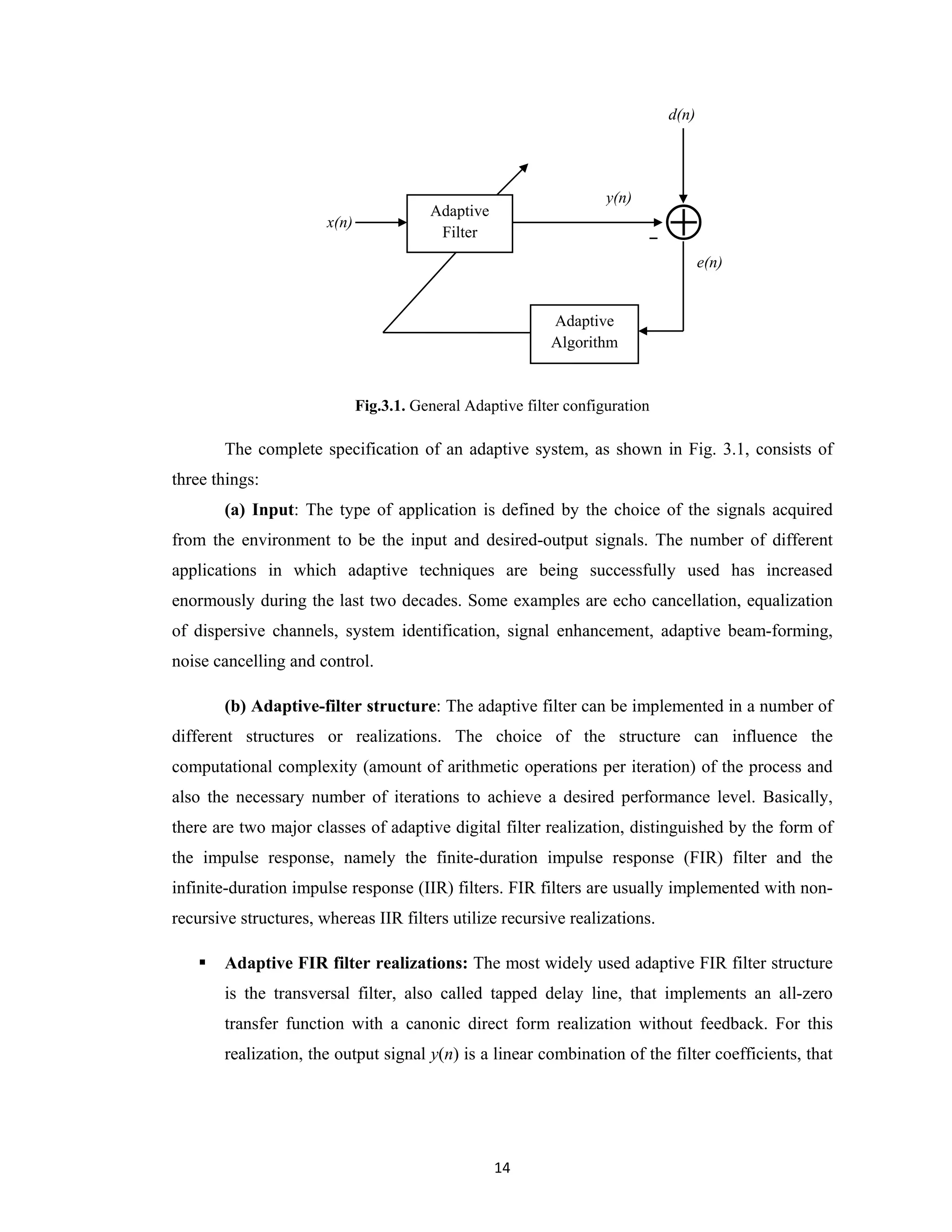

3.1.1 Adaptive Filter Configuration

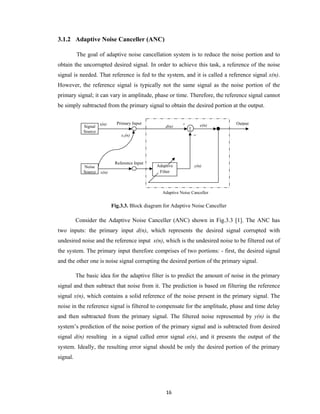

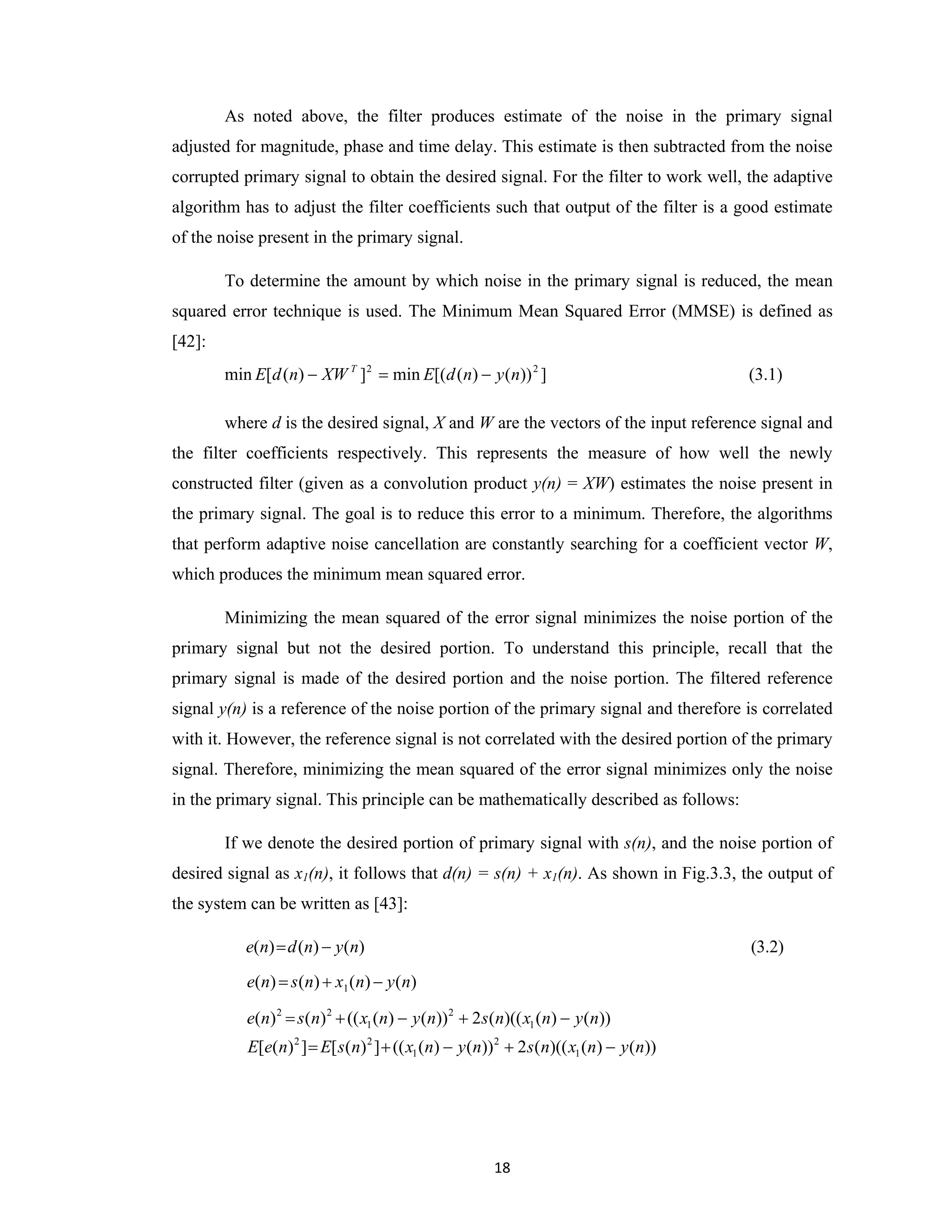

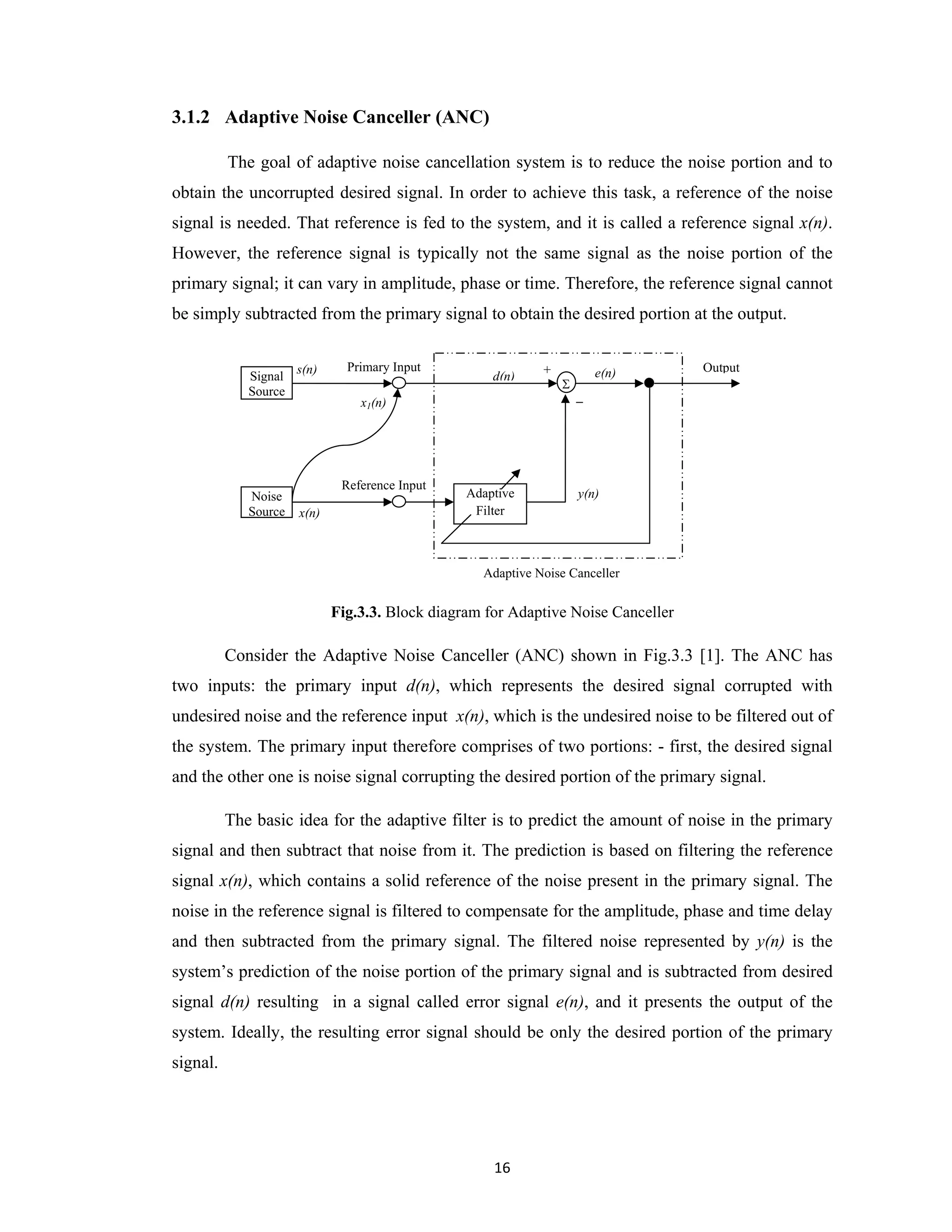

13
3.1.2 Adaptive Noise Canceller (ANC)
16

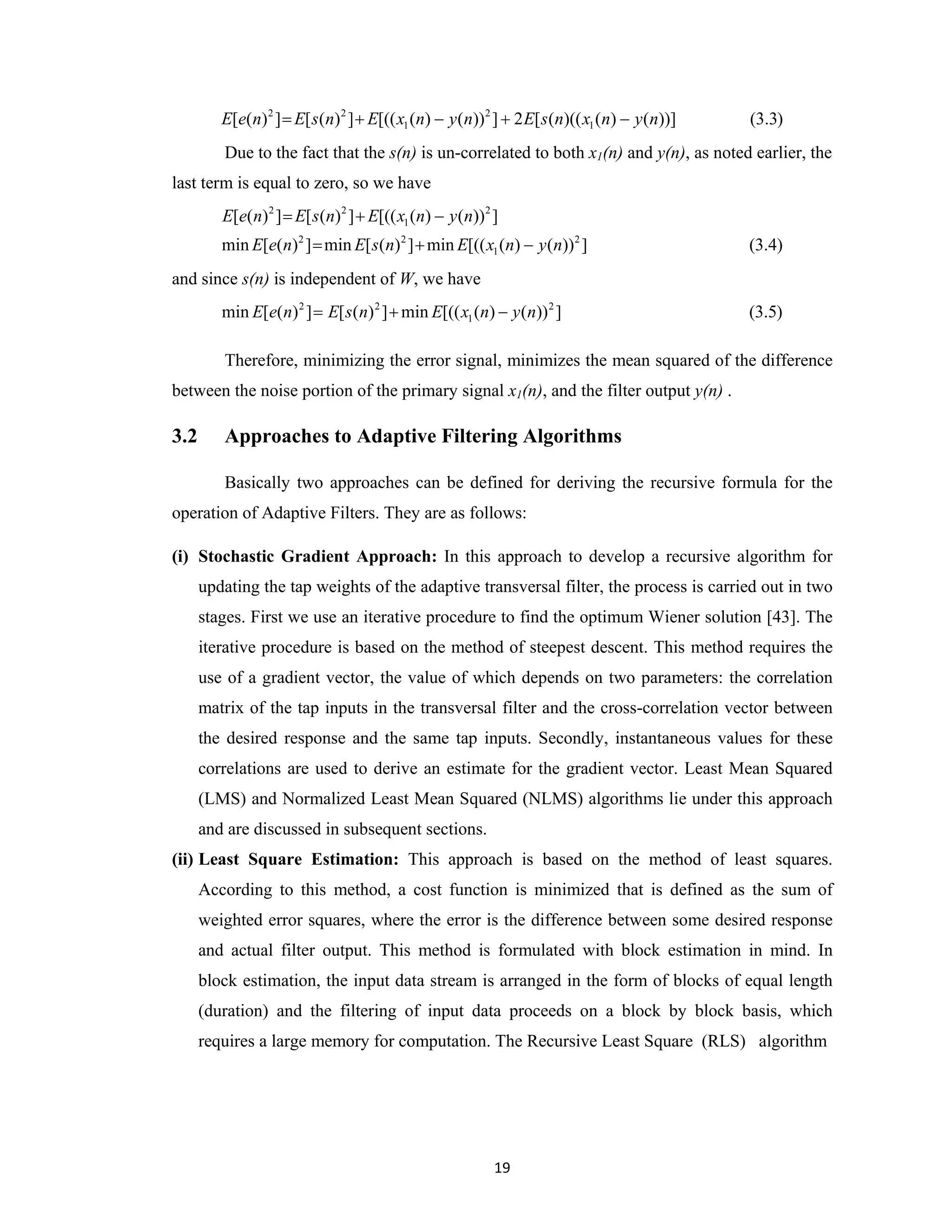

Approaches to Adaptive filtering Algorithms
19

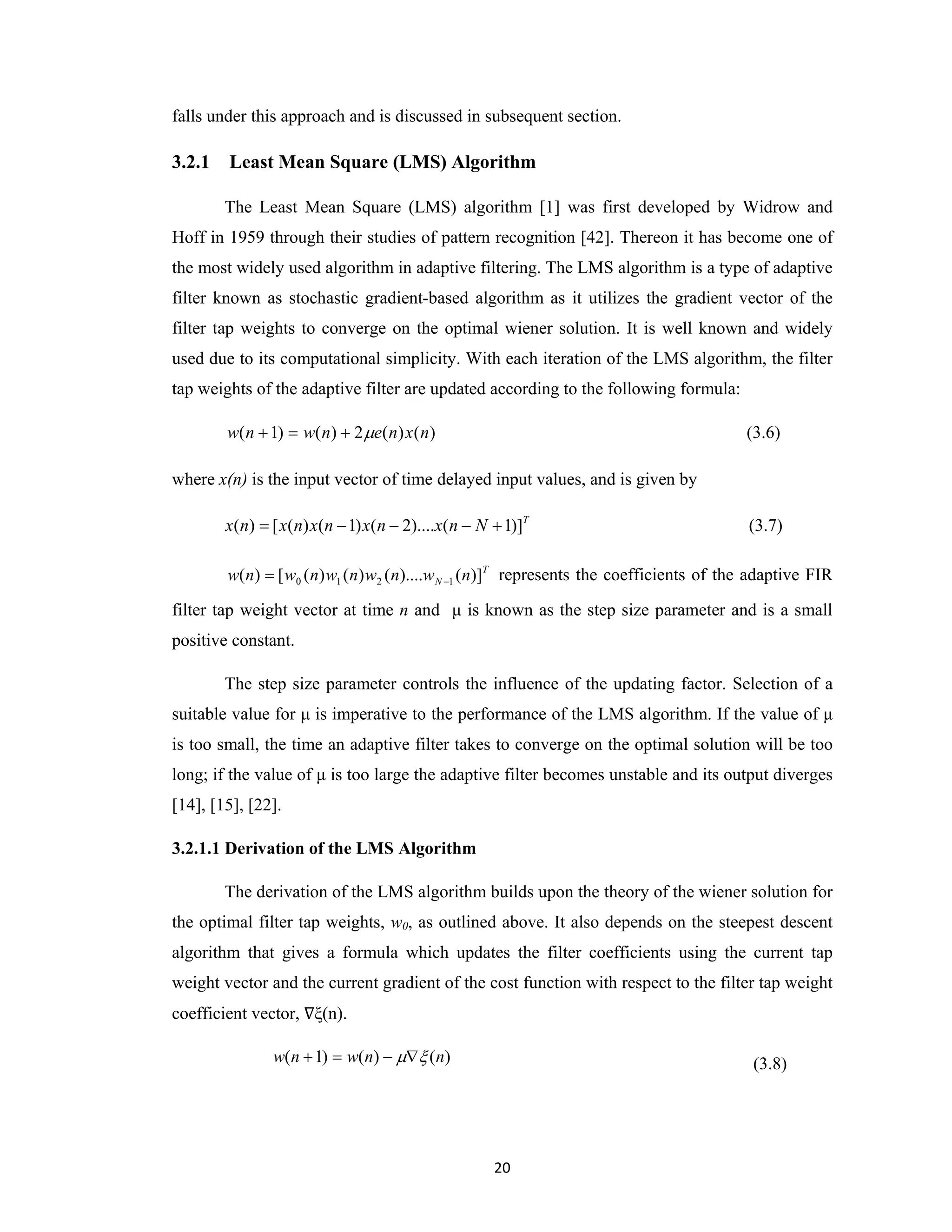

3.2.1 Least Mean Square (LMS) Algorithm
20
3.2
3.2.1.1 Derivation of the LMS Algorithm
20
3.2.1.2 Implementation of the LMS Algorithm
21

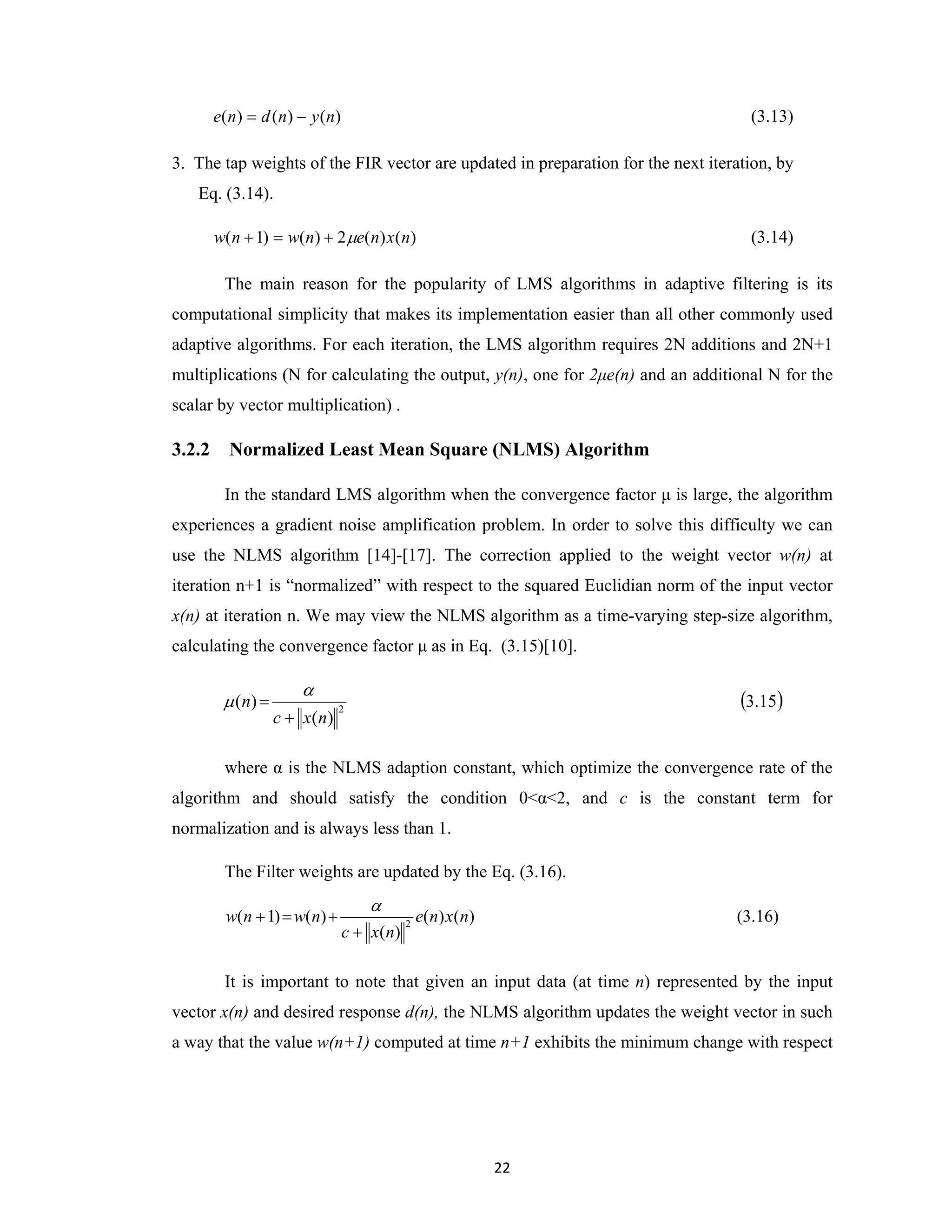

3.2.2 Normalized Least Mean Square (NLMS) Algorithm
22
3.2.2.1 Derivation of the NLMS Algorithm
23

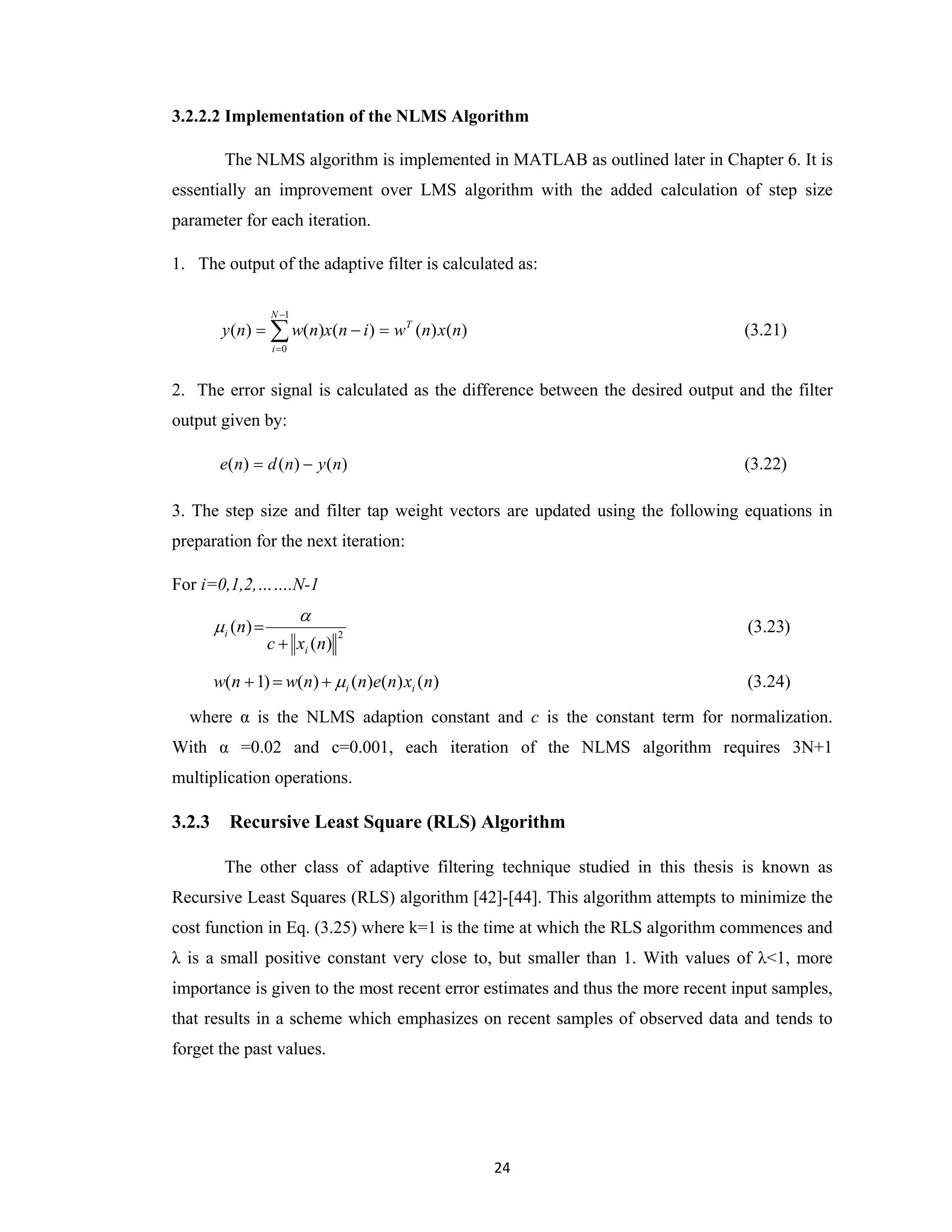

3.2.2.2 Implementation of the NLMS Algorithm
24
3.2.3 Recursive Least Square (RLS) Algorithm
iv
24

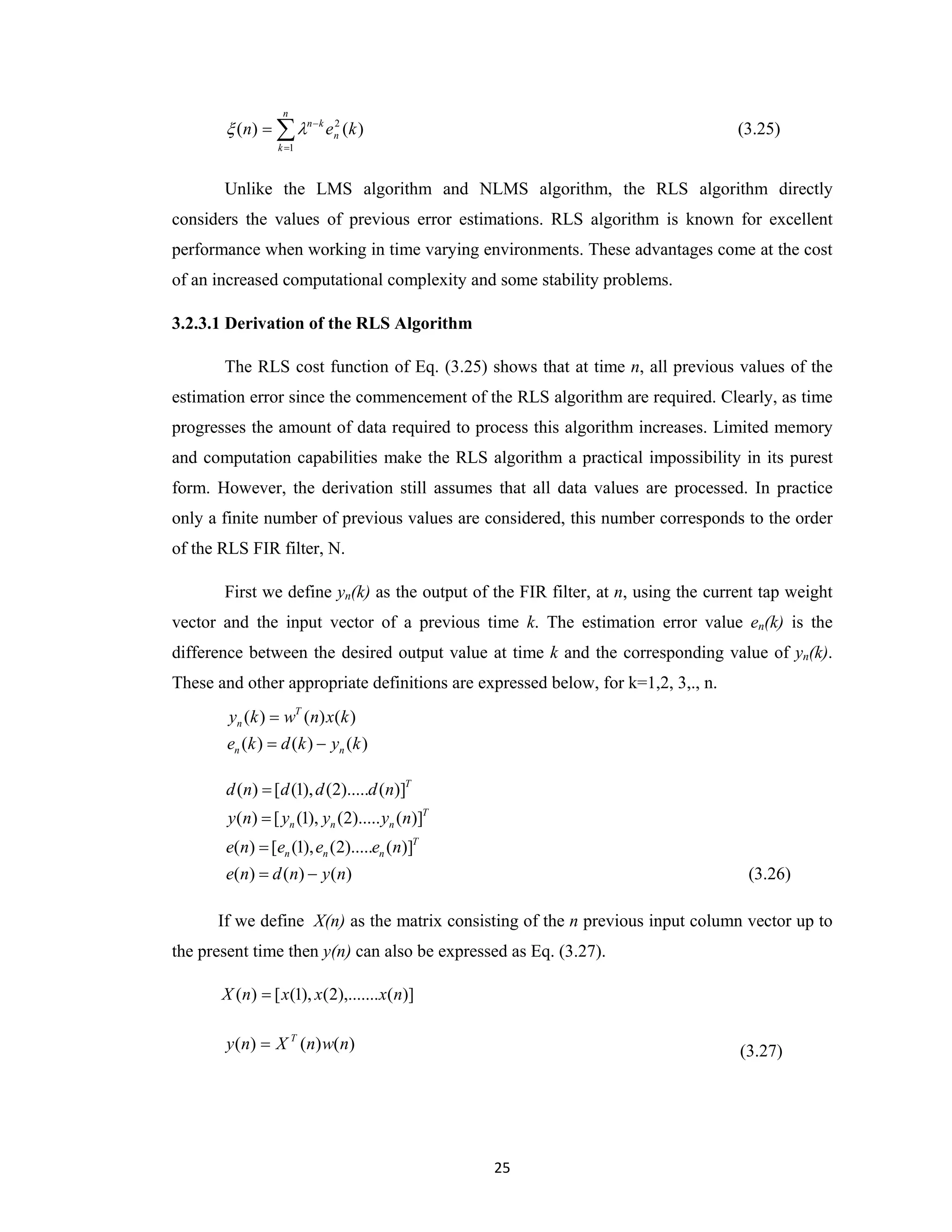

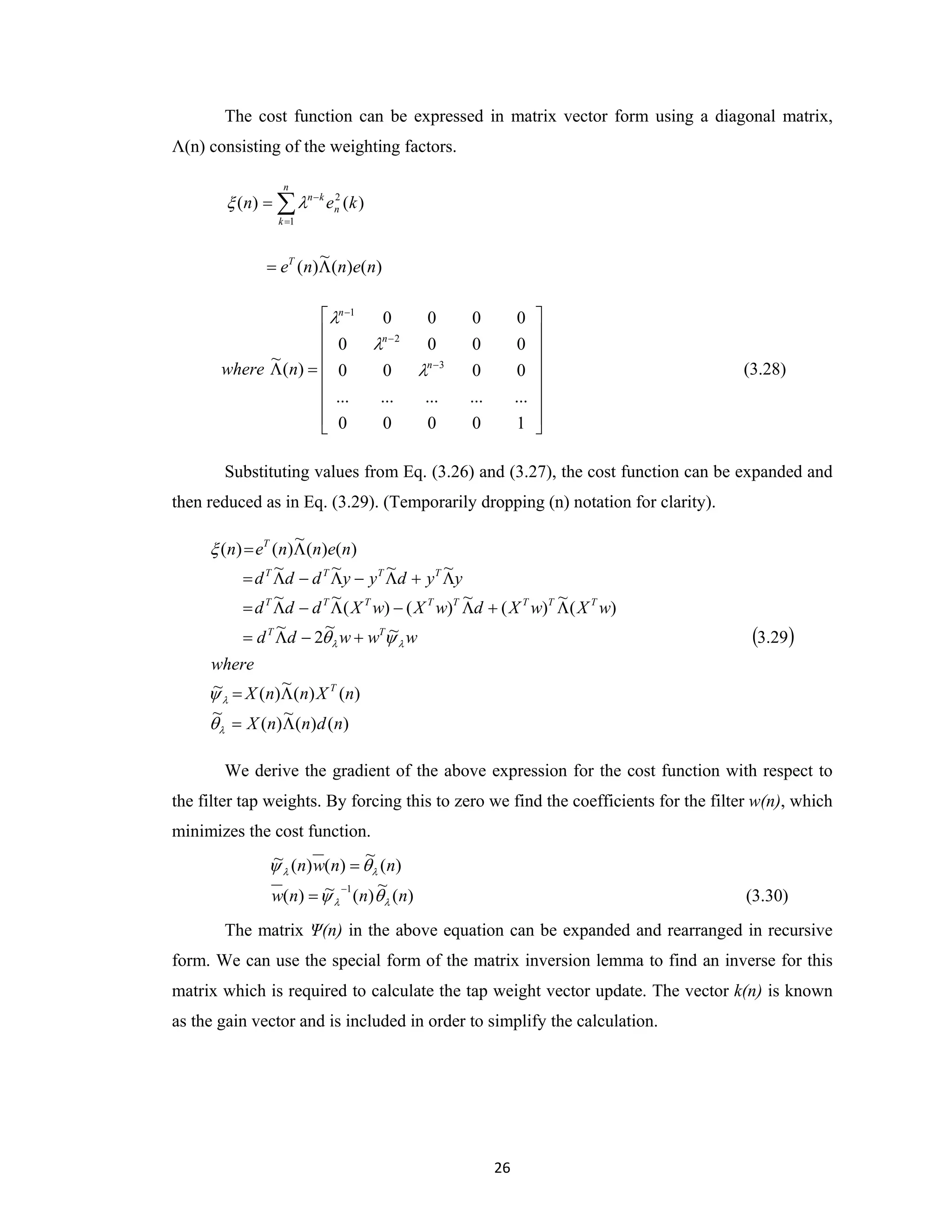

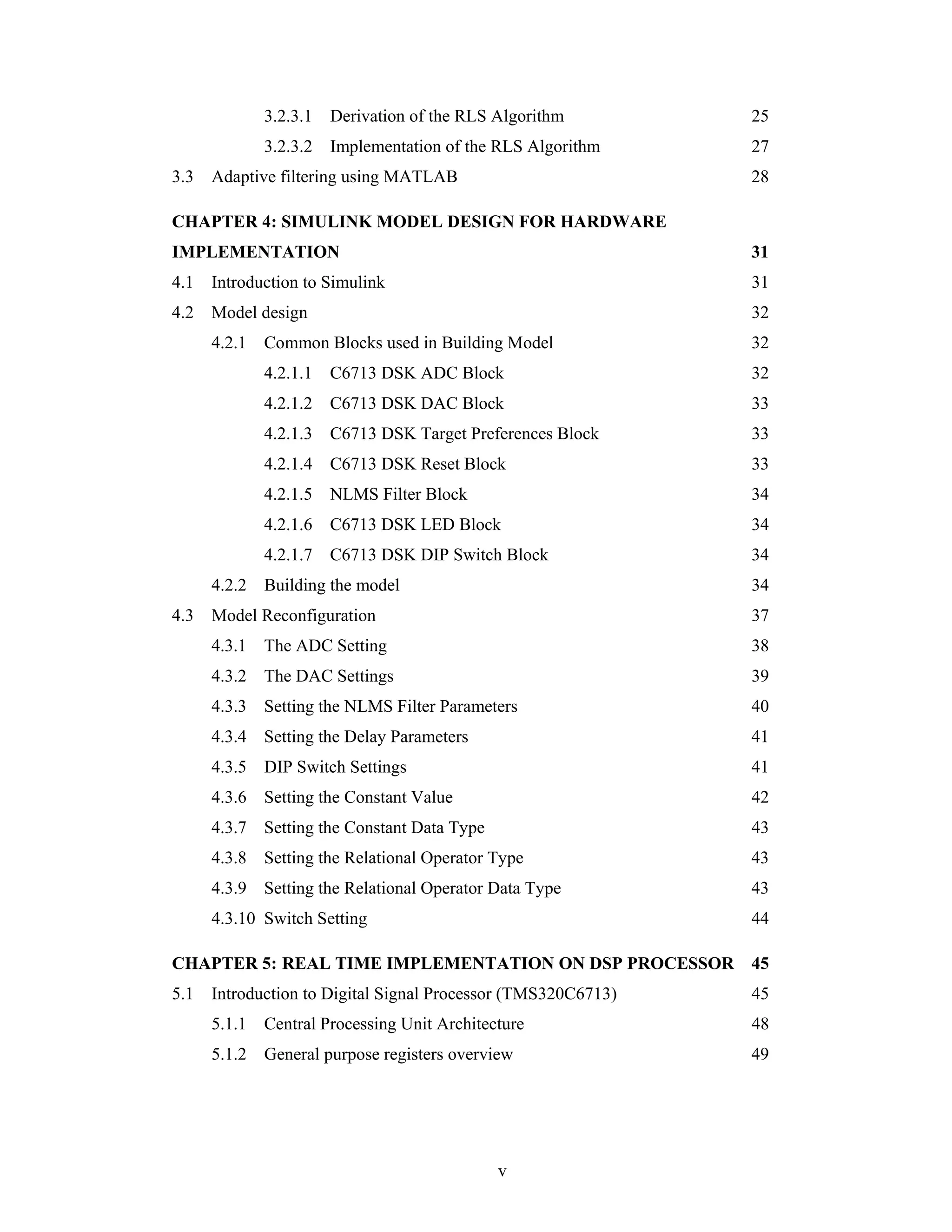

5. 3.2.3.1 Derivation of the RLS Algorithm
3.2.3.2 Implementation of the RLS Algorithm
3.3
25
27

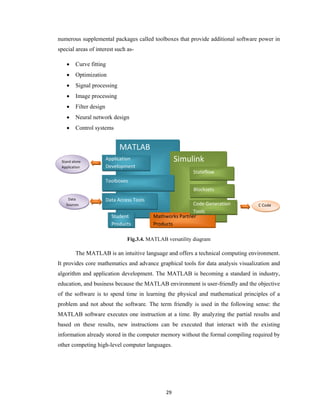

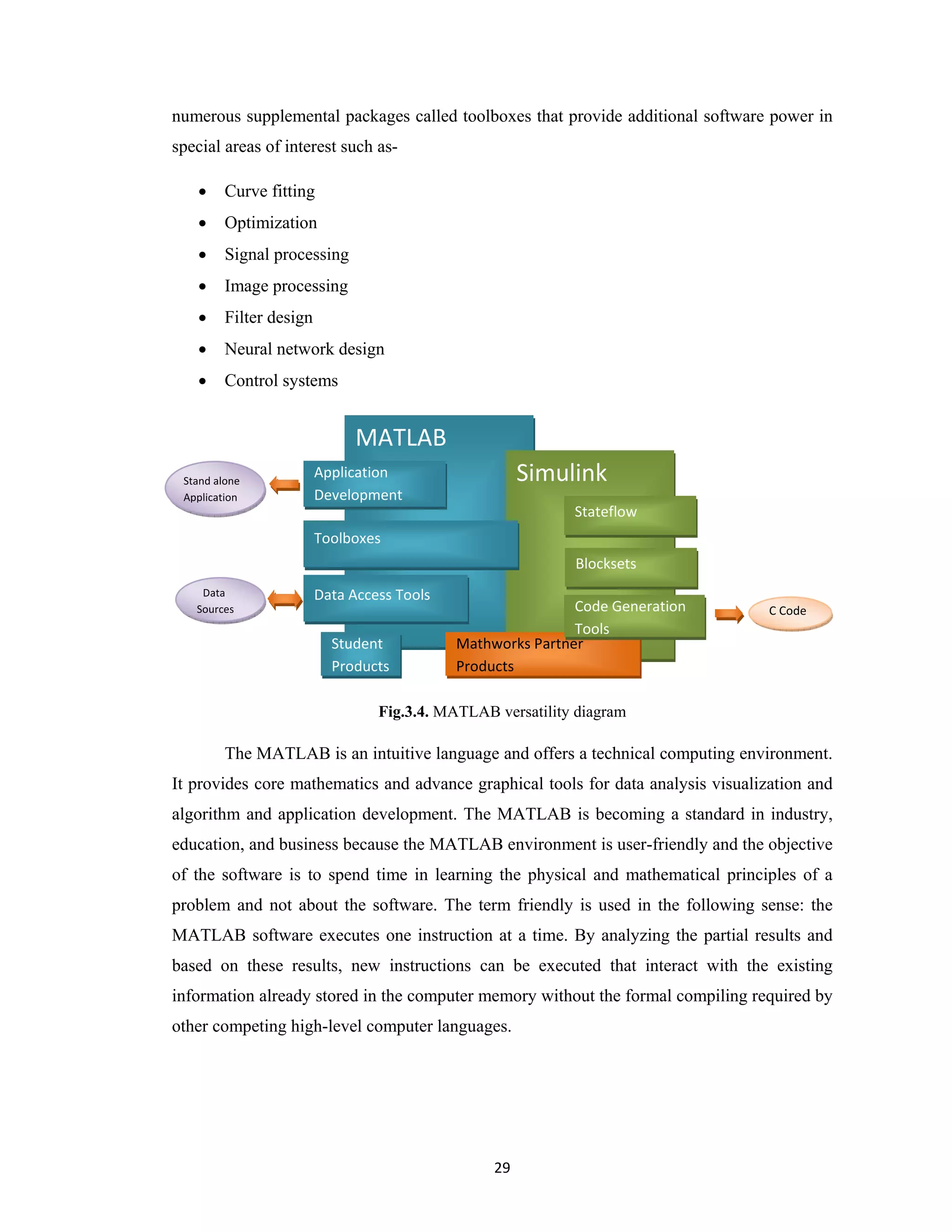

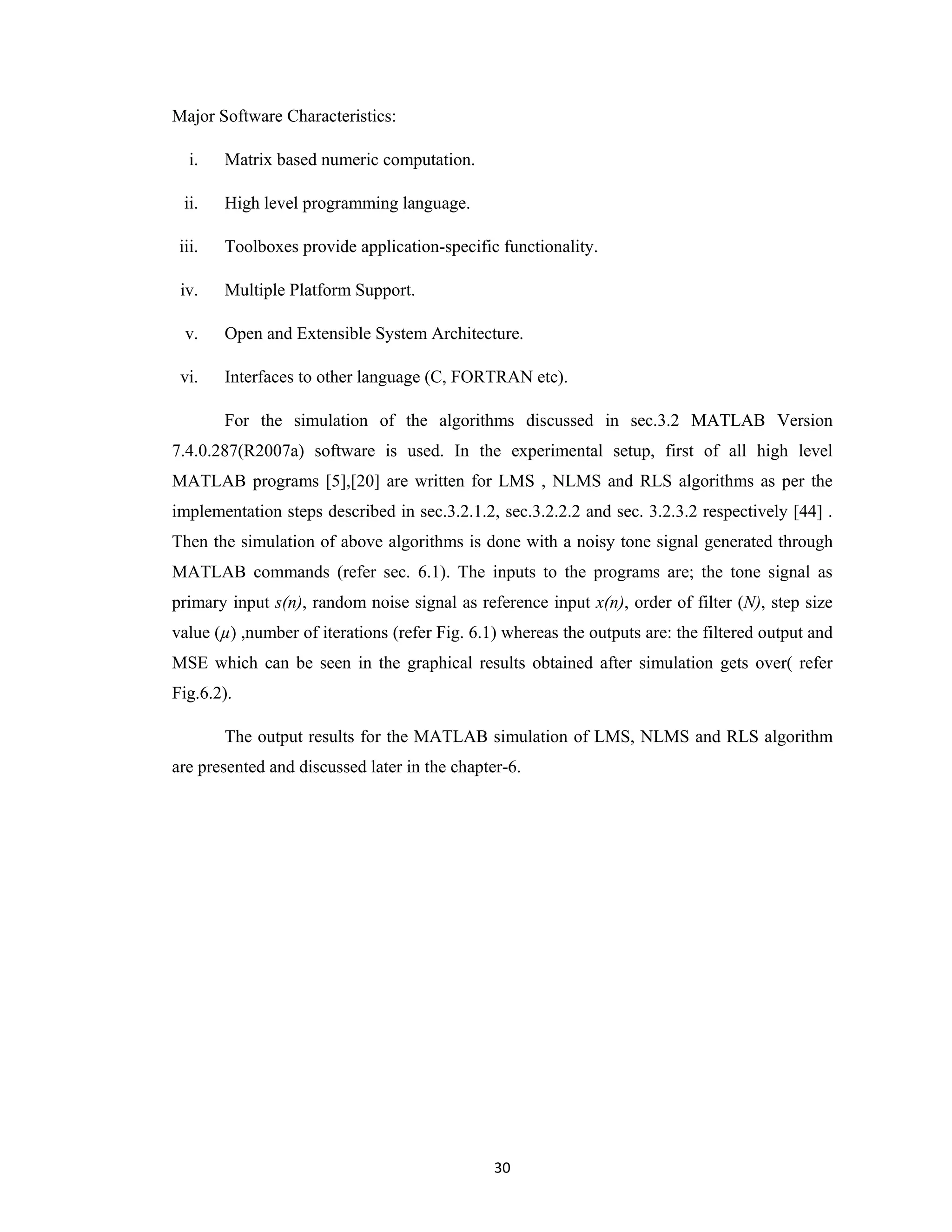

Adaptive filtering using MATLAB
28

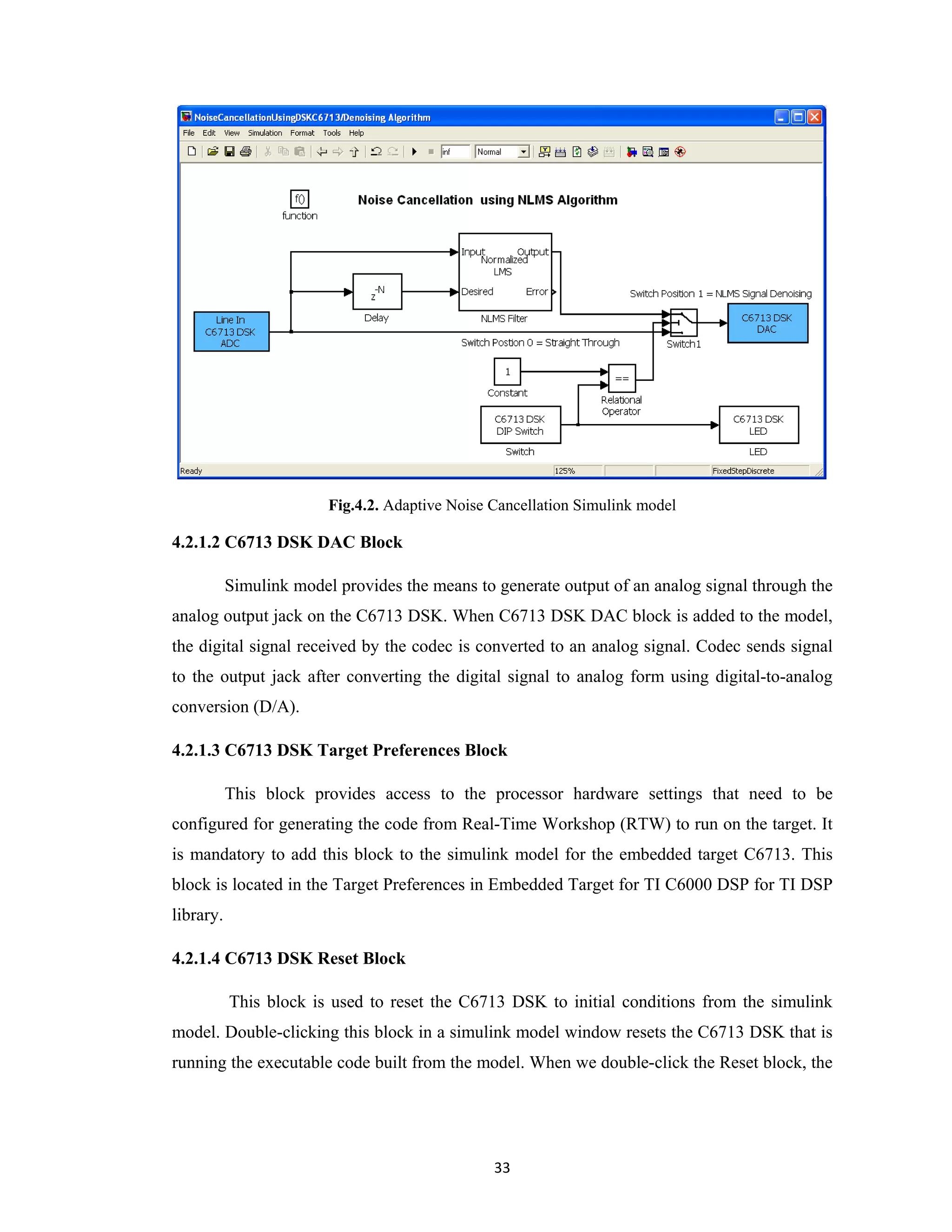

CHAPTER 4: SIMULINK MODEL DESIGN FOR HARDWARE
IMPLEMENTATION
31
4.1

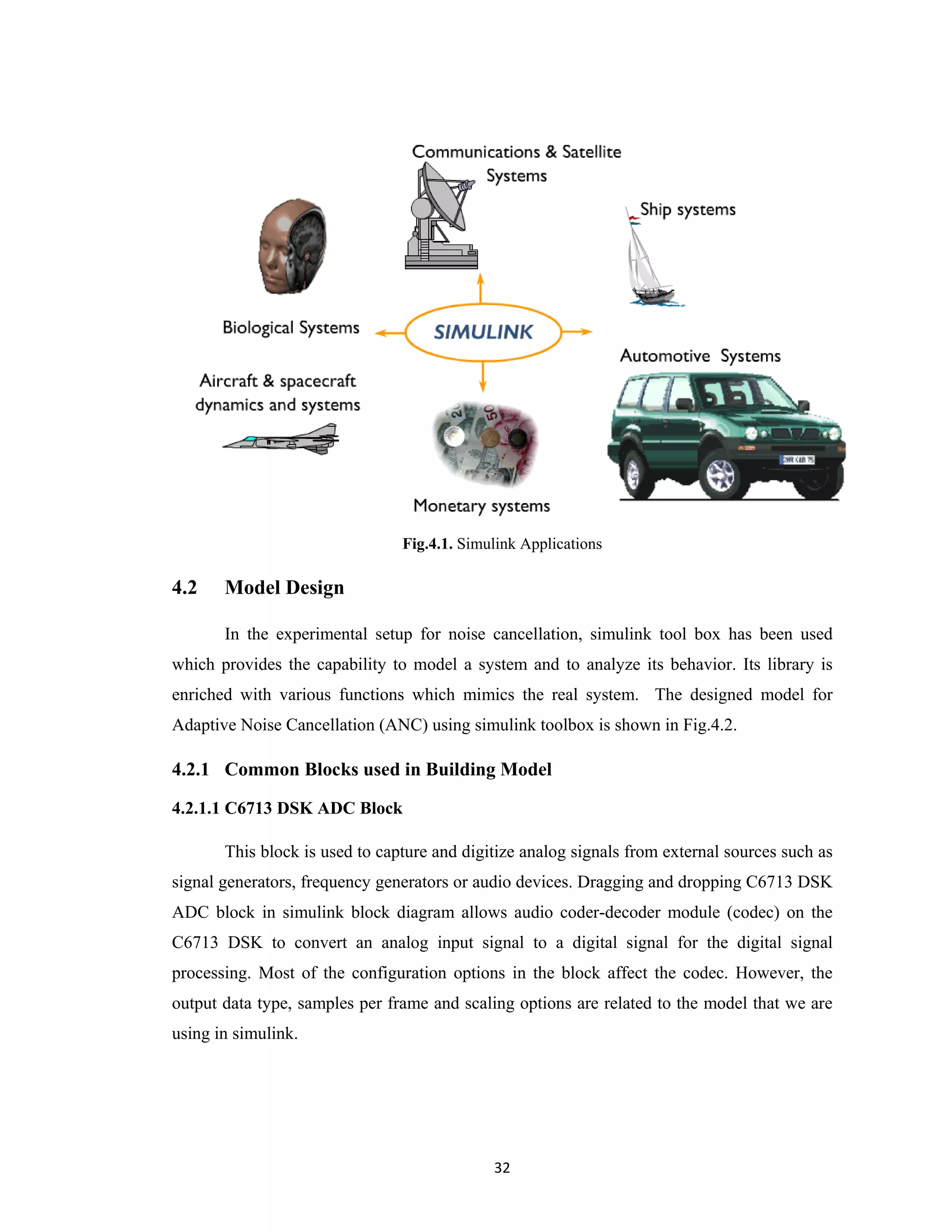

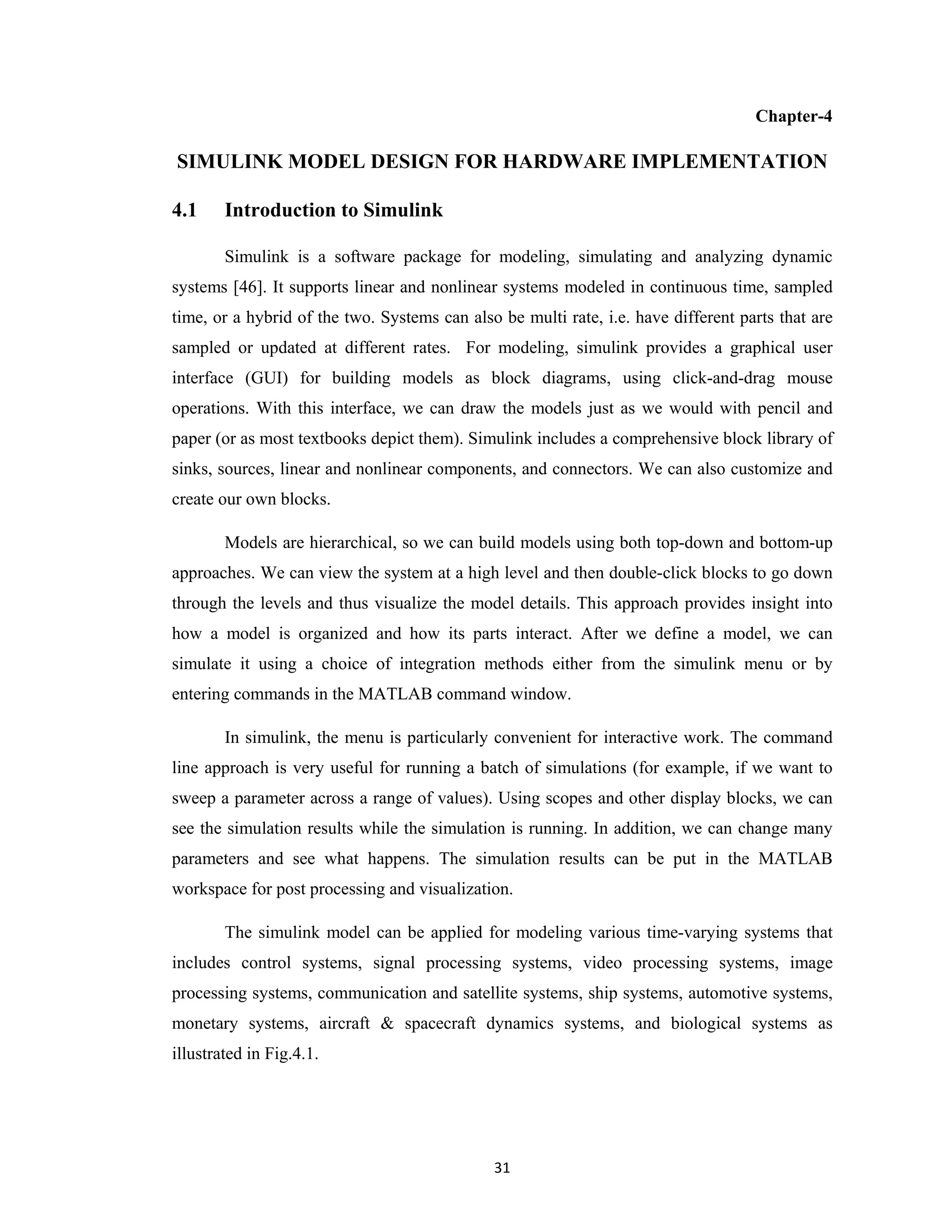

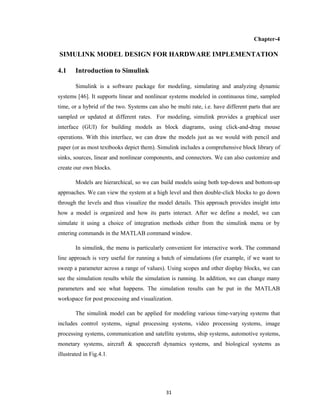

Introduction to Simulink
31
4.2
Model design
32
4.2.1 Common Blocks used in Building Model
32
4.2.1.1 C6713 DSK ADC Block
32

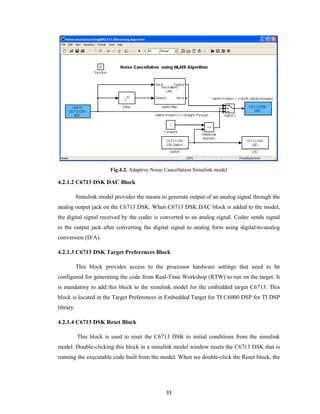

4.2.1.2 C6713 DSK DAC Block
33
4.2.1.3 C6713 DSK Target Preferences Block
33
4.2.1.4 C6713 DSK Reset Block
33
4.2.1.5 NLMS Filter Block
34
4.2.1.6 C6713 DSK LED Block
34
4.2.1.7 C6713 DSK DIP Switch Block
34
4.2.2 Building the model
Model Reconfiguration
37
4.3.1 The ADC Setting

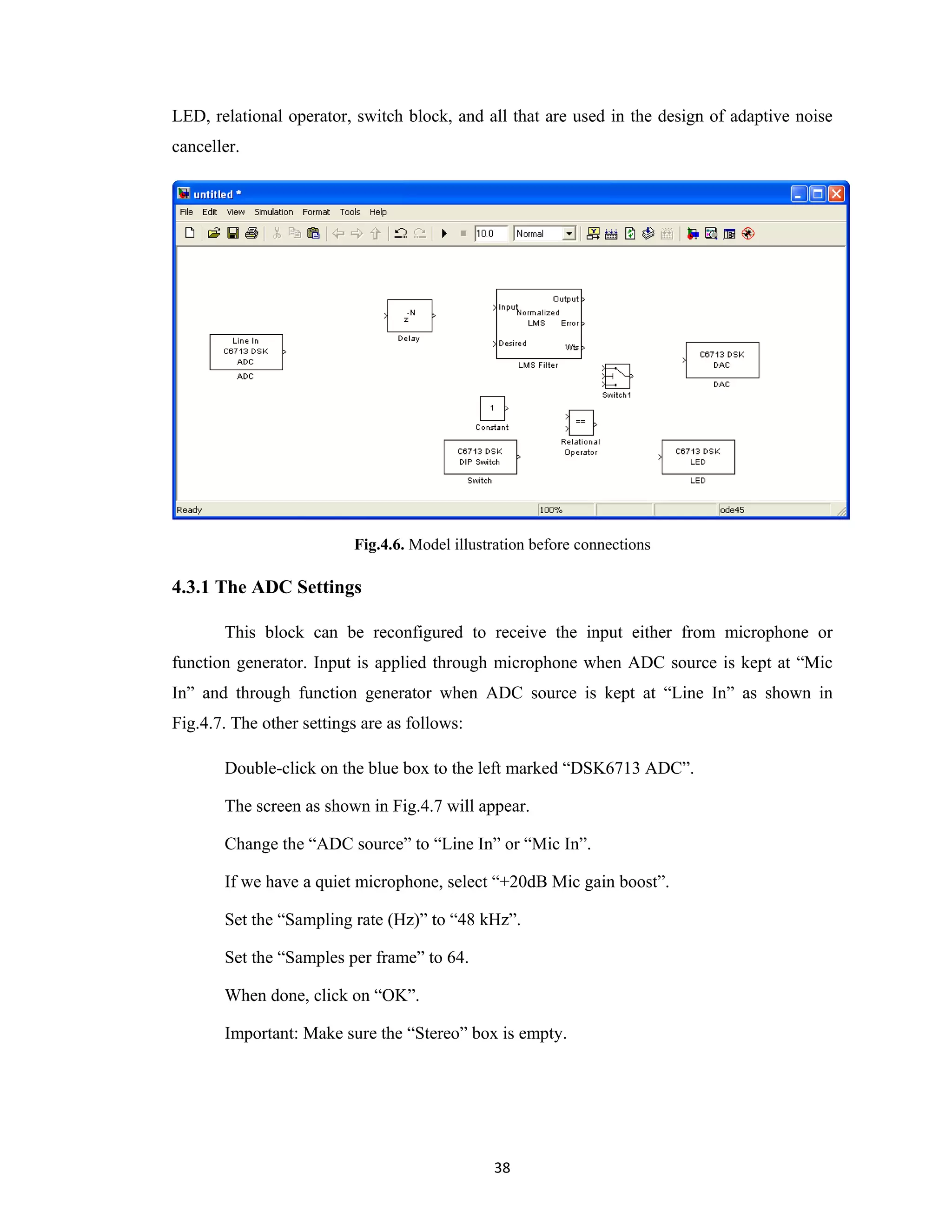

38

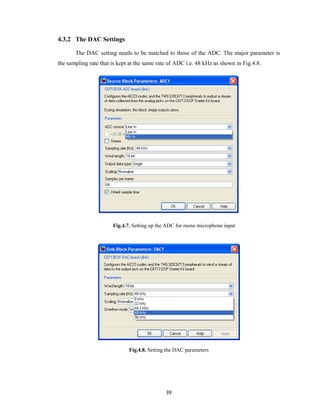

4.3.2 The DAC Settings

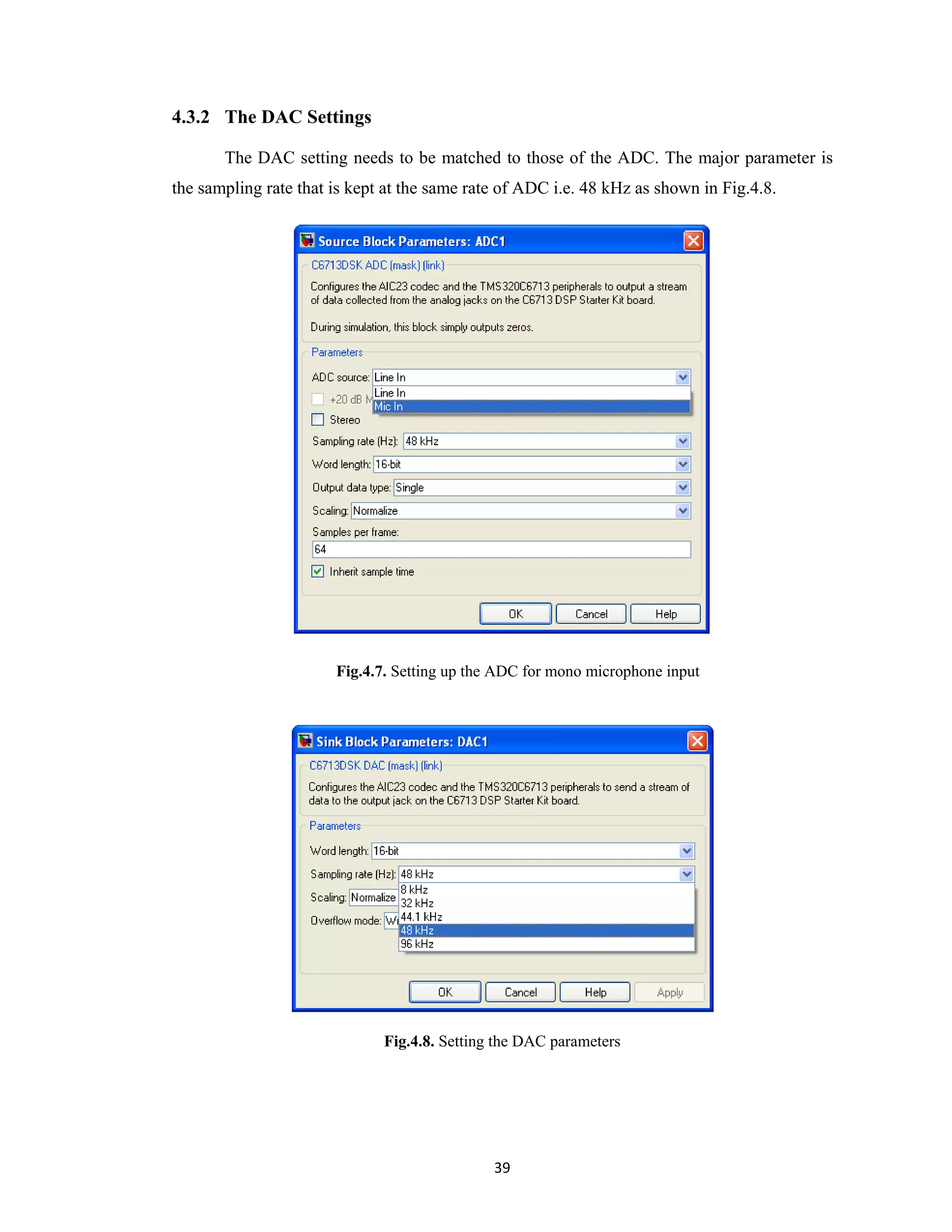

39
4.3.3 Setting the NLMS Filter Parameters
40

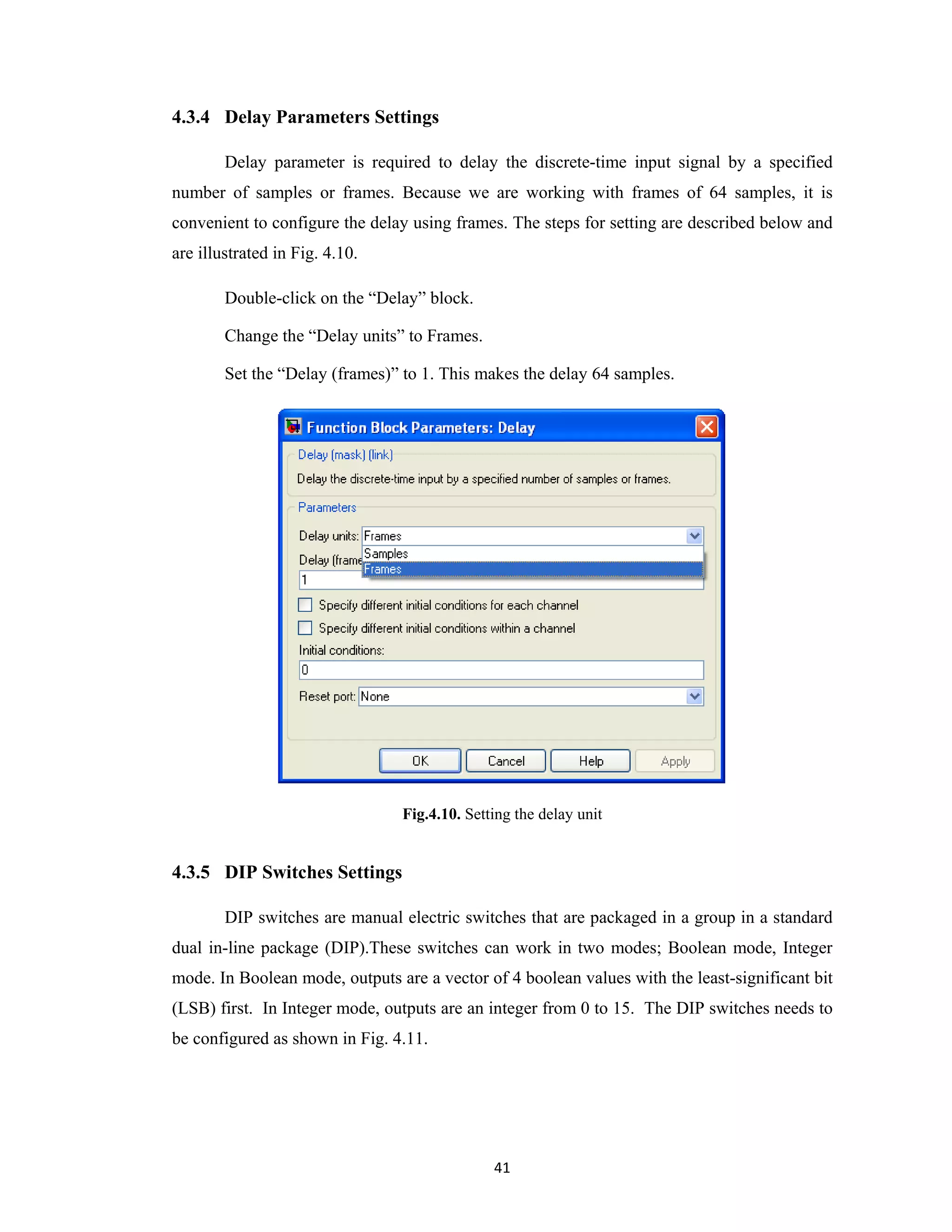

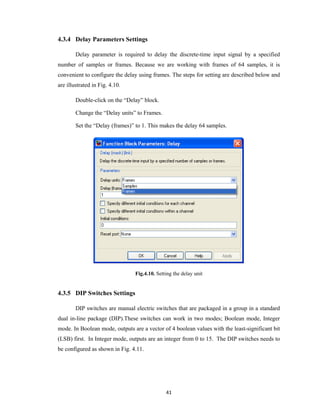

4.3.4 Setting the Delay Parameters
41

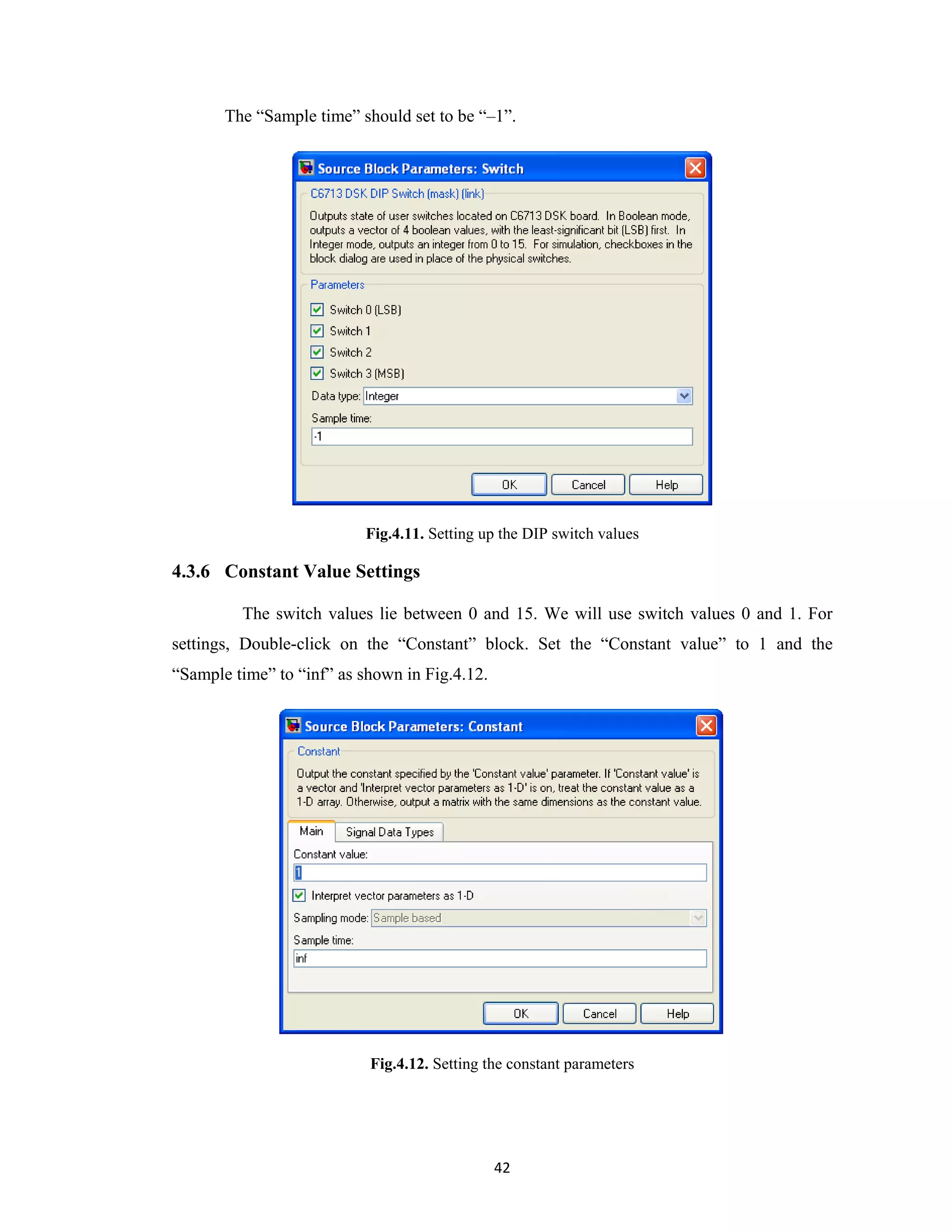

4.3.5 DIP Switch Settings
41

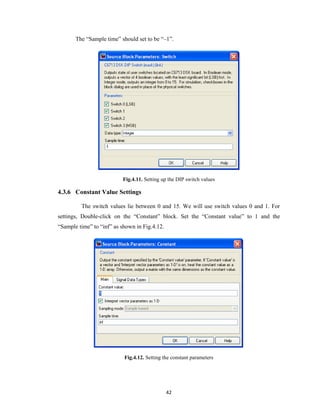

4.3.6 Setting the Constant Value
42
4.3.7 Setting the Constant Data Type

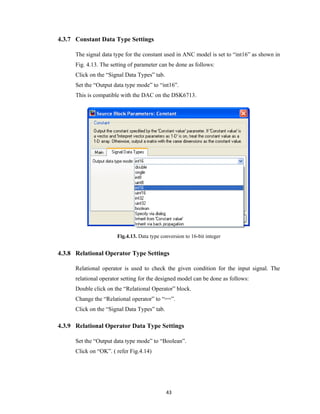

43
4.3.8 Setting the Relational Operator Type
43
4.3.9 Setting the Relational Operator Data Type
43

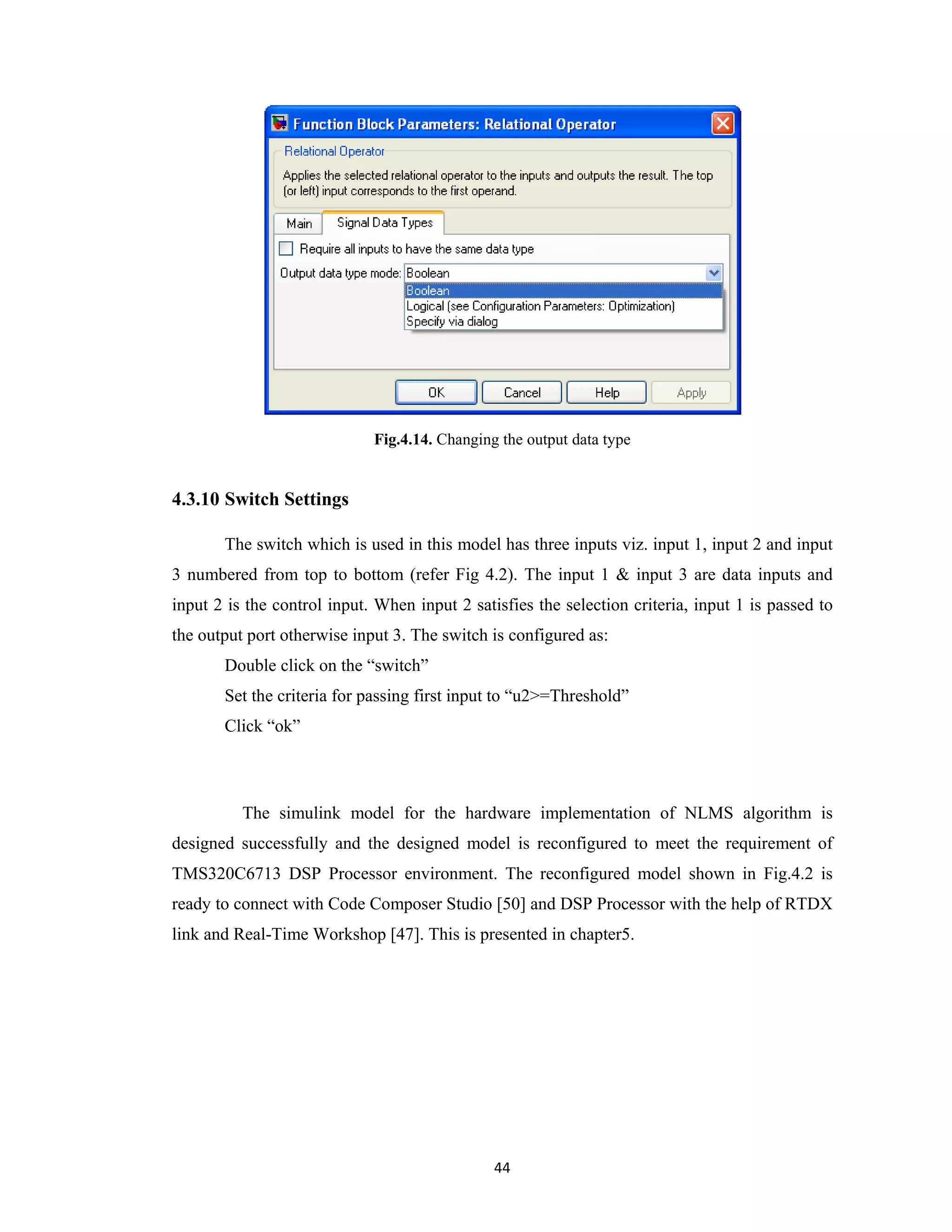

4.3.10 Switch Setting
4.3
34
44

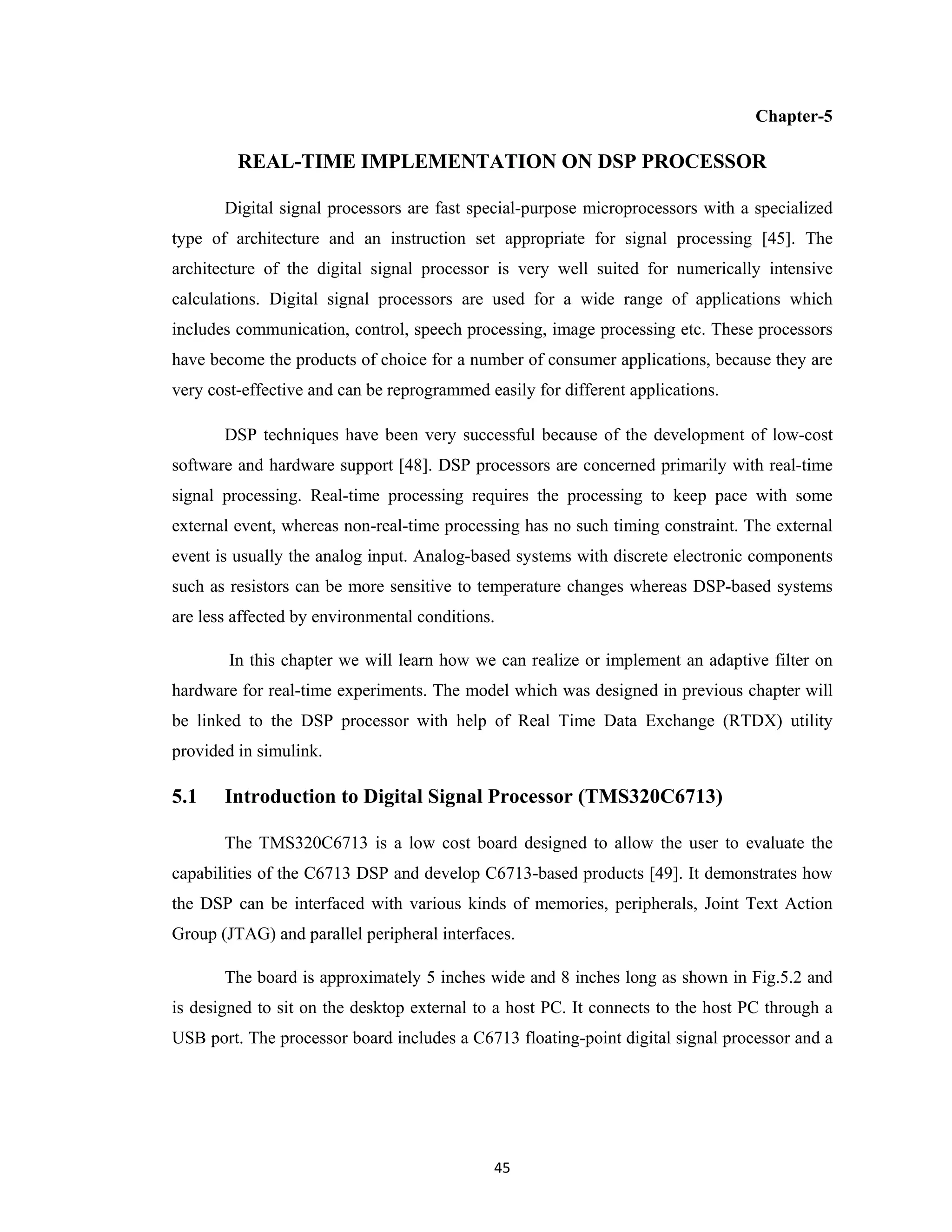

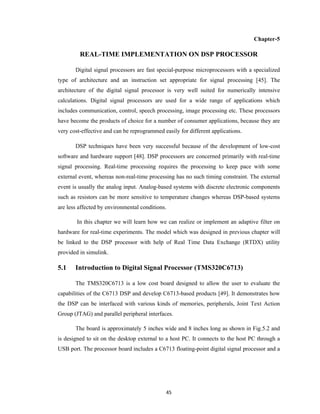

CHAPTER 5: REAL TIME IMPLEMENTATION ON DSP PROCESSOR 45
5.1
Introduction to Digital Signal Processor (TMS320C6713)
45

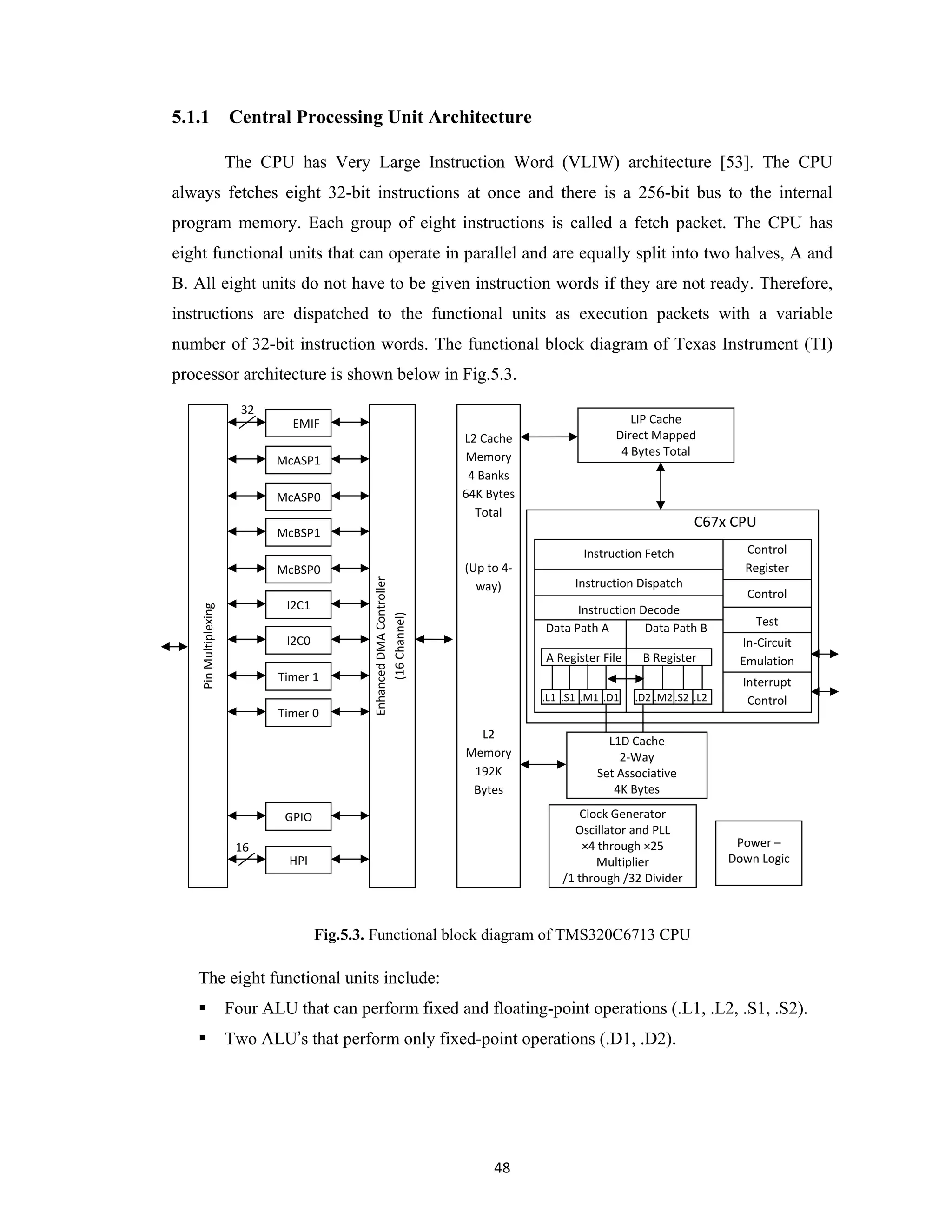

5.1.1 Central Processing Unit Architecture
48
5.1.2 General purpose registers overview
49
v

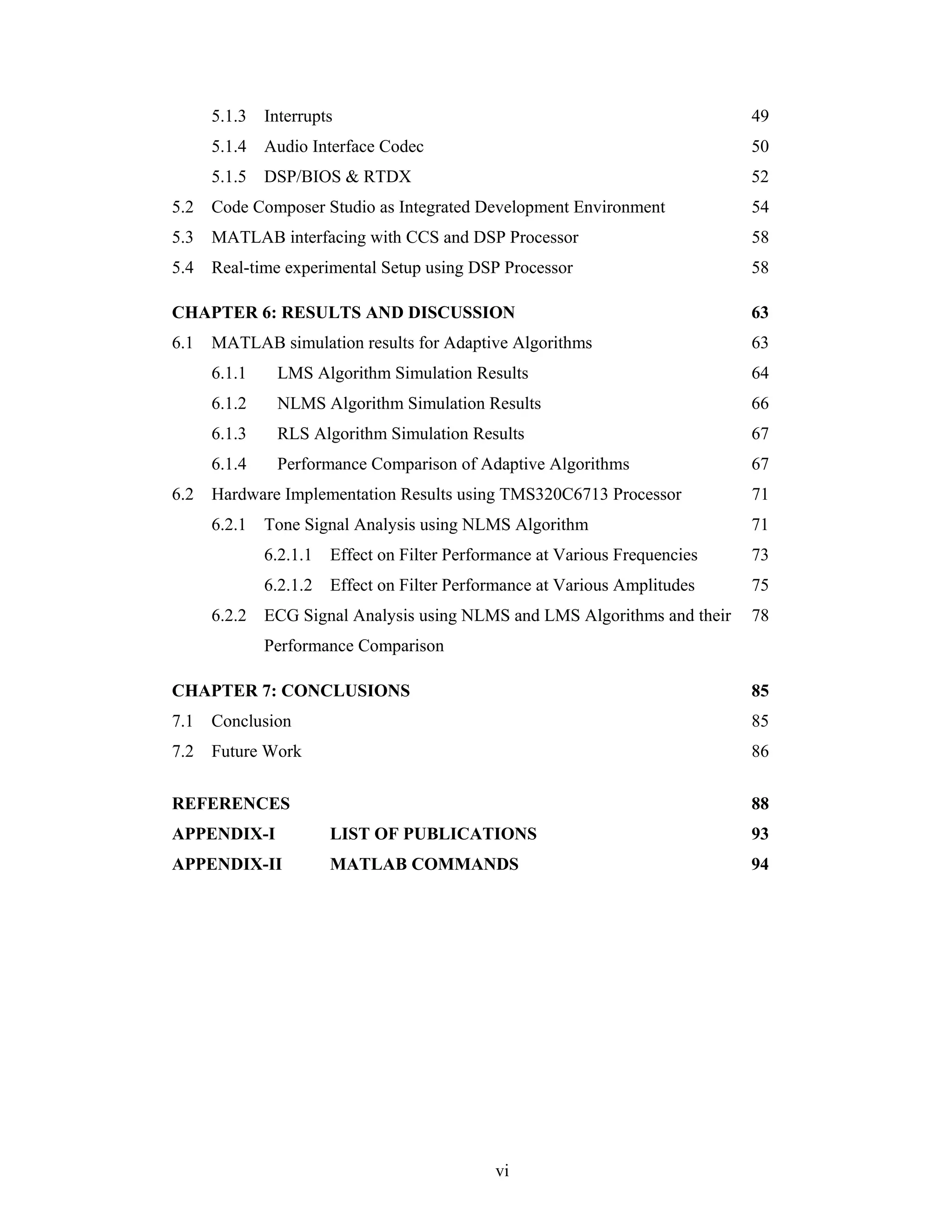

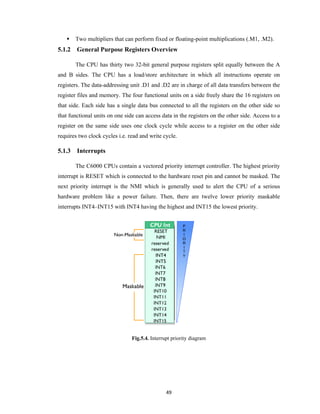

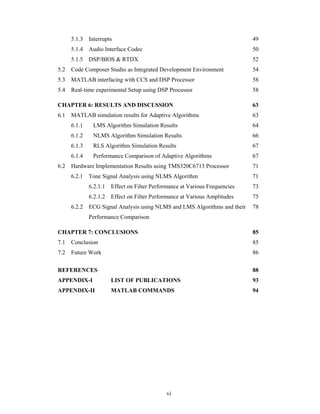

6. 5.1.3 Interrupts
49

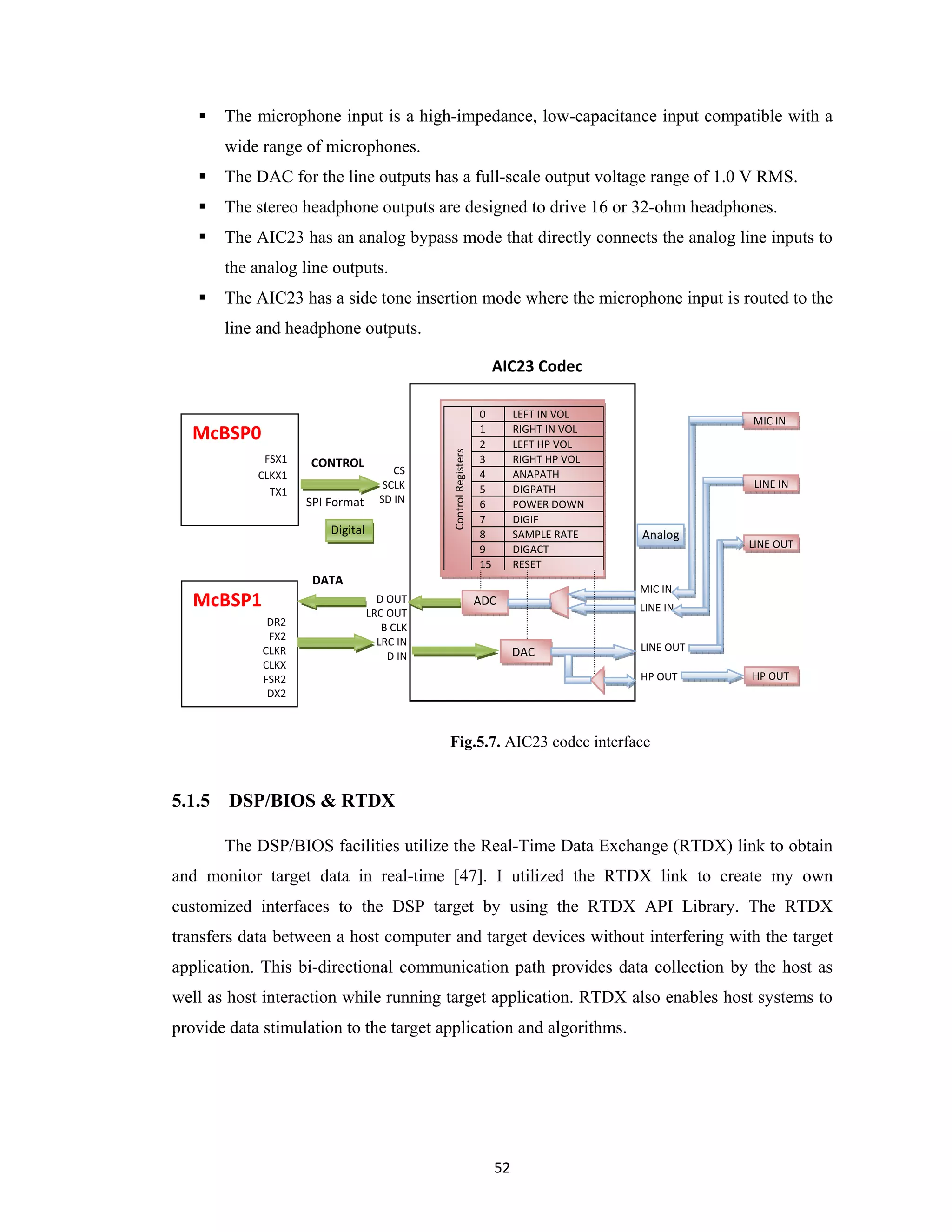

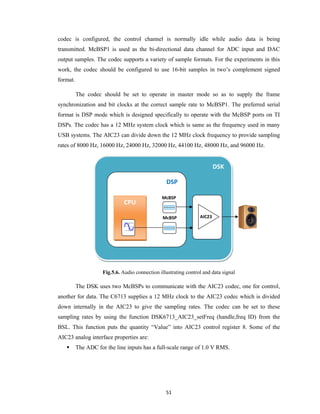

5.1.4 Audio Interface Codec
50
5.1.5 DSP/BIOS & RTDX
52
5.2

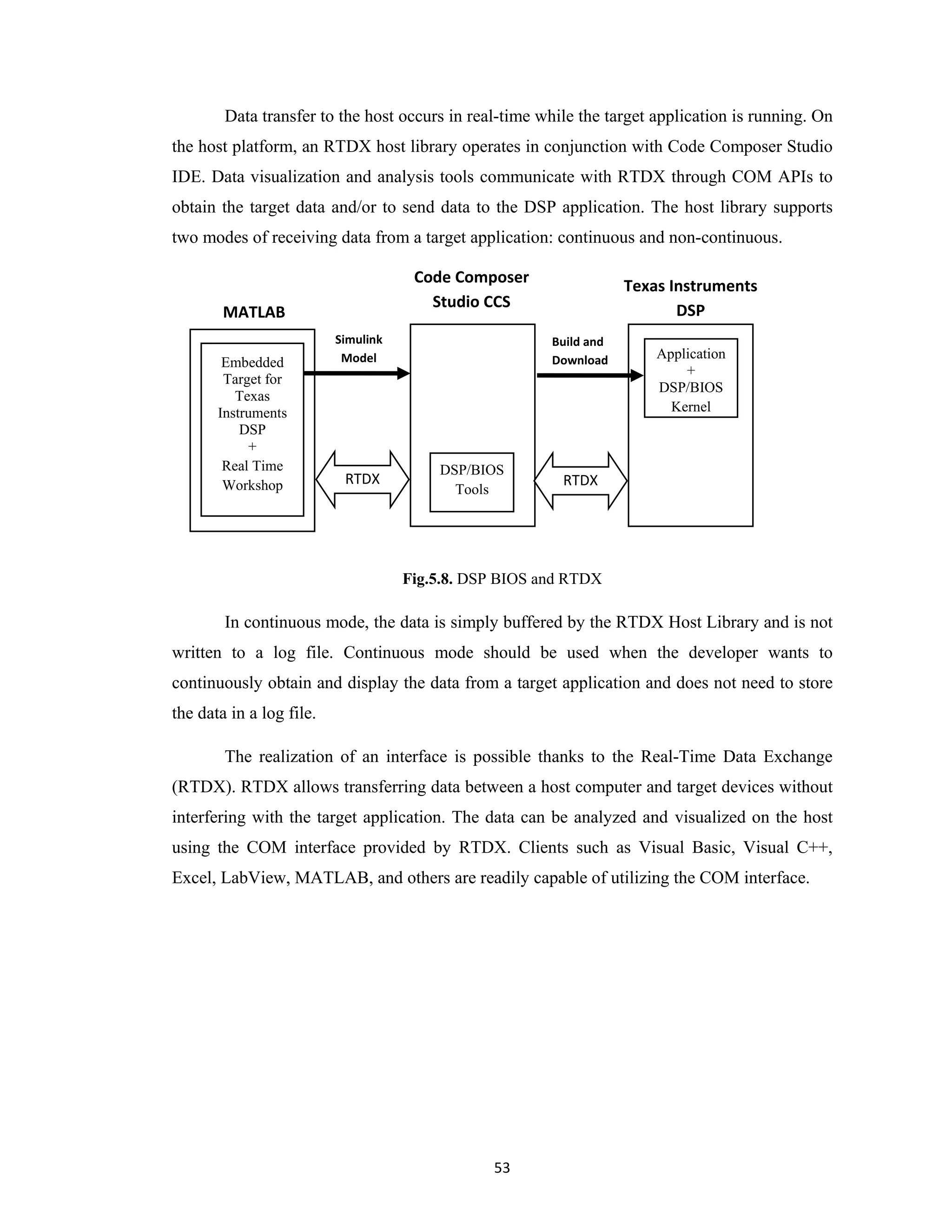

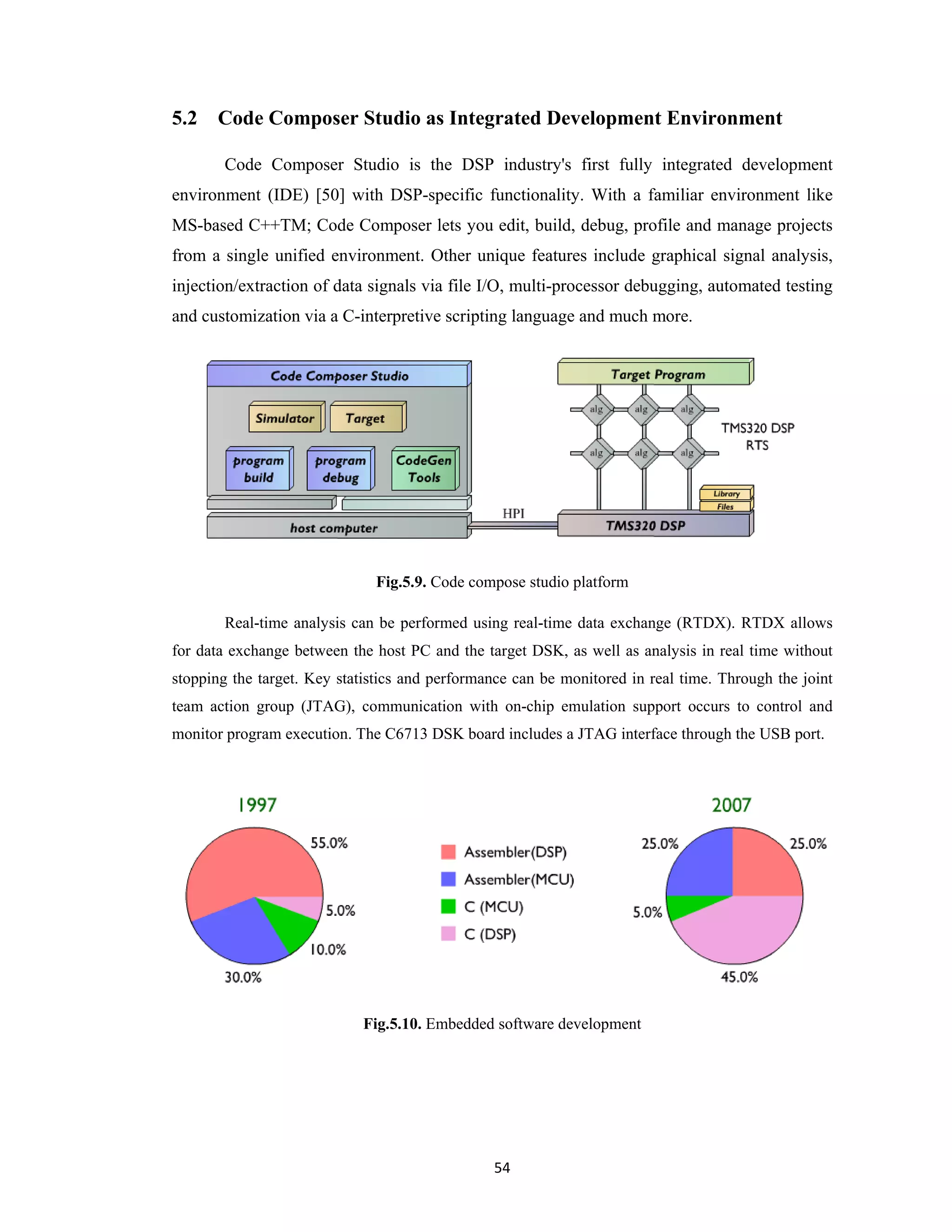

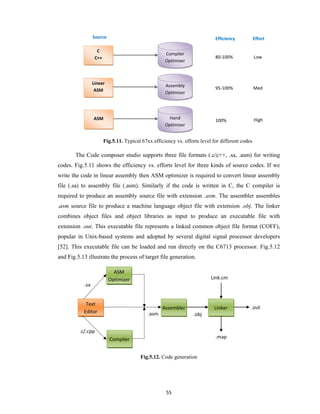

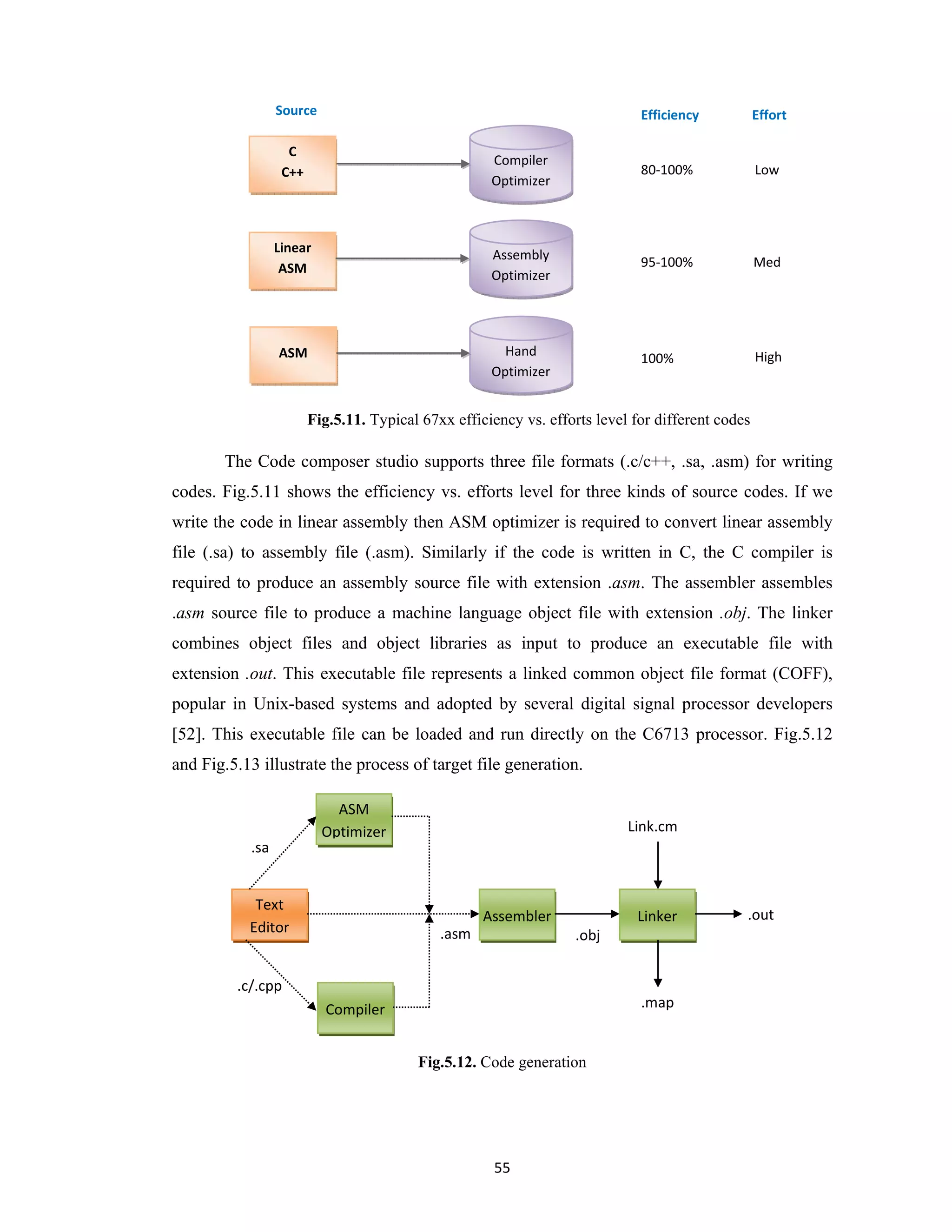

Code Composer Studio as Integrated Development Environment
54
5.3

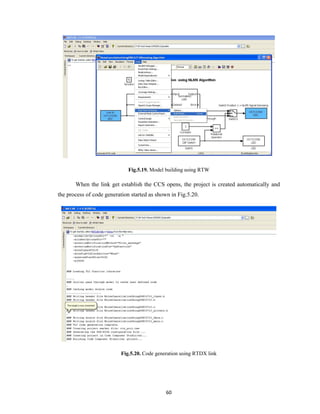

MATLAB interfacing with CCS and DSP Processor
58
5.4

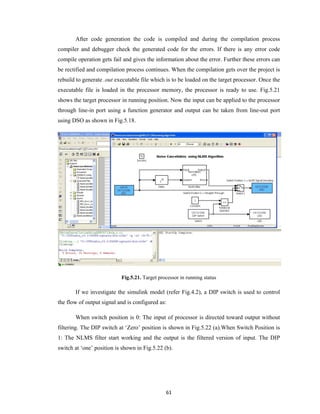

Real-time experimental Setup using DSP Processor
58

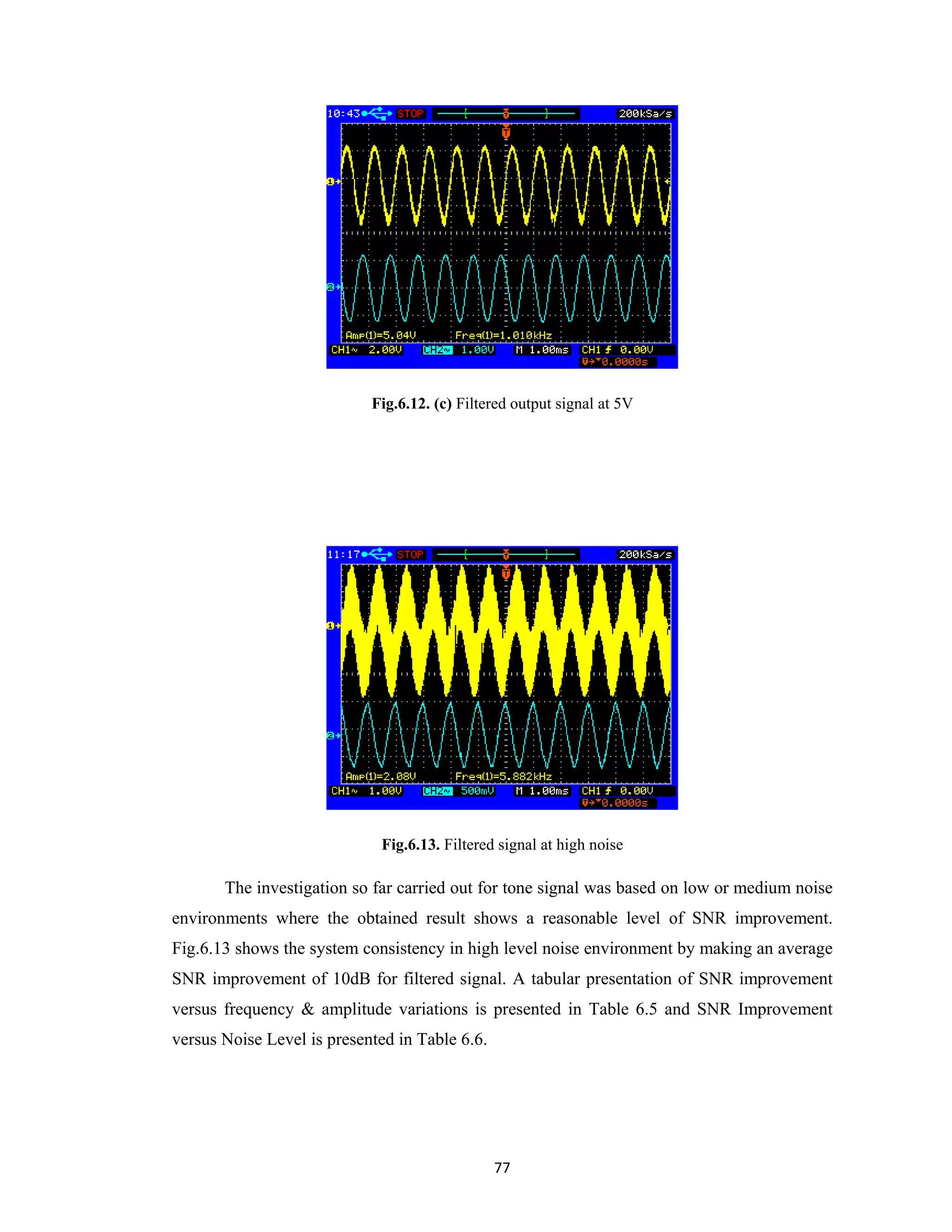

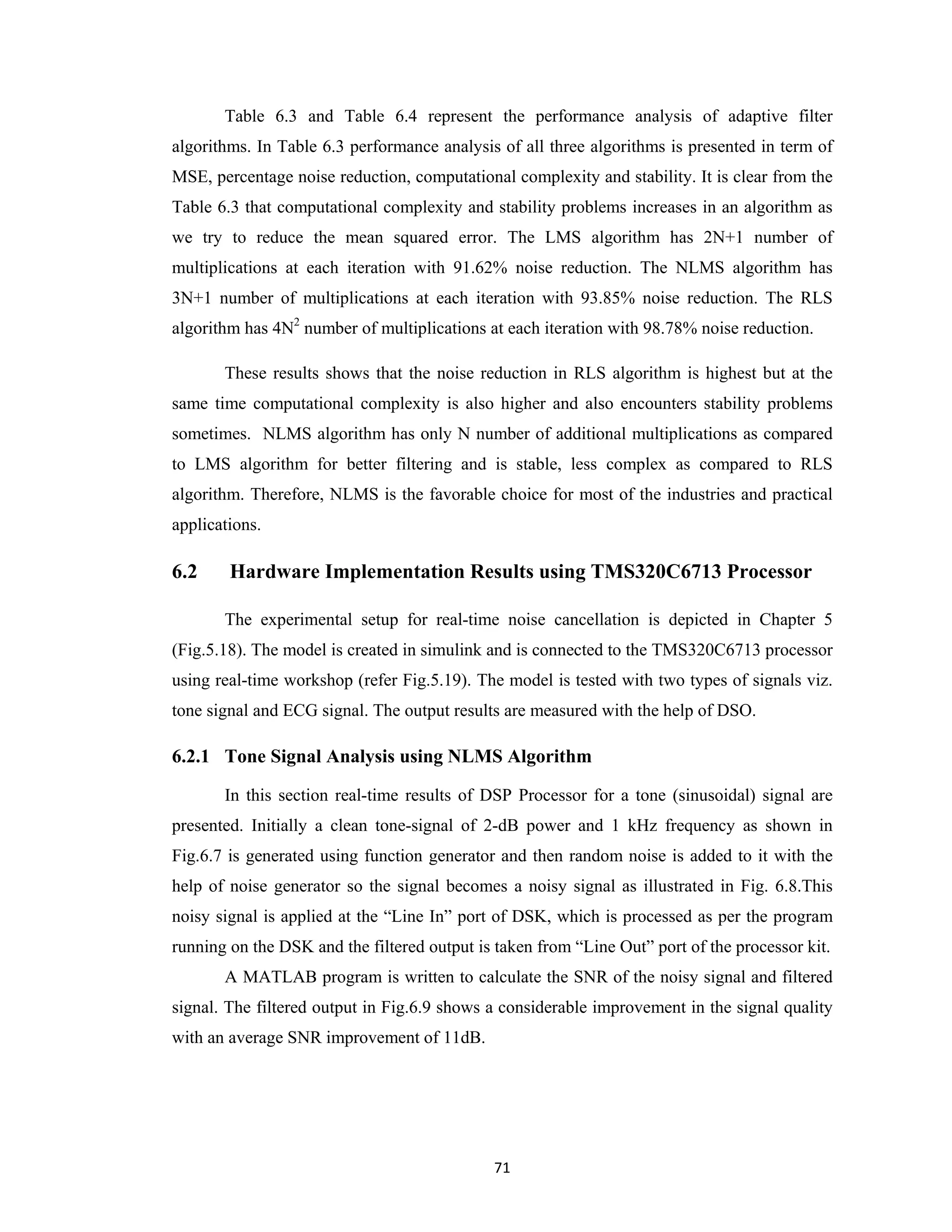

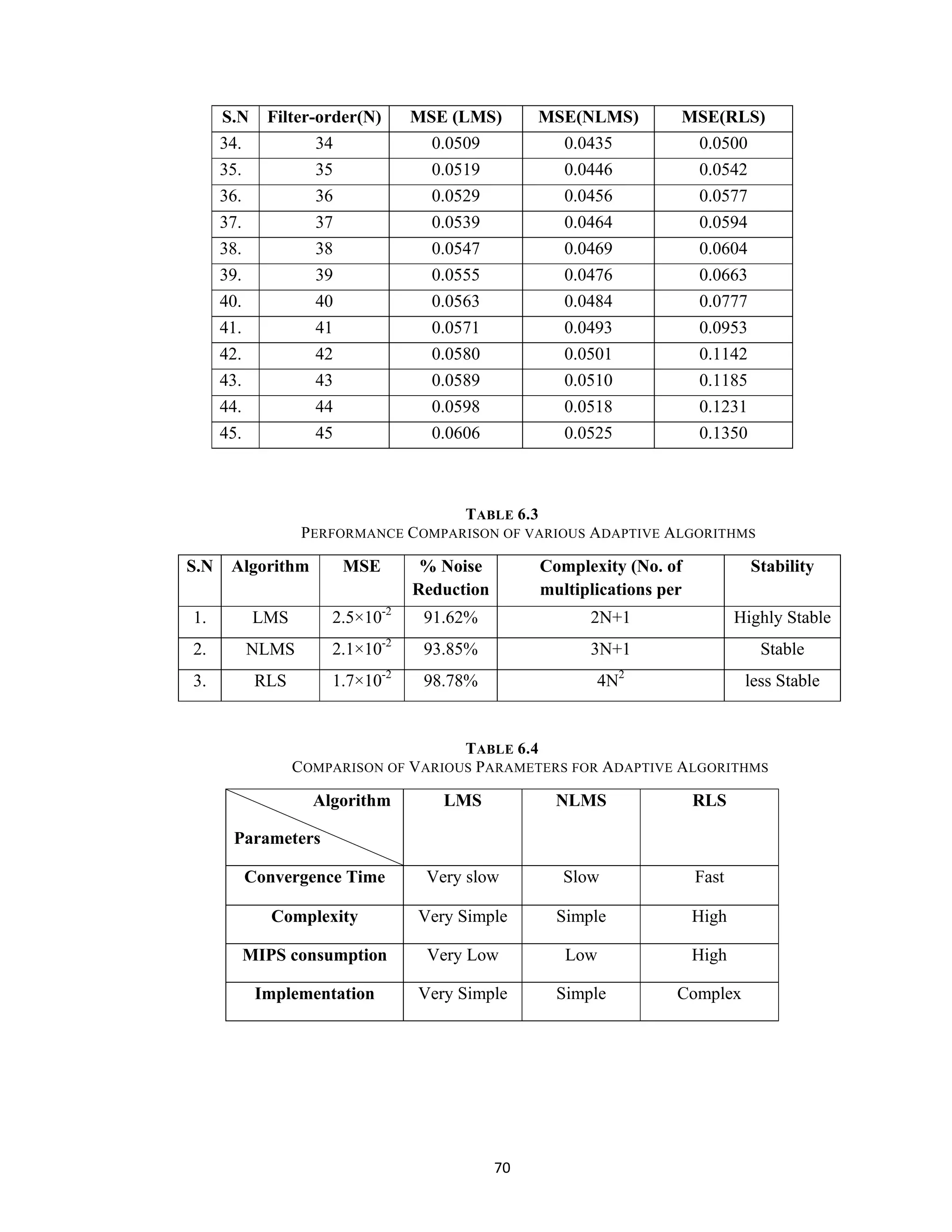

CHAPTER 6: RESULTS AND DISCUSSION
63
6.1

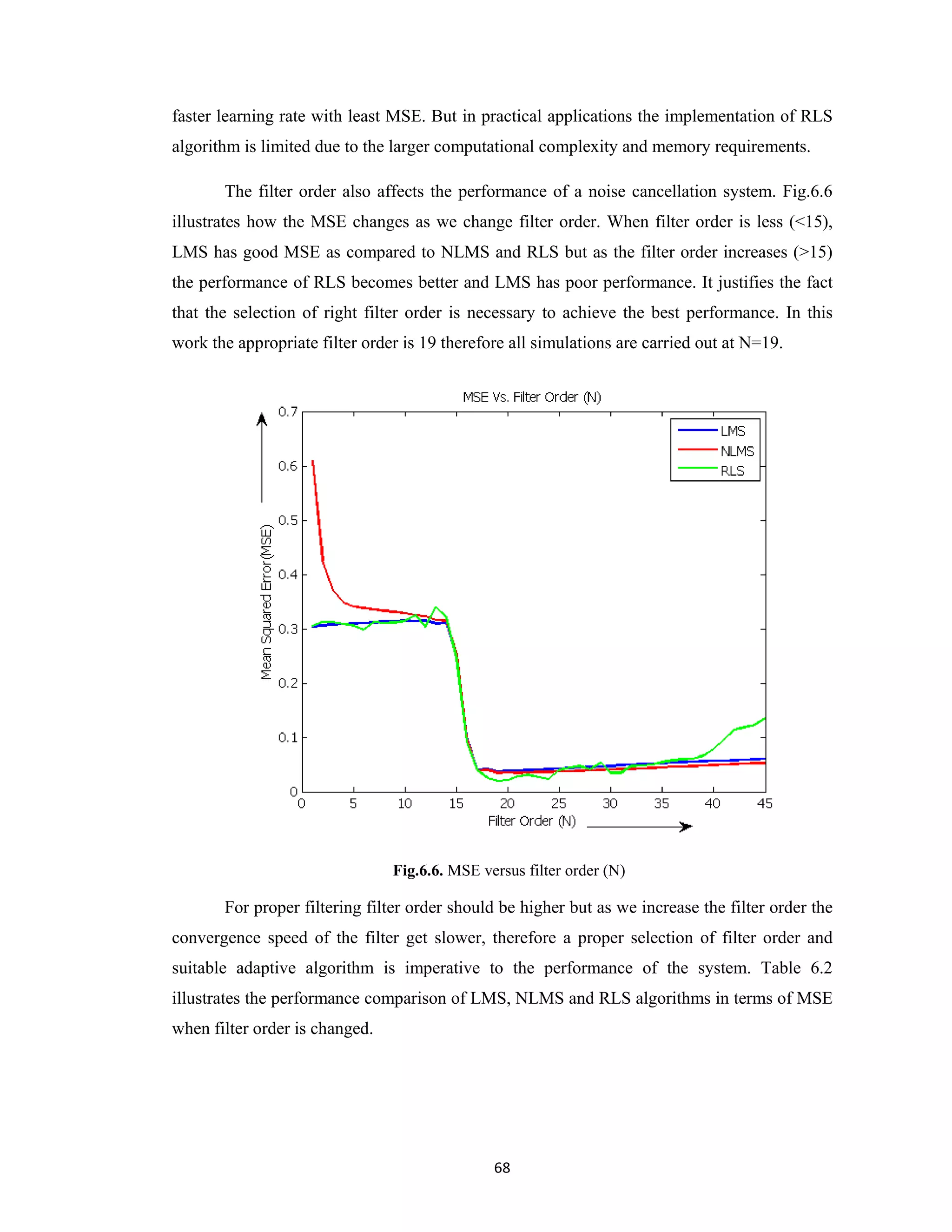

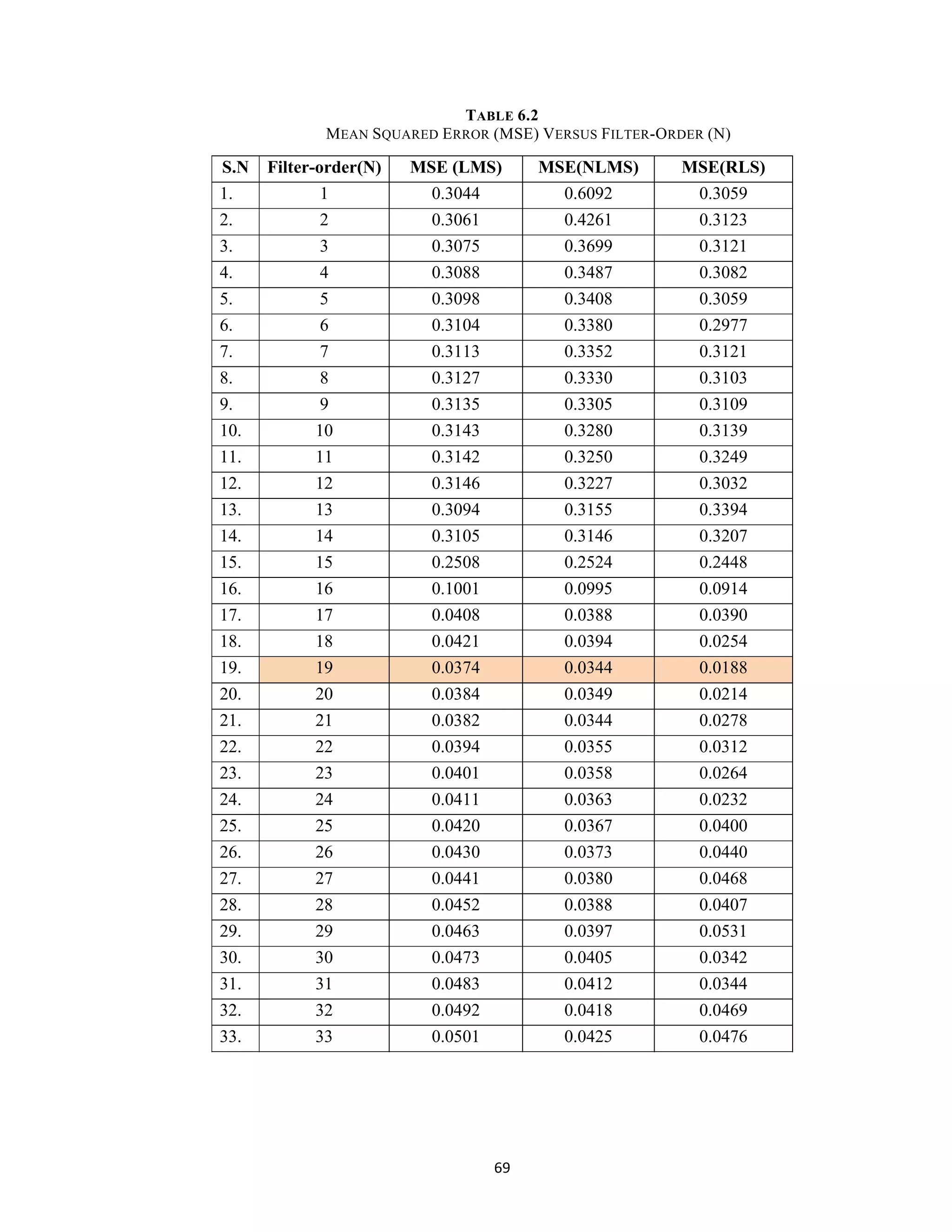

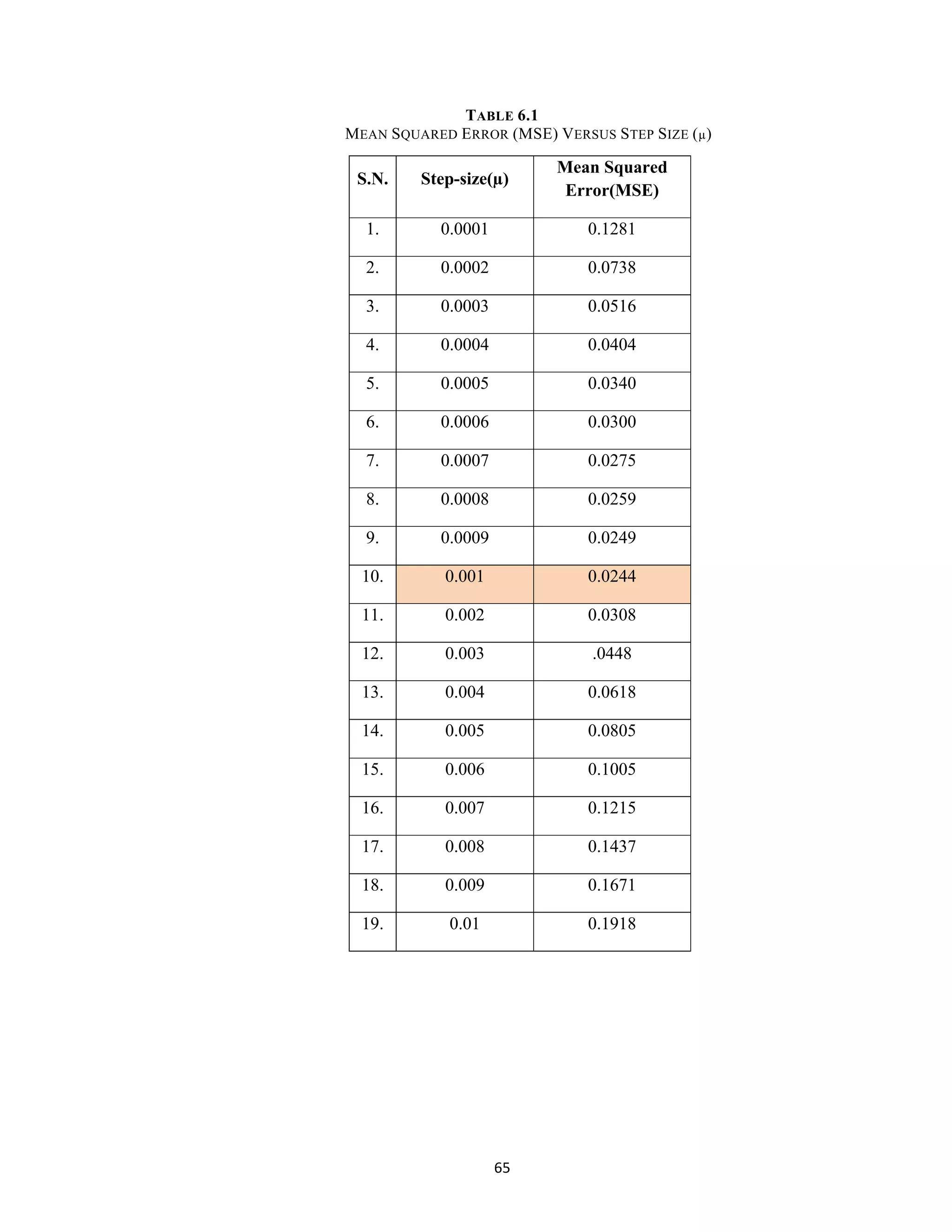

MATLAB simulation results for Adaptive Algorithms
63

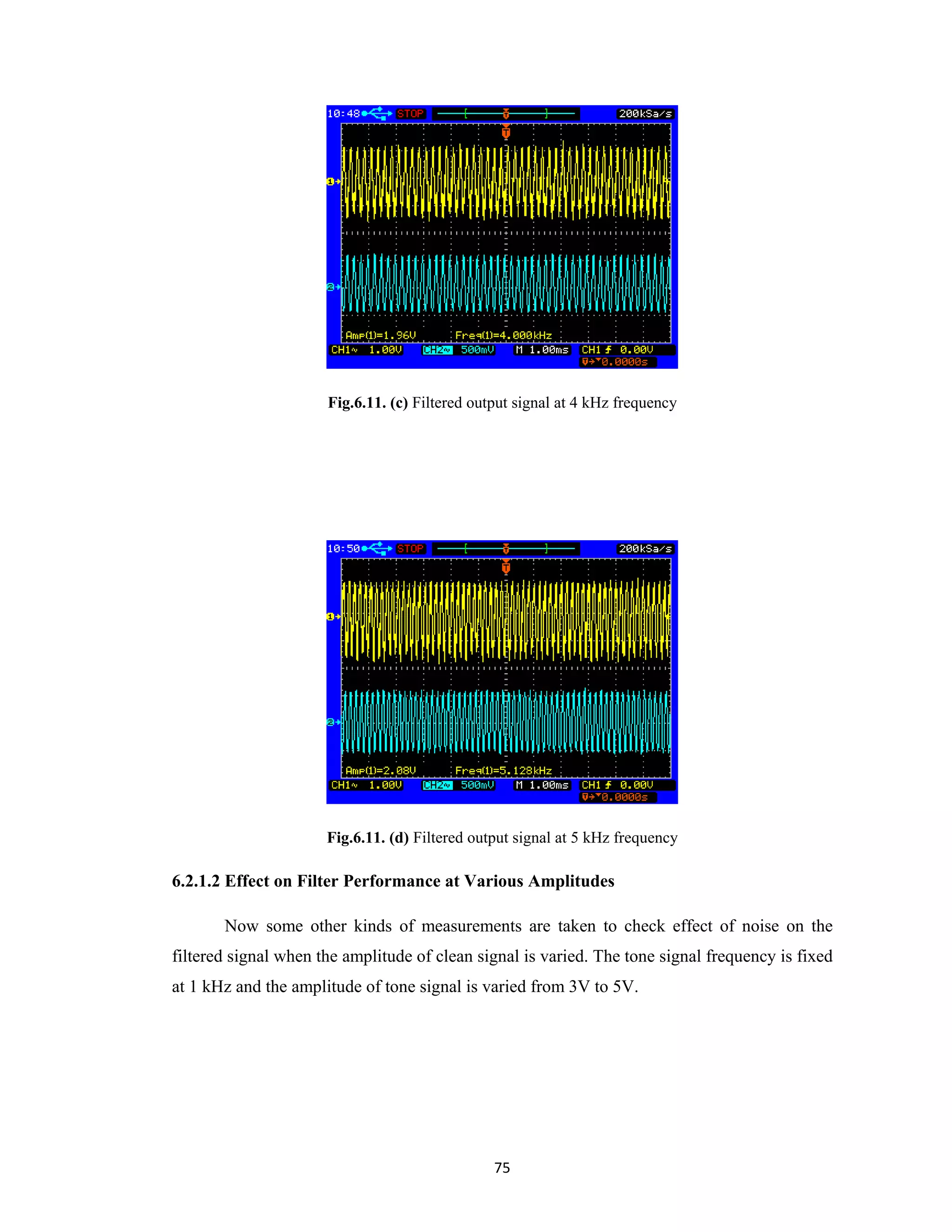

6.1.1

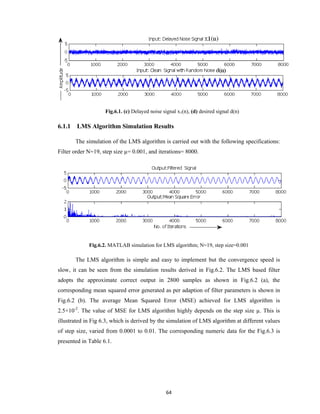

LMS Algorithm Simulation Results
64

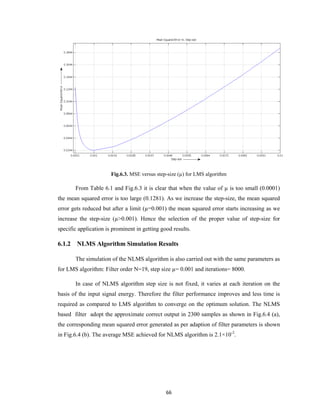

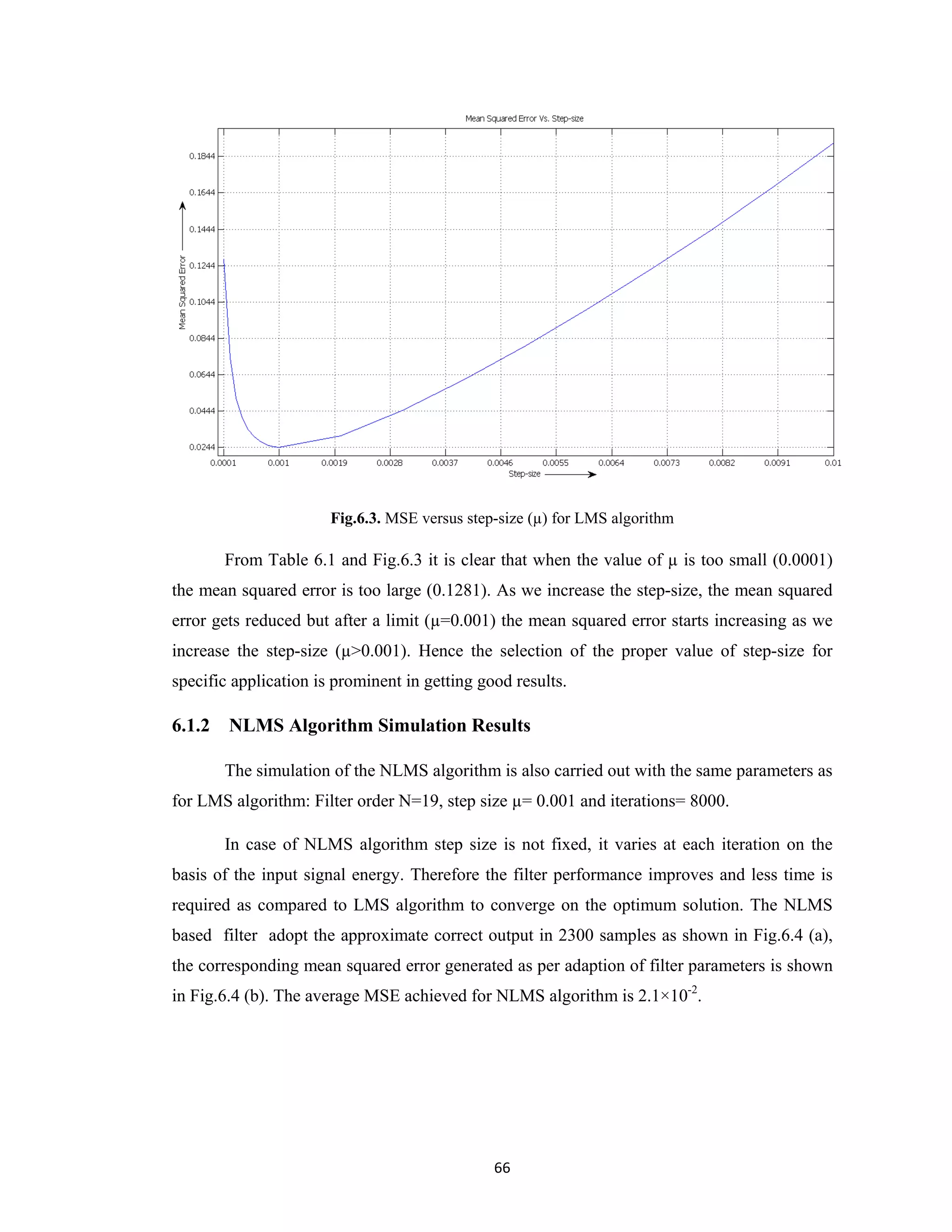

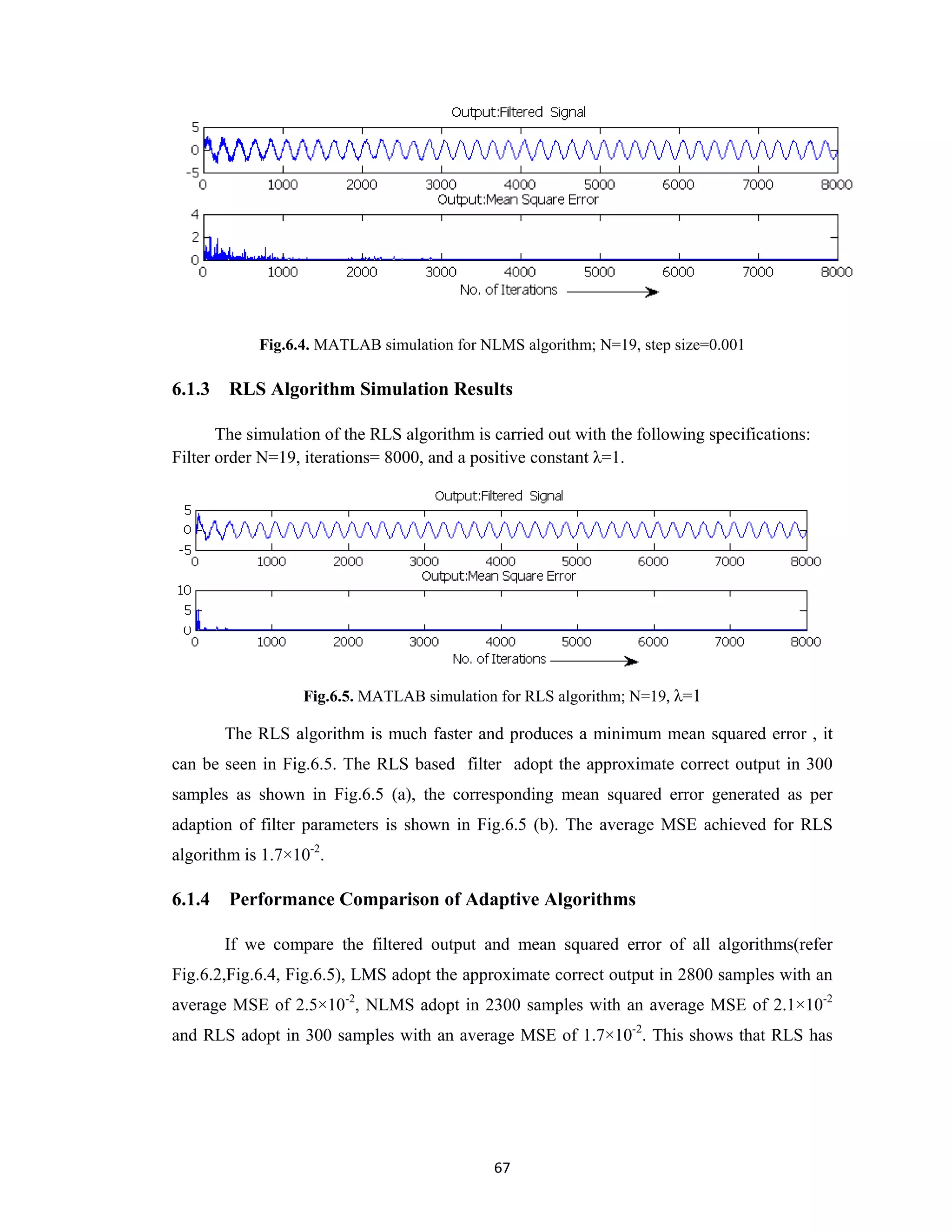

6.1.2
NLMS Algorithm Simulation Results
66
6.1.3
RLS Algorithm Simulation Results
67
6.1.4
Performance Comparison of Adaptive Algorithms
67
6.2
Hardware Implementation Results using TMS320C6713 Processor
71
6.2.1 Tone Signal Analysis using NLMS Algorithm
71
6.2.1.1 Effect on Filter Performance at Various Frequencies
73
6.2.1.2 Effect on Filter Performance at Various Amplitudes
75
6.2.2 ECG Signal Analysis using NLMS and LMS Algorithms and their
78
Performance Comparison

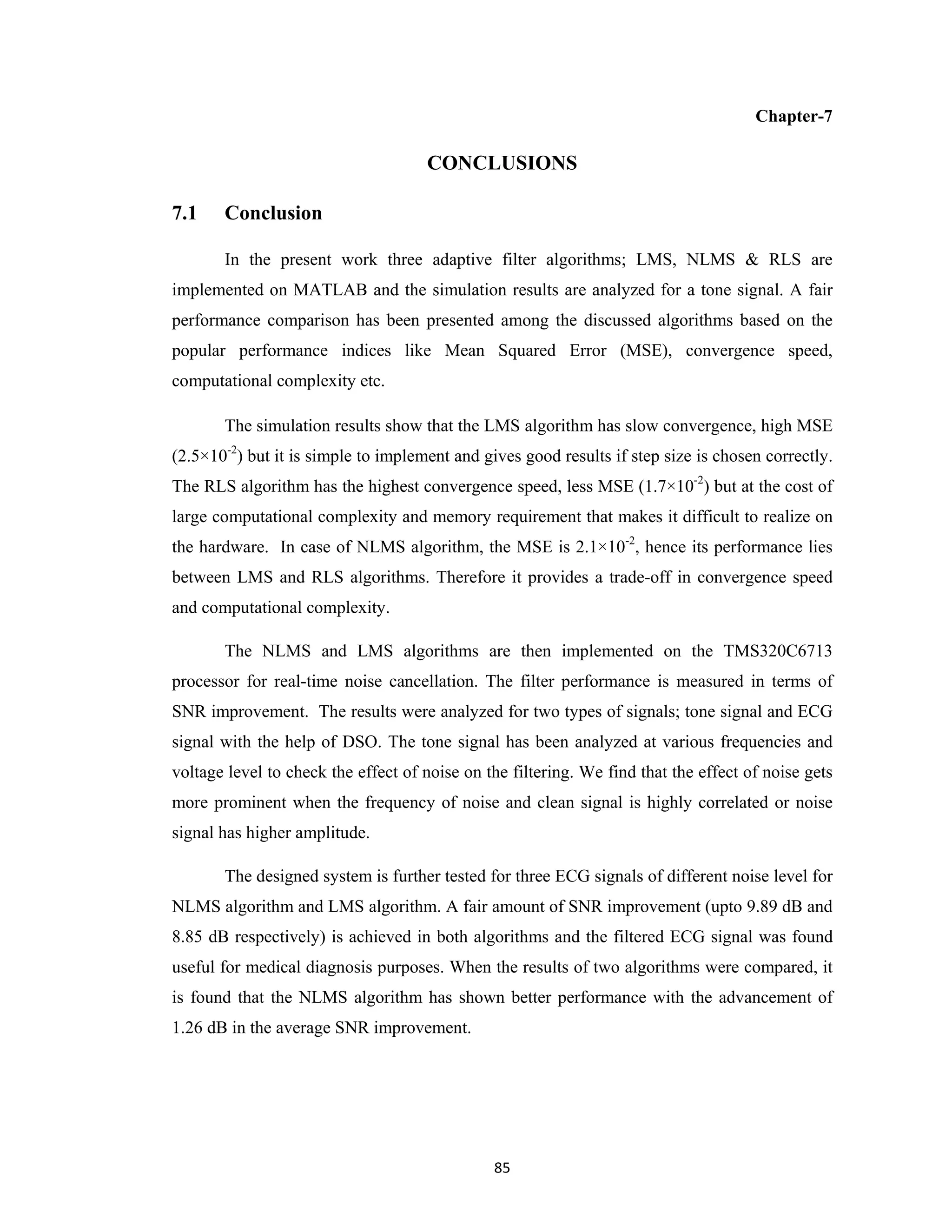

CHAPTER 7: CONCLUSIONS
85
7.1
Conclusion
85

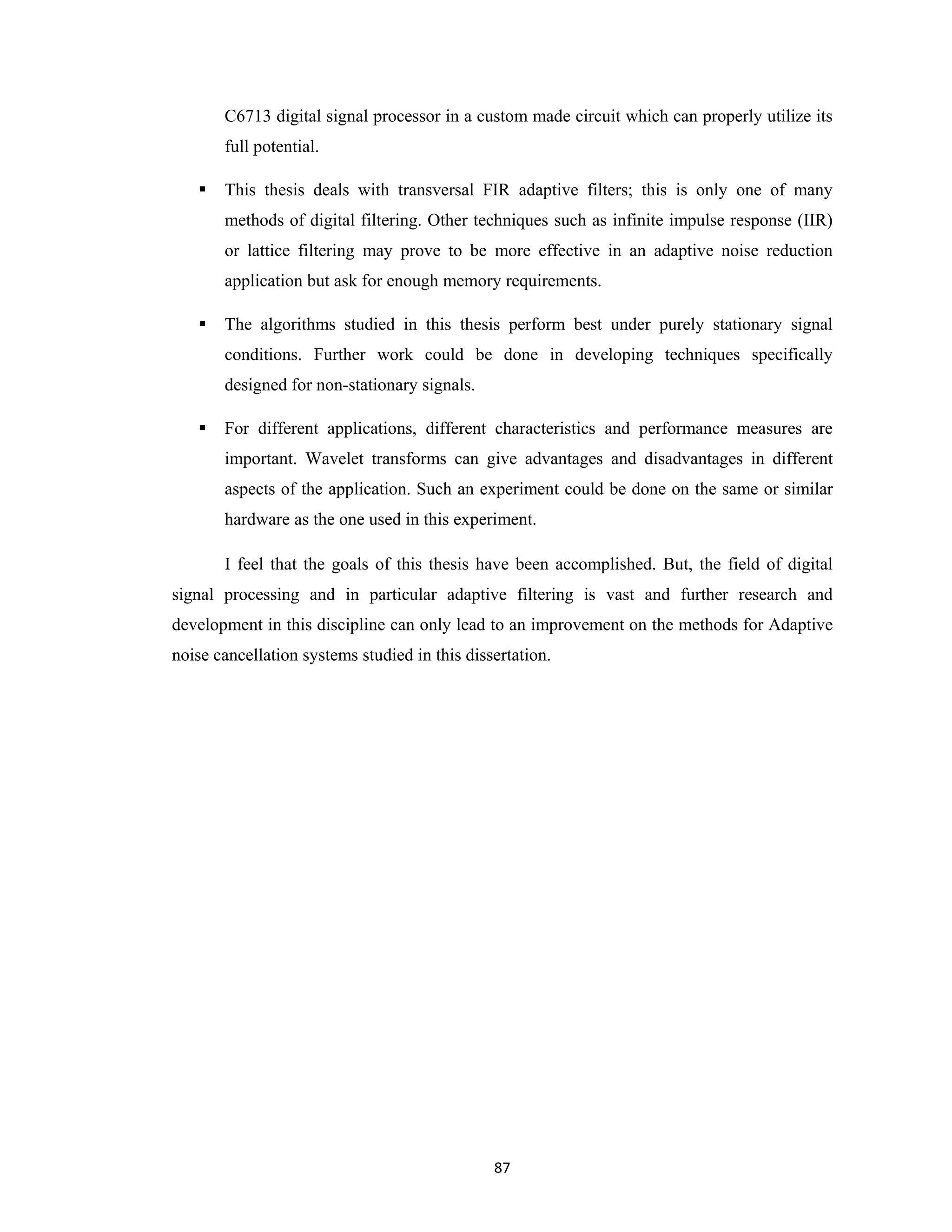

7.2

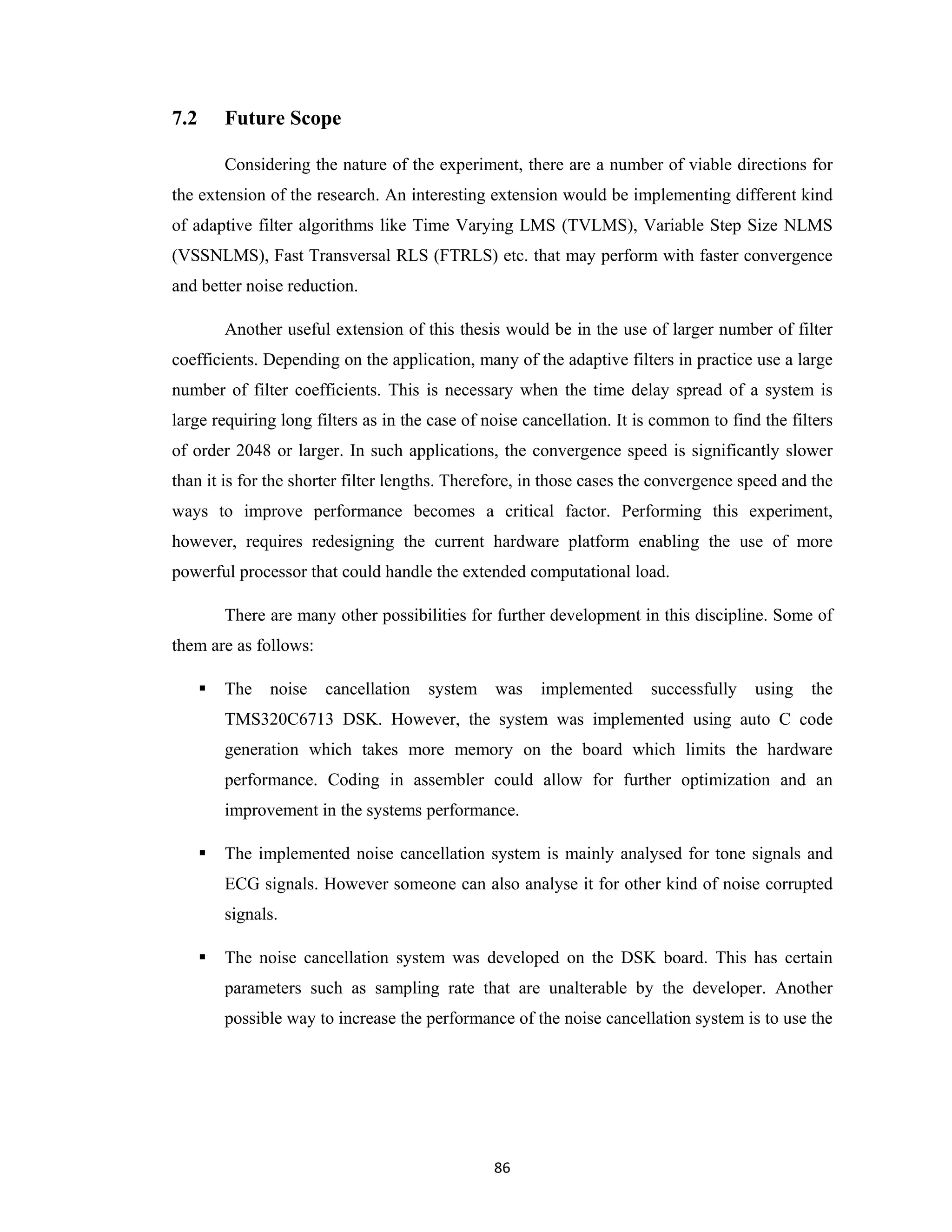

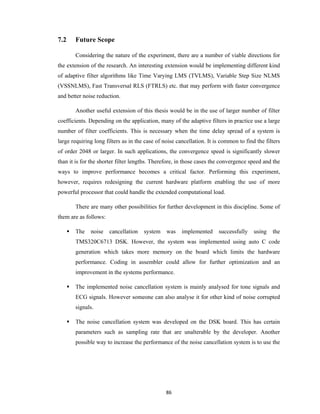

Future Work
86

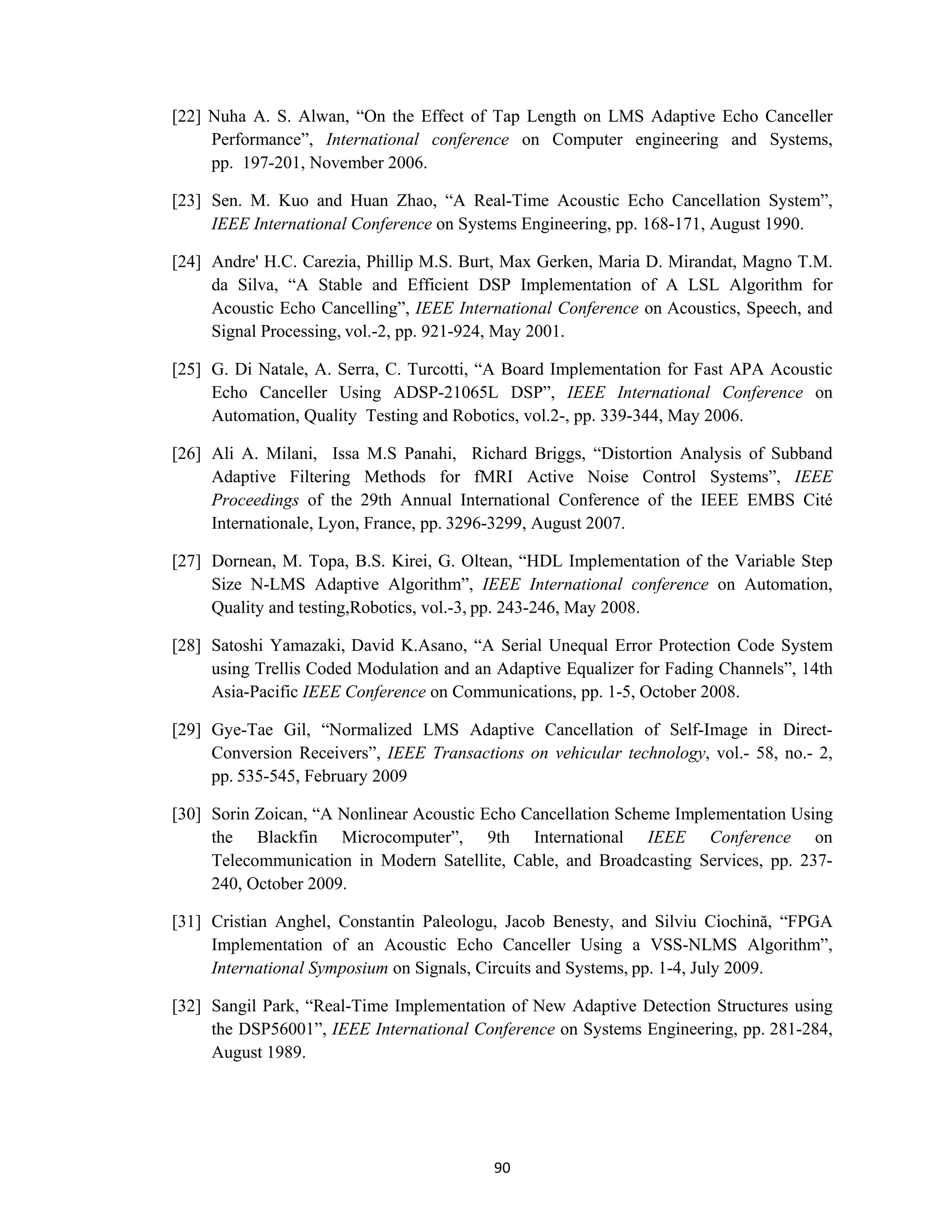

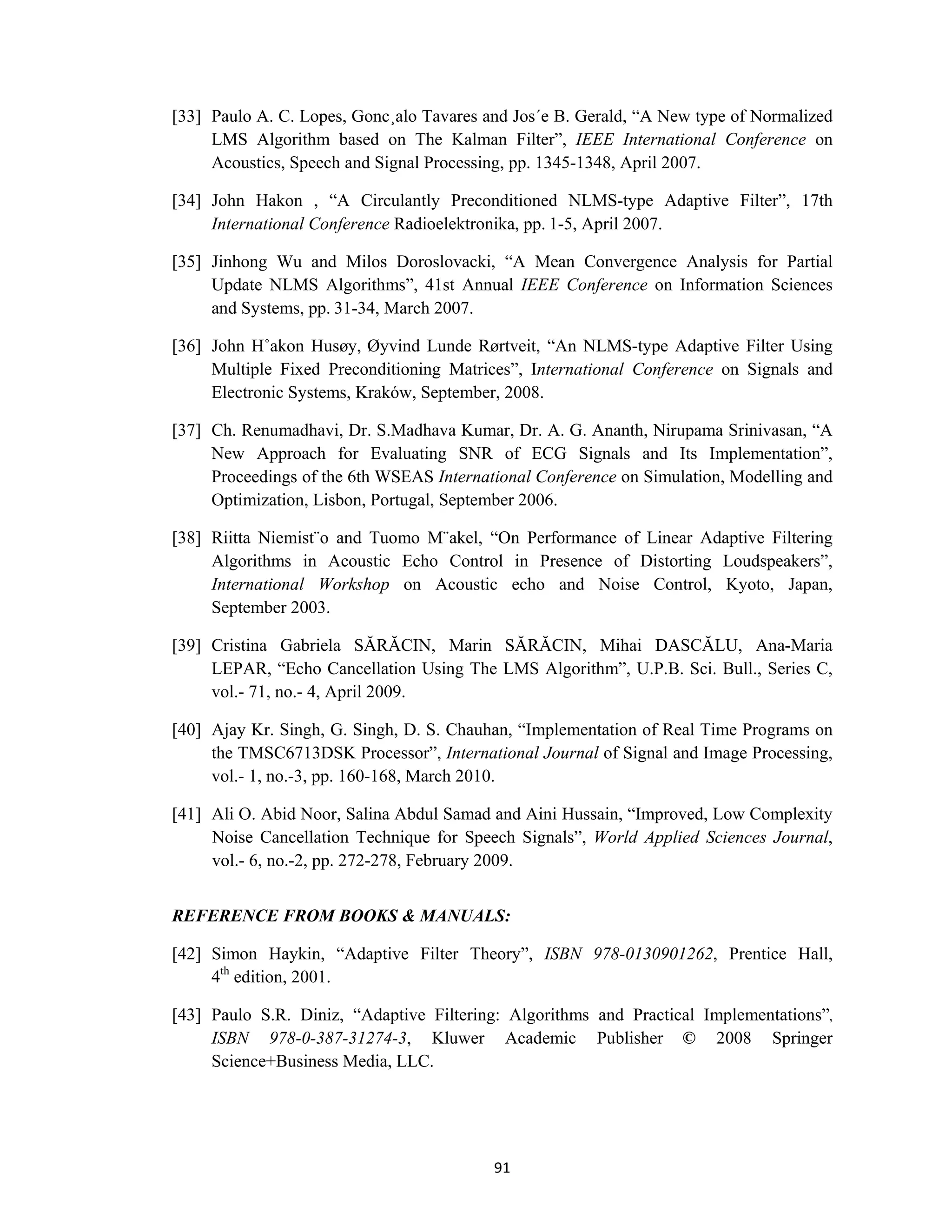

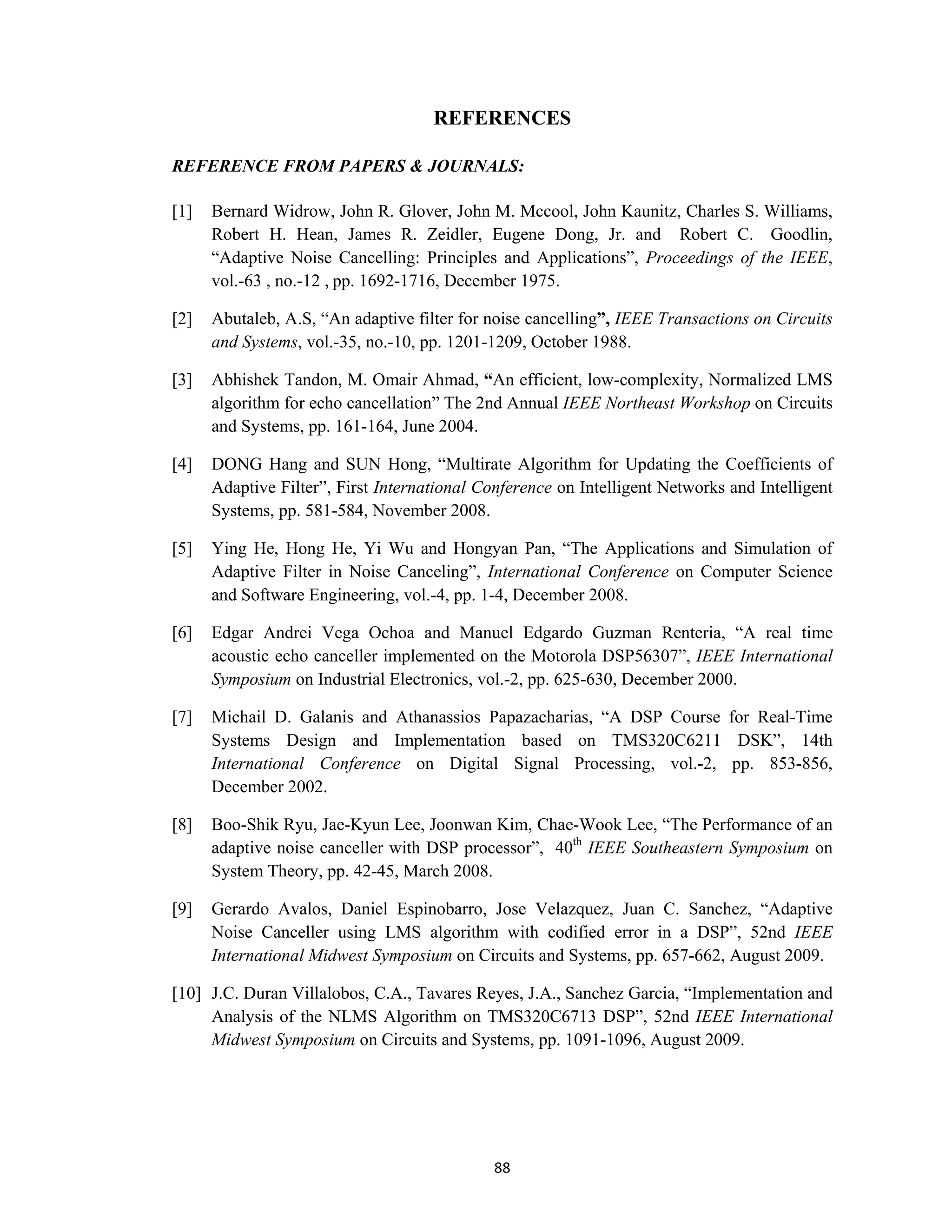

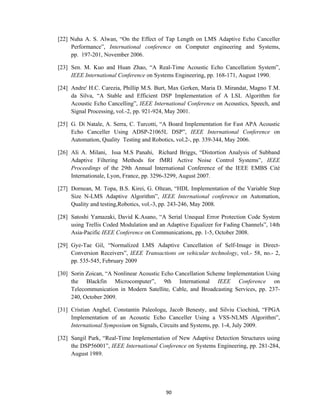

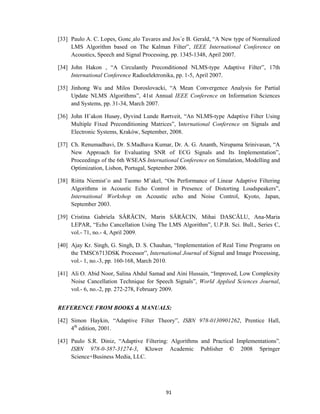

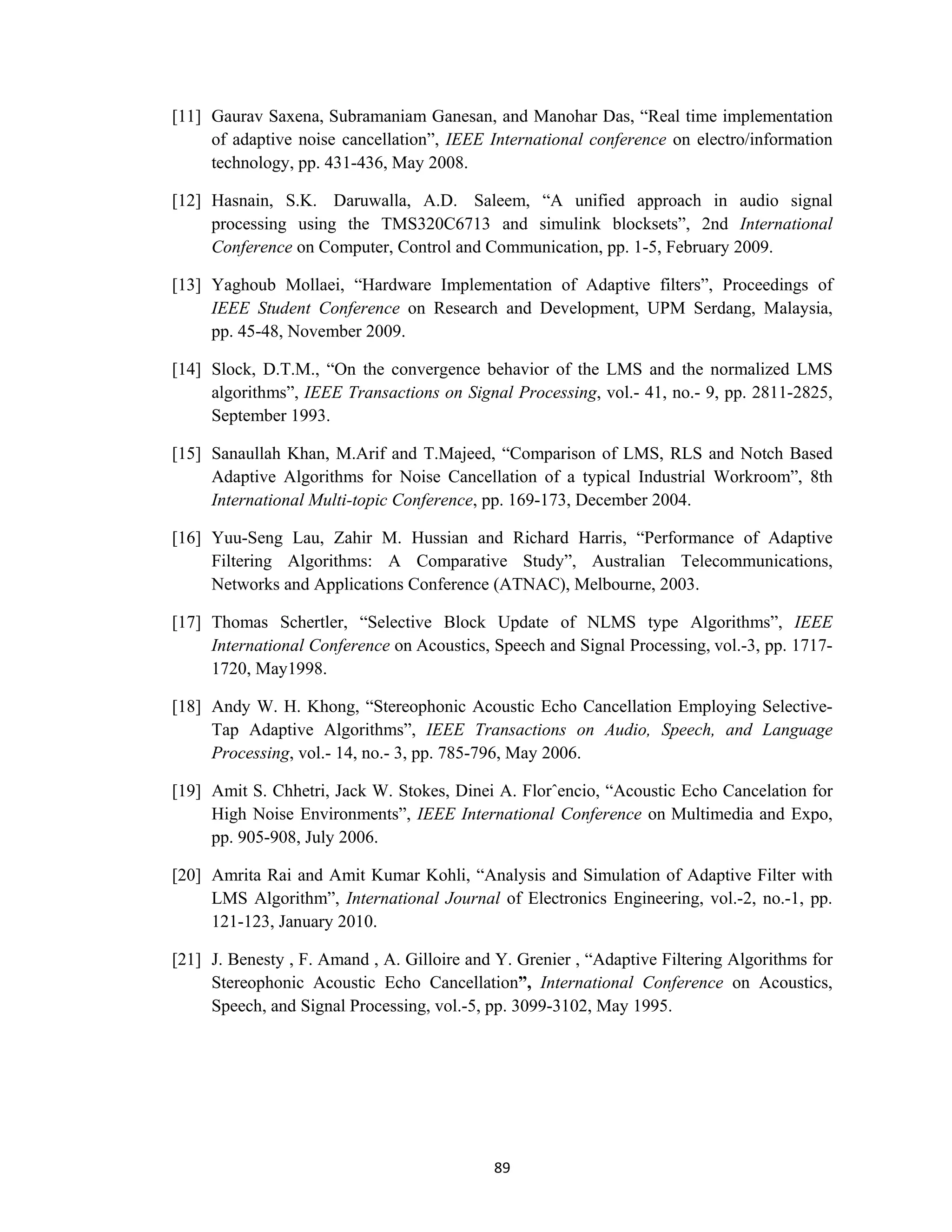

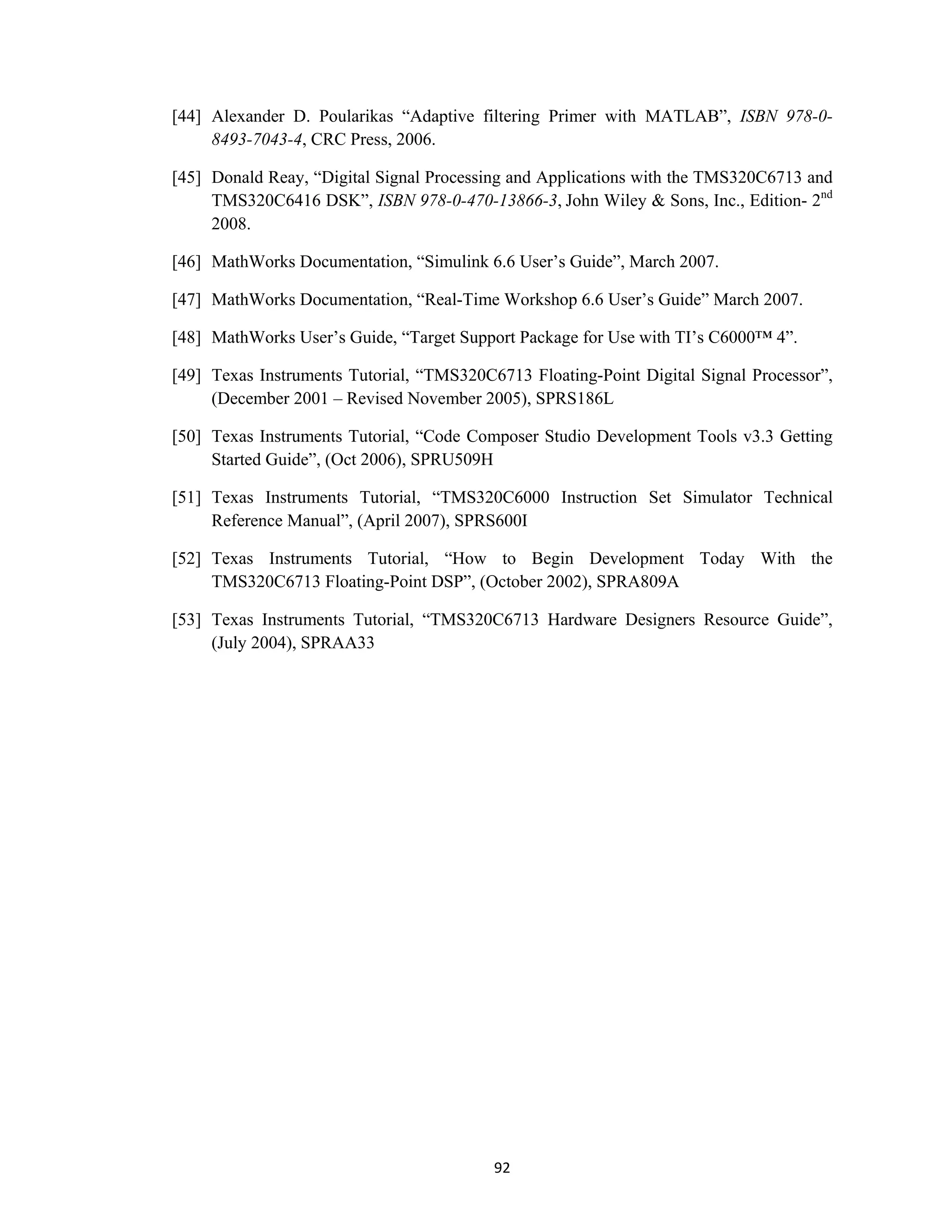

REFERENCES
88

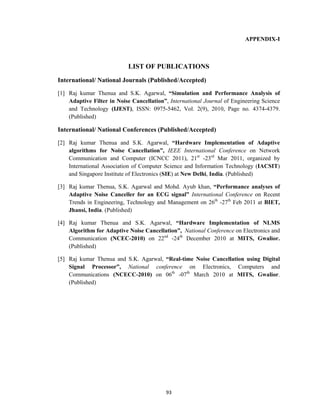

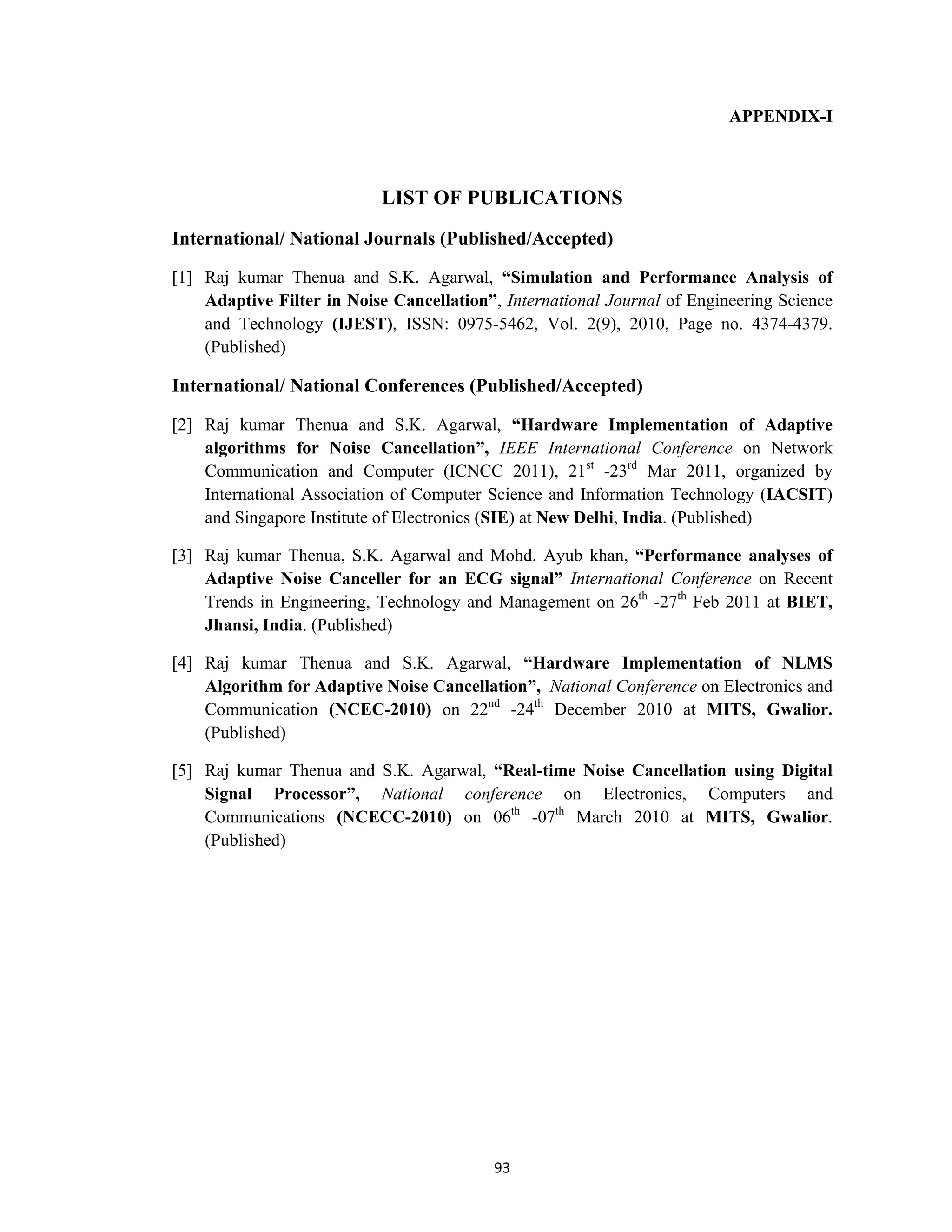

APPENDIX-I
LIST OF PUBLICATIONS
93
APPENDIX-II
MATLAB COMMANDS
94
vi
7. LIST OF TABLES
Table No.
Title
Page No.
Table 6.1
Mean Squared Error (MSE) Versus Step Size (µ)
65
Table 6.2

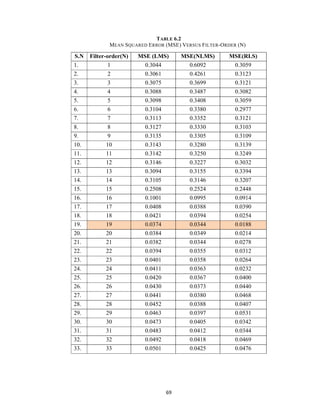

Mean Squared Error versus Filter-order (N)
69
Table 6.3

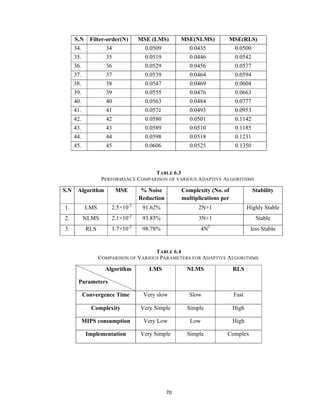

Performance comparison of various adaptive algorithms
70
Table 6.4
Comparison of Various Parameters for Adaptive Algorithms
70

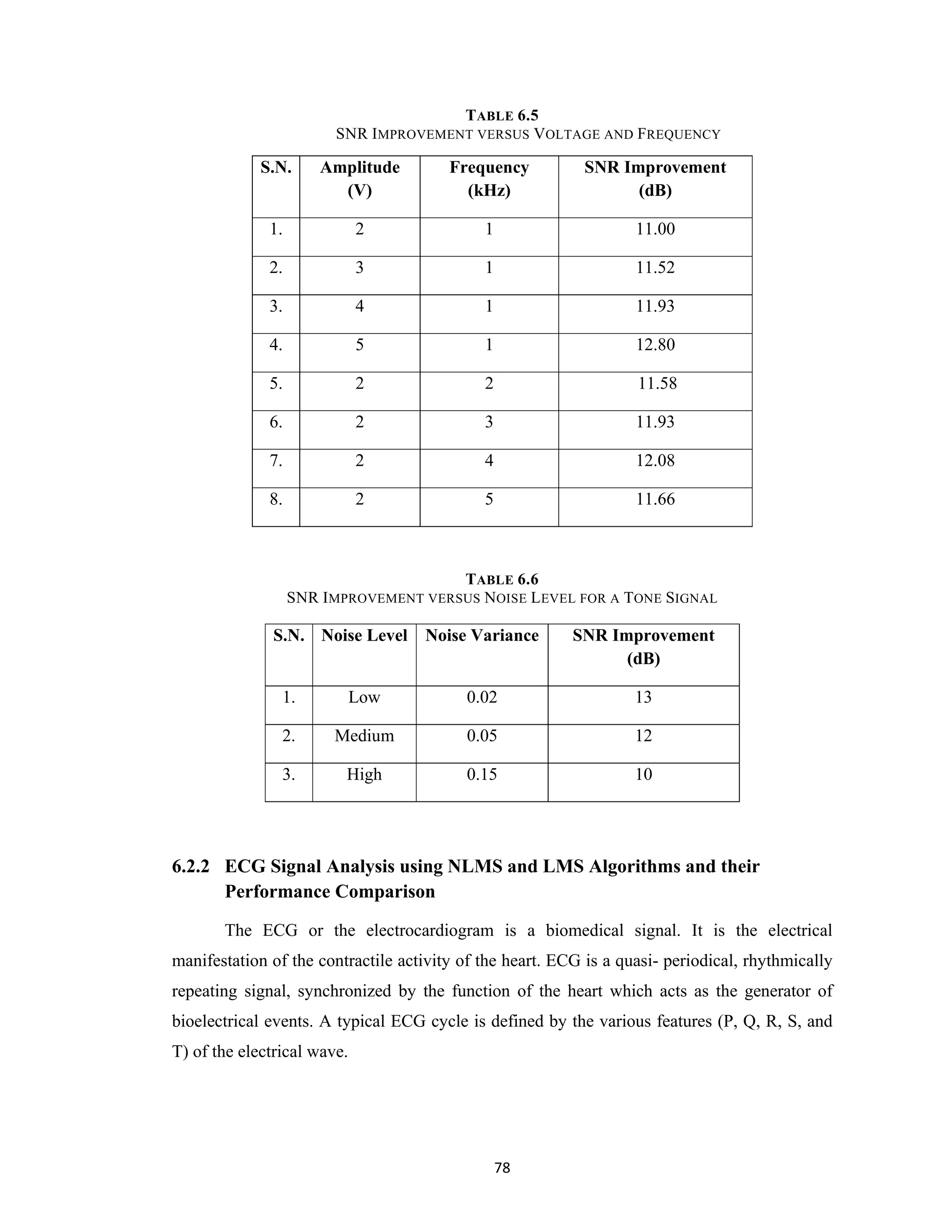

Table 6.5

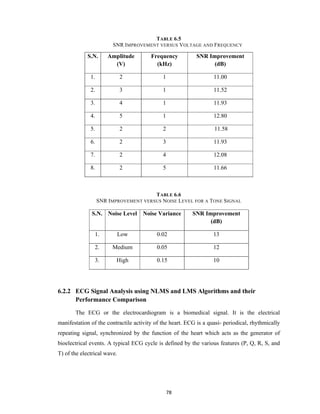

SNR Improvement versus voltage and frequency
78
Table 6.6
SNR Improvement versus noise level for a Tone Signal
78
Table 6.7
SNR Improvement versus noise variance for an ECG Signal
84
vii
8. LIST OF FIGURES
Figure No.
Title
Page No.
Fig.3.1
General adaptive filter configuration
14
Fig.3.2
Transversal FIR filter architecture
15
Fig.3.3
Block diagram for Adaptive Noise Canceller
16
Fig.3.4
MATLAB versatility diagram
29
Fig.4.1
Simulink applications
32
Fig.4.2
Adaptive Noise cancellation Simulink model
33
Fig.4.3

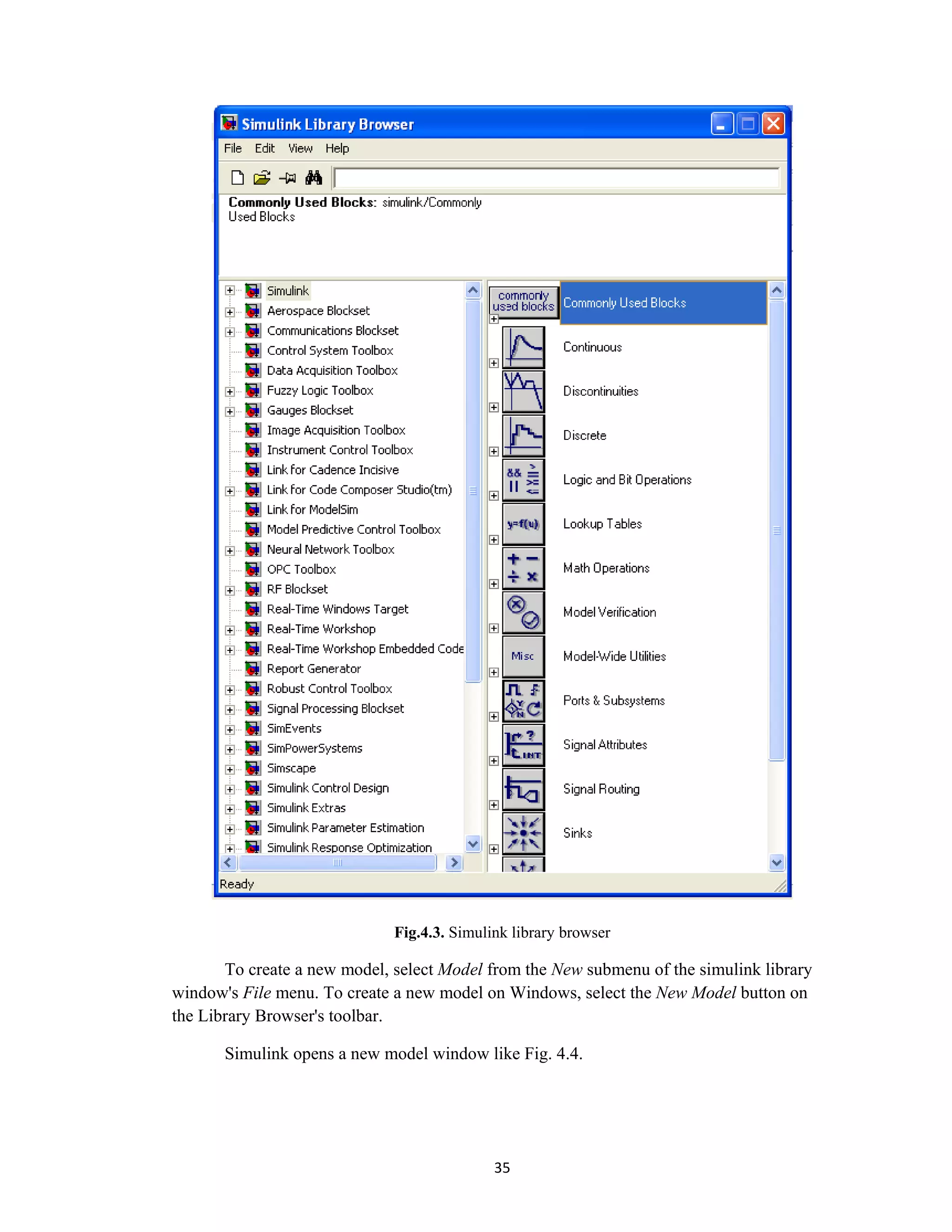

Simulink library browser
35

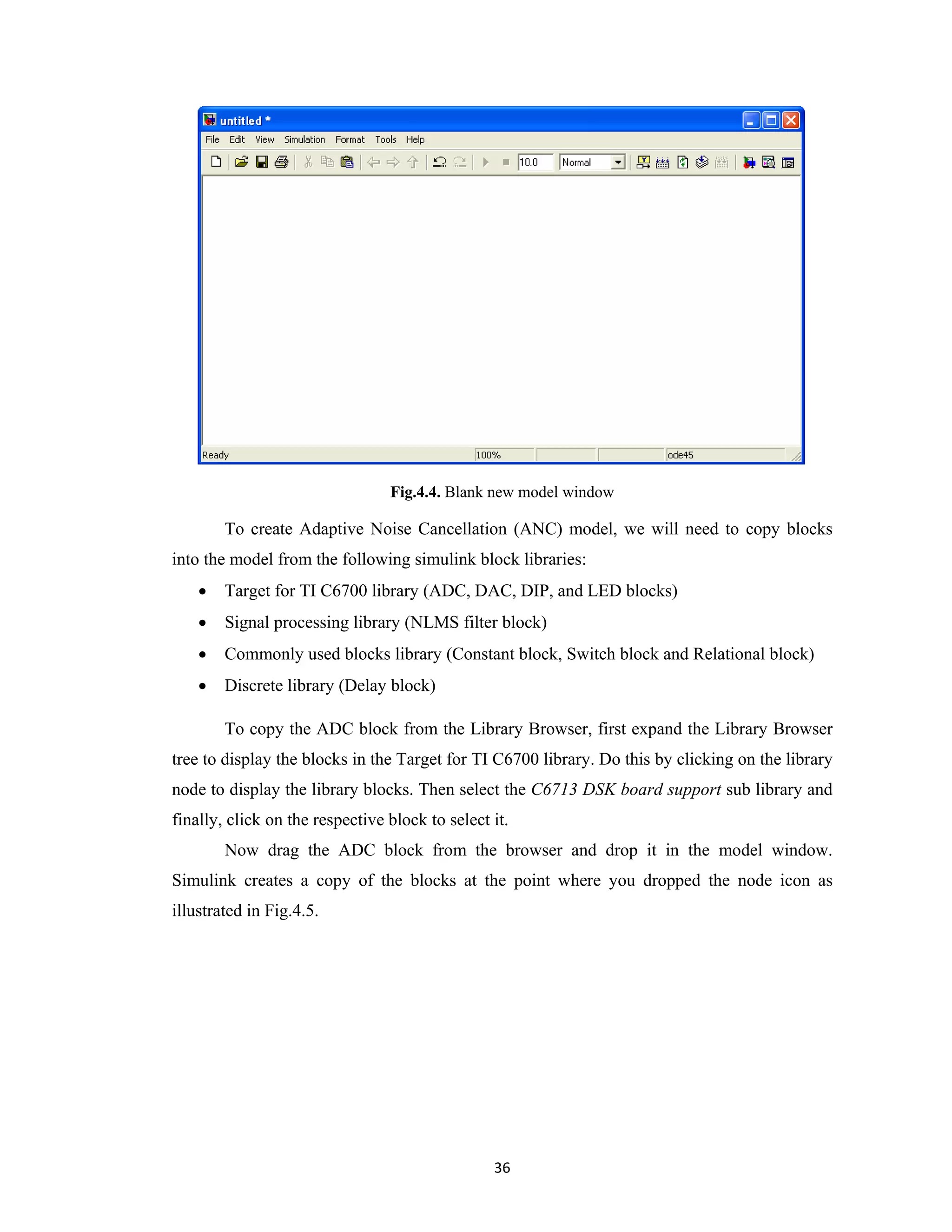

Fig.4.4
Blank new model window
36
Fig.4.5

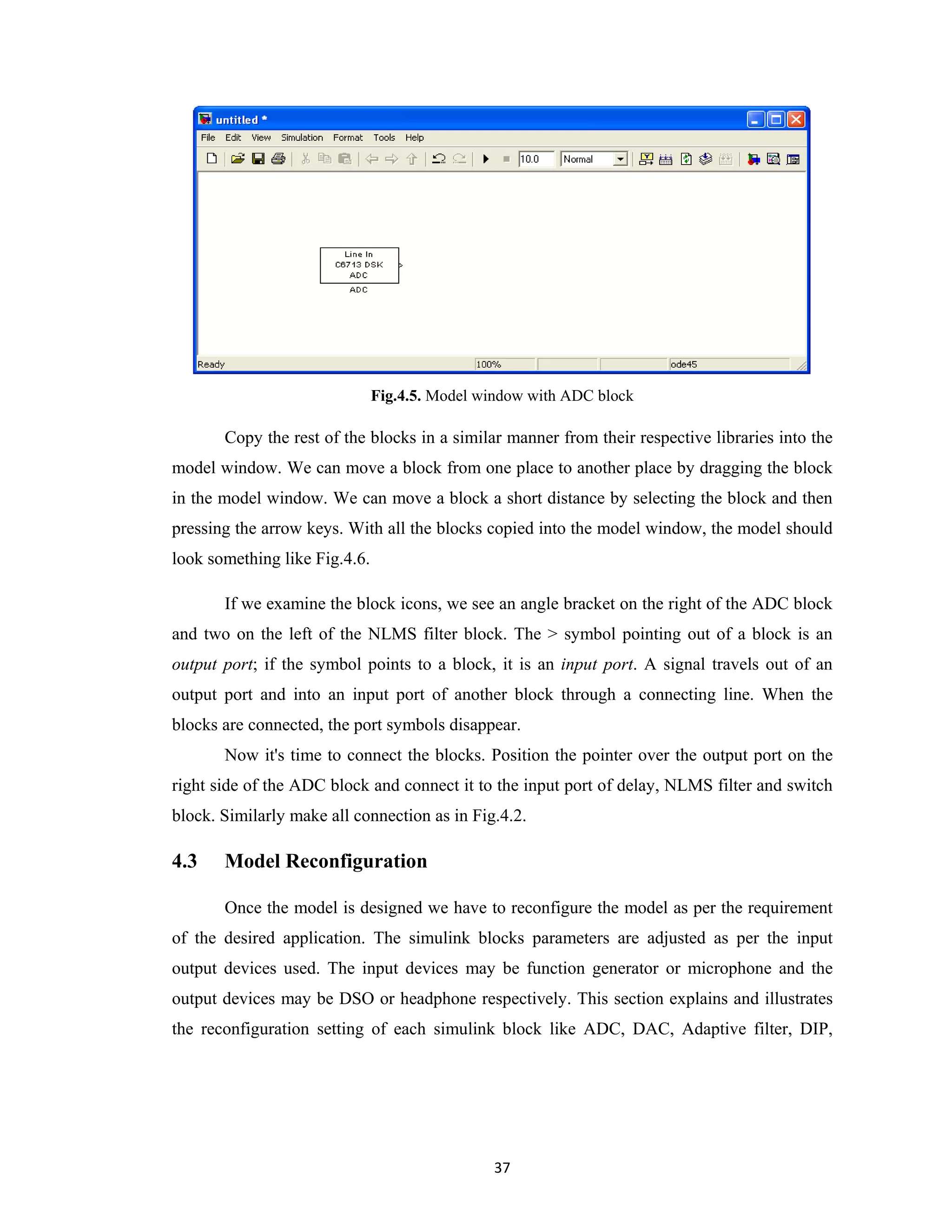

Model window with ADC block
37
Fig.4.6
Model illustration before connections
38
Fig.4.7
Setting up the ADC for mono microphone input
39
Fig.4.8
Setting the DAC parameters
39
Fig.4.9
Setting the NLMS filter parameters
40
Fig.4.10
Setting the delay unit
41
Fig.4.11
Setting up the DIP switch values
42
Fig.4.12
Setting the constant parameters
42
Fig.4.13
Data type conversion to 16-bit integer
43
Fig.4.14
Changing the output data type
44
Fig.5.1
Block diagram of TMS320C6713 processor
47
Fig.5.2
Physical overview of the TMS320C6713 processor
47
Fig.5.3
Functional block diagram of TMS320C6713 CPU
48
Fig.5.4
Interrupt priority diagram
49

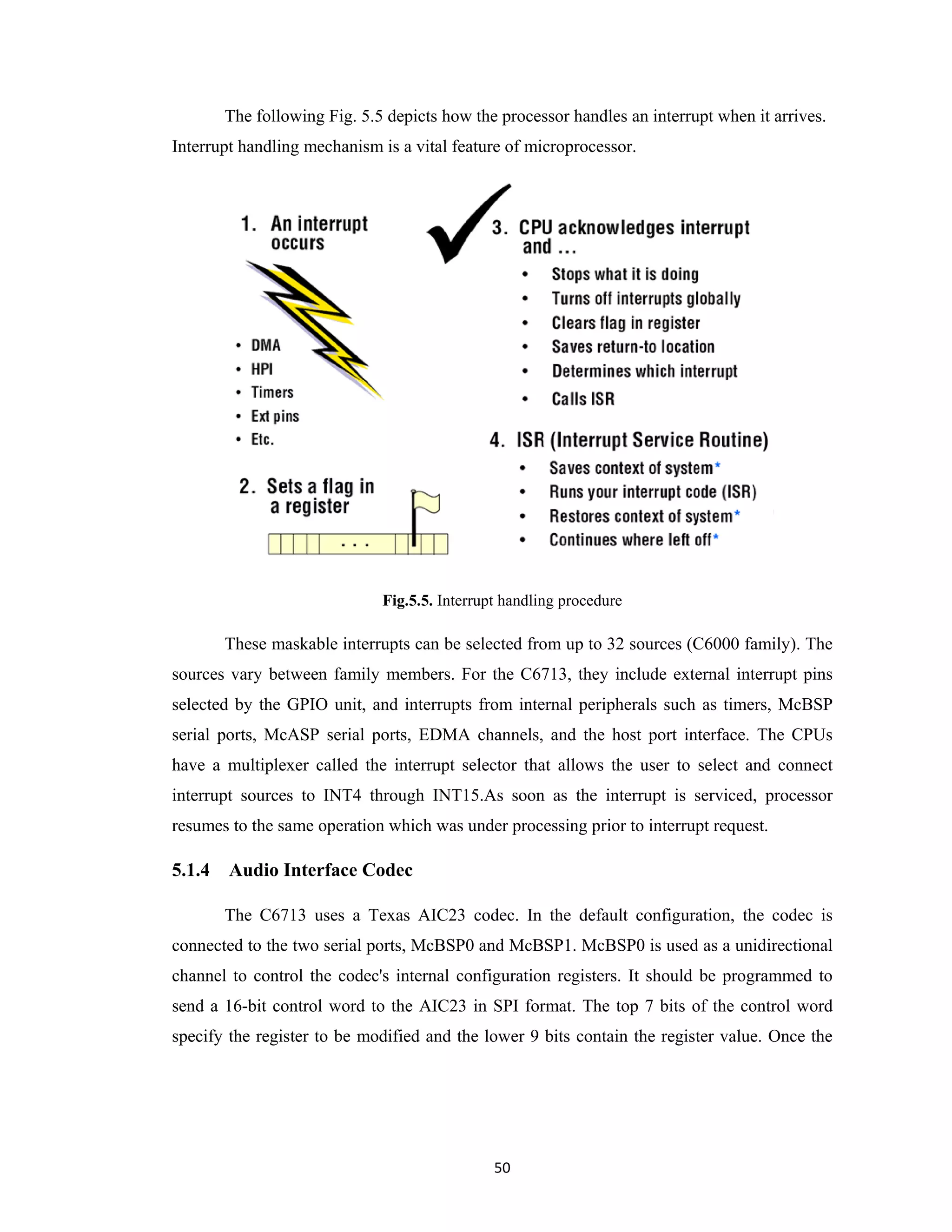

Fig.5.5
Interrupt handling procedure
50
viii
9. Figure No.
Title
Page No.
Fig.5.6
Audio connection illustrating control and data signal
51
Fig.5.7
AIC23 codec interface
52
Fig.5.8
DSP BIOS and RTDX
53
Fig.5.9
Code composer studio platform
54
Fig.5.10
Embedded software development
54
Fig.5.11
Typical 67xx efficiency vs. efforts level for different codes
55
Fig.5.12
Code generation
55
Fig.5.13
Cross development environment
56
Fig.5.14
Signal flow during processing
56
Fig.5.15
Real-time analysis and data visualization
57
Fig.5.16
MATLAB interfacing with CCS and TI target processor
58
Fig.5.17
Experimental setup using Texas Instrument processor
59
Fig.5.18
Real-time setup using Texas Instrument processor
59
Fig.5.19
Model building using RTW
60
Fig.5.20
Code generation using RTDX link
60

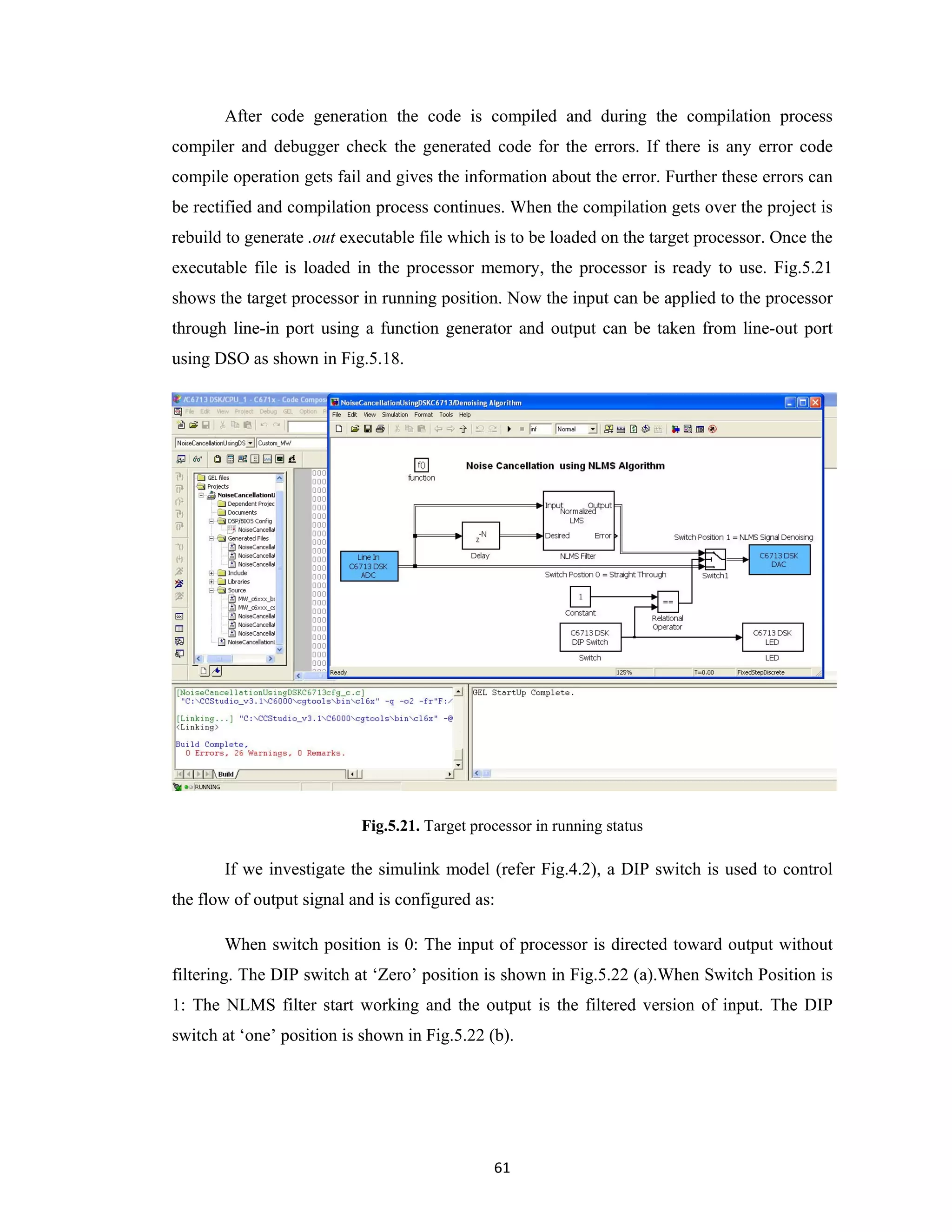

Fig.5.21
Target processor in running status
61
Fig.5.22 (a) Switch at Position 0
62
Fig.5.22 (b) Switch at position 1 for NLMS noise reduction
62
Fig.6.1(a)
Clean tone(sinusoidal) signal s(n)
63
Fig.6.1(b)
Noise signal x(n)
63
Fig.6.1(c)
Delayed noise signal x1(n)
64
Fig.6.1(d)
Desired signal d(n)
64
Fig.6.2
MATLAB simulation for LMS algorithm; N=19, step size=0.001
64
Fig.6.3
MATLAB simulation for NLMS algorithm; N=19, step size=0.001
66
ix

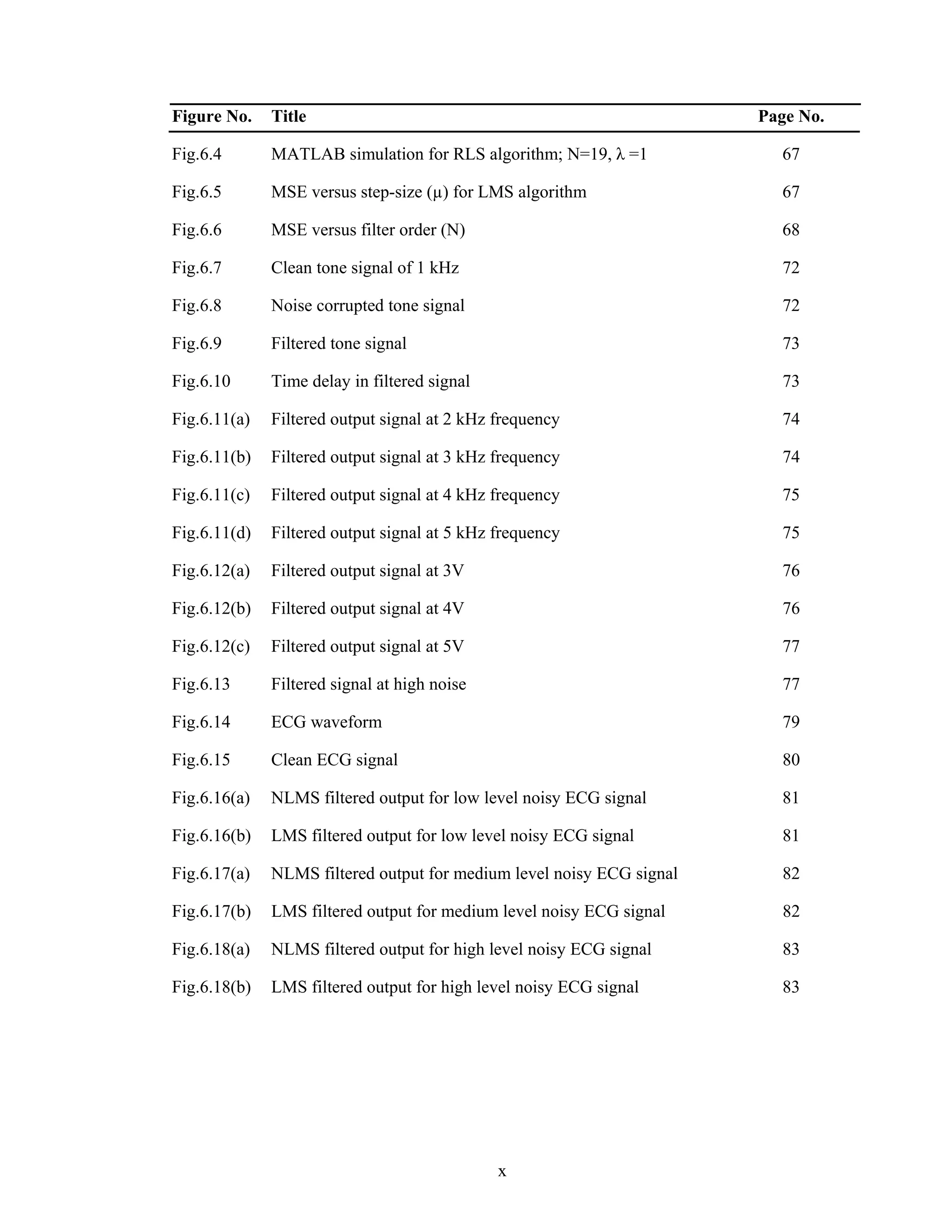

10. Figure No.
Title
Page No.
Fig.6.4
MATLAB simulation for RLS algorithm; N=19, λ =1
67
Fig.6.5
MSE versus step-size (µ) for LMS algorithm
67
Fig.6.6
MSE versus filter order (N)
68
Fig.6.7

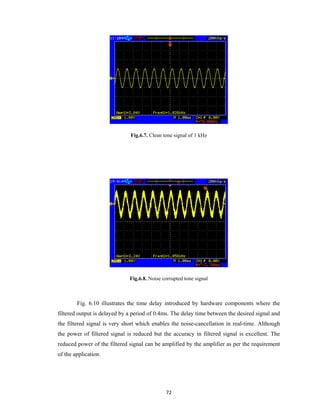

Clean tone signal of 1 kHz
72
Fig.6.8
Noise corrupted tone signal
72
Fig.6.9
Filtered tone signal
73
Fig.6.10
Time delay in filtered signal
73

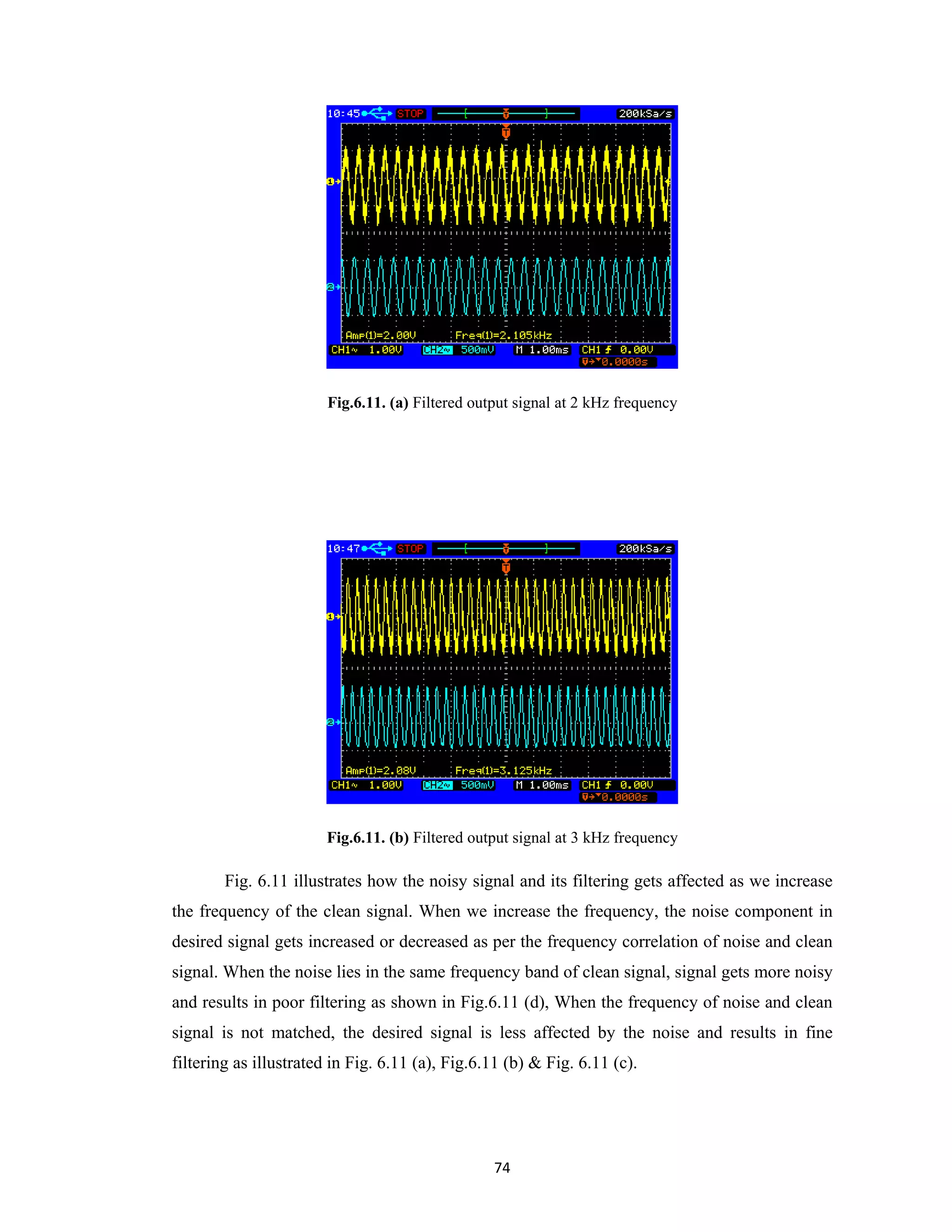

Fig.6.11(a)
Filtered output signal at 2 kHz frequency
74
Fig.6.11(b)
Filtered output signal at 3 kHz frequency
74
Fig.6.11(c)
Filtered output signal at 4 kHz frequency
75
Fig.6.11(d)
Filtered output signal at 5 kHz frequency
75

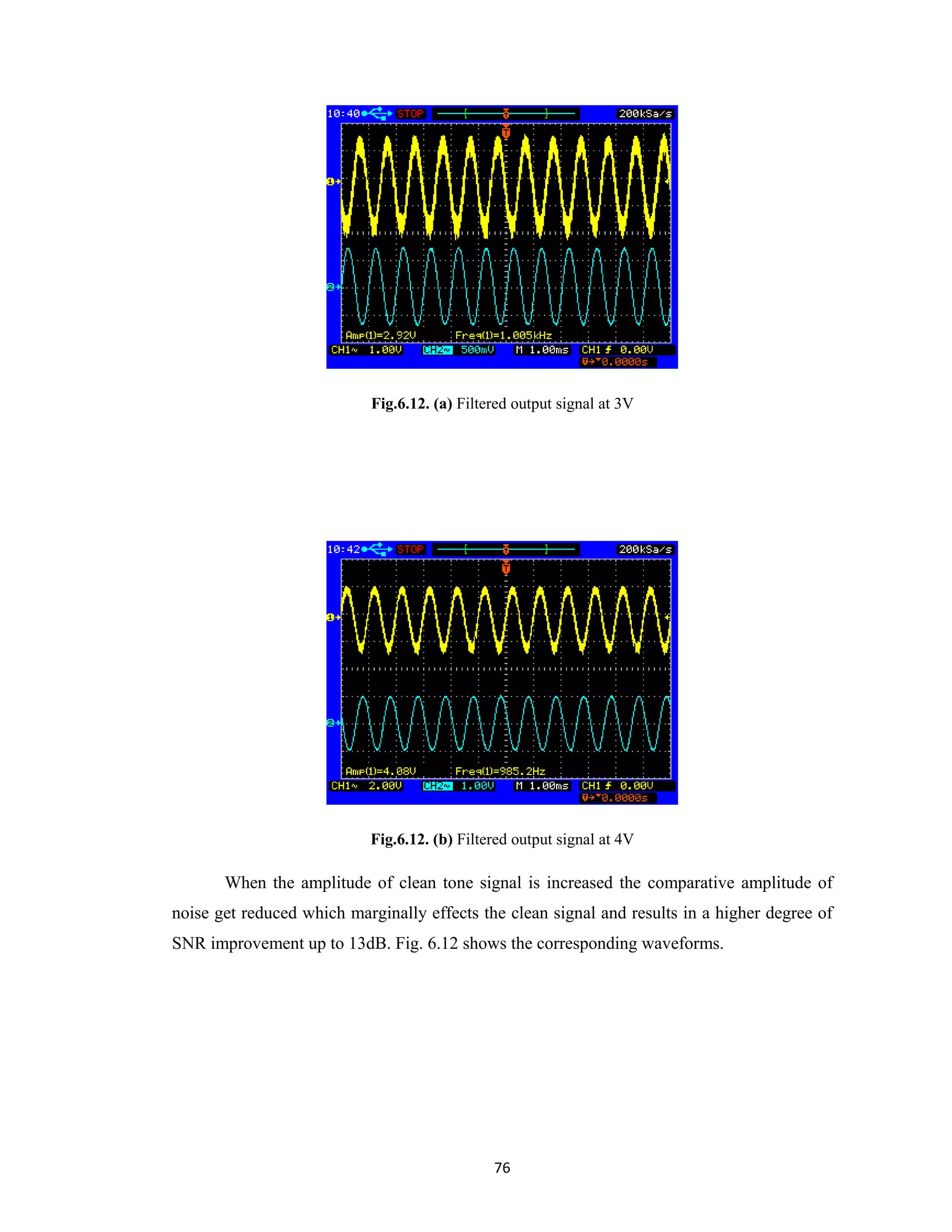

Fig.6.12(a)
Filtered output signal at 3V
76
Fig.6.12(b)
Filtered output signal at 4V
76
Fig.6.12(c)
Filtered output signal at 5V
77
Fig.6.13
Filtered signal at high noise
77

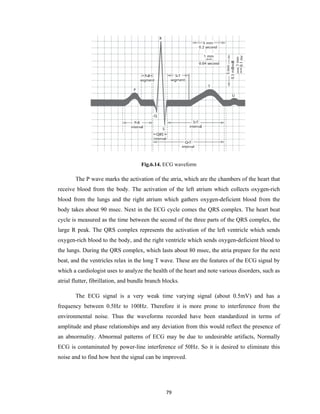

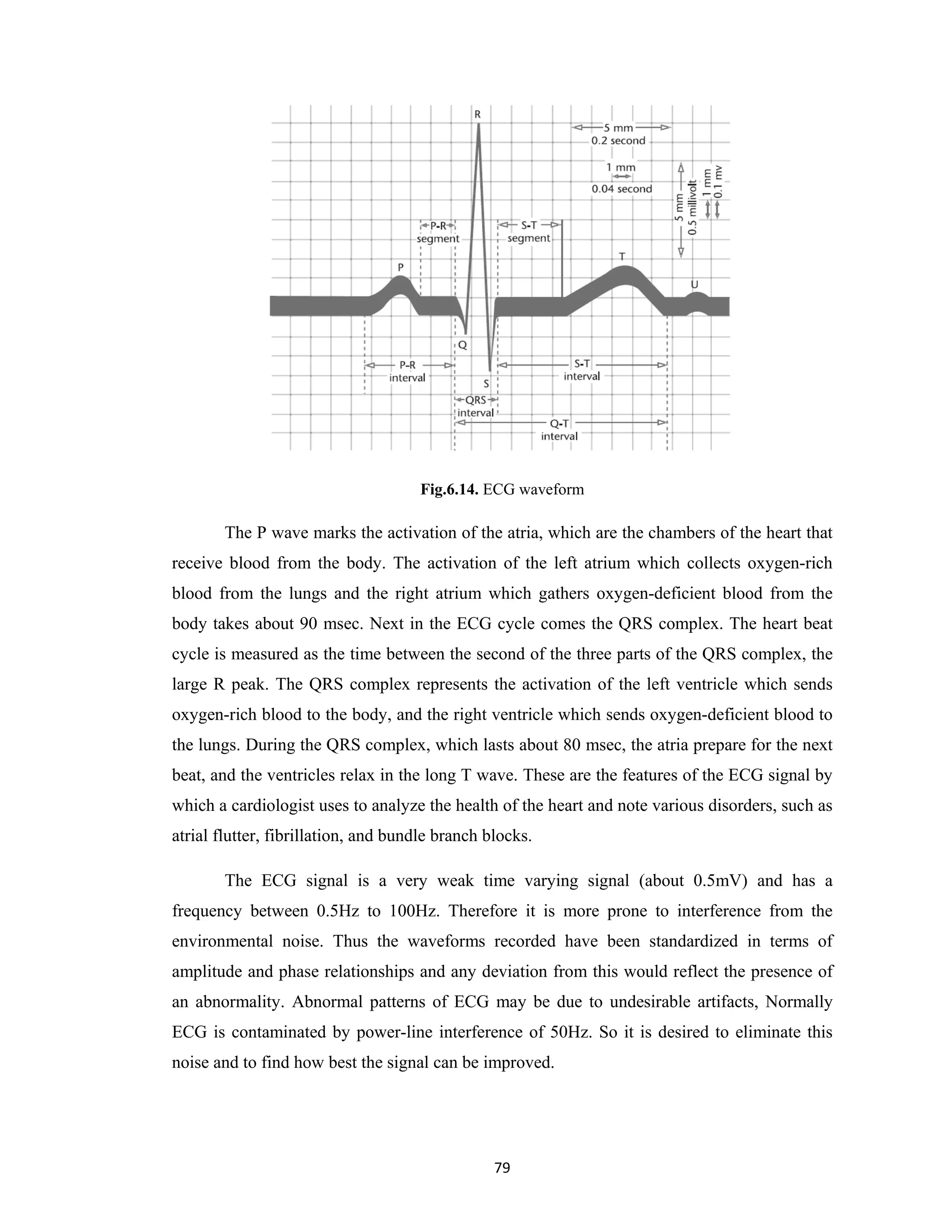

Fig.6.14
ECG waveform
79
Fig.6.15

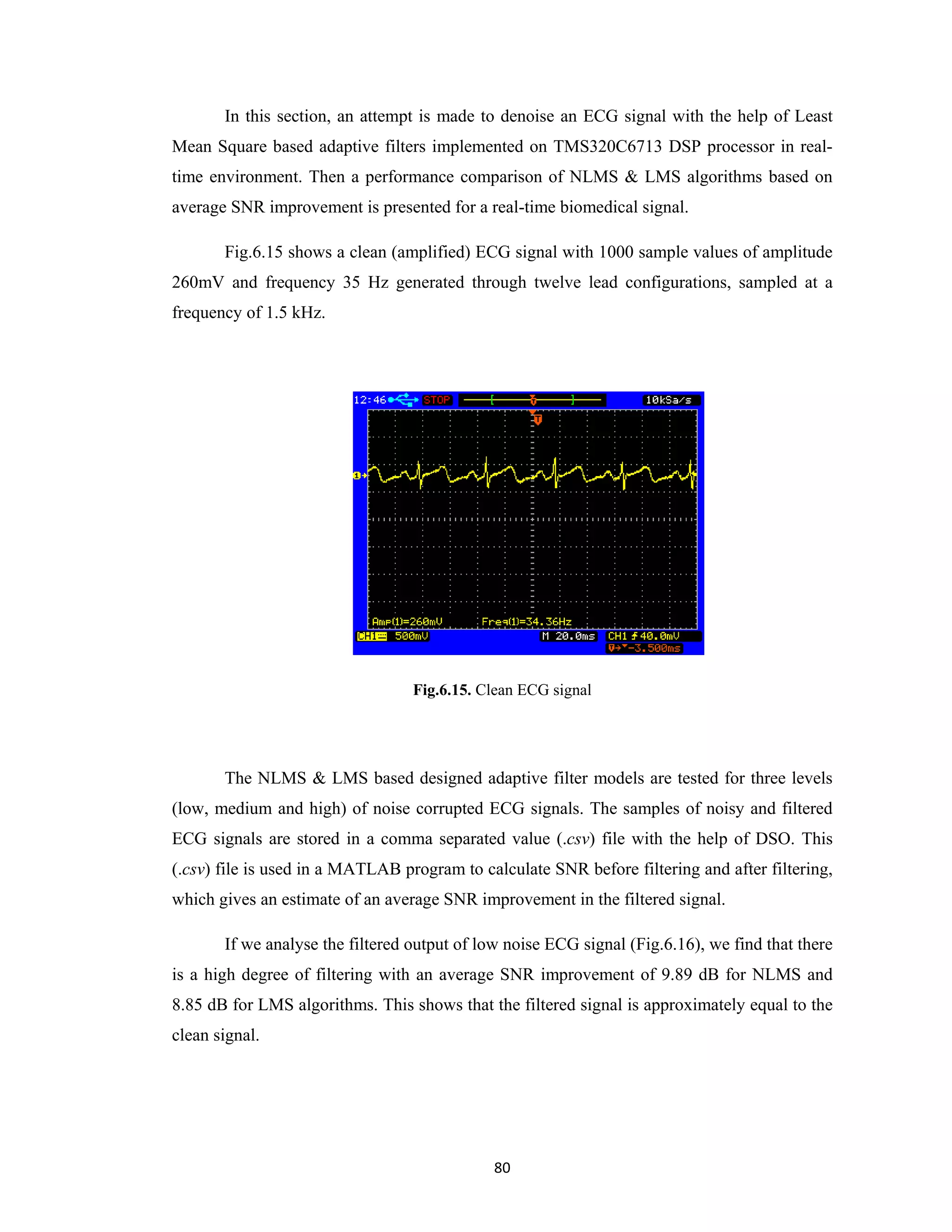

Clean ECG signal
80

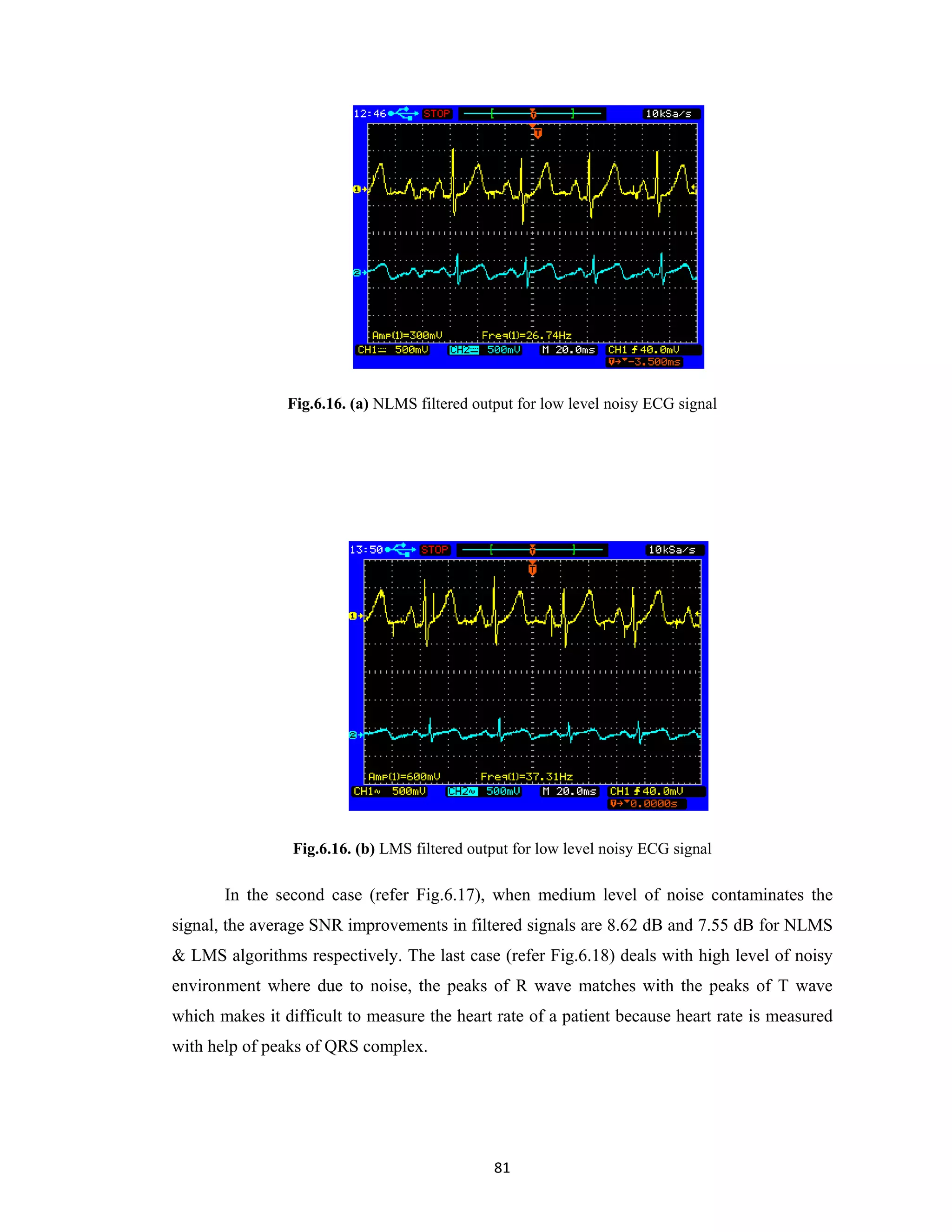

Fig.6.16(a)
NLMS filtered output for low level noisy ECG signal
81
Fig.6.16(b)
LMS filtered output for low level noisy ECG signal
81
Fig.6.17(a)
NLMS filtered output for medium level noisy ECG signal
82
Fig.6.17(b)
LMS filtered output for medium level noisy ECG signal
82
Fig.6.18(a)
NLMS filtered output for high level noisy ECG signal
83
Fig.6.18(b)
LMS filtered output for high level noisy ECG signal
83
x
11. LIST OF ABBREBIATIONS
ANC
Adaptive Noise Cancellation
API
Application Program Interface
AWGN
Additive White Gaussian Noise
BSL
Board Support Library
BIOS
Basic Input Output System
CSL
Chip Support Library
CCS
Code Composer Studio
CODEC
Coder Decoder
COFF
Common Object File Format
COM
Component Object Model
CPLD
Complex Programmable Logic Device
CSV
Comma Separated Value
DIP
Dual Inline Package
DSK
Digital signal processor Starter Kit
DSO
Digital Storage Oscilloscope
DSP
Digital Signal Processor
ECG
Electrocardiogram
EDMA
Enhanced Direct Memory Access
EMIF
External Memory Interface
FIR
Finite Impulse Response
FPGA
Field Programmable Gate Array
FTRLS
Fast Transversal Recursive Least Square
GEL
General Extension Language
GPIO
General Purpose Input Output
GUI
Graphical User Interface
HPI
Host Port Interface
IDE
Integrated Development Environment
IIR
Infinite Impulse Response
JTAG
Joint Text Action Group
LMS
Least Mean Square
xi
12. LSE
Least Square Error
MA
Moving Average
McBSP
Multichannel Buffered Serial Port
McASP
Multichannel Audio Serial Port
MSE
Mean Square Error
MMSE
Minimum Mean Square Error
NLMS
Normalized Least Mean Square
RLS
Recursive Least Squares
RTDX
Real Time Data Exchange
RTW
Real Time Workshop
SNR
Signal to Noise Ratio
TI
Texas Instrument
TVLMS
Time Varying Least Mean Squared
VLIW
Very Long Instruction Word
VSLMS
Variable Step-size Least Mean Square
VSSNLMS
Variable Step Size Normalized Least Mean Square
xii
13. LIST OF SYMBOLS
s(n)
Source signal
x(n)
Noise signal or reference signal
x1(n)
Delayed noise signal
w(n)
Filter weights
d(n)
Desired signal
y(n)
FIR filter output
e(n)
Error signal
+
e (n)
Advance samples of error signal
e (n)
Error estimation
n
Sample number
i
Iteration
N
Filter order
E
Ensemble
Z-1
Unit delay
wT
Transpose of weight vector
µ
Step size
Gradient
ξ
Cost function
x(n)
2
Squared Euclidian norm of the input vector x(n) at iteration n.
c
Constant term for normalization
α
NLMS adaption constant
λ
~
Λ ( n)
Small positive constant
k(n)
~
ψ ( n)
Gain vector
λ
~
Diagonal matrix vector
Intermediate matrix
θλ
Intermediate vector
w ( n)
Estimation of filter weight vector
y ( n)
Estimation of FIR filter output
xiii
14. ABSTRACT
Adaptive filtering constitutes one of the core technology in the field of digital signal
processing and finds numerous application in the areas of science and technology viz. echo
cancellation, channel equalization, adaptive noise cancellation, adaptive beam-forming,
biomedical signal processing etc.
Noise problems in the environment have gained attention due to the tremendous growth in
upcoming technologies which gives spurious outcomes like noisy engines, heavy machinery,
high electromagnetic radiation devices and other noise sources. Therefore, the problem of
controlling the noise level in the area of signal processing has become the focus of a vast
amount of research over the years.
In this particular work an attempt has been made to explore the adaptive filtering techniques
for noise cancellation using Least Mean Square (LMS), Normalized Least Mean Square
(NLMS) and Recursive Least Mean Square (RLS) algorithms. The mentioned algorithms
have been simulated in MATLAB and compared for evaluating the best performance in terms
of Mean Squared Error (MSE), convergence rate, percentage noise removal, computational
complexity and stability.
In the specific example of tone signal, LMS has shown low convergence rate, with low
computational complexity while RLS has fast convergence rate and shows best performance
but at the cost of large computational complexity and memory requirement. However the
NLMS provides a trade-off in convergence rate and computational complexity which makes
it more suitable for hardware implementation.
The hardware implementation of NLMS algorithm is performed for that a simulink model is
designed to generate auto C code for the DSP processor. The generated C code is loaded on
the DSP processor hardware and the task of real-time noise cancellation is done for the two
types of signals i.e. tone signal and biomedical ECG signal. For both types of signals, three
noisy signals of different noise levels are used to judge the performance of the designed
system. The output results are analysed using Digital Storage Oscilloscope (DSO) in terms of
filtered signal SNR improvement. The results have also been compared with the LMS
algorithm to prove the superiority of NLMS algorithm.
1

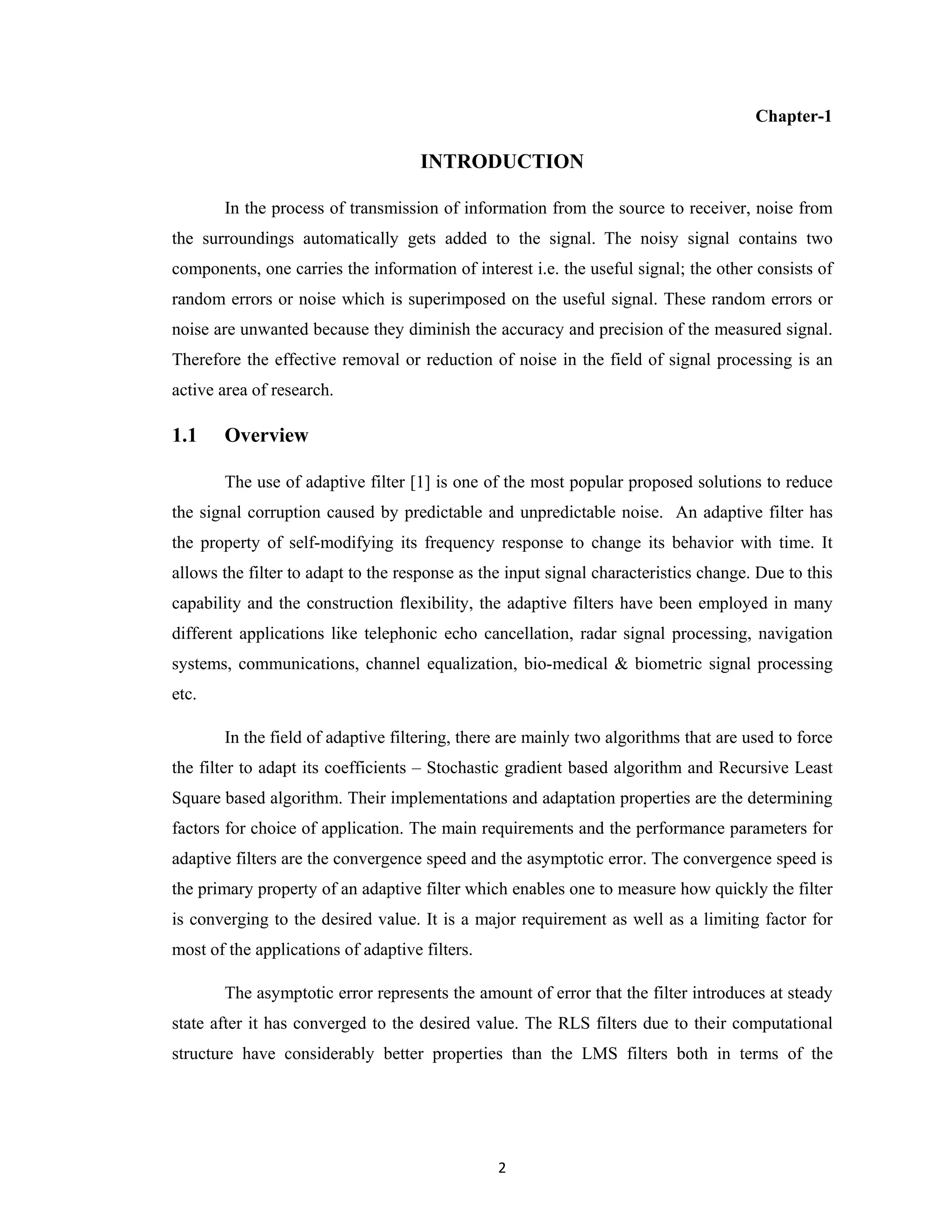

15. Chapter-1
INTRODUCTION
In the process of transmission of information from the source to receiver, noise from
the surroundings automatically gets added to the signal. The noisy signal contains two
components, one carries the information of interest i.e. the useful signal; the other consists of
random errors or noise which is superimposed on the useful signal. These random errors or
noise are unwanted because they diminish the accuracy and precision of the measured signal.
Therefore the effective removal or reduction of noise in the field of signal processing is an
active area of research.
1.1
Overview
The use of adaptive filter [1] is one of the most popular proposed solutions to reduce
the signal corruption caused by predictable and unpredictable noise. An adaptive filter has
the property of self-modifying its frequency response to change its behavior with time. It
allows the filter to adapt to the response as the input signal characteristics change. Due to this
capability and the construction flexibility, the adaptive filters have been employed in many
different applications like telephonic echo cancellation, radar signal processing, navigation
systems, communications, channel equalization, bio-medical & biometric signal processing
etc.
In the field of adaptive filtering, there are mainly two algorithms that are used to force
the filter to adapt its coefficients – Stochastic gradient based algorithm and Recursive Least
Square based algorithm. Their implementations and adaptation properties are the determining
factors for choice of application. The main requirements and the performance parameters for
adaptive filters are the convergence speed and the asymptotic error. The convergence speed is
the primary property of an adaptive filter which enables one to measure how quickly the filter
is converging to the desired value. It is a major requirement as well as a limiting factor for
most of the applications of adaptive filters.
The asymptotic error represents the amount of error that the filter introduces at steady
state after it has converged to the desired value. The RLS filters due to their computational
structure have considerably better properties than the LMS filters both in terms of the
2
16. convergence speed and the asymptotic error. The RLS filters which outperform the LMS
filters obtain their solution for the weight updated directly from the Mean Square Error
(MSE) [2]. However, they are computationally very demanding and also very dependent
upon the precision of the input signal. Their computational requirements are significant and
imply the use of expensive and power demanding high-speed processors. Also, for the
systems lacking the appropriate dynamic range, the adaptation algorithms can become
unstable. In this manner to match the computational requirements a DSP processor can be a
better substitute.
1.2
Motivation
In the field of signal processing there is a significant need of a special class of digital
filters known as adaptive filters. Adaptive filters are used commonly in many different
configurations for different applications. These filters have various advantages over the
standard digital filters. They can adapt their filter coefficients from the environment
according to preset rules. The filters are capable of learning from the statistics of current
conditions and change their coefficients in order to achieve a certain goal. In order to design a
filter prior knowledge of the desired response is required. When such knowledge is not
available due to the changing nature of the filter’s requirements, it is impossible to design a
standard digital filter. In such situations, adaptive filters are desirable.
The algorithms used to perform the adaptation and the configuration of the filter
depends directly on the application of the filter. However, the basic computational engine that
performs the adaptation of the filter coefficients can be the same for different algorithms and
it is based on the statistics of the input signals to the system. The two classes of adaptive
filtering algorithms namely Recursive Least Squares (RLS) and Least Mean Squared (LMS)
are capable of performing the adaptation of the filter coefficients.
When we talk about a real scenario where the information generated from the source
side gets contaminated by the noise signal, this situation demands for the adaptive filtering
algorithm which provides fast convergence while being numerically stable without
incorporating much memory.
3
17. Hence, the motivation for the thesis is to search for an adaptive algorithm which has
reduced computational complexity, reasonable convergence speed and good stability without
degrading the performance of the adaptive filter and then realize the algorithm on an efficient
hardware which makes it more practical in real time applications.
1.3
Scope of the Work
In numerous application areas, including biomedical engineering, radar & sonar
engineering, digital communications etc., the goal is to extract the useful signal corrupted by
interferences and noises. In this wok an adaptive noise canceller will be designed that will
more effective than available ones. To achieve an effective adaptive noise canceller, the
simulation of various adaptive algorithms will be done on MATLAB. The obtained suitable
algorithm will be implemented on the TMS320C6713 DSK hardware. The designed system
will be tested for the filtering of a noisy ECG signal and tone signal and the system
performance will be compared with the early designed available systems. The designed
system may be useful for cancelling of interference in ECG signal, periodic interference in
audio signal and broad-band interference in the side-lobes of an antenna array.
In this work for the simulation, MATLAB version 7.4.0.287(R2007a) is used, though
Labview version7 may also be applicable. For the hardware implementation, Texas
Instrument (TI) TMS320C6713 digital signal processor is used. However, Field
Programmable Gate Array (FPGA) may also be suitable. To assist the hardware
implementation Simulink version 6.6 is appropriate to generate C code for the DSP hardware.
To communicate with DSP processor, Integrated Development Environment (IDE) software
Code Composer Studio V3.1 is essential. Function generator and noise generator or any other
audio device can be used as an input source for signal analysis. For the analysis of output data
DSO is essentially required however CRO may also be used.
Current adaptive noise cancellation models [5], [9], [11] works on relatively low
processing speed that is not suitable for real-time signals which results delay in output. In this
direction, to increase the processing speed and to improve signal-to-noise ratio, a DSP
processor can be useful because it is a fast special purpose microprocessor with a specialized
type of architecture and an appropriate instruction set for signal processing. It is also well
suited for numerically intensive calculations.
4
18. 1.4
Objectives of the Thesis
The core of this thesis is to analyze and filter the noisy signals (real-time as well as
non-real time) by various adaptive filtering techniques in software as well as in hardware,
using MATLAB & DSP processor respectively.
The basic objective is to focus on the hardware implementation of adaptive algorithms
for filtering so the DSP processor is employed in this work as it can deal more efficiently
with real-time as well as non-real time signals.
The objectives of the thesis are as follows:
(a) To perform the MATLAB simulation of Least Mean Squared (LMS), Normalized
Least Mean Squared (NLMS) and Recursive Least Square (RLS) algorithms and to
compare their relative performance with a tone signal.
(b) Design a simulink model to generate auto C code for the hardware implementation
of NLMS and LMS algorithms.
(c) Hardware implementation of NLMS and LMS algorithms to perform the analysis
of an ECG signal and tone signal.
(d) To compare the performance of NLMS and LMS algorithms in terms of SNR
improvement for an ECG signal.
1.5
Organization of the Thesis
The work emphasizing on the implementation of various adaptive filtering algorithms
using MATLAB, Simulink and DSP processor, in this regard the thesis is divided into seven
chapters as follows:
Chapter-2 deals with the literature survey for the presented work, where so many
papers from IEEE and other refereed journals or proceedings are taken which relate the
present work with recent research work going on worldwide and assure the consistency of the
work.
Chapter-3 presents a detailed introduction of adaptive filter theory and various
adaptive filtering algorithms with problem definition.
5
19. Chapter-4 presents a brief introduction of simulink. An adaptive noise cancellation
model is designed for adaptive noise cancellation with the capability of C code generation to
implement on DSP processor.
Chapter-5 illustrates experimental setup for the real-time implementation of an
adaptive noise canceller on a DSK. Therefore a brief introduction of TMS320C6713
processor and code composer studio (CCS) with real-time workshop facility is also presented.
Chapter-6 shows the experimental outcomes for the various algorithms. This chapter
is divided in two parts, first part shows the MATLAB simulation results for a sinusoidal tone
signal and the second part illustrates the real time DSP Processor implementation results for
sinusoidal tone signal and ECG signal. The results from DSP processor are analyzed with the
help of DSO.
Chapter-7 summarizes the work and provides suggestions for future research.
6
20. Chapter-2
LITERATURE SURVEY
In the last thirty years significant contributions have been made in the field of signal
processing. The advances in digital circuit design have been the key technological
development that sparked a growing interest in the field of digital signal processing. The
resulting digital signal processing systems are attractive due to their low cost, reliability,
accuracy, small physical sizes and flexibility.
In numerous applications of signal processing, communications and biomedical we
face the necessity to remove noise and distortion from the signals. These phenomena are due
to time-varying physical processes which are unknown sometimes. One of these situations is
during the transmission of a signal from one point to another. The channel which may be of
wires, fibers, microwave beam etc., introduces noise and distortion due to the variations of its
properties. These variations may be slow or fast. Since most of the time the variations are
unknown, so there is a requirement of such type of filters that can work effectively in such
unknown environment. The adaptive filter is the right choice that diminishes and sometimes
completely eliminates the signal distortion.
The most common adaptive filters which are used during the adaption process are the
finite impulse response (FIR) types. These are preferable because they are stable, and no
special adjustments are needed for their implementation. In adaptive filters, the filter weights
are needed to be updated continuously according to certain rules. These rules are presented in
form of algorithms. There are mainly two types of algorithms that are used for adaptive
filtering. The first is stochastic gradient based algorithm known as Least Mean Squared
(LMS) algorithm and second is based on least square estimation which is known as Recursive
Least Square (RLS) algorithm. A great deal of research [1]-[5], [14], [15] has been carried
out in subsequent years for finding new variant of these algorithms to achieve better
performance in noise cancellation applications.
Bernard Widrow et. al.[1] in 1975, described the adaptive noise cancelling as an
alternative method of estimating signals which are corrupted by additive noise or interference
by employing LMS algorithm. The method uses a “primary” input containing the corrupted
signal and a “reference” input containing noise correlated in some unknown way with the
7

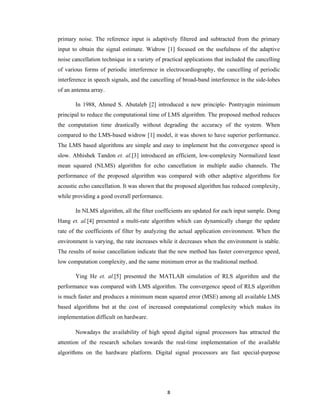

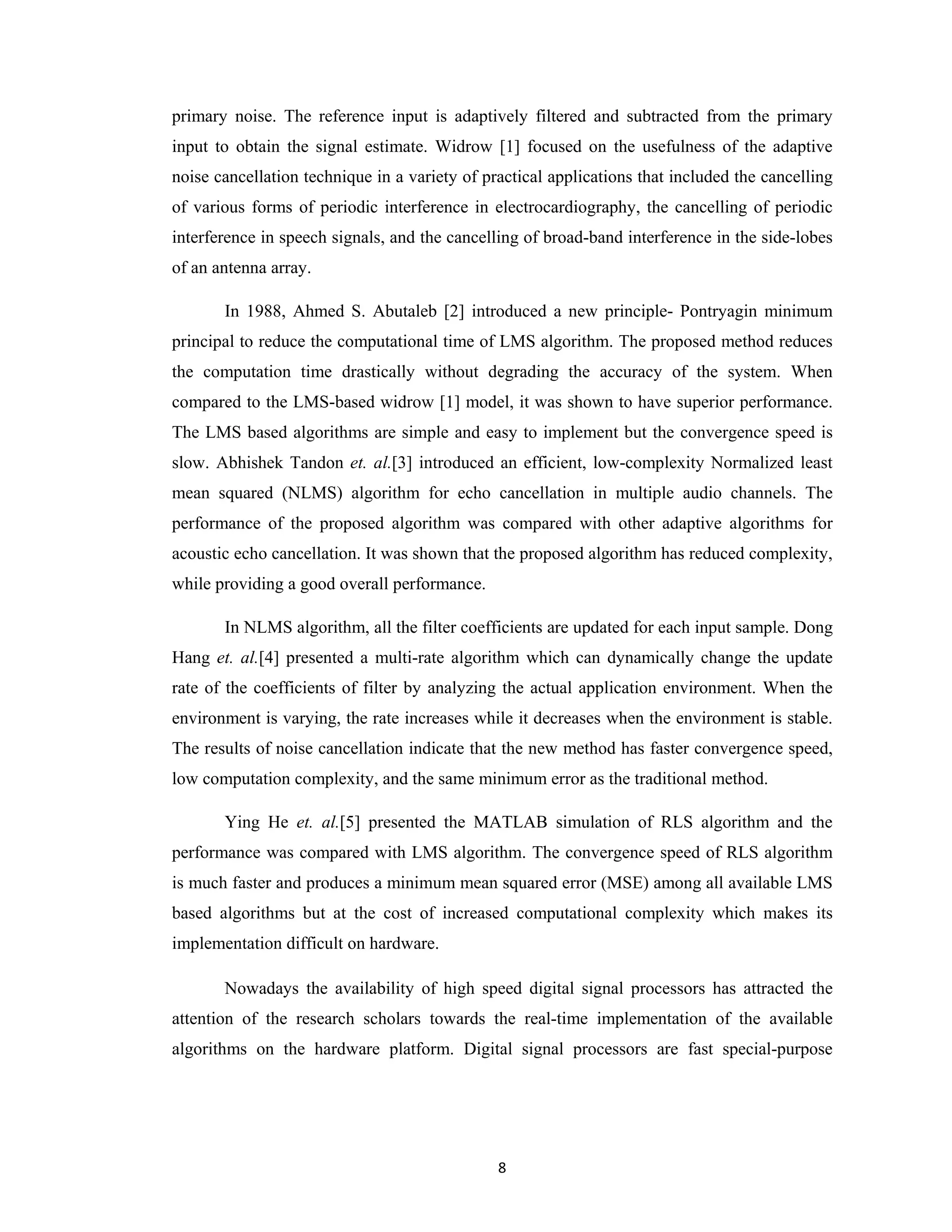

21. primary noise. The reference input is adaptively filtered and subtracted from the primary
input to obtain the signal estimate. Widrow [1] focused on the usefulness of the adaptive
noise cancellation technique in a variety of practical applications that included the cancelling
of various forms of periodic interference in electrocardiography, the cancelling of periodic
interference in speech signals, and the cancelling of broad-band interference in the side-lobes
of an antenna array.
In 1988, Ahmed S. Abutaleb [2] introduced a new principle- Pontryagin minimum
principal to reduce the computational time of LMS algorithm. The proposed method reduces
the computation time drastically without degrading the accuracy of the system. When
compared to the LMS-based widrow [1] model, it was shown to have superior performance.
The LMS based algorithms are simple and easy to implement but the convergence speed is
slow. Abhishek Tandon et. al.[3] introduced an efficient, low-complexity Normalized least
mean squared (NLMS) algorithm for echo cancellation in multiple audio channels. The
performance of the proposed algorithm was compared with other adaptive algorithms for
acoustic echo cancellation. It was shown that the proposed algorithm has reduced complexity,
while providing a good overall performance.
In NLMS algorithm, all the filter coefficients are updated for each input sample. Dong
Hang et. al.[4] presented a multi-rate algorithm which can dynamically change the update
rate of the coefficients of filter by analyzing the actual application environment. When the
environment is varying, the rate increases while it decreases when the environment is stable.
The results of noise cancellation indicate that the new method has faster convergence speed,
low computation complexity, and the same minimum error as the traditional method.
Ying He et. al.[5] presented the MATLAB simulation of RLS algorithm and the
performance was compared with LMS algorithm. The convergence speed of RLS algorithm
is much faster and produces a minimum mean squared error (MSE) among all available LMS
based algorithms but at the cost of increased computational complexity which makes its
implementation difficult on hardware.
Nowadays the availability of high speed digital signal processors has attracted the
attention of the research scholars towards the real-time implementation of the available
algorithms on the hardware platform. Digital signal processors are fast special-purpose
8
22. microprocessors with a specialized type of architecture and an instruction set appropriate for
signal processing. The architecture of the digital signal processor is very well suited for
numerically intensive calculations. DSP techniques have been very successful because of the
development of low-cost software and hardware support. DSP processors are concerned
primarily with real-time signal processing.
DSP processors exploit the advantages of
microprocessors. They are easy to use, flexible, economical and can be reprogrammed easily.
The starting of real-time hardware implementation was done by Edgar Andrei [6]
initially on the Motorola DSP56307 in 2000. Later in year 2002, Michail D. Galanis et. al.[7]
presented a DSP course for real-time systems design and implementation based on the
TMS320C6211. This course emphasized the issue of transition from an advanced design and
simulation environment like MATLAB to a DSP software environment like Code Composer
Studio.
Boo-Shik Ryu et. al.[8] implemented and investigated the performance of a noise
canceller with DSP processor (TMS320C6713) using the LMS algorithm, NLMS algorithm
and VSS-NLMS algorithm. Results showed that the proposed combination of hardware and
VSS-NLMS algorithm has not only a faster convergence rate but also lower distortion when
compared with the fixed step size LMS algorithm and NLMS algorithm in real time
environments.
In 2009, J. Gerardo Avalos et. al. [9] have done an implementation of a digital
adaptive filter on the digital signal processor TMS320C6713 using a variant of the LMS
algorithm which consists of error codification. The speed of convergence is increased and the
complexity of design for its implementation in digital adaptive filters is reduced because the
resulting codified error is composed of integer values. The LMS algorithm with codified error
(ECLMS) was tested in an environmental noise canceller and the results demonstrate an
increase in the convergence speed and a reduction of processing time.
C.A. Duran et. al. [10] presented an implementation of the LMS, NLMS and other
LMS based algorithms on the DSK TMS320C6713 with the intention to compare their
performance, analyze their time & frequency behavior along with the processing speed of the
algorithms. The objective of the NLMS algorithm is to obtain the best convergence factor
considering the input signal power in order to improve the filter convergence time. The
9
23. obtained results show that the NLMS has better performance than the LMS. Unfortunately,
the computational complexity increases which means more processing time.
The work related to real-time implementation so far discussed was implemented on
DSP processor by writing either assembly or C program directly in the editor of Code
Composer Studio (CCS). The writing of assembly program needs so many efforts therefore
only professional person can do this similarly C programming are not simple as far as
hardware implementation concerned.
There is a simple way to create C code automatically which requires less effort and is
more efficient. Presently only few researchers [11]-[13] are aware about this facility which is
provided by the MATLAB Version 7.1 and higher versions, using embedded target Real-time
Workshop (RTW). Gaurav Saxena et. al. [11] have used this auto code generation facility
and presented better results than the conventional C code writing.
Gaurav Saxena et. al. [11] discussed the real time implementation of adaptive noise
cancellation based on an improved adaptive wiener filter on Texas Instruments
TMS320C6713 DSK. Then its performance was compared with the Lee’s adaptive wiener
filter. Furthermore, a model based design of adaptive noise cancellation based on LMS filter
using simulink was implemented on TI C6713. The auto-code generated by the Real Time
Workshop for the simulink model of LMS filter was compared with the ‘C’ implementation
of LMS filter on C6713 in terms of code length and computation time. It was found to have a
large improvement in computation time but at the cost of increased code length.
S.K. Daruwalla et. al. [12] focused on the development and the real time
implementation of various audio effects using simulink blocks by employing an audio signal
as input. This system has helped the sound engineers to easily configure/capture various
audio effects in advance by simply varying the values of predefined simulink blocks. The
digital signal processor is used to implement the designs; this broadens the versatility of
system by allowing the user to employ the processor for any audio input in real-time. The
work is enriched with the real-time concepts of controlling the various audio effects via onboard DIP switches on the C6713 DSK.
10

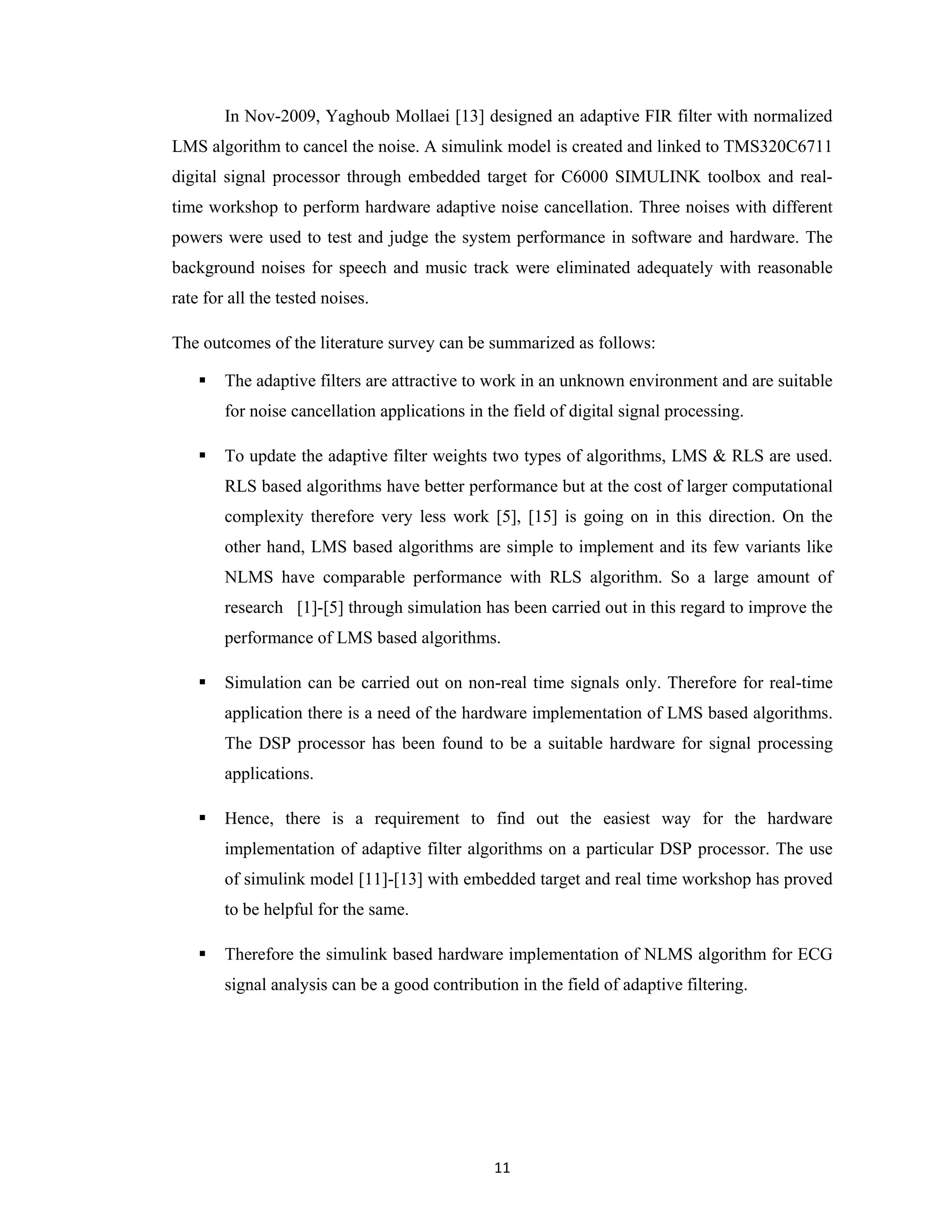

24. In Nov-2009, Yaghoub Mollaei [13] designed an adaptive FIR filter with normalized
LMS algorithm to cancel the noise. A simulink model is created and linked to TMS320C6711
digital signal processor through embedded target for C6000 SIMULINK toolbox and realtime workshop to perform hardware adaptive noise cancellation. Three noises with different
powers were used to test and judge the system performance in software and hardware. The
background noises for speech and music track were eliminated adequately with reasonable
rate for all the tested noises.
The outcomes of the literature survey can be summarized as follows:
The adaptive filters are attractive to work in an unknown environment and are suitable
for noise cancellation applications in the field of digital signal processing.
To update the adaptive filter weights two types of algorithms, LMS & RLS are used.
RLS based algorithms have better performance but at the cost of larger computational
complexity therefore very less work [5], [15] is going on in this direction. On the
other hand, LMS based algorithms are simple to implement and its few variants like
NLMS have comparable performance with RLS algorithm. So a large amount of
research [1]-[5] through simulation has been carried out in this regard to improve the
performance of LMS based algorithms.
Simulation can be carried out on non-real time signals only. Therefore for real-time
application there is a need of the hardware implementation of LMS based algorithms.
The DSP processor has been found to be a suitable hardware for signal processing
applications.
Hence, there is a requirement to find out the easiest way for the hardware
implementation of adaptive filter algorithms on a particular DSP processor. The use
of simulink model [11]-[13] with embedded target and real time workshop has proved
to be helpful for the same.
Therefore the simulink based hardware implementation of NLMS algorithm for ECG
signal analysis can be a good contribution in the field of adaptive filtering.
11
25. Chapter-3
ADAPTIVE FILTERS
3.1
Introduction
Filtering is a signal processing operation. Its objective is to process a signal in order to
manipulate the information contained in the signal. In other words, a filter is a device that
maps its input signal to another output signal facilitating the extraction of the desired
information contained in the input signal. A digital filter is the one that processes discretetime signals represented in digital format. For time-invariant filters the internal parameters
and the structure of the filter are fixed, and if the filter is linear the output signal is a linear
function of the input signal. Once the prescribed specifications are given, the design of timeinvariant linear filters entails three basic steps namely; the approximation of the
specifications by a rational transfer function, the choice of an appropriate structure defining
the algorithm, and the choice of the form of implementation for the algorithm.
An adaptive filter [1], [2] is required when either the fixed specifications are unknown
or the specifications cannot be satisfied by time-invariant filters. Strictly speaking, an
adaptive filter is a nonlinear filter since its characteristics are dependent on the input signal
and consequently the homogeneity and additivity conditions are not satisfied. However, if we
freeze the filter parameters at a given instant of time, most adaptive filters are linear in the
sense that their output signals are linear functions of their input signals.
The adaptive filters are time-varying since their parameters are continuously changing
in order to meet a performance requirement. In this sense, we can interpret an adaptive filter
as a filter that performs the approximation step on-line. Usually, the definition of the
performance criterion requires the existence of a reference signal that is usually hidden in the
approximation step of fixed-filter design.
Adaptive filters are considered nonlinear systems; therefore their behaviour analysis is
more complicated than for fixed filters. On the other hand, since the adaptive filters are self
designing filters from the practitioner’s point of view, their design can be considered less
involved than the digital filters with fixed coefficients.
12
26. Adaptive filters work on the principle of minimizing the mean squared difference
(or error) between the filter output and a target (or desired) signal. Adaptive filters are used
for estimation of non-stationary signals and systems, or in applications where a sample-by
sample adaptation of a process and a low processing delay is required.
Adaptive filters are used in applications [26]-[29] that involve a combination of three
broad signal processing problems:
(1) De-noising and channel equalization – filtering a time-varying noisy signal to remove the
effect of noise and channel distortions.
(2) Trajectory estimation – tracking and prediction of the trajectory of a non stationary signal
or parameter observed in noise.
(3) System identification – adaptive estimation of the parameters of a time-varying system
from a related observation.
Adaptive linear filters work on the principle that the desired signal or parameters can
be extracted from the input through a filtering or estimation operation. The adaptation of the
filter parameters is based on minimizing the mean squared error between the filter output and
a target (or desired) signal. The use of the Least Square Estimation (LSE) criterion is
equivalent to the principal of orthogonality in which at any discrete time m the estimator is
expected to use all the available information such that any estimation error at time m is
orthogonal to all the information available up to time m.
3.1.1 Adaptive Filter Configuration
The general set up of an adaptive-filtering environment is illustrated in Fig.3.1 [43],
where n is the iteration number, x(n) denotes the input signal, y(n) is the adaptive-filter output
signal, and d(n) defines the desired signal. The error signal e (n) is calculated as d (n) – y (n).
The error signal is then used to form a performance function that is required by the adaptation
algorithm in order to determine the appropriate updating of the filter coefficients. The
minimization of the objective function implies that the adaptive-filter output signal is
matching the desired signal in some sense. At each sampling time, an adaptation algorithm
adjusts the filter coefficients w(n) =[w0(n)w1(n)….. wN−1(n)] to minimize the difference
between the filter output and a desired or target signal.
13
27. d(n)
y(n)
Adaptive
Filter
x(n)
_
⊕
e(n)
Adaptive
Algorithm
Fig.3.1. General Adaptive filter configuration
The complete specification of an adaptive system, as shown in Fig. 3.1, consists of
three things:
(a) Input: The type of application is defined by the choice of the signals acquired
from the environment to be the input and desired-output signals. The number of different
applications in which adaptive techniques are being successfully used has increased
enormously during the last two decades. Some examples are echo cancellation, equalization
of dispersive channels, system identification, signal enhancement, adaptive beam-forming,
noise cancelling and control.
(b) Adaptive-filter structure: The adaptive filter can be implemented in a number of
different structures or realizations. The choice of the structure can influence the
computational complexity (amount of arithmetic operations per iteration) of the process and
also the necessary number of iterations to achieve a desired performance level. Basically,
there are two major classes of adaptive digital filter realization, distinguished by the form of
the impulse response, namely the finite-duration impulse response (FIR) filter and the
infinite-duration impulse response (IIR) filters. FIR filters are usually implemented with nonrecursive structures, whereas IIR filters utilize recursive realizations.
Adaptive FIR filter realizations: The most widely used adaptive FIR filter structure
is the transversal filter, also called tapped delay line, that implements an all-zero
transfer function with a canonic direct form realization without feedback. For this
realization, the output signal y(n) is a linear combination of the filter coefficients, that
14
28. yields a quadratic mean-square error (MSE = E[|e(n)|2]) function with a unique
optimal solution. Other alternative adaptive FIR realizations are also used in order to
obtain improvements as compared to the transversal filter structure, in terms of
computational complexity, speed of convergence and finite word-length properties.
Adaptive IIR filter realizations: The most widely used realization of adaptive IIR
filters is the canonic direct form realization [42], due to its simple implementation and
analysis. However, there are some inherent problems related to recursive adaptive
filters which are structure dependent such as pole-stability monitoring requirement
and slow speed of convergence. To address these problems, different realizations
were proposed attempting to overcome the limitations of the direct form structure.
(c) Algorithm: The algorithm is the procedure used to adjust the adaptive filter
coefficients in order to minimize a prescribed criterion. The algorithm is determined by
defining the search method (or minimization algorithm), the objective function and the nature
of error signal. The choice of the algorithm determines several crucial aspects of the overall
adaptive process, such as existence of sub-optimal solutions, biased optimal solution and
computational complexity.
x(n)
w0
Z‐1
⊗
x(n-1)
w1
Z-1
Z-1
⊗
wN-1
⊕
y(n)
⊕
_
e(n)
d(n)
+
Fig.3.2. Transversal FIR filter architecture
15
x(n-N+1)
⊗
29. 3.1.2 Adaptive Noise Canceller (ANC)
The goal of adaptive noise cancellation system is to reduce the noise portion and to
obtain the uncorrupted desired signal. In order to achieve this task, a reference of the noise
signal is needed. That reference is fed to the system, and it is called a reference signal x(n).
However, the reference signal is typically not the same signal as the noise portion of the
primary signal; it can vary in amplitude, phase or time. Therefore, the reference signal cannot
be simply subtracted from the primary signal to obtain the desired portion at the output.
Signal
Source
Noise
Source
s(n)
Primary Input
d(n)
x1(n)
Reference Input
x(n)
Adaptive
Filter
+
Σ
e(n)
Output
_
y(n)
Adaptive Noise Canceller
Fig.3.3. Block diagram for Adaptive Noise Canceller
Consider the Adaptive Noise Canceller (ANC) shown in Fig.3.3 [1]. The ANC has
two inputs: the primary input d(n), which represents the desired signal corrupted with
undesired noise and the reference input x(n), which is the undesired noise to be filtered out of
the system. The primary input therefore comprises of two portions: - first, the desired signal
and the other one is noise signal corrupting the desired portion of the primary signal.
The basic idea for the adaptive filter is to predict the amount of noise in the primary
signal and then subtract that noise from it. The prediction is based on filtering the reference
signal x(n), which contains a solid reference of the noise present in the primary signal. The
noise in the reference signal is filtered to compensate for the amplitude, phase and time delay
and then subtracted from the primary signal. The filtered noise represented by y(n) is the
system’s prediction of the noise portion of the primary signal and is subtracted from desired
signal d(n) resulting in a signal called error signal e(n), and it presents the output of the
system. Ideally, the resulting error signal should be only the desired portion of the primary
signal.
16

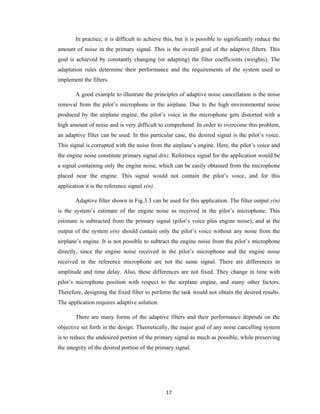

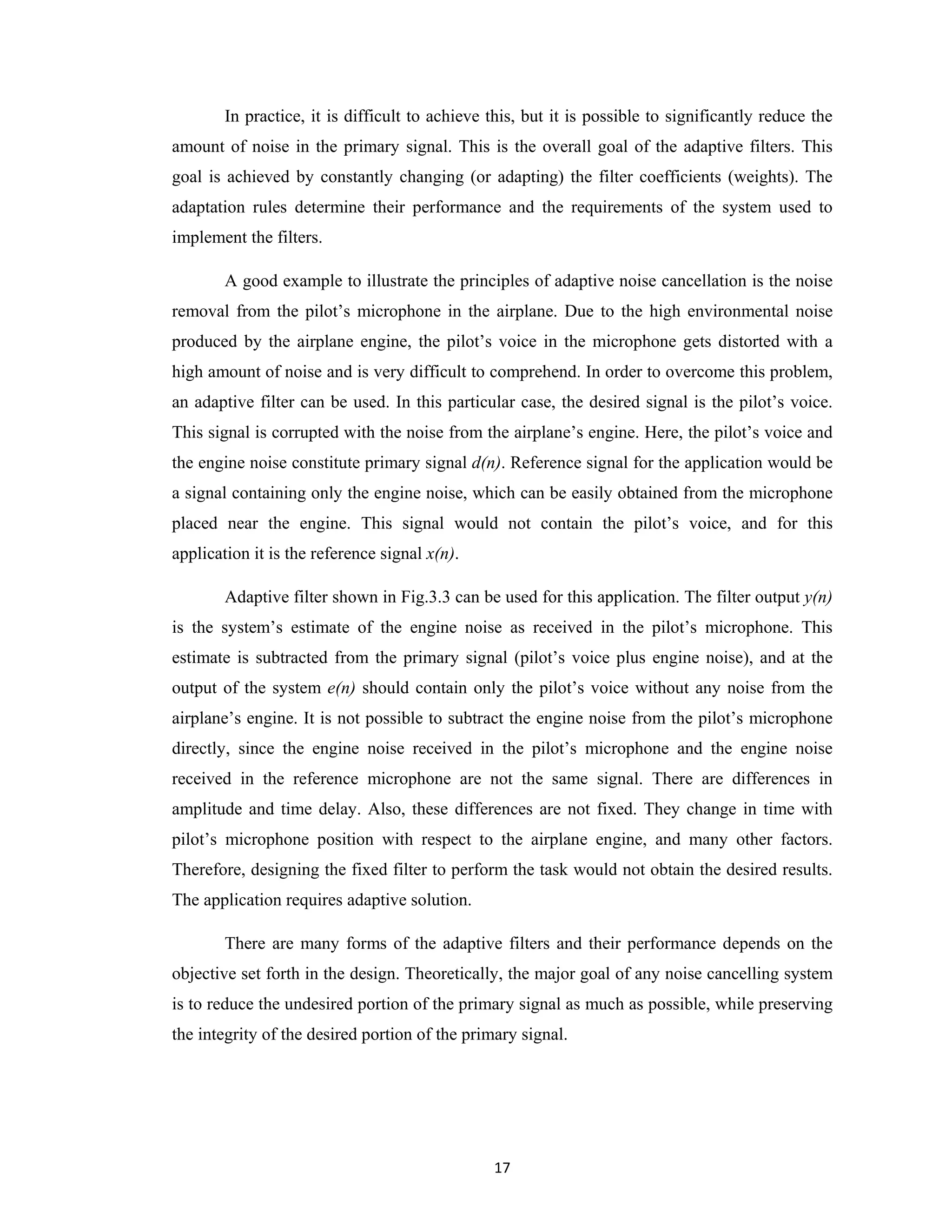

30. In practice, it is difficult to achieve this, but it is possible to significantly reduce the
amount of noise in the primary signal. This is the overall goal of the adaptive filters. This
goal is achieved by constantly changing (or adapting) the filter coefficients (weights). The
adaptation rules determine their performance and the requirements of the system used to
implement the filters.
A good example to illustrate the principles of adaptive noise cancellation is the noise
removal from the pilot’s microphone in the airplane. Due to the high environmental noise
produced by the airplane engine, the pilot’s voice in the microphone gets distorted with a
high amount of noise and is very difficult to comprehend. In order to overcome this problem,
an adaptive filter can be used. In this particular case, the desired signal is the pilot’s voice.
This signal is corrupted with the noise from the airplane’s engine. Here, the pilot’s voice and
the engine noise constitute primary signal d(n). Reference signal for the application would be
a signal containing only the engine noise, which can be easily obtained from the microphone
placed near the engine. This signal would not contain the pilot’s voice, and for this
application it is the reference signal x(n).
Adaptive filter shown in Fig.3.3 can be used for this application. The filter output y(n)
is the system’s estimate of the engine noise as received in the pilot’s microphone. This
estimate is subtracted from the primary signal (pilot’s voice plus engine noise), and at the
output of the system e(n) should contain only the pilot’s voice without any noise from the
airplane’s engine. It is not possible to subtract the engine noise from the pilot’s microphone
directly, since the engine noise received in the pilot’s microphone and the engine noise
received in the reference microphone are not the same signal. There are differences in
amplitude and time delay. Also, these differences are not fixed. They change in time with
pilot’s microphone position with respect to the airplane engine, and many other factors.
Therefore, designing the fixed filter to perform the task would not obtain the desired results.
The application requires adaptive solution.
There are many forms of the adaptive filters and their performance depends on the
objective set forth in the design. Theoretically, the major goal of any noise cancelling system
is to reduce the undesired portion of the primary signal as much as possible, while preserving
the integrity of the desired portion of the primary signal.
17
31. As noted above, the filter produces estimate of the noise in the primary signal
adjusted for magnitude, phase and time delay. This estimate is then subtracted from the noise
corrupted primary signal to obtain the desired signal. For the filter to work well, the adaptive
algorithm has to adjust the filter coefficients such that output of the filter is a good estimate
of the noise present in the primary signal.
To determine the amount by which noise in the primary signal is reduced, the mean
squared error technique is used. The Minimum Mean Squared Error (MMSE) is defined as
[42]:
min E[d (n) − XW T ] 2 = min E[(d (n) − y (n)) 2 ]
(3.1)
where d is the desired signal, X and W are the vectors of the input reference signal and
the filter coefficients respectively. This represents the measure of how well the newly
constructed filter (given as a convolution product y(n) = XW) estimates the noise present in
the primary signal. The goal is to reduce this error to a minimum. Therefore, the algorithms
that perform adaptive noise cancellation are constantly searching for a coefficient vector W,
which produces the minimum mean squared error.
Minimizing the mean squared of the error signal minimizes the noise portion of the
primary signal but not the desired portion. To understand this principle, recall that the
primary signal is made of the desired portion and the noise portion. The filtered reference
signal y(n) is a reference of the noise portion of the primary signal and therefore is correlated
with it. However, the reference signal is not correlated with the desired portion of the primary
signal. Therefore, minimizing the mean squared of the error signal minimizes only the noise
in the primary signal. This principle can be mathematically described as follows:
If we denote the desired portion of primary signal with s(n), and the noise portion of
desired signal as x1(n), it follows that d(n) = s(n) + x1(n). As shown in Fig.3.3, the output of
the system can be written as [43]:
e(n) = d (n) − y (n)
(3.2)
e ( n ) = s ( n ) + x1 ( n ) − y ( n )
e(n) 2 = s (n) 2 + (( x1 (n) − y (n)) 2 + 2 s (n)(( x1 (n) − y (n))
E[e(n) 2 ] = E[ s (n) 2 ] + (( x1 (n) − y (n)) 2 + 2 s (n)(( x1 (n) − y (n))
18
32. E[e(n) 2 ] = E[ s (n) 2 ] + E[(( x1 (n) − y (n)) 2 ] + 2 E[ s (n)(( x1 (n) − y (n))]
(3.3)
Due to the fact that the s(n) is un-correlated to both x1(n) and y(n), as noted earlier, the
last term is equal to zero, so we have
E[e(n) 2 ] = E[ s (n) 2 ] + E[(( x1 (n) − y (n)) 2 ]
min E[e(n) 2 ] = min E[ s(n) 2 ] + min E[(( x1 (n) − y (n))2 ]
(3.4)
and since s(n) is independent of W, we have
min E[e(n) 2 ] = E[ s (n) 2 ] + min E[(( x1 (n) − y (n)) 2 ]
(3.5)
Therefore, minimizing the error signal, minimizes the mean squared of the difference
between the noise portion of the primary signal x1(n), and the filter output y(n) .
3.2
Approaches to Adaptive Filtering Algorithms
Basically two approaches can be defined for deriving the recursive formula for the
operation of Adaptive Filters. They are as follows:
(i) Stochastic Gradient Approach: In this approach to develop a recursive algorithm for
updating the tap weights of the adaptive transversal filter, the process is carried out in two
stages. First we use an iterative procedure to find the optimum Wiener solution [43]. The
iterative procedure is based on the method of steepest descent. This method requires the
use of a gradient vector, the value of which depends on two parameters: the correlation
matrix of the tap inputs in the transversal filter and the cross-correlation vector between
the desired response and the same tap inputs. Secondly, instantaneous values for these
correlations are used to derive an estimate for the gradient vector. Least Mean Squared
(LMS) and Normalized Least Mean Squared (NLMS) algorithms lie under this approach
and are discussed in subsequent sections.
(ii) Least Square Estimation: This approach is based on the method of least squares.
According to this method, a cost function is minimized that is defined as the sum of
weighted error squares, where the error is the difference between some desired response
and actual filter output. This method is formulated with block estimation in mind. In
block estimation, the input data stream is arranged in the form of blocks of equal length
(duration) and the filtering of input data proceeds on a block by block basis, which
requires a large memory for computation. The Recursive Least Square (RLS) algorithm
19
33. falls under this approach and is discussed in subsequent section.
3.2.1
Least Mean Square (LMS) Algorithm
The Least Mean Square (LMS) algorithm [1] was first developed by Widrow and
Hoff in 1959 through their studies of pattern recognition [42]. Thereon it has become one of
the most widely used algorithm in adaptive filtering. The LMS algorithm is a type of adaptive
filter known as stochastic gradient-based algorithm as it utilizes the gradient vector of the
filter tap weights to converge on the optimal wiener solution. It is well known and widely
used due to its computational simplicity. With each iteration of the LMS algorithm, the filter
tap weights of the adaptive filter are updated according to the following formula:
w( n + 1) = w( n) + 2 μe( n ) x ( n)
(3.6)
where x(n) is the input vector of time delayed input values, and is given by
x(n) = [ x(n) x(n − 1) x(n − 2)....x(n − N + 1)]T
(3.7)
w( n) = [ w0 ( n) w1 ( n) w2 ( n)....w N −1 (n)]T represents the coefficients of the adaptive FIR
filter tap weight vector at time n and μ is known as the step size parameter and is a small
positive constant.
The step size parameter controls the influence of the updating factor. Selection of a
suitable value for μ is imperative to the performance of the LMS algorithm. If the value of μ
is too small, the time an adaptive filter takes to converge on the optimal solution will be too
long; if the value of μ is too large the adaptive filter becomes unstable and its output diverges
[14], [15], [22].
3.2.1.1 Derivation of the LMS Algorithm
The derivation of the LMS algorithm builds upon the theory of the wiener solution for
the optimal filter tap weights, w0, as outlined above. It also depends on the steepest descent
algorithm that gives a formula which updates the filter coefficients using the current tap
weight vector and the current gradient of the cost function with respect to the filter tap weight
coefficient vector, ξ(n).
w(n + 1) = w(n) − μ∇ξ ( n)
(3.8)
20
34. where
ξ (n) = E[e 2 (n)]
(3.9)
As the negative gradient vector points in the direction of steepest descent for the N
dimensional quadratic cost function each recursion shifts the value of the filter coefficients
closer towards their optimum value which corresponds to the minimum achievable value of
the cost function, ξ(n). The LMS algorithm is a random process implementation of the
steepest descent algorithm, from Eq. (3.9). Here the expectation for the error signal is not
known so the instantaneous value is used as an estimate. The gradient of the cost function,
ξ(n) can alternatively be expressed in the following form:
∇ξ (n) = ∇(e 2 (n))
= ∂e 2 (n) / ∂w
= 2e(n)∂e(n) / ∂w
= 2e( n)∂[d ( n) − y ( n)] / ∂w
= −2e(n)∂ewT (n).x(n)] / ∂w
= −2 e ( n ) x ( n )
(3.10)
Substituting this into the steepest descent algorithm of Eq. (3.9), we arrive at the
recursion for the LMS adaptive algorithm.
w( n + 1) = w( n) + 2 μe( n) x ( n)
(3.11)
3.2.1.2 Implementation of the LMS Algorithm
For the Implementation of each iteration of the LMS algorithm requires three distinct
steps in the following order:
1. The output of the FIR filter, y(n) is calculated using Eq. (3.12).
N −1
y (n) = ∑ w( n)x(n − i ) = wT (n) x(n)
(3.12)
i =0
2. The value of the error estimation is calculated using Eq. (3.13).
21
35. e( n ) = d ( n ) − y ( n )
(3.13)
3. The tap weights of the FIR vector are updated in preparation for the next iteration, by
Eq. (3.14).
w( n + 1) = w( n) + 2 μe( n) x ( n)
(3.14)
The main reason for the popularity of LMS algorithms in adaptive filtering is its
computational simplicity that makes its implementation easier than all other commonly used
adaptive algorithms. For each iteration, the LMS algorithm requires 2N additions and 2N+1
multiplications (N for calculating the output, y(n), one for 2μe(n) and an additional N for the
scalar by vector multiplication) .
3.2.2
Normalized Least Mean Square (NLMS) Algorithm
In the standard LMS algorithm when the convergence factor μ is large, the algorithm
experiences a gradient noise amplification problem. In order to solve this difficulty we can
use the NLMS algorithm [14]-[17]. The correction applied to the weight vector w(n) at
iteration n+1 is “normalized” with respect to the squared Euclidian norm of the input vector
x(n) at iteration n. We may view the NLMS algorithm as a time-varying step-size algorithm,
calculating the convergence factor μ as in Eq. (3.15)[10].
μ ( n) =
α
c + x ( n)
(3.15)
2
where α is the NLMS adaption constant, which optimize the convergence rate of the
algorithm and should satisfy the condition 0<α<2, and c is the constant term for
normalization and is always less than 1.
The Filter weights are updated by the Eq. (3.16).
w(n + 1) = w(n) +
α
c + x ( n)
2
e( n ) x ( n )
(3.16)
It is important to note that given an input data (at time n) represented by the input
vector x(n) and desired response d(n), the NLMS algorithm updates the weight vector in such
a way that the value w(n+1) computed at time n+1 exhibits the minimum change with respect
22
36. to the known value w(n) at time n. Hence, the NLMS is a manifestation of the principle of
minimum disturbance [3].
3.2.2.1 Derivation of the NLMS Algorithm
This derivation of the normalized least mean square algorithm is based on FarhangBoroujeny and Diniz [43]. To derive the NLMS algorithm we consider the standard LMS
recursion in which we select a variable step size parameter, μ(n). This parameter is selected
so that the error value, e+(n), will be minimized using the updated filter tap weights, w(n+1),
and the current input vector, x(n).
w(n + 1) = w(n) + 2 μ (n)e(n) x(n)
e + (n) = d (n) − wT (n + 1) x(n)
= (1 − 2 μ (n) xT (n) x(n))e(n)
(3.17)
Next we minimize (e+(n))2, with respect to μ(n). Using this we can then find a value
for µ(n) which forces e+(n) to zero.
μ ( n) =
1
2 x ( n ) x ( n)
(3.18)
T
This μ(n) is then substituted into the standard LMS recursion replacing μ, resulting in
the following.
w(n + 1) = w(n) + 2 μ (n)e(n) x(n)
1
w(n + 1) = w(n) + T
e( n) x ( n)
x ( n) x ( n)
w(n + 1) = w(n ) + μ (n) x(n )
(3.19)
, where μ (n) =
α
x x+c
T
(3.20)
Often the NLMS algorithm as expressed in Eq. (3.20 is a slight modification of the
standard NLMS algorithm detailed above. Here the value of c is a small positive constant in
order to avoid division by zero when the values of the input vector are zero. This was not
implemented in the real time as in practice the input signal is never allowed to reach zero due
to noise from the microphone and from the ADC on the Texas Instruments DSK. The
parameter α is a constant step size value used to alter the convergence rate of the NLMS
algorithm, it is within the range of 0<α<2, usually being equal to 1.
23
37. 3.2.2.2 Implementation of the NLMS Algorithm
The NLMS algorithm is implemented in MATLAB as outlined later in Chapter 6. It is
essentially an improvement over LMS algorithm with the added calculation of step size
parameter for each iteration.
1. The output of the adaptive filter is calculated as:
N −1
y (n) = ∑ w( n)x(n − i ) = wT (n) x(n)
(3.21)
i =0
2. The error signal is calculated as the difference between the desired output and the filter
output given by:
e( n) = d ( n ) − y ( n)
(3.22)
3. The step size and filter tap weight vectors are updated using the following equations in
preparation for the next iteration:
For i=0,1,2,…….N-1
μ i ( n) =
α
c + xi ( n )
(3.23)
2
w(n + 1) = w(n) + μ i (n)e(n) xi (n)
(3.24)
where α is the NLMS adaption constant and c is the constant term for normalization.
With α =0.02 and c=0.001, each iteration of the NLMS algorithm requires 3N+1
multiplication operations.
3.2.3
Recursive Least Square (RLS) Algorithm
The other class of adaptive filtering technique studied in this thesis is known as
Recursive Least Squares (RLS) algorithm [42]-[44]. This algorithm attempts to minimize the
cost function in Eq. (3.25) where k=1 is the time at which the RLS algorithm commences and
λ is a small positive constant very close to, but smaller than 1. With values of λ<1, more
importance is given to the most recent error estimates and thus the more recent input samples,
that results in a scheme which emphasizes on recent samples of observed data and tends to
forget the past values.
24
38. n
2
ξ ( n) = ∑ λ n − k e n ( k )
(3.25)
k =1
Unlike the LMS algorithm and NLMS algorithm, the RLS algorithm directly
considers the values of previous error estimations. RLS algorithm is known for excellent
performance when working in time varying environments. These advantages come at the cost
of an increased computational complexity and some stability problems.
3.2.3.1 Derivation of the RLS Algorithm
The RLS cost function of Eq. (3.25) shows that at time n, all previous values of the
estimation error since the commencement of the RLS algorithm are required. Clearly, as time
progresses the amount of data required to process this algorithm increases. Limited memory
and computation capabilities make the RLS algorithm a practical impossibility in its purest
form. However, the derivation still assumes that all data values are processed. In practice
only a finite number of previous values are considered, this number corresponds to the order
of the RLS FIR filter, N.
First we define yn(k) as the output of the FIR filter, at n, using the current tap weight
vector and the input vector of a previous time k. The estimation error value en(k) is the
difference between the desired output value at time k and the corresponding value of yn(k).
These and other appropriate definitions are expressed below, for k=1,2, 3,., n.
yn (k ) = wT (n) x(k )
en (k ) = d (k ) − yn (k )
d (n) = [d (1), d (2).....d (n)]T
y (n) = [ yn (1), yn (2)..... yn (n)]T
e(n) = [en (1), en (2).....en (n)]T
e( n ) = d ( n ) − y ( n )
(3.26)
If we define X(n) as the matrix consisting of the n previous input column vector up to
the present time then y(n) can also be expressed as Eq. (3.27).
X (n) = [ x(1), x(2),....... x( n)]
y (n) = X T (n) w(n)
(3.27)
25
39. The cost function can be expressed in matrix vector form using a diagonal matrix,
Λ(n) consisting of the weighting factors.
n
2
ξ ( n) = ∑ λ n − k e n ( k )
k =1
~
= eT (n)Λ (n)e(n)
⎡ λn −1
⎢
⎢ 0
~
where Λ (n) = ⎢ 0
⎢
⎢ ...
⎢ 0
⎣
0
λ
n−2
0
0
λn −3
0
...
0
...
0
0
0
0
...
0
0
0
0
...
1
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎦
(3.28)
Substituting values from Eq. (3.26) and (3.27), the cost function can be expanded and
then reduced as in Eq. (3.29). (Temporarily dropping (n) notation for clarity).
~
ξ ( n ) = eT ( n ) Λ ( n ) e ( n )
~
~
~
~
= d T Λd − d T Λy − y T Λd + yT Λy
~
~
~
~
= d T Λd − d T Λ ( X T w) − ( X T w)T Λd + ( X T w)T Λ ( X T w)
~
~
~
= d T Λd − 2θ w + wTψ w
λ
λ
(3.29)
where
~
~
ψ λ = X ( n) Λ ( n) X T ( n)
~
~
θ λ = X ( n) Λ ( n) d ( n)
We derive the gradient of the above expression for the cost function with respect to
the filter tap weights. By forcing this to zero we find the coefficients for the filter w(n), which
minimizes the cost function.
~
~
ψ λ (n) w(n) = θ λ (n)
~ −1 ~
w(n) = ψ λ (n)θ λ (n)
(3.30)
The matrix Ψ(n) in the above equation can be expanded and rearranged in recursive
form. We can use the special form of the matrix inversion lemma to find an inverse for this
matrix which is required to calculate the tap weight vector update. The vector k(n) is known
as the gain vector and is included in order to simplify the calculation.
26
40. ~−
~−
ψ λ 1 (n) = λψ λ 1 (n − 1) + x(n) xT (n)
~−
= λ−1ψ λ 1 (n − 1) −
~−
~−
λ− 2ψ λ 1 (n − 1) x(n) xT (n)ψ λ 1 (n − 1)
~−
1 + λ−1 xT (n)ψ λ 1 (n − 1) x(n)
~−
~−
= λ−1 (ψ λ 1 (n − 1) − k (n) xT (n)ψ λ 1 (n − 1))
where
~−
λ−1ψ λ 1 (n − 1) x(n)
~−
1 + λ−1 xT (n)ψ λ 1 (n − 1) x(n)
k ( n) =
~−
= ψ λ 1 ( n) x ( n)
(3.31)
The vector θλ(n) of Eq. (3.29) can also be expressed in a recursive form. Using this
and substituting Ψ-1(n) from equation (3.31) into Eq. (3.30) we can finally arrive at the filter
weight update vector for the RLS algorithm, as in Eq. (3.32).
~
~
θ λ (n) = λθ λ (n − 1) + x(n)d (n)
~ −1 ~
w (n) = ψ (n)θ (n)
λ
~
=ψ
λ
λ
−1
~
~
~ −1
(n − 1)θ λ (n − 1) − k (n) xTψ λ (n − 1)θ λ (n − 1) + k (n)d (n)
= w (n − 1) − k (n) xT (n) w (n − 1) + k (n)d (n)
= w (n − 1) + k (n)(d (n) − w T (n − 1) x(n))
w (n) = w (n − 1) + k (n)en −1 (n)
(3.32)
where en −1 (n) = d (n) − w T (n − 1) x(n)
3.2.3.2 Implementation of the RLS Algorithm:
As stated previously, the memory of the RLS algorithm is confined to a finite number
of values corresponding to the order of the filter tap weight vector. Two factors of the RLS
implementation must be noted: first, although matrix inversion is essential for derivation of
the RLS algorithm, no matrix inversion calculations are required for the implementation; thus
greatly reducing the amount of computational complexity of the algorithm. Secondly, unlike
the LMS based algorithms, current variables are updated within the iteration they are to be
used using values from the previous iteration.
To implement the RLS algorithm, the following steps are executed in the following
order:
1. The filter output is calculated using the filter tap weights from the previous iteration and
the current input vector.
yn −1 (n) = w T (n − 1) x(n)
(3.33)
27
41. 2. The intermediate gain vector is calculated using Eq. (3.34).
−1
u (n) = wλ (n − 1) x(n)
k (n) = u (n) /(λ + x T (n)u (n))
(3.34)
3. The estimation error value is calculated using Eq. (3.35).
en −1 (n) = d (n) − yn −1 (n)
(3.35)
4. The filter tap weight vector is updated using Eq. (3.36) and the gain vector calculated
in Eq. (3.34).
w(n) = w T (n − 1) + k (n)en −1 (n)
(3.36)
5. The inverse matrix is calculated using Eq. (3.37).
ψ λ −1 ( n) = λ −1 (ψ λ −1 ( n − 1) − k ( n)[ x T ( n)ψ λ −1 ( n − 1)]
(3.37)
When we calculate for each iteration of the RLS algorithm, it requires 4N2
multiplication and 3N2 addition operations.
3.3
Adaptive Filtering using MATLAB
MATLAB is the acronym of Matrix Laboratory was originally designed to serve as
the interactive link to the numerical computation libraries LINPACK and EISPACK that
were used by engineers and scientists when they were dealing with sets of equations. The
MATLAB software was originally developed at the University of New Mexico and Stanford
University in the late 1970s. By 1984, a company was established named as Matwork by Jack
Little and Cleve Moler with the clear objective of commercializing MATLAB. Over a million
engineers and scientists use MATLAB today in well over 3000 universities worldwide and it
is considered a standard tool in education, business, and industry.
The basic element in MATLAB is the matrix and unlike other computer languages it
does not have to be dimensioned or declared. MATLAB’s main objective was to solve
mathematical problems in linear algebra, numerical analysis, and optimization but it quickly
evolved as the preferred tool for data analysis, statistics, signal processing, control systems,
economics, weather forecast, and many other applications. Over the years, MATLAB has
evolved creating an extended library of specialized built-in functions that are used to generate
among other things two-dimensional (2-D) and 3-D graphics and animation and offers
28
42. numerous supplemental packages called toolboxes that provide additional software power in
special areas of interest such as•
Curve fitting
•
Optimization
•
Signal processing
•
Image processing
•
Filter design
•
Neural network design
•
Control systems
MATLAB
Stand alone
Application
Simulink
Application
Development
Stateflow
Toolboxes
Blocksets
Data
Sources
Data Access Tools
Student
Products
Code Generation
Tools
Mathworks Partner
Products
C Code
Fig.3.4. MATLAB versatility diagram
The MATLAB is an intuitive language and offers a technical computing environment.
It provides core mathematics and advance graphical tools for data analysis visualization and
algorithm and application development. The MATLAB is becoming a standard in industry,
education, and business because the MATLAB environment is user-friendly and the objective
of the software is to spend time in learning the physical and mathematical principles of a
problem and not about the software. The term friendly is used in the following sense: the
MATLAB software executes one instruction at a time. By analyzing the partial results and
based on these results, new instructions can be executed that interact with the existing
information already stored in the computer memory without the formal compiling required by
other competing high-level computer languages.
29
43. Major Software Characteristics:
i.
Matrix based numeric computation.
ii.
High level programming language.
iii.
Toolboxes provide application-specific functionality.
iv.
Multiple Platform Support.
v.
Open and Extensible System Architecture.
vi.
Interfaces to other language (C, FORTRAN etc).
For the simulation of the algorithms discussed in sec.3.2 MATLAB Version
7.4.0.287(R2007a) software is used. In the experimental setup, first of all high level
MATLAB programs [5],[20] are written for LMS , NLMS and RLS algorithms as per the
implementation steps described in sec.3.2.1.2, sec.3.2.2.2 and sec. 3.2.3.2 respectively [44] .
Then the simulation of above algorithms is done with a noisy tone signal generated through
MATLAB commands (refer sec. 6.1). The inputs to the programs are; the tone signal as
primary input s(n), random noise signal as reference input x(n), order of filter (N), step size
value (µ) ,number of iterations (refer Fig. 6.1) whereas the outputs are: the filtered output and
MSE which can be seen in the graphical results obtained after simulation gets over( refer
Fig.6.2).
The output results for the MATLAB simulation of LMS, NLMS and RLS algorithm
are presented and discussed later in the chapter-6.
30
44. Chapter-4
SIMULINK MODEL DESIGN FOR HARDWARE IMPLEMENTATION
4.1
Introduction to Simulink
Simulink is a software package for modeling, simulating and analyzing dynamic
systems [46]. It supports linear and nonlinear systems modeled in continuous time, sampled
time, or a hybrid of the two. Systems can also be multi rate, i.e. have different parts that are
sampled or updated at different rates. For modeling, simulink provides a graphical user
interface (GUI) for building models as block diagrams, using click-and-drag mouse
operations. With this interface, we can draw the models just as we would with pencil and
paper (or as most textbooks depict them). Simulink includes a comprehensive block library of
sinks, sources, linear and nonlinear components, and connectors. We can also customize and
create our own blocks.
Models are hierarchical, so we can build models using both top-down and bottom-up
approaches. We can view the system at a high level and then double-click blocks to go down
through the levels and thus visualize the model details. This approach provides insight into
how a model is organized and how its parts interact. After we define a model, we can
simulate it using a choice of integration methods either from the simulink menu or by
entering commands in the MATLAB command window.
In simulink, the menu is particularly convenient for interactive work. The command
line approach is very useful for running a batch of simulations (for example, if we want to
sweep a parameter across a range of values). Using scopes and other display blocks, we can
see the simulation results while the simulation is running. In addition, we can change many
parameters and see what happens. The simulation results can be put in the MATLAB
workspace for post processing and visualization.
The simulink model can be applied for modeling various time-varying systems that
includes control systems, signal processing systems, video processing systems, image
processing systems, communication and satellite systems, ship systems, automotive systems,
monetary systems, aircraft & spacecraft dynamics systems, and biological systems as
illustrated in Fig.4.1.
31
45. Fig.4.1. Simulink Applications
4.2
Model Design
In the experimental setup for noise cancellation, simulink tool box has been used
which provides the capability to model a system and to analyze its behavior. Its library is
enriched with various functions which mimics the real system. The designed model for
Adaptive Noise Cancellation (ANC) using simulink toolbox is shown in Fig.4.2.
4.2.1 Common Blocks used in Building Model
4.2.1.1 C6713 DSK ADC Block
This block is used to capture and digitize analog signals from external sources such as
signal generators, frequency generators or audio devices. Dragging and dropping C6713 DSK
ADC block in simulink block diagram allows audio coder-decoder module (codec) on the
C6713 DSK to convert an analog input signal to a digital signal for the digital signal
processing. Most of the configuration options in the block affect the codec. However, the
output data type, samples per frame and scaling options are related to the model that we are
using in simulink.
32
46. Fig.4.2. Adaptive Noise Cancellation Simulink model
4.2.1.2 C6713 DSK DAC Block
Simulink model provides the means to generate output of an analog signal through the
analog output jack on the C6713 DSK. When C6713 DSK DAC block is added to the model,
the digital signal received by the codec is converted to an analog signal. Codec sends signal
to the output jack after converting the digital signal to analog form using digital-to-analog
conversion (D/A).
4.2.1.3 C6713 DSK Target Preferences Block
This block provides access to the processor hardware settings that need to be
configured for generating the code from Real-Time Workshop (RTW) to run on the target. It
is mandatory to add this block to the simulink model for the embedded target C6713. This
block is located in the Target Preferences in Embedded Target for TI C6000 DSP for TI DSP
library.
4.2.1.4 C6713 DSK Reset Block
This block is used to reset the C6713 DSK to initial conditions from the simulink
model. Double-clicking this block in a simulink model window resets the C6713 DSK that is
running the executable code built from the model. When we double-click the Reset block, the
33

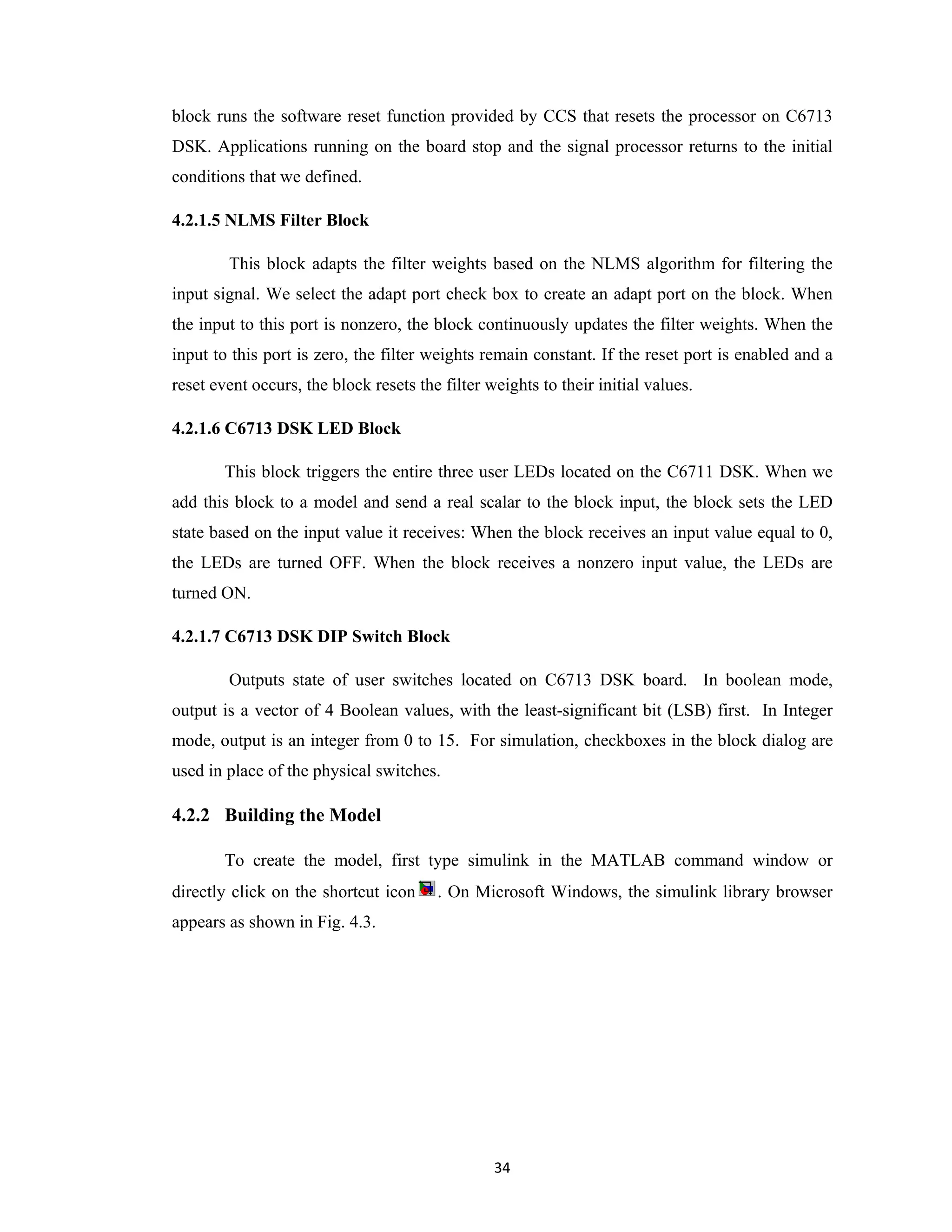

47. block runs the software reset function provided by CCS that resets the processor on C6713
DSK. Applications running on the board stop and the signal processor returns to the initial
conditions that we defined.
4.2.1.5 NLMS Filter Block
This block adapts the filter weights based on the NLMS algorithm for filtering the
input signal. We select the adapt port check box to create an adapt port on the block. When
the input to this port is nonzero, the block continuously updates the filter weights. When the
input to this port is zero, the filter weights remain constant. If the reset port is enabled and a
reset event occurs, the block resets the filter weights to their initial values.
4.2.1.6 C6713 DSK LED Block
This block triggers the entire three user LEDs located on the C6711 DSK. When we
add this block to a model and send a real scalar to the block input, the block sets the LED
state based on the input value it receives: When the block receives an input value equal to 0,
the LEDs are turned OFF. When the block receives a nonzero input value, the LEDs are
turned ON.
4.2.1.7 C6713 DSK DIP Switch Block
Outputs state of user switches located on C6713 DSK board. In boolean mode,
output is a vector of 4 Boolean values, with the least-significant bit (LSB) first. In Integer
mode, output is an integer from 0 to 15. For simulation, checkboxes in the block dialog are
used in place of the physical switches.
4.2.2 Building the Model
To create the model, first type simulink in the MATLAB command window or
directly click on the shortcut icon
. On Microsoft Windows, the simulink library browser
appears as shown in Fig. 4.3.
34
48. Fig.4.3. Simulink library browser
To create a new model, select Model from the New submenu of the simulink library
window's File menu. To create a new model on Windows, select the New Model button on
the Library Browser's toolbar.
Simulink opens a new model window like Fig. 4.4.
35
49. Fig.4.4. Blank new model window
To create Adaptive Noise Cancellation (ANC) model, we will need to copy blocks
into the model from the following simulink block libraries:
•
Target for TI C6700 library (ADC, DAC, DIP, and LED blocks)
•
Signal processing library (NLMS filter block)
•
Commonly used blocks library (Constant block, Switch block and Relational block)
•
Discrete library (Delay block)
To copy the ADC block from the Library Browser, first expand the Library Browser
tree to display the blocks in the Target for TI C6700 library. Do this by clicking on the library
node to display the library blocks. Then select the C6713 DSK board support sub library and
finally, click on the respective block to select it.
Now drag the ADC block from the browser and drop it in the model window.
Simulink creates a copy of the blocks at the point where you dropped the node icon as
illustrated in Fig.4.5.
36
50. Fig.4.5. Model window with ADC block
Copy the rest of the blocks in a similar manner from their respective libraries into the
model window. We can move a block from one place to another place by dragging the block
in the model window. We can move a block a short distance by selecting the block and then
pressing the arrow keys. With all the blocks copied into the model window, the model should
look something like Fig.4.6.
If we examine the block icons, we see an angle bracket on the right of the ADC block
and two on the left of the NLMS filter block. The > symbol pointing out of a block is an
output port; if the symbol points to a block, it is an input port. A signal travels out of an
output port and into an input port of another block through a connecting line. When the
blocks are connected, the port symbols disappear.
Now it's time to connect the blocks. Position the pointer over the output port on the
right side of the ADC block and connect it to the input port of delay, NLMS filter and switch
block. Similarly make all connection as in Fig.4.2.
4.3
Model Reconfiguration
Once the model is designed we have to reconfigure the model as per the requirement
of the desired application. The simulink blocks parameters are adjusted as per the input
output devices used. The input devices may be function generator or microphone and the
output devices may be DSO or headphone respectively. This section explains and illustrates
the reconfiguration setting of each simulink block like ADC, DAC, Adaptive filter, DIP,
37
51. LED, relational operator, switch block, and all that are used in the design of adaptive noise
canceller.
Fig.4.6. Model illustration before connections
4.3.1 The ADC Settings
This block can be reconfigured to receive the input either from microphone or
function generator. Input is applied through microphone when ADC source is kept at “Mic
In” and through function generator when ADC source is kept at “Line In” as shown in
Fig.4.7. The other settings are as follows:
Double-click on the blue box to the left marked “DSK6713 ADC”.
The screen as shown in Fig.4.7 will appear.
Change the “ADC source” to “Line In” or “Mic In”.
If we have a quiet microphone, select “+20dB Mic gain boost”.
Set the “Sampling rate (Hz)” to “48 kHz”.
Set the “Samples per frame” to 64.
When done, click on “OK”.
Important: Make sure the “Stereo” box is empty.
38
52. 4.3.2 The DAC Settings
The DAC setting needs to be matched to those of the ADC. The major parameter is
the sampling rate that is kept at the same rate of ADC i.e. 48 kHz as shown in Fig.4.8.
Fig.4.7. Setting up the ADC for mono microphone input
Fig.4.8. Setting the DAC parameters
39
53. 4.3.3 NLMS Filter Parameters Settings
The most critical variable in an NLMS filter is the initial setup of “Step size (mu)”. If
“mu” is too small, the filter has very fine resolution but reacts too slowly to the input signal.
If “mu” is too large, the filter reacts very quickly but the error also remains large. The major
parameters values that we have to change for the designed model are (shown in Fig.4.9): Step
size (mu) = 0.001, Filter length =19
Select the Adapt port check box to create an Adapt port on the block. When the input
to this port is nonzero, the block continuously updates the filter weights. When the input to
this port is zero, the filter weights remain constant.
Fig.4.9. Setting the NLMS filter parameters
40
54. 4.3.4 Delay Parameters Settings
Delay parameter is required to delay the discrete-time input signal by a specified
number of samples or frames. Because we are working with frames of 64 samples, it is
convenient to configure the delay using frames. The steps for setting are described below and
are illustrated in Fig. 4.10.
Double-click on the “Delay” block.
Change the “Delay units” to Frames.
Set the “Delay (frames)” to 1. This makes the delay 64 samples.
Fig.4.10. Setting the delay unit
4.3.5 DIP Switches Settings
DIP switches are manual electric switches that are packaged in a group in a standard
dual in-line package (DIP).These switches can work in two modes; Boolean mode, Integer
mode. In Boolean mode, outputs are a vector of 4 boolean values with the least-significant bit
(LSB) first. In Integer mode, outputs are an integer from 0 to 15. The DIP switches needs to
be configured as shown in Fig. 4.11.
41
55. The “Sample time” should set to be “–1”.
Fig.4.11. Setting up the DIP switch values
4.3.6 Constant Value Settings
The switch values lie between 0 and 15. We will use switch values 0 and 1. For
settings, Double-click on the “Constant” block. Set the “Constant value” to 1 and the
“Sample time” to “inf” as shown in Fig.4.12.
Fig.4.12. Setting the constant parameters
42
56. 4.3.7 Constant Data Type Settings
The signal data type for the constant used in ANC model is set to “int16” as shown in
Fig. 4.13. The setting of parameter can be done as follows:
Click on the “Signal Data Types” tab.
Set the “Output data type mode” to “int16”.
This is compatible with the DAC on the DSK6713.
Fig.4.13. Data type conversion to 16-bit integer
4.3.8 Relational Operator Type Settings
Relational operator is used to check the given condition for the input signal. The
relational operator setting for the designed model can be done as follows:
Double click on the “Relational Operator” block.
Change the “Relational operator” to “==”.
Click on the “Signal Data Types” tab.
4.3.9 Relational Operator Data Type Settings
Set the “Output data type mode” to “Boolean”.
Click on “OK”. ( refer Fig.4.14)
43
57. Fig.4.14. Changing the output data type
4.3.10 Switch Settings
The switch which is used in this model has three inputs viz. input 1, input 2 and input
3 numbered from top to bottom (refer Fig 4.2). The input 1 & input 3 are data inputs and
input 2 is the control input. When input 2 satisfies the selection criteria, input 1 is passed to
the output port otherwise input 3. The switch is configured as:
Double click on the “switch”
Set the criteria for passing first input to “u2>=Threshold”
Click “ok”
The simulink model for the hardware implementation of NLMS algorithm is
designed successfully and the designed model is reconfigured to meet the requirement of
TMS320C6713 DSP Processor environment. The reconfigured model shown in Fig.4.2 is
ready to connect with Code Composer Studio [50] and DSP Processor with the help of RTDX
link and Real-Time Workshop [47]. This is presented in chapter5.
44
58. Chapter-5
REAL-TIME IMPLEMENTATION ON DSP PROCESSOR
Digital signal processors are fast special-purpose microprocessors with a specialized
type of architecture and an instruction set appropriate for signal processing [45]. The
architecture of the digital signal processor is very well suited for numerically intensive
calculations. Digital signal processors are used for a wide range of applications which
includes communication, control, speech processing, image processing etc. These processors
have become the products of choice for a number of consumer applications, because they are
very cost-effective and can be reprogrammed easily for different applications.
DSP techniques have been very successful because of the development of low-cost
software and hardware support [48]. DSP processors are concerned primarily with real-time
signal processing. Real-time processing requires the processing to keep pace with some
external event, whereas non-real-time processing has no such timing constraint. The external
event is usually the analog input. Analog-based systems with discrete electronic components
such as resistors can be more sensitive to temperature changes whereas DSP-based systems
are less affected by environmental conditions.
In this chapter we will learn how we can realize or implement an adaptive filter on
hardware for real-time experiments. The model which was designed in previous chapter will
be linked to the DSP processor with help of Real Time Data Exchange (RTDX) utility
provided in simulink.
5.1
Introduction to Digital Signal Processor (TMS320C6713)
The TMS320C6713 is a low cost board designed to allow the user to evaluate the
capabilities of the C6713 DSP and develop C6713-based products [49]. It demonstrates how
the DSP can be interfaced with various kinds of memories, peripherals, Joint Text Action
Group (JTAG) and parallel peripheral interfaces.
The board is approximately 5 inches wide and 8 inches long as shown in Fig.5.2 and
is designed to sit on the desktop external to a host PC. It connects to the host PC through a
USB port. The processor board includes a C6713 floating-point digital signal processor and a
45

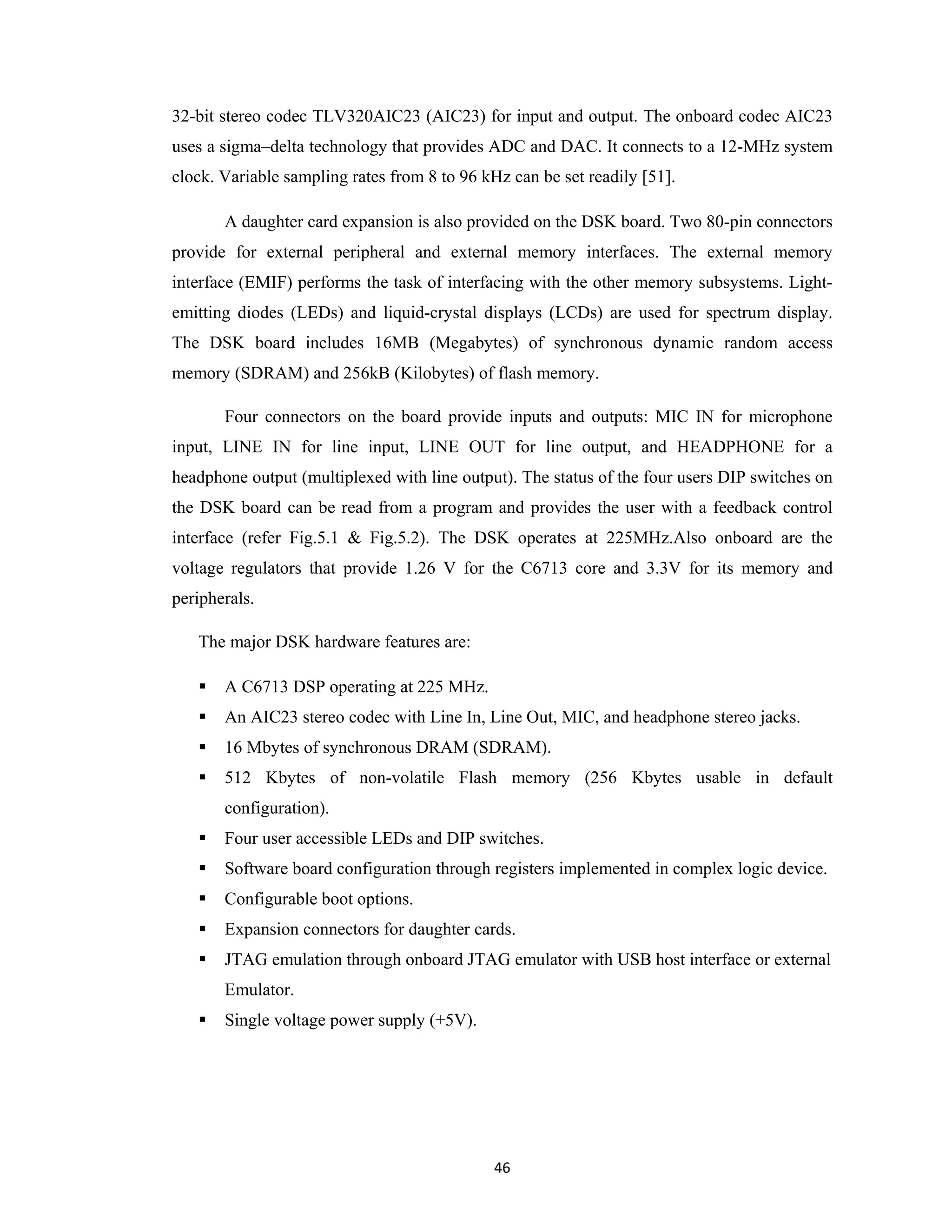

59. 32-bit stereo codec TLV320AIC23 (AIC23) for input and output. The onboard codec AIC23
uses a sigma–delta technology that provides ADC and DAC. It connects to a 12-MHz system
clock. Variable sampling rates from 8 to 96 kHz can be set readily [51].
A daughter card expansion is also provided on the DSK board. Two 80-pin connectors
provide for external peripheral and external memory interfaces. The external memory
interface (EMIF) performs the task of interfacing with the other memory subsystems. Lightemitting diodes (LEDs) and liquid-crystal displays (LCDs) are used for spectrum display.
The DSK board includes 16MB (Megabytes) of synchronous dynamic random access
memory (SDRAM) and 256kB (Kilobytes) of flash memory.
Four connectors on the board provide inputs and outputs: MIC IN for microphone
input, LINE IN for line input, LINE OUT for line output, and HEADPHONE for a
headphone output (multiplexed with line output). The status of the four users DIP switches on
the DSK board can be read from a program and provides the user with a feedback control
interface (refer Fig.5.1 & Fig.5.2). The DSK operates at 225MHz.Also onboard are the
voltage regulators that provide 1.26 V for the C6713 core and 3.3V for its memory and
peripherals.
The major DSK hardware features are:
A C6713 DSP operating at 225 MHz.
An AIC23 stereo codec with Line In, Line Out, MIC, and headphone stereo jacks.
16 Mbytes of synchronous DRAM (SDRAM).
512 Kbytes of non-volatile Flash memory (256 Kbytes usable in default
configuration).
Four user accessible LEDs and DIP switches.
Software board configuration through registers implemented in complex logic device.
Configurable boot options.
Expansion connectors for daughter cards.
JTAG emulation through onboard JTAG emulator with USB host interface or external
Emulator.
Single voltage power supply (+5V).
46
60. Fig.5.1. Block diagram of TMS320C6713 processor
Fig.5.2. Physical overview of the TMS320C6713 processor
47
61. 5.1.1
Central Processing Unit Architecture
The CPU has Very Large Instruction Word (VLIW) architecture [53]. The CPU
always fetches eight 32-bit instructions at once and there is a 256-bit bus to the internal
program memory. Each group of eight instructions is called a fetch packet. The CPU has
eight functional units that can operate in parallel and are equally split into two halves, A and
B. All eight units do not have to be given instruction words if they are not ready. Therefore,
instructions are dispatched to the functional units as execution packets with a variable
number of 32-bit instruction words. The functional block diagram of Texas Instrument (TI)
processor architecture is shown below in Fig.5.3.
32
EMIF
McASP1
McASP0
McBSP0
Pin Multiplexing
I2C1
I2C0
Timer 1
Timer 0
Enhanced DMA Controller
(16 Channel)
McBSP1
L2 Cache
Memory
4 Banks
64K Bytes
Total
(Up to 4‐
way)
L2
Memory
192K
Bytes
C67x CPU
Instruction Fetch
Instruction Dispatch
Instruction Decode
Data Path A Data Path B
A Register File B Register
.L1 .S1 .M1 .D1
.D2 .M2 .S2 .L2
HPI
Control
Register
Control
Test
In‐Circuit
Emulation
Interrupt
Control
L1D Cache
2‐Way
Set Associative
4K Bytes
Clock Generator
Oscillator and PLL
×4 through ×25
Multiplier
/1 through /32 Divider
GPIO
16
LIP Cache
Direct Mapped
4 Bytes Total
Power –
Down Logic
Fig.5.3. Functional block diagram of TMS320C6713 CPU
The eight functional units include:
Four ALU that can perform fixed and floating-point operations (.L1, .L2, .S1, .S2).
Two ALU’s that perform only fixed-point operations (.D1, .D2).
48
62. Two multipliers that can perform fixed or floating-point multiplications (.M1, .M2).
5.1.2 General Purpose Registers Overview
The CPU has thirty two 32-bit general purpose registers split equally between the A
and B sides. The CPU has a load/store architecture in which all instructions operate on
registers. The data-addressing unit .D1 and .D2 are in charge of all data transfers between the
register files and memory. The four functional units on a side freely share the 16 registers on
that side. Each side has a single data bus connected to all the registers on the other side so
that functional units on one side can access data in the registers on the other side. Access to a
register on the same side uses one clock cycle while access to a register on the other side
requires two clock cycles i.e. read and write cycle.
5.1.3 Interrupts
The C6000 CPUs contain a vectored priority interrupt controller. The highest priority
interrupt is RESET which is connected to the hardware reset pin and cannot be masked. The
next priority interrupt is the NMI which is generally used to alert the CPU of a serious
hardware problem like a power failure. Then, there are twelve lower priority maskable
interrupts INT4–INT15 with INT4 having the highest and INT15 the lowest priority.
Fig.5.4. Interrupt priority diagram
49
63. The following Fig. 5.5 depicts how the processor handles an interrupt when it arrives.
Interrupt handling mechanism is a vital feature of microprocessor.
Fig.5.5. Interrupt handling procedure
These maskable interrupts can be selected from up to 32 sources (C6000 family). The
sources vary between family members. For the C6713, they include external interrupt pins
selected by the GPIO unit, and interrupts from internal peripherals such as timers, McBSP
serial ports, McASP serial ports, EDMA channels, and the host port interface. The CPUs
have a multiplexer called the interrupt selector that allows the user to select and connect
interrupt sources to INT4 through INT15.As soon as the interrupt is serviced, processor
resumes to the same operation which was under processing prior to interrupt request.
5.1.4 Audio Interface Codec
The C6713 uses a Texas AIC23 codec. In the default configuration, the codec is
connected to the two serial ports, McBSP0 and McBSP1. McBSP0 is used as a unidirectional
channel to control the codec's internal configuration registers. It should be programmed to
send a 16-bit control word to the AIC23 in SPI format. The top 7 bits of the control word
specify the register to be modified and the lower 9 bits contain the register value. Once the
50
64. codec is configured, the control channel is normally idle while audio data is being
transmitted. McBSP1 is used as the bi-directional data channel for ADC input and DAC
output samples. The codec supports a variety of sample formats. For the experiments in this
work, the codec should be configured to use 16-bit samples in two’s complement signed
format.
The codec should be set to operate in master mode so as to supply the frame
synchronization and bit clocks at the correct sample rate to McBSP1. The preferred serial
format is DSP mode which is designed specifically to operate with the McBSP ports on TI
DSPs. The codec has a 12 MHz system clock which is same as the frequency used in many
USB systems. The AIC23 can divide down the 12 MHz clock frequency to provide sampling
rates of 8000 Hz, 16000 Hz, 24000 Hz, 32000 Hz, 44100 Hz, 48000 Hz, and 96000 Hz.
DSK
DSP
CPU
McBSP
McBSP
AIC23
Fig.5.6. Audio connection illustrating control and data signal
The DSK uses two McBSPs to communicate with the AIC23 codec, one for control,
another for data. The C6713 supplies a 12 MHz clock to the AIC23 codec which is divided
down internally in the AIC23 to give the sampling rates. The codec can be set to these
sampling rates by using the function DSK6713_AIC23_setFreq (handle,freq ID) from the
BSL. This function puts the quantity “Value” into AIC23 control register 8. Some of the
AIC23 analog interface properties are:
The ADC for the line inputs has a full-scale range of 1.0 V RMS.
51
65. The microphone input is a high-impedance, low-capacitance input compatible with a
wide range of microphones.
The DAC for the line outputs has a full-scale output voltage range of 1.0 V RMS.
The stereo headphone outputs are designed to drive 16 or 32-ohm headphones.
The AIC23 has an analog bypass mode that directly connects the analog line inputs to
the analog line outputs.
The AIC23 has a side tone insertion mode where the microphone input is routed to the
line and headphone outputs.
AIC23 Codec
FSX1
CLKX1
TX1
CONTROL
SPI Format
CS
SCLK
SD IN
Digital
Control Registers
McBSP0
0
1
2
3
4
5
6
7
8
9
15
LEFT IN VOL
RIGHT IN VOL
LEFT HP VOL
RIGHT HP VOL
ANAPATH
DIGPATH
POWER DOWN
DIGIF
SAMPLE RATE
DIGACT
RESET
DATA
McBSP1
DR2
FX2
CLKR
CLKX
FSR2
DX2
D OUT
LRC OUT
B CLK
LRC IN
D IN
MIC IN
LINE IN
Analog
LINE OUT
MIC IN
ADC
LINE IN
DAC
LINE OUT
HP OUT
HP OUT
Fig.5.7. AIC23 codec interface
5.1.5 DSP/BIOS & RTDX
The DSP/BIOS facilities utilize the Real-Time Data Exchange (RTDX) link to obtain
and monitor target data in real-time [47]. I utilized the RTDX link to create my own
customized interfaces to the DSP target by using the RTDX API Library. The RTDX
transfers data between a host computer and target devices without interfering with the target
application. This bi-directional communication path provides data collection by the host as
well as host interaction while running target application. RTDX also enables host systems to
provide data stimulation to the target application and algorithms.
52
66. Data transfer to the host occurs in real-time while the target application is running. On
the host platform, an RTDX host library operates in conjunction with Code Composer Studio
IDE. Data visualization and analysis tools communicate with RTDX through COM APIs to
obtain the target data and/or to send data to the DSP application. The host library supports
two modes of receiving data from a target application: continuous and non-continuous.
Code Composer
Studio CCS
MATLAB
Embedded
Target for
Texas
Instruments
DSP
+
Real Time
Workshop
Texas Instruments
DSP
Simulink
Model
Build and
Download
Application
+
DSP/BIOS
Kernel
RTDX
DSP/BIOS
Tools
RTDX
Fig.5.8. DSP BIOS and RTDX
In continuous mode, the data is simply buffered by the RTDX Host Library and is not
written to a log file. Continuous mode should be used when the developer wants to
continuously obtain and display the data from a target application and does not need to store
the data in a log file.
The realization of an interface is possible thanks to the Real-Time Data Exchange
(RTDX). RTDX allows transferring data between a host computer and target devices without
interfering with the target application. The data can be analyzed and visualized on the host
using the COM interface provided by RTDX. Clients such as Visual Basic, Visual C++,
Excel, LabView, MATLAB, and others are readily capable of utilizing the COM interface.
53
67. 5.2 Code Composer Studio as Integrated Development Environment
Code Composer Studio is the DSP industry's first fully integrated development
environment (IDE) [50] with DSP-specific functionality. With a familiar environment like
MS-based C++TM; Code Composer lets you edit, build, debug, profile and manage projects
from a single unified environment. Other unique features include graphical signal analysis,
injection/extraction of data signals via file I/O, multi-processor debugging, automated testing
and customization via a C-interpretive scripting language and much more.
Fig.5.9. Code compose studio platform
Real-time analysis can be performed using real-time data exchange (RTDX). RTDX allows
for data exchange between the host PC and the target DSK, as well as analysis in real time without
stopping the target. Key statistics and performance can be monitored in real time. Through the joint
team action group (JTAG), communication with on-chip emulation support occurs to control and
monitor program execution. The C6713 DSK board includes a JTAG interface through the USB port.
Fig.5.10. Embedded software development
54
