1. USB DESIGN HOUSE METASTABILITY 1
Metastability
2012 @ USB DESIGN HOUSE
2. USB DESIGN HOUSE METASTABILITY 2

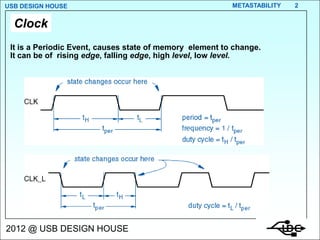

Clock
It is a Periodic Event, causes state of memory element to change.
It can be of rising edge, falling edge, high level, low level.
2012 @ USB DESIGN HOUSE
3. USB DESIGN HOUSE METASTABILITY 3
Timing requirements of edge triggered flip-flops
There is a timing
"window" around the ts-set up time
clocking event Minimum time before the clocking event by which the
during which the input input must be stable
must remain stable
and unchanged th-hold time
in order Minimum time after the clocking event during which
to be recognized the input must remain stable
2012 @ USB DESIGN HOUSE
4. USB DESIGN HOUSE METASTABILITY 4

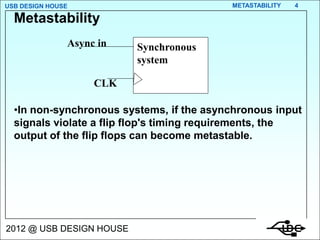

Metastability
Async in Synchronous
system
CLK
•In non-synchronous systems, if the asynchronous input
signals violate a flip flop's timing requirements, the
output of the flip flops can become metastable.
2012 @ USB DESIGN HOUSE
5. USB DESIGN HOUSE METASTABILITY 5

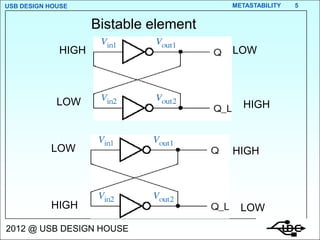

Bistable element
HIGH LOW
LOW HIGH
LOW HIGH
HIGH LOW
2012 @ USB DESIGN HOUSE
6. USB DESIGN HOUSE METASTABILITY 6

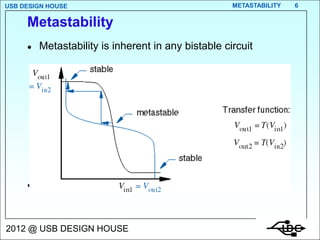

Metastability
Metastability is inherent in any bistable circuit
Two stable points, one metastable point
2012 @ USB DESIGN HOUSE
7. USB DESIGN HOUSE METASTABILITY 7

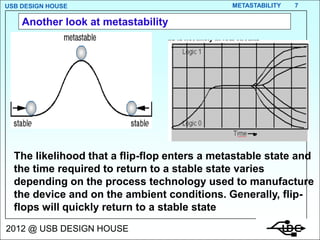

Another look at metastability
The likelihood that a flip-flop enters a metastable state and
the time required to return to a stable state varies
depending on the process technology used to manufacture
the device and on the ambient conditions. Generally, flip-
flops will quickly return to a stable state
2012 @ USB DESIGN HOUSE
8. USB DESIGN HOUSE METASTABILITY 8

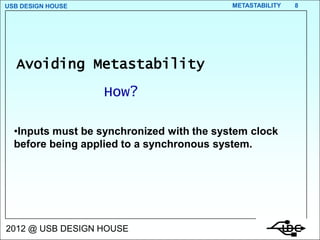

Avoiding Metastability
How?
•Inputs must be synchronized with the system clock
before being applied to a synchronous system.
2012 @ USB DESIGN HOUSE
9. USB DESIGN HOUSE METASTABILITY 9
A simple synchronizer
As shown in above figure, a D flip-flop samples the asynchronous
input at each of the system clock and produces a synchronous
output that is valid during the next clock period.
•But there is a problem ?
•the synchronizer output may become metastable when setup and
hold time are not met.
2012 @ USB DESIGN HOUSE
10. USB DESIGN HOUSE METASTABILITY 10
Only one synchronizer per input
In this design, the two flip-flops will not see clock and input at precisely
same time because of physical delays in the circuit. Therefore when
asynchronous input transitions occur near the clock edge, there is a small
window of time during which one flip-flop may sample the input as 1 and the
other may sample it as 0.
2012 @ USB DESIGN HOUSE
11. USB DESIGN HOUSE METASTABILITY 11

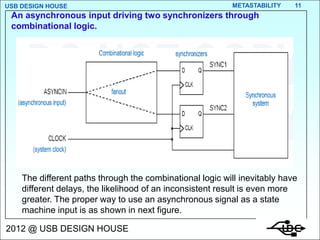

An asynchronous input driving two synchronizers through
combinational logic.
The different paths through the combinational logic will inevitably have
different delays, the likelihood of an inconsistent result is even more
greater. The proper way to use an asynchronous signal as a state
machine input is as shown in next figure.
2012 @ USB DESIGN HOUSE

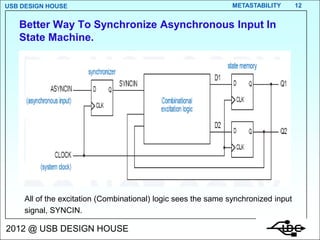

12. USB DESIGN HOUSE METASTABILITY 12
Better Way To Synchronize Asynchronous Input In
State Machine.
All of the excitation (Combinational) logic sees the same synchronized input
signal, SYNCIN.
2012 @ USB DESIGN HOUSE
13. USB DESIGN HOUSE METASTABILITY 13
Synchronizer failure and Metastability resolution time
•Synchronizer failure is said to occur if the system uses
synchronizer output while the output is still in
metastable state.
•One way to get a flip-flop out of a metastable state is
to wait long enough so the flip-flop comes out
of metastability on its own.
2012 @ USB DESIGN HOUSE
14. USB DESIGN HOUSE METASTABILITY 14
Metastability resolution time
•It is the maximum time that the output can remain metastable
without causing synchronizer(and system) failure.
For the above synchronizer the
Metastability resolution time
tr = tclk-tsu
2012 @ USB DESIGN HOUSE

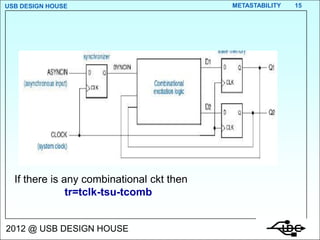

15. USB DESIGN HOUSE METASTABILITY 15
If there is any combinational ckt then
tr=tclk-tsu-tcomb
2012 @ USB DESIGN HOUSE
16. USB DESIGN HOUSE METASTABILITY 16
Recommended synchronizer design
2012 @ USB DESIGN HOUSE
17. USB DESIGN HOUSE METASTABILITY 17
MTBF(Mean Time Between synchronizer Failure)
Theoretical results suggests and experimental research
has confirmed ,that when asynchronous inputs change
during the decision window , the duration of
metastability is governed by the Exponential Formula
2012 @ USB DESIGN HOUSE
18. USB DESIGN HOUSE METASTABILITY 18

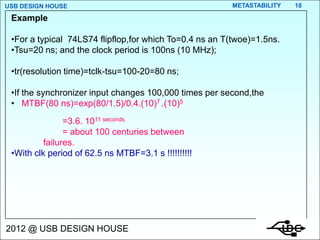

Example
•For a typical 74LS74 flipflop,for which To=0.4 ns an T(twoe)=1.5ns.
•Tsu=20 ns; and the clock period is 100ns (10 MHz);
•tr(resolution time)=tclk-tsu=100-20=80 ns;
•If the synchronizer input changes 100,000 times per second,the
• MTBF(80 ns)=exp(80/1.5)/0.4.(10)7 .(10)5
=3.6. 1011 seconds
= about 100 centuries between
failures.
•With clk period of 62.5 ns MTBF=3.1 s !!!!!!!!!!
2012 @ USB DESIGN HOUSE
19. USB DESIGN HOUSE METASTABILITY 19
THANK YOU
2012 @ USB DESIGN HOUSE
