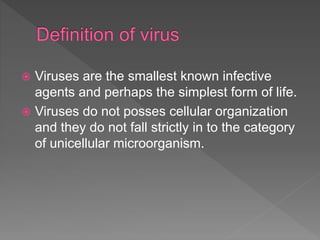

 Viruses are the smallest known infective
agents and perhaps the simplest form of life.
 Viruses do not posses cellular organization
and they do not fall strictly in to the category
of unicellular microorganism.

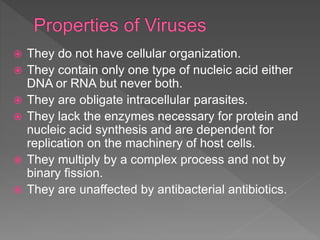

 They do not have cellular organization.
 They contain only one type of nucleic acid either
DNA or RNA but never both.
 They are obligate intracellular parasites.
 They lack the enzymes necessary for protein and
nucleic acid synthesis and are dependent for
replication on the machinery of host cells.
 They multiply by a complex process and not by
binary fission.
 They are unaffected by antibacterial antibiotics.

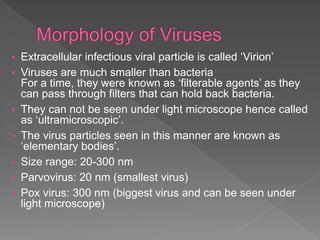

 Extracellular infectious viral particle is called ‘Virion’
 Viruses are much smaller than bacteria
For a time, they were known as ‘filterable agents’ as they
can pass through filters that can hold back bacteria.
 They can not be seen under light microscope hence called
as ‘ultramicroscopic’.
 The virus particles seen in this manner are known as
‘elementary bodies’.

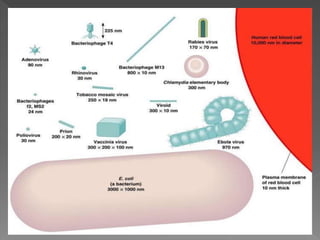

 Size range: 20-300 nm
 Parvovirus: 20 nm (smallest virus)
 Pox virus: 300 nm (biggest virus and can be seen under
light microscope)
 Passing them through collodion membrane
 Electron microscopy
 Sedimentation in the ultracentrifuge
 Comparatative measurements
Shape of the Virus
 The overall shape of the virus particle varies in
different groups of viruses.
 Most of the animal virus are roughly spherical,
irregular and pleomorphic.
 Eg. Pox virus are brick shaped, rabies virus are
bullet shaped, tobacco mosiac virus is rod shaped
A. Viral Capsid
 Viruses consists of nucleic acid
core surrounded by a protein
called capsid.
 Capsid is composed of large
number of capsomer which is
made up of polypeptide
molecules.
 The capsid with the
enclosed nucleic acid is known as
nucleocapsid.

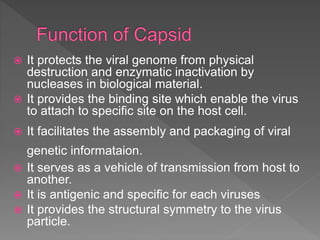

 It protects the viral genome from physical
destruction and enzymatic inactivation by
nucleases in biological material.
 It provides the binding site which enable the virus
to attach to specific site on the host cell.
 It facilitates the assembly and packaging of viral
genetic informataion.
 It serves as a vehicle of transmission from host to
another.
 It is antigenic and specific for each viruses
 It provides the structural symmetry to the virus
particle.
 Viral architecture can be grouped into three types based
on the arrangement of morphological subunits.
1. Icosahedral Symmetry
 An icosahedral (icosa, meaning 20 in greek) is a polgon
with 12 vertices or corners and 20 facets or sides.
 Each facet is in the shape of an equilateral triangle.
 Pentagonal capsomers at the
vertices (pentons) and hexagonal
capsomers making up the facets
(hexons)
 Eg. Adeno viruses
2. Helical Symmetry
 The nucleic acid and capsomers are wound
together in the form of helix or spiral.
 Eg. Influenza virus, parainfluenz virus,
rabies virus.
3. Complex Symmetry
 Viruses which don not show either icoshedral or
helical symmetry
due to complexity of their
structure are referred to
have complex symmetry.
 Eg. Pox viruses

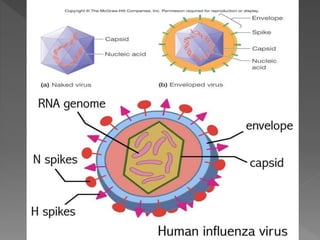

 Virions may be enveloped and nonenveloped
(naked).
1. Enveloped Virus
 The envelop or outer covering of virus containing
lipid is derived from the plasma membrane of the
host cell during the release by budding from the
cell surface.
 The envelop is glycoprotein in nature.
 Enveloped viruses are susceptible to the action of
lipid solvent such as ether, chloroform and
detergent.
 Eg. Herpes virus, Hepatitis B virus, HIV virus
2. Non enveloped virus
 Viruses which does not have outer covering.
 Naked viruses are more likely to be resistant to
lipid solvents like ether, chloroform and detergent.
Peplomers
 In mature virus particle, the glycoproteins often
appear as projecting spikes on the outer surface of
the envelop which are known as peplomers.
 A virus may have more than one type of
peplomers. E.g the influenza virus carries two
types of peplomers, the hemagglutinin and
neuraminidase
 It helps for attachment of virus to the host
cell receptors to initiate the entrance of the
virion into the cell.
 It attach to receptors on red blood cells,
causing these cell to agglutinate.
 It has enzymatic activity like neuraminidase
which cleave neuraminic acid from host cell
glycoproteins.
 It has antigenic properties.

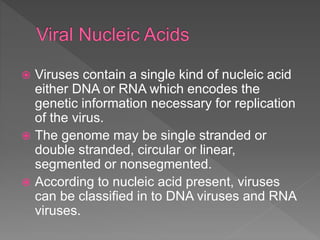

 Viruses contain a single kind of nucleic acid
either DNA or RNA which encodes the
genetic information necessary for replication
of the virus.
 The genome may be single stranded or
double stranded, circular or linear,
segmented or nonsegmented.
 According to nucleic acid present, viruses
can be classified in to DNA viruses and RNA
viruses.

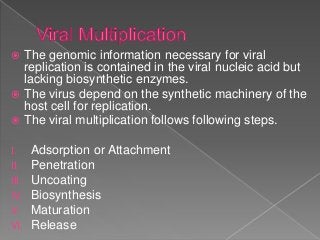

 The genomic information necessary for viral
replication is contained in the viral nucleic acid but
lacking biosynthetic enzymes.
 The virus depend on the synthetic machinery of the
host cell for replication.

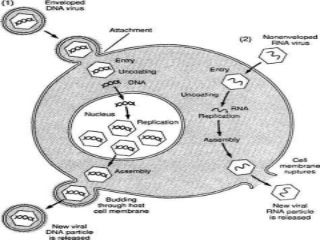

 The viral multiplication follows following steps.
I. Adsorption or Attachment
II. Penetration
III. Uncoating
IV. Biosynthesis
V. Maturation
VI. Release

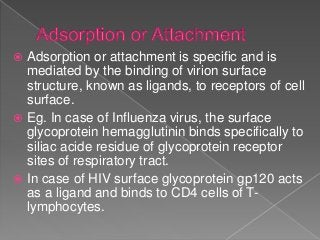

 Adsorption or attachment is specific and is
mediated by the binding of virion surface
structure, known as ligands, to receptors of cell
surface.
 Eg. In case of Influenza virus, the surface
glycoprotein hemagglutinin binds specifically to
siliac acide residue of glycoprotein receptor
sites of respiratory tract.
 In case of HIV surface glycoprotein gp120 acts
as a ligand and binds to CD4 cells of T-
lymphocytes.
 After binding the virus particle is taken up
inside the cell.
 It is occur by system receptor mediated
endocytosis (viropexis).
 Most non-enveloped viruses enter by
receptor mediated endocytosis.
 Enveloped viruses fuse their membranes
with cellular membranes to deliver the
nucleocapsid or genome directly into the
cytoplasm.

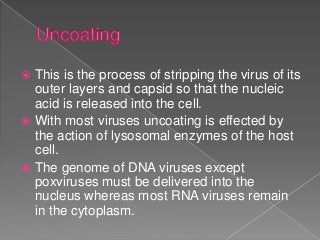

 This is the process of stripping the virus of its
outer layers and capsid so that the nucleic
acid is released into the cell.
 With most viruses uncoating is effected by
the action of lysosomal enzymes of the host
cell.
 The genome of DNA viruses except
poxviruses must be delivered into the
nucleus whereas most RNA viruses remain
in the cytoplasm.
 This phase includes synthesis not merely of
the viral nucleic acid and capsid protein but
also of enzymes necessary in the various
stages of viral synthesis, assembly and
release.
 In addition regulator proteins are also
synthesised which serve to shut down the
normal cellular metabolism and direct the
sequential production of viral components.
 Transcription of messenger RNA (mRNA)
from the viral nucleic acid.
 Translation of the mRNA into early proteins
which initiate and maintain synthesis of virus
component.
 Replication of viral nucleic acid.
 Synthesis of Late or Structural proteins
which are the components of daughter virion
capsid.

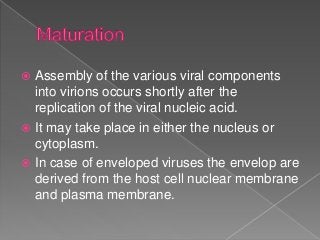

 Assembly of the various viral components
into virions occurs shortly after the
replication of the viral nucleic acid.
 It may take place in either the nucleus or
cytoplasm.
 In case of enveloped viruses the envelop are
derived from the host cell nuclear membrane
and plasma membrane.

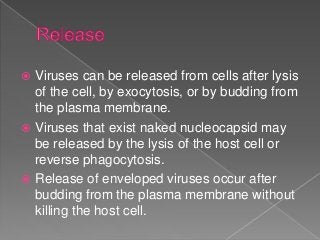

 Viruses can be released from cells after lysis
of the cell, by exocytosis, or by budding from
the plasma membrane.
 Viruses that exist naked nucleocapsid may
be released by the lysis of the host cell or
reverse phagocytosis.
 Release of enveloped viruses occur after
budding from the plasma membrane without
killing the host cell.
Morphology of virus

More Related Content

What's hot

General characteristics of virus
General characteristics of virusGeneral characteristics of virus
General characteristics of virus
keshav pai

Viruses structure and classification
Viruses structure and classificationViruses structure and classification
Viruses structure and classification
HARINATHA REDDY ASWARTHA

Morphology of fungi
Morphology of fungiMorphology of fungi
Bacterial growth curves
Bacterial growth curvesBacterial growth curves
Bacterial growth curves
MAULIK CHAUDHARI

Viruses, structure, classification and characteristics
Viruses, structure, classification and characteristicsViruses, structure, classification and characteristics
Viruses, structure, classification and characteristics
Bahauddin Zakariya University lahore

Bacterial growth curve
Bacterial growth curveBacterial growth curve
Bacterial growth curve
Prbn Shah

Classification of fungi
Classification of fungiClassification of fungi
Classification of fungi
swethamohan17

Viruses
VirusesViruses
Viruses
KerOro SUn

Lytic & Lysogenic Cycle
Lytic & Lysogenic CycleLytic & Lysogenic Cycle
Lytic & Lysogenic Cycle
Afra Fathima

Cultivation of virus
Cultivation of virus Cultivation of virus
Cultivation of virus
microbiology Notes

Viral classification and Types of Replication in virus
Viral classification and Types of Replication in virus Viral classification and Types of Replication in virus
Viral classification and Types of Replication in virus
Rakshith K, DVM

Structure of virus
Structure of virusStructure of virus
Structure of virus
Snehal Patel

Flagella
Flagella Flagella
Classification of viruses
Classification of virusesClassification of viruses
Bacterial growth curve
Bacterial growth curveBacterial growth curve
Bacterial growth curve
Anup Bajracharya

Bacteriophage
BacteriophageBacteriophage
Bacteriophage
SURAMYA BABU

Gram positive & Gram negative cells
Gram positive & Gram negative cellsGram positive & Gram negative cells
Gram positive & Gram negative cells
Saajida Sultaana

Types of culture media
Types of culture mediaTypes of culture media
Types of culture media
Dr. Samira Fattah

General Characteristics of Viruses
General Characteristics of VirusesGeneral Characteristics of Viruses
General Characteristics of Viruses
Sijo A

VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES
VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES
VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES
Shylesh M


What's hot (20)

General characteristics of virus
General characteristics of virusGeneral characteristics of virus
General characteristics of virus

Viruses structure and classification
Viruses structure and classificationViruses structure and classification
Viruses structure and classification

Morphology of fungi
Morphology of fungiMorphology of fungi
Morphology of fungi

Bacterial growth curves
Bacterial growth curvesBacterial growth curves
Bacterial growth curves

Viruses, structure, classification and characteristics
Viruses, structure, classification and characteristicsViruses, structure, classification and characteristics
Viruses, structure, classification and characteristics

Bacterial growth curve
Bacterial growth curveBacterial growth curve
Bacterial growth curve

Classification of fungi
Classification of fungiClassification of fungi
Classification of fungi

Viruses
VirusesViruses
Viruses

Lytic & Lysogenic Cycle
Lytic & Lysogenic CycleLytic & Lysogenic Cycle
Lytic & Lysogenic Cycle

Cultivation of virus
Cultivation of virus Cultivation of virus
Cultivation of virus

Viral classification and Types of Replication in virus
Viral classification and Types of Replication in virus Viral classification and Types of Replication in virus
Viral classification and Types of Replication in virus

Structure of virus
Structure of virusStructure of virus
Structure of virus

Flagella
Flagella Flagella
Flagella

Classification of viruses
Classification of virusesClassification of viruses
Classification of viruses

Bacterial growth curve
Bacterial growth curveBacterial growth curve
Bacterial growth curve

Bacteriophage
BacteriophageBacteriophage
Bacteriophage

Gram positive & Gram negative cells
Gram positive & Gram negative cellsGram positive & Gram negative cells
Gram positive & Gram negative cells

Types of culture media
Types of culture mediaTypes of culture media
Types of culture media

General Characteristics of Viruses
General Characteristics of VirusesGeneral Characteristics of Viruses
General Characteristics of Viruses

VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES
VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES
VIRUSES CLASSIFICATION , LIFE CYCLE OF VIRUSES. CHARACTERISTICS OF VIRUSES


Similar to Morphology of virus

Morphology of virus
Morphology of virusMorphology of virus
Morphology of virus
muthulakshmi623285

Bsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs
BsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvsBsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs
Bsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs
hsaif4231

Virus
VirusVirus
General properties of viruses
General properties of virusesGeneral properties of viruses
General properties of viruses
raghunathp

01 general structure and classification of viruses1
01  general structure and classification of viruses101  general structure and classification of viruses1
01 general structure and classification of viruses1tuancnshk33

Presentation 0n virus (09 12-2014)
Presentation 0n virus (09 12-2014)Presentation 0n virus (09 12-2014)
Presentation 0n virus (09 12-2014)
Asraful Islam Rayhan

Presentation virus (09 12-2014)
Presentation virus (09 12-2014)Presentation virus (09 12-2014)
Presentation virus (09 12-2014)
Asraful Islam Rayhan

Morphology, Classification, Cultivation and Replication of Virus
Morphology, Classification, Cultivation and Replication of VirusMorphology, Classification, Cultivation and Replication of Virus
Morphology, Classification, Cultivation and Replication of Virus
Krutika Pardeshi

The topic is presented by sakura khan
The topic is presented by sakura khanThe topic is presented by sakura khan
The topic is presented by sakura khan
meena khan

Virus.ppt
Virus.pptVirus.ppt
вирус.ppt
вирус.pptвирус.ppt
вирус.ppt
Aliya647648

Virus
Virus Virus
Study of viruses
Study of virusesStudy of viruses
Viruses-size,shape & types
Viruses-size,shape & typesViruses-size,shape & types
Viruses-size,shape & types
Vidya Kalaivani Rajkumar

generalpropertiesofviruses-140309015013-phpapp02.pdf
generalpropertiesofviruses-140309015013-phpapp02.pdfgeneralpropertiesofviruses-140309015013-phpapp02.pdf
generalpropertiesofviruses-140309015013-phpapp02.pdf
OsmanAli92

viral_replication.pdf
viral_replication.pdfviral_replication.pdf
viral_replication.pdf
MidhatSarfraz

33. an introduction to the viruses
33. an introduction to the viruses33. an introduction to the viruses
33. an introduction to the virusessulochan_lohani

Replication of virus
Replication of virusReplication of virus
Virus-Morphology, General structures and classification
Virus-Morphology, General structures and classificationVirus-Morphology, General structures and classification
Virus-Morphology, General structures and classification
Nistarini College, Purulia (W.B) India


Similar to Morphology of virus (20)

Morphology of virus
Morphology of virusMorphology of virus
Morphology of virus

Bsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs
BsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvsBsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs
Bsshusdhbsbsjsbsnsbbdhdndndndbdbbdbdbsbsvsvsvs

Virus
VirusVirus
Virus

General properties of viruses
General properties of virusesGeneral properties of viruses
General properties of viruses

01 general structure and classification of viruses1
01  general structure and classification of viruses101  general structure and classification of viruses1
01 general structure and classification of viruses1

Presentation 0n virus (09 12-2014)
Presentation 0n virus (09 12-2014)Presentation 0n virus (09 12-2014)
Presentation 0n virus (09 12-2014)

Presentation virus (09 12-2014)
Presentation virus (09 12-2014)Presentation virus (09 12-2014)
Presentation virus (09 12-2014)

Morphology, Classification, Cultivation and Replication of Virus
Morphology, Classification, Cultivation and Replication of VirusMorphology, Classification, Cultivation and Replication of Virus
Morphology, Classification, Cultivation and Replication of Virus

The topic is presented by sakura khan
The topic is presented by sakura khanThe topic is presented by sakura khan
The topic is presented by sakura khan

Virus.ppt
Virus.pptVirus.ppt
Virus.ppt

вирус.ppt
вирус.pptвирус.ppt
вирус.ppt

Virus
Virus Virus
Virus

Micro Ch13 Edited
Micro Ch13  EditedMicro Ch13  Edited
Micro Ch13 Edited

Study of viruses
Study of virusesStudy of viruses
Study of viruses

Viruses-size,shape & types
Viruses-size,shape & typesViruses-size,shape & types
Viruses-size,shape & types

generalpropertiesofviruses-140309015013-phpapp02.pdf
generalpropertiesofviruses-140309015013-phpapp02.pdfgeneralpropertiesofviruses-140309015013-phpapp02.pdf
generalpropertiesofviruses-140309015013-phpapp02.pdf

viral_replication.pdf
viral_replication.pdfviral_replication.pdf
viral_replication.pdf

33. an introduction to the viruses
33. an introduction to the viruses33. an introduction to the viruses
33. an introduction to the viruses

Replication of virus
Replication of virusReplication of virus
Replication of virus

Virus-Morphology, General structures and classification
Virus-Morphology, General structures and classificationVirus-Morphology, General structures and classification
Virus-Morphology, General structures and classification


More from lalitpur valley college, Nobel College

Biofertilizer ppt
Biofertilizer pptBiofertilizer ppt
Microbial nutrition
Microbial nutritionMicrobial nutrition
Sterilization and disinfection
Sterilization and disinfectionSterilization and disinfection
Sterilization and disinfection
lalitpur valley college, Nobel College

Morphology of protozoa
Morphology of protozoaMorphology of protozoa
microbial production of chemotherapeutic agents
microbial production of chemotherapeutic agentsmicrobial production of chemotherapeutic agents
microbial production of chemotherapeutic agents
lalitpur valley college, Nobel College

Morophology of bacteria
Morophology of bacteriaMorophology of bacteria
Types of microscope
Types of microscopeTypes of microscope
Vitamine b12
Vitamine b12Vitamine b12

More from lalitpur valley college, Nobel College (9)

Biofertilizer ppt
Biofertilizer pptBiofertilizer ppt
Biofertilizer ppt

Microbial nutrition
Microbial nutritionMicrobial nutrition
Microbial nutrition

Sterilization and disinfection
Sterilization and disinfectionSterilization and disinfection
Sterilization and disinfection

Growth curves
Growth curvesGrowth curves
Growth curves

Morphology of protozoa
Morphology of protozoaMorphology of protozoa
Morphology of protozoa

microbial production of chemotherapeutic agents
microbial production of chemotherapeutic agentsmicrobial production of chemotherapeutic agents
microbial production of chemotherapeutic agents

Morophology of bacteria
Morophology of bacteriaMorophology of bacteria
Morophology of bacteria

Types of microscope
Types of microscopeTypes of microscope
Types of microscope

Vitamine b12
Vitamine b12Vitamine b12
Vitamine b12


Recently uploaded

extra-chromosomal-inheritance[1].pptx.pdfpdf
extra-chromosomal-inheritance[1].pptx.pdfpdfextra-chromosomal-inheritance[1].pptx.pdfpdf
extra-chromosomal-inheritance[1].pptx.pdfpdf
DiyaBiswas10

Hemoglobin metabolism_pathophysiology.pptx
Hemoglobin metabolism_pathophysiology.pptxHemoglobin metabolism_pathophysiology.pptx
Hemoglobin metabolism_pathophysiology.pptx
muralinath2

Nutraceutical market, scope and growth: Herbal drug technology
Nutraceutical market, scope and growth: Herbal drug technologyNutraceutical market, scope and growth: Herbal drug technology
Nutraceutical market, scope and growth: Herbal drug technology
Lokesh Patil

platelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptxplatelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptx
muralinath2

Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Sérgio Sacani

SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdfSCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SELF-EXPLANATORY

ESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptxESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptx
muralinath2

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA
SAMIR PANDA

Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...
Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...
Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...
muralinath2

Cancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate PathwayCancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate Pathway
AADYARAJPANDEY1

platelets- lifespan -Clot retraction-disorders.pptx
platelets- lifespan -Clot retraction-disorders.pptxplatelets- lifespan -Clot retraction-disorders.pptx
platelets- lifespan -Clot retraction-disorders.pptx
muralinath2

Viksit bharat till 2047 India@2047.pptx
Viksit bharat till 2047  India@2047.pptxViksit bharat till 2047  India@2047.pptx
Viksit bharat till 2047 India@2047.pptx
rakeshsharma20142015

Mammalian Pineal Body Structure and Also Functions
Mammalian Pineal Body Structure and Also FunctionsMammalian Pineal Body Structure and Also Functions
Mammalian Pineal Body Structure and Also Functions
YOGESH DOGRA

Structural Classification Of Protein (SCOP)
Structural Classification Of Protein  (SCOP)Structural Classification Of Protein  (SCOP)
Structural Classification Of Protein (SCOP)
aishnasrivastava

GBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram StainingGBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram Staining
Areesha Ahmad

filosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptxfilosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptx
IvanMallco1

Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx
Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptxBody fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx
Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx
muralinath2

Richard's entangled aventures in wonderland
Richard's entangled aventures in wonderlandRichard's entangled aventures in wonderland
Richard's entangled aventures in wonderland
Richard Gill

(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...
(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...
(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...
Scintica Instrumentation

EY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptxEY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptx
AlguinaldoKong


Recently uploaded (20)

extra-chromosomal-inheritance[1].pptx.pdfpdf
extra-chromosomal-inheritance[1].pptx.pdfpdfextra-chromosomal-inheritance[1].pptx.pdfpdf
extra-chromosomal-inheritance[1].pptx.pdfpdf

Hemoglobin metabolism_pathophysiology.pptx
Hemoglobin metabolism_pathophysiology.pptxHemoglobin metabolism_pathophysiology.pptx
Hemoglobin metabolism_pathophysiology.pptx

Nutraceutical market, scope and growth: Herbal drug technology
Nutraceutical market, scope and growth: Herbal drug technologyNutraceutical market, scope and growth: Herbal drug technology
Nutraceutical market, scope and growth: Herbal drug technology

platelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptxplatelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptx

Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...

SCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdfSCHIZOPHRENIA Disorder/ Brain Disorder.pdf
SCHIZOPHRENIA Disorder/ Brain Disorder.pdf

ESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptxESR_factors_affect-clinic significance-Pathysiology.pptx
ESR_factors_affect-clinic significance-Pathysiology.pptx

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA

Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...
Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...
Circulatory system_ Laplace law. Ohms law.reynaults law,baro-chemo-receptors-...

Cancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate PathwayCancer cell metabolism: special Reference to Lactate Pathway
Cancer cell metabolism: special Reference to Lactate Pathway

platelets- lifespan -Clot retraction-disorders.pptx
platelets- lifespan -Clot retraction-disorders.pptxplatelets- lifespan -Clot retraction-disorders.pptx
platelets- lifespan -Clot retraction-disorders.pptx

Viksit bharat till 2047 India@2047.pptx
Viksit bharat till 2047  India@2047.pptxViksit bharat till 2047  India@2047.pptx
Viksit bharat till 2047 India@2047.pptx

Mammalian Pineal Body Structure and Also Functions
Mammalian Pineal Body Structure and Also FunctionsMammalian Pineal Body Structure and Also Functions
Mammalian Pineal Body Structure and Also Functions

Structural Classification Of Protein (SCOP)
Structural Classification Of Protein  (SCOP)Structural Classification Of Protein  (SCOP)
Structural Classification Of Protein (SCOP)

GBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram StainingGBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram Staining

filosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptxfilosofia boliviana introducción jsjdjd.pptx
filosofia boliviana introducción jsjdjd.pptx

Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx
Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptxBody fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx
Body fluids_tonicity_dehydration_hypovolemia_hypervolemia.pptx

Richard's entangled aventures in wonderland
Richard's entangled aventures in wonderlandRichard's entangled aventures in wonderland
Richard's entangled aventures in wonderland

(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...
(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...
(May 29th, 2024) Advancements in Intravital Microscopy- Insights for Preclini...

EY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptxEY - Supply Chain Services 2018_template.pptx
EY - Supply Chain Services 2018_template.pptx


Morphology of virus

  • 1.
  • 2.  Viruses are the smallest known infective agents and perhaps the simplest form of life.  Viruses do not posses cellular organization and they do not fall strictly in to the category of unicellular microorganism.
  • 3.  They do not have cellular organization.  They contain only one type of nucleic acid either DNA or RNA but never both.  They are obligate intracellular parasites.  They lack the enzymes necessary for protein and nucleic acid synthesis and are dependent for replication on the machinery of host cells.  They multiply by a complex process and not by binary fission.  They are unaffected by antibacterial antibiotics.
  • 4.
  • 5.  Extracellular infectious viral particle is called ‘Virion’  Viruses are much smaller than bacteria For a time, they were known as ‘filterable agents’ as they can pass through filters that can hold back bacteria.  They can not be seen under light microscope hence called as ‘ultramicroscopic’.  The virus particles seen in this manner are known as ‘elementary bodies’.  Size range: 20-300 nm  Parvovirus: 20 nm (smallest virus)  Pox virus: 300 nm (biggest virus and can be seen under light microscope)
  • 6.  Passing them through collodion membrane  Electron microscopy  Sedimentation in the ultracentrifuge  Comparatative measurements Shape of the Virus  The overall shape of the virus particle varies in different groups of viruses.  Most of the animal virus are roughly spherical, irregular and pleomorphic.  Eg. Pox virus are brick shaped, rabies virus are bullet shaped, tobacco mosiac virus is rod shaped
  • 7.
  • 8. A. Viral Capsid  Viruses consists of nucleic acid core surrounded by a protein called capsid.  Capsid is composed of large number of capsomer which is made up of polypeptide molecules.  The capsid with the enclosed nucleic acid is known as nucleocapsid.
  • 9.  It protects the viral genome from physical destruction and enzymatic inactivation by nucleases in biological material.  It provides the binding site which enable the virus to attach to specific site on the host cell.  It facilitates the assembly and packaging of viral genetic informataion.  It serves as a vehicle of transmission from host to another.  It is antigenic and specific for each viruses  It provides the structural symmetry to the virus particle.
  • 10.  Viral architecture can be grouped into three types based on the arrangement of morphological subunits. 1. Icosahedral Symmetry  An icosahedral (icosa, meaning 20 in greek) is a polgon with 12 vertices or corners and 20 facets or sides.  Each facet is in the shape of an equilateral triangle.  Pentagonal capsomers at the vertices (pentons) and hexagonal capsomers making up the facets (hexons)  Eg. Adeno viruses
  • 11. 2. Helical Symmetry  The nucleic acid and capsomers are wound together in the form of helix or spiral.  Eg. Influenza virus, parainfluenz virus, rabies virus. 3. Complex Symmetry  Viruses which don not show either icoshedral or helical symmetry due to complexity of their structure are referred to have complex symmetry.  Eg. Pox viruses
  • 12.  Virions may be enveloped and nonenveloped (naked). 1. Enveloped Virus  The envelop or outer covering of virus containing lipid is derived from the plasma membrane of the host cell during the release by budding from the cell surface.  The envelop is glycoprotein in nature.  Enveloped viruses are susceptible to the action of lipid solvent such as ether, chloroform and detergent.  Eg. Herpes virus, Hepatitis B virus, HIV virus
  • 13. 2. Non enveloped virus  Viruses which does not have outer covering.  Naked viruses are more likely to be resistant to lipid solvents like ether, chloroform and detergent. Peplomers  In mature virus particle, the glycoproteins often appear as projecting spikes on the outer surface of the envelop which are known as peplomers.  A virus may have more than one type of peplomers. E.g the influenza virus carries two types of peplomers, the hemagglutinin and neuraminidase
  • 14.  It helps for attachment of virus to the host cell receptors to initiate the entrance of the virion into the cell.  It attach to receptors on red blood cells, causing these cell to agglutinate.  It has enzymatic activity like neuraminidase which cleave neuraminic acid from host cell glycoproteins.  It has antigenic properties.
  • 15.
  • 16.  Viruses contain a single kind of nucleic acid either DNA or RNA which encodes the genetic information necessary for replication of the virus.  The genome may be single stranded or double stranded, circular or linear, segmented or nonsegmented.  According to nucleic acid present, viruses can be classified in to DNA viruses and RNA viruses.

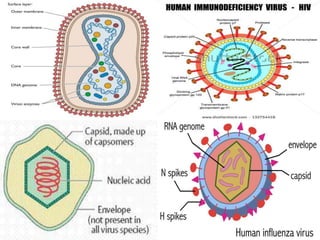

  • 17.
  • 18.  The genomic information necessary for viral replication is contained in the viral nucleic acid but lacking biosynthetic enzymes.  The virus depend on the synthetic machinery of the host cell for replication.  The viral multiplication follows following steps. I. Adsorption or Attachment II. Penetration III. Uncoating IV. Biosynthesis V. Maturation VI. Release
  • 19.  Adsorption or attachment is specific and is mediated by the binding of virion surface structure, known as ligands, to receptors of cell surface.  Eg. In case of Influenza virus, the surface glycoprotein hemagglutinin binds specifically to siliac acide residue of glycoprotein receptor sites of respiratory tract.  In case of HIV surface glycoprotein gp120 acts as a ligand and binds to CD4 cells of T- lymphocytes.
  • 20.  After binding the virus particle is taken up inside the cell.  It is occur by system receptor mediated endocytosis (viropexis).  Most non-enveloped viruses enter by receptor mediated endocytosis.  Enveloped viruses fuse their membranes with cellular membranes to deliver the nucleocapsid or genome directly into the cytoplasm.
  • 21.  This is the process of stripping the virus of its outer layers and capsid so that the nucleic acid is released into the cell.  With most viruses uncoating is effected by the action of lysosomal enzymes of the host cell.  The genome of DNA viruses except poxviruses must be delivered into the nucleus whereas most RNA viruses remain in the cytoplasm.
  • 22.  This phase includes synthesis not merely of the viral nucleic acid and capsid protein but also of enzymes necessary in the various stages of viral synthesis, assembly and release.  In addition regulator proteins are also synthesised which serve to shut down the normal cellular metabolism and direct the sequential production of viral components.
  • 23.  Transcription of messenger RNA (mRNA) from the viral nucleic acid.  Translation of the mRNA into early proteins which initiate and maintain synthesis of virus component.  Replication of viral nucleic acid.  Synthesis of Late or Structural proteins which are the components of daughter virion capsid.
  • 24.  Assembly of the various viral components into virions occurs shortly after the replication of the viral nucleic acid.  It may take place in either the nucleus or cytoplasm.  In case of enveloped viruses the envelop are derived from the host cell nuclear membrane and plasma membrane.
  • 25.  Viruses can be released from cells after lysis of the cell, by exocytosis, or by budding from the plasma membrane.  Viruses that exist naked nucleocapsid may be released by the lysis of the host cell or reverse phagocytosis.  Release of enveloped viruses occur after budding from the plasma membrane without killing the host cell.
