Meselson and Stahl conducted an experiment using E. coli bacteria and isotopes of nitrogen to test theories of DNA replication. They grew bacteria in a medium containing a heavy isotope of nitrogen, then transferred them to a light isotope medium. When they analyzed the DNA bands produced after centrifugation, they found bands corresponding to the predicted patterns of semi-conservative replication. By heating samples, they confirmed that each strand of replicated DNA contained either all heavy or all light nucleotides. This provided definitive evidence supporting the Watson-Crick model of semi-conservative DNA replication.
One of the first plausible models to account for the preceding observations was
formulated by Robin Holliday.
The key features of the Holliday model are the formation of heteroduplex DNA; the
creation of a cross bridge; its migration along the two heteroduplex strands,
termed branch migration; the occurrence of mismatch repair; and the
subsequent resolution, or splicing, of the intermediate structure to yield different
typesof recombinant molecules.
One of the first plausible models to account for the preceding observations was
formulated by Robin Holliday.
The key features of the Holliday model are the formation of heteroduplex DNA; the
creation of a cross bridge; its migration along the two heteroduplex strands,
termed branch migration; the occurrence of mismatch repair; and the
subsequent resolution, or splicing, of the intermediate structure to yield different
typesof recombinant molecules.
Definition - Rolling circle replication is a process of unidirectional nucleic acid replication.
* can rapidly synthesize multiple copies of circular molecules of DNA or RNA, such as plasmids.
* Eucaryotic also replicate.
* widely used in molecular biology & biomedical
nanotechnology, especially in the field of
biosensing (as a method of signal Amplification).
Steps:
Circular ds DNA will be “nicked”
3` end is elongated →Leading strand
5` end displaced → Lagging strand
made up of double stranded by OKAZAKI fragments.
4) Replication of both “ unnicked” and displaced ss DNA
5) Displaced DNA circulates and synthesis its own complementary strand.
Initation-- phosphate ends, by the action of:
a) Helicase
b) Topoisomerases
c) Single stranded binding proteins(SSBPs)
Elongation-OH group of broken strand, using the unbroken strand as a template. The polymerase will start to move in a circle for elongation, due to which it is named as Rolling Circle Model.
end will be displaced and will grow out like a waving thread.
Termination-* At the point of termination, the linear DNA molecule is cleaved from the circle resulting in a double stranded circular DNA molecule and a single- stranded linear DNA molecule.
* The linear single stranded molecule is circularized by the action of ligase and then replication to double stranded circular plasmid molecule.
Example- Conjugation of F+ and F- bacteria
Diagrammatic representation of Rolling circle
some Examples-Viral DNA
* Human herpes virus
* Human papilloma virus
* Geminivirus
Viral RNA
* pospiviridiae
* Avsunviridiae
Reference:- https://en. m. wikipedia.org
what- when- how.com
https//www.sciencedirect.com
www.slideshare.com
Genetics-notes.wikispace.com
you tube
Prescott 5th edition page.no: 236, 237
Brock biology of microorganism , page.no: 253,616
Each cell in the human contains all the genetic material for the growth and development of a human
Some of these genes will be need to be expressed all the time
These are the genes that are involved in of vital biochemical processes such as respiration
Other genes are not expressed all the time
They are switched on an off at need
This power point presentation is an attempt to present some direct and some indirect evidences in favour of DNA as genetic material. Very few organisms have RNA as genetic material for example plant virus and some bacteriophages

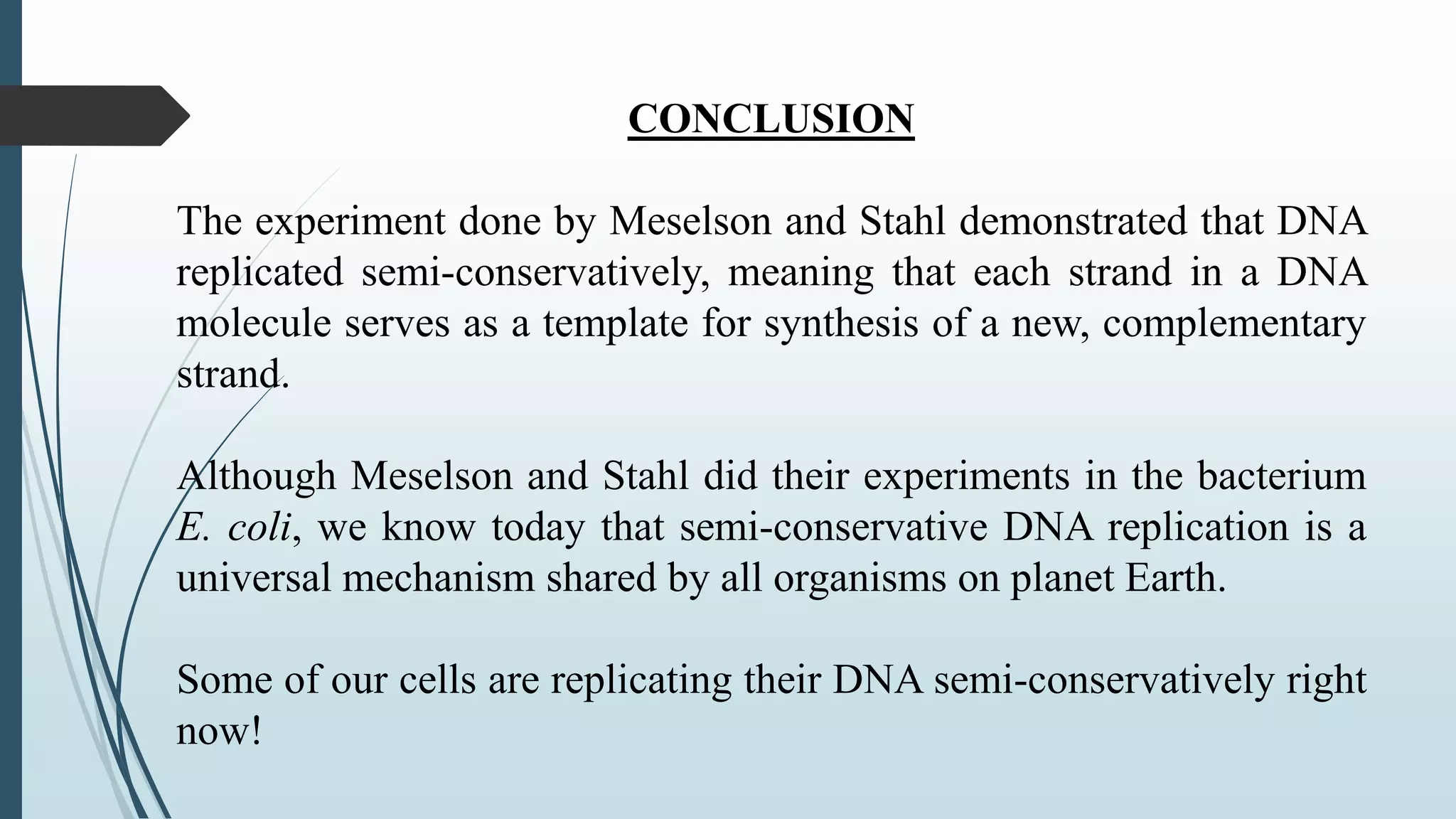

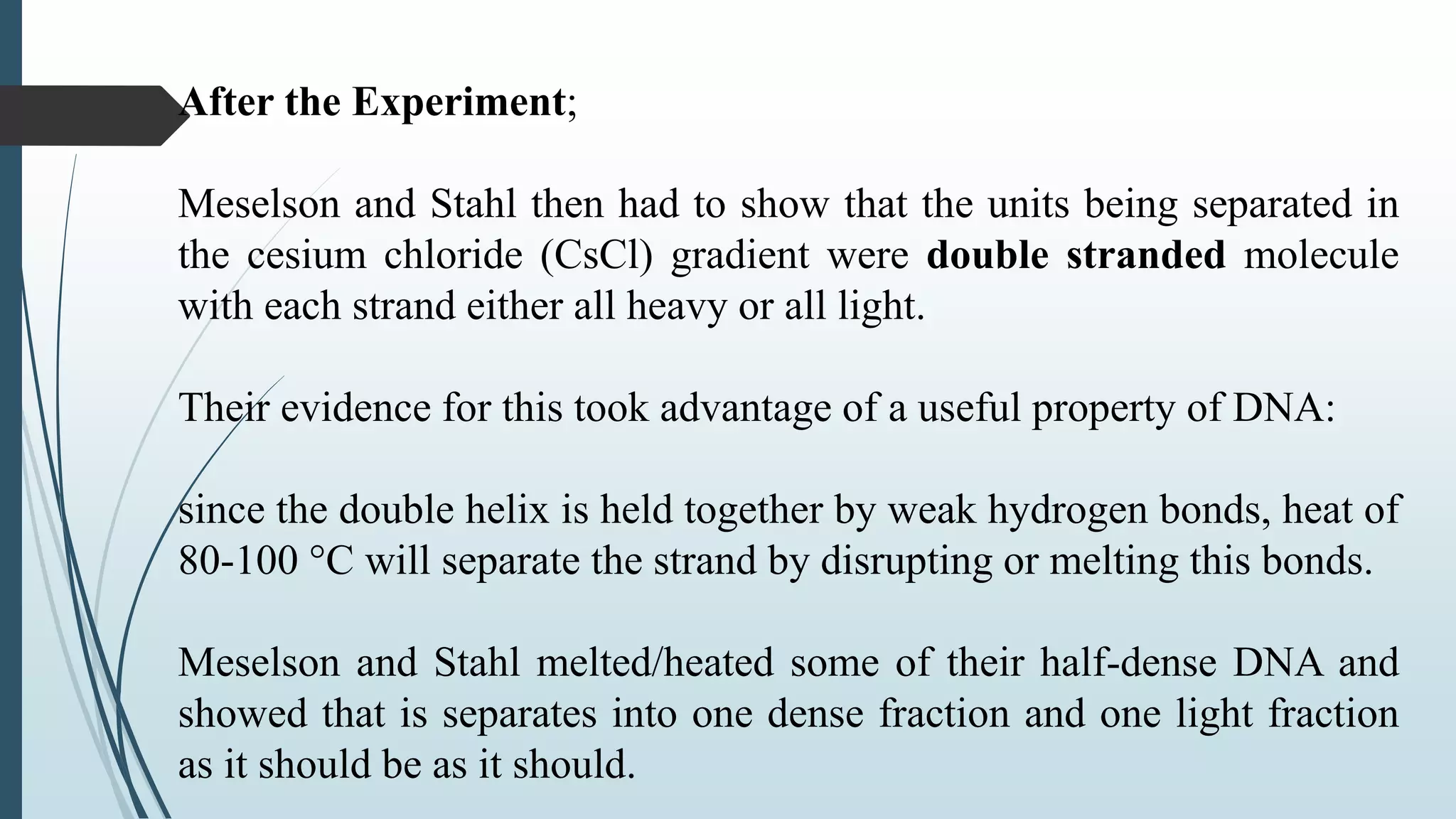

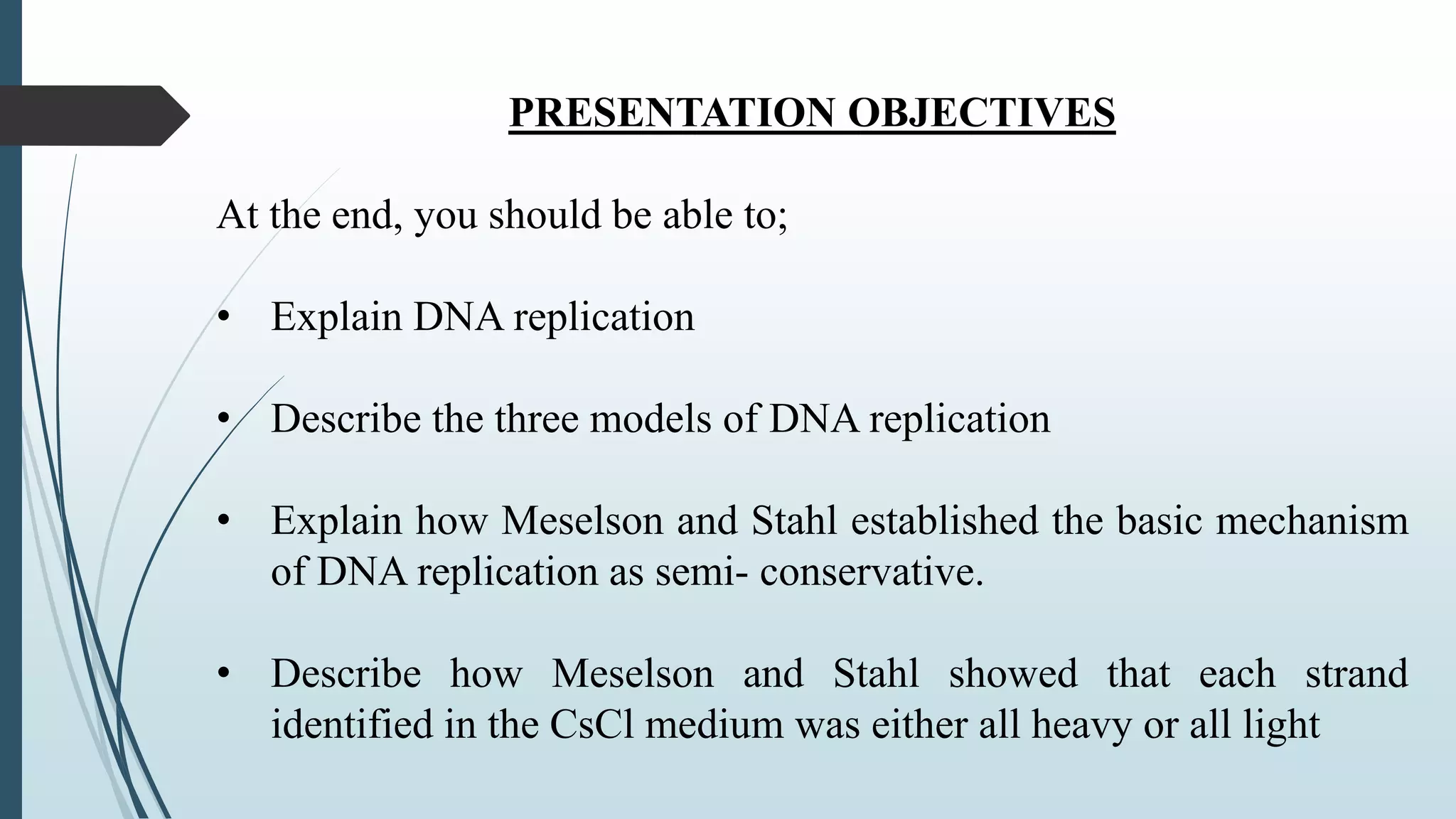

Meselson and Stahl in 1957 gave experimental evidence that each DNA .pdfanwarfoot
Meselson and Stahl in 1957 gave experimental evidence that each DNA strand served as a
template for new DNA synthesis, a process called semi-conservative replication. At that time,
there were three proposed models for DNA replication put forward by the scientific community
after DNA structure had been discovered- Semi-conservative, conservative and dispersive
replication.
Semi-conservative replication: In this model, the two strands of DNA unwind from each other,
and each acts as a template for synthesis of a new, complementary strand. This results in two
DNA molecules with one original strand and one new strand.
Conservative replication. In this model, DNA replication results in one molecule that consists of
both original DNA strands and another molecule that consists of two new strands with exactly
the same sequences as the original molecule.

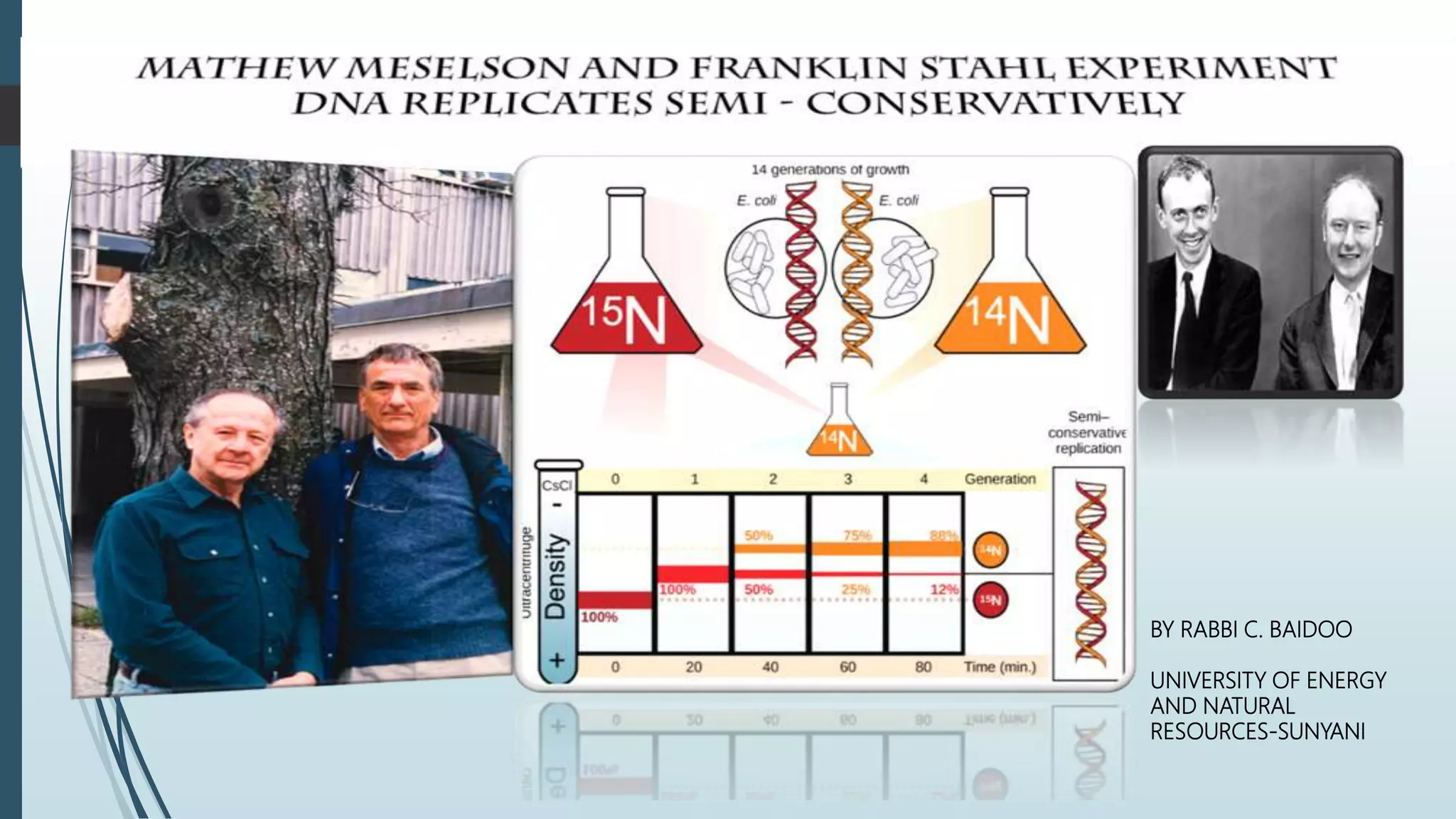

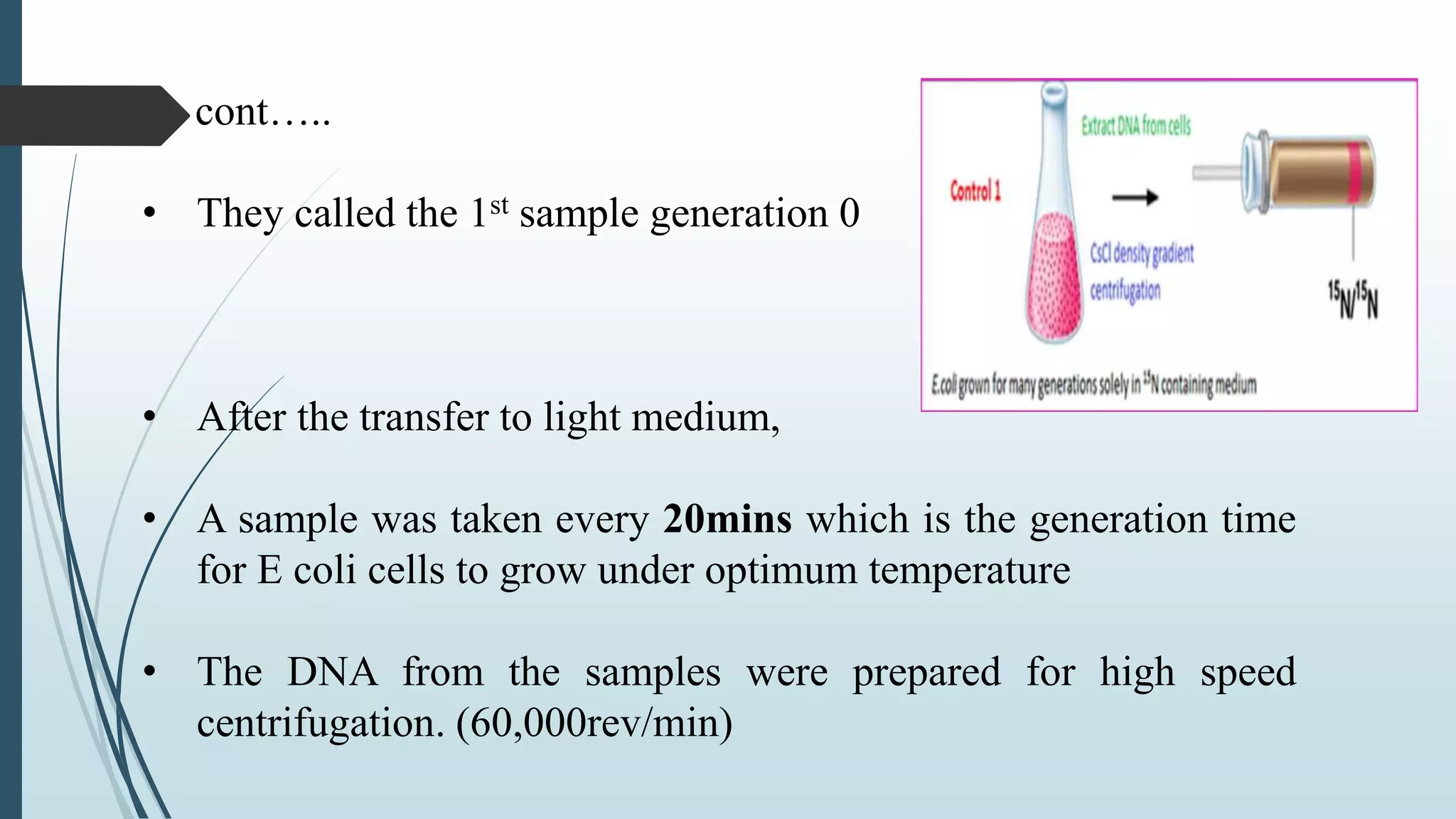

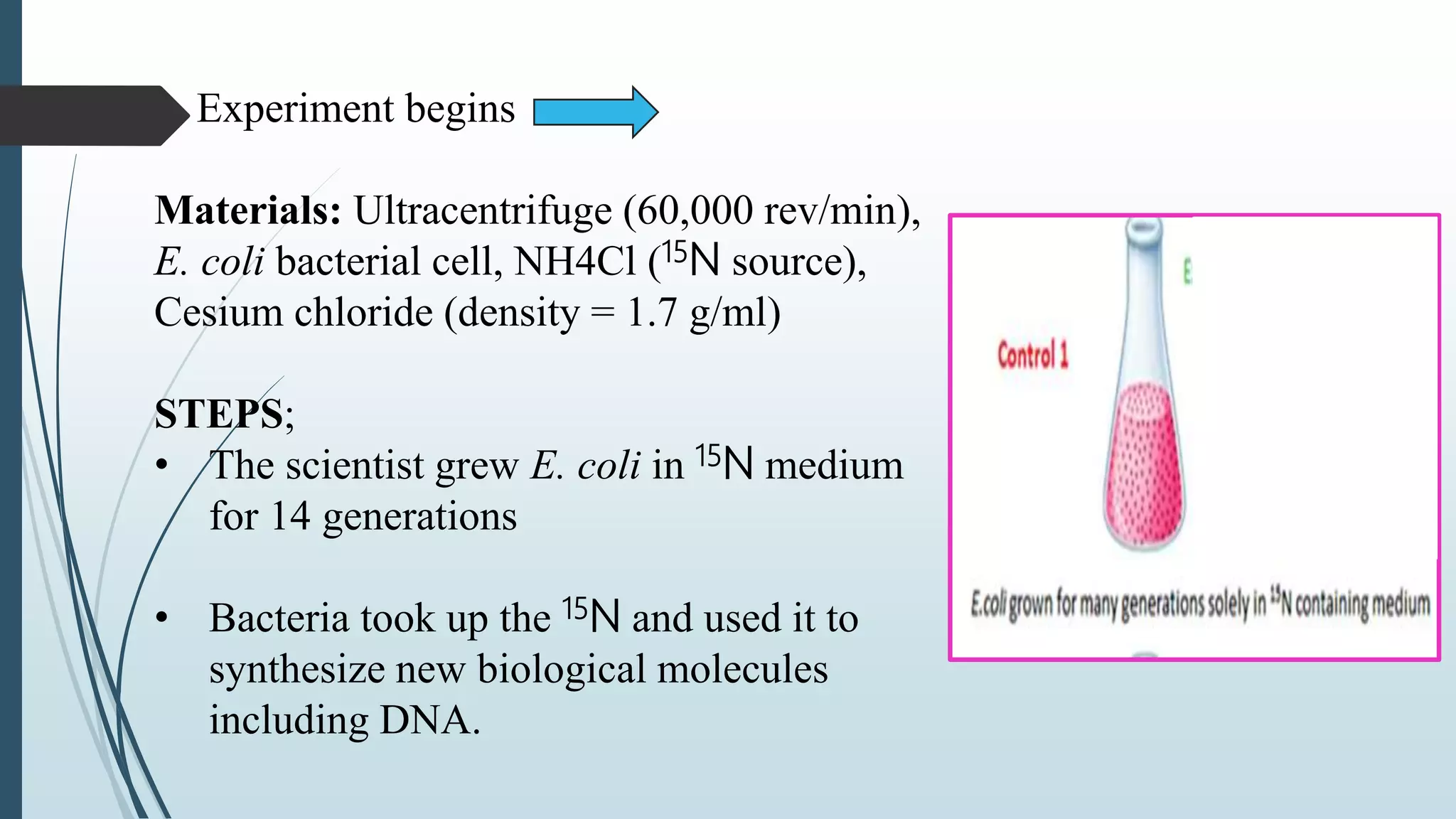

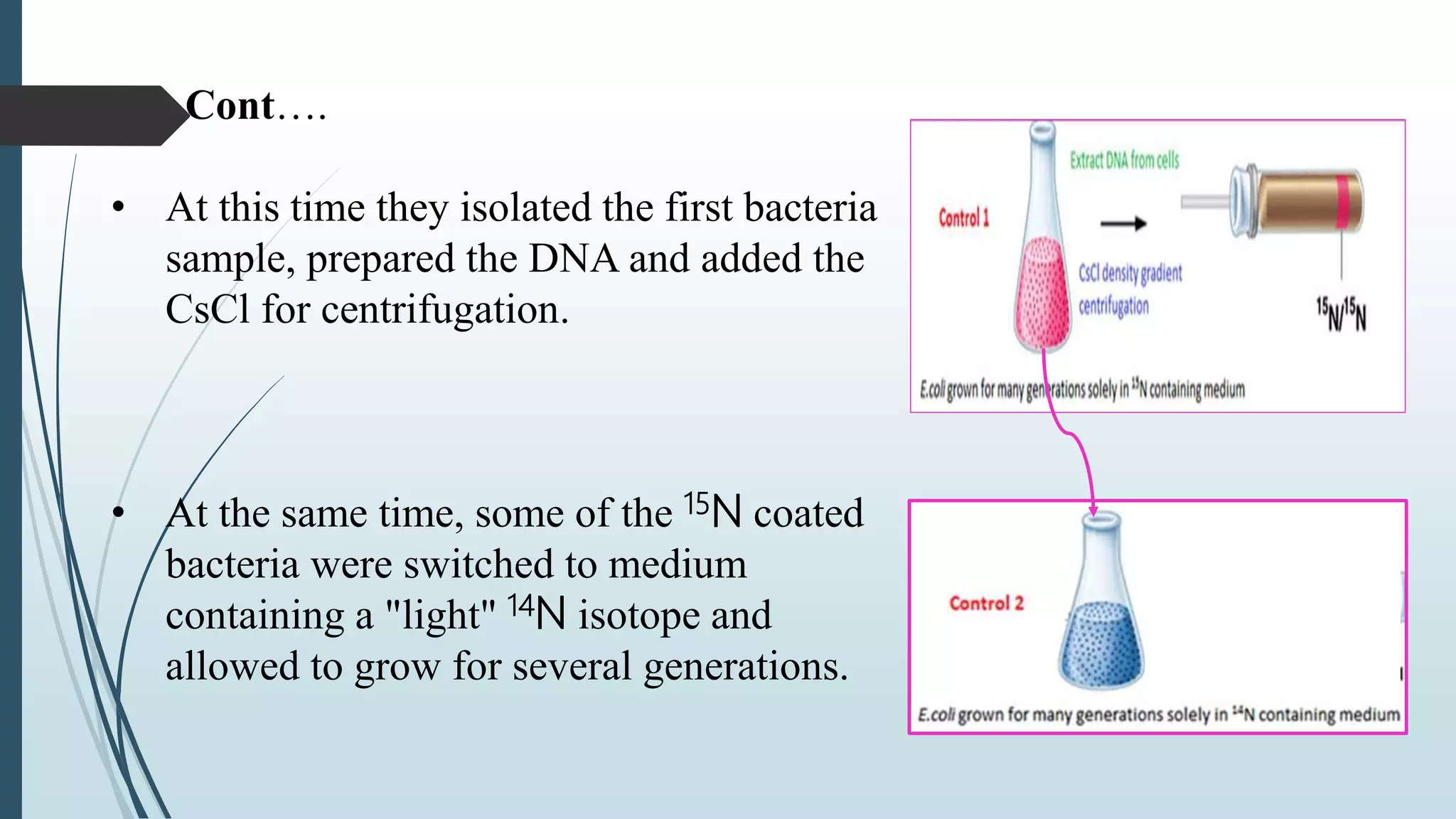

Meselson and Stahl used the density gradient sedimentation experiment (done with the E.Coli
bacteria) to establish that DNA replicates using the semi-conservative model of replication as
follows:
Results of analysis:
Solution
Meselson and Stahl in 1957 gave experimental evidence that each DNA strand served as a
template for new DNA synthesis, a process called semi-conservative replication. At that time,
there were three proposed models for DNA replication put forward by the scientific community
after DNA structure had been discovered- Semi-conservative, conservative and dispersive
replication.
Semi-conservative replication: In this model, the two strands of DNA unwind from each other,
and each acts as a template for synthesis of a new, complementary strand. This results in two
DNA molecules with one original strand and one new strand.
Conservative replication. In this model, DNA replication results in one molecule that consists of
both original DNA strands and another molecule that consists of two new strands with exactly
the same sequences as the original molecule.
Meselson and Stahl used the density gradient sedimentation experiment (done with the E.Coli
bacteria) to establish that DNA replicates using the semi-conservative model of replication as
follows:
Results of analysis:.
Definition - Rolling circle replication is a process of unidirectional nucleic acid replication.
* can rapidly synthesize multiple copies of circular molecules of DNA or RNA, such as plasmids.
* Eucaryotic also replicate.
* widely used in molecular biology & biomedical
nanotechnology, especially in the field of
biosensing (as a method of signal Amplification).
Steps:
Circular ds DNA will be “nicked”
3` end is elongated →Leading strand
5` end displaced → Lagging strand
made up of double stranded by OKAZAKI fragments.
4) Replication of both “ unnicked” and displaced ss DNA
5) Displaced DNA circulates and synthesis its own complementary strand.
Initation-- phosphate ends, by the action of:
a) Helicase
b) Topoisomerases
c) Single stranded binding proteins(SSBPs)
Elongation-OH group of broken strand, using the unbroken strand as a template. The polymerase will start to move in a circle for elongation, due to which it is named as Rolling Circle Model.
end will be displaced and will grow out like a waving thread.
Termination-* At the point of termination, the linear DNA molecule is cleaved from the circle resulting in a double stranded circular DNA molecule and a single- stranded linear DNA molecule.
* The linear single stranded molecule is circularized by the action of ligase and then replication to double stranded circular plasmid molecule.
Example- Conjugation of F+ and F- bacteria
Diagrammatic representation of Rolling circle
some Examples-Viral DNA
* Human herpes virus
* Human papilloma virus
* Geminivirus
Viral RNA
* pospiviridiae
* Avsunviridiae
Reference:- https://en. m. wikipedia.org
what- when- how.com
https//www.sciencedirect.com
www.slideshare.com
Genetics-notes.wikispace.com
you tube
Prescott 5th edition page.no: 236, 237
Brock biology of microorganism , page.no: 253,616
Each cell in the human contains all the genetic material for the growth and development of a human
Some of these genes will be need to be expressed all the time
These are the genes that are involved in of vital biochemical processes such as respiration
Other genes are not expressed all the time
They are switched on an off at need
This power point presentation is an attempt to present some direct and some indirect evidences in favour of DNA as genetic material. Very few organisms have RNA as genetic material for example plant virus and some bacteriophages
Meselson and Stahl in 1957 gave experimental evidence that each DNA .pdfanwarfoot
Meselson and Stahl in 1957 gave experimental evidence that each DNA strand served as a
template for new DNA synthesis, a process called semi-conservative replication. At that time,
there were three proposed models for DNA replication put forward by the scientific community
after DNA structure had been discovered- Semi-conservative, conservative and dispersive
replication.
Semi-conservative replication: In this model, the two strands of DNA unwind from each other,
and each acts as a template for synthesis of a new, complementary strand. This results in two
DNA molecules with one original strand and one new strand.
Conservative replication. In this model, DNA replication results in one molecule that consists of
both original DNA strands and another molecule that consists of two new strands with exactly
the same sequences as the original molecule.
Meselson and Stahl used the density gradient sedimentation experiment (done with the E.Coli
bacteria) to establish that DNA replicates using the semi-conservative model of replication as
follows:
Results of analysis:
Solution
Meselson and Stahl in 1957 gave experimental evidence that each DNA strand served as a
template for new DNA synthesis, a process called semi-conservative replication. At that time,
there were three proposed models for DNA replication put forward by the scientific community
after DNA structure had been discovered- Semi-conservative, conservative and dispersive
replication.
Semi-conservative replication: In this model, the two strands of DNA unwind from each other,
and each acts as a template for synthesis of a new, complementary strand. This results in two
DNA molecules with one original strand and one new strand.
Conservative replication. In this model, DNA replication results in one molecule that consists of
both original DNA strands and another molecule that consists of two new strands with exactly
the same sequences as the original molecule.
Meselson and Stahl used the density gradient sedimentation experiment (done with the E.Coli
bacteria) to establish that DNA replicates using the semi-conservative model of replication as
follows:
Results of analysis:.
In Meselson and Stahls experiment, cells were grown in media contai.pdfmalavshah9013
In Meselson and Stahl\'s experiment, cells were grown in media containing^15 N in place of^14
N. and then the cells\' DNA was separated by equilibrium centrifugation. This experiment
demonstrated that DNA is replicated by DNA polymerase replication is conservative.
replication is semiconservative. forms double helices by means of hydrogen bonding between
base pairs. replication occurs in opposite directions on complementary strands. Deduction of the
structure of DNA was based on a series of key X-ray crystallographic studies done by Avery,
MacLeod, and McCarty, Beadle and Tatum, Meselson and Stahl, Wilkins and Franklin, Watson
and Crick.
Solution
2) The correct option is option C - Peas.
Gregor Mendel was an Austrian monk who established the classical tenets of genetics based on
his experiments on the garden pea (Pisum sativum). He studied various characters such as height
of plant, pea pod shape and colour, flower colour etc. Based on his observations, he came up
with the 3 basic laws of genetics - The law of dominance, The law of segregation and The law of
independent assortment.
3) The correct option is option C- replication is semi-conservative
This is another classical example in molecular genetics performed by Messelson and Stahl. The
aim of the experiment was to establish the semi-conservative replication status of DNA strands.
Basically, it means that during replication of DNA, the double helix unwinds and separates into
two strands. Each strand then acts as a guiding strand ( template strand) over which the new
strand is synthesized. At the end of the replication cycle, one DNA molecule would have
replicated into two DNA molecules. Each molecule of DNA would have two strands- one
original parent strand and the other being the newly synthesized daughter strand.
4) The correct option is option D- Wilkins and Franklin
Maurice Wilkins and Rosalind Franklin performed the key X-ray diffraction experiments on
DNA. Their data was ultimately helpful for Watson and Crick to deduce the structure of DNA..
1) Phosphodiester bonds in DNA are advantageous because they are m.pdfanujmkt
1)
Phosphodiester bonds in DNA are advantageous because they are more stable chemically when
compared with ester bonds. This stability is rendered because of the negative charge present on a
phosphodiester bond. This charge repels similarly charged ions like OH- ions which have the
ability to carry out a nucleophilic hydrolysis reaction and hence break the bond. Hence such
hydrolysis cannot occur in a phosphodiester bond and it is more stable.
2)
The semi-conservative nature of DNA replication means that during DNA replication, each
daughter DNA has one strand inherited from the parent as it is and the other strand of the double
helix is newly synthesised. This was initially proved by Meselson and Stahl in 1958.
The experiment can be described in the following steps:
These results confirmed the hypothesis made by the 2 scientists as the initial band of heavy DNA
indicated all the DNA of same kind. The intermediate band in second generation indicated that
half the DNA was original (with heavy isotope) and the other half was with normal N. And then
the increase in band-width of normal N containing cells indicated that all new cells now
manufactured their DNA from medium having normal N source.
3)
Topoisomers are DNA molecules with same chemical structure but different topology i.e. they
have different geometrical properties and spatial relations. There are two major Topoisomers of
DNA:
Solution
1)
Phosphodiester bonds in DNA are advantageous because they are more stable chemically when
compared with ester bonds. This stability is rendered because of the negative charge present on a
phosphodiester bond. This charge repels similarly charged ions like OH- ions which have the
ability to carry out a nucleophilic hydrolysis reaction and hence break the bond. Hence such
hydrolysis cannot occur in a phosphodiester bond and it is more stable.
2)
The semi-conservative nature of DNA replication means that during DNA replication, each
daughter DNA has one strand inherited from the parent as it is and the other strand of the double
helix is newly synthesised. This was initially proved by Meselson and Stahl in 1958.
The experiment can be described in the following steps:
These results confirmed the hypothesis made by the 2 scientists as the initial band of heavy DNA
indicated all the DNA of same kind. The intermediate band in second generation indicated that
half the DNA was original (with heavy isotope) and the other half was with normal N. And then
the increase in band-width of normal N containing cells indicated that all new cells now
manufactured their DNA from medium having normal N source.
3)
Topoisomers are DNA molecules with same chemical structure but different topology i.e. they
have different geometrical properties and spatial relations. There are two major Topoisomers of
DNA:.
this file includes the packaging of DNA in Prokaryotic and Eukaryotic cell, the difference between DNA and RNA, Semi-conservative mode of DNA replication, and the mechanism of DNA replication.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
The Art Pastor's Guide to Sabbath | Steve ThomasonSteve Thomason
What is the purpose of the Sabbath Law in the Torah. It is interesting to compare how the context of the law shifts from Exodus to Deuteronomy. Who gets to rest, and why?
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
Instructions for Submissions thorugh G- Classroom.pptx
M. Meselson and F. Stahl experiment
1. BY RABBI C. BAIDOO
UNIVERSITY OF ENERGY
AND NATURAL
RESOURCES-SUNYANI
2. PRESENTATION OBJECTIVES
At the end, you should be able to;
• Explain DNA replication
• Describe the three models of DNA replication
• Explain how Meselson and Stahl established the basic mechanism
of DNA replication as semi- conservative.
• Describe how Meselson and Stahl showed that each strand
identified in the CsCl medium was either all heavy or all light

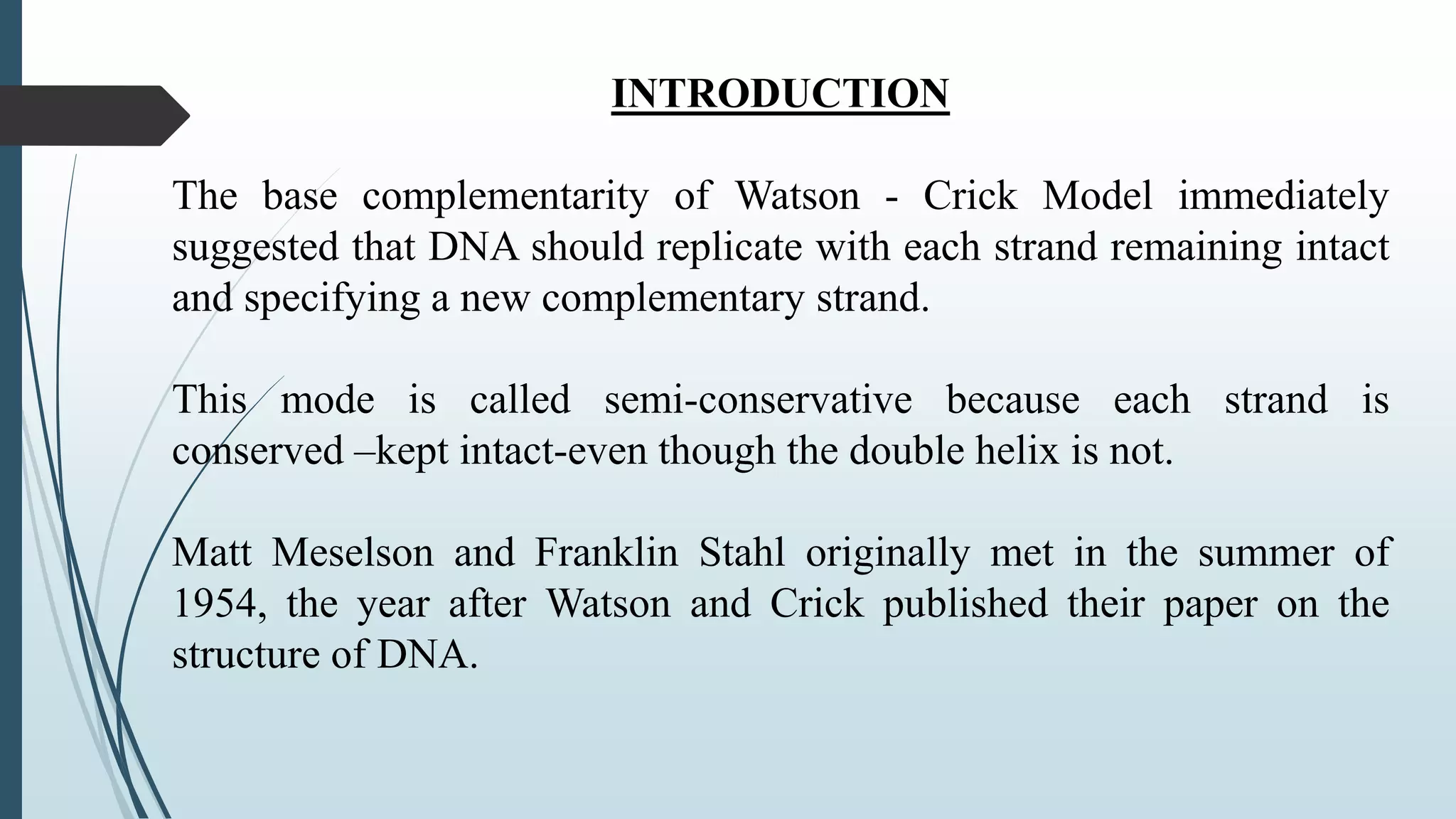

3. INTRODUCTION
The base complementarity of Watson - Crick Model immediately
suggested that DNA should replicate with each strand remaining intact
and specifying a new complementary strand.
This mode is called semi-conservative because each strand is
conserved –kept intact-even though the double helix is not.
Matt Meselson and Franklin Stahl originally met in the summer of
1954, the year after Watson and Crick published their paper on the
structure of DNA.
4. In 1958, Mathew Meselson and Franklin W. Stahl found a superb
way to test the prediction of the Watson - Crick Model regarding
replication.
The three models for DNA replication
5. Experiment begins
Materials: Ultracentrifuge (60,000 rev/min),
E. coli bacterial cell, NH4Cl (15N source),
Cesium chloride (density = 1.7 g/ml)
STEPS;
• The scientist grew E. coli in 15N medium
for 14 generations
• Bacteria took up the 15N and used it to
synthesize new biological molecules
including DNA.
6. Cont….
• At this time they isolated the first bacteria
sample, prepared the DNA and added the
CsCl for centrifugation.
• At the same time, some of the 15N coated
bacteria were switched to medium
containing a "light" 14N isotope and
allowed to grow for several generations.
7. cont…..
• They called the 1st sample generation 0
• After the transfer to light medium,
• A sample was taken every 20mins which is the generation time
for E coli cells to grow under optimum temperature
• The DNA from the samples were prepared for high speed
centrifugation. (60,000rev/min)
8. Cont….
• They found that the salt ions (CsCl) form a density
gradient, a solution whose density is low at the top of
the tube and increases steadily toward the bottom.
• Large molecules in the solution
will find an equilibrium position
where their buoyant density equals
that of the gradient.

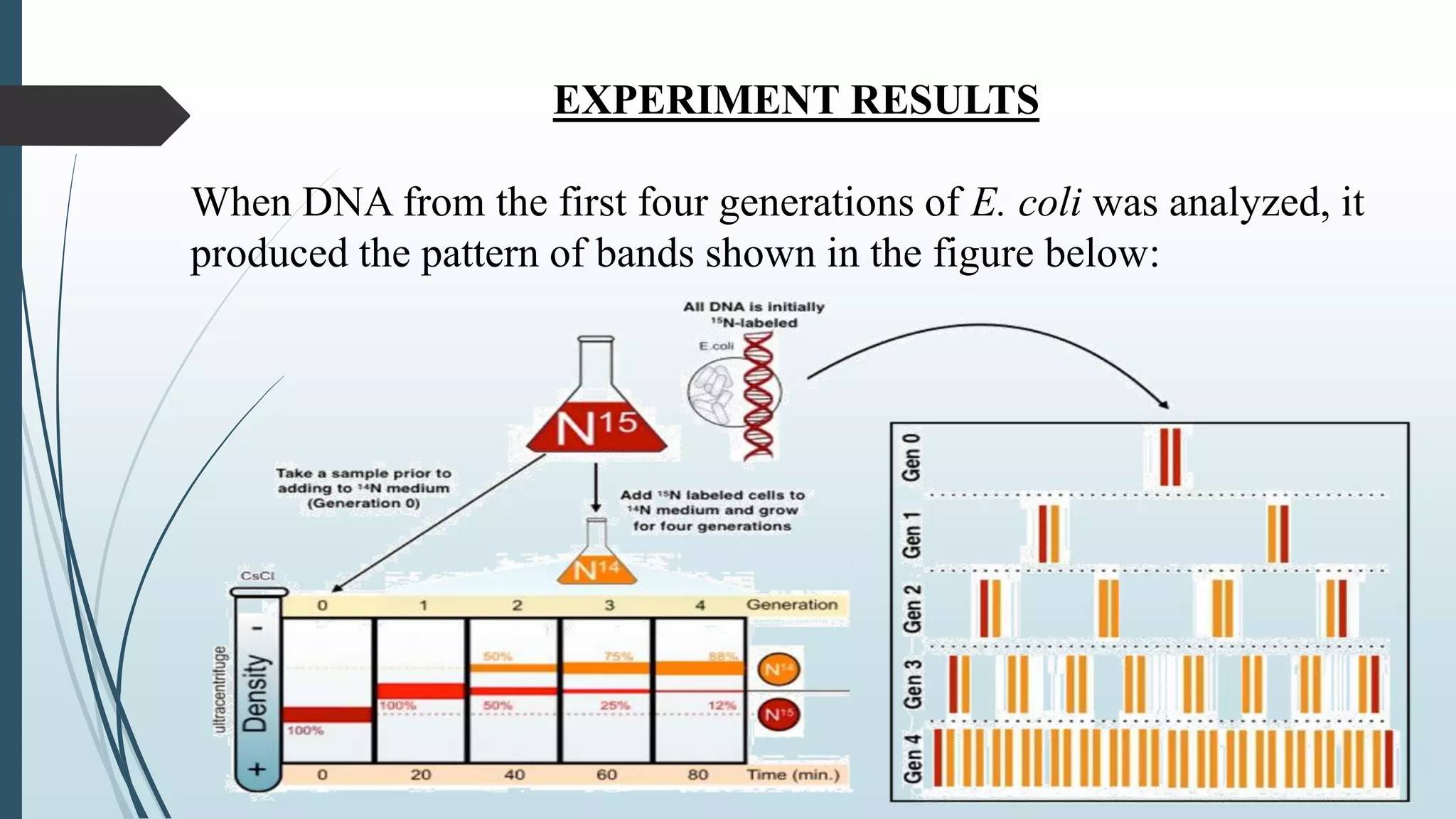

9. EXPERIMENT RESULTS
When DNA from the first four generations of E. coli was analyzed, it
produced the pattern of bands shown in the figure below:
10. After the Experiment;
Meselson and Stahl then had to show that the units being separated in
the cesium chloride (CsCl) gradient were double stranded molecule
with each strand either all heavy or all light.
Their evidence for this took advantage of a useful property of DNA:
since the double helix is held together by weak hydrogen bonds, heat of
80-100 °C will separate the strand by disrupting or melting this bonds.
Meselson and Stahl melted/heated some of their half-dense DNA and
showed that is separates into one dense fraction and one light fraction
as it should be as it should.

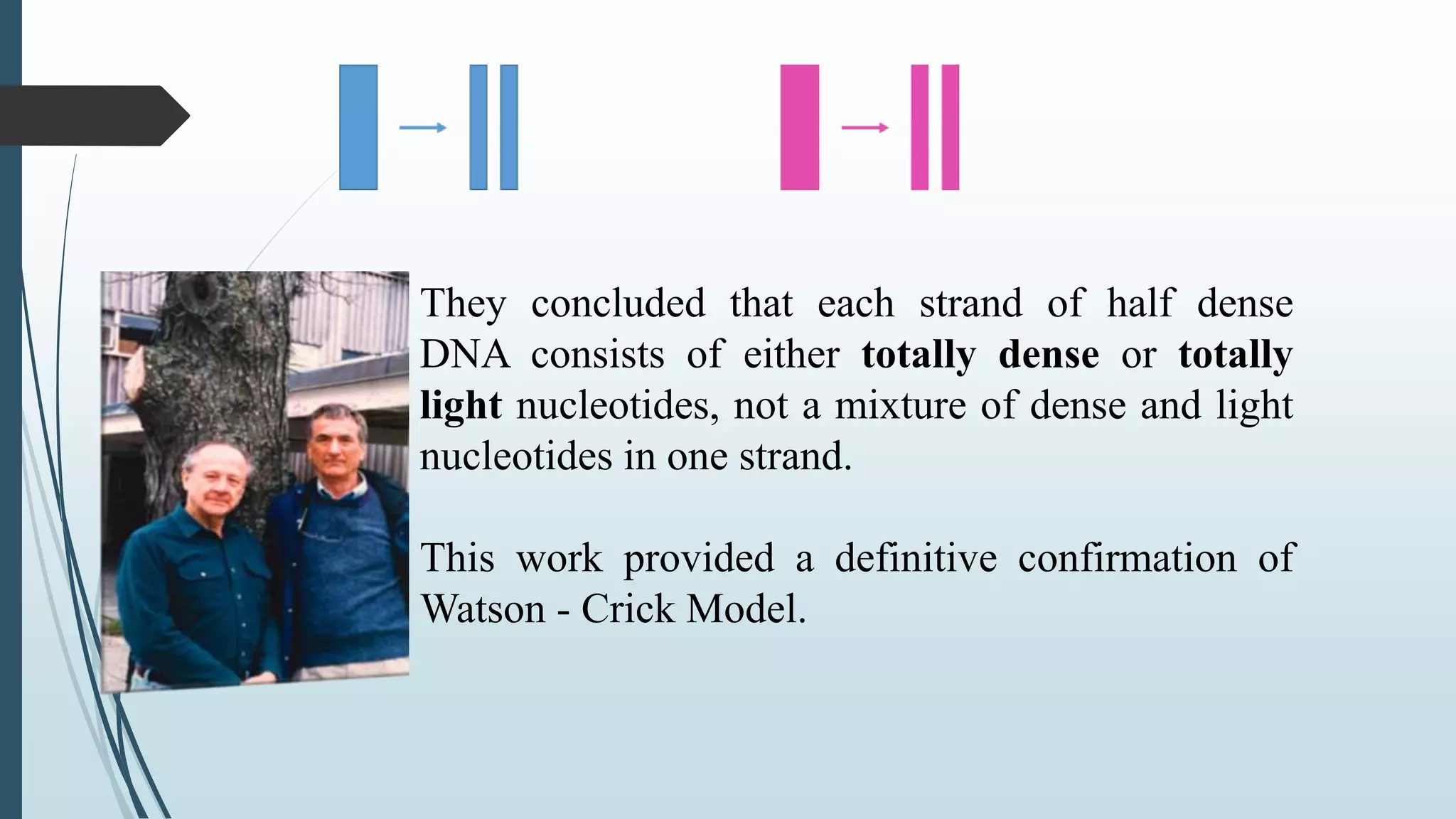

11. They concluded that each strand of half dense
DNA consists of either totally dense or totally
light nucleotides, not a mixture of dense and light
nucleotides in one strand.
This work provided a definitive confirmation of
Watson - Crick Model.
12. CONCLUSION
The experiment done by Meselson and Stahl demonstrated that DNA
replicated semi-conservatively, meaning that each strand in a DNA
molecule serves as a template for synthesis of a new, complementary
strand.
Although Meselson and Stahl did their experiments in the bacterium
E. coli, we know today that semi-conservative DNA replication is a
universal mechanism shared by all organisms on planet Earth.
Some of our cells are replicating their DNA semi-conservatively right
now!

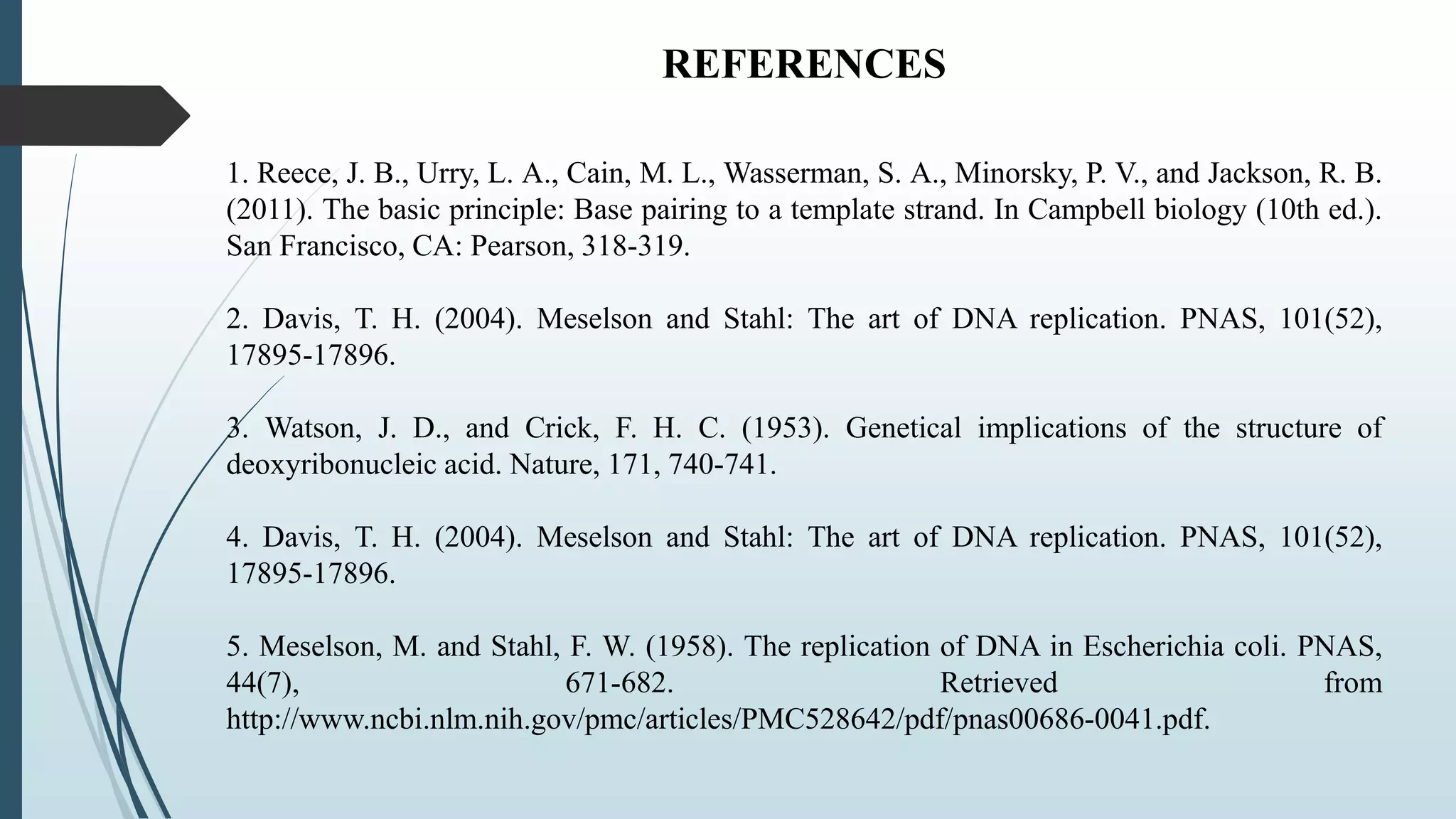

13. REFERENCES
1. Reece, J. B., Urry, L. A., Cain, M. L., Wasserman, S. A., Minorsky, P. V., and Jackson, R. B.
(2011). The basic principle: Base pairing to a template strand. In Campbell biology (10th ed.).
San Francisco, CA: Pearson, 318-319.
2. Davis, T. H. (2004). Meselson and Stahl: The art of DNA replication. PNAS, 101(52),
17895-17896.
3. Watson, J. D., and Crick, F. H. C. (1953). Genetical implications of the structure of
deoxyribonucleic acid. Nature, 171, 740-741.
4. Davis, T. H. (2004). Meselson and Stahl: The art of DNA replication. PNAS, 101(52),
17895-17896.
5. Meselson, M. and Stahl, F. W. (1958). The replication of DNA in Escherichia coli. PNAS,
44(7), 671-682. Retrieved from
http://www.ncbi.nlm.nih.gov/pmc/articles/PMC528642/pdf/pnas00686-0041.pdf.
