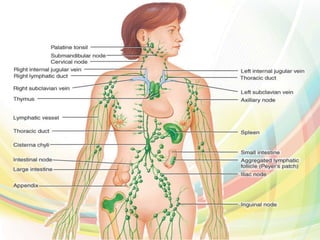

Lymphatic system

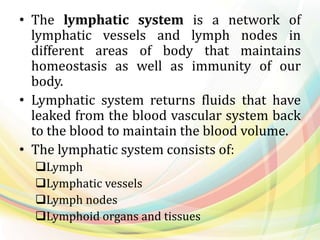

• The lymphatic system is a network of
lymphatic vessels and lymph nodes in
different areas of body that maintains
homeostasis as well as immunity of our
body.
• Lymphatic system returns fluids that have
leaked from the blood vascular system back
to the blood to maintain the blood volume.

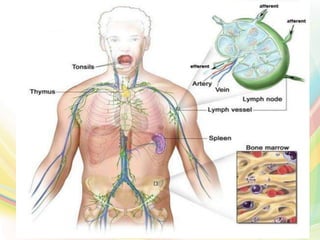

• The lymphatic system consists of:
Lymph
Lymphatic vessels
Lymph nodes

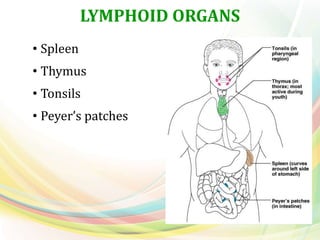

Lymphoid organs and tissues

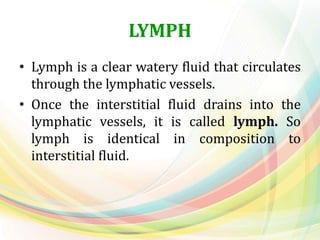

LYMPH
• Lymph is a clear watery fluid that circulates
through the lymphatic vessels.
• Once the interstitial fluid drains into the
lymphatic vessels, it is called lymph. So
lymph is identical in composition to
interstitial fluid.

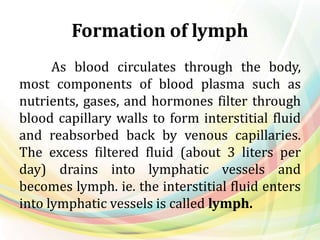

Formation of lymph
As blood circulates through the body,
most components of blood plasma such as
nutrients, gases, and hormones filter through
blood capillary walls to form interstitial fluid
and reabsorbed back by venous capillaries.
The excess filtered fluid (about 3 liters per
day) drains into lymphatic vessels and
becomes lymph. ie. the interstitial fluid enters
into lymphatic vessels is called lymph.

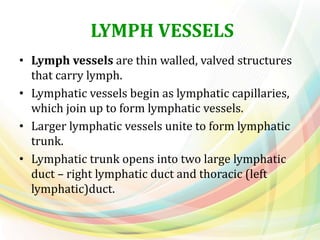

LYMPH VESSELS
• Lymph vessels are thin walled, valved structures
that carry lymph.
• Lymphatic vessels begin as lymphatic capillaries,
which join up to form lymphatic vessels.
• Larger lymphatic vessels unite to form lymphatic
trunk.
• Lymphatic trunk opens into two large lymphatic
duct – right lymphatic duct and thoracic (left
lymphatic)duct.

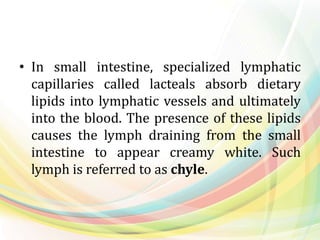

• In small intestine, specialized lymphatic
capillaries called lacteals absorb dietary
lipids into lymphatic vessels and ultimately
into the blood. The presence of these lipids
causes the lymph draining from the small
intestine to appear creamy white. Such
lymph is referred to as chyle.

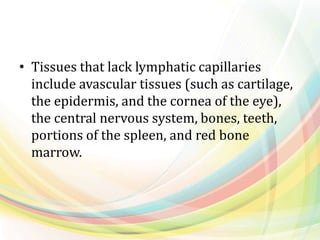

• Tissues that lack lymphatic capillaries
include avascular tissues (such as cartilage,
the epidermis, and the cornea of the eye),
the central nervous system, bones, teeth,
portions of the spleen, and red bone
marrow.

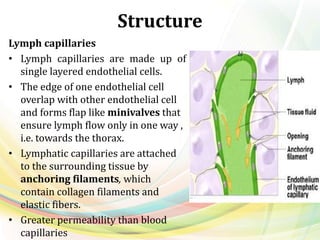

Structure

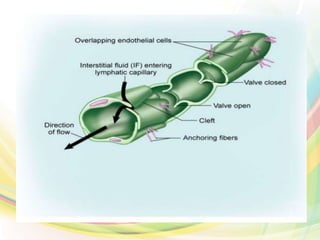

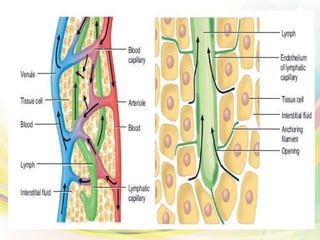

Lymph capillaries

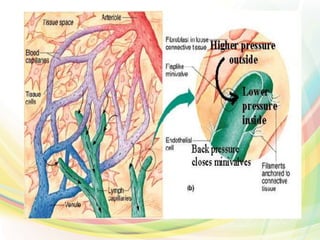

• Lymph capillaries are made up of
single layered endothelial cells.
• The edge of one endothelial cell
overlap with other endothelial cell
and forms flap like minivalves that
ensure lymph flow only in one way ,
i.e. towards the thorax.
• Lymphatic capillaries are attached
to the surrounding tissue by
anchoring filaments, which
contain collagen filaments and
elastic fibers.
• Greater permeability than blood
capillaries

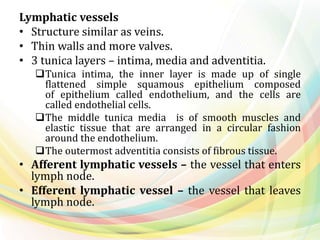

Lymphatic vessels
• Structure similar as veins.
• Thin walls and more valves.

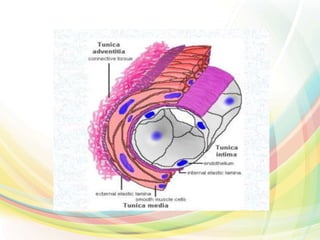

• 3 tunica layers – intima, media and adventitia.
Tunica intima, the inner layer is made up of single
flattened simple squamous epithelium composed
of epithelium called endothelium, and the cells are
called endothelial cells.
The middle tunica media is of smooth muscles and
elastic tissue that are arranged in a circular fashion
around the endothelium.
The outermost adventitia consists of fibrous tissue.
• Afferent lymphatic vessels – the vessel that enters
lymph node.
• Efferent lymphatic vessel – the vessel that leaves
lymph node.

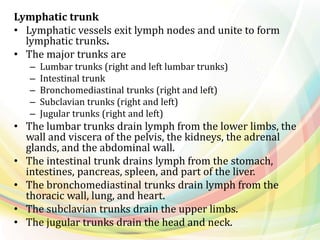

Lymphatic trunk
• Lymphatic vessels exit lymph nodes and unite to form
lymphatic trunks.
• The major trunks are
– Lumbar trunks (right and left lumbar trunks)
– Intestinal trunk
– Bronchomediastinal trunks (right and left)
– Subclavian trunks (right and left)
– Jugular trunks (right and left)
• The lumbar trunks drain lymph from the lower limbs, the
wall and viscera of the pelvis, the kidneys, the adrenal
glands, and the abdominal wall.
• The intestinal trunk drains lymph from the stomach,
intestines, pancreas, spleen, and part of the liver.
• The bronchomediastinal trunks drain lymph from the
thoracic wall, lung, and heart.
• The subclavian trunks drain the upper limbs.
• The jugular trunks drain the head and neck.

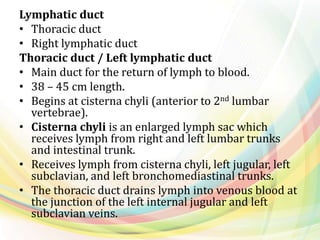

Lymphatic duct
• Thoracic duct
• Right lymphatic duct
Thoracic duct / Left lymphatic duct
• Main duct for the return of lymph to blood.
• 38 – 45 cm length.
• Begins at cisterna chyli (anterior to 2nd lumbar
vertebrae).
• Cisterna chyli is an enlarged lymph sac which
receives lymph from right and left lumbar trunks
and intestinal trunk.
• Receives lymph from cisterna chyli, left jugular, left
subclavian, and left bronchomediastinal trunks.
• The thoracic duct drains lymph into venous blood at
the junction of the left internal jugular and left
subclavian veins.

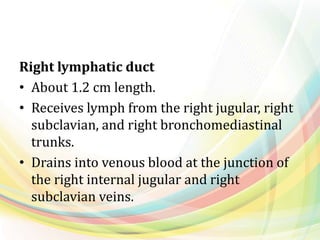

Right lymphatic duct
• About 1.2 cm length.
• Receives lymph from the right jugular, right
subclavian, and right bronchomediastinal
trunks.
• Drains into venous blood at the junction of
the right internal jugular and right
subclavian veins.
LYMPH NODES
 A lymph node is a small, bean-
shaped organ that serves as a
filtering and processing center for
immune system.
 It filter lymph before it is returned
to the blood.
 Located along lymph vessels.
 About 600 lymph nodes in body.
 Usually occur in groups.
 Lymph nodes are major sites of B, T
and other immune cells
 It can be seen widely in cervical,
auxiliary and inguinal regions
Lymph Node Structure
 Bean or kidney-shaped.
 1–25 mm length.
 Covered by capsule.
 Capsule is composed of
connective tissue.
 Trabeculae, the capsular
extensions divide the node into
compartments which provide a
route for blood vessels into the
interior of a node.
 Internal to the capsule is a
supporting network of reticular
fibers and fibroblasts.
 The capsule, trabeculae, reticular
fibers, and fibroblasts constitute
the stroma of a lymph node.

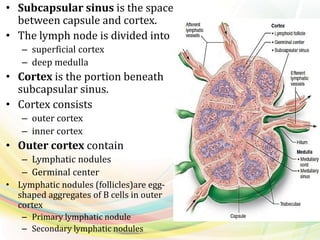

• Subcapsular sinus is the space
between capsule and cortex.
• The lymph node is divided into
– superficial cortex
– deep medulla
• Cortex is the portion beneath
subcapsular sinus.
• Cortex consists
– outer cortex
– inner cortex
• Outer cortex contain
– Lymphatic nodules
– Germinal center
• Lymphatic nodules (follicles)are egg-
shaped aggregates of B cells in outer
cortex
– Primary lymphatic nodule
– Secondary lymphatic nodules

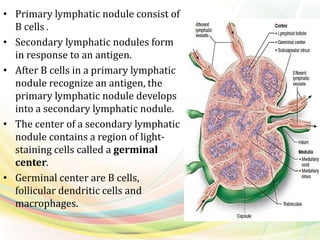

• Primary lymphatic nodule consist of
B cells .
• Secondary lymphatic nodules form
in response to an antigen.
• After B cells in a primary lymphatic
nodule recognize an antigen, the
primary lymphatic nodule develops
into a secondary lymphatic nodule.
• The center of a secondary lymphatic
nodule contains a region of light-
staining cells called a germinal
center.
• Germinal center are B cells,
follicular dendritic cells and
macrophages.

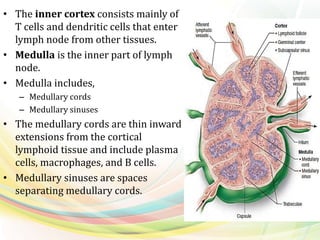

• The inner cortex consists mainly of
T cells and dendritic cells that enter
lymph node from other tissues.
• Medulla is the inner part of lymph
node.
• Medulla includes,
– Medullary cords
– Medullary sinuses
• The medullary cords are thin inward
extensions from the cortical
lymphoid tissue and include plasma
cells, macrophages, and B cells.
• Medullary sinuses are spaces
separating medullary cords.

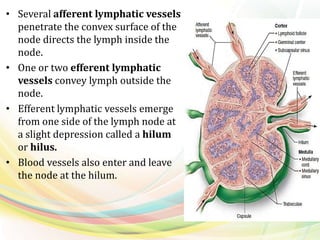

• Several afferent lymphatic vessels
penetrate the convex surface of the
node directs the lymph inside the
node.
• One or two efferent lymphatic
vessels convey lymph outside the
node.
• Efferent lymphatic vessels emerge
from one side of the lymph node at
a slight depression called a hilum
or hilus.
• Blood vessels also enter and leave
the node at the hilum.

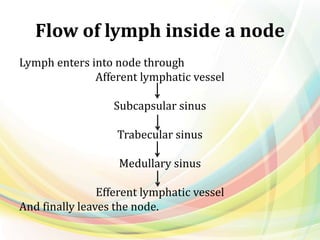

Flow of lymph inside a node
Lymph enters into node through
Afferent lymphatic vessel
Subcapsular sinus
Trabecular sinus
Medullary sinus
Efferent lymphatic vessel
And finally leaves the node.

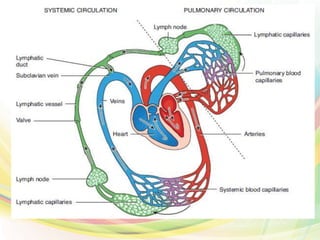

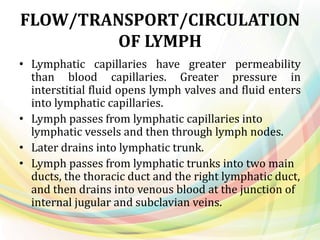

FLOW/TRANSPORT/CIRCULATION
OF LYMPH
• Lymphatic capillaries have greater permeability
than blood capillaries. Greater pressure in
interstitial fluid opens lymph valves and fluid enters
into lymphatic capillaries.
• Lymph passes from lymphatic capillaries into
lymphatic vessels and then through lymph nodes.
• Later drains into lymphatic trunk.
• Lymph passes from lymphatic trunks into two main
ducts, the thoracic duct and the right lymphatic duct,
and then drains into venous blood at the junction of
internal jugular and subclavian veins.

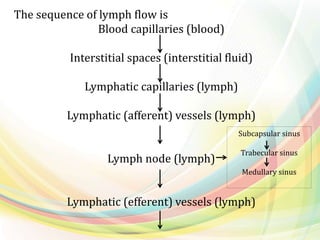

The sequence of lymph flow is
Blood capillaries (blood)
Interstitial spaces (interstitial fluid)
Lymphatic capillaries (lymph)
Lymphatic (afferent) vessels (lymph)
Lymph node (lymph)
Lymphatic (efferent) vessels (lymph)
Subcapsular sinus
Trabecular sinus
Medullary sinus

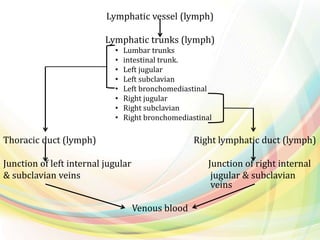

Lymphatic vessel (lymph)
Lymphatic trunks (lymph)
• Lumbar trunks
• intestinal trunk.
• Left jugular
• Left subclavian
• Left bronchomediastinal
• Right jugular
• Right subclavian
• Right bronchomediastinal
Thoracic duct (lymph) Right lymphatic duct (lymph)
Junction of left internal jugular Junction of right internal
& subclavian veins jugular & subclavian
veins
Venous blood

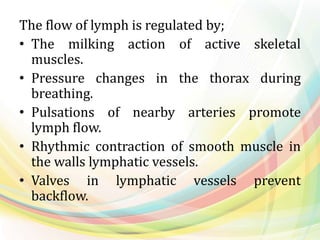

The flow of lymph is regulated by;
• The milking action of active skeletal
muscles.
• Pressure changes in the thorax during
breathing.
• Pulsations of nearby arteries promote
lymph flow.
• Rhythmic contraction of smooth muscle in
the walls lymphatic vessels.
• Valves in lymphatic vessels prevent
backflow.

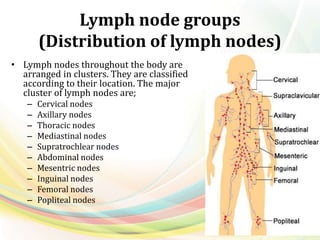

Lymph node groups
(Distribution of lymph nodes)
• Lymph nodes throughout the body are
arranged in clusters. They are classified
according to their location. The major
cluster of lymph nodes are;
– Cervical nodes

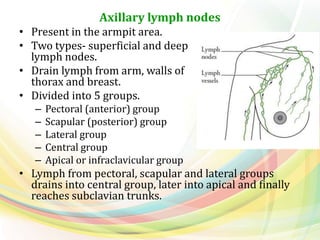

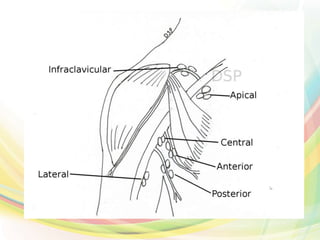

– Axillary nodes
– Thoracic nodes

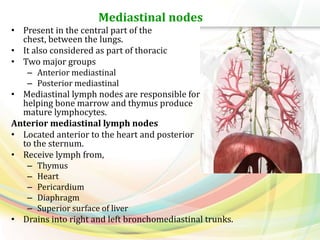

– Mediastinal nodes

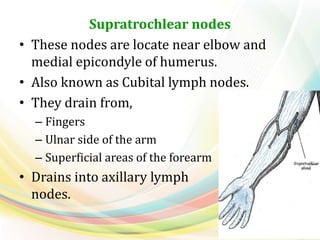

– Supratrochlear nodes

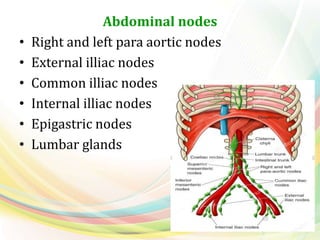

– Abdominal nodes
– Mesentric nodes
– Inguinal nodes
– Femoral nodes
– Popliteal nodes

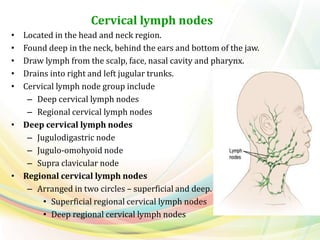

Cervical lymph nodes
• Located in the head and neck region.
• Found deep in the neck, behind the ears and bottom of the jaw.
• Draw lymph from the scalp, face, nasal cavity and pharynx.
• Drains into right and left jugular trunks.
• Cervical lymph node group include
– Deep cervical lymph nodes
– Regional cervical lymph nodes
• Deep cervical lymph nodes
– Jugulodigastric node
– Jugulo-omohyoid node
– Supra clavicular node
• Regional cervical lymph nodes
– Arranged in two circles – superficial and deep.
• Superficial regional cervical lymph nodes
• Deep regional cervical lymph nodes

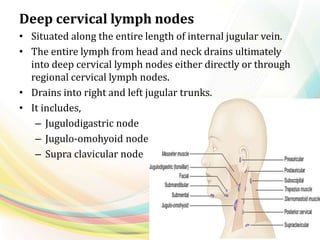

Deep cervical lymph nodes
• Situated along the entire length of internal jugular vein.
• The entire lymph from head and neck drains ultimately
into deep cervical lymph nodes either directly or through
regional cervical lymph nodes.
• Drains into right and left jugular trunks.
• It includes,
– Jugulodigastric node
– Jugulo-omohyoid node
– Supra clavicular node

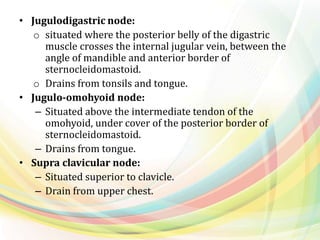

• Jugulodigastric node:
o situated where the posterior belly of the digastric
muscle crosses the internal jugular vein, between the
angle of mandible and anterior border of
sternocleidomastoid.
o Drains from tonsils and tongue.
• Jugulo-omohyoid node:
– Situated above the intermediate tendon of the
omohyoid, under cover of the posterior border of
sternocleidomastoid.
– Drains from tongue.
• Supra clavicular node:
– Situated superior to clavicle.
– Drain from upper chest.

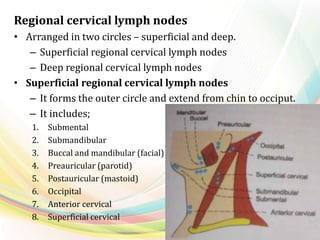

Regional cervical lymph nodes
• Arranged in two circles – superficial and deep.
– Superficial regional cervical lymph nodes
– Deep regional cervical lymph nodes
• Superficial regional cervical lymph nodes
– It forms the outer circle and extend from chin to occiput.
– It includes;
1. Submental
2. Submandibular
3. Buccal and mandibular (facial)
4. Preauricular (parotid)
5. Postauricular (mastoid)
6. Occipital
7. Anterior cervical
8. Superficial cervical

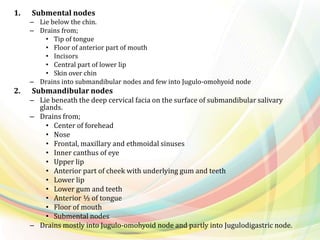

1. Submental nodes
– Lie below the chin.
– Drains from;
• Tip of tongue
• Floor of anterior part of mouth
• Incisors
• Central part of lower lip
• Skin over chin
– Drains into submandibular nodes and few into Jugulo-omohyoid node
2. Submandibular nodes
– Lie beneath the deep cervical facia on the surface of submandibular salivary
glands.
– Drains from;
• Center of forehead
• Nose
• Frontal, maxillary and ethmoidal sinuses
• Inner canthus of eye
• Upper lip
• Anterior part of cheek with underlying gum and teeth
• Lower lip
• Lower gum and teeth
• Anterior ⅓ of tongue
• Floor of mouth
• Submental nodes
– Drains mostly into Jugulo-omohyoid node and partly into Jugulodigastric node.

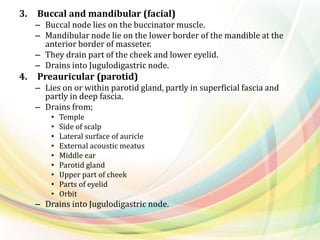

3. Buccal and mandibular (facial)
– Buccal node lies on the buccinator muscle.
– Mandibular node lie on the lower border of the mandible at the
anterior border of masseter.
– They drain part of the cheek and lower eyelid.
– Drains into Jugulodigastric node.
4. Preauricular (parotid)
– Lies on or within parotid gland, partly in superficial fascia and
partly in deep fascia.
– Drains from;
• Temple
• Side of scalp
• Lateral surface of auricle
• External acoustic meatus
• Middle ear
• Parotid gland
• Upper part of cheek
• Parts of eyelid
• Orbit
– Drains into Jugulodigastric node.

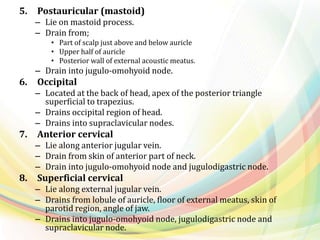

5. Postauricular (mastoid)
– Lie on mastoid process.
– Drain from;
• Part of scalp just above and below auricle
• Upper half of auricle
• Posterior wall of external acoustic meatus.
– Drain into jugulo-omohyoid node.
6. Occipital
– Located at the back of head, apex of the posterior triangle
superficial to trapezius.
– Drains occipital region of head.
– Drains into supraclavicular nodes.
7. Anterior cervical
– Lie along anterior jugular vein.
– Drain from skin of anterior part of neck.
– Drain into jugulo-omohyoid node and jugulodigastric node.
8. Superficial cervical
– Lie along external jugular vein.
– Drains from lobule of auricle, floor of external meatus, skin of
parotid region, angle of jaw.
– Drains into jugulo-omohyoid node, jugulodigastric node and
supraclavicular node.

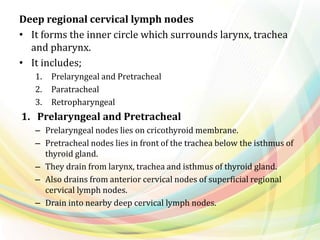

Deep regional cervical lymph nodes
• It forms the inner circle which surrounds larynx, trachea
and pharynx.
• It includes;
1. Prelaryngeal and Pretracheal
2. Paratracheal
3. Retropharyngeal
1. Prelaryngeal and Pretracheal
– Prelaryngeal nodes lies on cricothyroid membrane.
– Pretracheal nodes lies in front of the trachea below the isthmus of
thyroid gland.
– They drain from larynx, trachea and isthmus of thyroid gland.
– Also drains from anterior cervical nodes of superficial regional
cervical lymph nodes.
– Drain into nearby deep cervical lymph nodes.

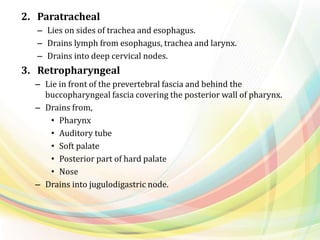

2. Paratracheal
– Lies on sides of trachea and esophagus.
– Drains lymph from esophagus, trachea and larynx.
– Drains into deep cervical nodes.
3. Retropharyngeal
– Lie in front of the prevertebral fascia and behind the
buccopharyngeal fascia covering the posterior wall of pharynx.
– Drains from,
• Pharynx
• Auditory tube
• Soft palate
• Posterior part of hard palate
• Nose
– Drains into jugulodigastric node.
Axillary lymph nodes
• Present in the armpit area.
• Two types- superficial and deep
lymph nodes.
• Drain lymph from arm, walls of
thorax and breast.
• Divided into 5 groups.
– Pectoral (anterior) group
– Scapular (posterior) group
– Lateral group
– Central group
– Apical or infraclavicular group
• Lymph from pectoral, scapular and lateral groups
drains into central group, later into apical and finally
reaches subclavian trunks.

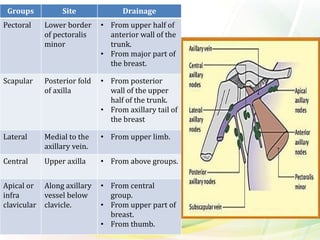

Groups Site Drainage
Pectoral Lower border
of pectoralis
minor
• From upper half of
anterior wall of the
trunk.
• From major part of
the breast.
Scapular Posterior fold
of axilla
• From posterior
wall of the upper
half of the trunk.
• From axillary tail of
the breast
Lateral Medial to the
axillary vein.
• From upper limb.
Central Upper axilla • From above groups.
Apical or
infra
clavicular
Along axillary
vessel below
clavicle.
• From central
group.
• From upper part of
breast.
• From thumb.

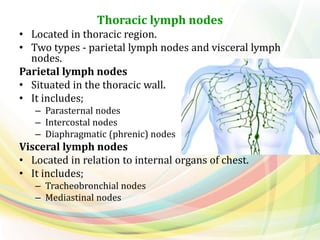

Thoracic lymph nodes
• Located in thoracic region.
• Two types - parietal lymph nodes and visceral lymph
nodes.
Parietal lymph nodes
• Situated in the thoracic wall.
• It includes;
– Parasternal nodes
– Intercostal nodes
– Diaphragmatic (phrenic) nodes
Visceral lymph nodes
• Located in relation to internal organs of chest.
• It includes;
– Tracheobronchial nodes
– Mediastinal nodes

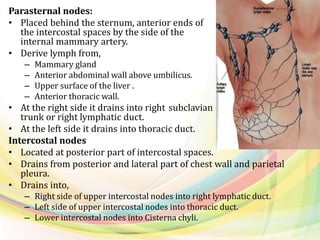

Parasternal nodes:
• Placed behind the sternum, anterior ends of
the intercostal spaces by the side of the
internal mammary artery.
• Derive lymph from,
– Mammary gland
– Anterior abdominal wall above umbilicus.
– Upper surface of the liver .
– Anterior thoracic wall.
• At the right side it drains into right subclavian
trunk or right lymphatic duct.
• At the left side it drains into thoracic duct.
Intercostal nodes
• Located at posterior part of intercostal spaces.
• Drains from posterior and lateral part of chest wall and parietal
pleura.
• Drains into,
– Right side of upper intercostal nodes into right lymphatic duct.
– Left side of upper intercostal nodes into thoracic duct.
– Lower intercostal nodes into Cisterna chyli.

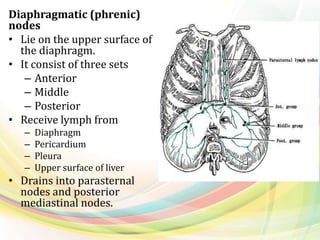

Diaphragmatic (phrenic)
nodes
• Lie on the upper surface of
the diaphragm.
• It consist of three sets
– Anterior
– Middle
– Posterior
• Receive lymph from
– Diaphragm
– Pericardium
– Pleura
– Upper surface of liver
• Drains into parasternal
nodes and posterior
mediastinal nodes.

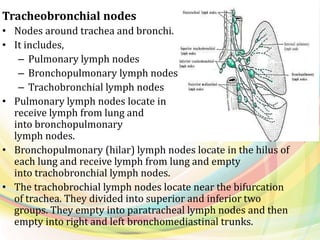

Tracheobronchial nodes
• Nodes around trachea and bronchi.
• It includes,
– Pulmonary lymph nodes
– Bronchopulmonary lymph nodes
– Trachobronchial lymph nodes
• Pulmonary lymph nodes locate in lungs,
receive lymph from lung and empty
into bronchopulmonary
lymph nodes.
• Bronchopulmonary (hilar) lymph nodes locate in the hilus of
each lung and receive lymph from lung and empty
into trachobronchial lymph nodes.
• The trachobrochial lymph nodes locate near the bifurcation
of trachea. They divided into superior and inferior two
groups. They empty into paratracheal lymph nodes and then
empty into right and left bronchomediastinal trunks.
Mediastinal nodes
• Present in the central part of the
chest, between the lungs.
• It also considered as part of thoracic nodes.
• Two major groups
– Anterior mediastinal
– Posterior mediastinal
• Mediastinal lymph nodes are responsible for
helping bone marrow and thymus produce
mature lymphocytes.
Anterior mediastinal lymph nodes
• Located anterior to the heart and posterior
to the sternum.
• Receive lymph from,
– Thymus
– Heart
– Pericardium
– Diaphragm
– Superior surface of liver
• Drains into right and left bronchomediastinal trunks.

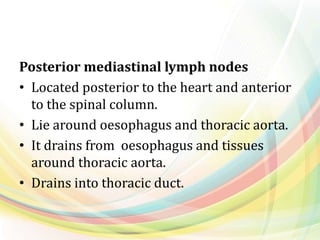

Posterior mediastinal lymph nodes
• Located posterior to the heart and anterior
to the spinal column.
• Lie around oesophagus and thoracic aorta.
• It drains from oesophagus and tissues
around thoracic aorta.
• Drains into thoracic duct.
Supratrochlear nodes
• These nodes are locate near elbow and
medial epicondyle of humerus.
• Also known as Cubital lymph nodes.
• They drain from,
– Fingers
– Ulnar side of the arm
– Superficial areas of the forearm
• Drains into axillary lymph
nodes.
Abdominal nodes
• Right and left para aortic nodes
• External illiac nodes
• Common illiac nodes
• Internal illiac nodes
• Epigastric nodes
• Lumbar glands

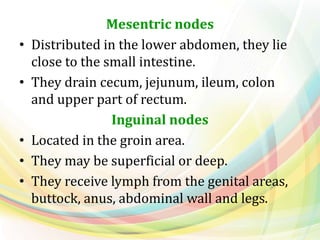

Mesentric nodes
• Distributed in the lower abdomen, they lie
close to the small intestine.
• They drain cecum, jejunum, ileum, colon
and upper part of rectum.
Inguinal nodes
• Located in the groin area.
• They may be superficial or deep.
• They receive lymph from the genital areas,
buttock, anus, abdominal wall and legs.
Femoral nodes
• Located in the upper thigh portion along the
femoral veins.
• They drain from some of the genital parts, buttock,
thigh and the medial side of the leg.
Popliteal nodes
• Present in the knee area called popliteal fossa.
• There are two sets of popliteal lymph nodes some
are present beneath the popliteal fascia and some
are found between the popliteal artery and the
posterior surface of the knee joint.
• They drain from the knee, thigh, calf and feet.
LYMPHOID ORGANS
• Spleen
• Thymus
• Tonsils
• Peyer’s patches

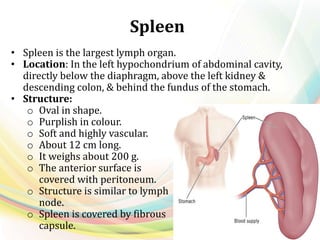

Spleen
• Spleen is the largest lymph organ.
• Location: In the left hypochondrium of abdominal cavity,
directly below the diaphragm, above the left kidney &
descending colon, & behind the fundus of the stomach.
• Structure:
o Oval in shape.
o Purplish in colour.
o Soft and highly vascular.
o About 12 cm long.
o It weighs about 200 g.
o The anterior surface is
covered with peritoneum.
o Structure is similar to lymph
node.
o Spleen is covered by fibrous
capsule.

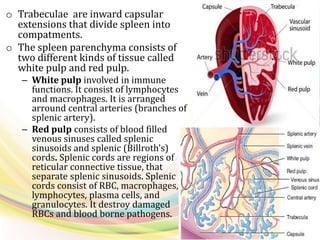

o Trabeculae are inward capsular
extensions that divide spleen into
compatments.
o The spleen parenchyma consists of
two different kinds of tissue called
white pulp and red pulp.
– White pulp involved in immune
functions. It consist of lymphocytes
and macrophages. It is arranged
arround central arteries (branches of
splenic artery).
– Red pulp consists of blood filled
venous sinuses called splenic
sinusoids and splenic (Billroth’s)
cords. Splenic cords are regions of
reticular connective tissue, that
separate splenic sinusoids. Splenic
cords consist of RBC, macrophages,
lymphocytes, plasma cells, and
granulocytes. It destroy damaged
RBCs and blood borne pathogens.

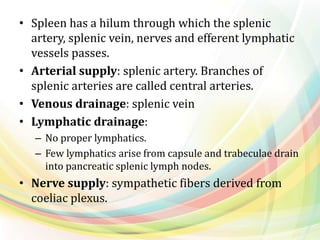

• Spleen has a hilum through which the splenic
artery, splenic vein, nerves and efferent lymphatic
vessels passes.
• Arterial supply: splenic artery. Branches of
splenic arteries are called central arteries.
• Venous drainage: splenic vein
• Lymphatic drainage:
– No proper lymphatics.
– Few lymphatics arise from capsule and trabeculae drain
into pancreatic splenic lymph nodes.
• Nerve supply: sympathetic fibers derived from
coeliac plexus.

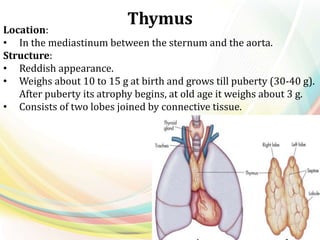

Thymus
Location:
• In the mediastinum between the sternum and the aorta.
Structure:
• Reddish appearance.
• Weighs about 10 to 15 g at birth and grows till puberty (30-40 g).
After puberty its atrophy begins, at old age it weighs about 3 g.
• Consists of two lobes joined by connective tissue.

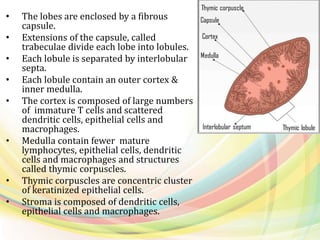

• The lobes are enclosed by a fibrous
capsule.
• Extensions of the capsule, called
trabeculae divide each lobe into lobules.
• Each lobule is separated by interlobular
septa.
• Each lobule contain an outer cortex &
inner medulla.
• The cortex is composed of large numbers
of immature T cells and scattered
dendritic cells, epithelial cells and
macrophages.
• Medulla contain fewer mature
lymphocytes, epithelial cells, dendritic
cells and macrophages and structures
called thymic corpuscles.
• Thymic corpuscles are concentric cluster
of keratinized epithelial cells.
• Stroma is composed of dendritic cells,
epithelial cells and macrophages.
Tonsils
• The tonsils form a ring of lymphoid
tissue around the entrance to the
pharynx (throat).
• Tonsils include;
• Single pharyngeal tonsil or adenoid
embedded in the posterior wall of
the nasopharynx.
• Two palatine tonsils lie at the
posterior region of the oral cavity,
one on either side.
• Paired lingual tonsils located at the
base of the tongue.
• Tubal tonsils surround the openings
of the auditory tubes into the
pharynx.

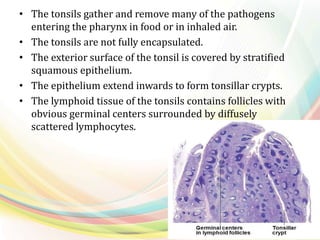

• The tonsils gather and remove many of the pathogens
entering the pharynx in food or in inhaled air.
• The tonsils are not fully encapsulated.
• The exterior surface of the tonsil is covered by stratified
squamous epithelium.
• The epithelium extend inwards to form tonsillar crypts.
• The lymphoid tissue of the tonsils contains follicles with
obvious germinal centers surrounded by diffusely
scattered lymphocytes.

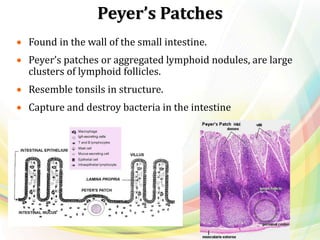

Peyer’s Patches
 Found in the wall of the small intestine.
 Peyer’s patches or aggregated lymphoid nodules, are large
clusters of lymphoid follicles.
 Resemble tonsils in structure.
 Capture and destroy bacteria in the intestine
The Anatomy and Function of the Lymphatic System

More Related Content

What's hot

What's hot (20)

Lymphatic system-----(Physiology)
Lymphatic system-----(Physiology)Lymphatic system-----(Physiology)
Lymphatic system-----(Physiology)

Anatomy and physiology of human tissues.pptx
Anatomy and physiology of human tissues.pptxAnatomy and physiology of human tissues.pptx
Anatomy and physiology of human tissues.pptx

Muscular tissue Histology
Muscular tissue HistologyMuscular tissue Histology
Muscular tissue Histology

the cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heartthe cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heart

Wbc ppt
Wbc pptWbc ppt
Wbc ppt

Lymphatic System
Lymphatic System Lymphatic System
Lymphatic System

The Axial Skeleton & Appendicular Skeleton
The Axial Skeleton & Appendicular SkeletonThe Axial Skeleton & Appendicular Skeleton
The Axial Skeleton & Appendicular Skeleton

LYMPHATIC SYSTEM
LYMPHATIC SYSTEMLYMPHATIC SYSTEM
LYMPHATIC SYSTEM

2.1 blood circulation
2.1 blood circulation2.1 blood circulation
2.1 blood circulation

Anatomy and physiology of Lymphatic System
Anatomy and physiology of Lymphatic SystemAnatomy and physiology of Lymphatic System
Anatomy and physiology of Lymphatic System

Smooth muscle
Smooth muscleSmooth muscle
Smooth muscle

Urinary System Anatomy - ppt
Urinary System Anatomy - pptUrinary System Anatomy - ppt
Urinary System Anatomy - ppt

Tissues
TissuesTissues
Tissues

White blood cells
White blood cells White blood cells
White blood cells

Lymphatic system anatomy
Lymphatic system anatomyLymphatic system anatomy
Lymphatic system anatomy

CARDIOVASCULAR SYSTEM - ANATOMY & PHYSIOLOGY
CARDIOVASCULAR SYSTEM - ANATOMY & PHYSIOLOGYCARDIOVASCULAR SYSTEM - ANATOMY & PHYSIOLOGY
CARDIOVASCULAR SYSTEM - ANATOMY & PHYSIOLOGY

lymphatic system
lymphatic systemlymphatic system
lymphatic system

Anatomy of Lymphatic system
Anatomy of Lymphatic systemAnatomy of Lymphatic system
Anatomy of Lymphatic system

Cardiovascular system
Cardiovascular systemCardiovascular system
Cardiovascular system

Anatomy of the Cardiovascular system
Anatomy of the Cardiovascular systemAnatomy of the Cardiovascular system
Anatomy of the Cardiovascular system


Similar to The Anatomy and Function of the Lymphatic System

Similar to The Anatomy and Function of the Lymphatic System (20)

Lymphatic drainage
Lymphatic drainageLymphatic drainage
Lymphatic drainage

The lymphatic system of the human body and health
The lymphatic system of the human body and healthThe lymphatic system of the human body and health
The lymphatic system of the human body and health

Lymphatic system ppt
Lymphatic system pptLymphatic system ppt
Lymphatic system ppt

Lymphatic System
Lymphatic SystemLymphatic System
Lymphatic System

Lecture 10 Lymphatic System.pptx
Lecture 10 Lymphatic System.pptxLecture 10 Lymphatic System.pptx
Lecture 10 Lymphatic System.pptx

Lympatic drainage
Lympatic drainageLympatic drainage
Lympatic drainage

Lymphatic system
Lymphatic systemLymphatic system
Lymphatic system

Lecture 4 lymphatic system
Lecture 4 lymphatic systemLecture 4 lymphatic system
Lecture 4 lymphatic system

Lymphatic
LymphaticLymphatic
Lymphatic

Lymphatics
LymphaticsLymphatics
Lymphatics

Lymph and lymphatic system
Lymph and lymphatic systemLymph and lymphatic system
Lymph and lymphatic system

Lymphatic system.ppt
Lymphatic system.pptLymphatic system.ppt
Lymphatic system.ppt

Lymphatics of head and neck
Lymphatics of head and neckLymphatics of head and neck
Lymphatics of head and neck

lymphaticsystem-190509132459.pptx
lymphaticsystem-190509132459.pptxlymphaticsystem-190509132459.pptx
lymphaticsystem-190509132459.pptx

Presentation on lymphatic system.pptx
Presentation on      lymphatic system.pptxPresentation on      lymphatic system.pptx
Presentation on lymphatic system.pptx

06 lymphatic system
06 lymphatic system06 lymphatic system
06 lymphatic system

lymphatic system.pptx
lymphatic system.pptxlymphatic system.pptx
lymphatic system.pptx

lymphatic system system, general anatomy.pptx
lymphatic system system, general anatomy.pptxlymphatic system system, general anatomy.pptx
lymphatic system system, general anatomy.pptx

Lymphatic system[1]
Lymphatic system[1]Lymphatic system[1]
Lymphatic system[1]

Unit 4 lymphatic system nrs 237
Unit 4 lymphatic system nrs 237Unit 4 lymphatic system nrs 237
Unit 4 lymphatic system nrs 237


More from Dr. Binu Babu Nursing Lectures Incredibly Easy

More from Dr. Binu Babu Nursing Lectures Incredibly Easy (20)

PEPLAU’S THEORY 1.pptx
PEPLAU’S THEORY 1.pptxPEPLAU’S THEORY 1.pptx
PEPLAU’S THEORY 1.pptx

Literature Review.ppsx
Literature Review.ppsxLiterature Review.ppsx
Literature Review.ppsx

Research Problems.ppsx
Research Problems.ppsxResearch Problems.ppsx
Research Problems.ppsx

Drugs used in CPR and Emergency.ppsx
Drugs used in CPR and Emergency.ppsxDrugs used in CPR and Emergency.ppsx
Drugs used in CPR and Emergency.ppsx

Anti - Venoum.pptx
Anti - Venoum.pptxAnti - Venoum.pptx
Anti - Venoum.pptx

Evidence Based Practice
Evidence Based PracticeEvidence Based Practice
Evidence Based Practice

Critical Review.pptx
Critical Review.pptxCritical Review.pptx
Critical Review.pptx

TNM Staging of tumor
TNM Staging of tumorTNM Staging of tumor
TNM Staging of tumor

Drug Dosage Calculations
Drug Dosage CalculationsDrug Dosage Calculations
Drug Dosage Calculations

Virtual Learning Environment
Virtual Learning EnvironmentVirtual Learning Environment
Virtual Learning Environment

The special senses - Touch
The special senses - TouchThe special senses - Touch
The special senses - Touch

Pain pathway
Pain pathwayPain pathway
Pain pathway

Immunity
ImmunityImmunity
Immunity

The special senses - Taste
The special senses - TasteThe special senses - Taste
The special senses - Taste

The special senses - smell
The special senses - smellThe special senses - smell
The special senses - smell

The special senses - hearing
The special senses - hearingThe special senses - hearing
The special senses - hearing

Scope of nurse led clinic in oncology
Scope of nurse led clinic in oncologyScope of nurse led clinic in oncology
Scope of nurse led clinic in oncology

Bone Marrow Transplantation
Bone Marrow TransplantationBone Marrow Transplantation
Bone Marrow Transplantation

Immunotherapy, gene therapy and phototherapy
Immunotherapy, gene therapy and phototherapyImmunotherapy, gene therapy and phototherapy
Immunotherapy, gene therapy and phototherapy

Cancer in a glance
Cancer in a glanceCancer in a glance
Cancer in a glance


Recently uploaded

Hematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsHematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsMedicoseAcademics

Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...rajnisinghkjn

Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...rajnisinghkjn

SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptx
SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptxSYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptx
SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptxdrashraf369

Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...rajnisinghkjn

Case Report Peripartum Cardiomyopathy.pptx
Case Report Peripartum Cardiomyopathy.pptxCase Report Peripartum Cardiomyopathy.pptx
Case Report Peripartum Cardiomyopathy.pptxNiranjan Chavan

PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdf
PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdfPULMONARY EMBOLISM AND ITS MANAGEMENTS.pdf
PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdfDolisha Warbi

PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxPERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxdrashraf369

Biomechanics- Shoulder Joint!!!!!!!!!!!!
Biomechanics- Shoulder Joint!!!!!!!!!!!!Biomechanics- Shoulder Joint!!!!!!!!!!!!
Biomechanics- Shoulder Joint!!!!!!!!!!!!ibtesaam huma

See the 2,456 pharmacies on the National E-Pharmacy Platform
See the 2,456 pharmacies on the National E-Pharmacy PlatformSee the 2,456 pharmacies on the National E-Pharmacy Platform
See the 2,456 pharmacies on the National E-Pharmacy PlatformKweku Zurek

BIOLOGICAL ASSAY OF ANTIBIOTICS , VITAMIN D , DIGOXIN & INSULIN
BIOLOGICAL ASSAY  OF ANTIBIOTICS , VITAMIN D , DIGOXIN  & INSULINBIOLOGICAL ASSAY  OF ANTIBIOTICS , VITAMIN D , DIGOXIN  & INSULIN
BIOLOGICAL ASSAY OF ANTIBIOTICS , VITAMIN D , DIGOXIN & INSULINHasnat Tariq

Apiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptApiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptkedirjemalharun

Informed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxInformed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxSasikiranMarri

call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️saminamagar

Statistical modeling in pharmaceutical research and development.
Statistical modeling in pharmaceutical research and development.Statistical modeling in pharmaceutical research and development.
Statistical modeling in pharmaceutical research and development.ANJALI

Glomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxGlomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxDr.Nusrat Tariq

epilepsy and status epilepticus for undergraduate.pptx
epilepsy and status epilepticus  for undergraduate.pptxepilepsy and status epilepticus  for undergraduate.pptx
epilepsy and status epilepticus for undergraduate.pptxMohamed Rizk Khodair

Report Back from SGO: What’s New in Uterine Cancer?.pptx
Report Back from SGO: What’s New in Uterine Cancer?.pptxReport Back from SGO: What’s New in Uterine Cancer?.pptx
Report Back from SGO: What’s New in Uterine Cancer?.pptxbkling

April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATROApril 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATROKanhu Charan


Recently uploaded (20)

Hematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsHematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes Functions

Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...

Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...

SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptx
SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptxSYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptx
SYNDESMOTIC INJURY- ANATOMICAL REPAIR.pptx

Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 6 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...

Case Report Peripartum Cardiomyopathy.pptx
Case Report Peripartum Cardiomyopathy.pptxCase Report Peripartum Cardiomyopathy.pptx
Case Report Peripartum Cardiomyopathy.pptx

PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdf
PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdfPULMONARY EMBOLISM AND ITS MANAGEMENTS.pdf
PULMONARY EMBOLISM AND ITS MANAGEMENTS.pdf

PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxPERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx

Biomechanics- Shoulder Joint!!!!!!!!!!!!
Biomechanics- Shoulder Joint!!!!!!!!!!!!Biomechanics- Shoulder Joint!!!!!!!!!!!!
Biomechanics- Shoulder Joint!!!!!!!!!!!!

See the 2,456 pharmacies on the National E-Pharmacy Platform
See the 2,456 pharmacies on the National E-Pharmacy PlatformSee the 2,456 pharmacies on the National E-Pharmacy Platform
See the 2,456 pharmacies on the National E-Pharmacy Platform

BIOLOGICAL ASSAY OF ANTIBIOTICS , VITAMIN D , DIGOXIN & INSULIN
BIOLOGICAL ASSAY  OF ANTIBIOTICS , VITAMIN D , DIGOXIN  & INSULINBIOLOGICAL ASSAY  OF ANTIBIOTICS , VITAMIN D , DIGOXIN  & INSULIN
BIOLOGICAL ASSAY OF ANTIBIOTICS , VITAMIN D , DIGOXIN & INSULIN

Apiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptApiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.ppt

Informed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxInformed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptx

call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️

Statistical modeling in pharmaceutical research and development.
Statistical modeling in pharmaceutical research and development.Statistical modeling in pharmaceutical research and development.
Statistical modeling in pharmaceutical research and development.

Epilepsy
EpilepsyEpilepsy
Epilepsy

Glomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxGlomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptx

epilepsy and status epilepticus for undergraduate.pptx
epilepsy and status epilepticus  for undergraduate.pptxepilepsy and status epilepticus  for undergraduate.pptx
epilepsy and status epilepticus for undergraduate.pptx

Report Back from SGO: What’s New in Uterine Cancer?.pptx
Report Back from SGO: What’s New in Uterine Cancer?.pptxReport Back from SGO: What’s New in Uterine Cancer?.pptx
Report Back from SGO: What’s New in Uterine Cancer?.pptx

April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATROApril 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO


The Anatomy and Function of the Lymphatic System

  • 2.
  • 3. • The lymphatic system is a network of lymphatic vessels and lymph nodes in different areas of body that maintains homeostasis as well as immunity of our body. • Lymphatic system returns fluids that have leaked from the blood vascular system back to the blood to maintain the blood volume. • The lymphatic system consists of: Lymph Lymphatic vessels Lymph nodes Lymphoid organs and tissues
  • 4.
  • 5. LYMPH • Lymph is a clear watery fluid that circulates through the lymphatic vessels. • Once the interstitial fluid drains into the lymphatic vessels, it is called lymph. So lymph is identical in composition to interstitial fluid.
  • 6. Formation of lymph As blood circulates through the body, most components of blood plasma such as nutrients, gases, and hormones filter through blood capillary walls to form interstitial fluid and reabsorbed back by venous capillaries. The excess filtered fluid (about 3 liters per day) drains into lymphatic vessels and becomes lymph. ie. the interstitial fluid enters into lymphatic vessels is called lymph.
  • 7.
  • 8. LYMPH VESSELS • Lymph vessels are thin walled, valved structures that carry lymph. • Lymphatic vessels begin as lymphatic capillaries, which join up to form lymphatic vessels. • Larger lymphatic vessels unite to form lymphatic trunk. • Lymphatic trunk opens into two large lymphatic duct – right lymphatic duct and thoracic (left lymphatic)duct.
  • 9.
  • 10. • In small intestine, specialized lymphatic capillaries called lacteals absorb dietary lipids into lymphatic vessels and ultimately into the blood. The presence of these lipids causes the lymph draining from the small intestine to appear creamy white. Such lymph is referred to as chyle.
  • 11. • Tissues that lack lymphatic capillaries include avascular tissues (such as cartilage, the epidermis, and the cornea of the eye), the central nervous system, bones, teeth, portions of the spleen, and red bone marrow.
  • 12. Structure Lymph capillaries • Lymph capillaries are made up of single layered endothelial cells. • The edge of one endothelial cell overlap with other endothelial cell and forms flap like minivalves that ensure lymph flow only in one way , i.e. towards the thorax. • Lymphatic capillaries are attached to the surrounding tissue by anchoring filaments, which contain collagen filaments and elastic fibers. • Greater permeability than blood capillaries
  • 13. Lymphatic vessels • Structure similar as veins. • Thin walls and more valves. • 3 tunica layers – intima, media and adventitia. Tunica intima, the inner layer is made up of single flattened simple squamous epithelium composed of epithelium called endothelium, and the cells are called endothelial cells. The middle tunica media is of smooth muscles and elastic tissue that are arranged in a circular fashion around the endothelium. The outermost adventitia consists of fibrous tissue. • Afferent lymphatic vessels – the vessel that enters lymph node. • Efferent lymphatic vessel – the vessel that leaves lymph node.
  • 14.
  • 15. Lymphatic trunk • Lymphatic vessels exit lymph nodes and unite to form lymphatic trunks. • The major trunks are – Lumbar trunks (right and left lumbar trunks) – Intestinal trunk – Bronchomediastinal trunks (right and left) – Subclavian trunks (right and left) – Jugular trunks (right and left) • The lumbar trunks drain lymph from the lower limbs, the wall and viscera of the pelvis, the kidneys, the adrenal glands, and the abdominal wall. • The intestinal trunk drains lymph from the stomach, intestines, pancreas, spleen, and part of the liver. • The bronchomediastinal trunks drain lymph from the thoracic wall, lung, and heart. • The subclavian trunks drain the upper limbs. • The jugular trunks drain the head and neck.
  • 16. Lymphatic duct • Thoracic duct • Right lymphatic duct Thoracic duct / Left lymphatic duct • Main duct for the return of lymph to blood. • 38 – 45 cm length. • Begins at cisterna chyli (anterior to 2nd lumbar vertebrae). • Cisterna chyli is an enlarged lymph sac which receives lymph from right and left lumbar trunks and intestinal trunk. • Receives lymph from cisterna chyli, left jugular, left subclavian, and left bronchomediastinal trunks. • The thoracic duct drains lymph into venous blood at the junction of the left internal jugular and left subclavian veins.
  • 17. Right lymphatic duct • About 1.2 cm length. • Receives lymph from the right jugular, right subclavian, and right bronchomediastinal trunks. • Drains into venous blood at the junction of the right internal jugular and right subclavian veins.
  • 18. LYMPH NODES  A lymph node is a small, bean- shaped organ that serves as a filtering and processing center for immune system.  It filter lymph before it is returned to the blood.  Located along lymph vessels.  About 600 lymph nodes in body.  Usually occur in groups.  Lymph nodes are major sites of B, T and other immune cells  It can be seen widely in cervical, auxiliary and inguinal regions
  • 19. Lymph Node Structure  Bean or kidney-shaped.  1–25 mm length.  Covered by capsule.  Capsule is composed of connective tissue.  Trabeculae, the capsular extensions divide the node into compartments which provide a route for blood vessels into the interior of a node.  Internal to the capsule is a supporting network of reticular fibers and fibroblasts.  The capsule, trabeculae, reticular fibers, and fibroblasts constitute the stroma of a lymph node.
  • 20. • Subcapsular sinus is the space between capsule and cortex. • The lymph node is divided into – superficial cortex – deep medulla • Cortex is the portion beneath subcapsular sinus. • Cortex consists – outer cortex – inner cortex • Outer cortex contain – Lymphatic nodules – Germinal center • Lymphatic nodules (follicles)are egg- shaped aggregates of B cells in outer cortex – Primary lymphatic nodule – Secondary lymphatic nodules
  • 21. • Primary lymphatic nodule consist of B cells . • Secondary lymphatic nodules form in response to an antigen. • After B cells in a primary lymphatic nodule recognize an antigen, the primary lymphatic nodule develops into a secondary lymphatic nodule. • The center of a secondary lymphatic nodule contains a region of light- staining cells called a germinal center. • Germinal center are B cells, follicular dendritic cells and macrophages.
  • 22. • The inner cortex consists mainly of T cells and dendritic cells that enter lymph node from other tissues. • Medulla is the inner part of lymph node. • Medulla includes, – Medullary cords – Medullary sinuses • The medullary cords are thin inward extensions from the cortical lymphoid tissue and include plasma cells, macrophages, and B cells. • Medullary sinuses are spaces separating medullary cords.
  • 23. • Several afferent lymphatic vessels penetrate the convex surface of the node directs the lymph inside the node. • One or two efferent lymphatic vessels convey lymph outside the node. • Efferent lymphatic vessels emerge from one side of the lymph node at a slight depression called a hilum or hilus. • Blood vessels also enter and leave the node at the hilum.
  • 24. Flow of lymph inside a node Lymph enters into node through Afferent lymphatic vessel Subcapsular sinus Trabecular sinus Medullary sinus Efferent lymphatic vessel And finally leaves the node.
  • 25. FLOW/TRANSPORT/CIRCULATION OF LYMPH • Lymphatic capillaries have greater permeability than blood capillaries. Greater pressure in interstitial fluid opens lymph valves and fluid enters into lymphatic capillaries. • Lymph passes from lymphatic capillaries into lymphatic vessels and then through lymph nodes. • Later drains into lymphatic trunk. • Lymph passes from lymphatic trunks into two main ducts, the thoracic duct and the right lymphatic duct, and then drains into venous blood at the junction of internal jugular and subclavian veins.
  • 26.
  • 27. The sequence of lymph flow is Blood capillaries (blood) Interstitial spaces (interstitial fluid) Lymphatic capillaries (lymph) Lymphatic (afferent) vessels (lymph) Lymph node (lymph) Lymphatic (efferent) vessels (lymph) Subcapsular sinus Trabecular sinus Medullary sinus
  • 28. Lymphatic vessel (lymph) Lymphatic trunks (lymph) • Lumbar trunks • intestinal trunk. • Left jugular • Left subclavian • Left bronchomediastinal • Right jugular • Right subclavian • Right bronchomediastinal Thoracic duct (lymph) Right lymphatic duct (lymph) Junction of left internal jugular Junction of right internal & subclavian veins jugular & subclavian veins Venous blood
  • 29.
  • 30. The flow of lymph is regulated by; • The milking action of active skeletal muscles. • Pressure changes in the thorax during breathing. • Pulsations of nearby arteries promote lymph flow. • Rhythmic contraction of smooth muscle in the walls lymphatic vessels. • Valves in lymphatic vessels prevent backflow.
  • 31.
  • 32. Lymph node groups (Distribution of lymph nodes) • Lymph nodes throughout the body are arranged in clusters. They are classified according to their location. The major cluster of lymph nodes are; – Cervical nodes – Axillary nodes – Thoracic nodes – Mediastinal nodes – Supratrochlear nodes – Abdominal nodes – Mesentric nodes – Inguinal nodes – Femoral nodes – Popliteal nodes
  • 33. Cervical lymph nodes • Located in the head and neck region. • Found deep in the neck, behind the ears and bottom of the jaw. • Draw lymph from the scalp, face, nasal cavity and pharynx. • Drains into right and left jugular trunks. • Cervical lymph node group include – Deep cervical lymph nodes – Regional cervical lymph nodes • Deep cervical lymph nodes – Jugulodigastric node – Jugulo-omohyoid node – Supra clavicular node • Regional cervical lymph nodes – Arranged in two circles – superficial and deep. • Superficial regional cervical lymph nodes • Deep regional cervical lymph nodes
  • 34. Deep cervical lymph nodes • Situated along the entire length of internal jugular vein. • The entire lymph from head and neck drains ultimately into deep cervical lymph nodes either directly or through regional cervical lymph nodes. • Drains into right and left jugular trunks. • It includes, – Jugulodigastric node – Jugulo-omohyoid node – Supra clavicular node
  • 35. • Jugulodigastric node: o situated where the posterior belly of the digastric muscle crosses the internal jugular vein, between the angle of mandible and anterior border of sternocleidomastoid. o Drains from tonsils and tongue. • Jugulo-omohyoid node: – Situated above the intermediate tendon of the omohyoid, under cover of the posterior border of sternocleidomastoid. – Drains from tongue. • Supra clavicular node: – Situated superior to clavicle. – Drain from upper chest.
  • 36. Regional cervical lymph nodes • Arranged in two circles – superficial and deep. – Superficial regional cervical lymph nodes – Deep regional cervical lymph nodes • Superficial regional cervical lymph nodes – It forms the outer circle and extend from chin to occiput. – It includes; 1. Submental 2. Submandibular 3. Buccal and mandibular (facial) 4. Preauricular (parotid) 5. Postauricular (mastoid) 6. Occipital 7. Anterior cervical 8. Superficial cervical
  • 37. 1. Submental nodes – Lie below the chin. – Drains from; • Tip of tongue • Floor of anterior part of mouth • Incisors • Central part of lower lip • Skin over chin – Drains into submandibular nodes and few into Jugulo-omohyoid node 2. Submandibular nodes – Lie beneath the deep cervical facia on the surface of submandibular salivary glands. – Drains from; • Center of forehead • Nose • Frontal, maxillary and ethmoidal sinuses • Inner canthus of eye • Upper lip • Anterior part of cheek with underlying gum and teeth • Lower lip • Lower gum and teeth • Anterior ⅓ of tongue • Floor of mouth • Submental nodes – Drains mostly into Jugulo-omohyoid node and partly into Jugulodigastric node.
  • 38. 3. Buccal and mandibular (facial) – Buccal node lies on the buccinator muscle. – Mandibular node lie on the lower border of the mandible at the anterior border of masseter. – They drain part of the cheek and lower eyelid. – Drains into Jugulodigastric node. 4. Preauricular (parotid) – Lies on or within parotid gland, partly in superficial fascia and partly in deep fascia. – Drains from; • Temple • Side of scalp • Lateral surface of auricle • External acoustic meatus • Middle ear • Parotid gland • Upper part of cheek • Parts of eyelid • Orbit – Drains into Jugulodigastric node.
  • 39. 5. Postauricular (mastoid) – Lie on mastoid process. – Drain from; • Part of scalp just above and below auricle • Upper half of auricle • Posterior wall of external acoustic meatus. – Drain into jugulo-omohyoid node. 6. Occipital – Located at the back of head, apex of the posterior triangle superficial to trapezius. – Drains occipital region of head. – Drains into supraclavicular nodes. 7. Anterior cervical – Lie along anterior jugular vein. – Drain from skin of anterior part of neck. – Drain into jugulo-omohyoid node and jugulodigastric node. 8. Superficial cervical – Lie along external jugular vein. – Drains from lobule of auricle, floor of external meatus, skin of parotid region, angle of jaw. – Drains into jugulo-omohyoid node, jugulodigastric node and supraclavicular node.
  • 40. Deep regional cervical lymph nodes • It forms the inner circle which surrounds larynx, trachea and pharynx. • It includes; 1. Prelaryngeal and Pretracheal 2. Paratracheal 3. Retropharyngeal 1. Prelaryngeal and Pretracheal – Prelaryngeal nodes lies on cricothyroid membrane. – Pretracheal nodes lies in front of the trachea below the isthmus of thyroid gland. – They drain from larynx, trachea and isthmus of thyroid gland. – Also drains from anterior cervical nodes of superficial regional cervical lymph nodes. – Drain into nearby deep cervical lymph nodes.
  • 41. 2. Paratracheal – Lies on sides of trachea and esophagus. – Drains lymph from esophagus, trachea and larynx. – Drains into deep cervical nodes. 3. Retropharyngeal – Lie in front of the prevertebral fascia and behind the buccopharyngeal fascia covering the posterior wall of pharynx. – Drains from, • Pharynx • Auditory tube • Soft palate • Posterior part of hard palate • Nose – Drains into jugulodigastric node.
  • 42. Axillary lymph nodes • Present in the armpit area. • Two types- superficial and deep lymph nodes. • Drain lymph from arm, walls of thorax and breast. • Divided into 5 groups. – Pectoral (anterior) group – Scapular (posterior) group – Lateral group – Central group – Apical or infraclavicular group • Lymph from pectoral, scapular and lateral groups drains into central group, later into apical and finally reaches subclavian trunks.
  • 43. Groups Site Drainage Pectoral Lower border of pectoralis minor • From upper half of anterior wall of the trunk. • From major part of the breast. Scapular Posterior fold of axilla • From posterior wall of the upper half of the trunk. • From axillary tail of the breast Lateral Medial to the axillary vein. • From upper limb. Central Upper axilla • From above groups. Apical or infra clavicular Along axillary vessel below clavicle. • From central group. • From upper part of breast. • From thumb.
  • 44.
  • 45. Thoracic lymph nodes • Located in thoracic region. • Two types - parietal lymph nodes and visceral lymph nodes. Parietal lymph nodes • Situated in the thoracic wall. • It includes; – Parasternal nodes – Intercostal nodes – Diaphragmatic (phrenic) nodes Visceral lymph nodes • Located in relation to internal organs of chest. • It includes; – Tracheobronchial nodes – Mediastinal nodes
  • 46. Parasternal nodes: • Placed behind the sternum, anterior ends of the intercostal spaces by the side of the internal mammary artery. • Derive lymph from, – Mammary gland – Anterior abdominal wall above umbilicus. – Upper surface of the liver . – Anterior thoracic wall. • At the right side it drains into right subclavian trunk or right lymphatic duct. • At the left side it drains into thoracic duct. Intercostal nodes • Located at posterior part of intercostal spaces. • Drains from posterior and lateral part of chest wall and parietal pleura. • Drains into, – Right side of upper intercostal nodes into right lymphatic duct. – Left side of upper intercostal nodes into thoracic duct. – Lower intercostal nodes into Cisterna chyli.
  • 47. Diaphragmatic (phrenic) nodes • Lie on the upper surface of the diaphragm. • It consist of three sets – Anterior – Middle – Posterior • Receive lymph from – Diaphragm – Pericardium – Pleura – Upper surface of liver • Drains into parasternal nodes and posterior mediastinal nodes.
  • 48. Tracheobronchial nodes • Nodes around trachea and bronchi. • It includes, – Pulmonary lymph nodes – Bronchopulmonary lymph nodes – Trachobronchial lymph nodes • Pulmonary lymph nodes locate in lungs, receive lymph from lung and empty into bronchopulmonary lymph nodes. • Bronchopulmonary (hilar) lymph nodes locate in the hilus of each lung and receive lymph from lung and empty into trachobronchial lymph nodes. • The trachobrochial lymph nodes locate near the bifurcation of trachea. They divided into superior and inferior two groups. They empty into paratracheal lymph nodes and then empty into right and left bronchomediastinal trunks.
  • 49. Mediastinal nodes • Present in the central part of the chest, between the lungs. • It also considered as part of thoracic nodes. • Two major groups – Anterior mediastinal – Posterior mediastinal • Mediastinal lymph nodes are responsible for helping bone marrow and thymus produce mature lymphocytes. Anterior mediastinal lymph nodes • Located anterior to the heart and posterior to the sternum. • Receive lymph from, – Thymus – Heart – Pericardium – Diaphragm – Superior surface of liver • Drains into right and left bronchomediastinal trunks.
  • 50. Posterior mediastinal lymph nodes • Located posterior to the heart and anterior to the spinal column. • Lie around oesophagus and thoracic aorta. • It drains from oesophagus and tissues around thoracic aorta. • Drains into thoracic duct.
  • 51. Supratrochlear nodes • These nodes are locate near elbow and medial epicondyle of humerus. • Also known as Cubital lymph nodes. • They drain from, – Fingers – Ulnar side of the arm – Superficial areas of the forearm • Drains into axillary lymph nodes.
  • 52. Abdominal nodes • Right and left para aortic nodes • External illiac nodes • Common illiac nodes • Internal illiac nodes • Epigastric nodes • Lumbar glands
  • 53. Mesentric nodes • Distributed in the lower abdomen, they lie close to the small intestine. • They drain cecum, jejunum, ileum, colon and upper part of rectum. Inguinal nodes • Located in the groin area. • They may be superficial or deep. • They receive lymph from the genital areas, buttock, anus, abdominal wall and legs.
  • 54. Femoral nodes • Located in the upper thigh portion along the femoral veins. • They drain from some of the genital parts, buttock, thigh and the medial side of the leg. Popliteal nodes • Present in the knee area called popliteal fossa. • There are two sets of popliteal lymph nodes some are present beneath the popliteal fascia and some are found between the popliteal artery and the posterior surface of the knee joint. • They drain from the knee, thigh, calf and feet.
  • 55. LYMPHOID ORGANS • Spleen • Thymus • Tonsils • Peyer’s patches
  • 56. Spleen • Spleen is the largest lymph organ. • Location: In the left hypochondrium of abdominal cavity, directly below the diaphragm, above the left kidney & descending colon, & behind the fundus of the stomach. • Structure: o Oval in shape. o Purplish in colour. o Soft and highly vascular. o About 12 cm long. o It weighs about 200 g. o The anterior surface is covered with peritoneum. o Structure is similar to lymph node. o Spleen is covered by fibrous capsule.
  • 57. o Trabeculae are inward capsular extensions that divide spleen into compatments. o The spleen parenchyma consists of two different kinds of tissue called white pulp and red pulp. – White pulp involved in immune functions. It consist of lymphocytes and macrophages. It is arranged arround central arteries (branches of splenic artery). – Red pulp consists of blood filled venous sinuses called splenic sinusoids and splenic (Billroth’s) cords. Splenic cords are regions of reticular connective tissue, that separate splenic sinusoids. Splenic cords consist of RBC, macrophages, lymphocytes, plasma cells, and granulocytes. It destroy damaged RBCs and blood borne pathogens.
  • 58. • Spleen has a hilum through which the splenic artery, splenic vein, nerves and efferent lymphatic vessels passes. • Arterial supply: splenic artery. Branches of splenic arteries are called central arteries. • Venous drainage: splenic vein • Lymphatic drainage: – No proper lymphatics. – Few lymphatics arise from capsule and trabeculae drain into pancreatic splenic lymph nodes. • Nerve supply: sympathetic fibers derived from coeliac plexus.
  • 59. Thymus Location: • In the mediastinum between the sternum and the aorta. Structure: • Reddish appearance. • Weighs about 10 to 15 g at birth and grows till puberty (30-40 g). After puberty its atrophy begins, at old age it weighs about 3 g. • Consists of two lobes joined by connective tissue.
  • 60. • The lobes are enclosed by a fibrous capsule. • Extensions of the capsule, called trabeculae divide each lobe into lobules. • Each lobule is separated by interlobular septa. • Each lobule contain an outer cortex & inner medulla. • The cortex is composed of large numbers of immature T cells and scattered dendritic cells, epithelial cells and macrophages. • Medulla contain fewer mature lymphocytes, epithelial cells, dendritic cells and macrophages and structures called thymic corpuscles. • Thymic corpuscles are concentric cluster of keratinized epithelial cells. • Stroma is composed of dendritic cells, epithelial cells and macrophages.
  • 61. Tonsils • The tonsils form a ring of lymphoid tissue around the entrance to the pharynx (throat). • Tonsils include; • Single pharyngeal tonsil or adenoid embedded in the posterior wall of the nasopharynx. • Two palatine tonsils lie at the posterior region of the oral cavity, one on either side. • Paired lingual tonsils located at the base of the tongue. • Tubal tonsils surround the openings of the auditory tubes into the pharynx.
  • 62. • The tonsils gather and remove many of the pathogens entering the pharynx in food or in inhaled air. • The tonsils are not fully encapsulated. • The exterior surface of the tonsil is covered by stratified squamous epithelium. • The epithelium extend inwards to form tonsillar crypts. • The lymphoid tissue of the tonsils contains follicles with obvious germinal centers surrounded by diffusely scattered lymphocytes.
  • 63. Peyer’s Patches  Found in the wall of the small intestine.  Peyer’s patches or aggregated lymphoid nodules, are large clusters of lymphoid follicles.  Resemble tonsils in structure.  Capture and destroy bacteria in the intestine
