Lecture24 clockpower routing
1. 1

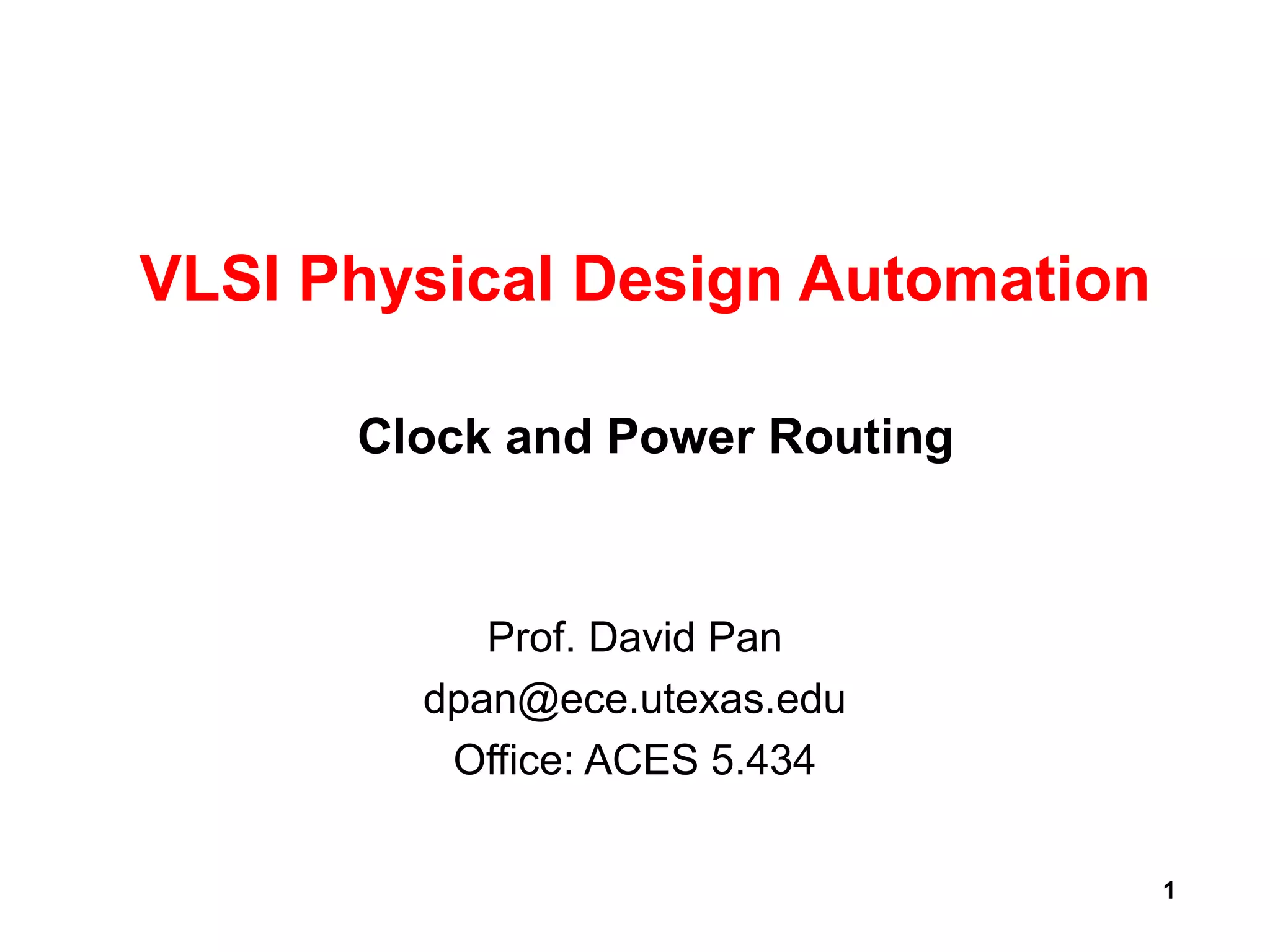

VLSI Physical Design Automation
Prof. David Pan
dpan@ece.utexas.edu
Office: ACES 5.434
Clock and Power Routing
2. 2

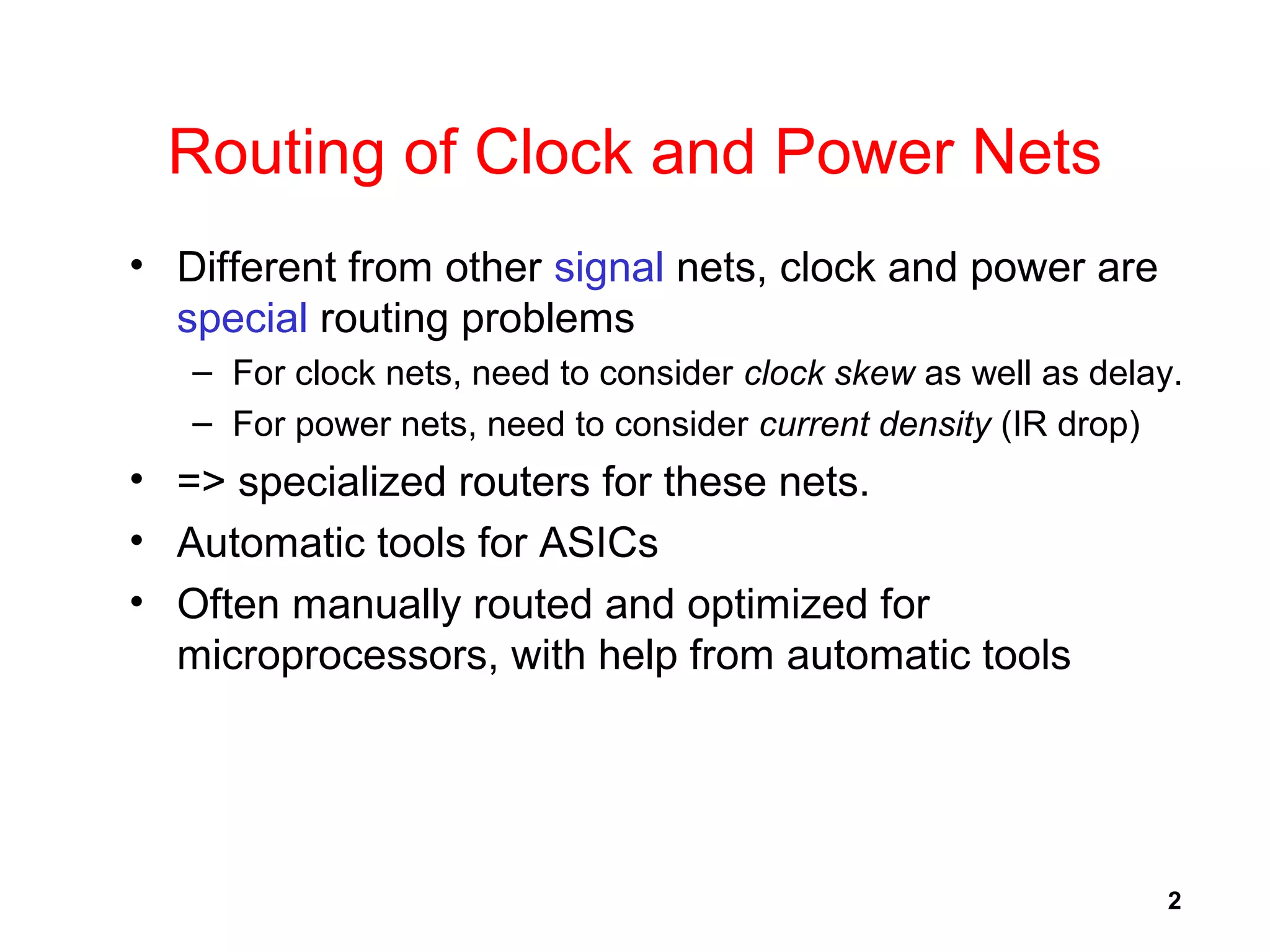

Routing of Clock and Power Nets
• Different from other signal nets, clock and power are
special routing problems
– For clock nets, need to consider clock skew as well as delay.
– For power nets, need to consider current density (IR drop)
• => specialized routers for these nets.
• Automatic tools for ASICs
• Often manually routed and optimized for
microprocessors, with help from automatic tools
3. 3
Clock Introduction
• For synchronized designs, data transfer between
functional elements are synchronized by clock signals
• Clock signal are generated externally (e.g., by PLL)
• Clock period equation
dssuskewd ttttodclock peri +++≥
td: Longest path through combinational logic
tskew: Clock skew
tsu: Setup time of the synchronizing elements
tds: Propagation delay within the synchronizing element
4. 4
Clock Skew
• Clock skew is the maximum difference in the arrival
time of a clock signal at two different components.
• Clock skew forces designers to use a large time period
between clock pulses. This makes the system slower.
• So, in addition to other objectives, clock skew should
be minimized during clock routing.
5. 5
Clock Design Problem
• What are the main concerns for clock design?
• Skew
– No. 1 concern for clock networks
– For increased clock frequency, skew may contribute over 10% of
the system cycle time
• Power
– very important, as clock is a major power consumer!
– It switches at every clock cycle!
• Noise
– Clock is often a very strong aggressor
– May need shielding
• Delay
– Not really important
– But slew rate is important (sharp transition)
6. 6
The Clock Routing Problem
• Given a source and n sinks.
• Connect all sinks to the source by an interconnect
network (tree or non-tree) so as to minimize:
– Clock Skew = maxi,j |ti - tj|
– Delay = maxi ti
– Total wirelength
– Noise and coupling effect
7. 7
Clock Design Considerations
• Clock signal is global in nature, so clock nets are
usually very big
– Significant interconnect capacitance and resistance
• So what are the techniques?
– Routing
• Clock tree versus clock mesh (non-tree or grid)
• Balance skew and total wire length
– Buffer insertion // will be covered in EE382V (Optimization
issues in VLSI CAD)
• Clock buffers to reduce clock skew, delay, and distortion in waveform.
– Wire sizing // will be covered in Opt. Issues in VLSI CAD
• To further tune the clock tree/mesh
8. 8
Clock trees
• A path from the clock source to clock sinks
Clock Source
FF FF FF FF FFFF FF FFFF FF
9. 9
Clock trees
• A path from the clock source to clock sinks
Clock Source
FF FF FF FF FFFF FF FFFF FF
11. 11
H-tree Algorithm
• Minimize skew by making interconnections to subunits
equal in length
– Regular pattern
– The skew is 0 assuming delay is directly proportional to
wirelength
• Is this always the case???
• Can be used when terminals are evenly distributed
– However, this is never the case in practice (due to blockage,
and so on)
– So strict (pure) H-trees are rarely used
– However, still popular for top-level clock network design
– Cons: too costly to be used everywhere
Can you think of another shape if non-rectilinear wires are allowed?
12. 12
Method of Means and Medians (MMM)
• Applicable when the clock terminals are arbitrarily
arranged.
• Follows a strategy very similar to H-Tree.
• Recursively partition the terminals into two sets of equal
size (median). Then, connect the center of mass of the
whole circuit to the centers of mass of the two sub-circuits
(mean).
• Clock skew is only minimized heuristically. The resulting
tree may not have zero-skew.
14. 14
Geometric Matching Algorithm
(GMA)
• MMM is a top-down algorithm, but GMA is a bottom-up
algorithm.
• Geometric matching of n endpoints:
– Construct a set of n/2 line segments connecting n endpoints
pairwise.
– No two line segments share an endpoint.
– The cost is the sum of the edge lengths.
• The basic idea is to find a minimum cost geometric
matching recursively.
• Time complexity is O(n2.5
log n) for n endpoints.
15. 15
An Example of GMA
Apply geometricApply geometric
matching recursively.matching recursively.
H-flippingH-flipping
Post-processing
Tapping pointTapping point
(not necessarily(not necessarily
the mid-point)the mid-point)
Can give clock tree of zero skew.Can give clock tree of zero skew.
16. 16
An Exact Zero Skew Algorithm
• ICCAD 1991 and TCAD 1993, Ren-Song Tsay
• A classic paper to manage clock skew
• Use Elmore delay model to compute delay
• Guarantee zero skew
– Can easily to extended for zero skew or bounded skew
– Can you think of a method to do it?
• Try to minimize wire length, but not done very well
– Lots of follow up works to minimize total wire length while
maintaining zero skew
– DME and its extensions
17. 17
Deferred Merge Embedding
• As its name implies, DME defers the merging as late
as possible, to make sure minimal wire length cost for
merging
• Independently proposed by several groups
– Edahiro, NEC Res Dev, 1991
– Chao et al, DAC’92
– Boese and Kahng, ASIC’92
• DME needs an abstract routing topology as the input
• It has a bottom-up phase followed by a top-down
process (sounds familiar?)
19. 19
Some Thoughts/Trend
• Clock skew scheduling together with clock tree
synthesis
– Schedule the timing slack of a circuit to the individual
registers for optimal performance and as a second
criteria to increase the robustness of the
implementation w.r.t. process variation.
• Variability is a major nanometer concern
• Non-tree clock networks for variation-tolerance
– How to analyze it?
– The task is to investigate a combined optimization
such that clock skew variability is reduced with
minimum wirelength penalty
20. 20
Non-tree: Spine & Mesh
Applied in Pentium processor
Spines
Clock sinks or local sub-networks
Clock sinks or local sub-networks
Clock sinks or local sub-
networks
Applied in IBM microprocessor
Very effective, huge wire
[Restle et. al, JSSC’01]
[Su et. al, ICCAD’01]
[Kurd et. al. JSSC’01]
21. 21
Non-tree: Link Perspective
• Non-tree = tree + links
• How to select link pairs is the key problem
• Link = link_capacitors + link_resistor
• Key issue: find the best links that can help the skew variation
reduction the most!
u
w
i
w
u
Rl
C/2 C/2
u w
Rl
C/2
C/2
[Rajaram et al, DAC’04]
23. 23
Power Distribution
• Power Distribution Network functions
– Carry current from pads to transistors on chip
– Maintain stable voltage with low noise
– Provide average and peak power demands
– Provide current return paths for signals
– Avoid electromigration & self-heating wearout
– Consume little chip area and wire
– Easy to lay out
24. 24
Power and Ground Routing
• Each standard cell or macro has power and ground
signals, i.e., Vdd (power) and GND (ground)
• They need to be connected as well
• You can imagine that they are HUGE NETWORKS!
• In general, P/G routings are pretty regular
• They have high priority as well
– P/G routing resources are usually reserved
– When you do global and detailed routing for signal nets, you
cannot use up all the routing resources at each metal layers
• Normally some design rules will be given (e.g., 40% of top metal
layers are reserved for P/G)
25. 25
P/G Routing Main Objectives
• Routing resource
– Need to balance the routing resource for P/G, clock and signals
• Voltage drop
– Static (IR) and dynamic (L di/dt) voltage drops
– More voltage drop means more gate delay
– Usually less than 5-10% voltage drop is allowed
– So you may need to size P/G wires accordingly
• Electrical migration
– Too big current may cause EMI problem
• Others…
26. 26
P/G Mesh (Grid Distribution)
• Power/Ground mesh will allow multiple paths from P/G
sources to destinations
– Less series resistance
– Hierarchical power and ground meshes from upper metal
layers to lower metal layers
• All the way to M1 or M2 (stand cells)
– Connection of lower layer layout/cells to the grid is through
vias
27. 27
Using One Metal Layer
VDDVDD GNDGND
One tree for VDD and another tree for GND.
28. 28
Using Two Metal Layers
One 2D-grid for VDD and another one for GND:
VDDVDD GNDGND
M5M5 M4M4
30. 30
Some Thoughts/Trends
• P/G I/O pad co-optimization with classic
physical design
• Decoupling capacitor can reduce P/G related
voltage drop
– Need to be planned together with floorplanning and
placement
• Multiple voltage/frequency islands make the
P/G problem and clock distributions more
challenging
Editor's Notes
Within most VLSI circuits, data transfer between functional elements is synchronized by the processing clock.
Clock frequency can directly determine the performance of a chip. In the case of a microprocessor the clock frequency determines the Instructions Per Second. IPS=f*NIPC.
The clock signal is generated external to the chip and provided to the chip through the clock pin. Each functional unit computes and waits for the next clock signal to pass its results to another unit before the next processing cycle
Within most VLSI circuits, data transfer between functional elements is synchronized by the processing clock.
Clock frequency can directly determine the performance of a chip. In the case of a microprocessor the clock frequency determines the Instructions Per Second. IPS=f*NIPC.
The clock signal is generated external to the chip and provided to the chip through the clock pin. Each functional unit computes and waits for the next clock signal to pass its results to another unit before the next processing cycle. Clock should arrive at the same time to all functional units to minimize delay
Within most VLSI circuits, data transfer between functional elements is synchronized by the processing clock.
Clock frequency can directly determine the performance of a chip. In the case of a microprocessor the clock frequency determines the Instructions Per Second. IPS=f*NIPC.
The clock signal is generated external to the chip and provided to the chip through the clock pin. Each functional unit computes and waits for the next clock signal to pass its results to another unit before the next processing cycle
Within most VLSI circuits, data transfer between functional elements is synchronized by the processing clock.
Clock frequency can directly determine the performance of a chip. In the case of a microprocessor the clock frequency determines the Instructions Per Second. IPS=f*NIPC.
The clock signal is generated external to the chip and provided to the chip through the clock pin. Each functional unit computes and waits for the next clock signal to pass its results to another unit before the next processing cycle. Clock should arrive at the same time to all functional units to minimize delay
The goal of a clock tree is to get the clock signal from a clock source to clock sinks. The relative arrival times, shape, and amplitude of the clock signal at the sinks need to meet certain criteria for the circuit to work correctly. Simple wires are susceptible to influences of signals in nearby wires and their own parasitics among other things that may compromise the integrity the signal and cause the signal arriving at the sinks to be unacceptable.
Buffering, which restores the signal and reduces delay, helps to guarantee the integrity of the clock signal. These are the two steps that are carried out in the clock tree generation steps in the SSHAFT flow.
The skew can be minimized by making interconnections carrying clocks signal to sub-units equal in length
In the case where terminals are arranged symmetrically, as in gate arrays, zero skew achieved by using H-trees
A manhattan plane is one where the distance between two points is defined by min{d(p,q) p in P and q in Q}
Manhattan distance delta(x)+delta(y)
Sinks are locations.
in the manhattan plane.
