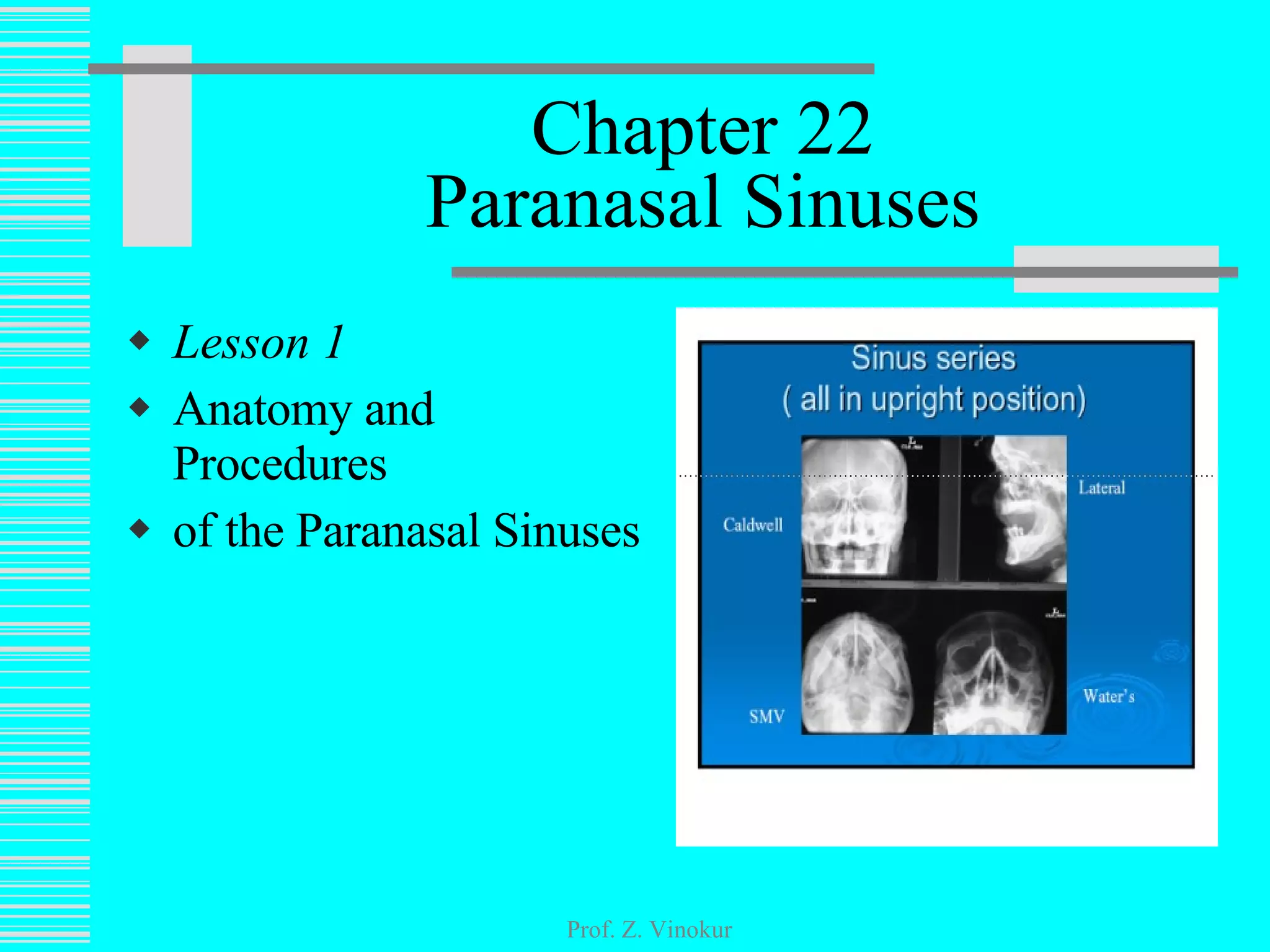

1. Chapter 22 Paranasal Sinuses Lesson 1 Anatomy and Procedures of the Paranasal Sinuses Prof. Z. Vinokur

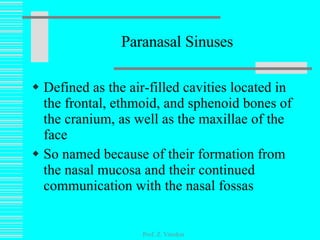

2. Paranasal Sinuses Defined as the air-filled cavities located in the frontal, ethmoid, and sphenoid bones of the cranium, as well as the maxillae of the face So named because of their formation from the nasal mucosa and their continued communication with the nasal fossas Prof. Z. Vinokur

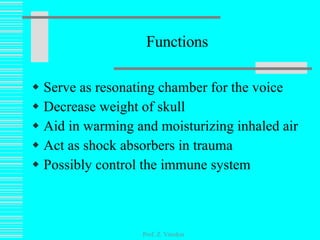

3. Functions Serve as resonating chamber for the voice Decrease weight of skull Aid in warming and moisturizing inhaled air Act as shock absorbers in trauma Possibly control the immune system Prof. Z. Vinokur

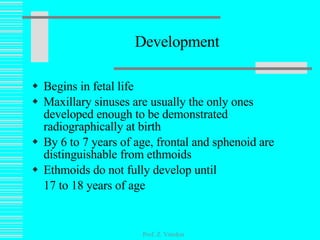

4. Development Begins in fetal life Maxillary sinuses are usually the only ones developed enough to be demonstrated radiographically at birth By 6 to 7 years of age, frontal and sphenoid are distinguishable from ethmoids Ethmoids do not fully develop until 17 to 18 years of age Prof. Z. Vinokur

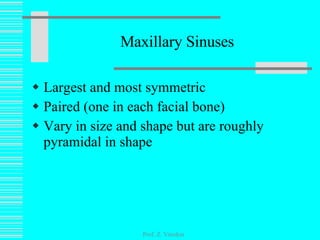

5. Maxillary Sinuses Largest and most symmetric Paired (one in each facial bone) Vary in size and shape but are roughly pyramidal in shape Prof. Z. Vinokur

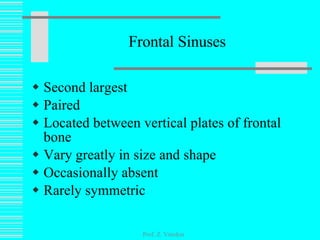

6. Frontal Sinuses Second largest Paired Located between vertical plates of frontal bone Vary greatly in size and shape Occasionally absent Rarely symmetric Prof. Z. Vinokur

7. Prof. Z. Vinokur

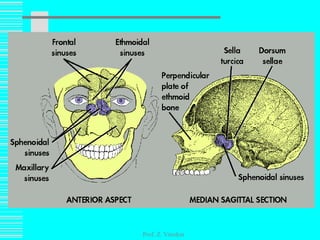

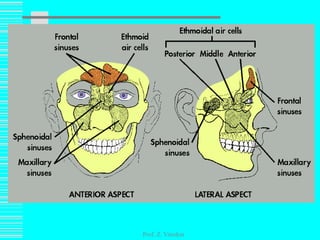

8. Ethmoid Sinuses Located within lateral masses of labyrinths Comprised of varying number of air cells, which are divided into three main groups Anterior (2 to 8) Middle (2 to 8) Posterior (2 to 6) Prof. Z. Vinokur

9. Prof. Z. Vinokur

10. Sphenoid Sinuses Normally paired Occupy body of sphenoid bone Often only one sinus develops, but never more than two Vary in size and shape Usually asymmetric Located below sella and extend between dorsum and posterior ethmoids Prof. Z. Vinokur

11. Prof. Z. Vinokur

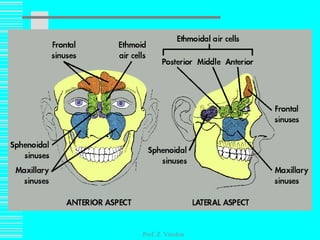

12. Prof. Z. Vinokur

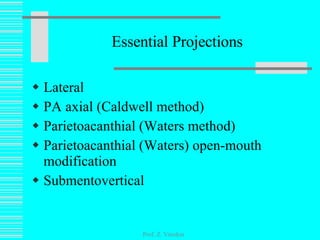

13. Essential Projections Lateral PA axial (Caldwell method) Parietoacanthial (Waters method) Parietoacanthial (Waters) open-mouth modification Submentovertical Prof. Z. Vinokur

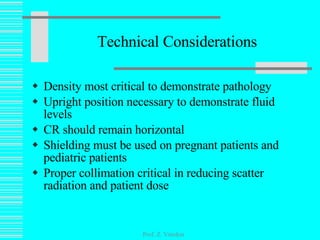

14. Technical Considerations Density most critical to demonstrate pathology Upright position necessary to demonstrate fluid levels CR should remain horizontal Shielding must be used on pregnant patients and pediatric patients Proper collimation critical in reducing scatter radiation and patient dose Prof. Z. Vinokur

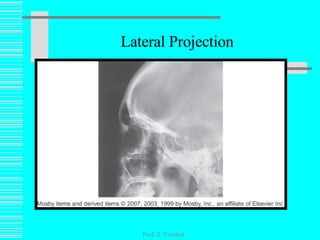

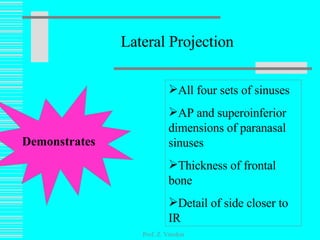

15. Lateral Projection Prof. Z. Vinokur Demonstrates All four sets of sinuses AP and superoinferior dimensions of paranasal sinuses Thickness of frontal bone Detail of side closer to IR

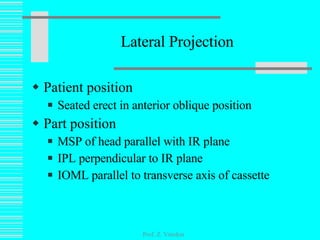

16. Lateral Projection Patient position Seated erect in anterior oblique position Part position MSP of head parallel with IR plane IPL perpendicular to IR plane IOML parallel to transverse axis of cassette Prof. Z. Vinokur

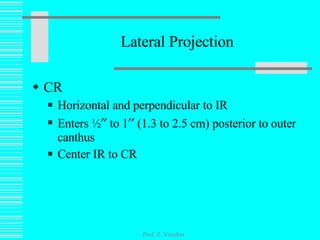

17. Lateral Projection CR Horizontal and perpendicular to IR Enters ½  to 1  (1.3 to 2.5 cm) posterior to outer canthus Center IR to CR Prof. Z. Vinokur

18. Prof. Z. Vinokur

19. Prof. Z. Vinokur

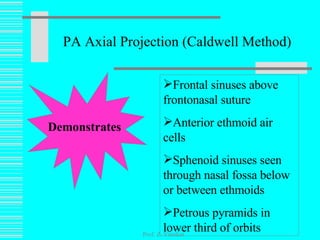

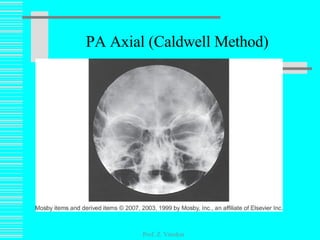

20. PA Axial Projection (Caldwell Method) Prof. Z. Vinokur Demonstrates Frontal sinuses above frontonasal suture Anterior ethmoid air cells Sphenoid sinuses seen through nasal fossa below or between ethmoids Petrous pyramids in lower third of orbits

21. PA Axial (Caldwell Method) Angled Grid Technique Patient position Seated upright facing Bucky MSP centered to midline Prof. Z. Vinokur

22. PA Axial (Caldwell Method) Patient position Tilt vertical Bucky down 15 degrees Rest patient’s forehead and nose on device Center nasion to IR MSP and OML perpendicular to IR plane Prof. Z. Vinokur

23. Prof. Z. Vinokur

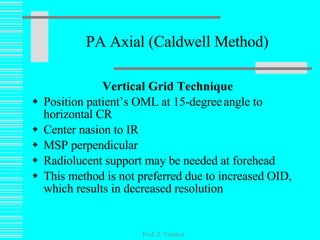

24. PA Axial (Caldwell Method) Vertical Grid Technique Position patient’s OML at 15-degree angle to horizontal CR Center nasion to IR MSP perpendicular Radiolucent support may be needed at forehead This method is not preferred due to increased OID, which results in decreased resolution Prof. Z. Vinokur

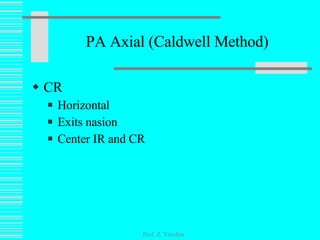

25. PA Axial (Caldwell Method) CR Horizontal Exits nasion Center IR and CR Prof. Z. Vinokur

26. Parietoacanthial Projection (Waters Method) Prof. Z. Vinokur Demonstrates Maxillary sinuses Petrous pyramids lying inferior to maxillary floor Frontal and ethmoid sinuses are distorted

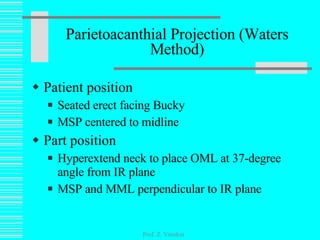

27. Patient position Seated erect facing Bucky MSP centered to midline Part position Hyperextend neck to place OML at 37-degree angle from IR plane MSP and MML perpendicular to IR plane Parietoacanthial Projection (Waters Method) Prof. Z. Vinokur

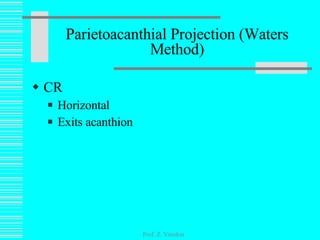

28. CR Horizontal Exits acanthion Parietoacanthial Projection (Waters Method) Prof. Z. Vinokur

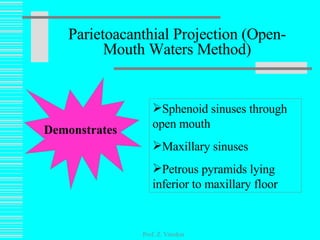

29. Parietoacanthial Projection (Open-Mouth Waters Method) Prof. Z. Vinokur Demonstrates Sphenoid sinuses through open mouth Maxillary sinuses Petrous pyramids lying inferior to maxillary floor

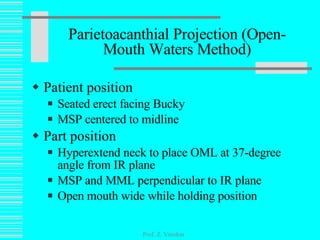

30. Patient position Seated erect facing Bucky MSP centered to midline Part position Hyperextend neck to place OML at 37-degree angle from IR plane MSP and MML perpendicular to IR plane Open mouth wide while holding position Parietoacanthial Projection (Open-Mouth Waters Method) Prof. Z. Vinokur

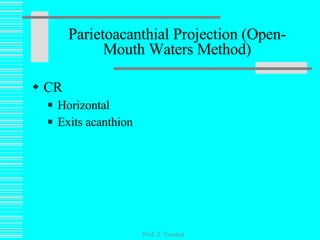

31. CR Horizontal Exits acanthion Parietoacanthial Projection (Open-Mouth Waters Method) Prof. Z. Vinokur

32. Prof. Z. Vinokur

33. Prof. Z. Vinokur

34. Prof. Z. Vinokur

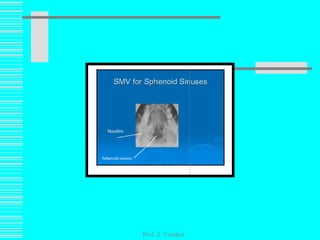

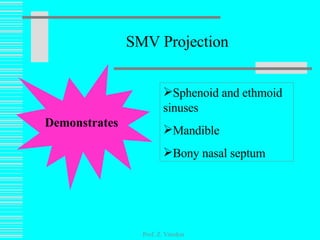

35. SMV Projection Prof. Z. Vinokur Demonstrates Sphenoid and ethmoid sinuses Mandible Bony nasal septum

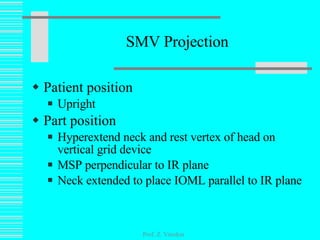

36. SMV Projection Patient position Upright Part position Hyperextend neck and rest vertex of head on vertical grid device MSP perpendicular to IR plane Neck extended to place IOML parallel to IR plane Prof. Z. Vinokur

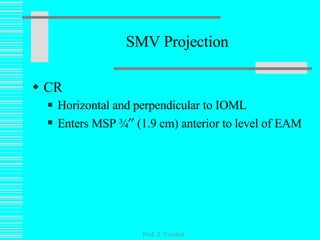

37. SMV Projection CR Horizontal and perpendicular to IOML Enters MSP ¾  (1.9 cm) anterior to level of EAM Prof. Z. Vinokur

38. Prof. Z. Vinokur

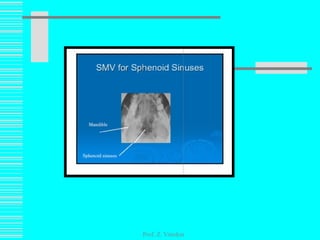

39. Prof. Z. Vinokur

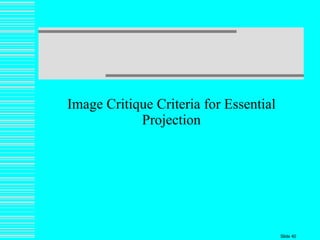

40. Image Critique Criteria for Essential Projection Slide

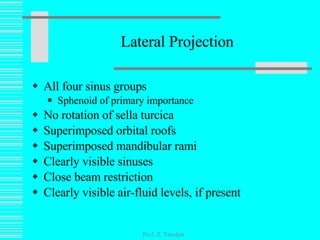

41. Lateral Projection All four sinus groups Sphenoid of primary importance No rotation of sella turcica Superimposed orbital roofs Superimposed mandibular rami Clearly visible sinuses Close beam restriction Clearly visible air-fluid levels, if present Prof. Z. Vinokur

42. Lateral Projection Prof. Z. Vinokur

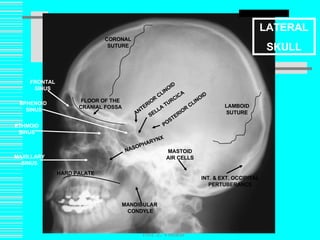

43. Prof. Z. Vinokur L LATERAL SKULL CORONAL SUTURE LAMBOID SUTURE INT. & EXT. OCCIPITAL PERTUBERANCE MASTOID AIR CELLS HARD PALATE NASOPHARYNX ANTERIOR CLINOID POSTERIOR CLINOID MANDIBULAR CONDYLE FLOOR OF THE CRANIAL FOSSA SELLA TURCICA FRONTAL SINUS MAXILLARY SINUS SPHENOID SINUS ETHMOID SINUS

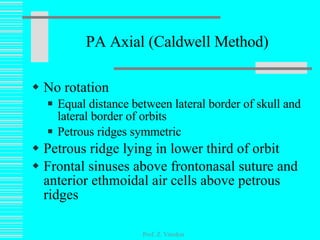

44. PA Axial (Caldwell Method) No rotation Equal distance between lateral border of skull and lateral border of orbits Petrous ridges symmetric Petrous ridge lying in lower third of orbit Frontal sinuses above frontonasal suture and anterior ethmoidal air cells above petrous ridges Prof. Z. Vinokur

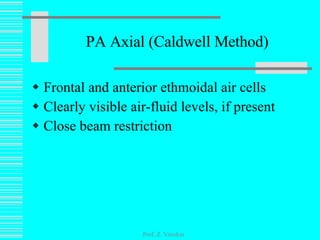

45. PA Axial (Caldwell Method) Frontal and anterior ethmoidal air cells Clearly visible air-fluid levels, if present Close beam restriction Prof. Z. Vinokur

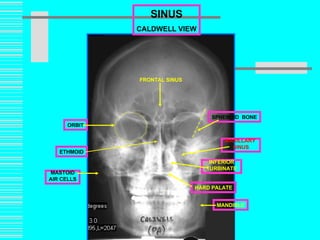

46. Prof. Z. Vinokur SINUS CALDWELL VIEW FRONTAL SINUS SPHENOID BONE MAXILLARY SINUS INFERIOR TURBINATE MANDIBLE HARD PALATE MASTOID AIR CELLS ORBIT ETHMOID

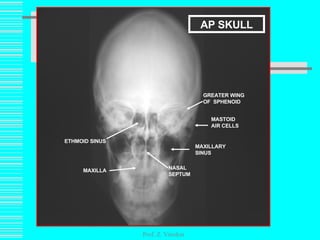

47. Prof. Z. Vinokur ETHMOID SINUS NASAL SEPTUM MASTOID AIR CELLS MAXILLARY SINUS MAXILLA GREATER WING OF SPHENOID AP SKULL

48. PA Axial (Caldwell Method) Prof. Z. Vinokur

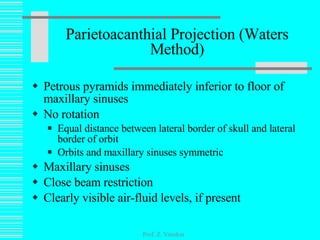

49. Petrous pyramids immediately inferior to floor of maxillary sinuses No rotation Equal distance between lateral border of skull and lateral border of orbit Orbits and maxillary sinuses symmetric Maxillary sinuses Close beam restriction Clearly visible air-fluid levels, if present Parietoacanthial Projection (Waters Method) Prof. Z. Vinokur

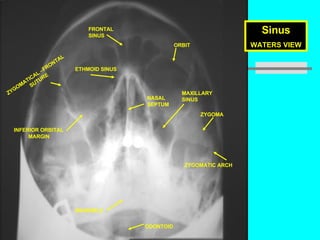

50. Prof. Z. Vinokur Sinus WATERS VIEW MANDIBLE FRONTAL SINUS ETHMOID SINUS MAXILLARY SINUS ZYGOMA ZYGOMATIC ARCH INFERIOR ORBITAL MARGIN ORBIT NASAL SEPTUM ZYGOMATICAL –FRONTAL SUTURE ODONTOID

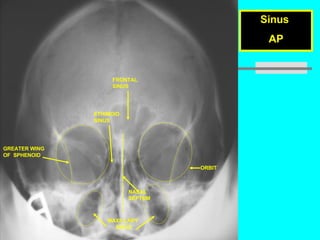

51. Prof. Z. Vinokur Sinus AP FRONTAL SINUS ETHIMOID SINUS ORBIT NASAL SEPTUM GREATER WING OF SPHENOID MAXILLARY SINUS

52. Parietoacanthial (Waters) Prof. Z. Vinokur

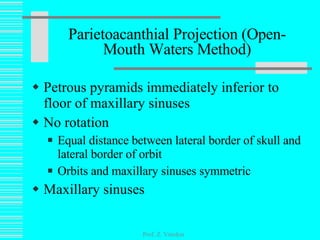

53. Petrous pyramids immediately inferior to floor of maxillary sinuses No rotation Equal distance between lateral border of skull and lateral border of orbit Orbits and maxillary sinuses symmetric Maxillary sinuses Parietoacanthial Projection (Open-Mouth Waters Method) Prof. Z. Vinokur

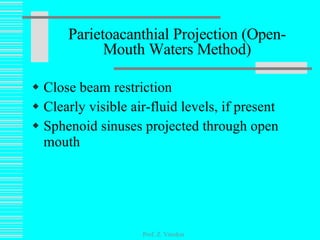

54. Close beam restriction Clearly visible air-fluid levels, if present Sphenoid sinuses projected through open mouth Parietoacanthial Projection (Open-Mouth Waters Method) Prof. Z. Vinokur

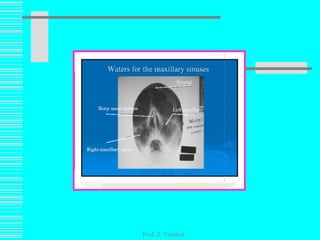

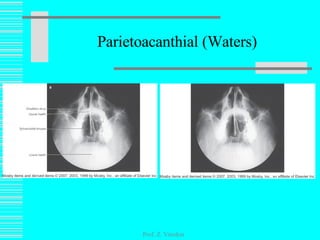

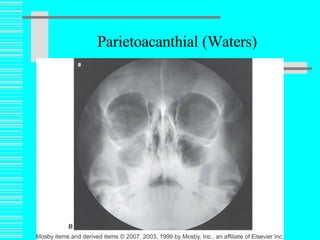

55. Parietoacanthial (Waters) Prof. Z. Vinokur

56. SMV Projection No tilt Equal distance from lateral border of skull to mandibular condyles on both sides Anterior frontal bone superimposed by mental protuberance Indicates IOML is parallel (full extension) Mandibular condyles anterior to petrous pyramids Clearly visible air-fluid levels, if present Prof. Z. Vinokur

57. SMV Projection Prof. Z. Vinokur

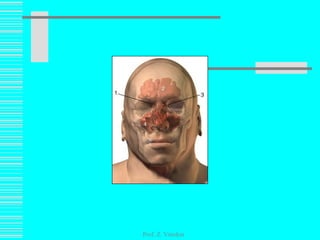

58. Prof. Z. Vinokur

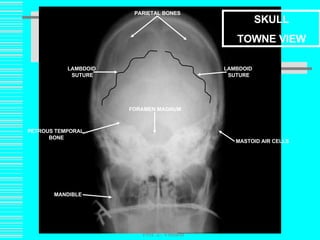

59. Prof. Z. Vinokur SKULL TOWNE VIEW MANDIBLE MASTOID AIR CELLS PETROUS TEMPORAL BONE FORAMEN MAGNUM PARIETAL BONES LAMBDOID SUTURE LAMBDOID SUTURE

60. Prof. Z. Vinokur SKULL TOWNE VIEW MANDIBLE MASTOID AIR CELLS PETROUS TEMPORAL BONE FORAMEN MAGNUM PARIETAL BONES LAMBDOID SUTURE LAMBDOID SUTURE

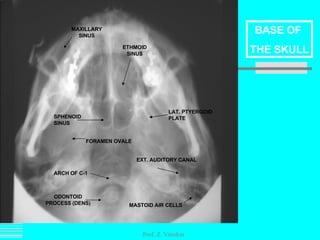

61. Prof. Z. Vinokur ODONTOID PROCESS (DENS) ETHMOID SINUS SPHENOID SINUS MAXILLARY SINUS LAT. PTYERGOID PLATE FORAMEN OVALE ARCH OF C-1 EXT. AUDITORY CANAL MASTOID AIR CELLS BASE OF THE SKULL

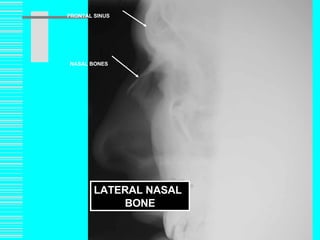

62. Prof. Z. Vinokur FRONTAL SINUS LATERAL NASAL BONE NASAL BONES

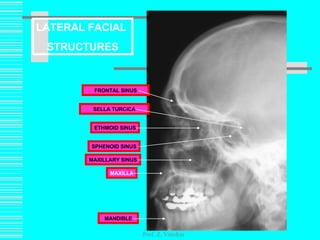

63. Prof. Z. Vinokur FRONTAL SINUS MAXILLARY SINUS MANDIBLE MAXILLA ETHMOID SINUS SELLA TURCICA SPHENOID SINUS LATERAL FACIAL STRUCTURES

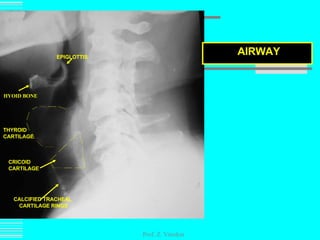

64. Prof. Z. Vinokur AIRWAY EPIGLOTTIS HYOID BONE CALCIFIED TRACHEAL CARTILAGE RINGS THYROID CARTILAGE CRICOID CARTILAGE

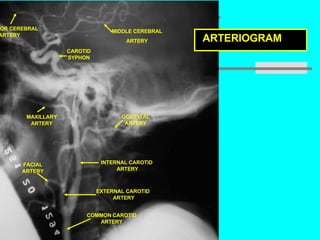

65. Prof. Z. Vinokur ARTERIOGRAM CAROTID SYPHON OCCIPITAL ARTERY INTERNAL CAROTID ARTERY EXTERNAL CAROTID ARTERY COMMON CAROTID ARTERY MAXILLARY ARTERY MIDDLE CEREBRAL ARTERY ANTERIOR CEREBRAL ARTERY FACIAL ARTERY

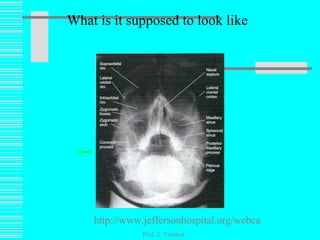

66. What is it supposed to look like Prof. Z. Vinokur http://www.jeffersonhospital.org/webcast/sinus/index.html

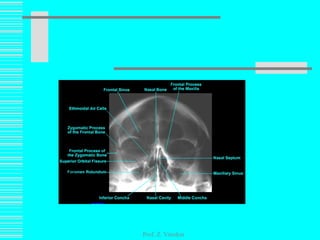

67. Prof. Z. Vinokur

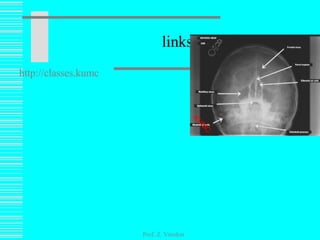

68. links Prof. Z. Vinokur http://classes.kumc.edu/som/radanatomy/results2.asp?RegionID=1&PathologyID=2
