1. Lightweight Directory Access Protocol

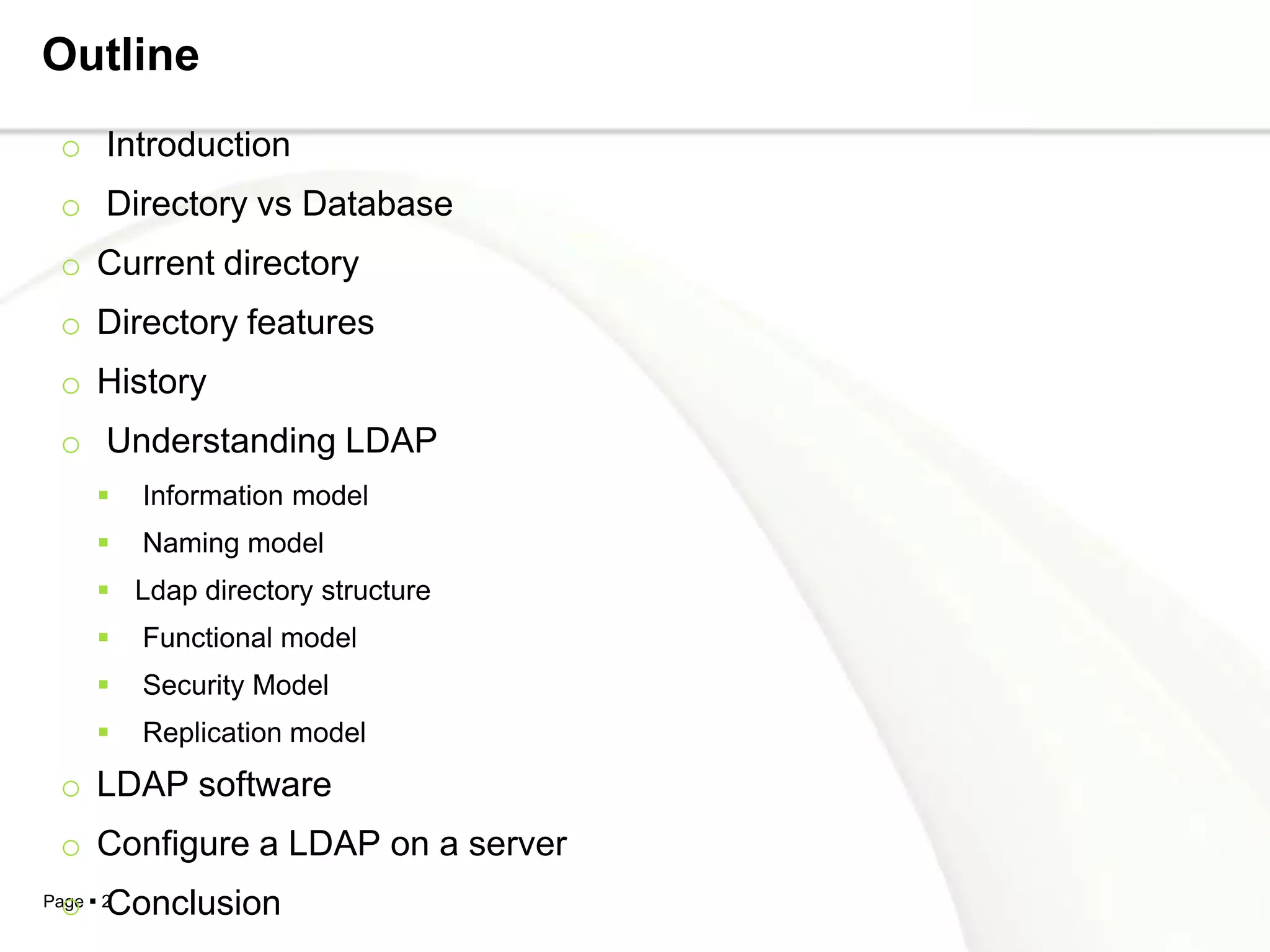

2. Outline
o Introduction
o Directory vs Database
o Current directory
o Directory features
o History
o Understanding LDAP
 Information model
 Naming model
 Ldap directory structure
 Functional model
 Security Model
 Replication model
o LDAP software
o Configure a LDAP on a server
o Conclusion
Page  2

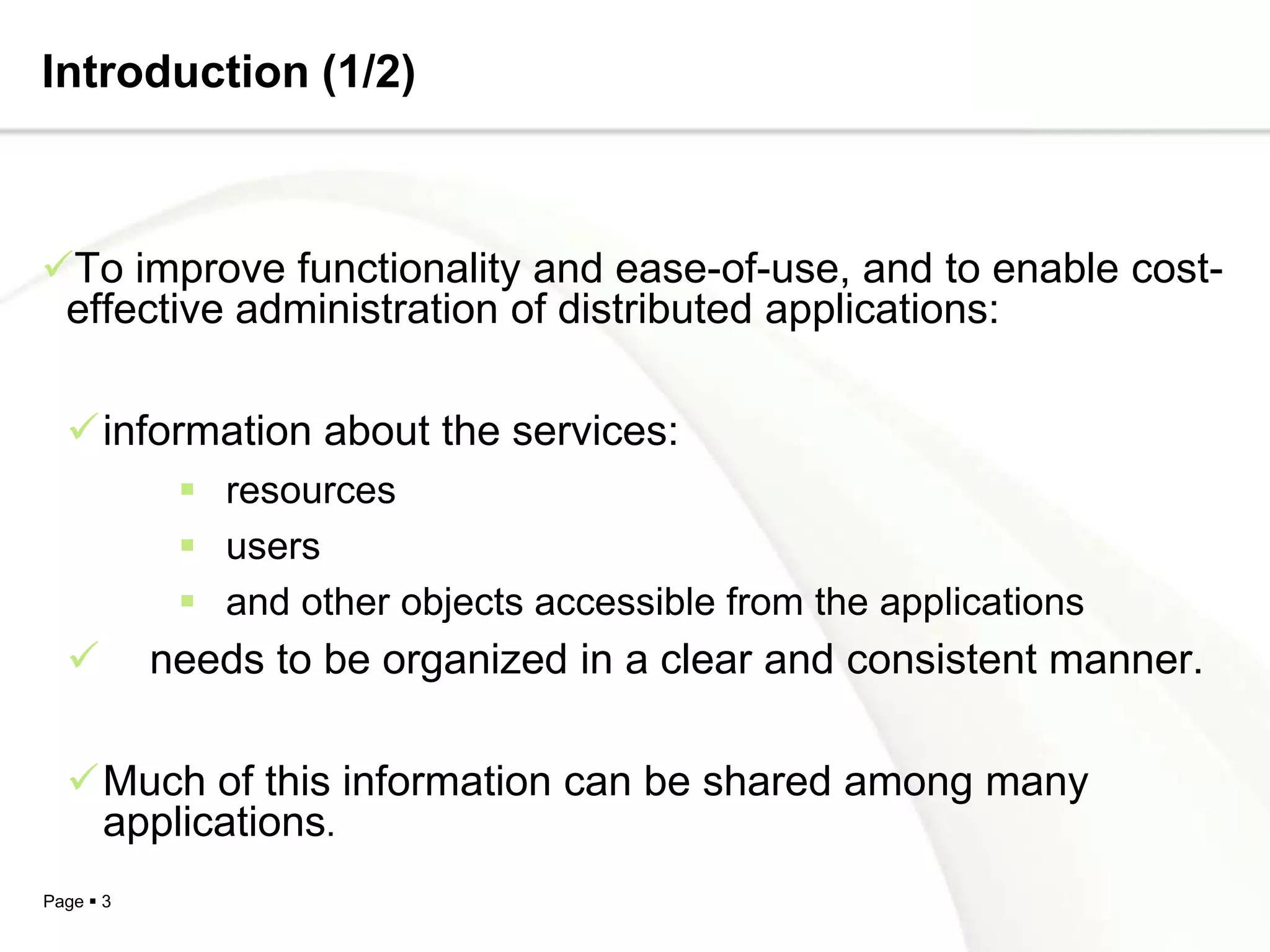

3. Introduction (1/2)
To improve functionality and ease-of-use, and to enable cost-
effective administration of distributed applications:
information about the services:
 resources
 users
 and other objects accessible from the applications
 needs to be organized in a clear and consistent manner.
Much of this information can be shared among many
applications.
Page  3

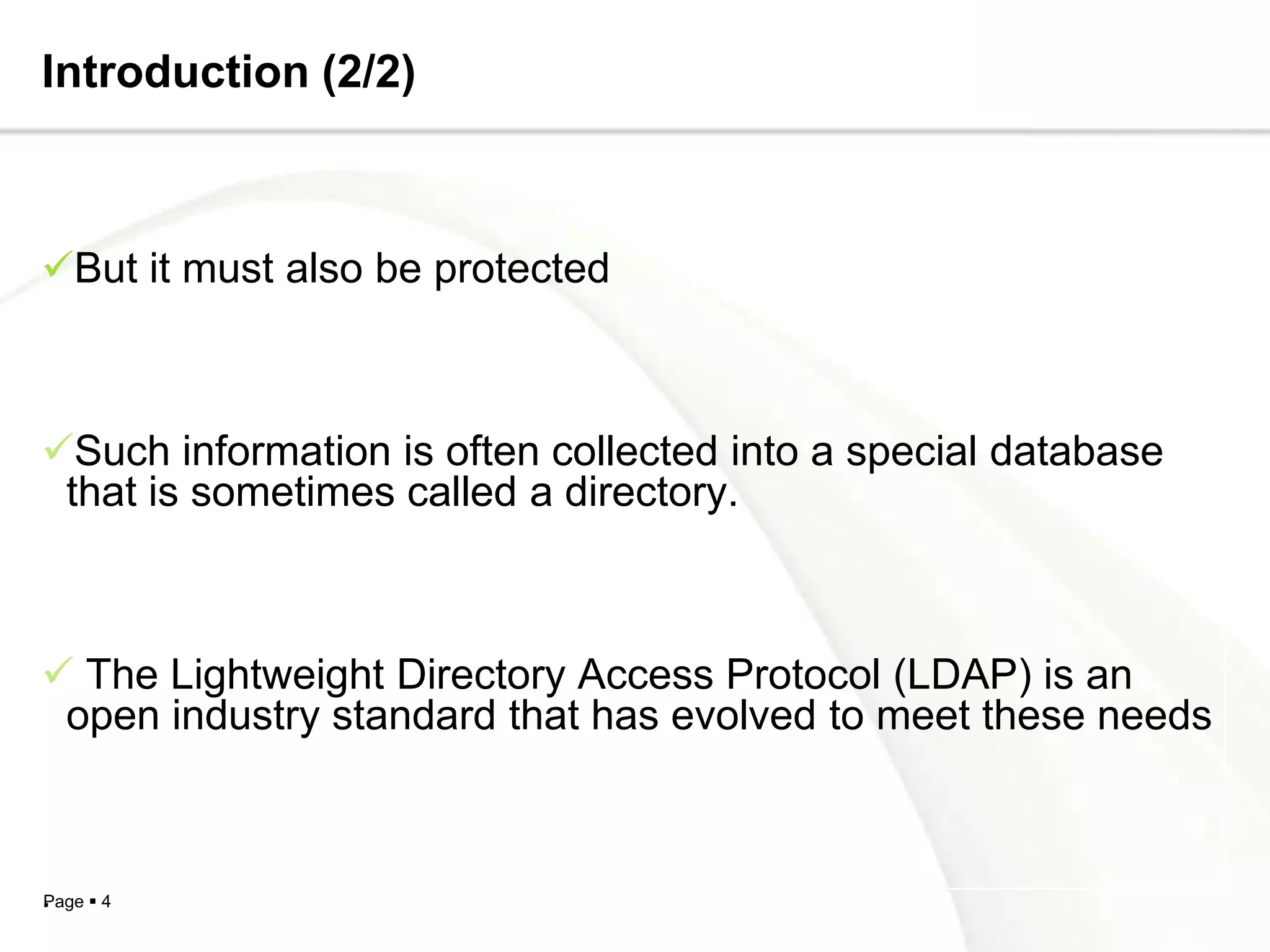

4. Introduction (2/2)
But it must also be protected
Such information is often collected into a special database
that is sometimes called a directory.
 The Lightweight Directory Access Protocol (LDAP) is an
open industry standard that has evolved to meet these needs
. 4
Page

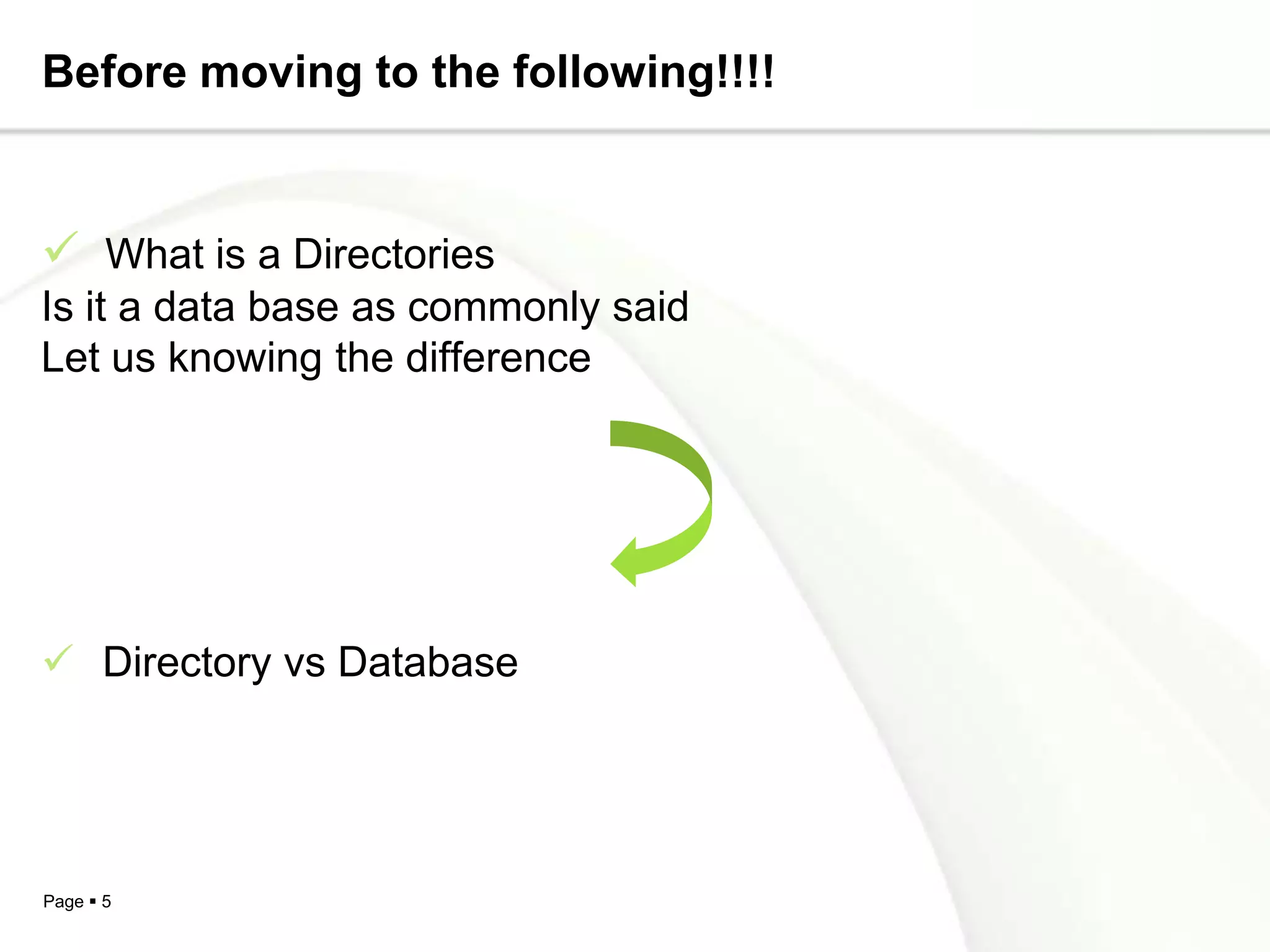

5. Before moving to the following!!!!
 What is a Directories
Is it a data base as commonly said
Let us knowing the difference
 Directory vs Database
Page  5

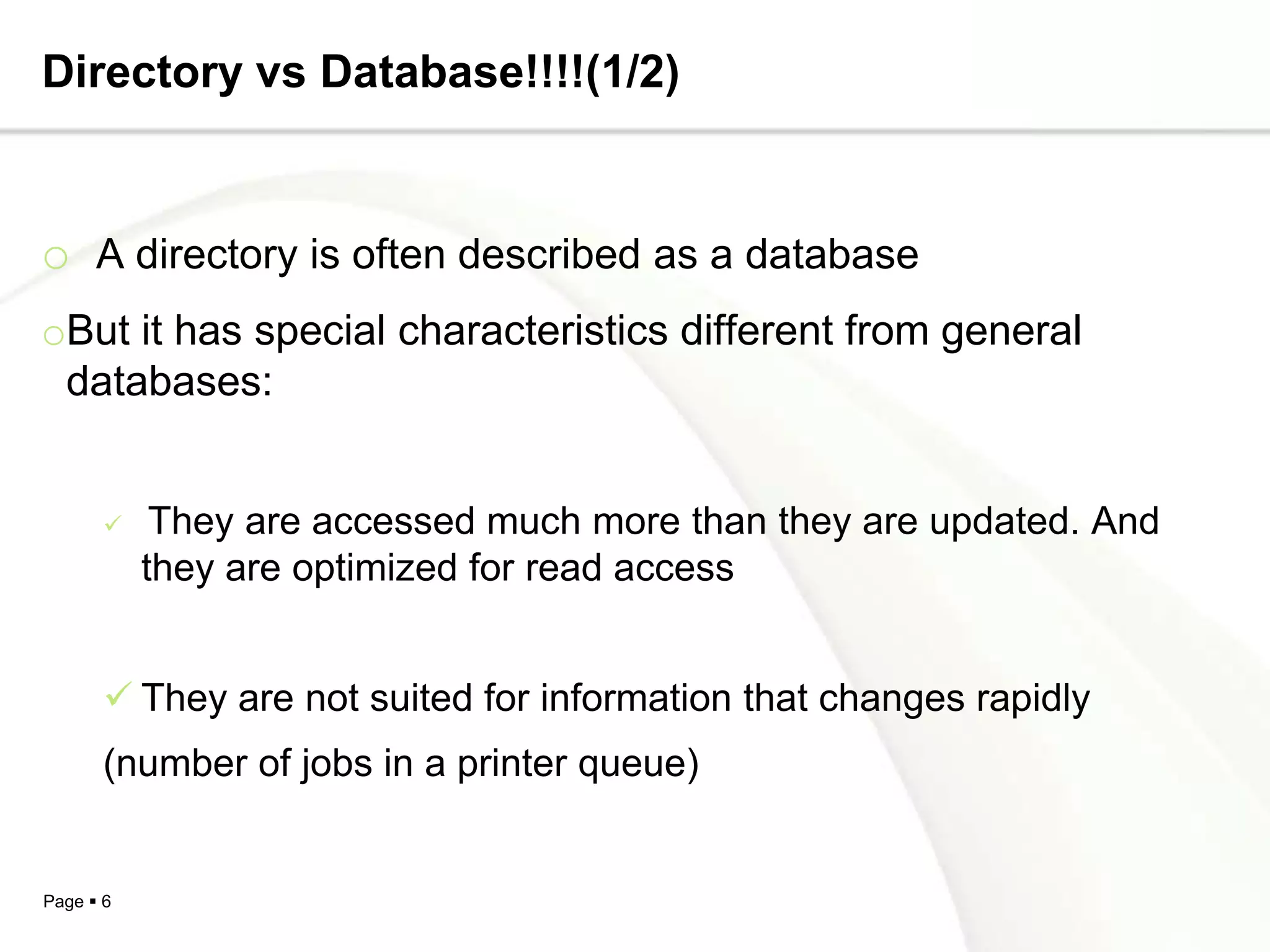

6. Directory vs Database!!!!(1/2)
o A directory is often described as a database
oBut it has special characteristics different from general
databases:
 They are accessed much more than they are updated. And
they are optimized for read access
 They are not suited for information that changes rapidly
(number of jobs in a printer queue)
Page  6

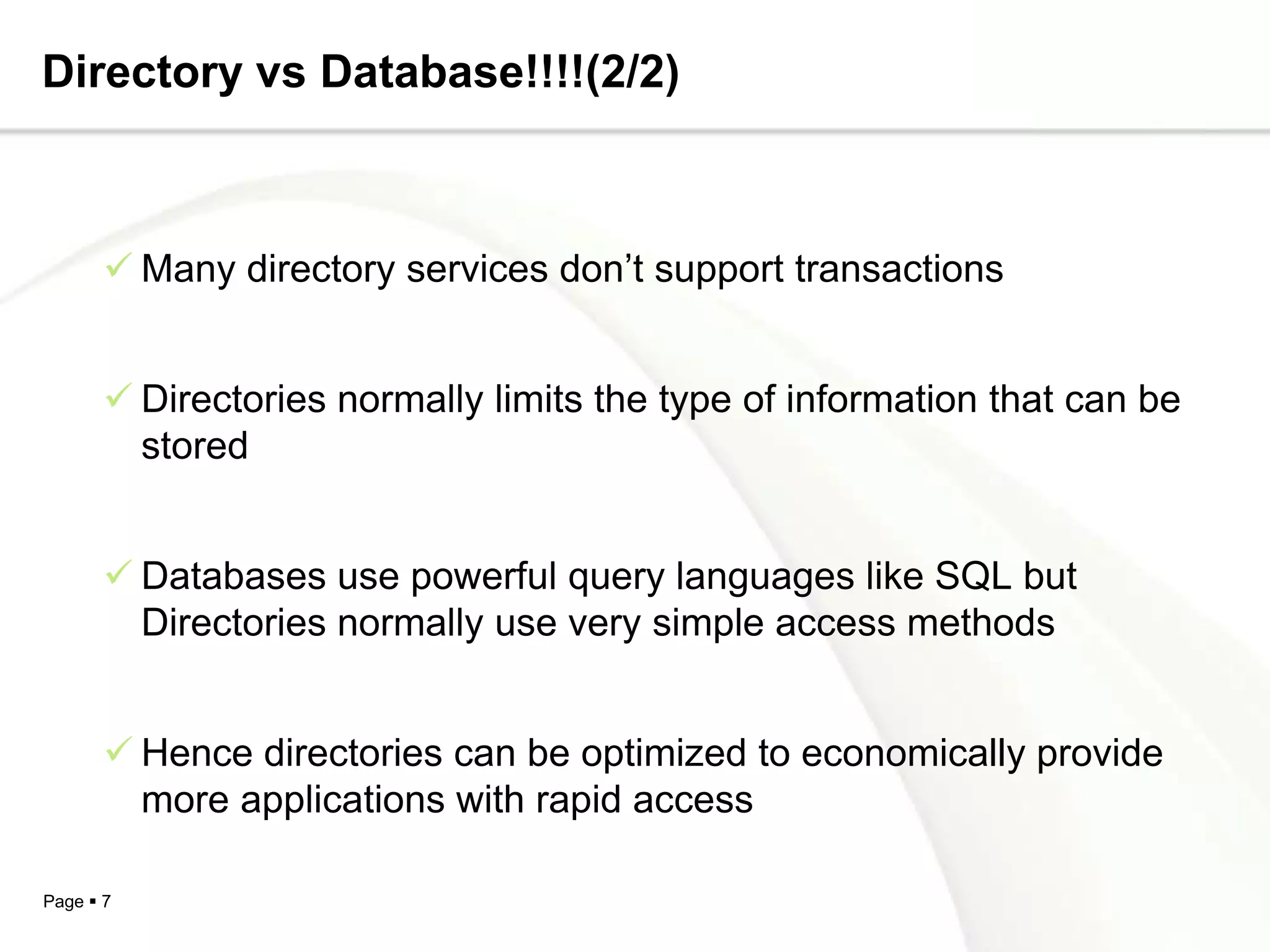

7. Directory vs Database!!!!(2/2)
 Many directory services don’t support transactions
 Directories normally limits the type of information that can be
stored
 Databases use powerful query languages like SQL but
Directories normally use very simple access methods
 Hence directories can be optimized to economically provide
more applications with rapid access
Page  7

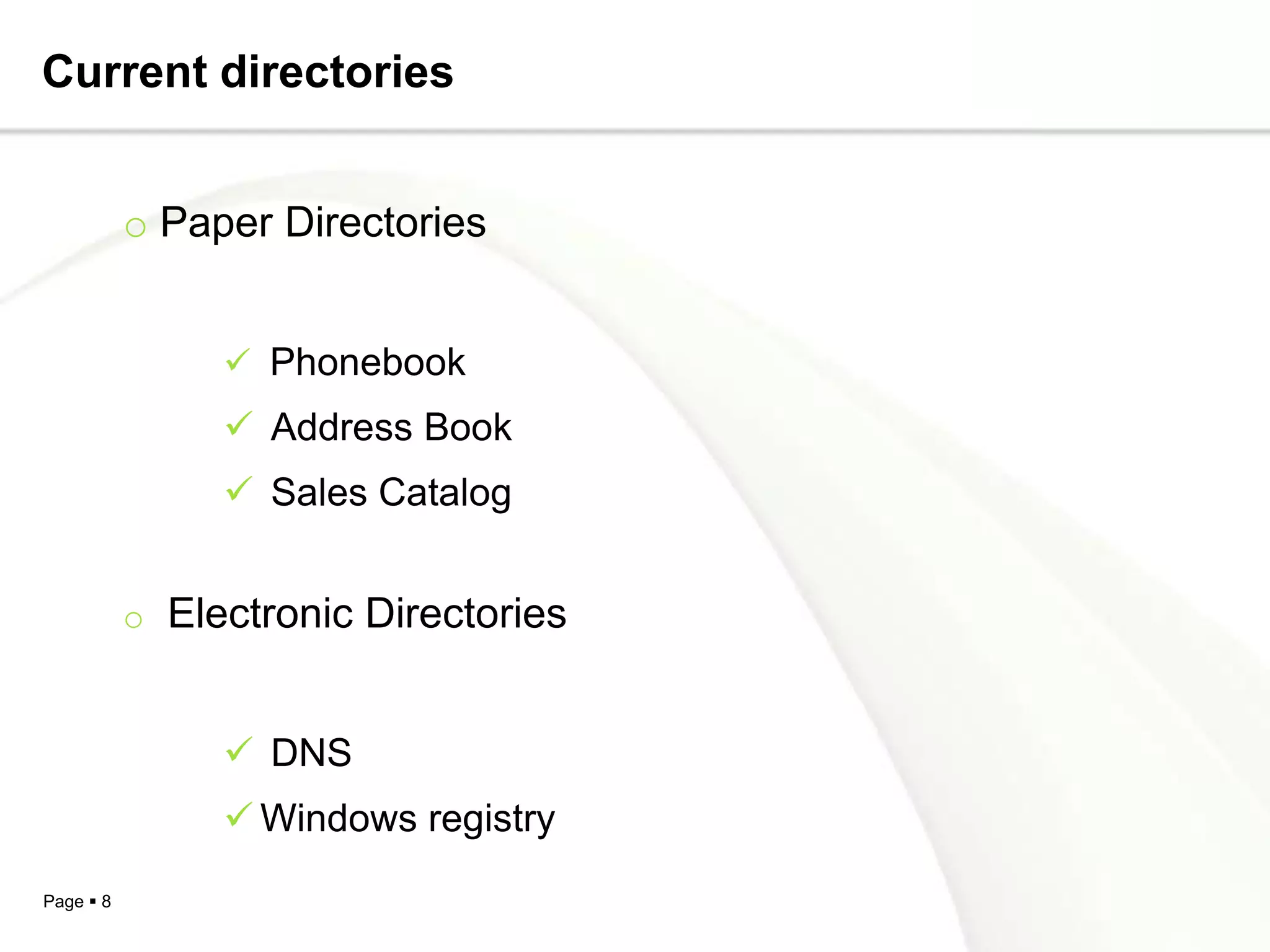

8. Current directories
o Paper Directories
 Phonebook
 Address Book
 Sales Catalog
o Electronic Directories
 DNS
 Windows registry
Page  8

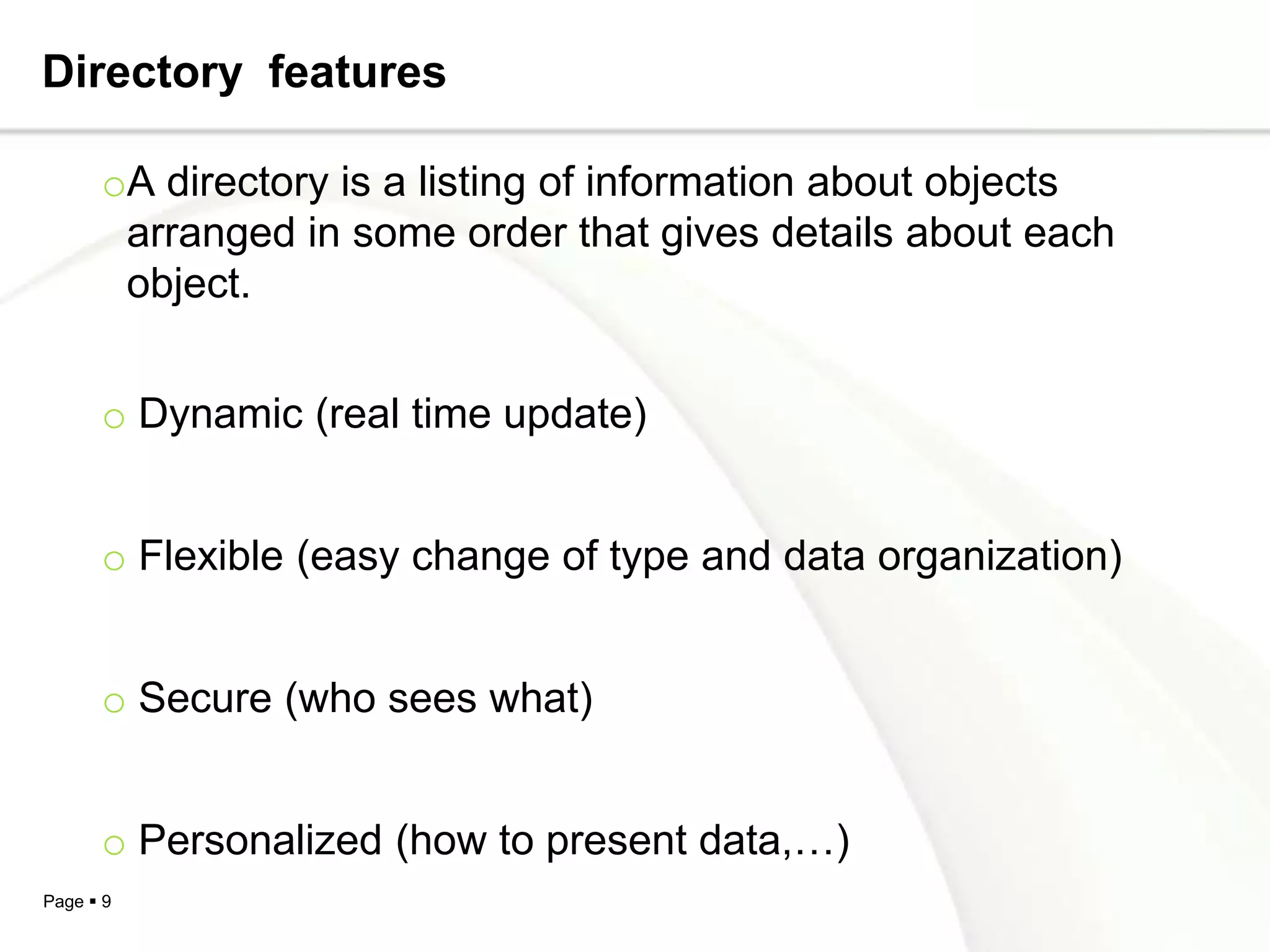

9. Directory features
oA directory is a listing of information about objects
arranged in some order that gives details about each
object.
o Dynamic (real time update)
o Flexible (easy change of type and data organization)
o Secure (who sees what)
o Personalized (how to present data,…)
Page  9

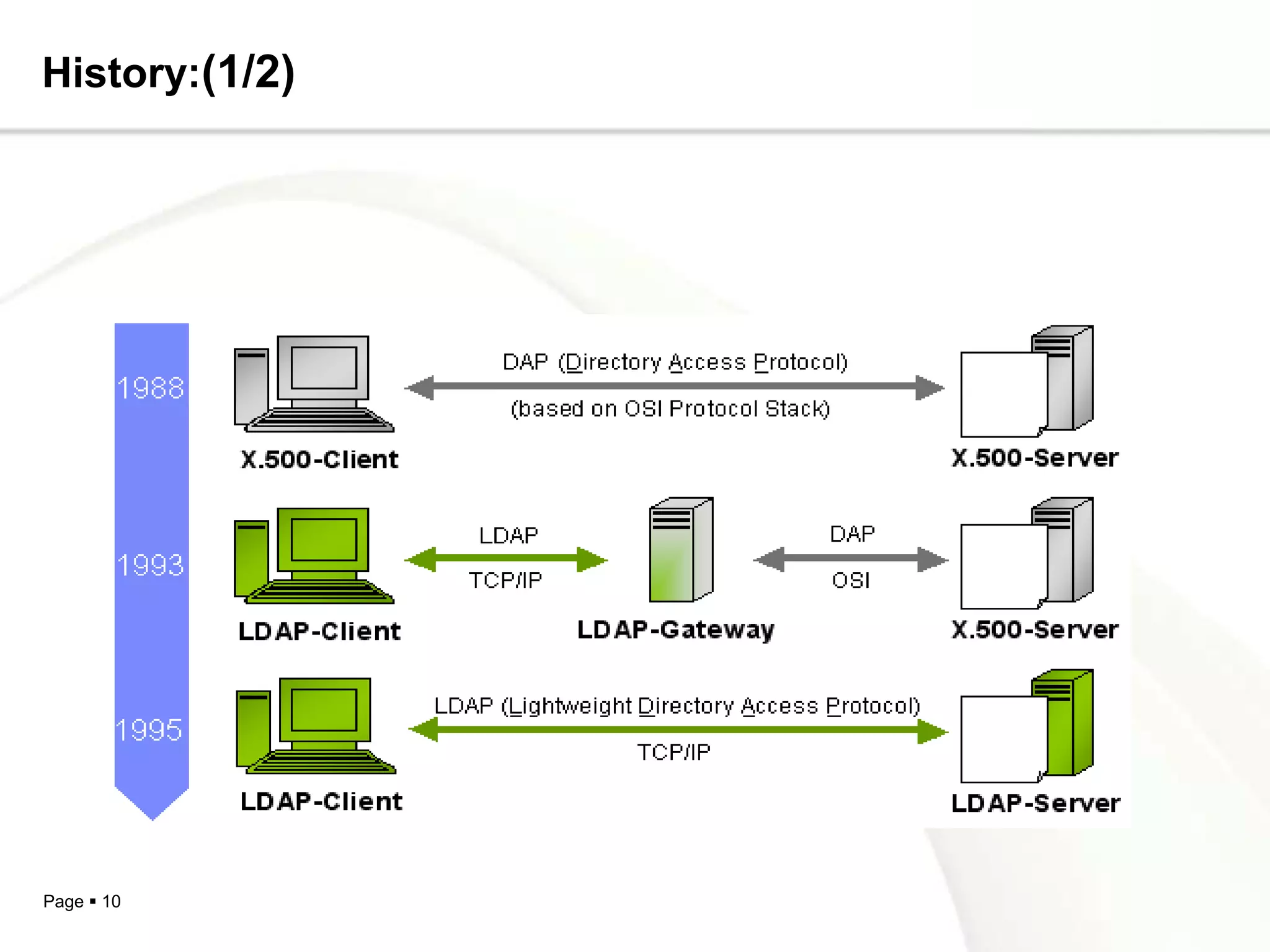

10. History:(1/2)
Page  10

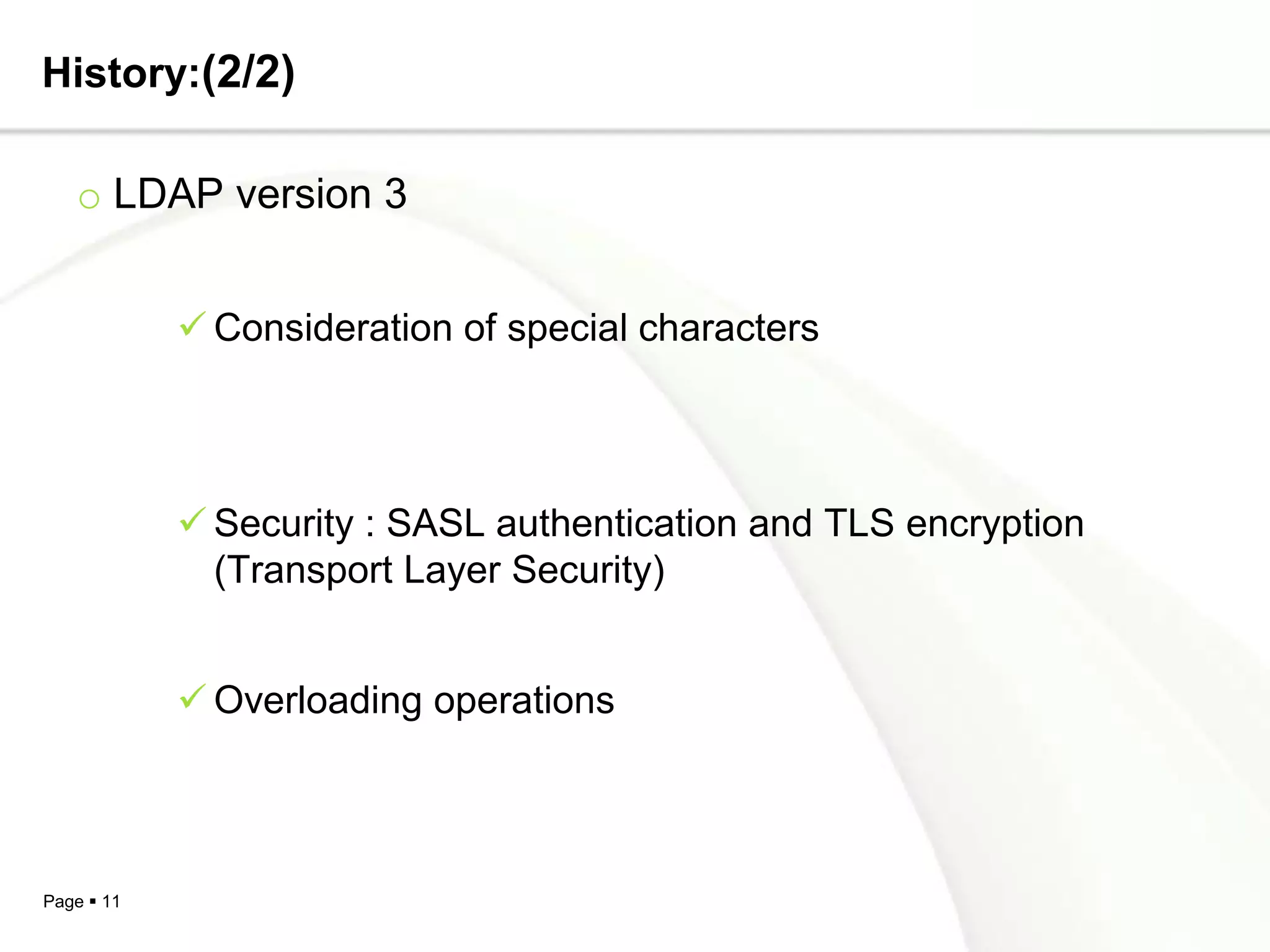

11. History:(2/2)
o LDAP version 3
 Consideration of special characters
 Security : SASL authentication and TLS encryption
(Transport Layer Security)
 Overloading operations
Page  11

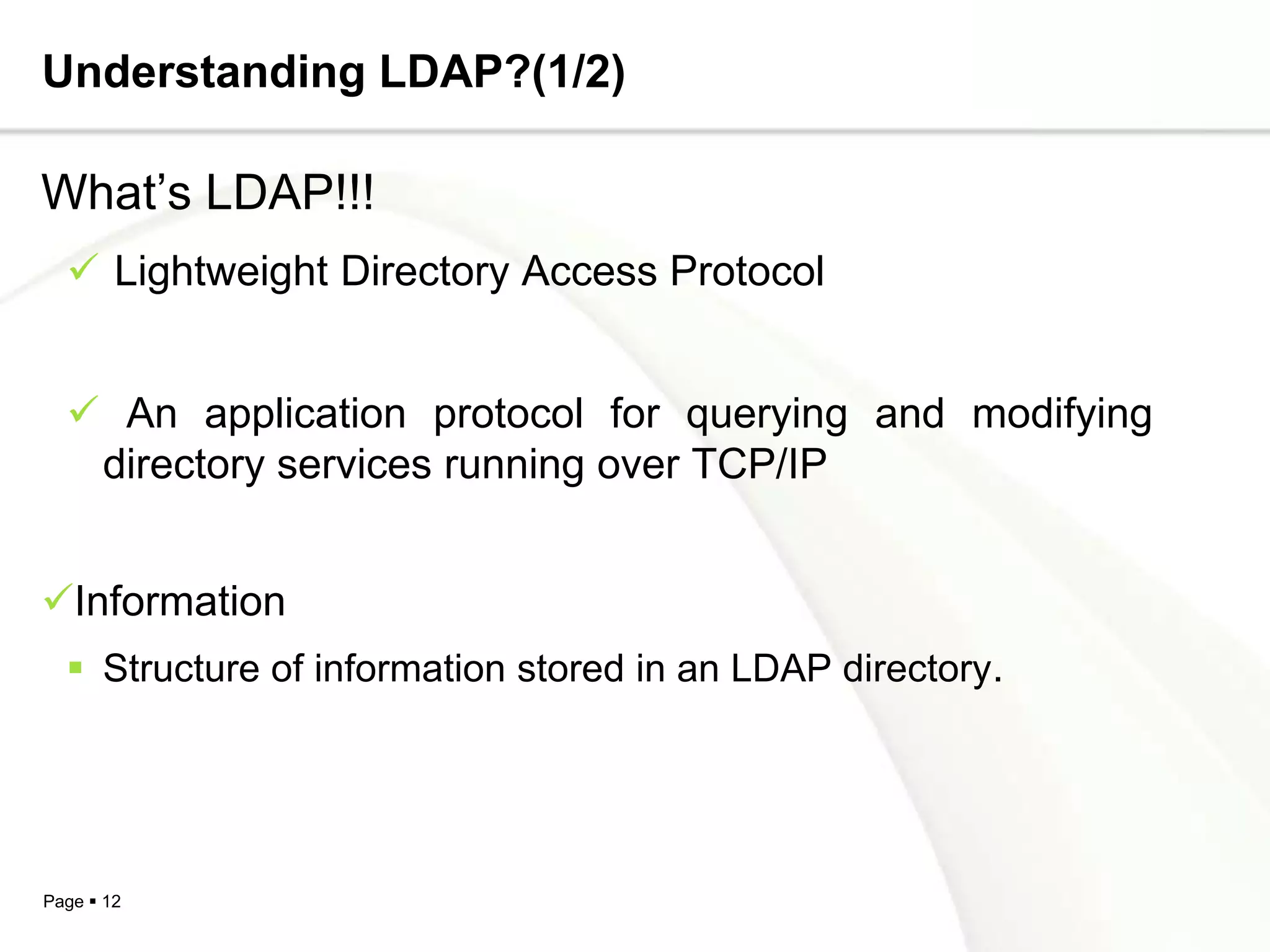

12. Understanding LDAP?(1/2)
What’s LDAP!!!
 Lightweight Directory Access Protocol
 An application protocol for querying and modifying
directory services running over TCP/IP
Information
 Structure of information stored in an LDAP directory.
Page  12

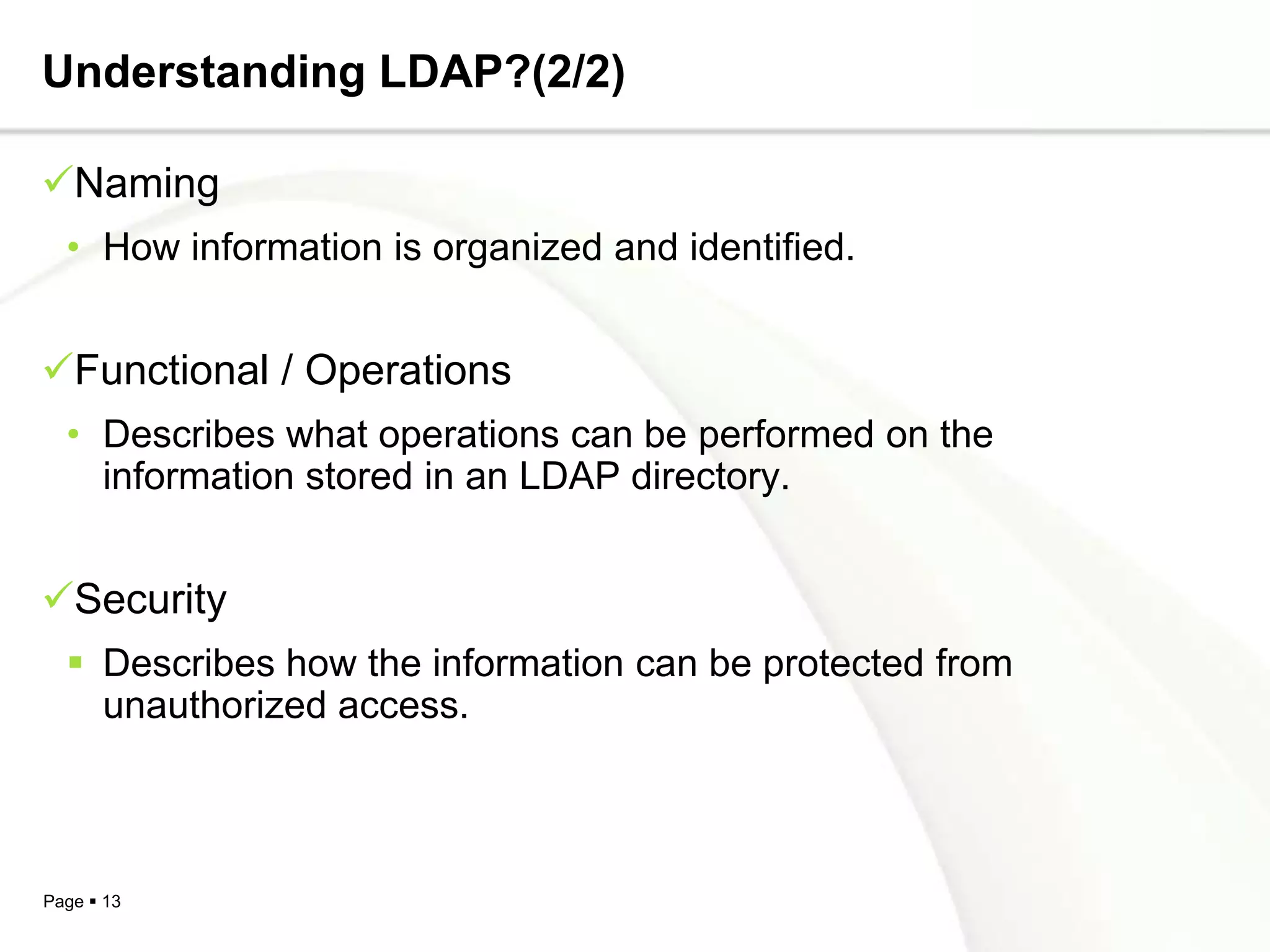

13. Understanding LDAP?(2/2)
Naming
• How information is organized and identified.
Functional / Operations
• Describes what operations can be performed on the
information stored in an LDAP directory.
Security
 Describes how the information can be protected from
unauthorized access.
Page  13

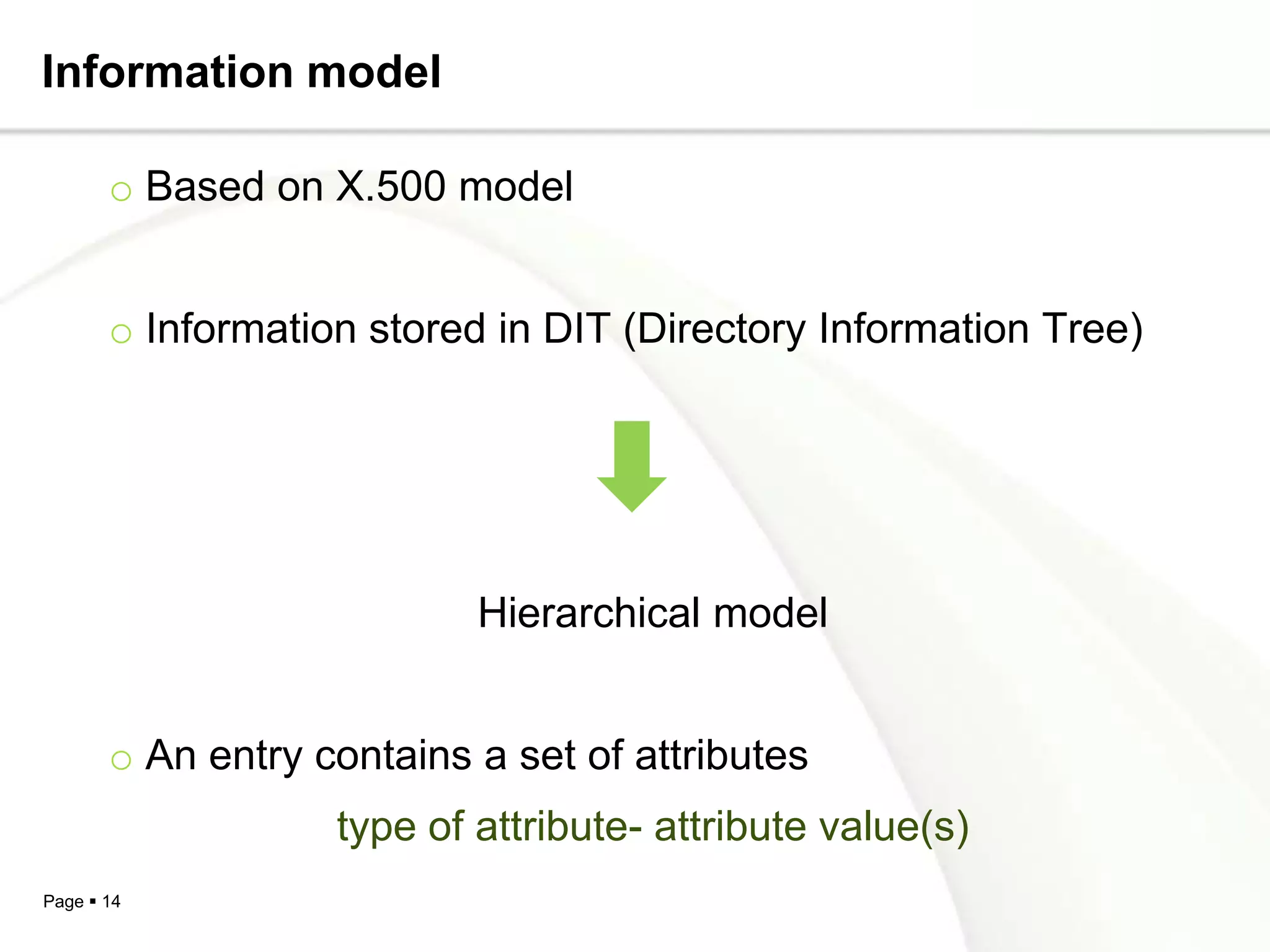

14. Information model
o Based on X.500 model
o Information stored in DIT (Directory Information Tree)
Hierarchical model
o An entry contains a set of attributes
type of attribute- attribute value(s)
Page  14

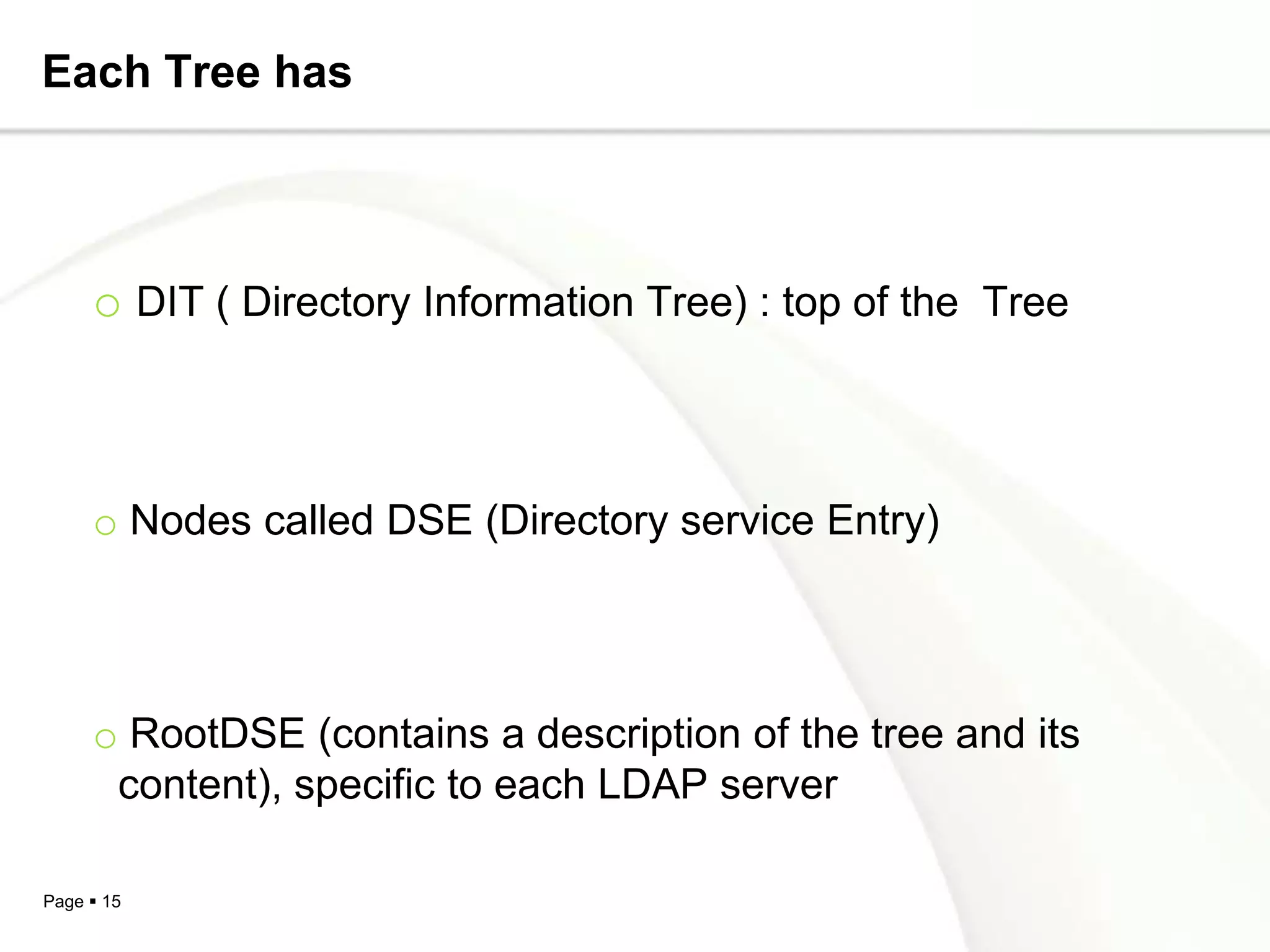

15. Each Tree has
o DIT ( Directory Information Tree) : top of the Tree
o Nodes called DSE (Directory service Entry)
o RootDSE (contains a description of the tree and its
content), specific to each LDAP server
Page  15

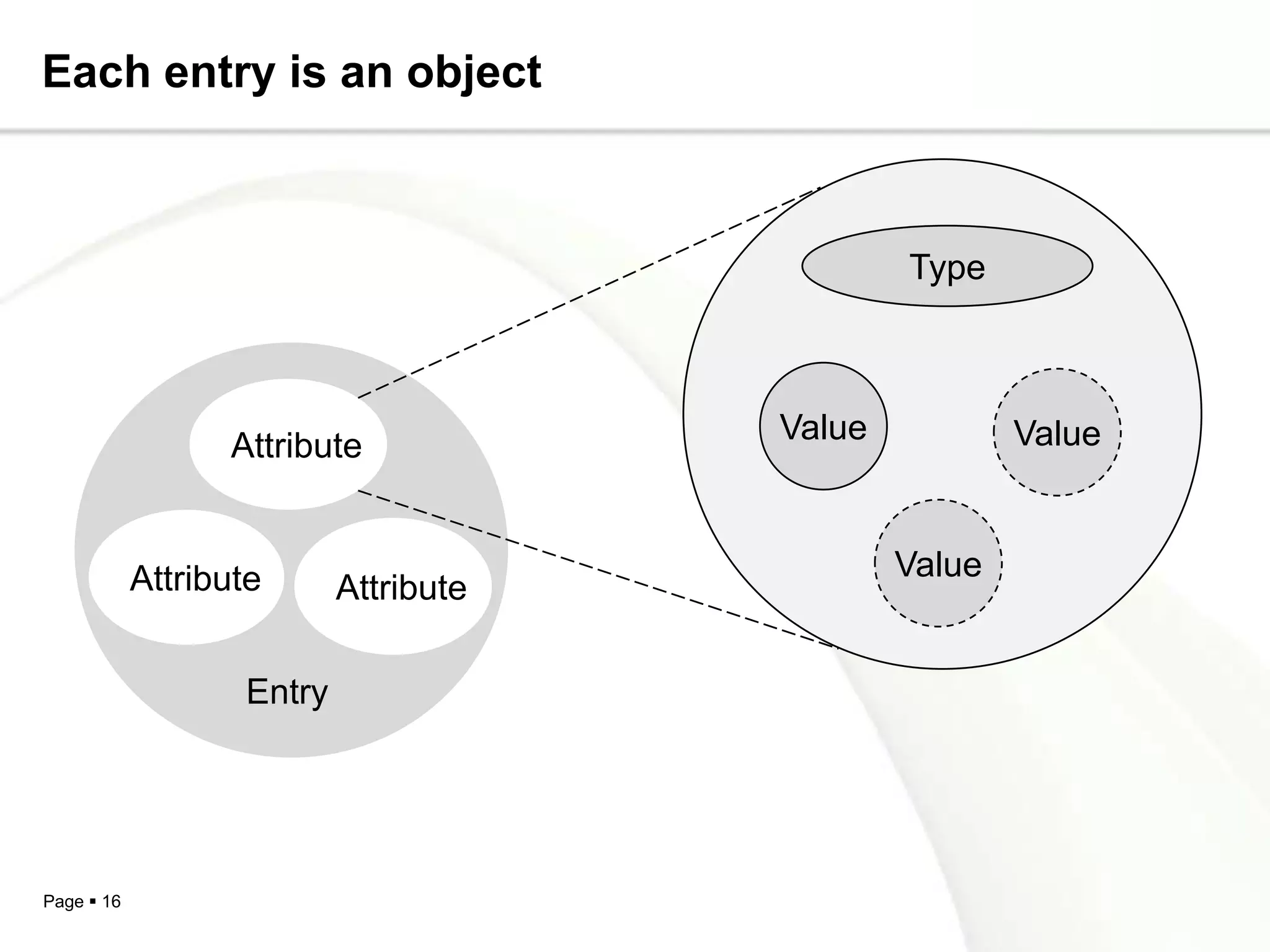

16. Each entry is an object
Type
Value Value
Attribute
Attribute Value
Attribute
Entry
Page  16

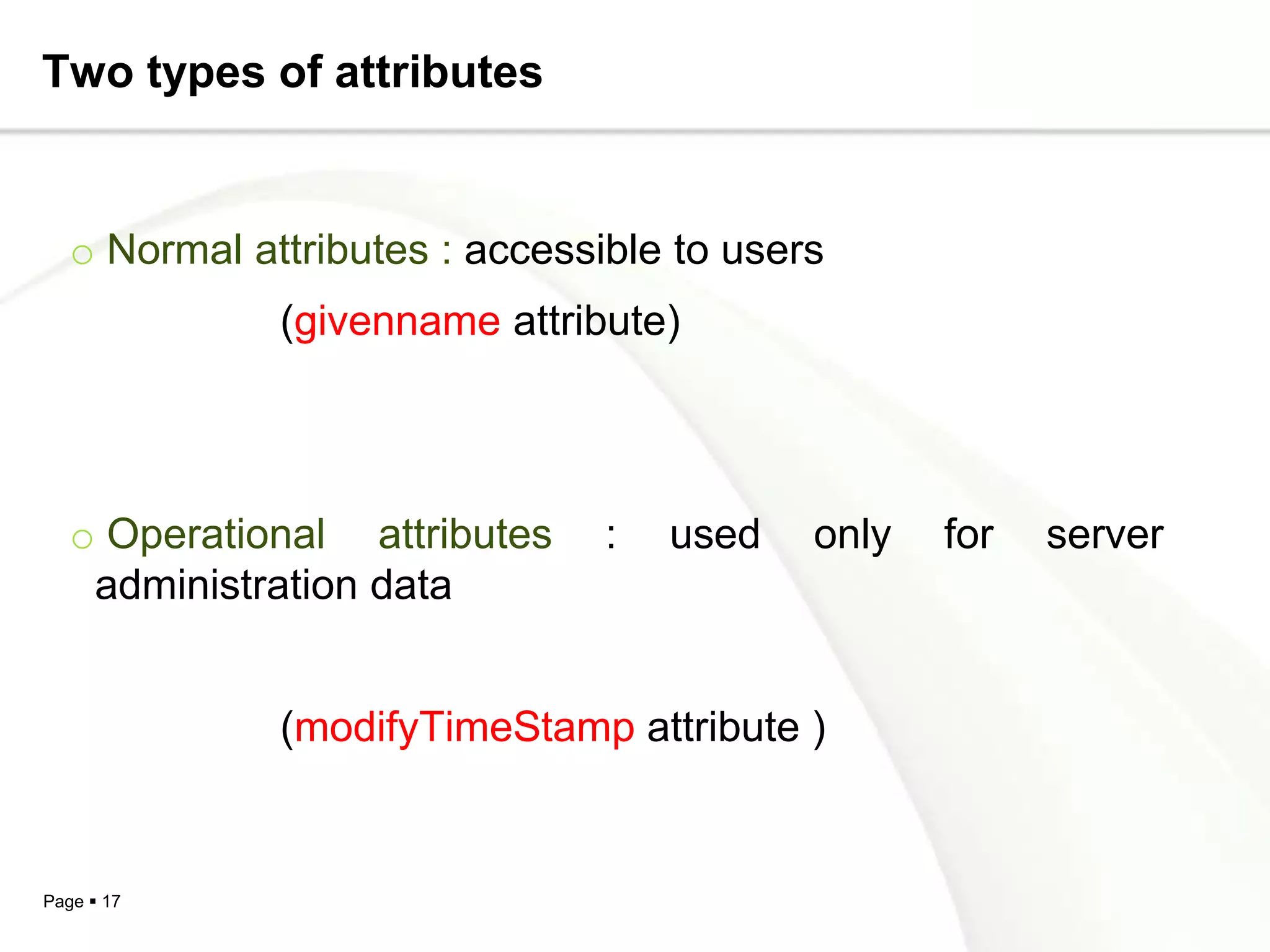

17. Two types of attributes
o Normal attributes : accessible to users
(givenname attribute)
o Operational attributes : used only for server
administration data
(modifyTimeStamp attribute )
Page  17

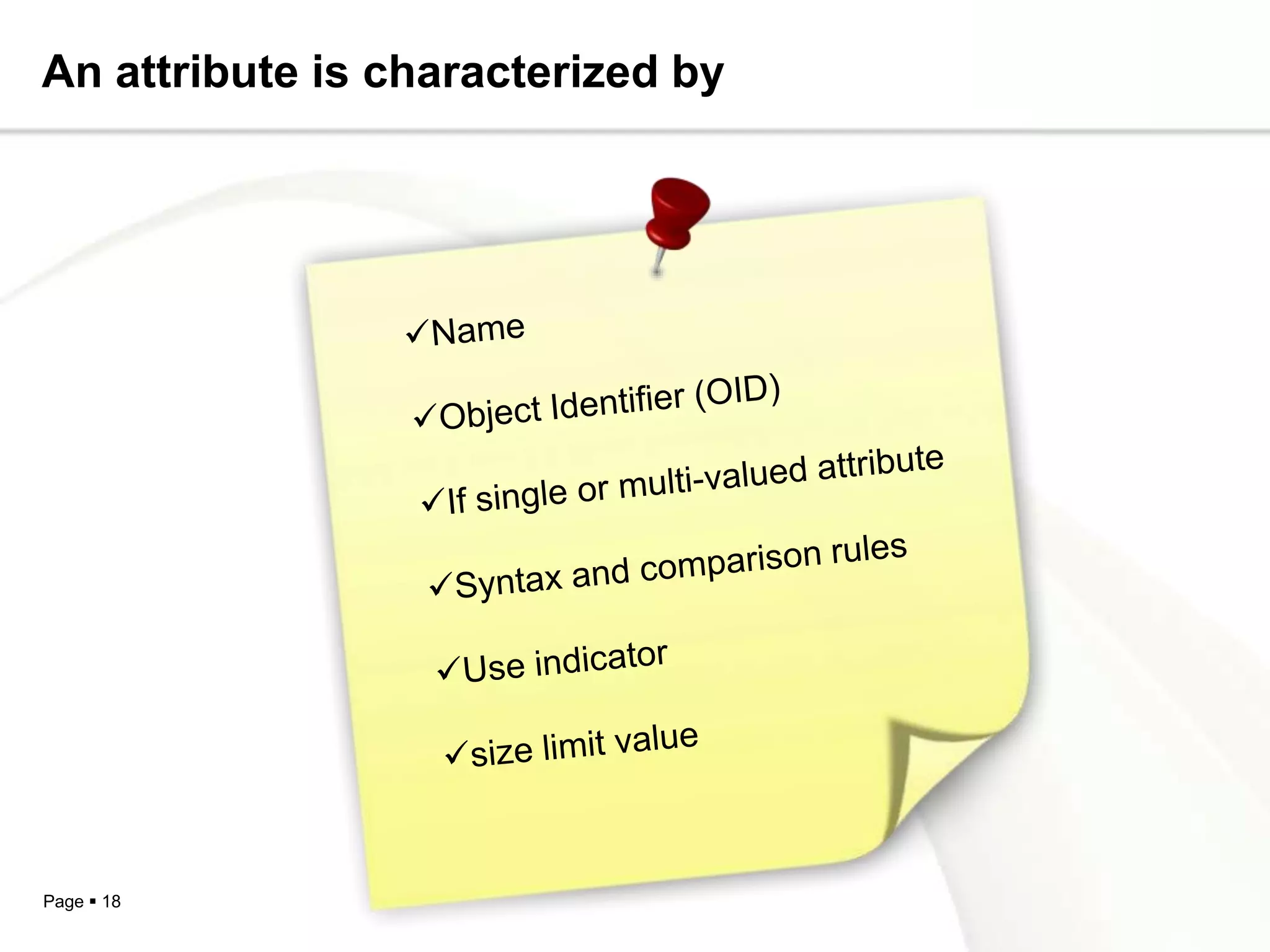

18. An attribute is characterized by
Page  18

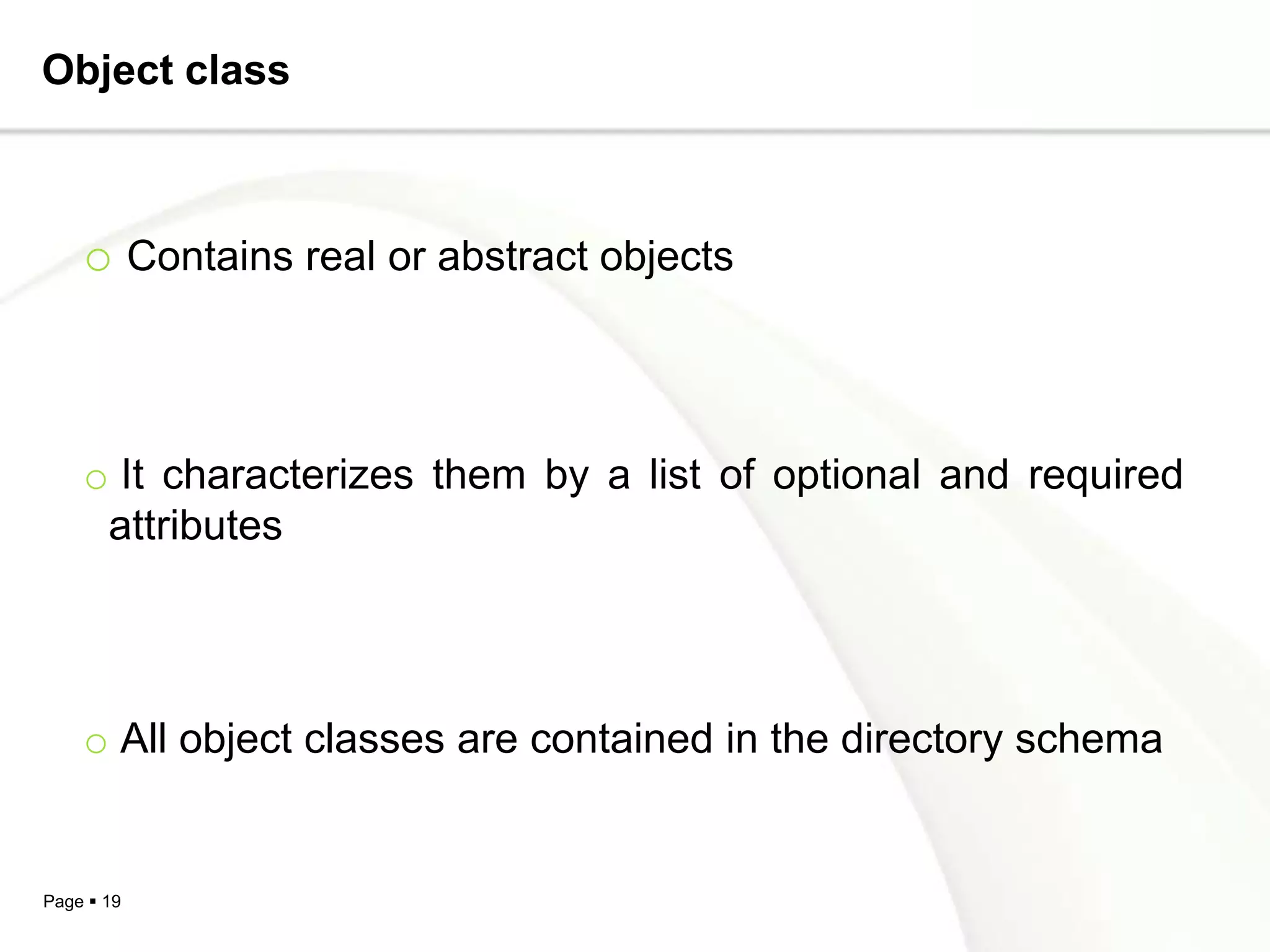

19. Object class
o Contains real or abstract objects
o It characterizes them by a list of optional and required
attributes
o All object classes are contained in the directory schema
Page  19

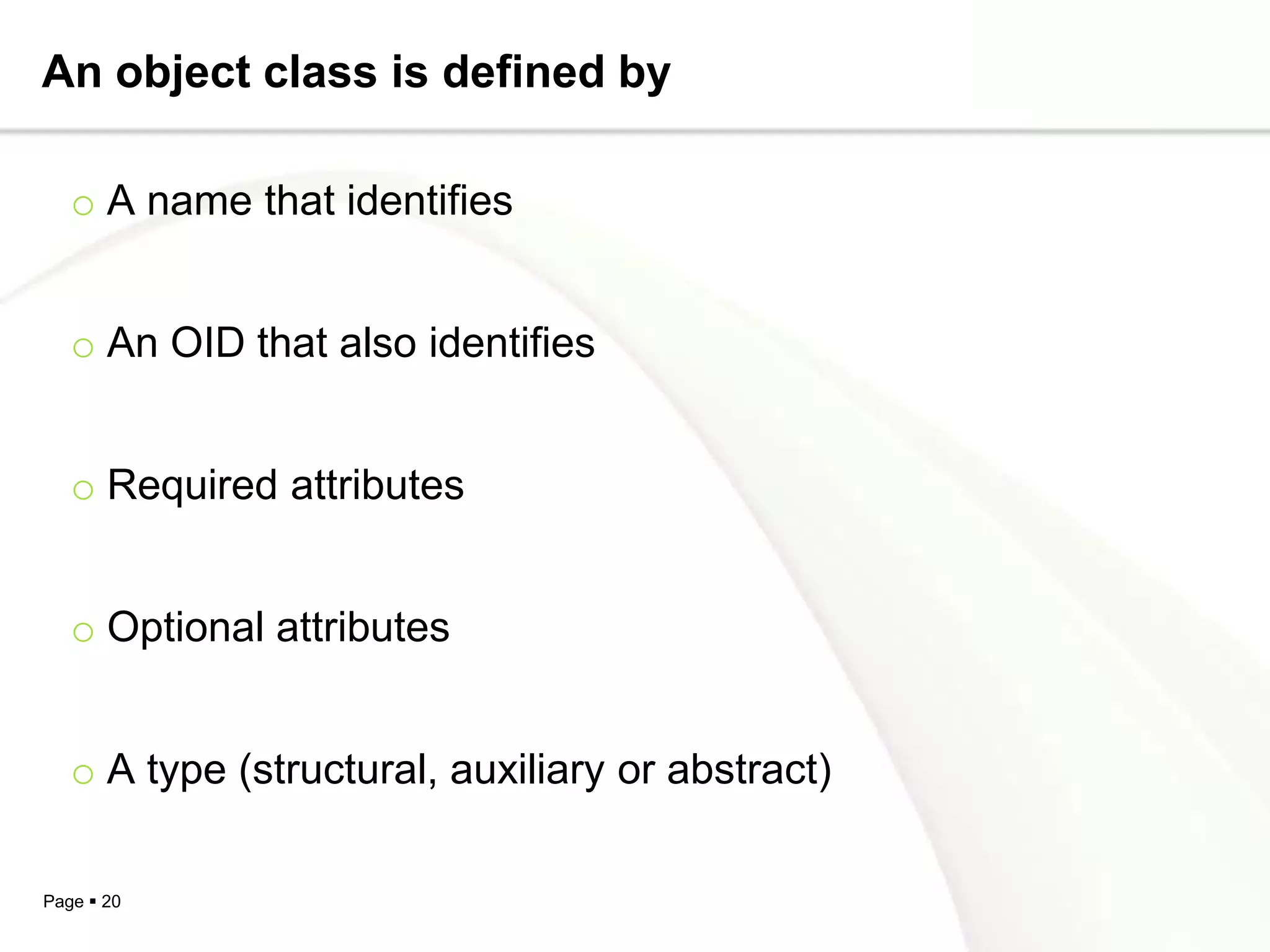

20. An object class is defined by
o A name that identifies
o An OID that also identifies
o Required attributes
o Optional attributes
o A type (structural, auxiliary or abstract)
Page  20

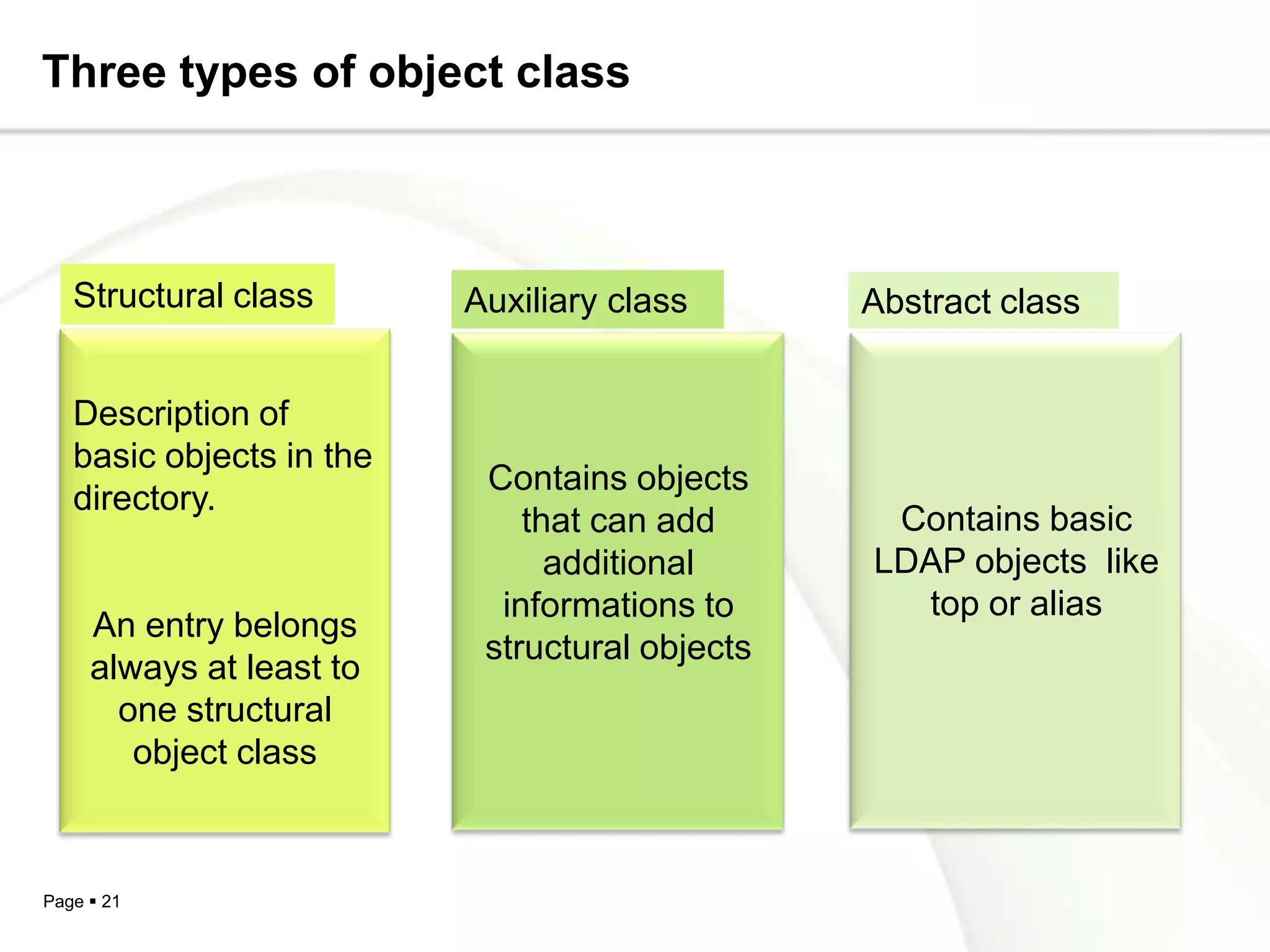

21. Three types of object class
Structural class Auxiliary class Abstract class
Description of
basic objects in the
Contains objects
directory.
that can add Contains basic
additional LDAP objects like
informations to top or alias
An entry belongs
structural objects
always at least to
one structural
object class
Page  21

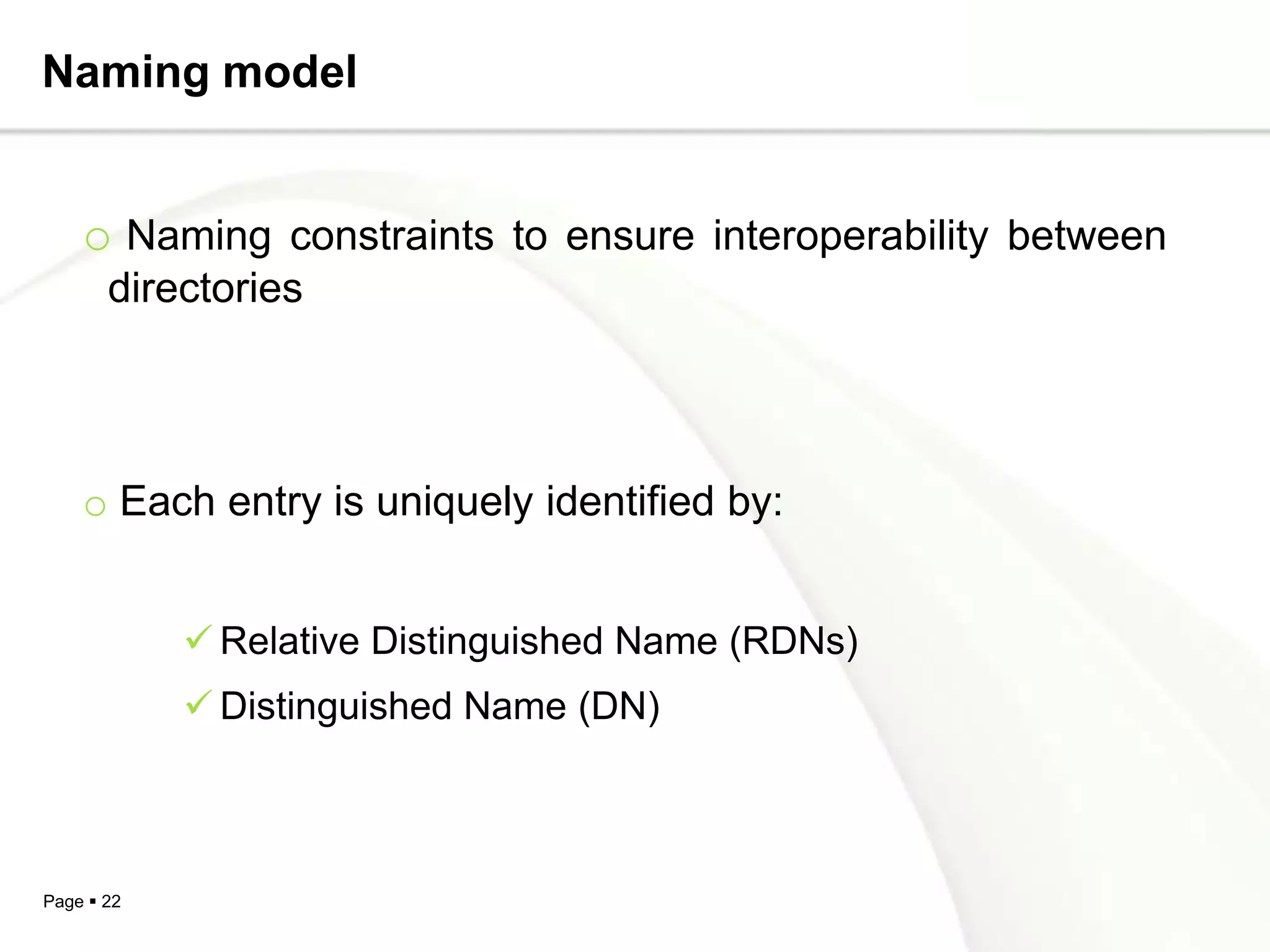

22. Naming model
o Naming constraints to ensure interoperability between
directories
o Each entry is uniquely identified by:
 Relative Distinguished Name (RDNs)
 Distinguished Name (DN)
Page  22

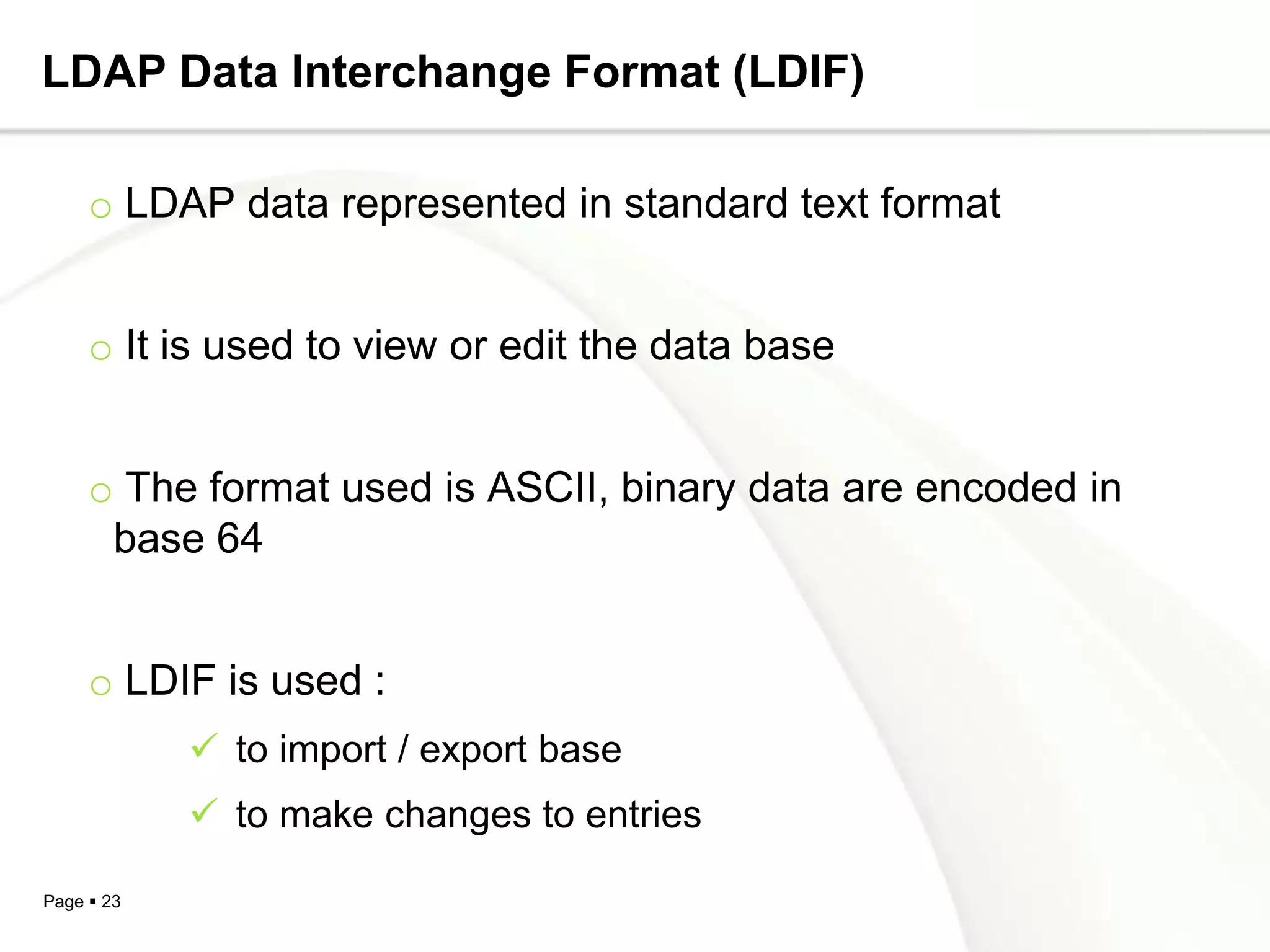

23. LDAP Data Interchange Format (LDIF)
o LDAP data represented in standard text format
o It is used to view or edit the data base
o The format used is ASCII, binary data are encoded in
base 64
o LDIF is used :
 to import / export base
 to make changes to entries
Page  23

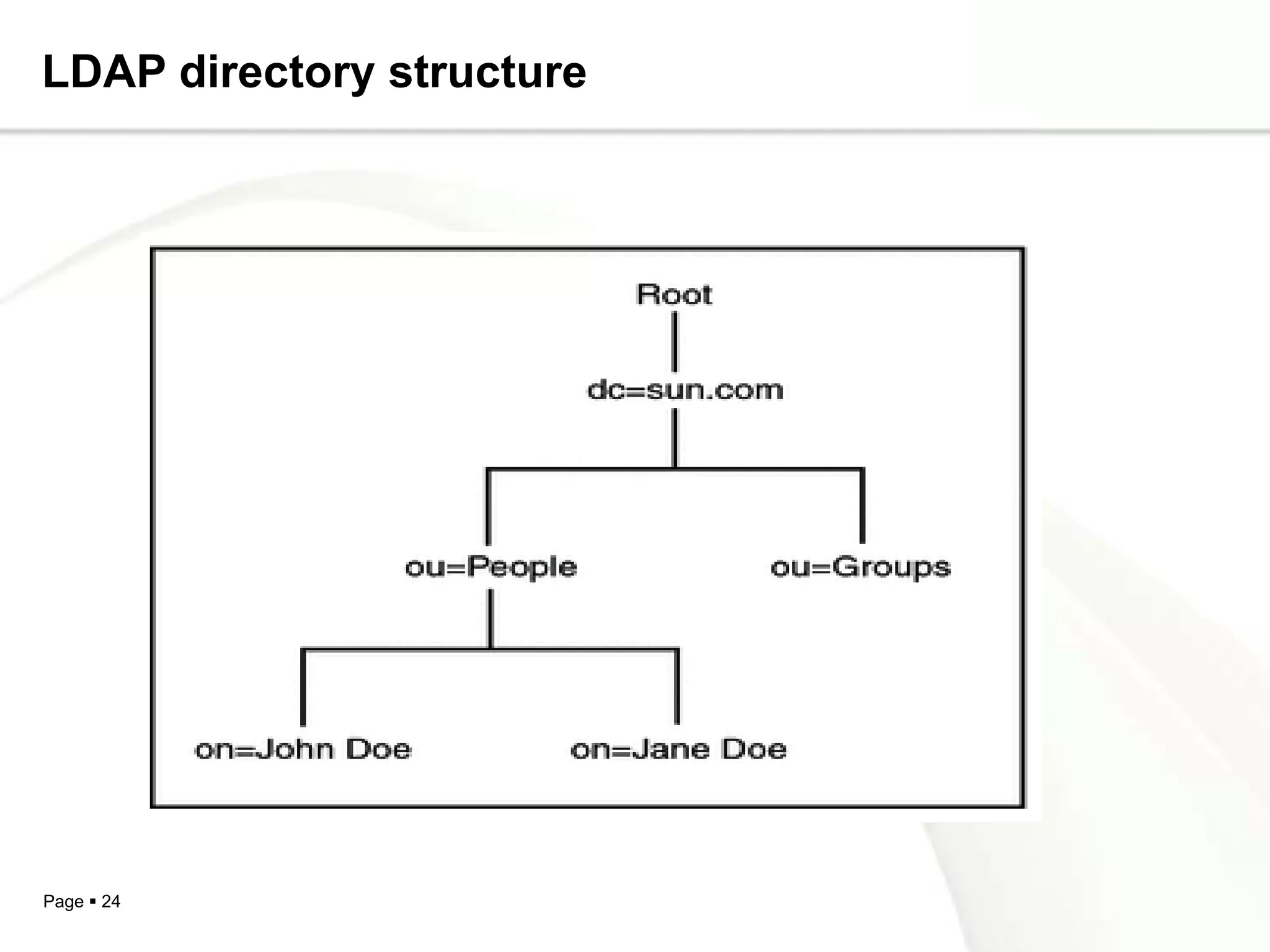

24. LDAP directory structure
Page  24

25. Example
Page  25

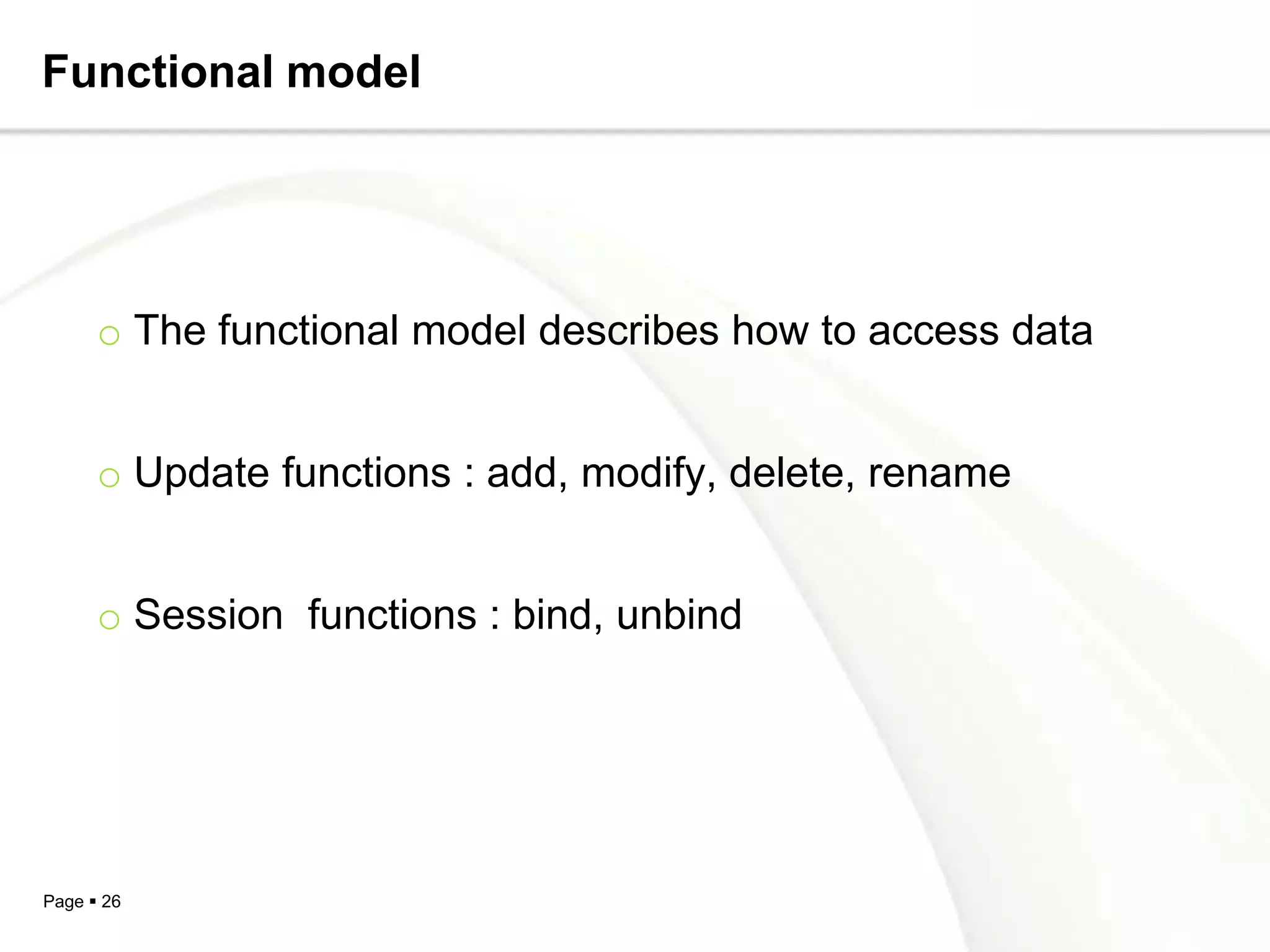

26. Functional model
o The functional model describes how to access data
o Update functions : add, modify, delete, rename
o Session functions : bind, unbind
Page  26

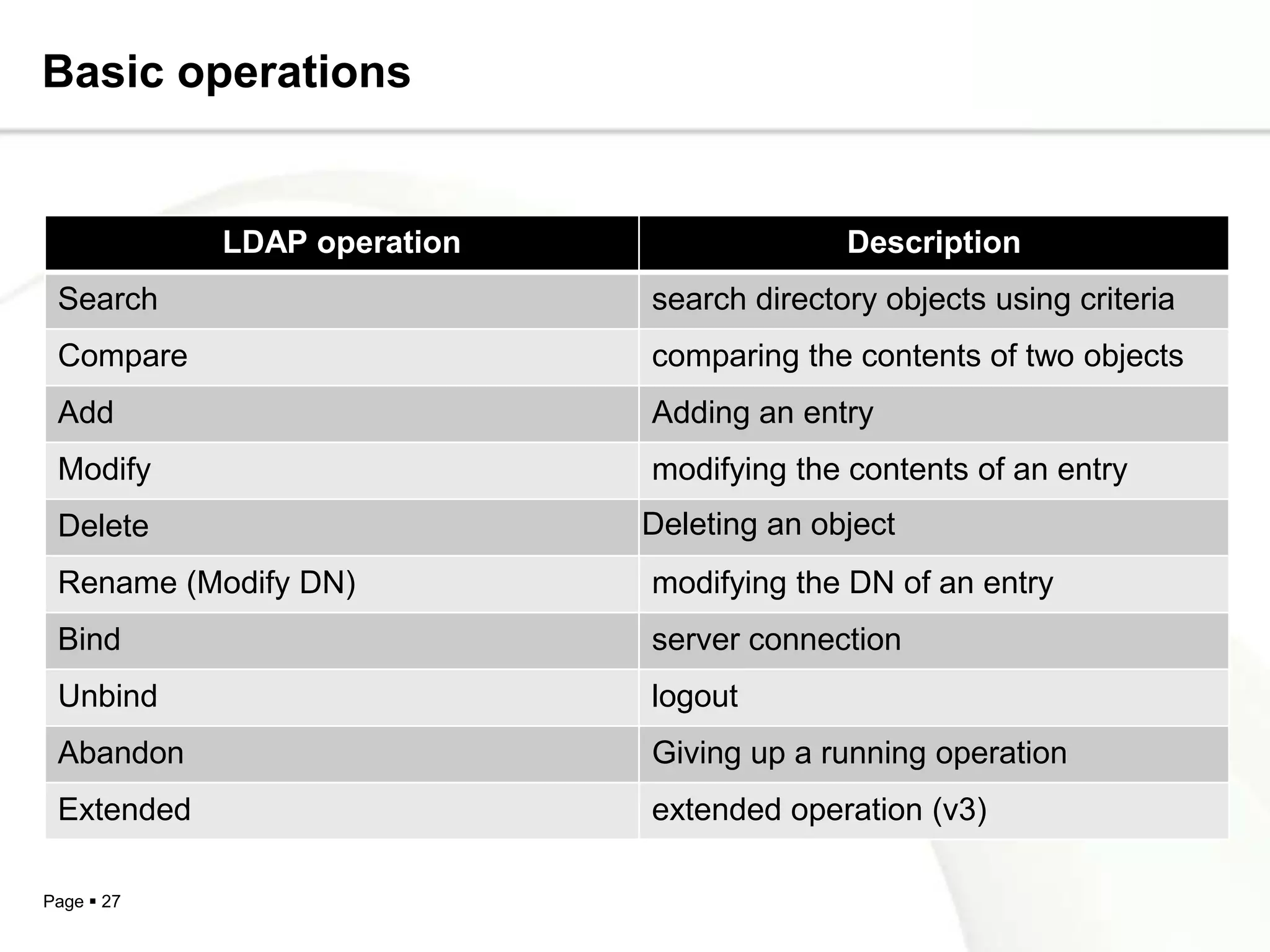

27. Basic operations
LDAP operation Description
Search search directory objects using criteria
Compare comparing the contents of two objects
Add Adding an entry
Modify modifying the contents of an entry
Delete Deleting an object
Rename (Modify DN) modifying the DN of an entry
Bind server connection
Unbind logout
Abandon Giving up a running operation
Extended extended operation (v3)
Page  27

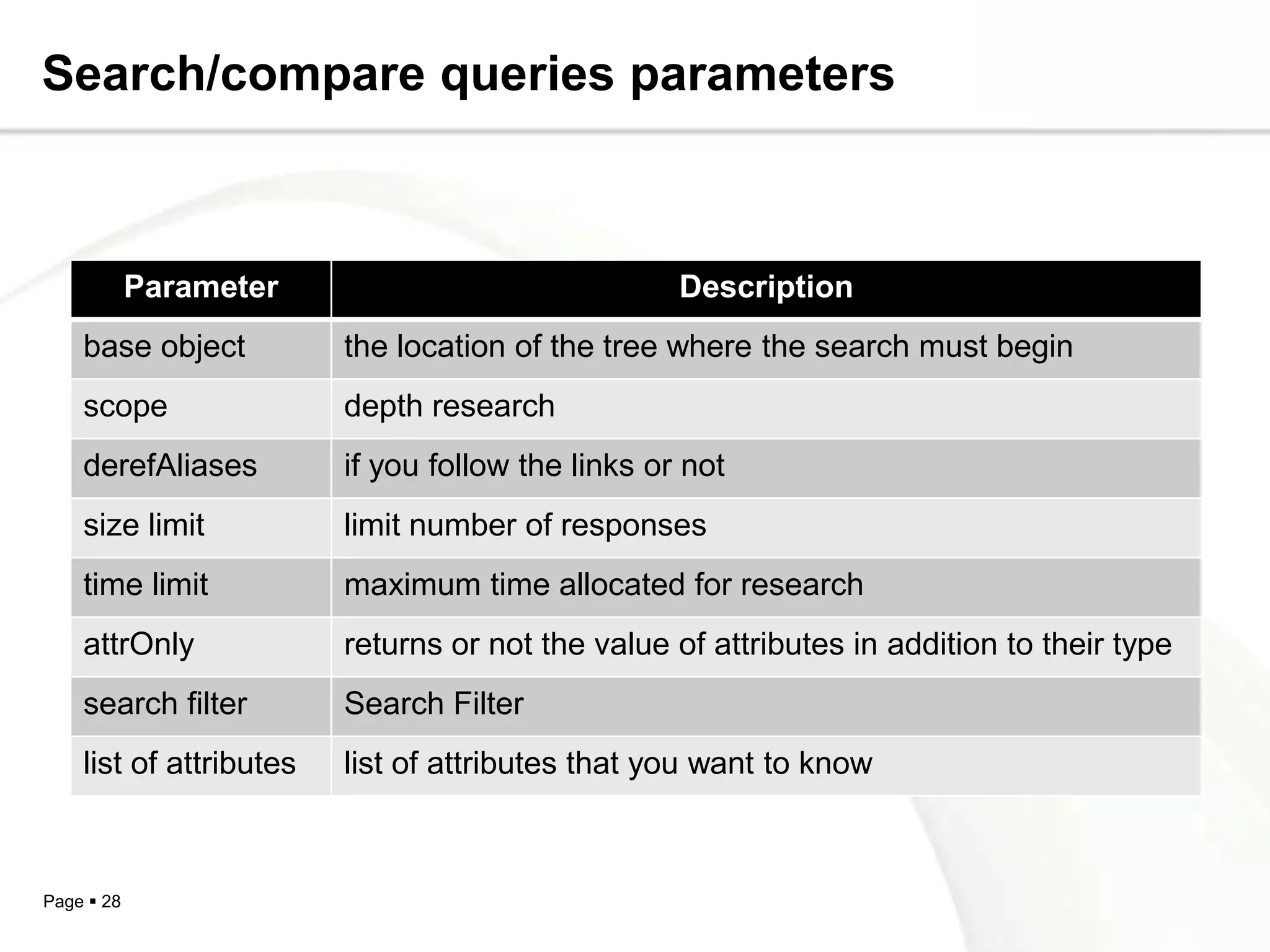

28. Search/compare queries parameters
Parameter Description
base object the location of the tree where the search must begin
scope depth research
derefAliases if you follow the links or not
size limit limit number of responses
time limit maximum time allocated for research
attrOnly returns or not the value of attributes in addition to their type
search filter Search Filter
list of attributes list of attributes that you want to know
Page  28

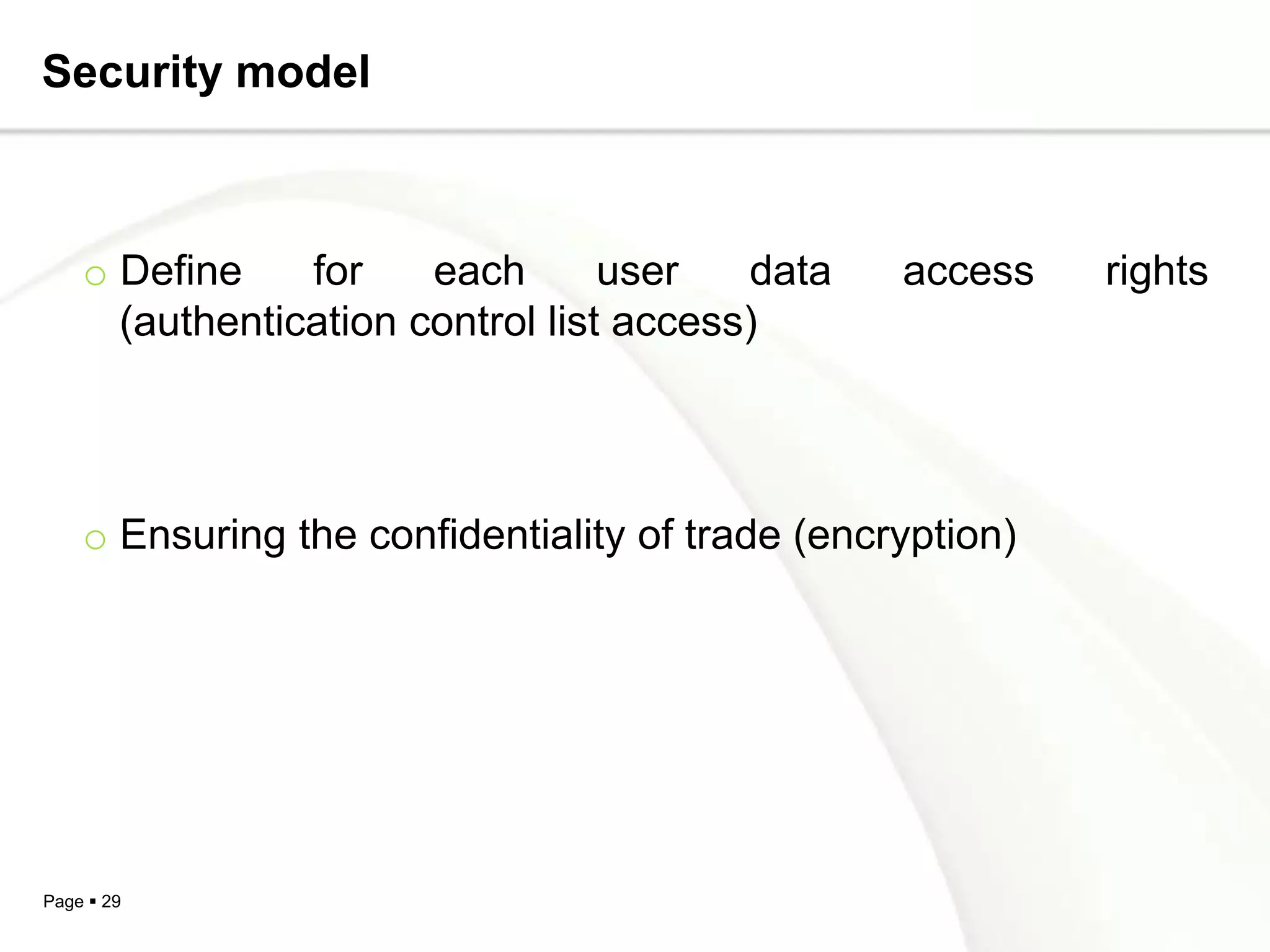

29. Security model
o Define for each user data access rights
(authentication control list access)
o Ensuring the confidentiality of trade (encryption)
Page  29

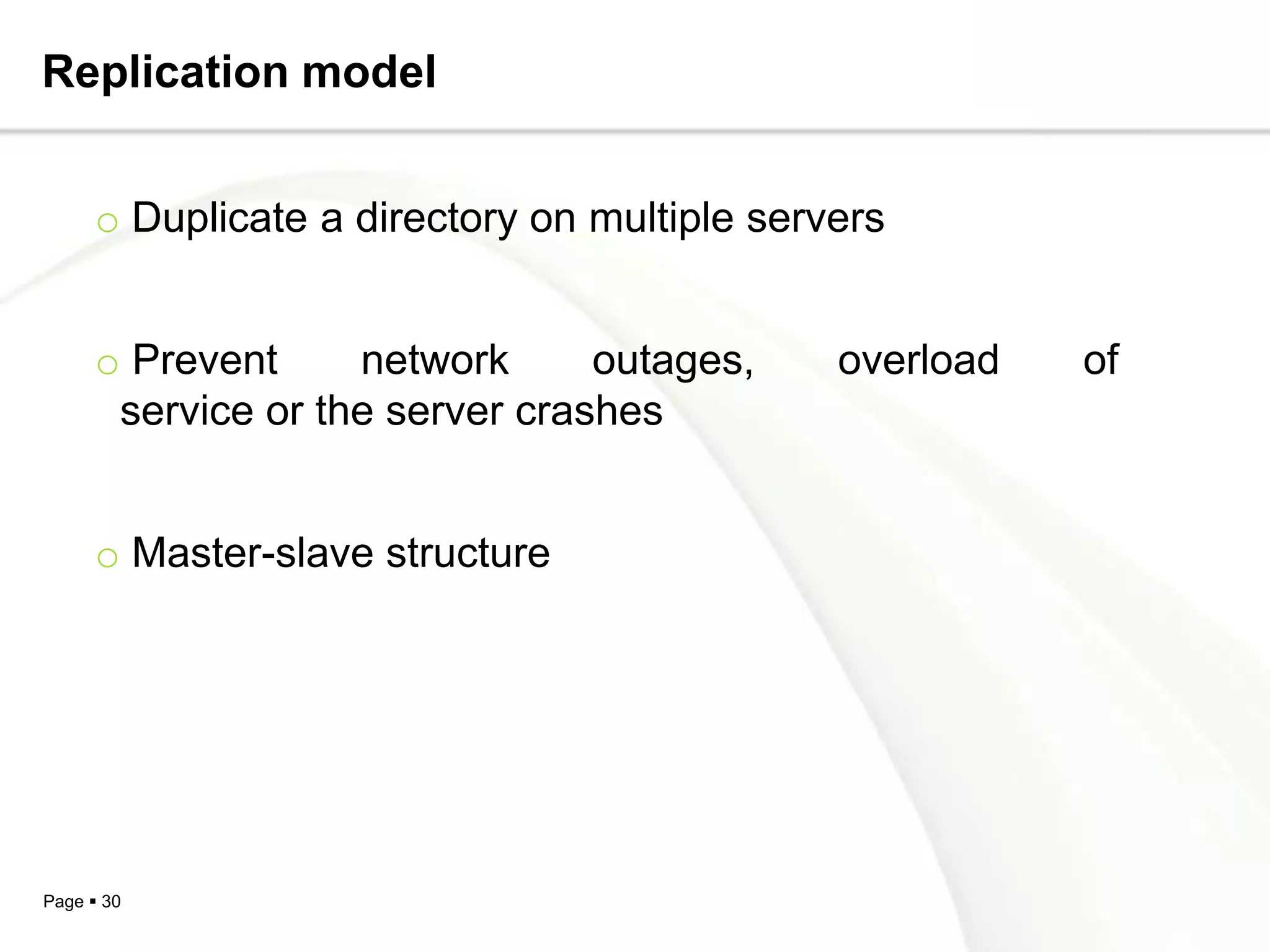

30. Replication model
o Duplicate a directory on multiple servers
o Prevent network outages, overload of
service or the server crashes
o Master-slave structure
Page  30

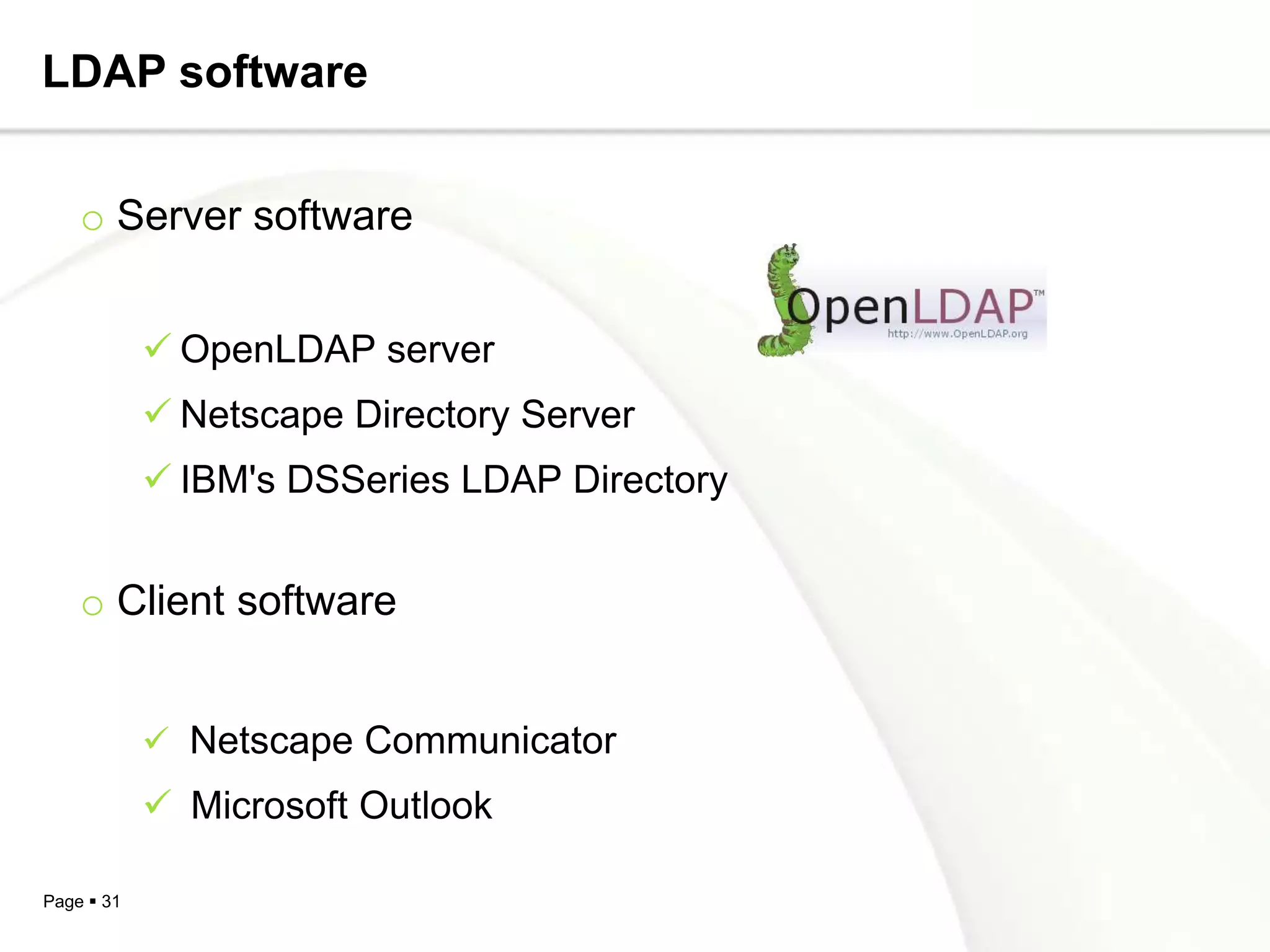

31. LDAP software
o Server software
 OpenLDAP server
 Netscape Directory Server
 IBM's DSSeries LDAP Directory
o Client software
 Netscape Communicator
 Microsoft Outlook
Page  31

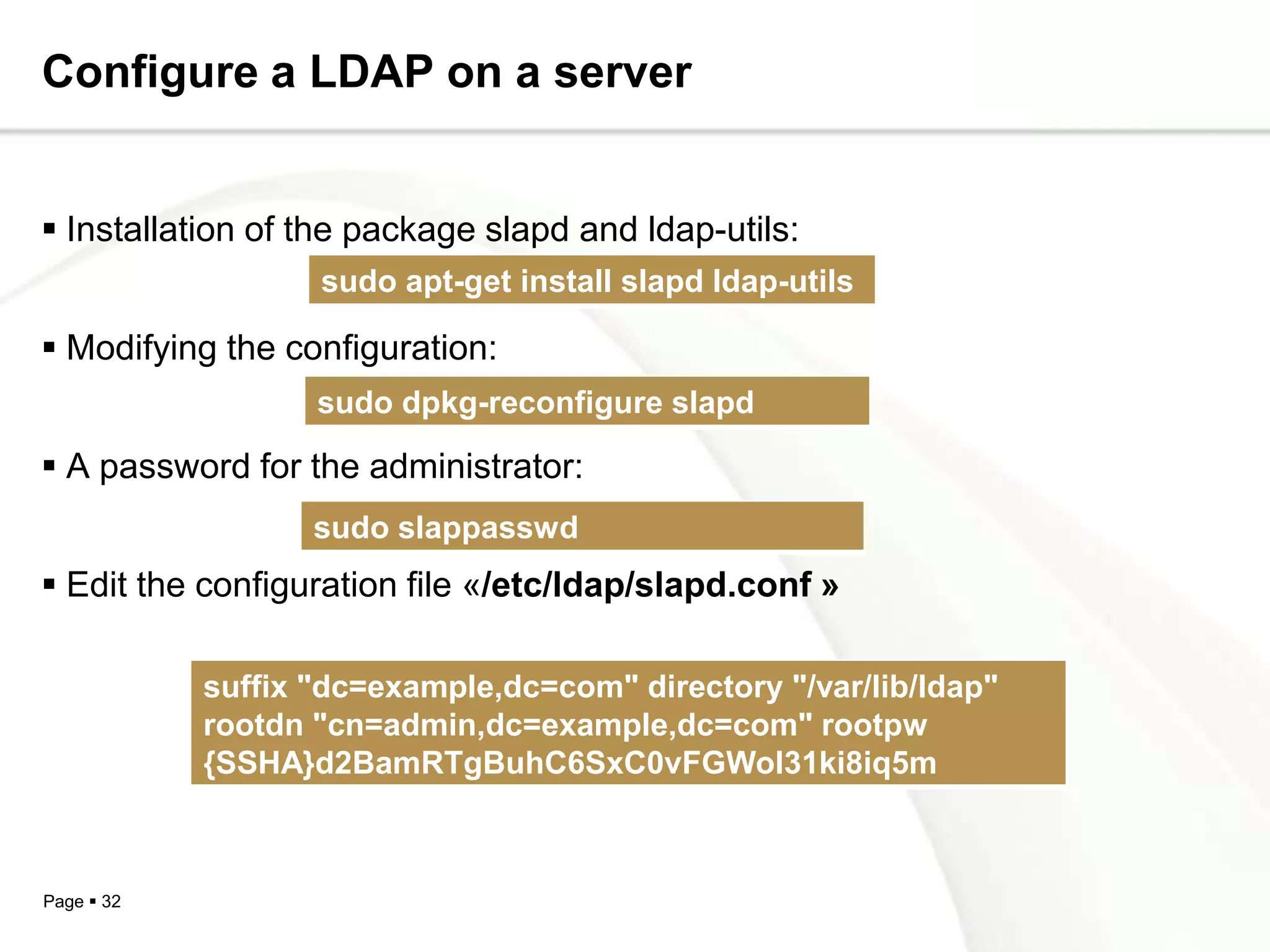

32. Configure a LDAP on a server
 Installation of the package slapd and ldap-utils:
sudo apt-get install slapd ldap-utils
 Modifying the configuration:
sudo dpkg-reconfigure slapd
 A password for the administrator:
sudo slappasswd
 Edit the configuration file «/etc/ldap/slapd.conf »
suffix "dc=example,dc=com" directory "/var/lib/ldap"
rootdn "cn=admin,dc=example,dc=com" rootpw
{SSHA}d2BamRTgBuhC6SxC0vFGWol31ki8iq5m
Page  32

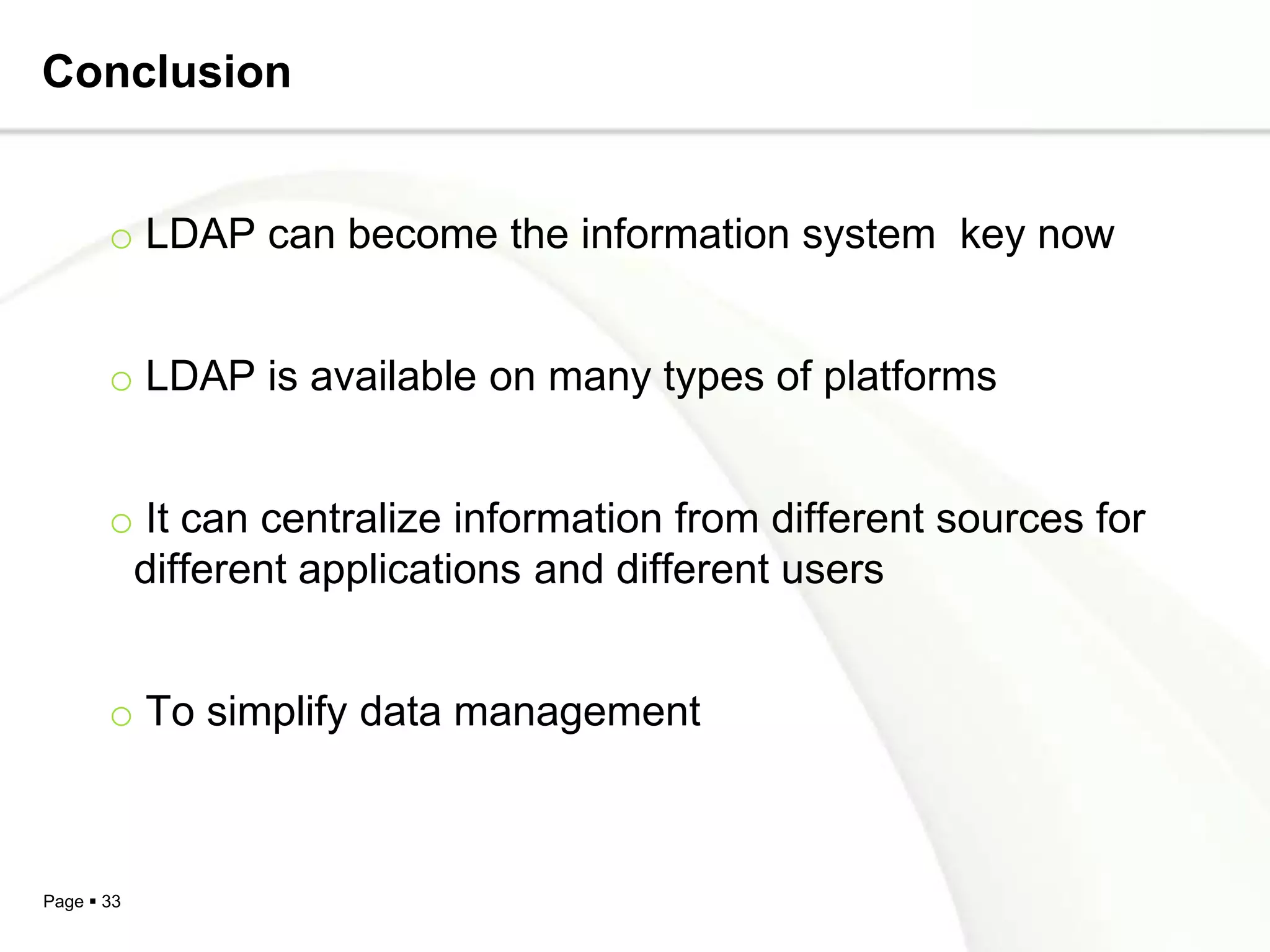

33. Conclusion
o LDAP can become the information system key now
o LDAP is available on many types of platforms
o It can centralize information from different sources for
different applications and different users
o To simplify data management
Page  33

34. Thanks for your attention ..
