Streaming
Outline




                       2
            5
                   7




               Services &
                Streaming
            Conclusions
              Introduction
              Demonstration
                 Protocols
                Definition
          architectures & types
              applications

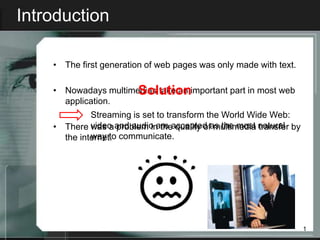

Introduction

    • The first generation of web pages was only made with text.


                      Solution
    • Nowadays multimedias take an important part in most web
      application.
             Streaming is set to transform the World Wide Web:
    • There video and audio are accepted as the most natural by
             was a problem in the quality of multimedia transfer
      the internet. communicate.
             way to




                                                                   1

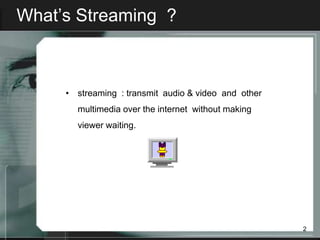

What’s Streaming ?



     • streaming : transmit audio & video and other
       multimedia over the internet without making
       viewer waiting.




                                                      2

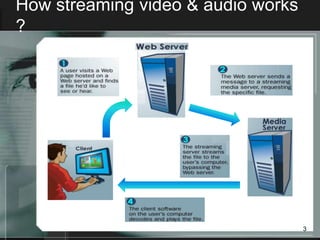

How streaming video & audio works
?




                                    3

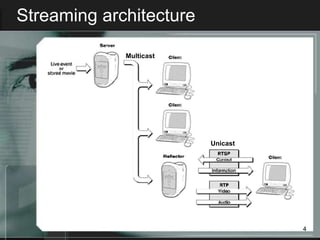

Streaming architecture

             Multicast




                         Unicast




                                   4

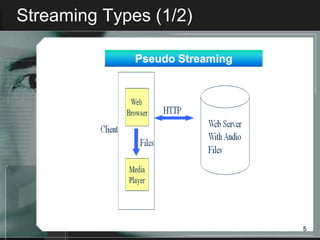

Streaming Types (1/2)




                        5

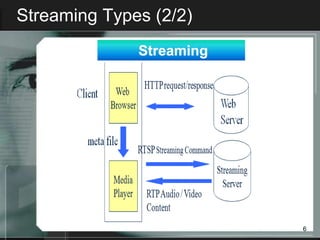

Streaming Types (2/2)




                        6

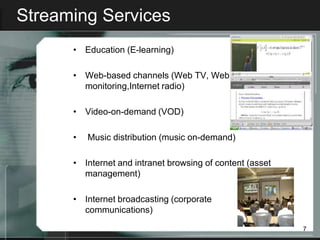

Streaming Services
      • Education (E-learning)

      • Web-based channels (Web TV, Web
        monitoring,Internet radio)

      • Video-on-demand (VOD)

      •   Music distribution (music on-demand)

      • Internet and intranet browsing of content (asset
        management)

      • Internet broadcasting (corporate
        communications)

                                                           7

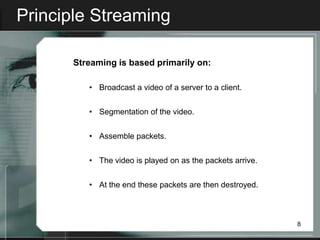

Principle Streaming

      Streaming is based primarily on:

         • Broadcast a video of a server to a client.


         • Segmentation of the video.


         • Assemble packets.


         • The video is played on as the packets arrive.


         • At the end these packets are then destroyed.



                                                           8
Streaming Applications




                         9
Streaming Protocols :
     There are currently three protocols that allow for
       streaming:

        • HTTP.

        • FTP.

        • RTP.




                                                   10

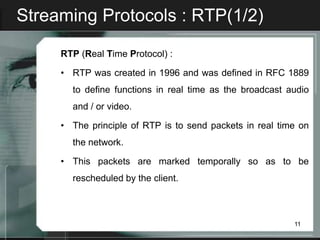

Streaming Protocols : RTP(1/2)

     RTP (Real Time Protocol) :

     • RTP was created in 1996 and was defined in RFC 1889
       to define functions in real time as the broadcast audio
       and / or video.

     • The principle of RTP is to send packets in real time on
       the network.

     • This packets are marked temporally so as to be
       rescheduled by the client.



                                                          11

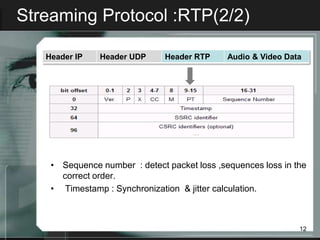

Streaming Protocol :RTP(2/2)

   Header IP   Header UDP      Header RTP     Audio & Video Data




    • Sequence number : detect packet loss ,sequences loss in the
      correct order.
    • Timestamp : Synchronization & jitter calculation.



                                                               12

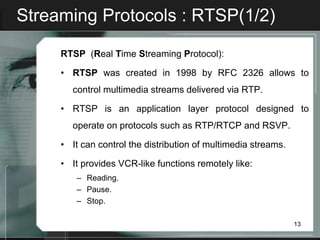

Streaming Protocols : RTSP(1/2)

     RTSP (Real Time Streaming Protocol):

     • RTSP was created in 1998 by RFC 2326 allows to
       control multimedia streams delivered via RTP.

     • RTSP is an application layer protocol designed to
       operate on protocols such as RTP/RTCP and RSVP.

     • It can control the distribution of multimedia streams.

     • It provides VCR-like functions remotely like:
        – Reading.
        – Pause.
        – Stop.

                                                                13
Streaming Protocols : RTSP(2/2)




   Setup            Start an RTSP session and resource allocation
                    for a stream

   Play and Record Start data transmission of the stream

   Pause            Temporarily halt a stream without freeing server
                    resources

   Teardown         Free resources associated with stream and end
                    of a session
                                                                  14

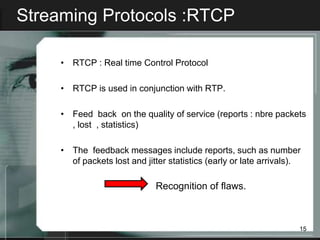

Streaming Protocols :RTCP

     • RTCP : Real time Control Protocol

     • RTCP is used in conjunction with RTP.

     • Feed back on the quality of service (reports : nbre packets
       , lost , statistics)

     • The feedback messages include reports, such as number
       of packets lost and jitter statistics (early or late arrivals).

                              Recognition of flaws.



                                                                     15

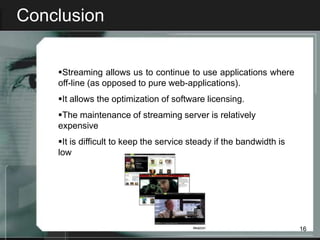

Conclusion


    Streaming allows us to continue to use applications where
    off-line (as opposed to pure web-applications).
    It allows the optimization of software licensing.
    The maintenance of streaming server is relatively
    expensive
    It is difficult to keep the service steady if the bandwidth is
    low




                                                                      16
Demonstration
Thank you for your
attention
