The presentation provides an overview of the Kinect system, including its history, technology, and capabilities. It describes how Kinect uses structured light and machine learning to map depth and infer body position without any handheld controllers. Kinect launched in 2010 and quickly became the fastest selling consumer electronics device by selling 8 million units in its first 60 days. The technology represents significant advances in computer vision that enable natural user interfaces for gaming and beyond.

1. PRESENTATION ON:
KINECT A.K.A PROJECT
NATAL
PRESENTED BY:
SHOAIB KHAN
JAYANT JAISWAL
ADNAAN ’ZOHRAN’ AHMED
ROHAN AGARWAL

2. • Based around a webcam-style add-
on peripheral for the Xbox 360 console, it enables
users to control and interact with the Xbox 360
without the need to touch a game controller,
through a natural user interface using gestures
and spoken commands.

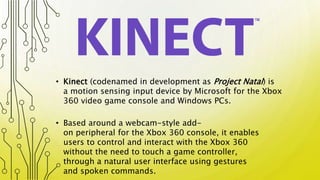

• Kinect (codenamed in development as Project Natal) is
a motion sensing input device by Microsoft for the Xbox
360 video game console and Windows PCs.

3. BRIEF HISTORY
OF KINECT

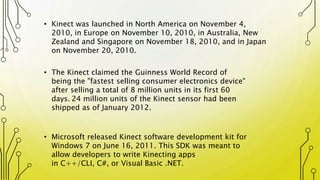

4. • Kinect was launched in North America on November 4,
2010, in Europe on November 10, 2010, in Australia, New
Zealand and Singapore on November 18, 2010, and in Japan
on November 20, 2010.
• The Kinect claimed the Guinness World Record of
being the "fastest selling consumer electronics device"
after selling a total of 8 million units in its first 60
days. 24 million units of the Kinect sensor had been
shipped as of January 2012.
• Microsoft released Kinect software development kit for
Windows 7 on June 16, 2011. This SDK was meant to
allow developers to write Kinecting apps
in C++/CLI, C#, or Visual Basic .NET.

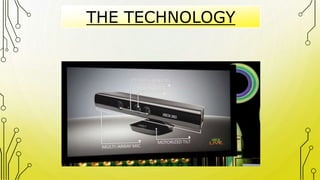

5. THE TECHNOLOGY

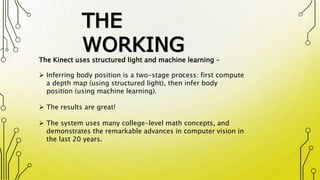

6. THE
WORKING
The Kinect uses structured light and machine learning –
 Inferring body position is a two-stage process: first compute
a depth map (using structured light), then infer body
position (using machine learning).
 The results are great!
 The system uses many college-level math concepts, and
demonstrates the remarkable advances in computer vision in
the last 20 years.

7. Structured light general principle:
project a known pattern onto the
scene and infer depth from the
deformation of that pattern
The Kinect uses infrared
laser light, with a speckle
pattern

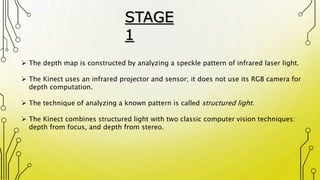

8.  The depth map is constructed by analyzing a speckle pattern of infrared laser light.
 The Kinect uses an infrared projector and sensor; it does not use its RGB camera for
depth computation.
 The technique of analyzing a known pattern is called structured light.
 The Kinect combines structured light with two classic computer vision techniques:
depth from focus, and depth from stereo.
STAGE
1

9. DEPTH FROM
FOCUS

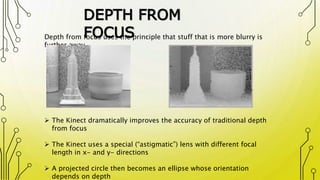

 The Kinect dramatically improves the accuracy of traditional depth
from focus
 The Kinect uses a special (“astigmatic”) lens with different focal
length in x- and y- directions
 A projected circle then becomes an ellipse whose orientation
depends on depth
Depth from focus uses the principle that stuff that is more blurry is
further away

10. DEPTH FROM STEREO
 Depth from stereo uses parallax.
 If you look at the scene from another angle, stuff that is close gets
shifted to the side more than stuff that is far away.
 The Kinect analyzes the shift of the speckle pattern by projecting
from one location and observing from another.

11. STAGE 2
INFERRING BODY POSTION

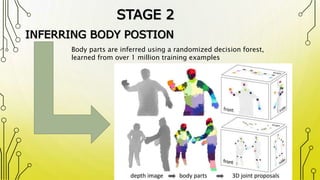

Body parts are inferred using a randomized decision forest,
learned from over 1 million training examples

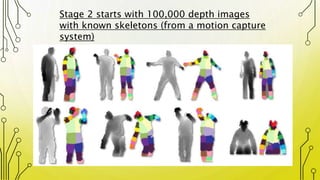

12. Stage 2 starts with 100,000 depth images
with known skeletons (from a motion capture
system)

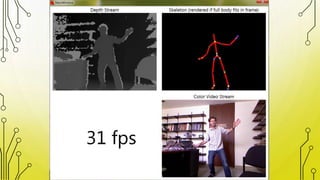

15. THE
WORKING

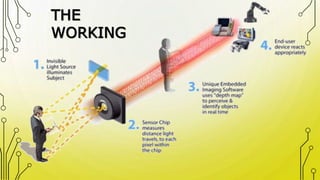

16. THE
MIDDLEWARE

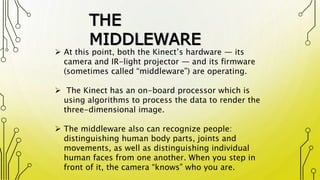

 At this point, both the Kinect’s hardware — its
camera and IR-light projector — and its firmware
(sometimes called “middleware”) are operating.
 The Kinect has an on-board processor which is
using algorithms to process the data to render the
three-dimensional image.
 The middleware also can recognize people:
distinguishing human body parts, joints and
movements, as well as distinguishing individual
human faces from one another. When you step in
front of it, the camera “knows” who you are.

17. A SCENE FROM HARRY POTTER GAME ON
KINECT

18. THE POWER OF

19. THE BEST PART OF KINECT
UNLIKE THE
SONY
PLAYSTATION
MOVE OR THE
NINTENDO
WII, KINECT
IS
COMPLETELY
CONTROLLER
FREE!!!

20. CONCLUSI
ON

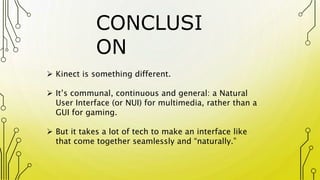

 Kinect is something different.
 It’s communal, continuous and general: a Natural
User Interface (or NUI) for multimedia, rather than a
GUI for gaming.
 But it takes a lot of tech to make an interface like
that come together seamlessly and “naturally.”

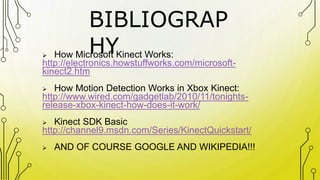

21. BIBLIOGRAP
HY How Microsoft Kinect Works:
http://electronics.howstuffworks.com/microsoft-
kinect2.htm
 How Motion Detection Works in Xbox Kinect:
http://www.wired.com/gadgetlab/2010/11/tonights-
release-xbox-kinect-how-does-it-work/
 Kinect SDK Basic
http://channel9.msdn.com/Series/KinectQuickstart/
 AND OF COURSE GOOGLE AND WIKIPEDIA!!!
