Kinect is an electronic device that tracks body movement without contact. It was developed by Microsoft and released in 2010. There have been two main versions - Kinect for Xbox, which uses a time-of-flight camera for precise depth sensing, and Kinect for Windows, which has gone through several iterations to update its infrared sensor technology. Kinect uses infrared and depth sensing to detect joints, facial expressions, and other body metrics to enable full-body control of applications and games.

1. Kinect
2014.4.22
201302385 김 진식

2. Contents
• What is Kinect?
• History of Kinect
• Type of Kinect
• Technology of Kinect
• Q&A

3. What is Kinect??
• Kinetic + Connect = Kinect
• Kinect - An electronic device, which follows the movement of the body
without contact
Kinect device
for Xbox One
Game using
Kinect device

4. History of Kinect
• Microsoft’s Project named Natal(at E3, 2009)
• Three demo versions were shown at E3(Ricochet, Paint Party, Milo & Kate)
• Officially be called Kinect(2010)
• MS announced its official release of its SDK for non-commercial use(June
16, 2011)
• Xbox 360 Limited Edition Kinect Star Wars Bundle(Before, all black)(July
21, 2011)
• Released the commercial version of Kinect(February 1, 2012)

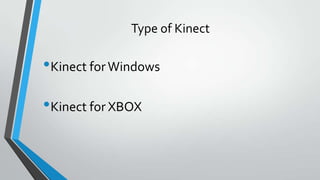

5. Type of Kinect
•Kinect forWindows
•Kinect for XBOX

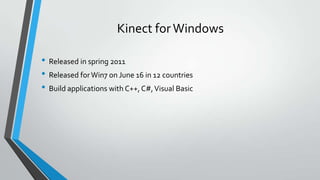

6. Kinect forWindows
• Released in spring 2011
• Released forWin7 on June 16 in 12 countries
• Build applications with C++, C#,Visual Basic

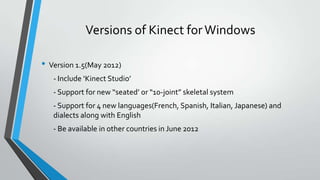

7. Versions of Kinect forWindows
• Version 1.5(May 2012)
- Include ‘Kinect Studio’
- Support for new “seated’ or “10-joint” skeletal system
- Support for 4 new languages(French, Spanish, Italian, Japanese) and
dialects along with English
- Be available in other countries in June 2012

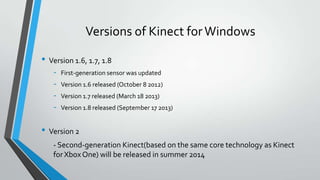

8. Versions of Kinect forWindows
• Version 1.6, 1.7, 1.8
- First-generation sensor was updated
- Version 1.6 released (October 8 2012)
- Version 1.7 released (March 18 2013)
- Version 1.8 released (September 17 2013)
• Version 2
- Second-generation Kinect(based on the same core technology as Kinect
for Xbox One) will be released in summer 2014

9. Kinect for Xbox
• Uses wide-angle time-of-flight camera(three times more accuracy than its
previous version using IR sensor)
• Processes 2GB/s to read its environment
• Detect heart rate, facial expression, 25 individual joints(including thumbs),
weight put, speed of movements, etc…..
• Provide voice commands(for navigation, starting games, waking the
concole from sleep mode)

10. Technology of Kinect
•Time-of-Flight Camera
•IR Sensor

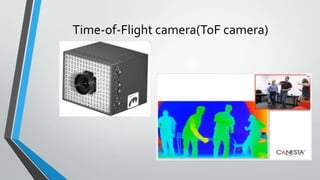

11. Time-of-Flight camera(ToF camera)

12. Time-of-Flight camera(ToF camera)

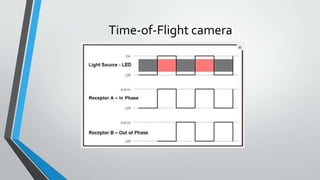

13. Time-of-Flight camera

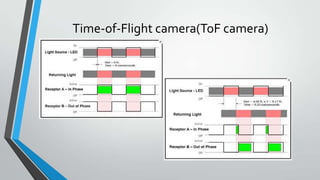

14. Time-of-Flight camera(ToF camera)

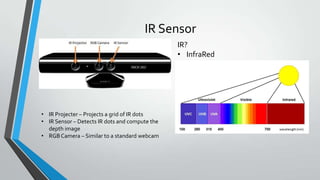

15. IR Sensor
• IR Projecter – Projects a grid of IR dots
• IR Sensor – Detects IR dots and compute the
depth image
• RGBCamera – Similar to a standard webcam
IR?
• InfraRed

16. IR Sensor
IR dots
IR Sensor can
detect them
but we can’t

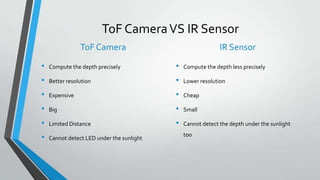

17. ToF CameraVS IR Sensor
ToF Camera
• Compute the depth precisely
• Better resolution
• Expensive
• Big
• Limited Distance
• Cannot detect LED under the sunlight
IR Sensor
• Compute the depth less precisely
• Lower resolution
• Cheap
• Small
• Cannot detect the depth under the sunlight
too

18. References
• http://en.wikipedia.org/wiki/Kinect
• http://darkpgmr.tistory.com/75
• http://makezine.com/projects/using-a-kinect-as-an-infrared-camera/

19. QnA
