1. Handwritten Digit Recognition
using Image Processing
Team members
Anita Maharjan(102/067/BEX)
Chetana Moktan(108/067/BEX)
(A presentation of a case study on title)
4/8/2014 1

2. Overview
• Introduction
• Objective
• Implementation
• System Overview
• Neural Network
• Conclusion
4/8/2014 2

3. Introduction
• This working prototype system can detect
handwritten digits from a scanned image of an
input form by using Neural network technique.
• very fast and effective as compared to old
fashioned image pixel comparison
methodology.
4/8/2014 3

4. Objective
• To recognize handwritten digits in real works
for autonomous machine processing.
• To be familiar to Neural Networks
4/8/2014 4

5. Application
Signature Recognition Currency Recognition
Number Plate
Recognition
House no. Recognition4/8/2014 5

6. System Overview
Handwritten digit image
collection
Image cut and store
Image Slice
Convert to standard
size
4/8/2014 6

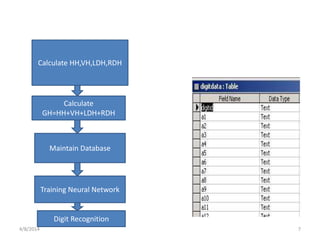

7. Calculate HH,VH,LDH,RDH
Calculate
GH=HH+VH+LDH+RDH
Maintain Database
Training Neural Network
Digit Recognition
4/8/2014 7

8. Neural Network
• Back Propagation Method
• Hidden layer
• Sigmoid activation function,
O(i)=1/(1+e^(input))
4/8/2014 8

9. Neural Network(Continue)
4/8/2014 9

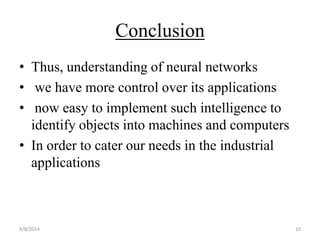

10. Conclusion
• Thus, understanding of neural networks
• we have more control over its applications
• now easy to implement such intelligence to
identify objects into machines and computers
• In order to cater our needs in the industrial
applications
4/8/2014 10
