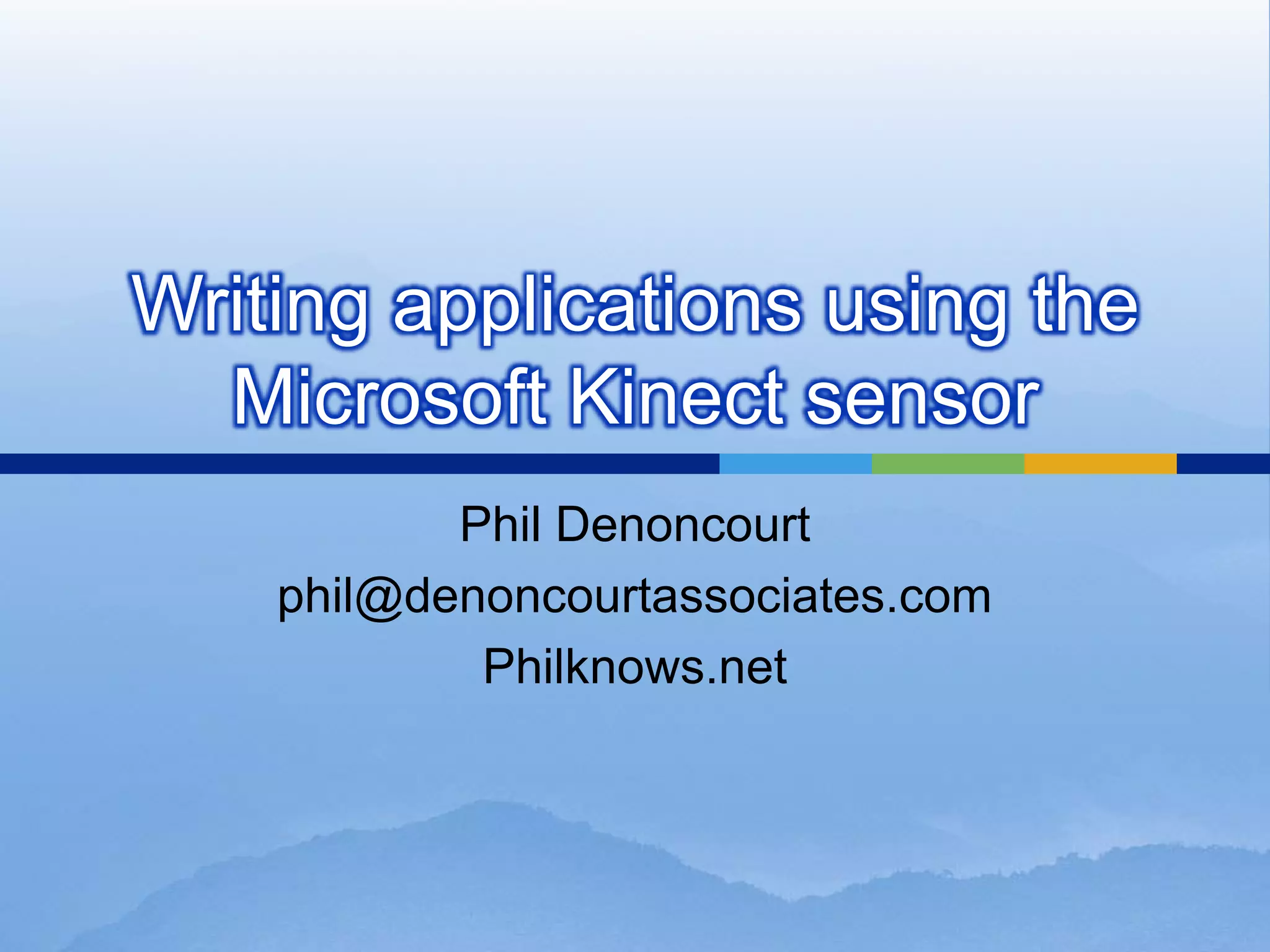

1. Writing applications using the
Microsoft Kinect sensor
Phil Denoncourt
phil@denoncourtassociates.com
Philknows.net

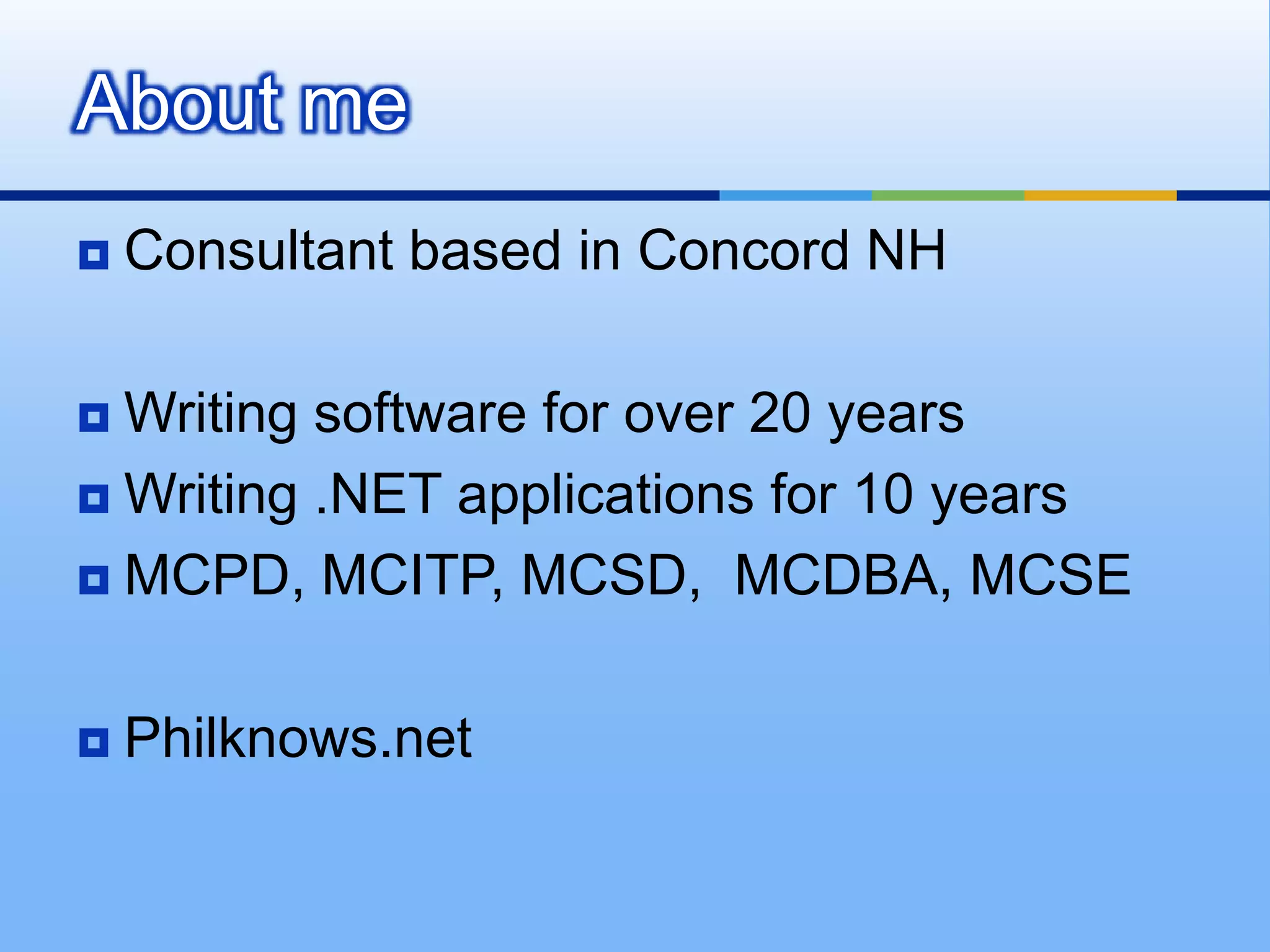

2. About me
 Consultant based in Concord NH
 Writing software for over 20 years
 Writing .NET applications for 10 years
 MCPD, MCITP, MCSD, MCDBA, MCSE
 Philknows.net

3. Kinect Features
 Motion sensing
device for Xbox 360 +
Windows
 Contains
 RGB Camera
 Depth Sensor
 Multi array microphone

4. Kinect SDK
Hardware Software
 Dual Core > 2.66  Windows 7
GHz  Windows 7 Embedded
 2 GB Ram (4 Rec’d)  DirectX 9.0c
 Visual Studio 2010
 Kinect for Windows
 Can use Xbox Kinect  Microsoft Speech
with power adapter for Platform 11
development

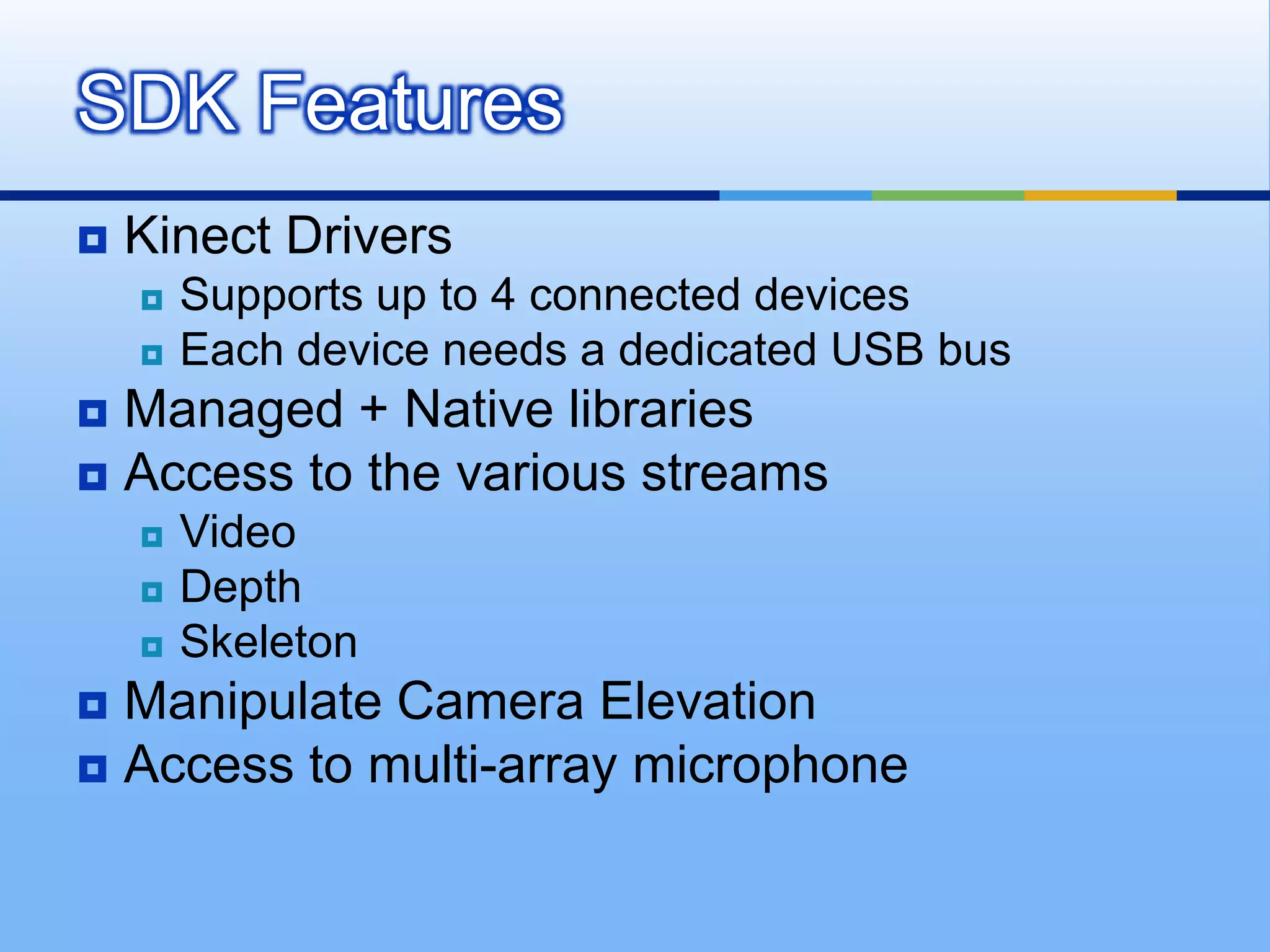

5. SDK Features
 Kinect Drivers
 Supports up to 4 connected devices
 Each device needs a dedicated USB bus
 Managed + Native libraries
 Access to the various streams
 Video
 Depth
 Skeleton
 Manipulate Camera Elevation
 Access to multi-array microphone

6. What it doesn’t do
 Doesn’t work with XNA for Xbox
 Need XDK to develop Kinect for Xbox
 Does work with XNA for Windows
 Skeleton Limitations
 Doesn’t determine fingers
 Doesn’t determine skull features
 Eyes, Jaw, Nose…
 Only works on humanoid figures
 No person/face recognition
 Speech Recognition doesn’t support Dictation

7. Depth Stream
 Depth “Image” captured 30/sec
 Returned as byte array
 Left-Right, Top to Bottom
 Returns distance of pixel in millimeters
 Between 850 – 4000 mm
 -1 = unknown (Shadows, reflectivity)
 Near mode allows between 400-3000 mm
 Also contains info describing which player
occupies that pixel.

8. Skeleton Streams
 Can capture and track up 2
skeletons
 Can monitor up to 6
 Captures data at 30/sec
 Captures a collection of 20
joints
 X,Y,Z position in meters from
the sensor
 Some joints are inferred
 Recognizes “partial” skeletons
 No indication of joint’s
orientation
 Where is the person looking?
 No built in gesture support
 Choose which skeleton to
track, or sensor can
automatically determine.

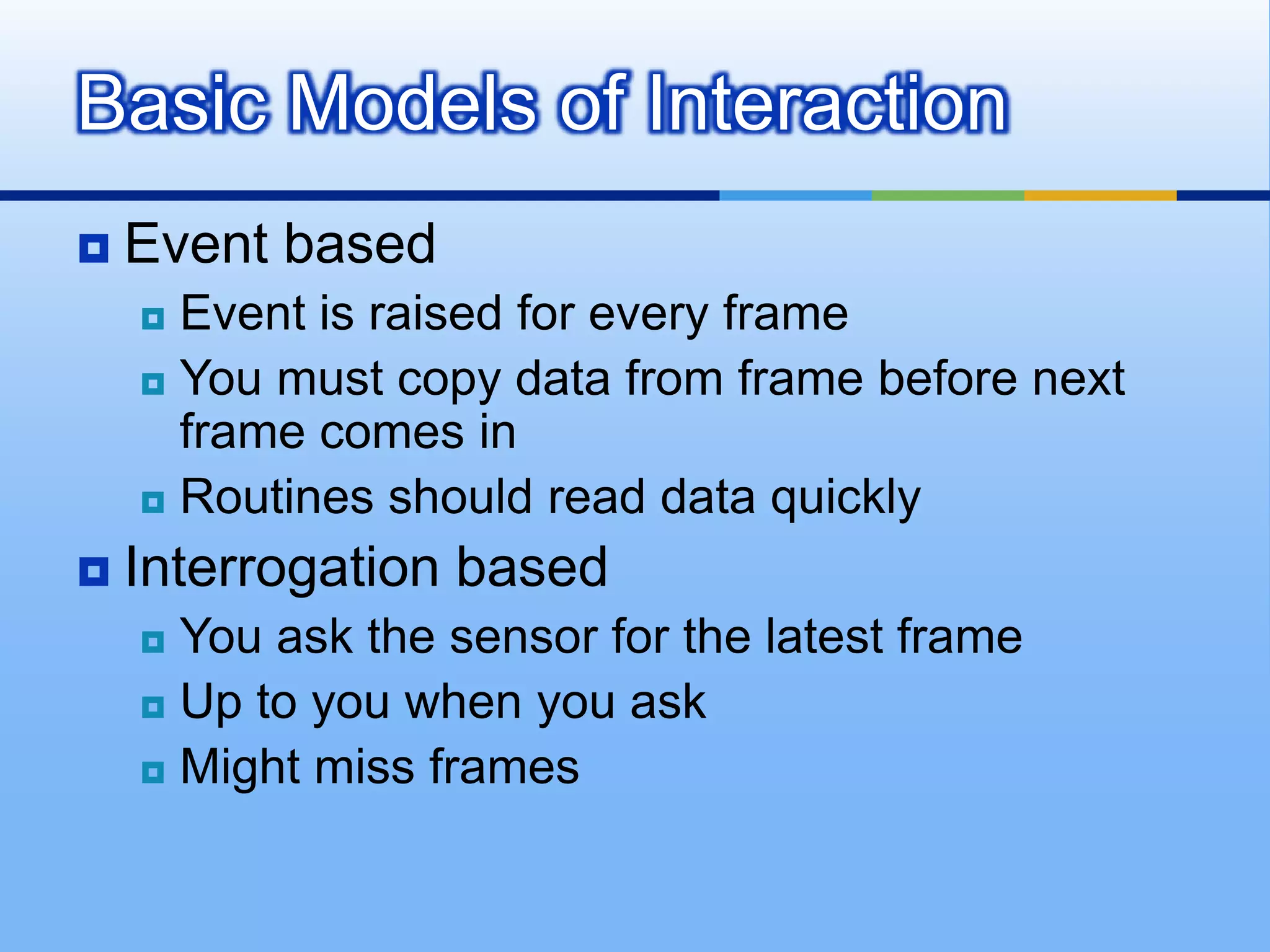

9. Basic Models of Interaction
 Event based
 Event is raised for every frame
 You must copy data from frame before next
frame comes in
 Routines should read data quickly
 Interrogation based
 You ask the sensor for the latest frame
 Up to you when you ask
 Might miss frames

10. Audio Processing
 4 microphone array
 Processing occurs on Kinect hardware
 Echo Cancelation
 Position Tracking
 Other
 Noise Suppression
 Reduction
 Recording is done on separate thread
 Make sure apps are MTA, not STA

11. Speech Recognition
 Command based recognition only
 Kinect uses Microsoft.Speech libraries
 Not System.Speech
 Needs Speech Platform Runtime (v11)
 App needs to be MTA, not STA

12. Possible Applications
 Kiosk / Self Service Portals
 Cheap Security Monitors
 Video Conferencing / Recording

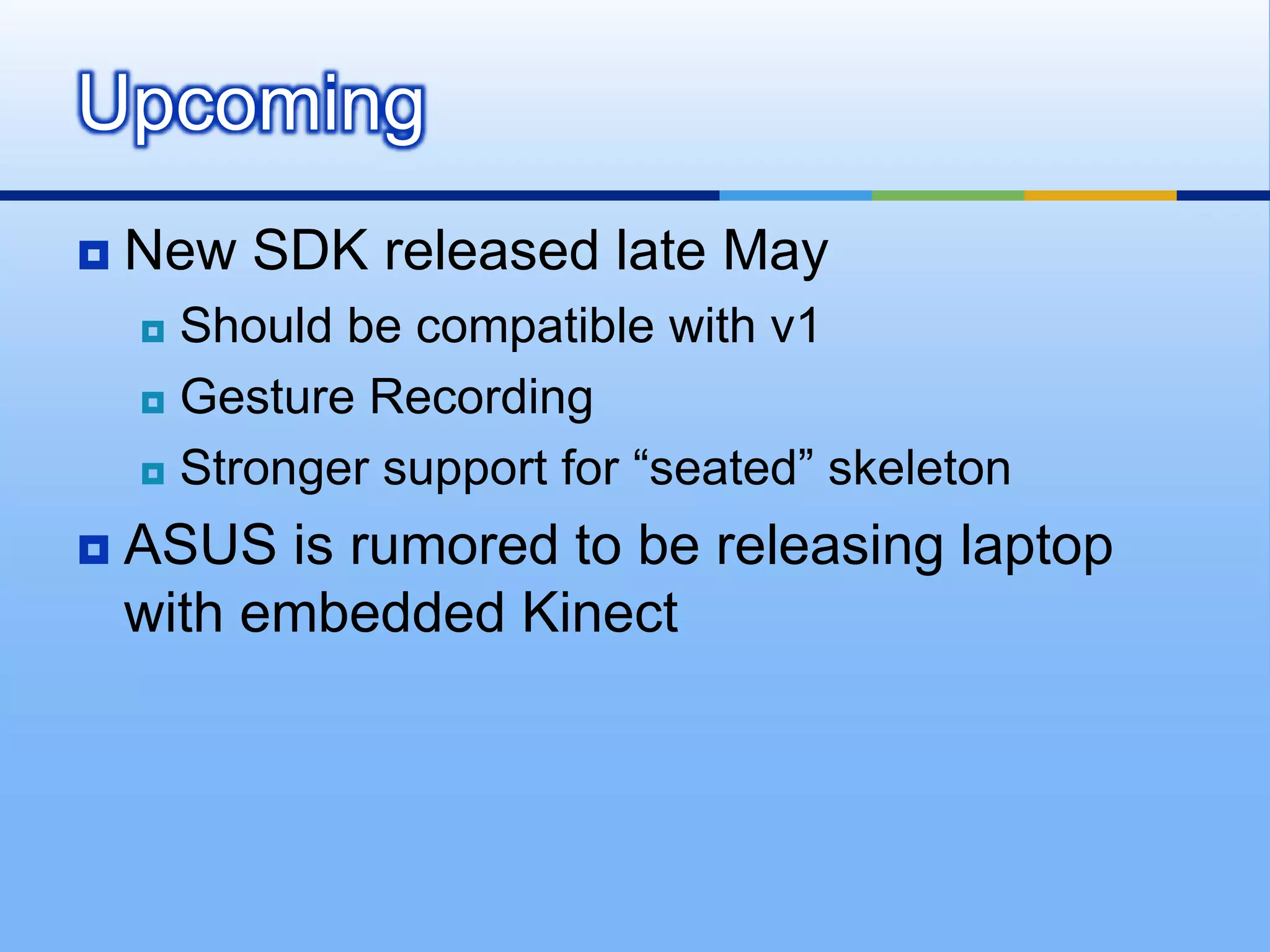

13. Upcoming
 New SDK released late May
 Should be compatible with v1
 Gesture Recording
 Stronger support for “seated” skeleton
 ASUS is rumored to be releasing laptop
with embedded Kinect

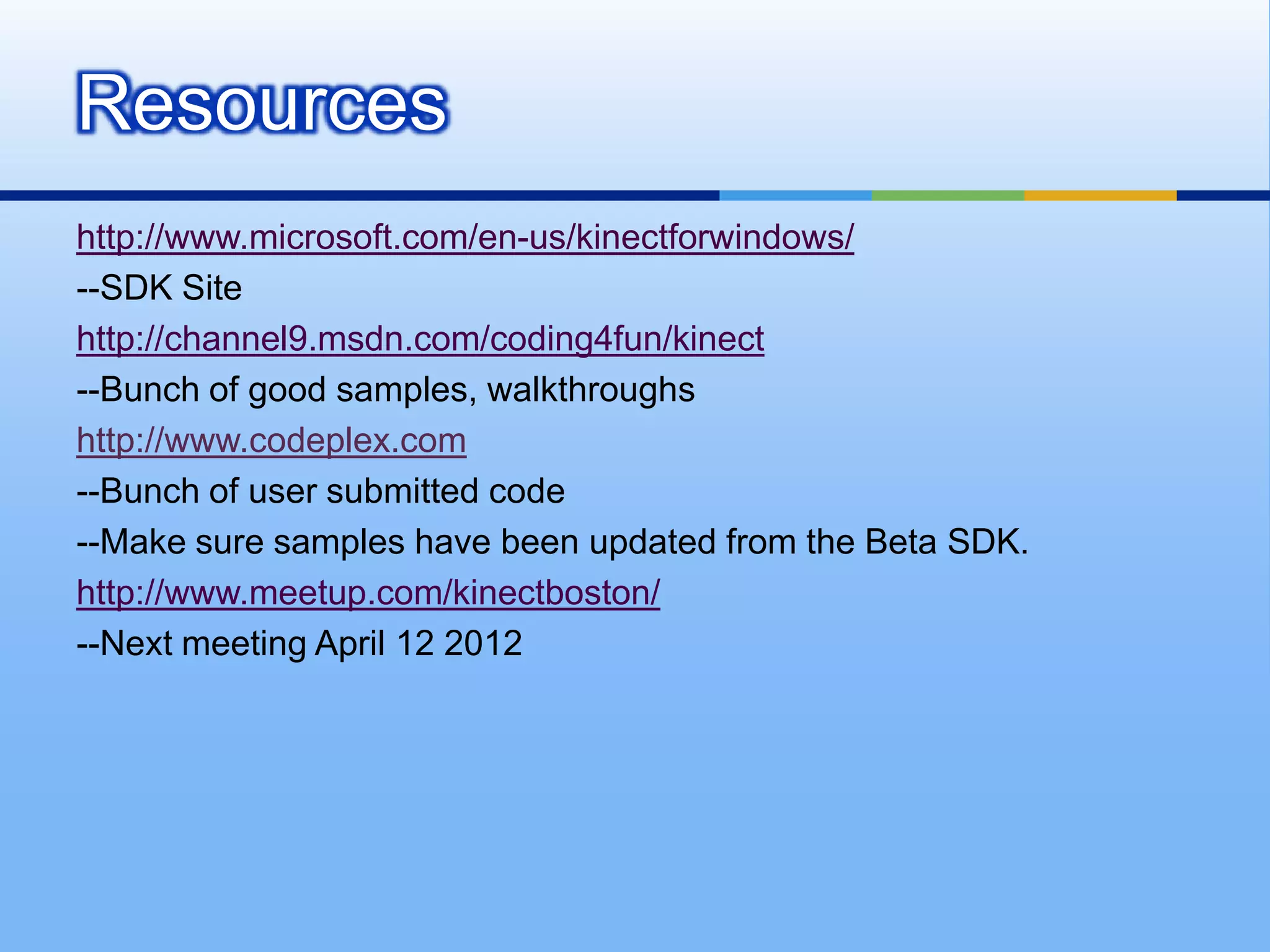

14. Resources
http://www.microsoft.com/en-us/kinectforwindows/
--SDK Site
http://channel9.msdn.com/coding4fun/kinect
--Bunch of good samples, walkthroughs
http://www.codeplex.com
--Bunch of user submitted code
--Make sure samples have been updated from the Beta SDK.
http://www.meetup.com/kinectboston/
--Next meeting April 12 2012
