This document presents a virtual mouse system that uses computer vision and hand gesture recognition to control the mouse cursor and perform mouse tasks. The system aims to provide a more natural and convenient way to control the computer without requiring physical mouse hardware. It uses a webcam to detect colored fingertips and track hand movements in real-time. Image processing algorithms are employed for tasks like segmentation, denoising, finding the hand center and size, and detecting individual fingertips. Detected gestures are then mapped to mouse functions like cursor movement, left/right clicks, and scrolling. The document outlines the goals, design approach, and implementation details of the system, as well as advantages, limitations, and directions for future work.

1. VIRTUAL MOUSE
By
Vivek A. Khutale
Amey S. Kasar
Reshma A. Indulkar

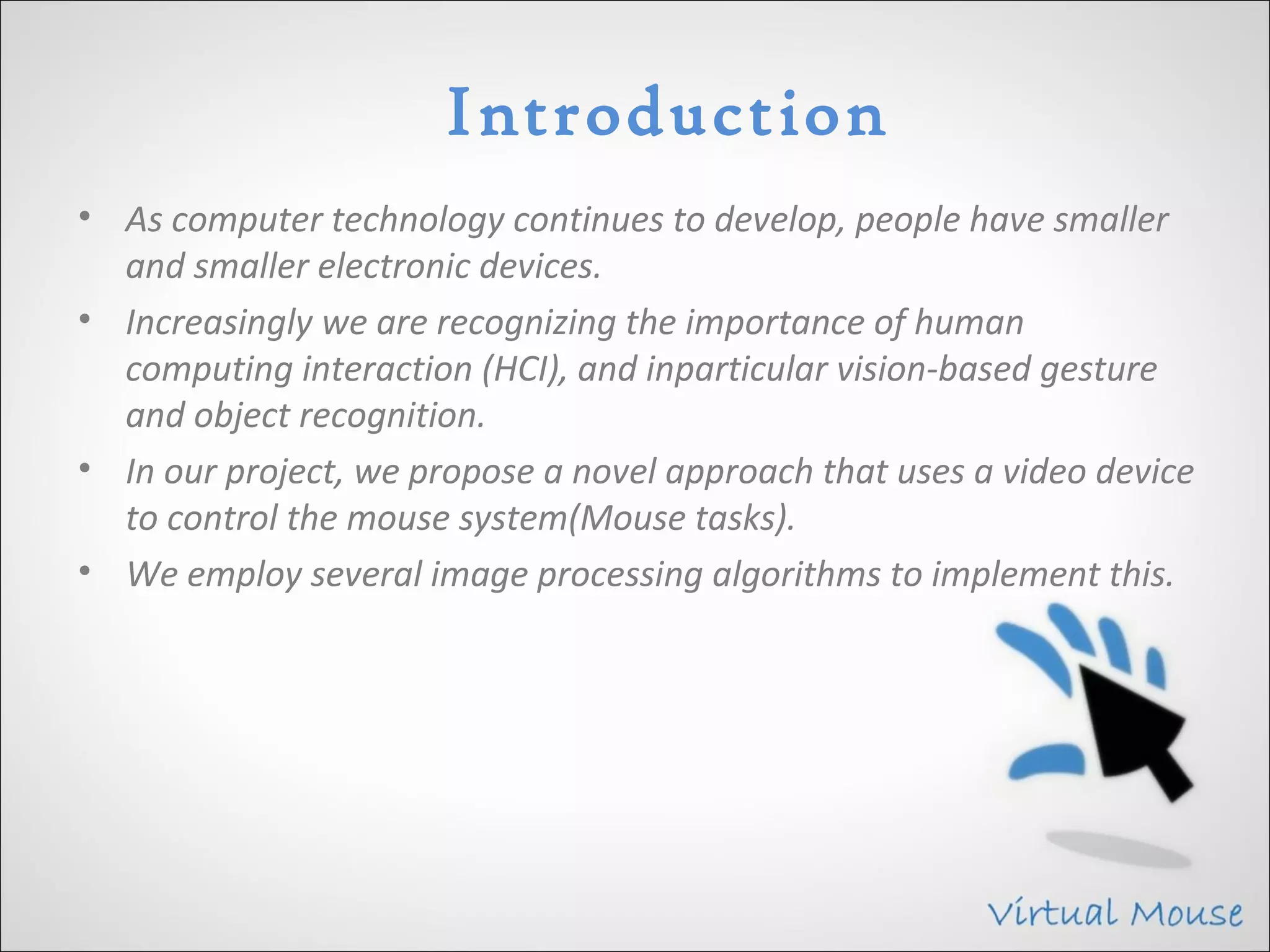

2. Introduction
• As computer technology continues to develop, people have smaller
and smaller electronic devices.
• Increasingly we are recognizing the importance of human
computing interaction (HCI), and inparticular vision-based gesture
and object recognition.
• In our project, we propose a novel approach that uses a video device
to control the mouse system(Mouse tasks).
• We employ several image processing algorithms to implement this.

3. Project Scope
• For most laptop touchpad is not the most comfortable and
convenient.
• Virtual mouse, known as Virtual Multitask Mouse.
• This is real time application.
• User friendly application.
• This project removes the requirement of having a physical.

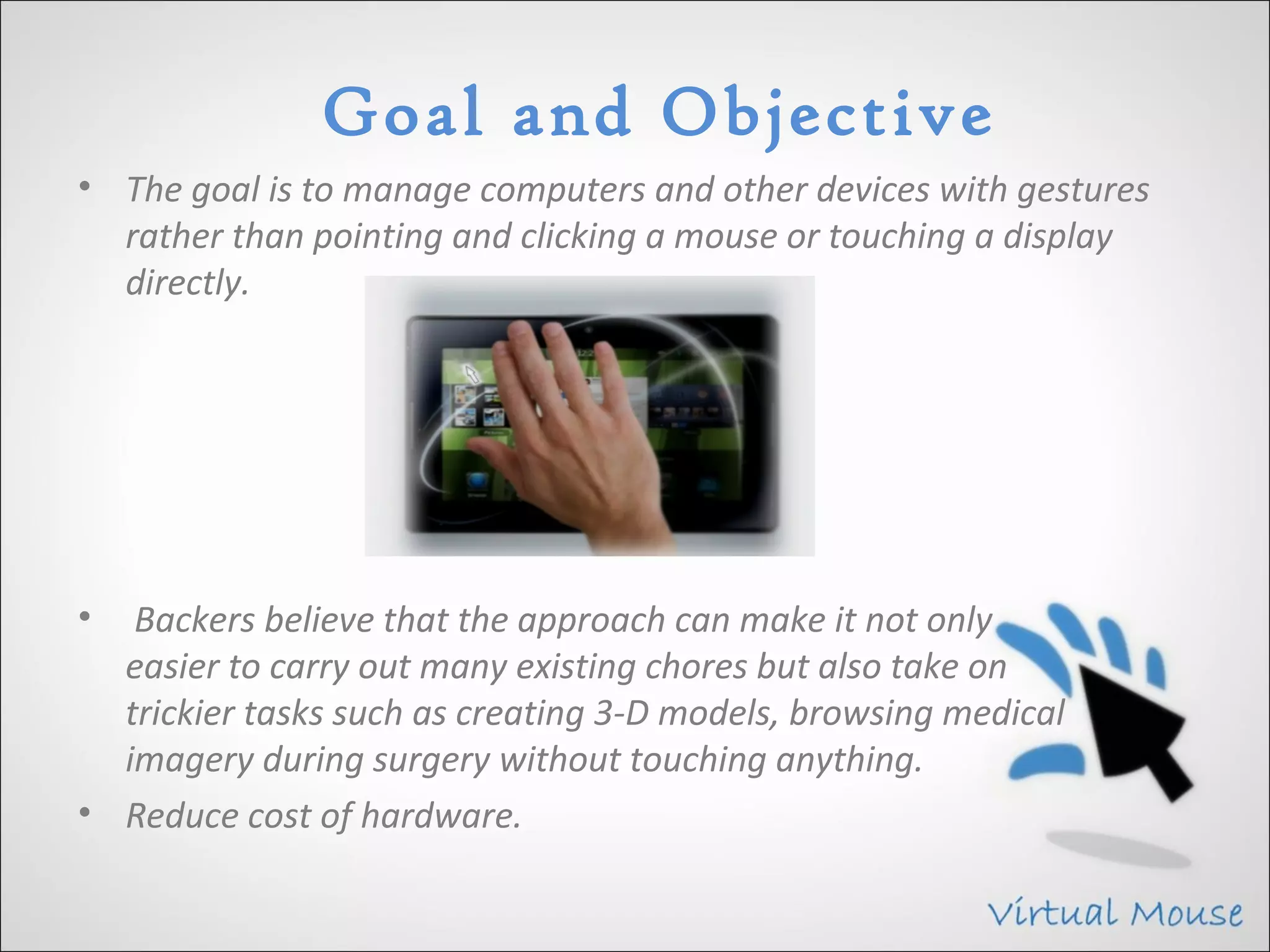

4. Goal and Objective
• The goal is to manage computers and other devices with gestures
rather than pointing and clicking a mouse or touching a display
directly.
• Backers believe that the approach can make it not only
easier to carry out many existing chores but also take on
trickier tasks such as creating 3-D models, browsing medical
imagery during surgery without touching anything.
• Reduce cost of hardware.

5. Problem Statement
• To design virtual mouse which detects hand gestures patterns
instead of physical mouse.
• Basically we use colored tips for detection which are captured by
webcam.
• Here, the colored fingertip acts as an object which the web cam
senses.
• The camera is positioned such that it recognizes the moment of
finger tips and performs the operations of mouse.
• The utilization of virtual mouse appears in space saving
situations or in movement situation.

6. Literature Survey
• HCI Technology
Human-computer interaction (HCI) is an area of research and
practice that emerged in the early 1980s.
• Gesture Recognition
Gesture recognition is the mathematical interpretation of a
human motion by a computing device.
Using Palm Using Glove

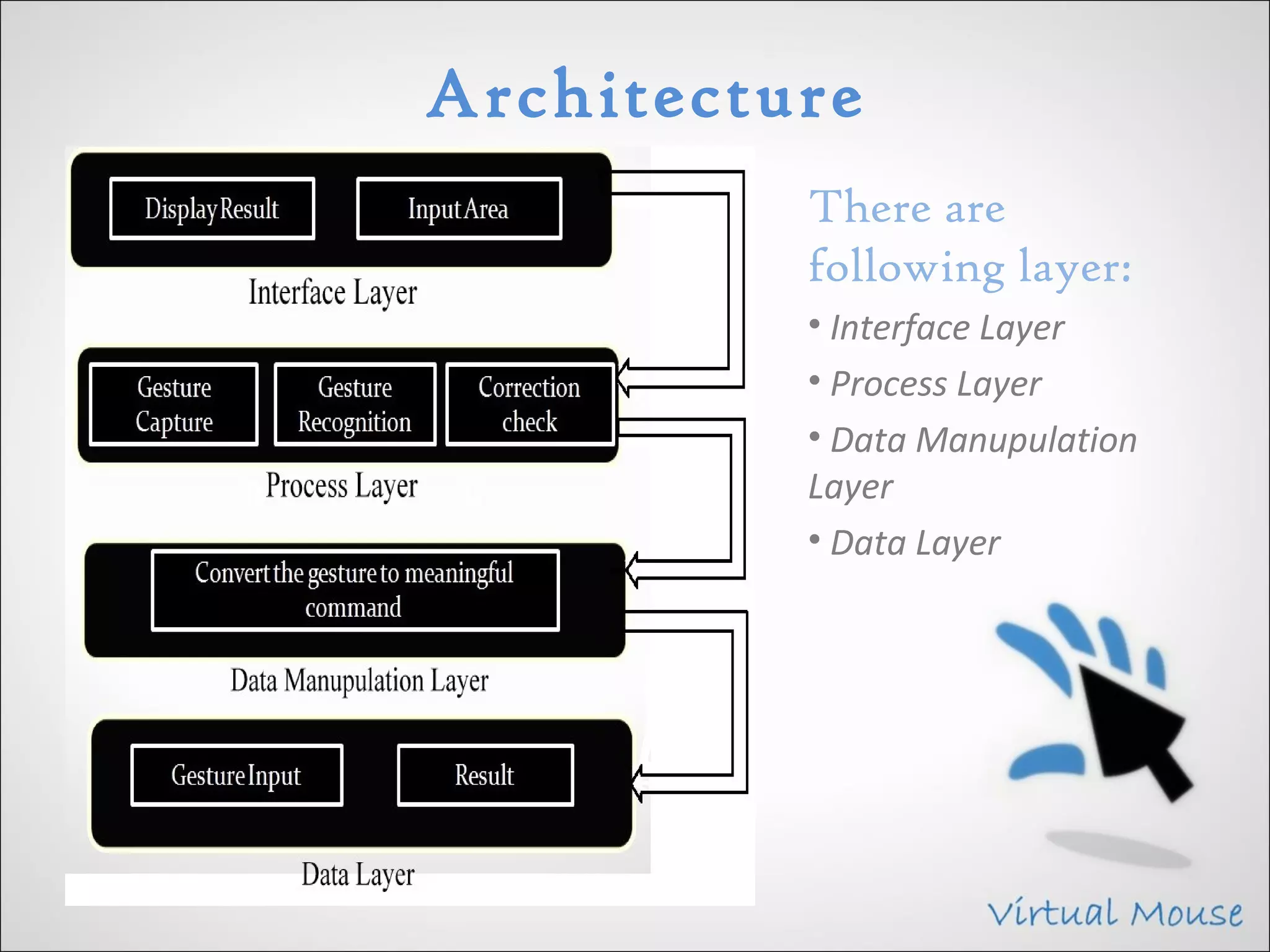

7. Architecture
There are
following layer:
• Interface Layer
• Process Layer
• Data Manupulation
Layer
• Data Layer

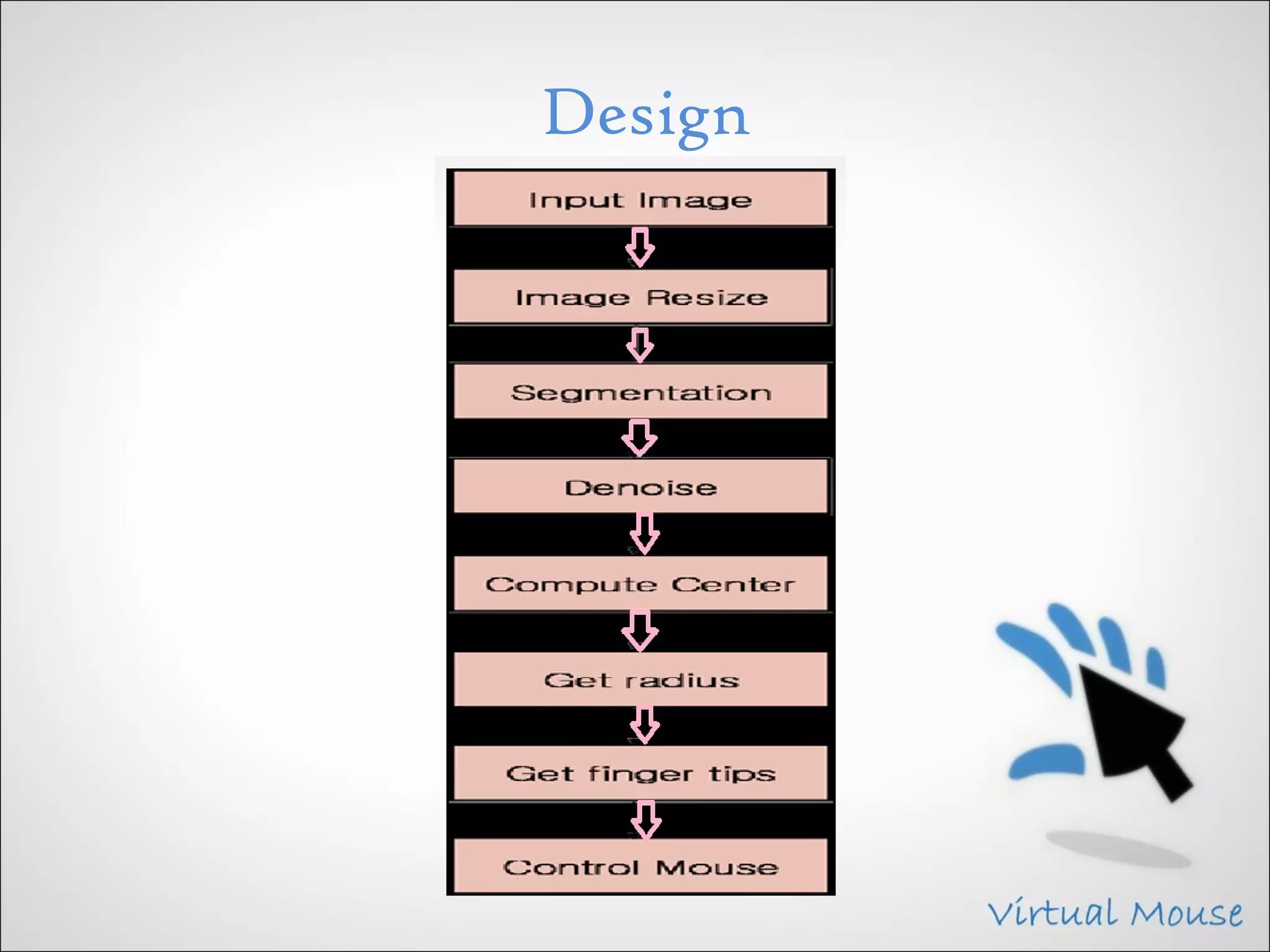

8. Design

9. 1.Image Resize
•Map camera coordinates to screen coordinates.
2.Segmentation
•Separate the hand area from a complex
background.
•we converted from RGB color space to YCbCr color
space, and then to binary image.

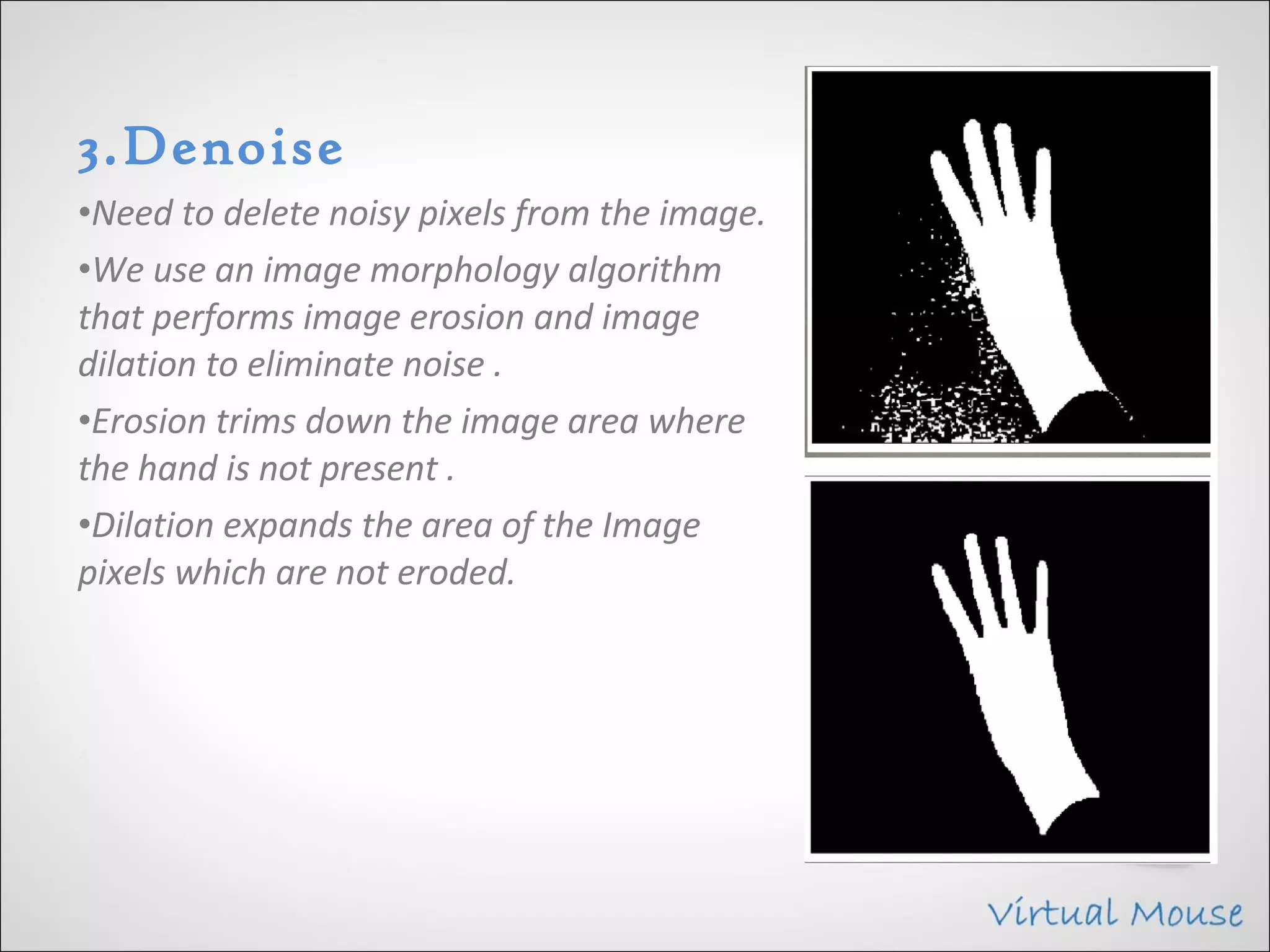

10. 3.Denoise
•Need to delete noisy pixels from the image.
•We use an image morphology algorithm
that performs image erosion and image
dilation to eliminate noise .
•Erosion trims down the image area where
the hand is not present .
•Dilation expands the area of the Image
pixels which are not eroded.

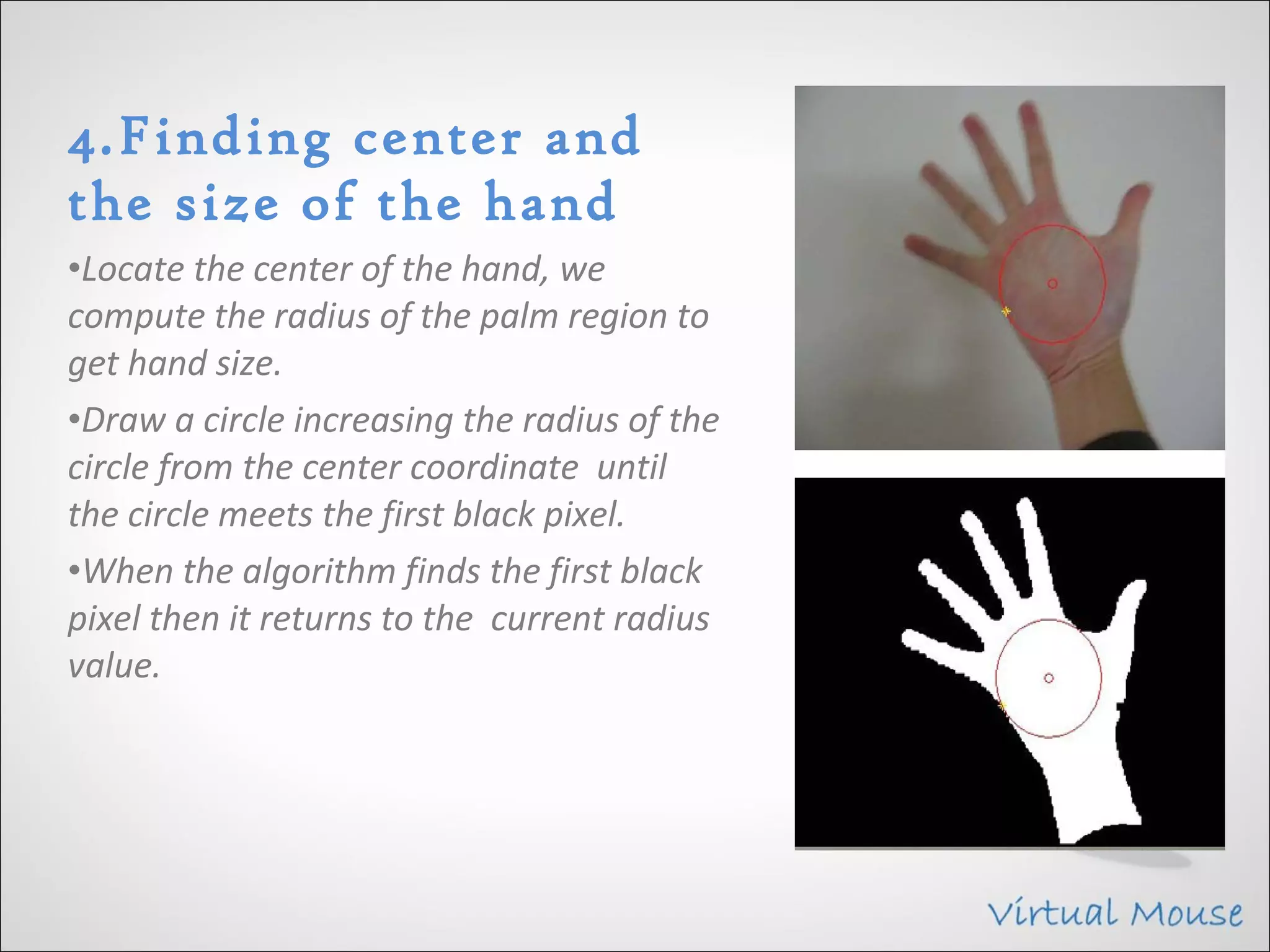

11. 4.Finding center and
the size of the hand
•Locate the center of the hand, we
compute the radius of the palm region to
get hand size.
•Draw a circle increasing the radius of the
circle from the center coordinate until
the circle meets the first black pixel.
•When the algorithm finds the first black
pixel then it returns to the current radius
value.

12. 5.Finding finger tip
•The convex hull algorithm is used to
solve the problem of finding the
biggest polygon including all vertices.
•we can detect finger tips on the hand.
We used this algorithm to recognize if
a finger is folded or not.
•Check the distance between the
center and a pixel which is in convex
hull set.

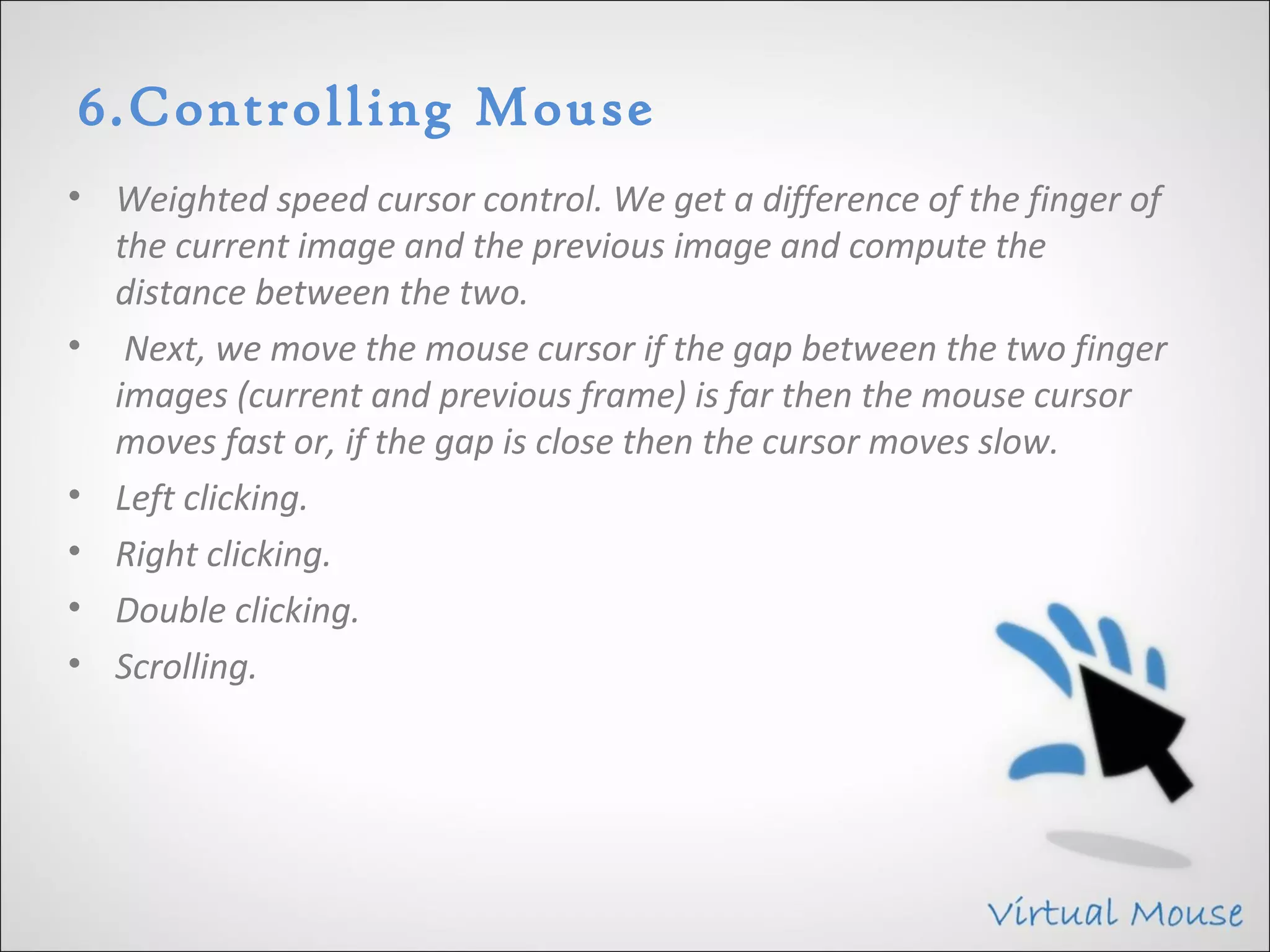

13. 6.Controlling Mouse
• Weighted speed cursor control. We get a difference of the finger of
the current image and the previous image and compute the
distance between the two.
• Next, we move the mouse cursor if the gap between the two finger
images (current and previous frame) is far then the mouse cursor
moves fast or, if the gap is close then the cursor moves slow.
• Left clicking.
• Right clicking.
• Double clicking.
• Scrolling.

14. Hardware & Software
Requirement
• Web Cam
• C# is one of the programming languages designed for the Common
Language Infrastructure. It was developed by Microsoft .
• OpenCV (Open Source Computer Vision Library) is a
library of programming functions mainly aimed at real-time
computer vision, developed by Intel.
• OpenCV runs on Windows, Android, iOS, Linux and Mac
OS.

15. Advantages
• The main advantage of using hand gestures is to interact with
computer as a non-contact human computer input modality.
• Reduce hardware cost by eliminating use of mouse.
• Convenient for users not comfortable with touchpad.
• The framework may be useful for controlling different types of
games and other applications dependent on the controlled through
user defined gestures.

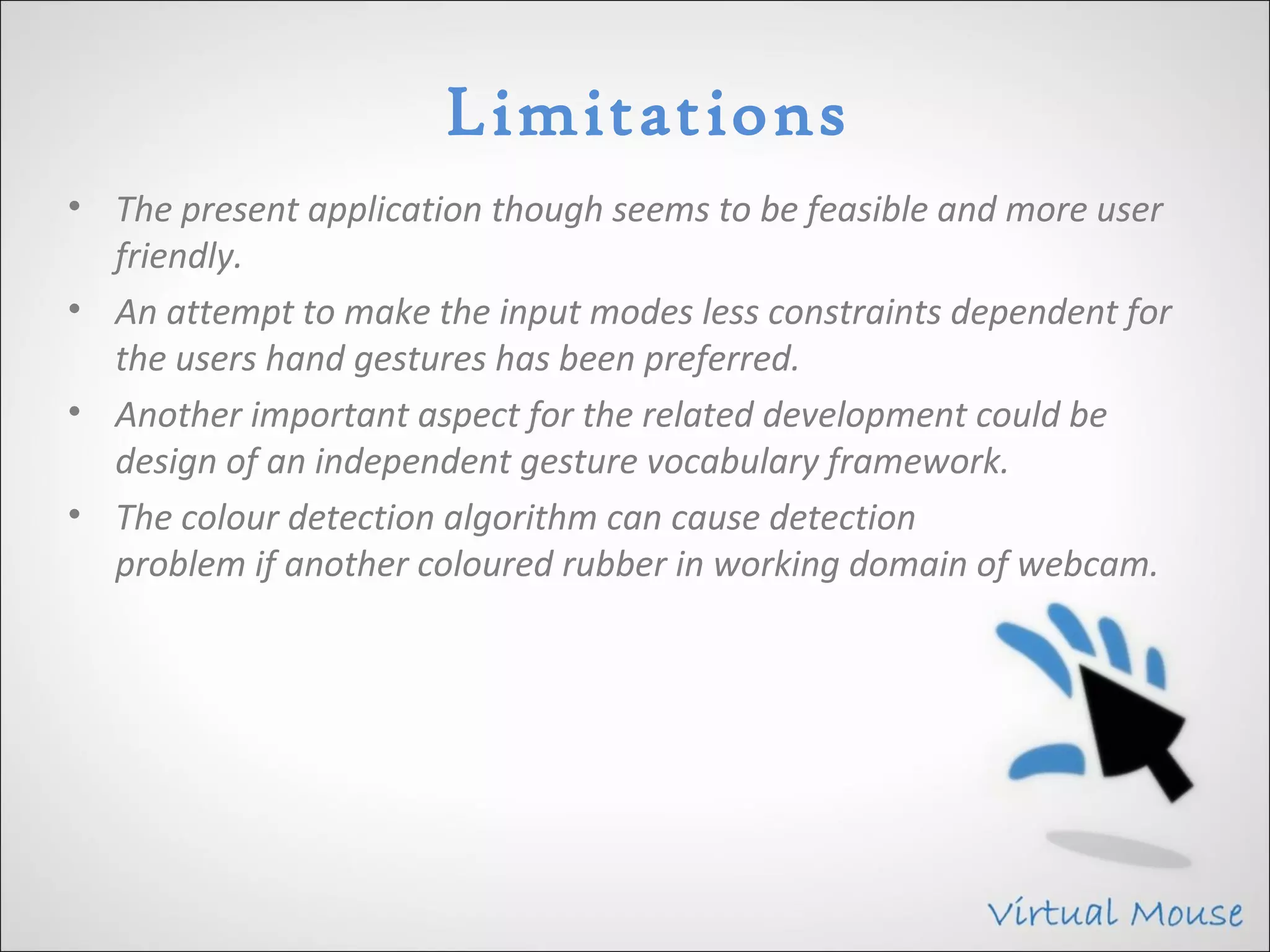

16. Limitations
• The present application though seems to be feasible and more user
friendly.
• An attempt to make the input modes less constraints dependent for
the users hand gestures has been preferred.
• Another important aspect for the related development could be
design of an independent gesture vocabulary framework.
• The colour detection algorithm can cause detection
problem if another coloured rubber in working domain of webcam.

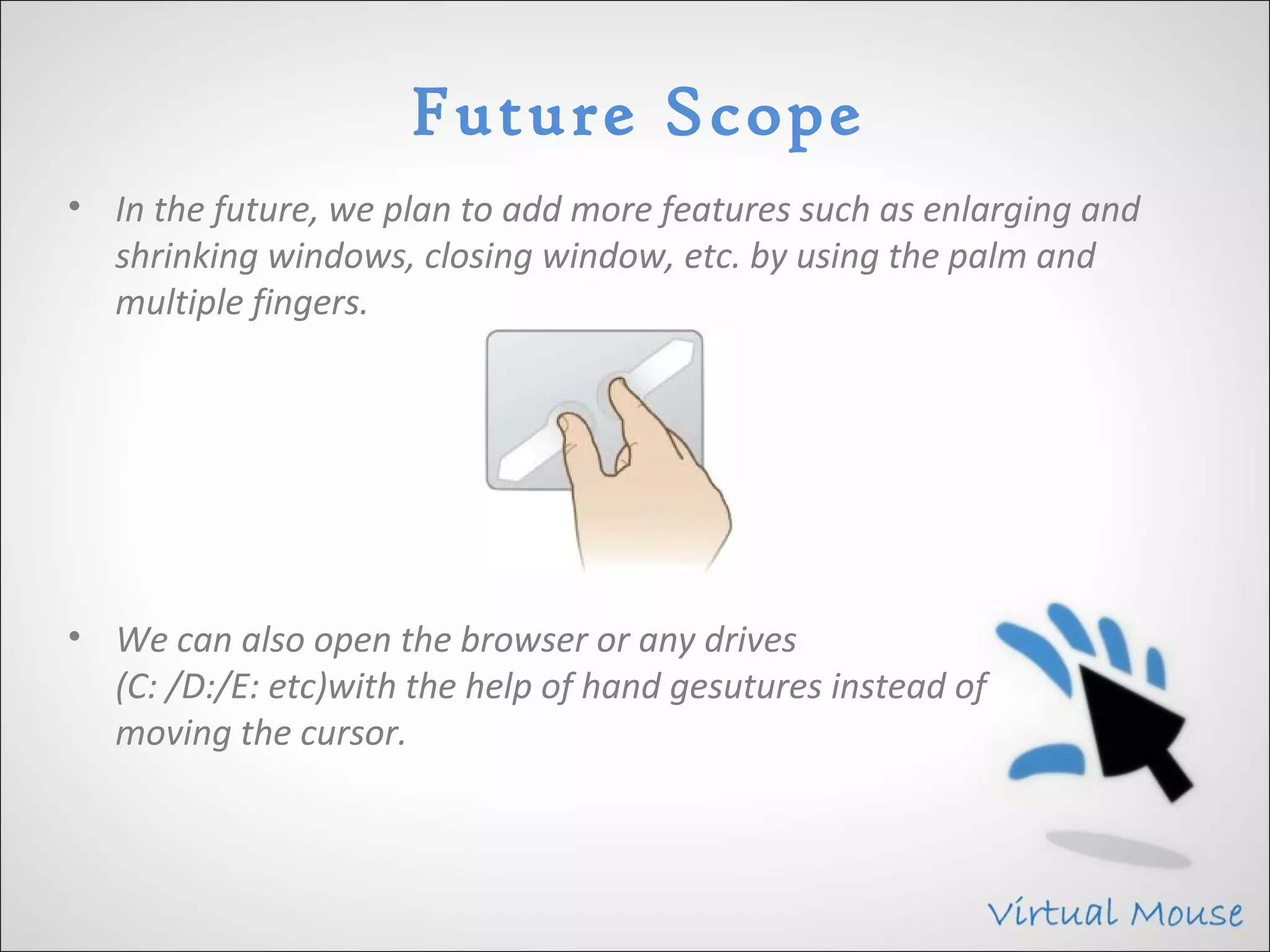

17. Future Scope
• In the future, we plan to add more features such as enlarging and
shrinking windows, closing window, etc. by using the palm and
multiple fingers.
• We can also open the browser or any drives
(C: /D:/E: etc)with the help of hand gesutures instead of
moving the cursor.

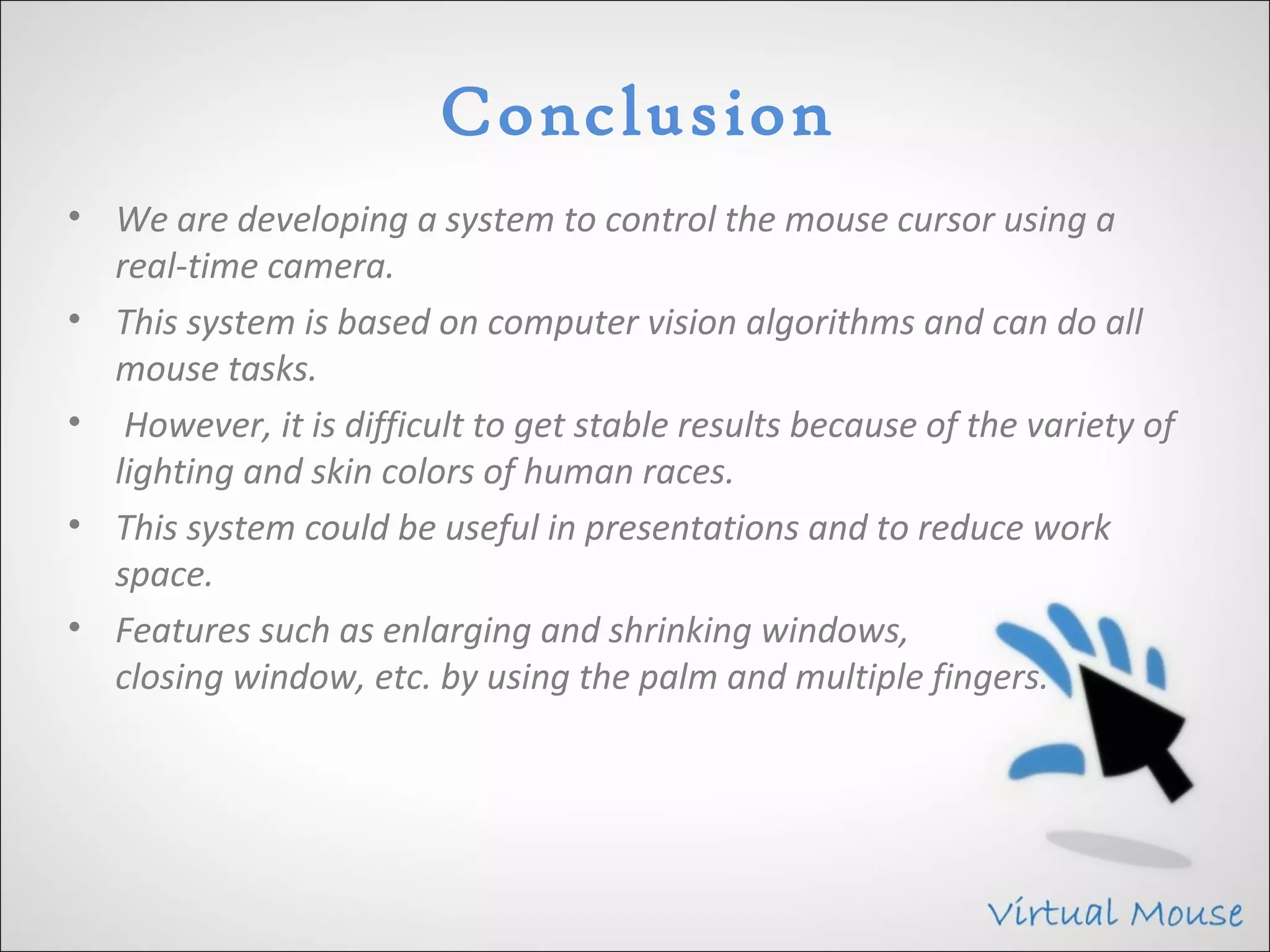

18. Conclusion
• We are developing a system to control the mouse cursor using a
real-time camera.
• This system is based on computer vision algorithms and can do all
mouse tasks.
• However, it is difficult to get stable results because of the variety of
lighting and skin colors of human races.
• This system could be useful in presentations and to reduce work
space.
• Features such as enlarging and shrinking windows,
closing window, etc. by using the palm and multiple fingers.

19. ThAnk YOU
