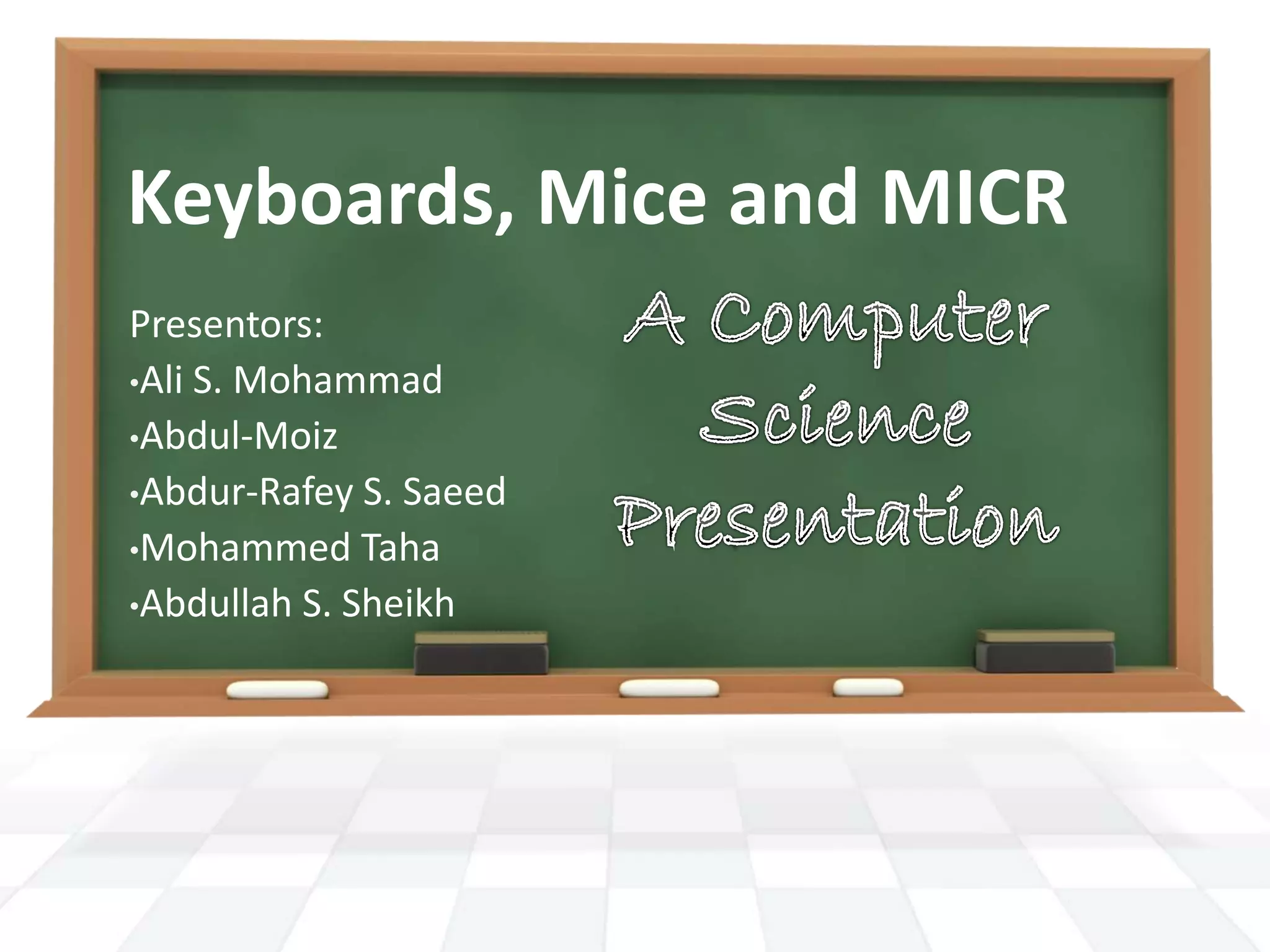

- 1. Keyboards, Mice andMICR Presentors: •Ali S. Mohammad •Abdul-Moiz •Abdur-Rafey S. Saeed •Mohammed Taha •Abdullah S. Sheikh
- 2. •Agenda for ourPresentation Keyboards, Mice and MICR Discussion Item One – How does the standard Keyboard Work? Capacitive and the rest Discussion Item Two – Special Keyboards Ergonomic, virtual, wireless, gaming, compact and concept Discussion Item Three – How does the standard Mouse work? Mechanical, optical and laser Discussion Item Four – Special Mice Inertial, gyroscopic, 3-D, tactile, ergonomic and gaming Discussion Item Five – MICR Magnetic Ink Character Recognition Specialized Keyboards Specialized How Keyboards work? How Mice work? MICR Comparison of the allocation of time for each discussion Mice 2 Keyboards, Mice and MICR
- 3. •How does thestandard keyboard work? Hard Contact keys and general The key matrix has switches and circuitry as well as a processor Pressing a key closes a switch and completes a circuit The position of the key is compared to the character map by the processor and sends the correct signal to the computer Rubber dome switches use carbon centres. The Rubber or silicon layer enables the bouncing back Membrane keyboards have no key caps (a continuous flat membrane Metal-contact have pieces of metal on spring-loaded keys The processor filters out ‘bounce’ due to mechanical action Keyboards, Mice and MICR 3
- 4. •How does theStandard Keyboard Work Capacitive keyboards In capacitive, currently constantly flows throughout the key matrix Each spring-loaded key has a metal plate attached it and another on the key matrix below it A key press brings the two plates closer The change in electric current is registered a key press Expensive but longer life No bounce as no mechanical action 4 Keyboards, Mice and MICR

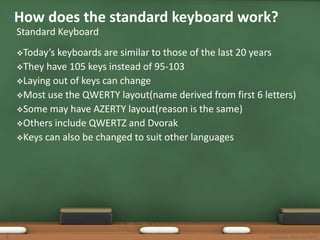

- 5. •How does thestandard keyboard work? Standard Keyboard Today’s keyboards are similar to those of the last 20 years They have 105 keys instead of 95-103 Laying out of keys can change Most use the QWERTY layout(name derived from first 6 letters) Some may have AZERTY layout(reason is the same) Others include QWERTZ and Dvorak Keys can also be changed to suit other languages 5 Keyboards, Mice and MICR
- 6. •Special Keyboards ErgonomicKeyboards These are designed to prevent stress on wrists and fingers They also prevent Carpal Tunnel Syndrome Two types 1. As a single piece where the angle of key placement relieves stress 2. In the form of separate pieces each with a group of keys able to be angled to provide maximum comfort These keyboards are radically different from flat, undivided regular keyboards 6 Keyboards, Mice and MICR
- 7. •Special Keyboards Wireless These do not require wires, instead use Bluetooth, infrared (IR) and radio frequency (RF) Require external power provided by batteries All require a transceiver to connect into a port and relay contact between computer and keyboard Bluetooth keyboards have a 30ft range. Many devices are compatible with Bluetooth Cheap RF keyboards have a 5ft range IR keyboards require to be in the line-of-sight of the transceiver. This is their major drawback, otherwise they have a 12ft range 7 Keyboards, Mice and MICR
- 8. •Special Keyboards Virtualand Internet These are keyboard software apps for mouse or touchscreen Used in devices such as tablets and smartphones where it is impractical to use hardware keyboards Also used for security purposes as anything typed on hardware keyboards is stored on key logs This service is thus provided by Bank ATMs Internet keyboards have hot keys for Internet-related functions These include hot keys for back, forward, bookmarks list, e-mail inbox, Google search, YouTube, online shopping etc. 8 Keyboards, Mice and MICR

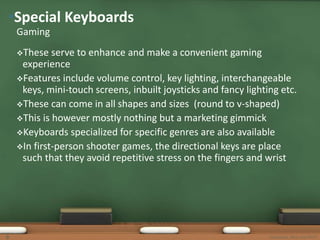

- 9. •Special Keyboards Gaming These serve to enhance and make a convenient gaming experience Features include volume control, key lighting, interchangeable keys, mini-touch screens, inbuilt joysticks and fancy lighting etc. These can come in all shapes and sizes (round to v-shaped) This is however mostly nothing but a marketing gimmick Keyboards specialized for specific genres are also available In first-person shooter games, the directional keys are place such that they avoid repetitive stress on the fingers and wrist 9 Keyboards, Mice and MICR
- 10. •Special Keyboards ConceptKeyboards These keyboards have no pre-set keys It uses a touch-sensitive screen with a key/overlay displayed Each key can be programmed to have a variety of functions Used in restaurants where instead of typing, waiters can easily press a single key for each meal. Conveniently pictures or icons can replace words on each virtual key Beneficial for the elderly, especially those with arthritis Touchscreens are increasingly replacing concept keyboards 10 Keyboards, Mice and MICR
- 11. •Special Keyboards CompactKeyboards These are slim and small, hence the name No numeric keypad Mostly used by laptops Multiple keys are used for otherwise single-key functions Some also include a touchpad for a mouse Offer greater portability during travel and storage due to compact design People with hand, finger movement disabilities use these as well 11 Keyboards, Mice and MICR
