This chapter discusses graphics and drawing in Java. It introduces the Java coordinate system, the Graphics class for drawing shapes, and overriding the paintComponent method to draw on GUI components. Key topics covered include drawing strings, lines, rectangles, ovals, arcs, polygons, and images.

1. Chapter 13 Graphics
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
1

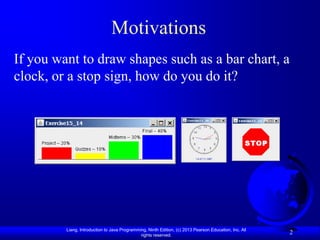

2. Motivations
If you want to draw shapes such as a bar chart, a
clock, or a stop sign, how do you do it?
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
2

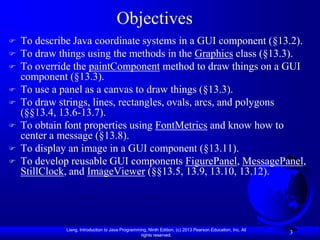

3. Objectives
 To describe Java coordinate systems in a GUI component (§13.2).
 To draw things using the methods in the Graphics class (§13.3).
 To override the paintComponent method to draw things on a GUI
component (§13.3).
 To use a panel as a canvas to draw things (§13.3).
 To draw strings, lines, rectangles, ovals, arcs, and polygons
(§§13.4, 13.6-13.7).
 To obtain font properties using FontMetrics and know how to
center a message (§13.8).
 To display an image in a GUI component (§13.11).
 To develop reusable GUI components FigurePanel, MessagePanel,
StillClock, and ImageViewer (§§13.5, 13.9, 13.10, 13.12).
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
3

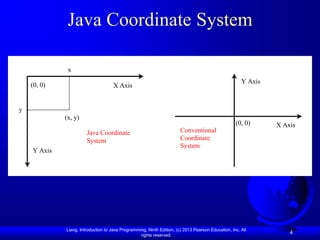

4. Java Coordinate System
x
Y Axis
(0, 0) X Axis
y
(x, y)
(0, 0) X Axis
Java Coordinate Conventional
System Coordinate
System
Y Axis
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
4

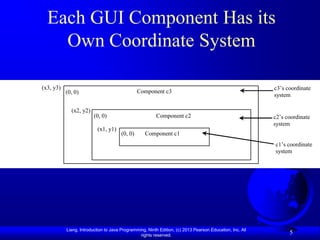

5. Each GUI Component Has its
Own Coordinate System
(x3, y3) c3’s coordinate
(0, 0) Component c3
system
(x2, y2)
(0, 0) Component c2 c2’s coordinate
system
(x1, y1)
(0, 0) Component c1
c1’s coordinate
system
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
5

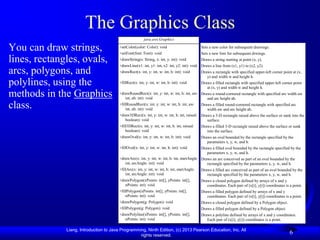

6. The Graphics Class
java.awt.Graphics
You can draw strings, +setColor(color: Color): void
+setFont(font: Font): void
Sets a new color for subsequent drawings.
Sets a new font for subsequent drwings.
lines, rectangles, ovals, +drawString(s: String, x: int, y: int): void Draws a string starting at point (x, y).
+drawLine(x1: int, y1: int, x2: int, y2: int): void Draws a line from (x1, y1) to (x2, y2).
arcs, polygons, and +drawRect(x: int, y: int, w: int, h: int): void Draws a rectangle with specified upper-left corner point at (x,
y) and width w and height h.
polylines, using the +fillRect(x: int, y: int, w: int, h: int): void Draws a filled rectangle with specified upper-left corner point
at (x, y) and width w and height h.
methods in the Graphics +drawRoundRect(x: int, y: int, w: int, h: int, aw: Draws a round-cornered rectangle with specified arc width aw
int, ah: int): void and arc height ah.
class. +fillRoundRect(x: int, y: int, w: int, h: int, aw:
int, ah: int): void
Draws a filled round-cornered rectangle with specified arc
width aw and arc height ah.
+draw3DRect(x: int, y: int, w: int, h: int, raised: Draws a 3-D rectangle raised above the surface or sunk into the
boolean): void surface.
+fill3DRect(x: int, y: int, w: int, h: int, raised: Draws a filled 3-D rectangle raised above the surface or sunk
boolean): void into the surface.
+drawOval(x: int, y: int, w: int, h: int): void Draws an oval bounded by the rectangle specified by the
parameters x, y, w, and h.
+fillOval(x: int, y: int, w: int, h: int): void Draws a filled oval bounded by the rectangle specified by the
parameters x, y, w, and h.
+drawArc(x: int, y: int, w: int, h: int, startAngle: Draws an arc conceived as part of an oval bounded by the
int, arcAngle: int): void rectangle specified by the parameters x, y, w, and h.
+fillArc(x: int, y: int, w: int, h: int, startAngle: Draws a filled arc conceived as part of an oval bounded by the
int, arcAngle: int): void rectangle specified by the parameters x, y, w, and h.
+drawPolygon(xPoints: int[], yPoints: int[], Draws a closed polygon defined by arrays of x and y
nPoints: int): void coordinates. Each pair of (x[i], y[i]) coordinates is a point.
+fillPolygon(xPoints: int[], yPoints: int[], Draws a filled polygon defined by arrays of x and y
nPoints: int): void coordinates. Each pair of (x[i], y[i]) coordinates is a point.
+drawPolygon(g: Polygon): void Draws a closed polygon defined by a Polygon object.
+fillPolygon(g: Polygon): void Draws a filled polygon defined by a Polygon object.
+drawPolyline(xPoints: int[], yPoints: int[], Draws a polyline defined by arrays of x and y coordinates.
nPoints: int): void Each pair of (x[i], y[i]) coordinates is a point.
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
6

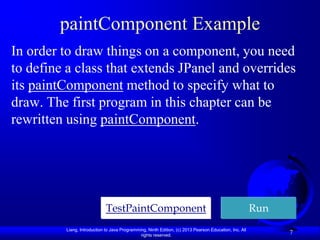

7. paintComponent Example
In order to draw things on a component, you need
to define a class that extends JPanel and overrides
its paintComponent method to specify what to
draw. The first program in this chapter can be
rewritten using paintComponent.
TestPaintComponent Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
7

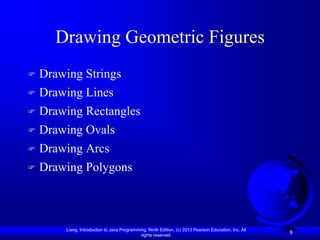

8. Drawing Geometric Figures
 Drawing Strings
 Drawing Lines
 Drawing Rectangles
 Drawing Ovals
 Drawing Arcs
 Drawing Polygons
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
8

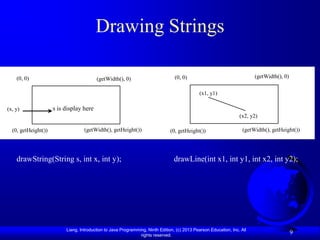

9. Drawing Strings
(0, 0) (getWidth(), 0) (0, 0) (getWidth(), 0)
(x1, y1)
(x, y) s is display here
(x2, y2)
(0, getHeight()) (getWidth(), getHeight()) (0, getHeight()) (getWidth(), getHeight())
drawString(String s, int x, int y); drawLine(int x1, int y1, int x2, int y2);
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
9

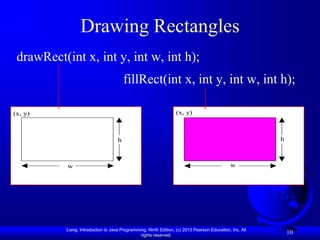

10. Drawing Rectangles
drawRect(int x, int y, int w, int h);
fillRect(int x, int y, int w, int h);
(x, y) (x, y)
h h
w w
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
10

11. Drawing Rounded Rectangles
drawRoundRect(int x, int y, int w, int h, int aw, int ah);
fillRoundRect(int x, int y, int w, int h, int aw, int ah);
(x, y)
ah/2
aw/2
h
w
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
11

12. Drawing Ovals
drawOval(int x, int y, int w, int h);
fillOval(int x, int y, int w, int h);
(x, y)
h
w
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
12

13. Case Study: The FigurePanel Class
This example develops a useful class for displaying various
figures. The class enables the user to set the figure type and
specify whether the figure is filled, and displays the figure on a
panel. javax.swing.JPanel
-char token
+getToken FigurePanel
+setToken
+paintComponet LINE, RECTANGLE,
+LINE = 1
+mouseClicked ROUND_RECTANGLE, and OVAL are
+RECTANGLE = 2 constants.
+ROUND_RECTANGLE = 3
+OVAL = 4
-type: int Specifies the figure type (default: 1).
-filled: boolean Specifies whether the figure is filled (default: false).
+FigurePanel() Creates a default figure panel.
+FigurePanel(type: int) Creates a figure panel with the specified type.
+FigurePanel(type: int, filled: boolean) Creates a figure panel with the specified type and filled property.
+getType(): int Returns the figure type.
+setType(type: int): void Sets a new figure type.
FigurePanel +isFilled(): boolean Checks whether the figure is filled with a color.
+setFilled(filled: boolean): void Sets a new filled property.
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
13

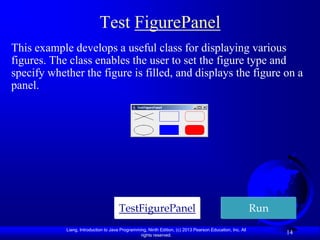

14. Test FigurePanel
This example develops a useful class for displaying various
figures. The class enables the user to set the figure type and
specify whether the figure is filled, and displays the figure on a
panel.
TestFigurePanel Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
14

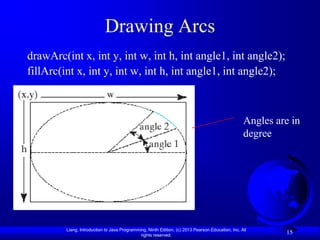

15. Drawing Arcs
drawArc(int x, int y, int w, int h, int angle1, int angle2);
fillArc(int x, int y, int w, int h, int angle1, int angle2);
Angles are in
degree
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
15

16. Drawing Arcs Example
DrawArcs Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
16

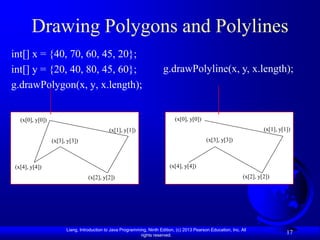

17. Drawing Polygons and Polylines
int[] x = {40, 70, 60, 45, 20};
int[] y = {20, 40, 80, 45, 60}; g.drawPolyline(x, y, x.length);
g.drawPolygon(x, y, x.length);
(x[0], y[0]) (x[0], y[0])
(x[1], y[1]) (x[1], y[1])
(x[3], y[3]) (x[3], y[3])
(x[4], y[4]) (x[4], y[4])
(x[2], y[2]) (x[2], y[2])
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
17

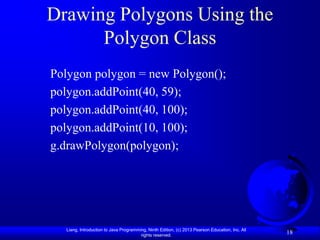

18. Drawing Polygons Using the
Polygon Class
Polygon polygon = new Polygon();
polygon.addPoint(40, 59);
polygon.addPoint(40, 100);
polygon.addPoint(10, 100);
g.drawPolygon(polygon);
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
18

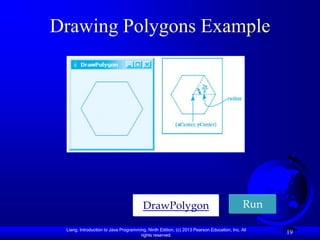

19. Drawing Polygons Example
DrawPolygon Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
19

20. Centering Display Using the FontMetrics Class
You can display a string at any location in a panel. Can you display
it centered? To do so, you need to use the FontMetrics class to
measure the exact width and height of the string for a particular
font. A FontMetrics can measure the following attributes:
 public int getAscent()  public int getHeight()
 public int getDescent()  public int stringWidth(String str)
 public int getLeading()
getLeading()
getHeight()
getAscent()
getDescent()
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
20

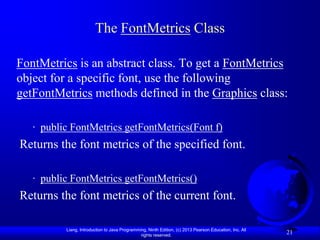

21. The FontMetrics Class
FontMetrics is an abstract class. To get a FontMetrics
object for a specific font, use the following
getFontMetrics methods defined in the Graphics class:
· public FontMetrics getFontMetrics(Font f)
Returns the font metrics of the specified font.
· public FontMetrics getFontMetrics()
Returns the font metrics of the current font.
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
21

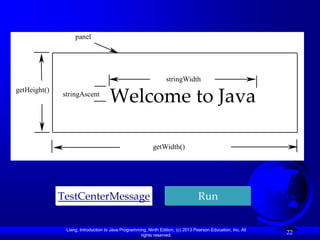

22. panel
stringWidth
getHeight()
stringAscent
Welcome to Java
getWidth()
TestCenterMessage Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
22

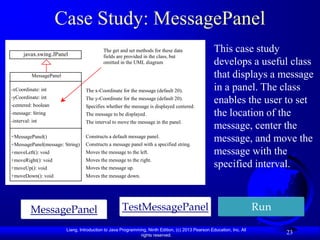

23. Case Study: MessagePanel
javax.swing.JPanel
The get and set methods for these data This case study
fields are provided in the class, but
-char token
omitted in the UML diagram develops a useful class
+getToken MessagePanel
+setToken
that displays a message
+paintComponet
+mouseClicked int
-xCoordinate: The x-Coordinate for the message (default 20). in a panel. The class
-yCoordinate: int
-centered: boolean
The y-Coordinate for the message (default 20).
Specifies whether the message is displayed centered.
enables the user to set
-message: String The message to be displayed. the location of the
-interval: int The interval to move the message in the panel.
message, center the
+MessagePanel()
+MessagePanel(message: String)
Constructs a default message panel.
Constructs a message panel with a specified string.
message, and move the
+moveLeft(): void Moves the message to the left. message with the
+moveRight(): void Moves the message to the right.
+moveUp(): void Moves the message up. specified interval.
+moveDown(): void Moves the message down.
MessagePanel TestMessagePanel Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
23

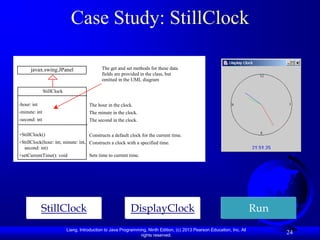

24. Case Study: StillClock
javax.swing.JPanel The get and set methods for these data
fields are provided in the class, but
-char token omitted in the UML diagram
+getToken StillClock
+setToken
+paintComponet
-hour: int
+mouseClicked The hour in the clock.
-minute: int The minute in the clock.
-second: int The second in the clock.
+StillClock() Constructs a default clock for the current time.
+StillClock(hour: int, minute: int, Constructs a clock with a specified time.
second: int)
+setCurrentTime(): void Sets time to current time.
StillClock DisplayClock Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
24

25. Drawing Clock
xEnd = xCenter + handLength sin( ) Since there are sixty seconds
in one minute, the angle for
yEnd = yCenter - handLength cos( ) the second hand is
second (2 /60)
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
25

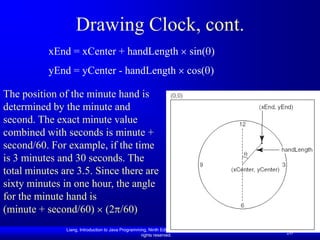

26. Drawing Clock, cont.
xEnd = xCenter + handLength sin( )
yEnd = yCenter - handLength cos( )
The position of the minute hand is
determined by the minute and
second. The exact minute value
combined with seconds is minute +
second/60. For example, if the time
is 3 minutes and 30 seconds. The
total minutes are 3.5. Since there are
sixty minutes in one hour, the angle
for the minute hand is
(minute + second/60) (2 /60)
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
26

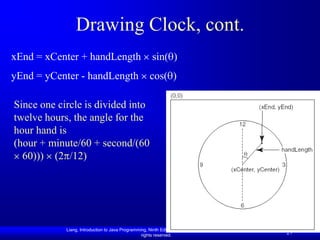

27. Drawing Clock, cont.
xEnd = xCenter + handLength sin( )
yEnd = yCenter - handLength cos( )
Since one circle is divided into
twelve hours, the angle for the
hour hand is
(hour + minute/60 + second/(60
60))) (2 /12)
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
27

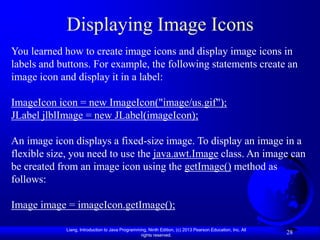

28. Displaying Image Icons
You learned how to create image icons and display image icons in
labels and buttons. For example, the following statements create an
image icon and display it in a label:
ImageIcon icon = new ImageIcon("image/us.gif");
JLabel jlblImage = new JLabel(imageIcon);
An image icon displays a fixed-size image. To display an image in a
flexible size, you need to use the java.awt.Image class. An image can
be created from an image icon using the getImage() method as
follows:
Image image = imageIcon.getImage();
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
28

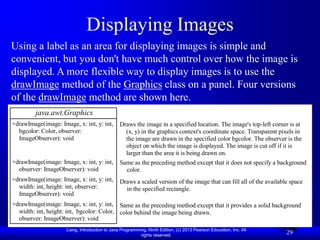

29. Displaying Images
Using a label as an area for displaying images is simple and
convenient, but you don't have much control over how the image is
displayed. A more flexible way to display images is to use the
drawImage method of the Graphics class on a panel. Four versions
of the drawImage method are shown here.
java.awt.Graphics
+drawImage(image: Image, x: int, y: int, Draws the image in a specified location. The image's top-left corner is at
bgcolor: Color, observer: (x, y) in the graphics context's coordinate space. Transparent pixels in
ImageObserver): void the image are drawn in the specified color bgcolor. The observer is the
object on which the image is displayed. The image is cut off if it is
larger than the area it is being drawn on.
+drawImage(image: Image, x: int, y: int, Same as the preceding method except that it does not specify a background
observer: ImageObserver): void color.
+drawImage(image: Image, x: int, y: int, Draws a scaled version of the image that can fill all of the available space
width: int, height: int, observer: in the specified rectangle.
ImageObserver): void
+drawImage(image: Image, x: int, y: int, Same as the preceding method except that it provides a solid background
width: int, height: int, bgcolor: Color, color behind the image being drawn.
observer: ImageObserver): void
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
29

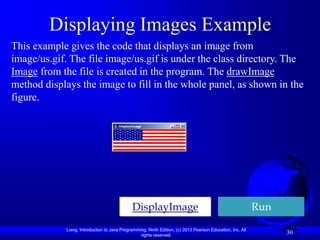

30. Displaying Images Example
This example gives the code that displays an image from
image/us.gif. The file image/us.gif is under the class directory. The
Image from the file is created in the program. The drawImage
method displays the image to fill in the whole panel, as shown in the
figure.
DisplayImage Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
30

31. Case Study: ImageViewer Class
Displaying an image is a common task in Java programming. This
case study develops a reusable component named ImageViewer that
displays an image in a panel. The ImageViewer class contains the
properties image, imageFilename, stretched, xCoordinate, and
yCoordinate.
javax.swing.JPanel The get and set methods for these data
fields are provided in the class, but
omitted in the UML diagram for brevity.
ImageViewer
-image: Image Image in the image viewer.
-stretched: boolean True if the image is stretched in the viewer.
-xCoordinate: int x-coordinate of the upper-left corner of the image in the viewer.
-yCoordinate: int y-coordinate of the upper-left corner of the image in the viewer.
+ImageViewer() Constructs an image viewer with no image.
+ImageViewer(imageFile: String) Constructs an image viewer with the specified image file.
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
31

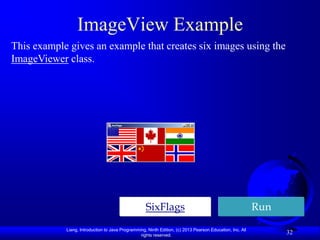

32. ImageView Example
This example gives an example that creates six images using the
ImageViewer class.
SixFlags Run
Liang, Introduction to Java Programming, Ninth Edition, (c) 2013 Pearson Education, Inc. All
rights reserved.
32
