Java Graphics Programming

GRAPHICS PROGRAMMING
PROGRAMMAZIONE CONCORRENTE E DISTR.
Università degli Studi di Padova
Dipartimento di Matematica
Corso di Laurea in Informatica, A.A. 2015 – 2016
rcardin@math.unipd.it

Programmazione concorrente e distribuita

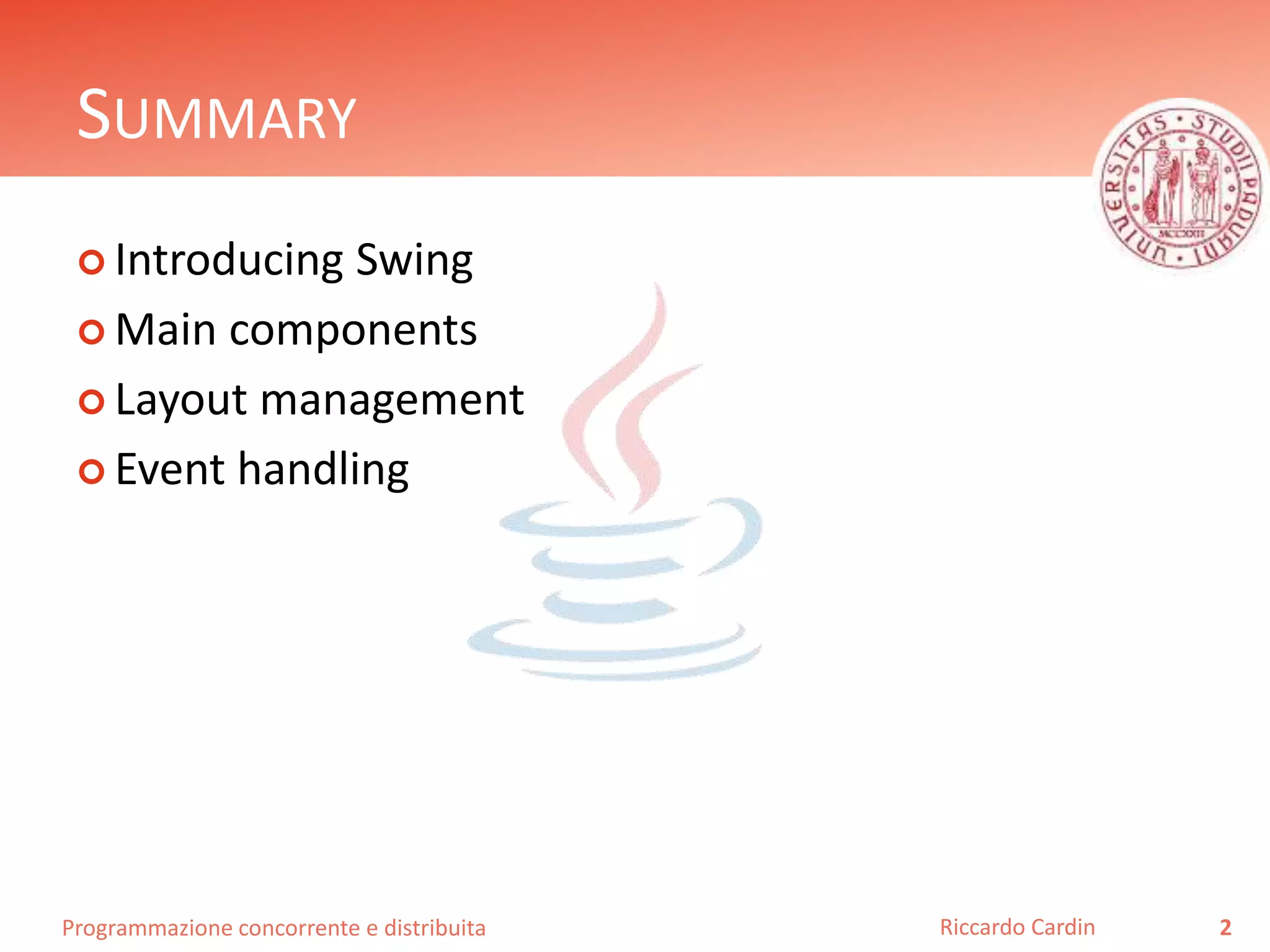

SUMMARY
 Introducing Swing
 Main components
 Layout management
 Event handling
2Riccardo Cardin

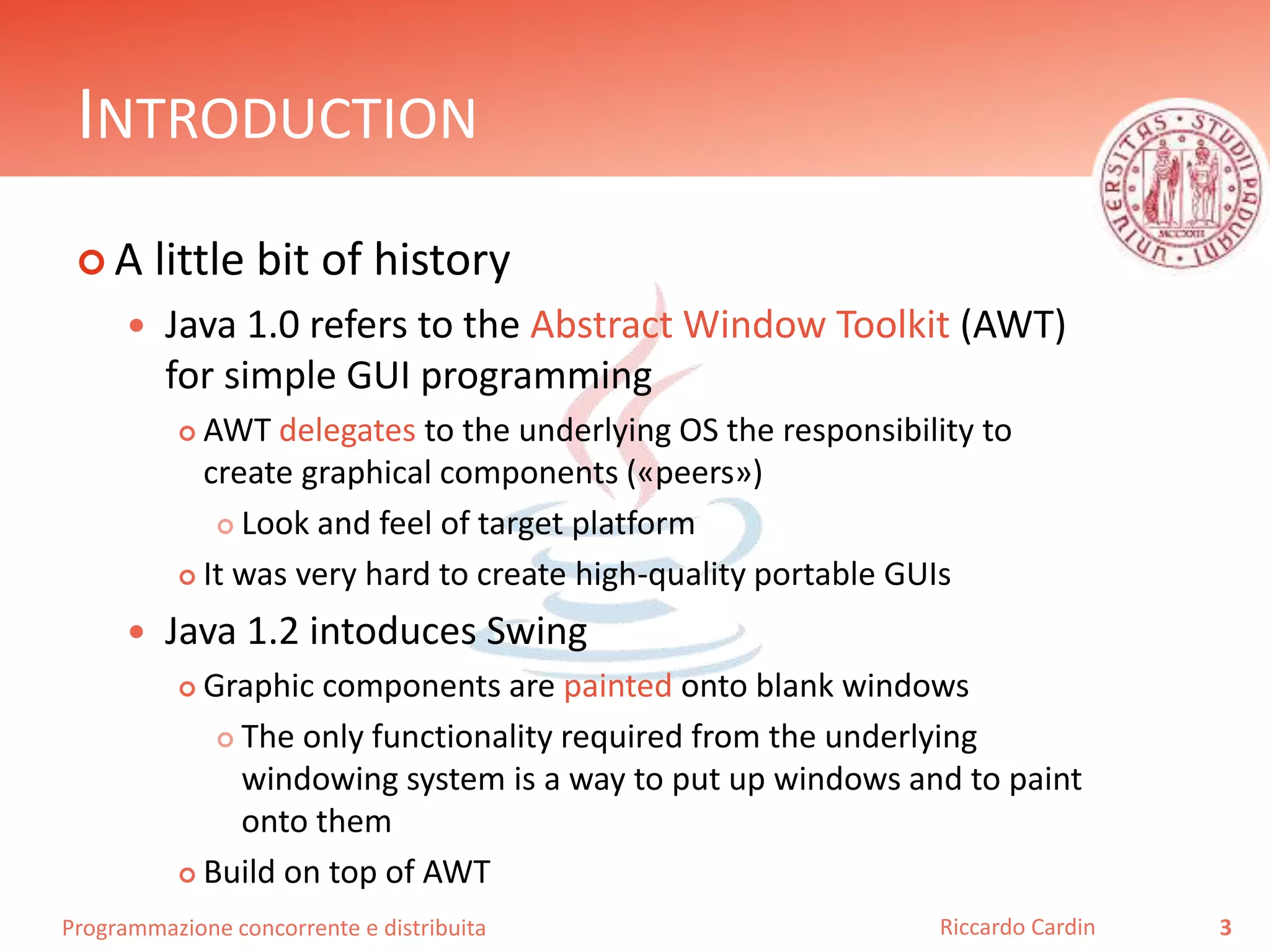

INTRODUCTION
 A little bit of history
 Java 1.0 refers to the Abstract Window Toolkit (AWT)
for simple GUI programming
 AWT delegates to the underlying OS the responsibility to
create graphical components («peers»)
 Look and feel of target platform
 It was very hard to create high-quality portable GUIs
 Java 1.2 intoduces Swing
 Graphic components are painted onto blank windows
 The only functionality required from the underlying
windowing system is a way to put up windows and to paint
onto them
 Build on top of AWT
3Riccardo Cardin

INTRODUCTION
4Riccardo Cardin

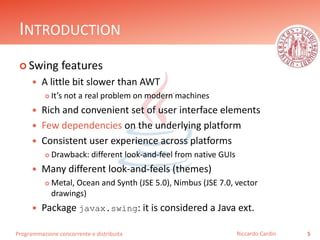

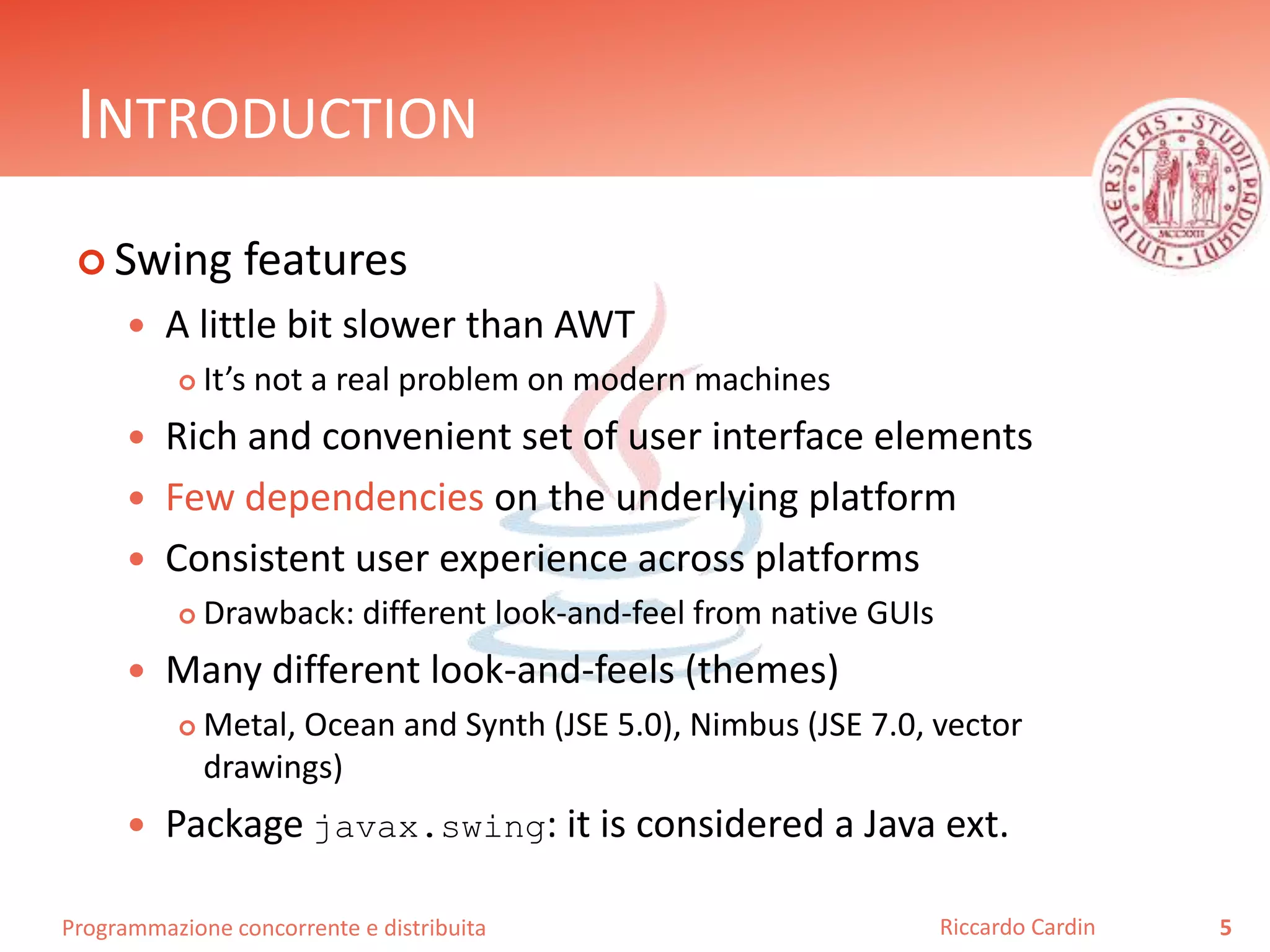

INTRODUCTION
 Swing features
 A little bit slower than AWT
 It’s not a real problem on modern machines
 Rich and convenient set of user interface elements
 Few dependencies on the underlying platform
 Consistent user experience across platforms
 Drawback: different look-and-feel from native GUIs
 Many different look-and-feels (themes)
 Metal, Ocean and Synth (JSE 5.0), Nimbus (JSE 7.0, vector
drawings)
 Package javax.swing: it is considered a Java ext.
5Riccardo Cardin

INTRODUCTION

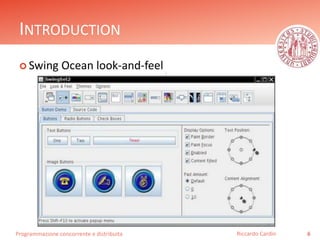

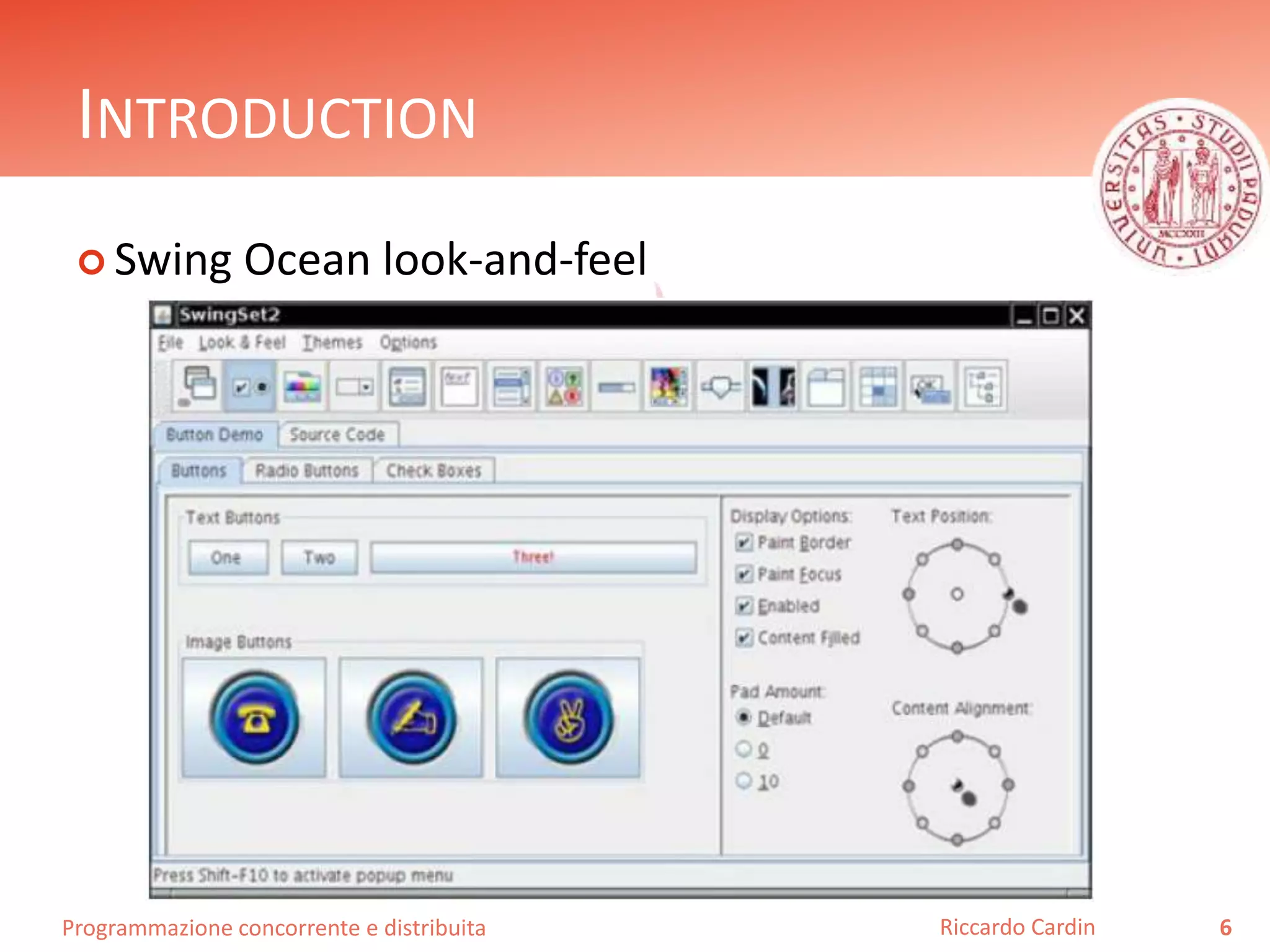

 Swing Ocean look-and-feel
6Riccardo Cardin

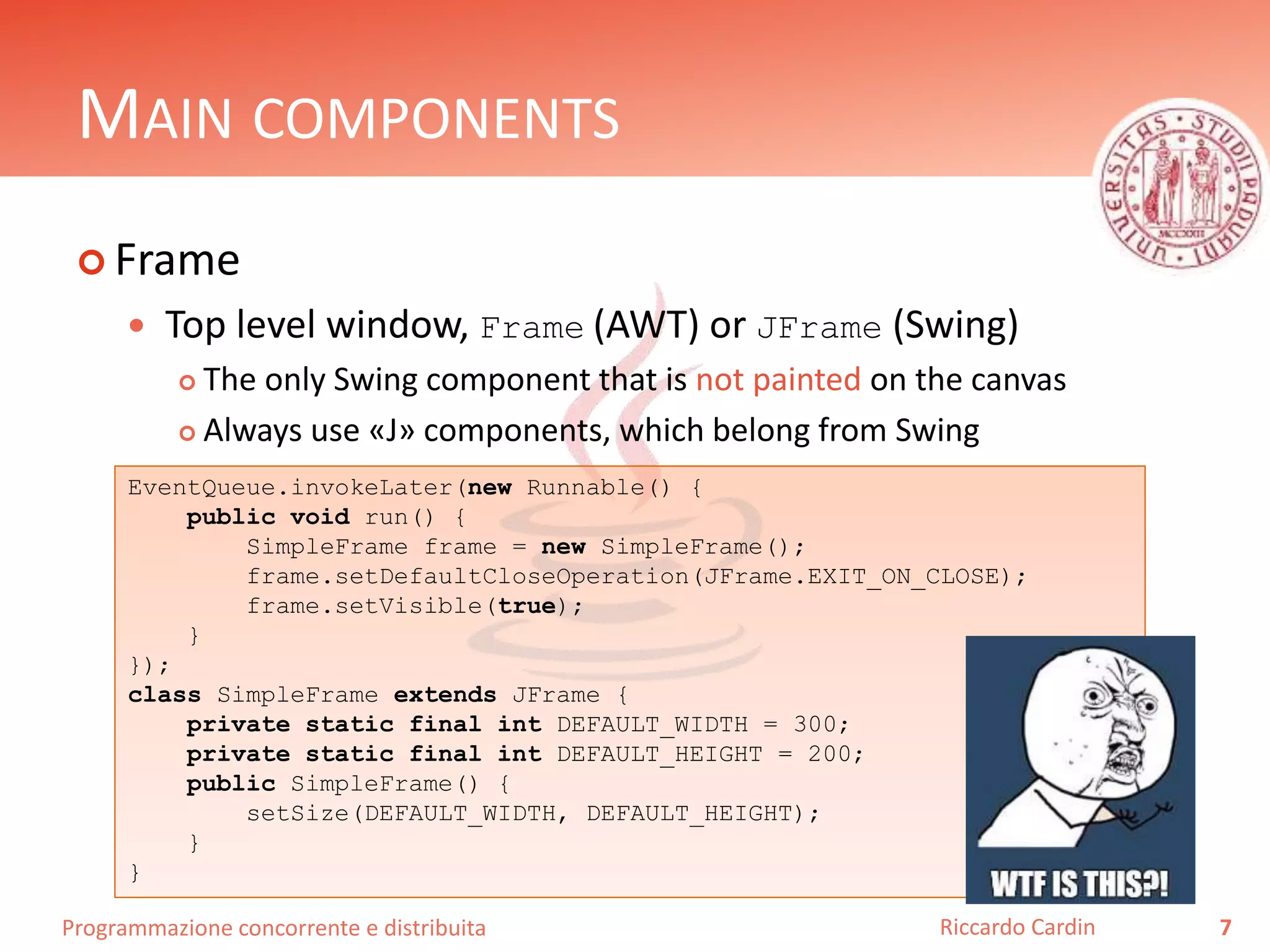

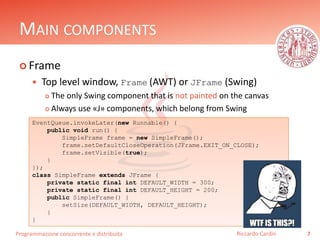

MAIN COMPONENTS
 Frame
 Top level window, Frame (AWT) or JFrame (Swing)
 The only Swing component that is not painted on the canvas
 Always use «J» components, which belong from Swing
7Riccardo Cardin
EventQueue.invokeLater(new Runnable() {
public void run() {
SimpleFrame frame = new SimpleFrame();
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setVisible(true);
}
});
class SimpleFrame extends JFrame {
private static final int DEFAULT_WIDTH = 300;
private static final int DEFAULT_HEIGHT = 200;
public SimpleFrame() {
setSize(DEFAULT_WIDTH, DEFAULT_HEIGHT);
}
}

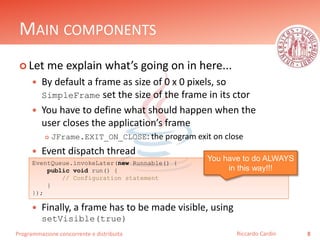

MAIN COMPONENTS
 Let me explain what’s going on in here...
 By default a frame as size of 0 x 0 pixels, so
SimpleFrame set the size of the frame in its ctor
 You have to define what should happen when the
user closes the application’s frame
 JFrame.EXIT_ON_CLOSE: the program exit on close
 Event dispatch thread
 Finally, a frame has to be made visible, using
setVisible(true)
8Riccardo Cardin
EventQueue.invokeLater(new Runnable() {
public void run() {
// Configuration statement
}
});
You have to do ALWAYS
in this way!!!

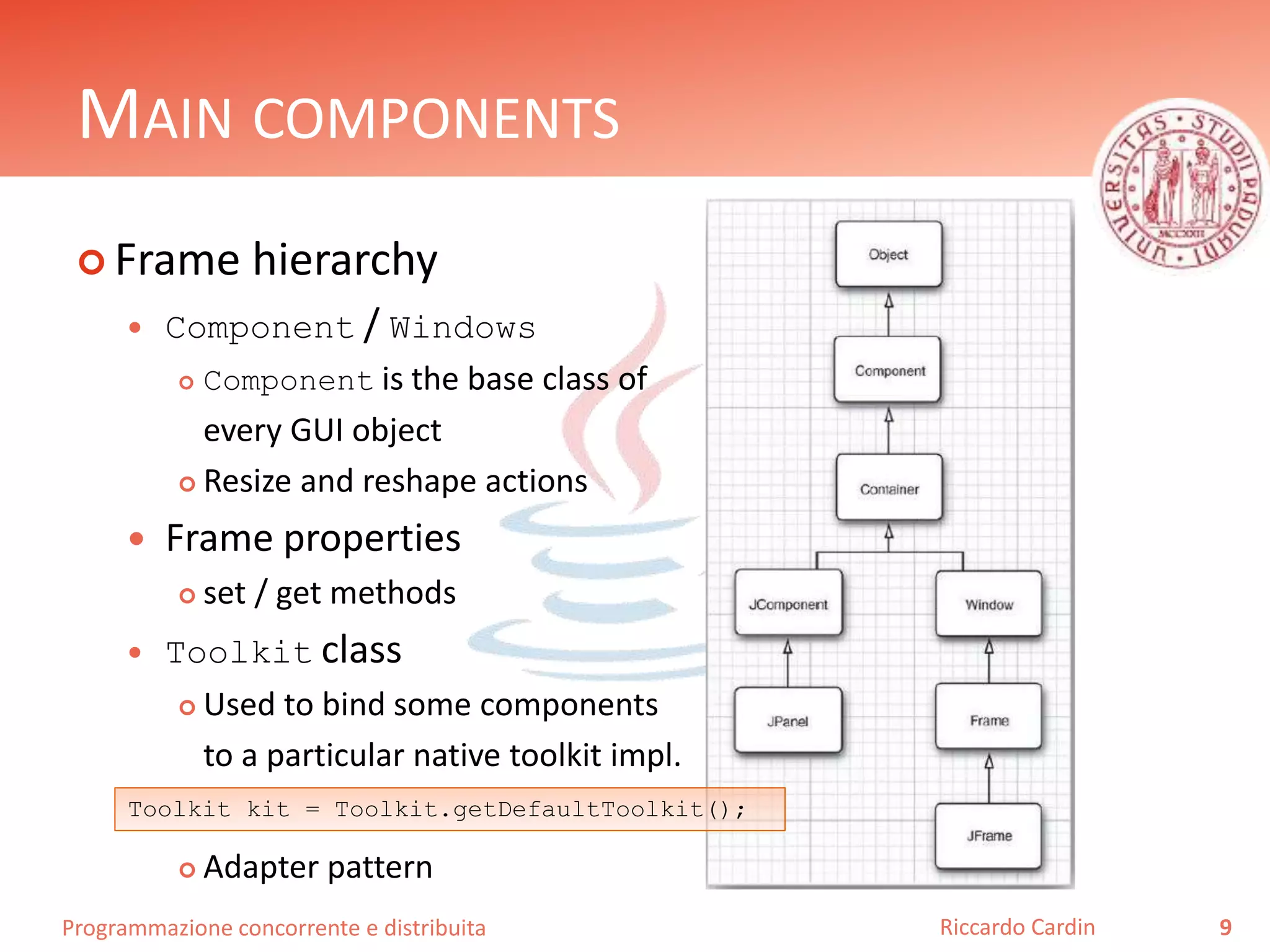

MAIN COMPONENTS
 Frame hierarchy
 Component / Windows
 Component is the base class of
every GUI object
 Resize and reshape actions
 Frame properties
 set / get methods
 Toolkit class
 Used to bind some components
to a particular native toolkit impl.
 Adapter pattern
9Riccardo Cardin
Toolkit kit = Toolkit.getDefaultToolkit();

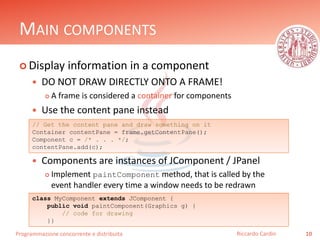

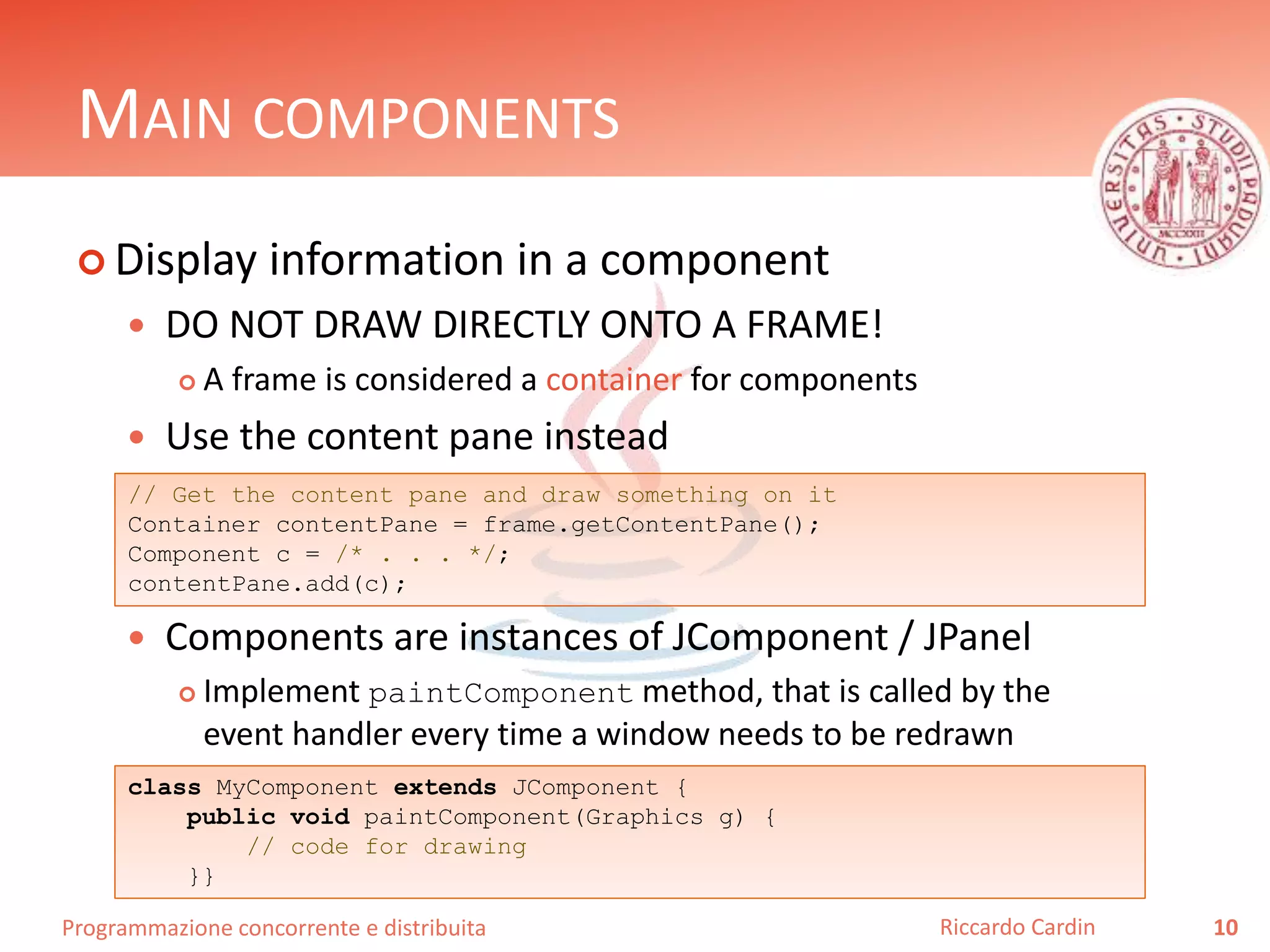

MAIN COMPONENTS
 Display information in a component
 DO NOT DRAW DIRECTLY ONTO A FRAME!
 A frame is considered a container for components
 Use the content pane instead
 Components are instances of JComponent / JPanel
 Implement paintComponent method, that is called by the
event handler every time a window needs to be redrawn
10Riccardo Cardin
// Get the content pane and draw something on it
Container contentPane = frame.getContentPane();
Component c = /* . . . */;
contentPane.add(c);
class MyComponent extends JComponent {
public void paintComponent(Graphics g) {
// code for drawing
}}

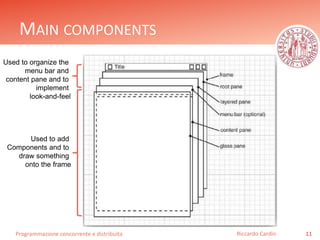

MAIN COMPONENTS
11Riccardo Cardin
Used to organize the
menu bar and
content pane and to
implement
look-and-feel
Used to add
Components and to
draw something
onto the frame

MAIN COMPONENTS
12Riccardo Cardin

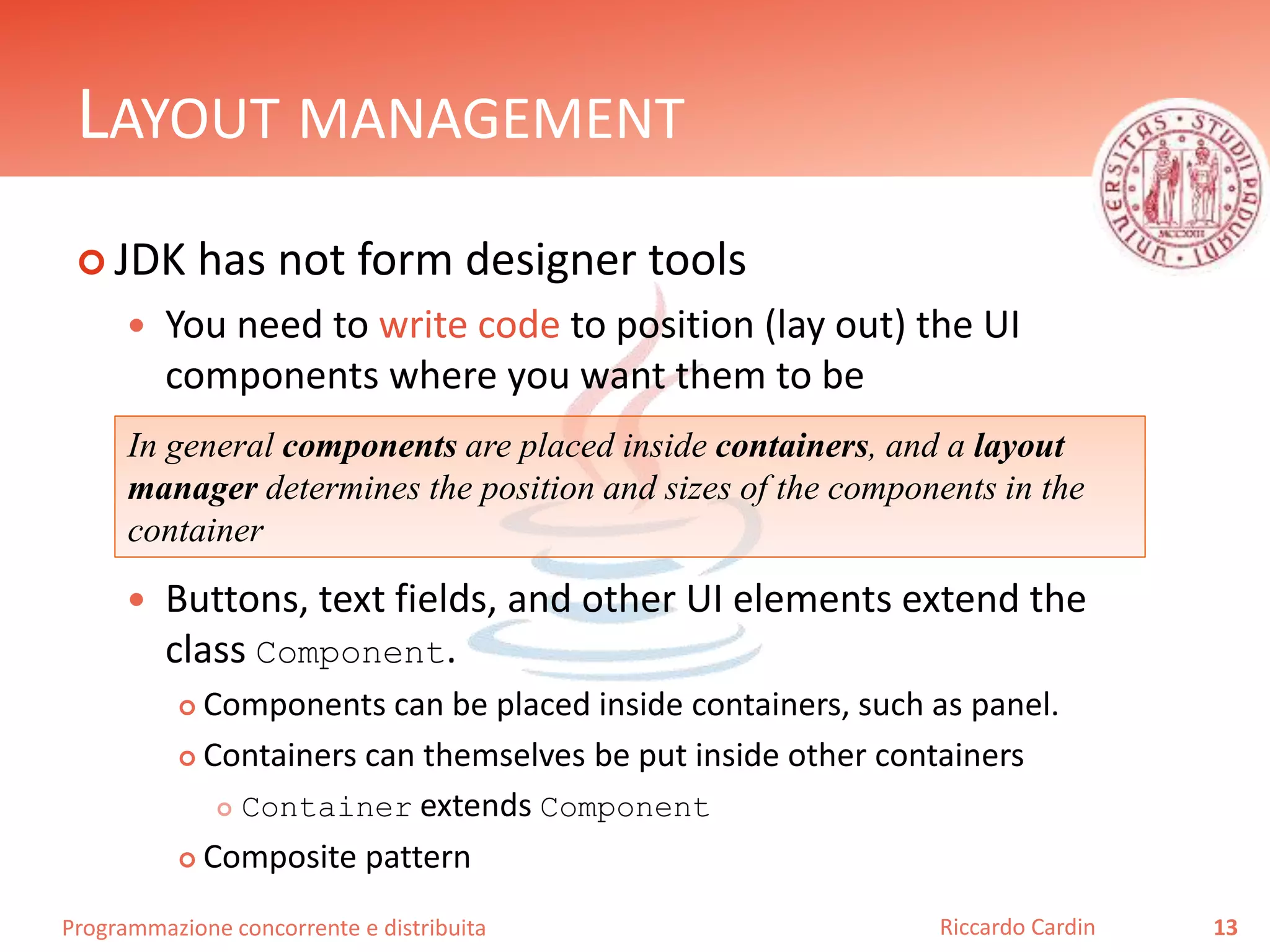

LAYOUT MANAGEMENT
 JDK has not form designer tools
 You need to write code to position (lay out) the UI
components where you want them to be
 Buttons, text fields, and other UI elements extend the
class Component.
 Components can be placed inside containers, such as panel.
 Containers can themselves be put inside other containers
 Container extends Component
 Composite pattern
13Riccardo Cardin
In general components are placed inside containers, and a layout
manager determines the position and sizes of the components in the
container

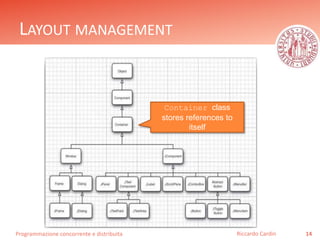

LAYOUT MANAGEMENT
14Riccardo Cardin
Container class
stores references to
itself

LAYOUT MANAGEMENT
15Riccardo Cardin

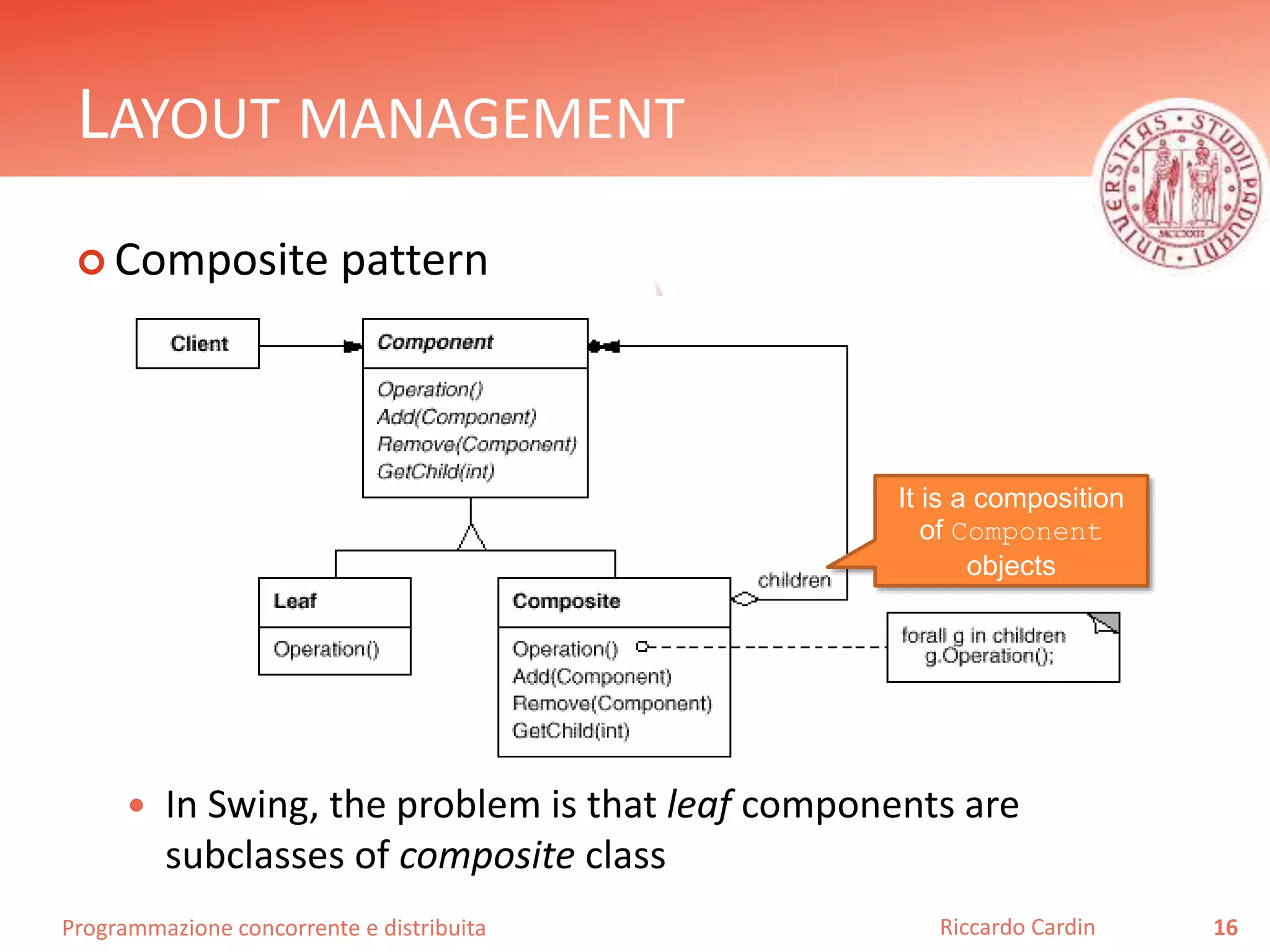

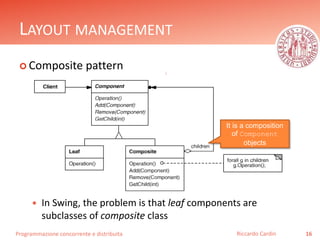

LAYOUT MANAGEMENT
 Composite pattern
 In Swing, the problem is that leaf components are
subclasses of composite class
16Riccardo Cardin
It is a composition
of Component
objects

LAYOUT MANAGEMENT

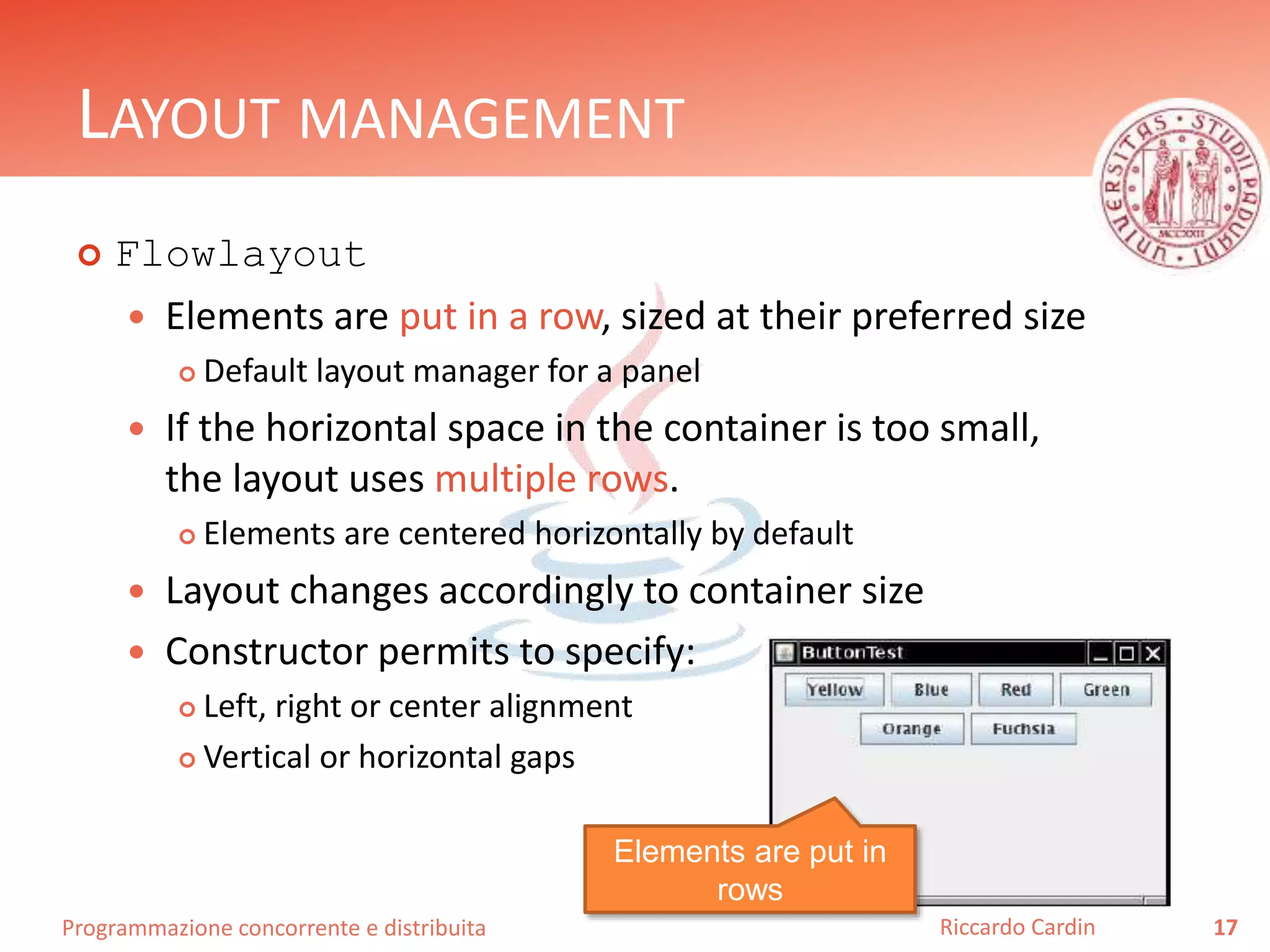

 Flowlayout
 Elements are put in a row, sized at their preferred size
 Default layout manager for a panel
 If the horizontal space in the container is too small,
the layout uses multiple rows.
 Elements are centered horizontally by default
 Layout changes accordingly to container size
 Constructor permits to specify:
 Left, right or center alignment
 Vertical or horizontal gaps
17Riccardo Cardin
Elements are put in
rows

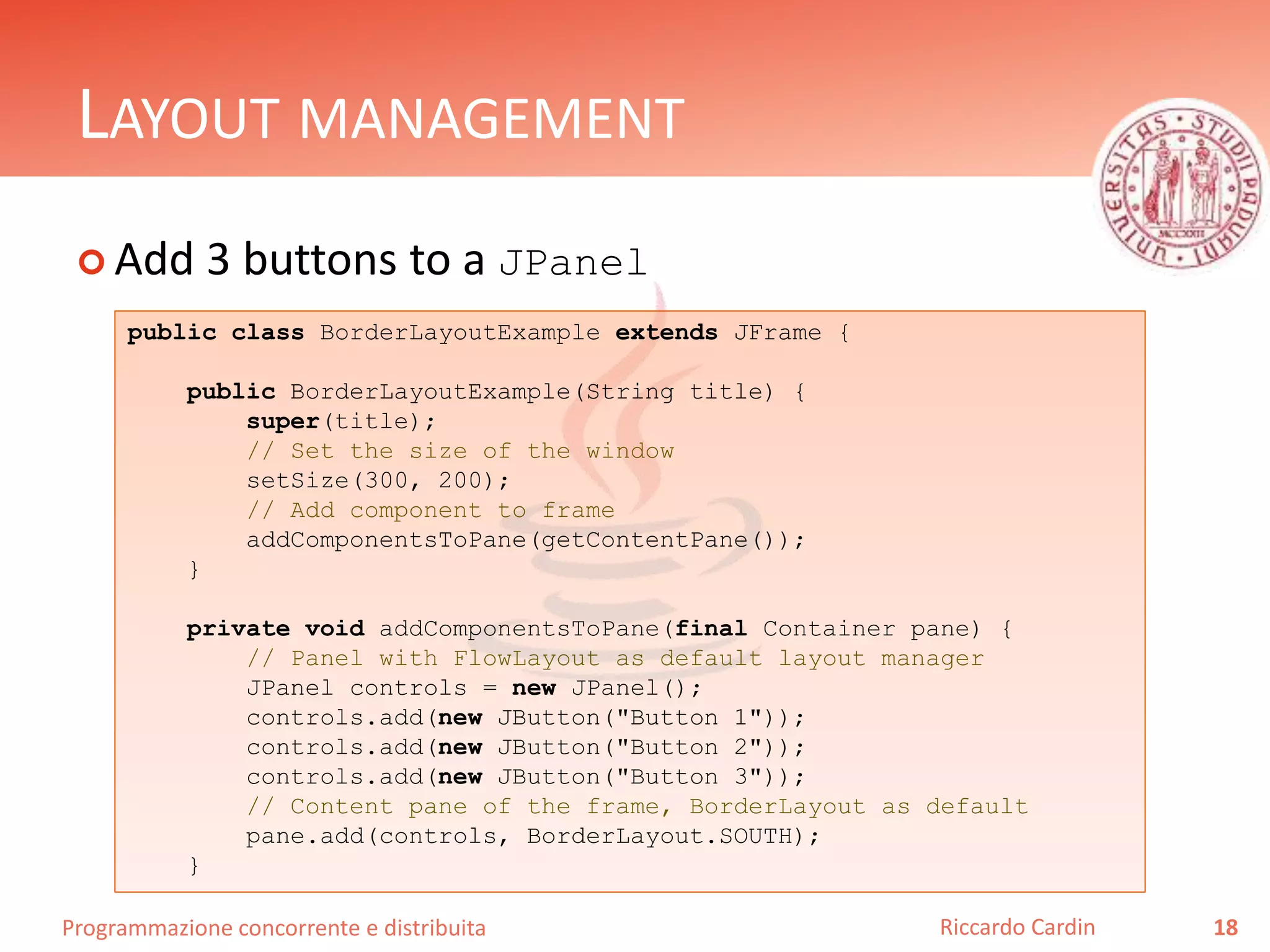

LAYOUT MANAGEMENT
 Add 3 buttons to a JPanel
18Riccardo Cardin
public class BorderLayoutExample extends JFrame {
public BorderLayoutExample(String title) {
super(title);
// Set the size of the window
setSize(300, 200);
// Add component to frame
addComponentsToPane(getContentPane());
}
private void addComponentsToPane(final Container pane) {
// Panel with FlowLayout as default layout manager
JPanel controls = new JPanel();
controls.add(new JButton("Button 1"));
// Content pane of the frame, BorderLayout as default
pane.add(controls, BorderLayout.SOUTH);
}

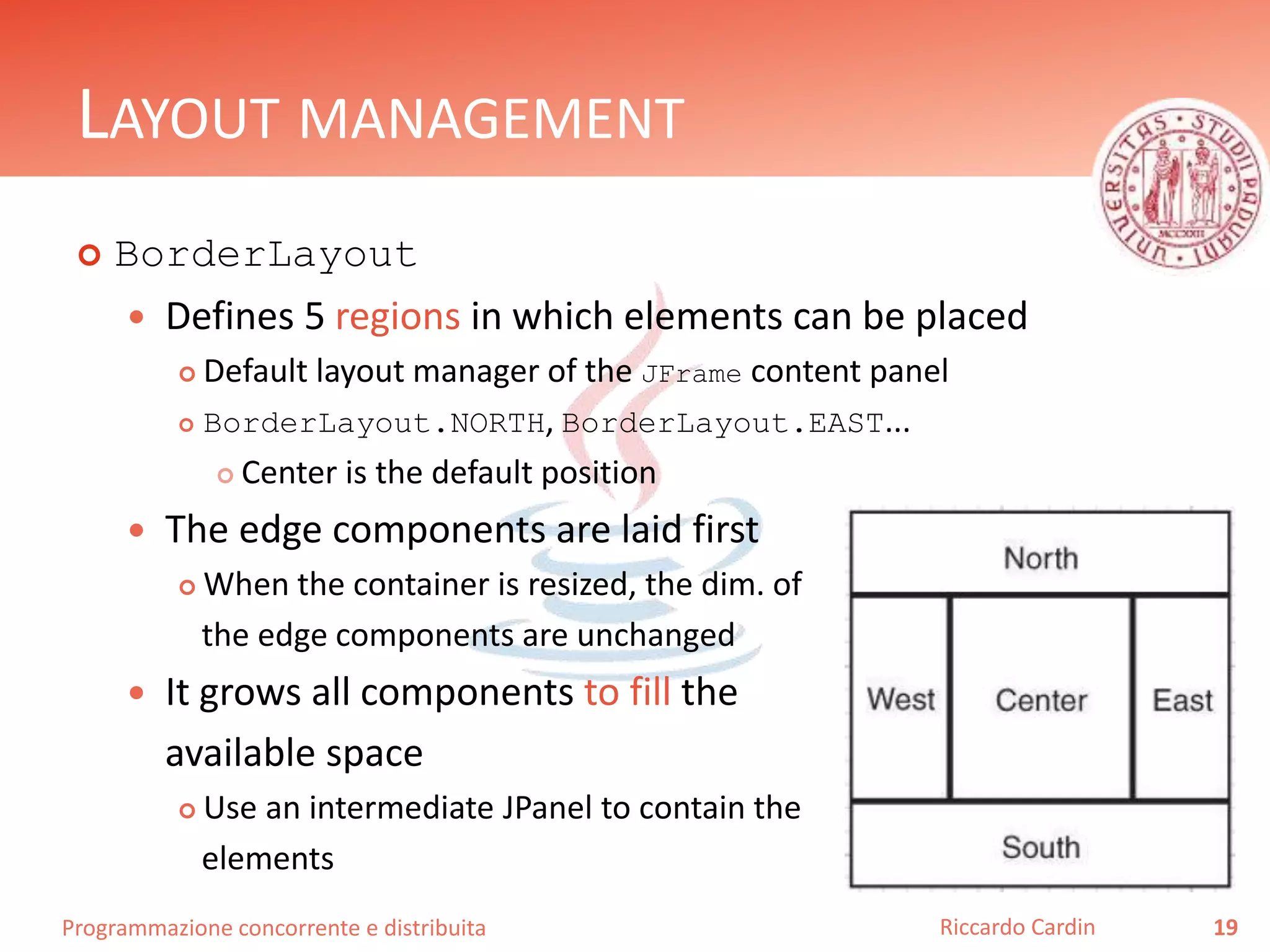

LAYOUT MANAGEMENT
 BorderLayout
 Defines 5 regions in which elements can be placed
 Default layout manager of the JFrame content panel
 BorderLayout.NORTH, BorderLayout.EAST...
 Center is the default position
 The edge components are laid first
 When the container is resized, the dim. of
the edge components are unchanged
 It grows all components to fill the
available space
 Use an intermediate JPanel to contain the
elements
19Riccardo Cardin

LAYOUT MANAGEMENT

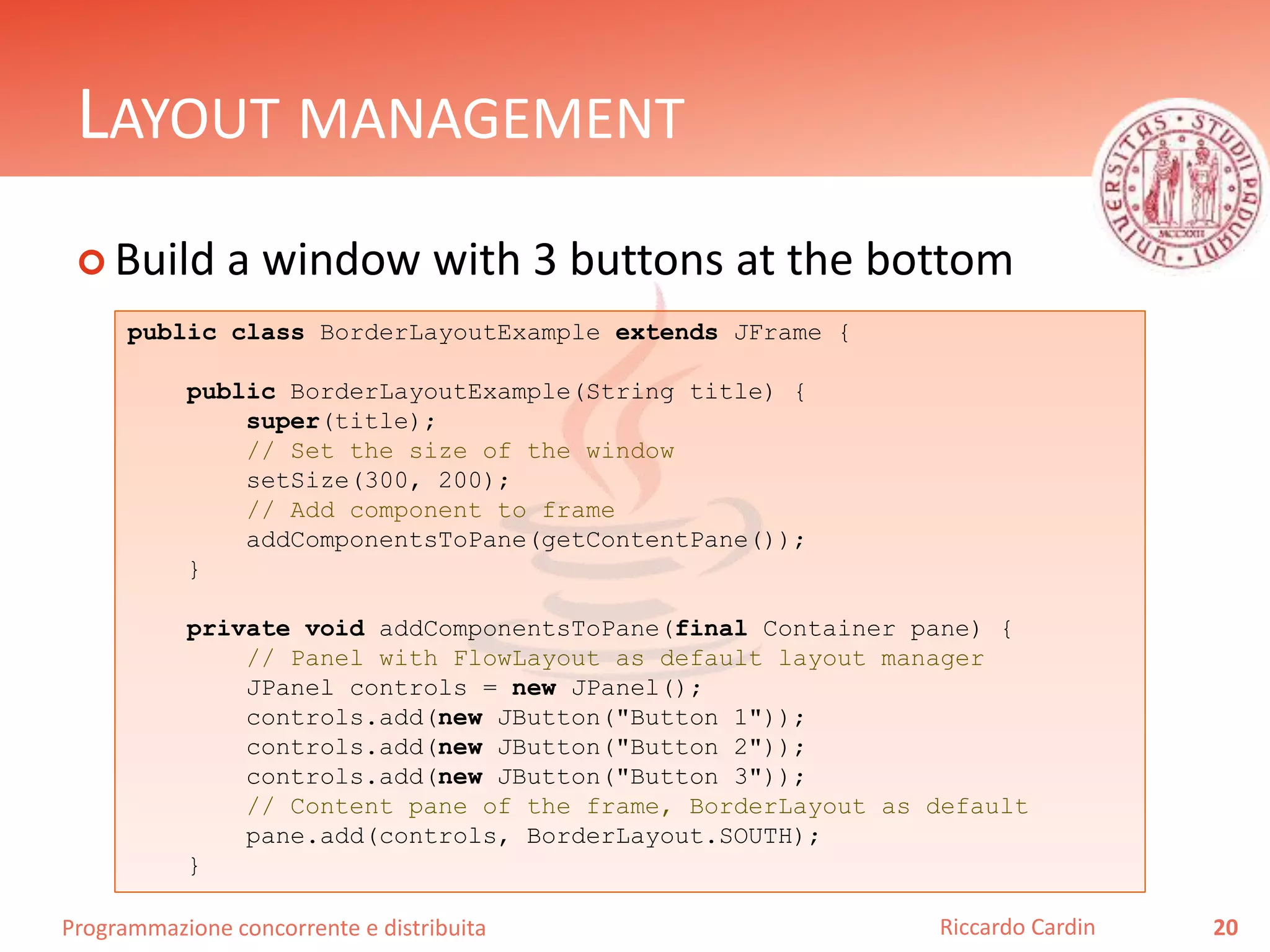

 Build a window with 3 buttons at the bottom
20Riccardo Cardin
public class BorderLayoutExample extends JFrame {
super(title);
setSize(300, 200);
}
// Panel with FlowLayout as default layout manager
// Content pane of the frame, BorderLayout as default
pane.add(controls, BorderLayout.SOUTH);
}

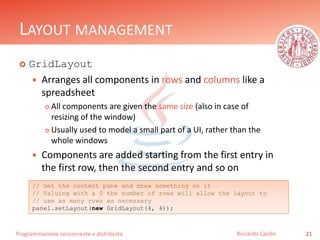

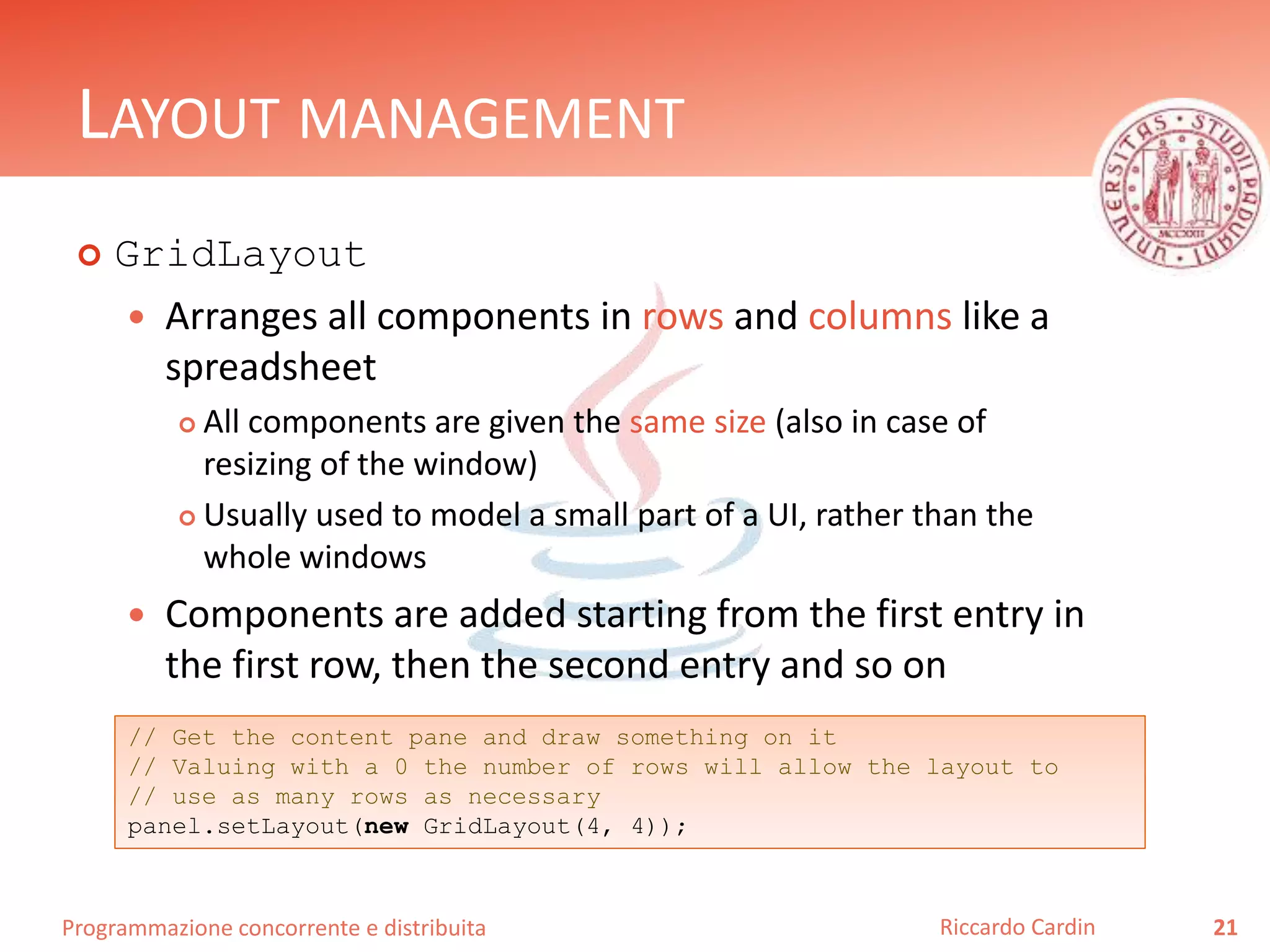

LAYOUT MANAGEMENT
 GridLayout
 Arranges all components in rows and columns like a
spreadsheet
 All components are given the same size (also in case of
resizing of the window)
 Usually used to model a small part of a UI, rather than the
whole windows
 Components are added starting from the first entry in
the first row, then the second entry and so on
21Riccardo Cardin
// Get the content pane and draw something on it
// Valuing with a 0 the number of rows will allow the layout to
// use as many rows as necessary
panel.setLayout(new GridLayout(4, 4));

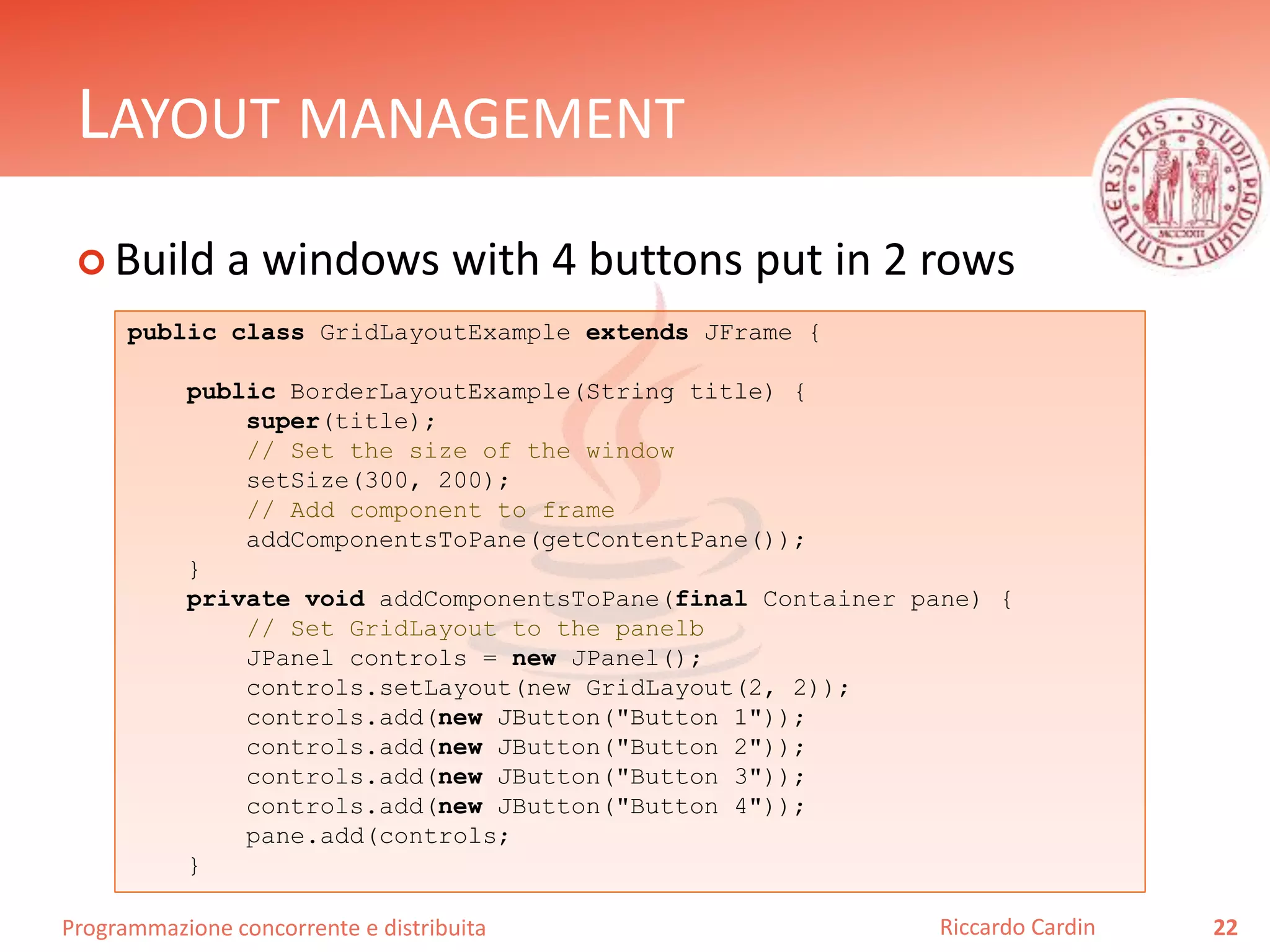

LAYOUT MANAGEMENT
 Build a windows with 4 buttons put in 2 rows
22Riccardo Cardin
public class GridLayoutExample extends JFrame {
super(title);
setSize(300, 200);
}
// Set GridLayout to the panelb
controls.setLayout(new GridLayout(2, 2));
pane.add(controls;
}

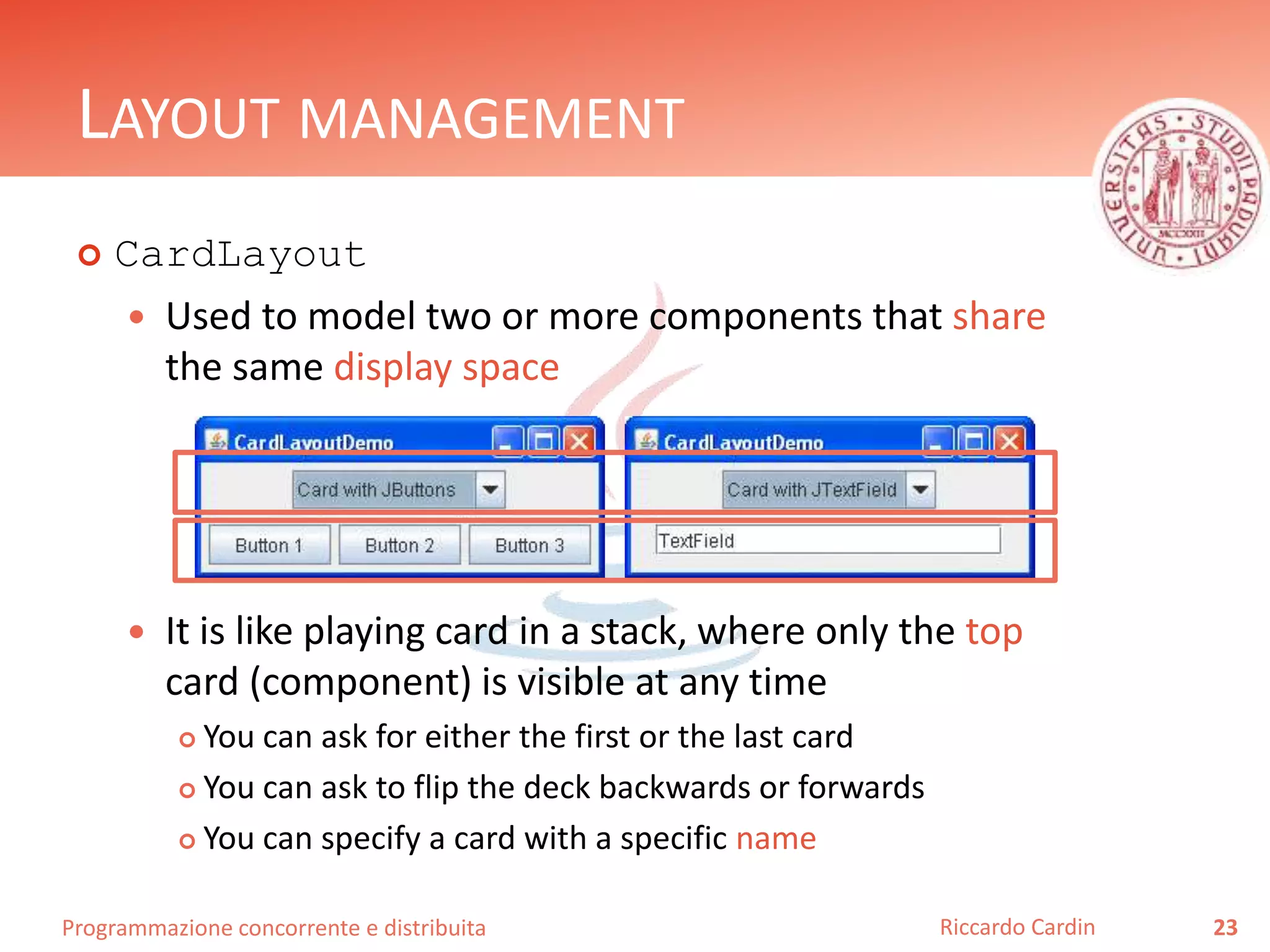

LAYOUT MANAGEMENT
 CardLayout
 Used to model two or more components that share
the same display space
 It is like playing card in a stack, where only the top
card (component) is visible at any time
 You can ask for either the first or the last card
 You can ask to flip the deck backwards or forwards
 You can specify a card with a specific name
23Riccardo Cardin

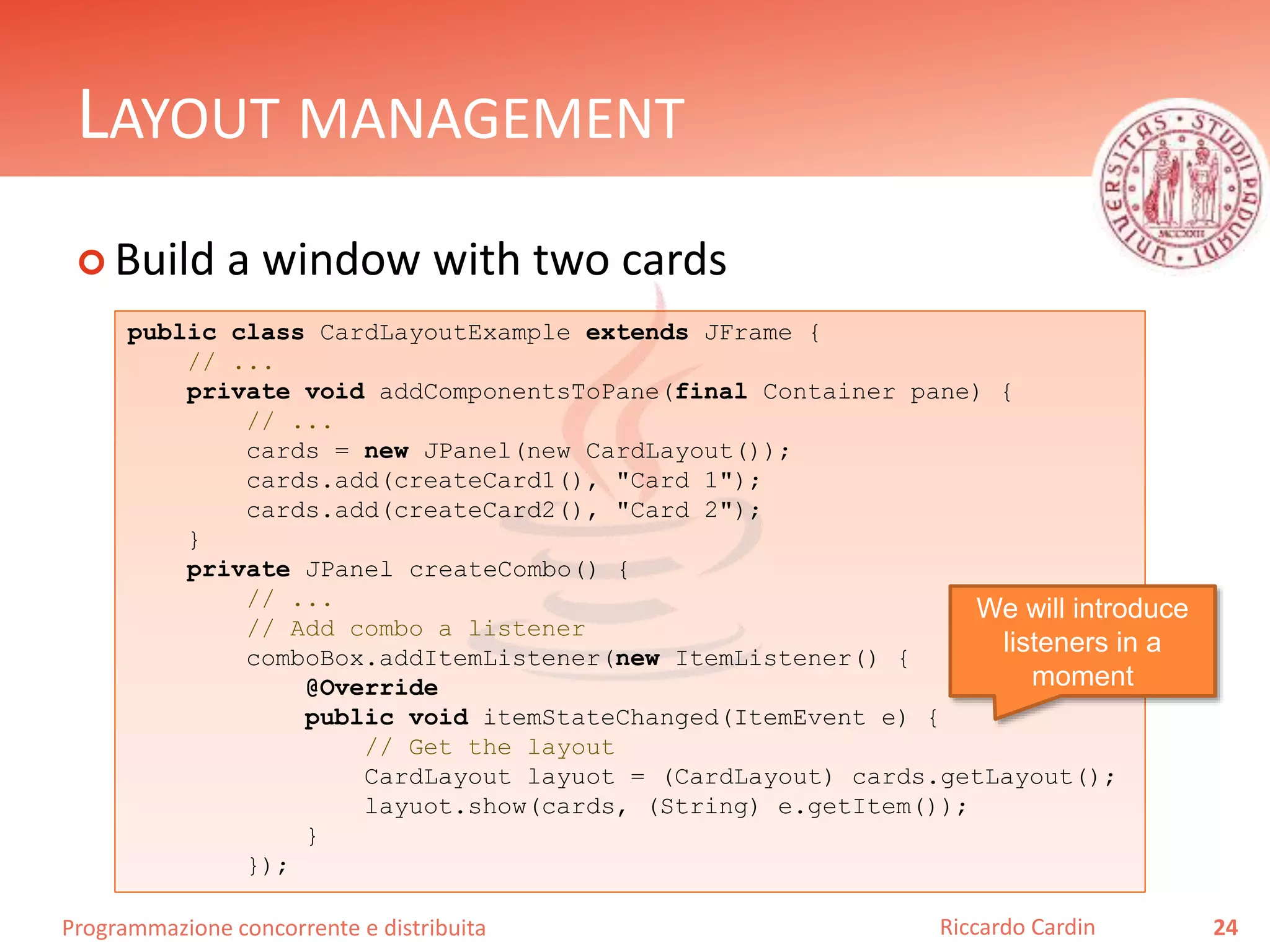

LAYOUT MANAGEMENT
 Build a window with two cards
24Riccardo Cardin
public class CardLayoutExample extends JFrame {
// ...
// ...
cards = new JPanel(new CardLayout());
cards.add(createCard1(), "Card 1");
cards.add(createCard2(), "Card 2");
}
private JPanel createCombo() {
// ...
// Add combo a listener
comboBox.addItemListener(new ItemListener() {
@Override
public void itemStateChanged(ItemEvent e) {
// Get the layout
CardLayout layuot = (CardLayout) cards.getLayout();
layuot.show(cards, (String) e.getItem());
}
});
We will introduce
listeners in a
moment

LAYOUT MANAGEMENT
25Riccardo Cardin

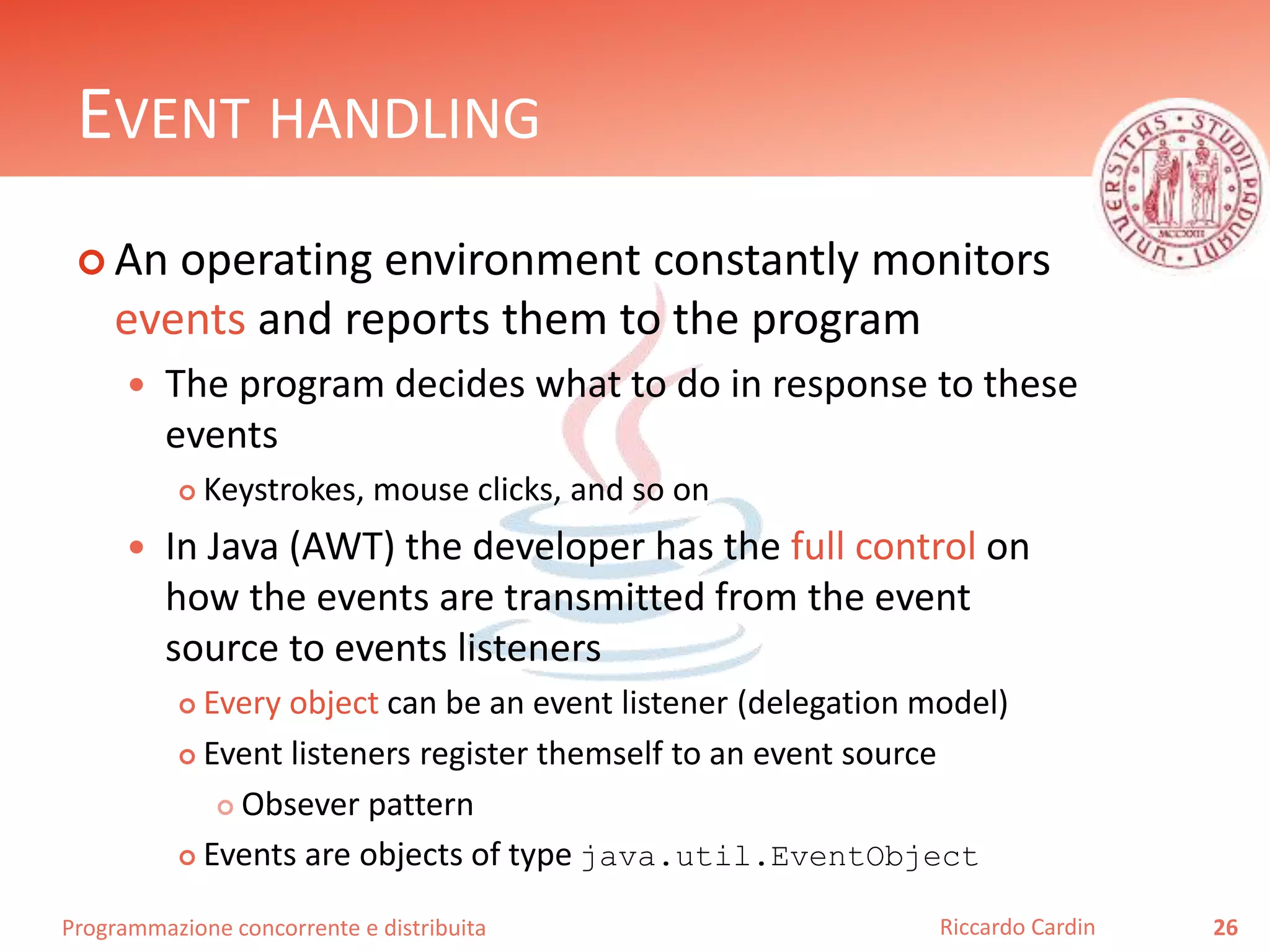

EVENT HANDLING
 An operating environment constantly monitors
events and reports them to the program
 The program decides what to do in response to these
events
 Keystrokes, mouse clicks, and so on
 In Java (AWT) the developer has the full control on
how the events are transmitted from the event
source to events listeners
 Every object can be an event listener (delegation model)
 Event listeners register themself to an event source
 Obsever pattern
 Events are objects of type java.util.EventObject
26Riccardo Cardin

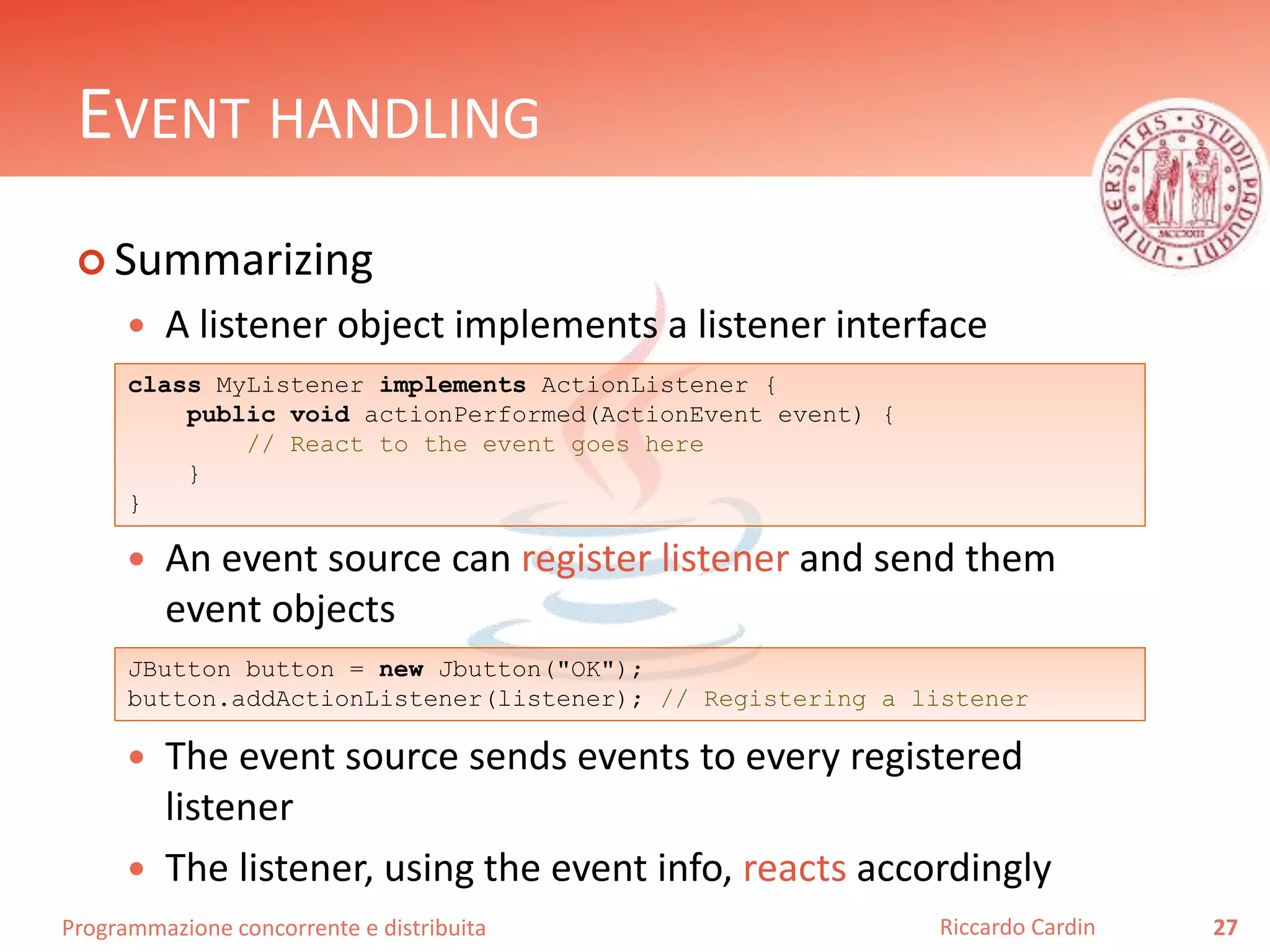

EVENT HANDLING
 Summarizing
 A listener object implements a listener interface
 An event source can register listener and send them
event objects
 The event source sends events to every registered
listener
 The listener, using the event info, reacts accordingly
27Riccardo Cardin
class MyListener implements ActionListener {
public void actionPerformed(ActionEvent event) {
// React to the event goes here
}
}
JButton button = new Jbutton("OK");
button.addActionListener(listener); // Registering a listener

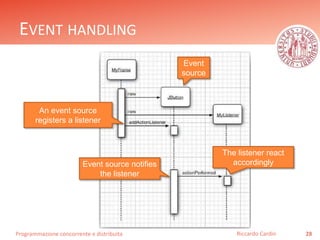

EVENT HANDLING
28Riccardo Cardin
An event source
registers a listener
Event
source
Event source notifies
the listener
The listener react
accordingly

EVENT HANDLING
29Riccardo Cardin

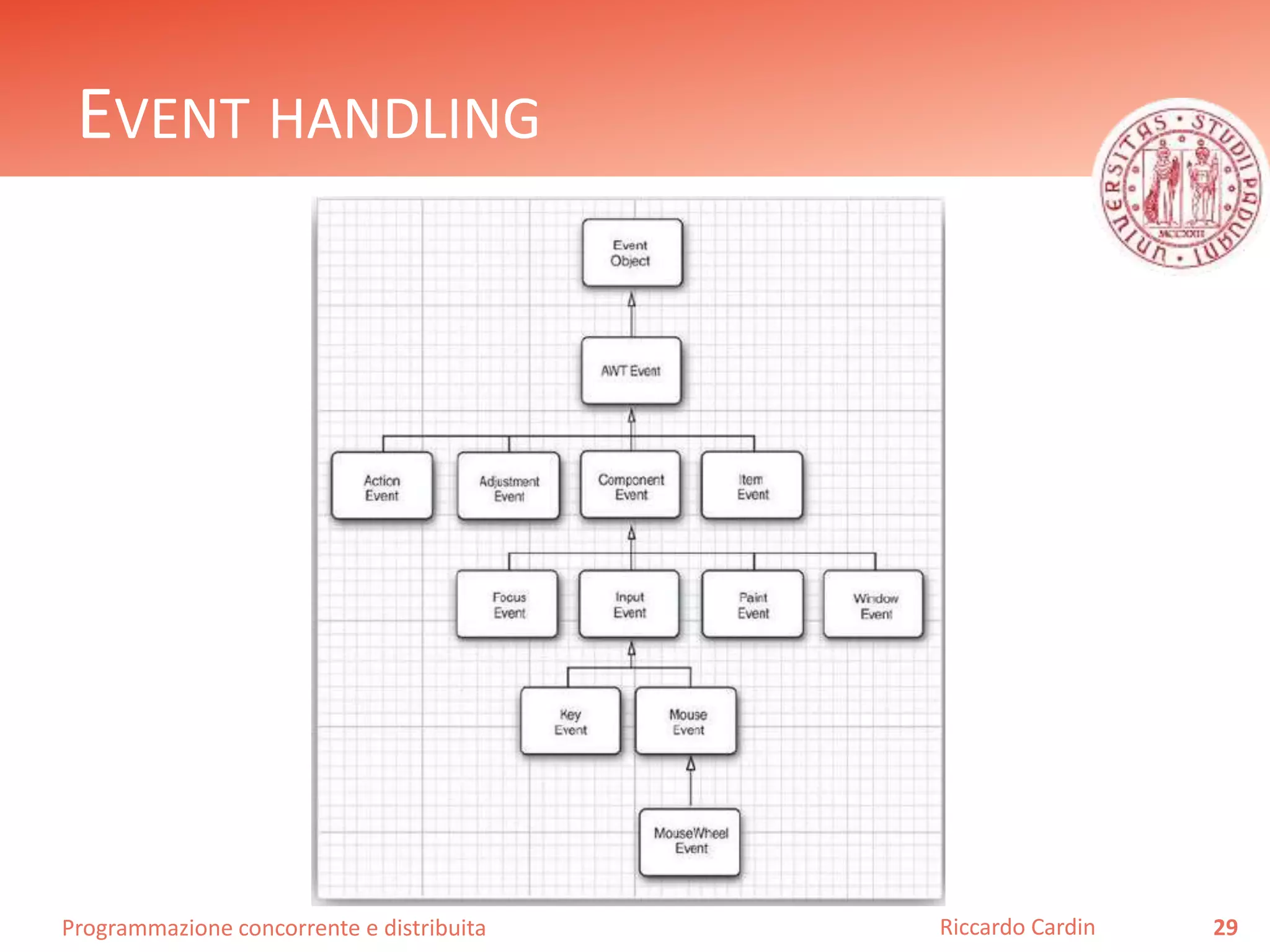

EVENT HANDLING
30Riccardo Cardin

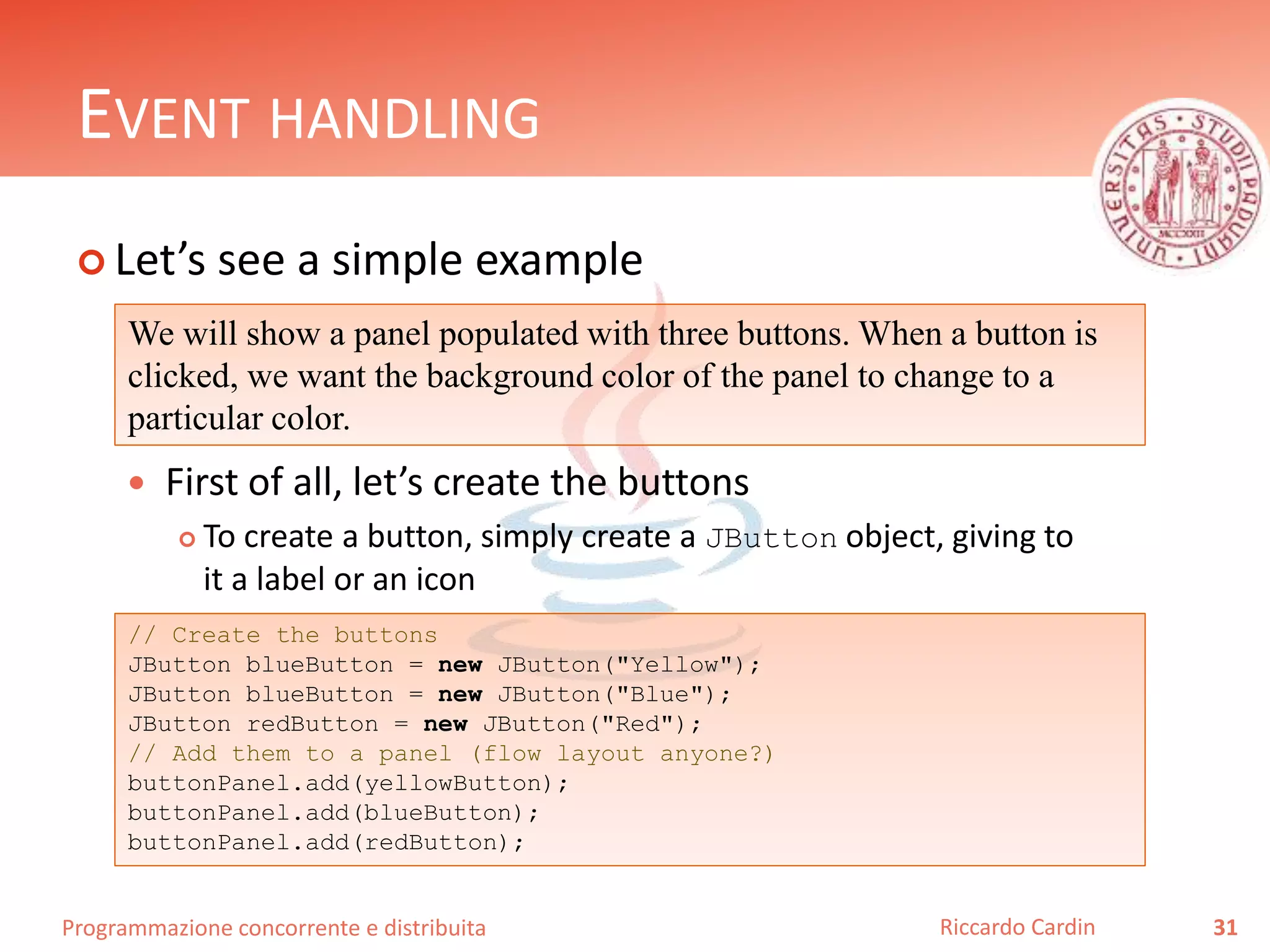

EVENT HANDLING

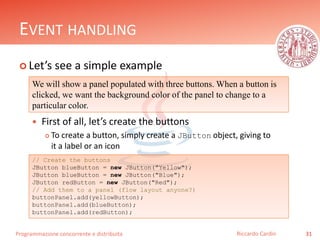

 Let’s see a simple example
 First of all, let’s create the buttons
 To create a button, simply create a JButton object, giving to
it a label or an icon
31Riccardo Cardin
We will show a panel populated with three buttons. When a button is
clicked, we want the background color of the panel to change to a
particular color.
// Create the buttons
JButton blueButton = new JButton("Yellow");
JButton blueButton = new JButton("Blue");
JButton redButton = new JButton("Red");
// Add them to a panel (flow layout anyone?)
buttonPanel.add(yellowButton);
buttonPanel.add(blueButton);
buttonPanel.add(redButton);

EVENT HANDLING

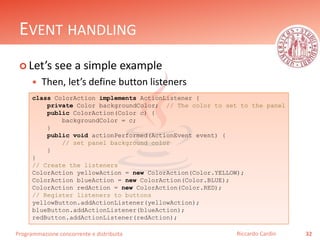

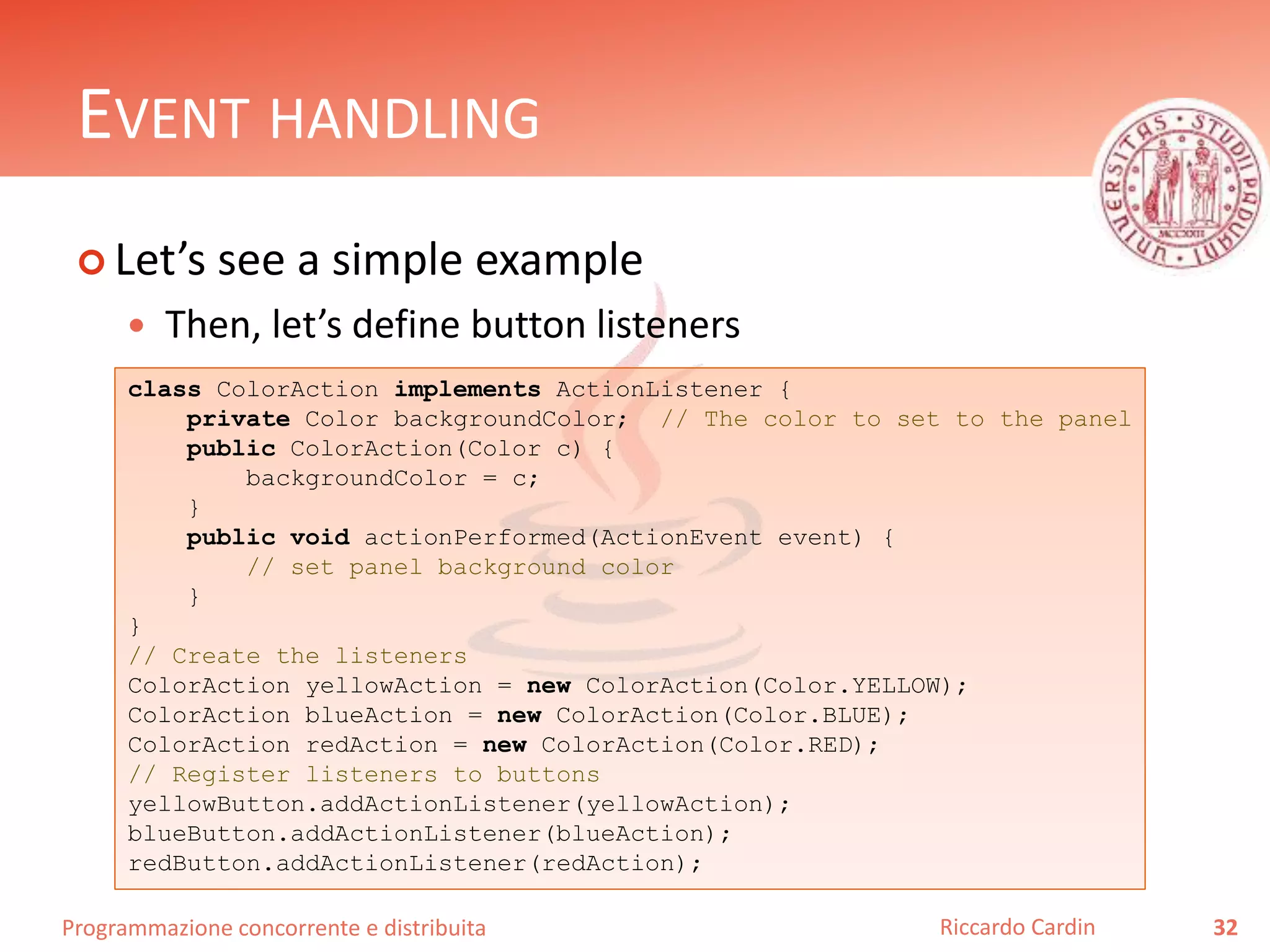

 Then, let’s define button listeners
32Riccardo Cardin
class ColorAction implements ActionListener {
private Color backgroundColor; // The color to set to the panel
public ColorAction(Color c) {
backgroundColor = c;
}
// set panel background color
}
}
// Create the listeners
ColorAction yellowAction = new ColorAction(Color.YELLOW);
ColorAction blueAction = new ColorAction(Color.BLUE);
ColorAction redAction = new ColorAction(Color.RED);
// Register listeners to buttons
yellowButton.addActionListener(yellowAction);
blueButton.addActionListener(blueAction);
redButton.addActionListener(redAction);

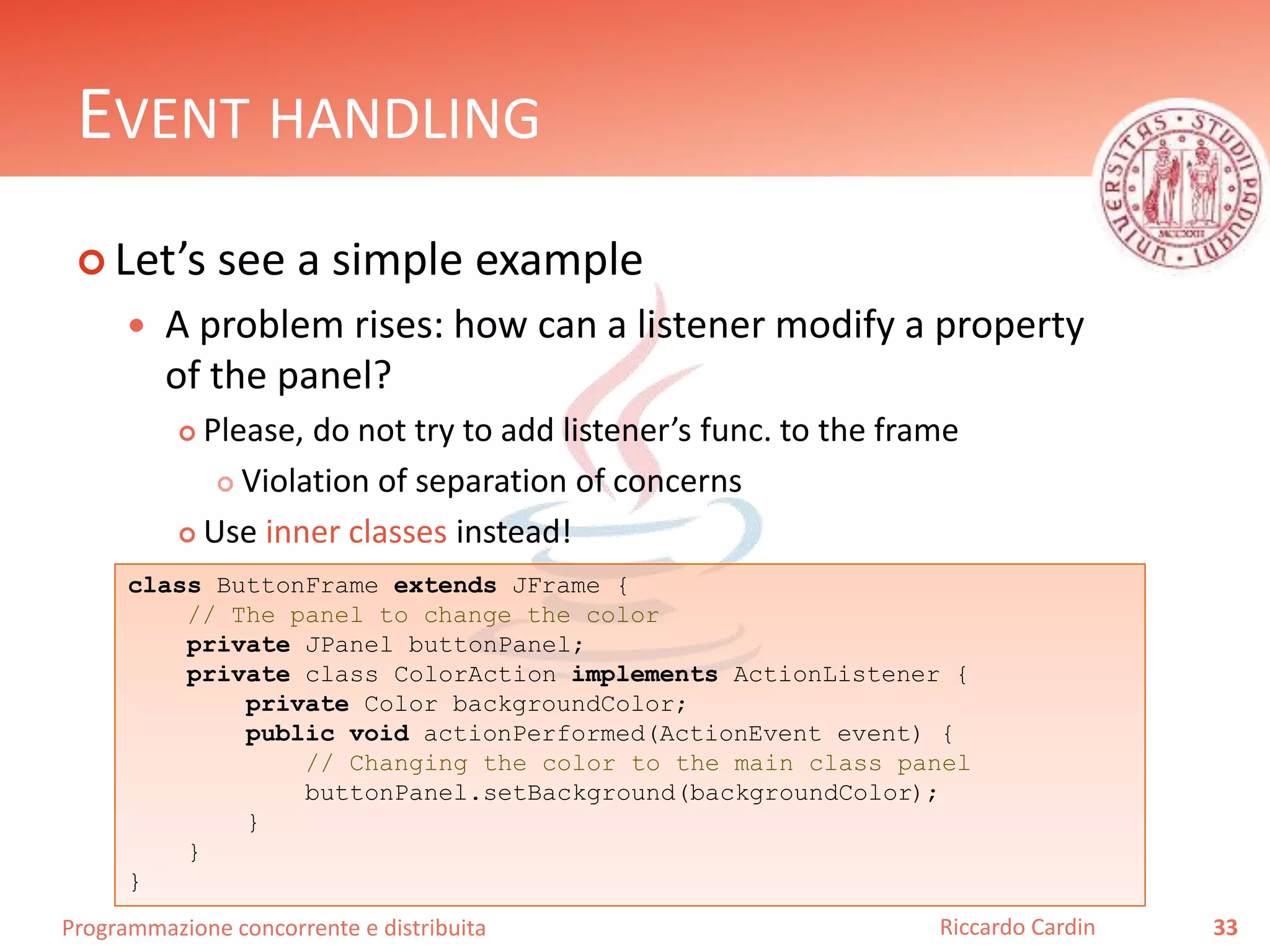

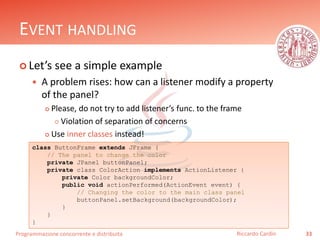

EVENT HANDLING
 A problem rises: how can a listener modify a property
of the panel?
 Please, do not try to add listener’s func. to the frame
 Violation of separation of concerns
 Use inner classes instead!
33Riccardo Cardin
class ButtonFrame extends JFrame {
// The panel to change the color
private JPanel buttonPanel;
private class ColorAction implements ActionListener {
private Color backgroundColor;
// Changing the color to the main class panel
buttonPanel.setBackground(backgroundColor);
}
}
}

EVENT HANDLING

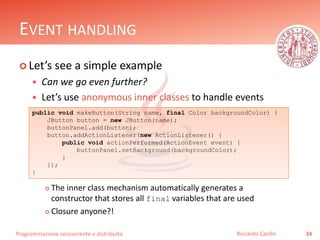

 Can we go even further?
 Let’s use anonymous inner classes to handle events
 The inner class mechanism automatically generates a
constructor that stores all final variables that are used
 Closure anyone?!
34Riccardo Cardin
public void makeButton(String name, final Color backgroundColor) {
JButton button = new JButton(name);
buttonPanel.add(button);
button.addActionListener(new ActionListener() {
buttonPanel.setBackground(backgroundColor);
}
});
}

EVENT HANDLING
35Riccardo Cardin

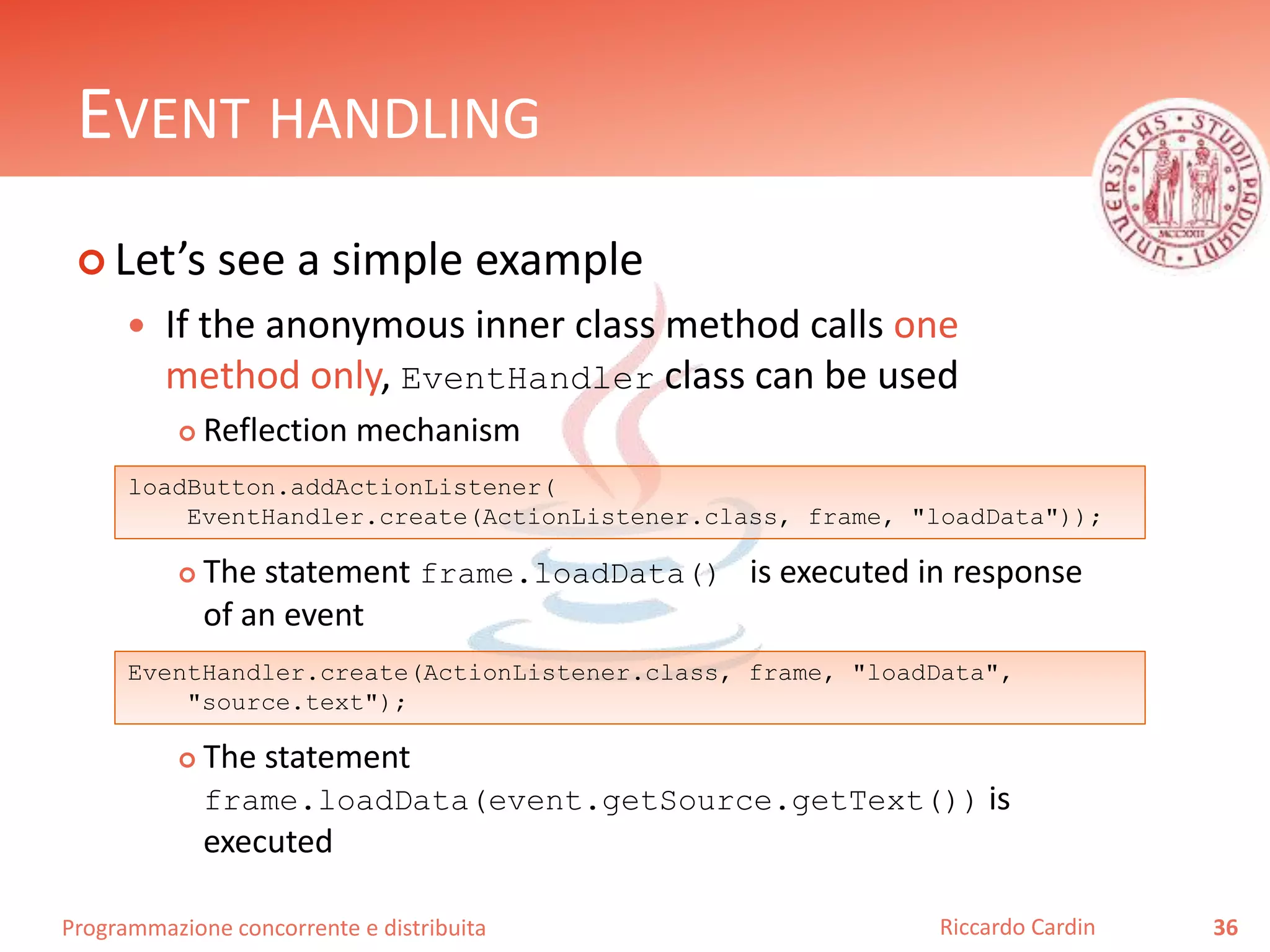

EVENT HANDLING
 If the anonymous inner class method calls one
method only, EventHandler class can be used
 Reflection mechanism
 The statement frame.loadData() is executed in response
of an event
 The statement
frame.loadData(event.getSource.getText()) is
executed
36Riccardo Cardin
loadButton.addActionListener(
EventHandler.create(ActionListener.class, frame, "loadData"));
EventHandler.create(ActionListener.class, frame, "loadData",
"source.text");

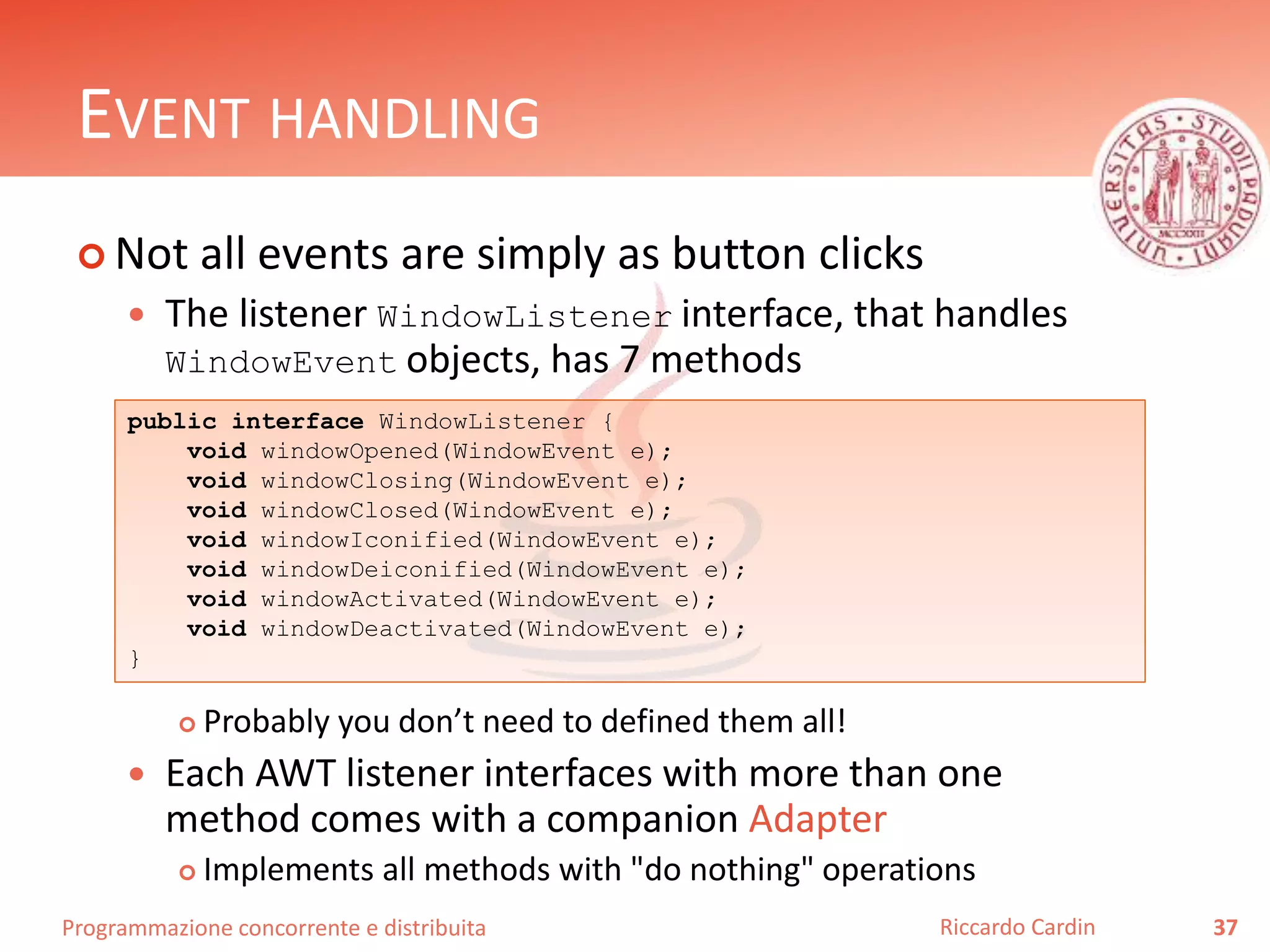

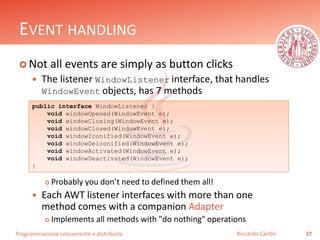

EVENT HANDLING
 Not all events are simply as button clicks
 The listener WindowListener interface, that handles
WindowEvent objects, has 7 methods
 Probably you don’t need to defined them all!
 Each AWT listener interfaces with more than one
method comes with a companion Adapter
 Implements all methods with "do nothing" operations
37Riccardo Cardin
public interface WindowListener {
void windowOpened(WindowEvent e);
void windowClosing(WindowEvent e);
void windowClosed(WindowEvent e);
void windowIconified(WindowEvent e);
void windowDeiconified(WindowEvent e);
void windowActivated(WindowEvent e);
void windowDeactivated(WindowEvent e);
}

EVENT HANDLING

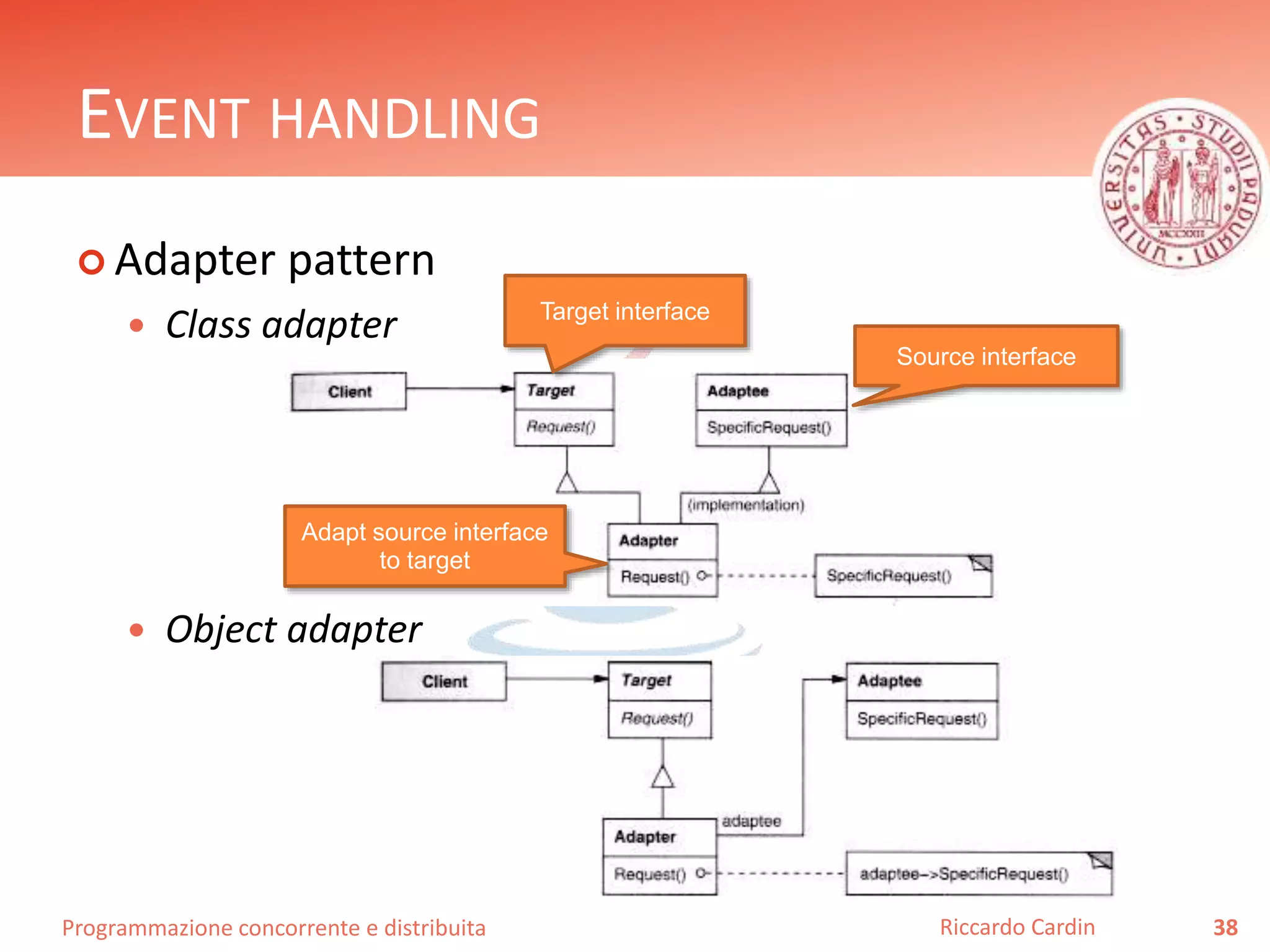

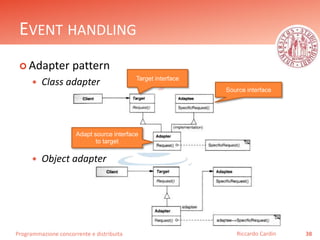

 Adapter pattern
 Class adapter
 Object adapter
38Riccardo Cardin
Target interface
Source interface
Adapt source interface
to target

EVENT HANDLING

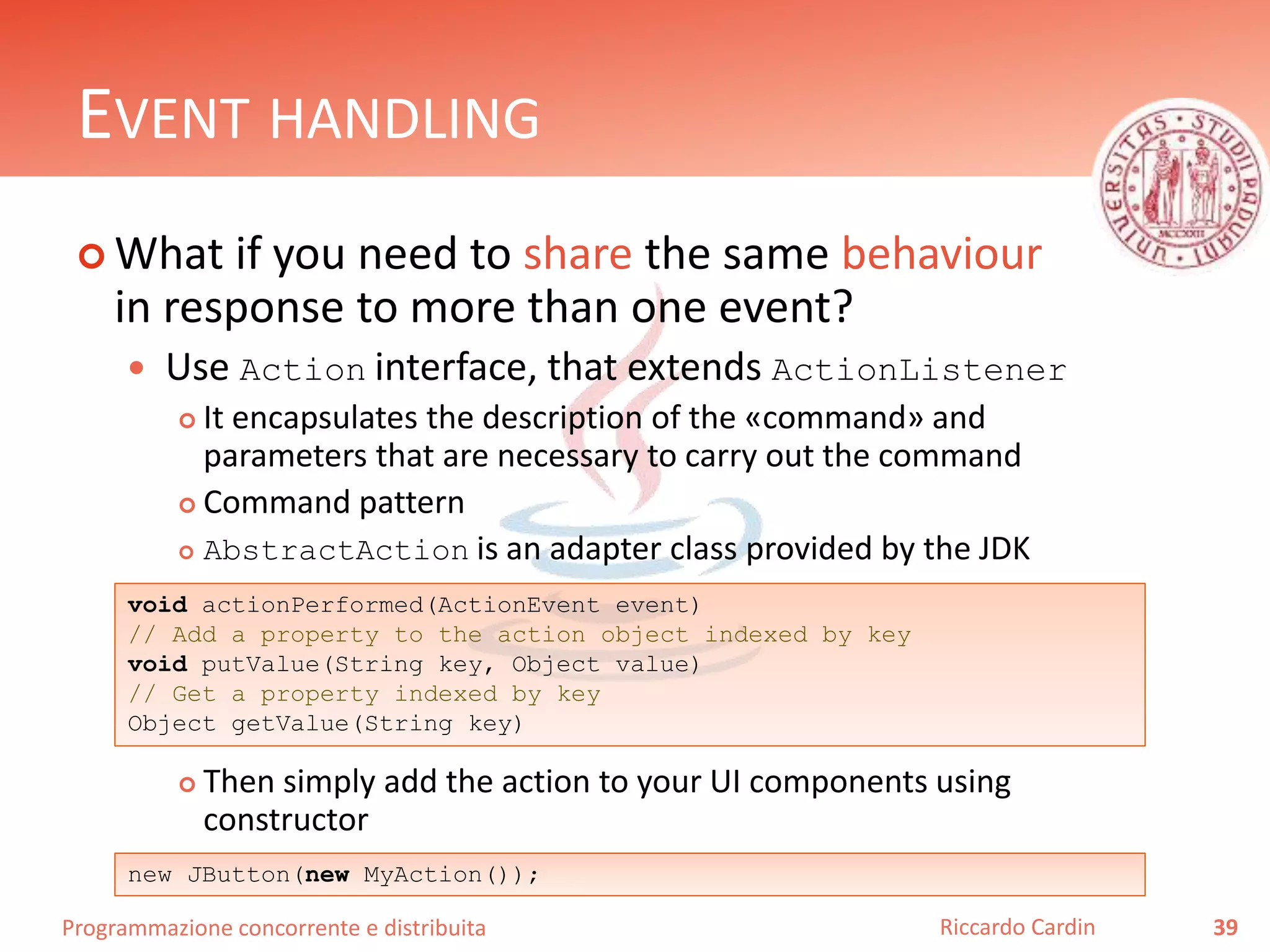

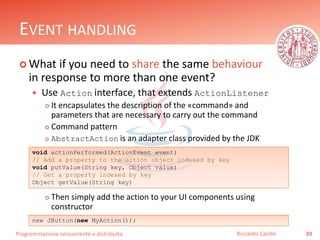

 What if you need to share the same behaviour
in response to more than one event?
 Use Action interface, that extends ActionListener
 It encapsulates the description of the «command» and
parameters that are necessary to carry out the command
 Command pattern
 AbstractAction is an adapter class provided by the JDK
 Then simply add the action to your UI components using
constructor
39Riccardo Cardin
void actionPerformed(ActionEvent event)
// Add a property to the action object indexed by key
void putValue(String key, Object value)
// Get a property indexed by key
Object getValue(String key)
new JButton(new MyAction());

EVENT HANDLING
Interface Method Params Generated by
ActionListener actionPerformed ActionEvent
• getActionCommand
• getModifiers
ActionButton
JComboBox
JTextField
Timer
AdjustmentListener adjustementValueChang
ed
AdjustementEvent
• getAdjustable
• getAdjustableType
• getValue
JScrollbar
ItemListener itemStateChanged ItemEvent
• getItem
• getItemSelectable
• getStateChange
AbstractButton
JComboBox
FocusListener focusGained
focusLost
FocusEvent
• isTemporary
Component
KeyListener keyPressed
keyReleased
keyTyped
KeyEvent
• getKeyChar
• getKeyCode
• getKeyModifiersText
• getKeyText
• isActionKey
Component
40Riccardo Cardin

EVENT HANDLING
...and so on
41Riccardo Cardin
Interface Method Params Generated by
MouseListener mousePressed
mouseReleased
mouseEntered
mouseExited
mouseClicked
MouseEvent
• getClickCount
• getX
• getY
• getPoint
• translatePoint
Component
MouseMotionListener mouseDragged
mouseMoved
MouseEvent Component
MouseWheelListener mouseWheelMoved MouseWheelEvent
• getWheelRotation
• getScrollAmount
Component
WindowListener windowClosing
windowOpened
windowIconified
windowDeiconified
windowClosed
windowActivated
windowDeactivated
WindowEvent
• getWindow
Window

CONCLUSIONS
42Riccardo Cardin

EXAMPLES
43Riccardo Cardin
https://github.com/rcardin/pcd-snippets

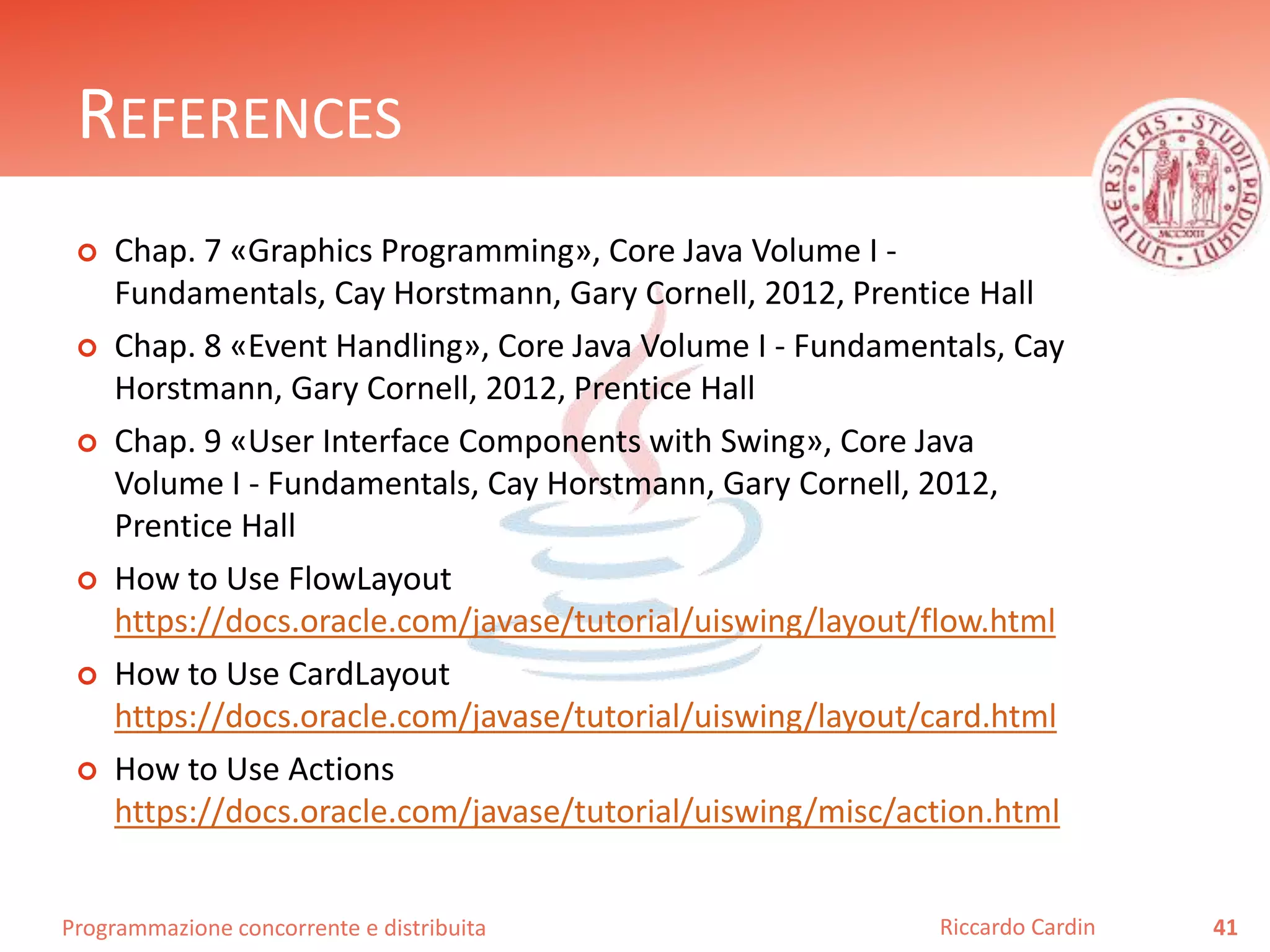

REFERENCES
 Chap. 7 «Graphics Programming», Core Java Volume I -
Fundamentals, Cay Horstmann, Gary Cornell, 2012, Prentice Hall
 Chap. 8 «Event Handling», Core Java Volume I - Fundamentals, Cay
Horstmann, Gary Cornell, 2012, Prentice Hall
 Chap. 9 «User Interface Components with Swing», Core Java
Volume I - Fundamentals, Cay Horstmann, Gary Cornell, 2012,
Prentice Hall
 How to Use FlowLayout
https://docs.oracle.com/javase/tutorial/uiswing/layout/flow.html
 How to Use CardLayout
https://docs.oracle.com/javase/tutorial/uiswing/layout/card.html
 How to Use Actions
https://docs.oracle.com/javase/tutorial/uiswing/misc/action.html
44Riccardo Cardin

Java Graphics Programming

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Java Graphics Programming

Similar to Java Graphics Programming (20)

More from Riccardo Cardin

More from Riccardo Cardin (9)

Recently uploaded

Recently uploaded (20)

Java Graphics Programming
