Class[5][9th jul] [three js-meshes_geometries_and_primitives]

ALGORITHMS, COMPUTER GRAPHICS, AND
MATHEMATICS FOR GAME DEVELOPERS &
COMPUTER SCIENTISTS
PREPARED AND PRESENTED BY
Dr.Saajid Abuluaih, PhD
9th of Jul 2021
Class[5]: Threejs Meshes, Geometries,
and Primitives

Algorithms, Computer Graphics, and Mathematics
for Game Developers and Computer Scientists
© 2021 arche1.co.jp | jaist.ac.jp
All rights reserved.
2

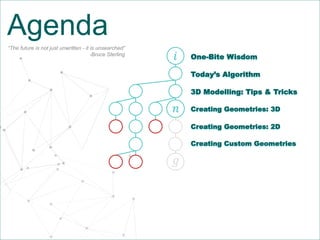

Agenda
One-Bite Wisdom
Creating Geometries: 3D
Creating Geometries: 2D
𝑖
3D Modelling: Tips & Tricks
Today’s Algorithm
𝑔
𝑛
“The future is not just unwritten - it is unsearched”
-Bruce Sterling
Creating Custom Geometries

P A G E 3
One-Bite Wisdom
The Error That is Undefined

4

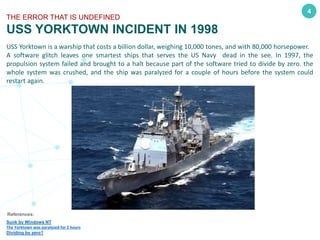

THE ERROR THAT IS UNDEFINED
USS YORKTOWN INCIDENT IN 1998
USS Yorktown is a warship that costs a billion dollar, weighing 10,000 tones, and with 80,000 horsepower.
A software glitch leaves one smartest ships that serves the US Navy dead in the see. In 1997, the
propulsion system failed and brought to a halt because part of the software tried to divide by zero. the
whole system was crushed, and the ship was paralyzed for a couple of hours before the system could
restart again.
References:
Sunk by Windows NT
The Yorktown was paralyzed for 2 hours
Dividing by zero?

P A G E 5
Today’s Algorithms
Let’s Brush our Coding Skills

The selection sort algorithm sorts an array by repeatedly finding the
minimum element (considering ascending order) from unsorted part
and putting it at the beginning. The algorithm maintains two subarrays
in a given array.
6

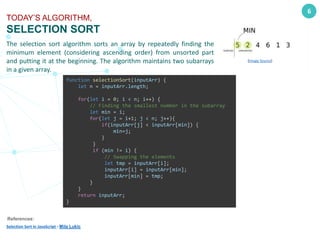

TODAY’S ALGORITHM,
SELECTION SORT
function selectionSort(inputArr) {
let n = inputArr.length;
for(let i = 0; i < n; i++) {
// Finding the smallest number in the subarray
let min = i;
for(let j = i+1; j < n; j++){
if(inputArr[j] < inputArr[min]) {
min=j;
}
}
if (min != i) {
// Swapping the elements
let tmp = inputArr[i];
inputArr[i] = inputArr[min];
inputArr[min] = tmp;
}
}
return inputArr;
}
References:
Selection Sort in JavaScript - Mila Lukic
(Image Source)

P A G E 7
3Ds MAX
Let’s design something in 3D

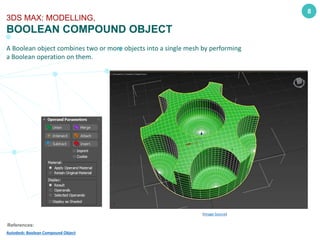

A Boolean object combines two or more objects into a single mesh by performing
a Boolean operation on them.
8
3DS MAX: MODELLING,
BOOLEAN COMPOUND OBJECT
References:
Autodesk: Boolean Compound Object
(Image Source)

P A G E 9
Coordinate Systems
Understanding 3D environments

10

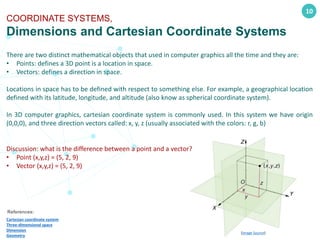

COORDINATE SYSTEMS,
Dimensions and Cartesian Coordinate Systems
References:
Cartesian coordinate system
Three-dimensional space
Dimension
Geometry
There are two distinct mathematical objects that used in computer graphics all the time and they are:
• Points: defines a 3D point is a location in space.
• Vectors: defines a direction in space.
Locations in space has to be defined with respect to something else. For example, a geographical location
defined with its latitude, longitude, and altitude (also know as spherical coordinate system).
In 3D computer graphics, cartesian coordinate system is commonly used. In this system we have origin
(0,0,0), and three direction vectors called: x, y, z (usually associated with the colors: r, g, b)
Discussion: what is the difference between a point and a vector?
• Point (x,y,z) = (5, 2, 9)
• Vector (x,y,z) = (5, 2, 9)
(Image Source)

11

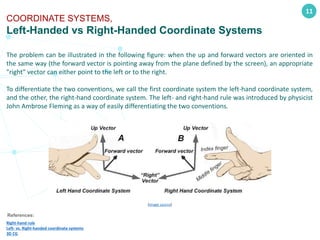

COORDINATE SYSTEMS,
Left-Handed vs Right-Handed Coordinate Systems
References:
Right-hand rule
Left- vs. Right-handed coordinate systems
3D CG
The problem can be illustrated in the following figure: when the up and forward vectors are oriented in
the same way (the forward vector is pointing away from the plane defined by the screen), an appropriate
"right" vector can either point to the left or to the right.
To differentiate the two conventions, we call the first coordinate system the left-hand coordinate system,
and the other, the right-hand coordinate system. The left- and right-hand rule was introduced by physicist
John Ambrose Fleming as a way of easily differentiating the two conventions.
(image source)

12

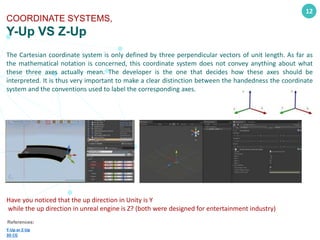

COORDINATE SYSTEMS,
Y-Up VS Z-Up
References:
Y-Up or Z-Up
3D CG
The Cartesian coordinate system is only defined by three perpendicular vectors of unit length. As far as
the mathematical notation is concerned, this coordinate system does not convey anything about what
these three axes actually mean. The developer is the one that decides how these axes should be
interpreted. It is thus very important to make a clear distinction between the handedness the coordinate
system and the conventions used to label the corresponding axes.
Have you noticed that the up direction in Unity is Y
while the up direction in unreal engine is Z? (both were designed for entertainment industry)

P A G E 13
Points, Lines, and
Triangles
Understanding the principles

14
BASIC COMPONENTS,
POINTS, LINES, AND TRIANGLES
References:
WebGL Points, Lines, and Triangles
A graphics processing unite (GPU) is able to handle three basic components, and they are:
• Points
• Line segments
• triangles
Defining these components need at least 2-dimensional system to be represented in.
Everything you see is created with triangles
(image source)
(image source)

P A G E 15
Threejs3D Geometric
Primitives
Creating basic 3D objects

16

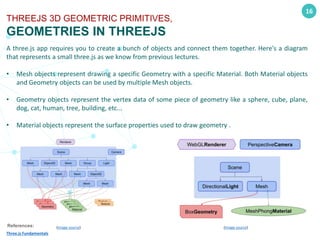

THREEJS 3D GEOMETRIC PRIMITIVES,
GEOMETRIES IN THREEJS
A three.js app requires you to create a bunch of objects and connect them together. Here's a diagram
that represents a small three.js as we know from previous lectures.
• Mesh objects represent drawing a specific Geometry with a specific Material. Both Material objects
and Geometry objects can be used by multiple Mesh objects.
• Geometry objects represent the vertex data of some piece of geometry like a sphere, cube, plane,
dog, cat, human, tree, building, etc...
• Material objects represent the surface properties used to draw geometry .
References:
Three.js Fundamentals
(Image source)
(Image source)

17

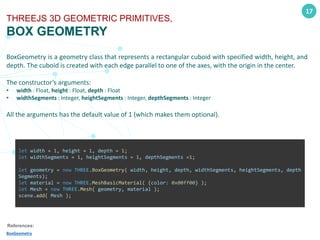

BOX GEOMETRY
BoxGeometry is a geometry class that represents a rectangular cuboid with specified width, height, and
depth. The cuboid is created with each edge parallel to one of the axes, with the origin in the center.
The constructor’s arguments:
• width : Float, height : Float, depth : Float
• widthSegments : Integer, heightSegments : Integer, depthSegments : Integer
All the arguments has the default value of 1 (which makes them optional).
References:
BoxGeometry
let width = 1, height = 1, depth = 1;
let widthSegments = 1, heightSegments = 1, depthSegments =1;
let geometry = new THREE.BoxGeometry( width, height, depth, widthSegments, heightSegments, depth
Segments);
let material = new THREE.MeshBasicMaterial( {color: 0x00ff00} );
let Mesh = new THREE.Mesh( geometry, material );
scene.add( Mesh );

18

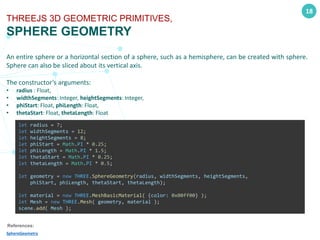

SPHERE GEOMETRY
An entire sphere or a horizontal section of a sphere, such as a hemisphere, can be created with sphere.
Sphere can also be sliced about its vertical axis.
• radius : Float,
• widthSegments: Integer, heightSegments: Integer,
• phiStart: Float, phiLength: Float,
• thetaStart: Float, thetaLength: Float
References:
SphereGeometry
let radius = 7;
let widthSegments = 12;
let heightSegments = 8;
let phiStart = Math.PI * 0.25;
let phiLength = Math.PI * 1.5;
let thetaStart = Math.PI * 0.25;
let thetaLength = Math.PI * 0.5;
let geometry = new THREE.SphereGeometry(radius, widthSegments, heightSegments,
phiStart, phiLength, thetaStart, thetaLength);
scene.add( Mesh );

19

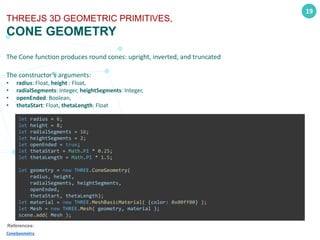

CONE GEOMETRY
The Cone function produces round cones: upright, inverted, and truncated
• radius: Float, height : Float,
• radialSegments: Integer, heightSegments: Integer,
• openEnded: Boolean,
References:
ConeGeometry
let radius = 6;
let height = 8;
let radialSegments = 16;
let openEnded = true;
let geometry = new THREE.ConeGeometry(
radius, height,
radialSegments, heightSegments,
openEnded,
thetaStart, thetaLength);
scene.add( Mesh );

20
CYLINDER GEOMETRY
The cylinder function works by defining the radius of a 2d circle that represent the base of the object
and the then defining the height of the object to create the desired cylinder. it is noteworthy to mention
that, the top base’s radius can be different than the bottom base’s radius.
• radiusTop : Float, radiusBottom : Float, height : Float, radialSegments : Integer, heightSegments : Integer,
openEnded : Boolean, thetaStart : Float, thetaLength : Float
References:
CylinderGeometry
let radiusTop = 4, radiusBottom = 4;
let height = 8;
let radialSegments = 12, heightSegments = 2;
let openEnded = false;
let thetaStart = Math.PI * 0.25, thetaLength = Math.PI * 1.5;
let geometry = new THREE.CylinderGeometry(
radiusTop, radiusBottom, height,
radialSegments, heightSegments,
openEnded,
scene.add( Mesh );

21

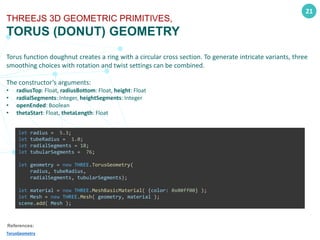

TORUS (DONUT) GEOMETRY
Torus function doughnut creates a ring with a circular cross section. To generate intricate variants, three
smoothing choices with rotation and twist settings can be combined.
• radiusTop: Float, radiusBottom: Float, height: Float
• radialSegments: Integer, heightSegments: Integer
• openEnded: Boolean
References:
TorusGeometry
let radius = 5.3;
let tubeRadius = 1.0;
let tubularSegments = 76;
let geometry = new THREE.TorusGeometry(
radius, tubeRadius,
radialSegments, tubularSegments);
scene.add( Mesh );

22

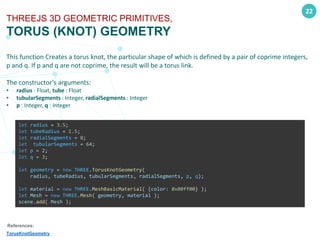

TORUS (KNOT) GEOMETRY
This function Creates a torus knot, the particular shape of which is defined by a pair of coprime integers,
p and q. If p and q are not coprime, the result will be a torus link.
• radius : Float, tube : Float
• tubularSegments : Integer, radialSegments : Integer
• p : Integer, q : Integer
References:
TorusKnotGeometry
let radius = 3.5;
let tubeRadius = 1.5;
let p = 2;
let q = 3;
let geometry = new THREE.TorusKnotGeometry(
radius, tubeRadius, tubularSegments, radialSegments, p, q);
scene.add( Mesh );

23

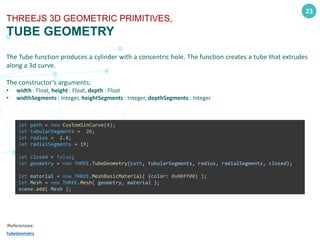

TUBE GEOMETRY
The Tube function produces a cylinder with a concentric hole. The function creates a tube that extrudes
along a 3d curve.
• width : Float, height : Float, depth : Float
• widthSegments : Integer, heightSegments : Integer, depthSegments : Integer
References:
TubeGeometry
let path = new CustomSinCurve(4);
let radius = 2.4;
let closed = false;
let geometry = new THREE.TubeGeometry(path, tubularSegments, radius, radialSegments, closed);
scene.add( Mesh );

24

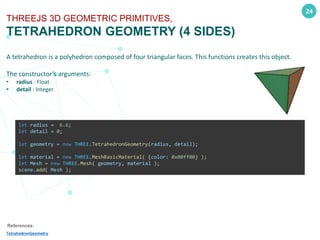

TETRAHEDRON GEOMETRY (4 SIDES)
A tetrahedron is a polyhedron composed of four triangular faces. This functions creates this object.
• radius : Float
• detail : Integer
References:
TetrahedronGeometry
let radius = 6.6;
let detail = 0;
let geometry = new THREE.TetrahedronGeometry(radius, detail);
scene.add( Mesh );

25

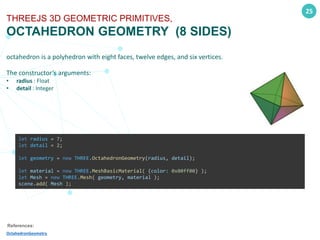

OCTAHEDRON GEOMETRY (8 SIDES)
octahedron is a polyhedron with eight faces, twelve edges, and six vertices.
• radius : Float
References:
OctahedronGeometry
let radius = 7;
let detail = 2;
let geometry = new THREE.OctahedronGeometry(radius, detail);
scene.add( Mesh );

26

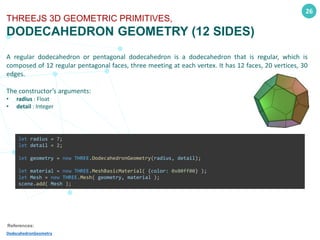

DODECAHEDRON GEOMETRY (12 SIDES)
A regular dodecahedron or pentagonal dodecahedron is a dodecahedron that is regular, which is
composed of 12 regular pentagonal faces, three meeting at each vertex. It has 12 faces, 20 vertices, 30
edges.
• radius : Float
References:
DodecahedronGeometry
let radius = 7;
let detail = 2;
let geometry = new THREE.DodecahedronGeometry(radius, detail);
scene.add( Mesh );

27

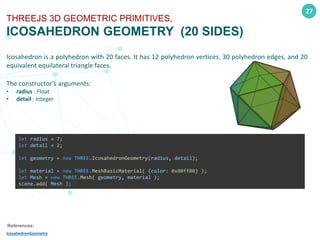

ICOSAHEDRON GEOMETRY (20 SIDES)
Icosahedron is a polyhedron with 20 faces. It has 12 polyhedron vertices, 30 polyhedron edges, and 20
equivalent equilateral triangle faces.
• radius : Float
References:
IcosahedronGeometry
let radius = 7;
let detail = 2;
let geometry = new THREE.IcosahedronGeometry(radius, detail);
scene.add( Mesh );

28

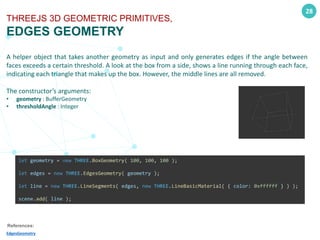

EDGES GEOMETRY
A helper object that takes another geometry as input and only generates edges if the angle between
faces exceeds a certain threshold. A look at the box from a side, shows a line running through each face,
indicating each triangle that makes up the box. However, the middle lines are all removed.
• geometry : BufferGeometry
• thresholdAngle : Integer
References:
EdgesGeometry
let geometry = new THREE.BoxGeometry( 100, 100, 100 );
let edges = new THREE.EdgesGeometry( geometry );
let line = new THREE.LineSegments( edges, new THREE.LineBasicMaterial( { color: 0xffffff } ) );
scene.add( line );

29
WIREFRAME GEOMETRY
For a given geometry, the function generates a geometry with one line segment (2 points) per edge.
Because WebGL requires two points per line segment, you'd frequently miss edges or get extra edges if
you didn't do this. There would only be three points if all you had was a single triangle. If you tried to
draw it using a wireframe.
• geometry : BufferGeometry
References:
WireframeGeometry
let geometry = new THREE.SphereGeometry( 100, 100, 100 );
let wireframe = new THREE.WireframeGeometry( geometry );
let line = new THREE.LineSegments( wireframe );
line.material.depthTest = false;
line.material.opacity = 0.25;
line.material.transparent = true;
scene.add( line );

P A G E 30
2D Geometries
Creating 2D Objects

31

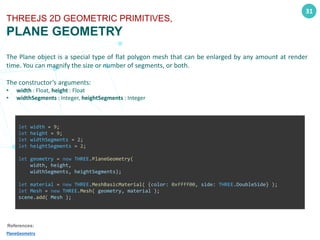

PLANE GEOMETRY
The Plane object is a special type of flat polygon mesh that can be enlarged by any amount at render
time. You can magnify the size or number of segments, or both.
• width : Float, height : Float
• widthSegments : Integer, heightSegments : Integer
References:
PlaneGeometry
let width = 9;
let height = 9;
let widthSegments = 2;
let geometry = new THREE.PlaneGeometry(
width, height,
widthSegments, heightSegments);
let material = new THREE.MeshBasicMaterial( {color: 0xffff00, side: THREE.DoubleSide} );
scene.add( Mesh );

32

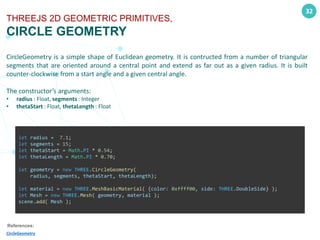

CIRCLE GEOMETRY
CircleGeometry is a simple shape of Euclidean geometry. It is contructed from a number of triangular
segments that are oriented around a central point and extend as far out as a given radius. It is built
counter-clockwise from a start angle and a given central angle.
• radius : Float, segments : Integer
• thetaStart : Float, thetaLength : Float
References:
CircleGeometry
let radius = 7.1;
let segments = 15;
let geometry = new THREE.CircleGeometry(
radius, segments, thetaStart, thetaLength);
scene.add( Mesh );

33

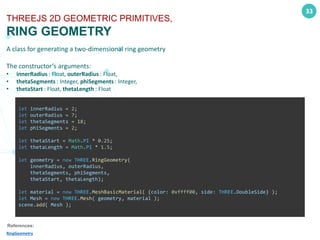

RING GEOMETRY
A class for generating a two-dimensional ring geometry
• innerRadius : Float, outerRadius : Float,
• thetaSegments : Integer, phiSegments : Integer,
• thetaStart : Float, thetaLength : Float
References:
RingGeometry
let innerRadius = 2;
let outerRadius = 7;
let thetaSegments = 18;
let phiSegments = 2;
let geometry = new THREE.RingGeometry(
innerRadius, outerRadius,
thetaSegments, phiSegments,
scene.add( Mesh );

P A G E 34
Create Geometry
Creating Custom Objects

35

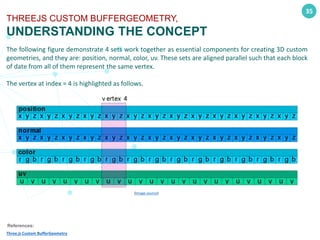

THREEJS CUSTOM BUFFERGEOMETRY,
UNDERSTANDING THE CONCEPT
The following figure demonstrate 4 sets work together as essential components for creating 3D custom
geometries, and they are: position, normal, color, uv. These sets are aligned parallel such that each block
of date from all of them represent the same vertex.
The vertex at index = 4 is highlighted as follows.
References:
Three.js Custom BufferGeometry
(Image source)

36

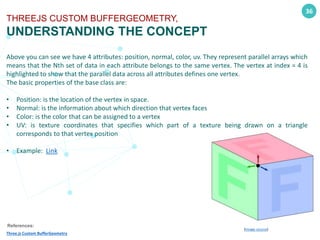

THREEJS CUSTOM BUFFERGEOMETRY,
UNDERSTANDING THE CONCEPT
Above you can see we have 4 attributes: position, normal, color, uv. They represent parallel arrays which
means that the Nth set of data in each attribute belongs to the same vertex. The vertex at index = 4 is
highlighted to show that the parallel data across all attributes defines one vertex.
The basic properties of the base class are:
• Position: is the location of the vertex in space.
• Normal: is the information about which direction that vertex faces
• Color: is the color that can be assigned to a vertex
• UV: is texture coordinates that specifies which part of a texture being drawn on a triangle
corresponds to that vertex position
• Example: Link
References:
Three.js Custom BufferGeometry
(Image source)

P A G E 37

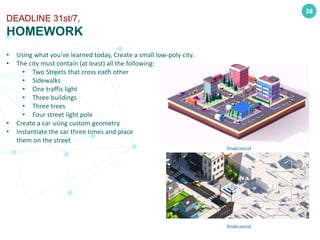

HOMEWORK
Let's Exercise What We've Learned

• Using what you’ve learned today, Create a small low-poly city.
• The city must contain (at least) all the following:
• Two Streets that cross each other
• Sidewalks
• One traffic light
• Three buildings
• Three trees
• Four street light pole
• Create a car using custom geometry
• Instantiate the car three times and place
them on the street
38
DEADLINE 31st/7,
HOMEWORK
(Image source)
(Image source)

Algorithms, Computer Graphics, and Mathematics
for Game Developers and Computer Scientists
THANKS FOR YOUR
ATTENTION

Class[5][9th jul] [three js-meshes_geometries_and_primitives]

More Related Content

What's hot

Similar to Class[5][9th jul] [three js-meshes_geometries_and_primitives]

Recently uploaded

Class[5][9th jul] [three js-meshes_geometries_and_primitives]
