This document summarizes a seminar presentation on the use of geogrids as soil reinforcement. Some key points: - Geogrids are synthetic materials formed by bonding polymer strips at crossing points, creating an open structure. - They have been used since the 1930s for applications like road construction, erosion control, and in the Great Wall of China. - Common types include woven and nonwoven geogrids. Materials include polyester, polyvinyl alcohol, and polypropylene. - Geogrids function by transmitting fluid forces, filtering soil, and separating soil for reinforcement of retaining walls, bridges, slopes, and more. - When used in

1. 1
Seminar on-
“GEOGRID AS A SOIL REINFORCEMENT”
Presented by:
-PATIL SACHIN SHIVAJIRAO
- B.E CIVIL ROLL NO-4150
- JNEC AURANGABAD.
Guide:
Prof. V.T.MORE

2. 2

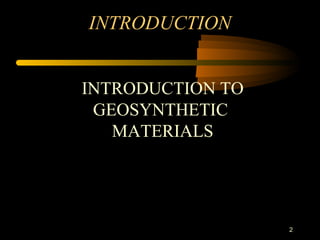

INTRODUCTION
INTRODUCTION TO
GEOSYNTHETIC
MATERIALS

3. 3

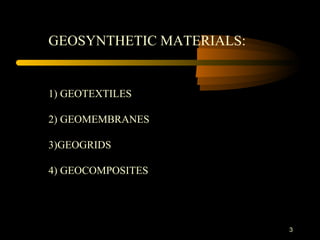

GEOSYNTHETIC MATERIALS:
1) GEOTEXTILES
2) GEOMEMBRANES
3)GEOGRIDS
4) GEOCOMPOSITES

4. 4
GEOGRID

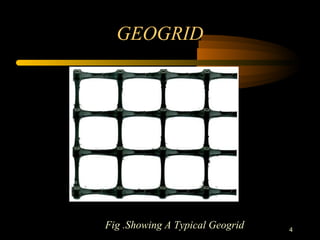

Fig .Showing A Typical Geogrid

5. 5

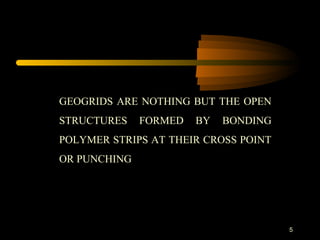

GEOGRIDS ARE NOTHING BUT THE OPEN
STRUCTURES FORMED BY BONDING
POLYMER STRIPS AT THEIR CROSS POINT
OR PUNCHING

6. 6

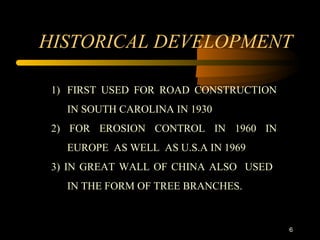

HISTORICAL DEVELOPMENT
1) FIRST USED FOR ROAD CONSTRUCTION
IN SOUTH CAROLINA IN 1930
2) FOR EROSION CONTROL IN 1960 IN
EUROPE AS WELL AS U.S.A IN 1969
3) IN GREAT WALL OF CHINA ALSO USED
IN THE FORM OF TREE BRANCHES.

7. 7

8. 8

9. 9

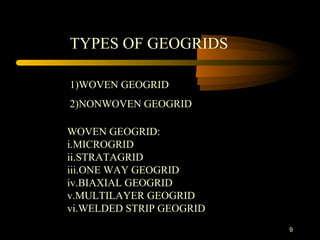

TYPES OF GEOGRIDS
1)WOVEN GEOGRID
2)NONWOVEN GEOGRID
WOVEN GEOGRID:
i.MICROGRID
ii.STRATAGRID
iii.ONE WAY GEOGRID
iv.BIAXIAL GEOGRID
v.MULTILAYER GEOGRID
vi.WELDED STRIP GEOGRID

10. 10
Fig. Showing micro grid
Fig.Showing Strata Grid Fig.Showing one-way geogrid
Fig.Showing Biaxial geogrid. Fig.Showing multilayer geogrid.
Fig.Showing welded geogrid.

11. 11

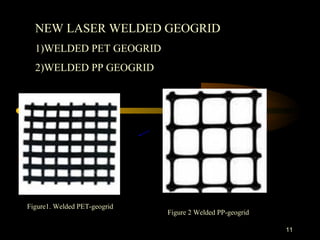

NEW LASER WELDED GEOGRID
1)WELDED PET GEOGRID
2)WELDED PP GEOGRID
Figure 2 Welded PP-geogrid
Figure1. Welded PET-geogrid

12. 12

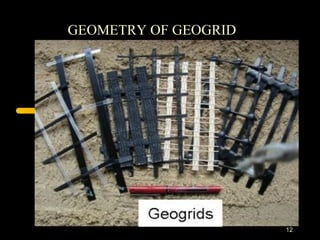

GEOMETRY OF GEOGRID

13. 13

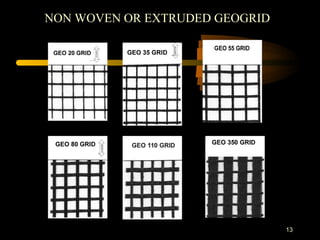

NON WOVEN OR EXTRUDED GEOGRID

14. 14

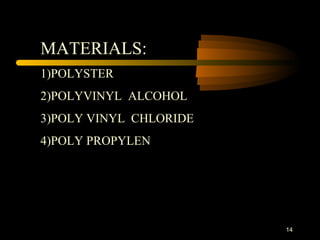

MATERIALS:
1)POLYSTER
2)POLYVINYL ALCOHOL
3)POLY VINYL CHLORIDE
4)POLY PROPYLEN

15. 15

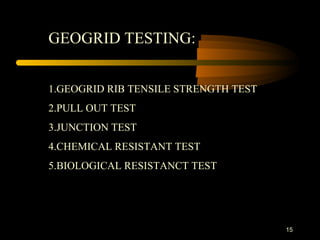

GEOGRID TESTING:
1.GEOGRID RIB TENSILE STRENGTH TEST

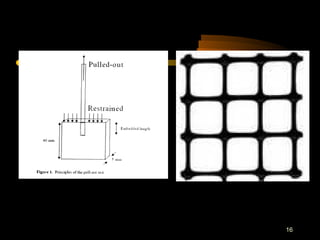

2.PULL OUT TEST
3.JUNCTION TEST
4.CHEMICAL RESISTANT TEST
5.BIOLOGICAL RESISTANCT TEST

16. 16

17. 17

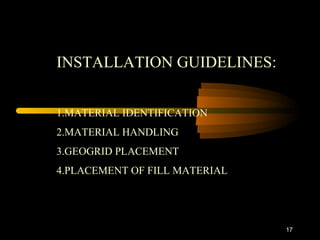

INSTALLATION GUIDELINES:
1.MATERIAL IDENTIFICATION
2.MATERIAL HANDLING
3.GEOGRID PLACEMENT
4.PLACEMENT OF FILL MATERIAL

18. 18

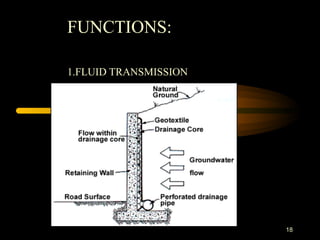

FUNCTIONS:
1.FLUID TRANSMISSION

19. 19

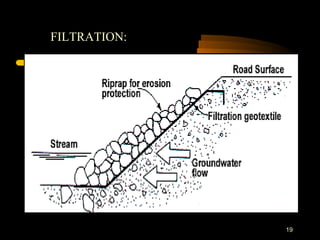

FILTRATION:

20. 20

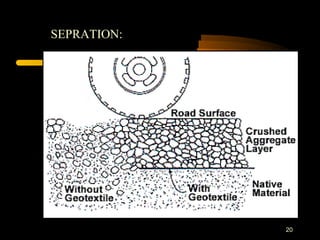

SEPRATION:

21. 21

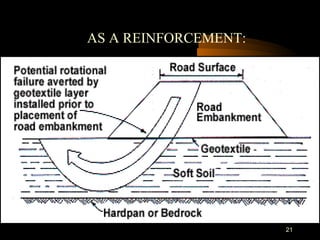

AS A REINFORCEMENT:

22. 22

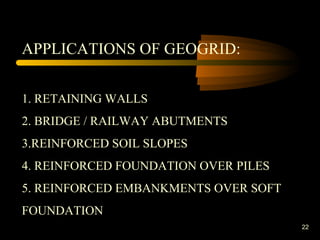

APPLICATIONS OF GEOGRID:
1. RETAINING WALLS
2. BRIDGE / RAILWAY ABUTMENTS
3.REINFORCED SOIL SLOPES
4. REINFORCED FOUNDATION OVER PILES
5. REINFORCED EMBANKMENTS OVER SOFT
FOUNDATION

23. 23

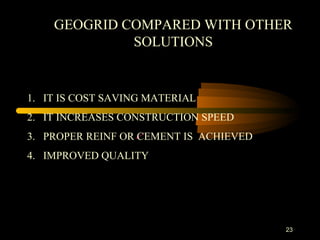

GEOGRID COMPARED WITH OTHER
SOLUTIONS
1. IT IS COST SAVING MATERIAL
2. IT INCREASES CONSTRUCTION SPEED
3. PROPER REINF OR CEMENT IS ACHIEVED
4. IMPROVED QUALITY

24. 24

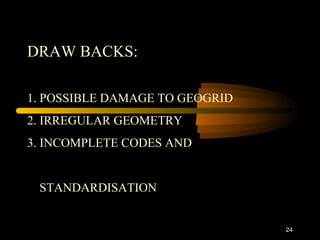

DRAW BACKS:
1. POSSIBLE DAMAGE TO GEOGRID
2. IRREGULAR GEOMETRY
3. INCOMPLETE CODES AND
STANDARDISATION

25. 25

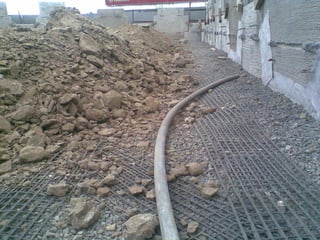

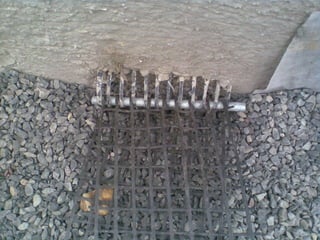

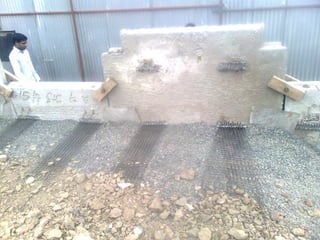

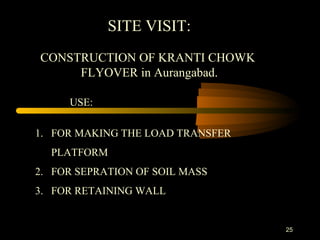

SITE VISIT:
CONSTRUCTION OF KRANTI CHOWK
FLYOVER in Aurangabad.
1. FOR MAKING THE LOAD TRANSFER
PLATFORM
2. FOR SEPRATION OF SOIL MASS
3. FOR RETAINING WALL
USE:

26. 26

28. 28

29. 29
CONCLUSION:
1. TO EFFECTIVELY SOLVE SOME PROBLEMS OF SOIL MASS
LIKE, BEARING CAPACITY, FAILURE OF SLOPES,
EROSION CONTROL, LAND SLIP REPAIR, ROADS, QUICK
CONSTRUCTION AND ALL OTHER, GEOGRID IS BETTER
SOLUTION .
2. GEOGRIDS ARE MAGIC MATERIALS TO YIELD
EXCELLENT RESULTS .

30. 30

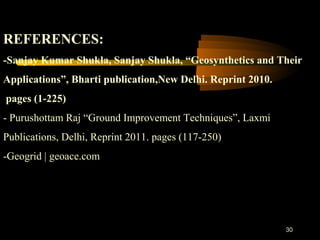

REFERENCES:
-Sanjay Kumar Shukla, Sanjay Shukla, “Geosynthetics and Their
Applications”, Bharti publication,New Delhi. Reprint 2010.
pages (1-225)
- Purushottam Raj “Ground Improvement Techniques”, Laxmi
Publications, Delhi, Reprint 2011. pages (117-250)
-Geogrid | geoace.com

31. THANK YOU.
31
