Gear Cutting Presentation for Polytechnic College Students of India

Machine Shop Technology A Presentation by S.Krishnamorthy, IRSME (Retd) For Polytechnic College students of Tamil Nadu [email_address]

Unit - IV Gear Manufacturing Practice Forming and Generating

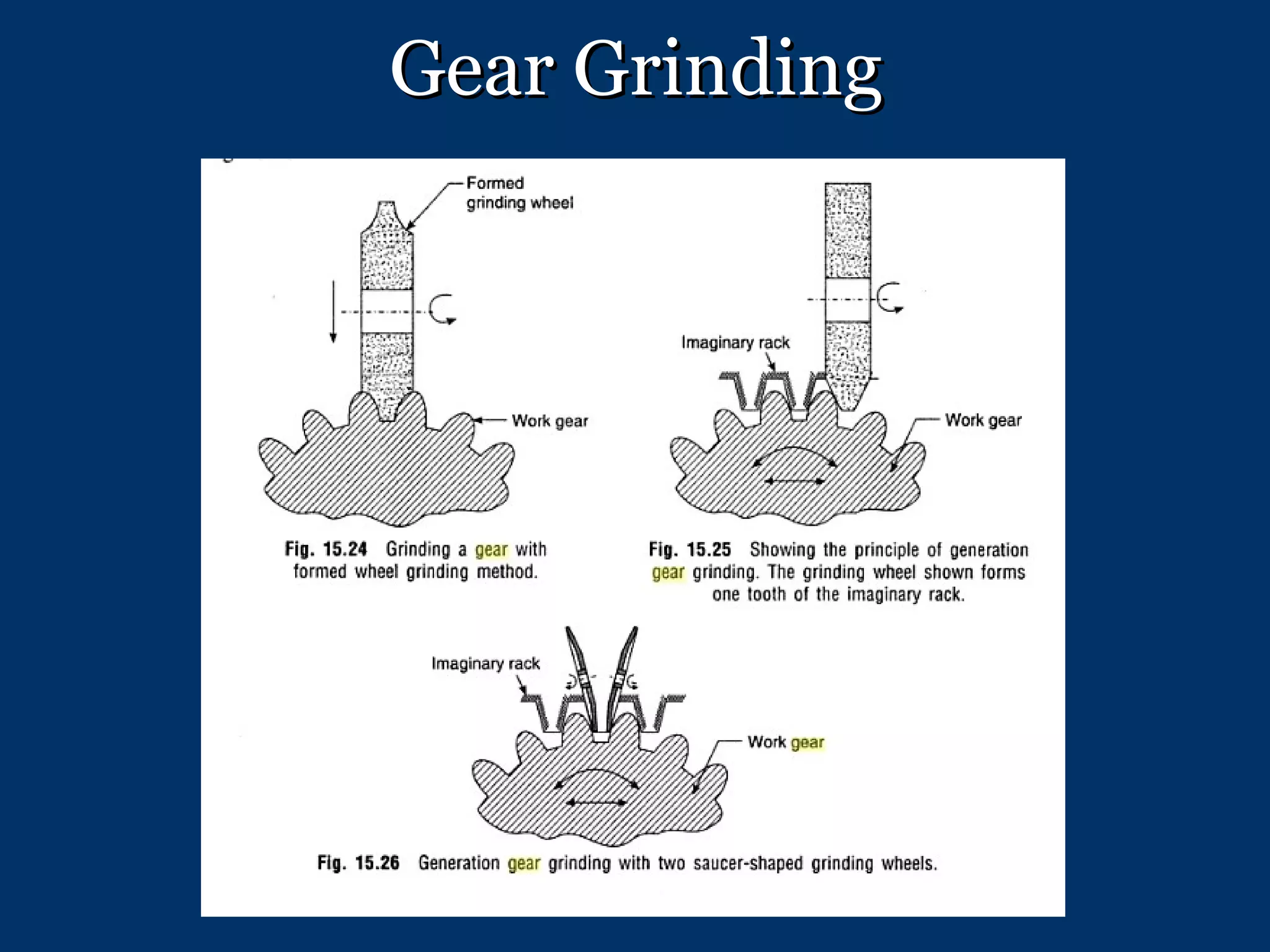

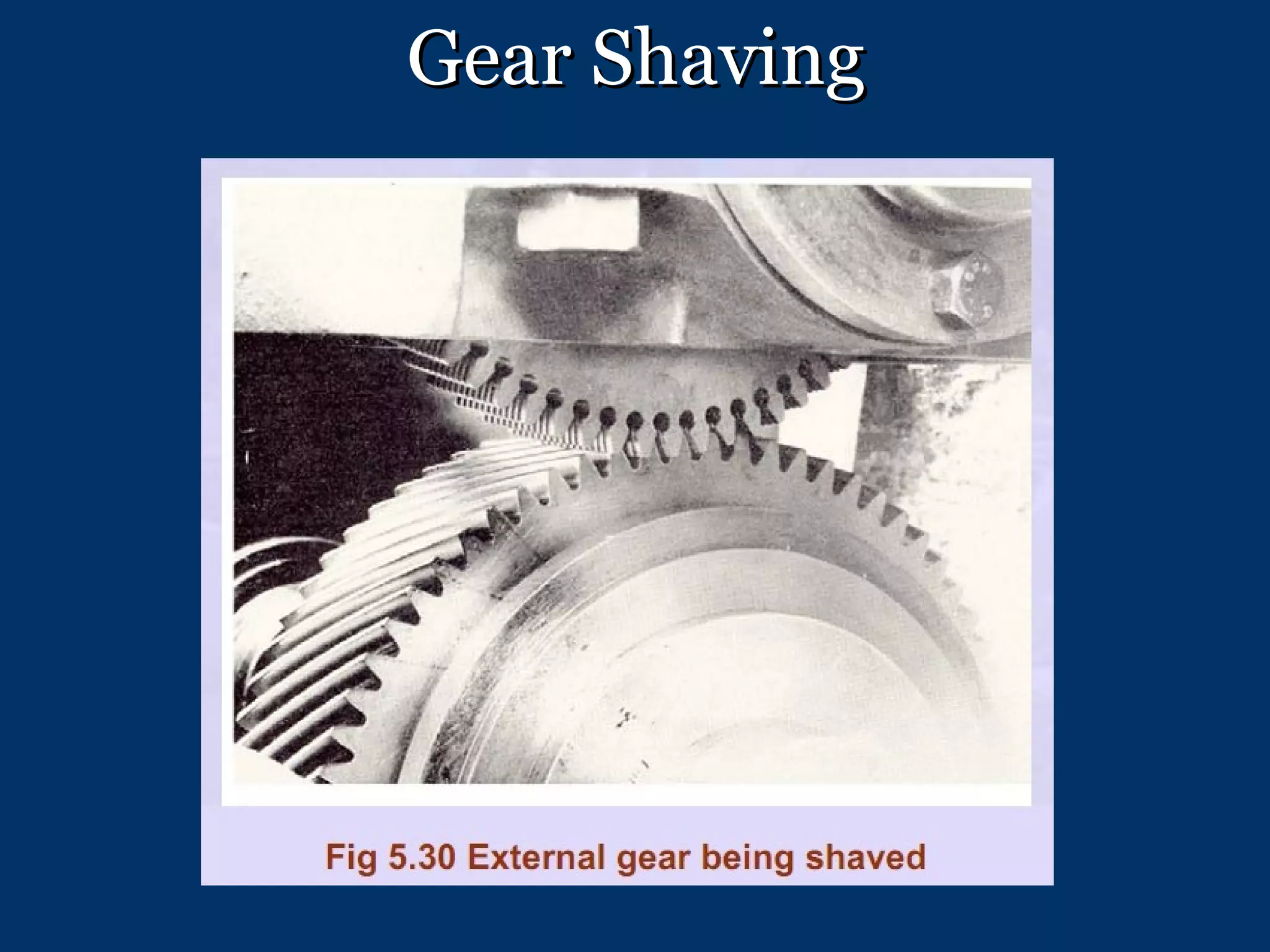

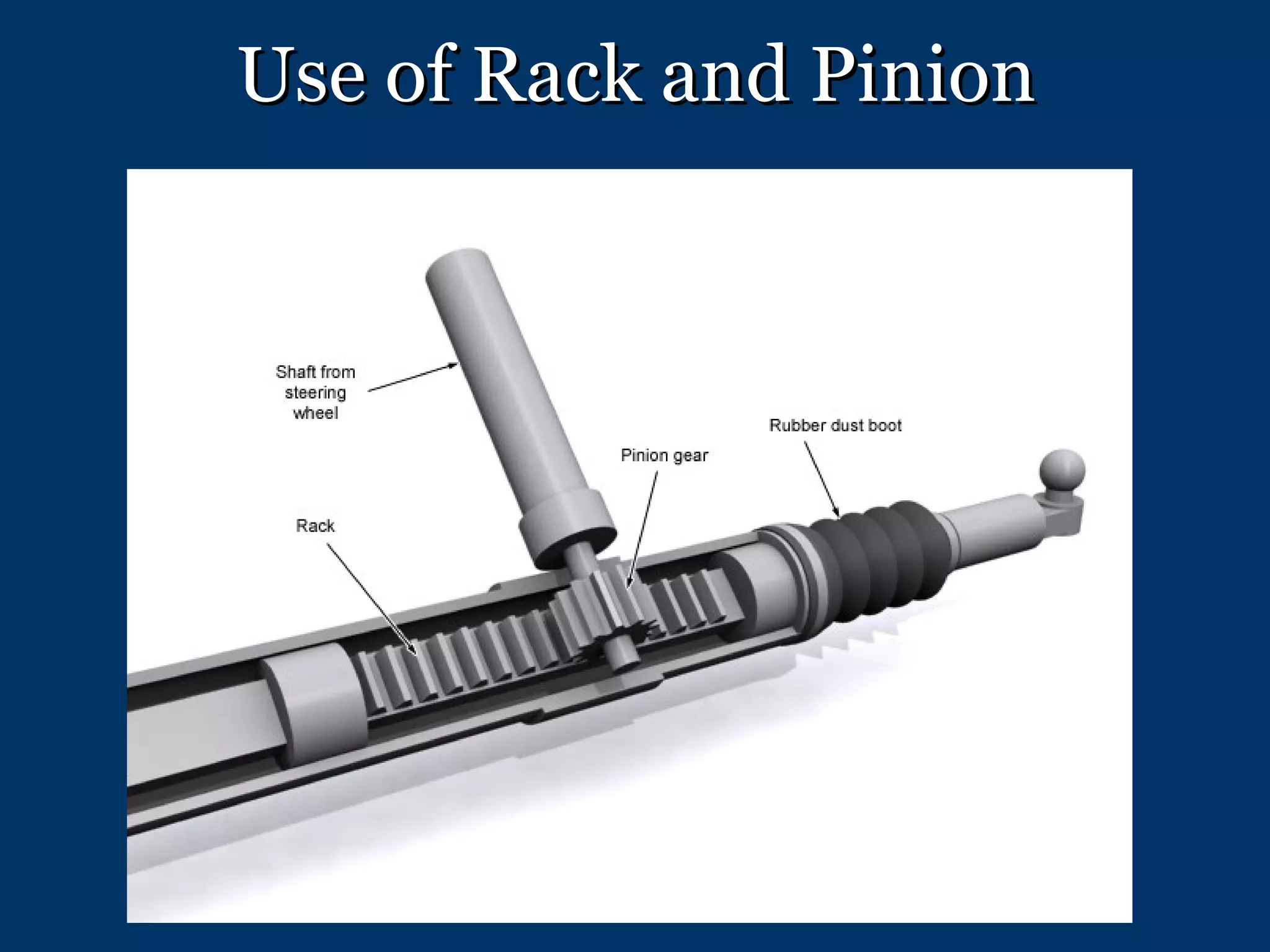

Gear Manufacturing Processes Casting Stamping Rolling Extruding Powder Metallurgy Machining

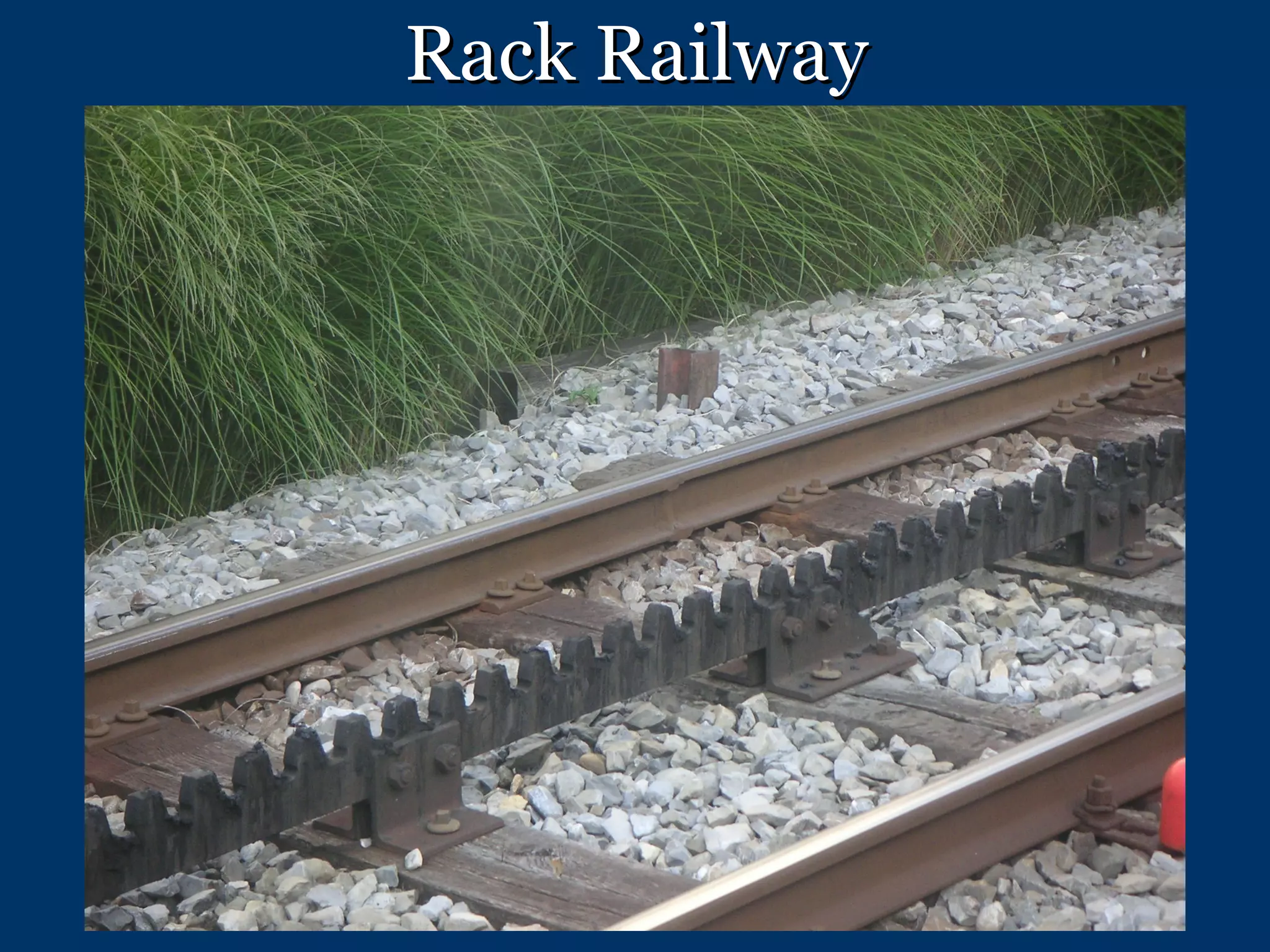

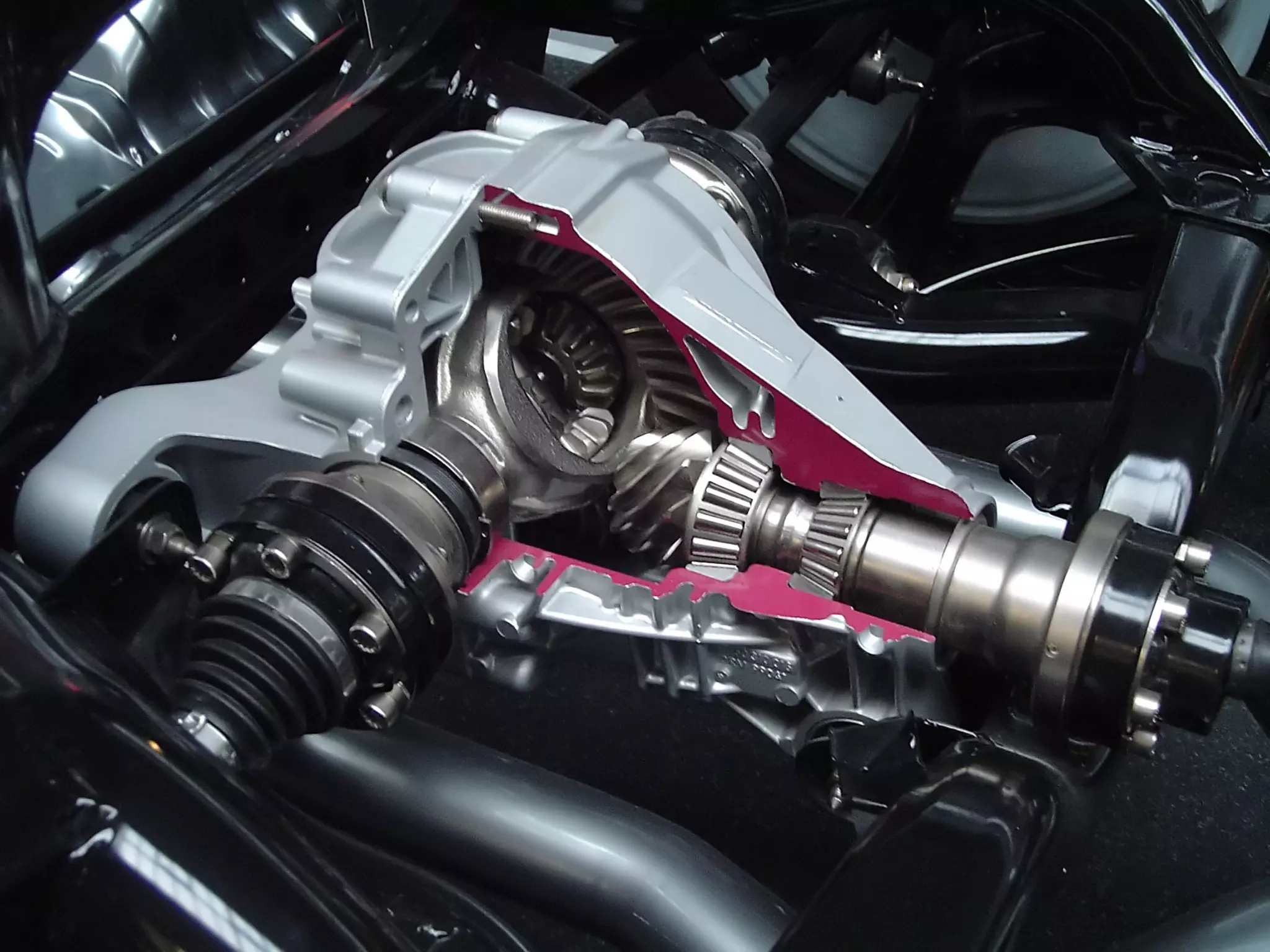

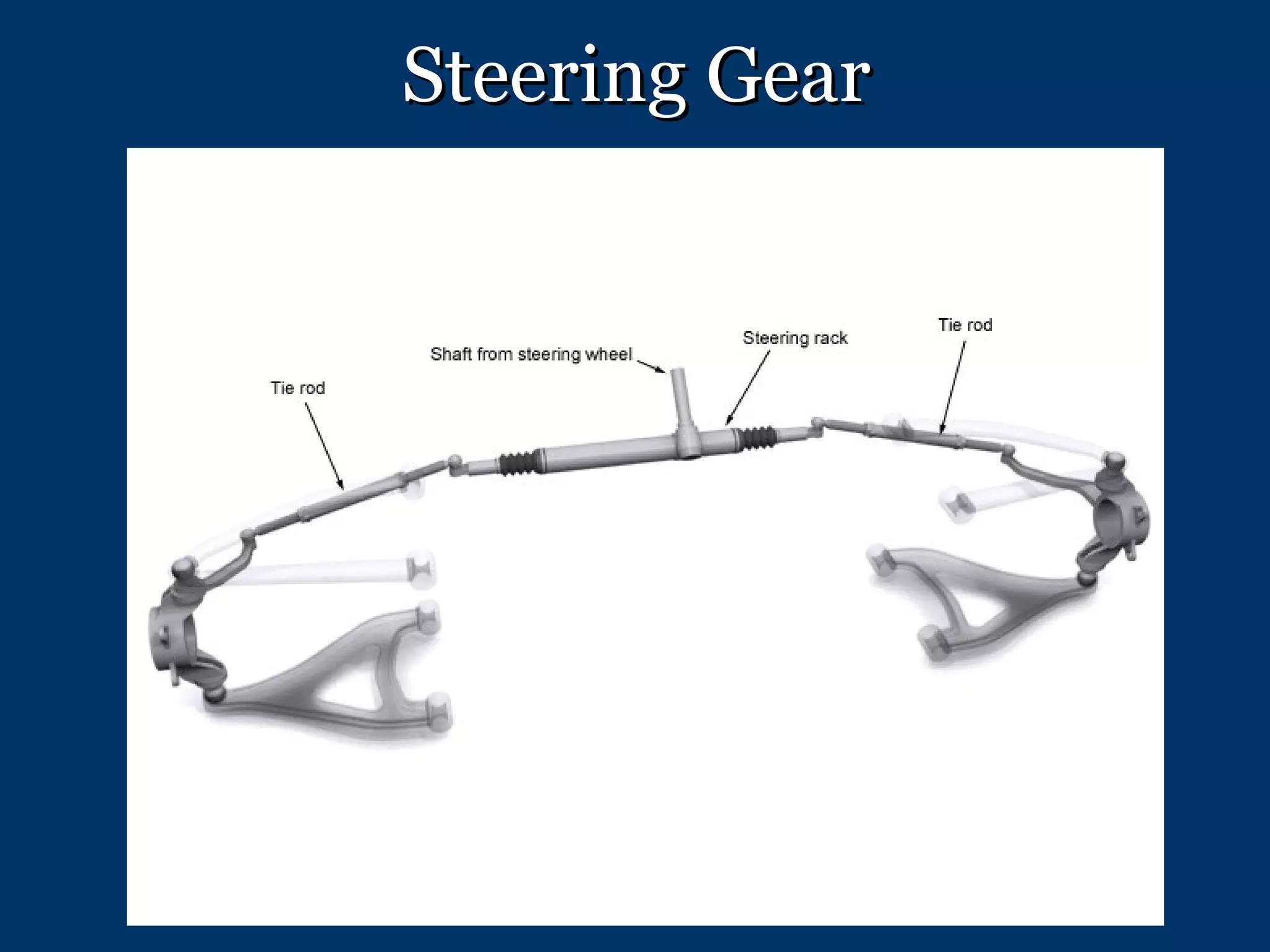

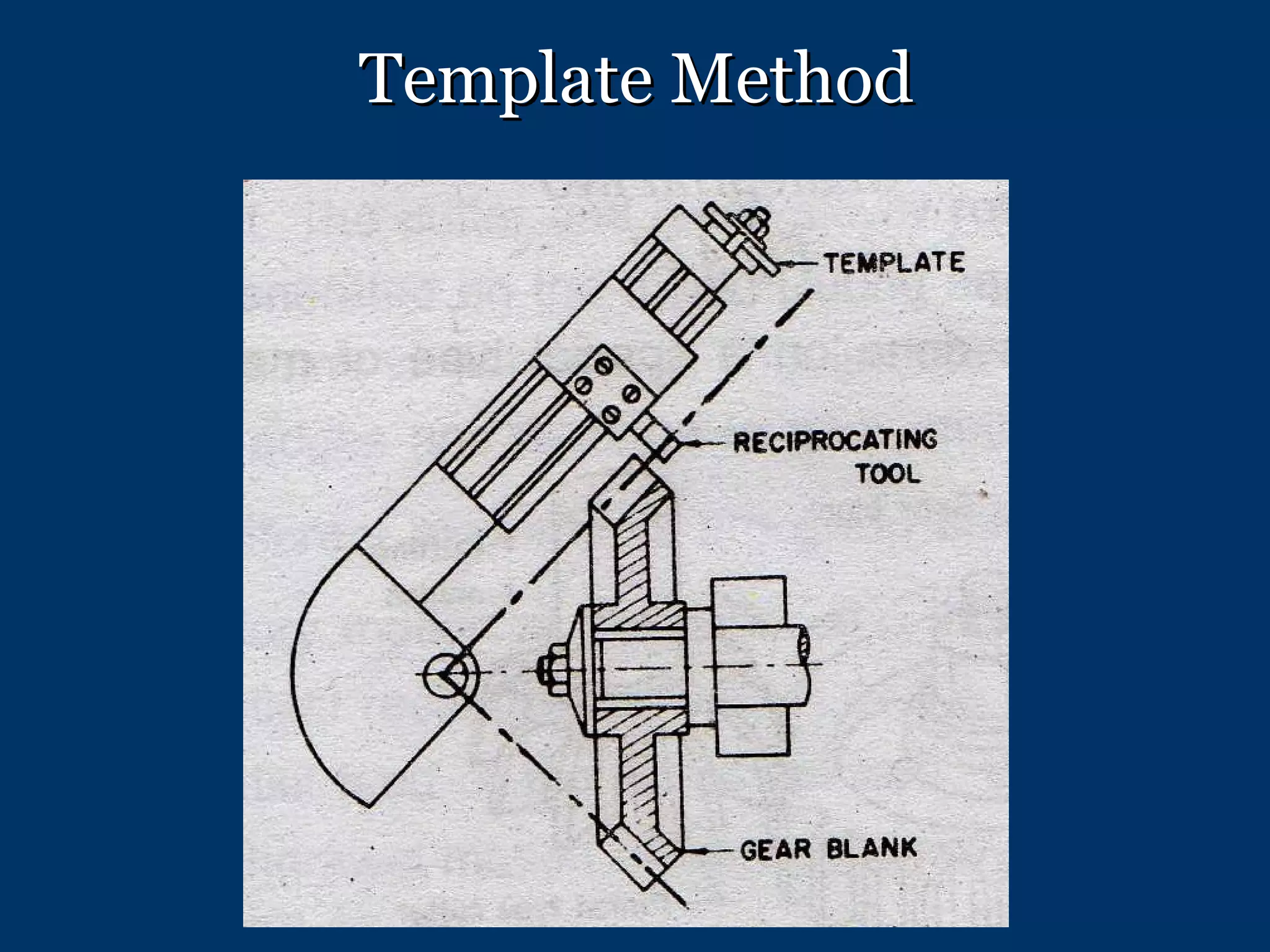

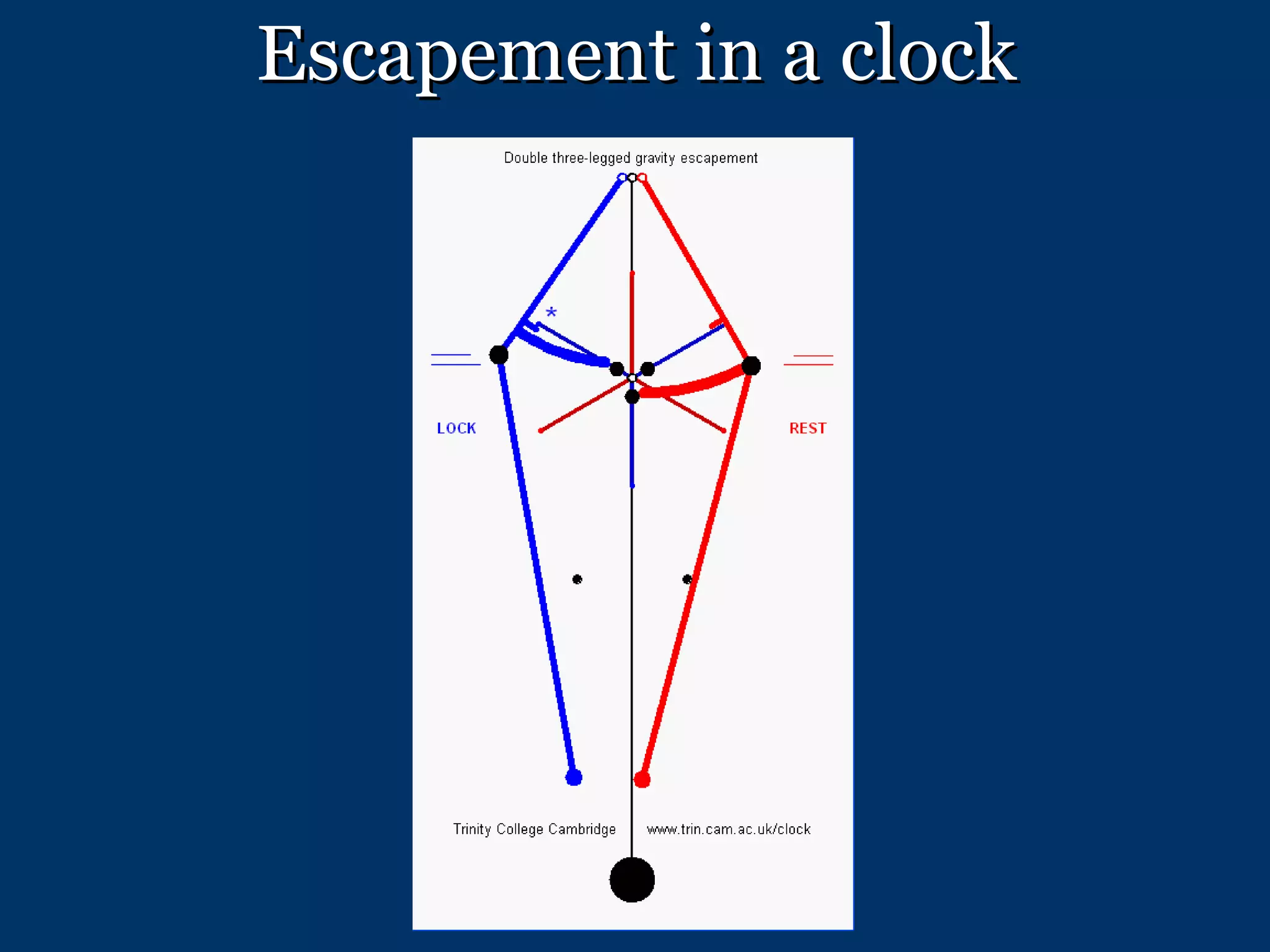

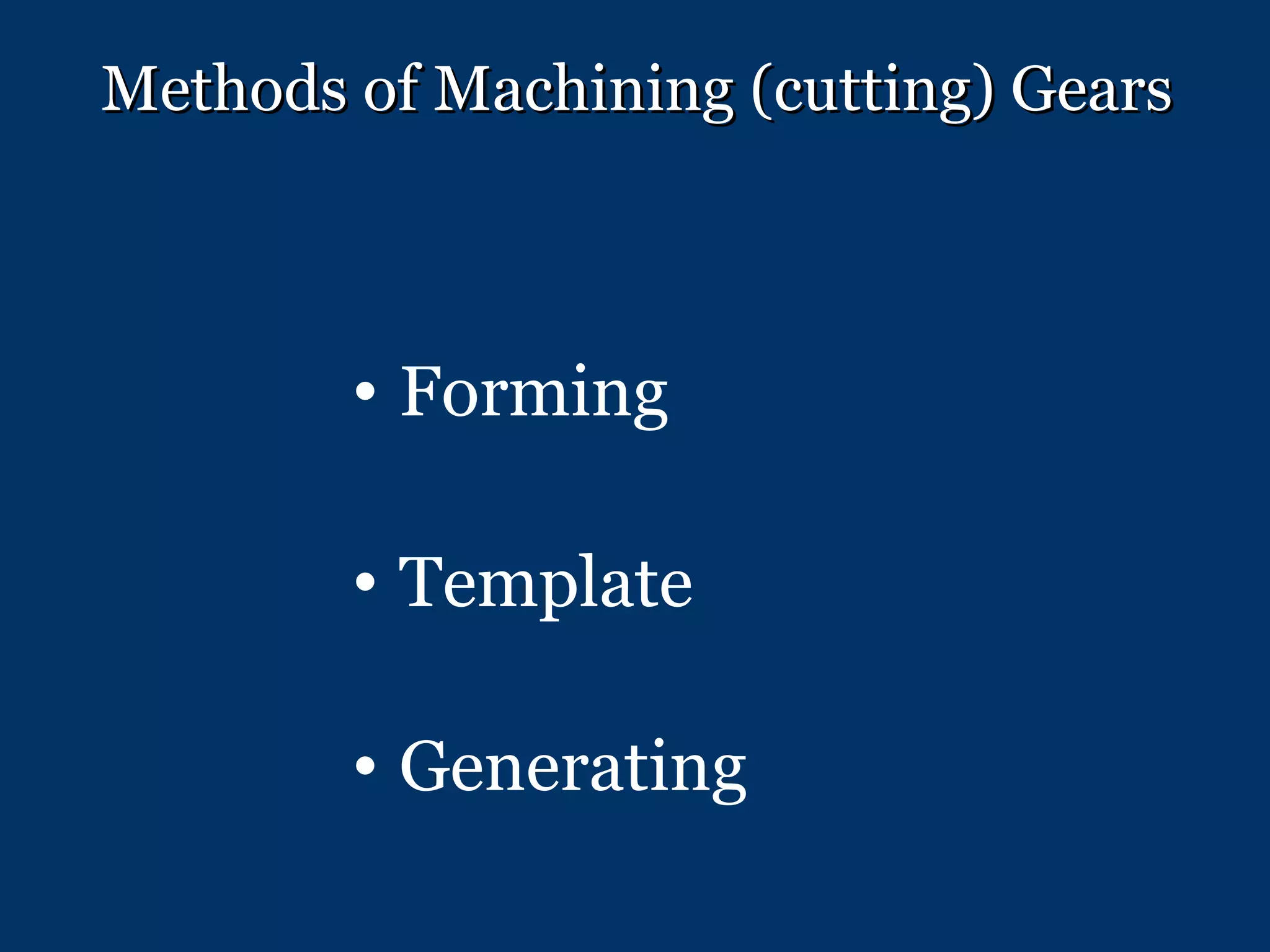

Methods of Machining (cutting) Gears Forming Template Generating

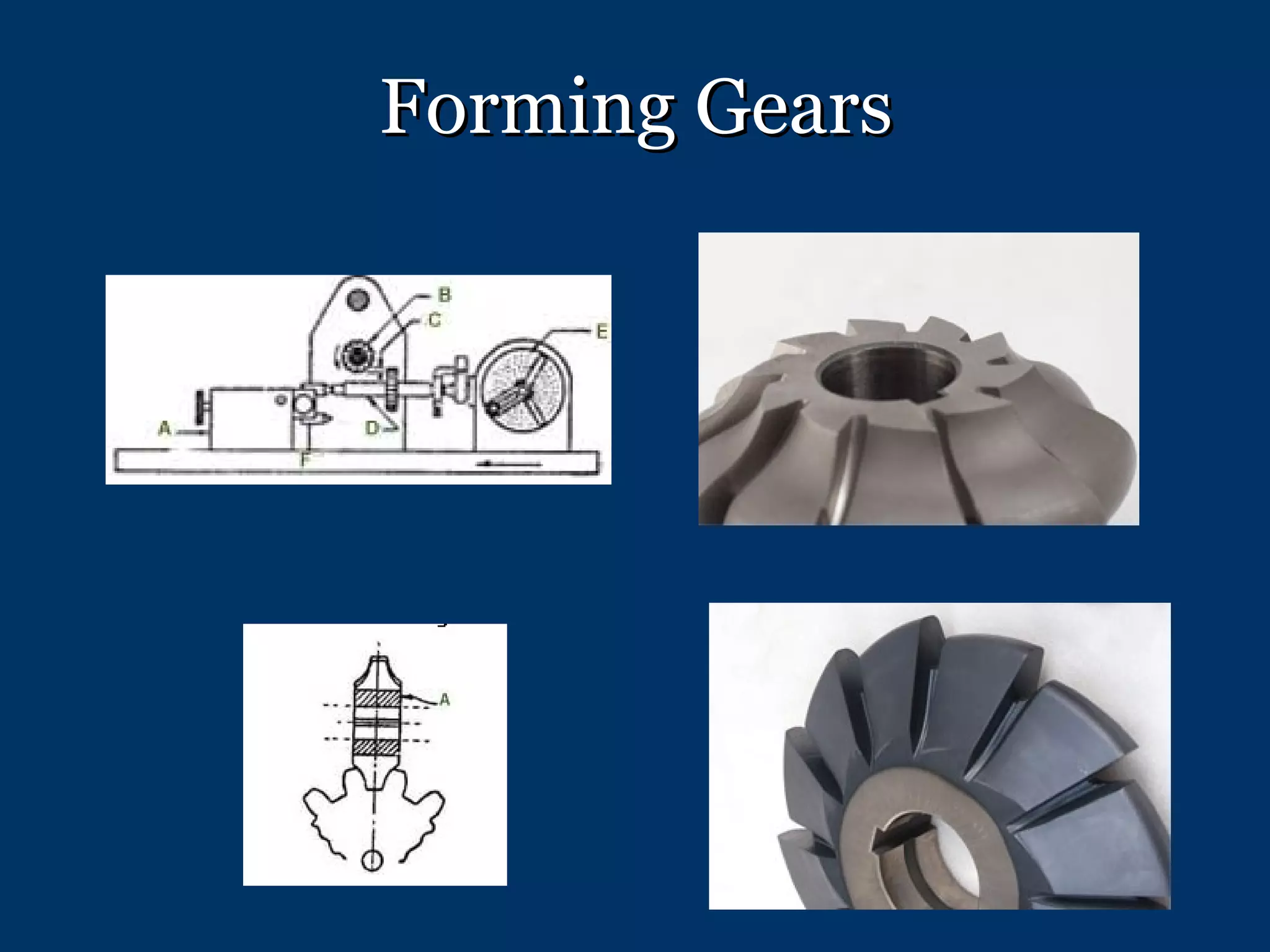

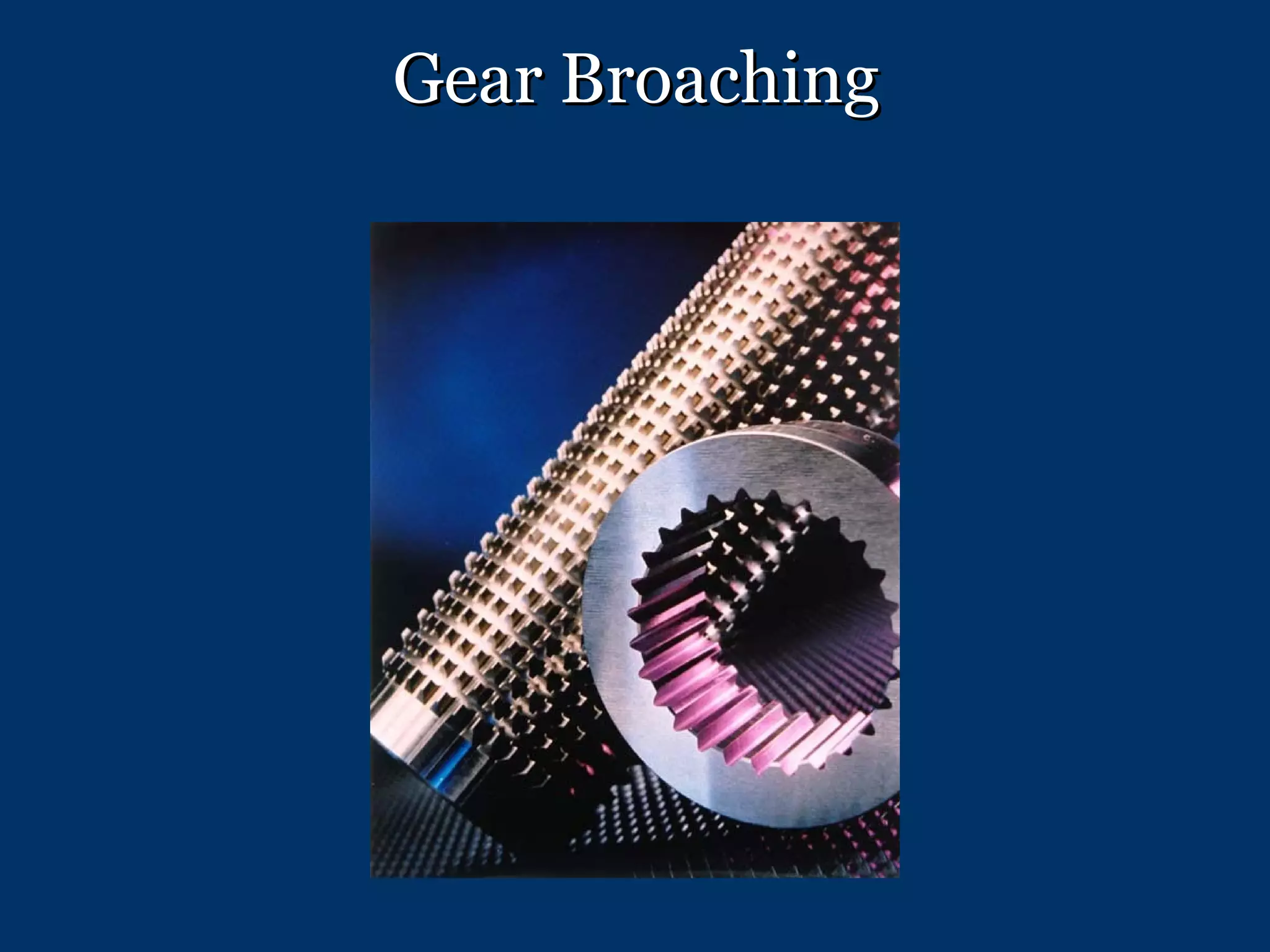

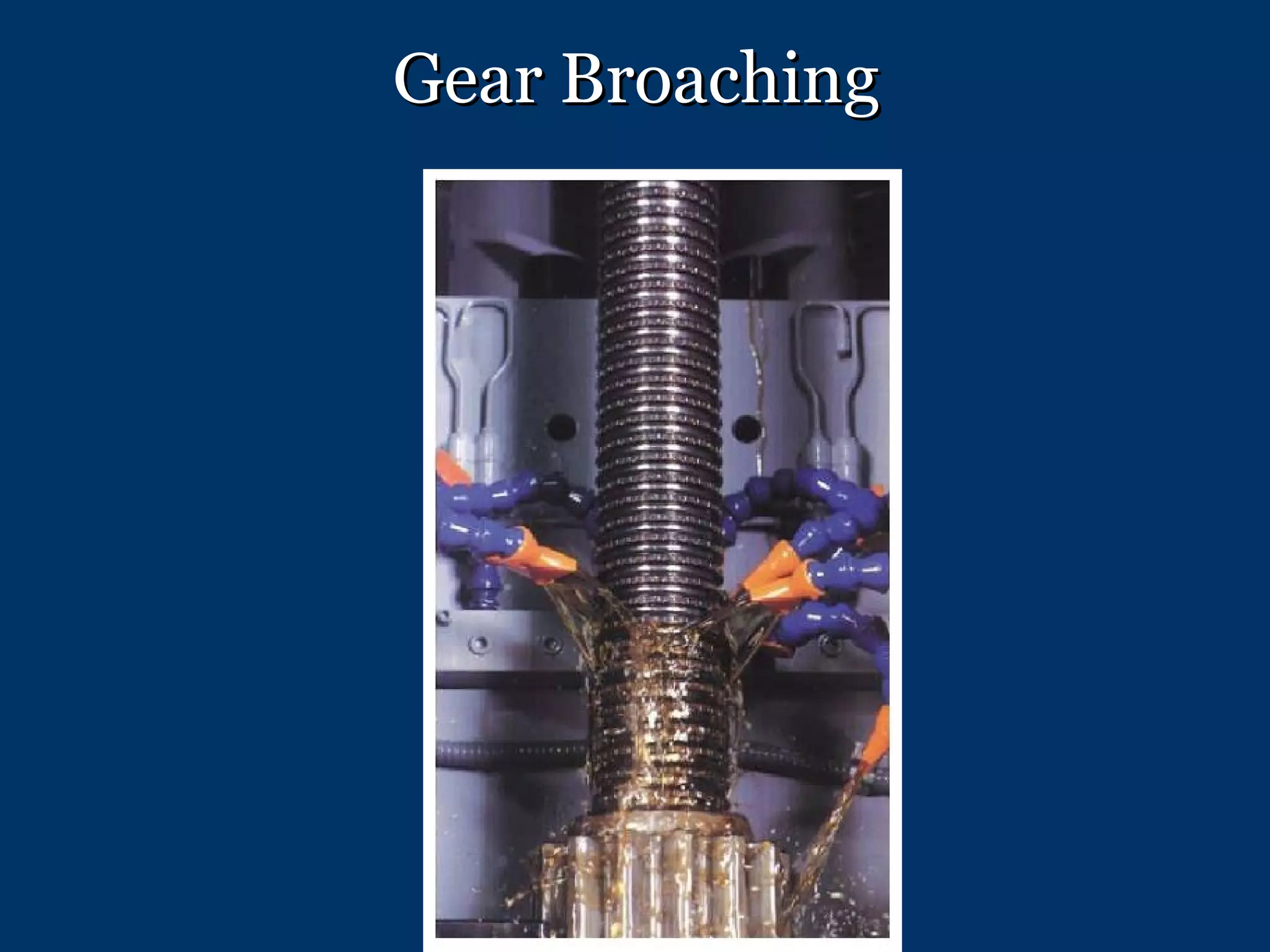

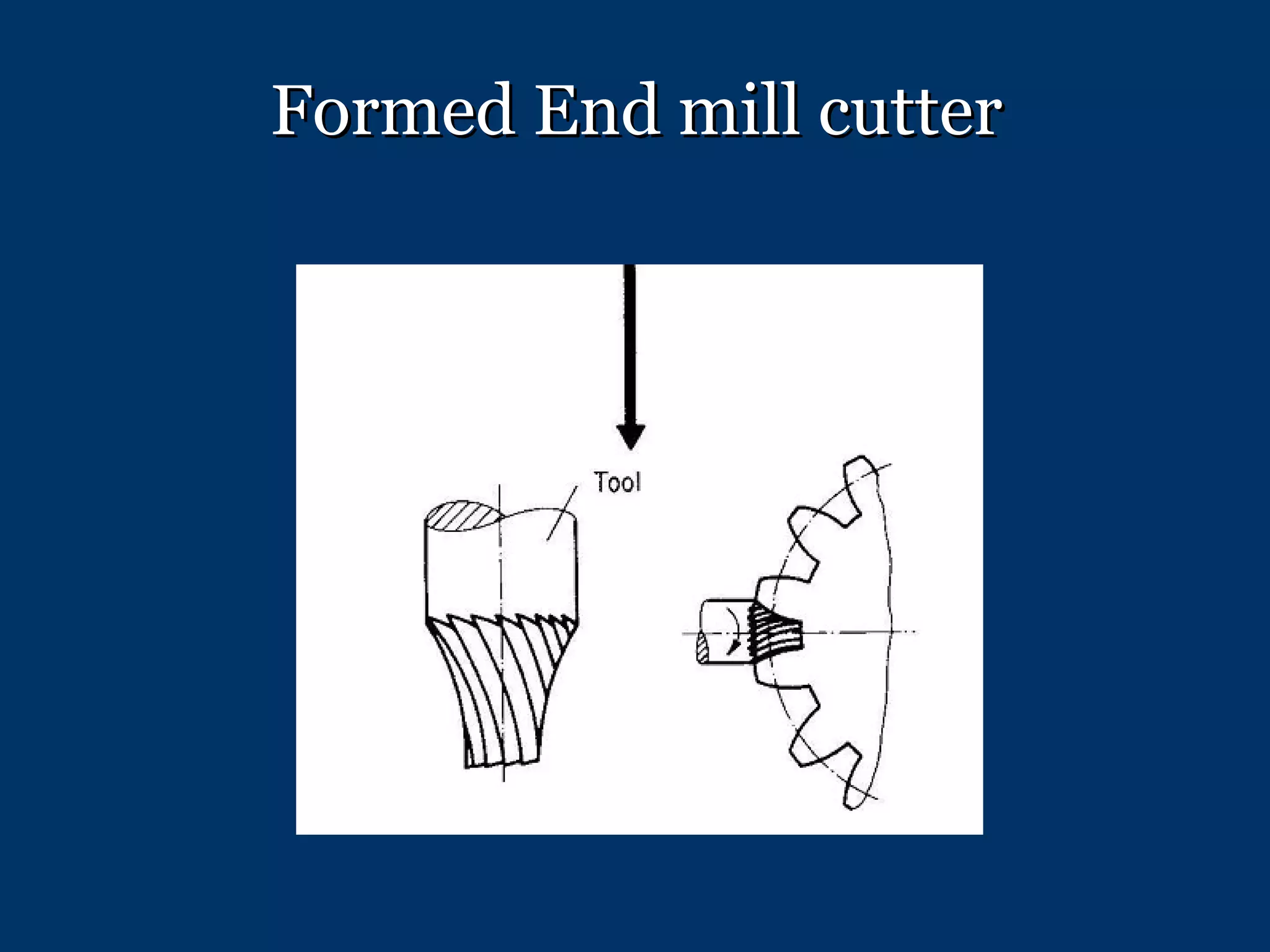

Forming Gears Single point cutting tool Multipoint cutting tool Simple and cheaper Less accurate Can be done in shaper, slotter, broaching or milling machines Formed disc cutter – to the shape of space between teeth

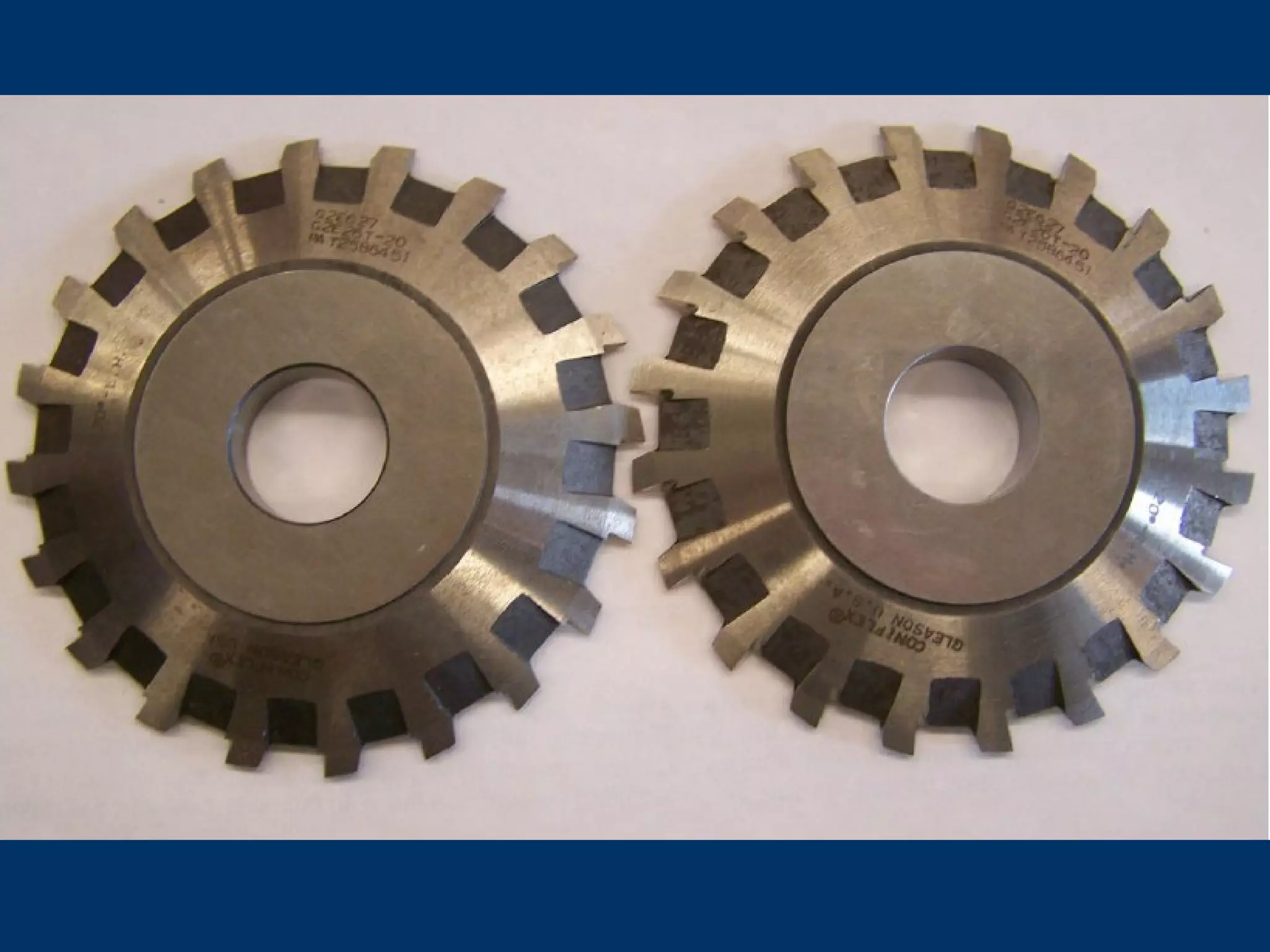

Forming gears in a milling machine Disc type cutters are used Spur, helical and straight bevel gears are made in this process Milling cutter is mounted on a horizontal arbor Indexing is done to cut each tooth Tooth profile may not be accurate

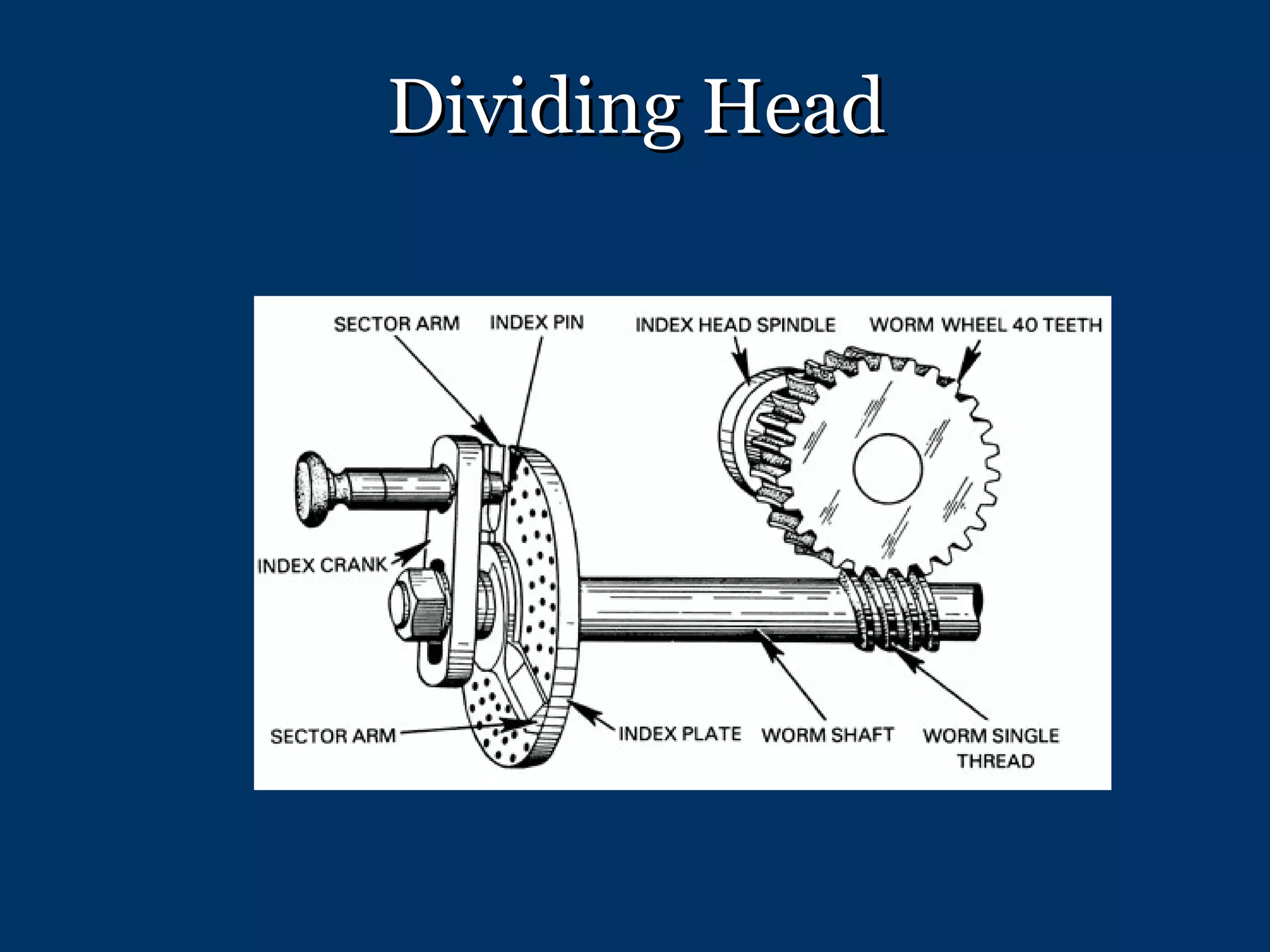

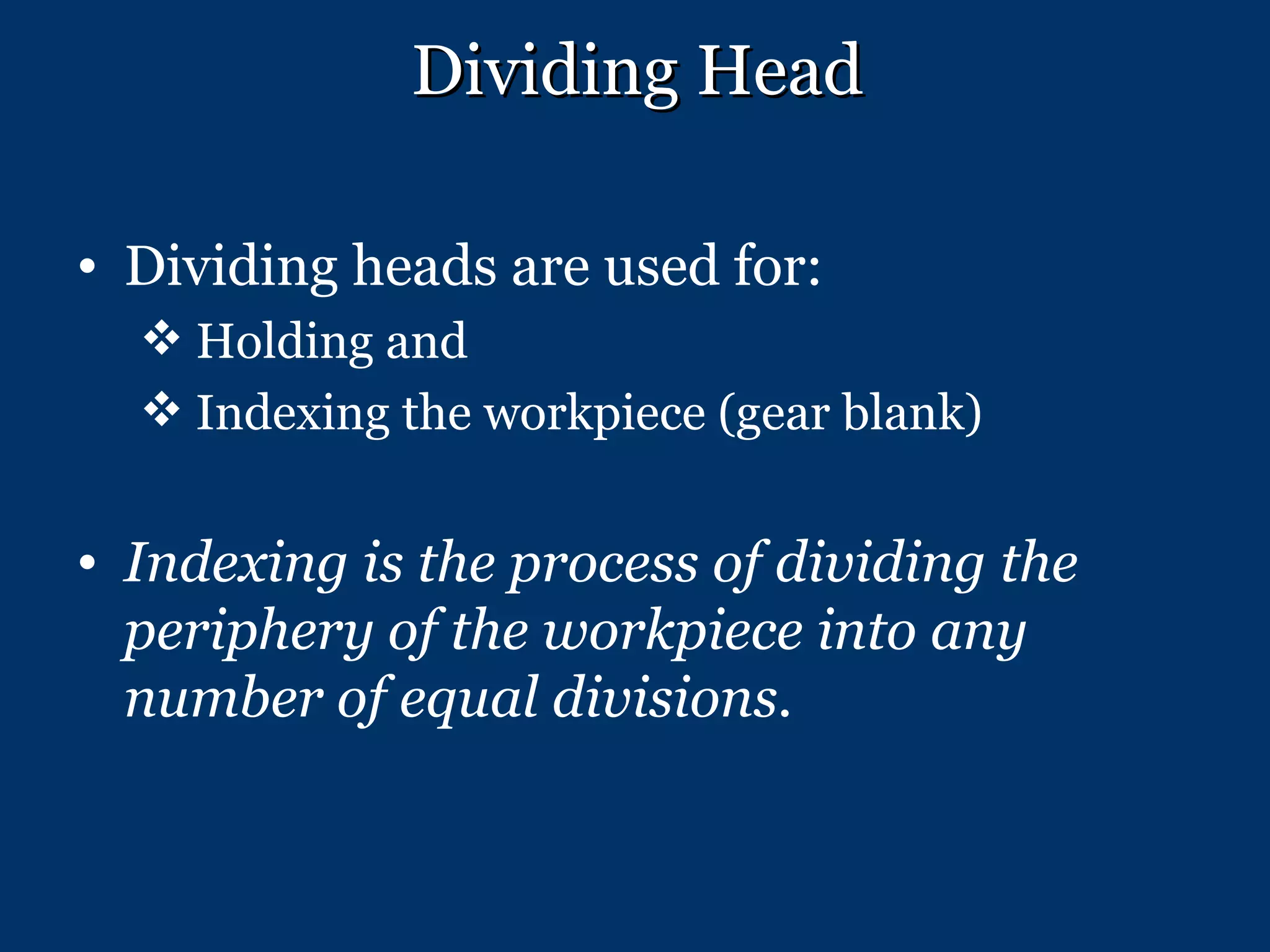

Dividing Head Dividing heads are used for: Holding and Indexing the workpiece (gear blank) Indexing is the process of dividing the periphery of the workpiece into any number of equal divisions.

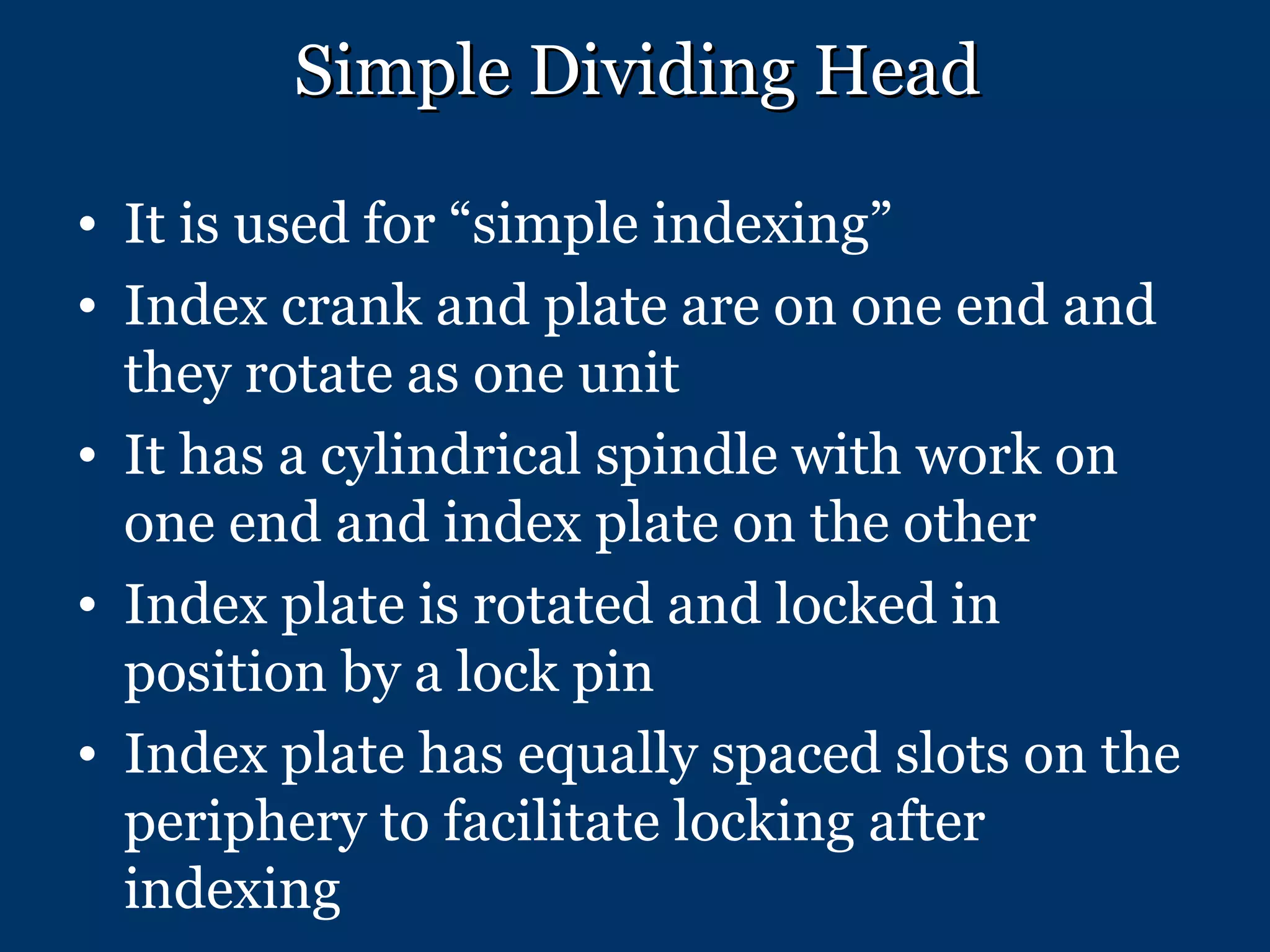

Simple Dividing Head It is used for “simple indexing” Index crank and plate are on one end and they rotate as one unit It has a cylindrical spindle with work on one end and index plate on the other Index plate is rotated and locked in position by a lock pin Index plate has equally spaced slots on the periphery to facilitate locking after indexing

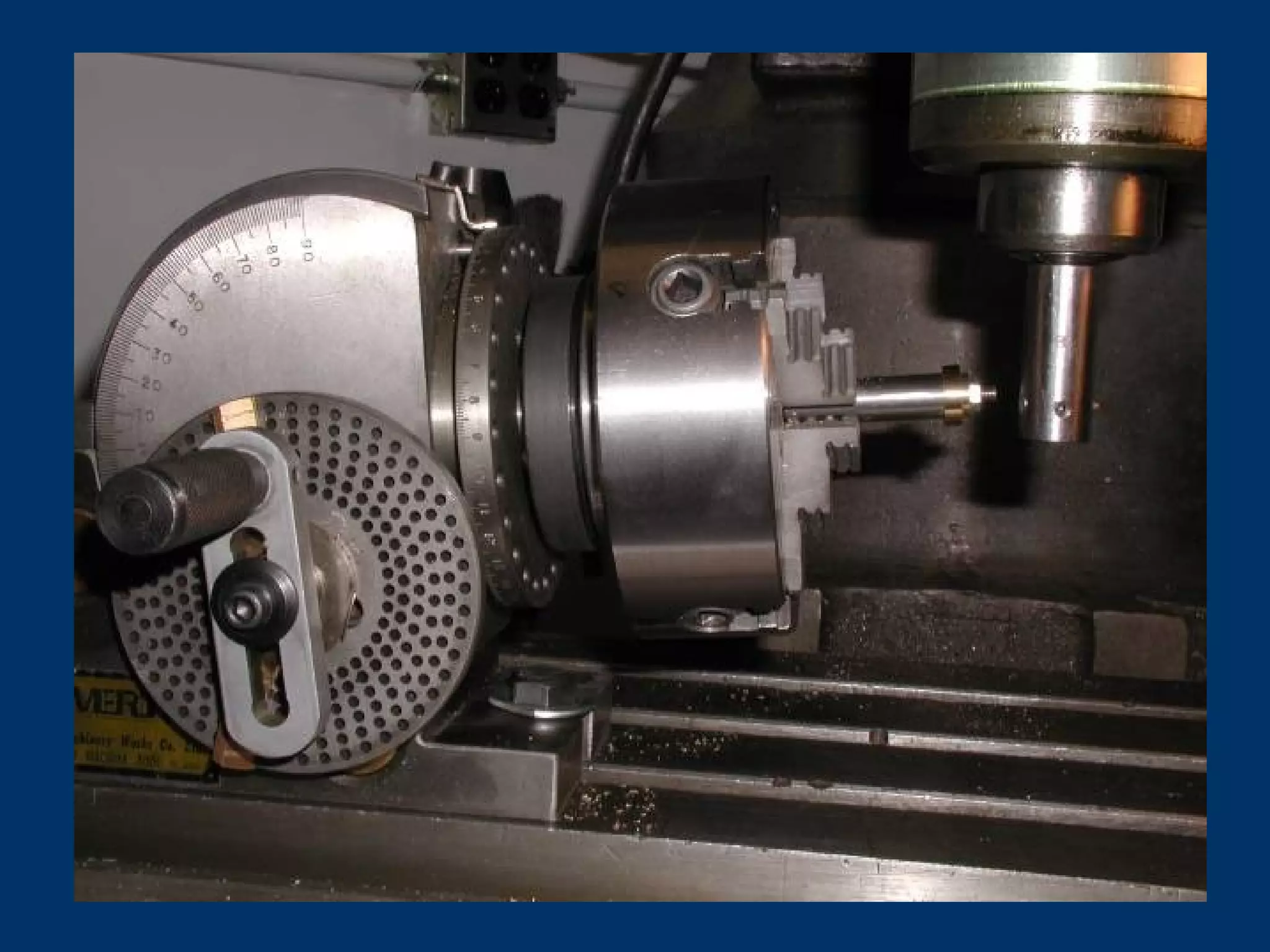

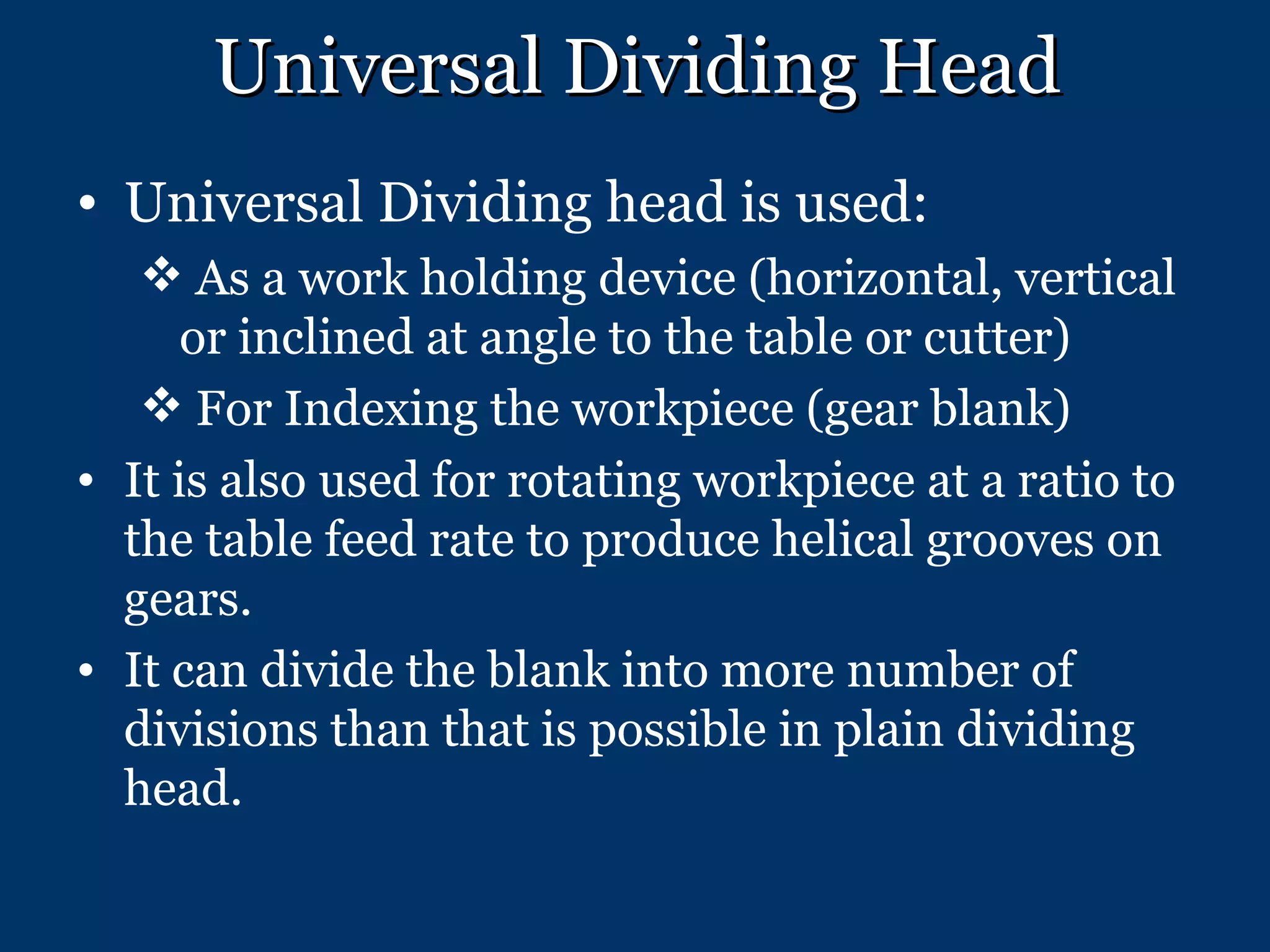

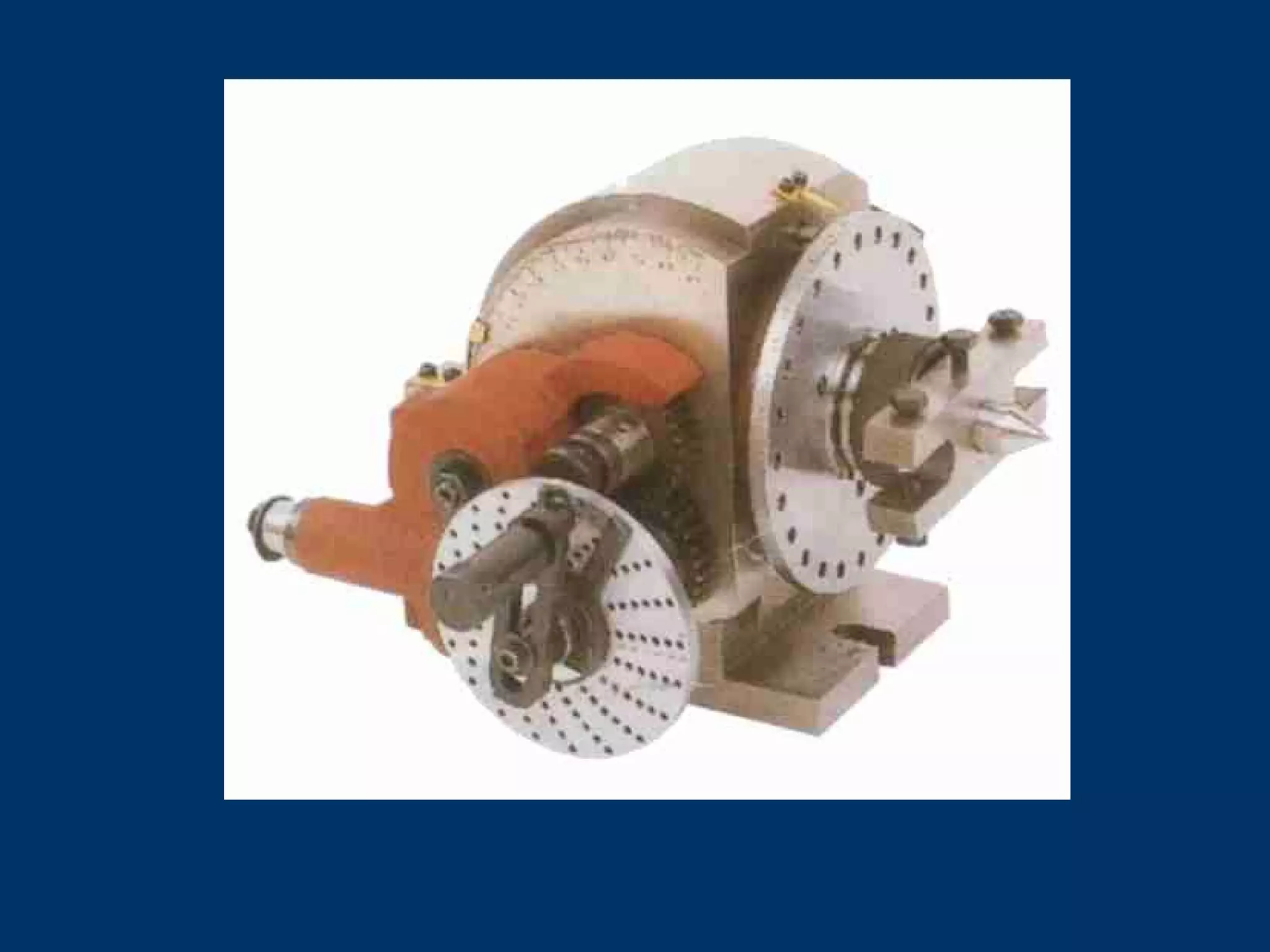

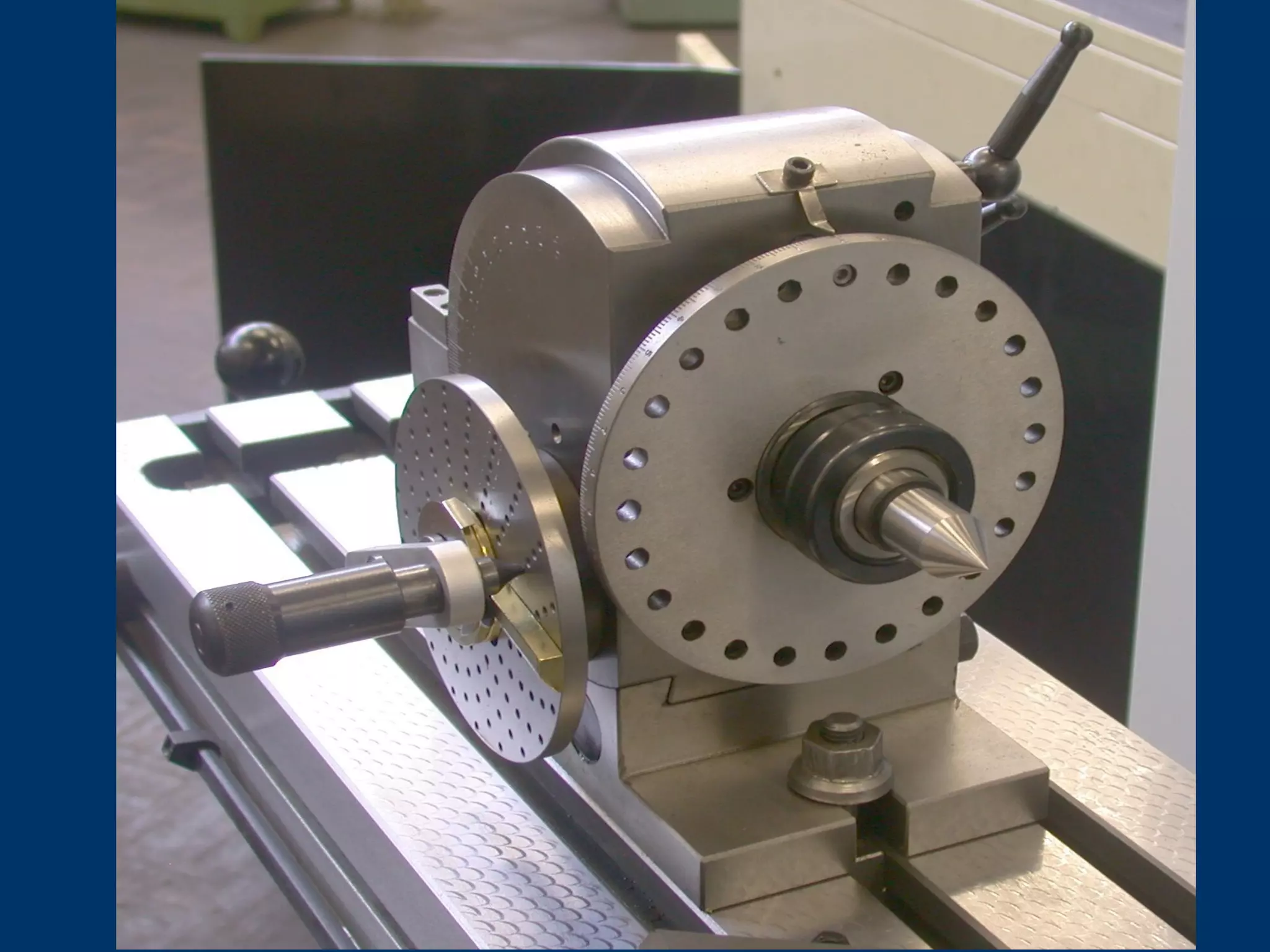

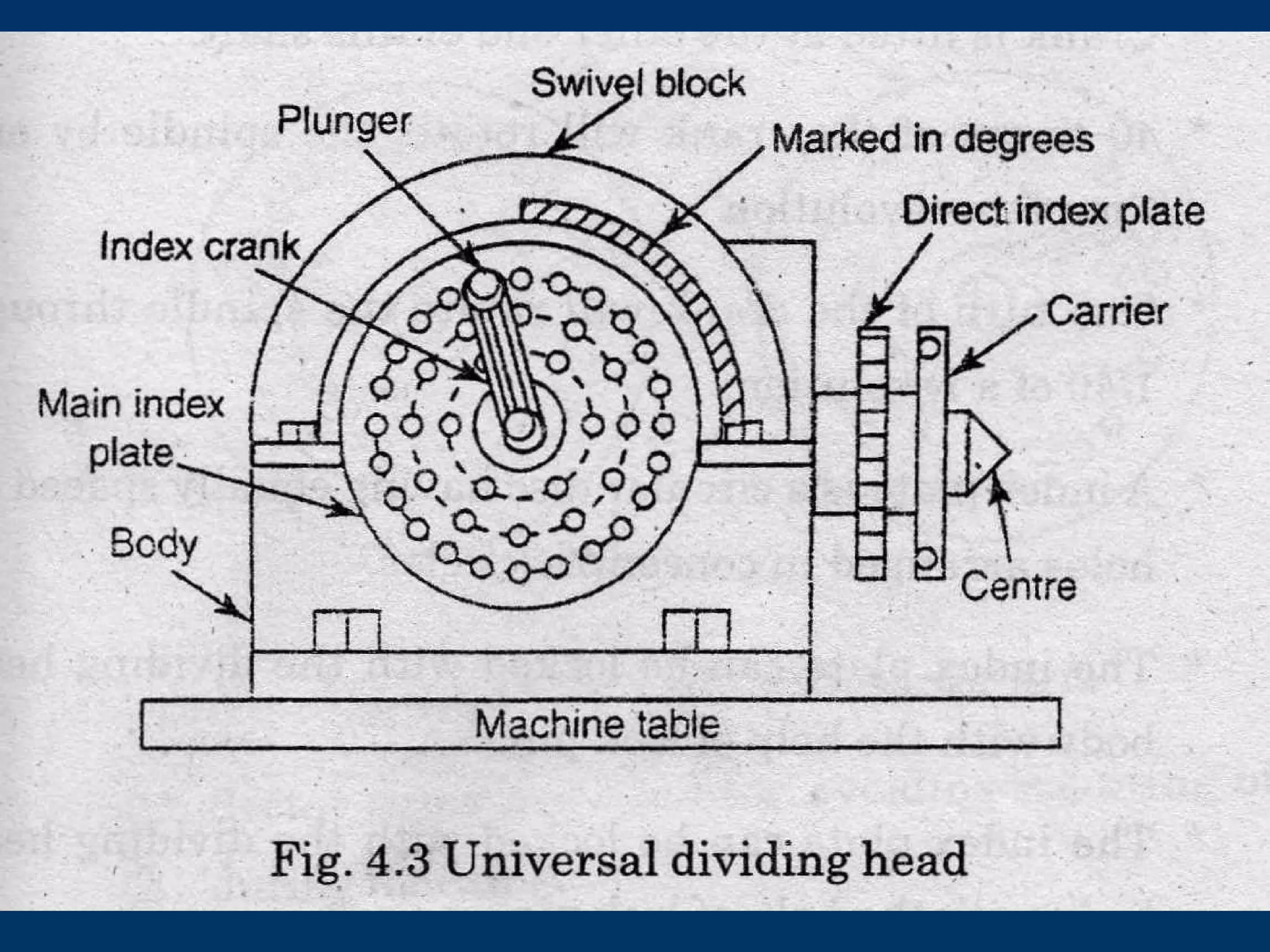

Universal Dividing Head Universal Dividing head is used: As a work holding device (horizontal, vertical or inclined at angle to the table or cutter) For Indexing the workpiece (gear blank) It is also used for rotating workpiece at a ratio to the table feed rate to produce helical grooves on gears. It can divide the blank into more number of divisions than that is possible in plain dividing head.

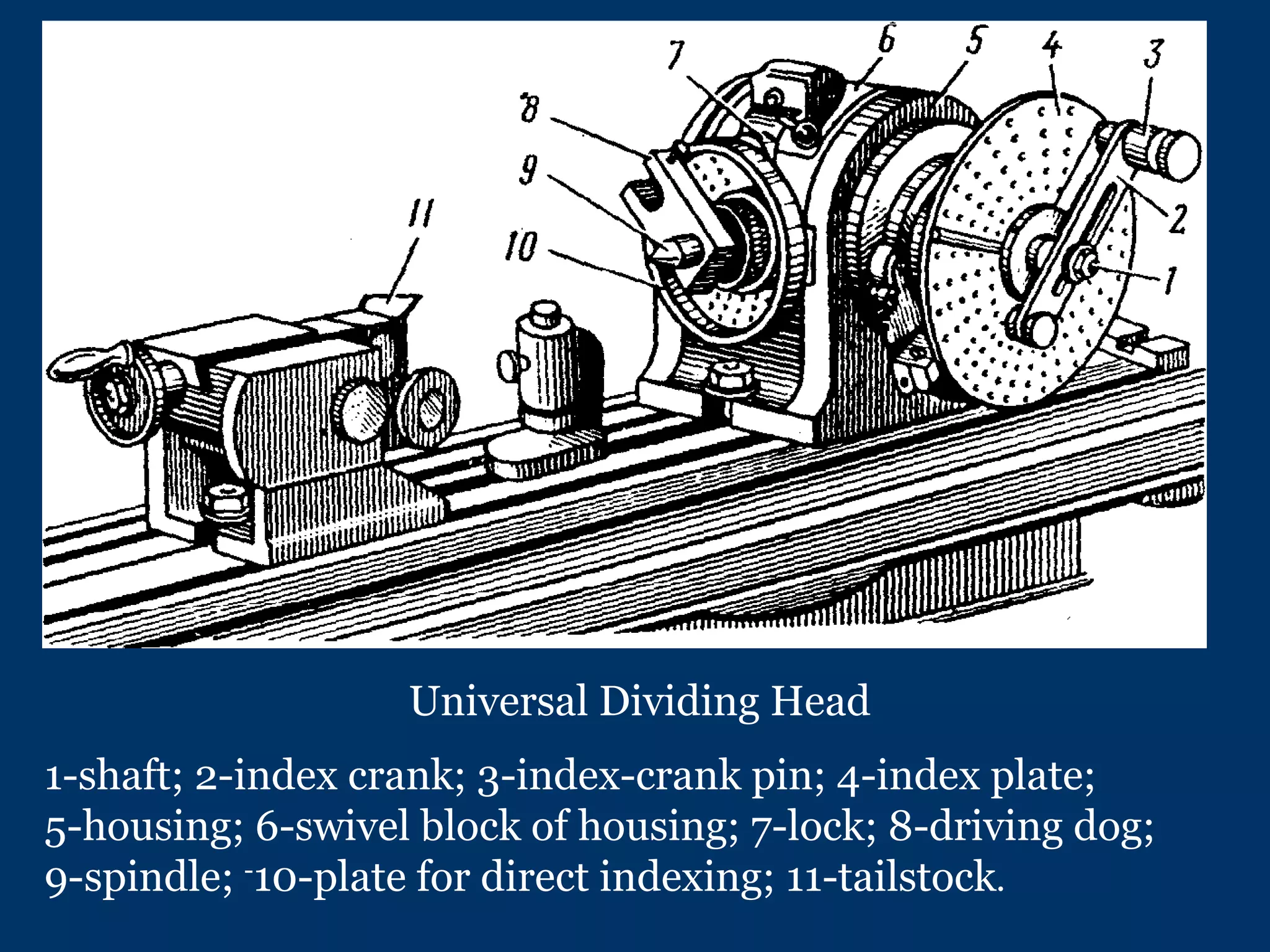

Universal Dividing Head 1-shaft; 2-index crank; 3-index-crank pin; 4-index plate; 5-housing; 6-swivel block of housing; 7-lock; 8-driving dog; 9-spindle; - 10-plate for direct indexing; 11-tailstock .

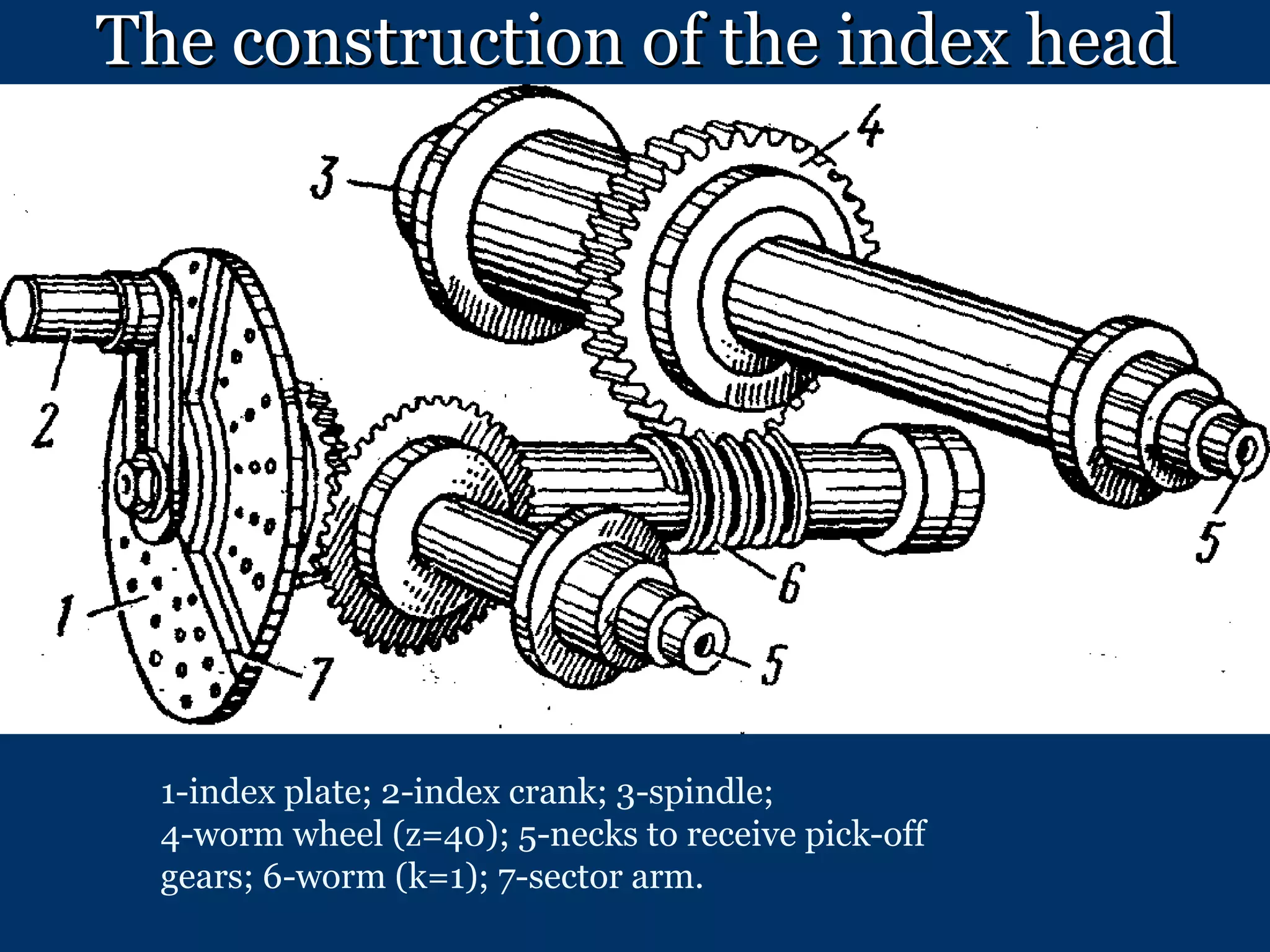

The construction of the index head 1-index plate; 2-index crank; 3-spindle; 4-worm wheel (z=40); 5-necks to receive pick-off gears; 6-worm (k=1); 7-sector arm.

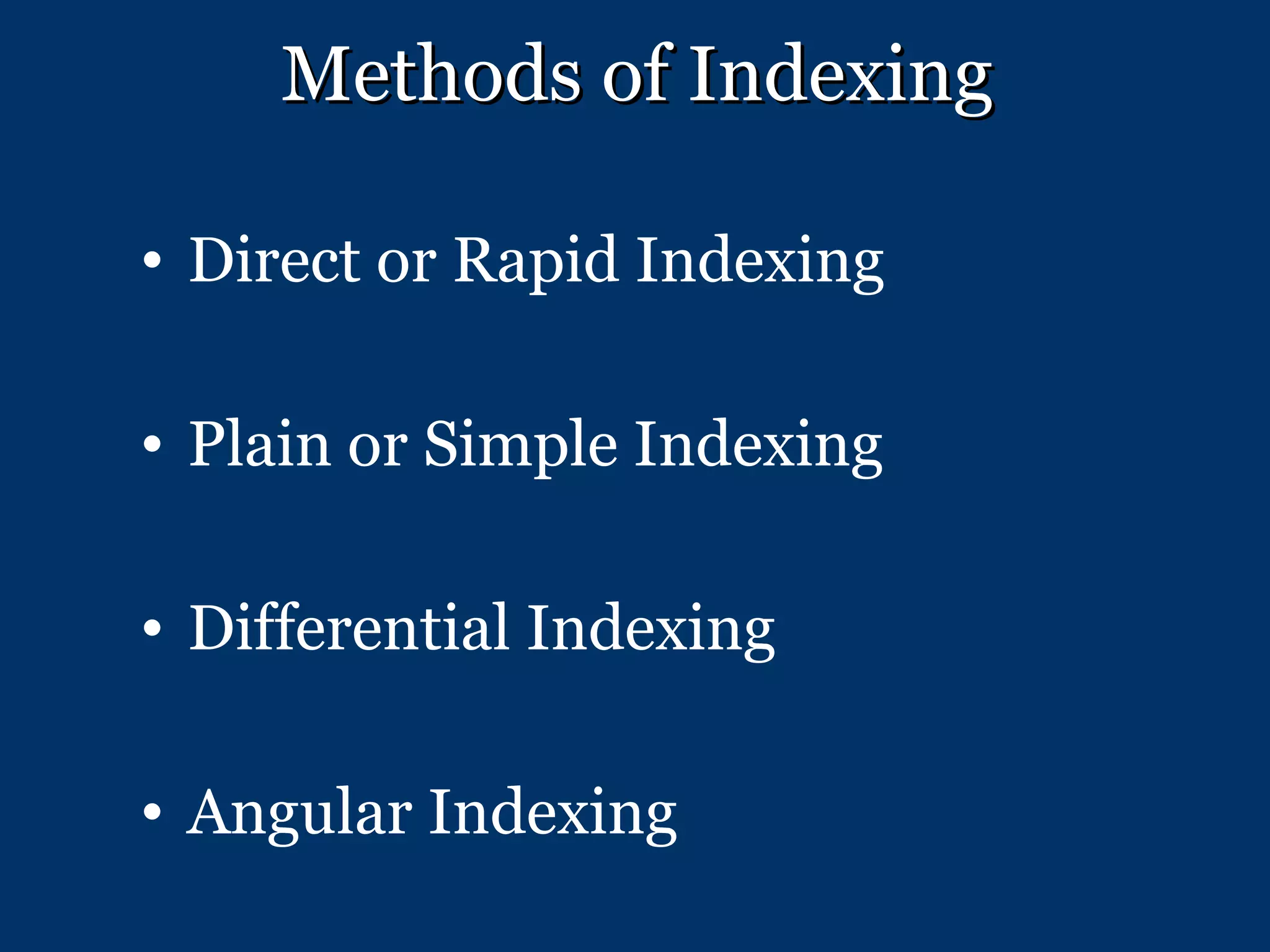

Methods of Indexing Direct or Rapid Indexing Plain or Simple Indexing Differential Indexing Angular Indexing

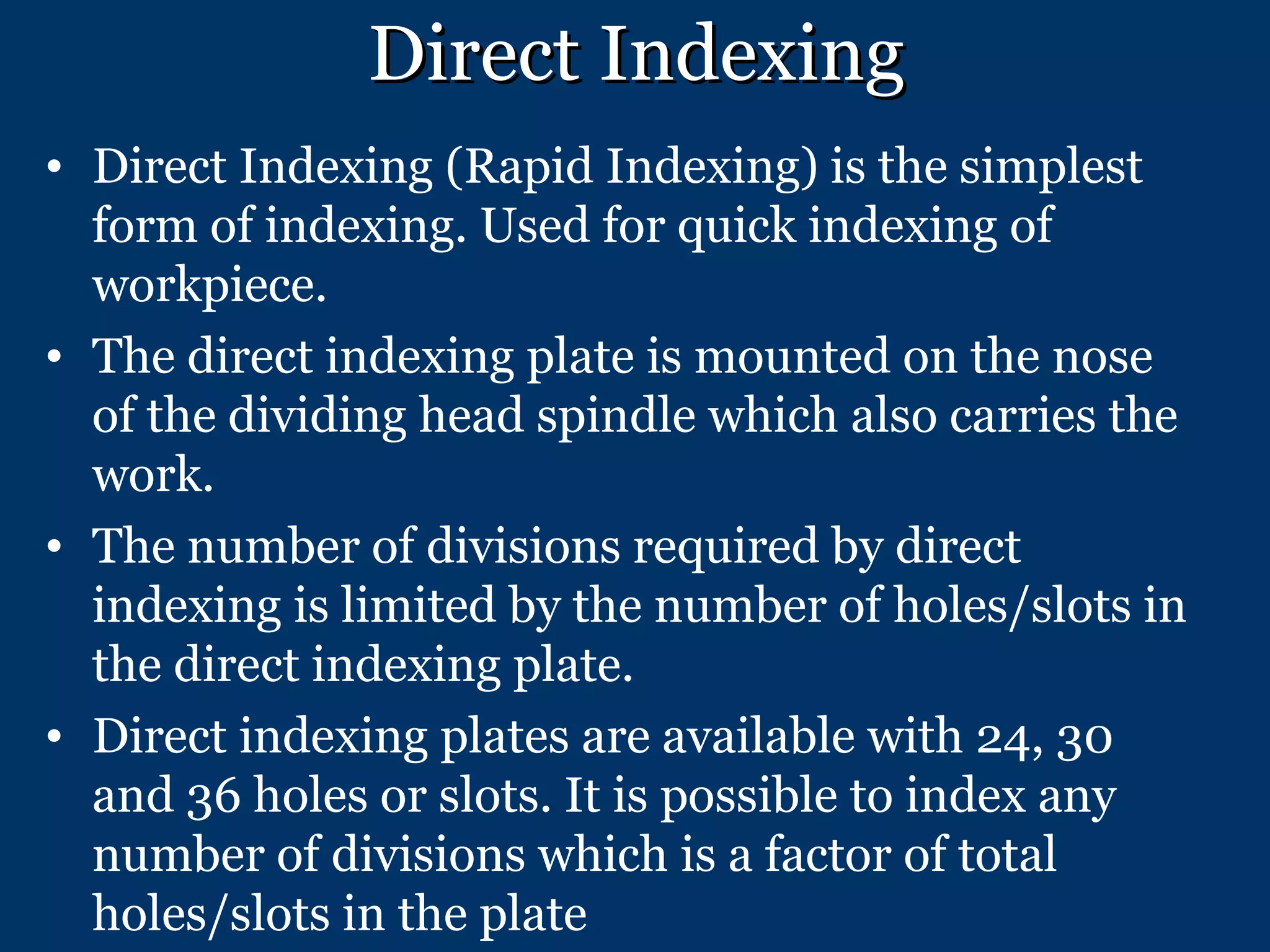

Direct Indexing Direct Indexing (Rapid Indexing) is the simplest form of indexing. Used for quick indexing of workpiece. The direct indexing plate is mounted on the nose of the dividing head spindle which also carries the work. The number of divisions required by direct indexing is limited by the number of holes/slots in the direct indexing plate. Direct indexing plates are available with 24, 30 and 36 holes or slots. It is possible to index any number of divisions which is a factor of total holes/slots in the plate

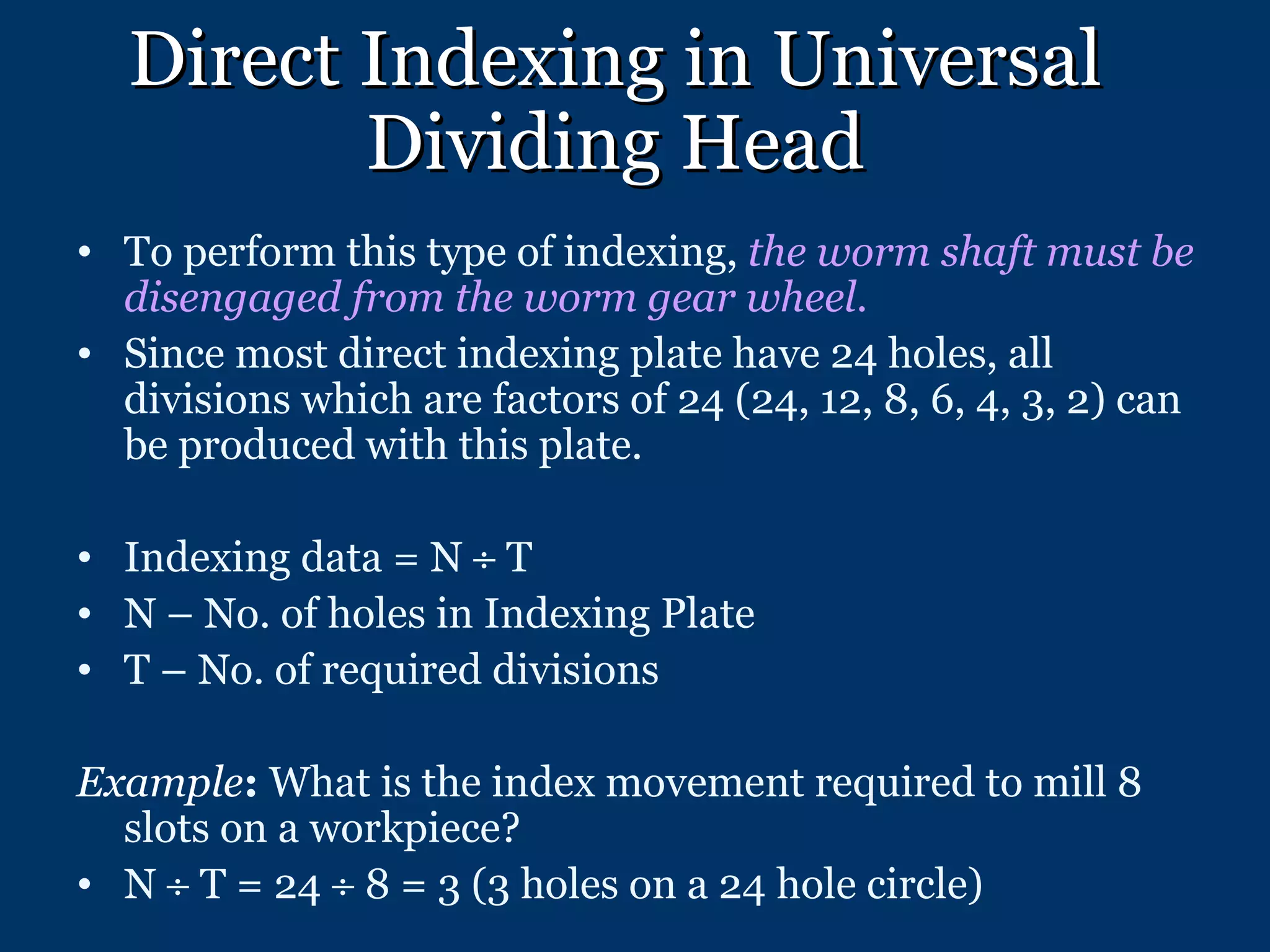

Direct Indexing in Universal Dividing Head To perform this type of indexing, the worm shaft must be disengaged from the worm gear wheel . Since most direct indexing plate have 24 holes, all divisions which are factors of 24 (24, 12, 8, 6, 4, 3, 2) can be produced with this plate. Indexing data = N  T N – No. of holes in Indexing Plate T – No. of required divisions Example : What is the index movement required to mill 8 slots on a workpiece? N  T = 24  8 = 3 (3 holes on a 24 hole circle)

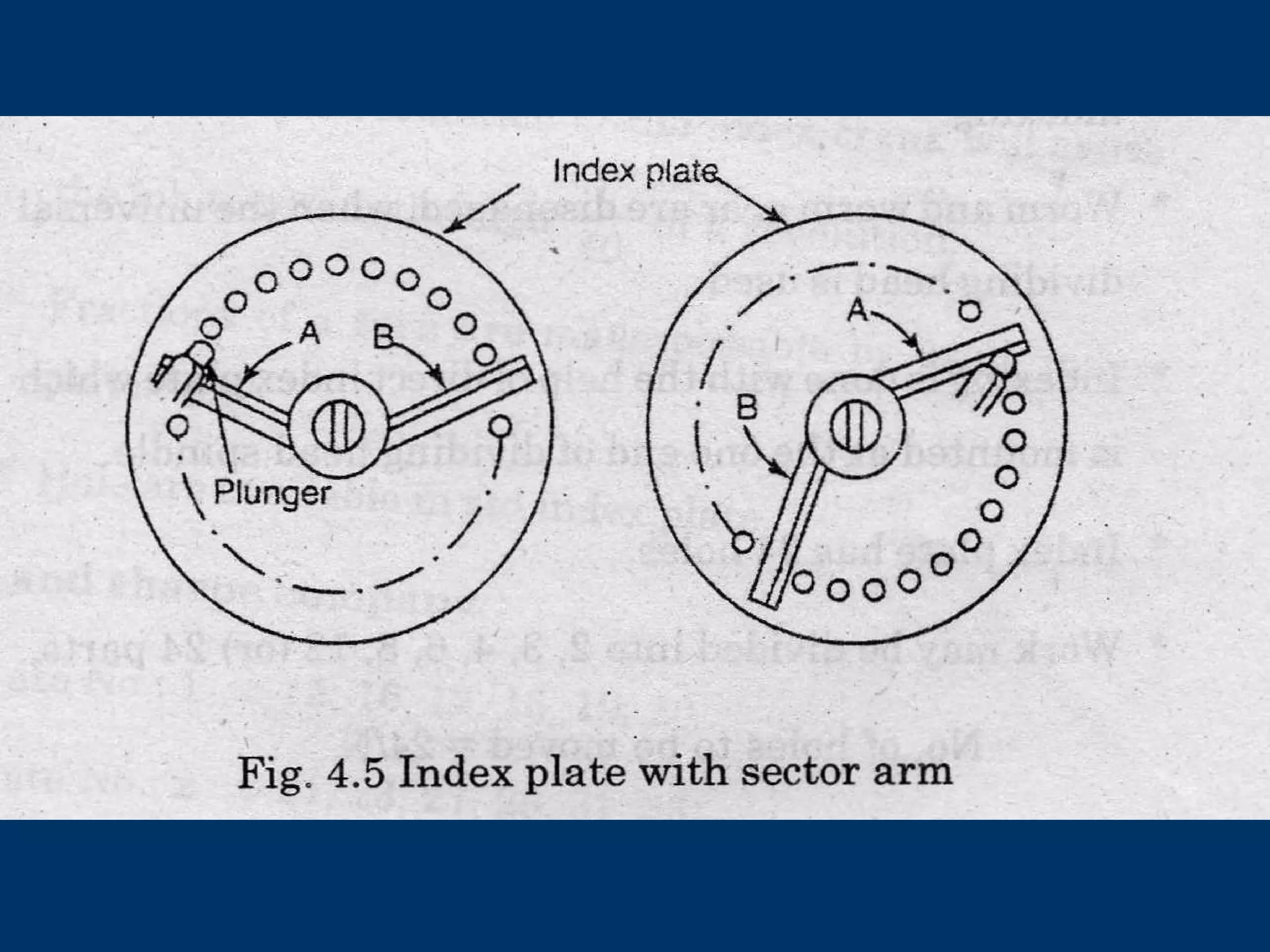

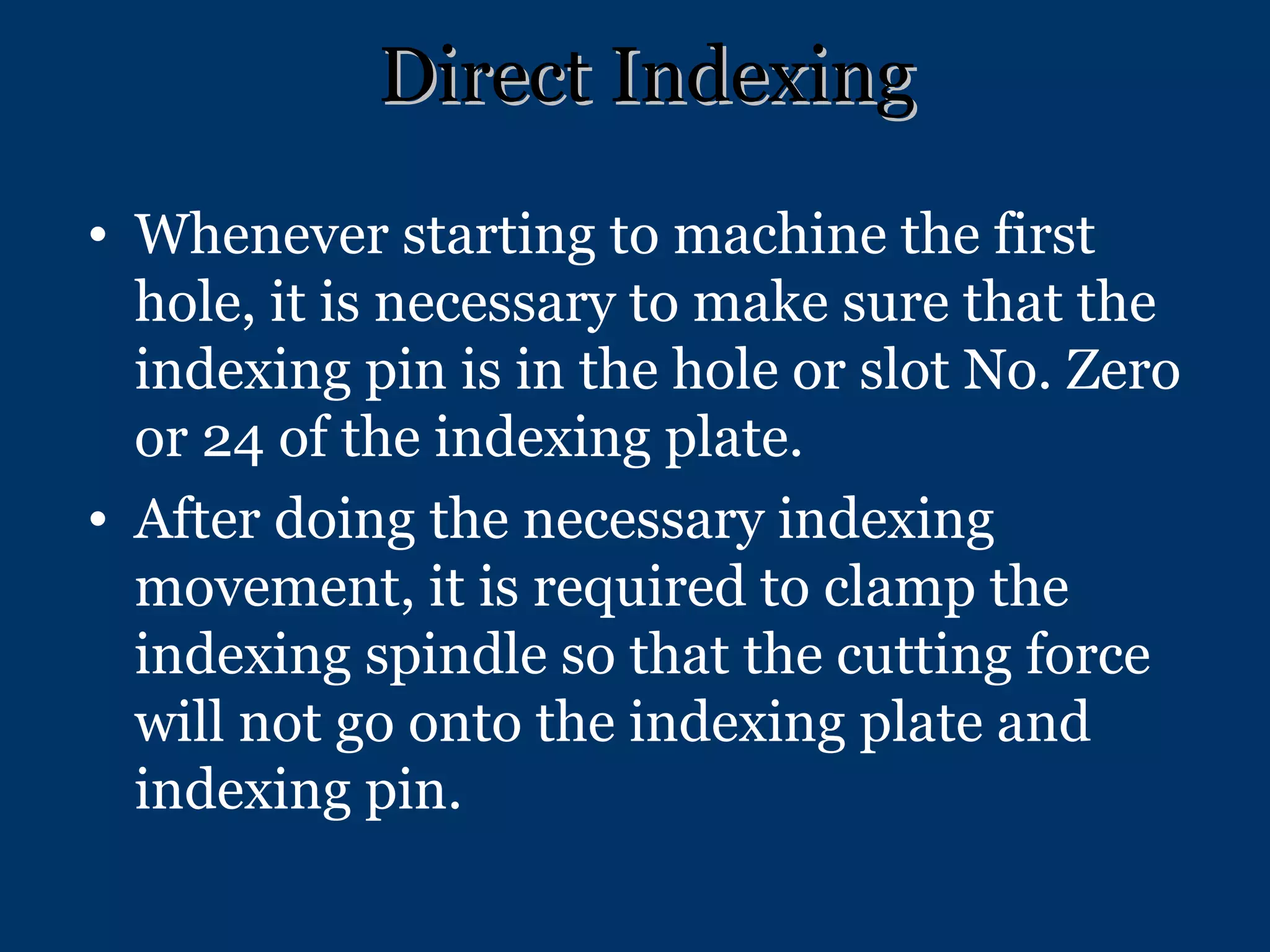

Direct Indexing Whenever starting to machine the first hole, it is necessary to make sure that the indexing pin is in the hole or slot No. Zero or 24 of the indexing plate. After doing the necessary indexing movement, it is required to clamp the indexing spindle so that the cutting force will not go onto the indexing plate and indexing pin.

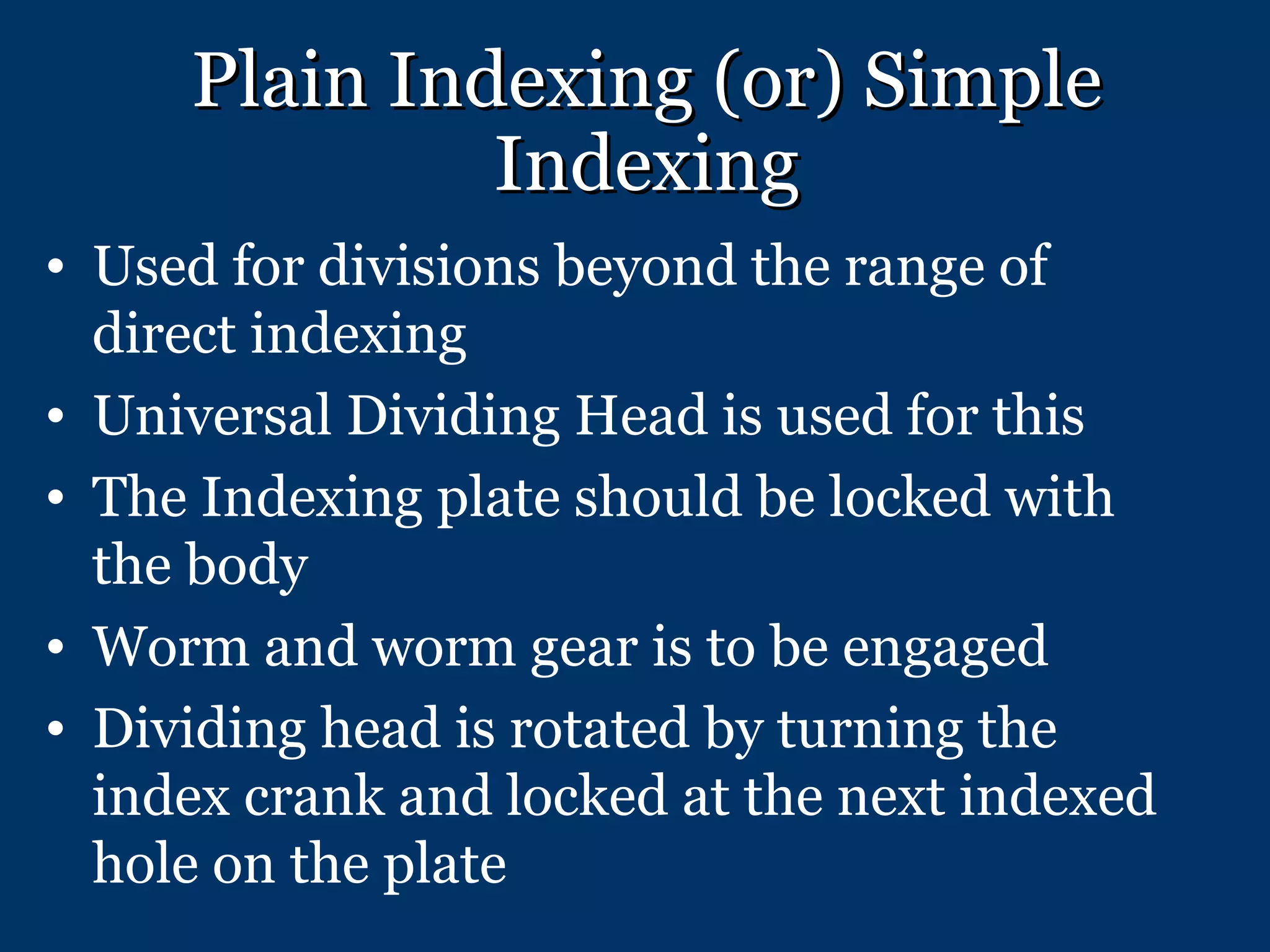

Plain Indexing (or) Simple Indexing Used for divisions beyond the range of direct indexing Universal Dividing Head is used for this The Indexing plate should be locked with the body Worm and worm gear is to be engaged Dividing head is rotated by turning the index crank and locked at the next indexed hole on the plate

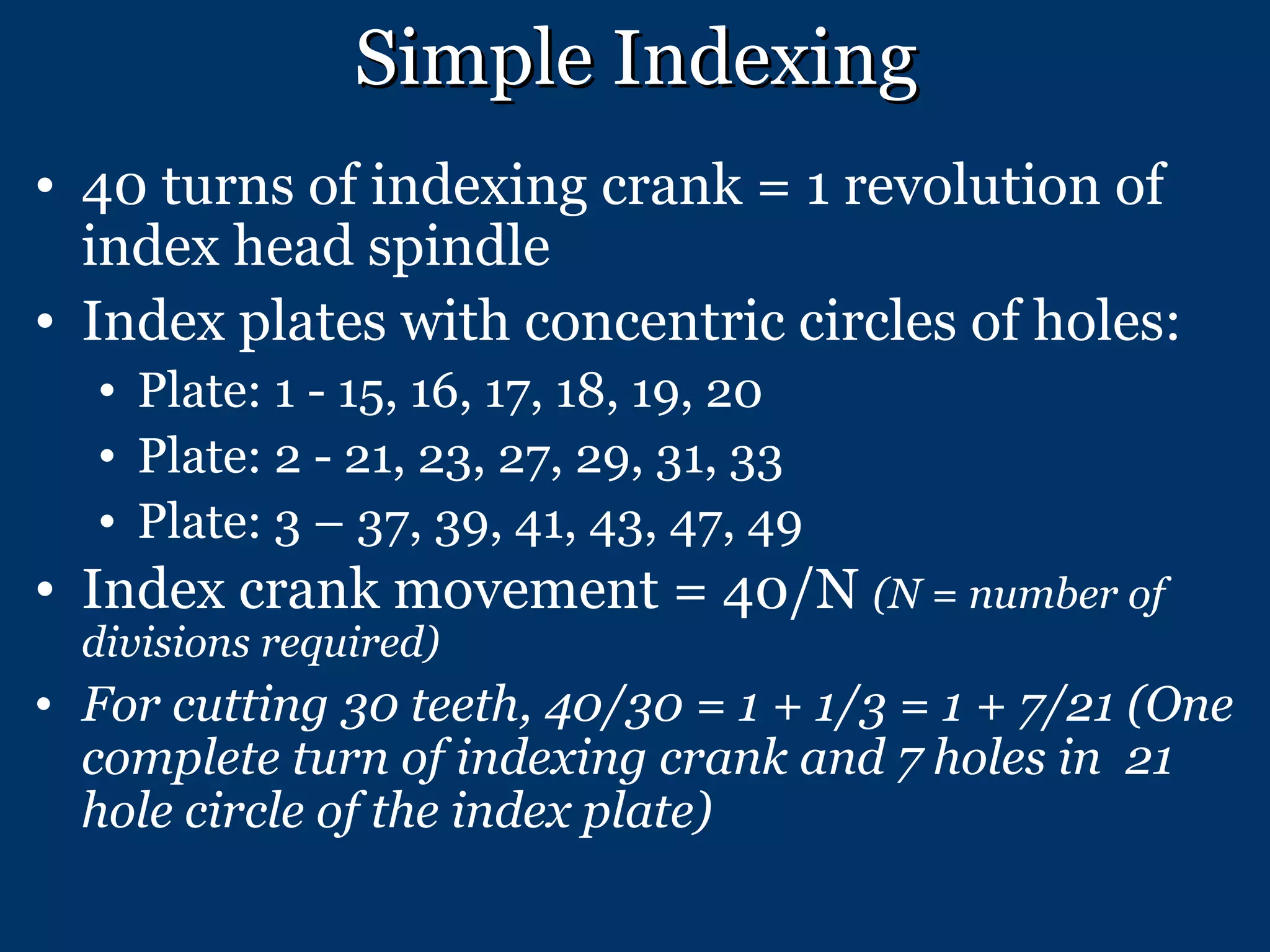

Simple Indexing 40 turns of indexing crank = 1 revolution of index head spindle Index plates with concentric circles of holes: Plate: 1 - 15, 16, 17, 18, 19, 20 Plate: 2 - 21, 23, 27, 29, 31, 33 Plate: 3 – 37, 39, 41, 43, 47, 49 Index crank movement = 40/N (N = number of divisions required) For cutting 30 teeth, 40/30 = 1 + 1/3 = 1 + 7/21 (One complete turn of indexing crank and 7 holes in 21 hole circle of the index plate)

Differential Indexing This method is used for divisions that could not be indexed by simple indexing The required division is obtained by combination of: Movement of the index crank similar to simple indexing Simultaneous movement of the index plate when the crank is turned The rotation of the index plate may be in the same direction or opposite to the crank rotation

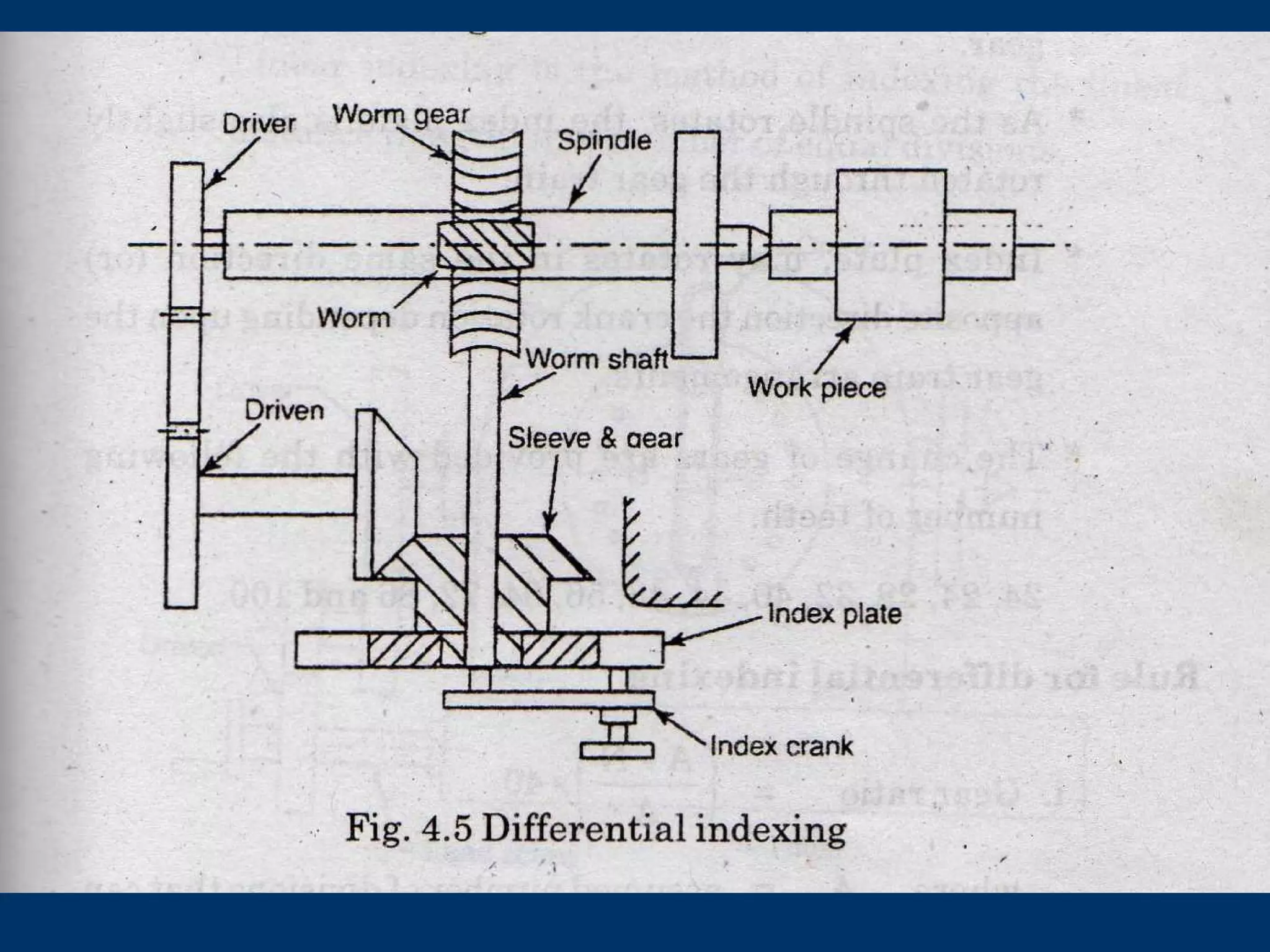

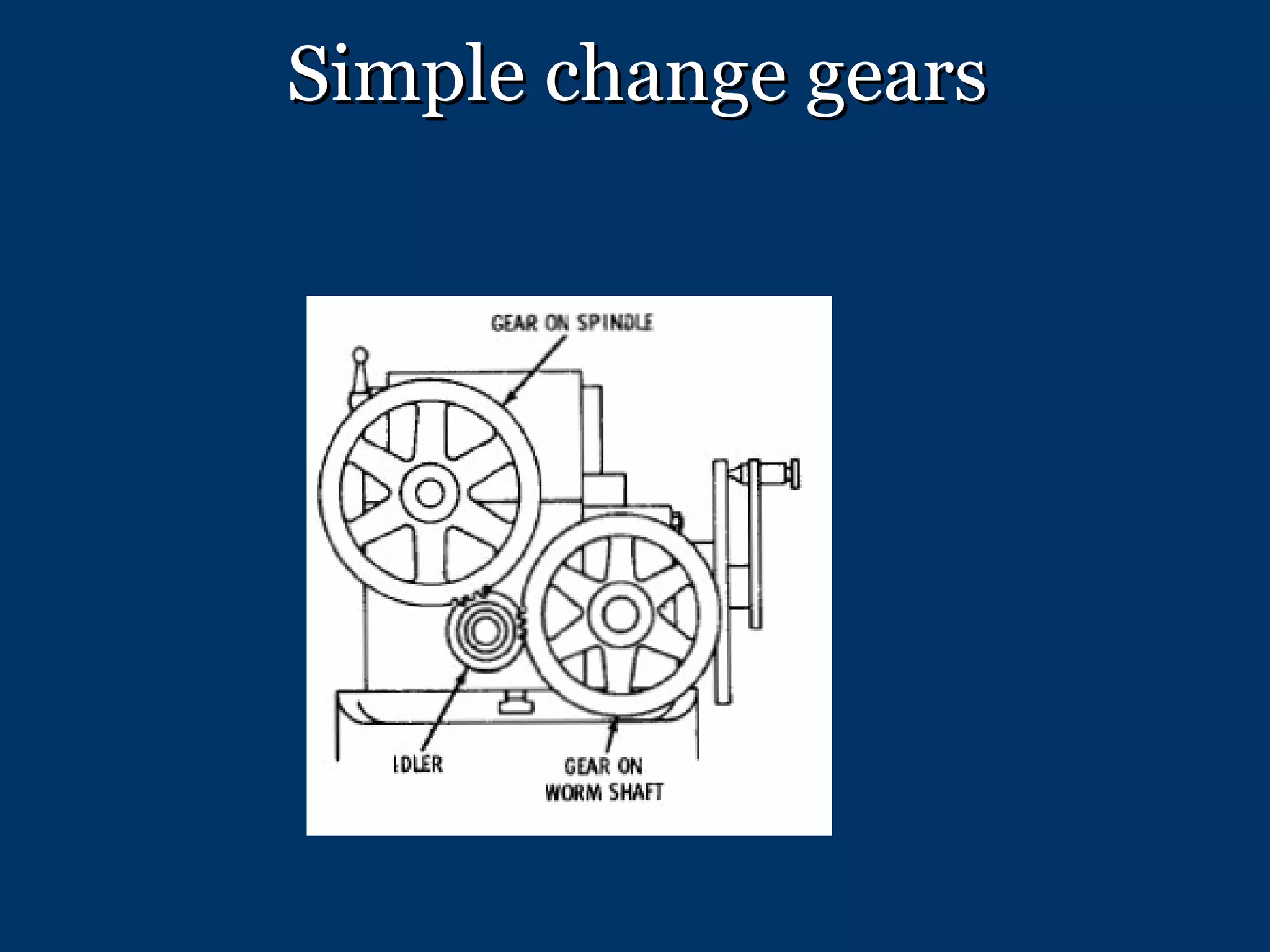

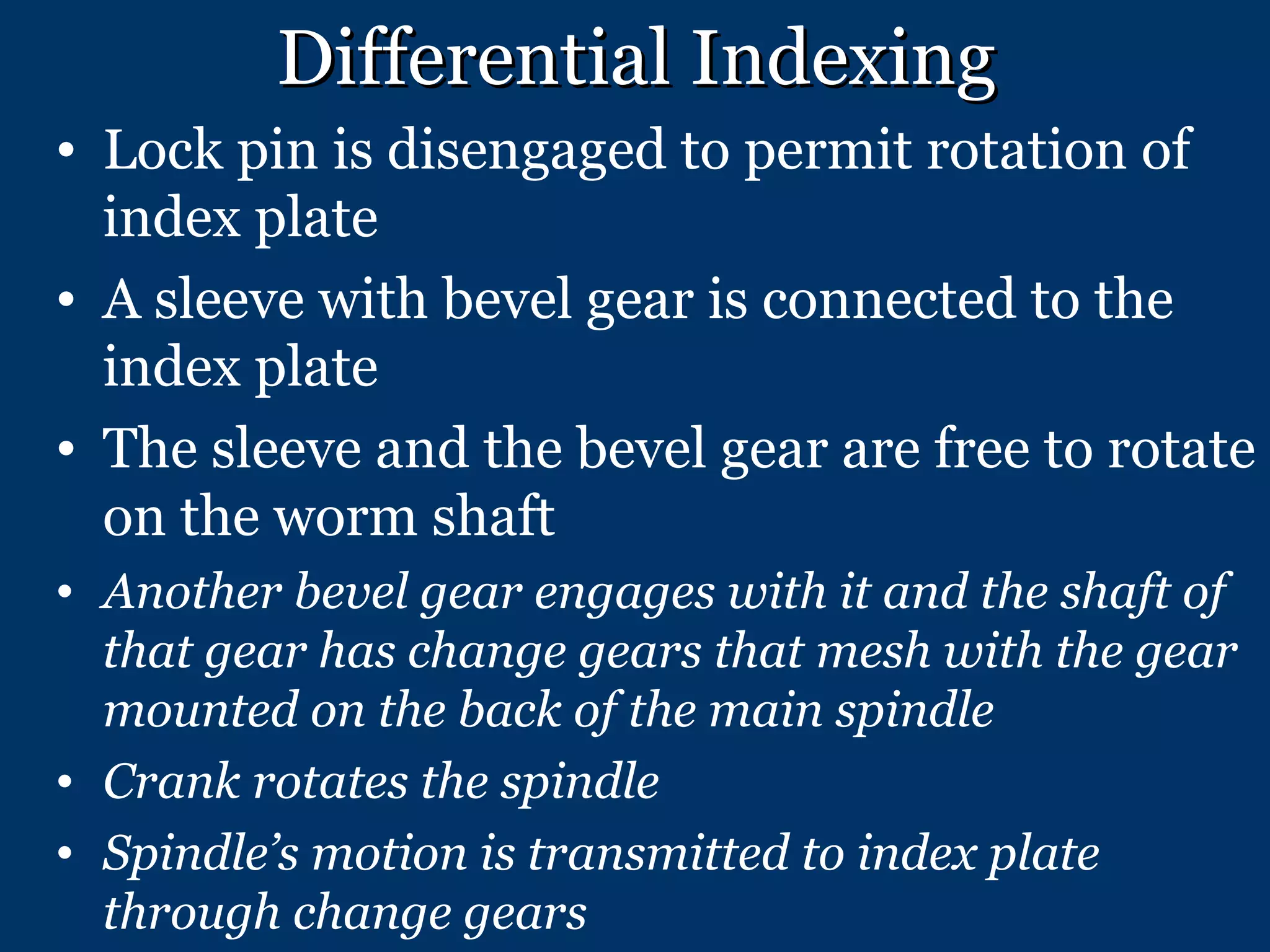

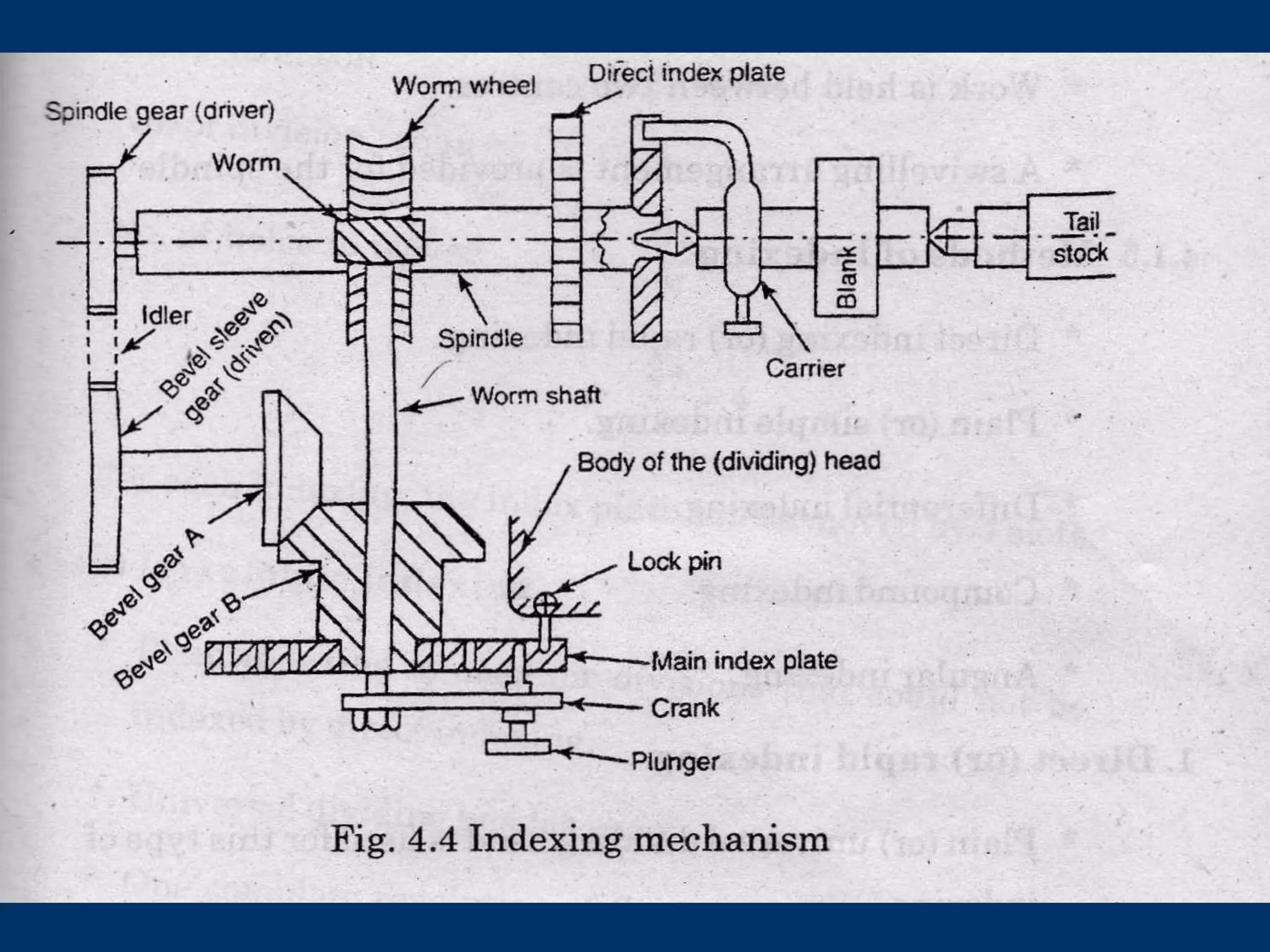

Differential Indexing Lock pin is disengaged to permit rotation of index plate A sleeve with bevel gear is connected to the index plate The sleeve and the bevel gear are free to rotate on the worm shaft Another bevel gear engages with it and the shaft of that gear has change gears that mesh with the gear mounted on the back of the main spindle Crank rotates the spindle Spindle’s motion is transmitted to index plate through change gears

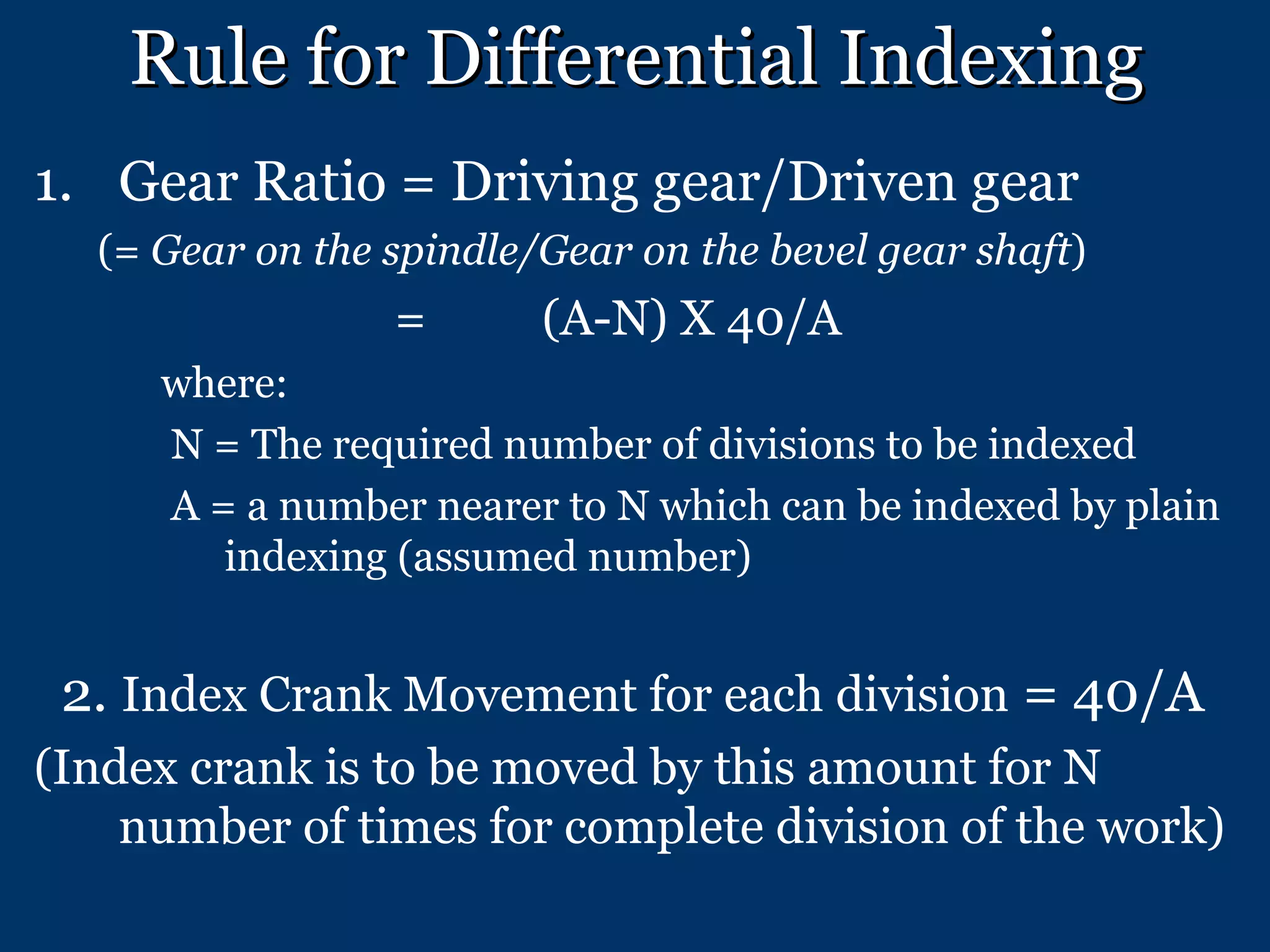

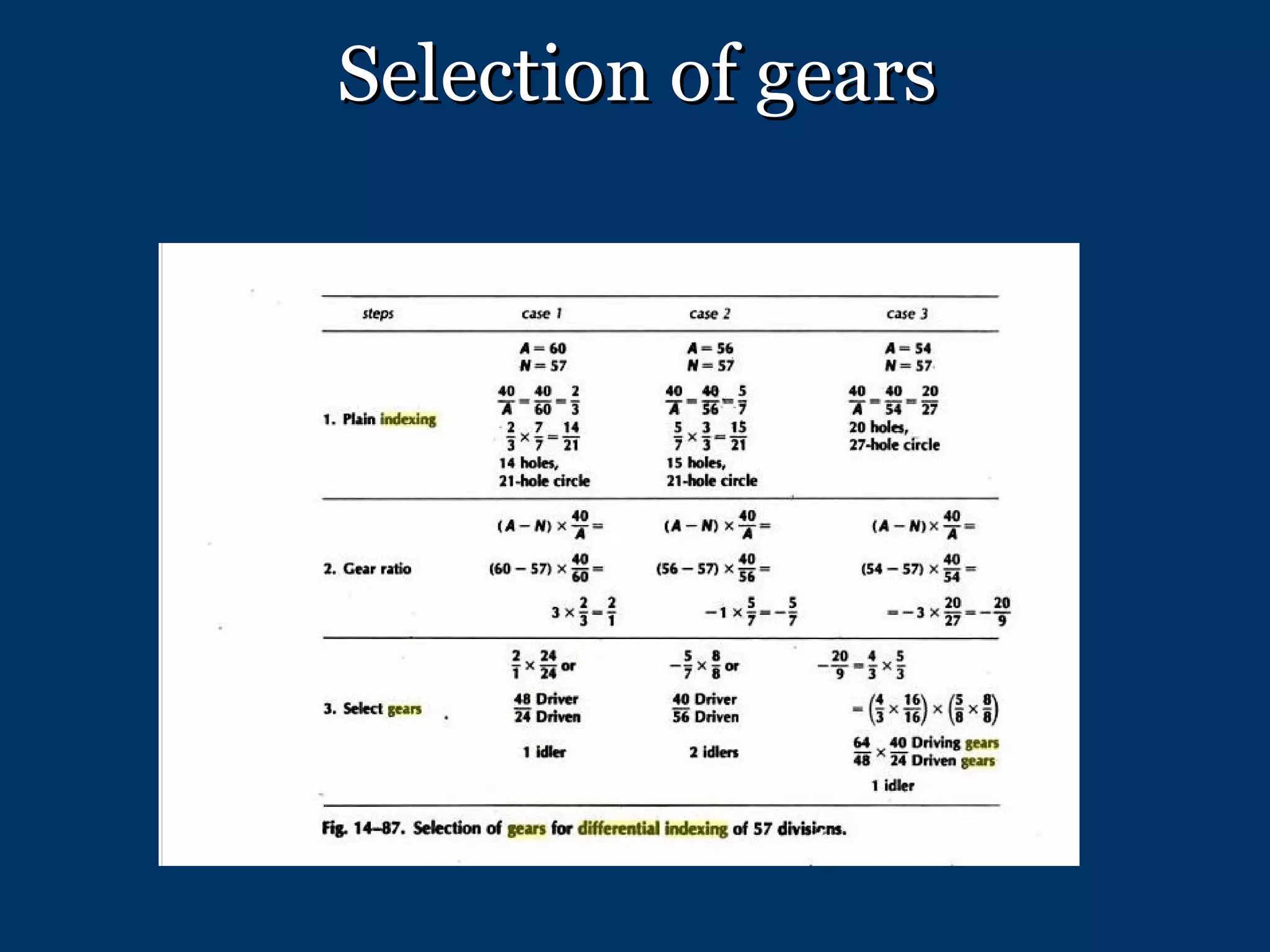

Rule for Differential Indexing Gear Ratio = Driving gear/Driven gear (= Gear on the spindle/Gear on the bevel gear shaft ) = (A-N) X 40/A where: N = The required number of divisions to be indexed A = a number nearer to N which can be indexed by plain indexing (assumed number) 2. Index Crank Movement for each division = 40/A (Index crank is to be moved by this amount for N number of times for complete division of the work)

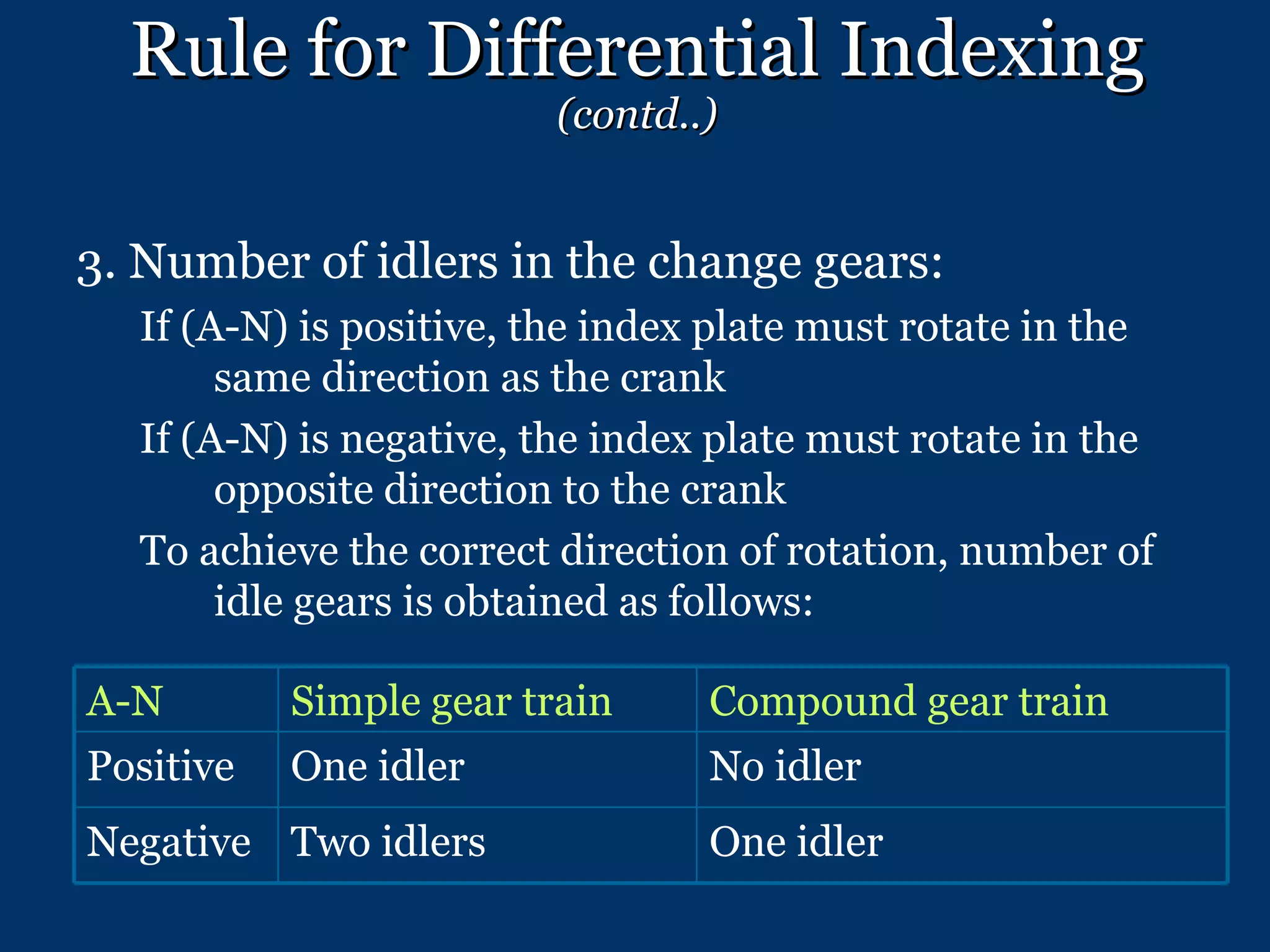

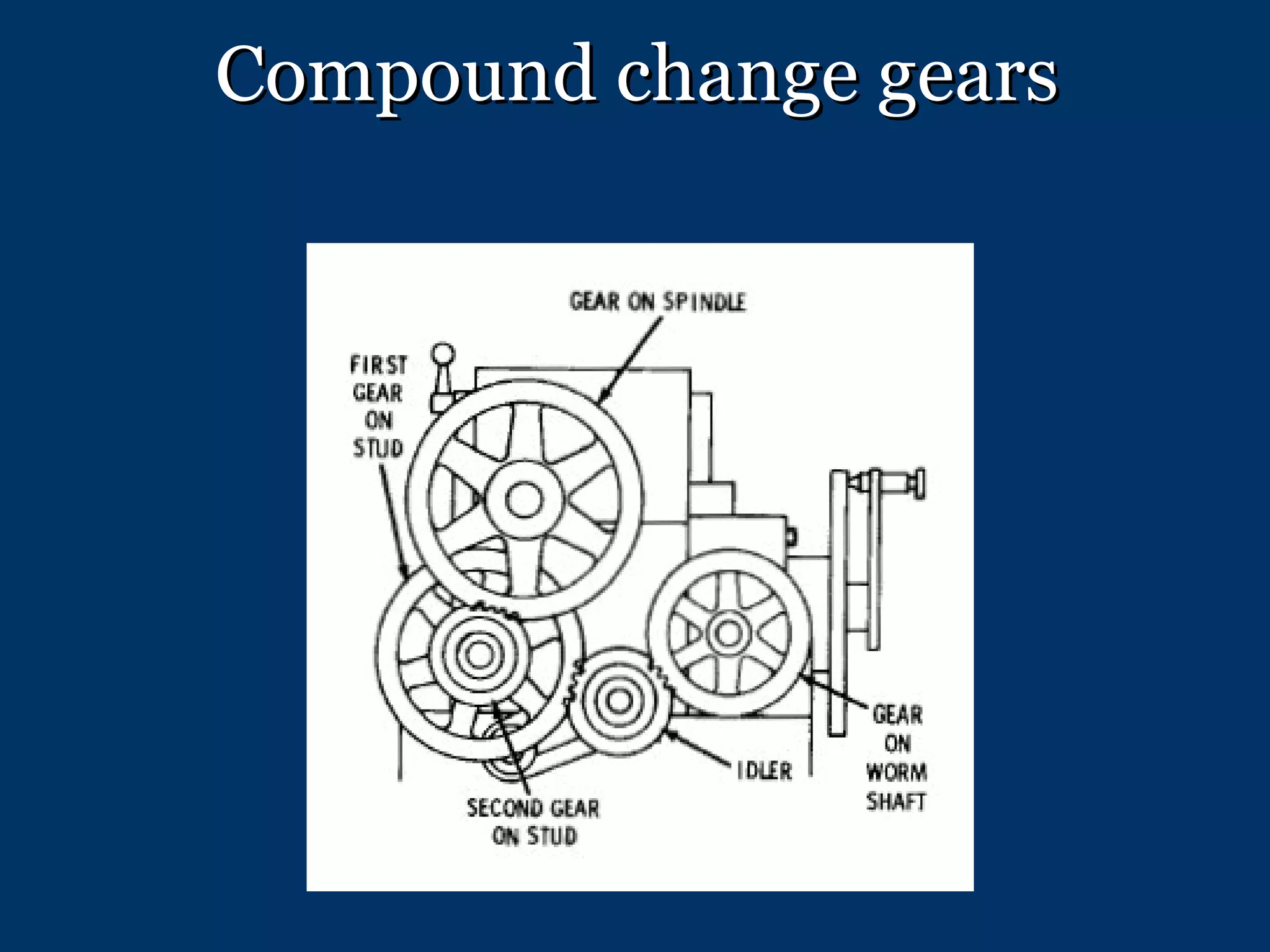

Rule for Differential Indexing (contd..) 3. Number of idlers in the change gears: If (A-N) is positive, the index plate must rotate in the same direction as the crank If (A-N) is negative, the index plate must rotate in the opposite direction to the crank To achieve the correct direction of rotation, number of idle gears is obtained as follows: A-N Simple gear train Compound gear train Positive One idler No idler Negative Two idlers One idler

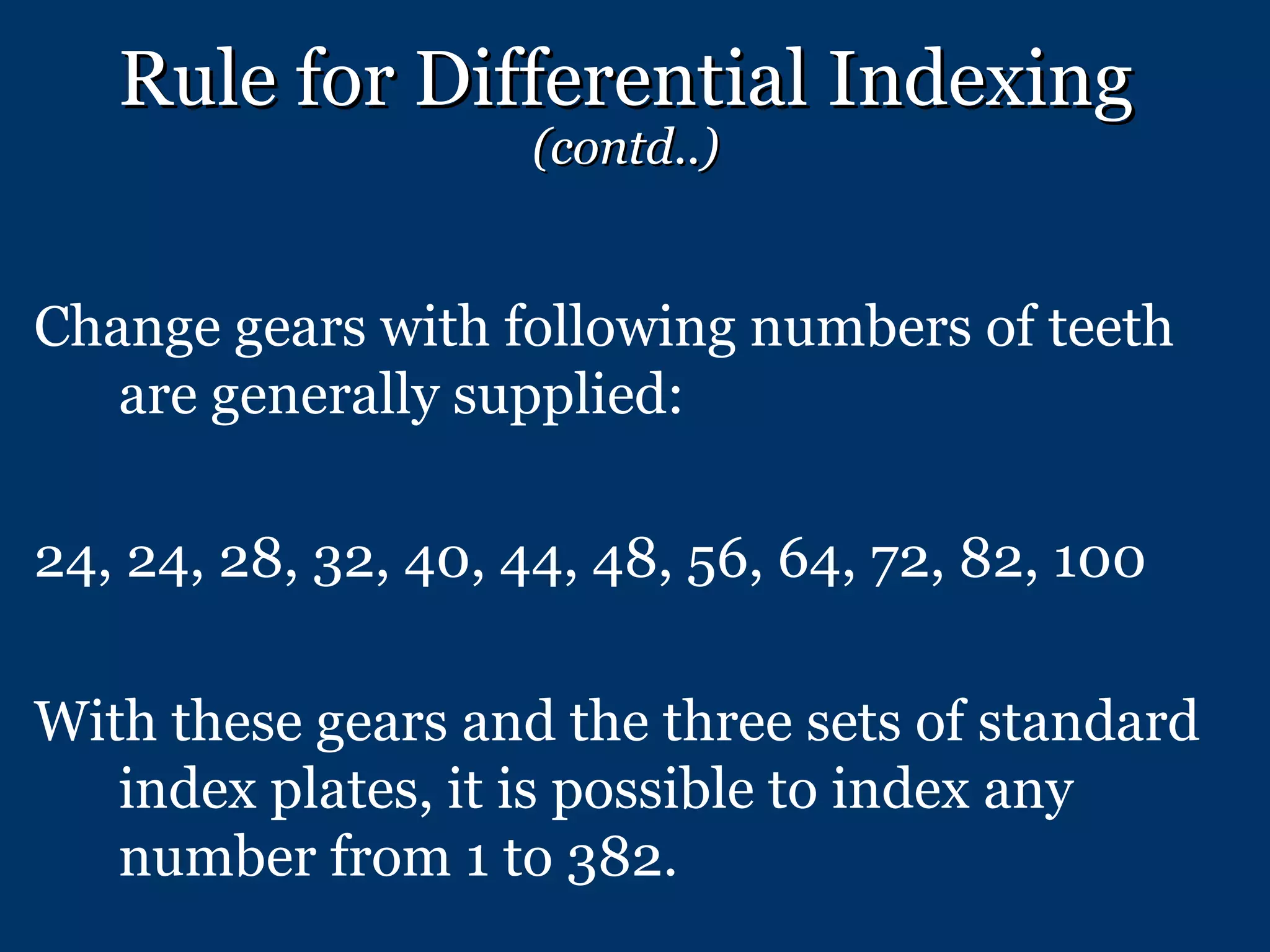

Rule for Differential Indexing (contd..) Change gears with following numbers of teeth are generally supplied: 24, 24, 28, 32, 40, 44, 48, 56, 64, 72, 82, 100 With these gears and the three sets of standard index plates, it is possible to index any number from 1 to 382.

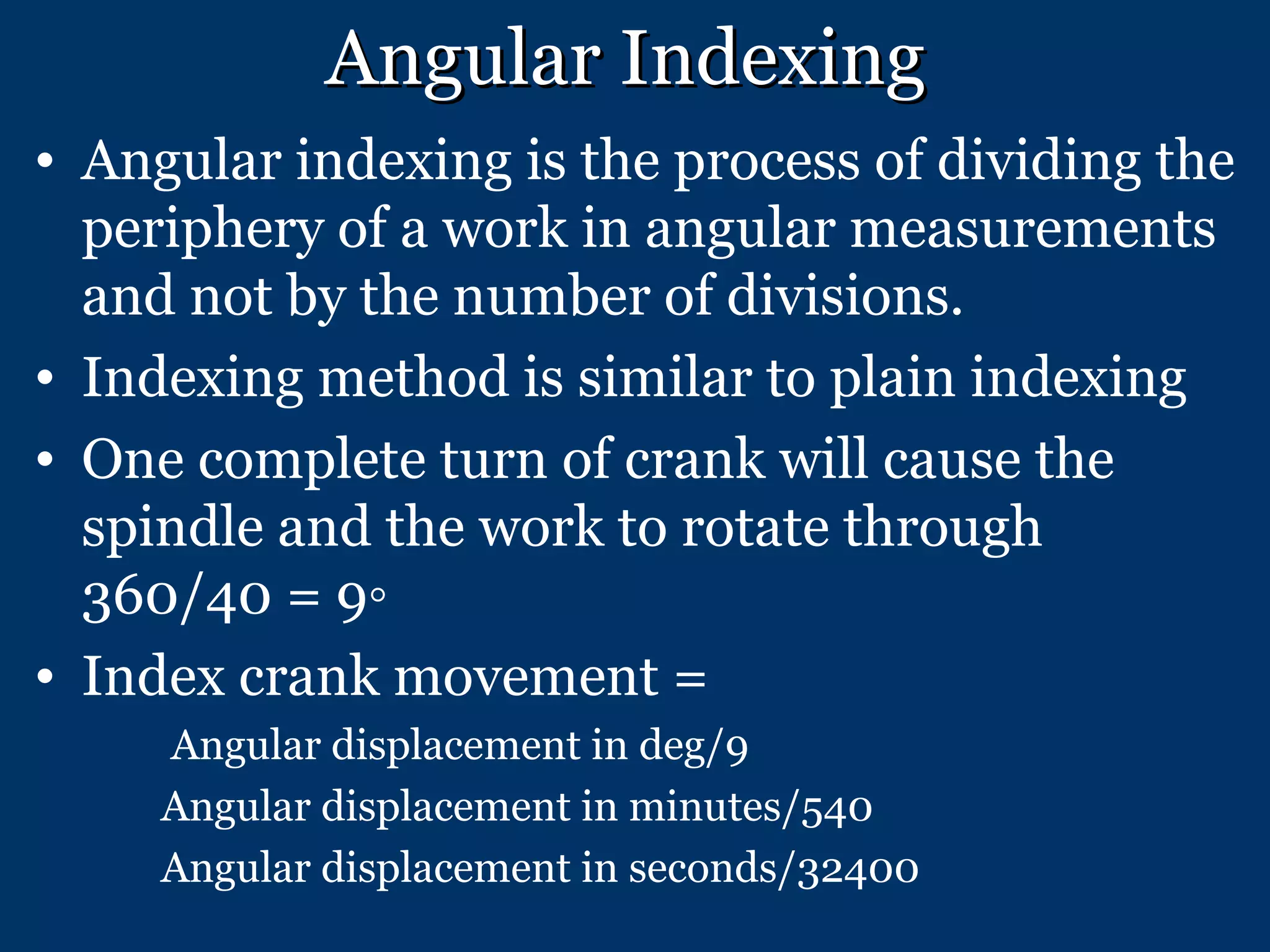

Angular Indexing Angular indexing is the process of dividing the periphery of a work in angular measurements and not by the number of divisions. Indexing method is similar to plain indexing One complete turn of crank will cause the spindle and the work to rotate through 360/40 = 9◦ Index crank movement = Angular displacement in deg/9 Angular displacement in minutes/540 Angular displacement in seconds/32400

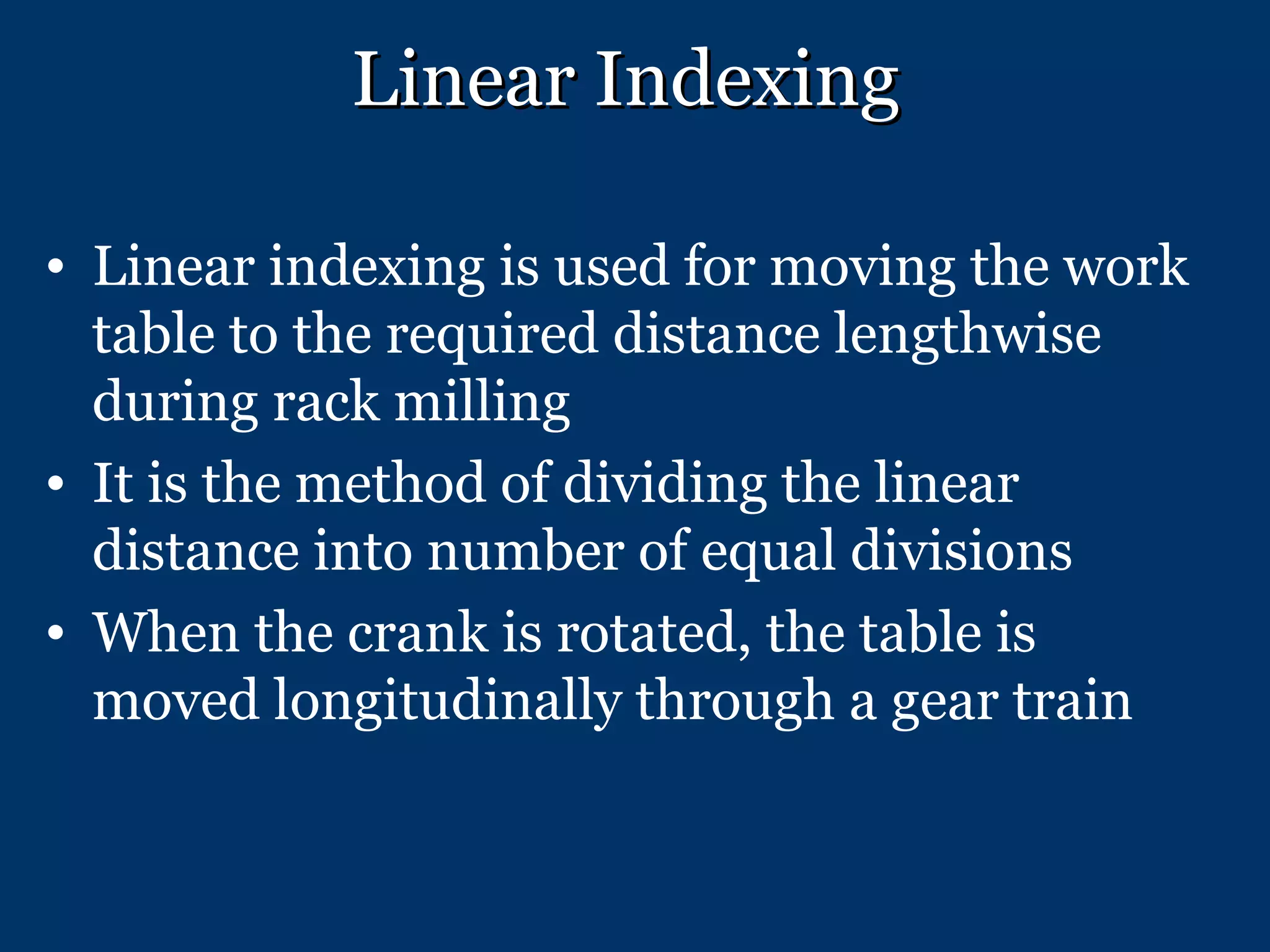

Linear Indexing Linear indexing is used for moving the work table to the required distance lengthwise during rack milling It is the method of dividing the linear distance into number of equal divisions When the crank is rotated, the table is moved longitudinally through a gear train

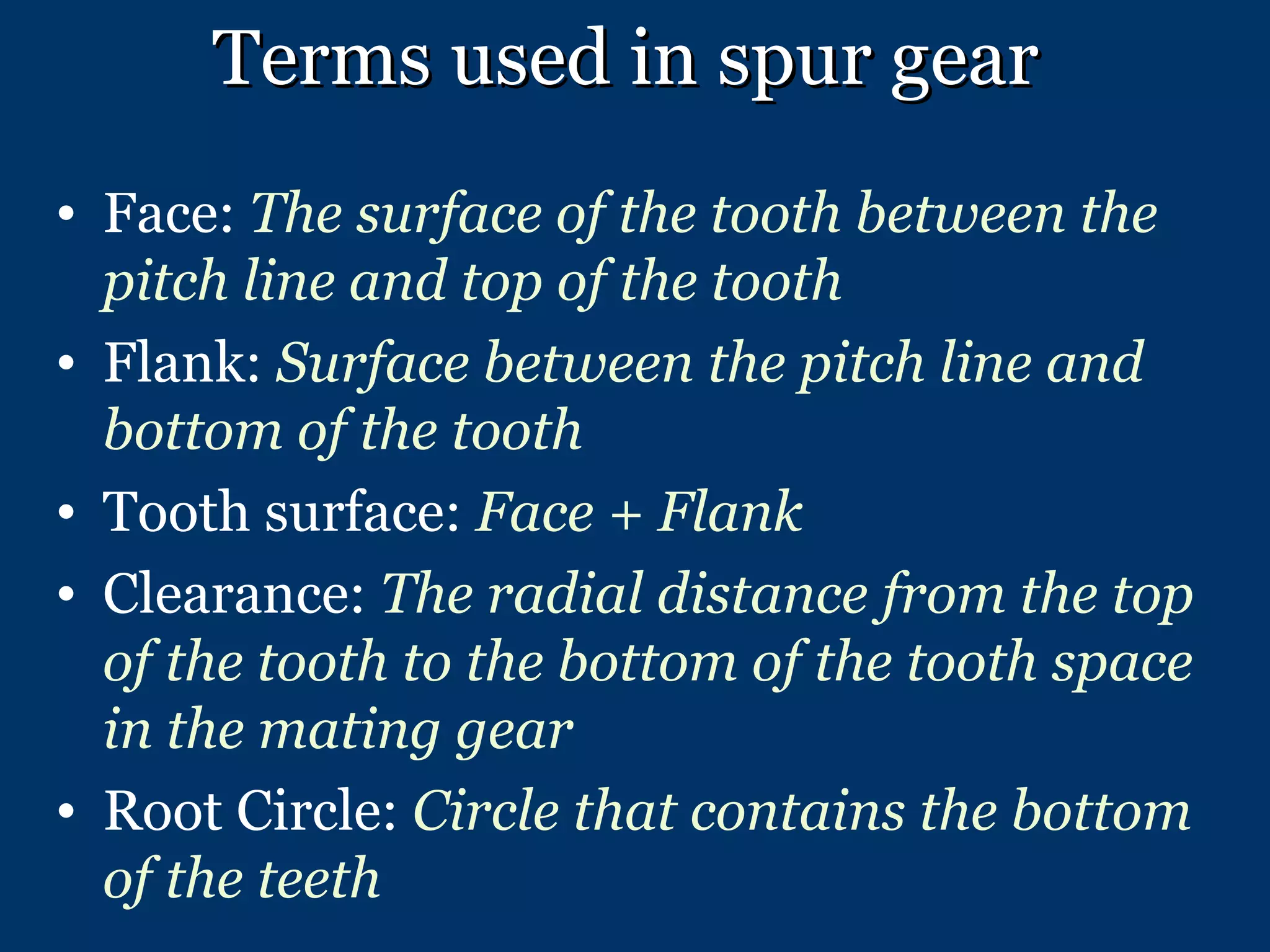

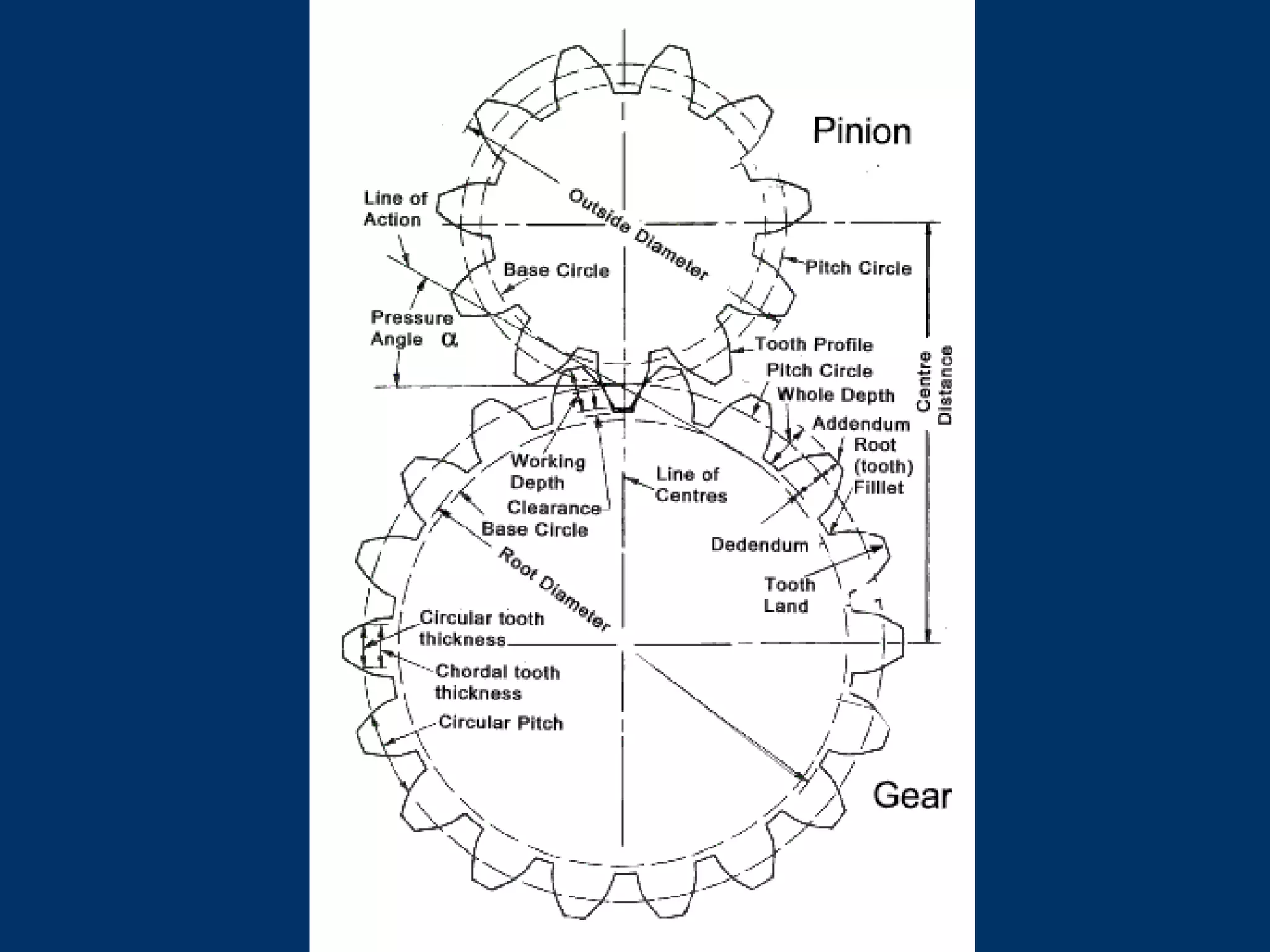

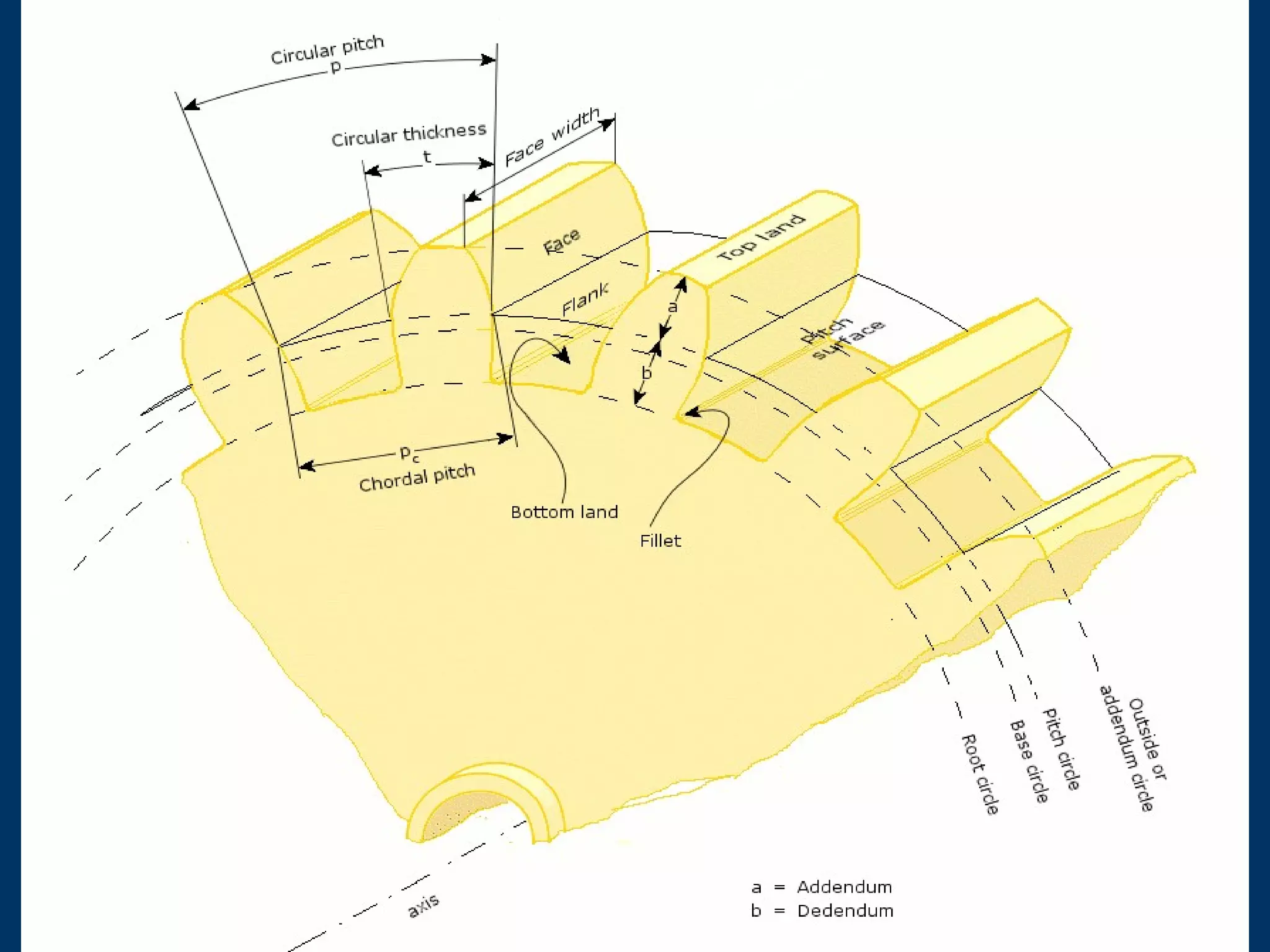

Terms used in spur gear Face: The surface of the tooth between the pitch line and top of the tooth Flank: Surface between the pitch line and bottom of the tooth Tooth surface: Face + Flank Clearance: The radial distance from the top of the tooth to the bottom of the tooth space in the mating gear Root Circle: Circle that contains the bottom of the teeth

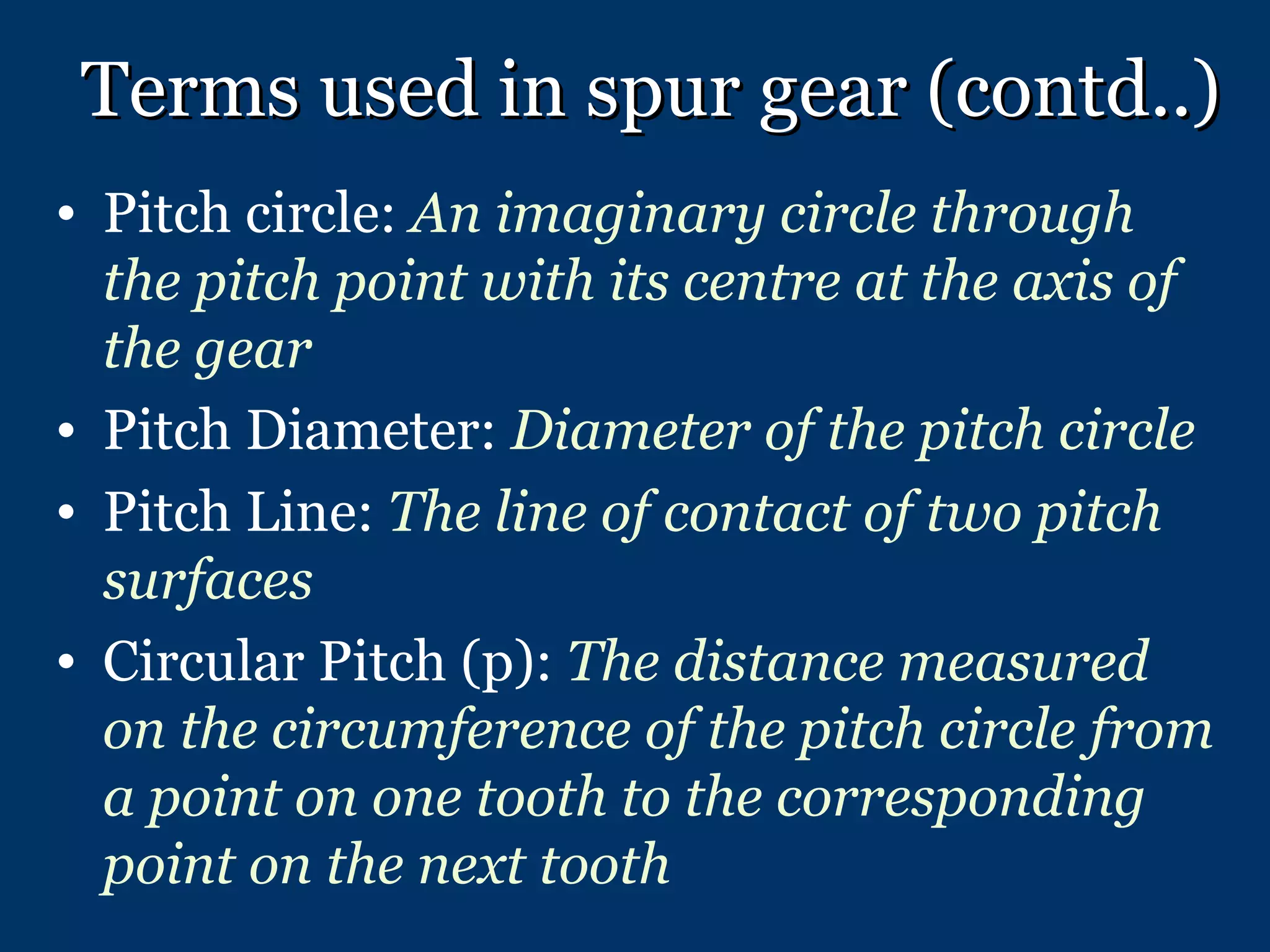

Terms used in spur gear (contd..) Pitch circle: An imaginary circle through the pitch point with its centre at the axis of the gear Pitch Diameter: Diameter of the pitch circle Pitch Line: The line of contact of two pitch surfaces Circular Pitch (p): The distance measured on the circumference of the pitch circle from a point on one tooth to the corresponding point on the next tooth

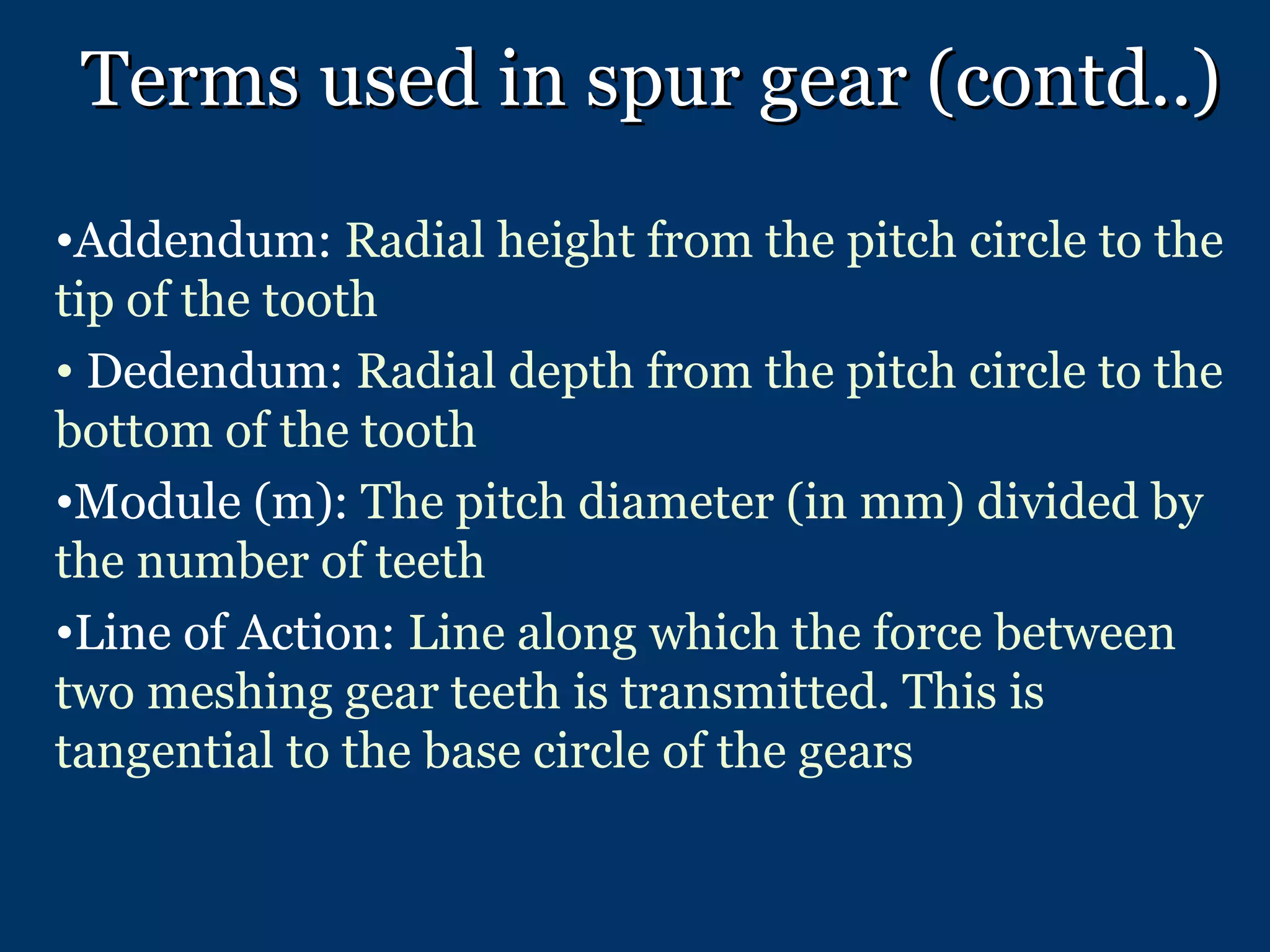

Terms used in spur gear (contd..) Addendum: Radial height from the pitch circle to the tip of the tooth Dedendum: Radial depth from the pitch circle to the bottom of the tooth Module (m): The pitch diameter (in mm) divided by the number of teeth Line of Action: Line along which the force between two meshing gear teeth is transmitted. This is tangential to the base circle of the gears

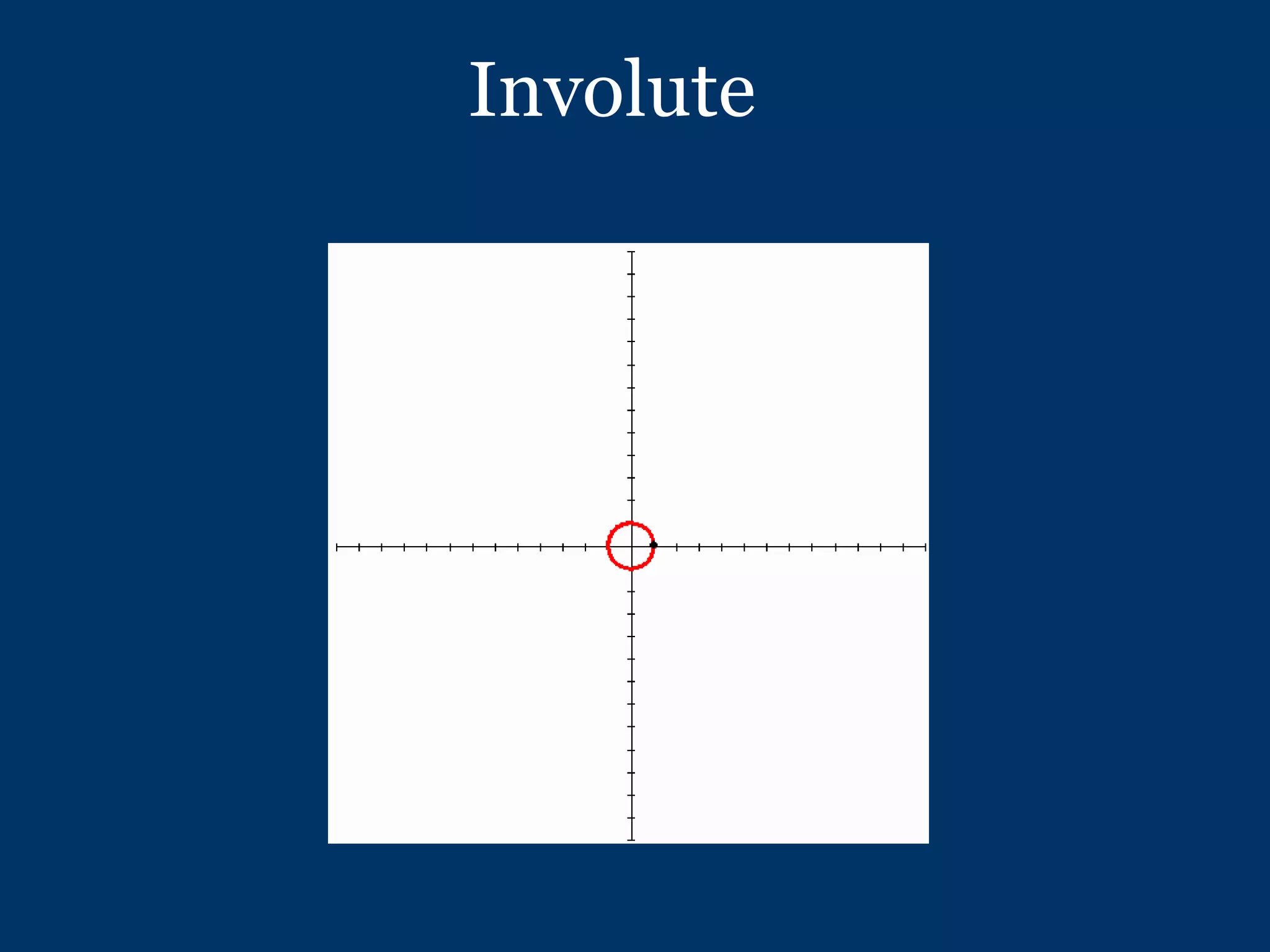

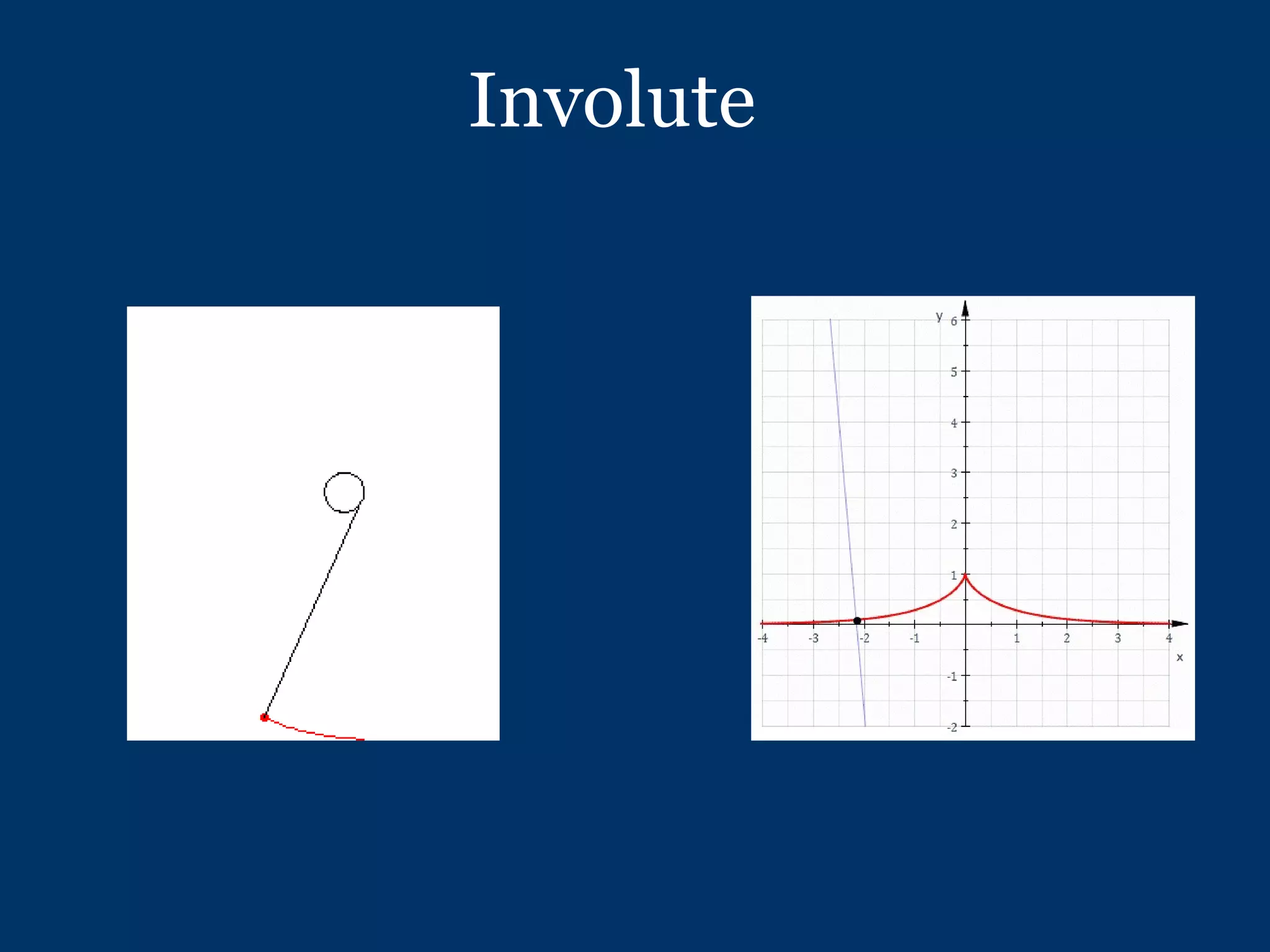

Terms used in spur gear (contd..) Base Circle: An imaginary circle used in Involute gearing to generate the involute that forms the tooth profile Pressure Angle: The angle between line of action and the line perpendicular to the line joining gear centres Pressure Angle: The angle between the common normal at the point of tooth contact and the common tangent to the pitch circles Pressure Angle: The angle between the line of action and common tangent

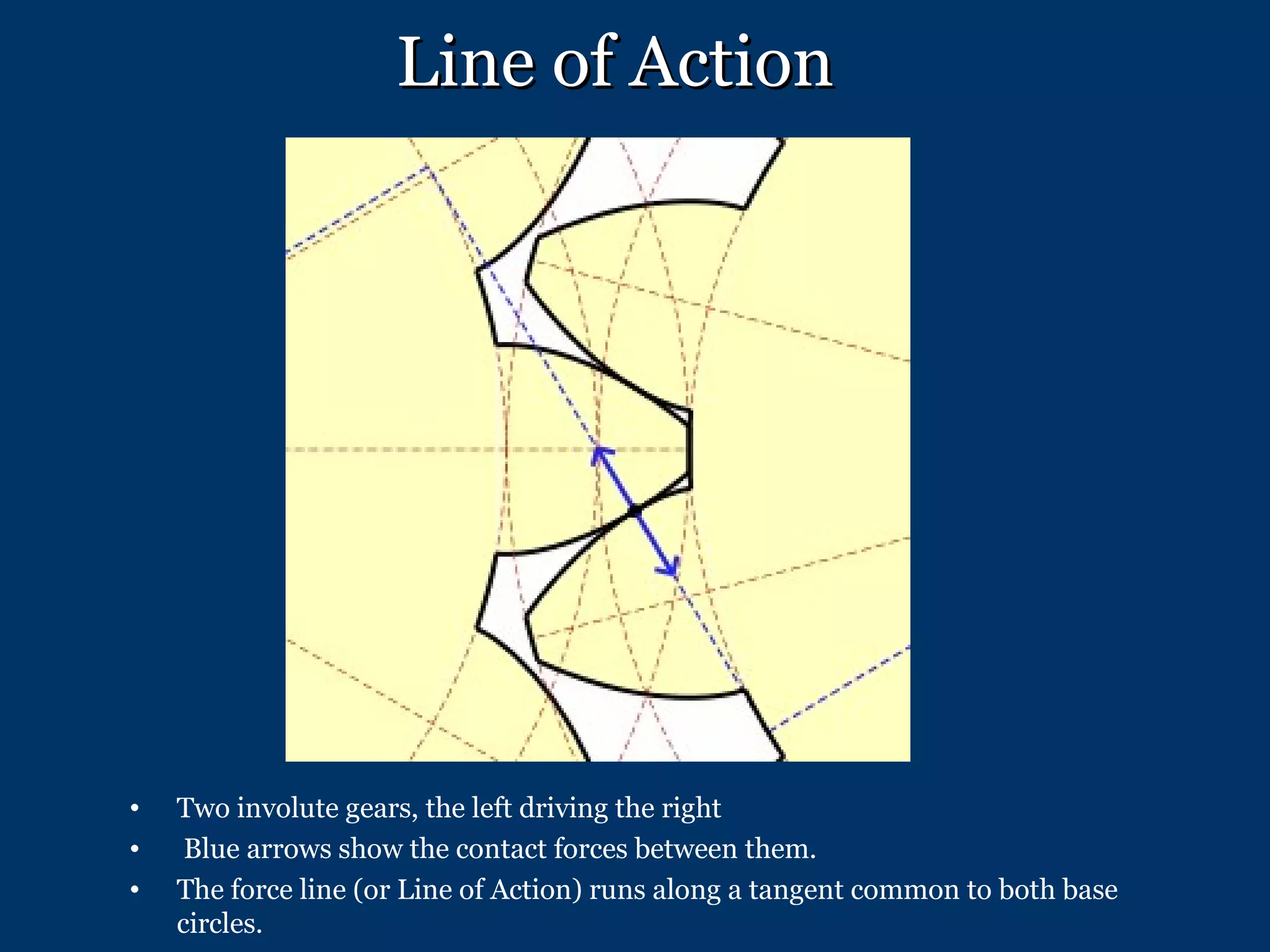

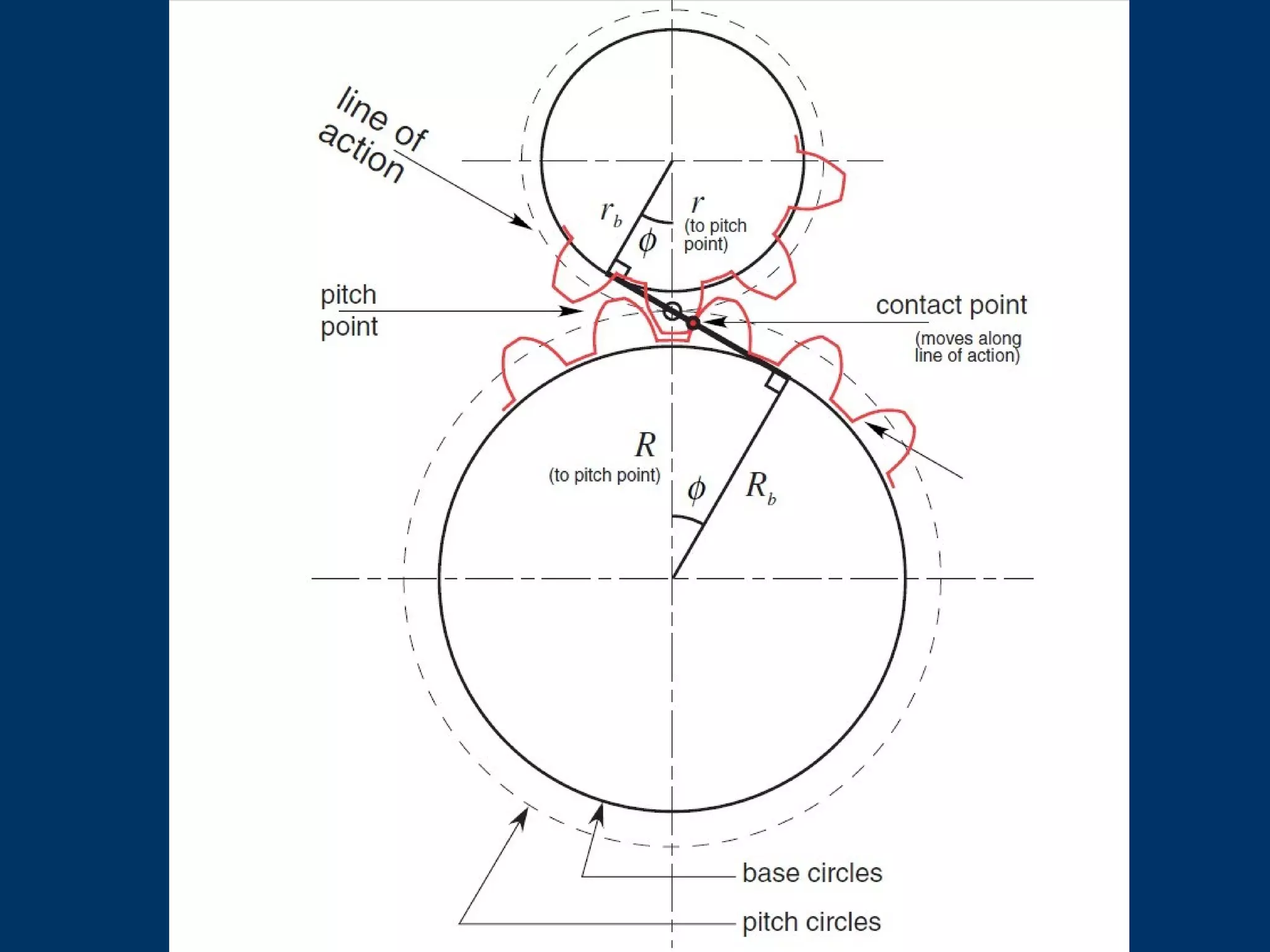

Line of Action Two involute gears, the left driving the right Blue arrows show the contact forces between them. The force line (or Line of Action) runs along a tangent common to both base circles.

Spur gear proportions as per BIS Module: m. No. of teeth: Z. Pressure angle: 20° S.No Name of tooth element Gear tooth proportions 1. Pitch diameter Zm 2. Addendum m 3. Dedendum 1.25m 4. Working depth 2m 5. Tooth depth 2.25m 6. Outside diameter (Z+2)m 7. Tooth thickness 1.5708m 8. Clearance 0.25m 9. Circular pitch π m 10. Radius of fillet 0.4m to 0.45m

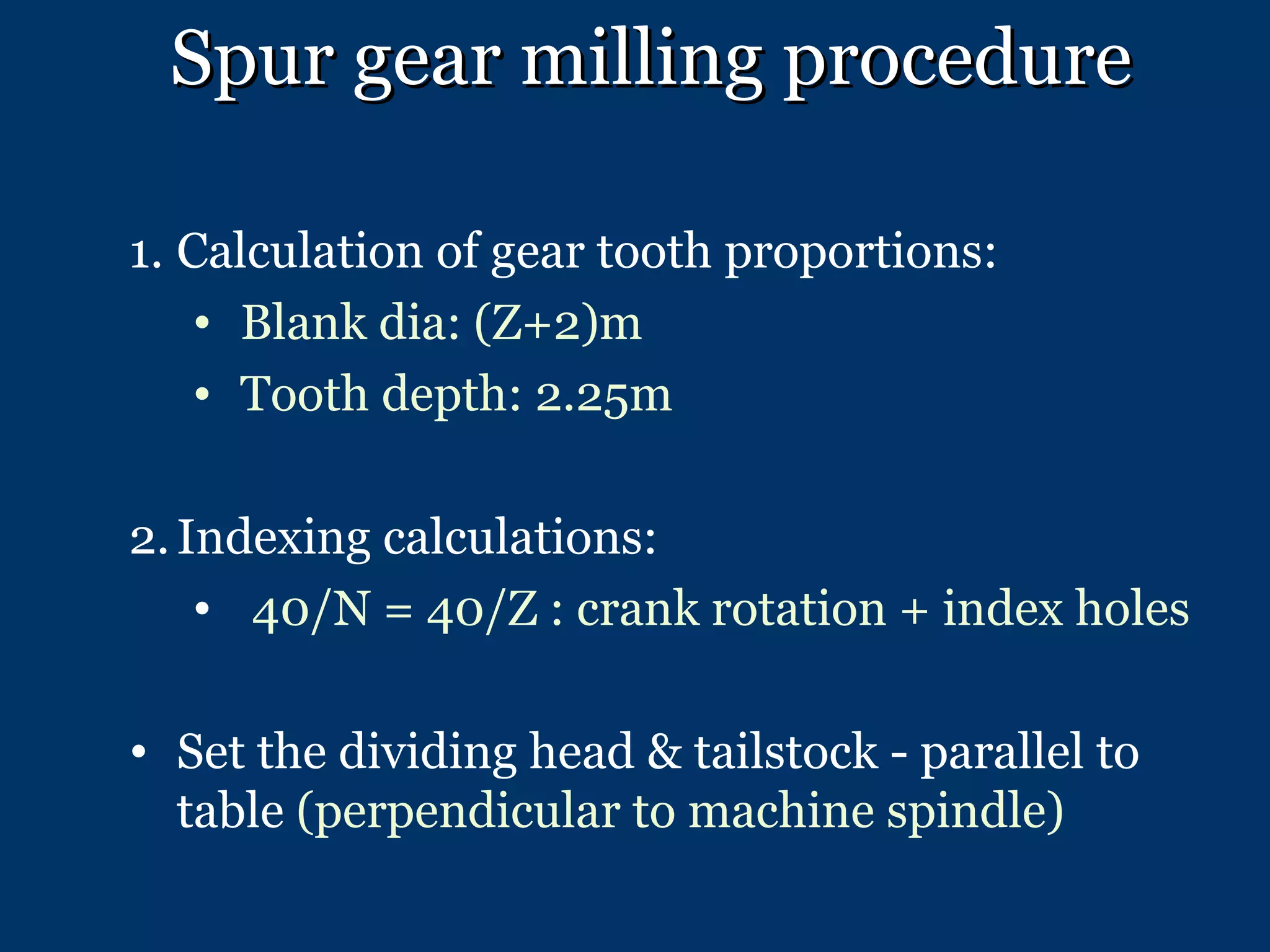

Spur gear milling procedure Calculation of gear tooth proportions: Blank dia: (Z+2)m Tooth depth: 2.25m Indexing calculations: 40/N = 40/Z : crank rotation + index holes Set the dividing head & tailstock - parallel to table (perpendicular to machine spindle)

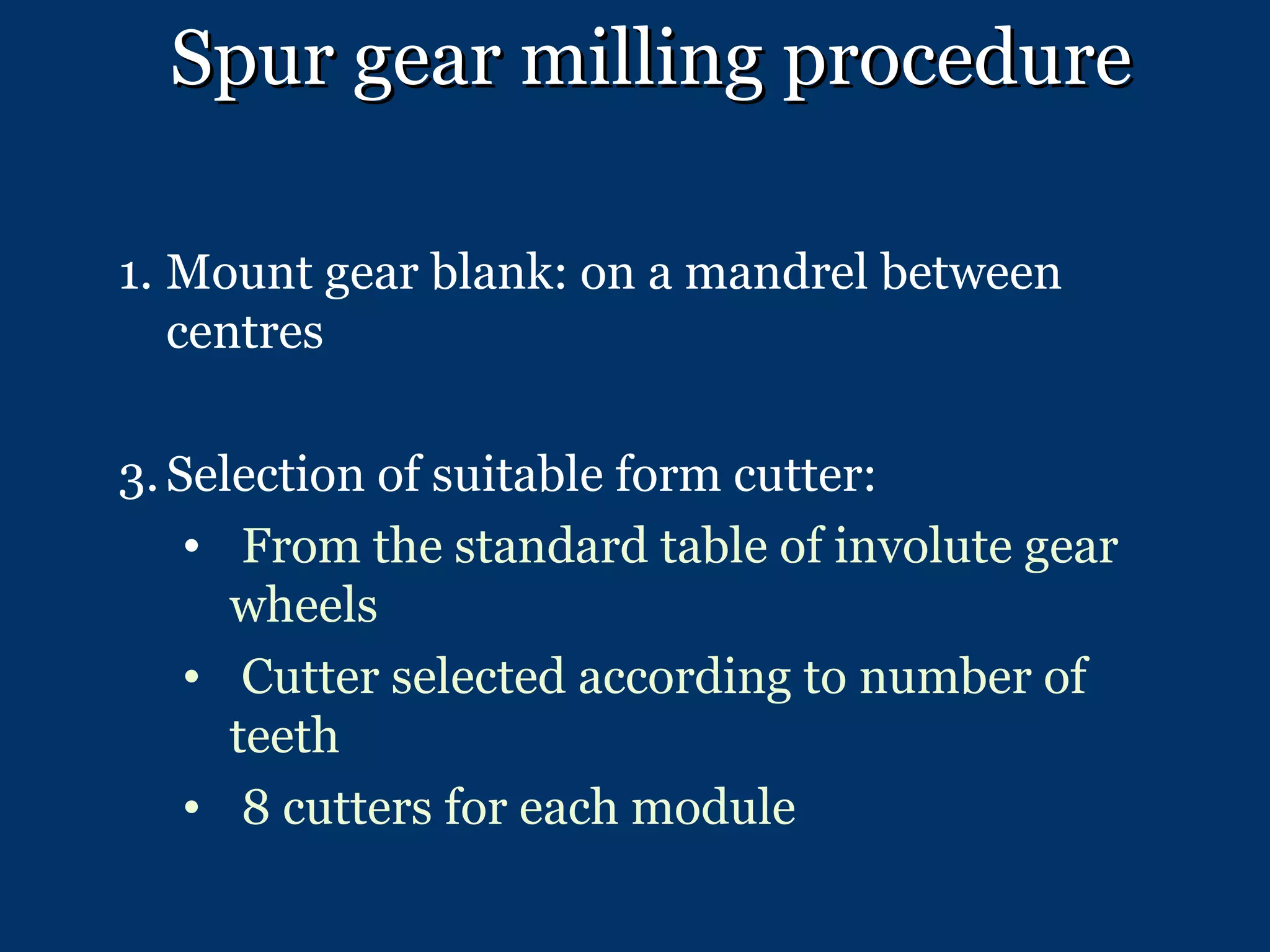

Spur gear milling procedure Mount gear blank: on a mandrel between centres Selection of suitable form cutter: From the standard table of involute gear wheels Cutter selected according to number of teeth 8 cutters for each module

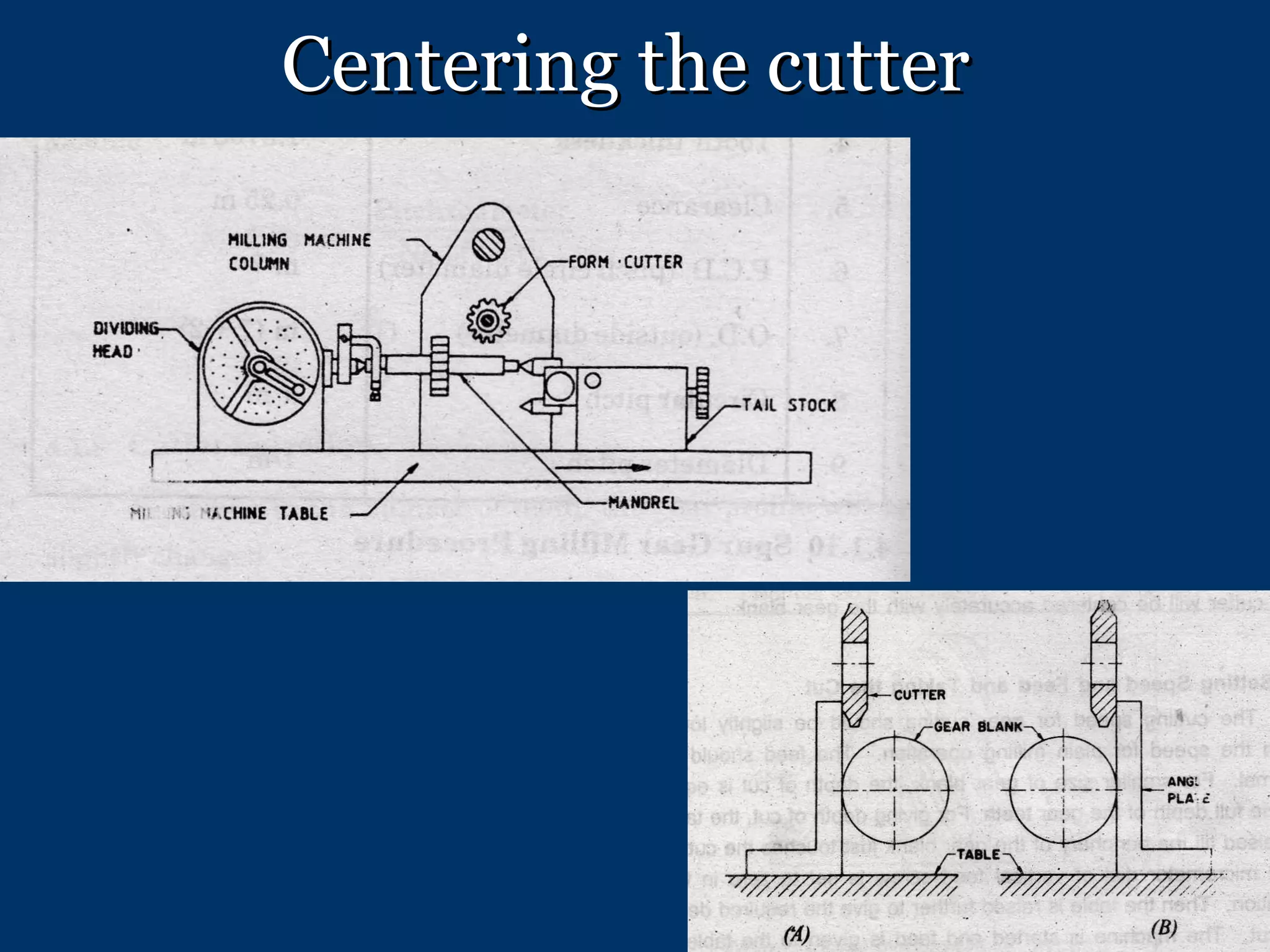

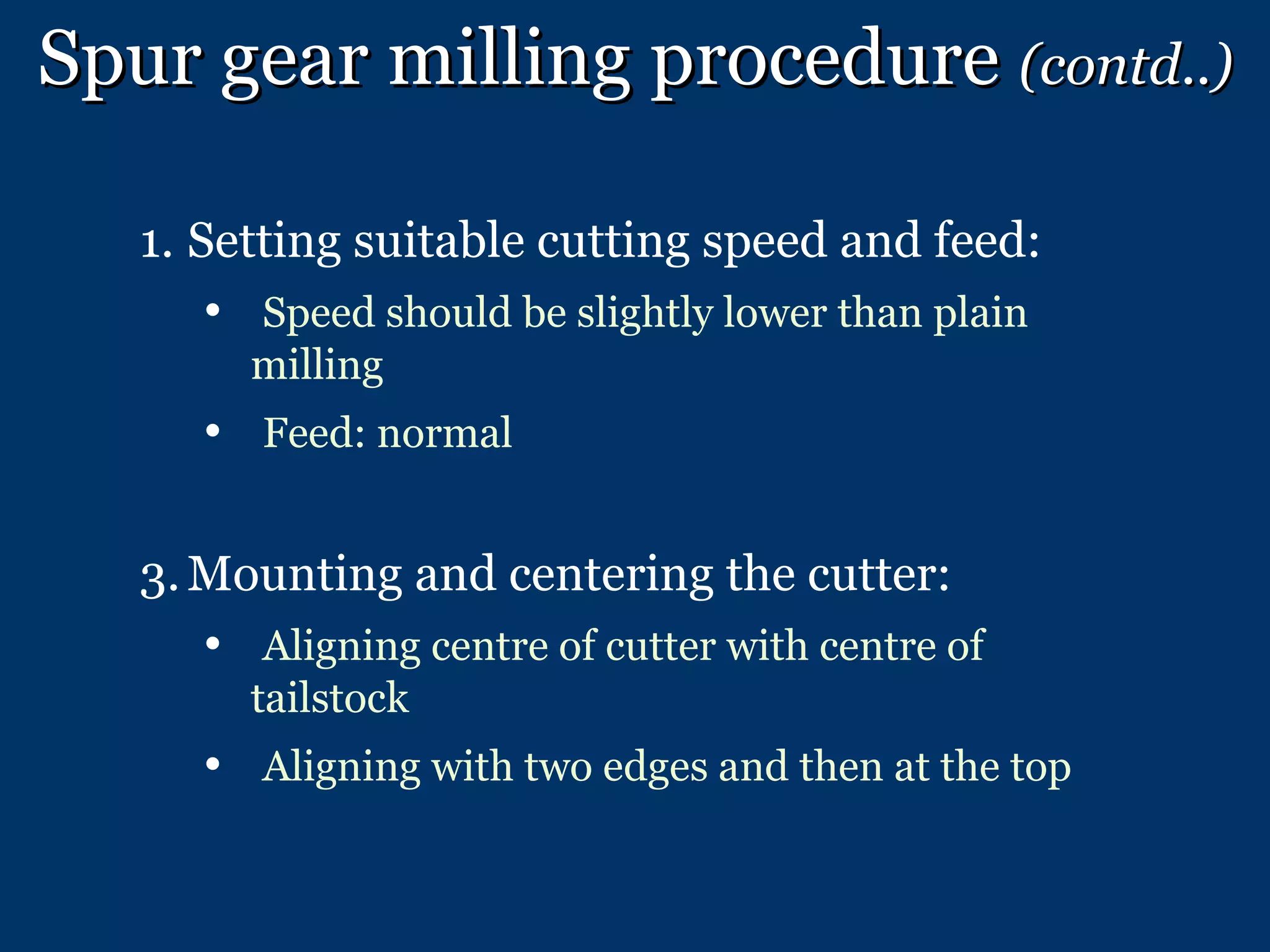

Spur gear milling procedure (contd..) Setting suitable cutting speed and feed: Speed should be slightly lower than plain milling Feed: normal Mounting and centering the cutter: Aligning centre of cutter with centre of tailstock Aligning with two edges and then at the top

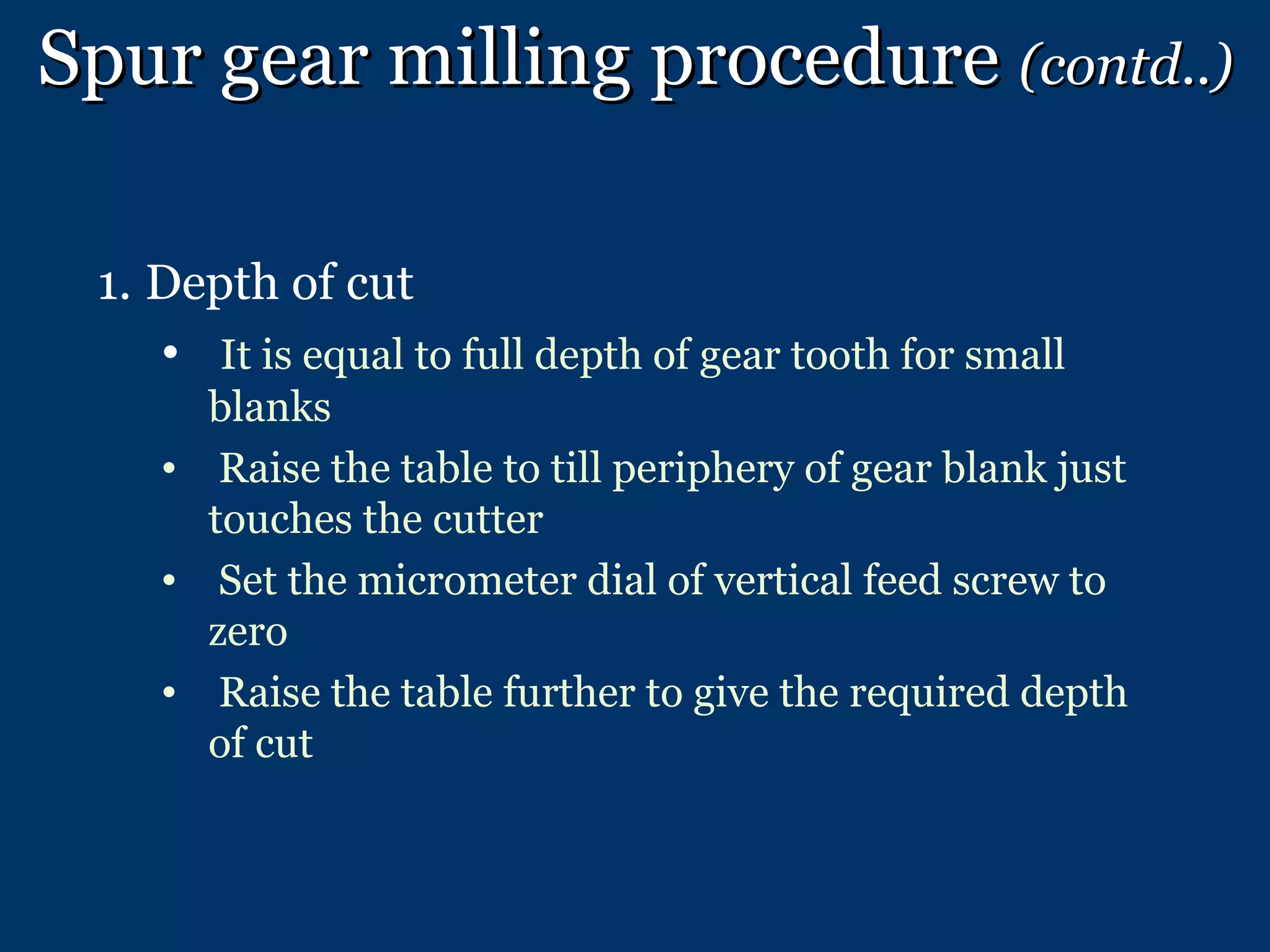

Spur gear milling procedure (contd..) Depth of cut It is equal to full depth of gear tooth for small blanks Raise the table to till periphery of gear blank just touches the cutter Set the micrometer dial of vertical feed screw to zero Raise the table further to give the required depth of cut

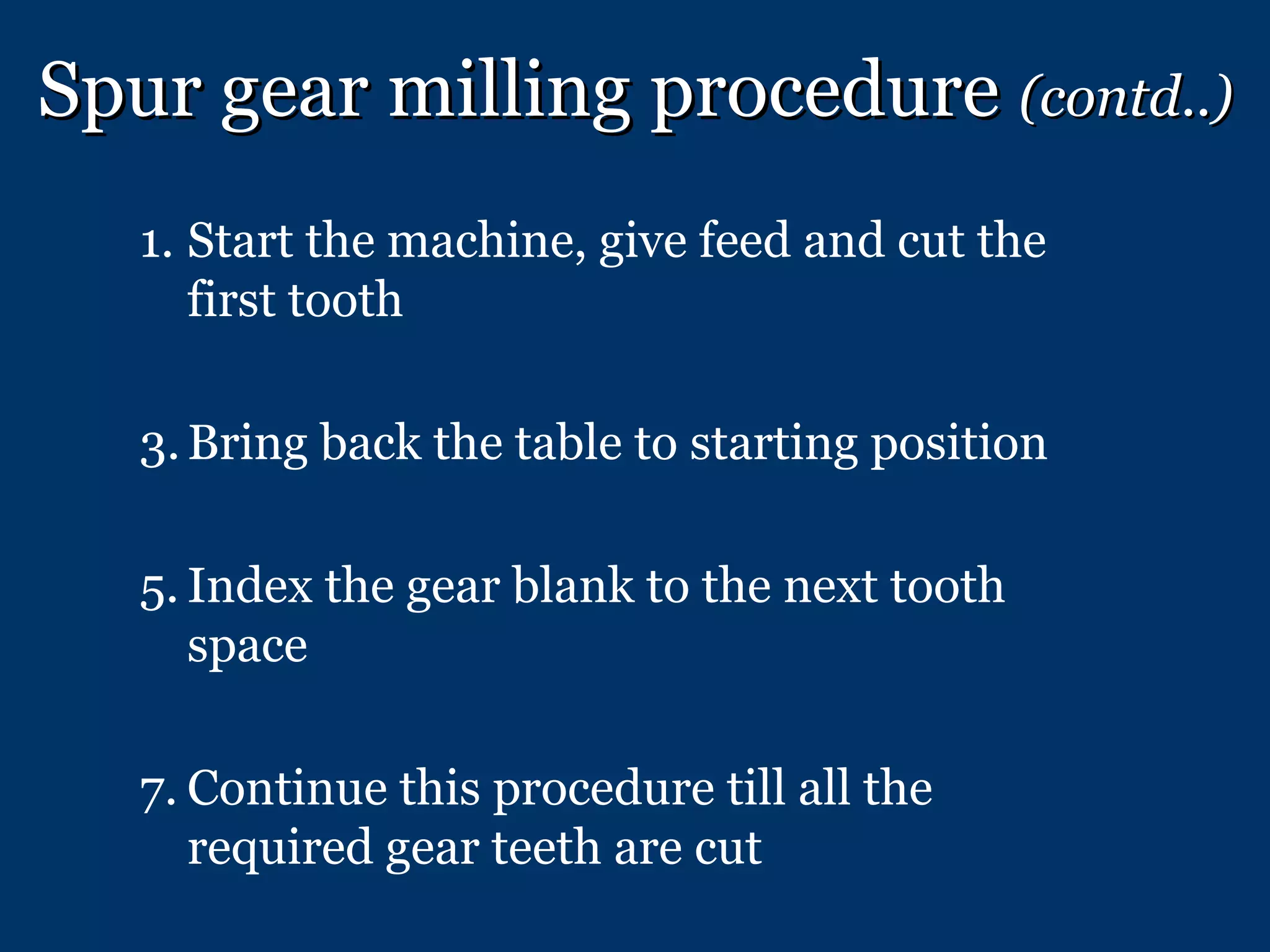

Spur gear milling procedure (contd..) Start the machine, give feed and cut the first tooth Bring back the table to starting position Index the gear blank to the next tooth space Continue this procedure till all the required gear teeth are cut

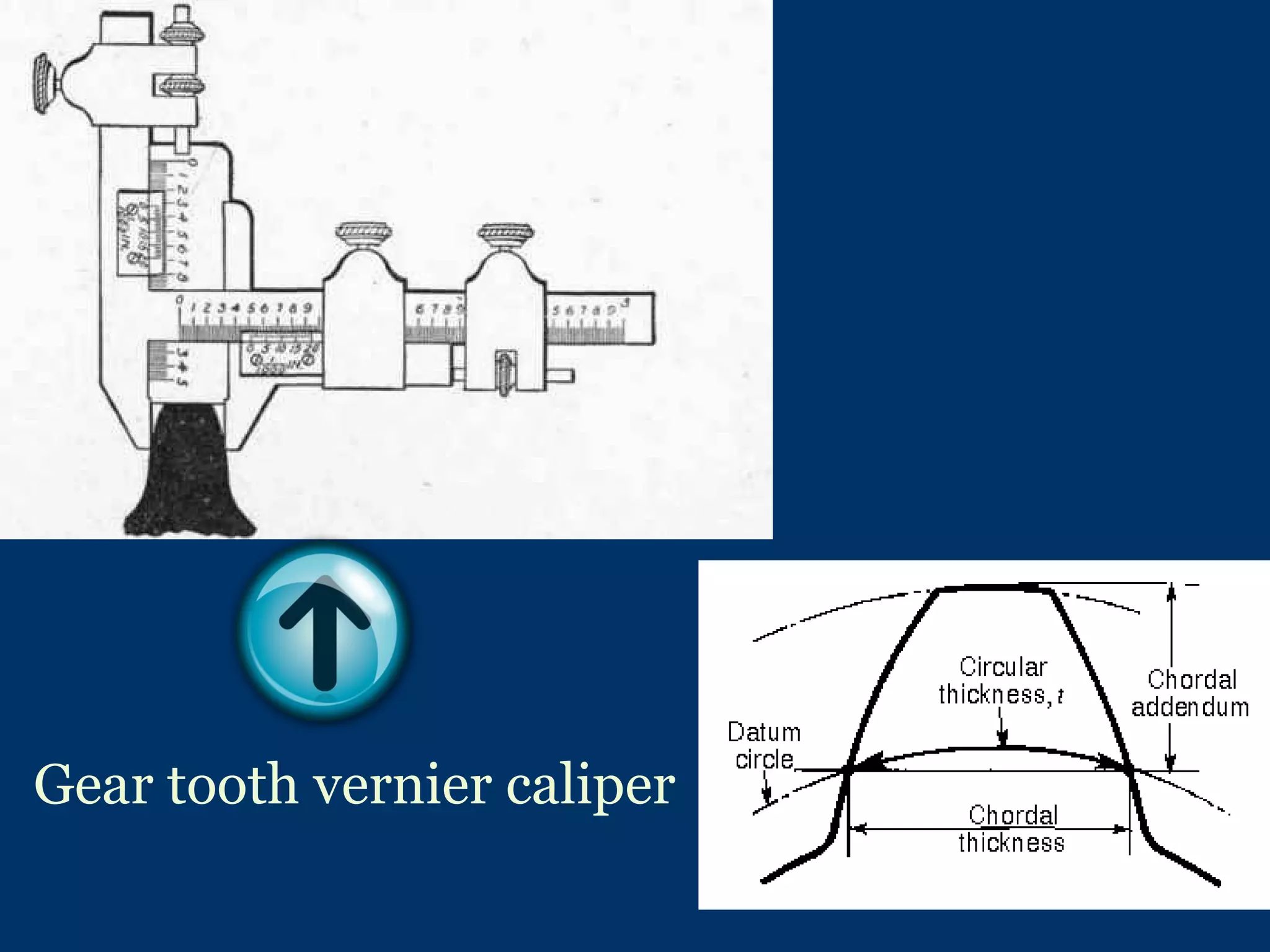

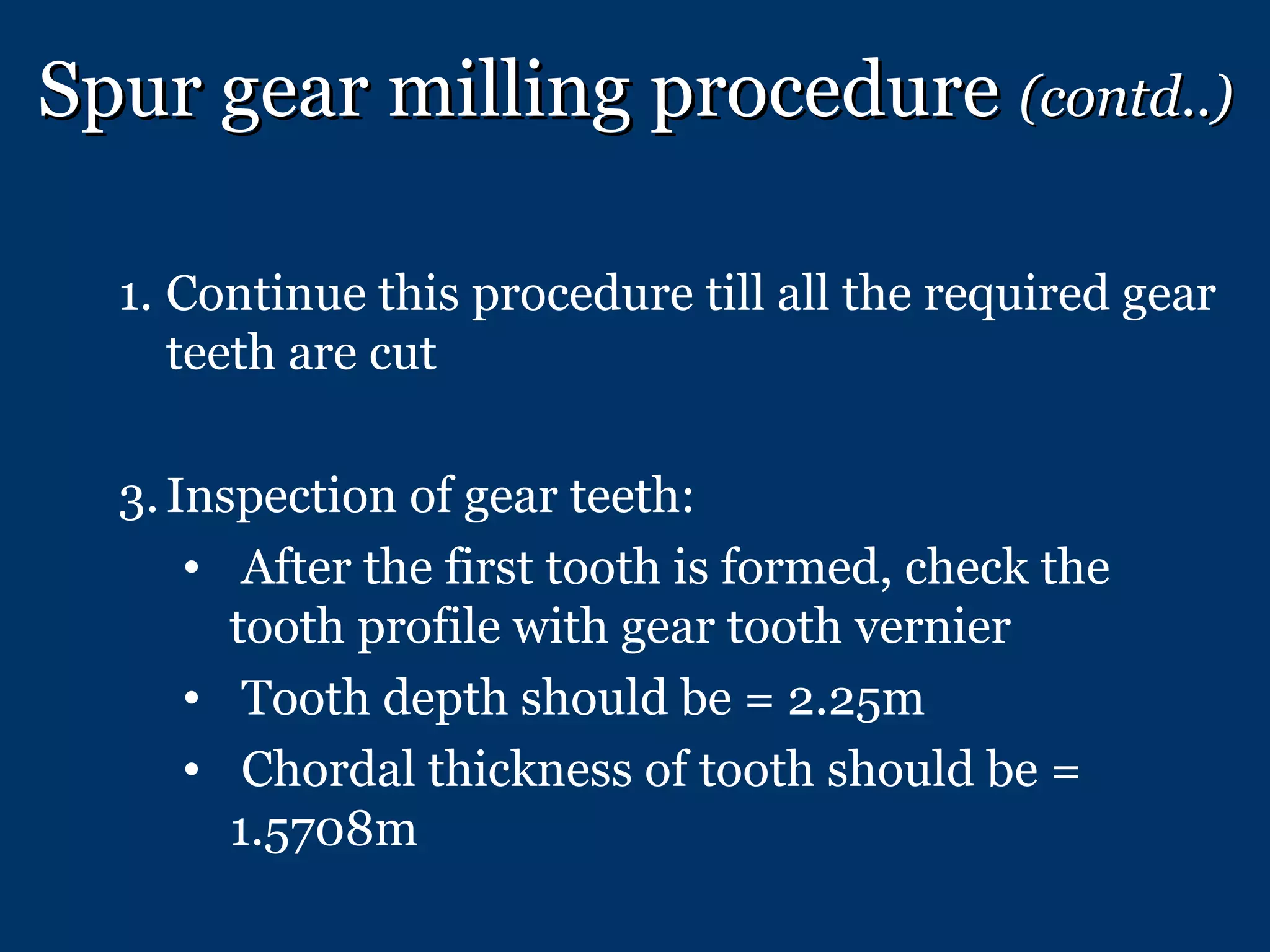

Spur gear milling procedure (contd..) Continue this procedure till all the required gear teeth are cut Inspection of gear teeth: After the first tooth is formed, check the tooth profile with gear tooth vernier Tooth depth should be = 2.25m Chordal thickness of tooth should be = 1.5708m

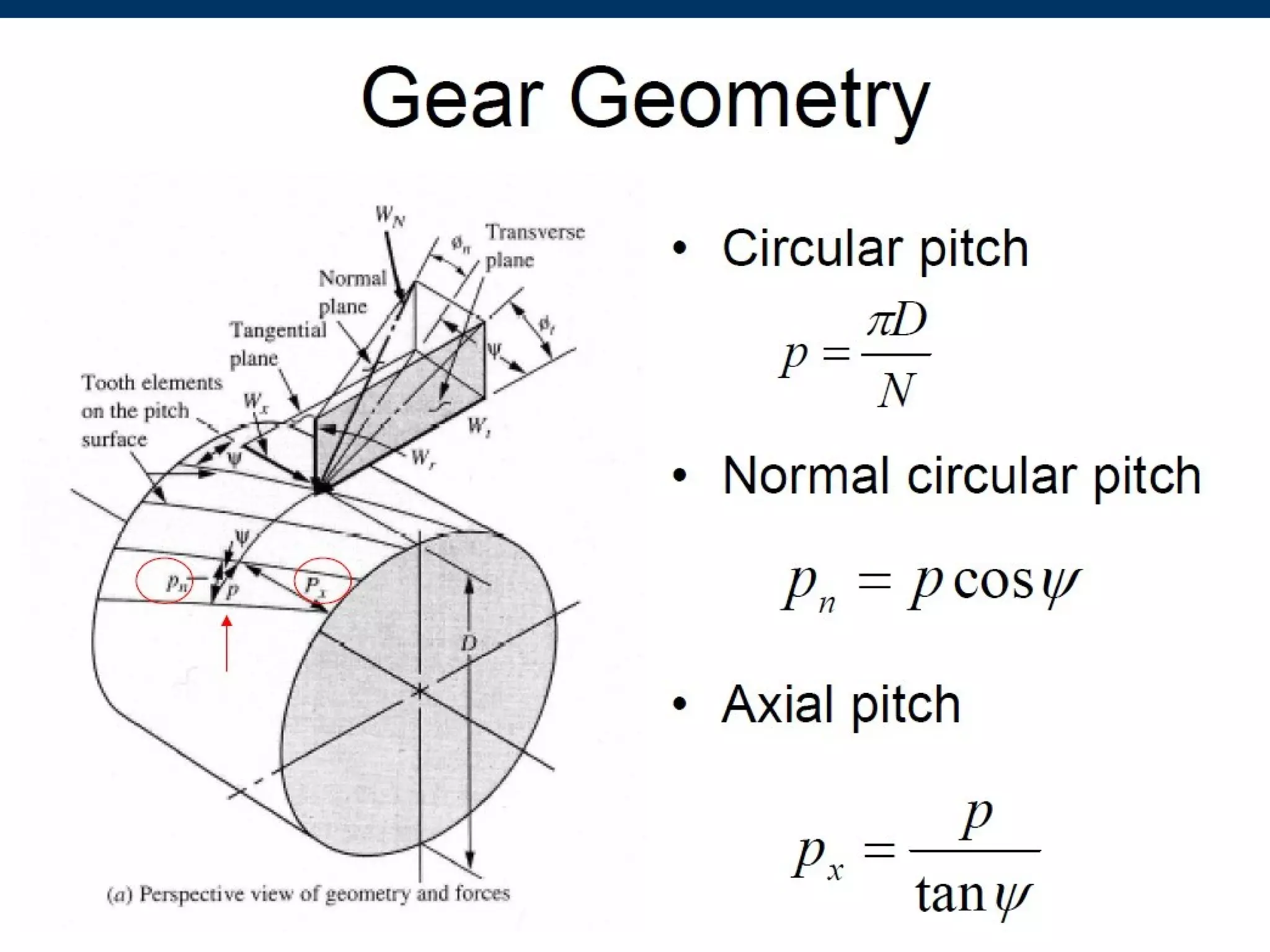

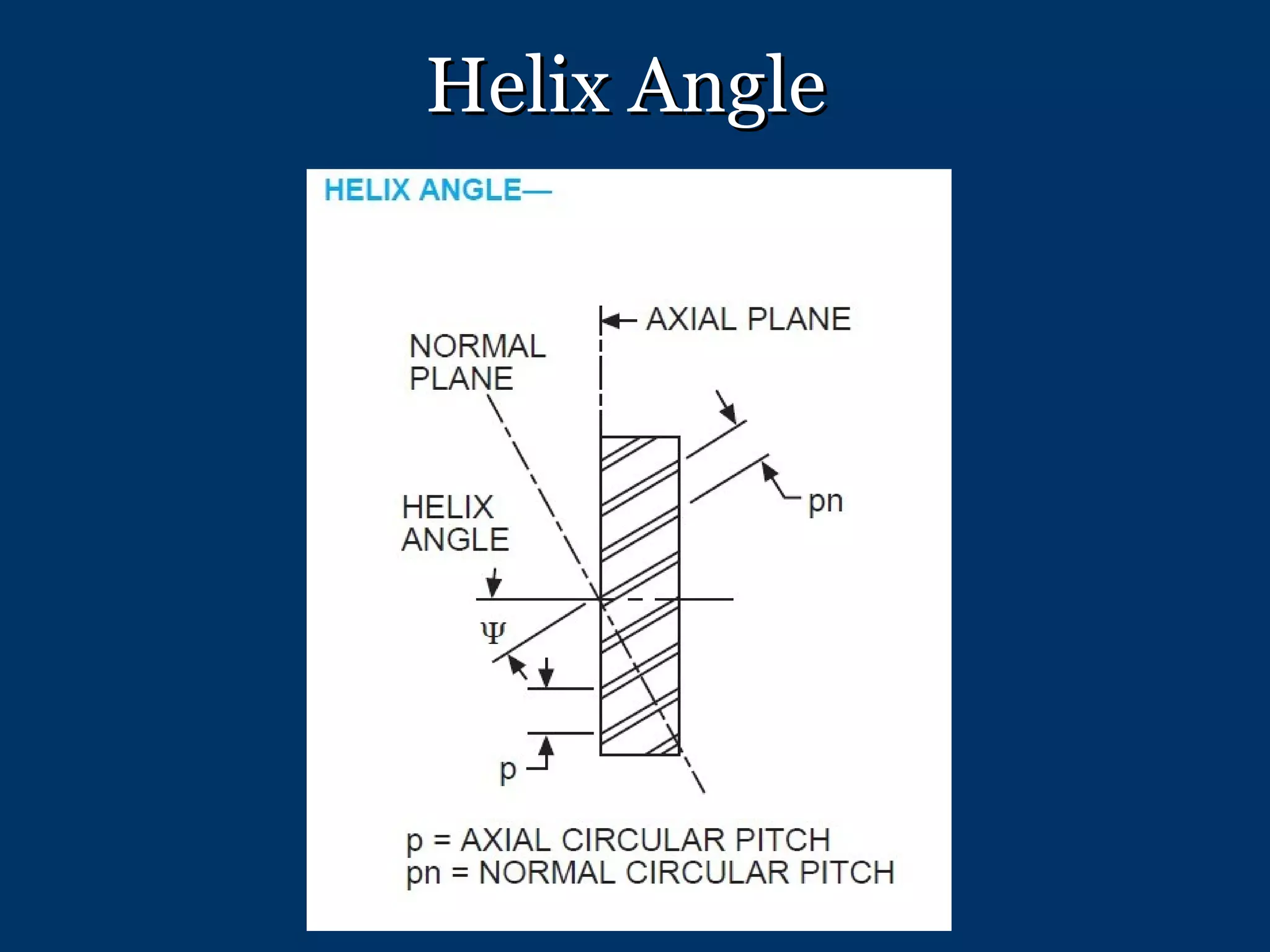

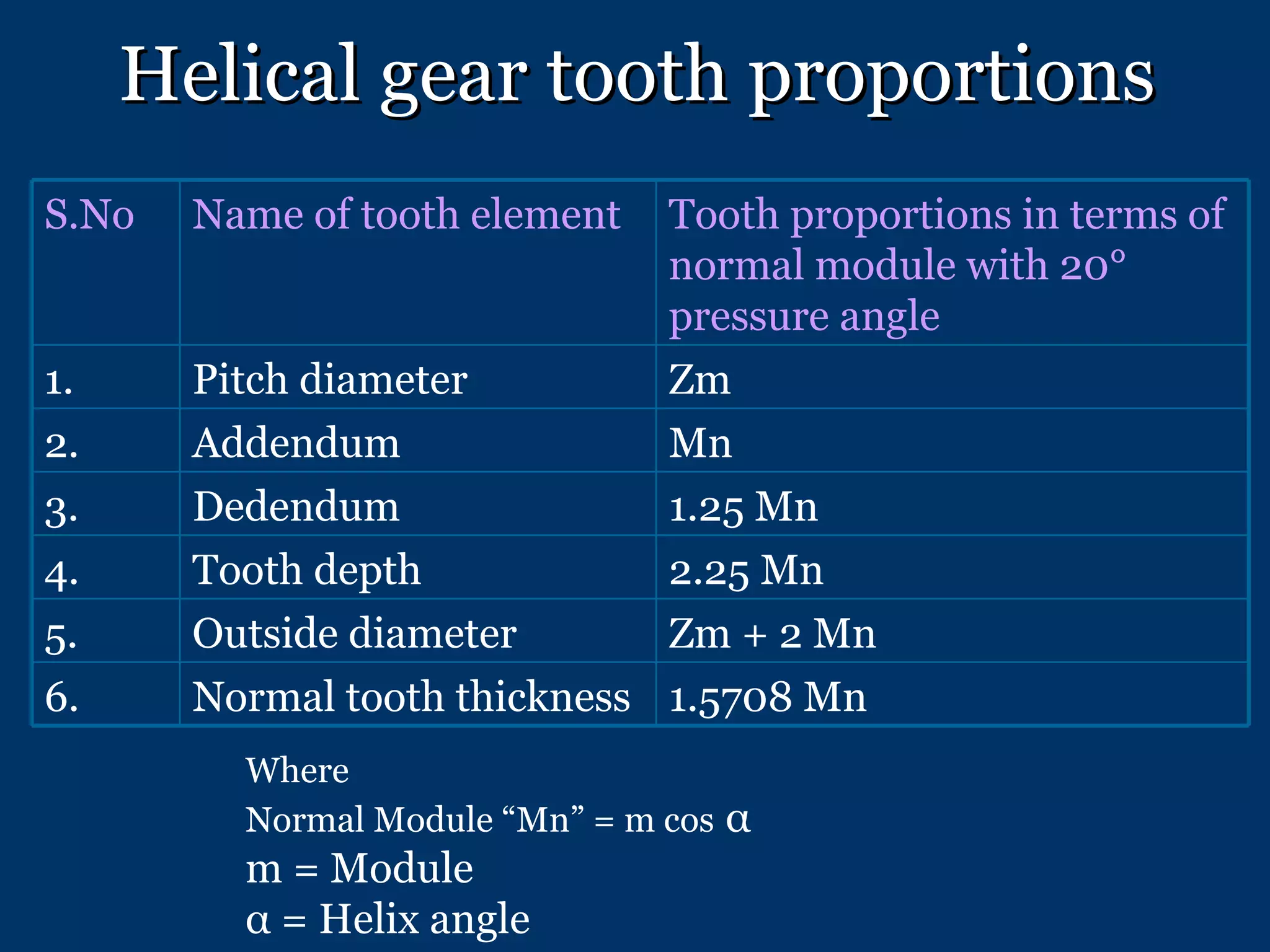

Helical gear tooth proportions Where Normal Module “Mn” = m cos α m = Module α = Helix angle S.No Name of tooth element Tooth proportions in terms of normal module with 20° pressure angle 1. Pitch diameter Zm 2. Addendum Mn 3. Dedendum 1.25 Mn 4. Tooth depth 2.25 Mn 5. Outside diameter Zm + 2 Mn 6. Normal tooth thickness 1.5708 Mn

Helical gear milling procedure

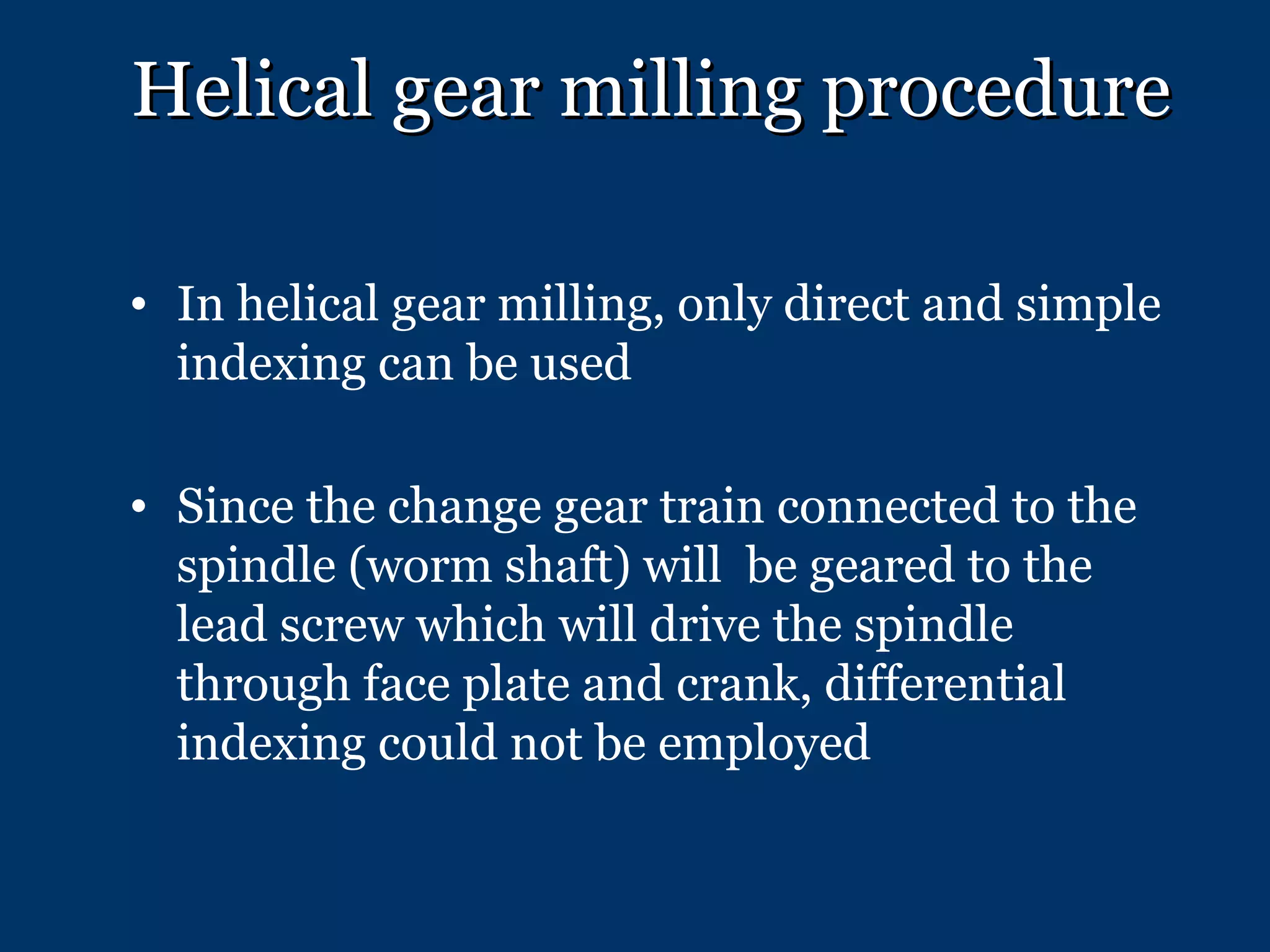

Helical gear milling procedure In helical gear milling, only direct and simple indexing can be used Since the change gear train connected to the spindle (worm shaft) will be geared to the lead screw which will drive the spindle through face plate and crank, differential indexing could not be employed

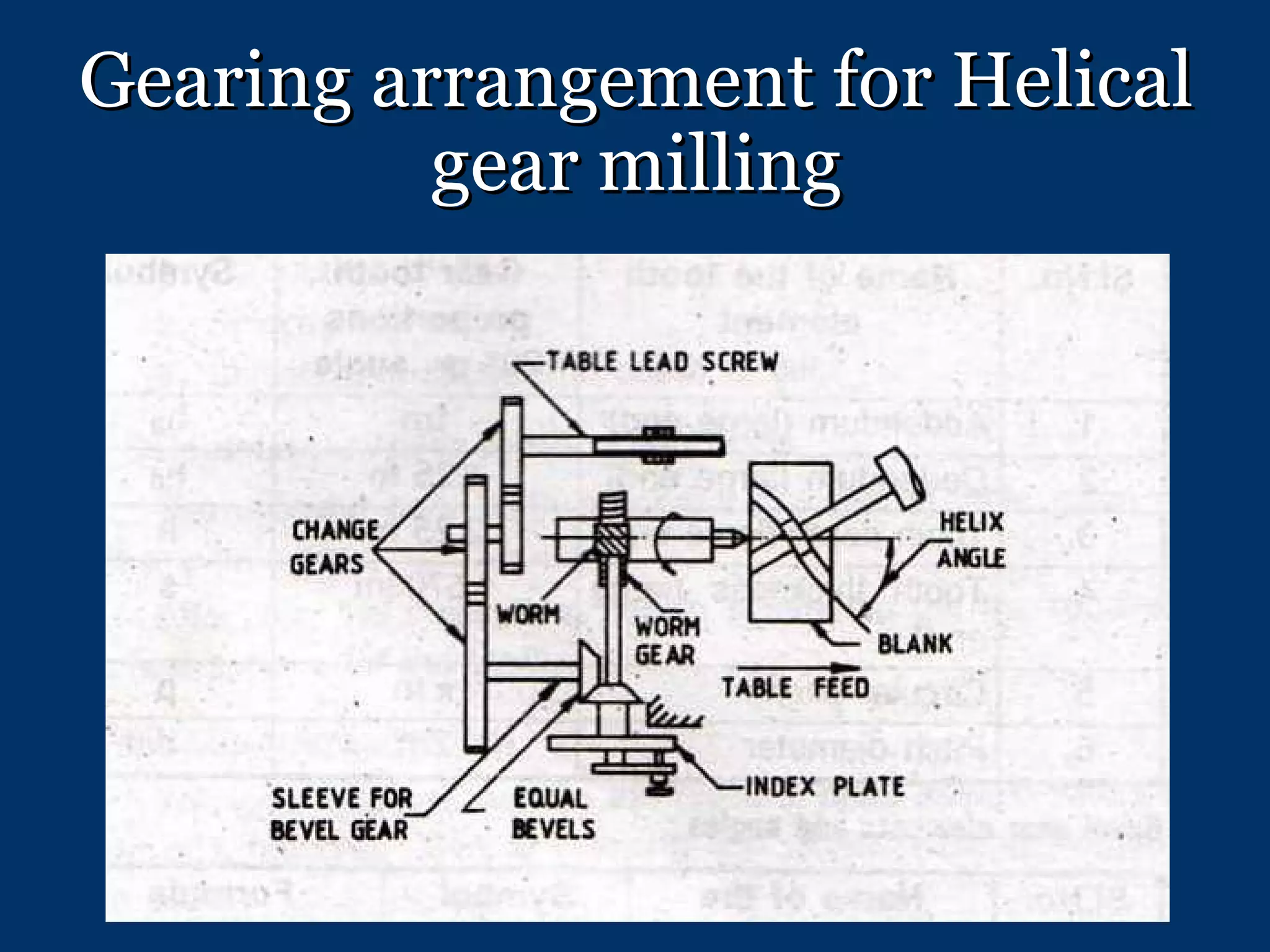

Gearing arrangement for Helical gear milling

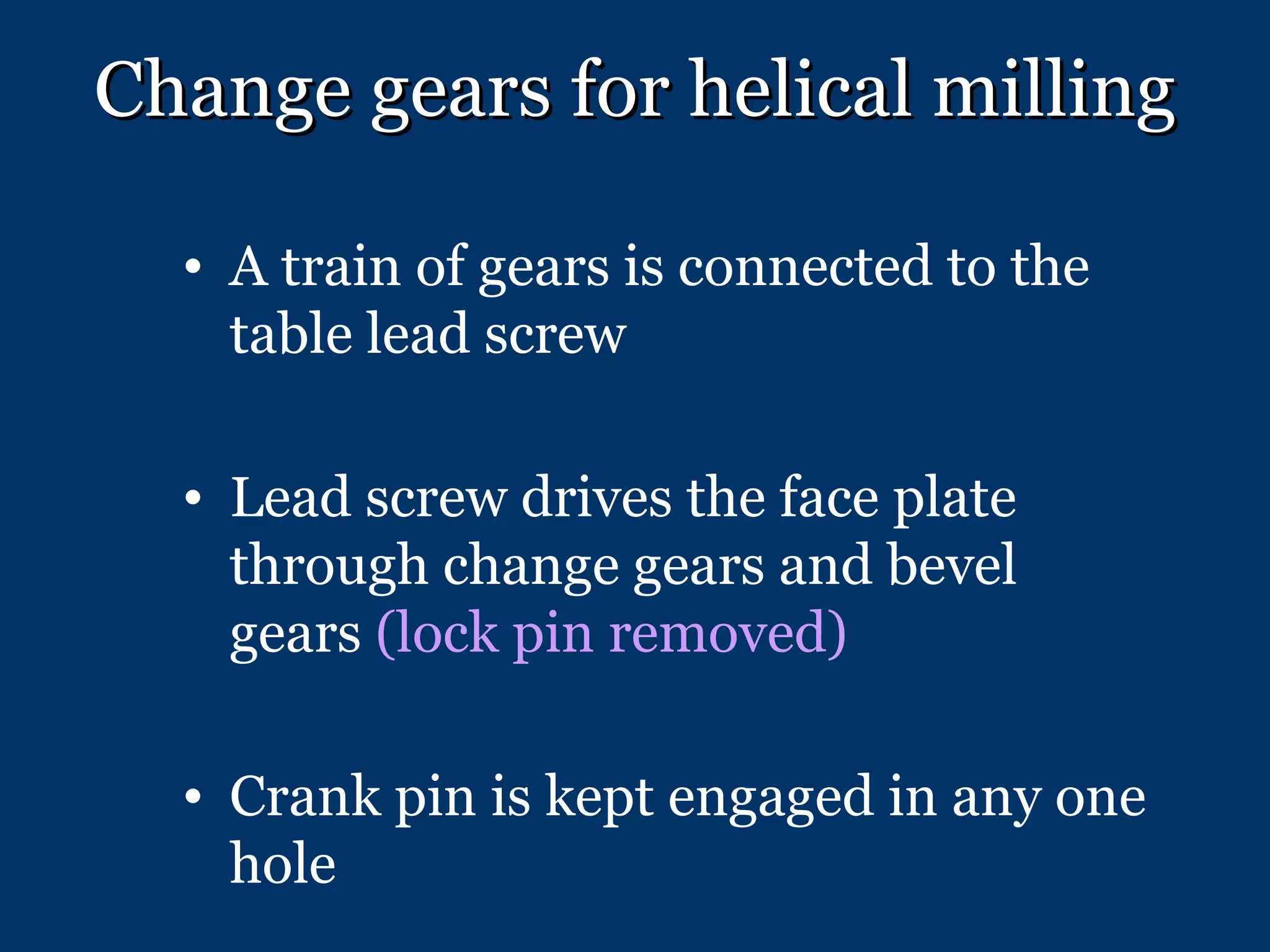

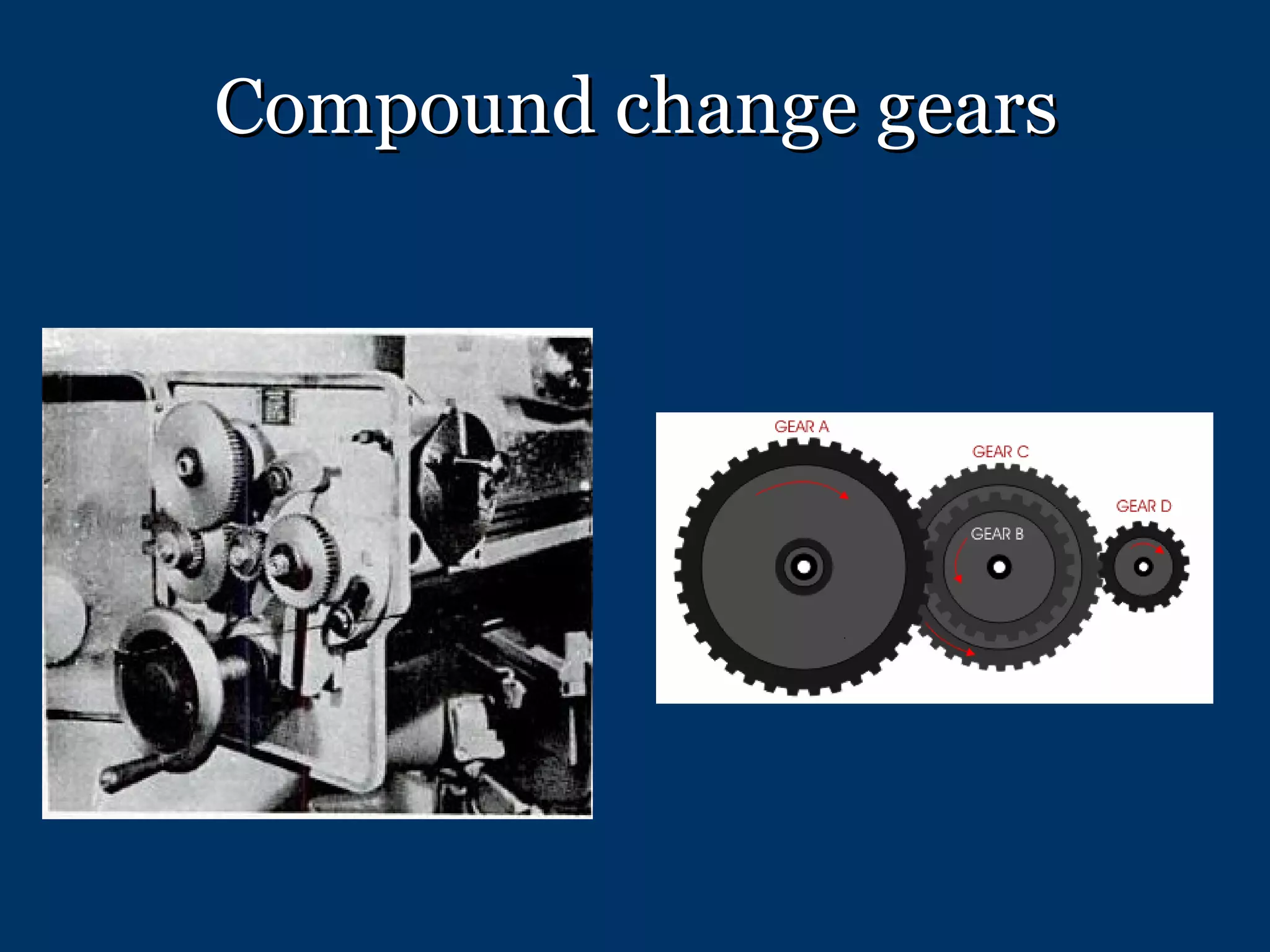

Change gears for helical milling A train of gears is connected to the table lead screw Lead screw drives the face plate through change gears and bevel gears (lock pin removed) Crank pin is kept engaged in any one hole

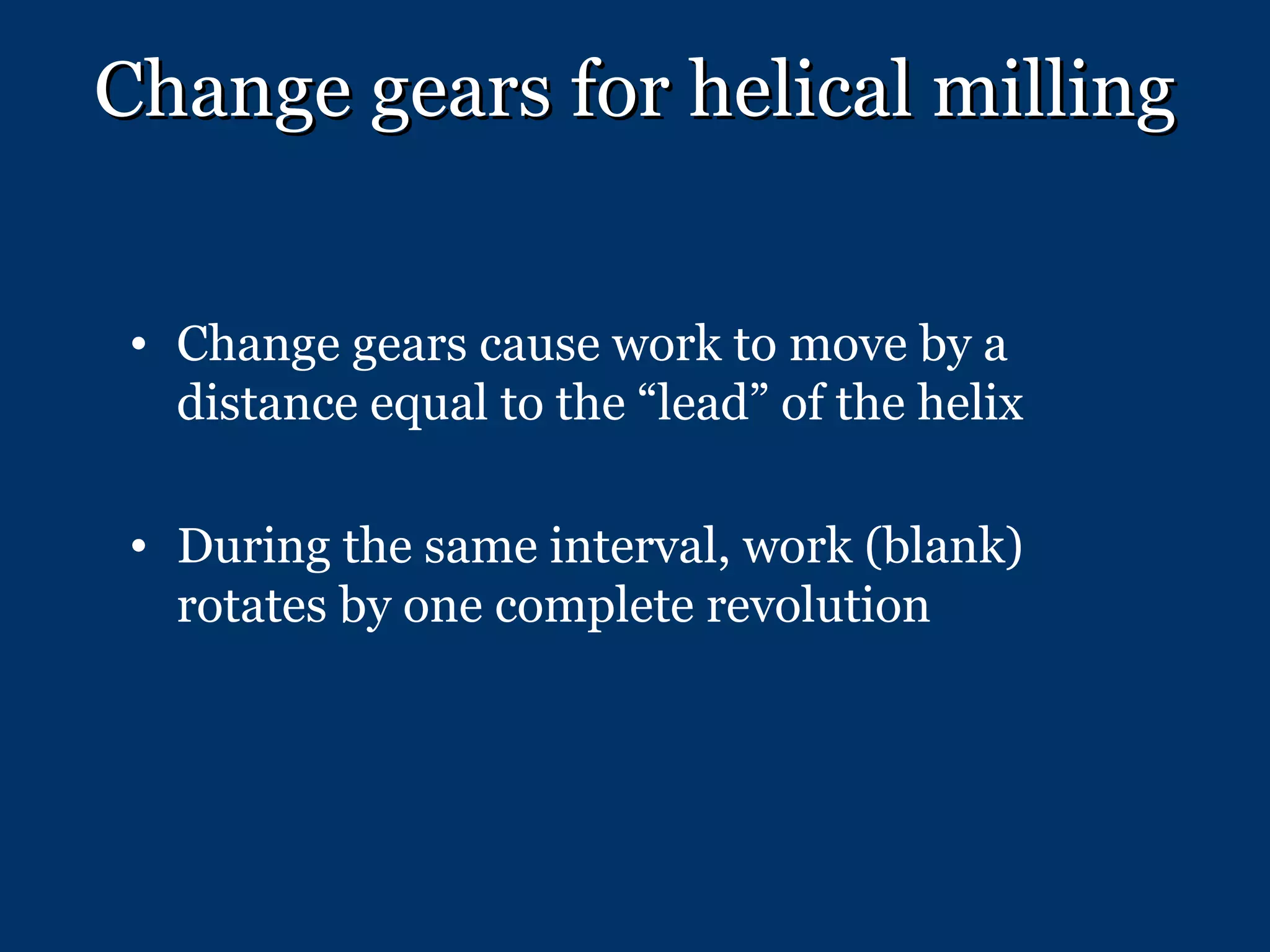

Change gears for helical milling Change gears cause work to move by a distance equal to the “lead” of the helix During the same interval, work (blank) rotates by one complete revolution

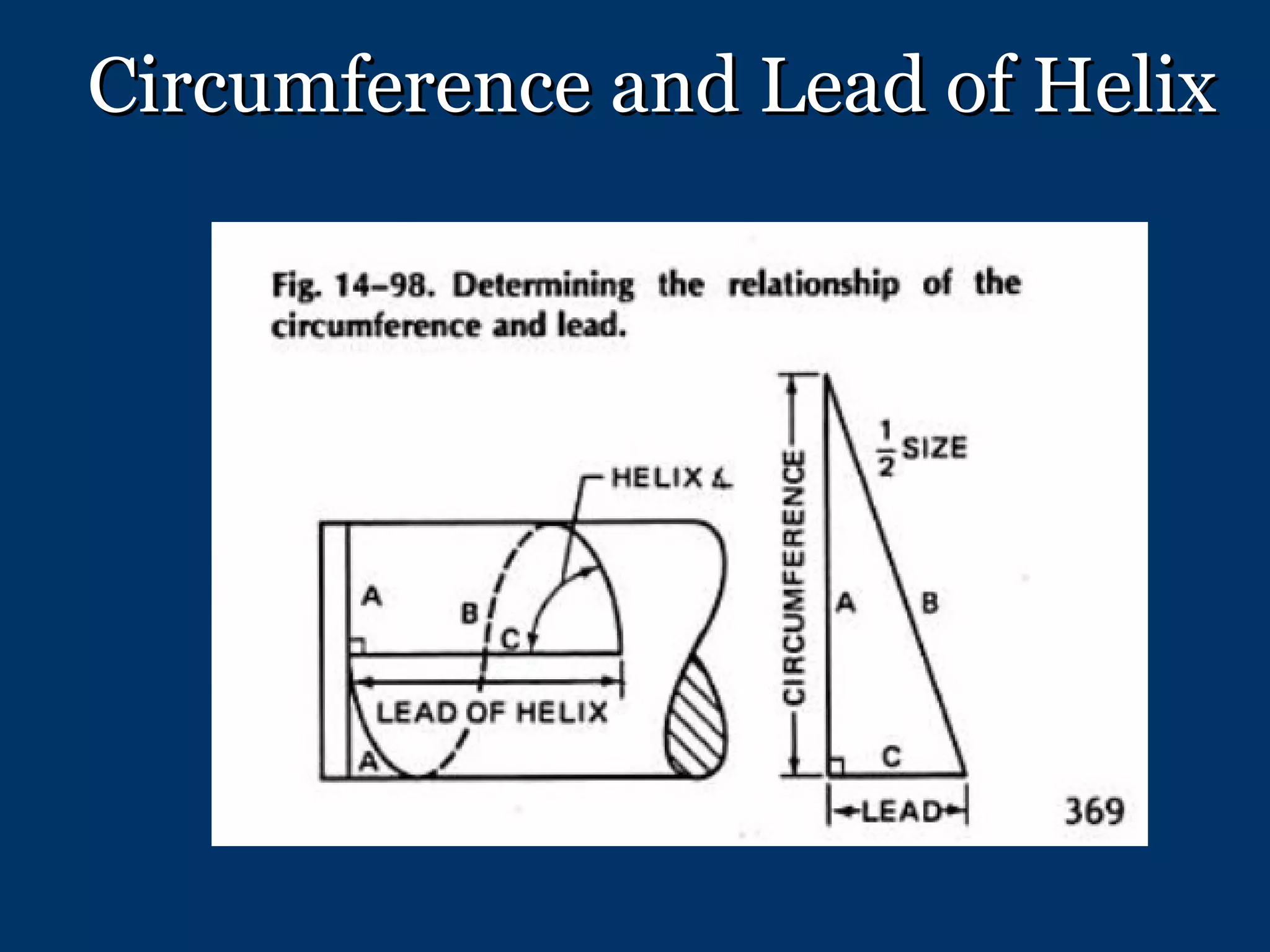

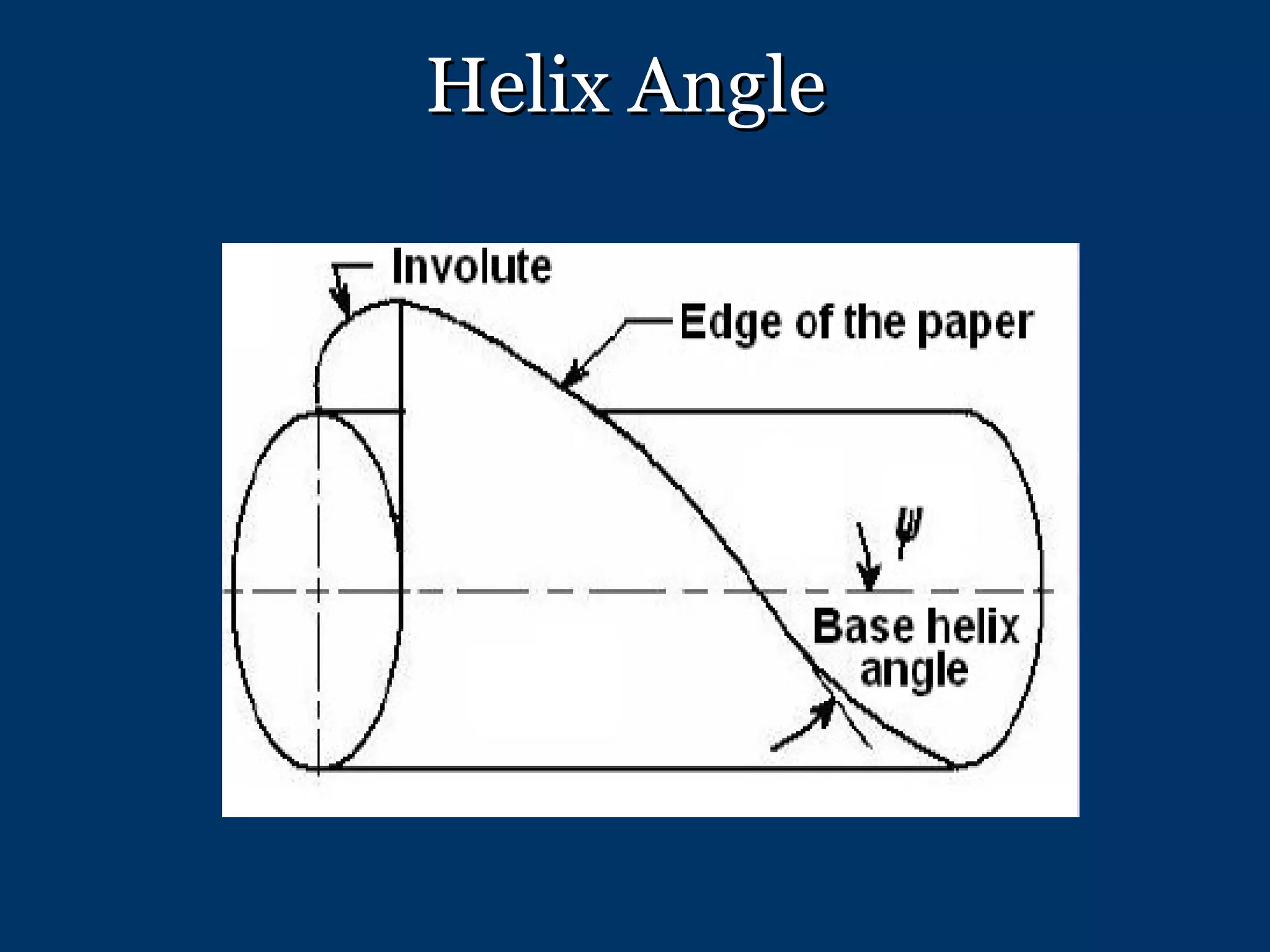

Circumference and Lead of Helix

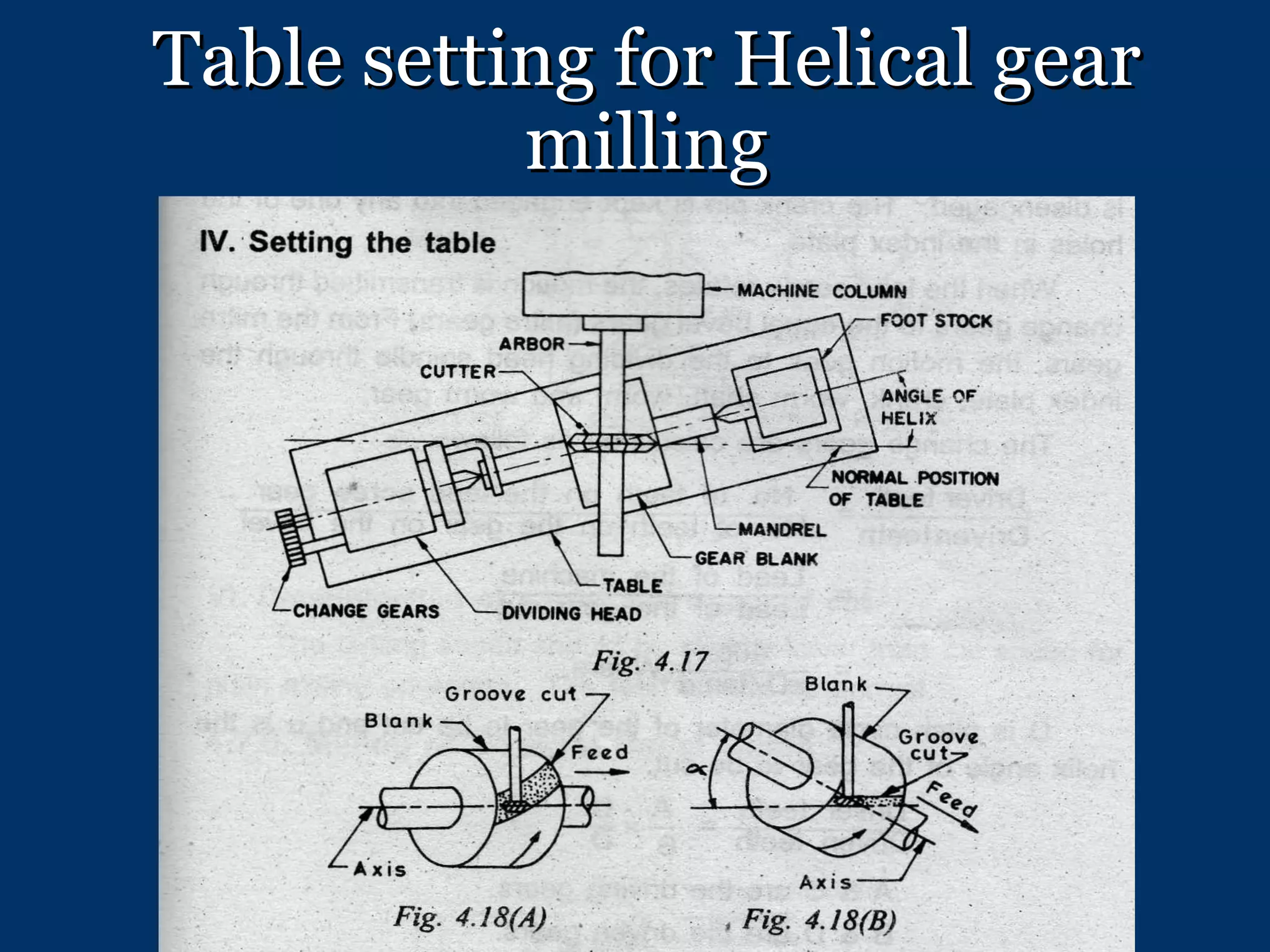

Table setting for Helical gear milling

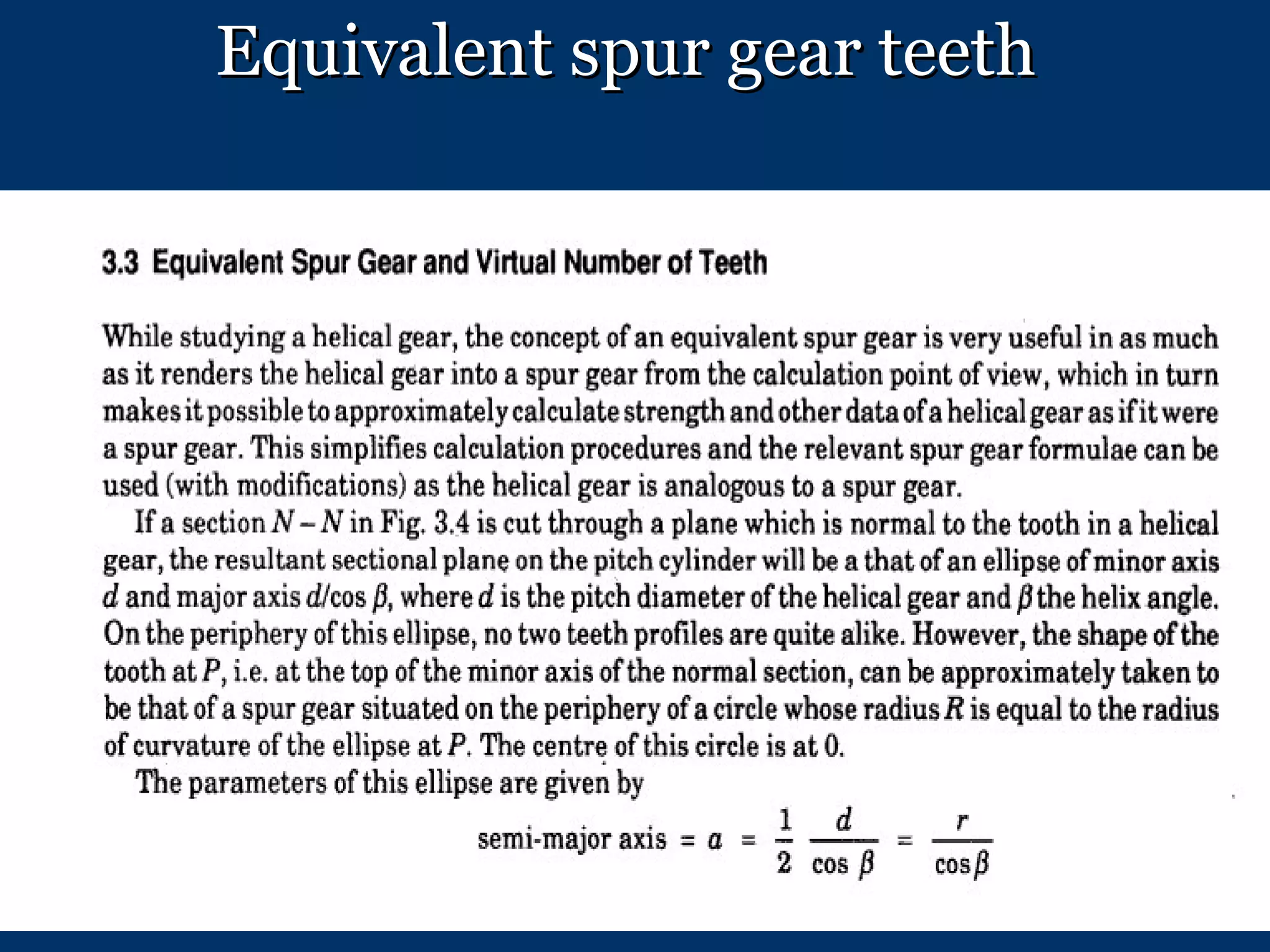

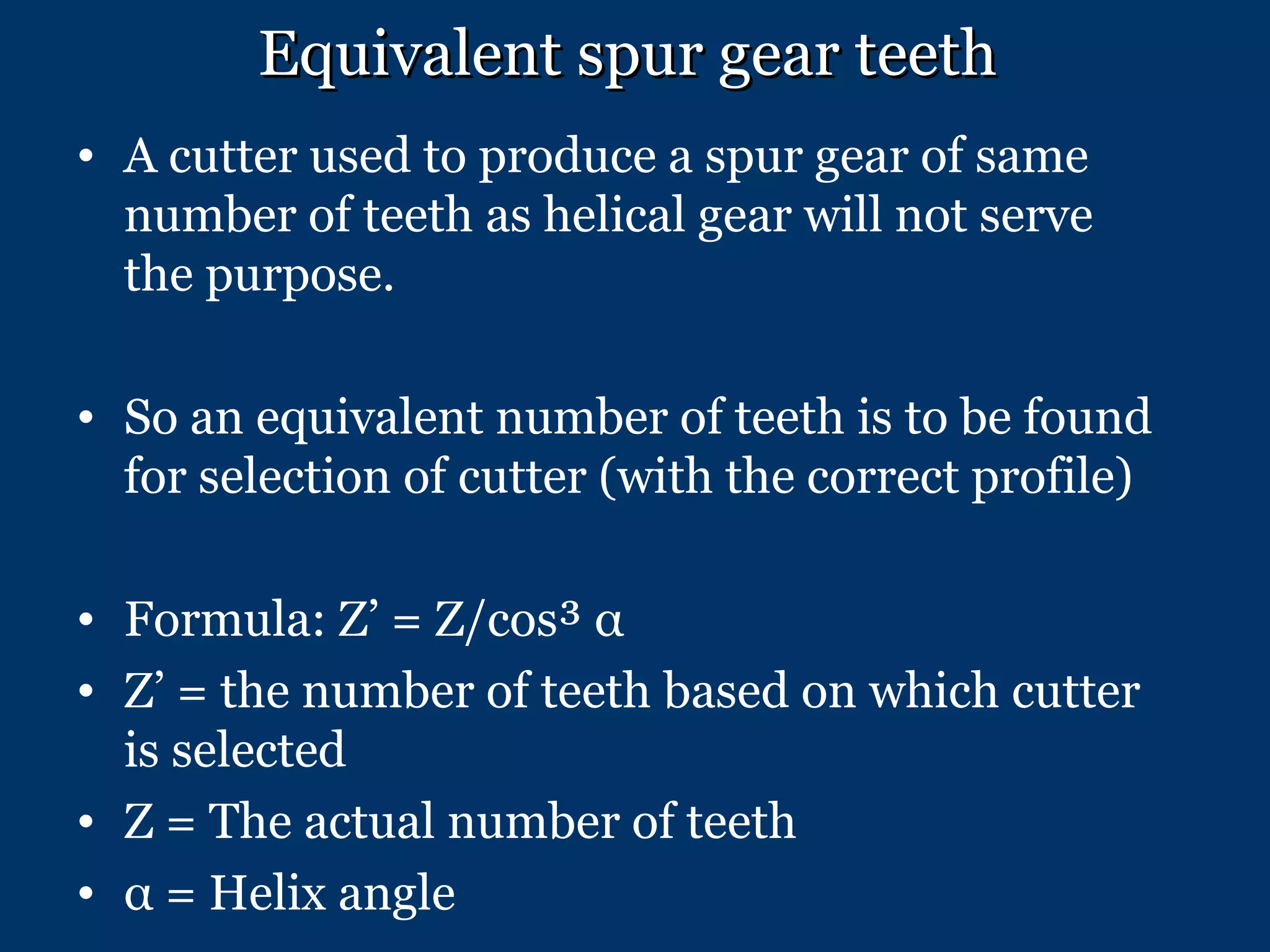

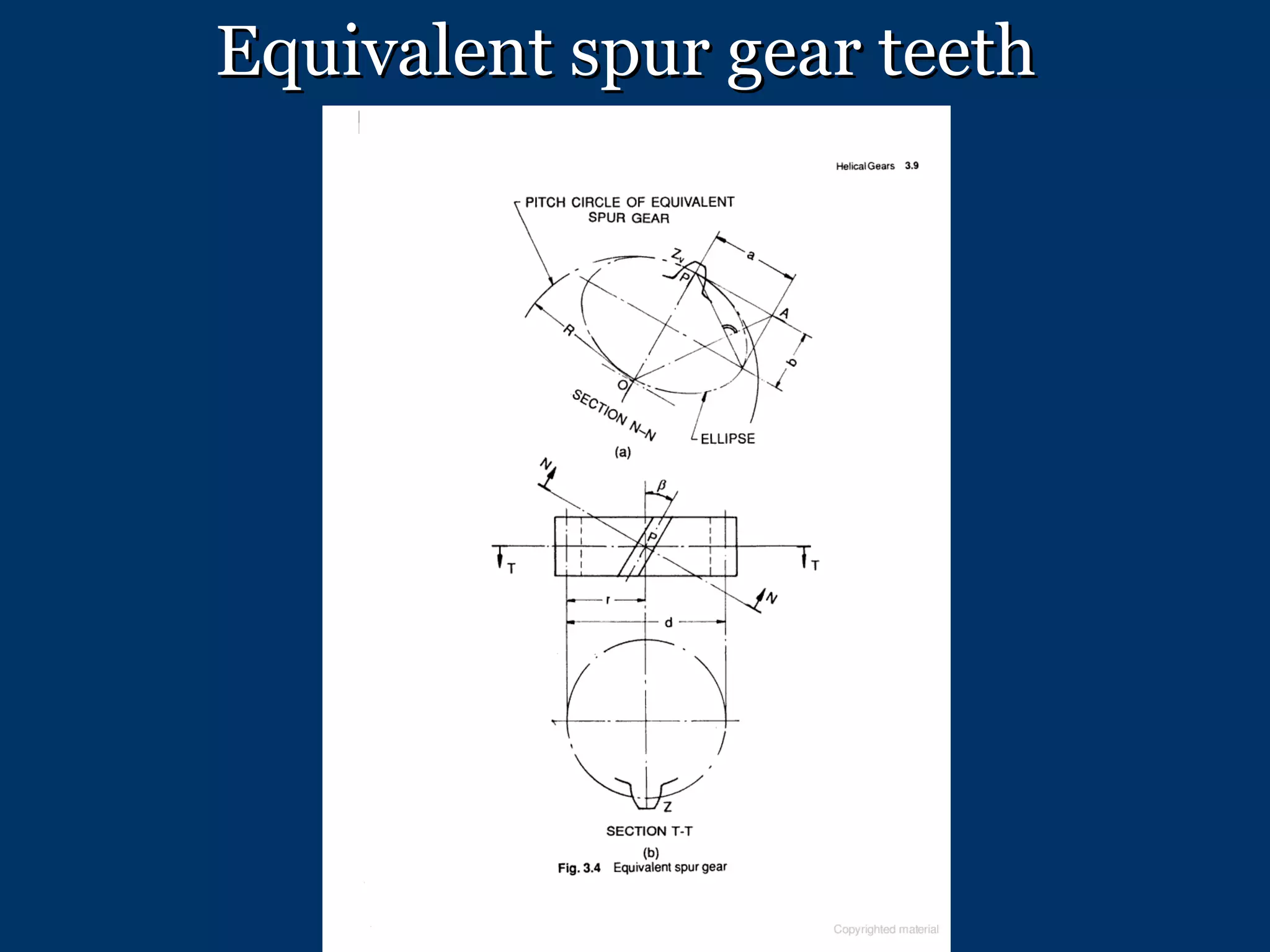

Equivalent spur gear teeth A cutter used to produce a spur gear of same number of teeth as helical gear will not serve the purpose. So an equivalent number of teeth is to be found for selection of cutter (with the correct profile) Formula: Z’ = Z/cos³ α Z’ = the number of teeth based on which cutter is selected Z = The actual number of teeth α = Helix angle

Equivalent spur gear teeth (virtual)

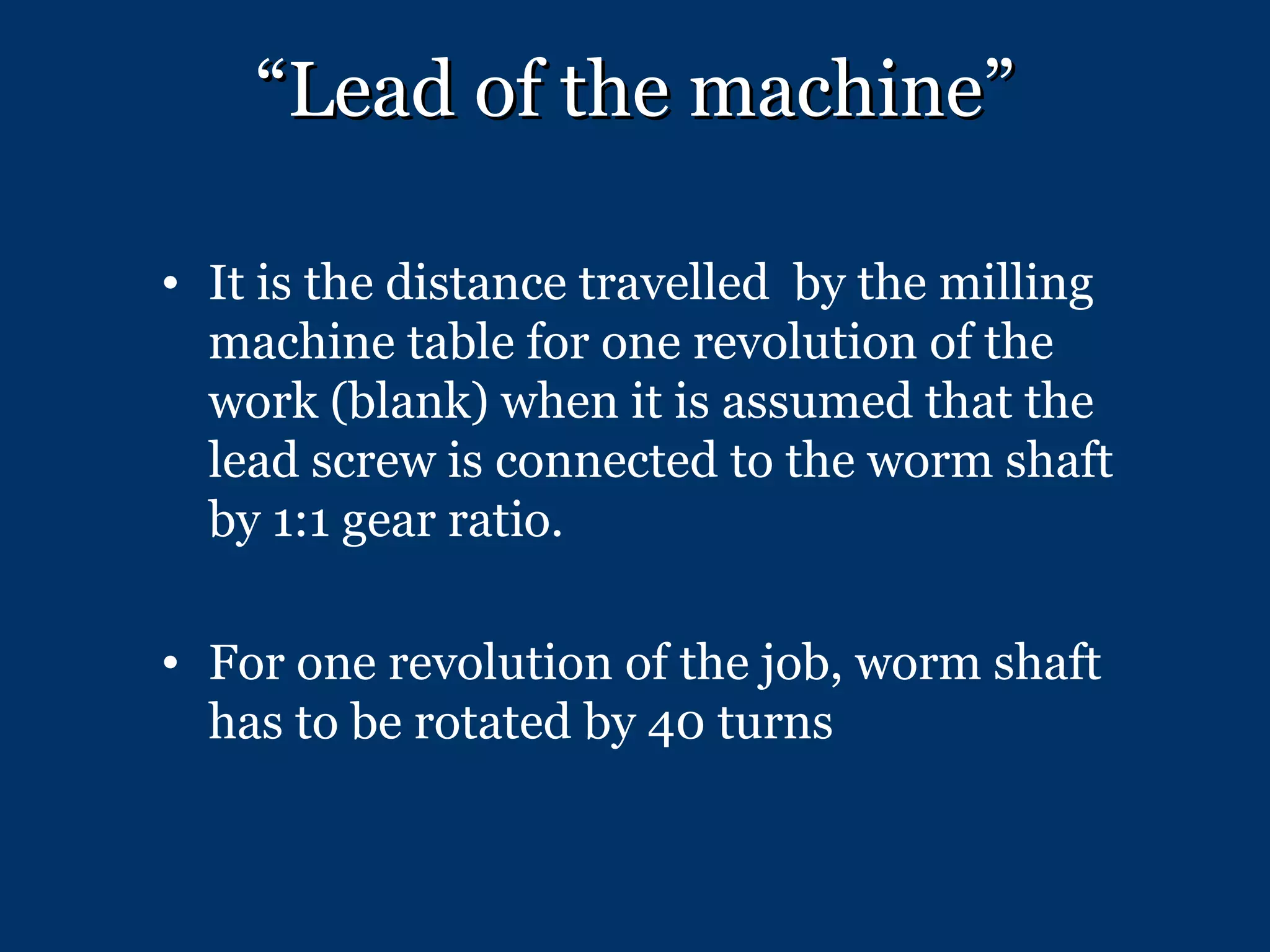

“ Lead of the machine” It is the distance travelled by the milling machine table for one revolution of the work (blank) when it is assumed that the lead screw is connected to the worm shaft by 1:1 gear ratio. For one revolution of the job, worm shaft has to be rotated by 40 turns

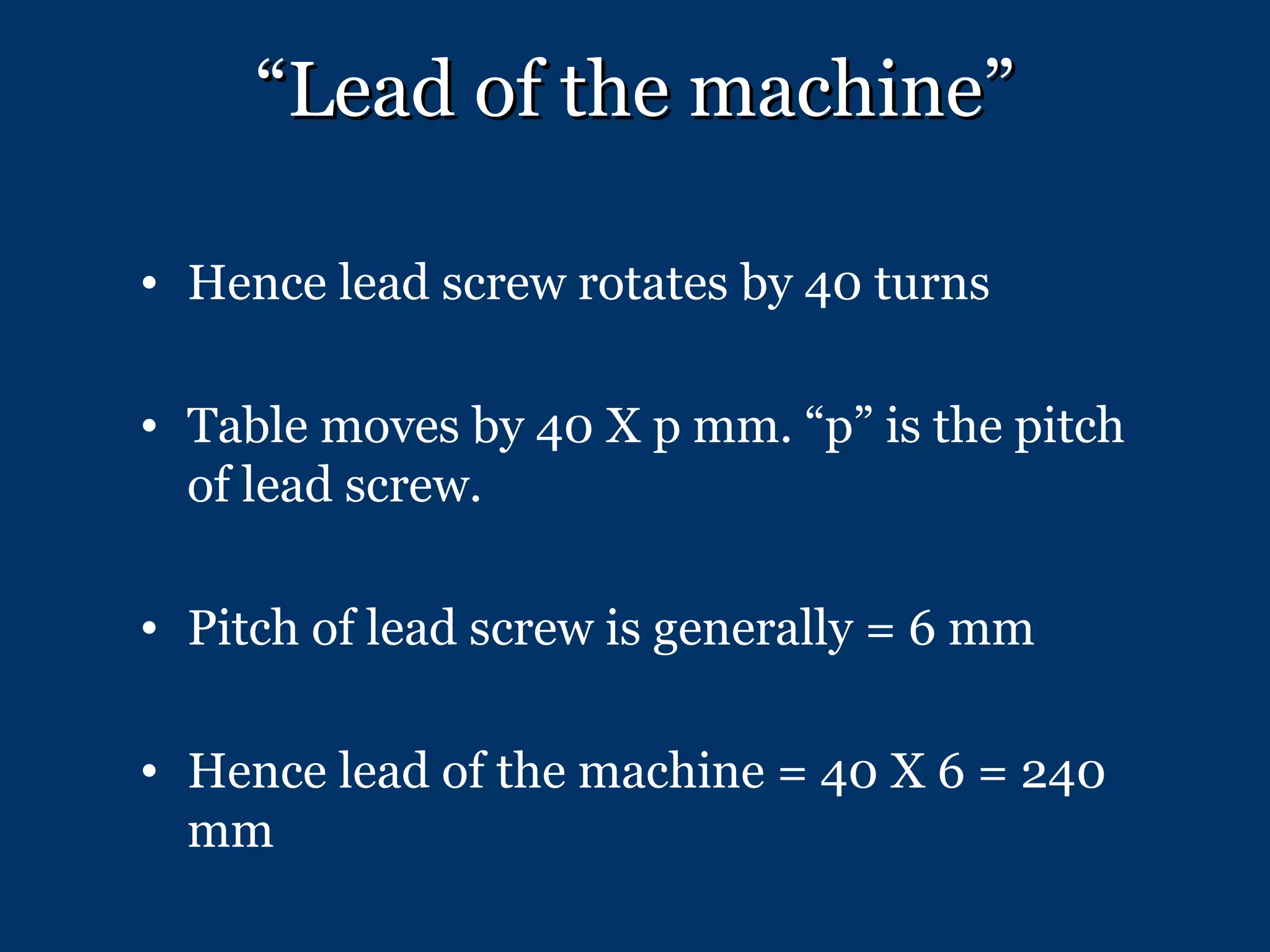

“ Lead of the machine” Hence lead screw rotates by 40 turns Table moves by 40 X p mm. “p” is the pitch of lead screw. Pitch of lead screw is generally = 6 mm Hence lead of the machine = 40 X 6 = 240 mm

“ Lead of the machine” Let “p” = pitch of the lead screw in mm And T = Lead of the helix to be milled in mm No. of turns of lead screw for moving the table through the Lead “T” = T/p No. of turns of worm shaft/No of turns of lead screw = 40 ÷ T/p = 40 x p/T

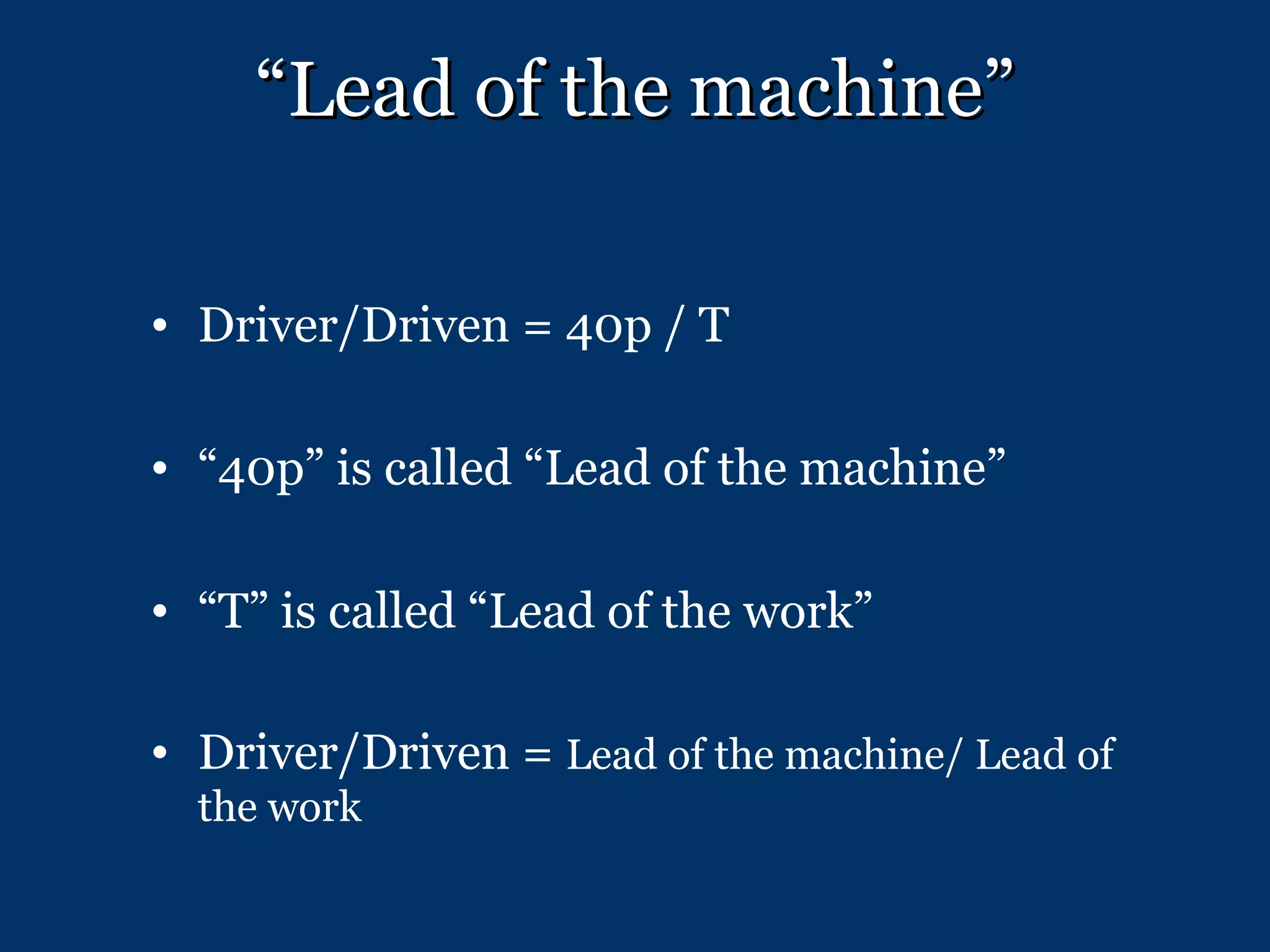

“ Lead of the machine” Driver/Driven = 40p / T “ 40p” is called “Lead of the machine” “ T” is called “Lead of the work” Driver/Driven = Lead of the machine/ Lead of the work

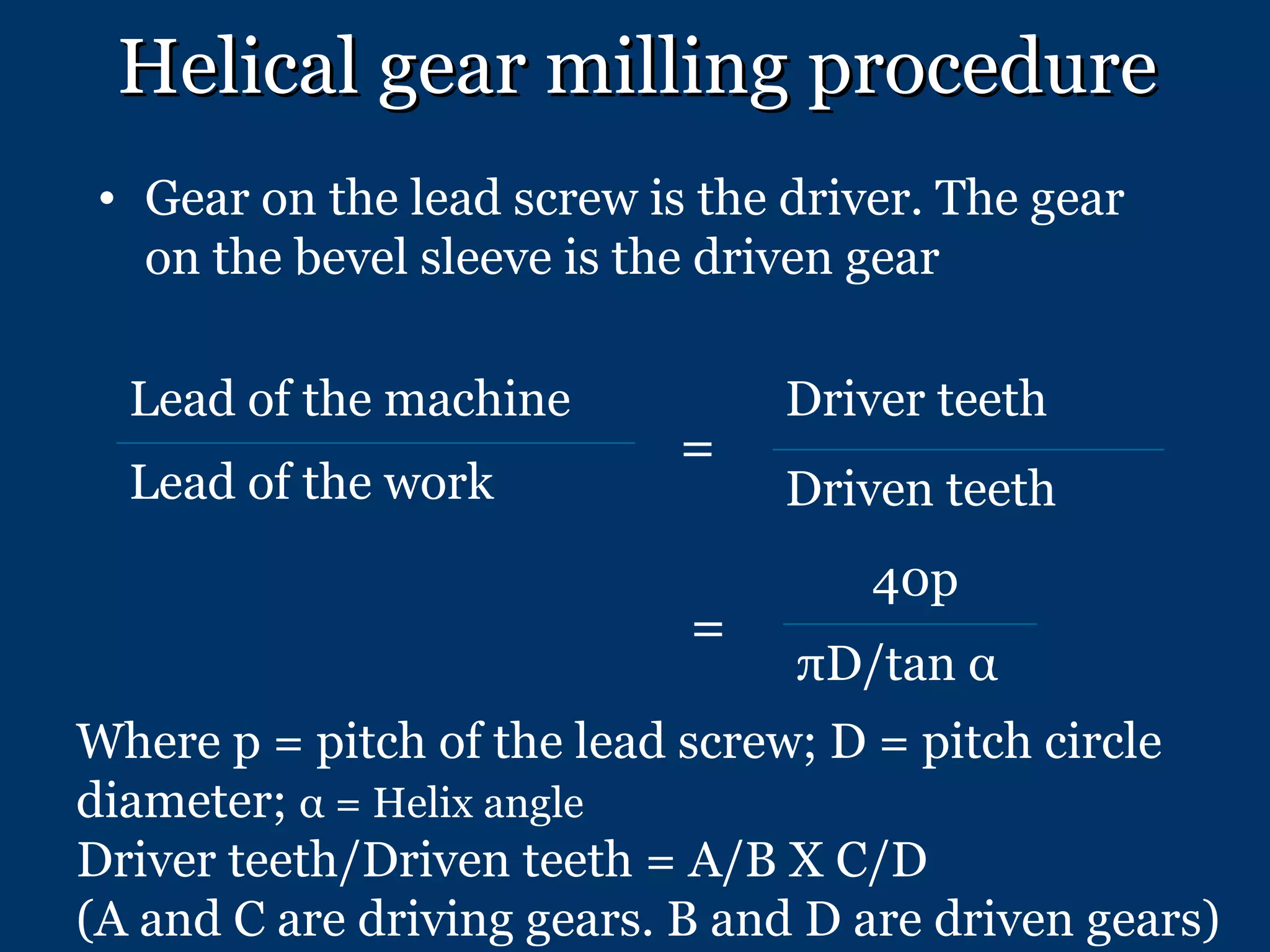

Helical gear milling procedure Gear on the lead screw is the driver. The gear on the bevel sleeve is the driven gear = = Where p = pitch of the lead screw; D = pitch circle diameter; α = Helix angle Driver teeth/Driven teeth = A/B X C/D (A and C are driving gears. B and D are driven gears) Lead of the machine Lead of the work Driver teeth Driven teeth 40p πD/tan α

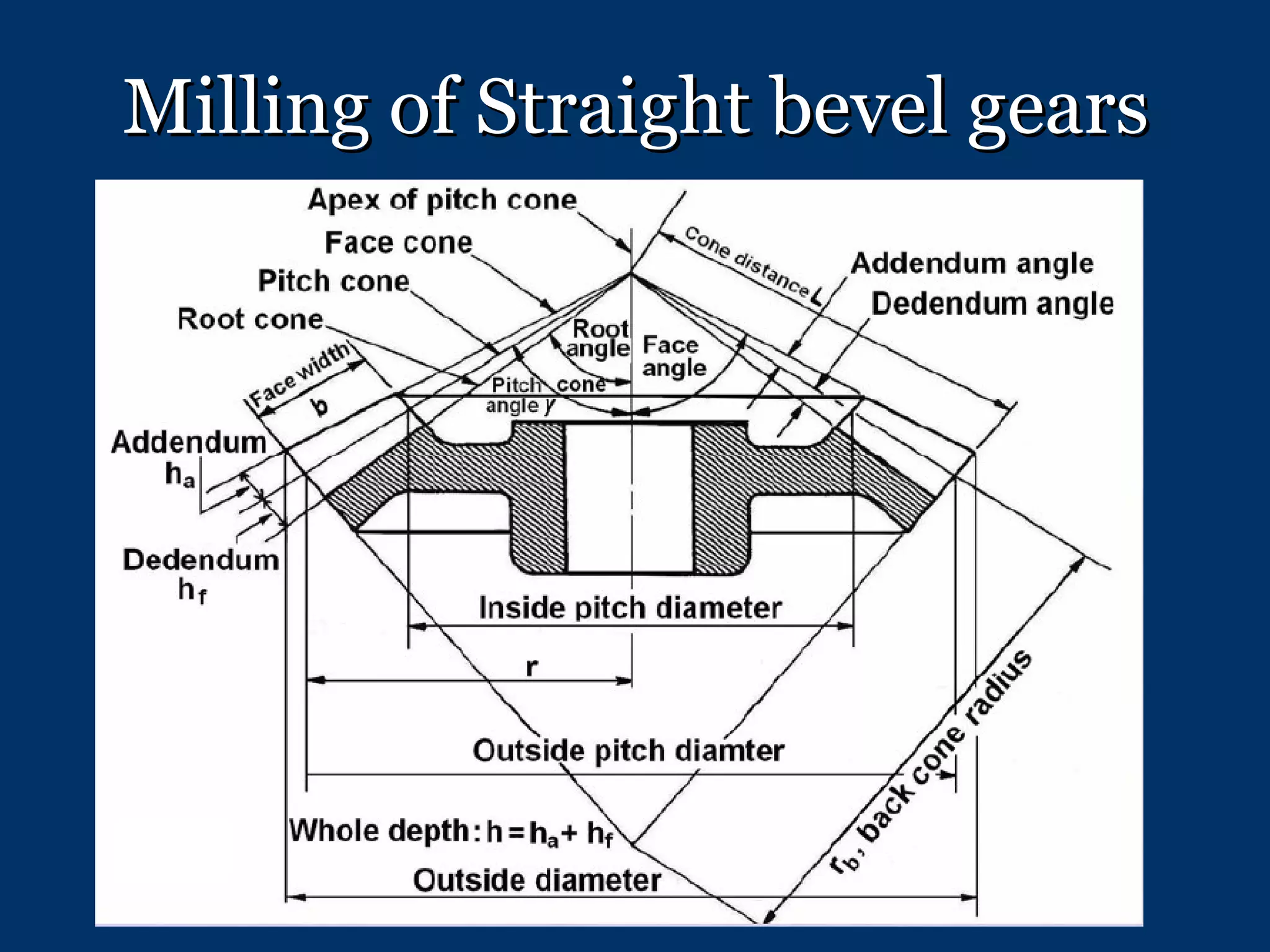

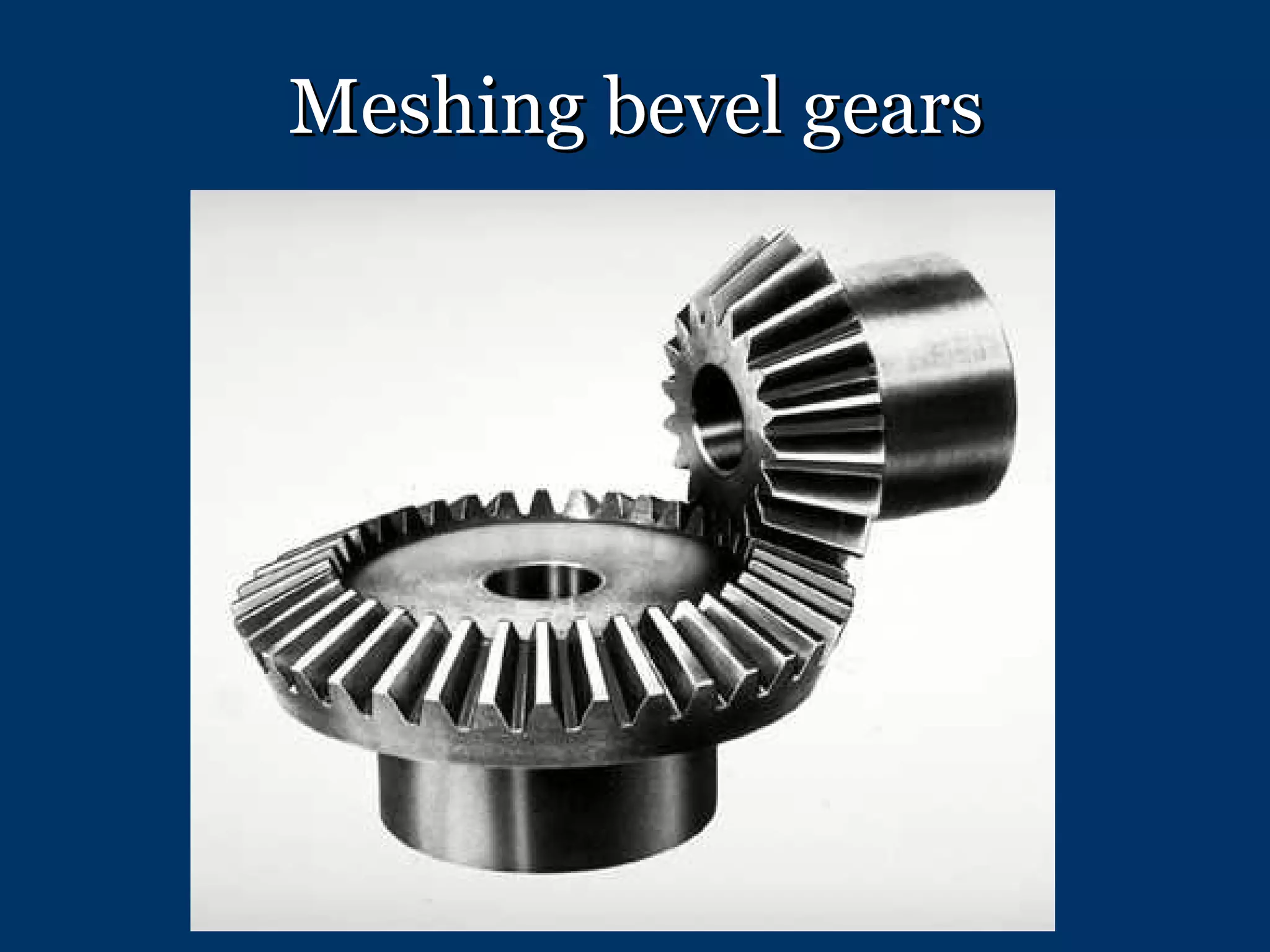

Milling of Straight bevel gears

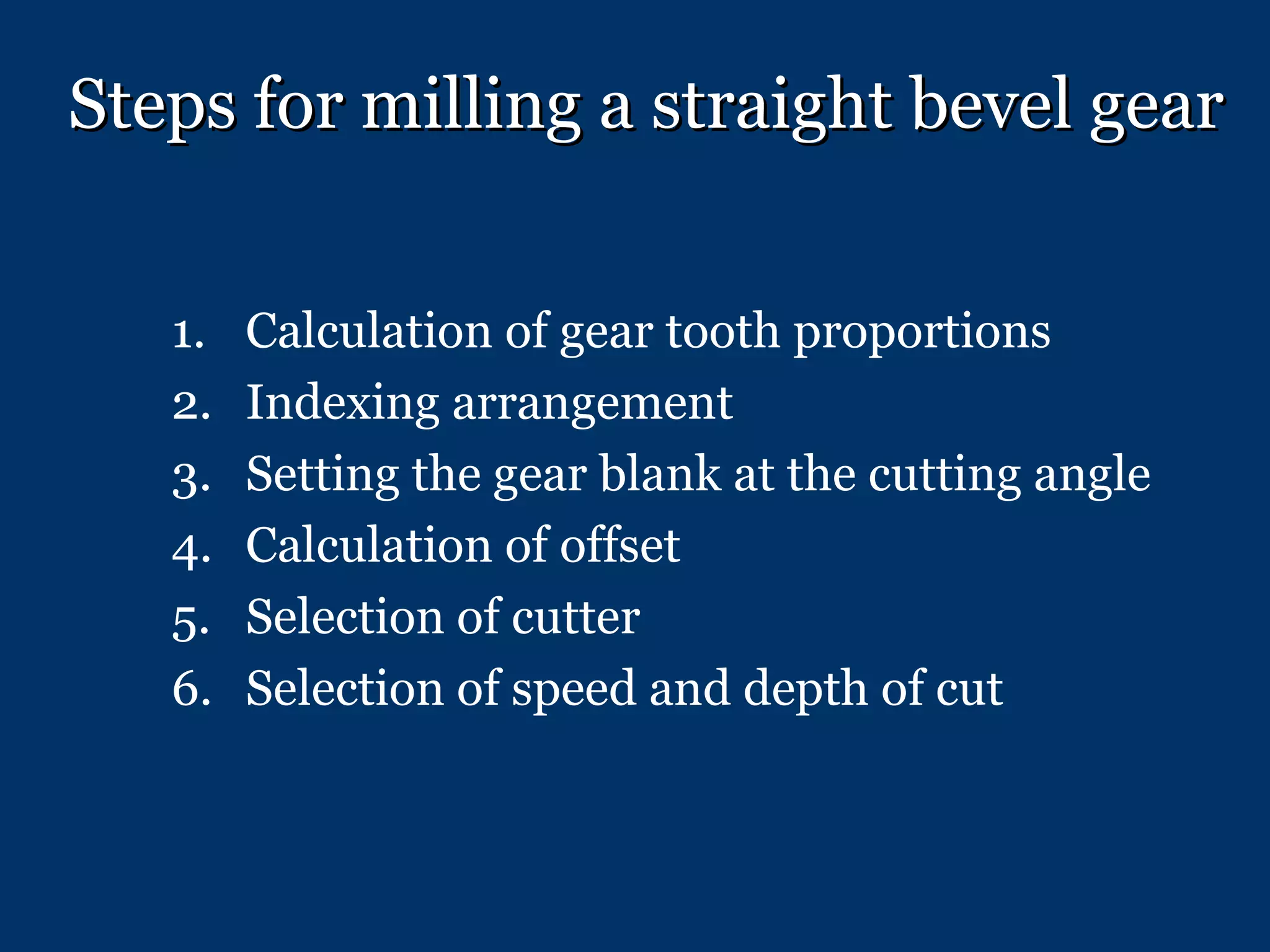

Steps for milling a straight bevel gear Calculation of gear tooth proportions Indexing arrangement Setting the gear blank at the cutting angle Calculation of offset Selection of cutter Selection of speed and depth of cut

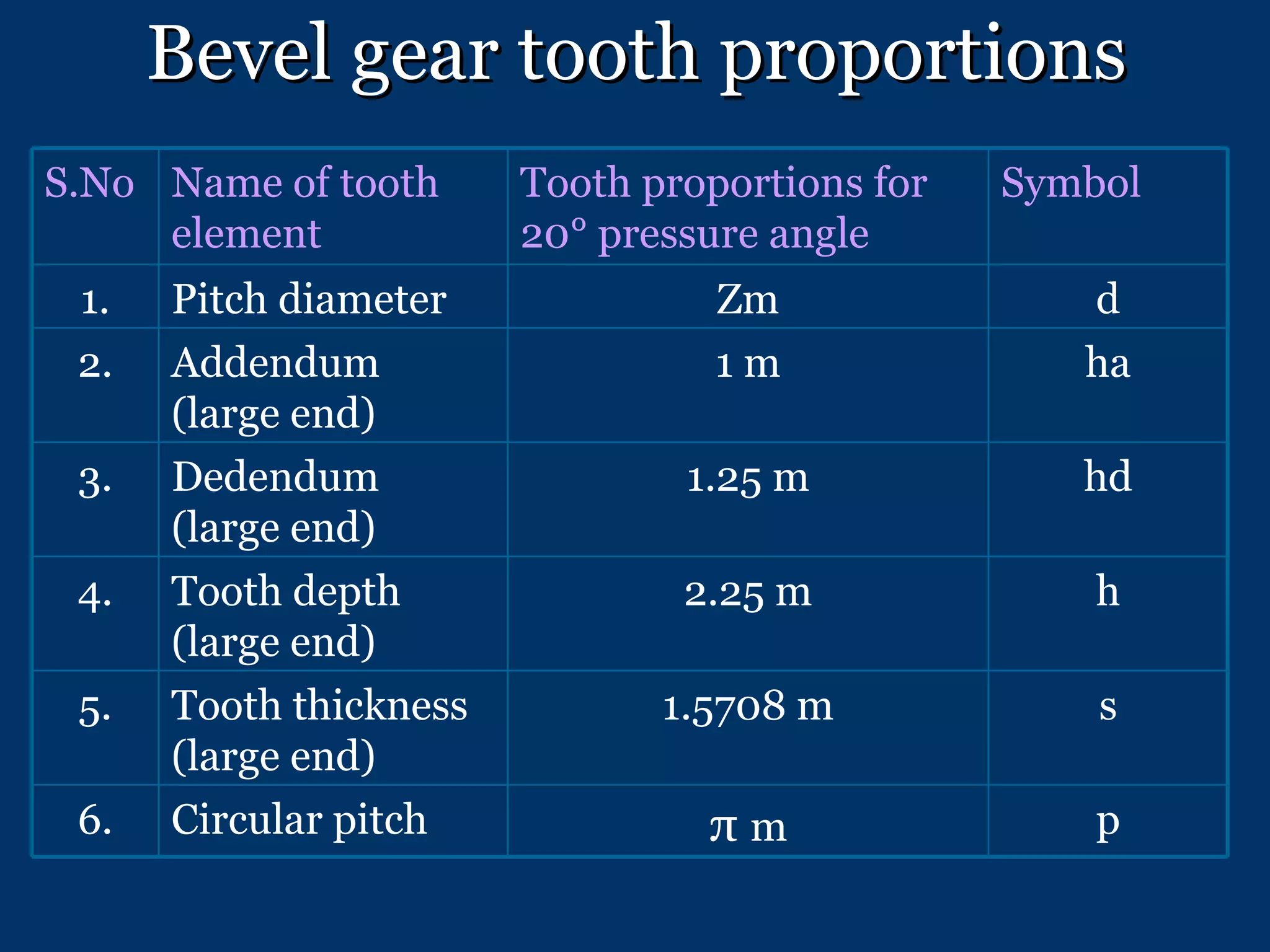

Bevel gear tooth proportions S.No Name of tooth element Tooth proportions for 20° pressure angle Symbol 1. Pitch diameter Zm d 2. Addendum (large end) 1 m ha 3. Dedendum (large end) 1.25 m hd 4. Tooth depth (large end) 2.25 m h 5. Tooth thickness (large end) 1.5708 m s 6. Circular pitch π m p

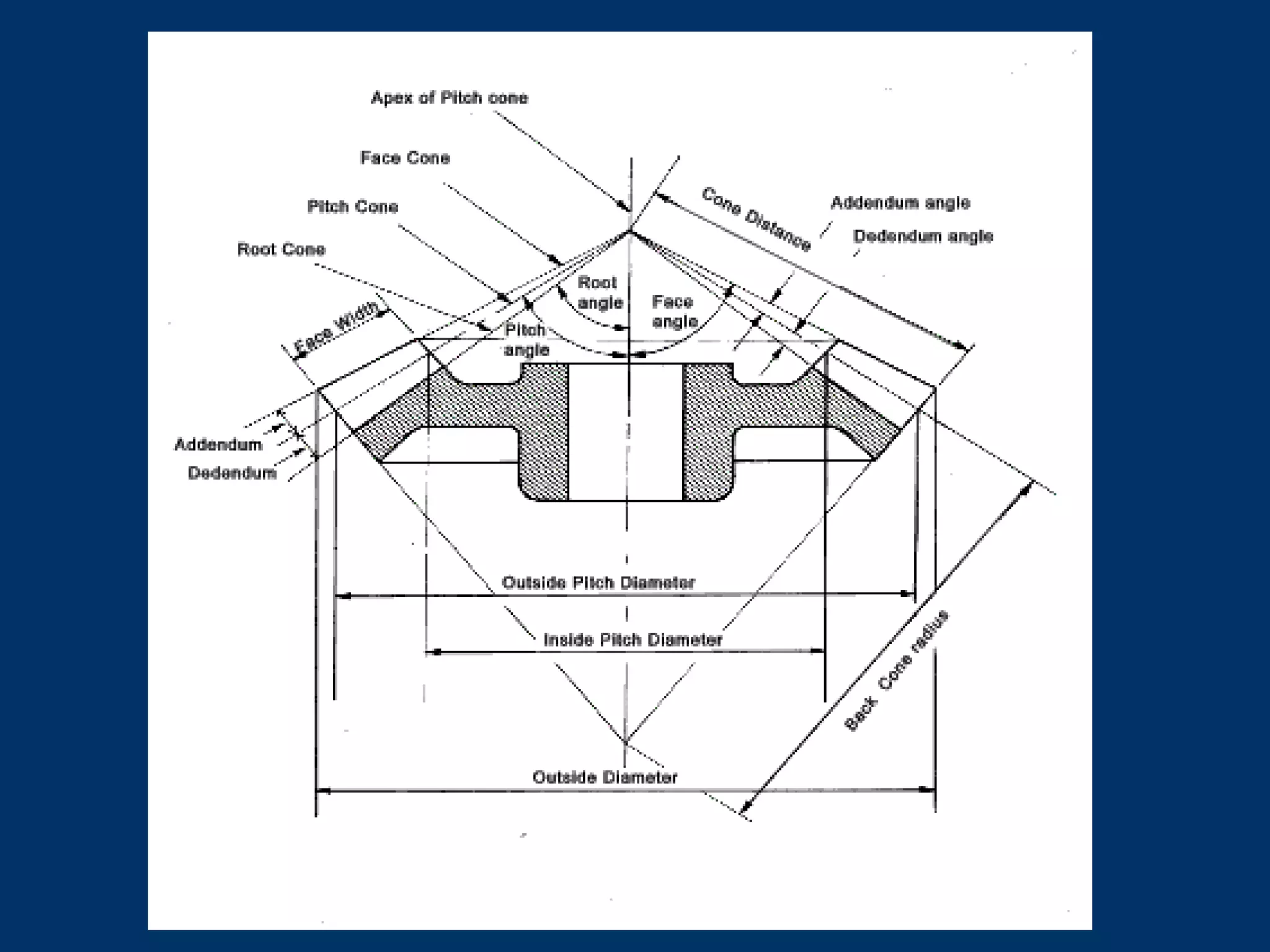

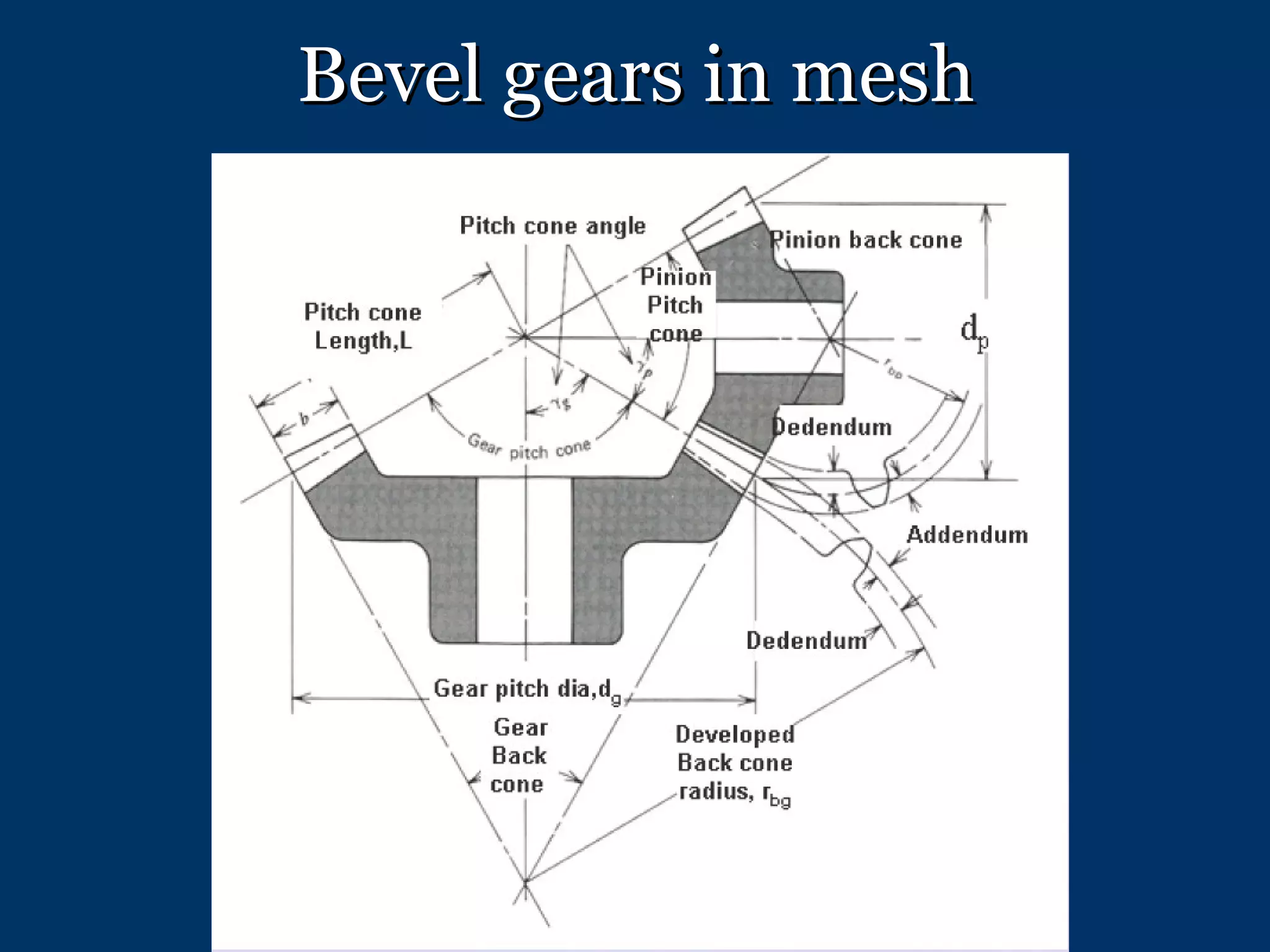

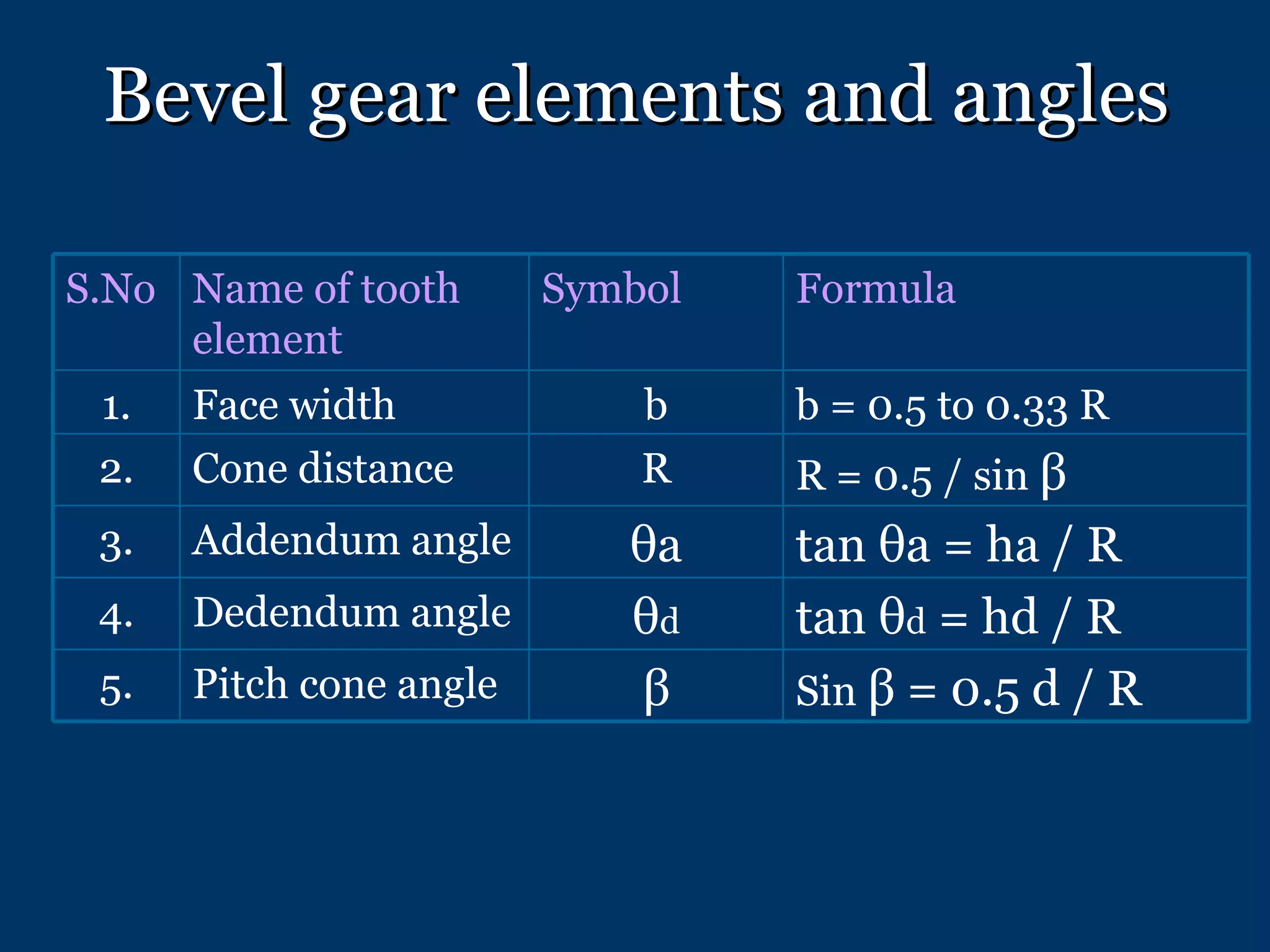

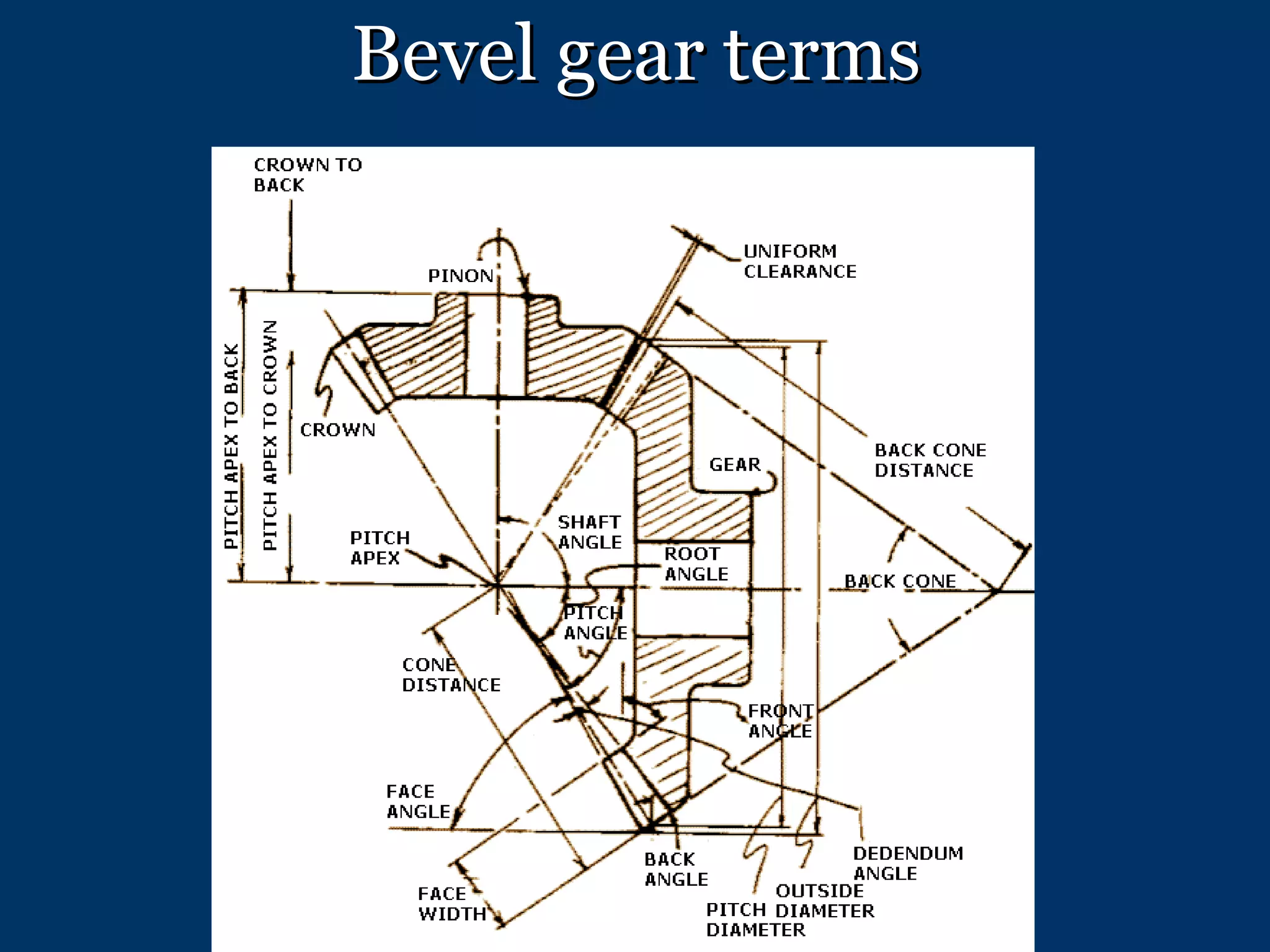

Bevel gear elements and angles S.No Name of tooth element Symbol Formula 1. Face width b b = 0.5 to 0.33 R 2. Cone distance R R = 0.5 / sin β 3. Addendum angle θa tan θa = ha / R 4. Dedendum angle θ d tan θ d = hd / R 5. Pitch cone angle β Sin β = 0.5 d / R

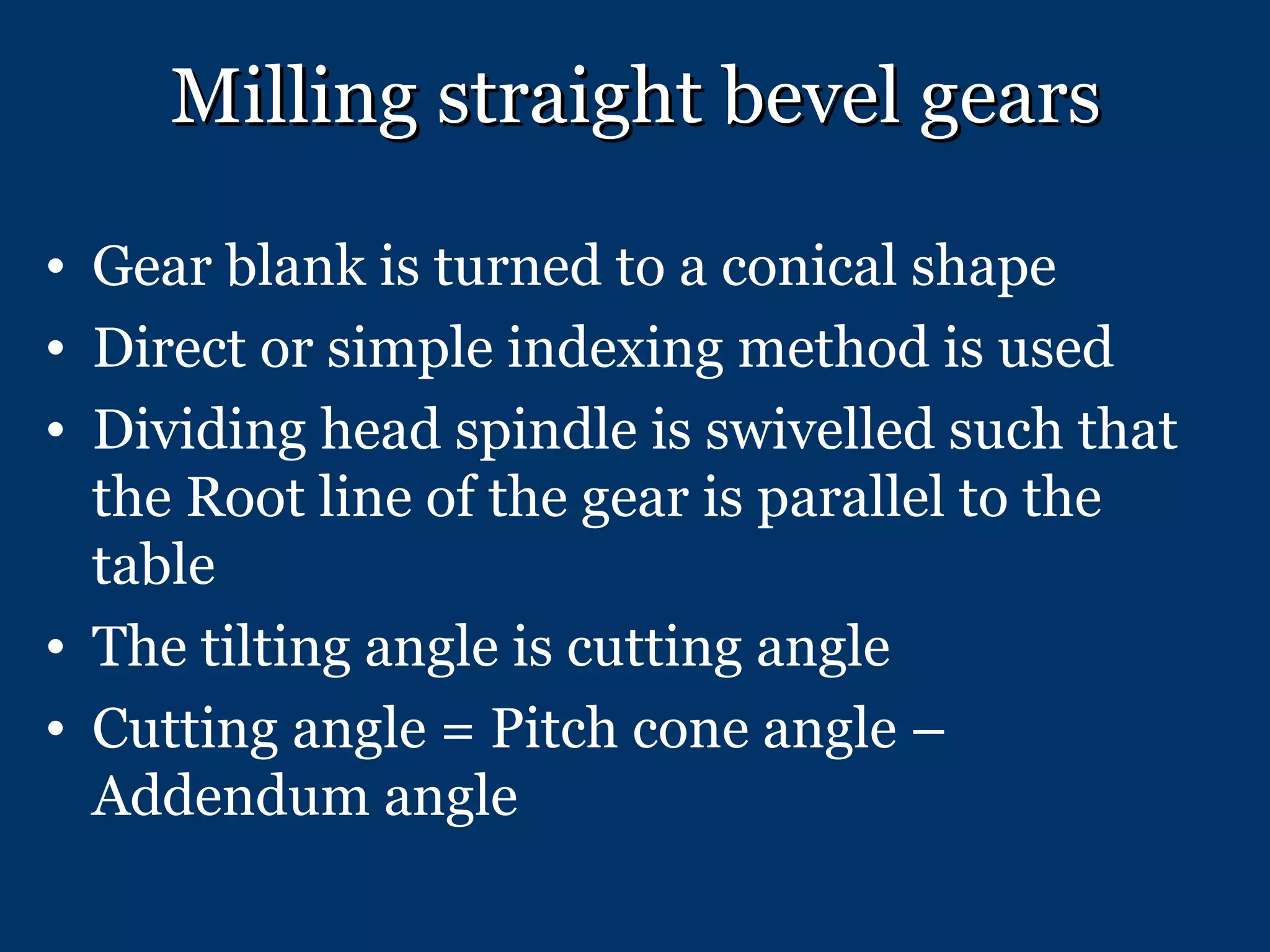

Milling straight bevel gears Gear blank is turned to a conical shape Direct or simple indexing method is used Dividing head spindle is swivelled such that the Root line of the gear is parallel to the table The tilting angle is cutting angle Cutting angle = Pitch cone angle – Addendum angle

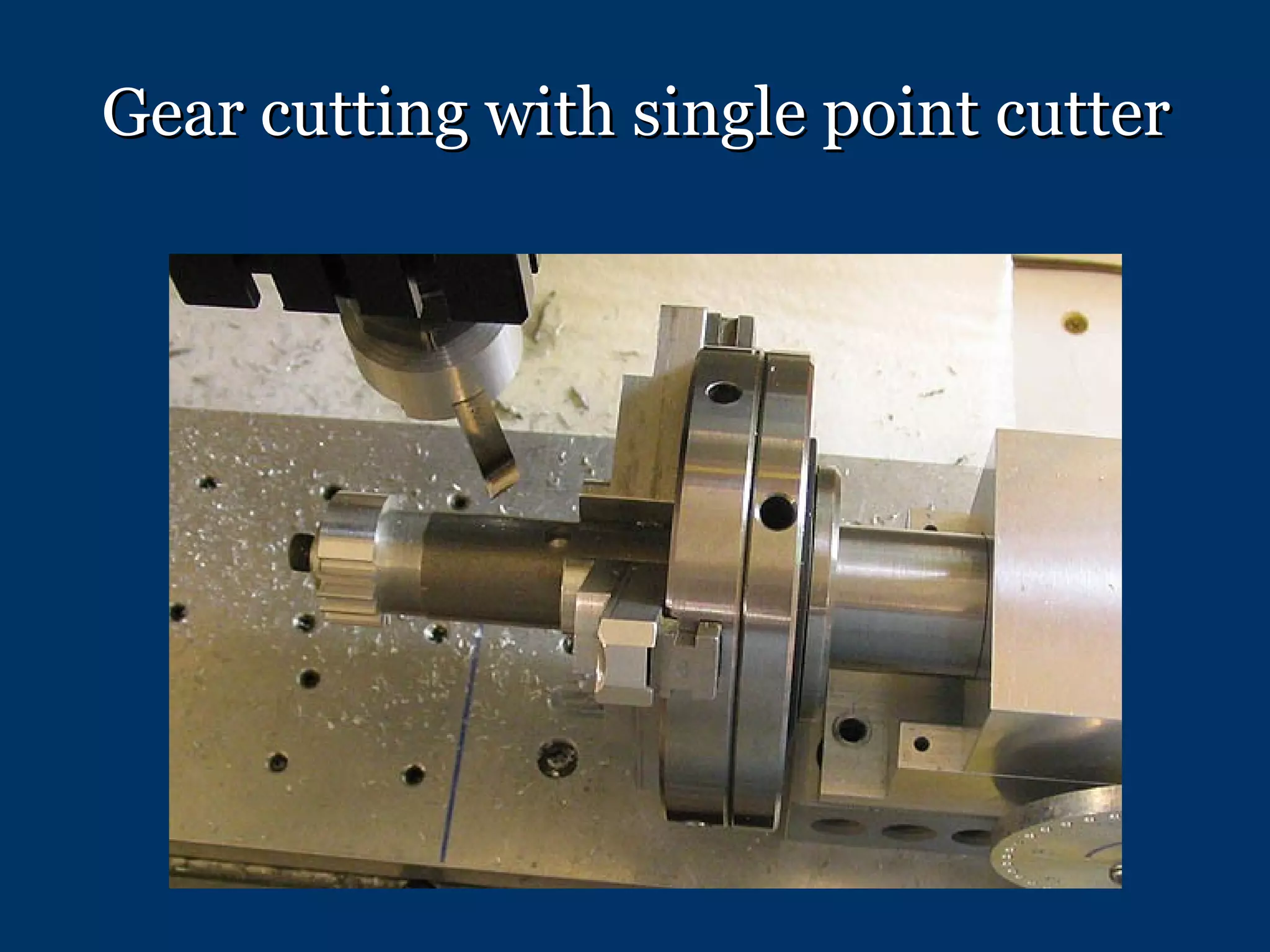

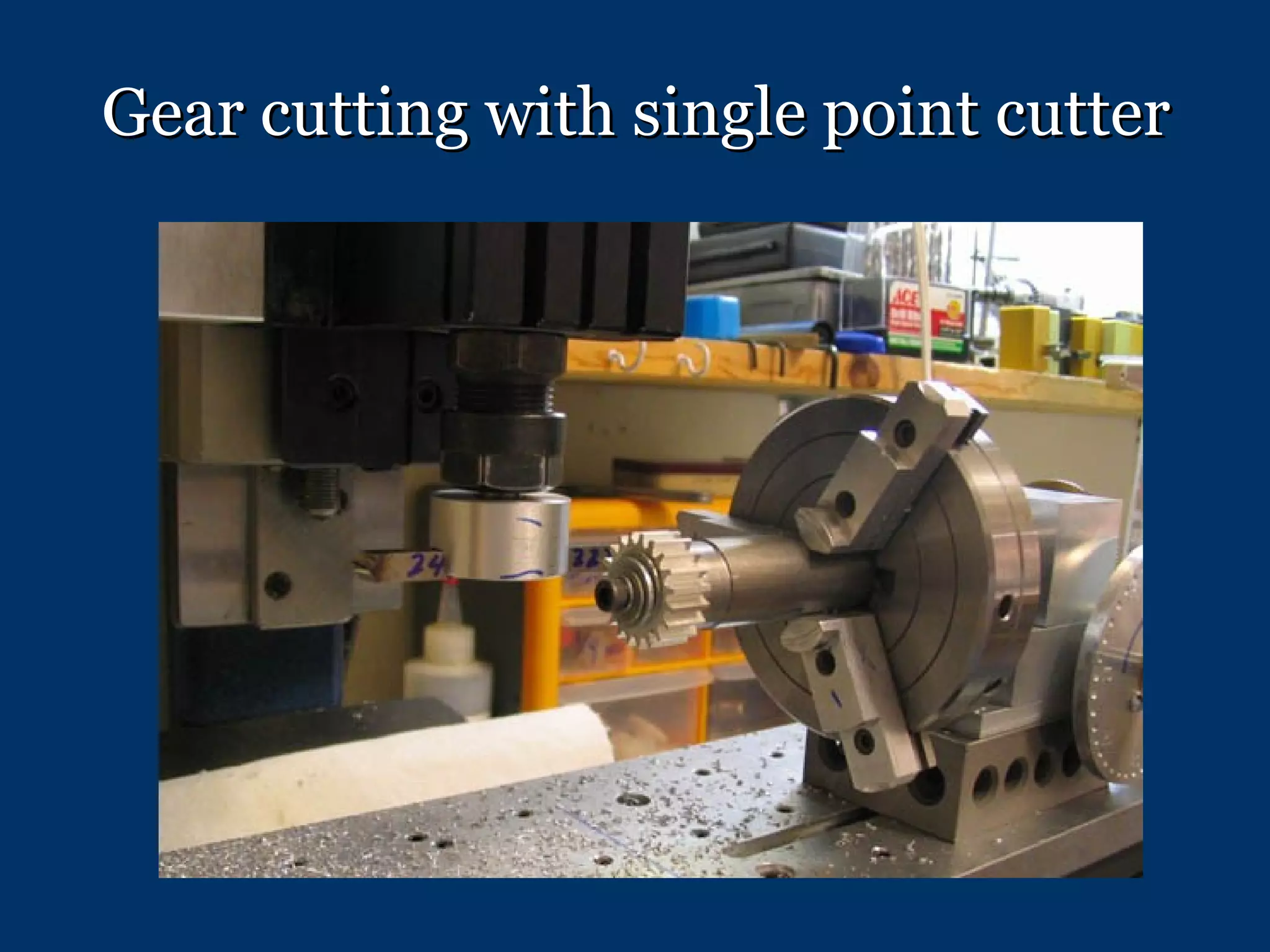

Gear cutting with single point cutter

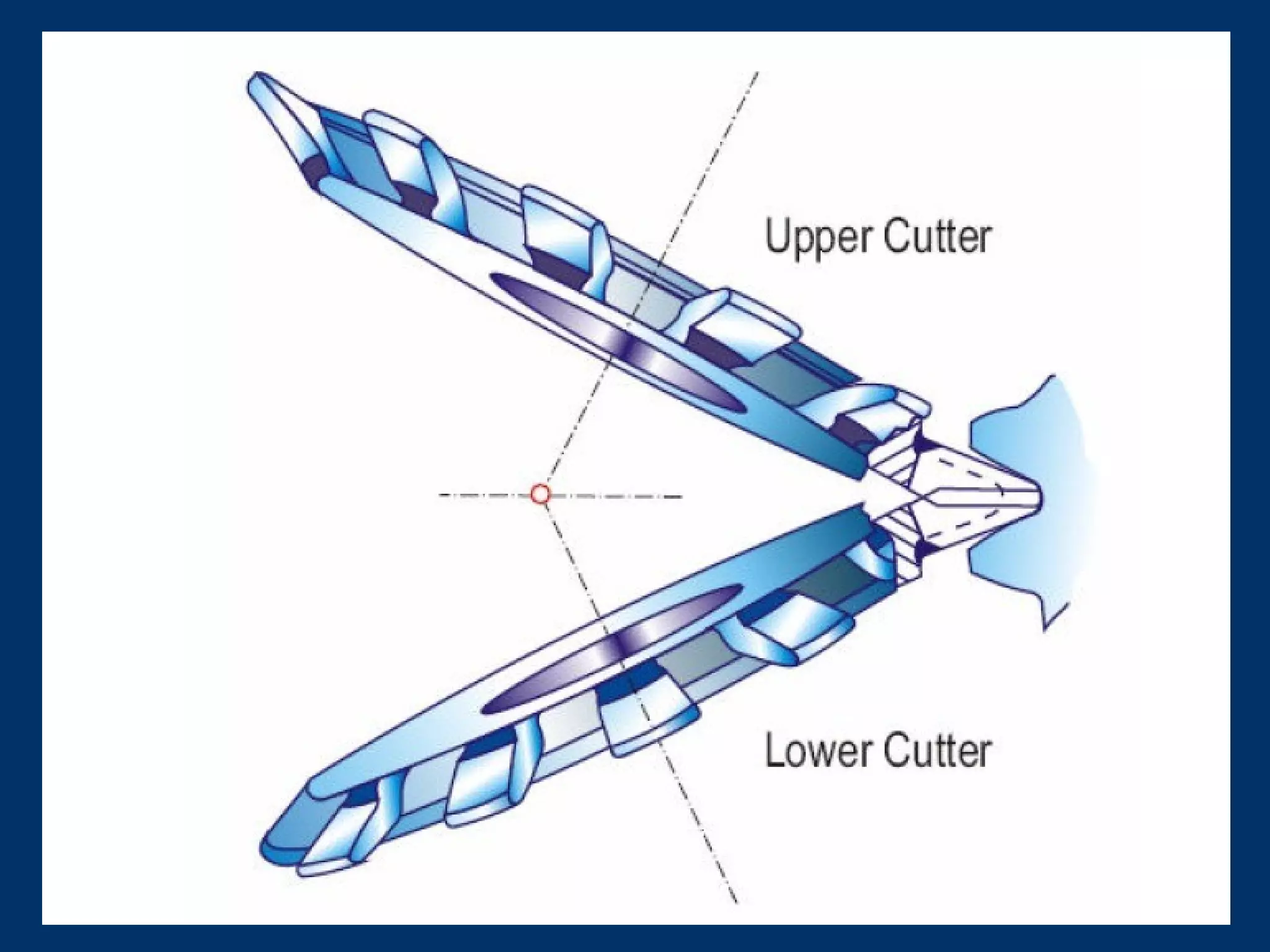

Gear Generating Process Gear generation is based on the fact that “any two involute gears of the same module will mesh together” Gear teeth are generated in the gear blank because of the relative rolling motion of the cutter and the blank. One of the mating gears in a cutter which reciprocates and also rotates as a mating gear. Accurate tooth profile is generated in this process.

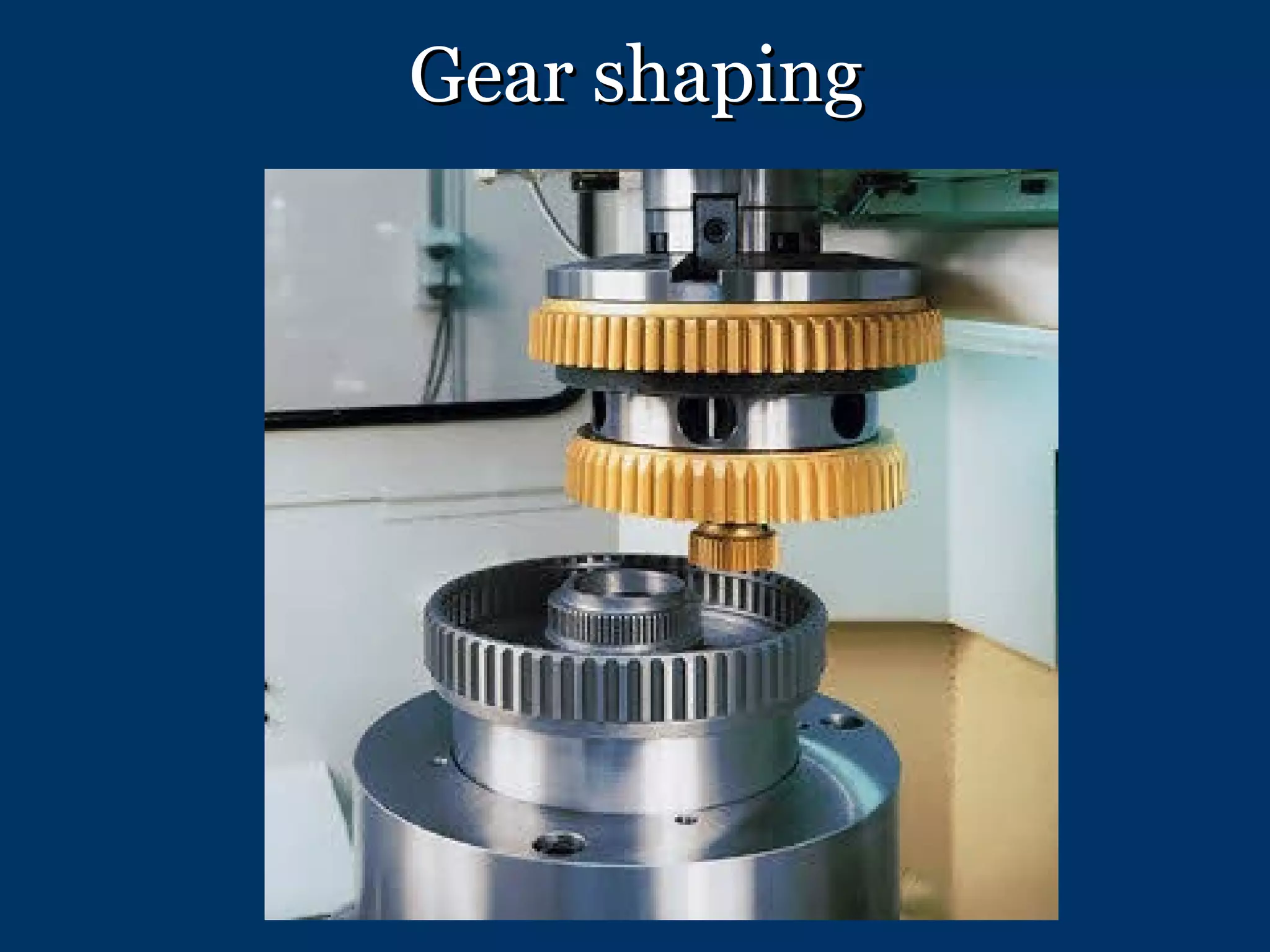

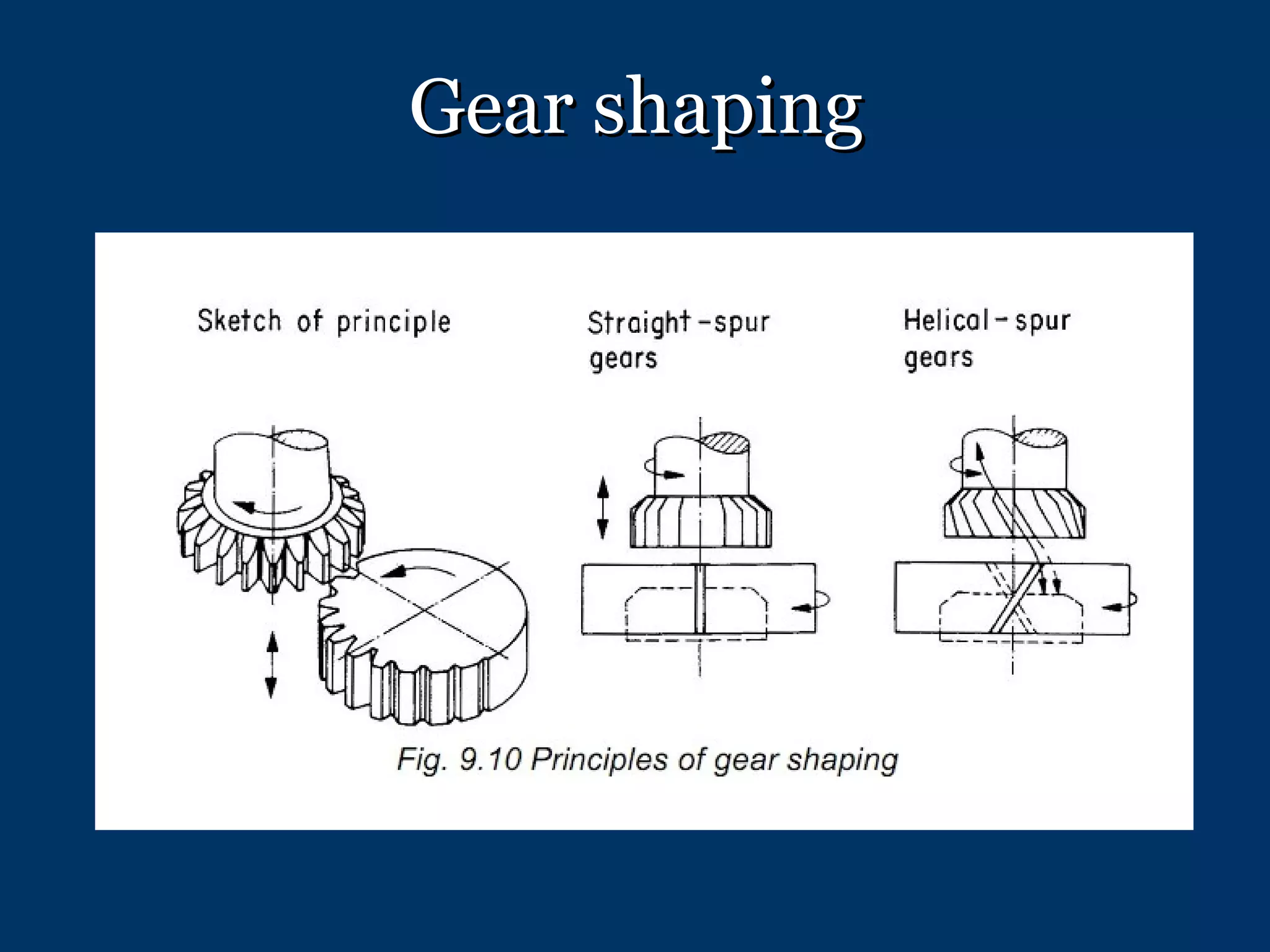

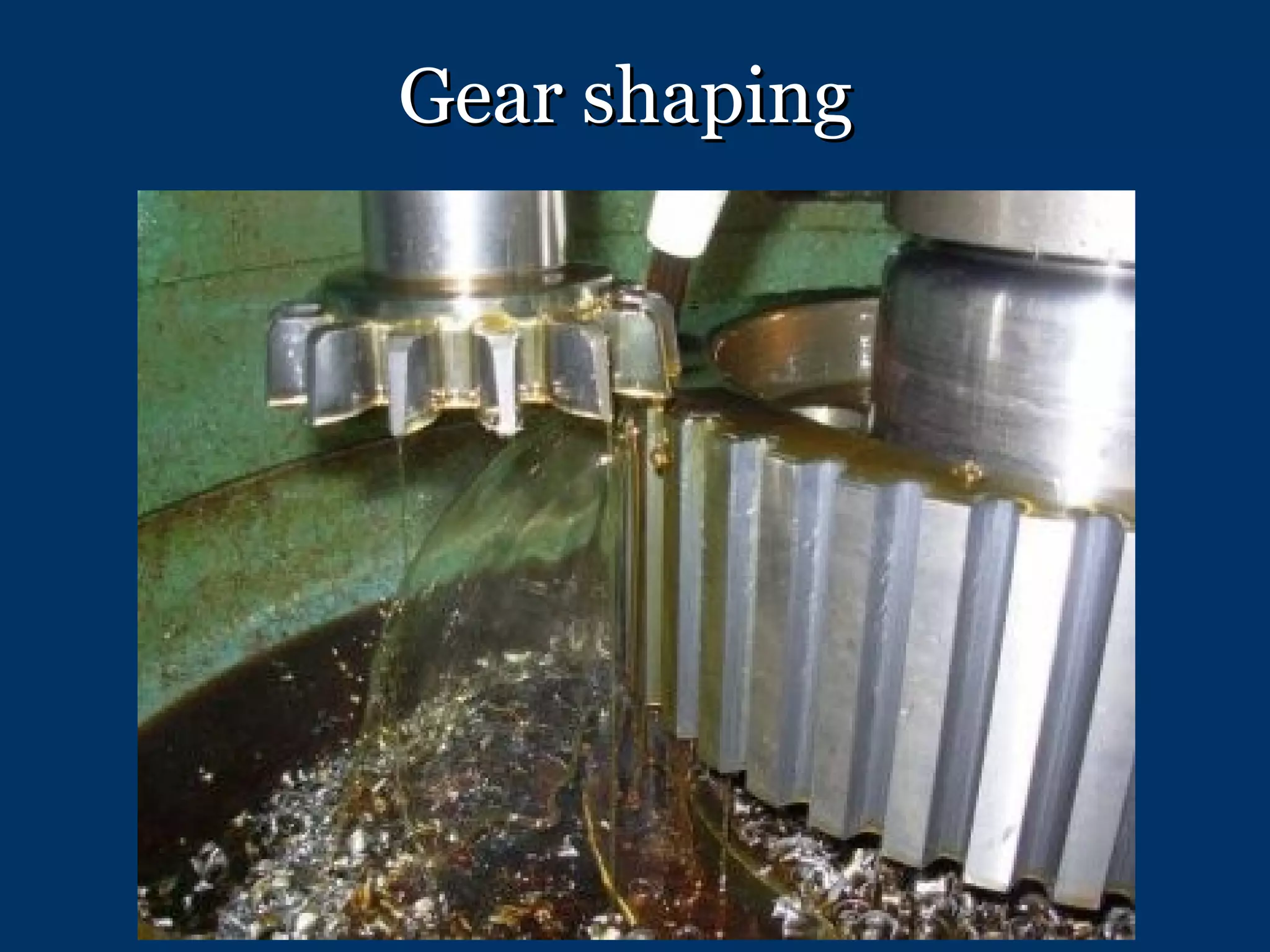

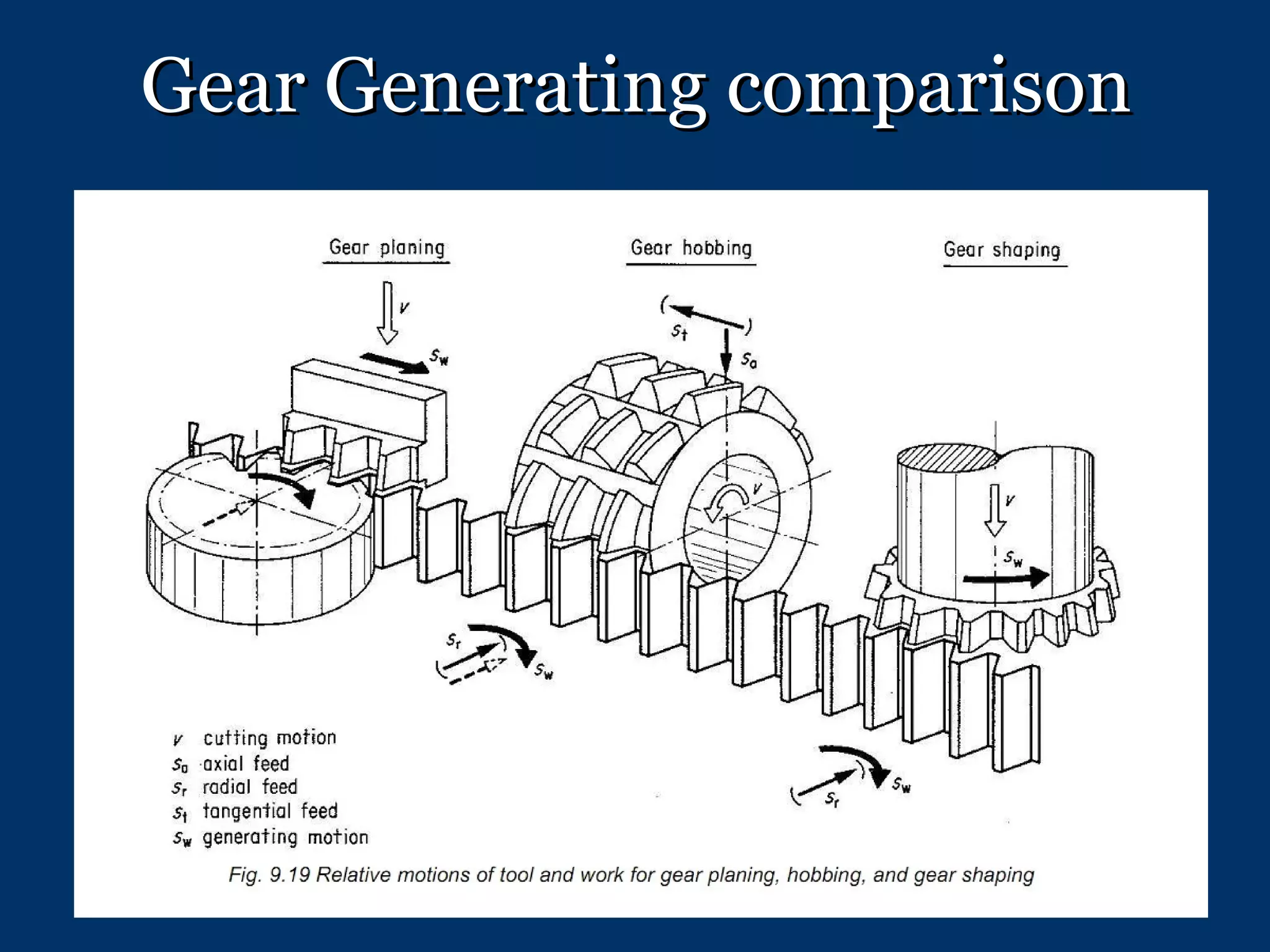

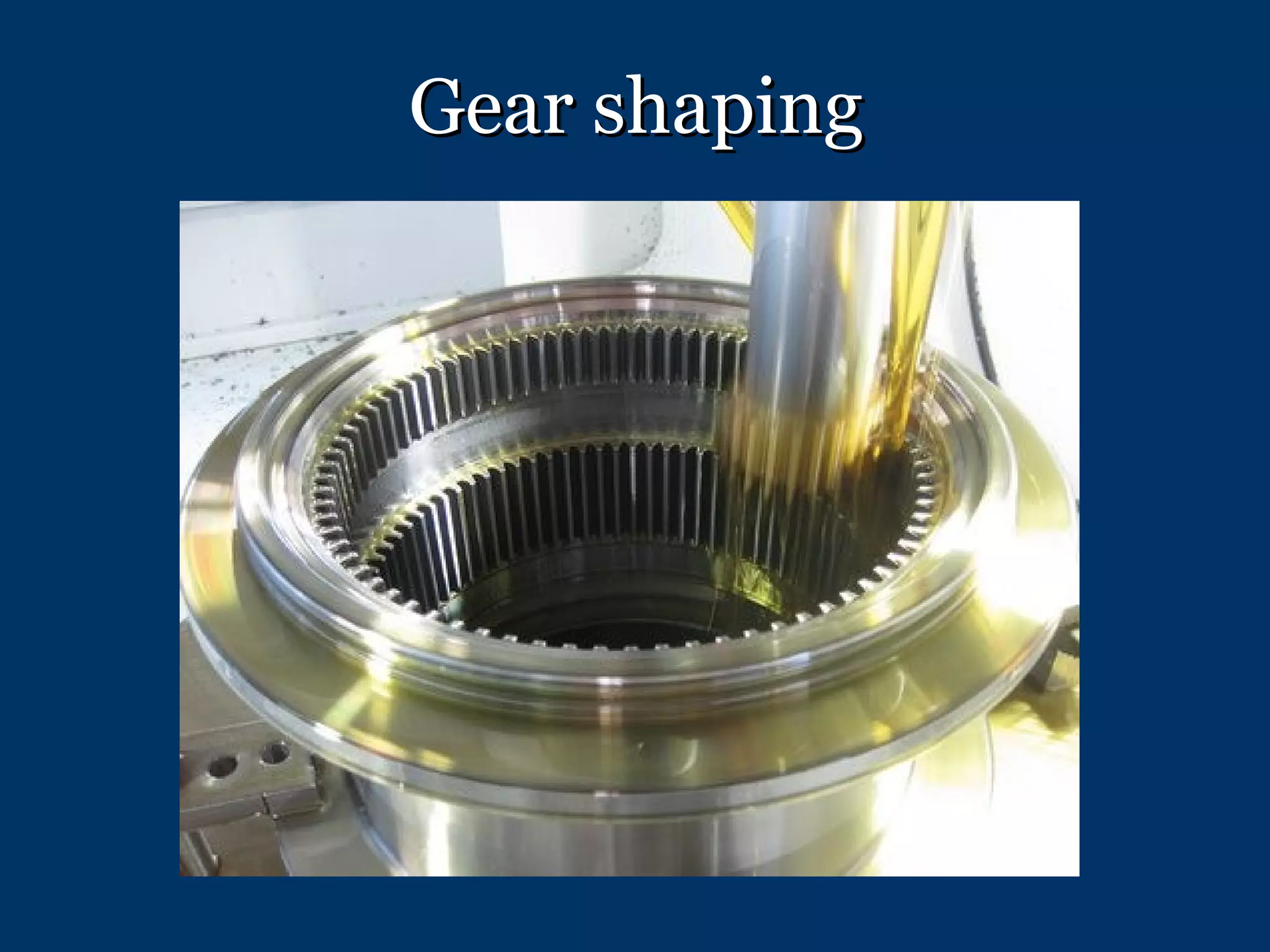

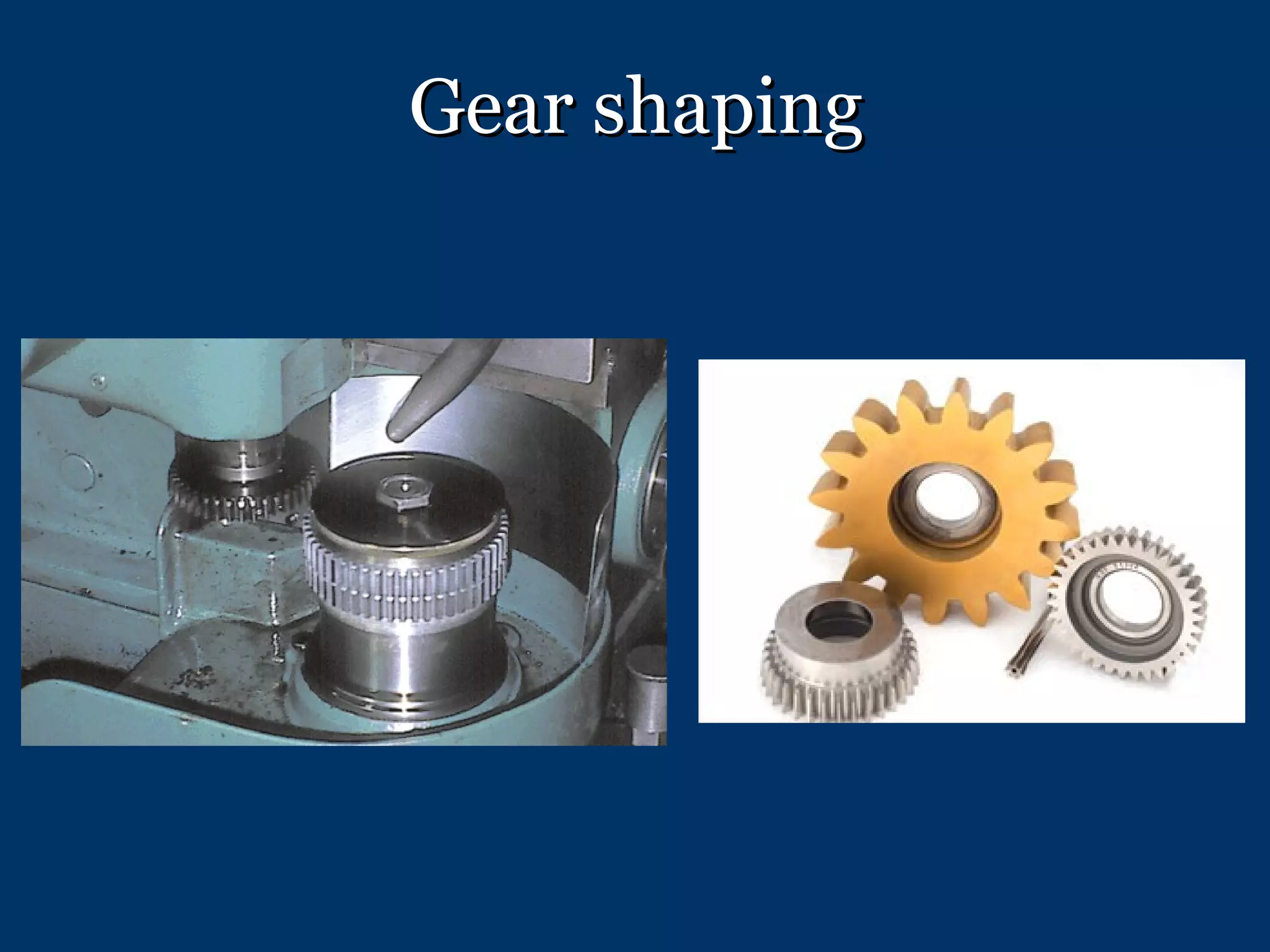

Gear shaping (pinion cutter) Gear planing (Rack cutter) Gear hobbing Gear generating methods

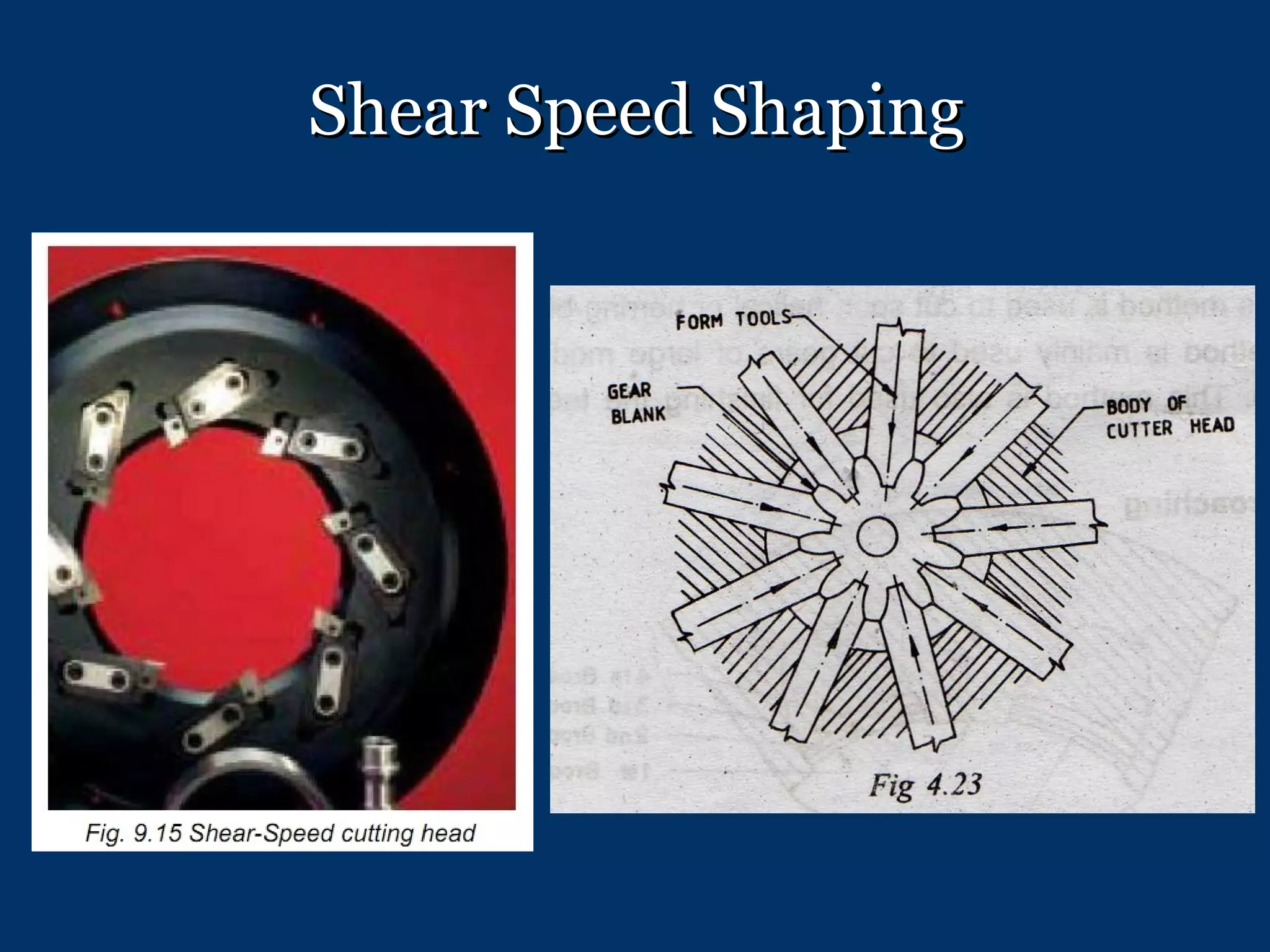

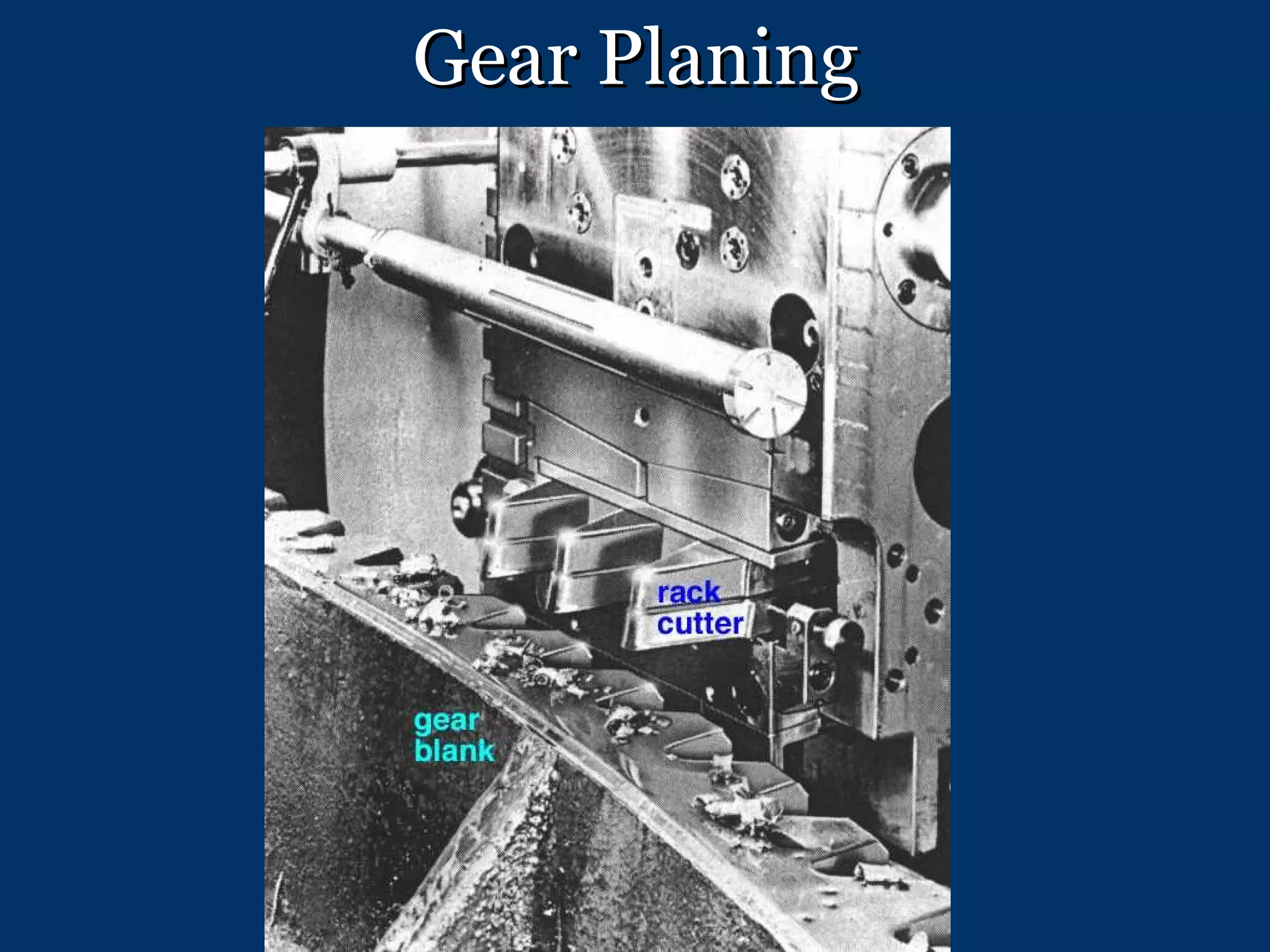

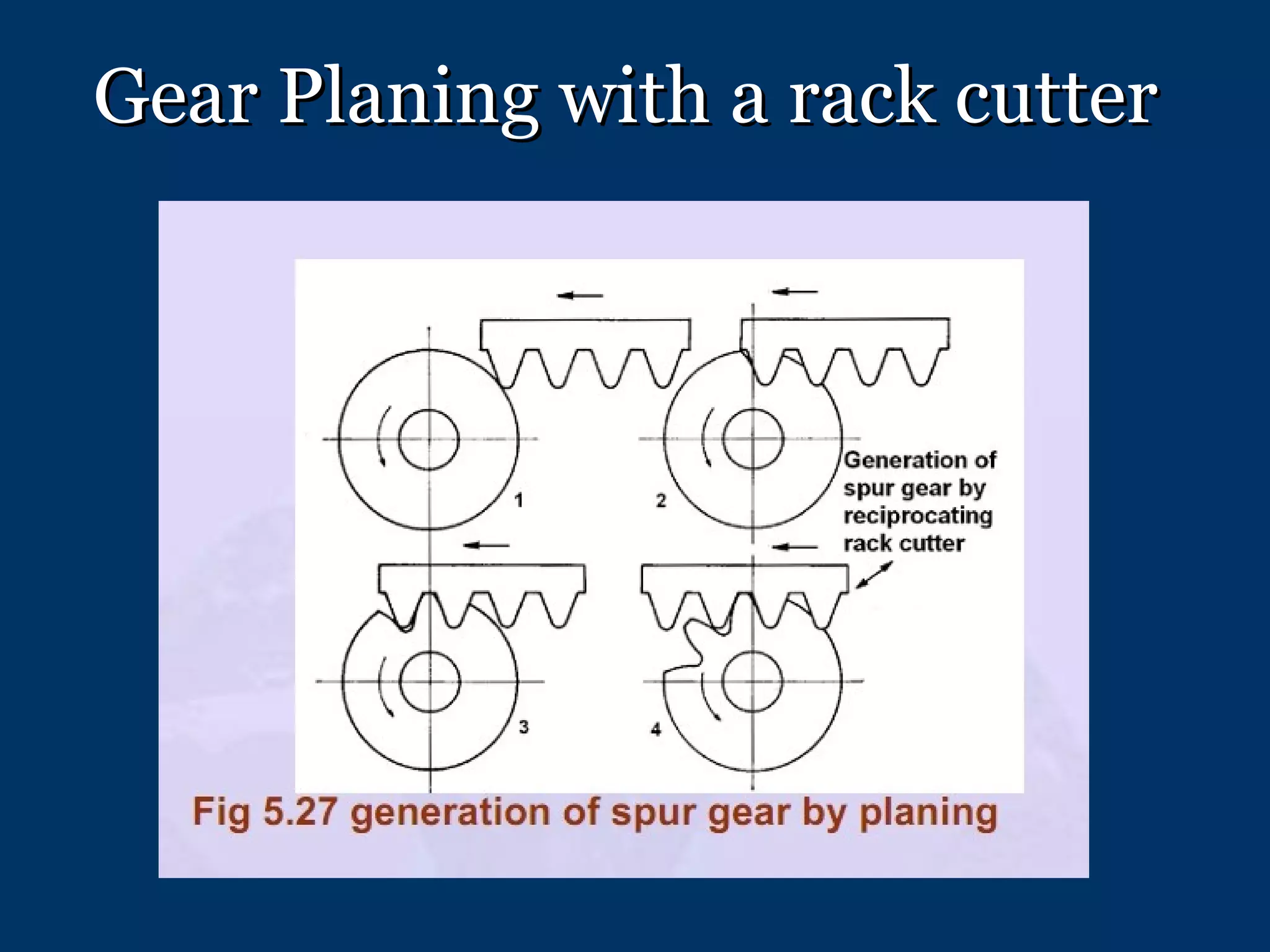

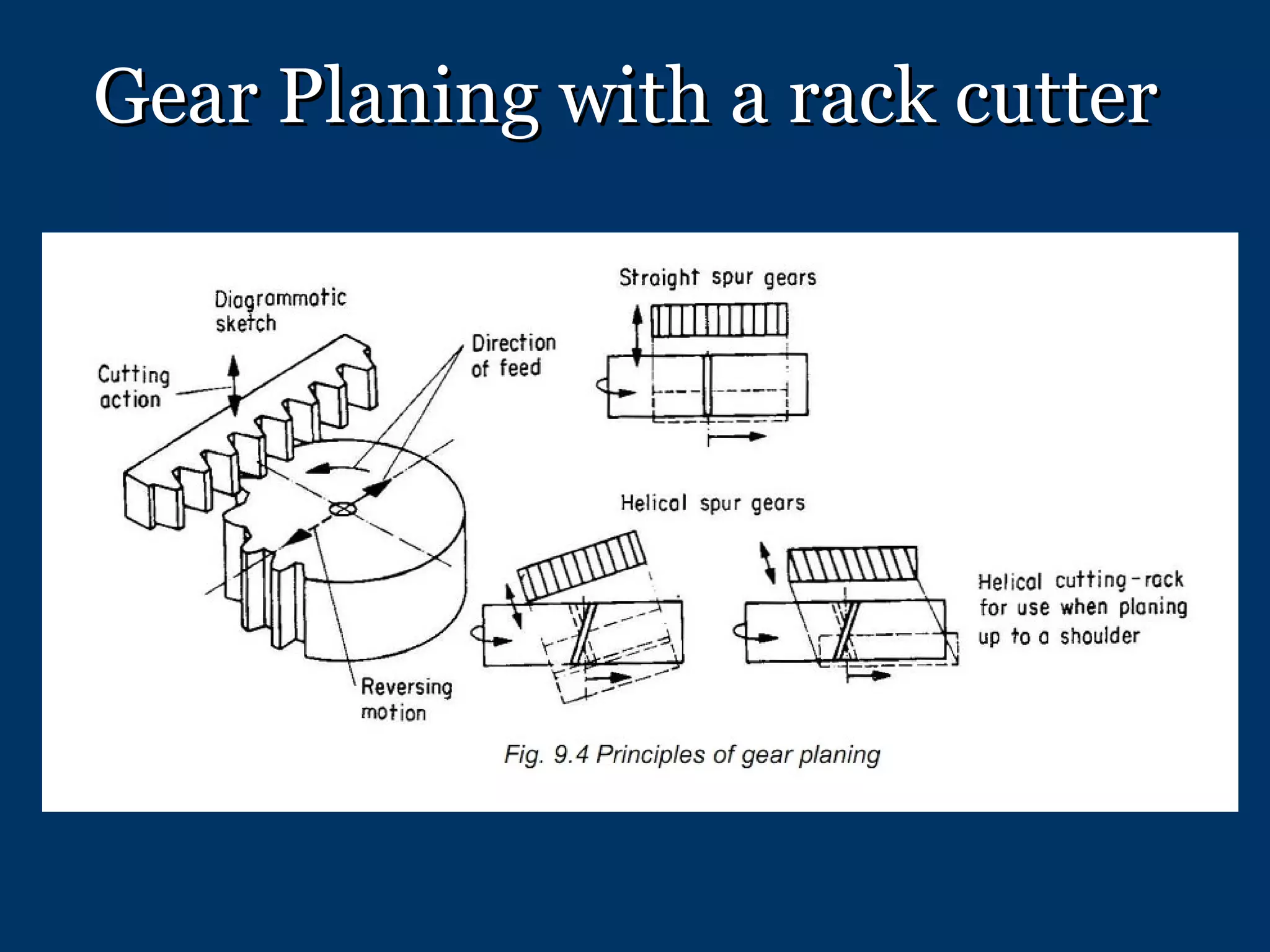

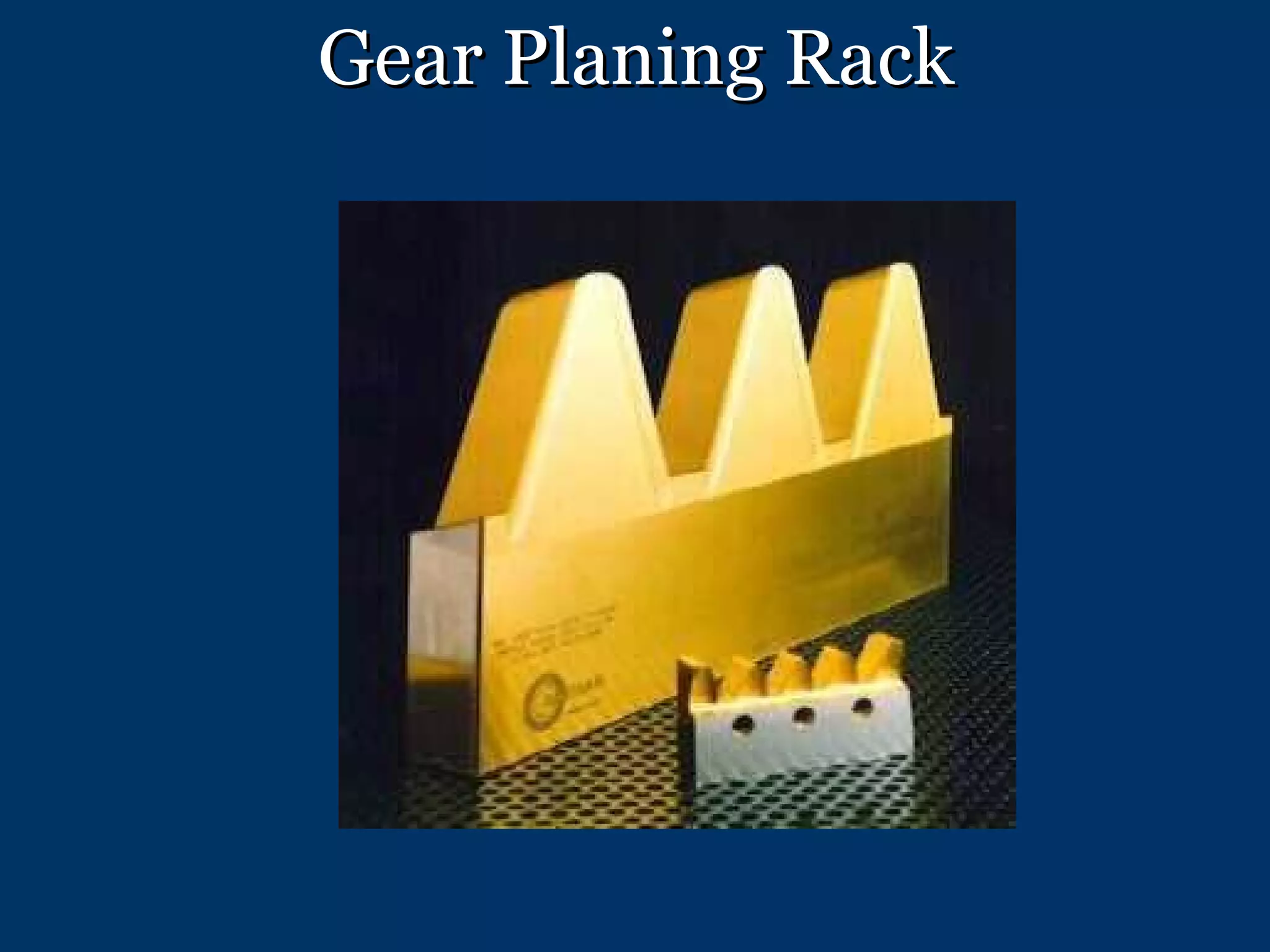

Gear Planing with a rack cutter

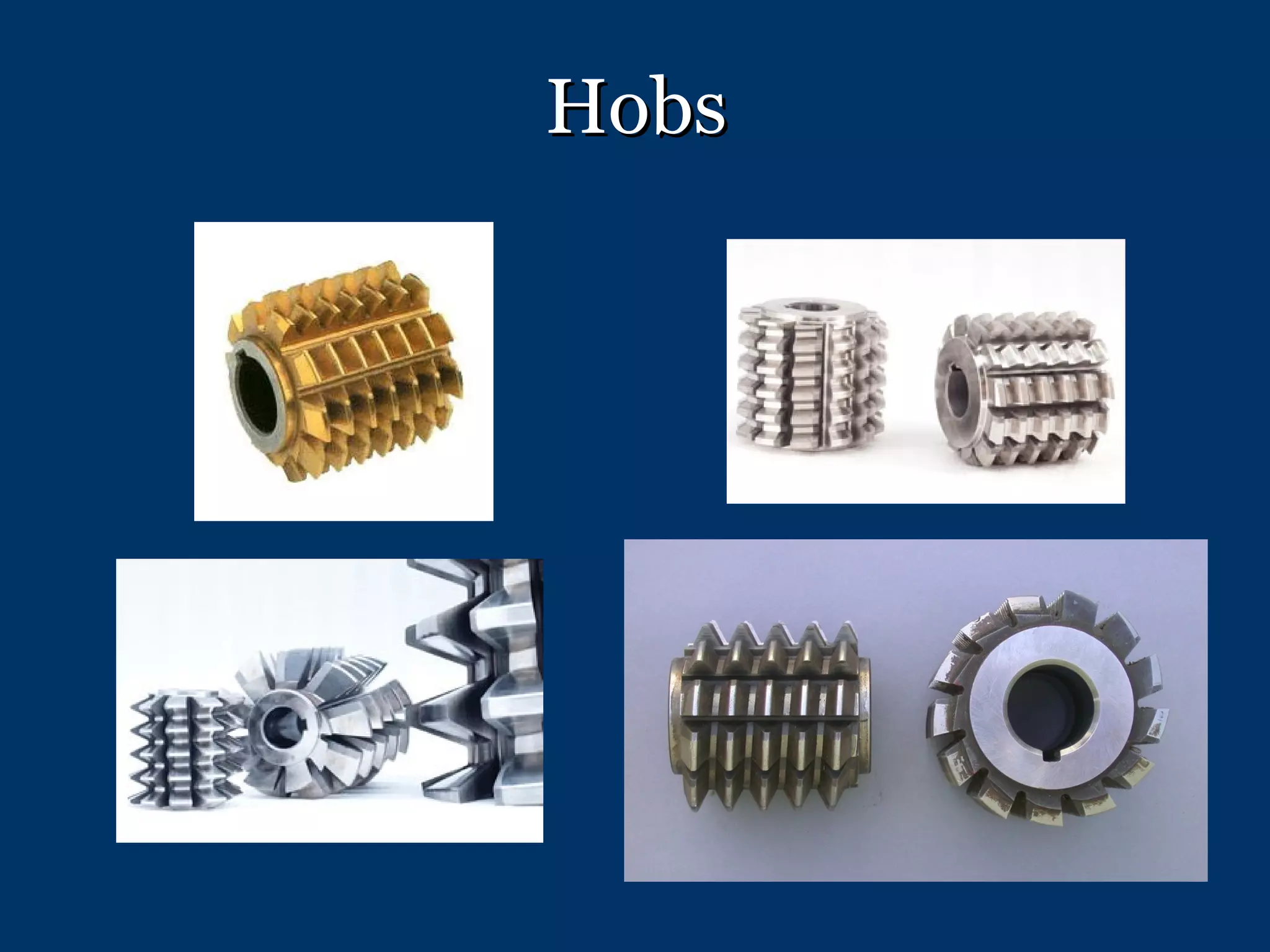

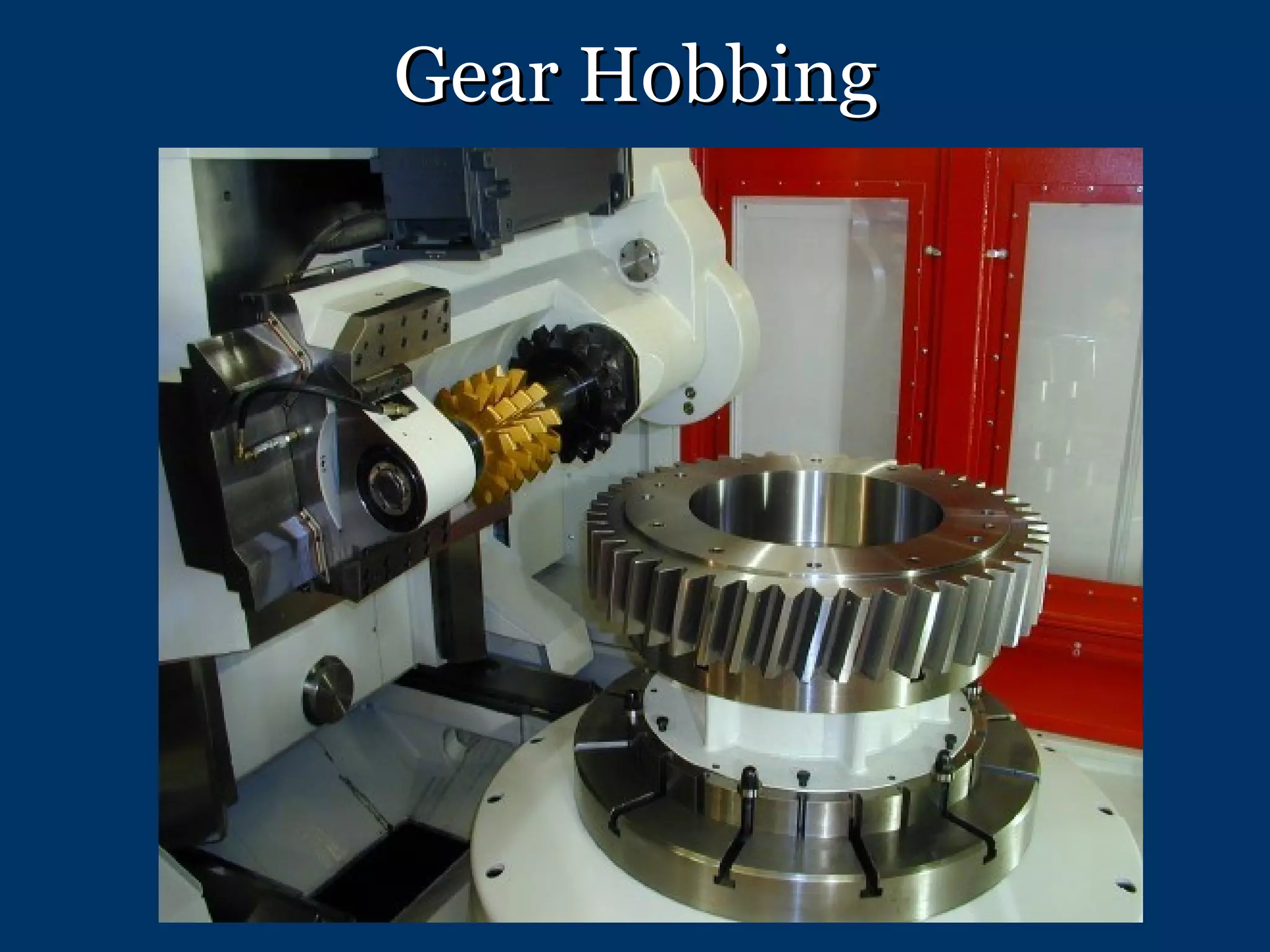

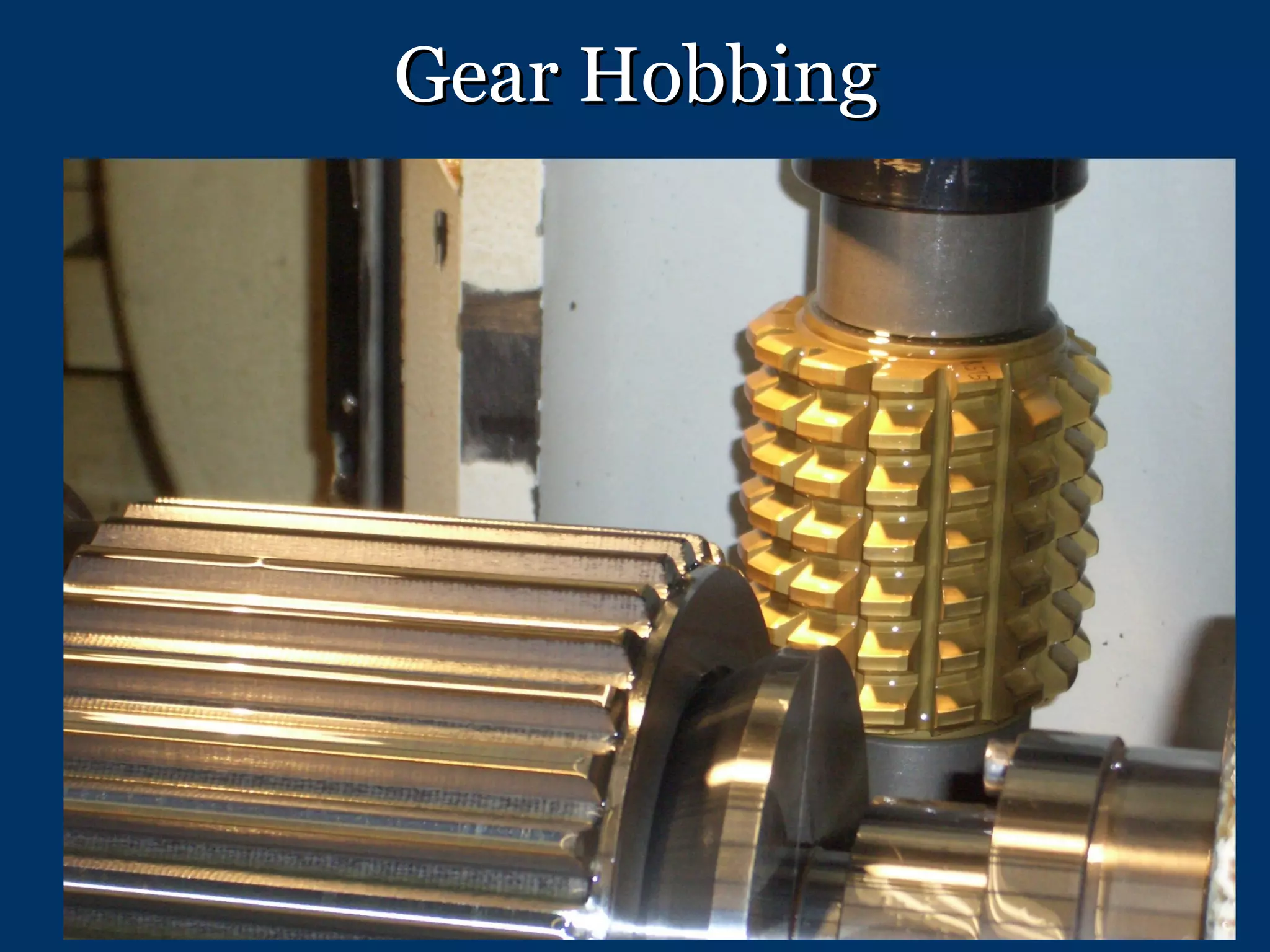

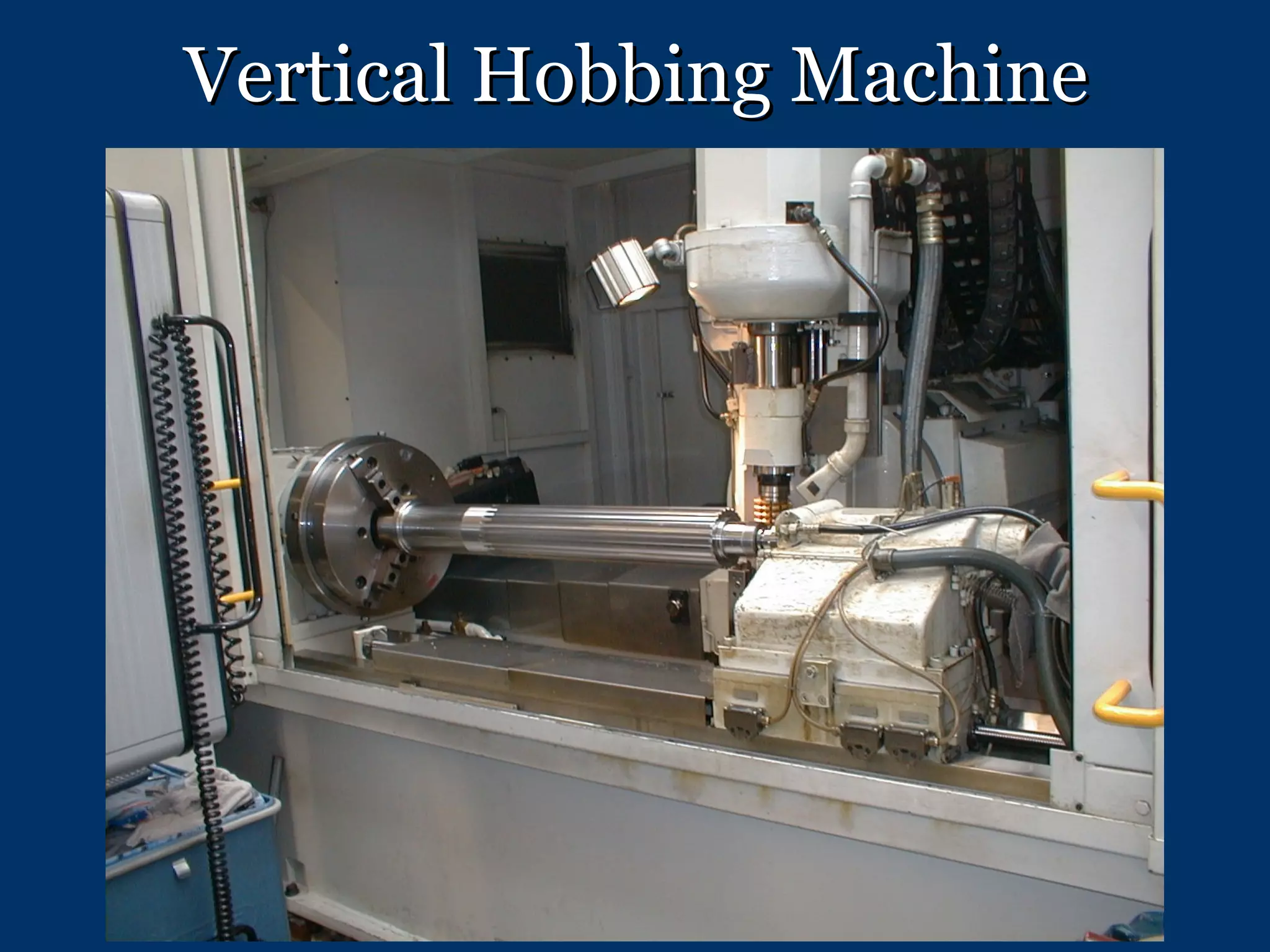

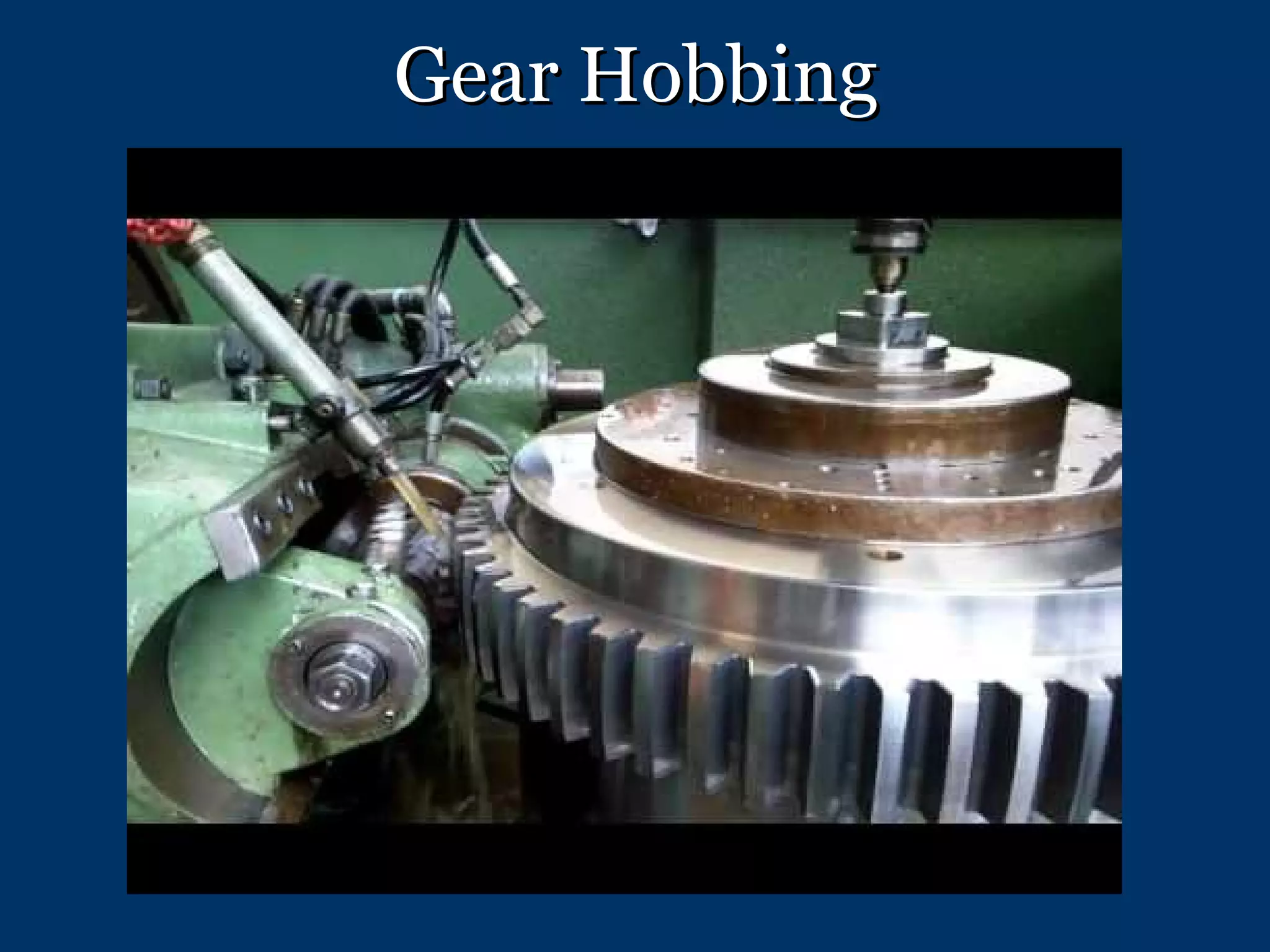

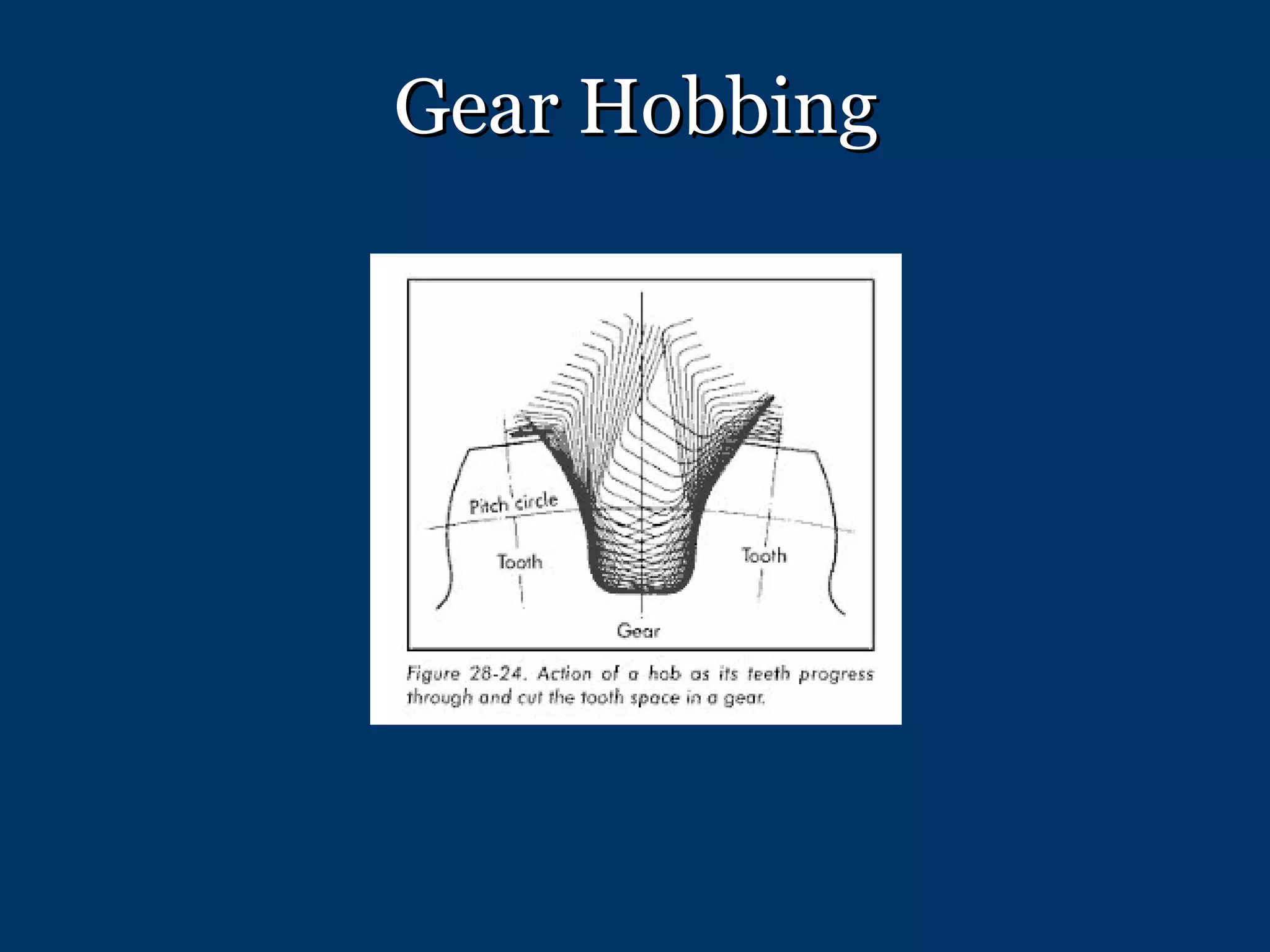

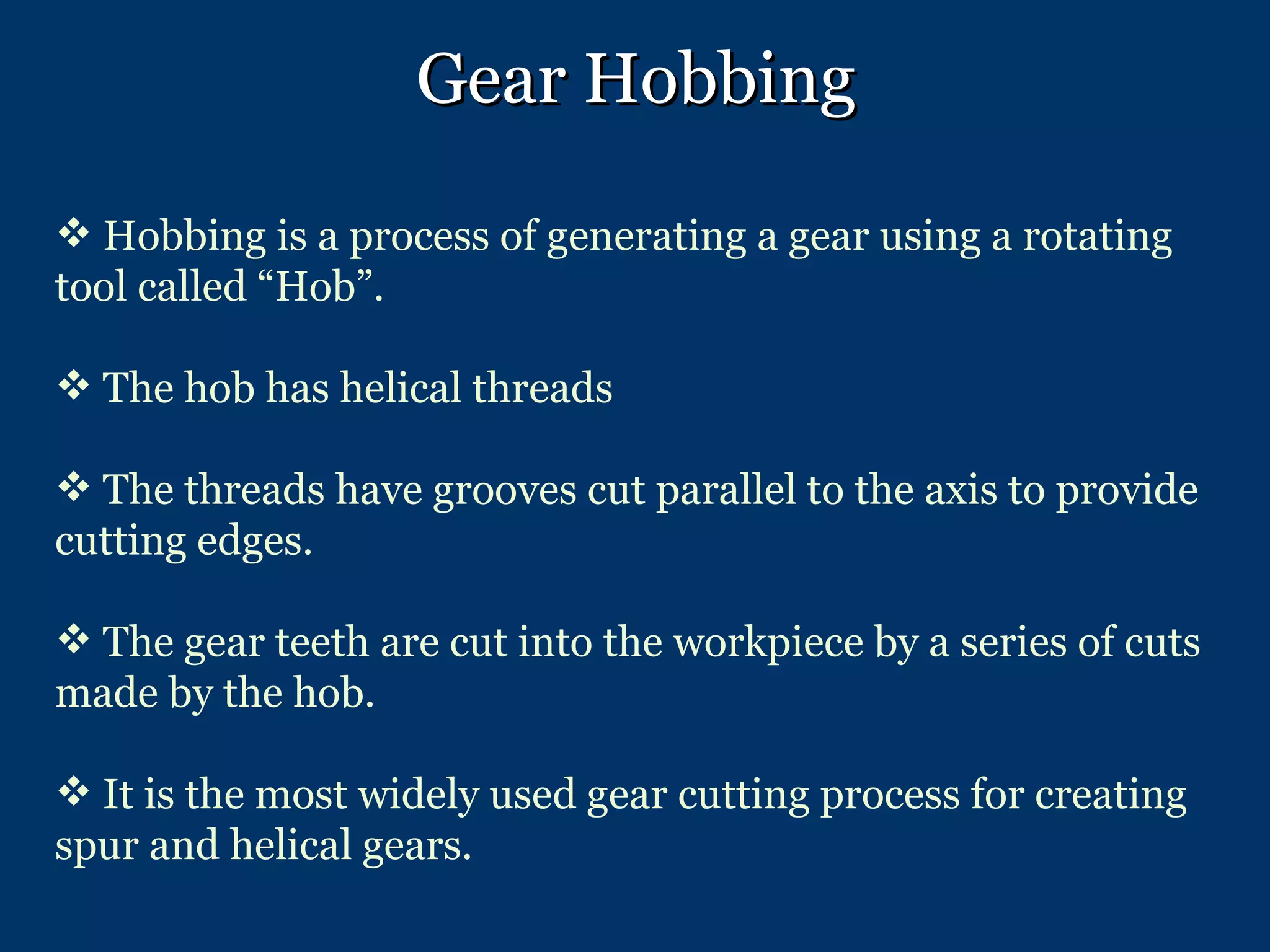

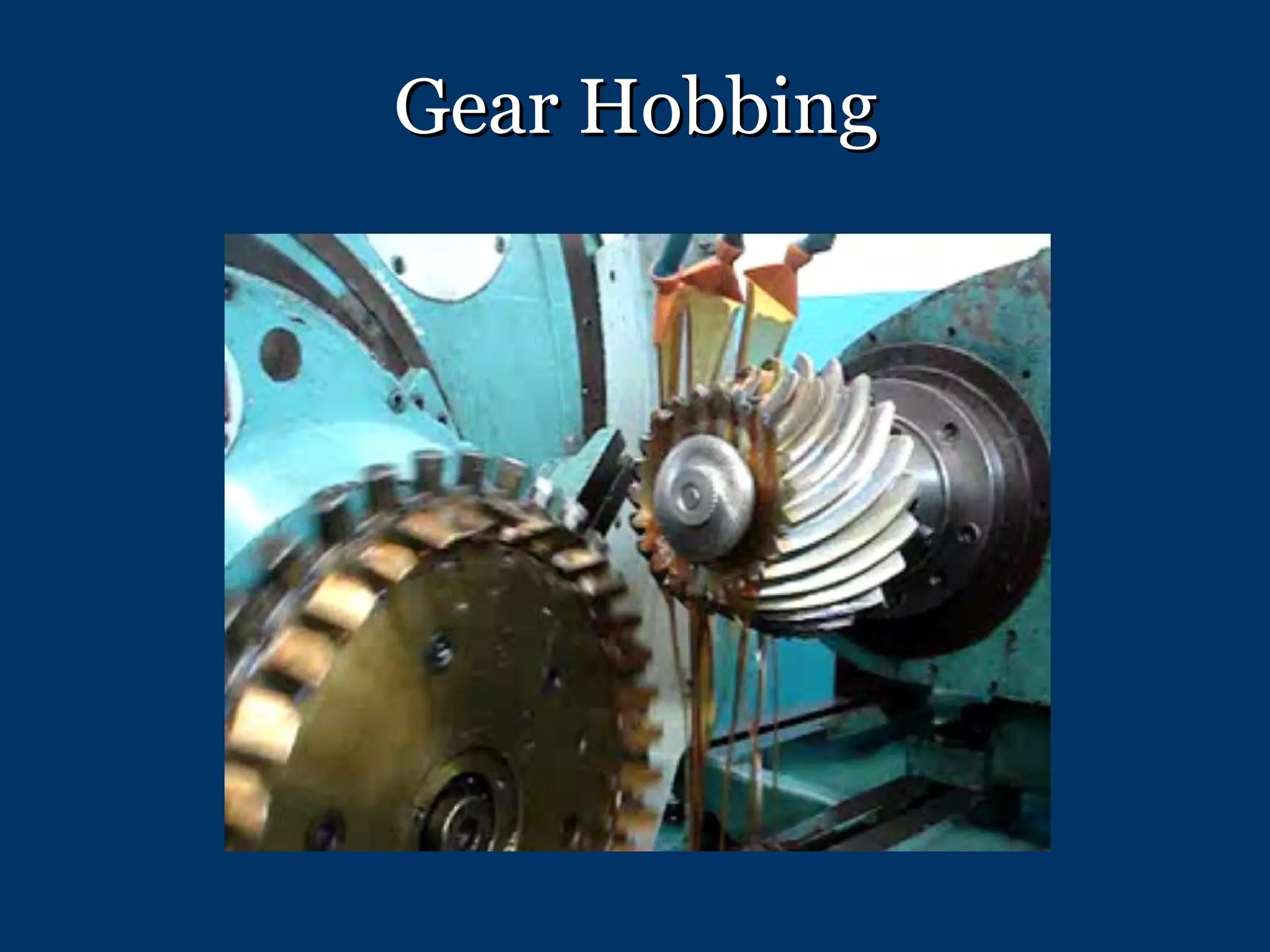

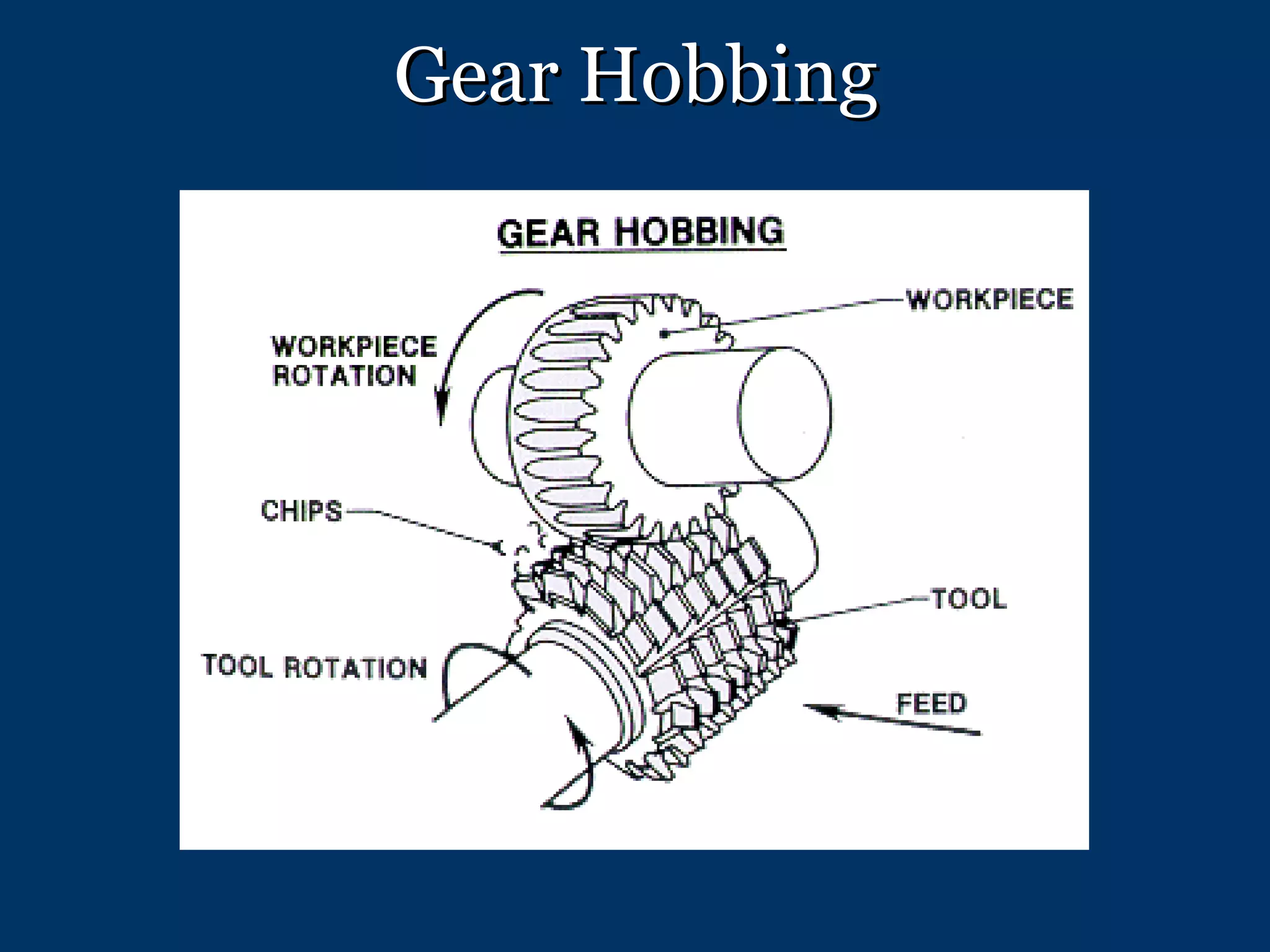

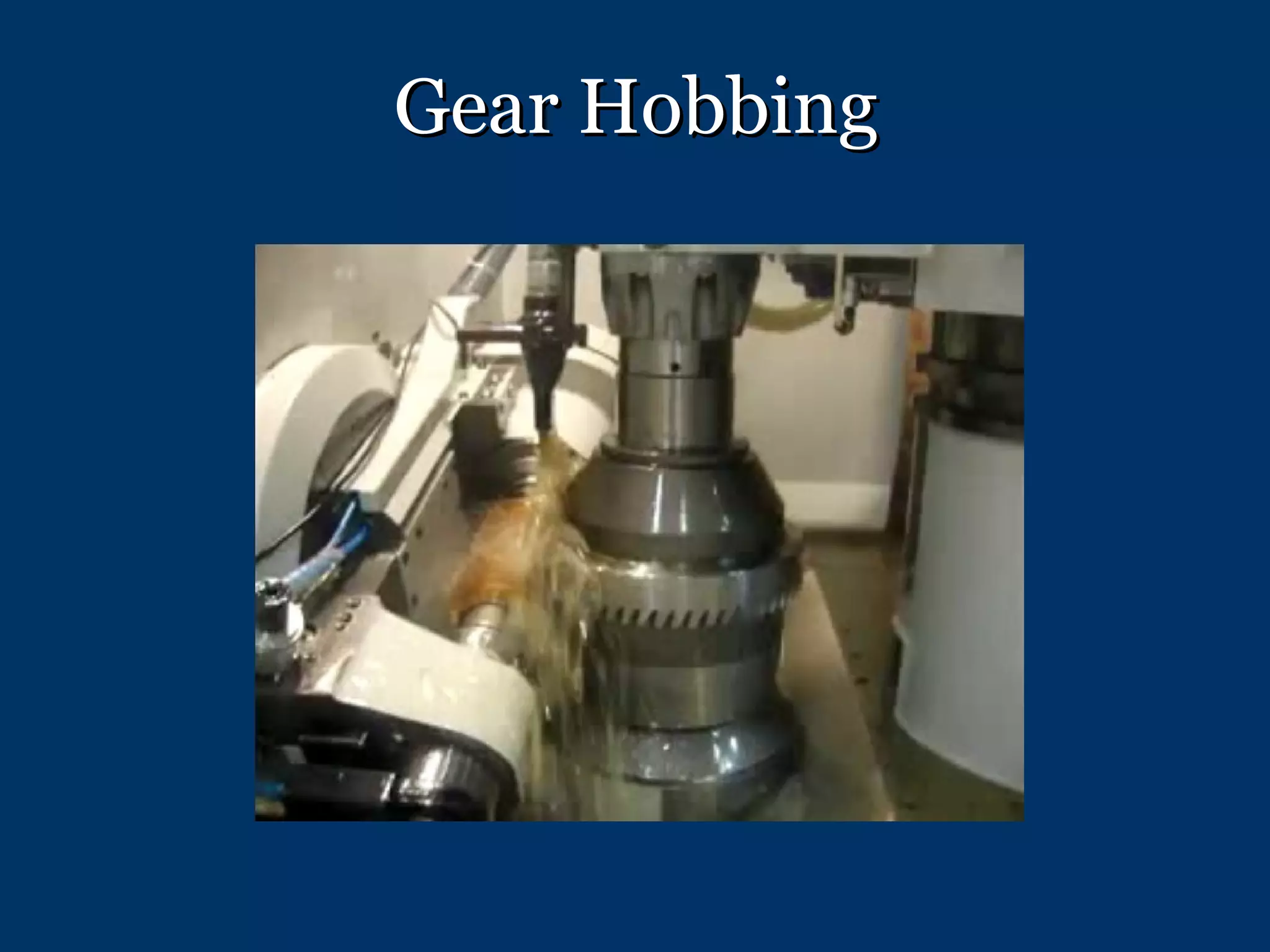

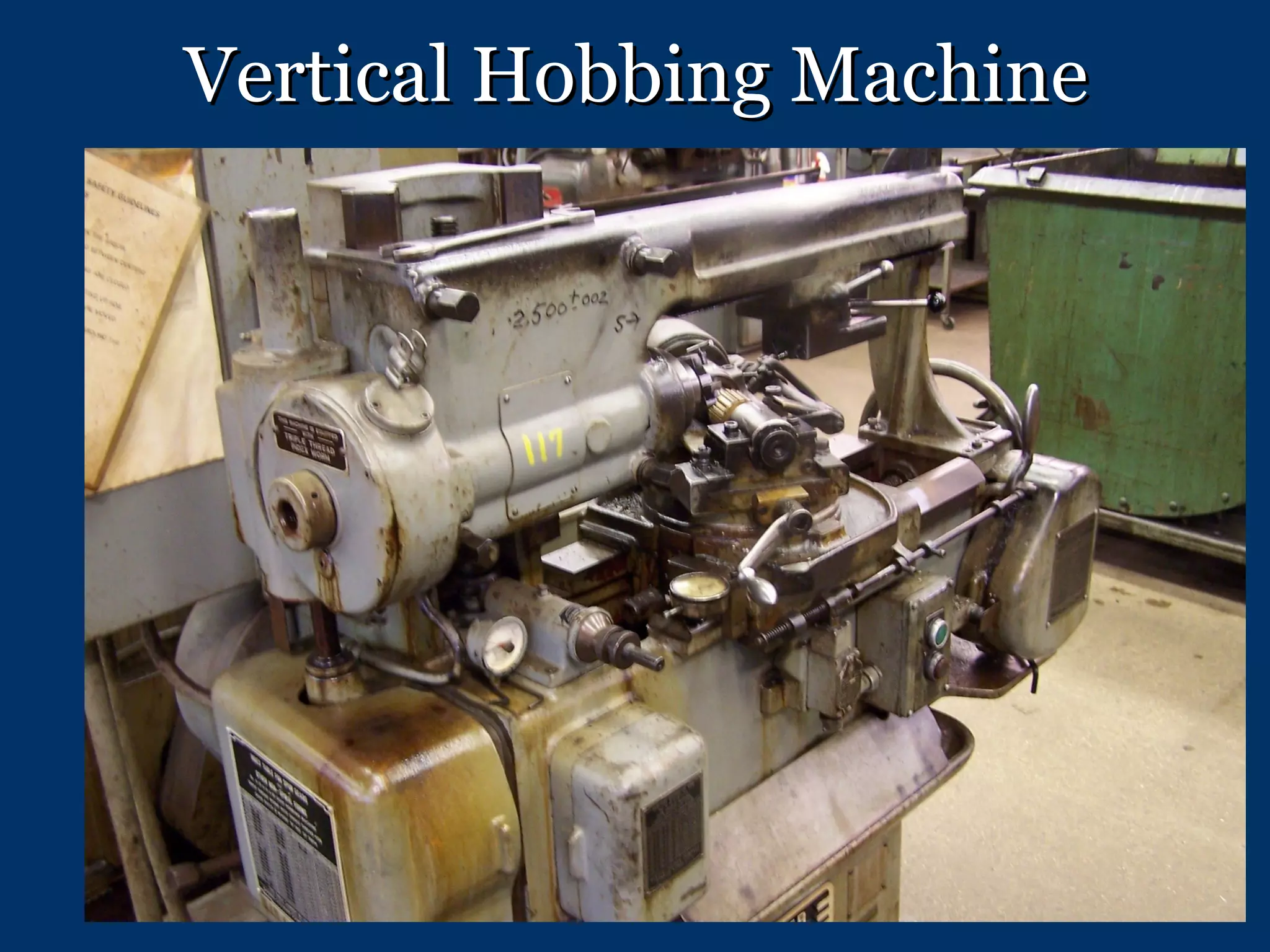

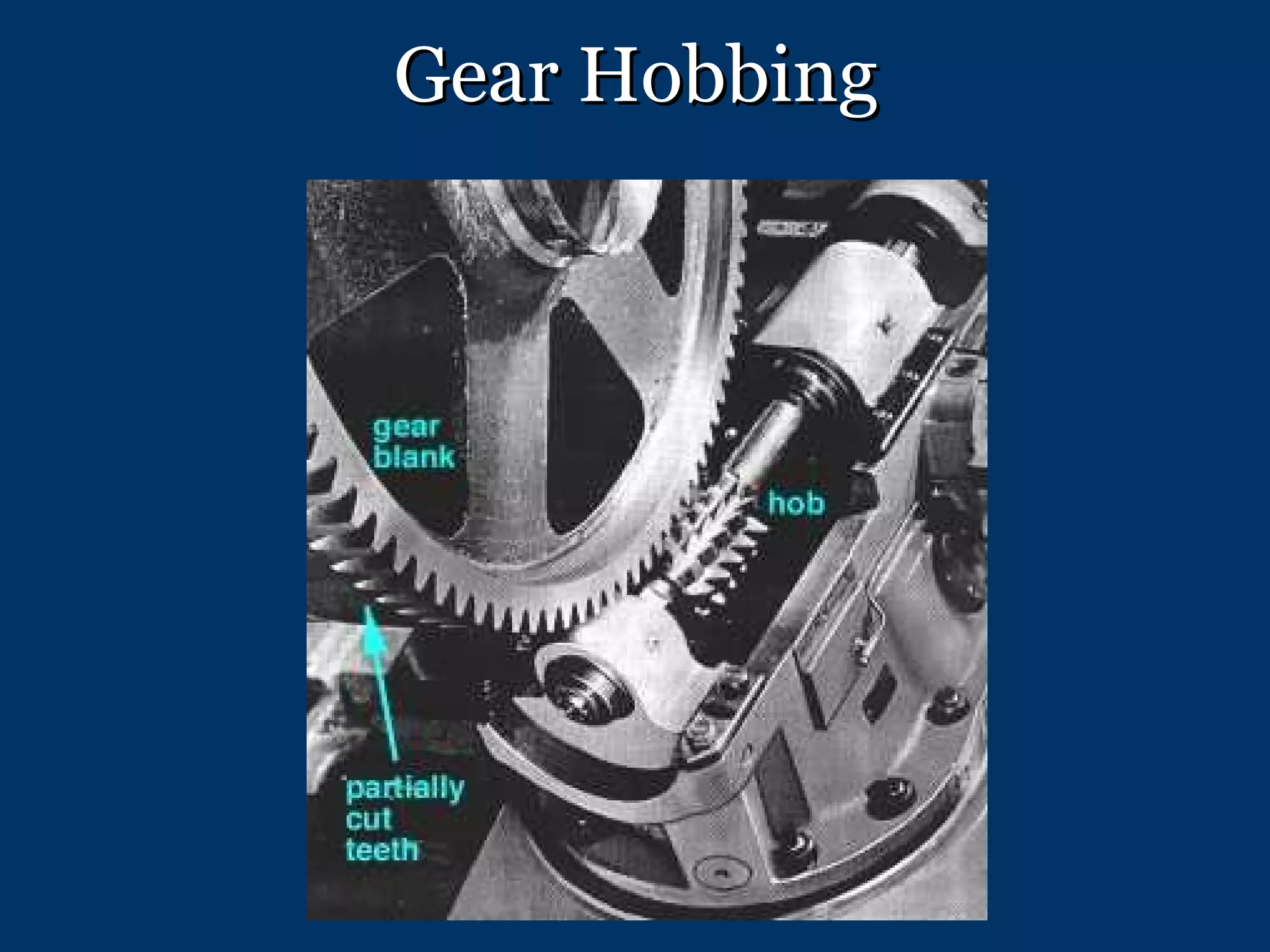

Gear Hobbing Hobbing is a process of generating a gear using a rotating tool called “Hob”. The hob has helical threads The threads have grooves cut parallel to the axis to provide cutting edges. The gear teeth are cut into the workpiece by a series of cuts made by the hob. It is the most widely used gear cutting process for creating spur and helical gears.

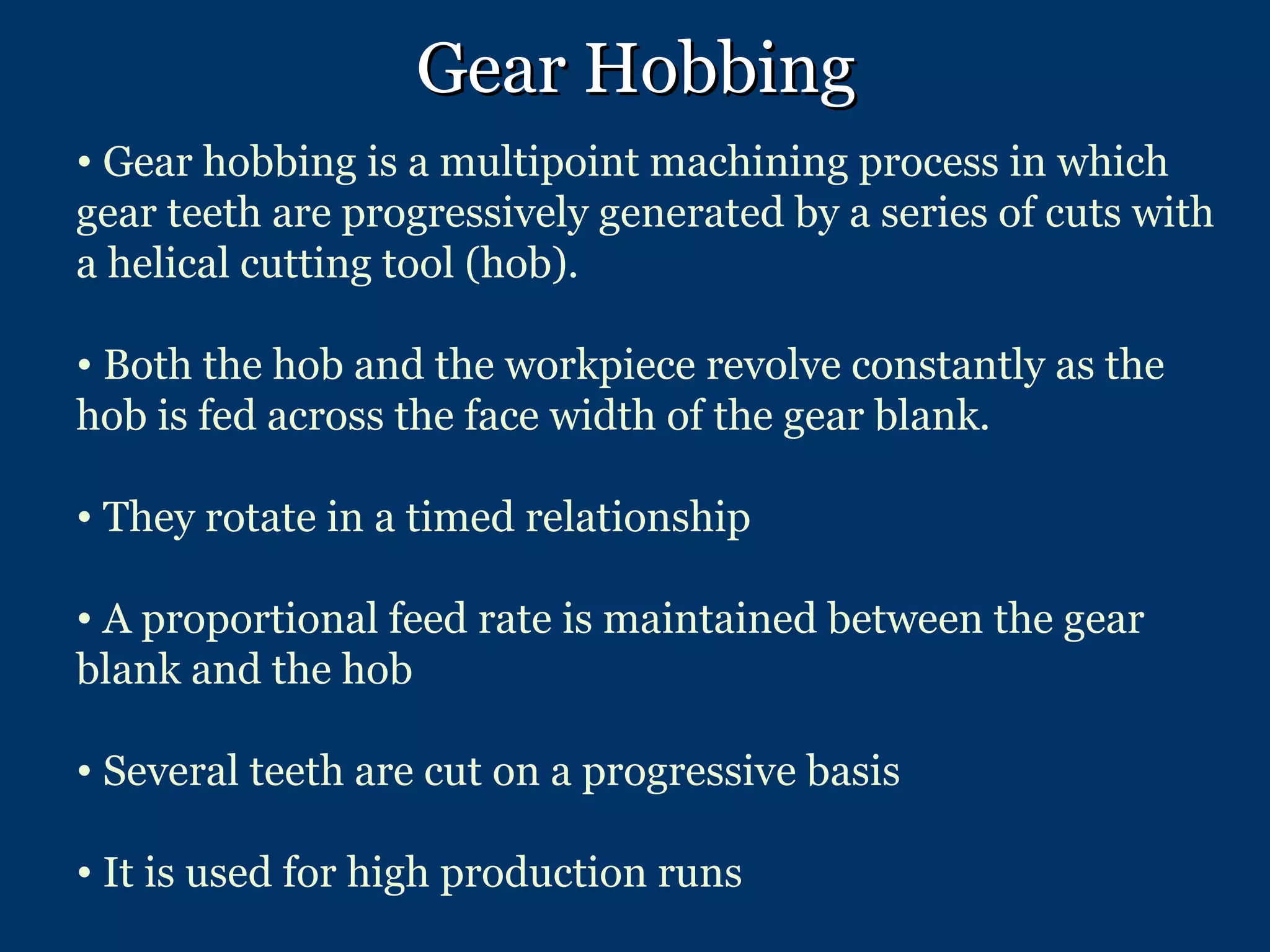

Gear Hobbing Gear hobbing is a multipoint machining process in which gear teeth are progressively generated by a series of cuts with a helical cutting tool (hob). Both the hob and the workpiece revolve constantly as the hob is fed across the face width of the gear blank. They rotate in a timed relationship A proportional feed rate is maintained between the gear blank and the hob Several teeth are cut on a progressive basis It is used for high production runs
