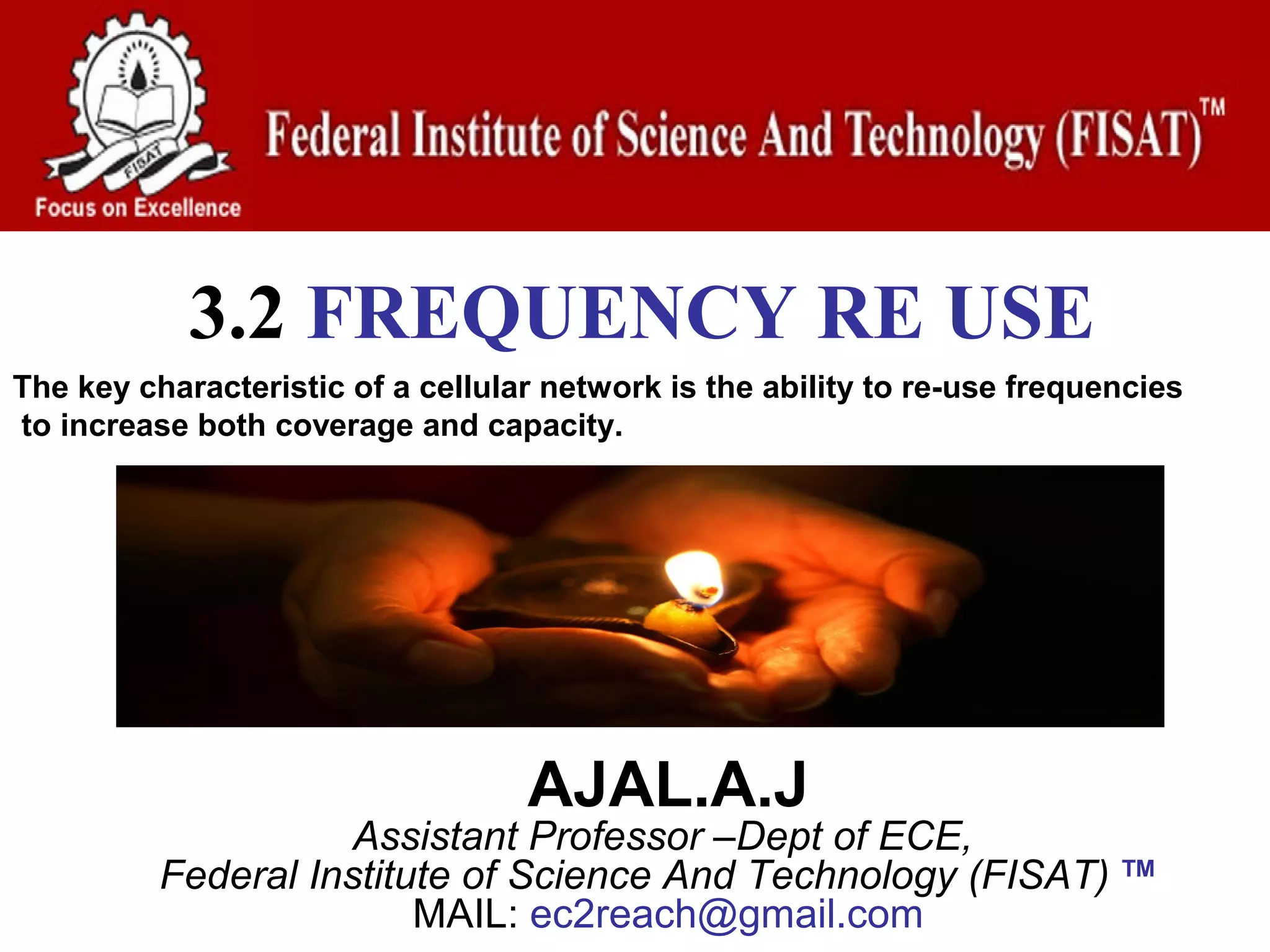

3.2 FREQUENCY RE USE The key characteristic of a cellular network is the ability to re-use frequencies to increase both coverage and capacity. AJAL.A.J Assistant Professor –Dept of ECE, Federal Institute of Science And Technology (FISAT) TM    MAIL: ec2reach@gmail.com

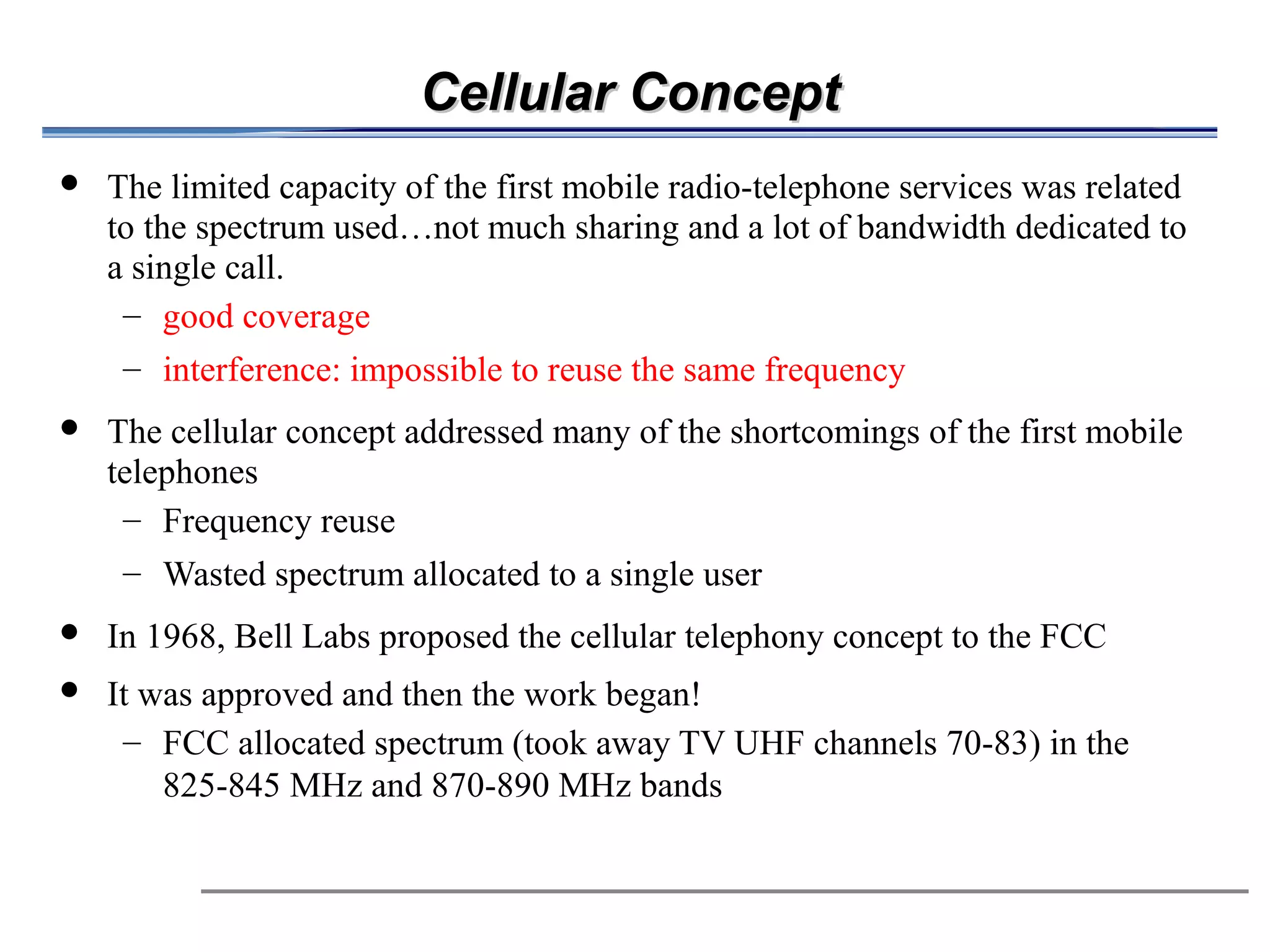

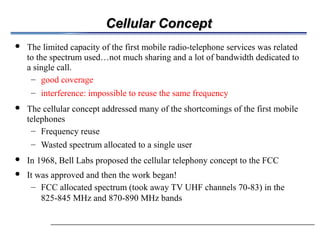

Cellular Concept  The limited capacity of the first mobile radio-telephone services was related to the spectrum used…not much sharing and a lot of bandwidth dedicated to a single call. – good coverage – interference: impossible to reuse the same frequency  The cellular concept addressed many of the shortcomings of the first mobile      telephones – Frequency reuse                                                            – Wasted spectrum allocated to a single user  In 1968, Bell Labs proposed the cellular telephony concept to the FCC  It was approved and then the work began! – FCC allocated spectrum (took away TV UHF channels 70-83) in the 825-845 MHz and 870-890 MHz bands

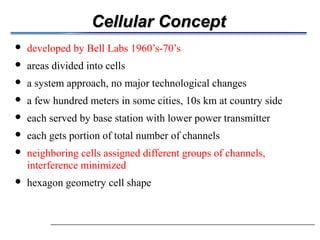

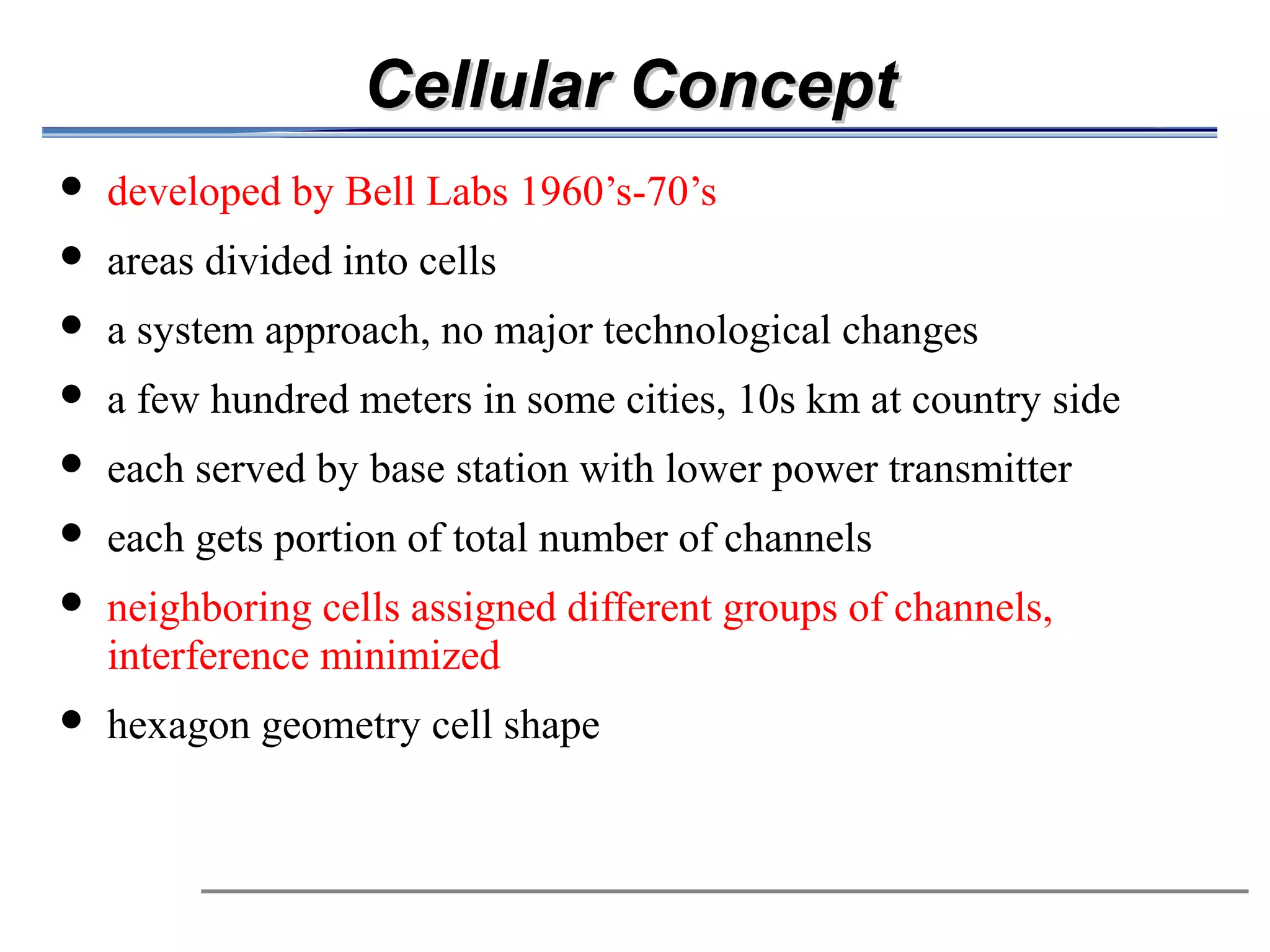

Cellular Concept  developed by Bell Labs 1960’s-70’s  areas divided into cells  a system approach, no major technological changes  a few hundred meters in some cities, 10s km at country side       each served by base station with lower power transmitter                                                             each gets portion of total number of channels  neighboring cells assigned different groups of channels, interference minimized  hexagon geometry cell shape

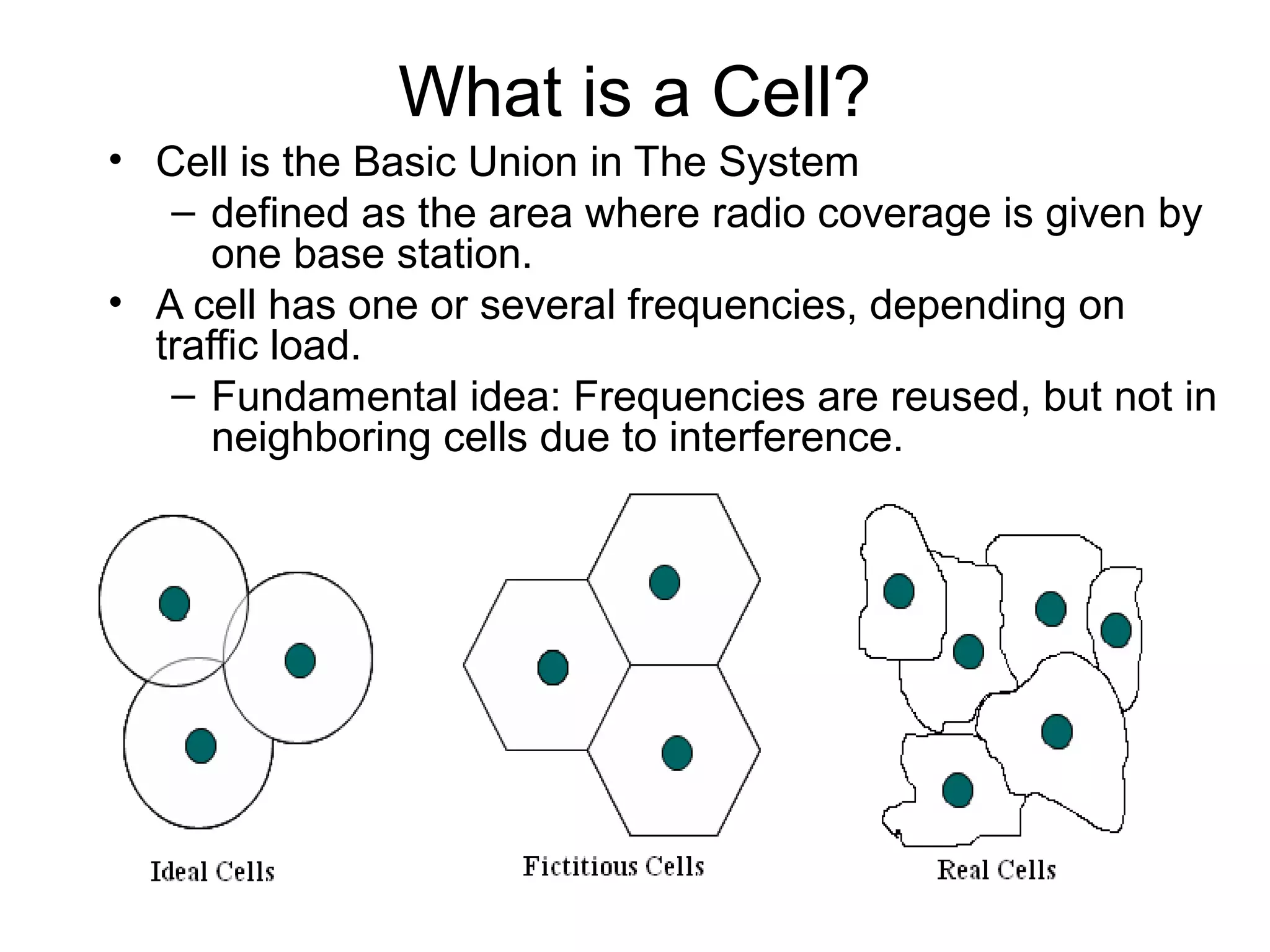

What is a Cell? • Cell is the Basic Union in The System – defined as the area where radio coverage is given by  one base station. • A cell has one or several frequencies, depending on  traffic load.  – Fundamental idea: Frequencies are reused, but not in  neighboring cells due to interference.

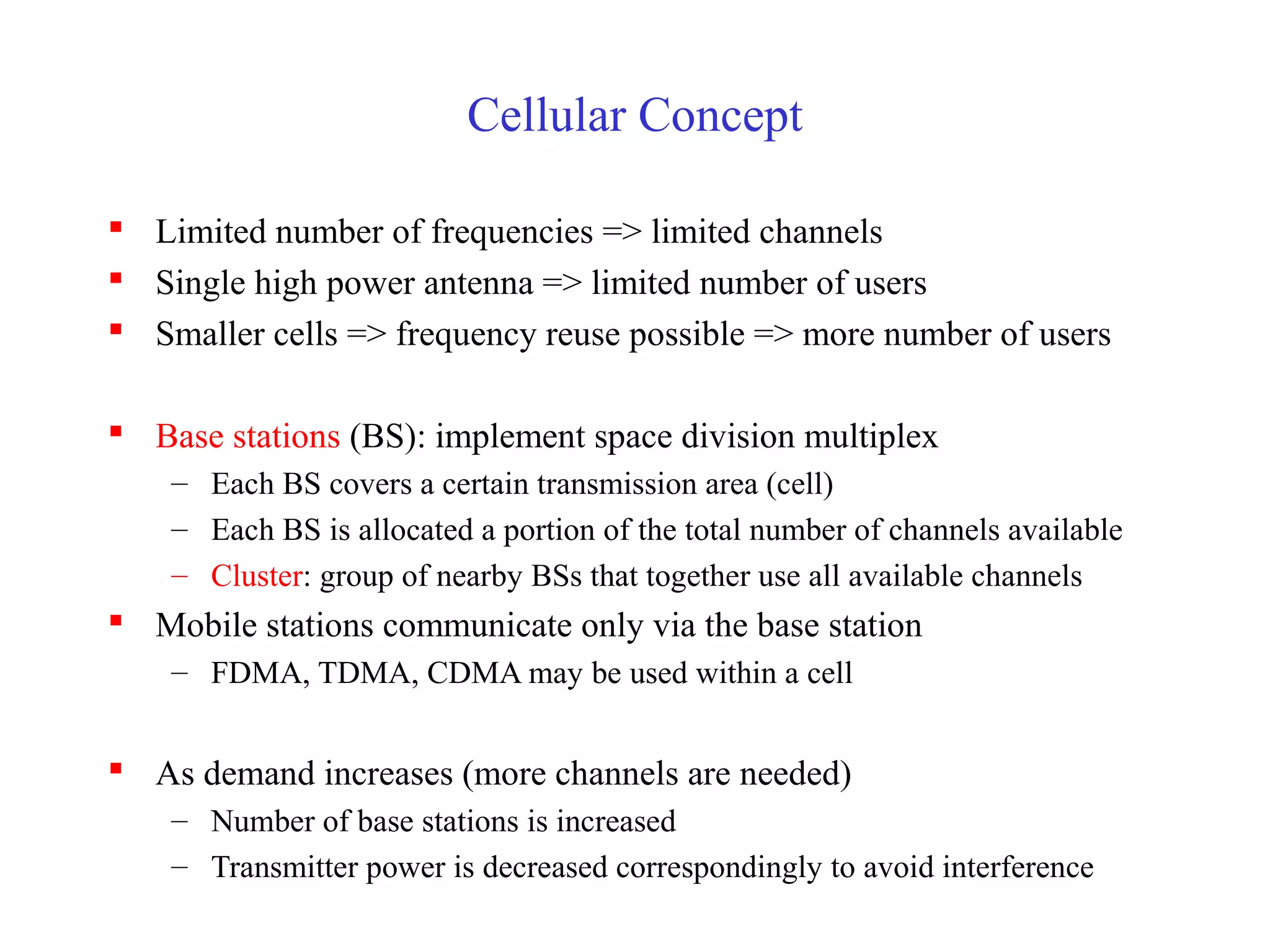

Cellular Concept  Limited number of frequencies => limited channels  Single high power antenna => limited number of users  Smaller cells => frequency reuse possible => more number of users  Base stations (BS): implement space division multiplex – Each BS covers a certain transmission area (cell) – Each BS is allocated a portion of the total number of channels available – Cluster: group of nearby BSs that together use all available channels  Mobile stations communicate only via the base station – FDMA, TDMA, CDMA may be used within a cell  As demand increases (more channels are needed) – Number of base stations is increased – Transmitter power is decreased correspondingly to avoid interference

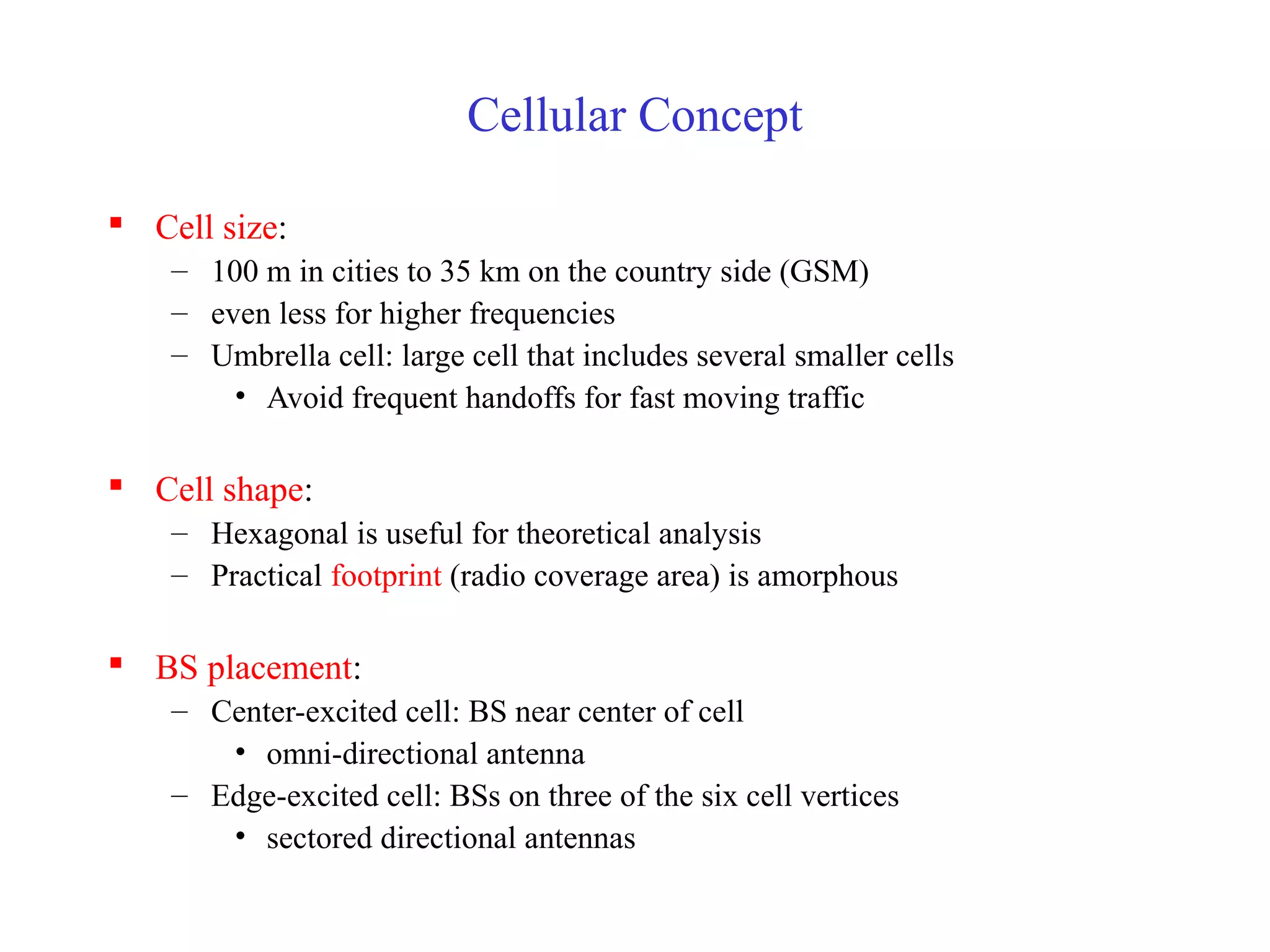

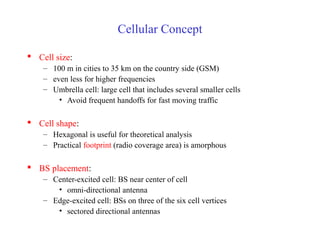

Cellular Concept  Cell size: – 100 m in cities to 35 km on the country side (GSM) – even less for higher frequencies – Umbrella cell: large cell that includes several smaller cells • Avoid frequent handoffs for fast moving traffic  Cell shape: – Hexagonal is useful for theoretical analysis – Practical footprint (radio coverage area) is amorphous  BS placement: – Center-excited cell: BS near center of cell • omni-directional antenna – Edge-excited cell: BSs on three of the six cell vertices • sectored directional antennas

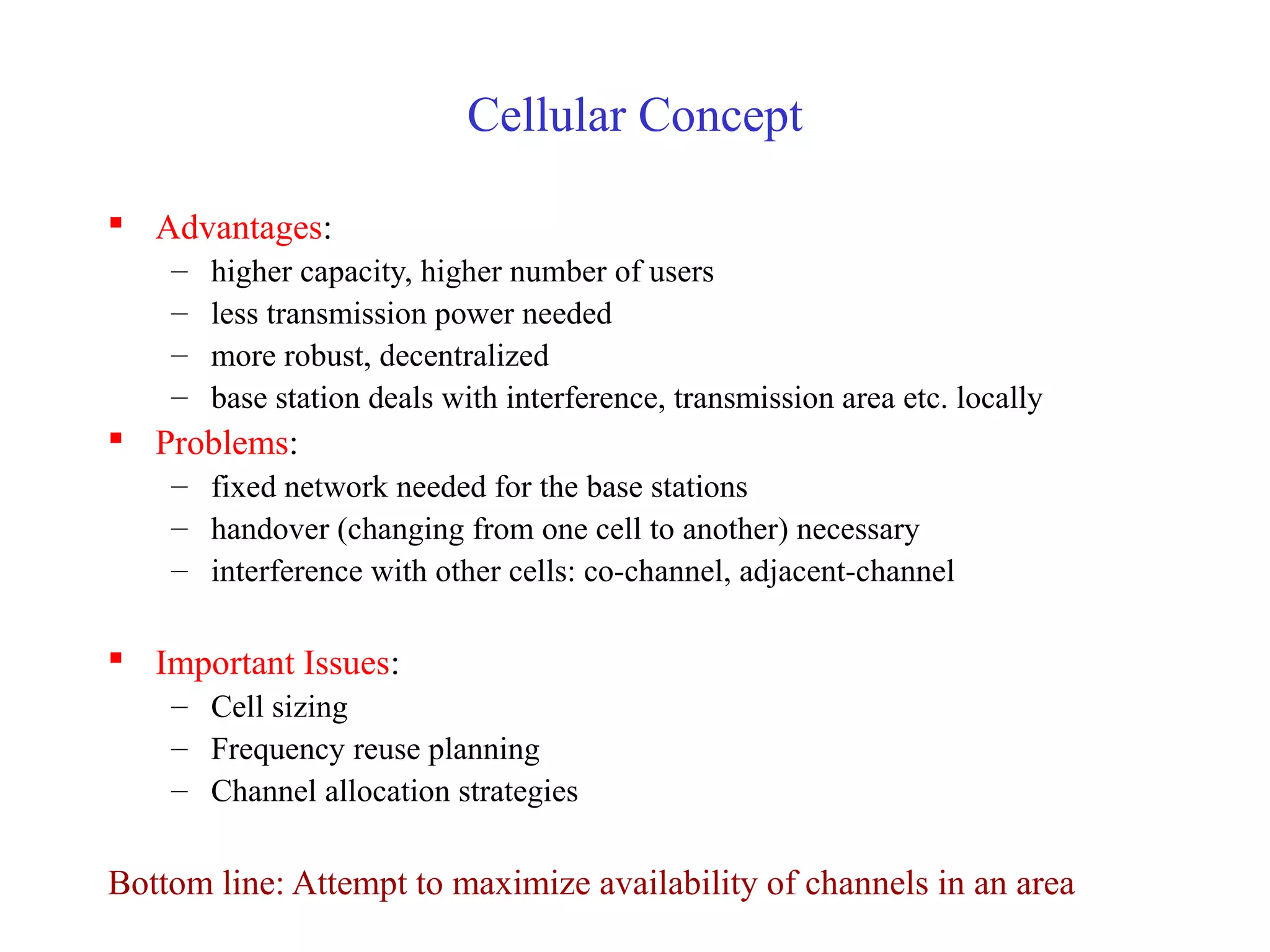

Cellular Concept  Advantages: – higher capacity, higher number of users – less transmission power needed – more robust, decentralized – base station deals with interference, transmission area etc. locally  Problems: – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells: co-channel, adjacent-channel  Important Issues: – Cell sizing – Frequency reuse planning – Channel allocation strategies Bottom line: Attempt to maximize availability of channels in an area

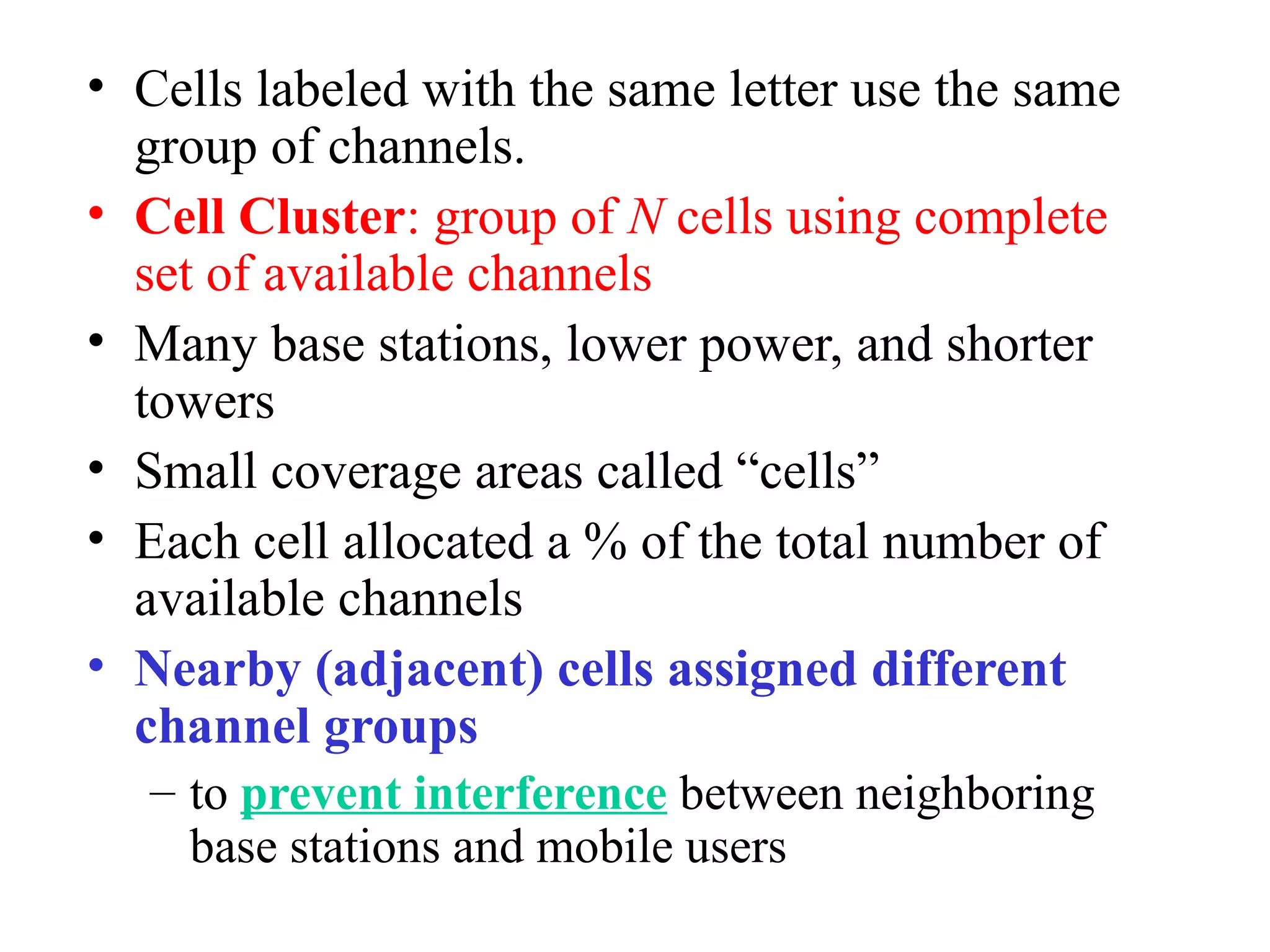

• Cells labeled with the same letter use the same group of channels. • Cell Cluster: group of N cells using complete set of available channels • Many base stations, lower power, and shorter towers • Small coverage areas called “cells” • Each cell allocated a % of the total number of available channels • Nearby (adjacent) cells assigned different channel groups – to prevent interference between neighboring base stations and mobile users

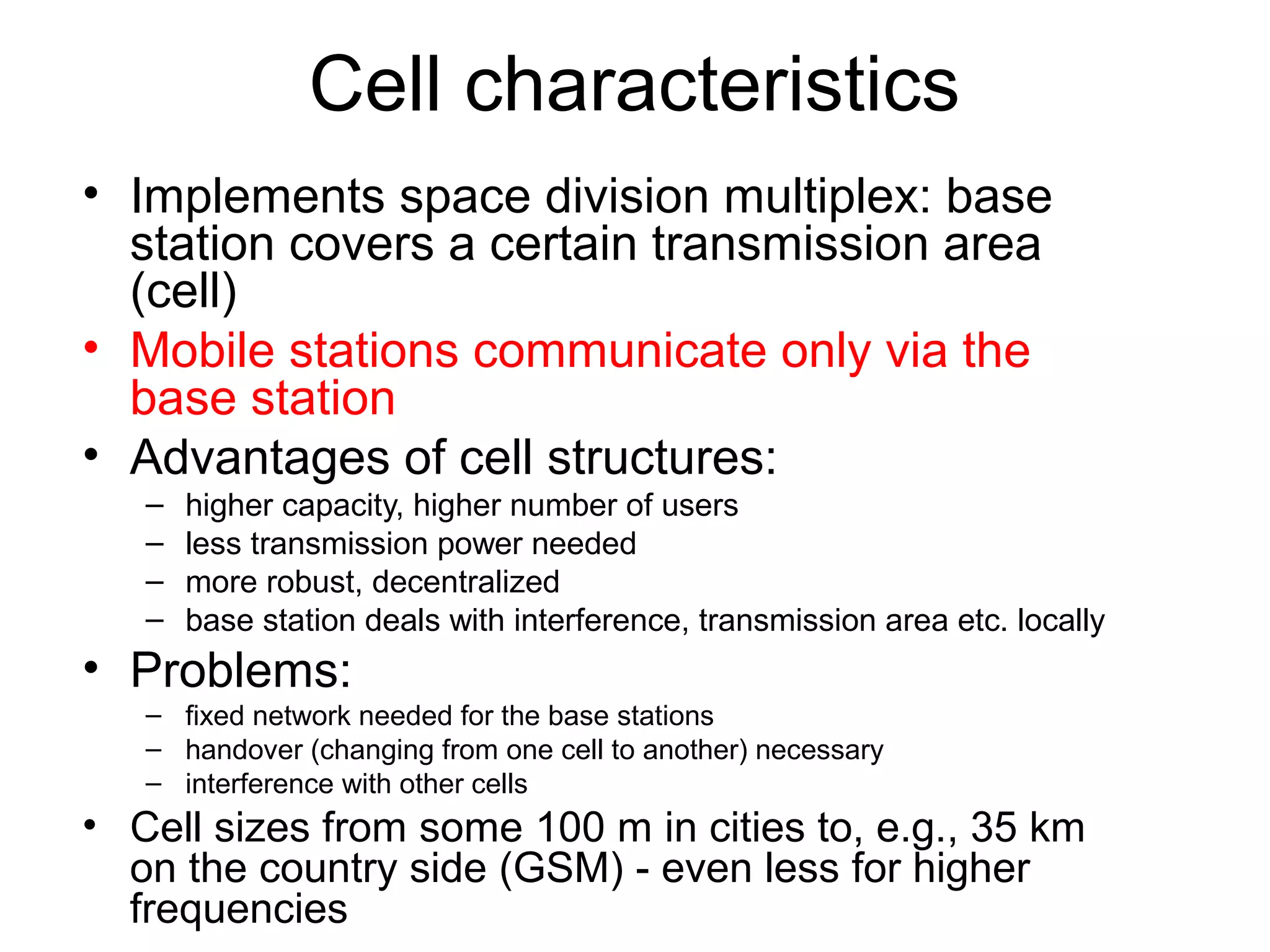

Cell characteristics • Implements space division multiplex: base  station covers a certain transmission area  (cell) • Mobile stations communicate only via the  base station • Advantages of cell structures: – higher capacity, higher number of users – less transmission power needed – more robust, decentralized – base station deals with interference, transmission area etc. locally • Problems: – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells • Cell sizes from some 100 m in cities to, e.g., 35 km  on the country side (GSM) - even less for higher  frequencies

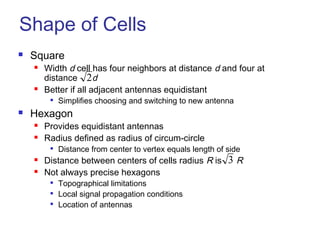

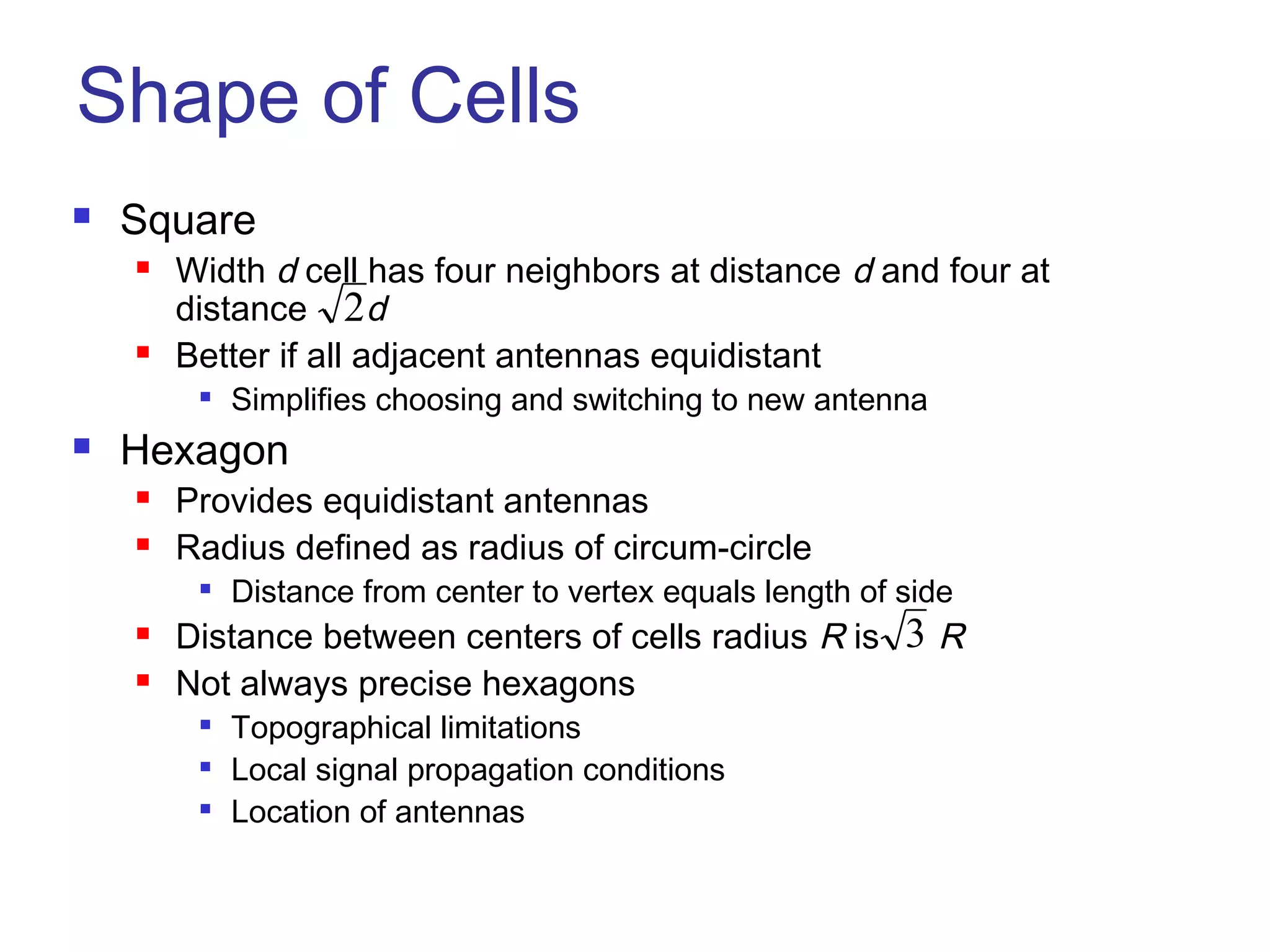

Shape of Cells  Square  Width d cell has four neighbors at distance d and four at distance 2d  Better if all adjacent antennas equidistant  Simplifies choosing and switching to new antenna  Hexagon  Provides equidistant antennas  Radius defined as radius of circum-circle  Distance from center to vertex equals length of side  Distance between centers of cells radius R is 3 R  Not always precise hexagons  Topographical limitations  Local signal propagation conditions  Location of antennas

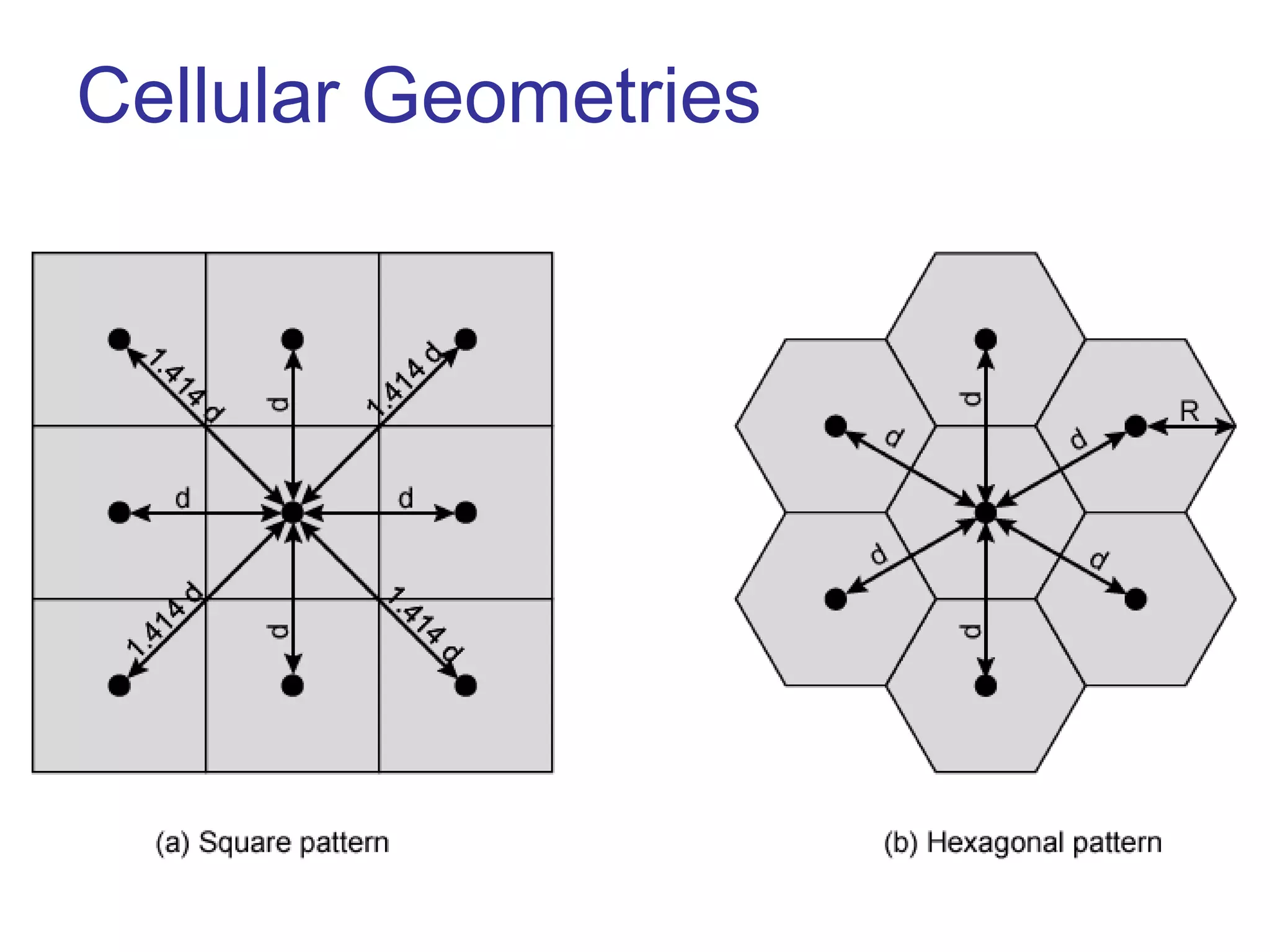

Cellular Geometries

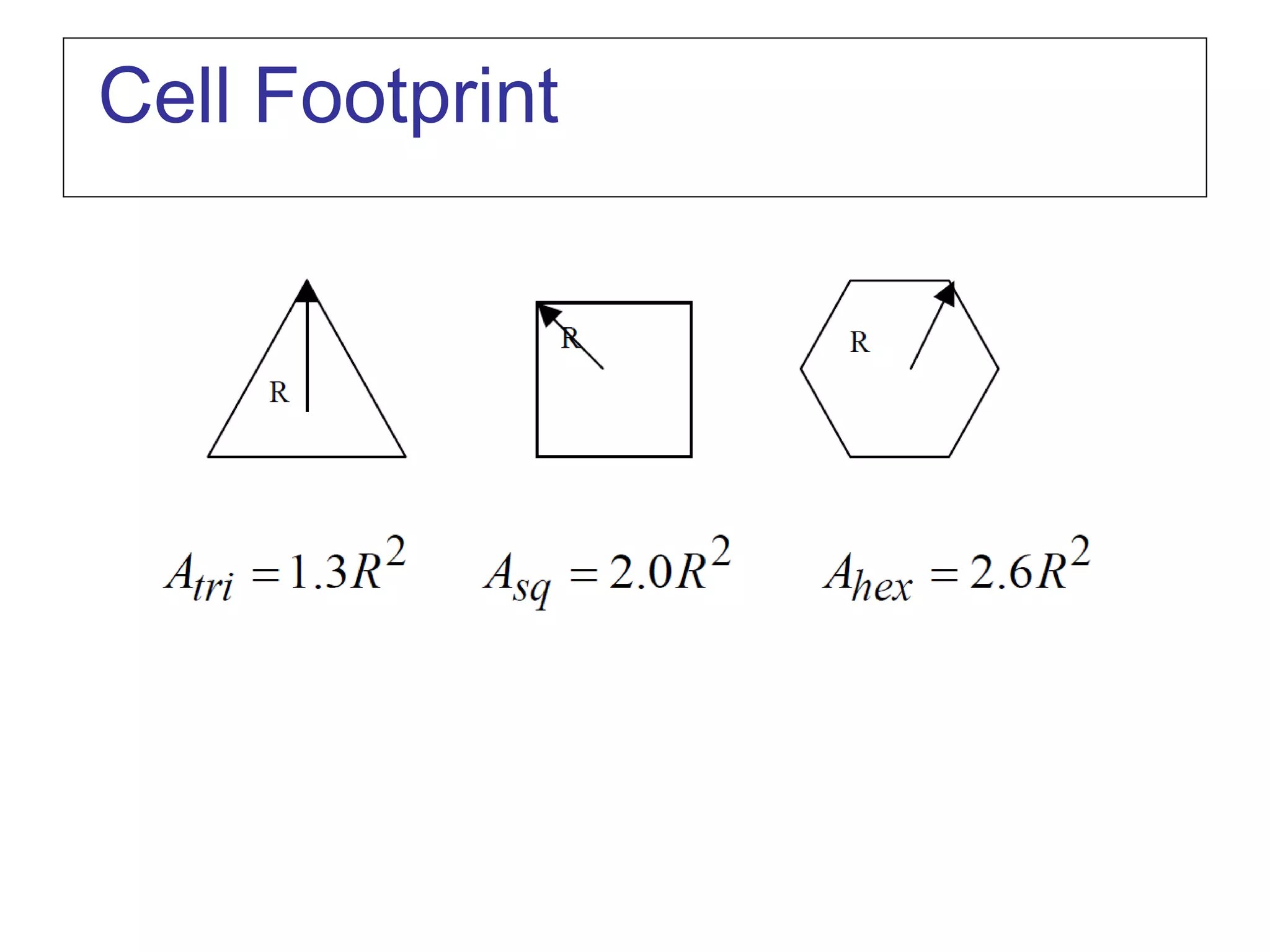

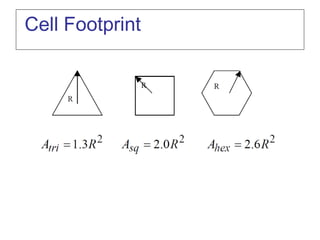

Cell Footprint

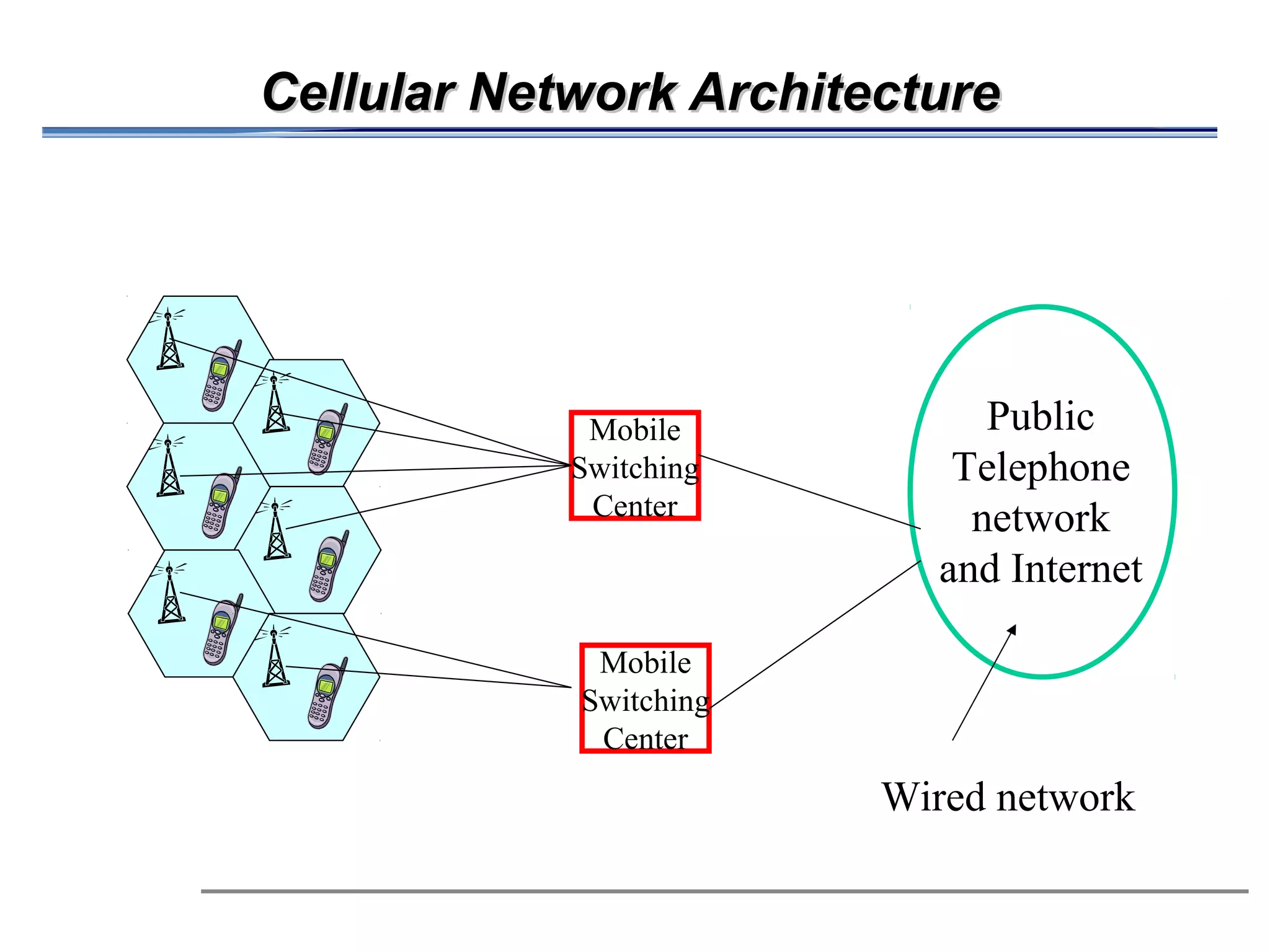

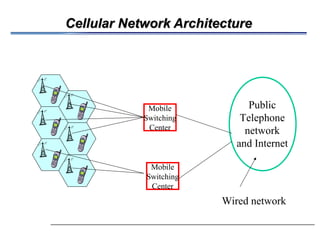

Cellular Network Architecture Mobile Public                                                                 Switching Center Telephone network and Internet Mobile Switching Center Wired network

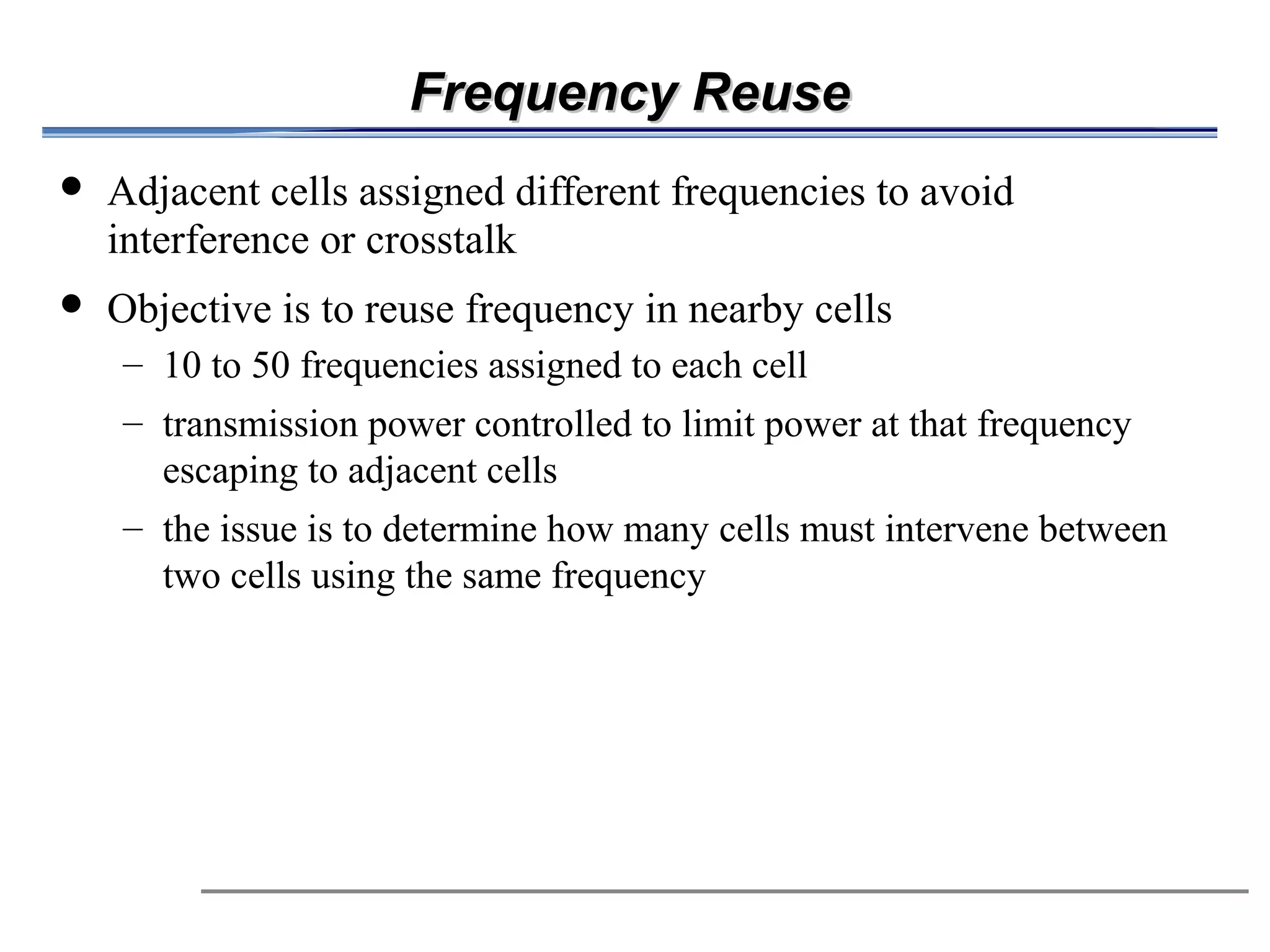

Frequency Reuse  Adjacent cells assigned different frequencies to avoid interference or crosstalk  Objective is to reuse frequency in nearby cells – 10 to 50 frequencies assigned to each cell – transmission power controlled to limit power at that frequency      escaping to adjacent cells                                                            – the issue is to determine how many cells must intervene between two cells using the same frequency

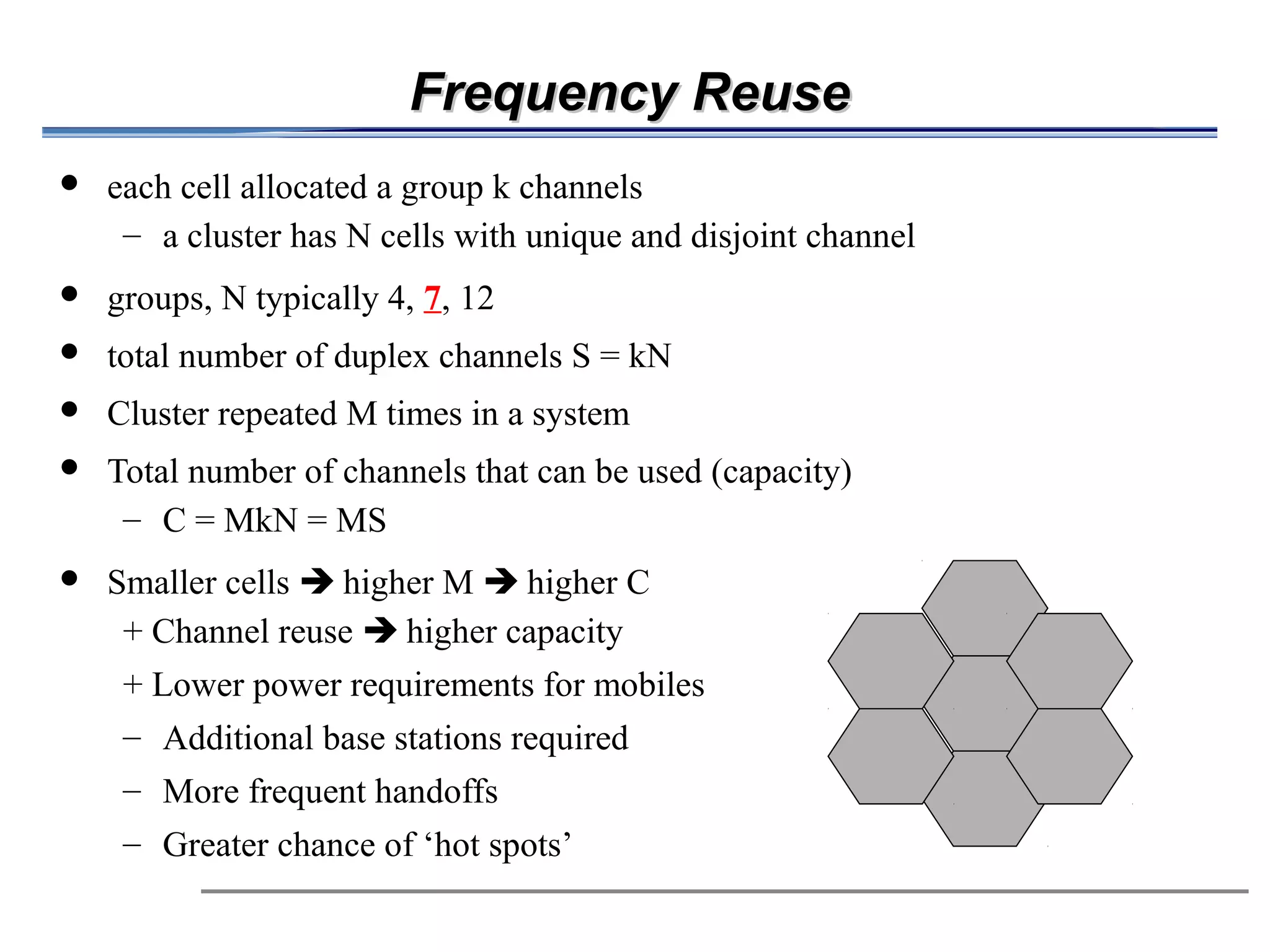

Frequency Reuse  each cell allocated a group k channels – a cluster has N cells with unique and disjoint channel  groups, N typically 4, 7, 12  total number of duplex channels S = kN  Cluster repeated M times in a system       Total number of channels that can be used (capacity) – C = MkN = MS                                                             Smaller cells  higher M  higher C + Channel reuse  higher capacity + Lower power requirements for mobiles – Additional base stations required – More frequent handoffs – Greater chance of ‘hot spots’

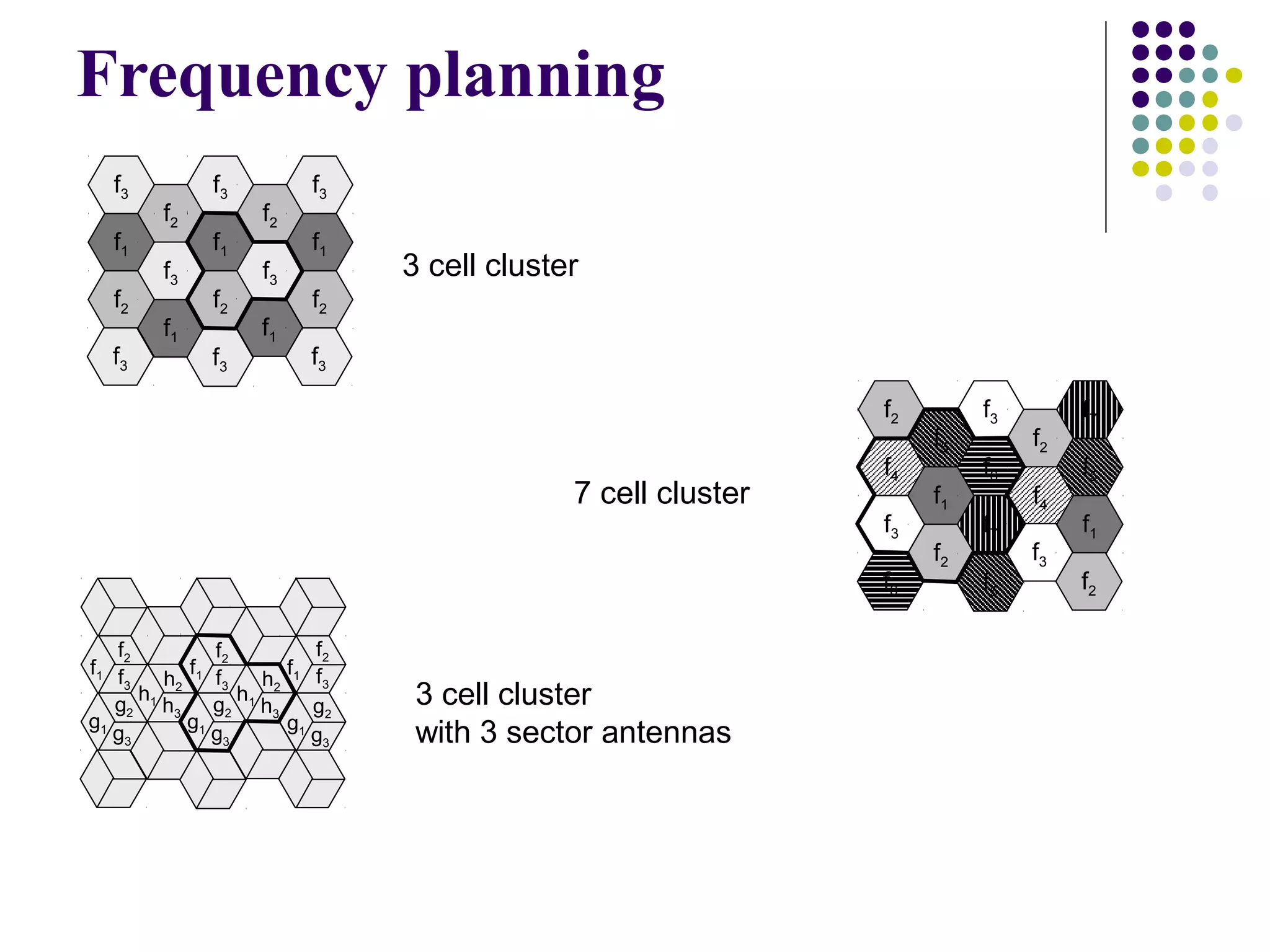

Frequency planning f3 f3 f3 f2 f2 f1 f1 f1 f3 f3 3 cell cluster f2 f2 f2 f1 f1 f3 f3 f3 f2 f3 f7 f5 f2 f4 f6 f5 7 cell cluster f1 f4 f3 f7 f1 f2 f3 f6 f5 f2 f2 f2 f2 f1 f f1 f f1 f h h 3 cell cluster 3 3 3 h 2 h 2 g2 1 h3 g2 1 h3 g2 g1 g1 g1 g3 g3 g3 with 3 sector antennas

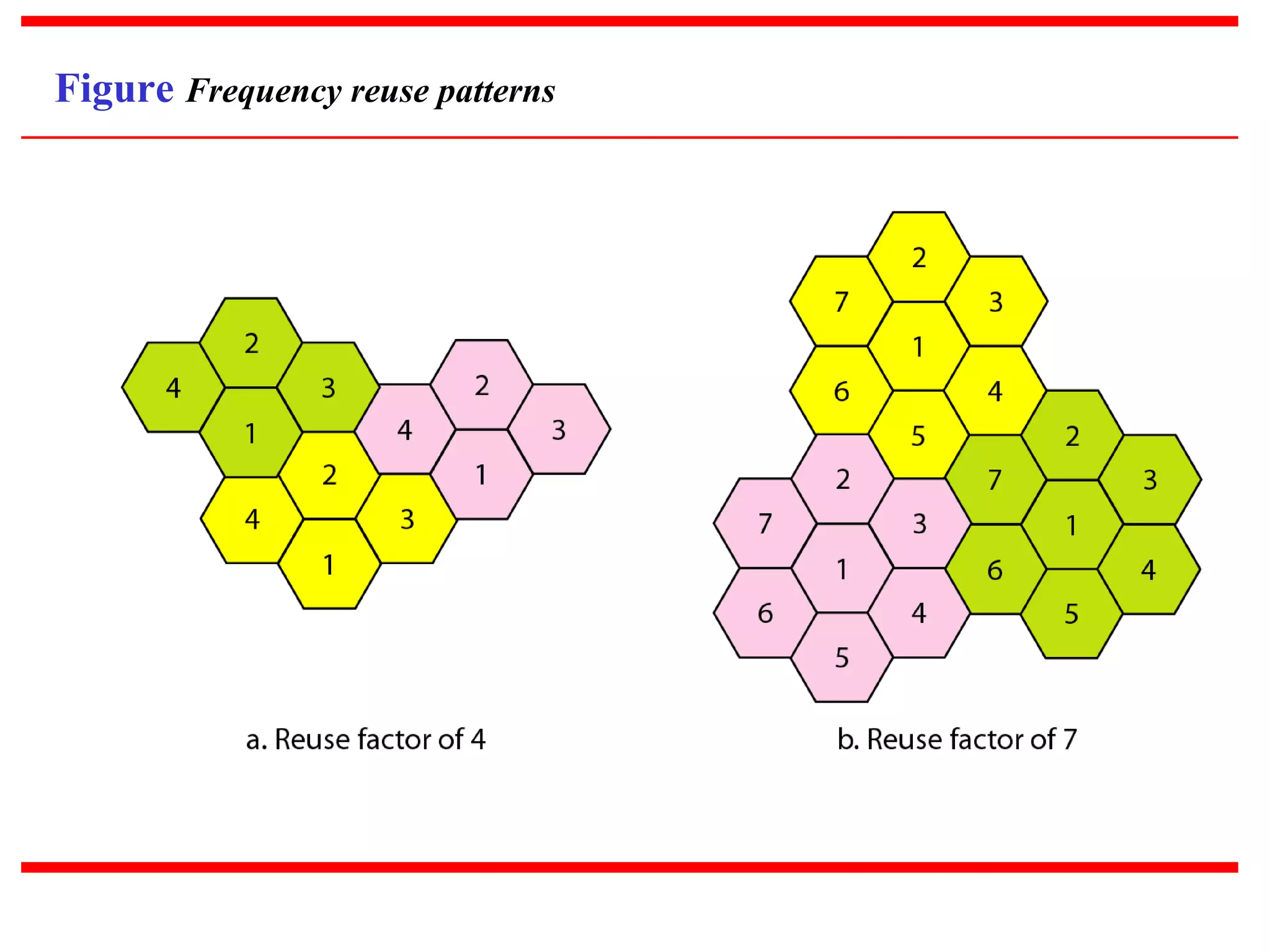

Figure Frequency reuse patterns

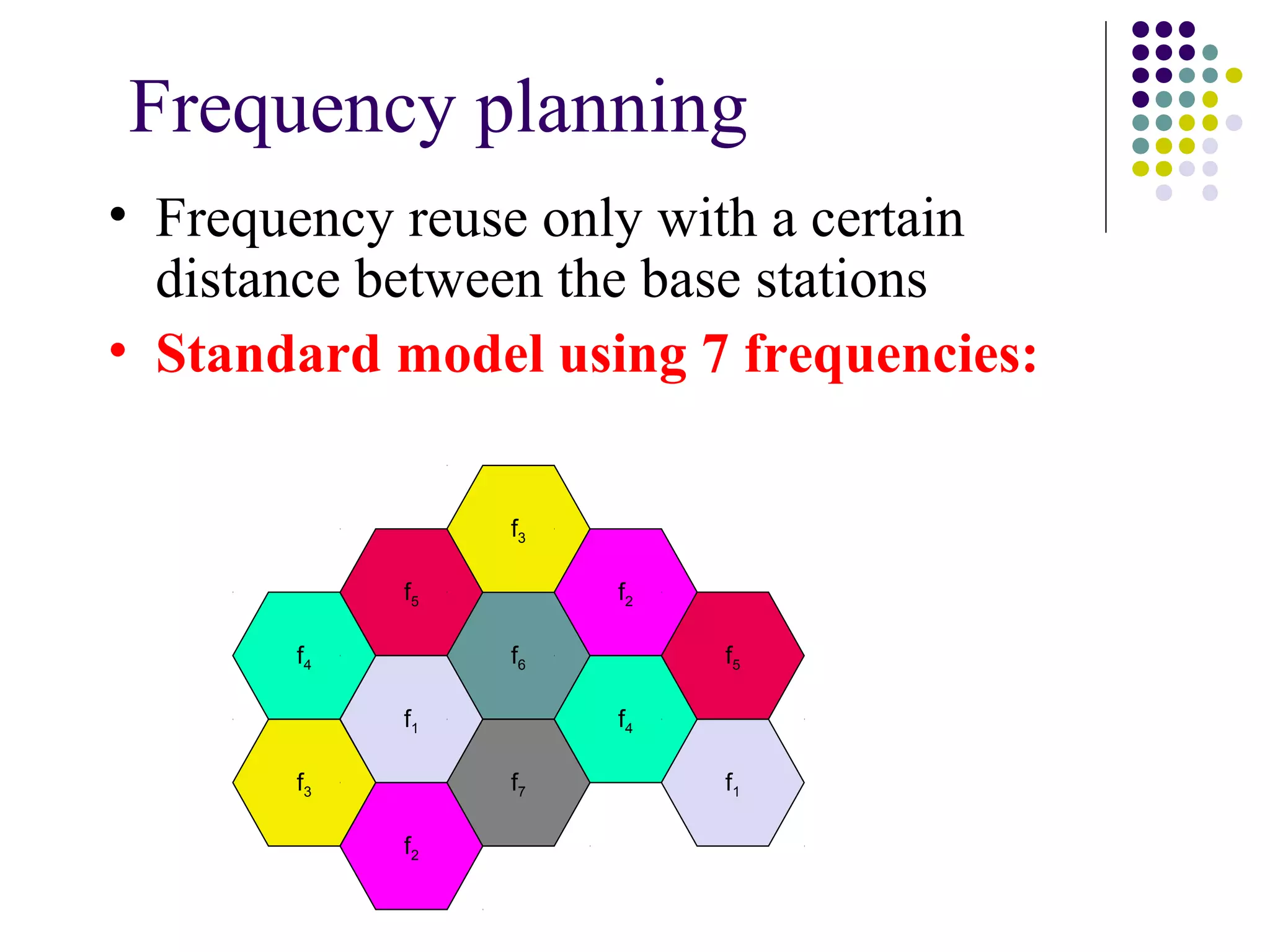

Frequency planning • Frequency reuse only with a certain distance between the base stations • Standard model using 7 frequencies: f3 f5 f2 f4 f6 f5 f1 f4 f3 f7 f1 f2

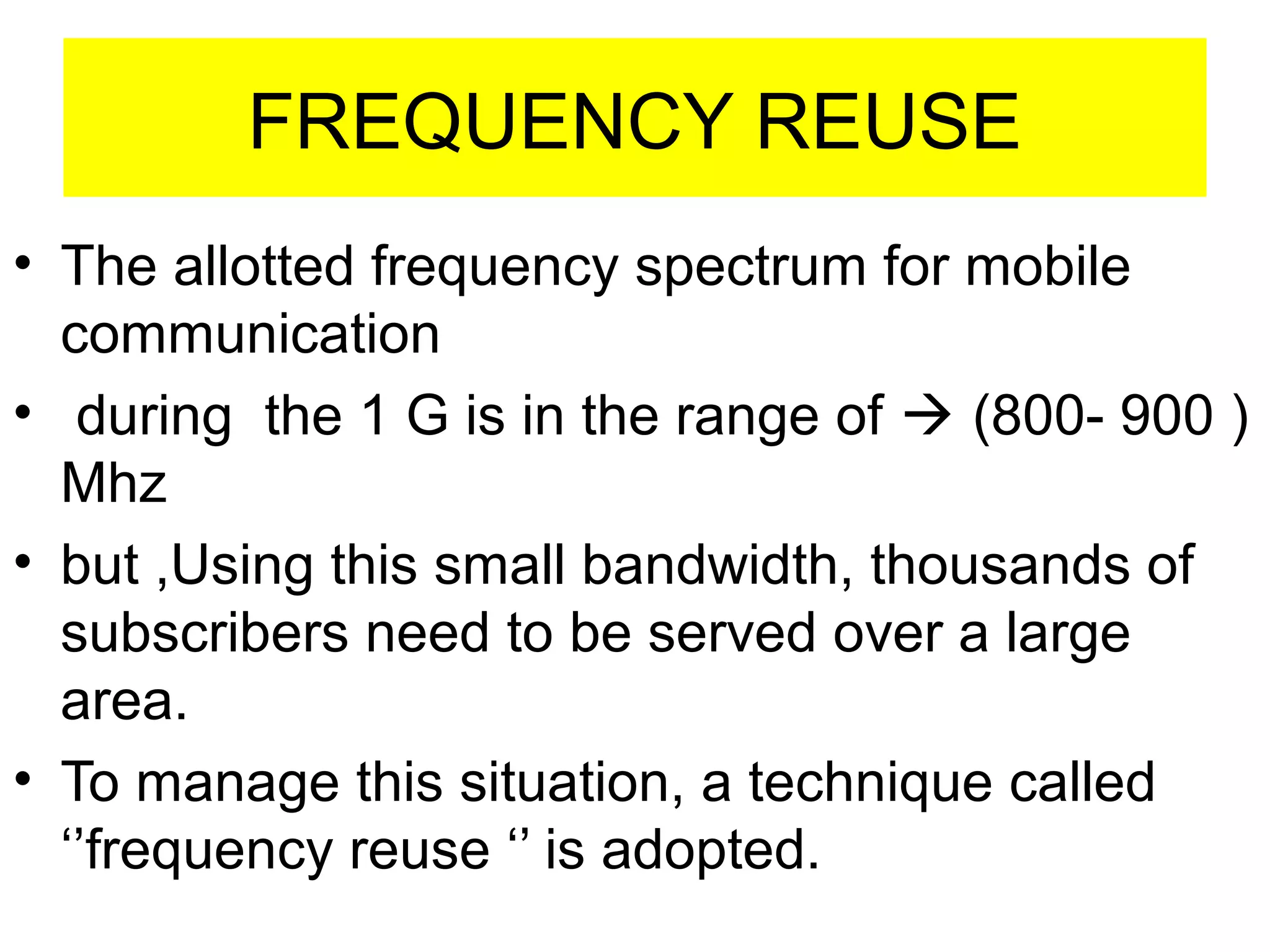

FREQUENCY REUSE • The allotted frequency spectrum for mobile  communication •  during  the 1 G is in the range of  (800- 900 ) Mhz • but ,Using this small bandwidth, thousands of  subscribers need to be served over a large  area. • To manage this situation, a technique called   ‘’frequency reuse ‘’ is adopted.

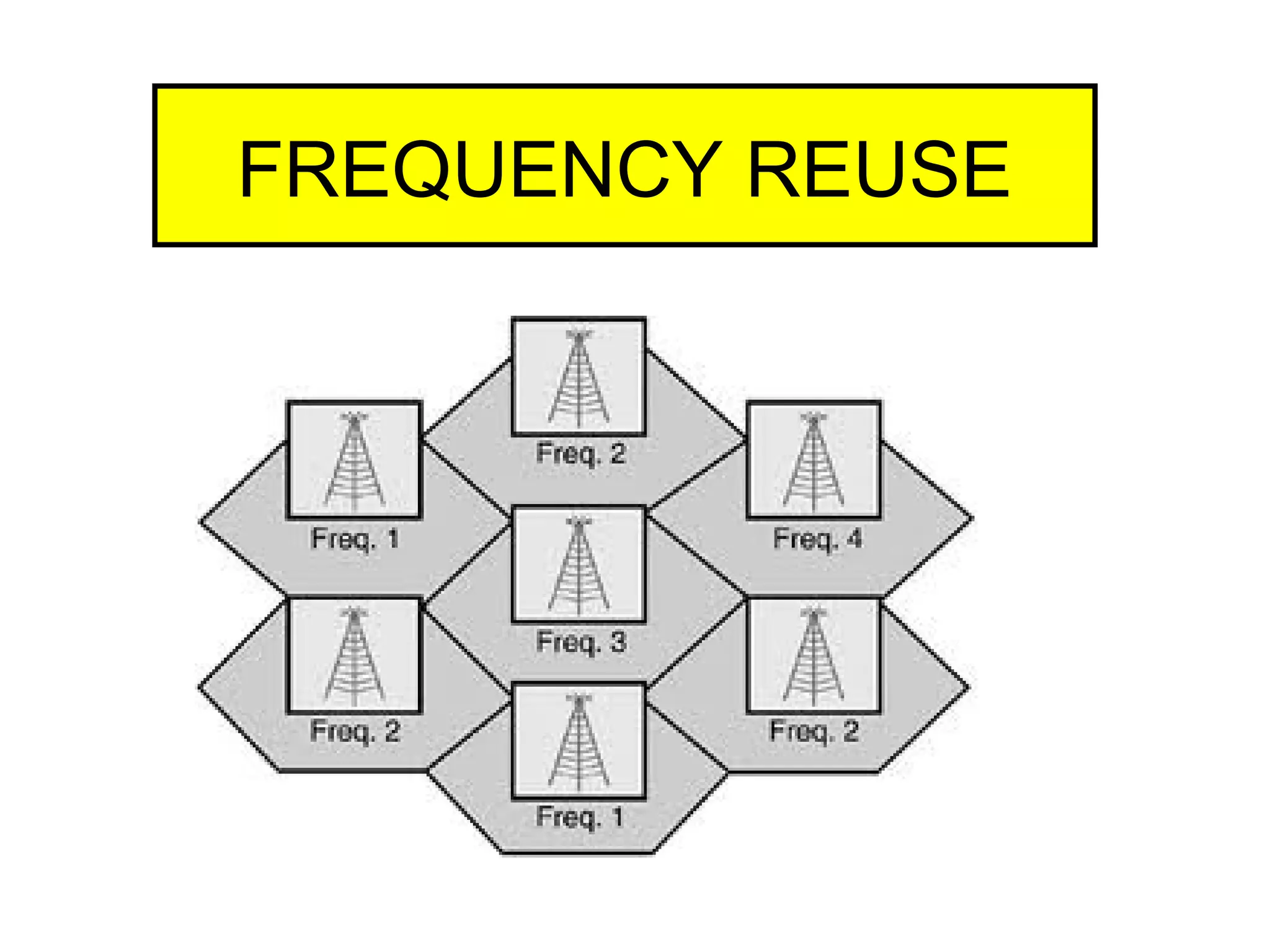

FREQUENCY REUSE

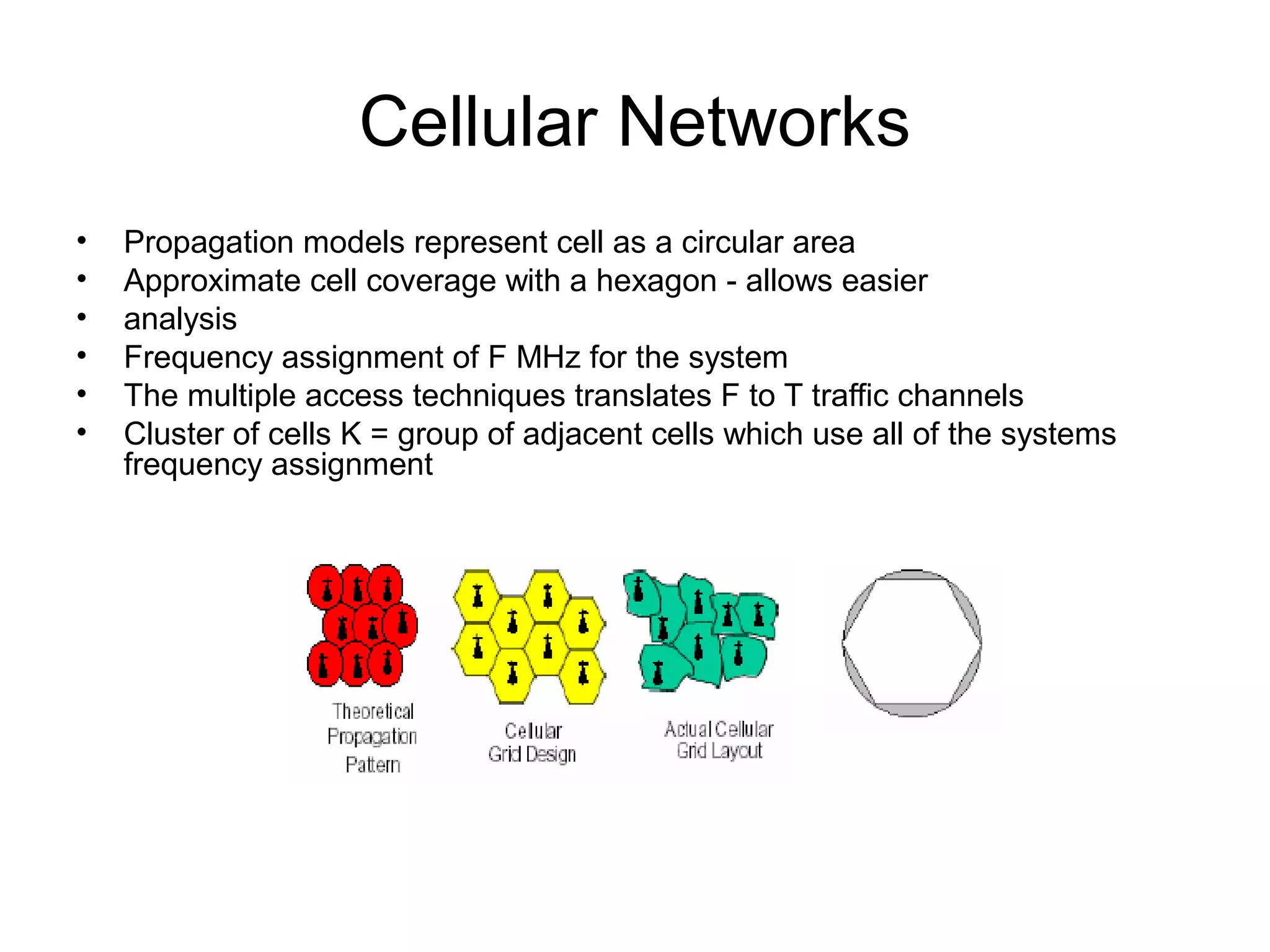

Cellular Networks • Propagation models represent cell as a circular area • Approximate cell coverage with a hexagon - allows easier • analysis • Frequency assignment of F MHz for the system • The multiple access techniques translates F to T traffic channels • Cluster of cells K = group of adjacent cells which use all of the systems  frequency assignment

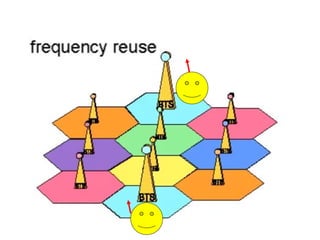

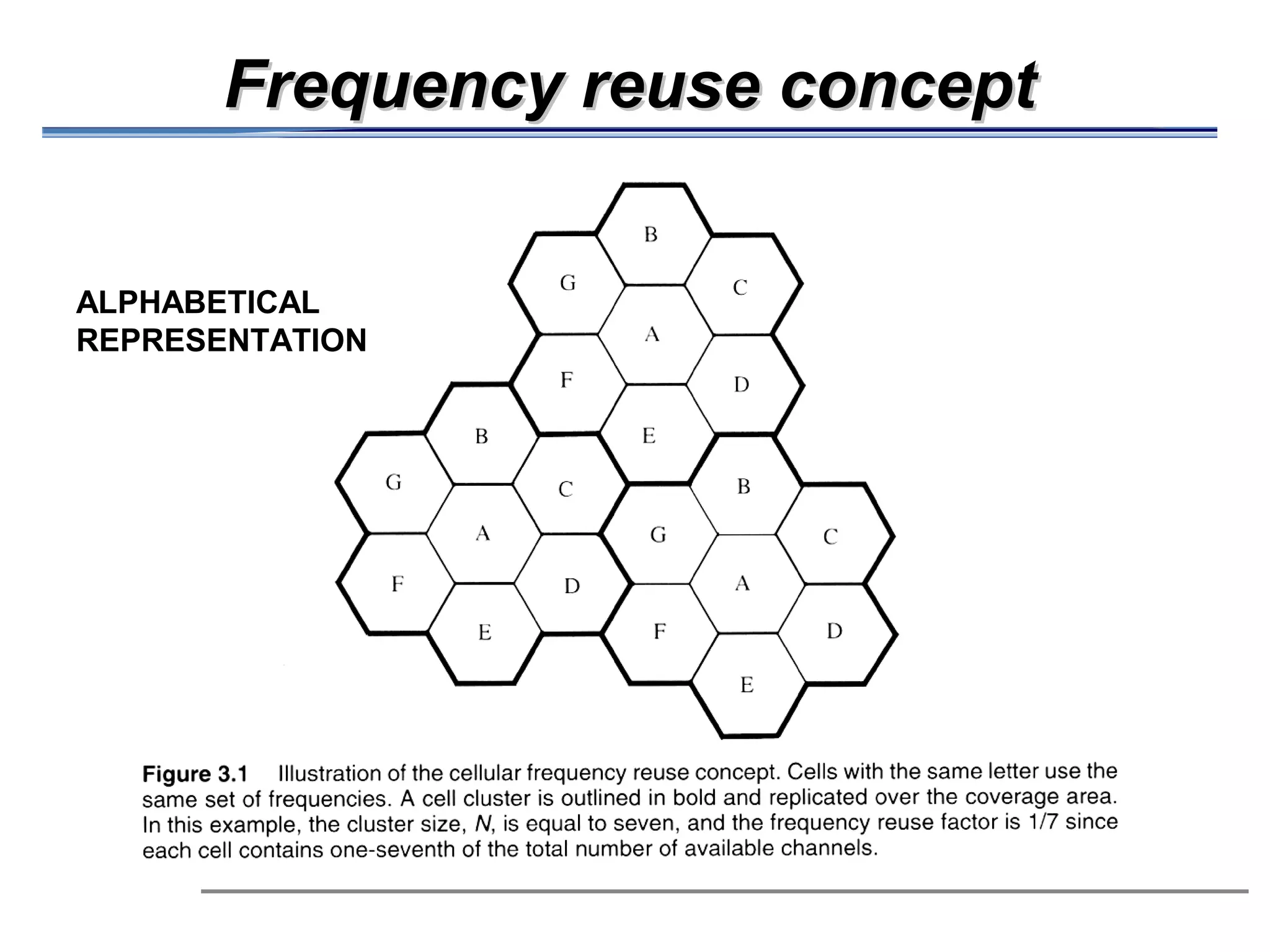

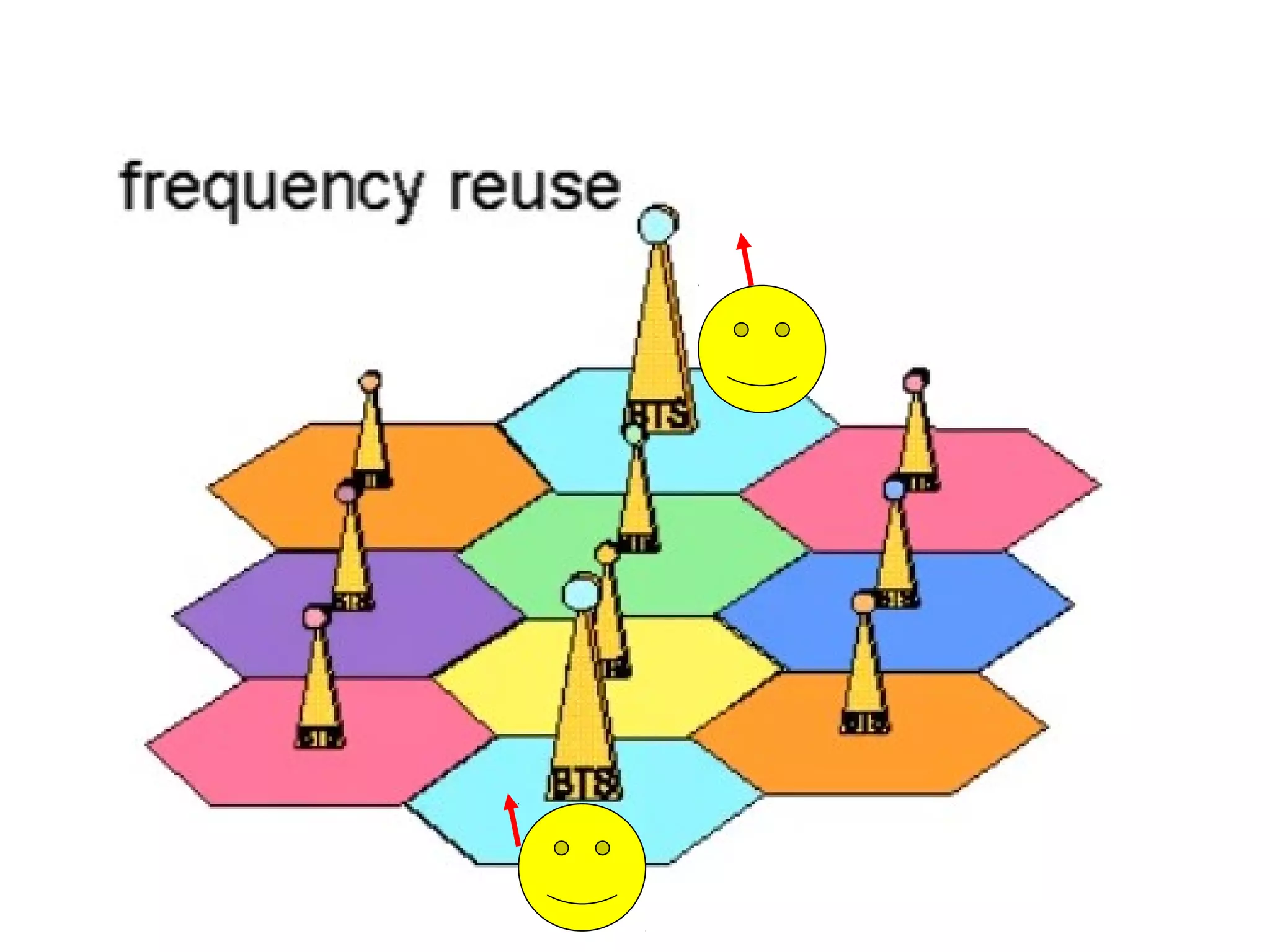

Frequency reuse concept ALPHABETICAL REPRESENTATION

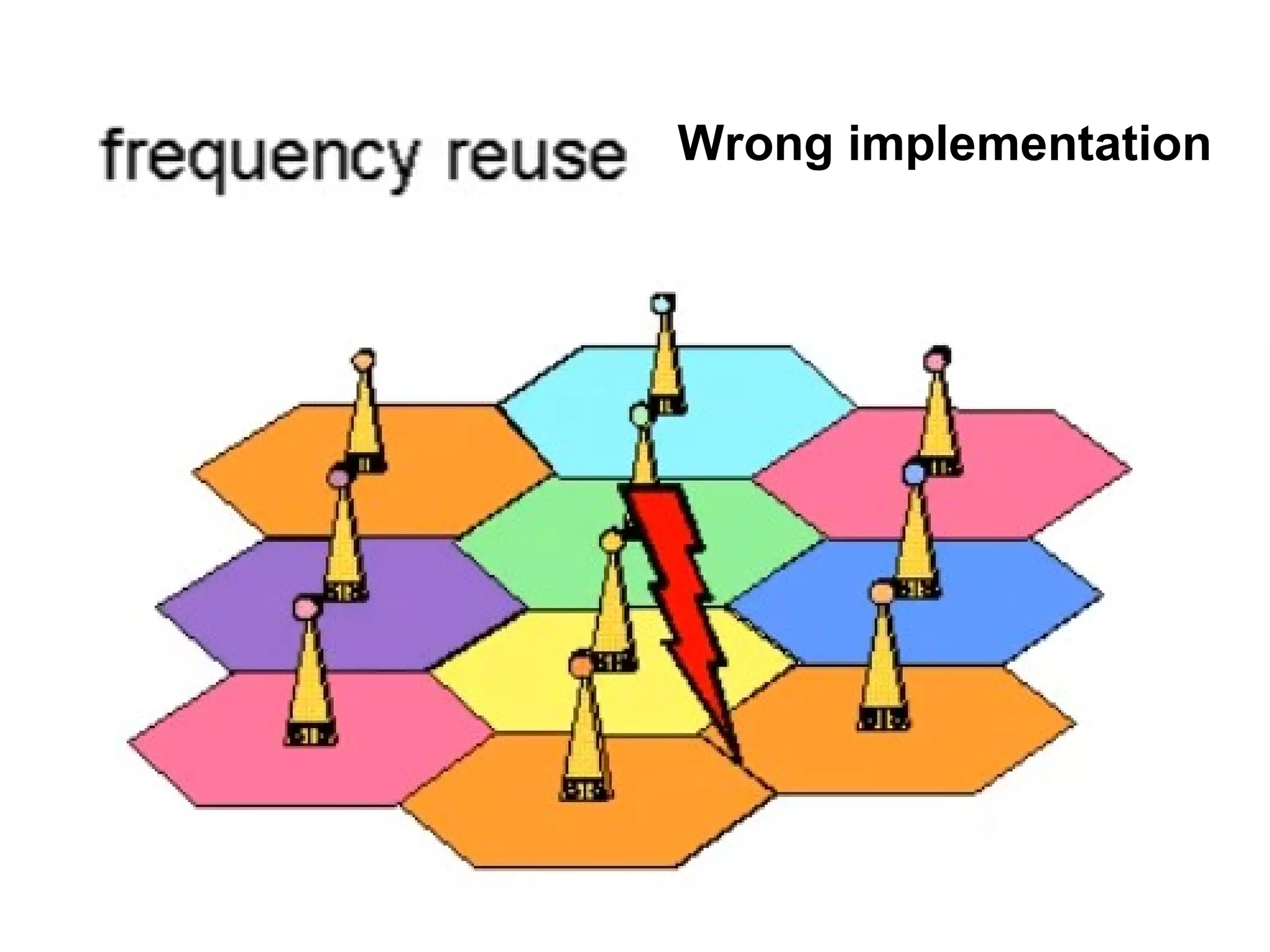

Wrong implementation

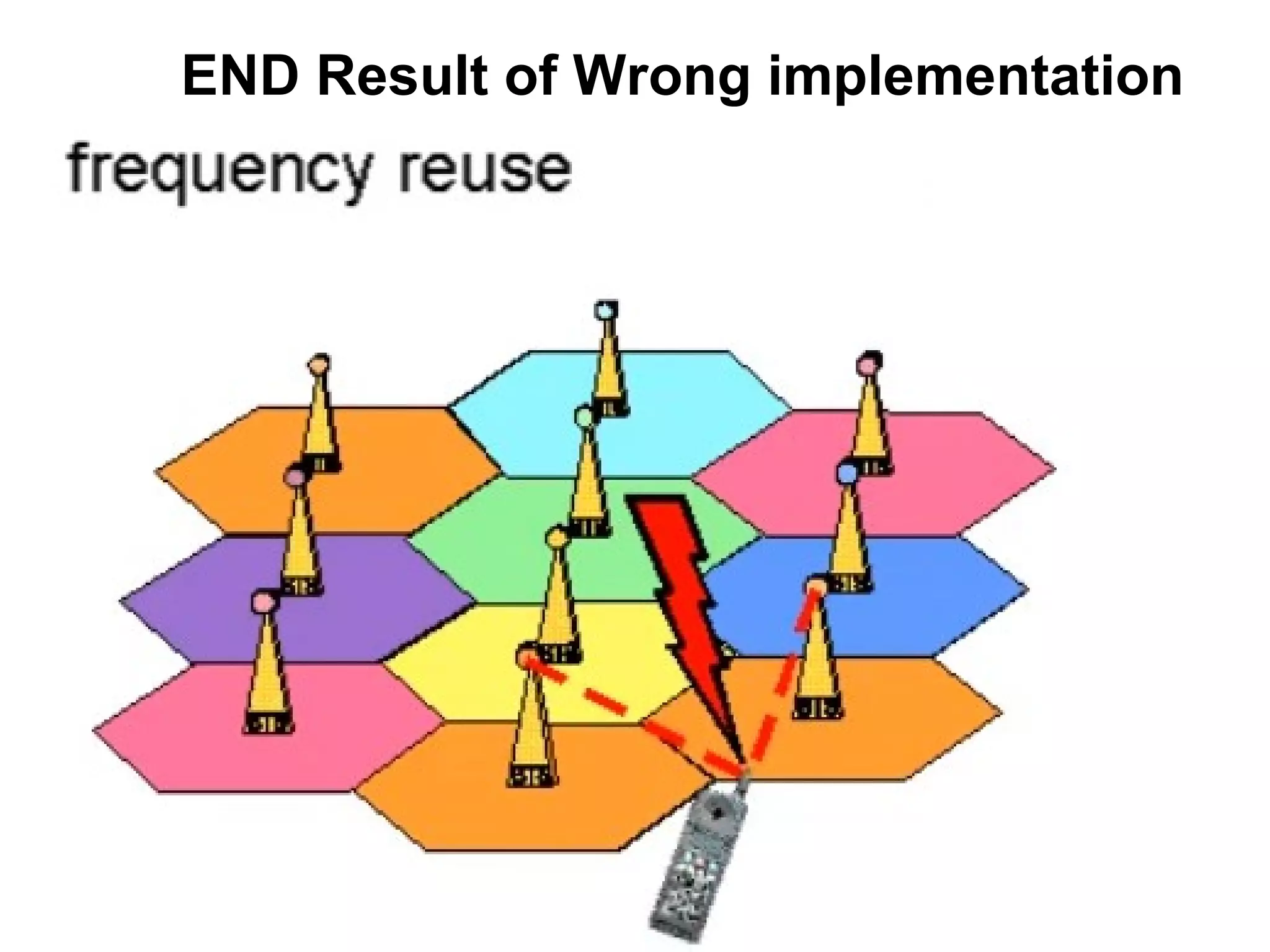

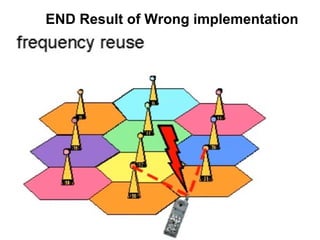

END Result of Wrong implementation

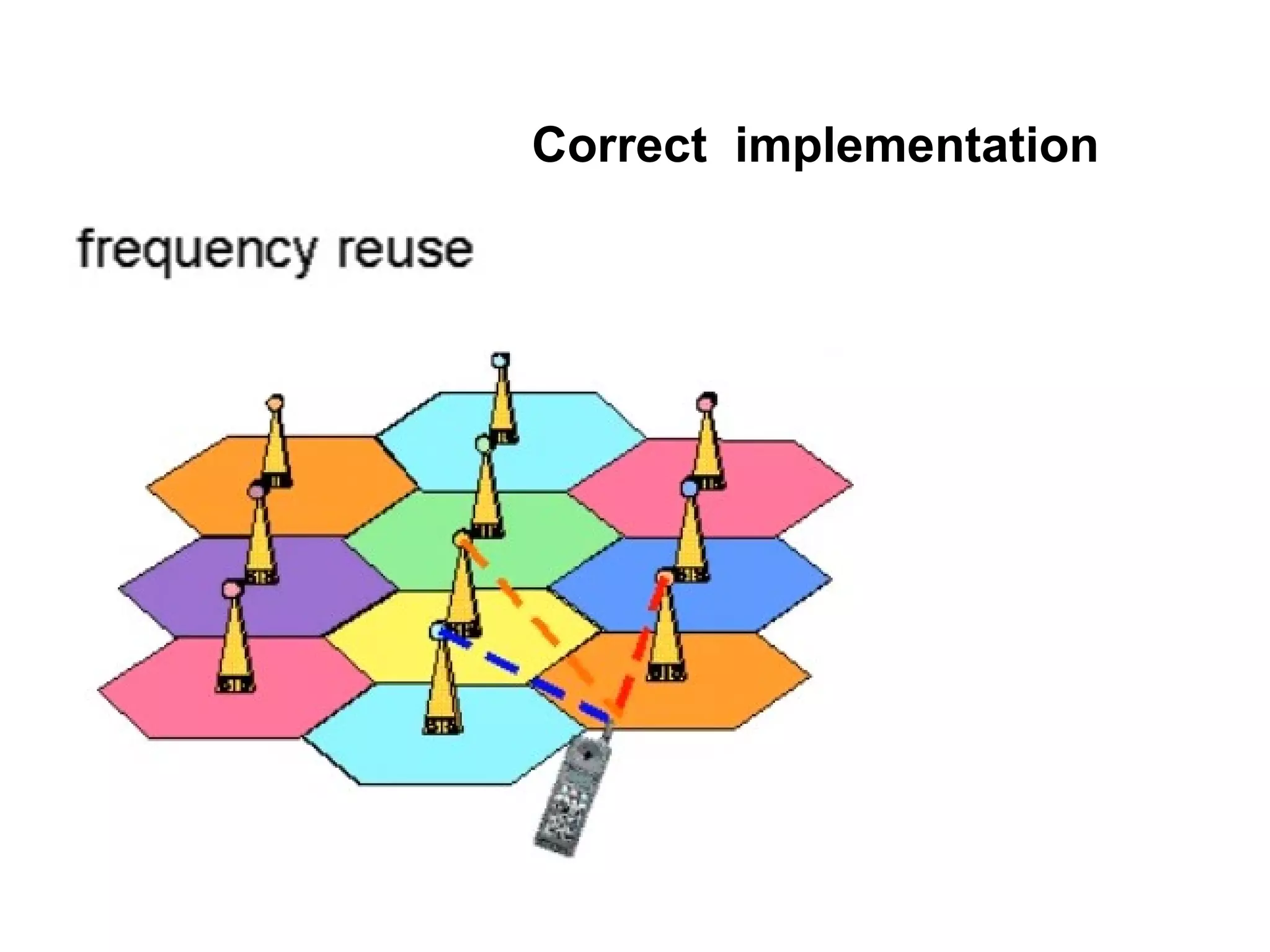

Correct implementation

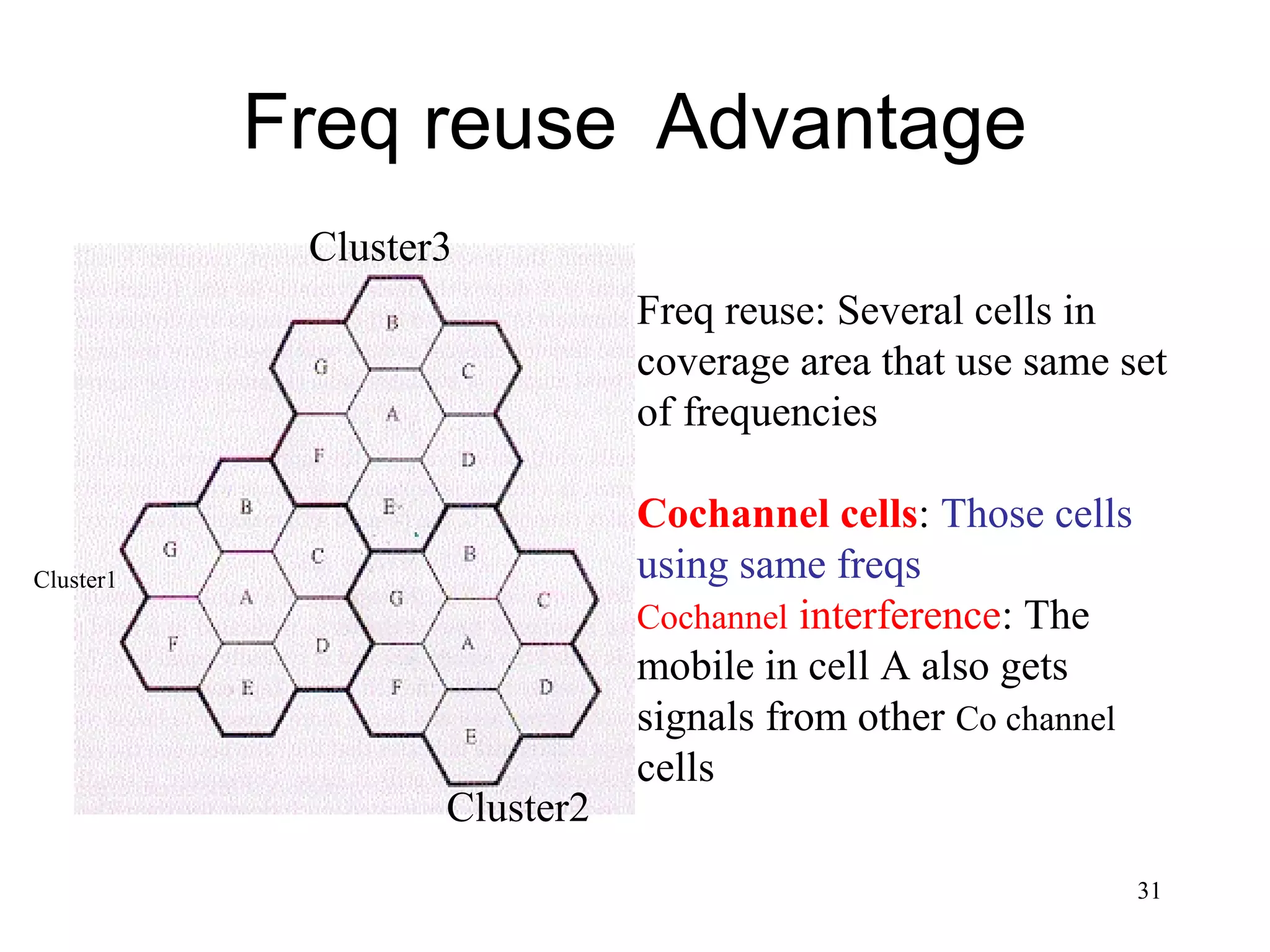

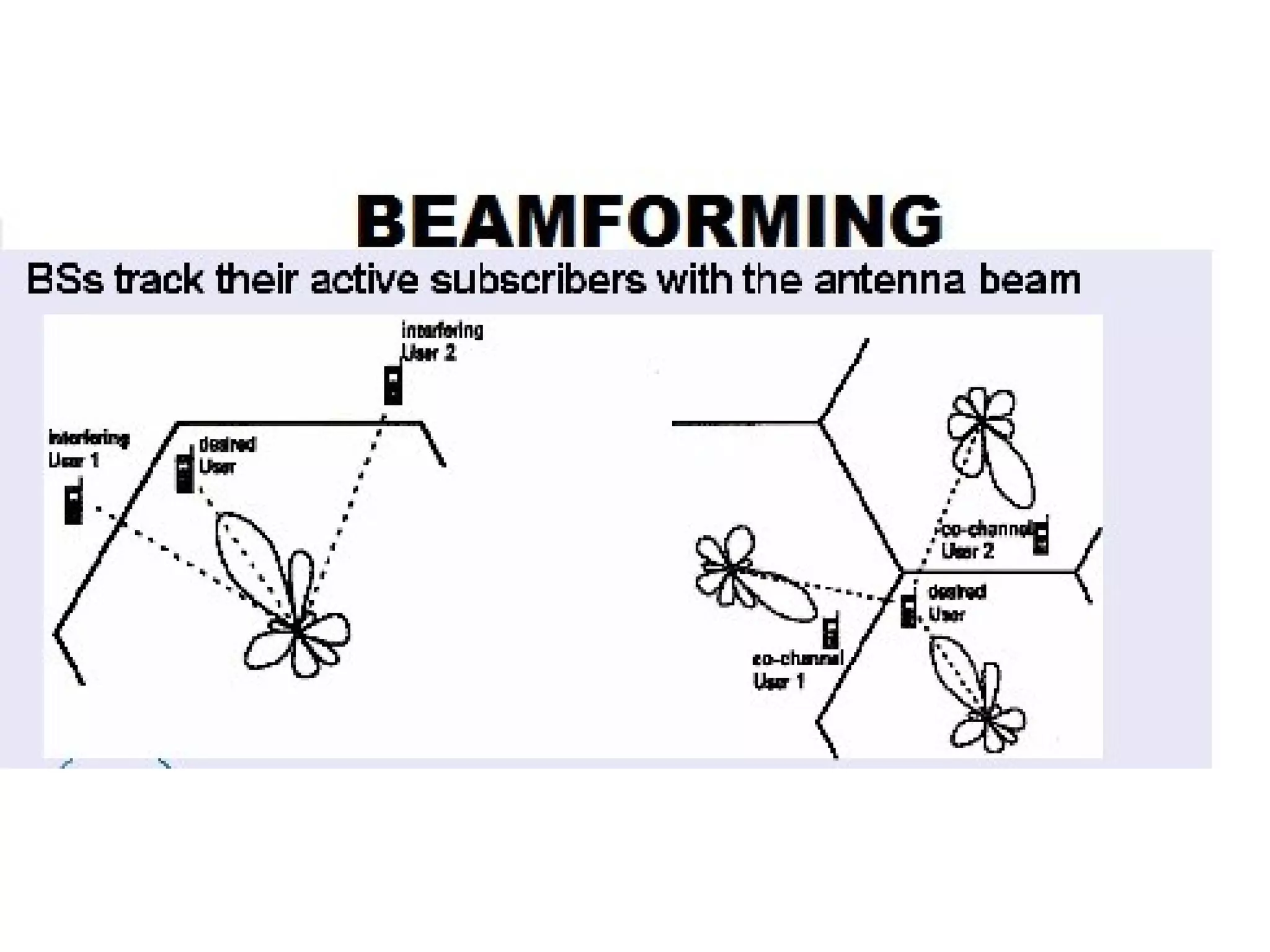

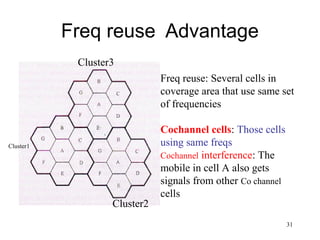

Freq reuse Advantage Cluster3 Freq reuse: Several cells in coverage area that use same set of frequencies Cochannel cells: Those cells Cluster1 using same freqs Cochannel interference: The mobile in cell A also gets signals from other Co channel cells Cluster2 31

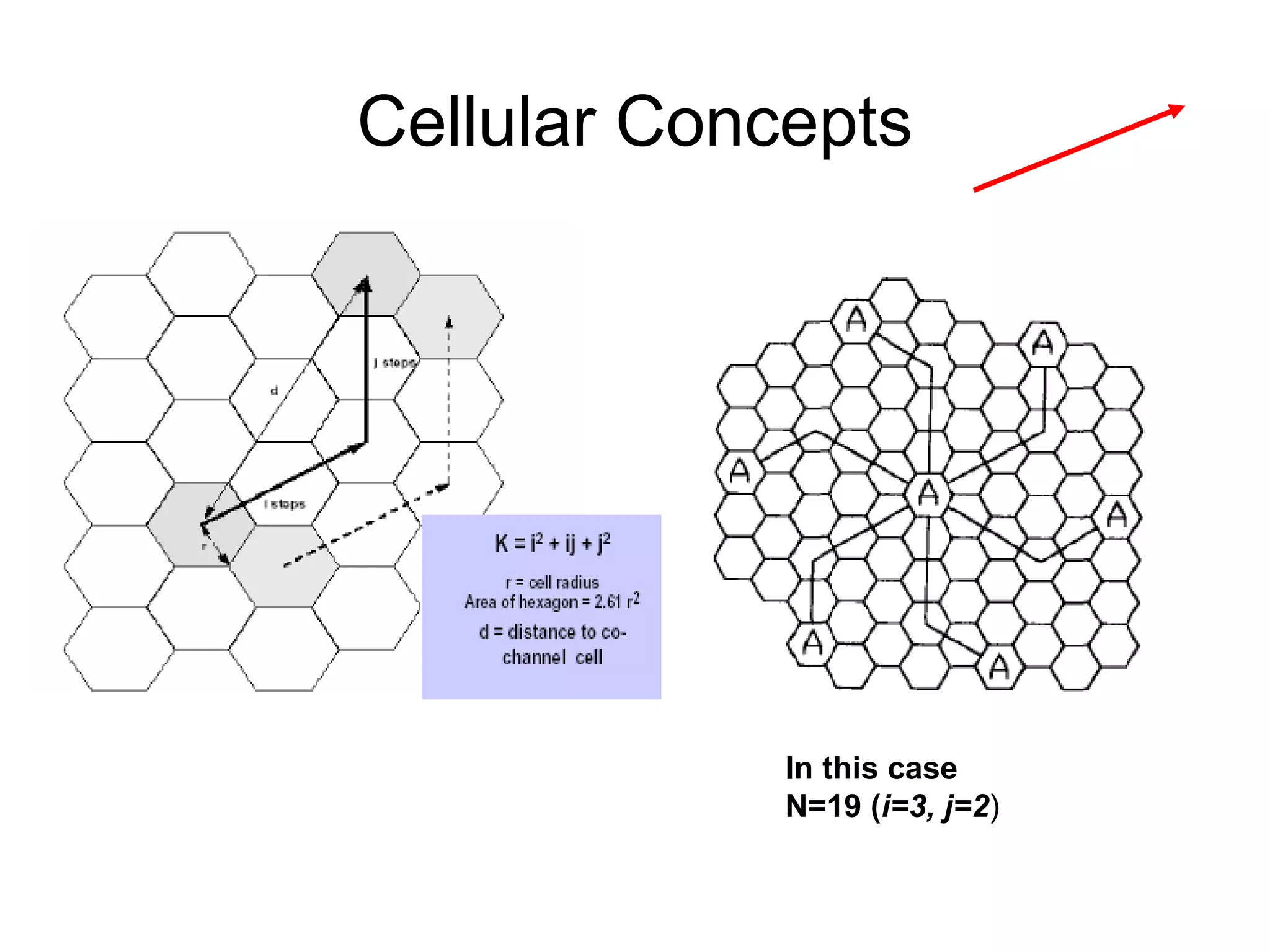

Cellular Concepts In this case N=19 (i=3, j=2)

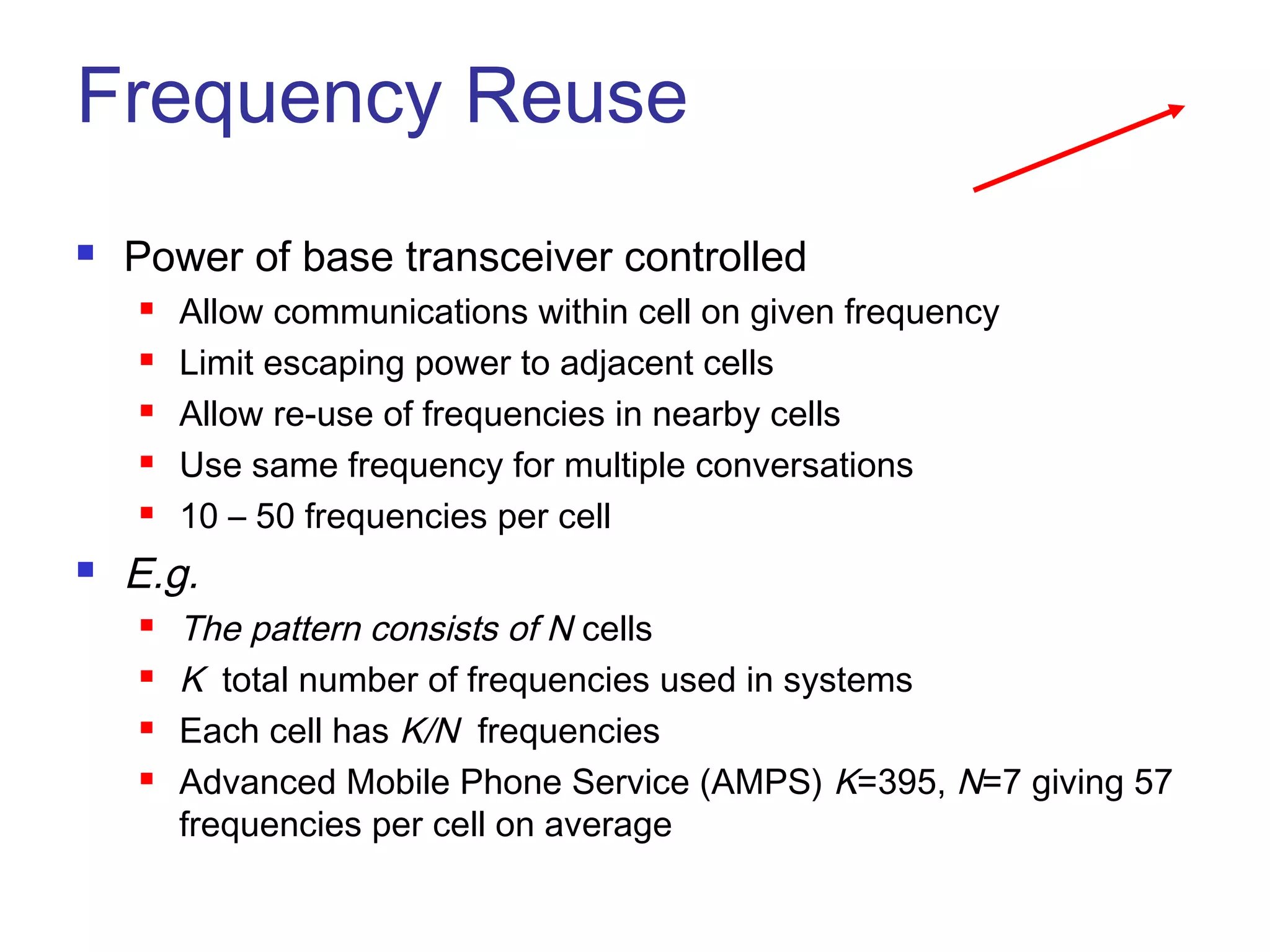

Frequency Reuse  Power of base transceiver controlled  Allow communications within cell on given frequency  Limit escaping power to adjacent cells  Allow re-use of frequencies in nearby cells  Use same frequency for multiple conversations  10 – 50 frequencies per cell  E.g.  The pattern consists of N cells  K total number of frequencies used in systems  Each cell has K/N frequencies  Advanced Mobile Phone Service (AMPS) K=395, N=7 giving 57 frequencies per cell on average

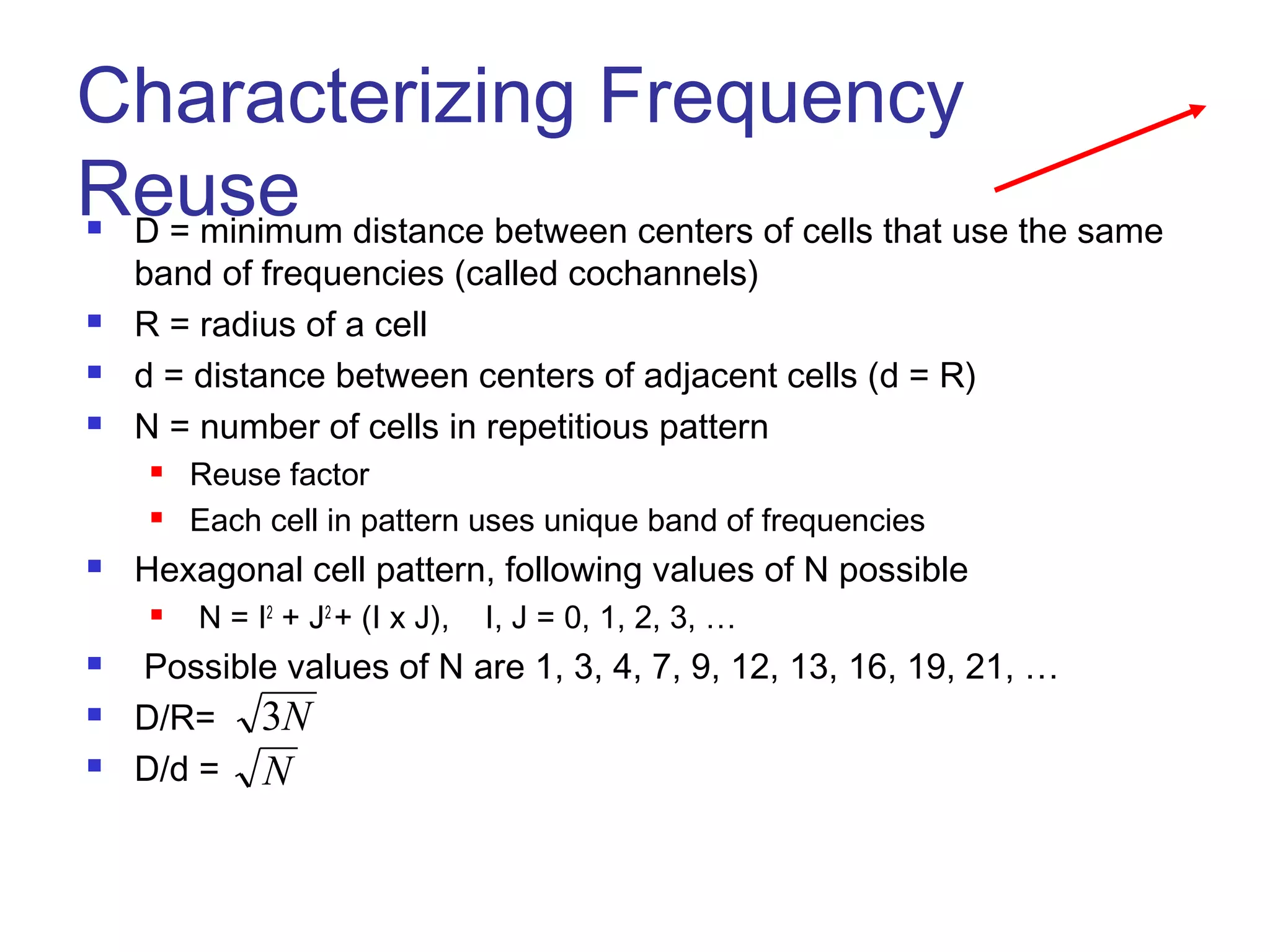

Characterizing Frequency Reuse distance between centers of cells that use the same D = minimum band of frequencies (called cochannels)  R = radius of a cell  d = distance between centers of adjacent cells (d = R)  N = number of cells in repetitious pattern  Reuse factor  Each cell in pattern uses unique band of frequencies  Hexagonal cell pattern, following values of N possible   N = I2 + J2 + (I x J), I, J = 0, 1, 2, 3, …   Possible values of N are 1, 3, 4, 7, 9, 12, 13, 16, 19, 21, …  D/R= 3N  D/d = N

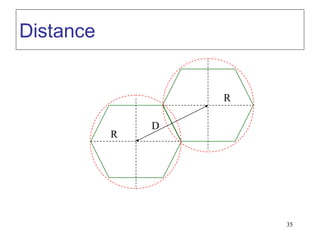

Distance R D R 35

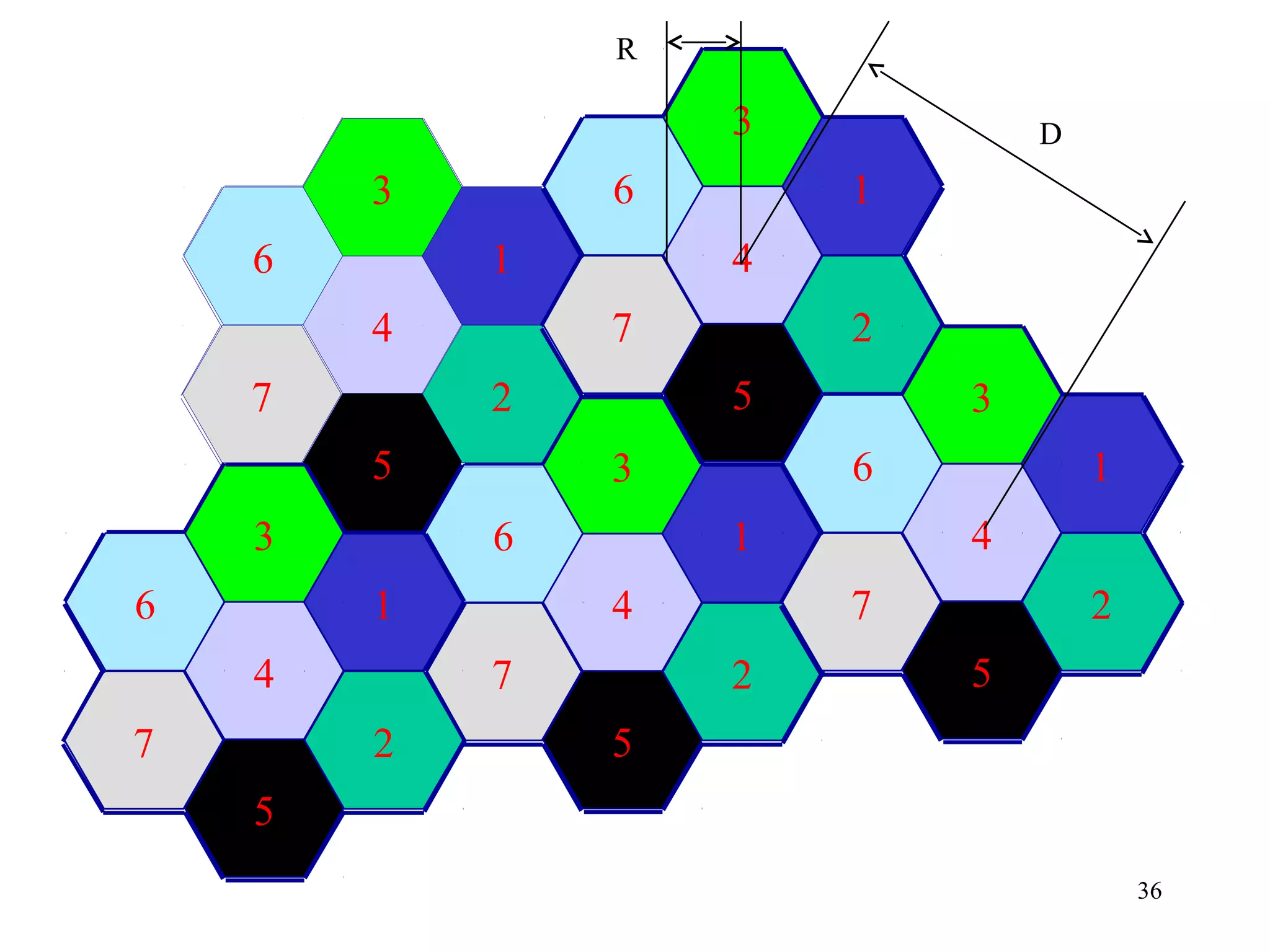

R 3 D 3 6 1 6 1 4 4 7 2 7 2 5 3 5 3 6 1 3 6 1 4 6 1 4 7 2 4 7 2 5 7 2 5 5 36

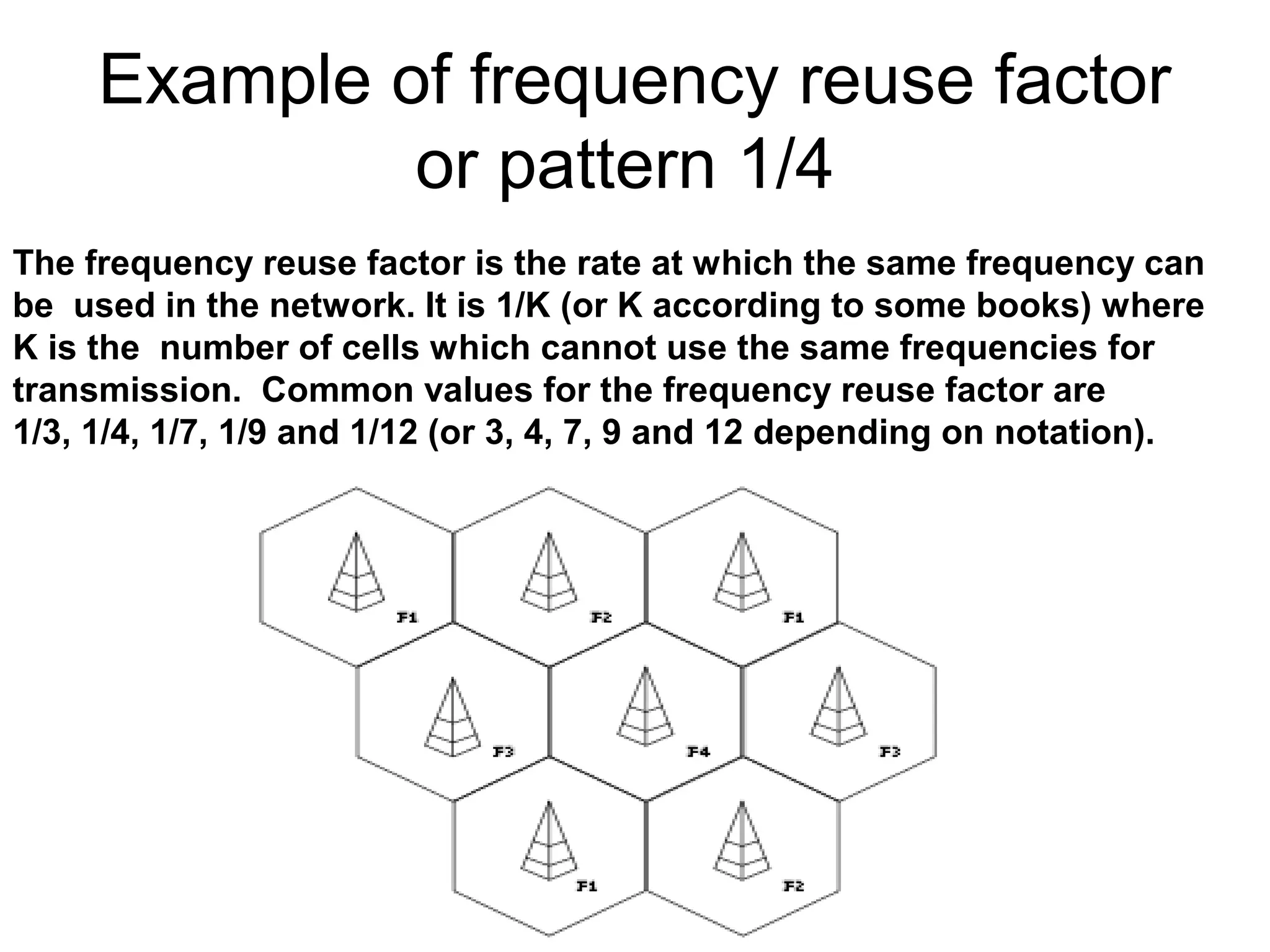

Example of frequency reuse factor or pattern 1/4 The frequency reuse factor is the rate at which the same frequency can be used in the network. It is 1/K (or K according to some books) where K is the number of cells which cannot use the same frequencies for transmission. Common values for the frequency reuse factor are 1/3, 1/4, 1/7, 1/9 and 1/12 (or 3, 4, 7, 9 and 12 depending on notation).

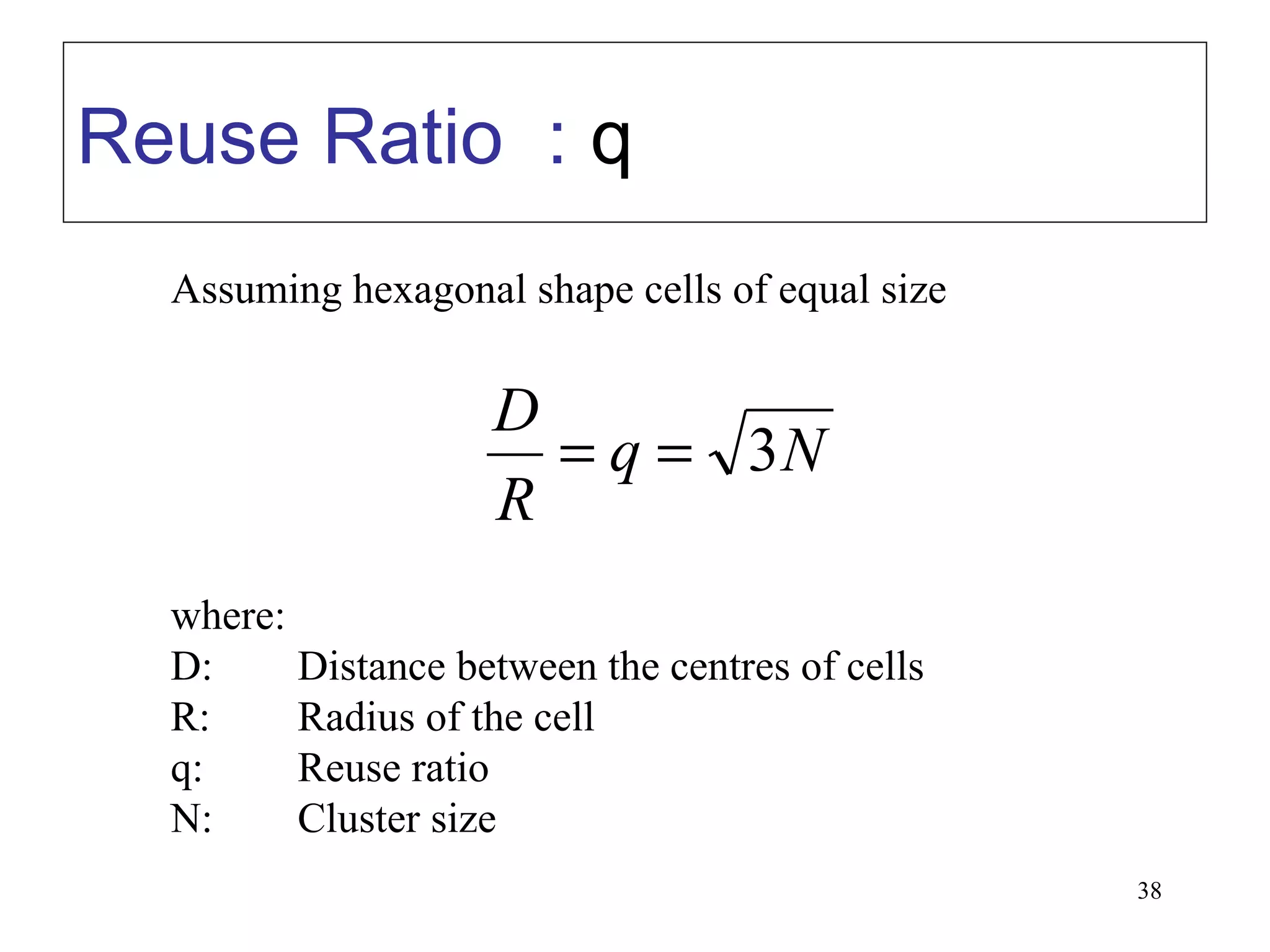

Reuse Ratio : q Assuming hexagonal shape cells of equal size D = q = 3N R where: D: Distance between the centres of cells R: Radius of the cell q: Reuse ratio N: Cluster size 38

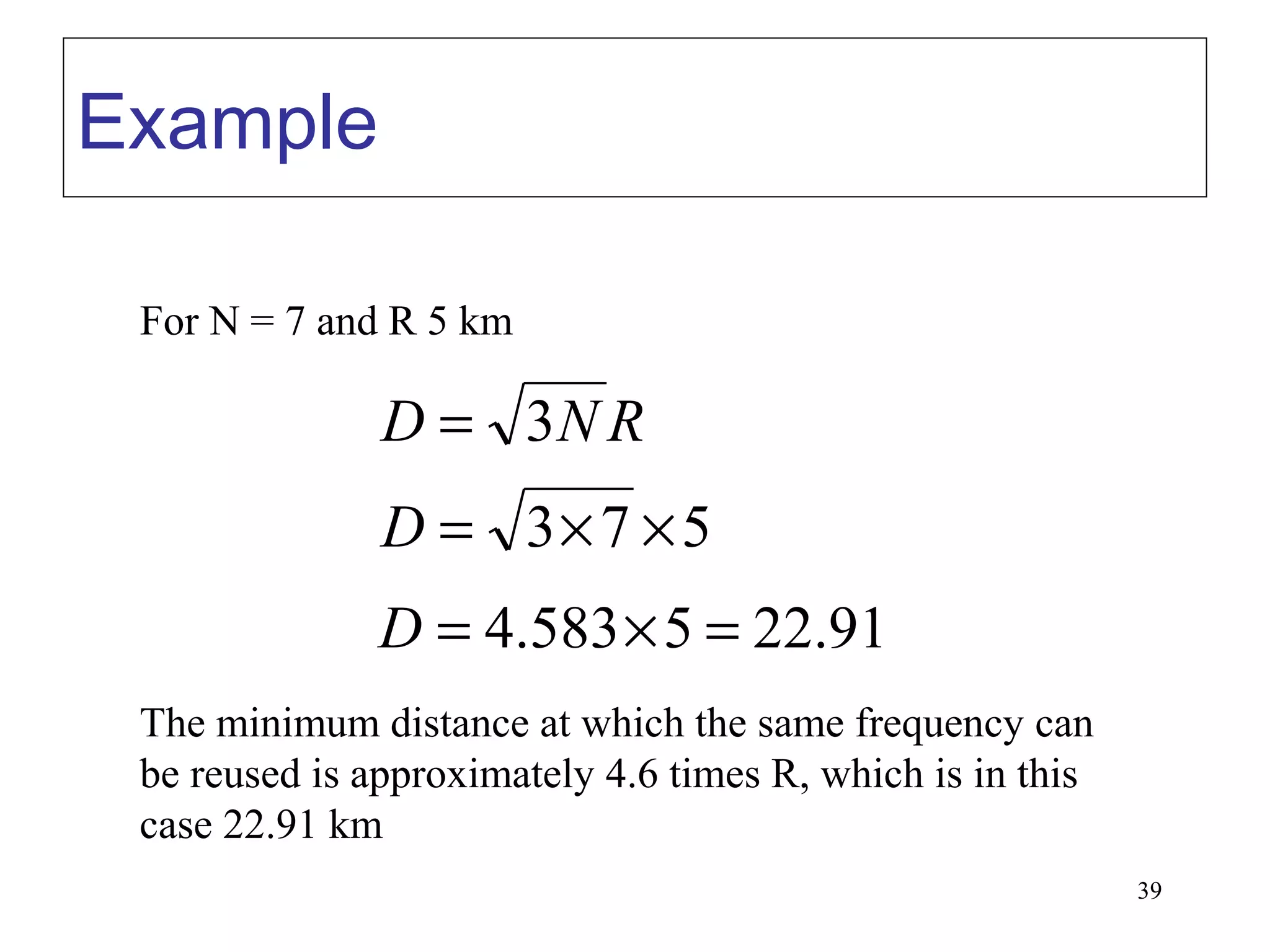

Example For N = 7 and R 5 km D = 3N R D = 3× 7 × 5 D = 4.583 × 5 = 22.91 The minimum distance at which the same frequency can be reused is approximately 4.6 times R, which is in this case 22.91 km 39

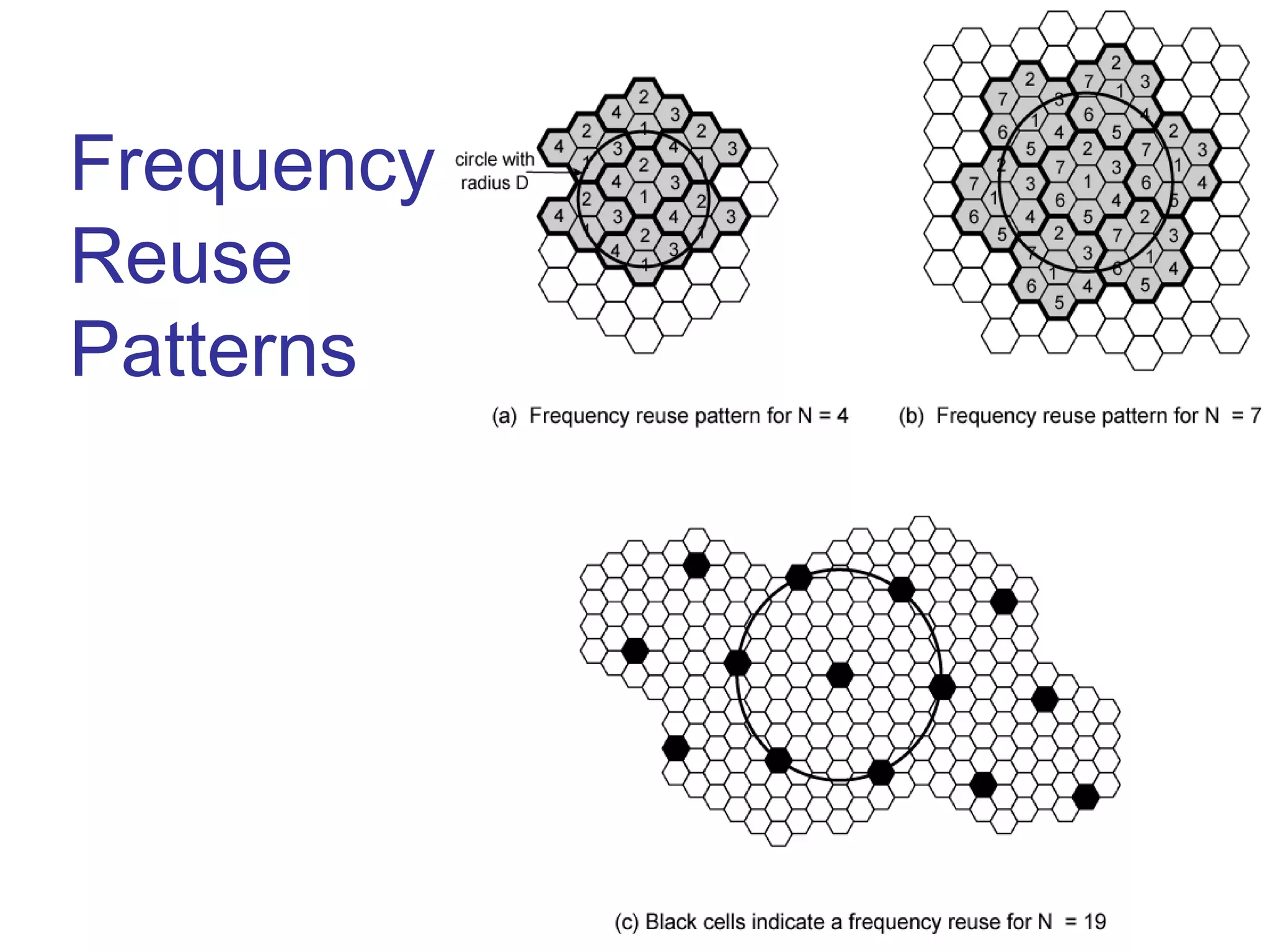

Frequency Reuse Patterns

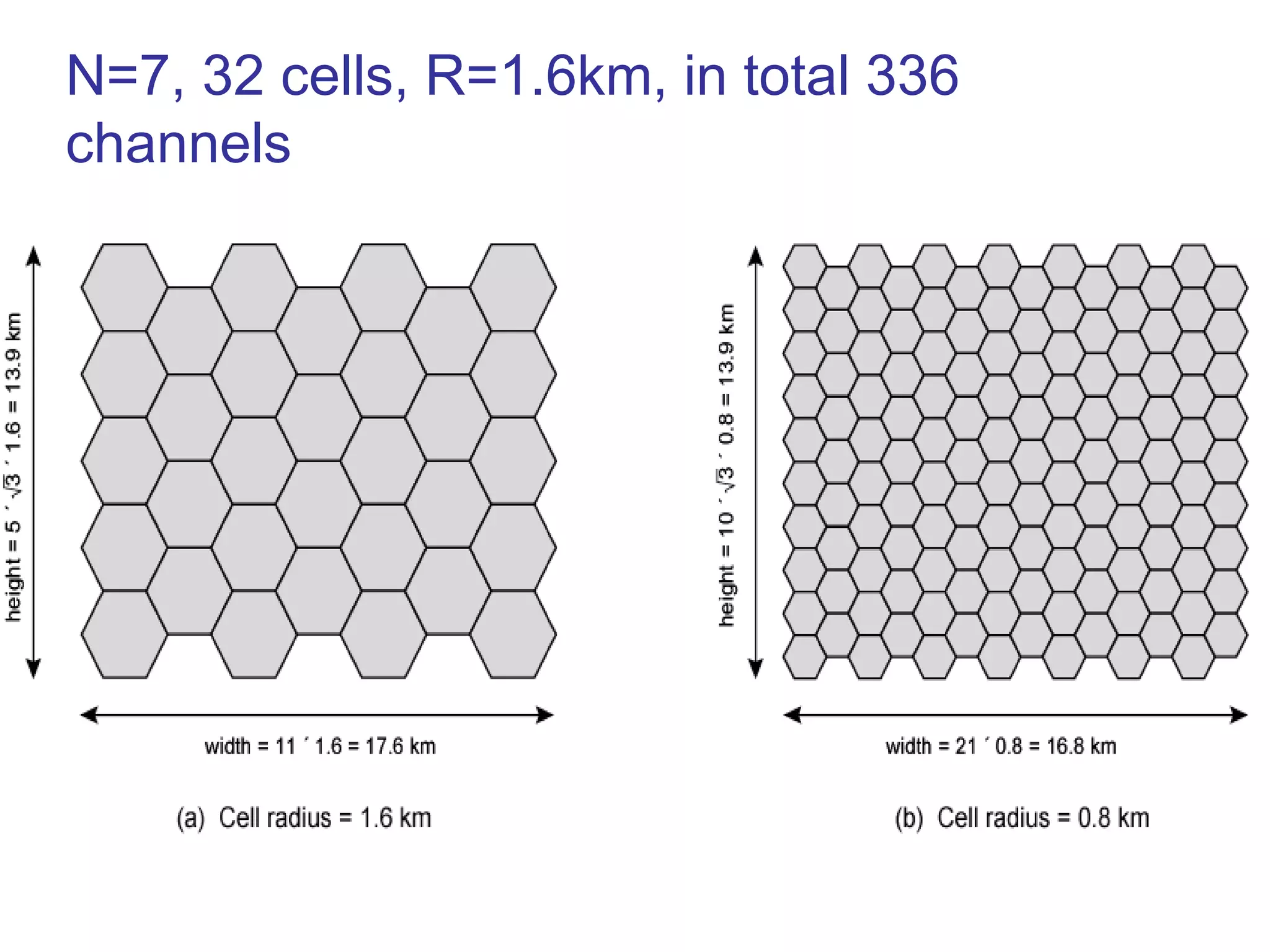

N=7, 32 cells, R=1.6km, in total 336 channels

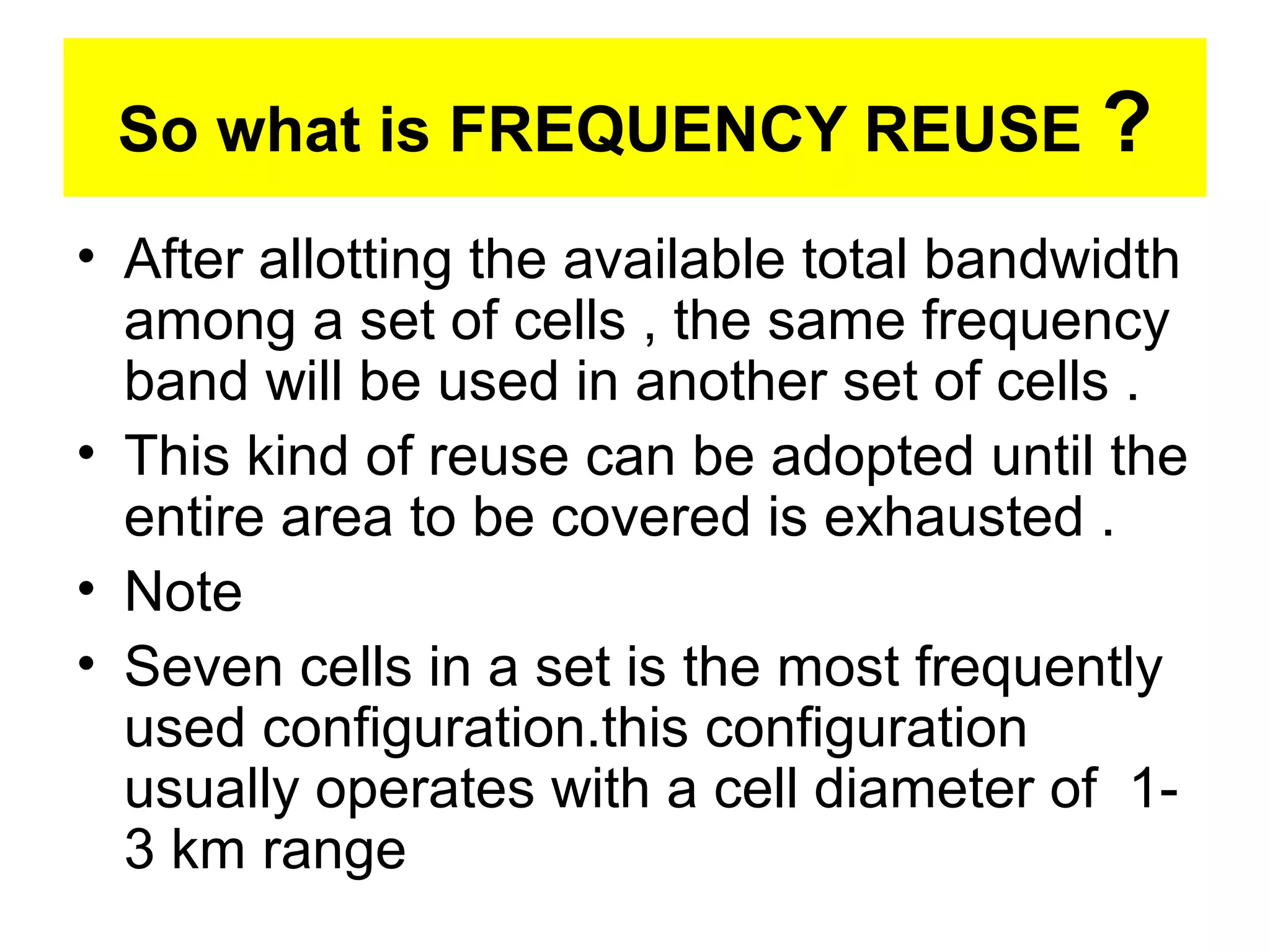

So what is FREQUENCY REUSE ? • After allotting the available total bandwidth among a set of cells , the same frequency band will be used in another set of cells . • This kind of reuse can be adopted until the entire area to be covered is exhausted . • Note • Seven cells in a set is the most frequently used configuration.this configuration usually operates with a cell diameter of 1- 3 km range

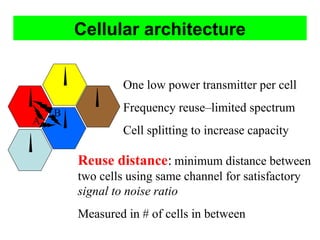

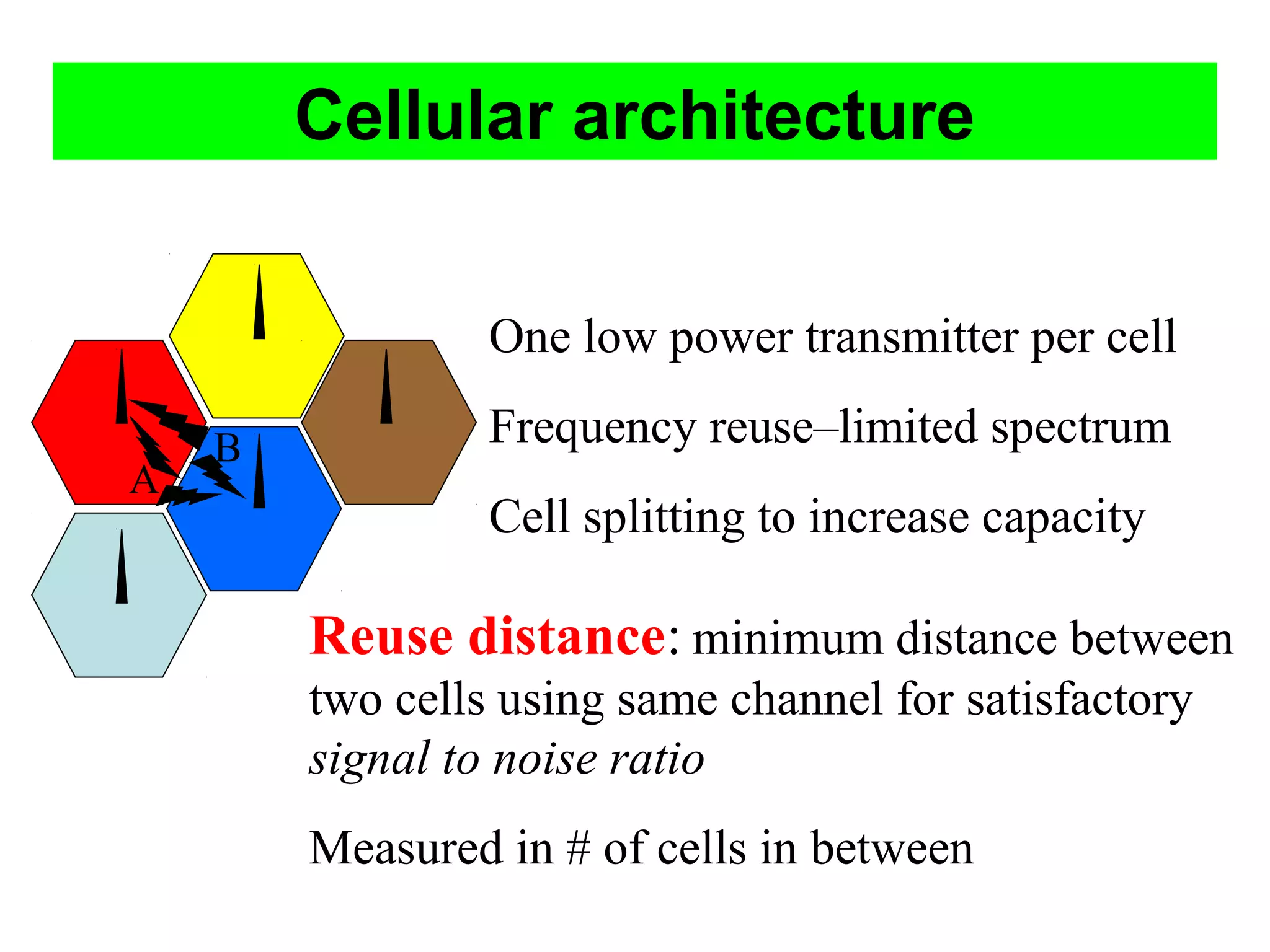

Cellular architecture One low power transmitter per cell B Frequency reuse–limited spectrum A Cell splitting to increase capacity Reuse distance: minimum distance between two cells using same channel for satisfactory signal to noise ratio Measured in # of cells in between

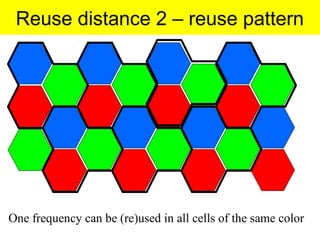

Reuse distance 2 – reuse pattern One frequency can be (re)used in all cells of the same color

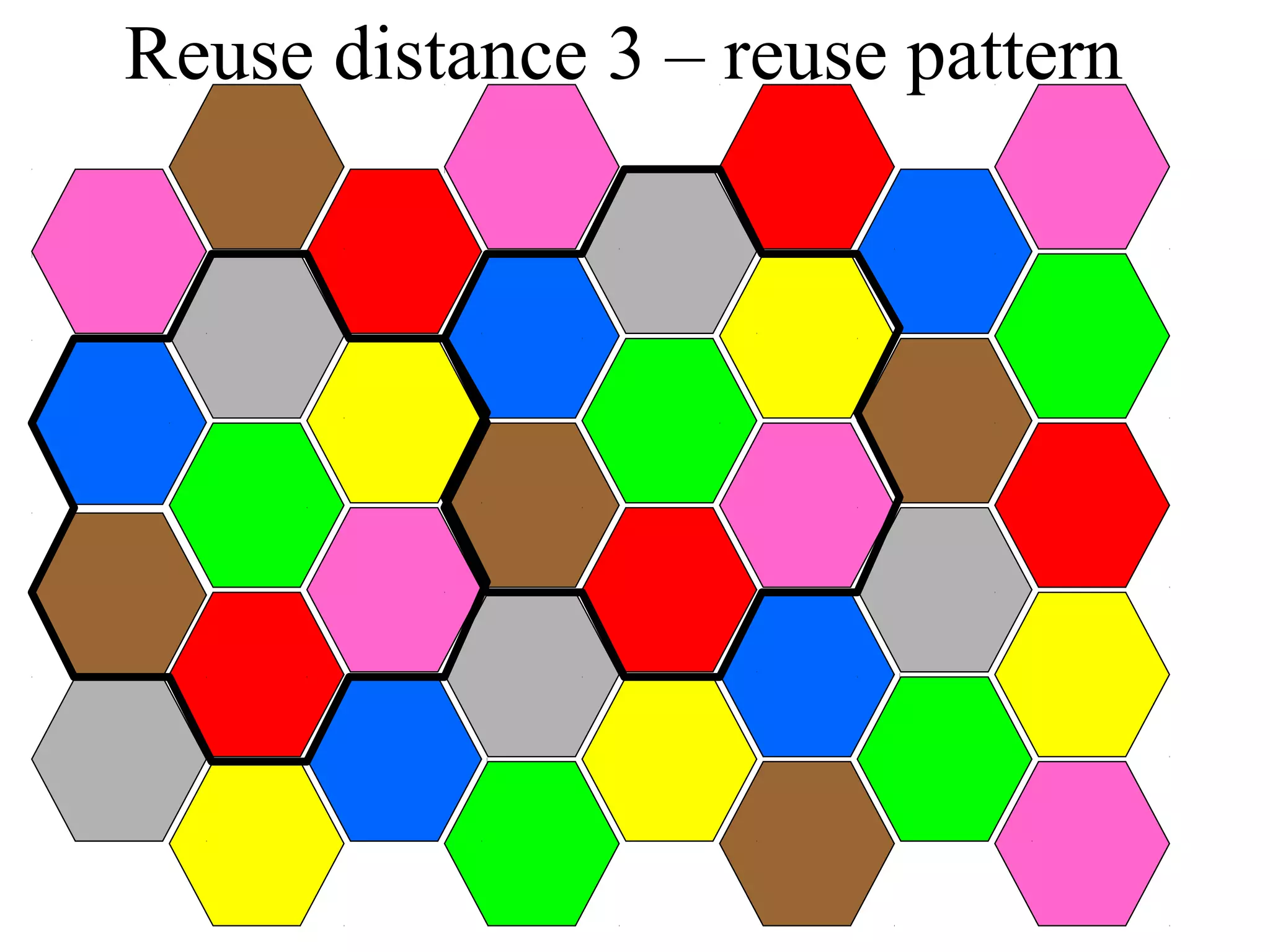

Reuse distance 3 – reuse pattern

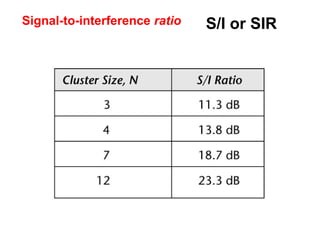

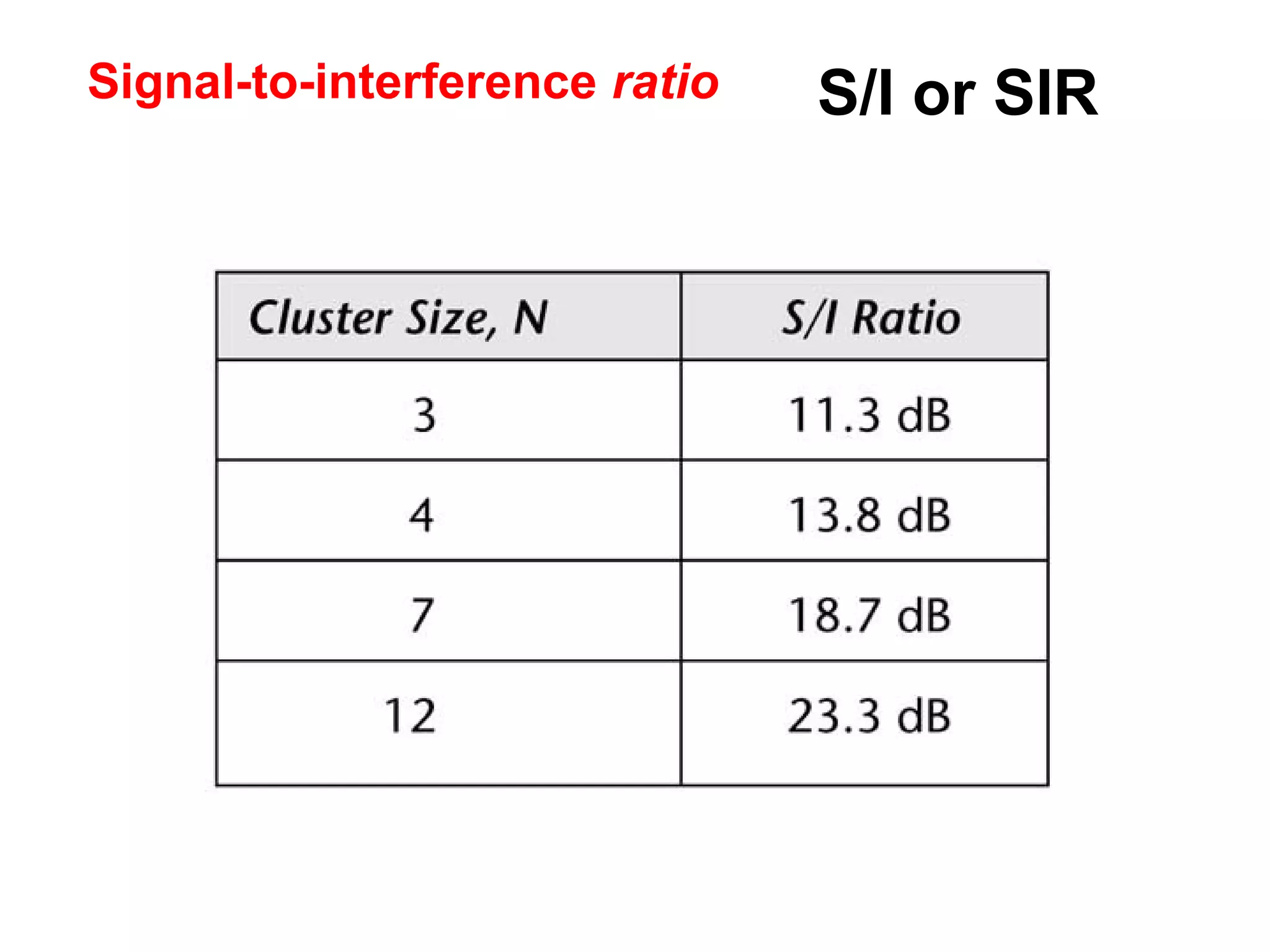

Signal-to-interference ratio S/I or SIR

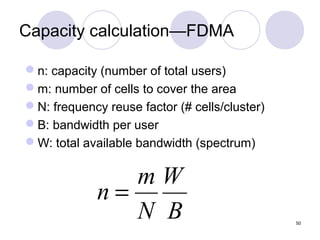

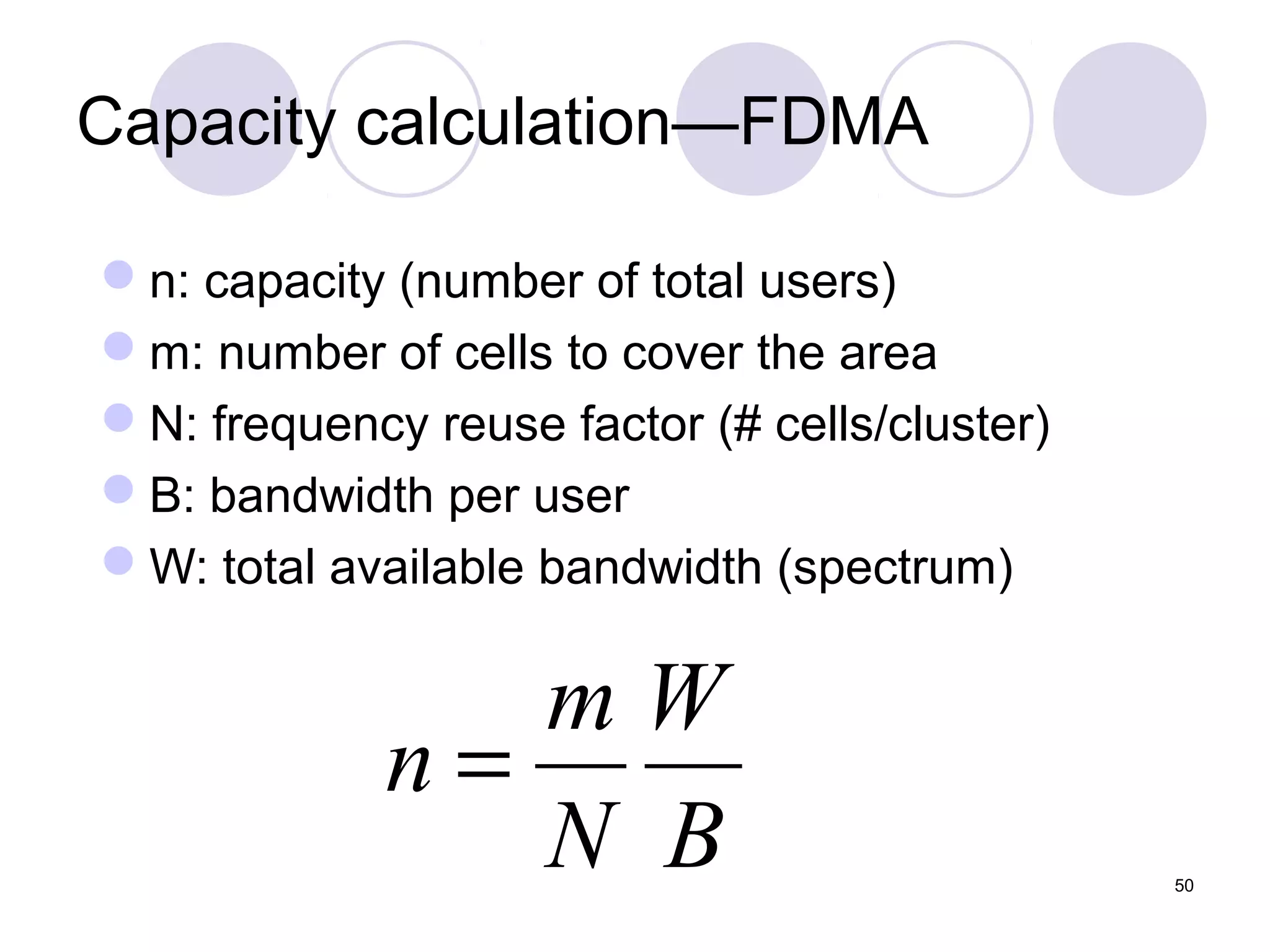

Capacity calculation—FDMA n: capacity (number of total users) m: number of cells to cover the area N: frequency reuse factor (# cells/cluster) B: bandwidth per user W: total available bandwidth (spectrum) mW n= N B 50

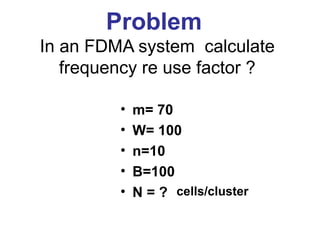

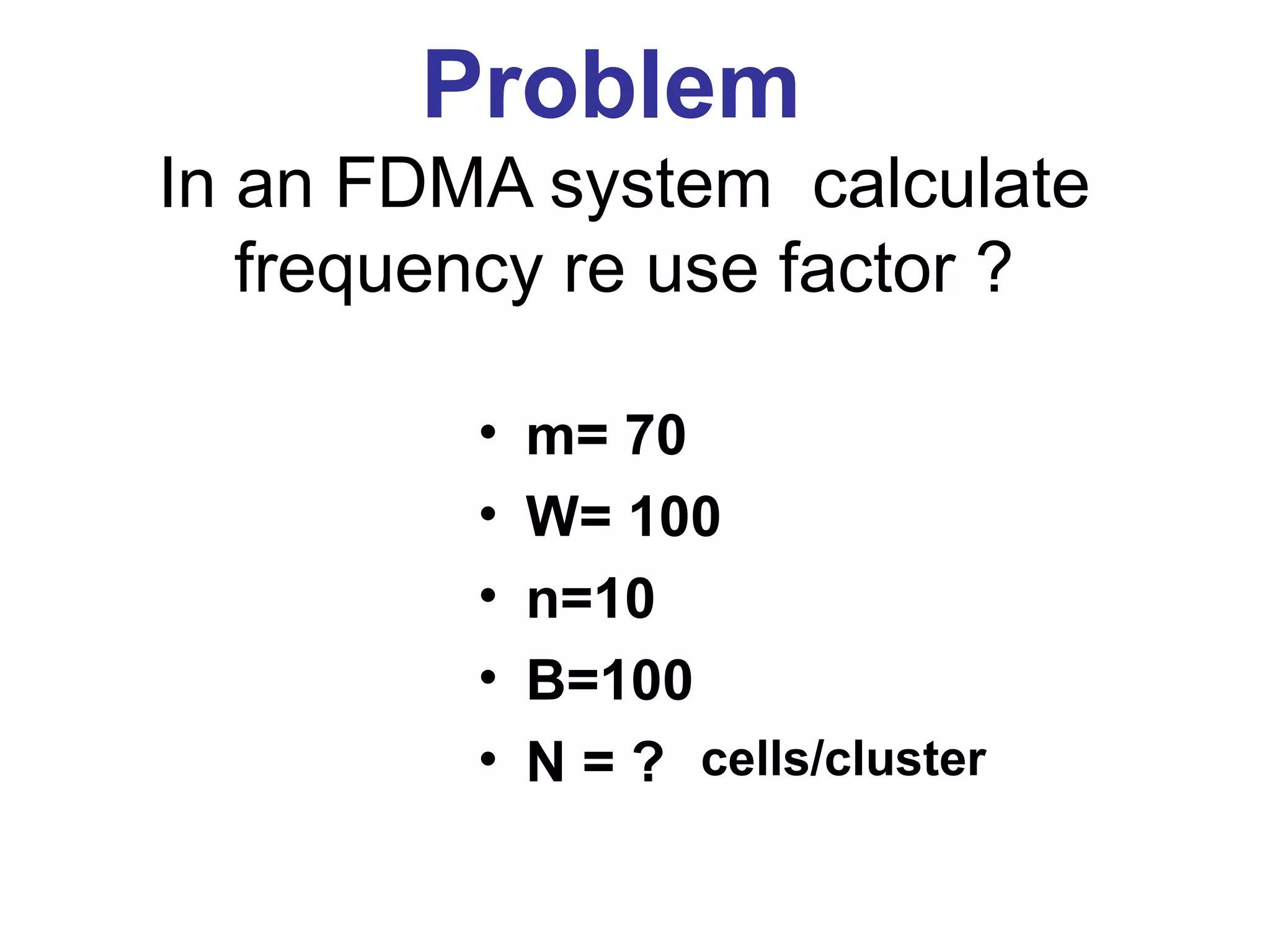

Problem In an FDMA system calculate frequency re use factor ? • m= 70 • W= 100 • n=10 • B=100 • N = ? cells/cluster

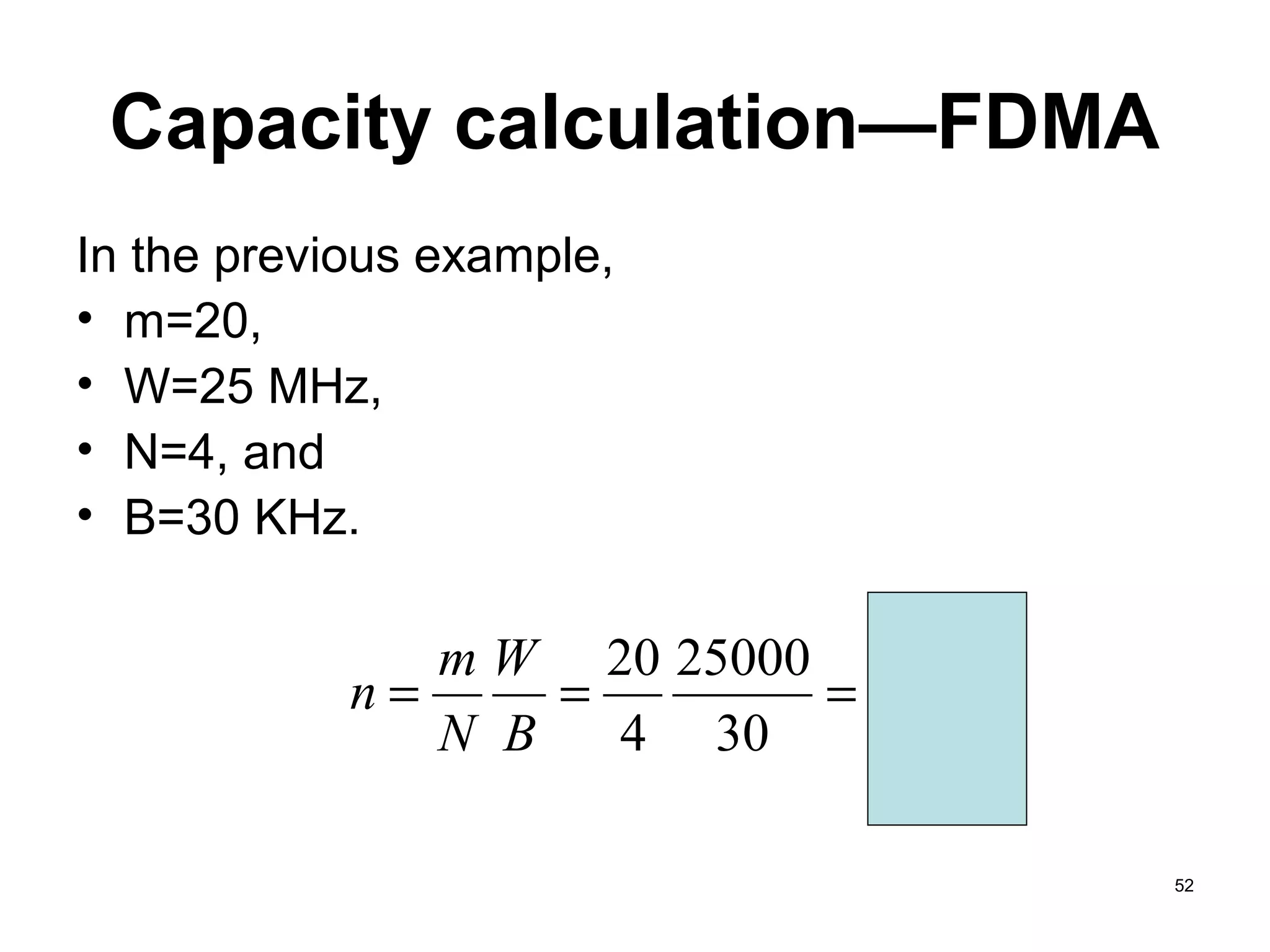

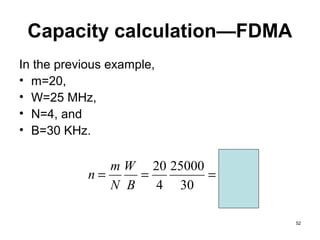

Capacity calculation—FDMA In the previous example, • m=20, • W=25 MHz, • N=4, and • B=30 KHz. m W 20 25000 n= = = 4,166 N B 4 30 52

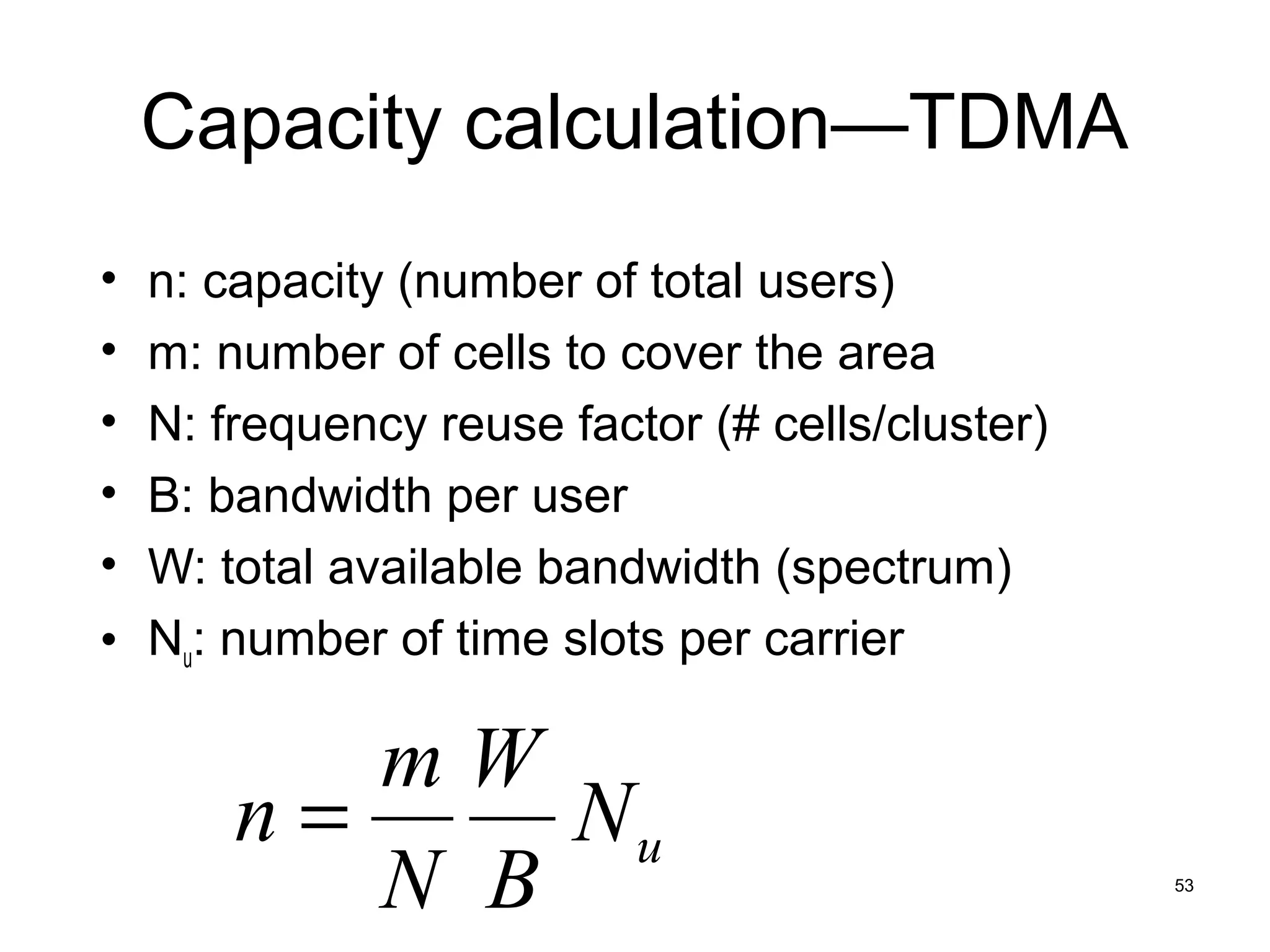

Capacity calculation—TDMA • n: capacity (number of total users) • m: number of cells to cover the area • N: frequency reuse factor (# cells/cluster) • B: bandwidth per user • W: total available bandwidth (spectrum) • Nu: number of time slots per carrier mW n= Nu N B 53
Capacity calculation—TDMA (contd.) Assuming again, • m=20, • W=25 MHz, • N=4, • B=200 KHz, • Nu=4. mW 20 25000 n= Nu = 4 = 2,500 N B 4 200 54

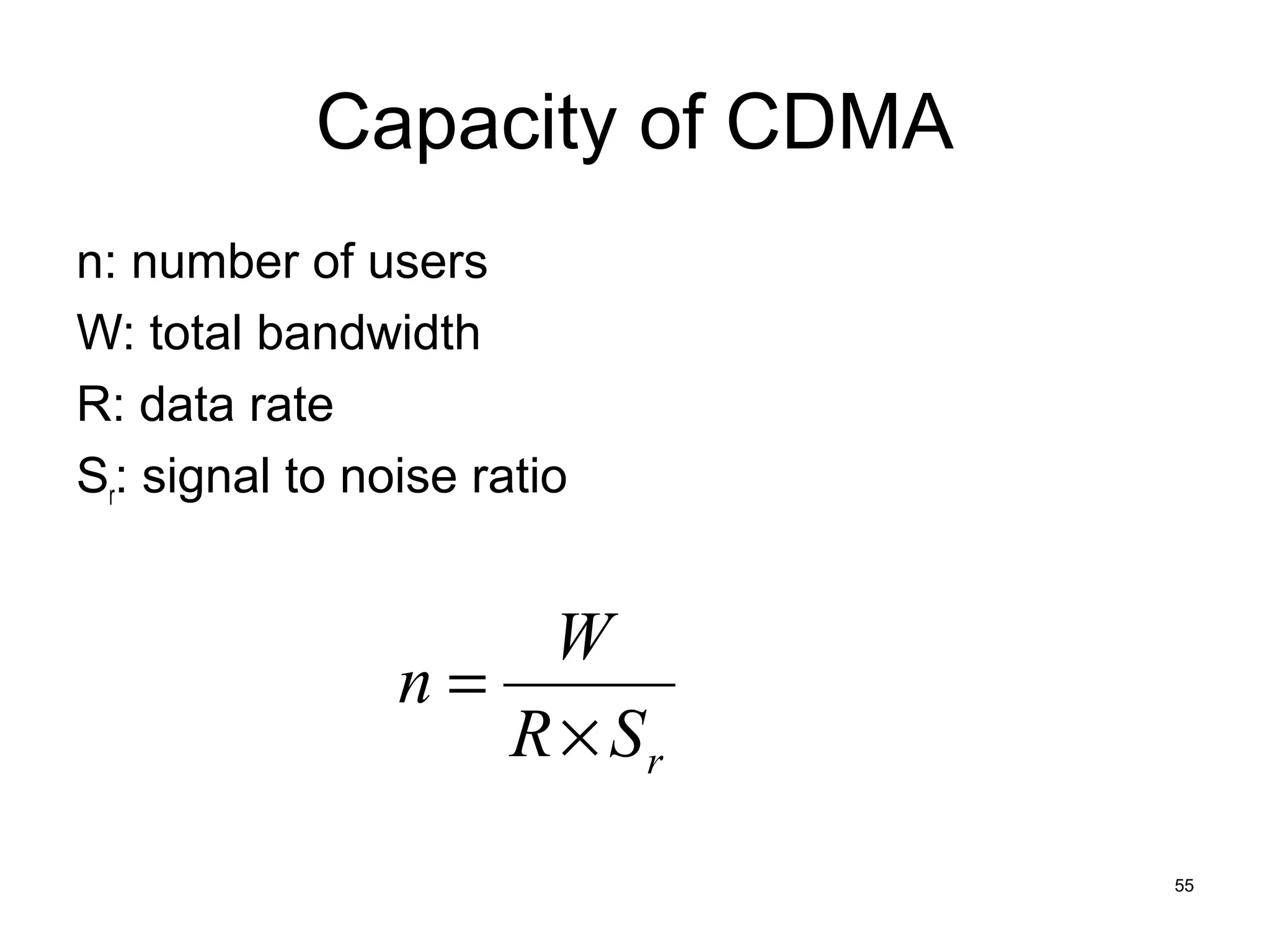

Capacity of CDMA n: number of users W: total bandwidth R: data rate Sr: signal to noise ratio W n= R × Sr 55
Capacity per cell (CDMA) Assume: W=1.25MHz=1,250,000 Hz R=9600 bps Sr should be larger than 3dB => 2 times W 1250000 n= = = 65 users R × S r 9600 × 2 56

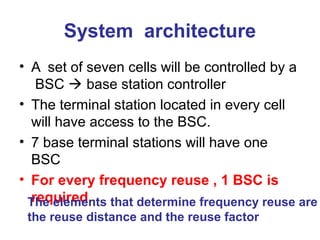

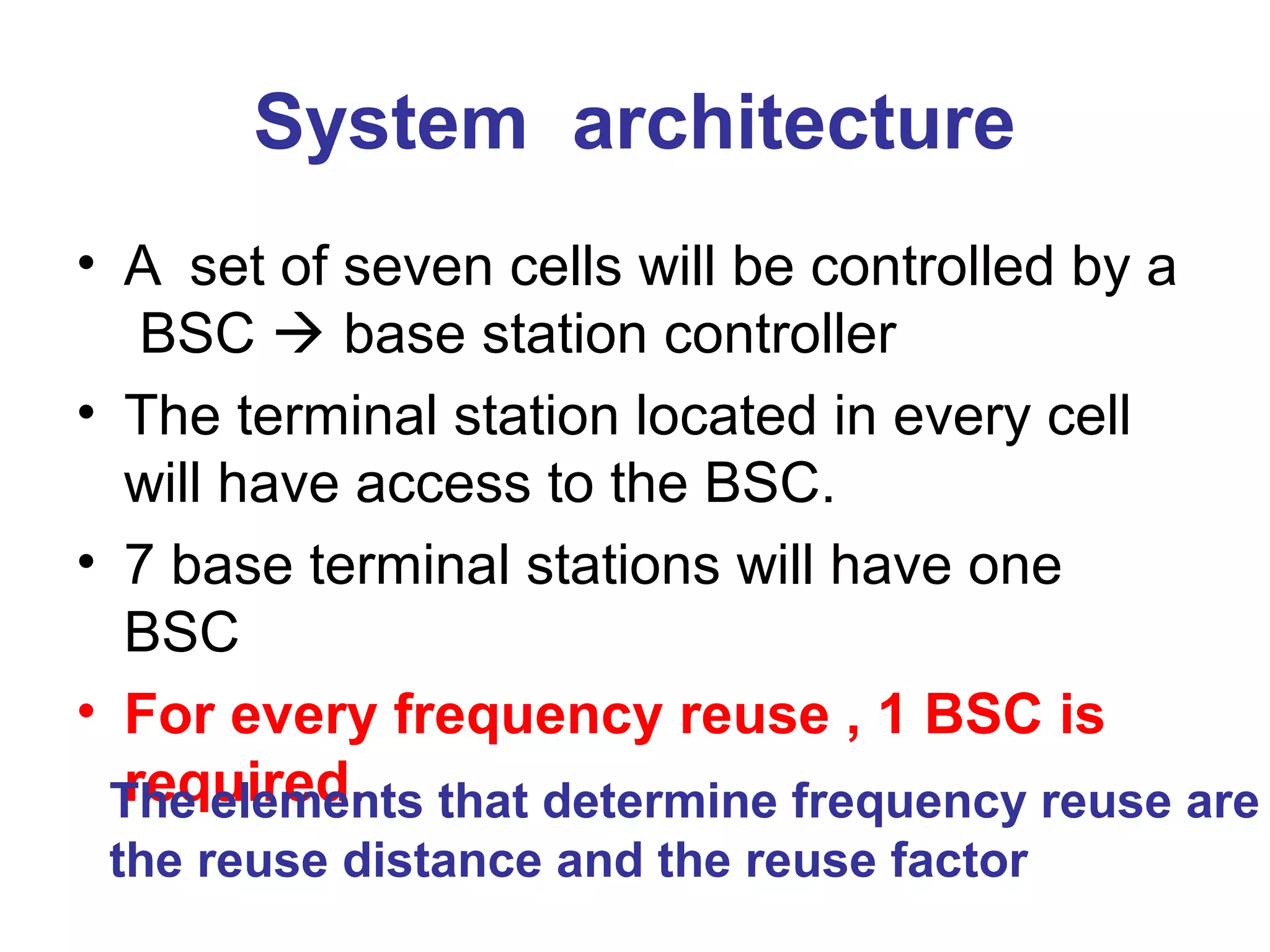

System architecture • A set of seven cells will be controlled by a BSC  base station controller • The terminal station located in every cell will have access to the BSC. • 7 base terminal stations will have one BSC • For every frequency reuse , 1 BSC is required. The elements that determine frequency reuse are the reuse distance and the reuse factor

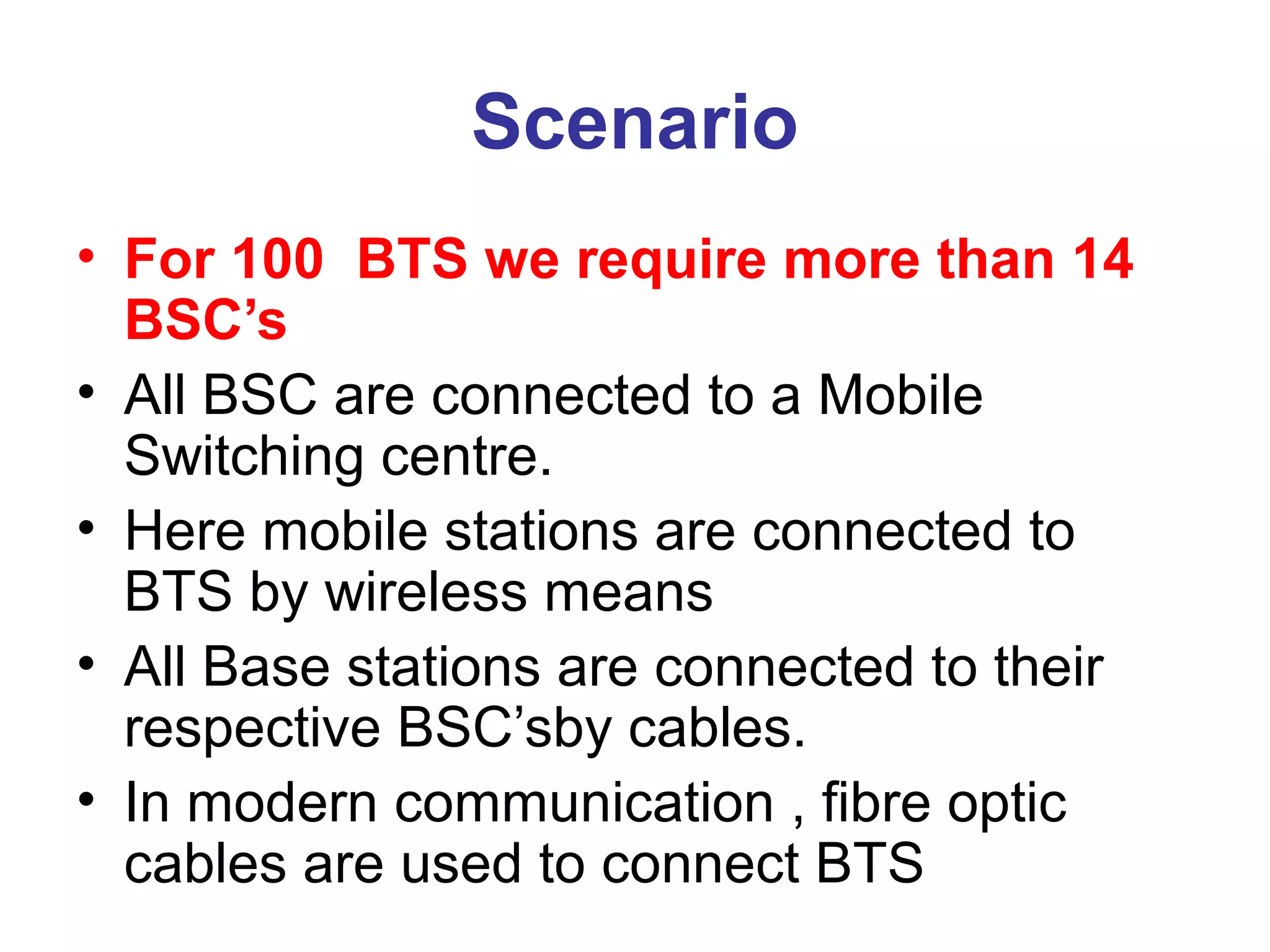

Scenario • For 100 BTS we require more than 14 BSC’s • All BSC are connected to a Mobile Switching centre. • Here mobile stations are connected to BTS by wireless means • All Base stations are connected to their respective BSC’sby cables. • In modern communication , fibre optic cables are used to connect BTS

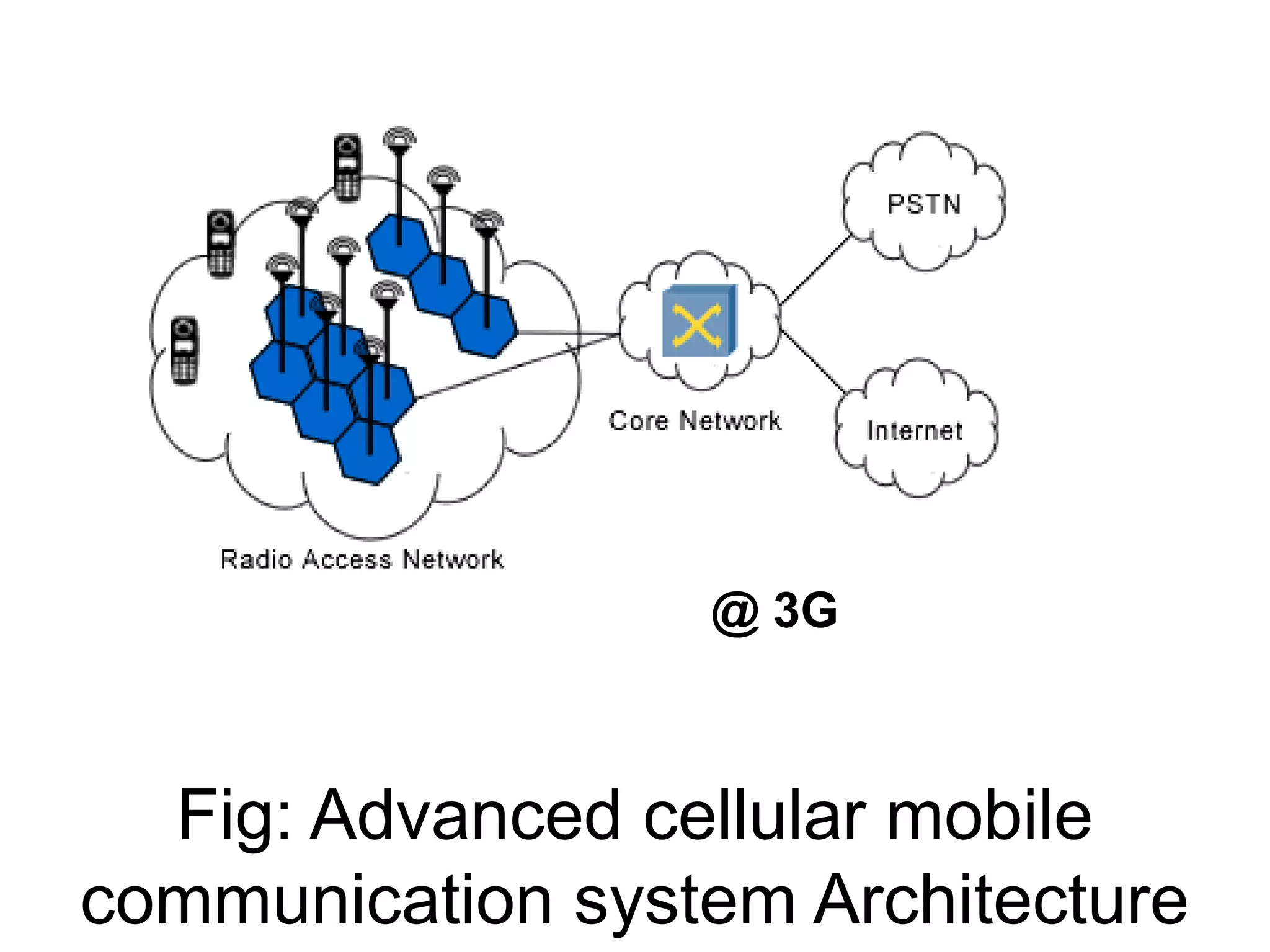

@ 3G Fig: Advanced cellular mobile communication system Architecture

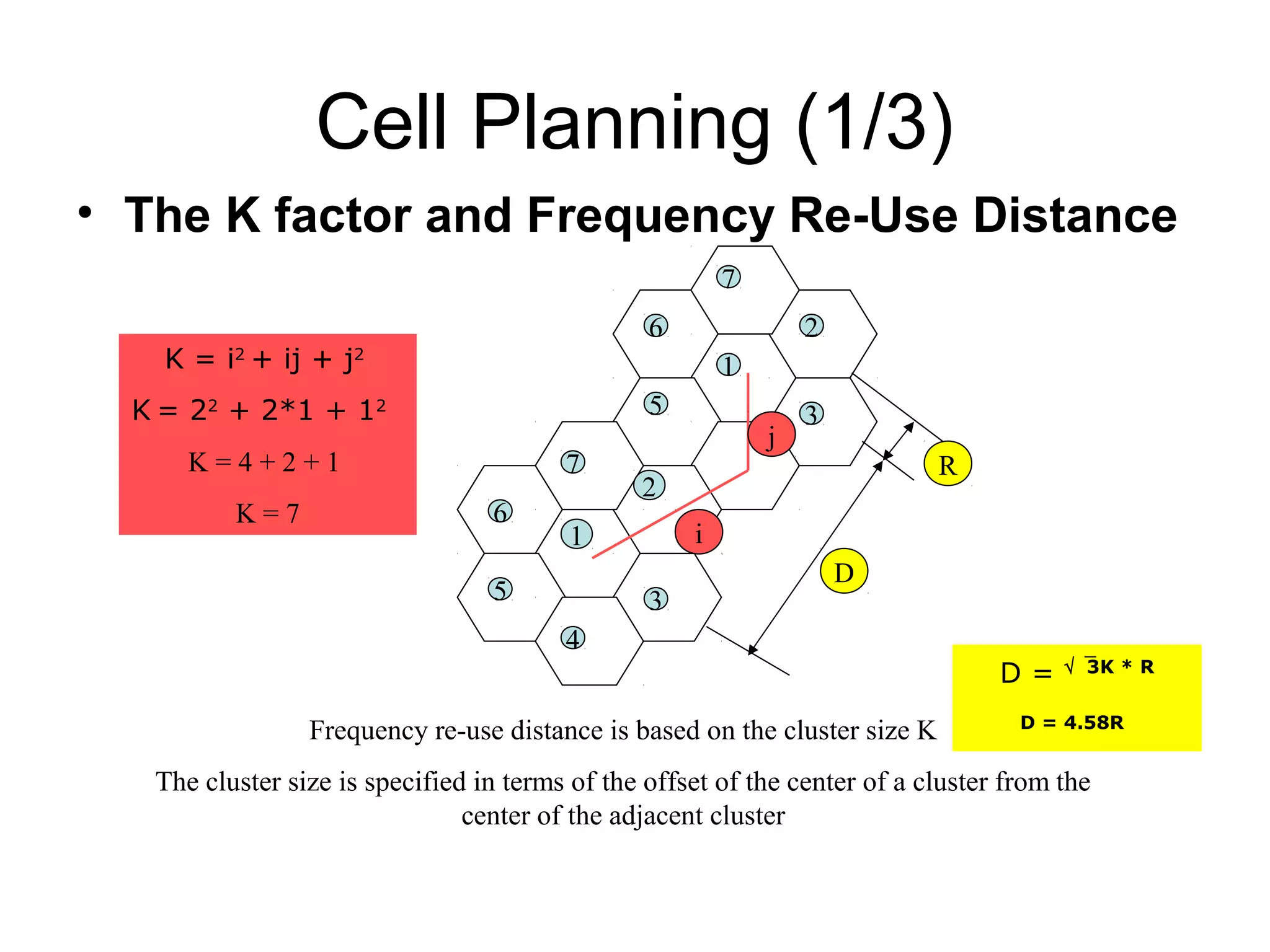

Cell Planning (1/3) • The K factor and Frequency Re-Use Distance 7 6 2 K = i2 + ij + j2 1 K = 22 + 2*1 + 12 5 3 j K=4+2+1 7 R 2 K=7 6 1 i D 5 3 4 D= √3K * R D = 4.58R Frequency re-use distance is based on the cluster size K The cluster size is specified in terms of the offset of the center of a cluster from the center of the adjacent cluster

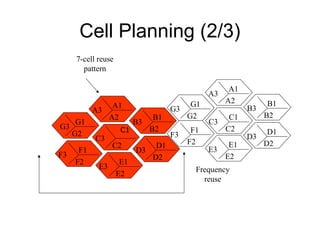

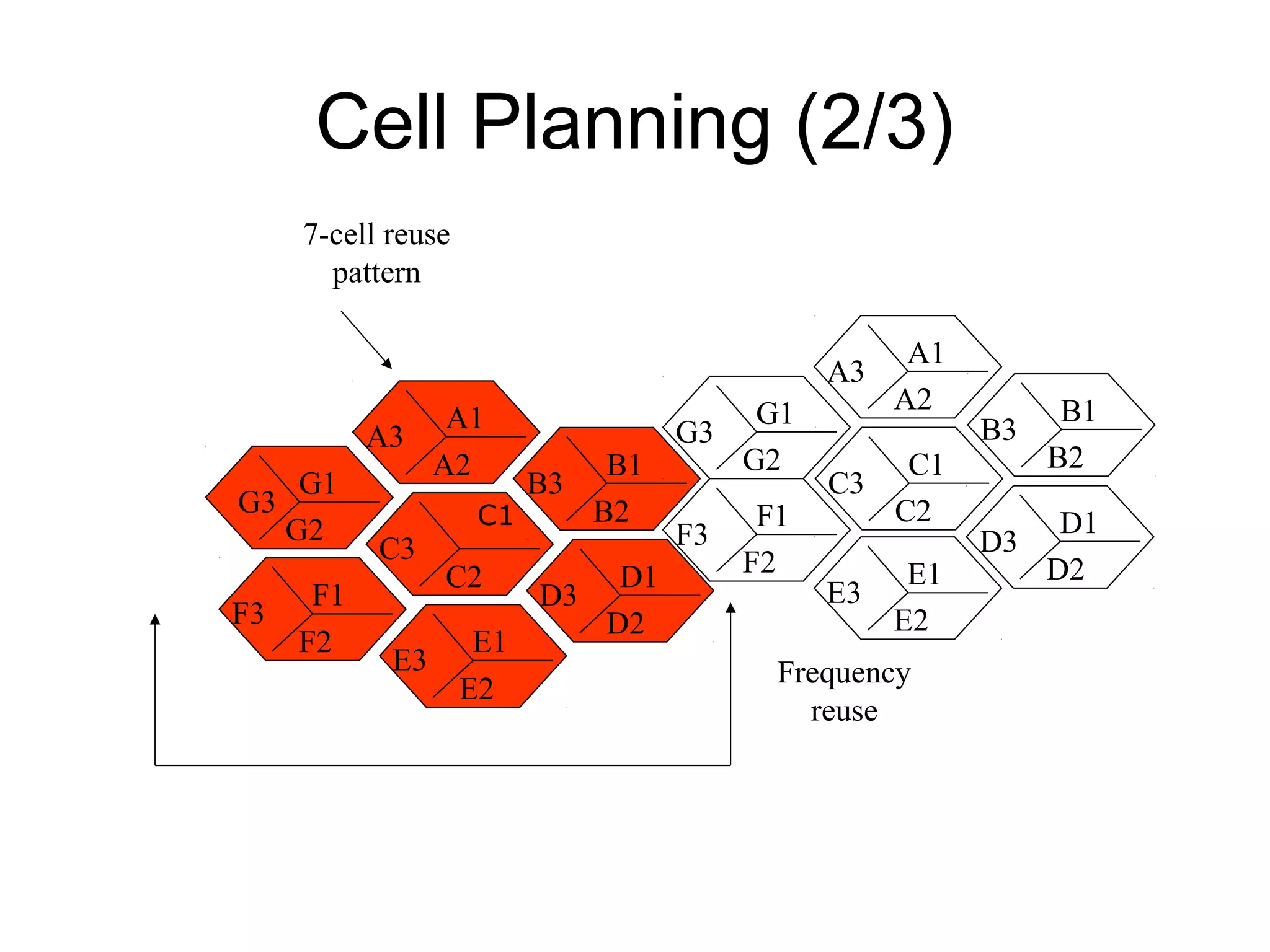

Cell Planning (2/3) 7-cell reuse pattern A1 A3 G1 A2 B1 A1 G3 B3 A3 A2 B1 G2 C1 B2 G1 B3 C3 G3 C1 B2 F1 C2 G2 F3 D1 C3 D3 C2 D1 F2 E1 D2 F1 D3 E3 F3 D2 E2 F2 E1 E3 Frequency E2 reuse

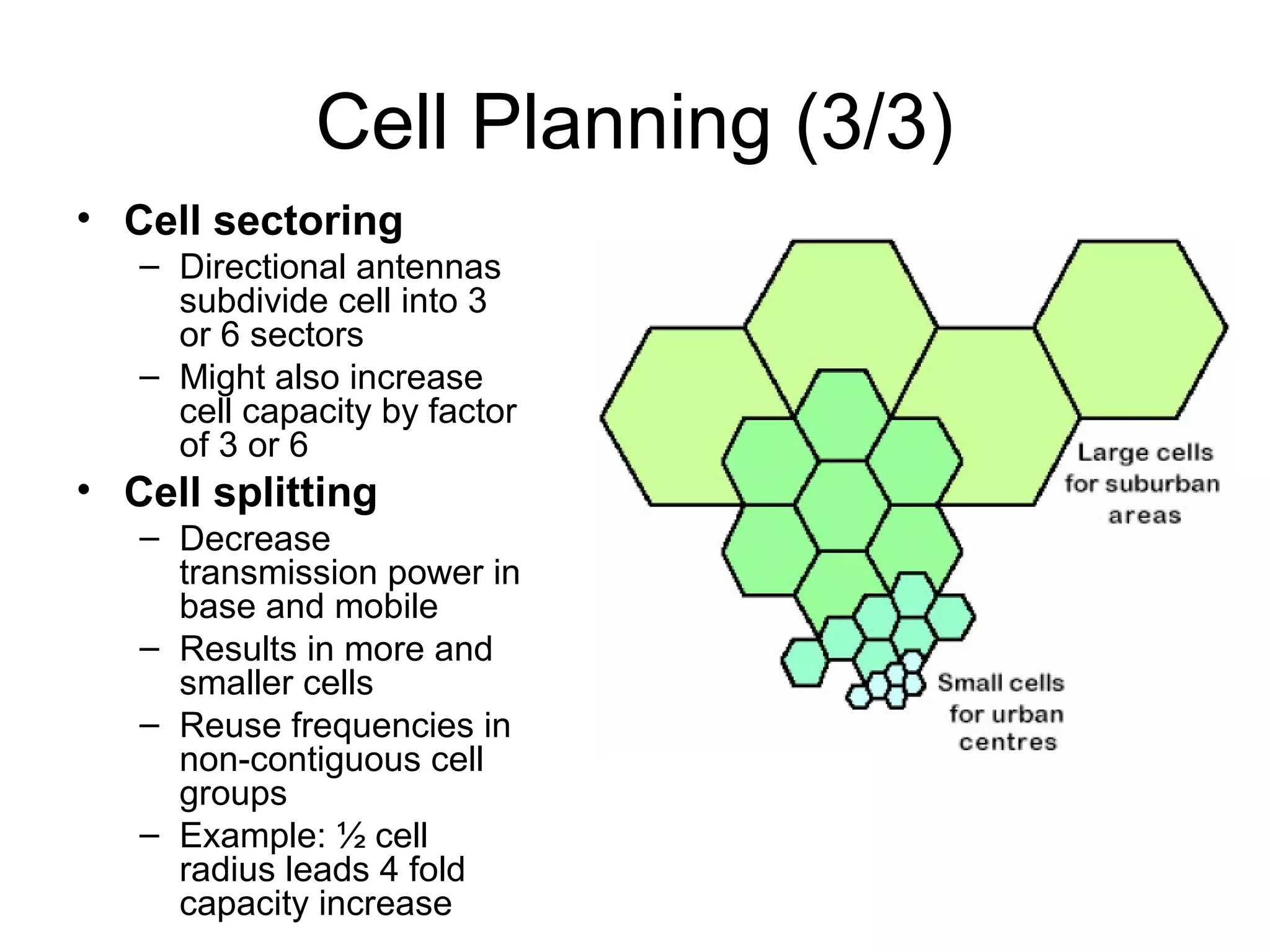

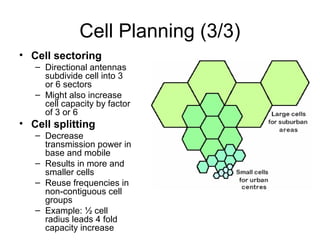

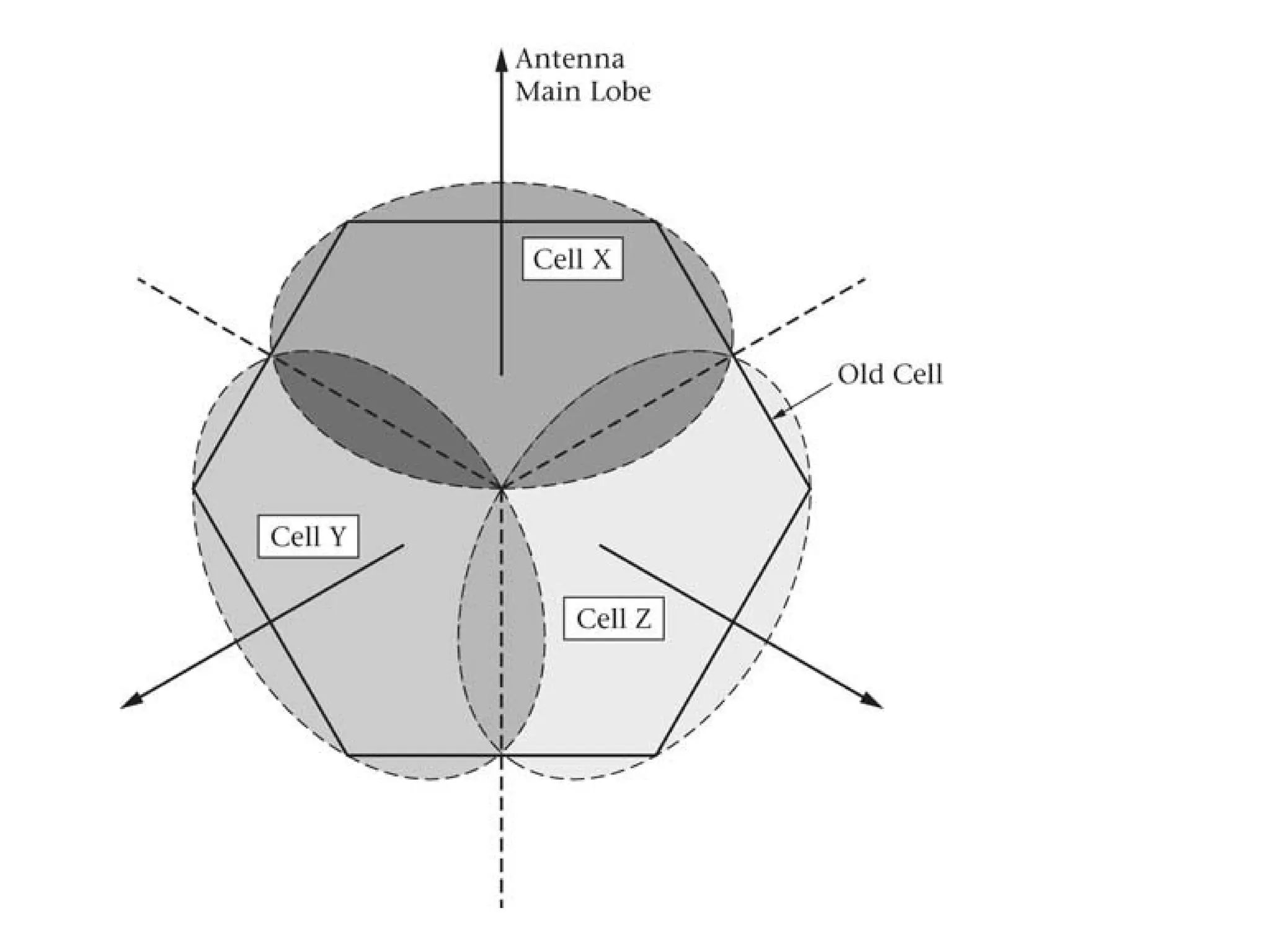

Cell Planning (3/3) • Cell sectoring – Directional antennas subdivide cell into 3 or 6 sectors – Might also increase cell capacity by factor of 3 or 6 • Cell splitting – Decrease transmission power in base and mobile – Results in more and smaller cells – Reuse frequencies in non-contiguous cell groups – Example: ½ cell radius leads 4 fold capacity increase

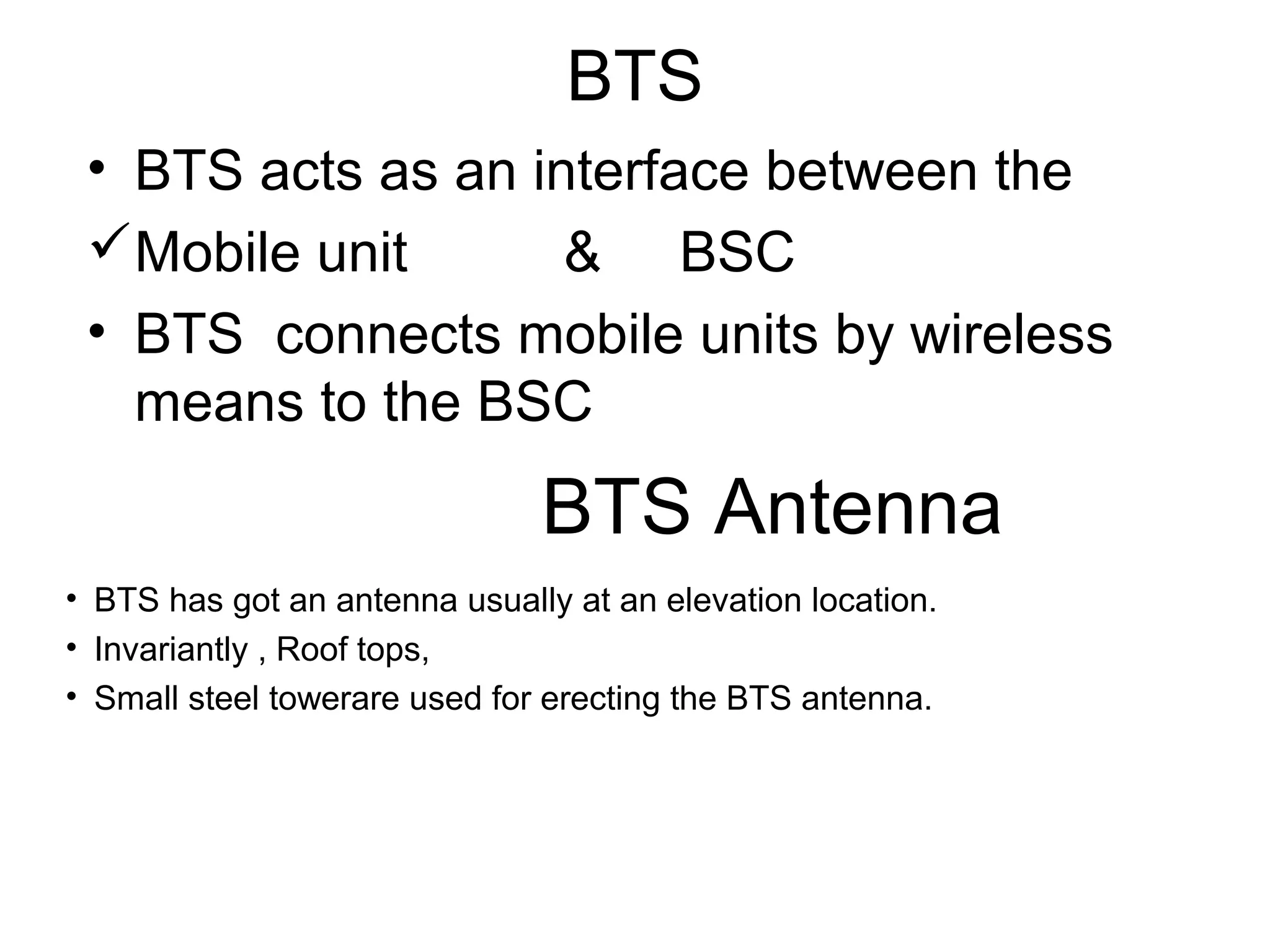

BTS • BTS acts as an interface between the Mobile unit & BSC • BTS connects mobile units by wireless means to the BSC BTS Antenna • BTS has got an antenna usually at an elevation location. • Invariantly , Roof tops, • Small steel towerare used for erecting the BTS antenna.

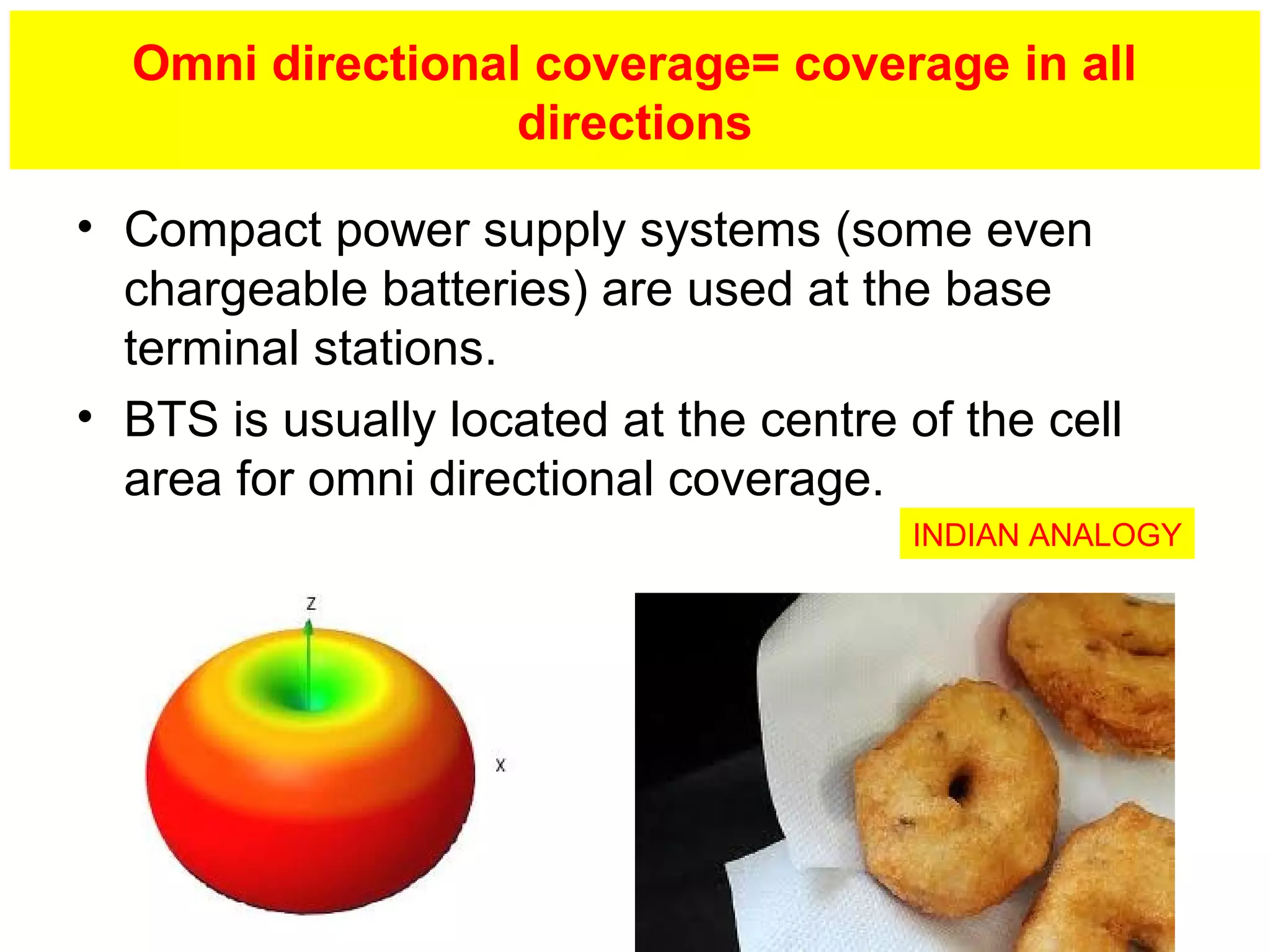

Omni directional coverage= coverage in all directions • Compact power supply systems (some even chargeable batteries) are used at the base terminal stations. • BTS is usually located at the centre of the cell area for omni directional coverage. INDIAN ANALOGY

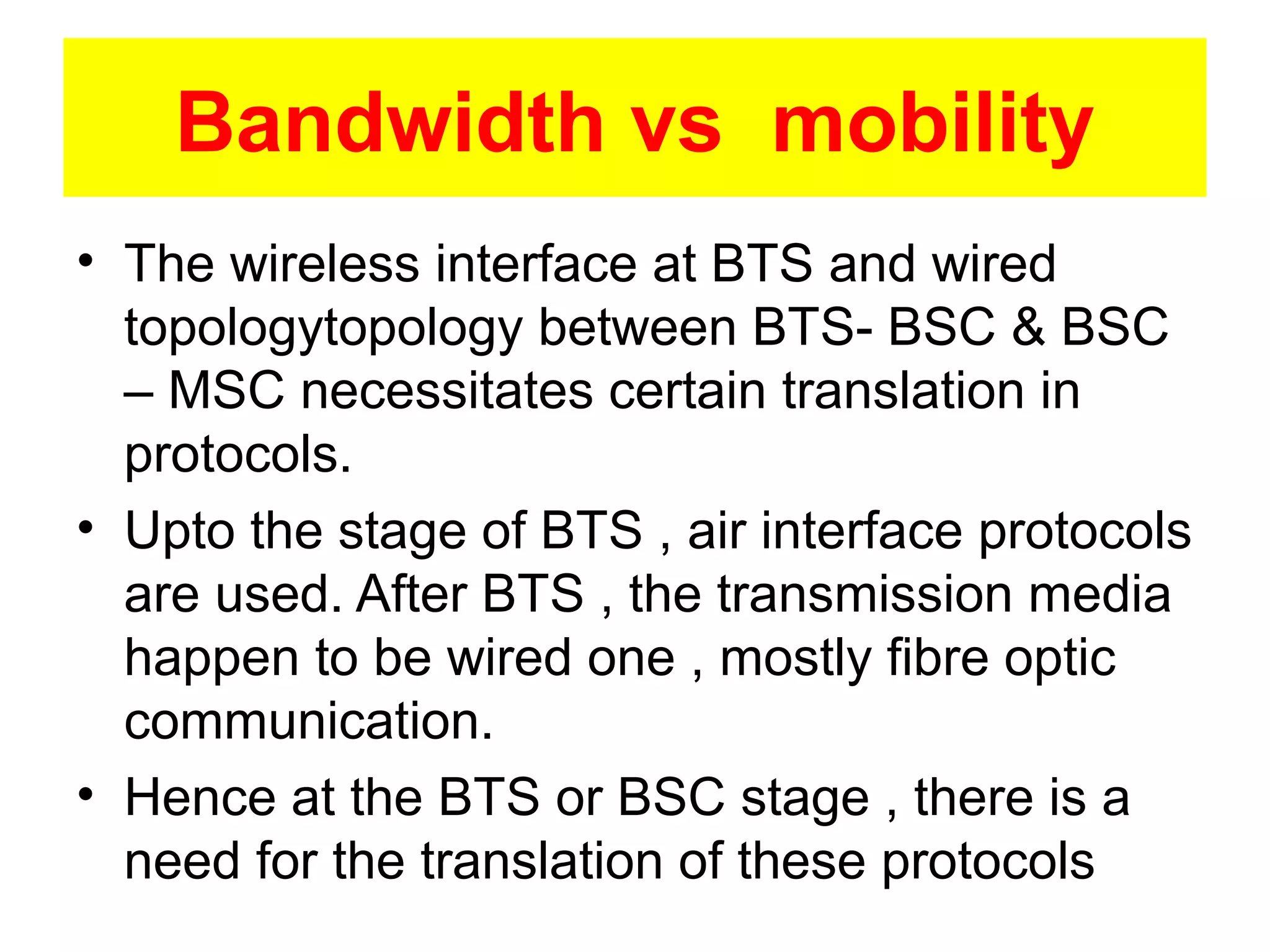

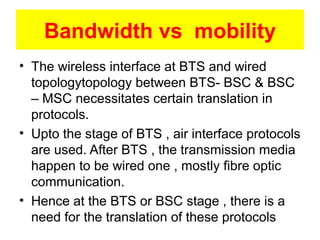

Bandwidth vs mobility • The wireless interface at BTS and wired topologytopology between BTS- BSC & BSC – MSC necessitates certain translation in protocols. • Upto the stage of BTS , air interface protocols are used. After BTS , the transmission media happen to be wired one , mostly fibre optic communication. • Hence at the BTS or BSC stage , there is a need for the translation of these protocols

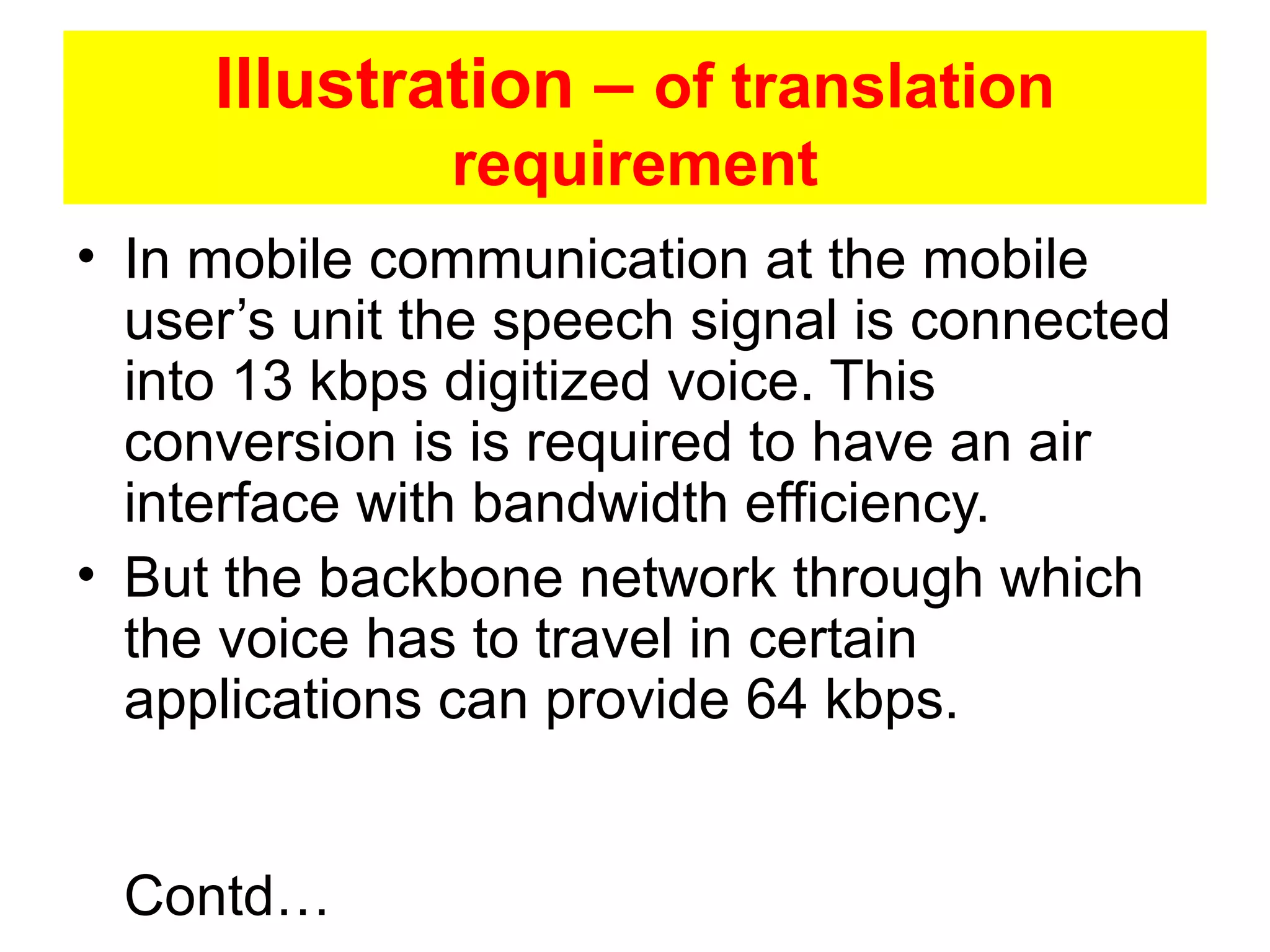

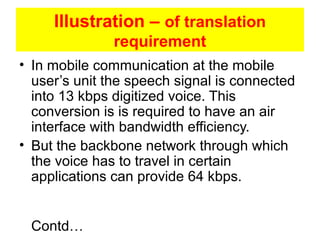

Illustration – of translation requirement • In mobile communication at the mobile user’s unit the speech signal is connected into 13 kbps digitized voice. This conversion is is required to have an air interface with bandwidth efficiency. • But the backbone network through which the voice has to travel in certain applications can provide 64 kbps. Contd…

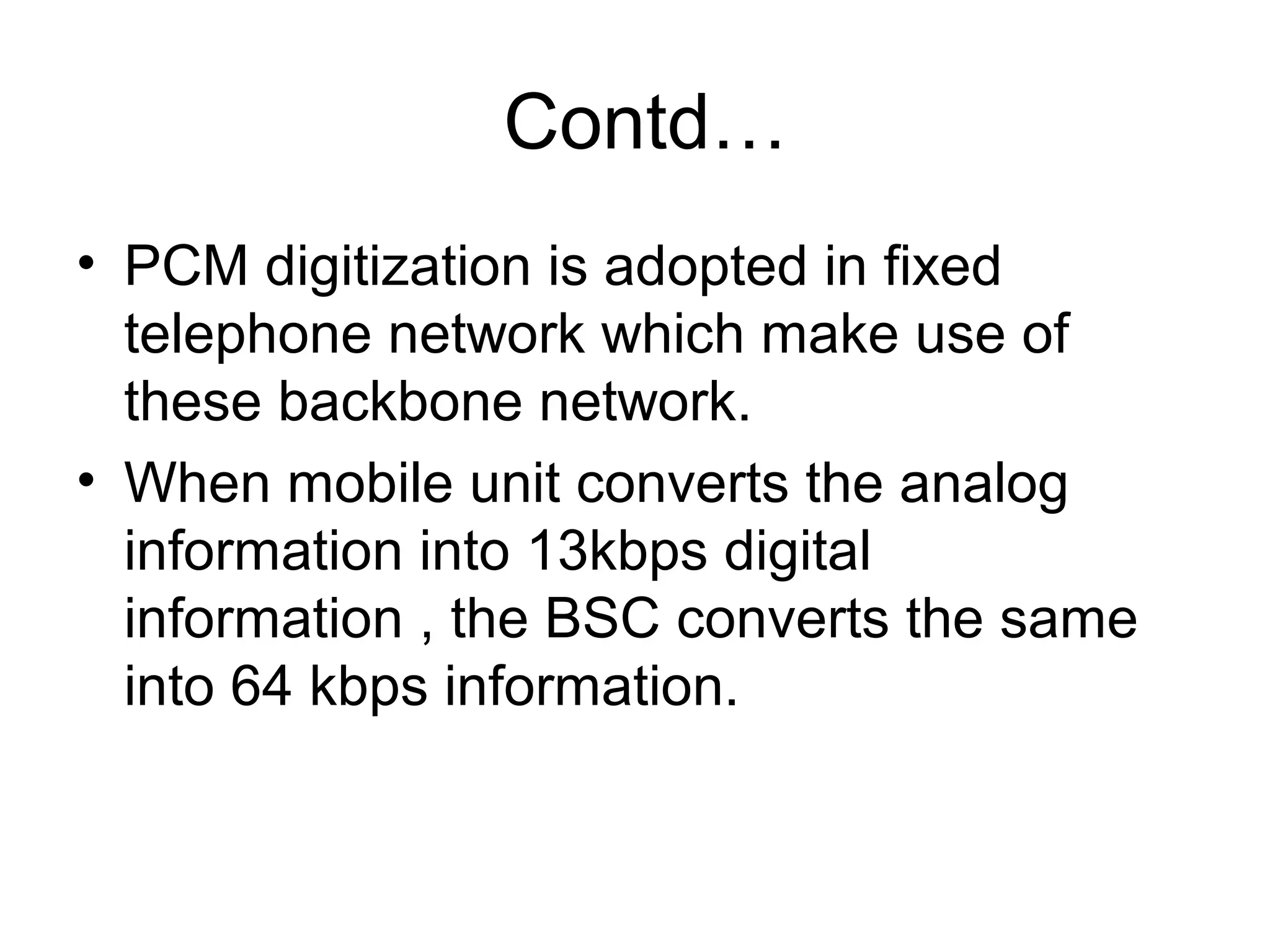

Contd… • PCM digitization is adopted in fixed telephone network which make use of these backbone network. • When mobile unit converts the analog information into 13kbps digital information , the BSC converts the same into 64 kbps information.

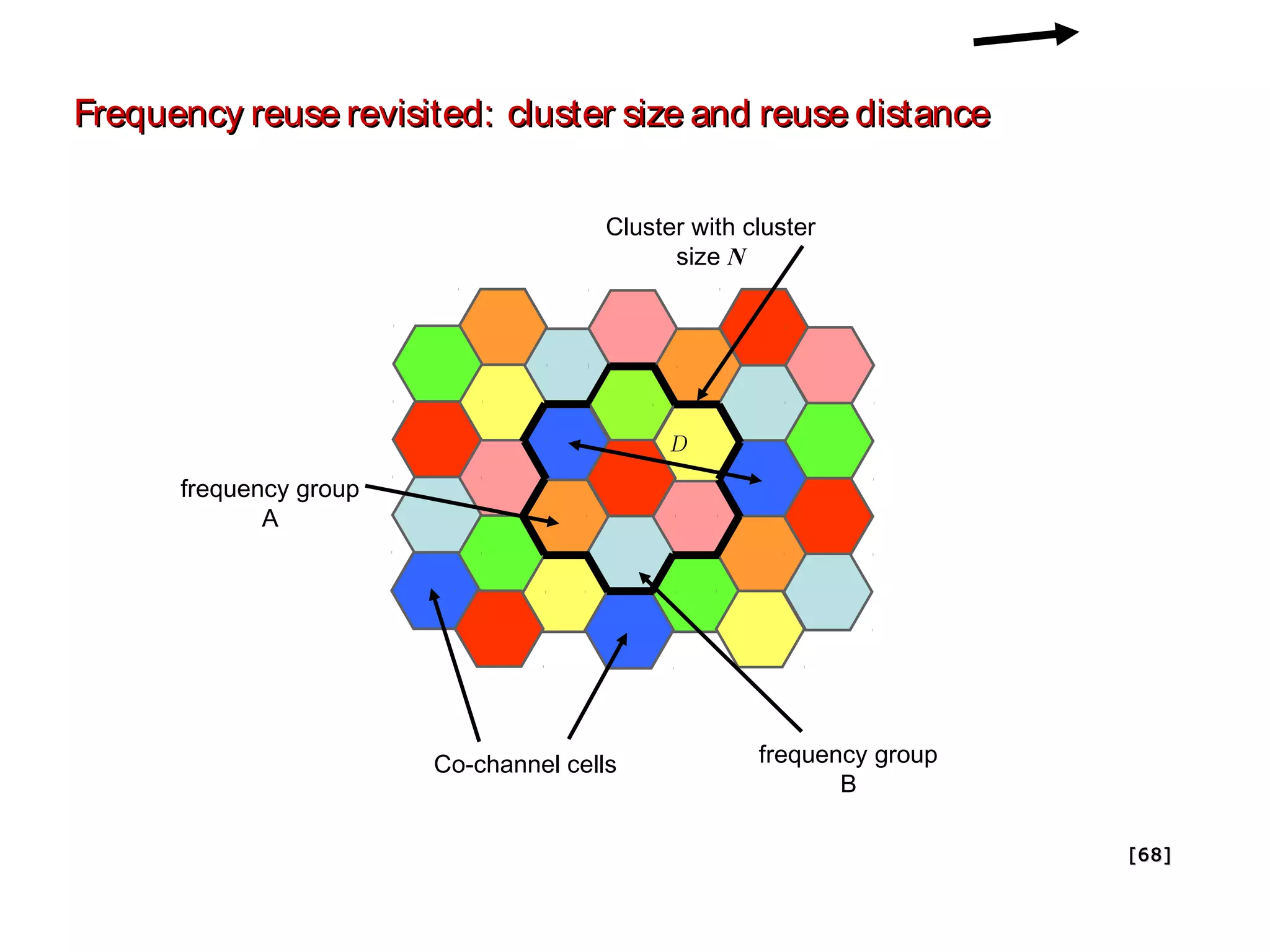

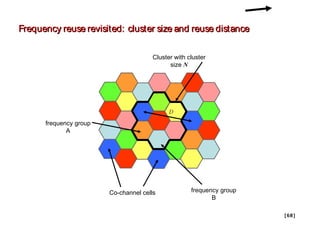

Frequency reuse revisited: cluster size and reuse distance Cluster with cluster size N D frequency group A Co-channel cells frequency group B [ 68 ]

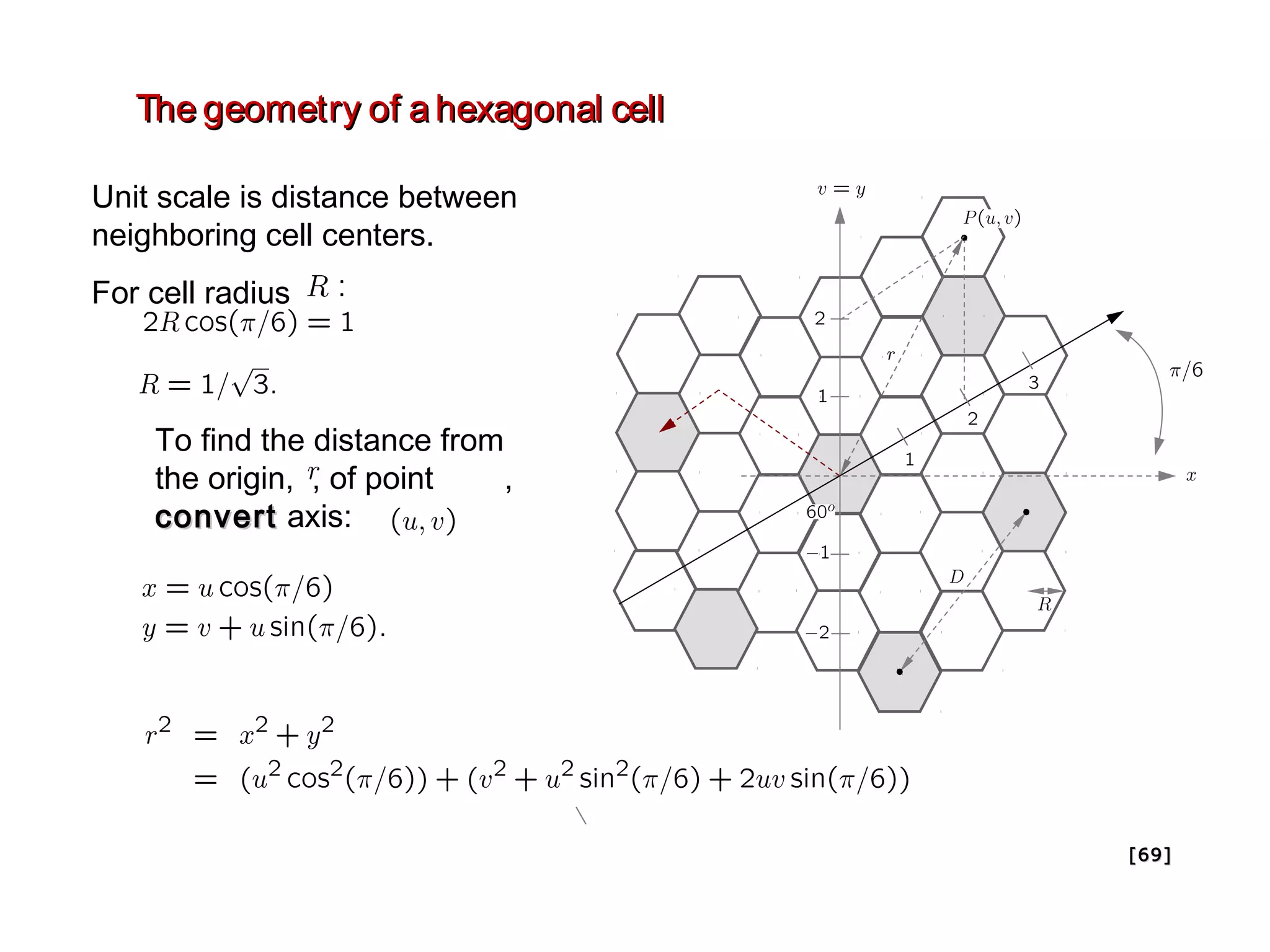

The geometry of a hexagonal cell Unit scale is distance between neighboring cell centers. For cell radius To find the distance from the origin, , of point , convert axis: [ 69 ]

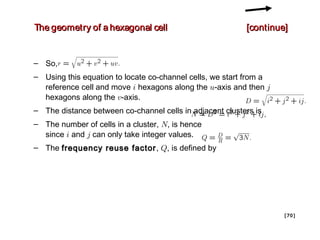

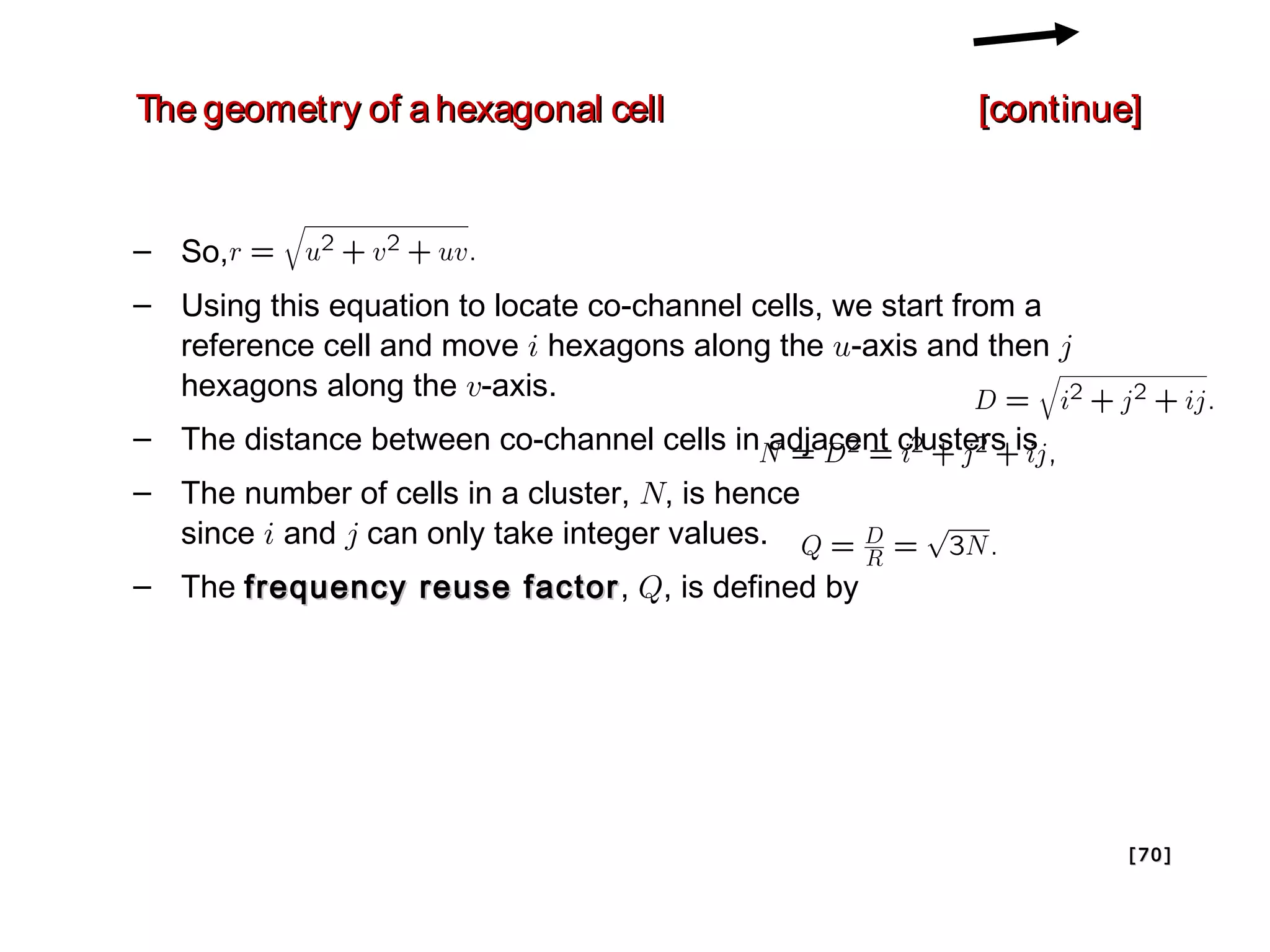

The geometry of a hexagonal cell [continue] – So, – Using this equation to locate co-channel cells, we start from a reference cell and move i hexagons along the u-axis and then j hexagons along the v-axis. – The distance between co-channel cells in adjacent clusters is – The number of cells in a cluster, N, is hence since i and j can only take integer values. – The frequency reuse factor , Q, is defined by [ 70 ]

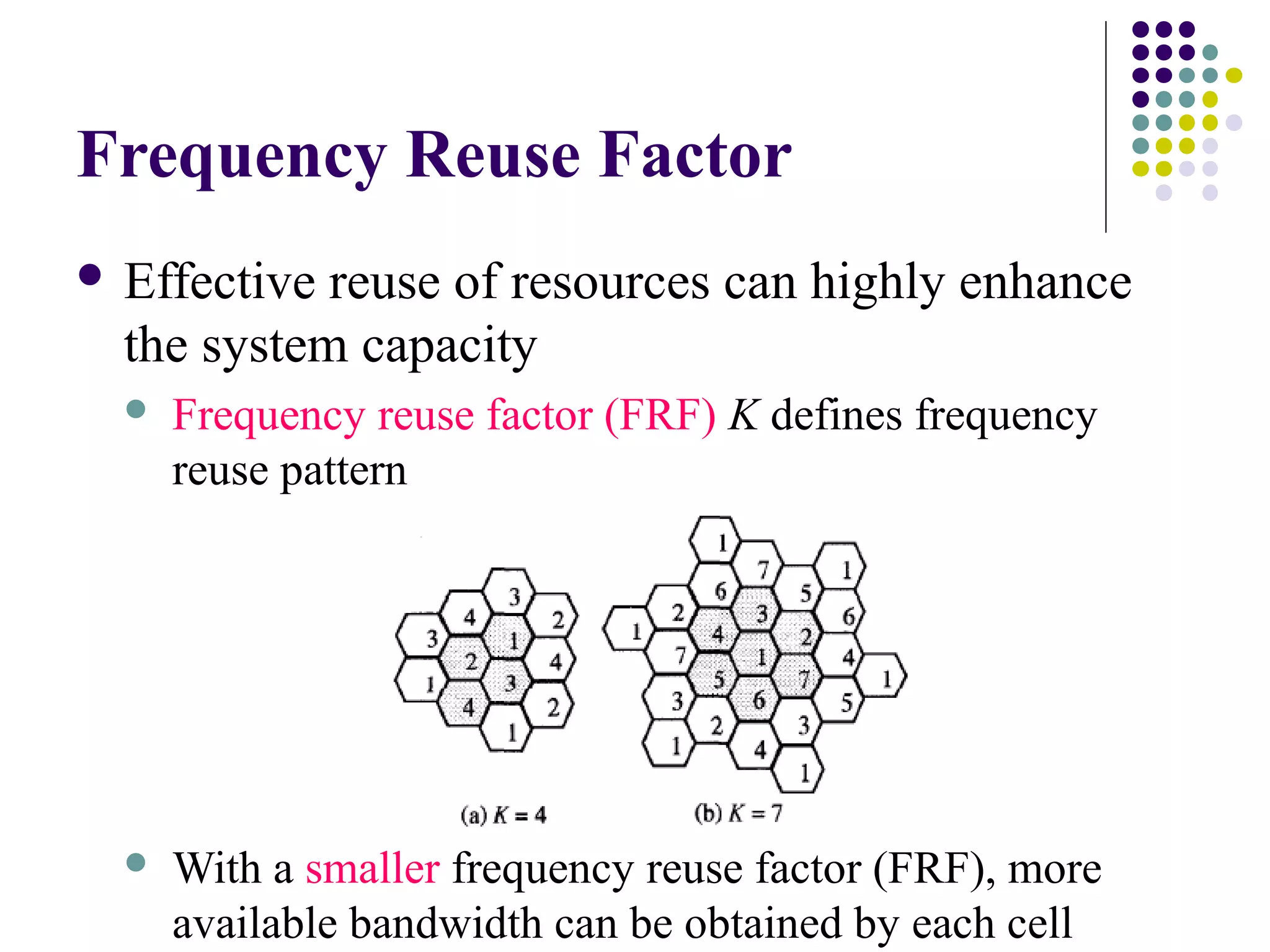

Frequency Reuse Factor  Effective reuse of resources can highly enhance the system capacity  Frequency reuse factor (FRF) K defines frequency reuse pattern  With a smaller frequency reuse factor (FRF), more available bandwidth can be obtained by each cell

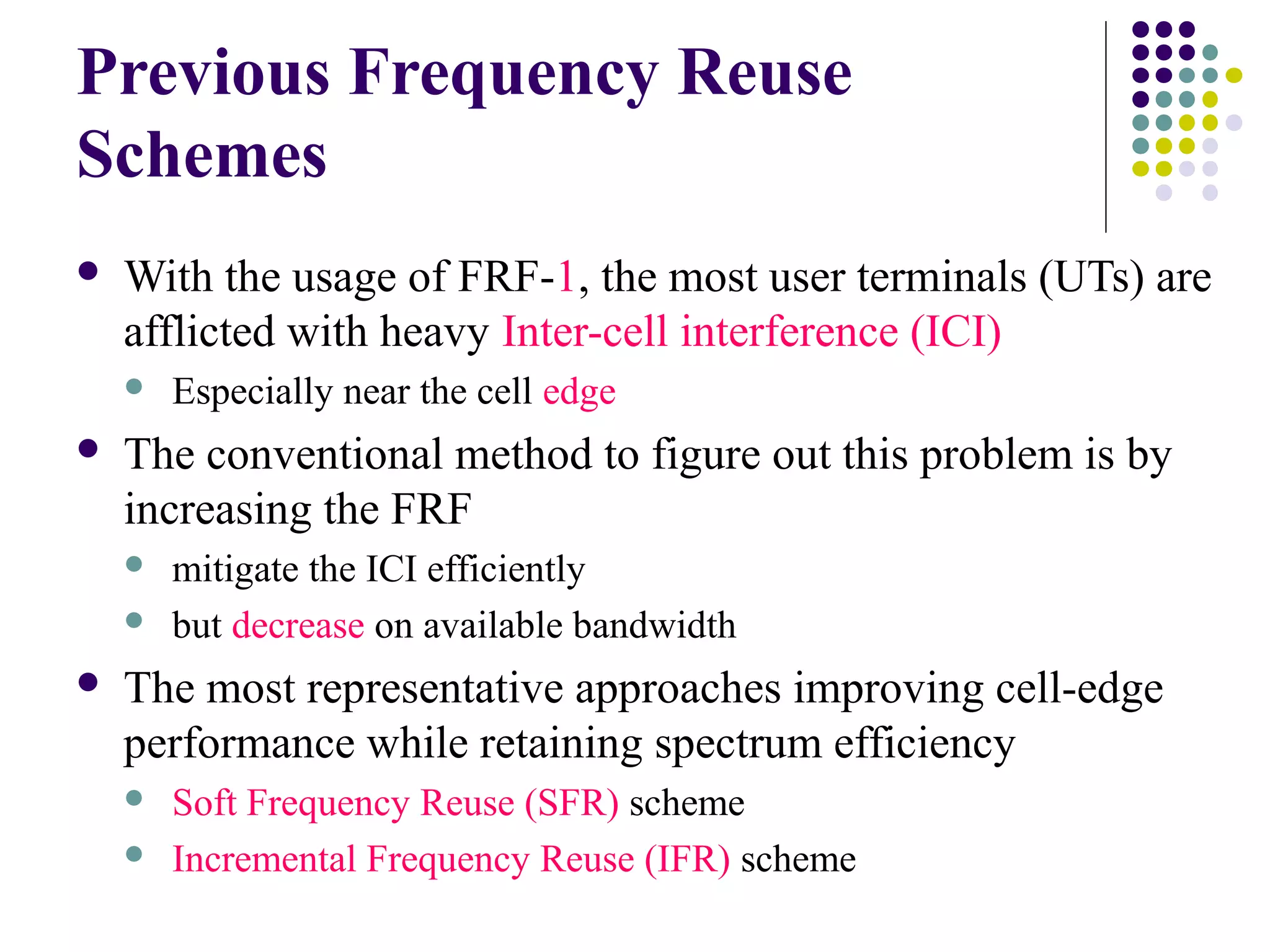

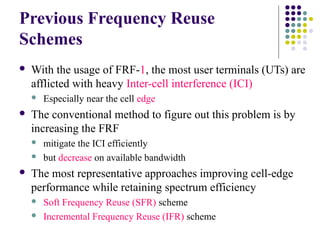

Previous Frequency Reuse Schemes  With the usage of FRF-1, the most user terminals (UTs) are afflicted with heavy Inter-cell interference (ICI)  Especially near the cell edge  The conventional method to figure out this problem is by increasing the FRF  mitigate the ICI efficiently  but decrease on available bandwidth  The most representative approaches improving cell-edge performance while retaining spectrum efficiency  Soft Frequency Reuse (SFR) scheme  Incremental Frequency Reuse (IFR) scheme

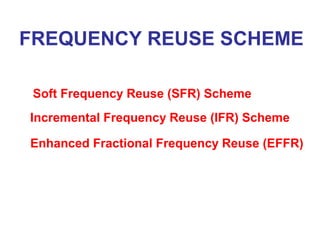

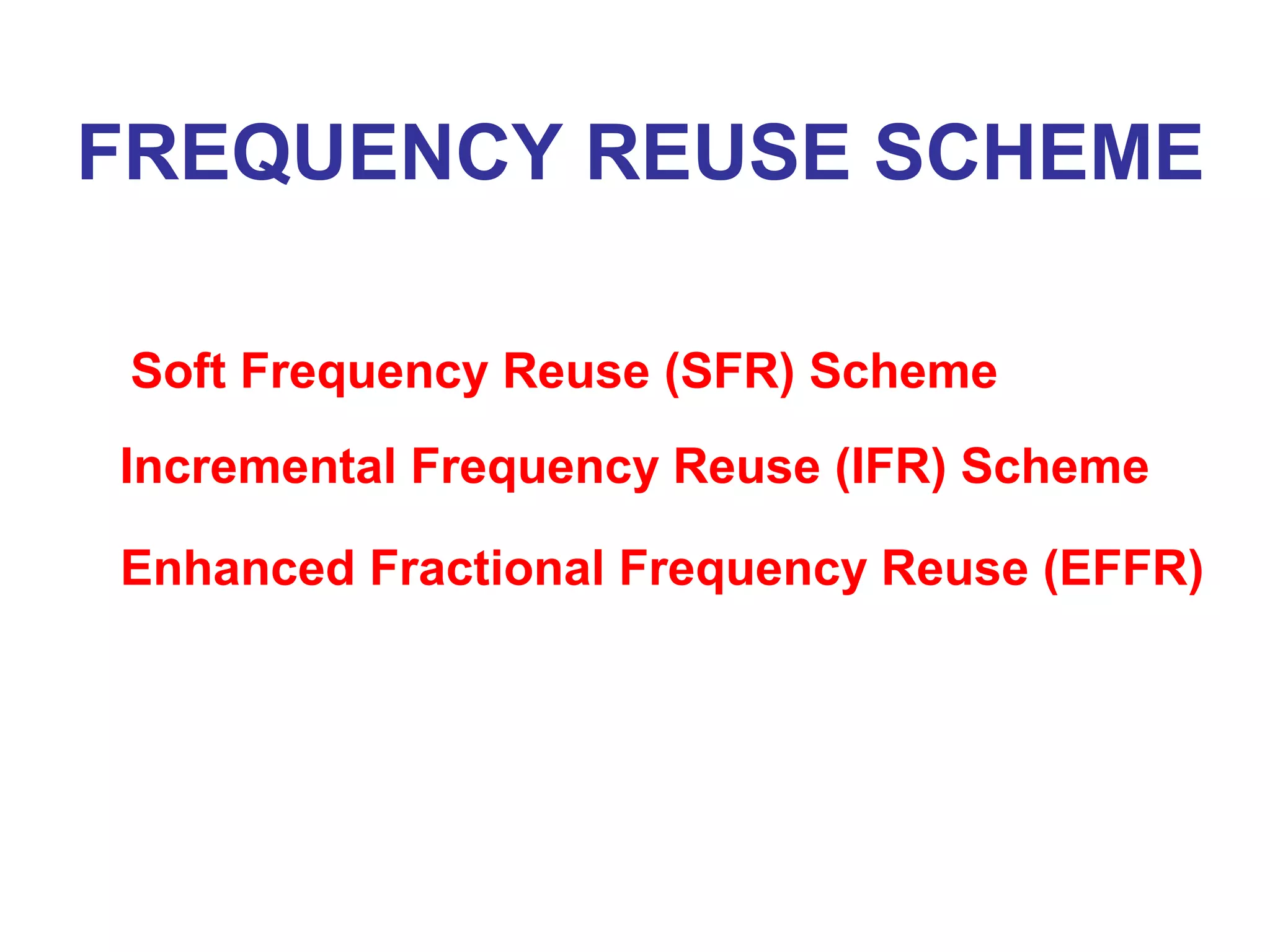

FREQUENCY REUSE SCHEME Soft Frequency Reuse (SFR) Scheme Incremental Frequency Reuse (IFR) Scheme Enhanced Fractional Frequency Reuse (EFFR)

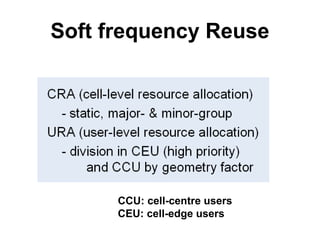

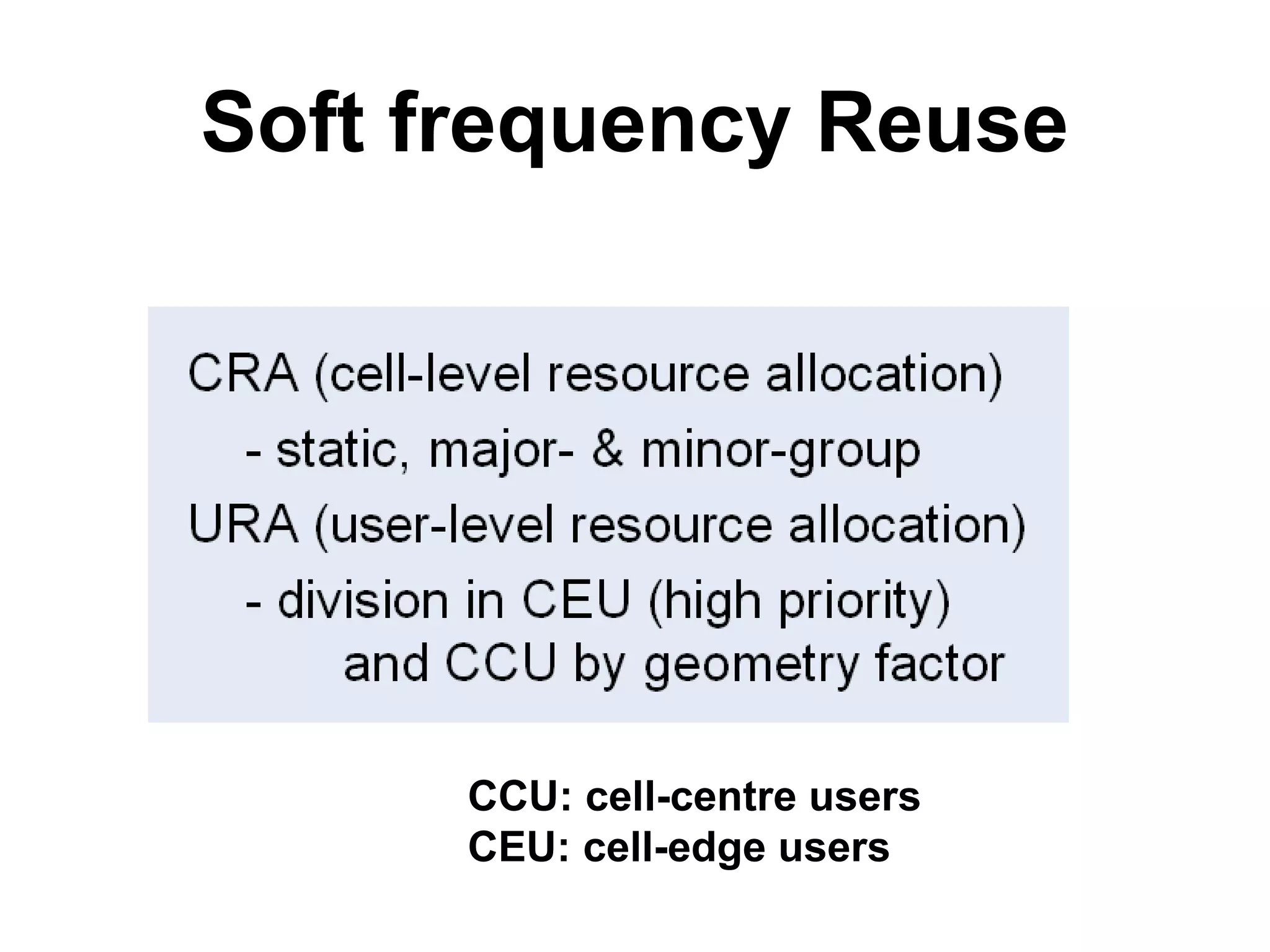

Soft frequency Reuse CCU: cell-centre users CEU: cell-edge users

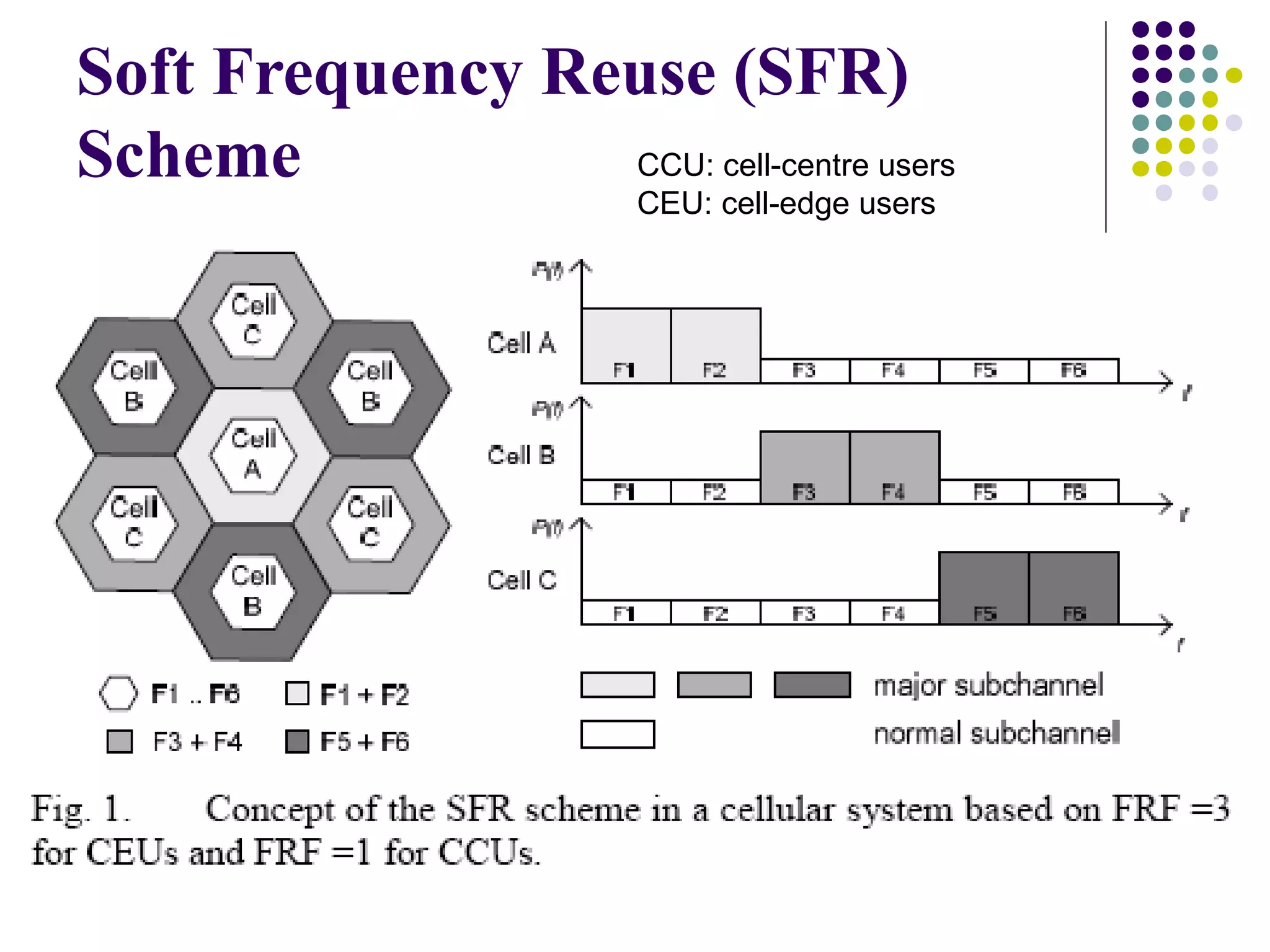

Soft Frequency Reuse (SFR) Scheme CCU: cell-centre users CEU: cell-edge users

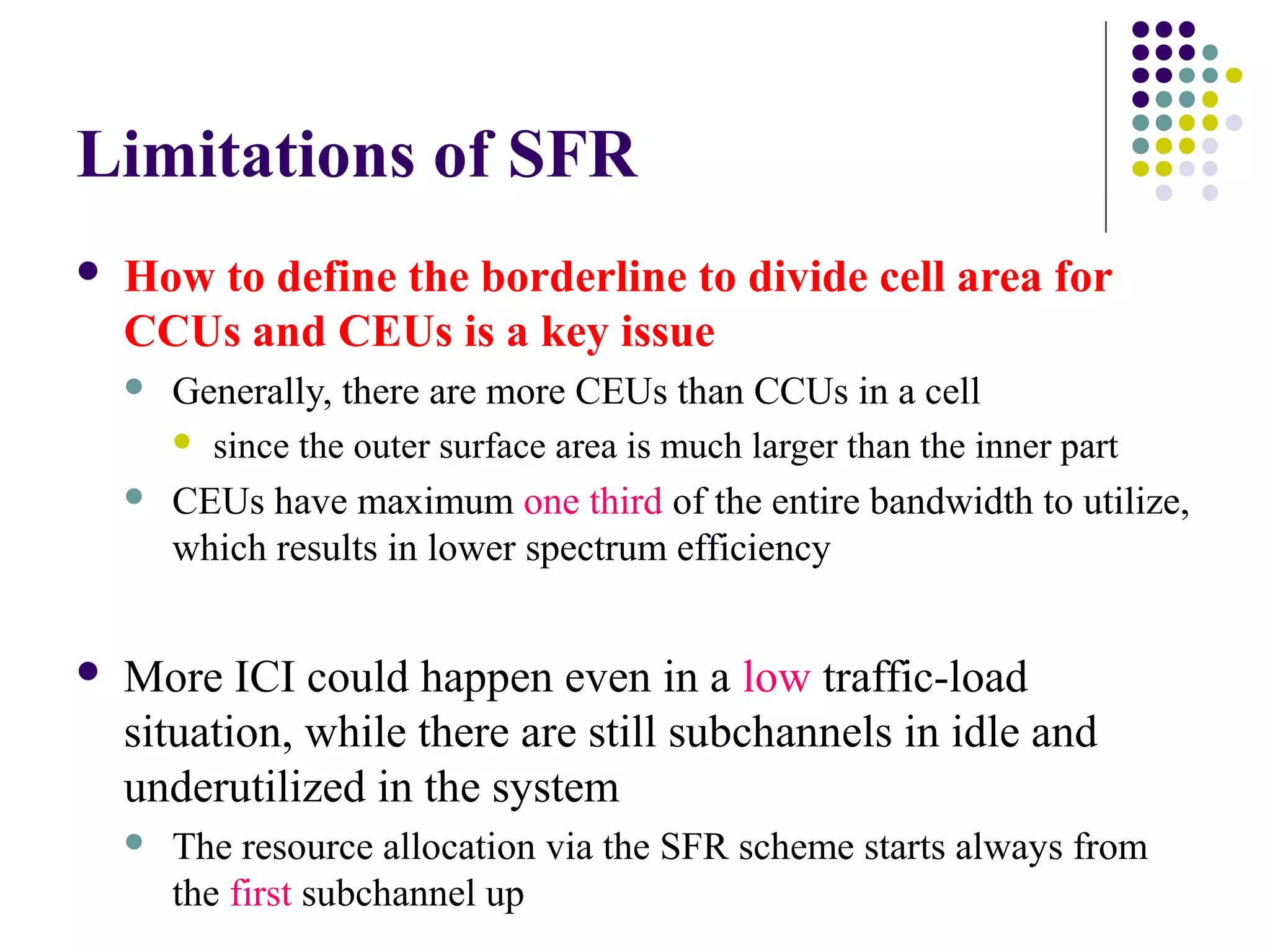

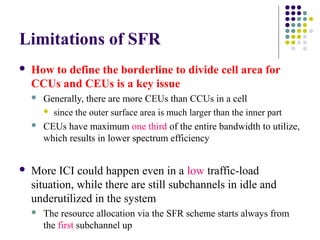

Limitations of SFR  How to define the borderline to divide cell area for CCUs and CEUs is a key issue  Generally, there are more CEUs than CCUs in a cell  since the outer surface area is much larger than the inner part  CEUs have maximum one third of the entire bandwidth to utilize, which results in lower spectrum efficiency  More ICI could happen even in a low traffic-load situation, while there are still subchannels in idle and underutilized in the system  The resource allocation via the SFR scheme starts always from the first subchannel up

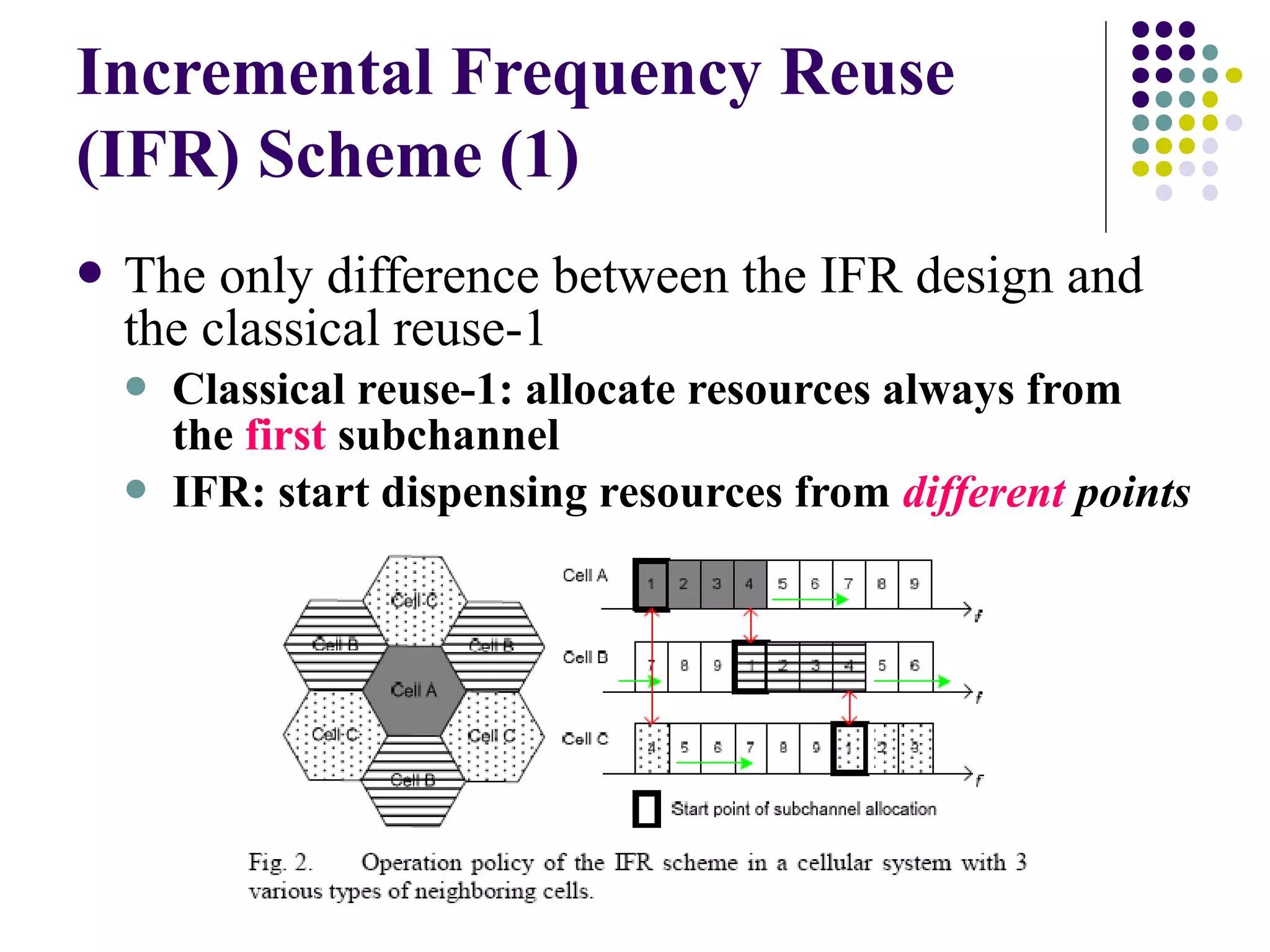

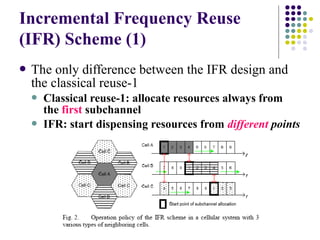

Incremental Frequency Reuse (IFR) Scheme (1)  The only difference between the IFR design and the classical reuse-1  Classical reuse-1: allocate resources always from the first subchannel  IFR: start dispensing resources from different points

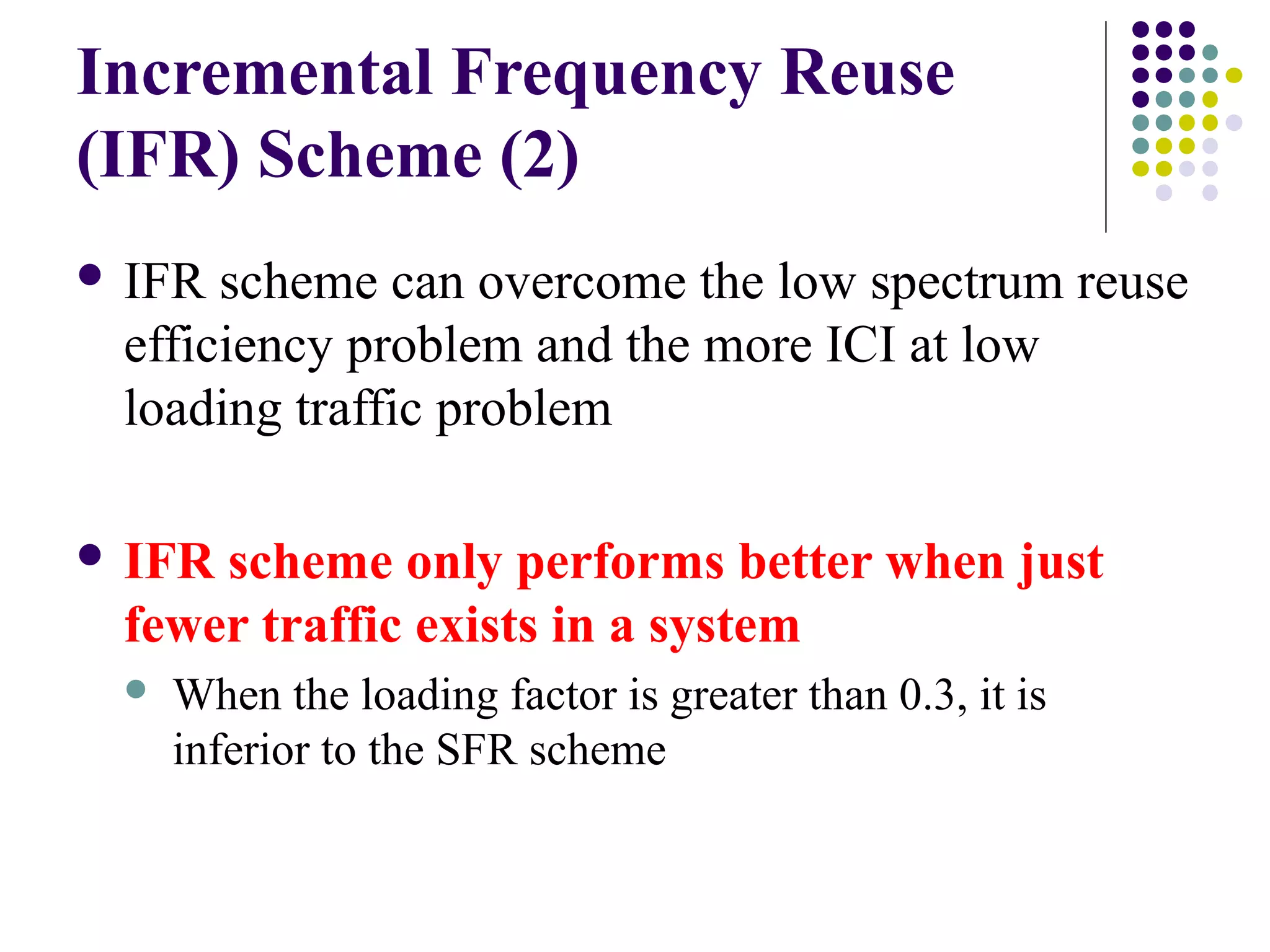

Incremental Frequency Reuse (IFR) Scheme (2)  IFR scheme can overcome the low spectrum reuse efficiency problem and the more ICI at low loading traffic problem  IFRscheme only performs better when just fewer traffic exists in a system  When the loading factor is greater than 0.3, it is inferior to the SFR scheme

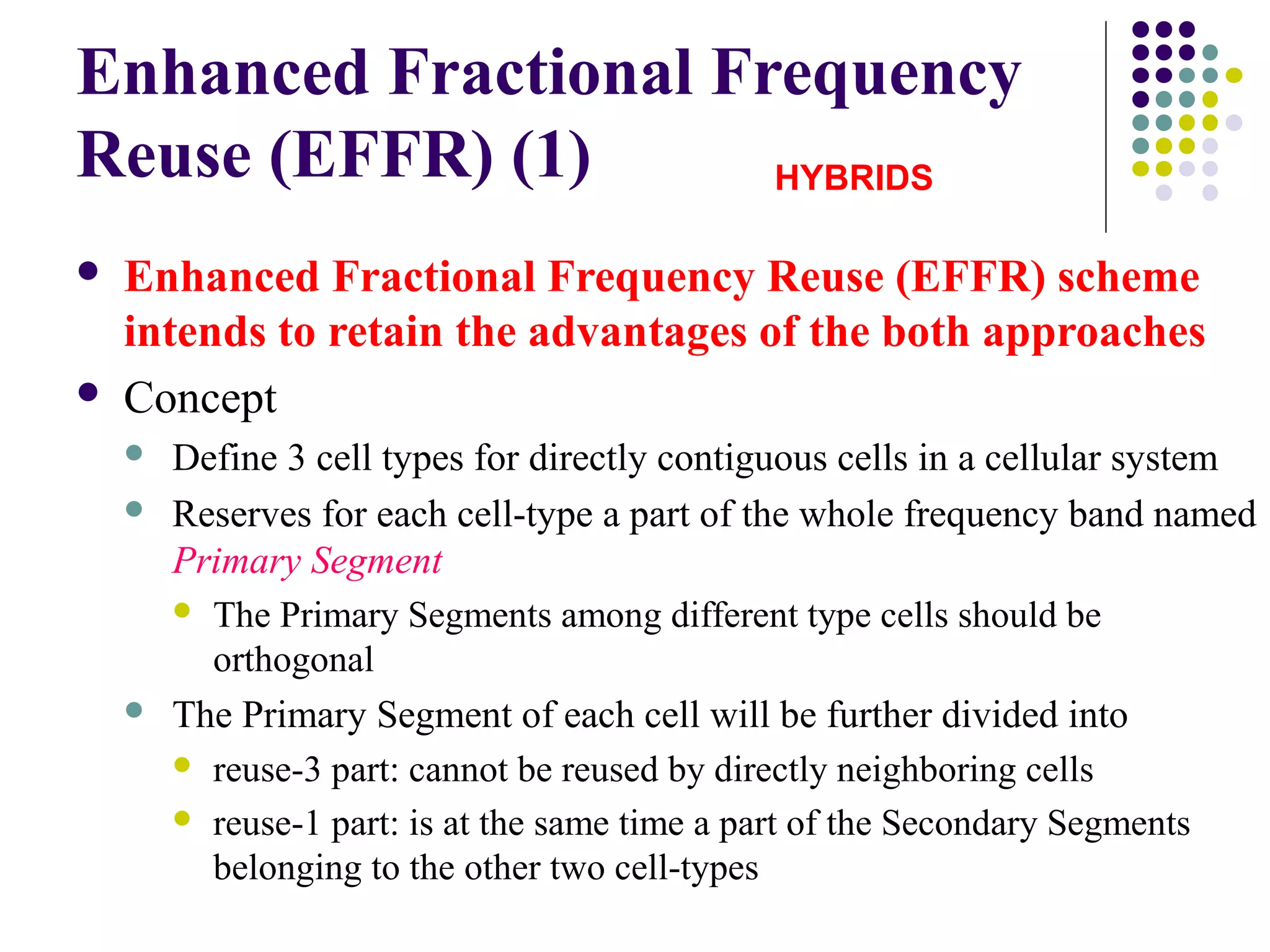

Enhanced Fractional Frequency Reuse (EFFR) (1) HYBRIDS  Enhanced Fractional Frequency Reuse (EFFR) scheme intends to retain the advantages of the both approaches  Concept  Define 3 cell types for directly contiguous cells in a cellular system  Reserves for each cell-type a part of the whole frequency band named Primary Segment  The Primary Segments among different type cells should be orthogonal  The Primary Segment of each cell will be further divided into  reuse-3 part: cannot be reused by directly neighboring cells  reuse-1 part: is at the same time a part of the Secondary Segments belonging to the other two cell-types

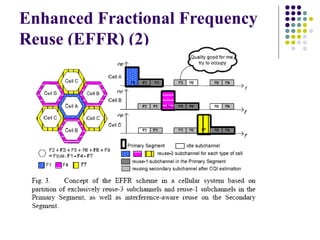

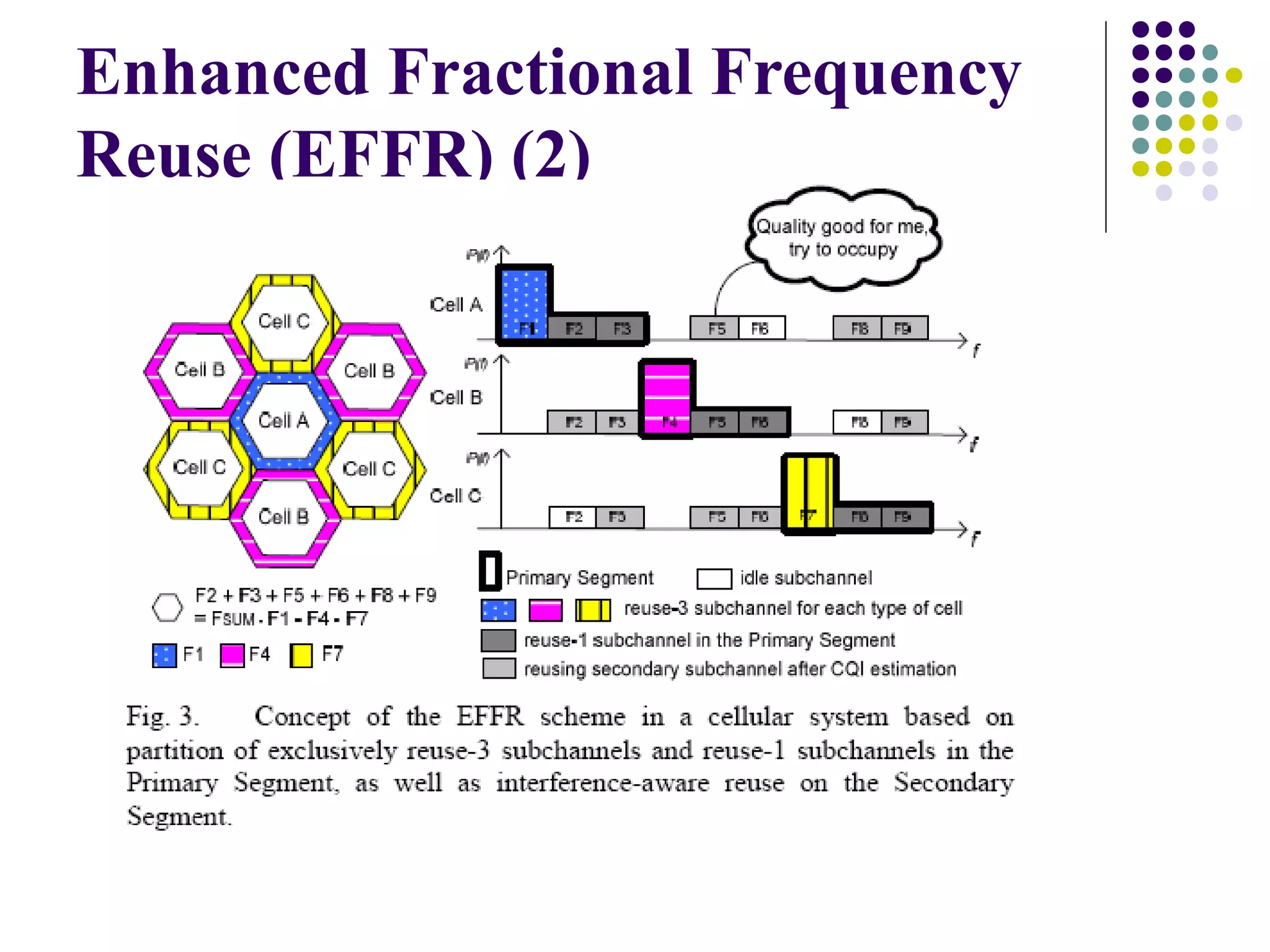

Enhanced Fractional Frequency Reuse (EFFR) (2)

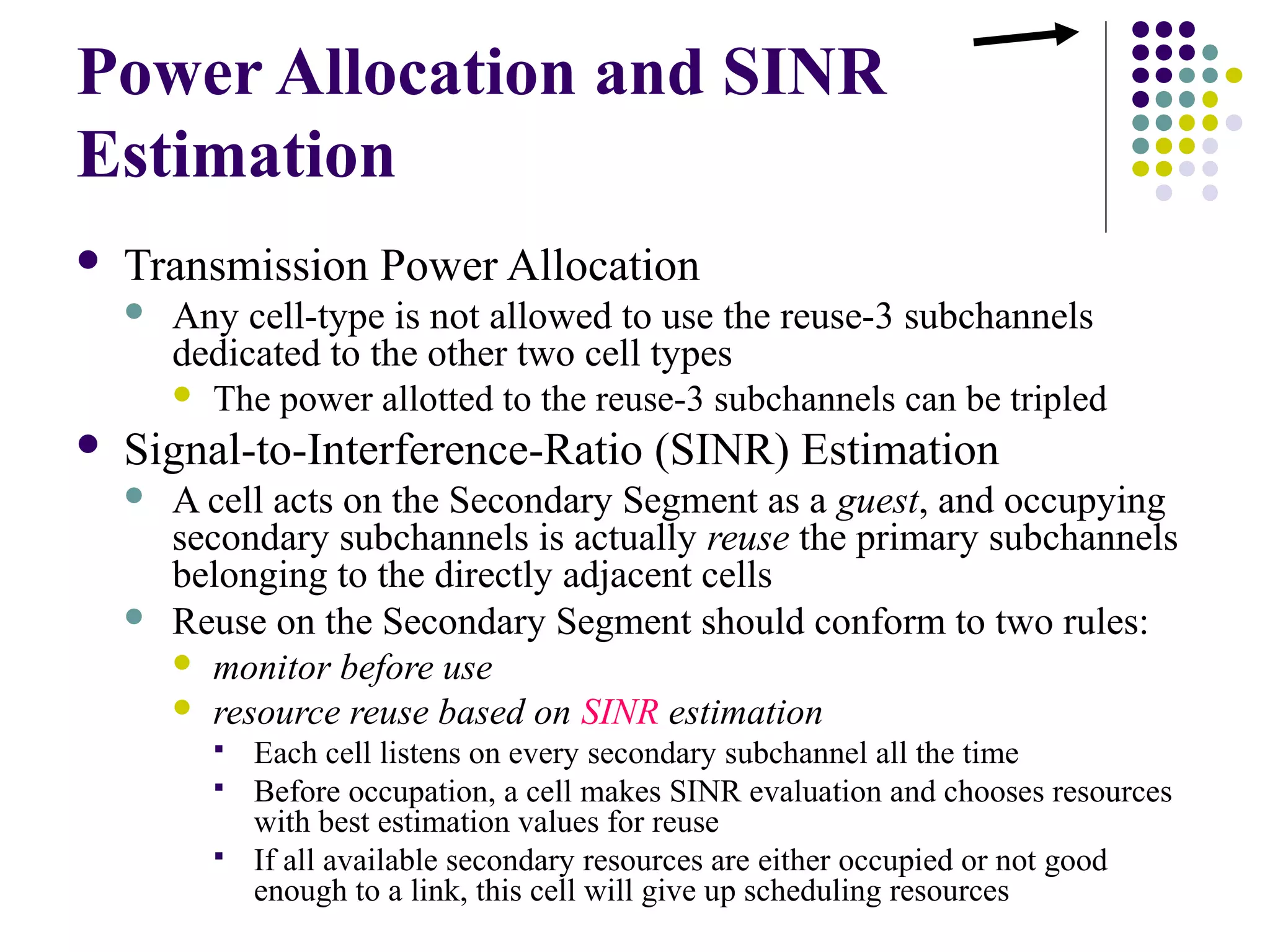

Power Allocation and SINR Estimation  Transmission Power Allocation  Any cell-type is not allowed to use the reuse-3 subchannels dedicated to the other two cell types  The power allotted to the reuse-3 subchannels can be tripled  Signal-to-Interference-Ratio (SINR) Estimation  A cell acts on the Secondary Segment as a guest, and occupying secondary subchannels is actually reuse the primary subchannels belonging to the directly adjacent cells  Reuse on the Secondary Segment should conform to two rules:  monitor before use  resource reuse based on SINR estimation  Each cell listens on every secondary subchannel all the time  Before occupation, a cell makes SINR evaluation and chooses resources with best estimation values for reuse  If all available secondary resources are either occupied or not good enough to a link, this cell will give up scheduling resources

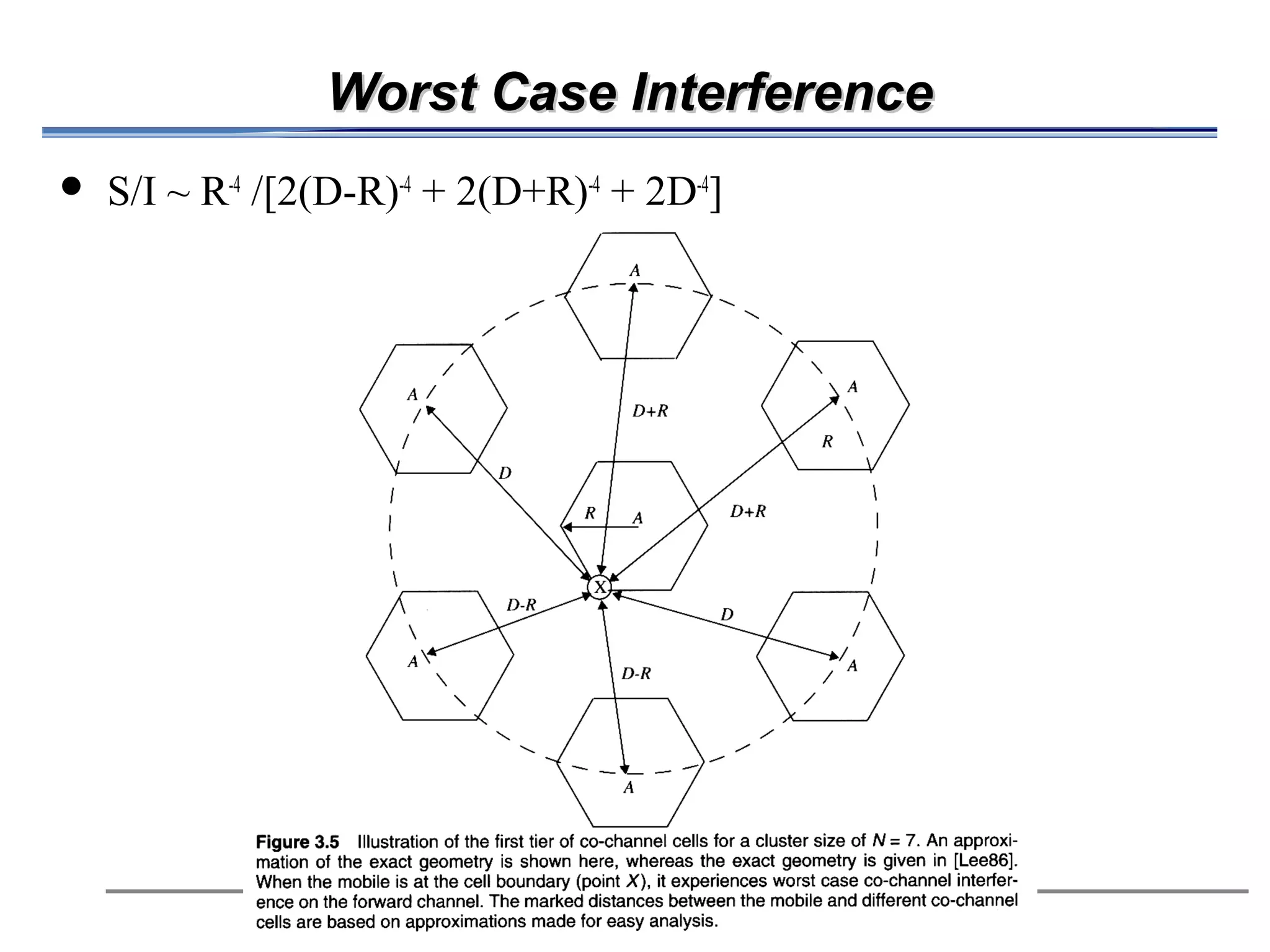

Worst Case Interference  S/I ~ R-4 /[2(D-R)-4 + 2(D+R)-4 + 2D-4]

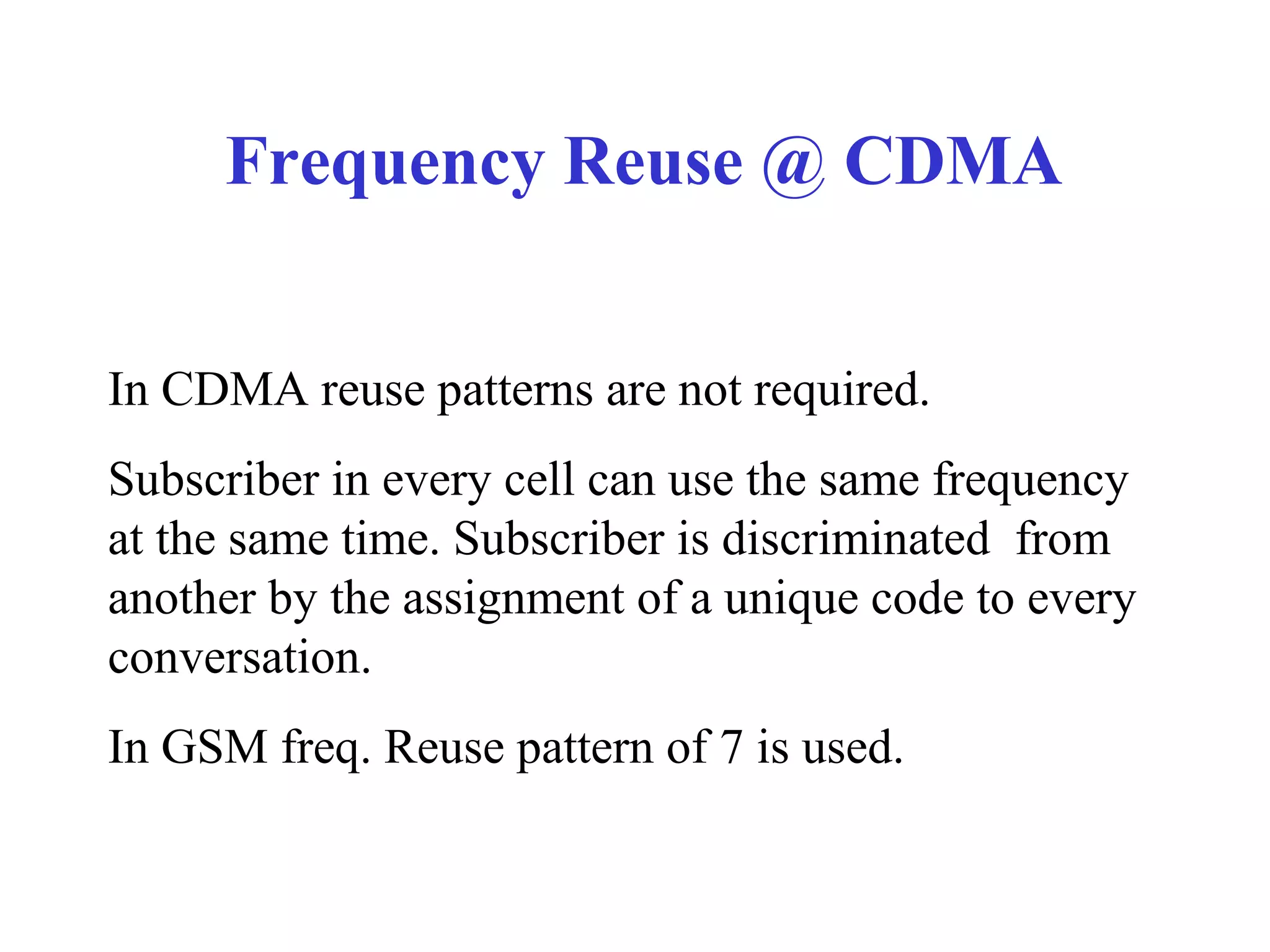

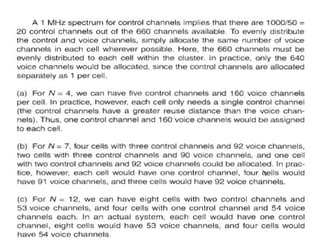

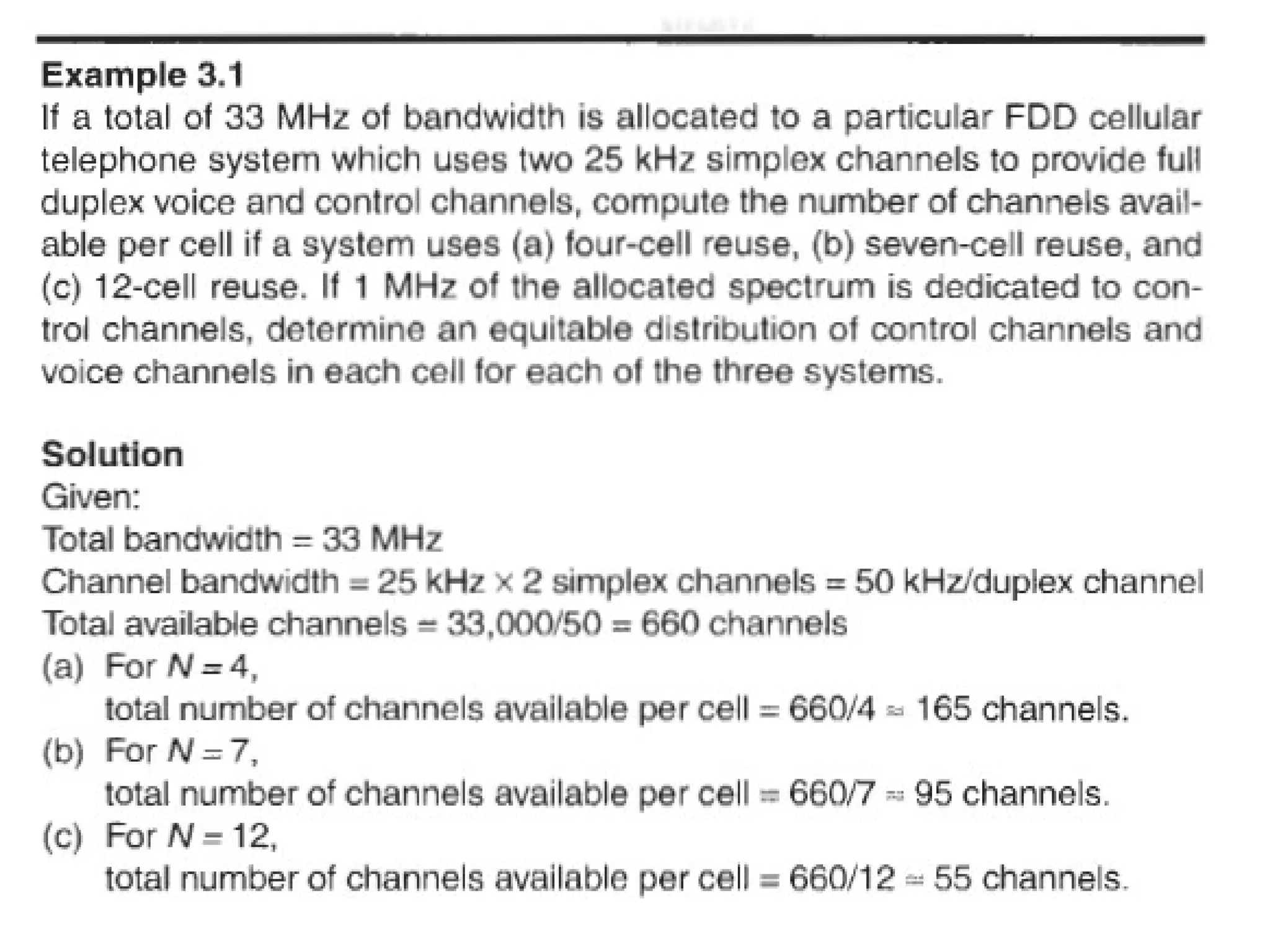

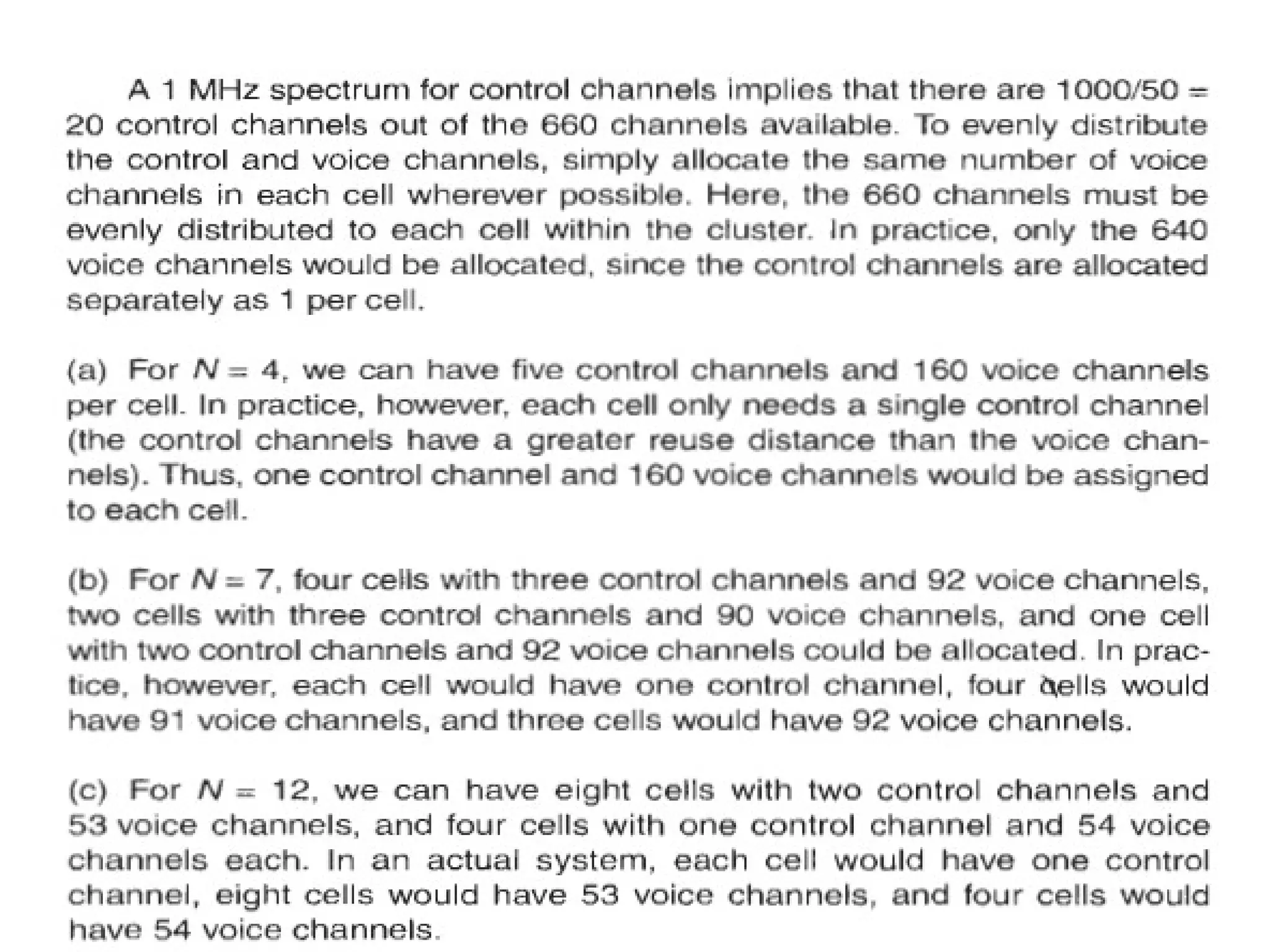

Frequency Reuse @ CDMA In CDMA reuse patterns are not required. Subscriber in every cell can use the same frequency at the same time. Subscriber is discriminated from another by the assignment of a unique code to every conversation. In GSM freq. Reuse pattern of 7 is used.

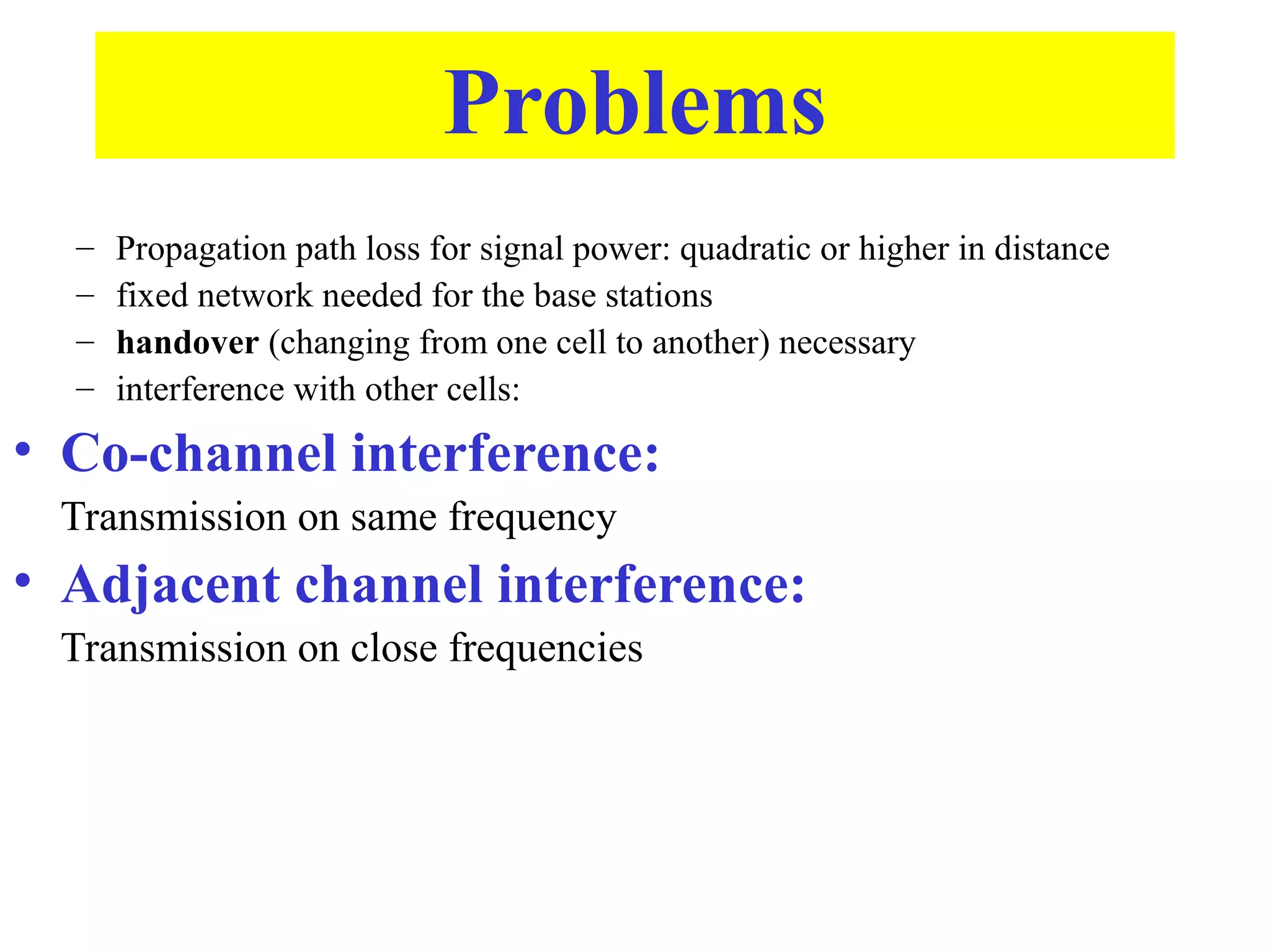

Problems – Propagation path loss for signal power: quadratic or higher in distance – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells: • Co-channel interference: Transmission on same frequency • Adjacent channel interference: Transmission on close frequencies

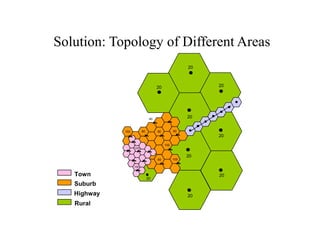

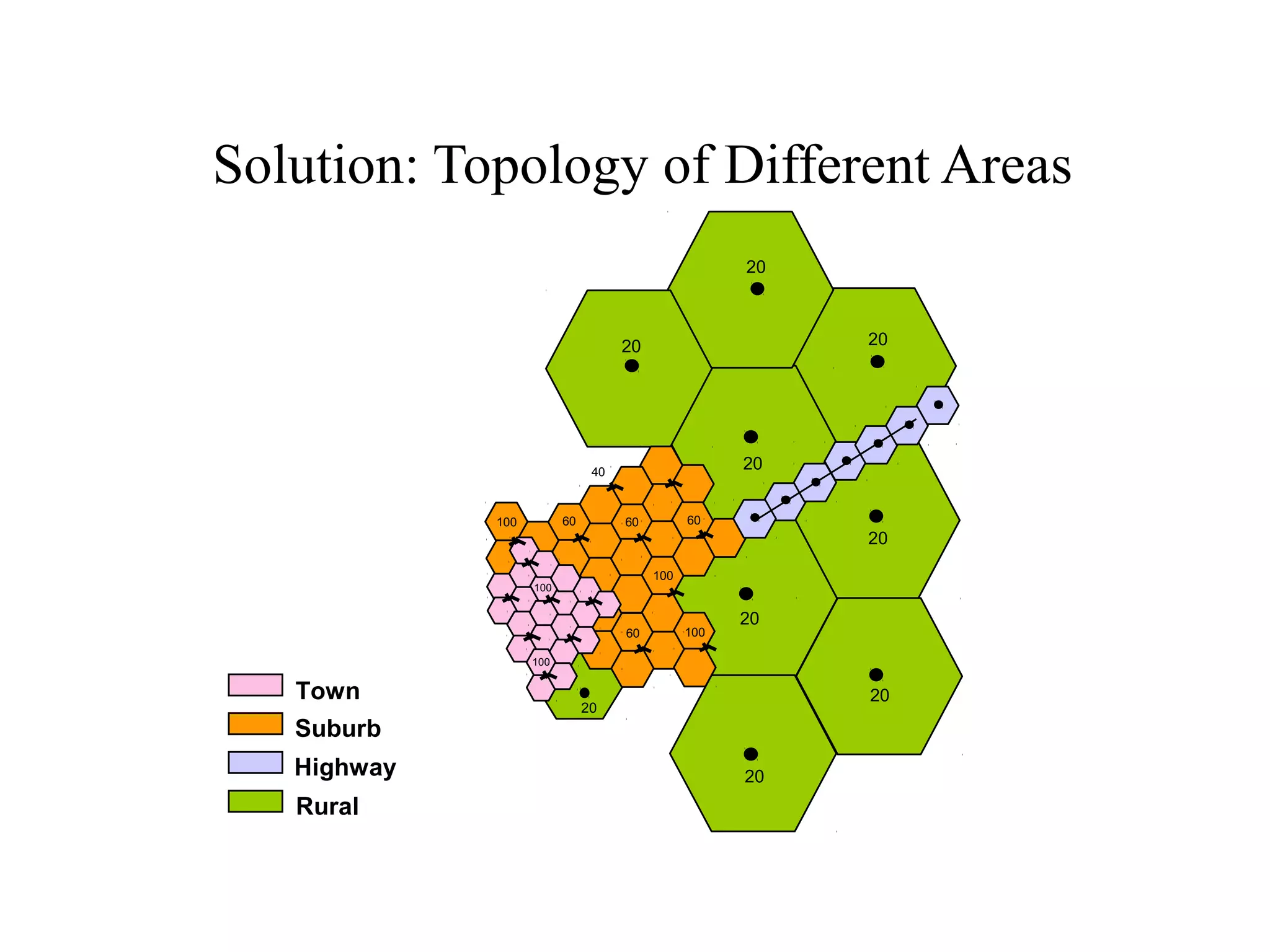

Solution: Topology of Different Areas 20 20 20 40 20 100 60 60 60 20 100 100 20 60 100 100 Town 20 20 Suburb Highway 20 Rural
Q UERRIES ?

More Related Content

PPSX
Concepts of & cell sectoring and micro cell
byKundan Kumar

PDF
Frequency reuse
bySri Manakula Vinayagar Engineering College

PPTX
Frequency Reuse
byTempus Telcosys

PPT
The cellular concept
byZunAib Ali

PPT
fdocuments.net_1-cellular-system-design-fundamentals-chapter-3-wireless-commu...
byGeoffreyAlleyne

PDF
2.6 cellular concepts - frequency reusing, channel assignment
byJAIGANESH SEKAR

PDF
Fundamental of cellular system
byM.E. at GTU- PG School

PDF
2.4 code division multiple access
byJAIGANESH SEKAR

Concepts of & cell sectoring and micro cell
byKundan Kumar

Frequency reuse
bySri Manakula Vinayagar Engineering College

Frequency Reuse
byTempus Telcosys

The cellular concept
byZunAib Ali

fdocuments.net_1-cellular-system-design-fundamentals-chapter-3-wireless-commu...
byGeoffreyAlleyne

2.6 cellular concepts - frequency reusing, channel assignment
byJAIGANESH SEKAR

Fundamental of cellular system
byM.E. at GTU- PG School

2.4 code division multiple access
byJAIGANESH SEKAR


What's hot

PPT
Multiple access techniques for wireless communications
byMETHODIST COLLEGE OF ENGG & TECH

PPTX
SPACE DIVISION MULTIPLE ACCESS (SDMA) SATELLITE COMMUNICATION
bySoumen Santra

PPT
cell splitting and sectoring
byShwetanshu Gupta

PPTX
IS-95 Cdma
byyogesh singh

PPT
Multiple access techniques
byBibhu Prasad

PDF
Diversity techniques presentation material
byNini Lashari

PPTX
WIRELESS TRANSMISSION
byjunnubabu

PPT
Cdma ppt for ECE
byajitece

PPTX
WCDMA
byHarshal Tiwari

PPT
Interference and system capacity
byAJAL A J

PPTX
Spread spectrum
byManish Srivastava

PPTX
Power delay profile,delay spread and doppler spread
byManish Srivastava

PPTX
Chap 1&2(history and intro) wireless communication
byasadkhan1327

PPTX
Cordless Technology
byJennifer Penaroyo

PDF
Propagation Model
byDeepak Sharma

PPTX
Ec 2401 wireless communication unit 2
byJAIGANESH SEKAR

PPT
Diversity Techniques in mobile communications
byDiwaker Pant

PPTX
Wireless Channels Capacity
byOka Danil

PPT
Multiple Access in wireless communication
byMaulik Togadiya

PPTX
Cdma
byShashwat Shriparv

Multiple access techniques for wireless communications
byMETHODIST COLLEGE OF ENGG & TECH

SPACE DIVISION MULTIPLE ACCESS (SDMA) SATELLITE COMMUNICATION
bySoumen Santra

cell splitting and sectoring
byShwetanshu Gupta

IS-95 Cdma
byyogesh singh

Multiple access techniques
byBibhu Prasad

Diversity techniques presentation material
byNini Lashari

WIRELESS TRANSMISSION
byjunnubabu

Cdma ppt for ECE
byajitece

WCDMA
byHarshal Tiwari

Interference and system capacity
byAJAL A J

Spread spectrum
byManish Srivastava

Power delay profile,delay spread and doppler spread
byManish Srivastava

Chap 1&2(history and intro) wireless communication
byasadkhan1327

Cordless Technology
byJennifer Penaroyo

Propagation Model
byDeepak Sharma

Ec 2401 wireless communication unit 2
byJAIGANESH SEKAR

Diversity Techniques in mobile communications
byDiwaker Pant

Wireless Channels Capacity
byOka Danil

Multiple Access in wireless communication
byMaulik Togadiya

Cdma
byShashwat Shriparv


Viewers also liked

PPTX
cellular concepts in wireless communication
byasadkhan1327

PPT
Cellular network
byMr SMAK

PDF
Gsm channel calculations
byAlthaf Hussain

PPT
Channel assignment strategies
byAJAL A J

PPT
HANDOFF
byAJAL A J

PPT
fundamenatals of cellular enginering
byMaulik Patel

PPTX
CELLULAR COMMUNICATION SYSTEM
bySuryani Ilias

PPT
Lec 3 and 4 cellular concept 1
bySidra Mallick

PPTX
cellular ppt
byDivya Bansal

PPT
Evaluation of cellular network
byMr SMAK

PPTX
GSM, Cell Planning & Frequency Reuse
bysanjida2222

PPTX
Cellular concepts
byVrince Vimal

PPTX
Gsm frequency-planning-issue2
byswatisabnis87

PDF
Fundamentals of Cellular Communications
byDon Norwood

PDF
Cellular concepts
byKothai Amaran

PPT
GSM channels
byMohd Nazir Shakeel

PDF
Lec7 cellular network
byPraveen Thomas

PDF
Earlang ejercicios
byPablo Barbecho

PPT
Gsm Technology
byShopnomoy Prantor

PPT
Lec 1 and 2 evolution
bySidra Mallick

cellular concepts in wireless communication
byasadkhan1327

Cellular network
byMr SMAK

Gsm channel calculations
byAlthaf Hussain

Channel assignment strategies
byAJAL A J

HANDOFF
byAJAL A J

fundamenatals of cellular enginering
byMaulik Patel

CELLULAR COMMUNICATION SYSTEM
bySuryani Ilias

Lec 3 and 4 cellular concept 1
bySidra Mallick

cellular ppt
byDivya Bansal

Evaluation of cellular network
byMr SMAK

GSM, Cell Planning & Frequency Reuse
bysanjida2222

Cellular concepts
byVrince Vimal

Gsm frequency-planning-issue2
byswatisabnis87

Fundamentals of Cellular Communications
byDon Norwood

Cellular concepts
byKothai Amaran

GSM channels
byMohd Nazir Shakeel

Lec7 cellular network
byPraveen Thomas

Earlang ejercicios
byPablo Barbecho

Gsm Technology
byShopnomoy Prantor

Lec 1 and 2 evolution
bySidra Mallick


Similar to frequency re use nb

PPT
Cellular concepts and system design fundamentals
byKamal Sharma

PPT
Thr cellular concept
bySajid Marwat

PPT
wireless-communication-architecture
byjhcid

PPT
Mobile cellular Communication.ppt
byMATRUSRI ENGINEERING COLLEGE

PDF
Intorduction to cellular communication
byZaahir Salam

PDF
Cellular Architecture Design Concepts
byT. L. Singal

PDF
EC3501-WIRELESS COMMUNICATION-836516061-WC notes pdf (1).pdf
byS.SIVARAJ

PPTX
Final wc
byvishalnimavat

PPT
Cellular networks
bypeace26

PDF
SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
byshubhangisonawane6

PPTX
Mobile communication demo
byAsit Panda

PDF
2-frequencyreusenb-130206113258-phpapp02.pdf
byKumarSaurabh314476

PPT
6.1.2.1 cellular comn fundamentals about
byHARSHSINGH182541

PPTX
wireless communication chapterr 2 part 1
bykingdahireditor

PPTX
lec.2 Multiple Access.pptx
byMUHAMMED MERGHANI

PPTX
lec.2 Multiple Access.pptx
byMUHAMMED MERGHANI

PDF
Researchpaper improving channel-capacity-of-a-cellular-system-using-cell-spli...
byvks01ece

PDF
Lec06(practical handoff and footprint)
byMuhammad Ali Zeb

PDF
Chapter 2
byssuserb22911

PDF
Wireless Training
byRohit Joshi

Cellular concepts and system design fundamentals
byKamal Sharma

Thr cellular concept
bySajid Marwat

wireless-communication-architecture
byjhcid

Mobile cellular Communication.ppt
byMATRUSRI ENGINEERING COLLEGE

Intorduction to cellular communication
byZaahir Salam

Cellular Architecture Design Concepts
byT. L. Singal

EC3501-WIRELESS COMMUNICATION-836516061-WC notes pdf (1).pdf
byS.SIVARAJ

Final wc
byvishalnimavat

Cellular networks
bypeace26

SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
byshubhangisonawane6

Mobile communication demo
byAsit Panda

2-frequencyreusenb-130206113258-phpapp02.pdf
byKumarSaurabh314476

6.1.2.1 cellular comn fundamentals about
byHARSHSINGH182541

wireless communication chapterr 2 part 1
bykingdahireditor

lec.2 Multiple Access.pptx
byMUHAMMED MERGHANI

lec.2 Multiple Access.pptx
byMUHAMMED MERGHANI

Researchpaper improving channel-capacity-of-a-cellular-system-using-cell-spli...
byvks01ece

Lec06(practical handoff and footprint)
byMuhammad Ali Zeb

Chapter 2
byssuserb22911

Wireless Training
byRohit Joshi


More from AJAL A J

PDF
ac dc bridges
byAJAL A J

PDF
Hays bridge schering bridge wien bridge
byAJAL A J

PDF
KEAM KERALA ENTRANCE EXAM
byAJAL A J

PDF
B.Sc Cardiovascular Technology(CVT)
byAJAL A J

PDF
flora and fauna of himachal pradesh and kerala
byAJAL A J

PDF
NRI QUOTA IN NIT'S
byAJAL A J

PPT
Ecology
byAJAL A J

PPT
Biogeochemical cycles
byAJAL A J

PDF
PCOS Polycystic Ovary Syndrome
byAJAL A J

PDF
Subjects to study if you want to work for a charity
byAJAL A J

PDF
Paleontology Career
byAJAL A J

PPT
App Naming Tip
byAJAL A J

PDF
11 business strategies to make profit
byAJAL A J

PPT
MANAGEMENT Stories
byAJAL A J

PPT
CHEMISTRY basic concepts of chemistry
byAJAL A J

PDF
IIT JEE A KERALA PERSPECTIVE
byAJAL A J

PDF
NEET PREPRATION TIPS AND STRATEGY
byAJAL A J

PDF
Courses and Career Options after Class 12 in Humanities
byAJAL A J

PDF
Clat 2020 exam COMPLETE DETAILS
byAJAL A J

PDF
REVOLUTIONS IN AGRICULTURE
byAJAL A J

ac dc bridges
byAJAL A J

Hays bridge schering bridge wien bridge
byAJAL A J

KEAM KERALA ENTRANCE EXAM
byAJAL A J

B.Sc Cardiovascular Technology(CVT)
byAJAL A J

flora and fauna of himachal pradesh and kerala
byAJAL A J

NRI QUOTA IN NIT'S
byAJAL A J

Ecology
byAJAL A J

Biogeochemical cycles
byAJAL A J

PCOS Polycystic Ovary Syndrome
byAJAL A J

Subjects to study if you want to work for a charity
byAJAL A J

Paleontology Career
byAJAL A J

App Naming Tip
byAJAL A J

11 business strategies to make profit
byAJAL A J

MANAGEMENT Stories
byAJAL A J

CHEMISTRY basic concepts of chemistry
byAJAL A J

IIT JEE A KERALA PERSPECTIVE
byAJAL A J

NEET PREPRATION TIPS AND STRATEGY
byAJAL A J

Courses and Career Options after Class 12 in Humanities
byAJAL A J

Clat 2020 exam COMPLETE DETAILS
byAJAL A J

REVOLUTIONS IN AGRICULTURE
byAJAL A J


Recently uploaded

PDF
Digital Journalism Ethics 2025 materi for Regulation & Ethic Media
byAdePutraTunggali

PDF
“Step-by-Step Fabrication of Bipolar Junction Transistors (BJTs)”
byGS Virdi

PDF
DEFINITION OF COMMUNITY Sociology. .pdf
byJhasketan Kuanar

PDF
বাংলাদেশ অর্থনৈতিক সমীক্ষা - ২০২৫ with Bookmark.pdf
bytanbircox UJS App

PPTX
Finals - History and Geography Quiz - Around the World in 80 Questions - IITK
byAditya Padhi

PDF
*Unit-II A (Elements of Communication & Communication Style Matrix)
bySayyadTarannum

PPTX
kklklklklklklklk;lkpoipor[3rjdkjoe99759893058085
bypreetheshparmar

PDF
AI Workflows and Workflow Rhetoric - by Ms. Oceana Wong
byagenticroom

PPTX
Time Series Analysis - Method of Simple Moving Average 3 Year and 4 Year Movi...
bySundar B N

PDF
Past Memories and a New World: Photographs of Stoke Newington from the 70s, 8...
byHistory of Stoke Newington

PDF
Agentic AI and AI Agents 20251121.pdf - by Ms. Oceana Wong
byagenticroom

PPTX
Prelims - History and Geography Quiz - Around the World in 80 Questions - IITK
byAditya Padhi

PPTX
General Wellness & Restorative Tonic: Draksharishta
byDr. Paindla Jyothirmai

PDF
Multimodal and Multimedia AI - by Ms. Oceana Wong
byagenticroom

PPTX
Time Series Analysis - Weighted (Unequal) Moving Average Method
bySundar B N

PDF
The invasion of Alexander of Macedonia in India
byPrachiSontakke5

PPTX
LYMPHATIC SYSTEM.pptx it includes lymph, lymph nodes, bone marrow, spleen
byReena Yadav

PPTX
SEMESTER 5 UNIT- 1 Difference of Children and adults.pptx
bysachin7989

PPTX
ATTENTION - PART 1.pptx cognitive processes -For B.Sc I Sem By Mrs.Shilpa Hot...
bySHILPA HOTAKAR

PPTX
Quarter 3 lesson 2 of English Grade 8.pptx
byMamGamino

Digital Journalism Ethics 2025 materi for Regulation & Ethic Media
byAdePutraTunggali

“Step-by-Step Fabrication of Bipolar Junction Transistors (BJTs)”
byGS Virdi

DEFINITION OF COMMUNITY Sociology. .pdf
byJhasketan Kuanar

বাংলাদেশ অর্থনৈতিক সমীক্ষা - ২০২৫ with Bookmark.pdf
bytanbircox UJS App

Finals - History and Geography Quiz - Around the World in 80 Questions - IITK
byAditya Padhi

*Unit-II A (Elements of Communication & Communication Style Matrix)
bySayyadTarannum

kklklklklklklklk;lkpoipor[3rjdkjoe99759893058085
bypreetheshparmar

AI Workflows and Workflow Rhetoric - by Ms. Oceana Wong
byagenticroom

Time Series Analysis - Method of Simple Moving Average 3 Year and 4 Year Movi...
bySundar B N

Past Memories and a New World: Photographs of Stoke Newington from the 70s, 8...
byHistory of Stoke Newington

Agentic AI and AI Agents 20251121.pdf - by Ms. Oceana Wong
byagenticroom

Prelims - History and Geography Quiz - Around the World in 80 Questions - IITK
byAditya Padhi

General Wellness & Restorative Tonic: Draksharishta
byDr. Paindla Jyothirmai

Multimodal and Multimedia AI - by Ms. Oceana Wong
byagenticroom

Time Series Analysis - Weighted (Unequal) Moving Average Method
bySundar B N

The invasion of Alexander of Macedonia in India
byPrachiSontakke5

LYMPHATIC SYSTEM.pptx it includes lymph, lymph nodes, bone marrow, spleen
byReena Yadav

SEMESTER 5 UNIT- 1 Difference of Children and adults.pptx
bysachin7989

ATTENTION - PART 1.pptx cognitive processes -For B.Sc I Sem By Mrs.Shilpa Hot...
bySHILPA HOTAKAR

Quarter 3 lesson 2 of English Grade 8.pptx
byMamGamino

In this document
Powered by AI

Introduction to frequency reuse in cellular networks, highlighting coverage and capacity issues. Discusses historical context of cellular concept by Bell Labs, addressing spectrum limitations.

Cells defined as areas served by base stations, each with allocated frequencies. Discusses cell size, shape, advantages of cellular designs, and potential interference issues.

Examines geometric configurations of cells, focusing on hexagons for analysis. Discusses frequency allocation, power control, and the need for interference management.

Details frequency reuse patterns, channel allocation strategies, and how cluster sizes influence total channel capacity within cellular networks.

Explains cellular network structures and propagation models, emphasizing coverage areas and frequency assignment. Discusses cell characteristics and enhancements.

In-depth look at frequency reuse factors, patterns, and calculations related to co-channel usage and distance between cells.

Discussion on frequency reuse patterns in practical systems, with examples of capacity calculations under different multiple access techniques.

Overview of cellular architecture, focusing on base stations and their role in frequency reuse within the network and implications for capacity and service.

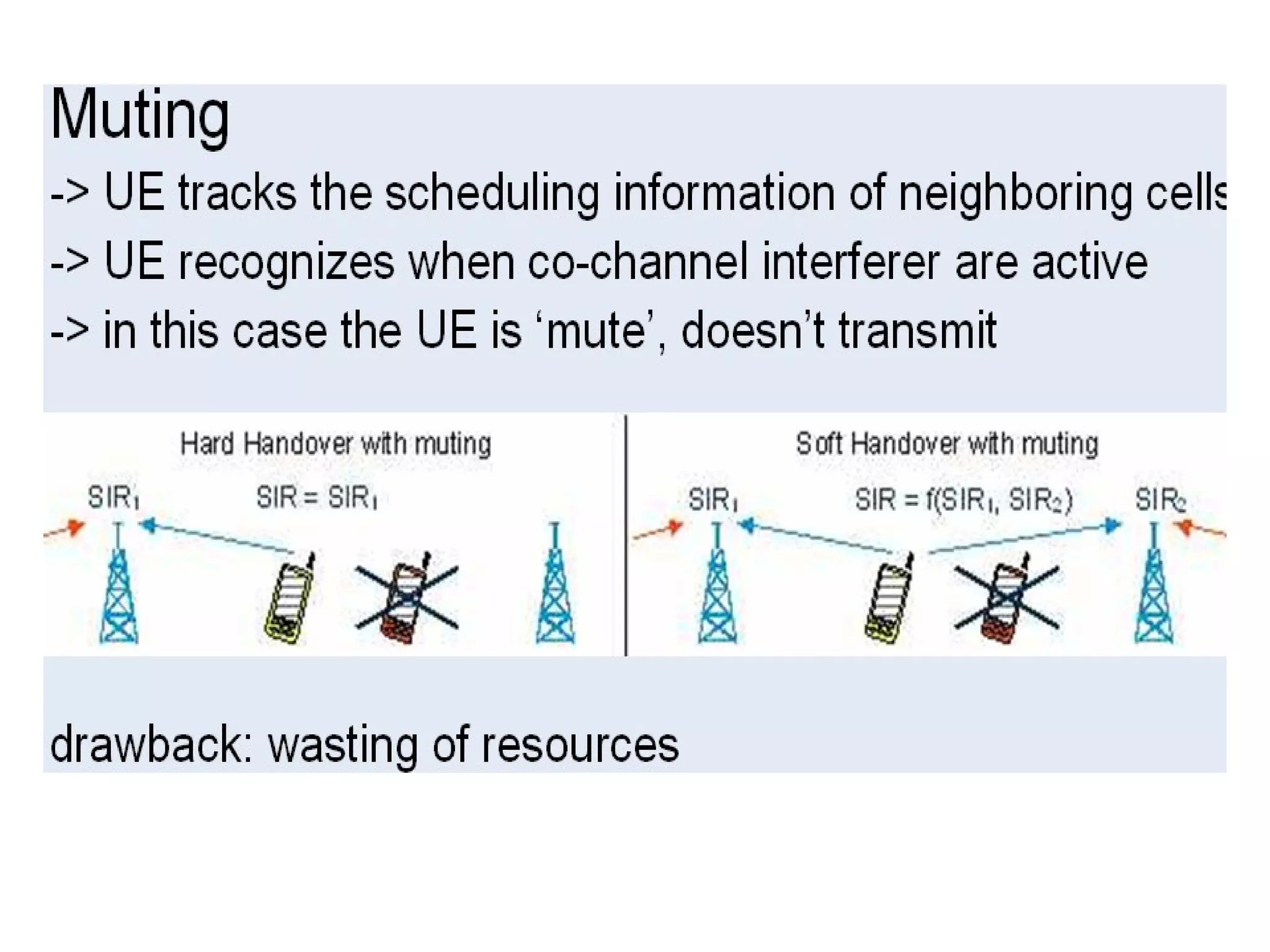

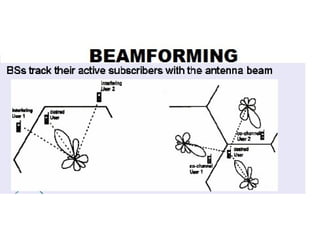

Explains various schemes for optimizing frequency reuse, including Soft Frequency Reuse and Enhanced Fractional Frequency Reuse, addressing challenges and performance.

Discusses the flexibility of frequency usage in CDMA systems compared to traditional patterns, highlighting signal interference and network design issues.

Discusses strategies for managing topology in different regions, emphasizing capacity management and frequency reuse leading to improved cellular connectivity.

frequency re use nb

  • 1.
    3.2 FREQUENCY REUSE The key characteristic of a cellular network is the ability to re-use frequencies to increase both coverage and capacity. AJAL.A.J Assistant Professor –Dept of ECE, Federal Institute of Science And Technology (FISAT) TM    MAIL: ec2reach@gmail.com
  • 2.
    Cellular Concept  The limited capacity of the first mobile radio-telephone services was related to the spectrum used…not much sharing and a lot of bandwidth dedicated to a single call. – good coverage – interference: impossible to reuse the same frequency  The cellular concept addressed many of the shortcomings of the first mobile      telephones – Frequency reuse                                                            – Wasted spectrum allocated to a single user  In 1968, Bell Labs proposed the cellular telephony concept to the FCC  It was approved and then the work began! – FCC allocated spectrum (took away TV UHF channels 70-83) in the 825-845 MHz and 870-890 MHz bands
  • 3.
    Cellular Concept  developed by Bell Labs 1960’s-70’s  areas divided into cells  a system approach, no major technological changes  a few hundred meters in some cities, 10s km at country side       each served by base station with lower power transmitter                                                             each gets portion of total number of channels  neighboring cells assigned different groups of channels, interference minimized  hexagon geometry cell shape
  • 4.
    What is a Cell? • Cell is the Basic Union in The System – defined as the area where radio coverage is given by  one base station. • A cell has one or several frequencies, depending on  traffic load.  – Fundamental idea: Frequencies are reused, but not in  neighboring cells due to interference.
  • 5.
    Cellular Concept  Limitednumber of frequencies => limited channels  Single high power antenna => limited number of users  Smaller cells => frequency reuse possible => more number of users  Base stations (BS): implement space division multiplex – Each BS covers a certain transmission area (cell) – Each BS is allocated a portion of the total number of channels available – Cluster: group of nearby BSs that together use all available channels  Mobile stations communicate only via the base station – FDMA, TDMA, CDMA may be used within a cell  As demand increases (more channels are needed) – Number of base stations is increased – Transmitter power is decreased correspondingly to avoid interference
  • 6.
    Cellular Concept  Cellsize: – 100 m in cities to 35 km on the country side (GSM) – even less for higher frequencies – Umbrella cell: large cell that includes several smaller cells • Avoid frequent handoffs for fast moving traffic  Cell shape: – Hexagonal is useful for theoretical analysis – Practical footprint (radio coverage area) is amorphous  BS placement: – Center-excited cell: BS near center of cell • omni-directional antenna – Edge-excited cell: BSs on three of the six cell vertices • sectored directional antennas
  • 7.
    Cellular Concept  Advantages: – higher capacity, higher number of users – less transmission power needed – more robust, decentralized – base station deals with interference, transmission area etc. locally  Problems: – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells: co-channel, adjacent-channel  Important Issues: – Cell sizing – Frequency reuse planning – Channel allocation strategies Bottom line: Attempt to maximize availability of channels in an area
  • 8.
    • Cells labeledwith the same letter use the same group of channels. • Cell Cluster: group of N cells using complete set of available channels • Many base stations, lower power, and shorter towers • Small coverage areas called “cells” • Each cell allocated a % of the total number of available channels • Nearby (adjacent) cells assigned different channel groups – to prevent interference between neighboring base stations and mobile users
  • 9.
    Cell characteristics • Implements space division multiplex: base  station covers a certain transmission area  (cell) • Mobile stations communicate only via the  base station • Advantages of cell structures: – higher capacity, higher number of users – less transmission power needed – more robust, decentralized – base station deals with interference, transmission area etc. locally • Problems: – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells • Cell sizes from some 100 m in cities to, e.g., 35 km  on the country side (GSM) - even less for higher  frequencies
  • 10.
    Shape of Cells  Square  Width d cell has four neighbors at distance d and four at distance 2d  Better if all adjacent antennas equidistant  Simplifies choosing and switching to new antenna  Hexagon  Provides equidistant antennas  Radius defined as radius of circum-circle  Distance from center to vertex equals length of side  Distance between centers of cells radius R is 3 R  Not always precise hexagons  Topographical limitations  Local signal propagation conditions  Location of antennas
  • 11.
  • 12.
  • 13.
    Cellular Network Architecture Mobile Public                                                                 Switching Center Telephone network and Internet Mobile Switching Center Wired network
  • 14.
    Frequency Reuse  Adjacent cells assigned different frequencies to avoid interference or crosstalk  Objective is to reuse frequency in nearby cells – 10 to 50 frequencies assigned to each cell – transmission power controlled to limit power at that frequency      escaping to adjacent cells                                                            – the issue is to determine how many cells must intervene between two cells using the same frequency
  • 15.
    Frequency Reuse  each cell allocated a group k channels – a cluster has N cells with unique and disjoint channel  groups, N typically 4, 7, 12  total number of duplex channels S = kN  Cluster repeated M times in a system       Total number of channels that can be used (capacity) – C = MkN = MS                                                             Smaller cells  higher M  higher C + Channel reuse  higher capacity + Lower power requirements for mobiles – Additional base stations required – More frequent handoffs – Greater chance of ‘hot spots’
  • 16.
    Frequency planning f3 f3 f3 f2 f2 f1 f1 f1 f3 f3 3 cell cluster f2 f2 f2 f1 f1 f3 f3 f3 f2 f3 f7 f5 f2 f4 f6 f5 7 cell cluster f1 f4 f3 f7 f1 f2 f3 f6 f5 f2 f2 f2 f2 f1 f f1 f f1 f h h 3 cell cluster 3 3 3 h 2 h 2 g2 1 h3 g2 1 h3 g2 g1 g1 g1 g3 g3 g3 with 3 sector antennas
  • 17.
  • 18.
    Frequency planning • Frequencyreuse only with a certain distance between the base stations • Standard model using 7 frequencies: f3 f5 f2 f4 f6 f5 f1 f4 f3 f7 f1 f2
  • 19.
    FREQUENCY REUSE • The allotted frequency spectrum for mobile  communication •  during  the 1 G is in the range of  (800- 900 ) Mhz • but ,Using this small bandwidth, thousands of  subscribers need to be served over a large  area. • To manage this situation, a technique called   ‘’frequency reuse ‘’ is adopted.
  • 20.
  • 22.
    Cellular Networks • Propagation models represent cell as a circular area • Approximate cell coverage with a hexagon - allows easier • analysis • Frequency assignment of F MHz for the system • The multiple access techniques translates F to T traffic channels • Cluster of cells K = group of adjacent cells which use all of the systems  frequency assignment
  • 24.
  • 25.
  • 26.
    END Result ofWrong implementation
  • 27.
  • 31.
    Freq reuse Advantage Cluster3 Freq reuse: Several cells in coverage area that use same set of frequencies Cochannel cells: Those cells Cluster1 using same freqs Cochannel interference: The mobile in cell A also gets signals from other Co channel cells Cluster2 31
  • 32.
    Cellular Concepts In this case N=19 (i=3, j=2)
  • 33.
    Frequency Reuse  Power of base transceiver controlled  Allow communications within cell on given frequency  Limit escaping power to adjacent cells  Allow re-use of frequencies in nearby cells  Use same frequency for multiple conversations  10 – 50 frequencies per cell  E.g.  The pattern consists of N cells  K total number of frequencies used in systems  Each cell has K/N frequencies  Advanced Mobile Phone Service (AMPS) K=395, N=7 giving 57 frequencies per cell on average
  • 34.
    Characterizing Frequency Reuse distancebetween centers of cells that use the same D = minimum band of frequencies (called cochannels)  R = radius of a cell  d = distance between centers of adjacent cells (d = R)  N = number of cells in repetitious pattern  Reuse factor  Each cell in pattern uses unique band of frequencies  Hexagonal cell pattern, following values of N possible   N = I2 + J2 + (I x J), I, J = 0, 1, 2, 3, …   Possible values of N are 1, 3, 4, 7, 9, 12, 13, 16, 19, 21, …  D/R= 3N  D/d = N
  • 35.
    Distance R D R 35
  • 36.
    R 3 D 3 6 1 6 1 4 4 7 2 7 2 5 3 5 3 6 1 3 6 1 4 6 1 4 7 2 4 7 2 5 7 2 5 5 36
  • 37.
    Example of frequencyreuse factor or pattern 1/4 The frequency reuse factor is the rate at which the same frequency can be used in the network. It is 1/K (or K according to some books) where K is the number of cells which cannot use the same frequencies for transmission. Common values for the frequency reuse factor are 1/3, 1/4, 1/7, 1/9 and 1/12 (or 3, 4, 7, 9 and 12 depending on notation).
  • 38.
    Reuse Ratio :q Assuming hexagonal shape cells of equal size D = q = 3N R where: D: Distance between the centres of cells R: Radius of the cell q: Reuse ratio N: Cluster size 38
  • 39.
    Example For N= 7 and R 5 km D = 3N R D = 3× 7 × 5 D = 4.583 × 5 = 22.91 The minimum distance at which the same frequency can be reused is approximately 4.6 times R, which is in this case 22.91 km 39
  • 40.
  • 41.
    N=7, 32 cells,R=1.6km, in total 336 channels
  • 42.
    So what isFREQUENCY REUSE ? • After allotting the available total bandwidth among a set of cells , the same frequency band will be used in another set of cells . • This kind of reuse can be adopted until the entire area to be covered is exhausted . • Note • Seven cells in a set is the most frequently used configuration.this configuration usually operates with a cell diameter of 1- 3 km range
  • 43.
    Cellular architecture One low power transmitter per cell B Frequency reuse–limited spectrum A Cell splitting to increase capacity Reuse distance: minimum distance between two cells using same channel for satisfactory signal to noise ratio Measured in # of cells in between
  • 44.
    Reuse distance 2– reuse pattern One frequency can be (re)used in all cells of the same color
  • 45.
    Reuse distance 3– reuse pattern
  • 46.
  • 47.
    Capacity calculation—FDMA n: capacity(number of total users) m: number of cells to cover the area N: frequency reuse factor (# cells/cluster) B: bandwidth per user W: total available bandwidth (spectrum) mW n= N B 50
  • 48.
    Problem In an FDMAsystem calculate frequency re use factor ? • m= 70 • W= 100 • n=10 • B=100 • N = ? cells/cluster
  • 49.
    Capacity calculation—FDMA In theprevious example, • m=20, • W=25 MHz, • N=4, and • B=30 KHz. m W 20 25000 n= = = 4,166 N B 4 30 52
  • 50.
    Capacity calculation—TDMA • n:capacity (number of total users) • m: number of cells to cover the area • N: frequency reuse factor (# cells/cluster) • B: bandwidth per user • W: total available bandwidth (spectrum) • Nu: number of time slots per carrier mW n= Nu N B 53
  • 51.
    Capacity calculation—TDMA (contd.) Assuming again, • m=20, • W=25 MHz, • N=4, • B=200 KHz, • Nu=4. mW 20 25000 n= Nu = 4 = 2,500 N B 4 200 54
  • 52.
    Capacity of CDMA n:number of users W: total bandwidth R: data rate Sr: signal to noise ratio W n= R × Sr 55
  • 53.
    Capacity per cell(CDMA) Assume: W=1.25MHz=1,250,000 Hz R=9600 bps Sr should be larger than 3dB => 2 times W 1250000 n= = = 65 users R × S r 9600 × 2 56
  • 54.
    System architecture • Aset of seven cells will be controlled by a BSC  base station controller • The terminal station located in every cell will have access to the BSC. • 7 base terminal stations will have one BSC • For every frequency reuse , 1 BSC is required. The elements that determine frequency reuse are the reuse distance and the reuse factor
  • 55.
    Scenario • For 100BTS we require more than 14 BSC’s • All BSC are connected to a Mobile Switching centre. • Here mobile stations are connected to BTS by wireless means • All Base stations are connected to their respective BSC’sby cables. • In modern communication , fibre optic cables are used to connect BTS
  • 56.
    @ 3G Fig: Advanced cellular mobile communication system Architecture
  • 57.
    Cell Planning (1/3) •The K factor and Frequency Re-Use Distance 7 6 2 K = i2 + ij + j2 1 K = 22 + 2*1 + 12 5 3 j K=4+2+1 7 R 2 K=7 6 1 i D 5 3 4 D= √3K * R D = 4.58R Frequency re-use distance is based on the cluster size K The cluster size is specified in terms of the offset of the center of a cluster from the center of the adjacent cluster
  • 58.
    Cell Planning (2/3) 7-cell reuse pattern A1 A3 G1 A2 B1 A1 G3 B3 A3 A2 B1 G2 C1 B2 G1 B3 C3 G3 C1 B2 F1 C2 G2 F3 D1 C3 D3 C2 D1 F2 E1 D2 F1 D3 E3 F3 D2 E2 F2 E1 E3 Frequency E2 reuse
  • 59.
    Cell Planning (3/3) •Cell sectoring – Directional antennas subdivide cell into 3 or 6 sectors – Might also increase cell capacity by factor of 3 or 6 • Cell splitting – Decrease transmission power in base and mobile – Results in more and smaller cells – Reuse frequencies in non-contiguous cell groups – Example: ½ cell radius leads 4 fold capacity increase
  • 60.
    BTS • BTSacts as an interface between the Mobile unit & BSC • BTS connects mobile units by wireless means to the BSC BTS Antenna • BTS has got an antenna usually at an elevation location. • Invariantly , Roof tops, • Small steel towerare used for erecting the BTS antenna.
  • 61.
    Omni directional coverage=coverage in all directions • Compact power supply systems (some even chargeable batteries) are used at the base terminal stations. • BTS is usually located at the centre of the cell area for omni directional coverage. INDIAN ANALOGY
  • 62.
    Bandwidth vs mobility •The wireless interface at BTS and wired topologytopology between BTS- BSC & BSC – MSC necessitates certain translation in protocols. • Upto the stage of BTS , air interface protocols are used. After BTS , the transmission media happen to be wired one , mostly fibre optic communication. • Hence at the BTS or BSC stage , there is a need for the translation of these protocols
  • 63.
    Illustration – oftranslation requirement • In mobile communication at the mobile user’s unit the speech signal is connected into 13 kbps digitized voice. This conversion is is required to have an air interface with bandwidth efficiency. • But the backbone network through which the voice has to travel in certain applications can provide 64 kbps. Contd…
  • 64.
    Contd… • PCM digitizationis adopted in fixed telephone network which make use of these backbone network. • When mobile unit converts the analog information into 13kbps digital information , the BSC converts the same into 64 kbps information.
  • 65.

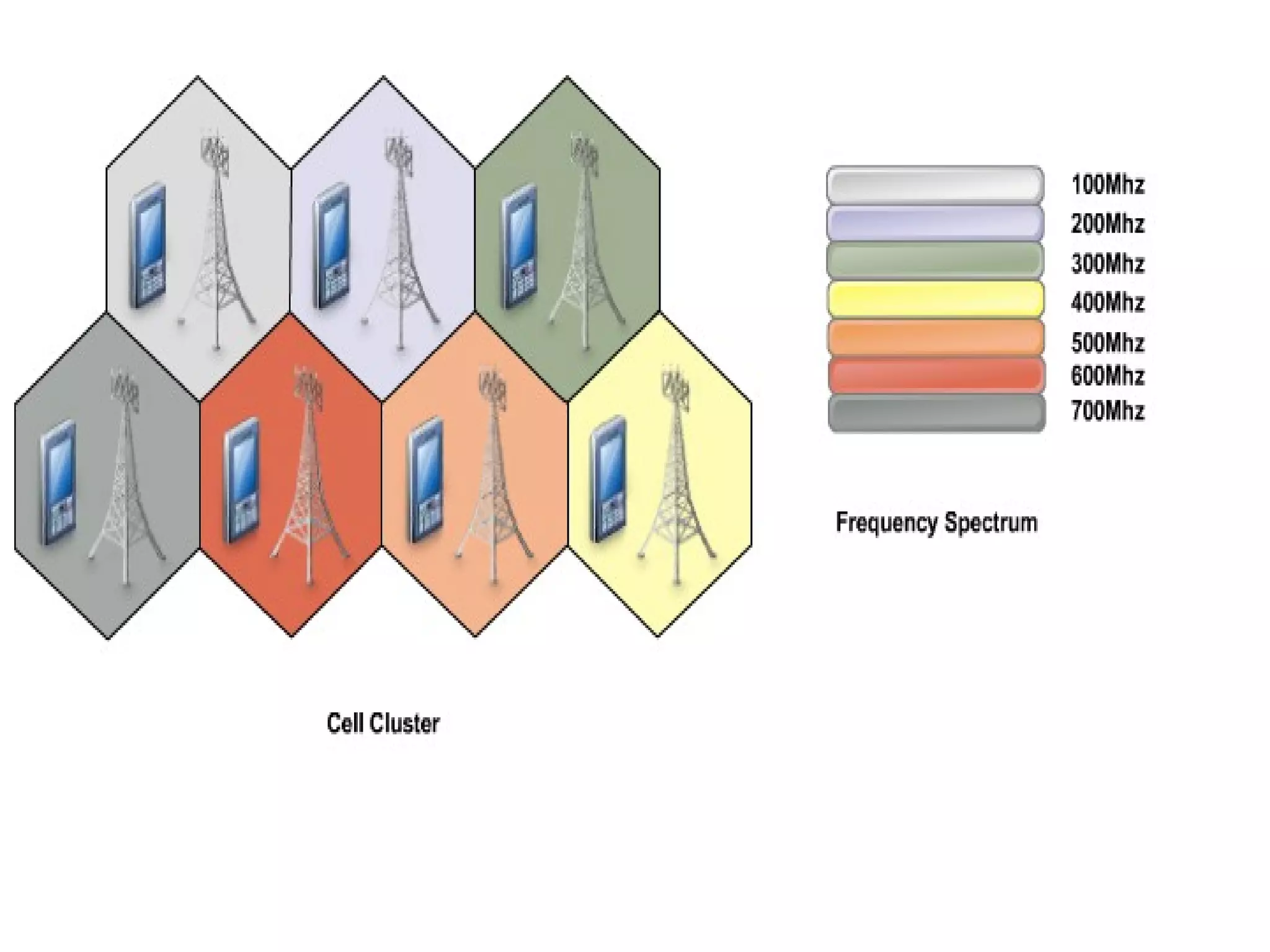

    Frequency reuse revisited:cluster size and reuse distance Cluster with cluster size N D frequency group A Co-channel cells frequency group B [ 68 ]
  • 66.
    The geometry ofa hexagonal cell Unit scale is distance between neighboring cell centers. For cell radius To find the distance from the origin, , of point , convert axis: [ 69 ]
  • 67.
    The geometry ofa hexagonal cell [continue] – So, – Using this equation to locate co-channel cells, we start from a reference cell and move i hexagons along the u-axis and then j hexagons along the v-axis. – The distance between co-channel cells in adjacent clusters is – The number of cells in a cluster, N, is hence since i and j can only take integer values. – The frequency reuse factor , Q, is defined by [ 70 ]
  • 68.
    Frequency Reuse Factor Effective reuse of resources can highly enhance the system capacity  Frequency reuse factor (FRF) K defines frequency reuse pattern  With a smaller frequency reuse factor (FRF), more available bandwidth can be obtained by each cell
  • 69.
    Previous Frequency Reuse Schemes  With the usage of FRF-1, the most user terminals (UTs) are afflicted with heavy Inter-cell interference (ICI)  Especially near the cell edge  The conventional method to figure out this problem is by increasing the FRF  mitigate the ICI efficiently  but decrease on available bandwidth  The most representative approaches improving cell-edge performance while retaining spectrum efficiency  Soft Frequency Reuse (SFR) scheme  Incremental Frequency Reuse (IFR) scheme
  • 70.
    FREQUENCY REUSE SCHEME Soft Frequency Reuse (SFR) Scheme Incremental Frequency Reuse (IFR) Scheme Enhanced Fractional Frequency Reuse (EFFR)
  • 71.
    Soft frequency Reuse CCU: cell-centre users CEU: cell-edge users
  • 72.
    Soft Frequency Reuse(SFR) Scheme CCU: cell-centre users CEU: cell-edge users
  • 73.
    Limitations of SFR  How to define the borderline to divide cell area for CCUs and CEUs is a key issue  Generally, there are more CEUs than CCUs in a cell  since the outer surface area is much larger than the inner part  CEUs have maximum one third of the entire bandwidth to utilize, which results in lower spectrum efficiency  More ICI could happen even in a low traffic-load situation, while there are still subchannels in idle and underutilized in the system  The resource allocation via the SFR scheme starts always from the first subchannel up
  • 74.
    Incremental Frequency Reuse (IFR)Scheme (1)  The only difference between the IFR design and the classical reuse-1  Classical reuse-1: allocate resources always from the first subchannel  IFR: start dispensing resources from different points
  • 75.
    Incremental Frequency Reuse (IFR)Scheme (2)  IFR scheme can overcome the low spectrum reuse efficiency problem and the more ICI at low loading traffic problem  IFRscheme only performs better when just fewer traffic exists in a system  When the loading factor is greater than 0.3, it is inferior to the SFR scheme
  • 76.
    Enhanced Fractional Frequency Reuse(EFFR) (1) HYBRIDS  Enhanced Fractional Frequency Reuse (EFFR) scheme intends to retain the advantages of the both approaches  Concept  Define 3 cell types for directly contiguous cells in a cellular system  Reserves for each cell-type a part of the whole frequency band named Primary Segment  The Primary Segments among different type cells should be orthogonal  The Primary Segment of each cell will be further divided into  reuse-3 part: cannot be reused by directly neighboring cells  reuse-1 part: is at the same time a part of the Secondary Segments belonging to the other two cell-types
  • 77.
  • 78.
    Power Allocation andSINR Estimation  Transmission Power Allocation  Any cell-type is not allowed to use the reuse-3 subchannels dedicated to the other two cell types  The power allotted to the reuse-3 subchannels can be tripled  Signal-to-Interference-Ratio (SINR) Estimation  A cell acts on the Secondary Segment as a guest, and occupying secondary subchannels is actually reuse the primary subchannels belonging to the directly adjacent cells  Reuse on the Secondary Segment should conform to two rules:  monitor before use  resource reuse based on SINR estimation  Each cell listens on every secondary subchannel all the time  Before occupation, a cell makes SINR evaluation and chooses resources with best estimation values for reuse  If all available secondary resources are either occupied or not good enough to a link, this cell will give up scheduling resources
  • 79.
    Worst Case Interference  S/I ~ R-4 /[2(D-R)-4 + 2(D+R)-4 + 2D-4]
  • 82.
    Frequency Reuse @CDMA In CDMA reuse patterns are not required. Subscriber in every cell can use the same frequency at the same time. Subscriber is discriminated from another by the assignment of a unique code to every conversation. In GSM freq. Reuse pattern of 7 is used.
  • 83.
    Problems – Propagation path loss for signal power: quadratic or higher in distance – fixed network needed for the base stations – handover (changing from one cell to another) necessary – interference with other cells: • Co-channel interference: Transmission on same frequency • Adjacent channel interference: Transmission on close frequencies
  • 84.
    Solution: Topology ofDifferent Areas 20 20 20 40 20 100 60 60 60 20 100 100 20 60 100 100 Town 20 20 Suburb Highway 20 Rural
  • 85.
    Q UERRIES ?

Editor's Notes

  • #5 Central ideas of cellular systems Small coverage areas (cells) Frequency reuse Handoff (not all mobile calls can be completed within a single cell) Cell splitting to increase capacity Cell radius depends on the propagation conditions and the network design : • ranges from few meters for indoor or microcellular networks to 10s of kilometers of rural service areas A basestation/network provides service for users by coordinating access (time slots, frequency channels, or codes) to channels Bandwidth (channels) is (are) split amongst a group of cells – called cluster • Cluster is repeated to cover a wider geographical area
  • #32 In this the Cluster size is 7, N = I^2 +J^2+Ij I =2, J=1
  • #61 The reuse distance D is given by the formula in yellow highlight, where D: Distance between center of co-channel (same frequency) cells R: Cell radious K: Cluster size Co-channel interference causes • Voice Channels: Loss of quality • Control Channels: Dropped calls Reduce co-channel interference by increasing distance between co-channels • Q = co-channel reuse ratio = D/R • Small Q increases system capacity (N is small) • Small Q increases co-channel interference (less distance between cells)
