Rapid Prototyping becomes very popular for faster algorithm development. With a graphical representation of the algorithm and the possibility to simulate complete designs, engineers can help to reduce the time to market. A tight integration with MPLAB-X IDE allows the combination with standard C-coding to easily get mass production code. This solution was used to optimise a sensorless field oriented controlled PMSM motor driven pump efficiency. A model for closed loop simulation was developed using X2C blocks [1][2] for the FOC algorithm based on the existing application note AN1292 [3]. Enhancements to the original version were implemented and verified with simulation. The X2C Communicator was used to generate code of the new algorithm. With the online debugging capabilities and the scope functionality the algorithm was further tuned and optimized to achieve the highest possible efficiency of the pump.

1. 1www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.Copyright © ESI Group, 2019. All rights reserved.
www.esi-group.com
Faster Time to Market using Scilab/XCOS/X2C for motor
control algorithm development
Christoph Baumgartner, Microchip Technology Inc.
Scilab Conference 2019

2. 2www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

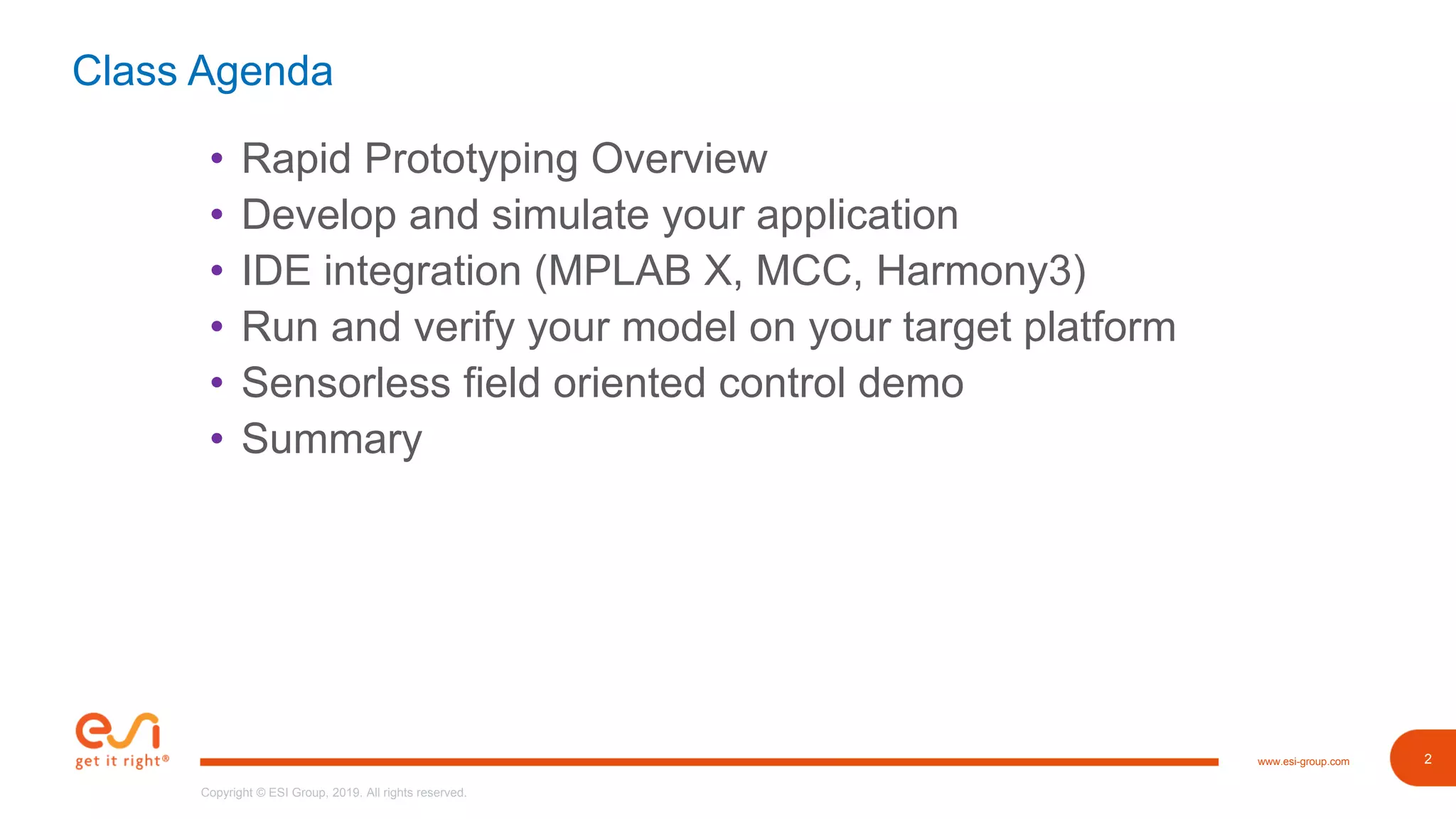

Class Agenda
• Rapid Prototyping Overview
• Develop and simulate your application
• IDE integration (MPLAB X, MCC, Harmony3)
• Run and verify your model on your target platform
• Sensorless field oriented control demo
• Summary

3. 3www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Rapid Prototyping
Commercial:
Matlab/Simulink +
Microchip Toolboxes
OPENSOURCE:
SCILAB/Xcos + X2C

4. 4www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

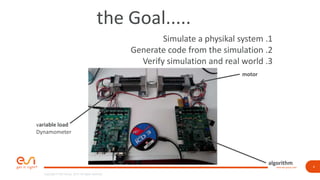

the Goal.....
Simulate a physikal system .1
Generate code from the simulation .2
Verify simulation and real world .3
variable load
Dynamometer
algorithm
motor

5. 5www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

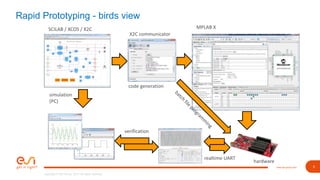

Rapid Prototyping - birds view
MPLAB XSCILAB / XCOS / X2C
X2C communicator
simulation
(PC)
realtime UART
verification
code generation
hardware

6. 6www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Installation MCHP_X2C_V6.xx.yy
Select which modules you want to install:
• X2C
• X2C Demos
• X2C MCC Library
• X2Cscope (C-project UART debugging)
• X2Cscope MCC library
• X2Cscope demo projects
• X2Cscope library projects
• X2C Harmony 2
• MHC2 X2C integration
• Harmony 2 X2C demos
• X2C Harmony 3
• MHC3 X2C integration
• Harmony 3 X2C demos
• Activate X2C in Scilab

7. 7www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Structure of X2C
Model INports
X2C housekeeping
X2C Blocks
Model OUTports

8. 8www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
X2C Libraries
OPENSOURCE

9. 9www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

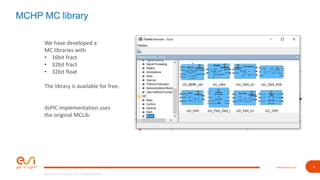

MCHP MC library
We have developed a
MC libraries with
• 16bit fract
• 32bit fract
• 32bit float
The library is available for free.
dsPIC implementation uses
the original MCLib.

10. 10www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

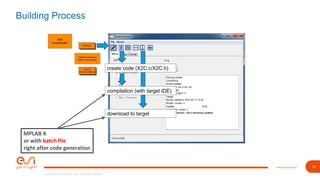

Building Process
MPLAB X
or with batch file
right after code generation

11. 11www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

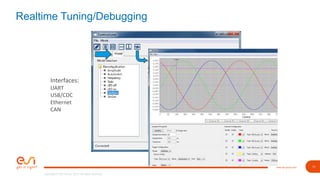

Realtime Tuning/Debugging
Interfaces:
UART
USB/CDC
Ethernet
CAN

12. 12www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

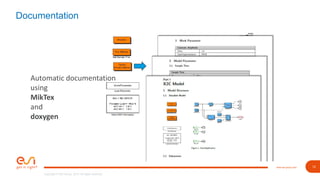

Documentation
Automatic documentation
using
MikTex
and
doxygen

13. 13www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
 Generated code is human readable
 Instant online parameter update to target
 Simulation with “target code” in XCOS
 Automated documentation generation
 Virtual oscilloscope
 Comprehensive libraries
 Multiple fixed and floating point implementations
 Inbuilt parameter conversion
 Parameter upload (from target), incl. model
 MISRA conformity of blocks (X2C library only)
 Multirate model support
 ANY 16 and 32 bit device from Microchip is supported
 Fully integrated into MPLAB Harmony3 and MCC
 UART, USB-CDC,TCPIP, CAN support
 dsPIC specific MClibrary
X2C Highligths

14. 14www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Miktex
Software packages
X2C
Library blocks
(from LCM)
Scilab
XCOS
X2C
Communicator
Model code
X2C.c
X2C.h
Framework project
Peripheral driver
MPLAB X
MCC
Harmony2/3
doxygen
PDF documentation

15. 15www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Workflow (existing project + compileandflash.bat)
1. Start MPLAB X + open project + MCC
2. Goto X2C MCC library [MPLAB X]
3. Open model [MPLAB X-X2C MCC lib]
4. Start the Communicator [XCOS]
5. Develop the model [XCOS]
6. Transform Model and push to
communicator [XCOS]
7. Generate C-code (automatically executes
the post process batch for compiling and
programming) [Communicator]
8. {Verify UART settings [Communicator]}
9. {Connect to hardware [Communicator]}
10. {Start Scope [Communicator]}
11. Modify block parameters [Communicator or
XCOS]
12. Restart at 5
4 6
1
2
3
7
9 10

16. 16www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

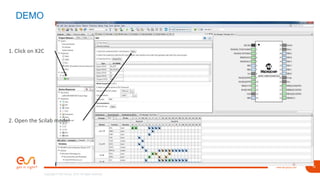

DEMO
1. Click on X2C
2. Open the Scilab model

17. 17www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

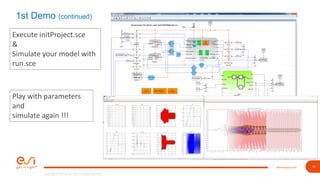

1st Demo (continued)
Execute initProject.sce
&
Simulate your model with
run.sce
Play with parameters
and
simulate again !!!

18. 18www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
1st Demo (continued)
1st start the
communicator
2nd transfer the
model to the
communicator

19. 19www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

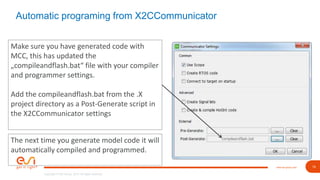

Automatic programing from X2CCommunicator
Make sure you have generated code with
MCC, this has updated the
„compileandflash.bat“ file with your compiler
and programmer settings.
Add the compileandflash.bat from the .X
project directory as a Post-Generate script in
the X2CCommunicator settings
The next time you generate model code it will
automatically compiled and programmed.

20. 20www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
1st Demo (continued)
Parameters can also be
modified by clicking onto a
model block. Even changing
with the mousewheele is
possible.

21. 21www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Code structure
main
init
communicate
mainTask()
Inports.x
handling
*Outports.y
handling
X2C_update();
interrupt:
execution rate:
X2C_sampletime
Model execution
Communication with
the scope.

22. 22www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
Class Summary
• Today we covered:
• Rapid Prototyping based on SCILAB/X2C
• Develop a model
• Simulate and generate code
• Verify the simulation results on the real
hardware
• POWERFULL INTEGRATION in
MICROCHIP IDE

23. 23www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.
don‘t forget:
WE spin motors!!!

24. 24www.esi-group.com
Copyright © ESI Group, 2019. All rights reserved.

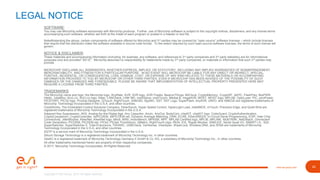

LEGAL NOTICE
