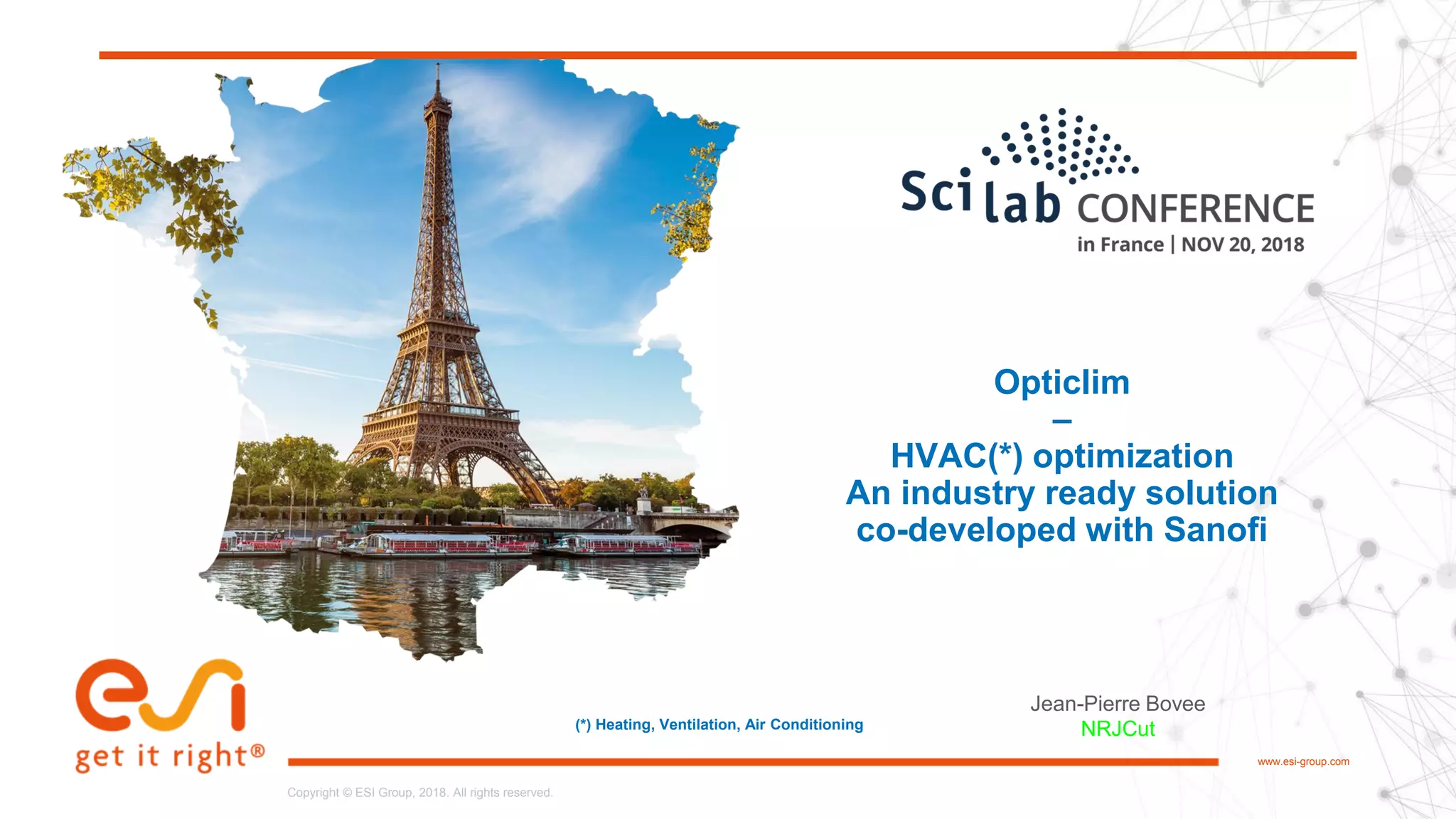

Opticlim
–
HVAC(*) optimization
An industry ready solution
co-developed with Sanofi
Jean-Pierre Bovee
NRJCut(*) Heating, Ventilation, Air Conditioning

2. 2www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution

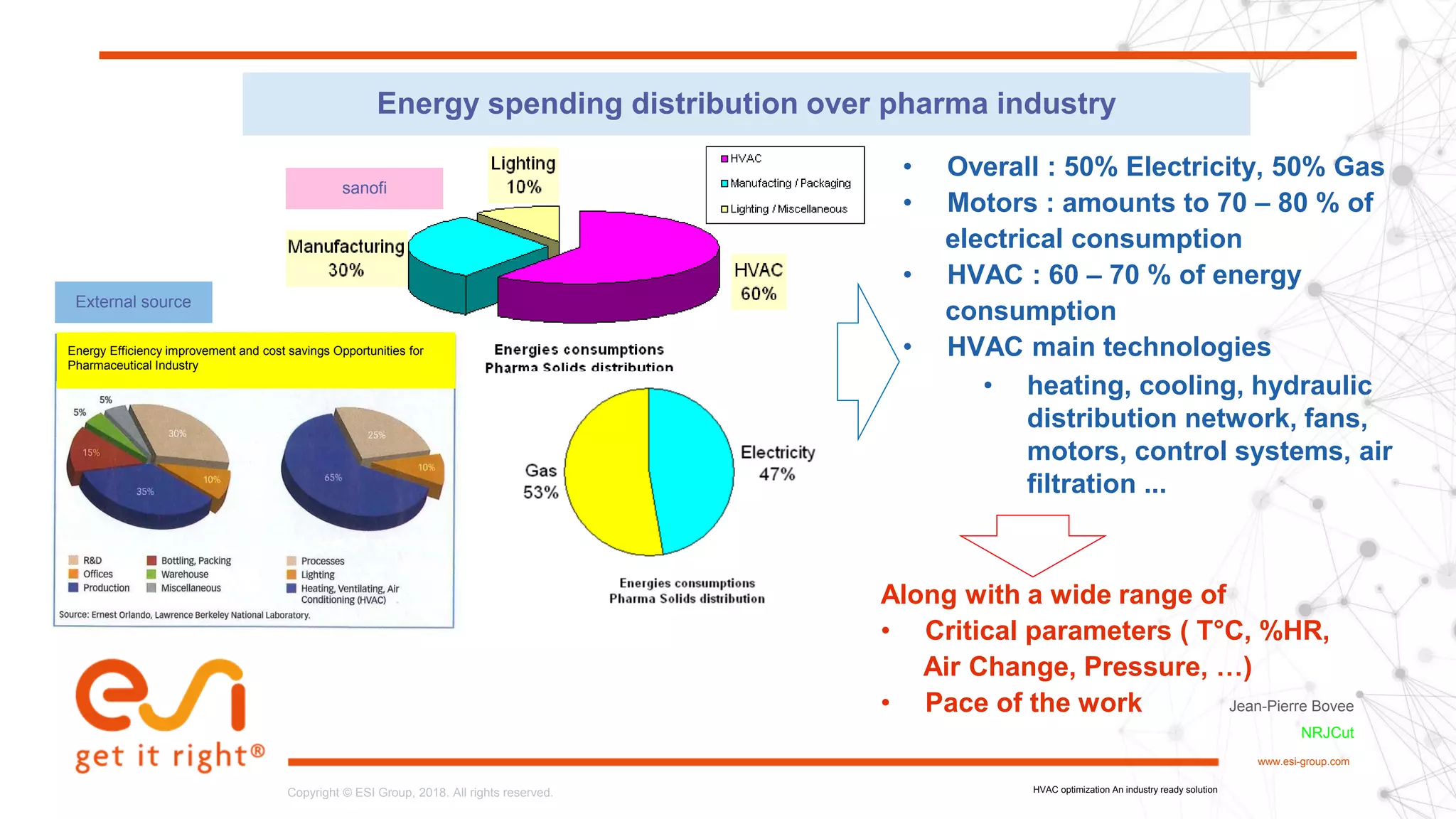

Energy spending distribution over pharma industry
sanofi
• Overall : 50% Electricity, 50% Gas
• Motors : amounts to 70 – 80 % of
electrical consumption
• HVAC : 60 – 70 % of energy
consumption
• HVAC main technologies
• heating, cooling, hydraulic
distribution network, fans,
motors, control systems, air
filtration ...
External source
Along with a wide range of
• Critical parameters ( T°C, %HR,
Air Change, Pressure, …)
• Pace of the work
Energy Efficiency improvement and cost savings Opportunities for
Pharmaceutical Industry

3. 3www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
Room design
:
Extracting fan
Extraction
Fresh Air
Recyclage
Mixing
Supply
Respectively Factors, Control actuators, Setpoints acting on
HVAC
Supply
Automatic control
- Temperature
- Relative Humidity
- Δ Pressure
- Air change rate
Size, tightness -
Insudlation…
Extraction
(*) Heating, Ventilation, Air Climatisation
Cooling Heating Humidification
3
AIR HANDLING UNIT (AHU)
Exactly, what is HVAC? (*) ?
As per regulation or process requirements: supplying an air flow meeting accurate
requirements on Temperature, Relative Humidity, Air change rate, air purity, ...

4. 4www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
OPTICLIM: How and why it happened
From findings to action
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
● A wide range of factors drive the consumption of an Air Handling Unit
● Their influence is very diverse
● They powerfully interact as a non-linear system (40 + equations)
● As of the beginning of this decade there was no tool helping figuring out
consumption = f(factors) and potential savings opportunities
● An energy manager was unable to decide how to build a strategy aimed at
cutting the energy bill
● ⇒ URGENT need for a tool

5. 5www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
OPTICLIM: How and why it happened
From findings to action
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
● 2011: first draft built with Excel for testing the concept
● 2012: A validation phase, operated on real Air Handling Units
● 2013: A first deployment across a bunch of sites (Sanofi was counting 120 + sites at that
time
○ quickly reaching the limit of such an Excel application (size > 200 Mo)
● 2014: decision to rebuild the application, this time based on Scilab ( Scilab dream team as
main developper)
● 2015: decision to transfer the application to the cloud (thanks again to the Scilab team
decisive support ). Application hosted by ESI.
● 2016: beginning of the worldwide deployment
● 2018: 52 connected sites (out of 73), 92 registred users.
● Decision to extend OPTICLIM utilisation outside Sanofi

6. 6www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
OPTICLIM: A FIRST ASSESSMENT
Dramatically cutting demand
⇒ a guarantee of 2 digits savings
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
● All sites found out that 2 digits savings are achievable
● A large majority of them started to modify their Air Handling Units
○ questioning, next changing setpoints whenever more favourable
■ Deadband on temperature and relative humidity
■ Air change rate
■ implementing at ECO mode out of working hours
I’m Bill
● Modifying AHU technology:
○ enhancing temperature and relative humidity control modes
○ improving fluid networks efficiency
○ increasing motors, fans, gearing efficiency
○ as a result cutting investments for new chillers, transformers, boilers, ...
Zero
investment cost
Stepwise
investment costs
with short
paybackt

7. 7www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
OPTICLIM IN REAL
and now, let’s head towards the
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
Cloud

8. 8www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
Potential energy savings with OPTICLIM
The example of pharma industry
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution

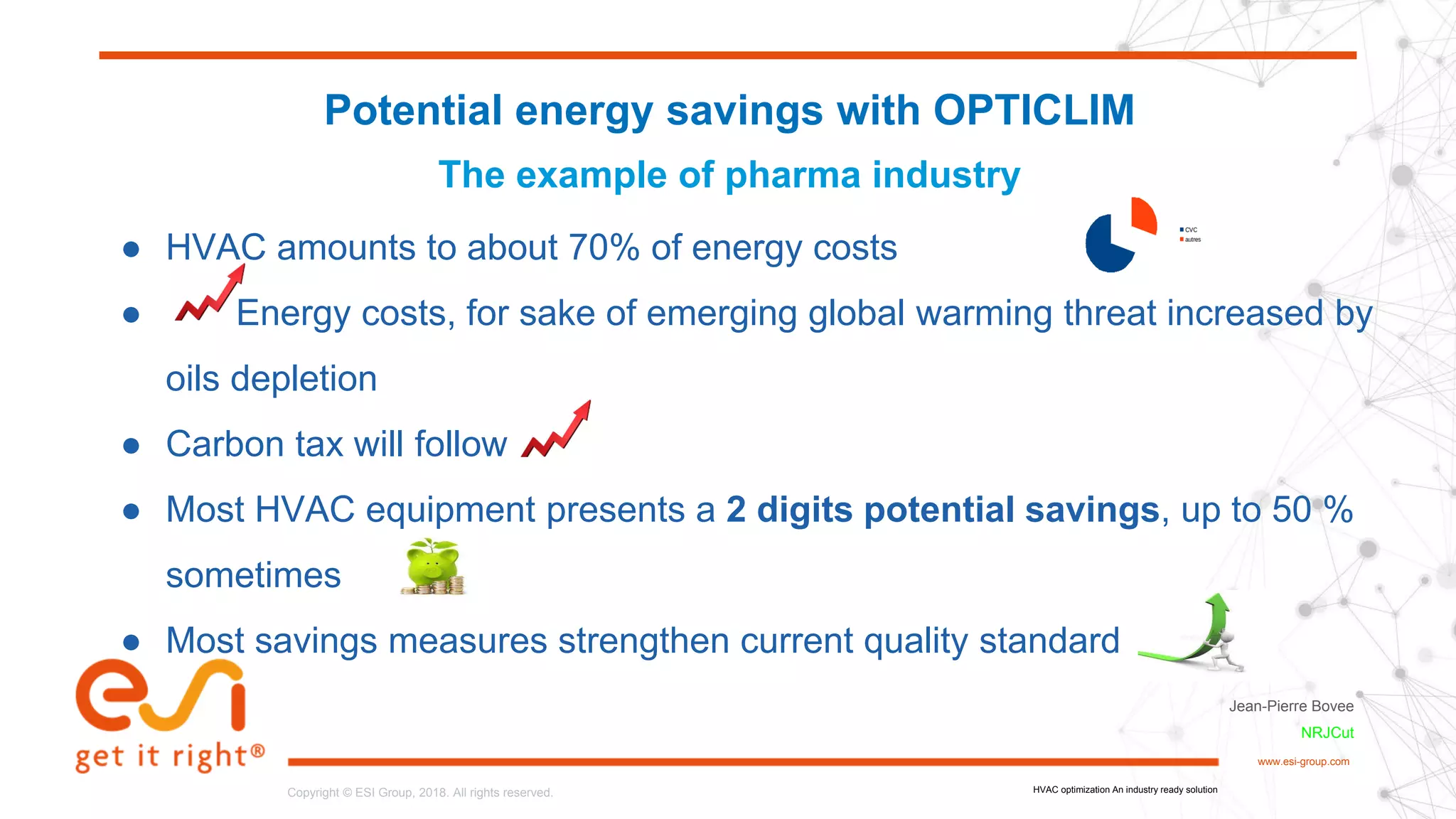

● HVAC amounts to about 70% of energy costs
● Energy costs, for sake of emerging global warming threat increased by
oils depletion
● Carbon tax will follow
● Most HVAC equipment presents a 2 digits potential savings, up to 50 %
sometimes
● Most savings measures strengthen current quality standard

9. 9www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
OPTICLIM: Long term perspective
A brilliant future ?
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
Air
conditioning
installations
increases…
As global
warming
speeds up...
OPTICLIM
one of the most efficient
tools to break this vicious
circle.

10. 10www.esi-group.com
Copyright © ESI Group, 2018. All rights reserved.Copyright © ESI Group, 2018. All rights reserved.
www.esi-group.com
THANK YOU !!!
Jean-Pierre Bovee
NRJCut
HVAC optimization An industry ready solution
