This document discusses logical design of data warehouse fact tables. It covers defining fact table column types including measures, foreign keys and surrogate keys. It describes additive, semi-additive and non-additive measures and how they impact aggregation. Finally, it discusses resolving many-to-many relationships in a star schema by creating an intermediate dimension table.

1. SOFTWARE/WEB/MOBILE/DATABASE ARCHITECT, ENGINEER, AND DEVELOPER
TORONTO, CANADA
HTTP://SAYED.JUSTETC.NET
HTTP://WWW.JUSTETC.NET
Sayed Ahmed
Data Warehouse Fact Table Design
Logical Design of a Data Warehouse

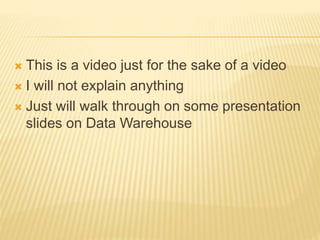

2.  This is a video just for the sake of a video
 I will not explain anything
 Just will walk through on some presentation
slides on Data Warehouse

3. OUR SERVICES
 Free Training and Educational Services
 Training and Education in Bangla:
 Bangla.SaLearningSchool.com
 Training and Education in English:
 www.SaLearningSchool.com
 English.SaLearningSchool.com
 http://sitestree.com
 Ask a question and get answers:
 Ask.JustEtc.net

4. FACT TABLE DESIGN
 Fact Table Design Topics
 Define fact table column types
 Understand the additivity of a measure
 i.e. for measure column type
 Handle many-to-many relationships in a Star
schema

5. FACT TABLE COLUMN TYPES
 Fact Table Column Types
 Foreign keys
 Measures
 Lineage columns (optional)
 Business key columns
 from the primary source table (optional)
 Surrogate keys

6. FACT TABLE COLUMNS - MEASURE
 Measure Column Type
 Measure columns help with measurements
 useful for a specific business process
 Measures columns are usually numeric
 And can be aggregated
 Measure columns store values that are of
interest to businesses such as
 sales amount, order quantity, and discount amount

7. MEASURES
 Fact tables - Measures
 Collection of measurements on a specific
aspects of business
 Measure columns
 sales amount, order quantity, and discount
amount.

8. FACT TABLE COLUMNS – FOREIGN KEY
 Foreign Key – Column Type
 These are the columns as coming from
Dimension Tables
 Are the primary keys of Dimension Tables

9. FACT TABLE COLUMNS – SURROGATE KEYS
 Surrogate Key
 Usually will comes from the primary dimension
table (primary for the current fact table)
 Usually one or two columns in a fact table are
surrogate keys


10. SURROGATE KEYS FOR FACT TABLES
OrderId and LineItemId are the
surrogate keys as coming from the
primary Source Order details table
OrderId and LineItemId columns will help
For quick comparisons with source data
Surrogate keys are not a must in fact tables;
however, they help
Must read:
http://www.kimballgroup.com/2006/07/d
esign-tip-81-fact-table-surrogate-key/

11. LINEAGE COLUMNS IN FACT TABLES
 Lineage columns
 Just as with dimension tables, these are strictly
for auditing purposes
 References:
 https://upsearch.com/implementing-a-data-
warehouse-fact-tables/

12. ADDITIVITY OF MEASURES
 The primary purpose of Data warehouse is reporting,
and forecasting
 Many times reports are aggregations such as sum
 Example: sales by quarter, by region, by product type
 Many reports are usually aggregations
 Hence, fact tables will have some columns to assist
with that measures and aggregations for reporting
 These are the measures columns as we discussed
before
 The measures that you add will help in how you want
to do the measures and reporting

13. TYPES OF ADDITIVITY OF MEASURES
 Types of Additivity of Measures
 additive measures
 Semi-additive measures
 non-additive measures


14. ADDITIVE, SEMI-ADDITIVE MEASURES
 Additive
 If a measure can be summed across all dimensions
 Semi-additive
 Sometimes, we can sum a measure across all
dimensions except for time
 such as account balance
 We can’t sum the account balance across the time
dimension
 We would need to do something like take the average
instead
 or simply use the last value
 Measures like this are called semi-additive measures

15. NON-ADDITIVE MEASURES
 Some measures can’t ever be summed
 These are called non-additive measures
 Such as discount percentages and prices
 These are the non-additive measures

16. ADDITIVITY OF MEASURES IN SSAS
 SSAS has support for semi-additive and non-
additive measures
 The SSAS database model
 Business Intelligence Semantic Model (BISM).
 BISM includes way more additional metadata
than RDBMS
 SSAS has two types of storage
 dimensional and
 tabular

17. SSAS AND ADDITIVITY OF MEASURES
 Tabular storage works through tables like a
data warehouse does
 quicker to develop
 The dimensional model
 more properly represents a cube
 The dimensional model includes
 even more metadata than the tabular model

18. SSAS AND ADDITIVITY OF MEASURES
 In BISM dimensional processing
 SSAS offers semi-additive aggregate functions
out of the box
 For example,
 SSAS offers the LastNonEmpty aggregate
function
 which properly uses the SUM aggregate function
across all dimensions but time
 and defines the last known value as the aggregate
over time

19. SSAS AND ADDITIVITY OF MEASURES
 In the BISM tabular model
 you use the Data Analysis Expression (DAX)
language
 The DAX language includes functions that let
you build semi-additive expressions quite quickly
as well

20. MANY TO MANY RELATIONSHIPS IN DATA WAREHOUSE
 RDBMS Many to Many Relationship

21. MANY TO MANY IN RDBMS AND DW
 RDBMS Model as above image is ok, Because
 Every internet sales will have multiple reasons
 Every reasons will have multiple internet sales
 However, data warehouse has issues with such
modeling
 because when using tools to build reporting the fact
table is expected to be on the many side
 In the above picture, fact table is on the one side
 In SSAS reporting, many times, we use tools that
build MDX queries that expect the schema to be
perfectly in star or snow-flake schema

22. HOW CAN WE RESOLVE ...
 In SSAS with a BISM dimensional model
 you can solve the problem by creating an
intermediate dimension between both fact tables
 Picture as below

23. MANY TO MANY RELATIONSHIP

24. DW MANY TO MANY
 You create it from the primary key of
theFactInternetSales table
 DimFactInternetSales.
 put it on the “one” side of the relationships with both fact
tables
 Now, both fact tables are always on the “many”
side of any relationship
 However, the relationship between
theFactInternetSales and the
new DimFactInternetSales dimension
 is de facto one to one

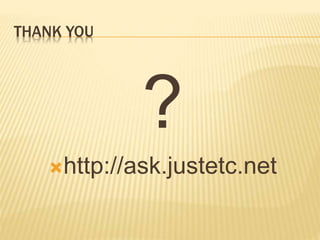

25. THANK YOU
?
