The document details advanced dimensional modeling techniques discussed during the SQLBits conference, focusing on aspects such as dimensions, fact tables, slowly changing dimensions (SCD), and the behaviors of these structures. It covers best practices on when to snowflake dimensions, the complexities of transaction level dimensions, and strategies for managing rapidly changing and multi-valued attributes. The discussion is illustrated with examples and highlights both design considerations and performance implications for data warehousing.

1. Advanced Dimensional ModellingSQLBits 8, 9th April 2011, BrightonVincent Rainardivrainardi@gmail.comBlog: dwbi1.wordpress.com

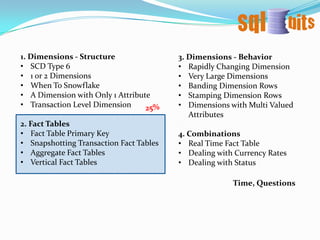

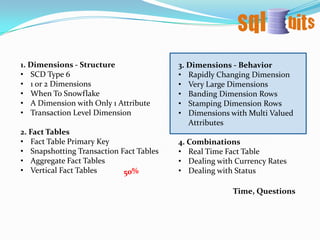

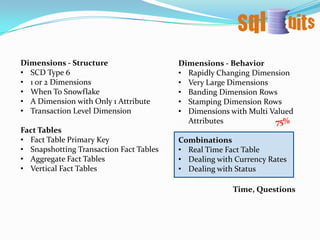

2. Advanced Dimensional Modelling1. Dimensions - StructureSCD Type 6

3. 1 or 2 Dimensions

4. When To Snowflake

5. A Dimension with Only 1 Attribute

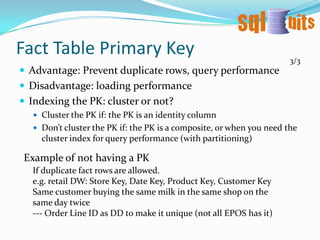

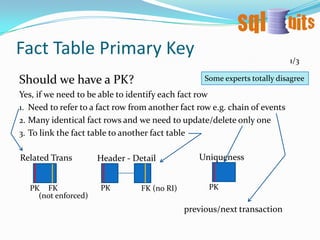

6. Transaction Level Dimension2. Fact TablesFact Table Primary Key

7. Snapshotting Transaction Fact Tables

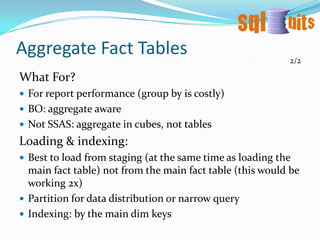

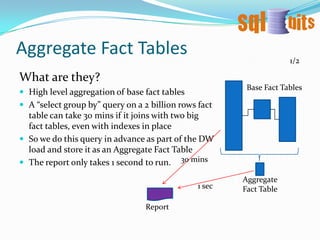

8. Aggregate Fact Tables

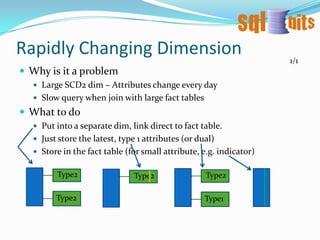

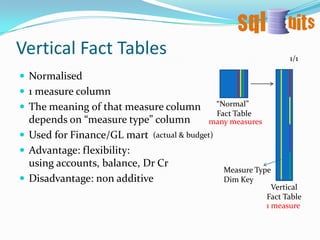

9. Vertical Fact Tables3. Dimensions - BehaviorRapidly Changing Dimension

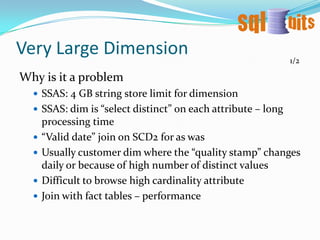

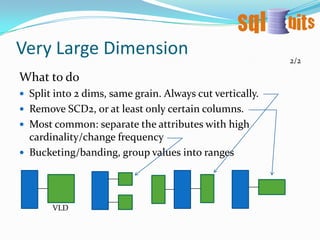

10. Very Large Dimensions

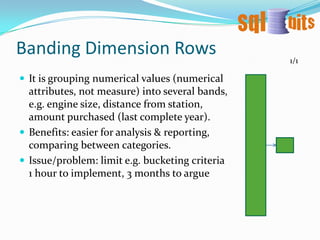

11. Banding Dimension Rows

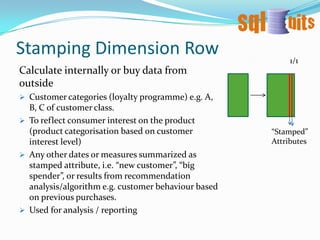

12. Stamping Dimension Rows

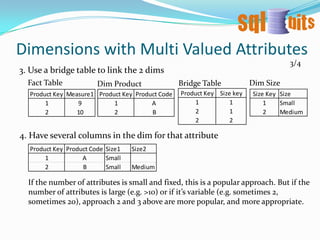

13. Dimensions with Multi Valued Attributes4. CombinationsReal Time Fact Table

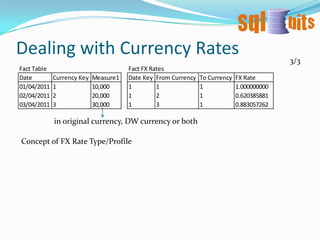

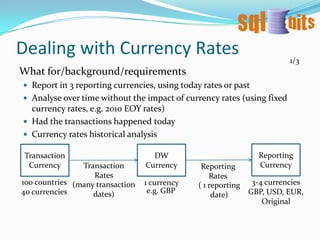

14. Dealing with Currency Rates

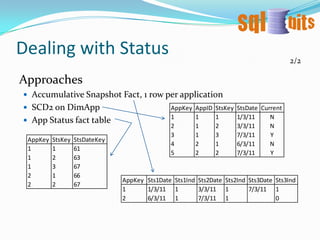

15. Dealing with Status

16. 4 sections: 2 dims, 1 fact, 1 combi. Lots of material, may not able to finish.

17. 44 slides, some slides we may have to touch lightly.

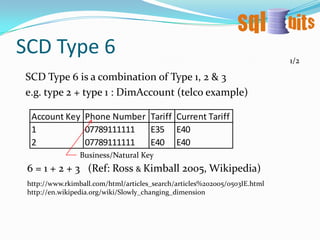

18. Questions between sections, available after.SCD Type 61/2SCD Type 6 is a combination of Type 1, 2 & 3e.g. type 2 + type 1 : DimAccount (telco example)Business/Natural Key6 = 1 + 2 + 3 (Ref: Ross & Kimball 2005, Wikipedia)http://www.rkimball.com/html/articles_search/articles%202005/0503IE.htmlhttp://en.wikipedia.org/wiki/Slowly_changing_dimension

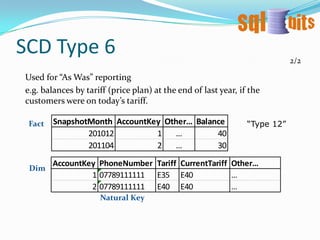

19. SCD Type 62/2Used for “As Was” reportinge.g. balances by tariff (price plan) at the end of last year,if the customers were on today’s tariff.Fact“Type 12”DimNatural Key

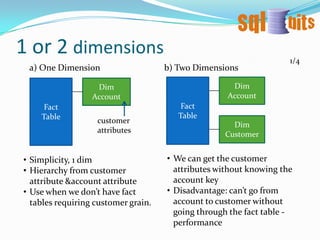

20. 1 or 2 dimensions1/4a) One Dimensionb) Two DimensionsFactTableDimAccountFactTableDimAccountcustomerattributes DimCustomerWe can get the customer attributes without knowing the account key

21. Disadvantage: can’t go from account to customer without going through the fact table - performance

22. Simplicity, 1 dim

23. Hierarchy from customer attribute &account attribute

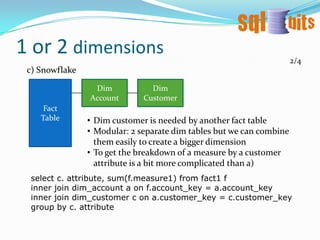

24. Use when we don’t have fact tables requiring customer grain.1 or 2 dimensions2/4c) SnowflakeFactTableDimCustomerDimAccountDim customer is needed by another fact table

25. Modular: 2 separate dim tables but we can combine them easily to create a bigger dimension

26. To get the breakdown of a measure by a customer attribute is a bit more complicated than a)select c. attribute, sum(f.measure1) from fact1 finner join dim_account a on f.account_key = a.account_keyinner join dim_customer c on a.customer_key = c.customer_keygroup by c. attribute

27. 1 or 2 dimensions3/4d) Two Dimensions with inter-dimension linkTry to fix weakness on b and c:We can “go” direct from account dim to customer dim

28. We can access dim customer directly from the fact table.FactTableDimAccountDimCustomerWeakness: maintain customer key in 2 places: fact table and dim account.a.k.a. “Star with a Back Door”

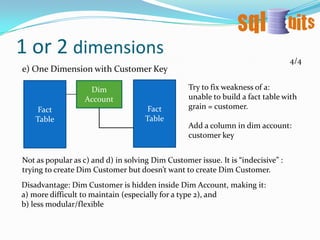

29. 1 or 2 dimensions4/4e) One Dimension with Customer KeyFactTableFactTableTry to fix weakness of a: unable to build a fact table with grain = customer.Add a column in dim account: customer keyDimAccountNot as popular as c) and d) in solving Dim Customer issue. It is “indecisive” :trying to create Dim Customer but doesn’t want to create Dim Customer. Disadvantage: Dim Customer is hidden inside Dim Account, making it:a) more difficult to maintain (especially for a type 2), and b) less modular/flexible

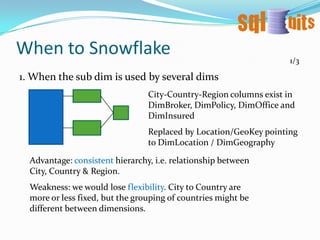

30. When to Snowflake1/31. When the sub dim is used by several dimsCity-Country-Region columns exist in DimBroker, DimPolicy, DimOffice and DimInsuredReplaced by Location/GeoKey pointing to DimLocation / DimGeographyAdvantage: consistent hierarchy, i.e. relationship between City, Country & Region.Weakness: we would lose flexibility. City to Country are more or less fixed, but the grouping of countries might be different between dimensions.

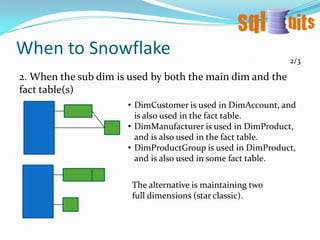

31. When to Snowflake2/32. When the sub dim is used by both the main dim and the fact table(s)DimCustomer is used in DimAccount, and is also used in the fact table.

32. DimManufacturer is used in DimProduct, and is also used in the fact table.

33. DimProductGroup is used in DimProduct, and is also used in some fact table.The alternative is maintaining two full dimensions (star classic).

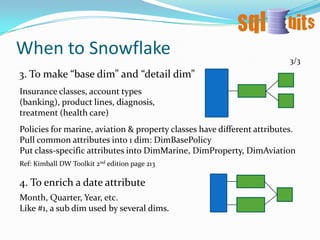

34. When to Snowflake3/33. To make “base dim” and “detail dim”Insurance classes, account types (banking), product lines, diagnosis, treatment (health care)Policies for marine, aviation & property classes have different attributes. Pull common attributes into 1 dim: DimBasePolicyPut class-specific attributes into DimMarine, DimProperty, DimAviationRef: Kimball DW Toolkit 2nd edition page 2134. To enrich a date attributeMonth, Quarter, Year, etc.Like #1, a sub dim used by several dims.

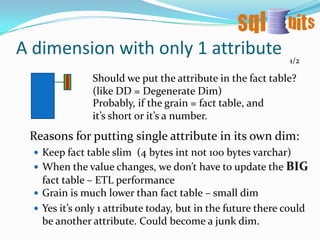

35. A dimension with only 1 attribute1/2Should we put the attribute in the fact table? (like DD = Degenerate Dim)Probably, if the grain = fact table,and it’s short or it’s a number.Reasons for putting single attribute in its own dim:Keep fact table slim (4 bytes int not 100 bytes varchar)When the value changes, we don’t have to update the BIGfact table – ETL performanceGrain is much lower than fact table – small dimYes it’s only 1 attribute today, but in the future there could be another attribute. Could become a junk dim.

36. A dimension with only 1 attribute2/2Exception: snapshot month (or day/week/quarter)Snapshot month is used in periodic snapshot fact table. Snapshot month is in the form of an integer (201104 for April 2011). Doesn’t violate the 3 points above.It is an integer, not char(6).The value never changes, April 2011 will be April 2011 foreverThere will not be other attributes in the dim

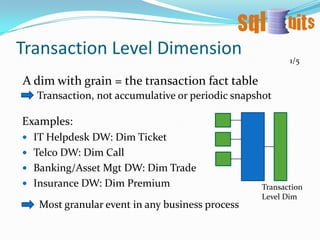

37. Transaction Level Dimension1/5A dim with grain = the transaction fact tableTransaction, not accumulative or periodic snapshotExamples:IT Helpdesk DW: Dim TicketTelco DW: Dim CallBanking/Asset MgtDW: Dim TradeInsurance DW: Dim PremiumTransactionLevel DimMost granular event in any business process

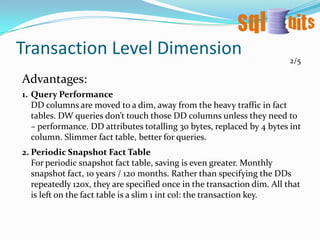

38. Transaction Level Dimension2/5Advantages:Query PerformanceDD columns are moved to a dim, away from the heavy traffic in fact tables. DW queries don’t touch those DD columns unless they need to– performance. DD attributes totalling 30 bytes, replaced by 4 bytes int column. Slimmer fact table, better for queries.Periodic Snapshot Fact TableFor periodic snapshot fact table, saving is even greater. Monthly snapshot fact, 10 years / 120 months. Rather than specifying the DDs repeatedly 120x, they are specified once in the transaction dim. All that is left on the fact table is a slim 1 intcol: the transaction key.

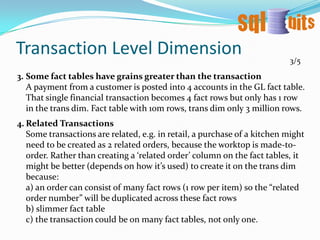

39. Transaction Level Dimension3/5Some fact tables have grains greater than the transactionA payment from a customer is posted into 4 accounts in the GL fact table. That single financial transaction becomes 4 fact rows but only has 1 row in the trans dim. Fact table with 10m rows, trans dim only 3 million rows.Related TransactionsSome transactions are related, e.g. in retail, a purchase of a kitchen might need to be created as 2 related orders, because the worktop is made-to-order. Rather than creating a ‘related order’ column on the fact tables, it might be better (depends on how it’s used) to create it on the trans dim because: a) an order can consist of many fact rows (1 row per item) so the “related order number” will be duplicated across these fact rowsb) slimmer fact tablec) the transaction could be on many fact tables, not only one.

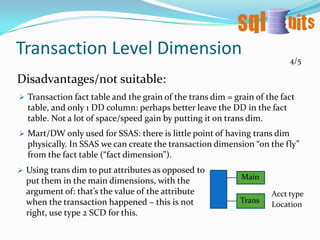

40. Transaction Level Dimension4/5Disadvantages/not suitable:Transaction fact table and the grain of the trans dim = grain of the fact table, and only 1 DD column: perhaps better leave the DD in the fact table. Not a lot of space/speed gain by putting it on trans dim.

41. Mart/DW only used for SSAS: there is little point of having trans dim physically. In SSAS we can create the transaction dimension “on the fly” from the fact table (“fact dimension”).

42. Using trans dim to put attributes as opposed to put them in the main dimensions, with the argument of: that’s the value of the attribute when the transaction happened – this is not right, use type 2 SCD for this.MainAcct typeTransLocation

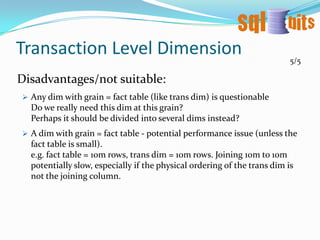

43. Transaction Level Dimension5/5Disadvantages/not suitable:Any dim with grain = fact table (like trans dim) is questionableDo we really need this dim at this grain? Perhaps it should be divided into several dims instead?

44. A dim with grain = fact table - potential performance issue (unless the fact table is small). e.g. fact table = 10m rows, trans dim = 10m rows. Joining 10m to 10m potentially slow, especially if the physical ordering of the trans dim is not the joining column.1. Dimensions - StructureSCD Type 6
