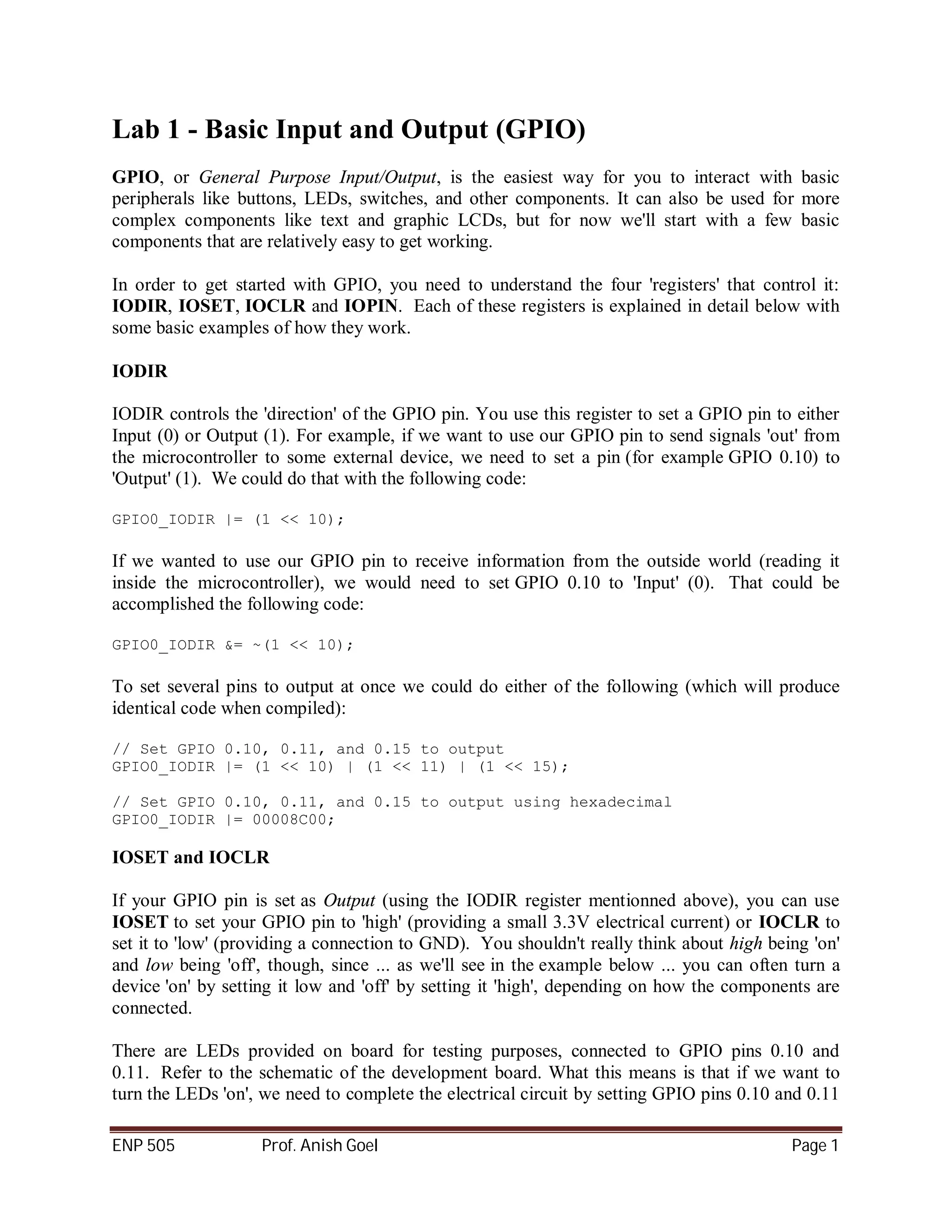

1. Lab 1 - Basic Input and Output (GPIO)
GPIO, or General Purpose Input/Output, is the easiest way for you to interact with basic
peripherals like buttons, LEDs, switches, and other components. It can also be used for more
complex components like text and graphic LCDs, but for now we'll start with a few basic
components that are relatively easy to get working.
In order to get started with GPIO, you need to understand the four 'registers' that control it:
IODIR, IOSET, IOCLR and IOPIN. Each of these registers is explained in detail below with
some basic examples of how they work.
IODIR
IODIR controls the 'direction' of the GPIO pin. You use this register to set a GPIO pin to either
Input (0) or Output (1). For example, if we want to use our GPIO pin to send signals 'out' from
the microcontroller to some external device, we need to set a pin (for example GPIO 0.10) to
'Output' (1). We could do that with the following code:
GPIO0_IODIR |= (1 << 10);
If we wanted to use our GPIO pin to receive information from the outside world (reading it
inside the microcontroller), we would need to set GPIO 0.10 to 'Input' (0). That could be
accomplished the following code:
GPIO0_IODIR &= ~(1 << 10);
To set several pins to output at once we could do either of the following (which will produce
identical code when compiled):
// Set GPIO 0.10, 0.11, and 0.15 to output
GPIO0_IODIR |= (1 << 10) | (1 << 11) | (1 << 15);
// Set GPIO 0.10, 0.11, and 0.15 to output using hexadecimal
GPIO0_IODIR |= 00008C00;
IOSET and IOCLR
If your GPIO pin is set as Output (using the IODIR register mentionned above), you can use
IOSET to set your GPIO pin to 'high' (providing a small 3.3V electrical current) or IOCLR to
set it to 'low' (providing a connection to GND). You shouldn't really think about high being 'on'
and low being 'off', though, since ... as we'll see in the example below ... you can often turn a
device 'on' by setting it low and 'off' by setting it 'high', depending on how the components are
connected.
There are LEDs provided on board for testing purposes, connected to GPIO pins 0.10 and
0.11. Refer to the schematic of the development board. What this means is that if we want to
turn the LEDs 'on', we need to complete the electrical circuit by setting GPIO pins 0.10 and 0.11
ENP 505 Prof. Anish Goel Page 1

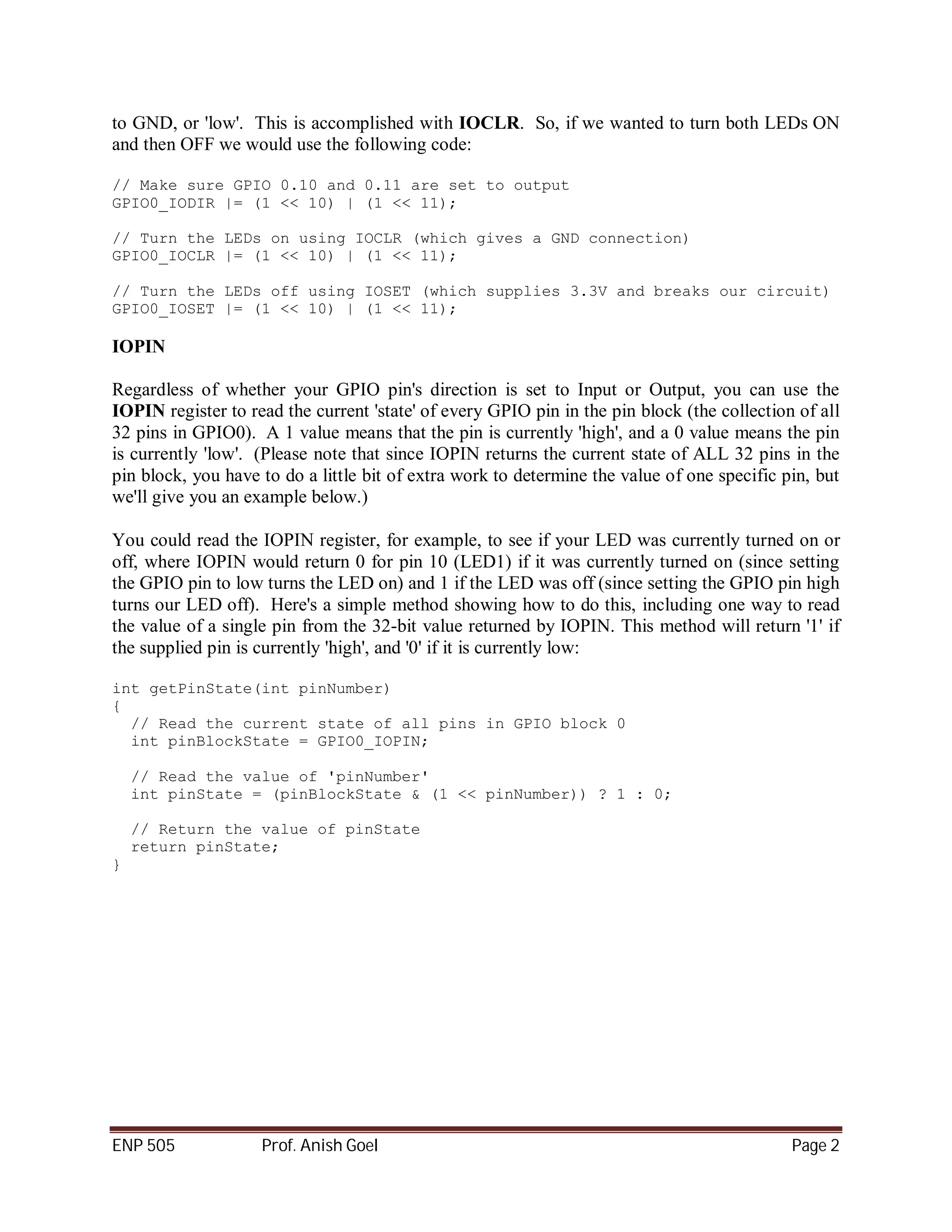

2. to GND, or 'low'. This is accomplished with IOCLR. So, if we wanted to turn both LEDs ON
and then OFF we would use the following code:
// Make sure GPIO 0.10 and 0.11 are set to output
GPIO0_IODIR |= (1 << 10) | (1 << 11);
// Turn the LEDs on using IOCLR (which gives a GND connection)
GPIO0_IOCLR |= (1 << 10) | (1 << 11);
// Turn the LEDs off using IOSET (which supplies 3.3V and breaks our circuit)
GPIO0_IOSET |= (1 << 10) | (1 << 11);
IOPIN
Regardless of whether your GPIO pin's direction is set to Input or Output, you can use the
IOPIN register to read the current 'state' of every GPIO pin in the pin block (the collection of all
32 pins in GPIO0). A 1 value means that the pin is currently 'high', and a 0 value means the pin
is currently 'low'. (Please note that since IOPIN returns the current state of ALL 32 pins in the
pin block, you have to do a little bit of extra work to determine the value of one specific pin, but
we'll give you an example below.)
You could read the IOPIN register, for example, to see if your LED was currently turned on or
off, where IOPIN would return 0 for pin 10 (LED1) if it was currently turned on (since setting
the GPIO pin to low turns the LED on) and 1 if the LED was off (since setting the GPIO pin high
turns our LED off). Here's a simple method showing how to do this, including one way to read
the value of a single pin from the 32-bit value returned by IOPIN. This method will return '1' if
the supplied pin is currently 'high', and '0' if it is currently low:
int getPinState(int pinNumber)
{
// Read the current state of all pins in GPIO block 0
int pinBlockState = GPIO0_IOPIN;
// Read the value of 'pinNumber'
int pinState = (pinBlockState & (1 << pinNumber)) ? 1 : 0;
// Return the value of pinState
return pinState;
}
ENP 505 Prof. Anish Goel Page 2

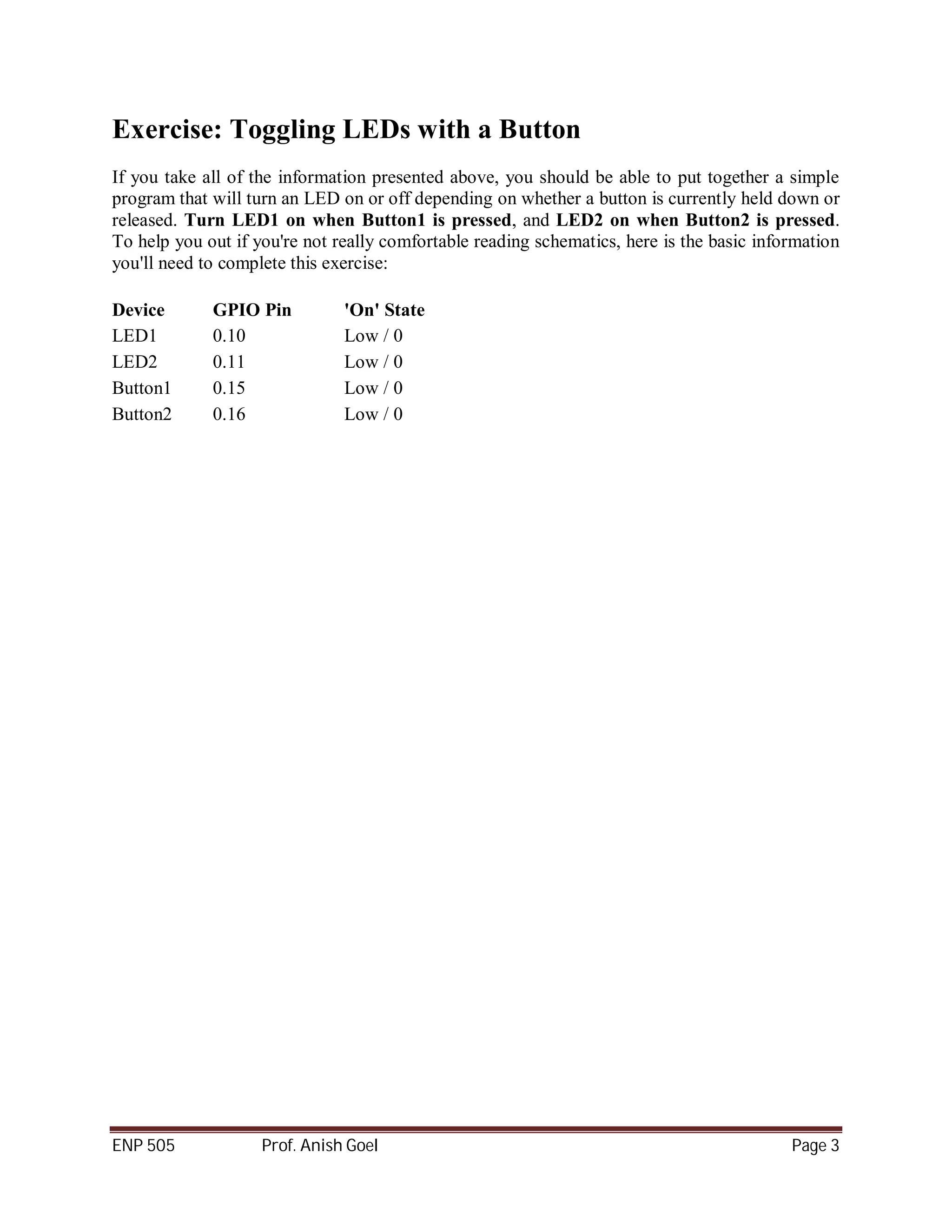

3. Exercise: Toggling LEDs with a Button
If you take all of the information presented above, you should be able to put together a simple
program that will turn an LED on or off depending on whether a button is currently held down or
released. Turn LED1 on when Button1 is pressed, and LED2 on when Button2 is pressed.
To help you out if you're not really comfortable reading schematics, here is the basic information
you'll need to complete this exercise:
Device GPIO Pin 'On' State
LED1 0.10 Low / 0
LED2 0.11 Low / 0
Button1 0.15 Low / 0
Button2 0.16 Low / 0
ENP 505 Prof. Anish Goel Page 3
