Enterprise Architecture
An Introduction from the Real World
Daljit Roy Banger MSc FBCS24th April 2017
Hosted By
Deloitte
• Introduction / Context
• A Quick Introduction
• Products of Enterprise Architecture
▪ The Role / Responsibilities
• Q&A
Agenda
Open Groups
TOGAF Framework
Zachman Framework™
MODAF
Federal Enterprise Architecture
Framework (FEAF)
Public Architectural Frameworks
ETOM (Enhanced
Telecom Operations
Map
Numerous Frameworks exist which
provide views, approaches and
general support to help deliver /
manage an Enterprise Architecture
Capability
▪ Enterprise Architecture supports how one builds a reusable
Unified Information Systems/Management Capability that
supports and meets Organisational needs.
▪ The EA Goal is to Align and Manage the Technology
landscape of an Organisation with its Strategic /
Operational Goals/Objectives for both today and tomorrow.

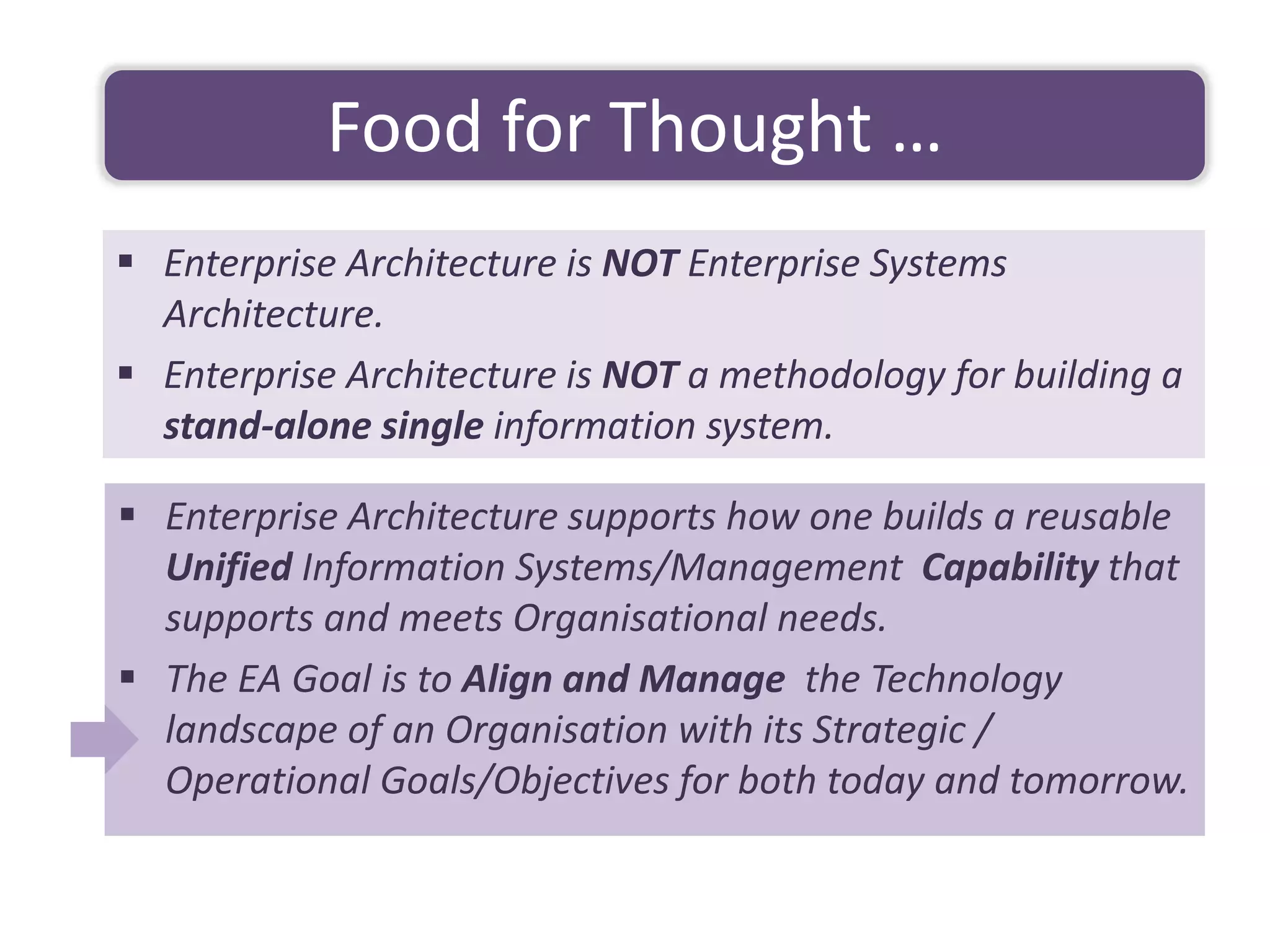

Food for Thought …
▪ Enterprise Architecture is NOT Enterprise Systems
Architecture.
▪ Enterprise Architecture is NOT a methodology for building a
stand-alone single information system.
A Quick Introduction

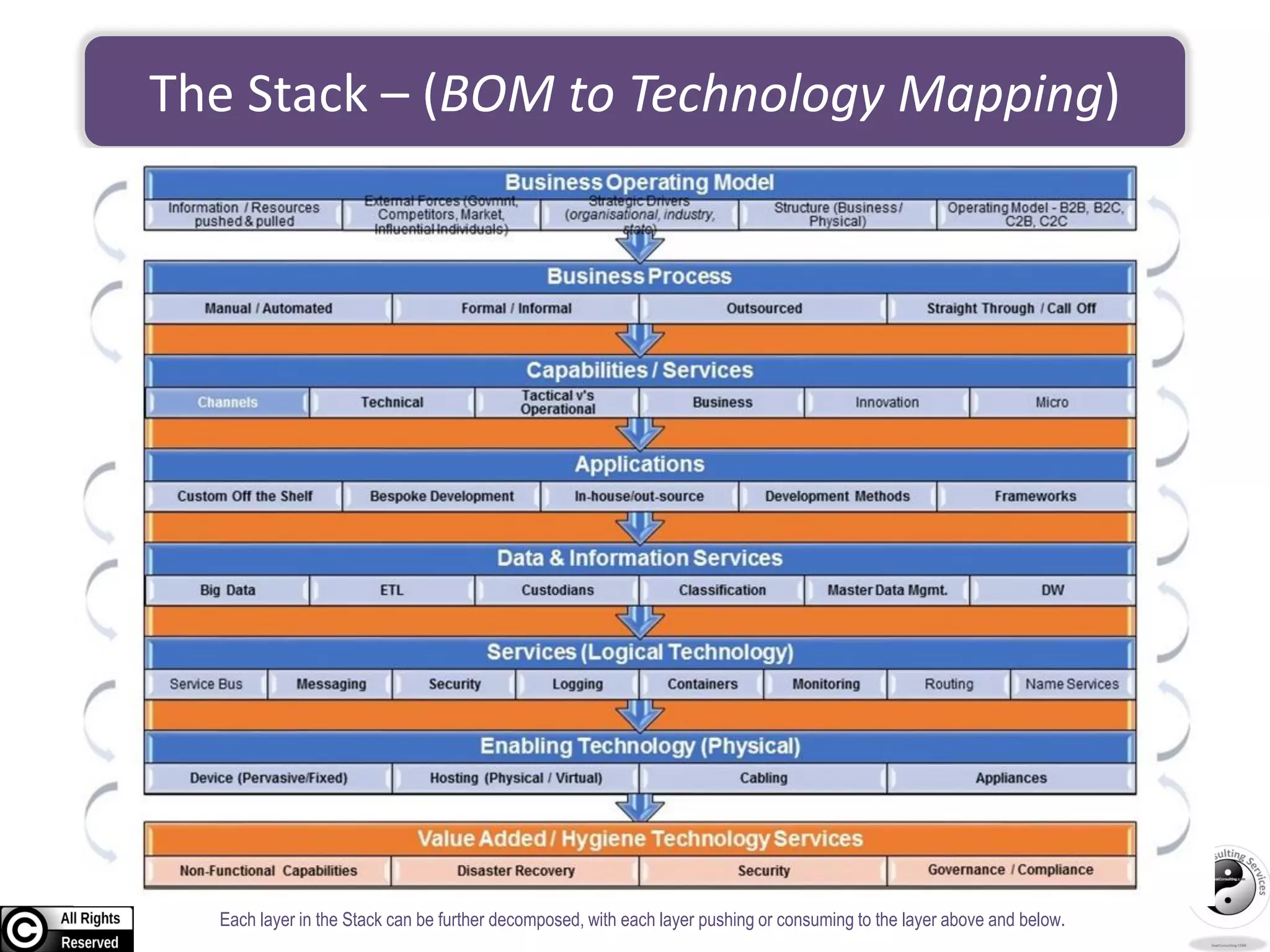

The Stack – (BOM to Technology Mapping)
Each layer in the Stack can be further decomposed, with each layer pushing or consuming to the layer above and below.
The Stack (Methods/Questions)
Each layer of the Stack is a complex view in its own right of a specific
element of how the layer above and below maps and interacts to support
the Business Operating Model
What are the tools available to us to analyse, visualise and render to
stakeholders the alignment ?

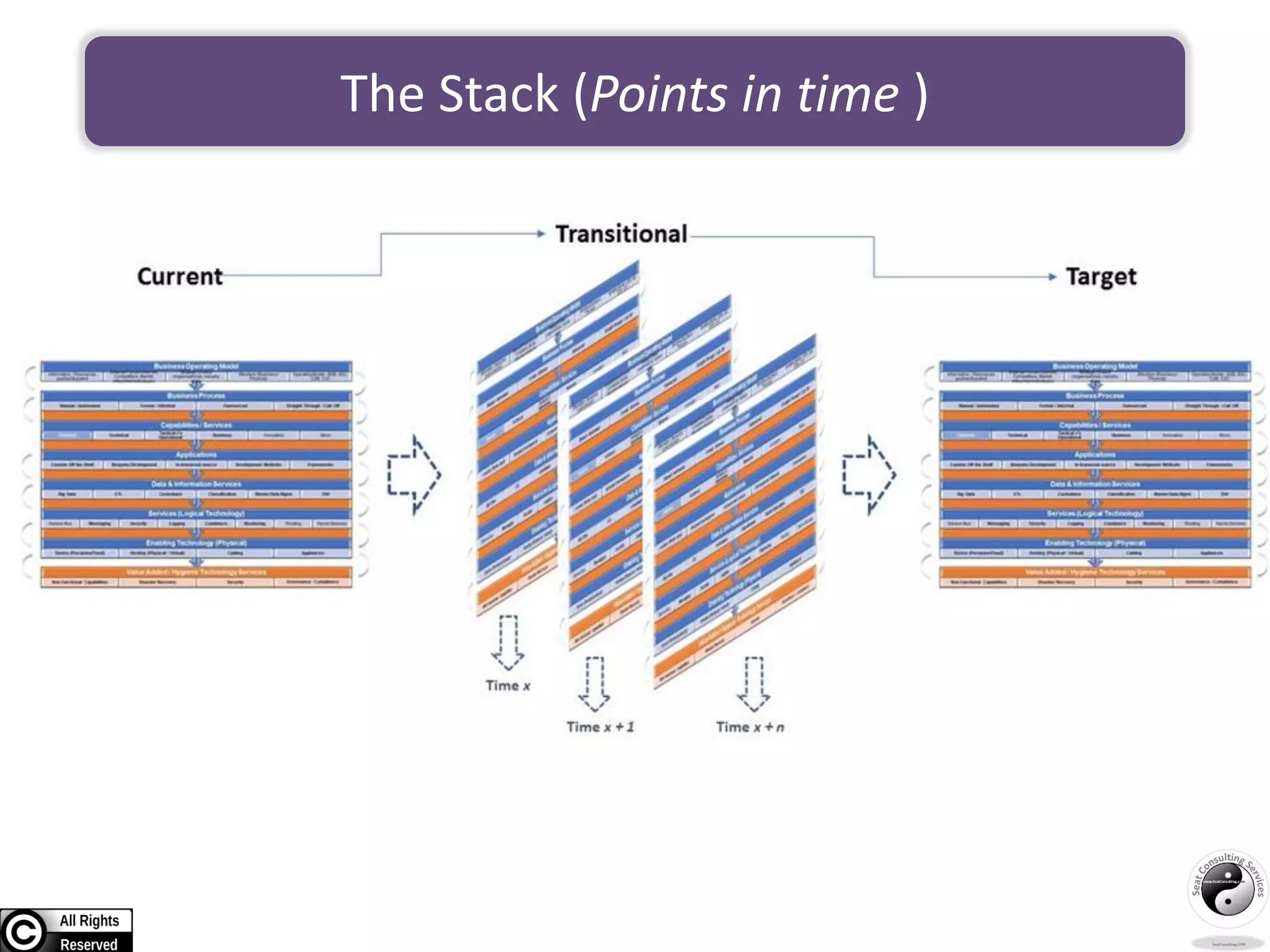

The Stack (Points in time )

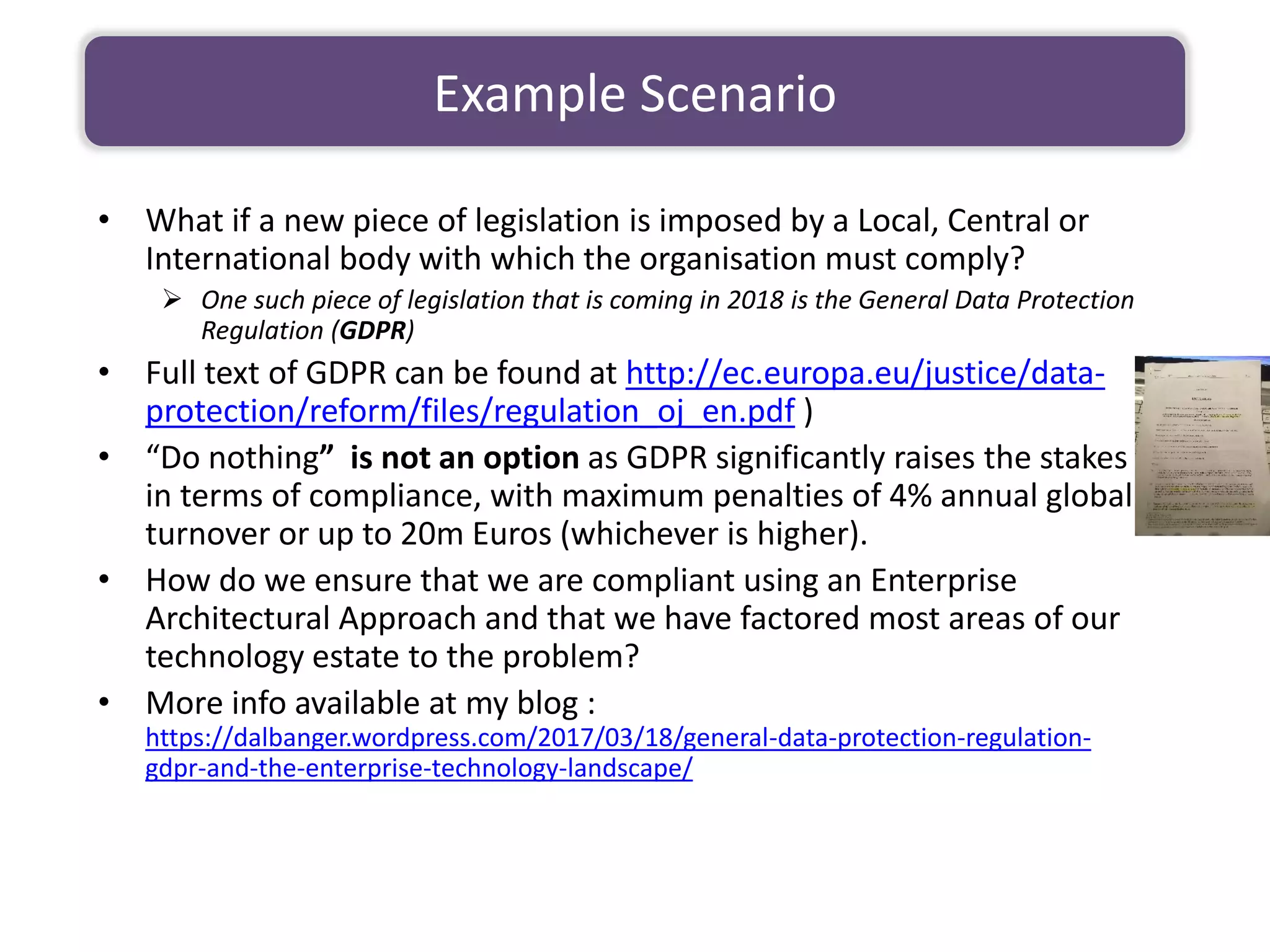

• What if a new piece of legislation is imposed by a Local, Central or
International body with which the organisation must comply?
➢ One such piece of legislation that is coming in 2018 is the General Data Protection
Regulation (GDPR)
• Full text of GDPR can be found at http://ec.europa.eu/justice/data-
protection/reform/files/regulation_oj_en.pdf )
• “Do nothing” is not an option as GDPR significantly raises the stakes
in terms of compliance, with maximum penalties of 4% annual global
turnover or up to 20m Euros (whichever is higher).
• How do we ensure that we are compliant using an Enterprise
Architectural Approach and that we have factored most areas of our
technology estate to the problem?
• More info available at my blog :
https://dalbanger.wordpress.com/2017/03/18/general-data-protection-regulation-
gdpr-and-the-enterprise-technology-landscape/
Example Scenario

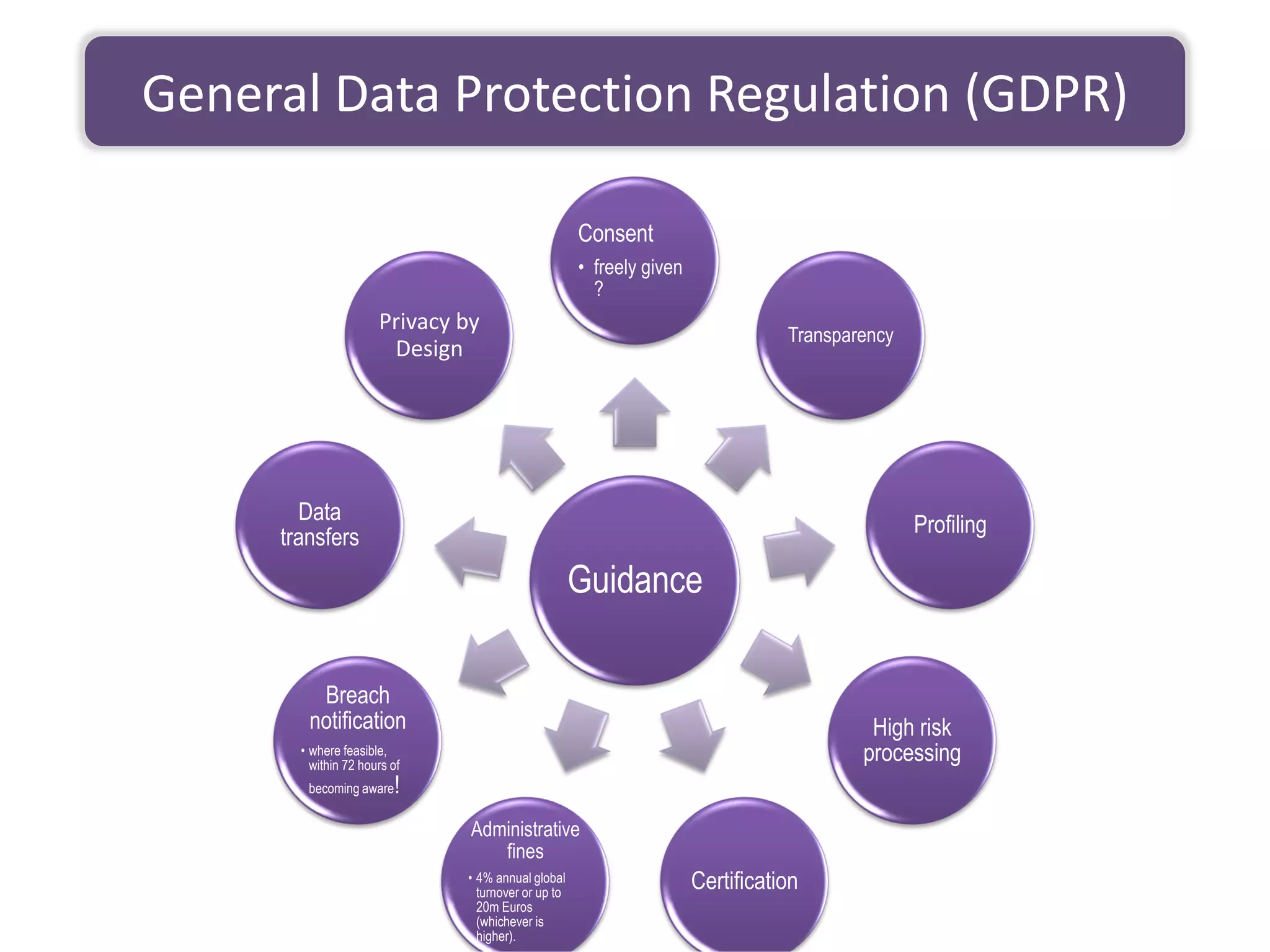

General Data Protection Regulation (GDPR)
Guidance
Consent
• freely given
?
Transparency
Profiling
High risk
processing
Certification
Administrative
fines
• 4% annual global
turnover or up to
20m Euros
(whichever is
higher).
Breach
notification
• where feasible,
within 72 hours of
becoming aware!
Data
transfers
Privacy by
Design

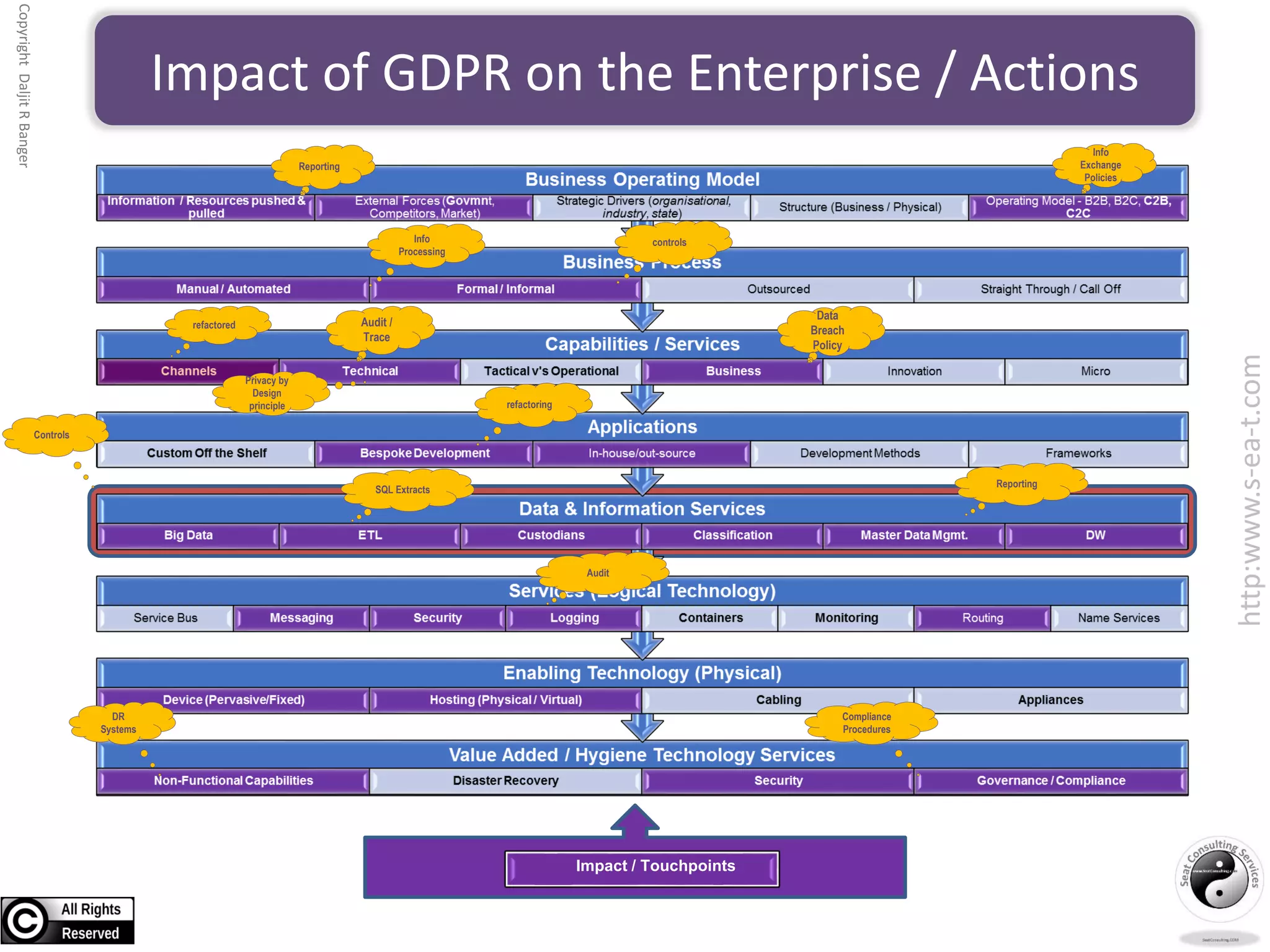

Impact of GDPR on the Enterprise / Actions
http:www.s-ea-t.com
CopyrightDaljitRBanger
Impact / Touchpoints
Data
Breach
Policy
Audit /
Trace
Reporting
Info
Exchange
Policies
Info
Processing
controls
refactoring
refactored
Controls
DR
Systems
Compliance
Procedures
Reporting
SQL Extracts
Audit
Privacy by
Design
principle
Products of Enterprise Architecture
The deliverables and attributes of
artefacts produced by the EA teams will
be directly influenced by one or all of the
following:
TheStructure/Sizeofthe
Organisation
Characteristicsofthe
Organisation
TheOperatingEnvironmentofthe
EnterpriseArchitecturePractice
Managementbuy-inofEnterprise
Architecture
SizeandBudgetAvailabletothe
Team.
TeamCapabilities

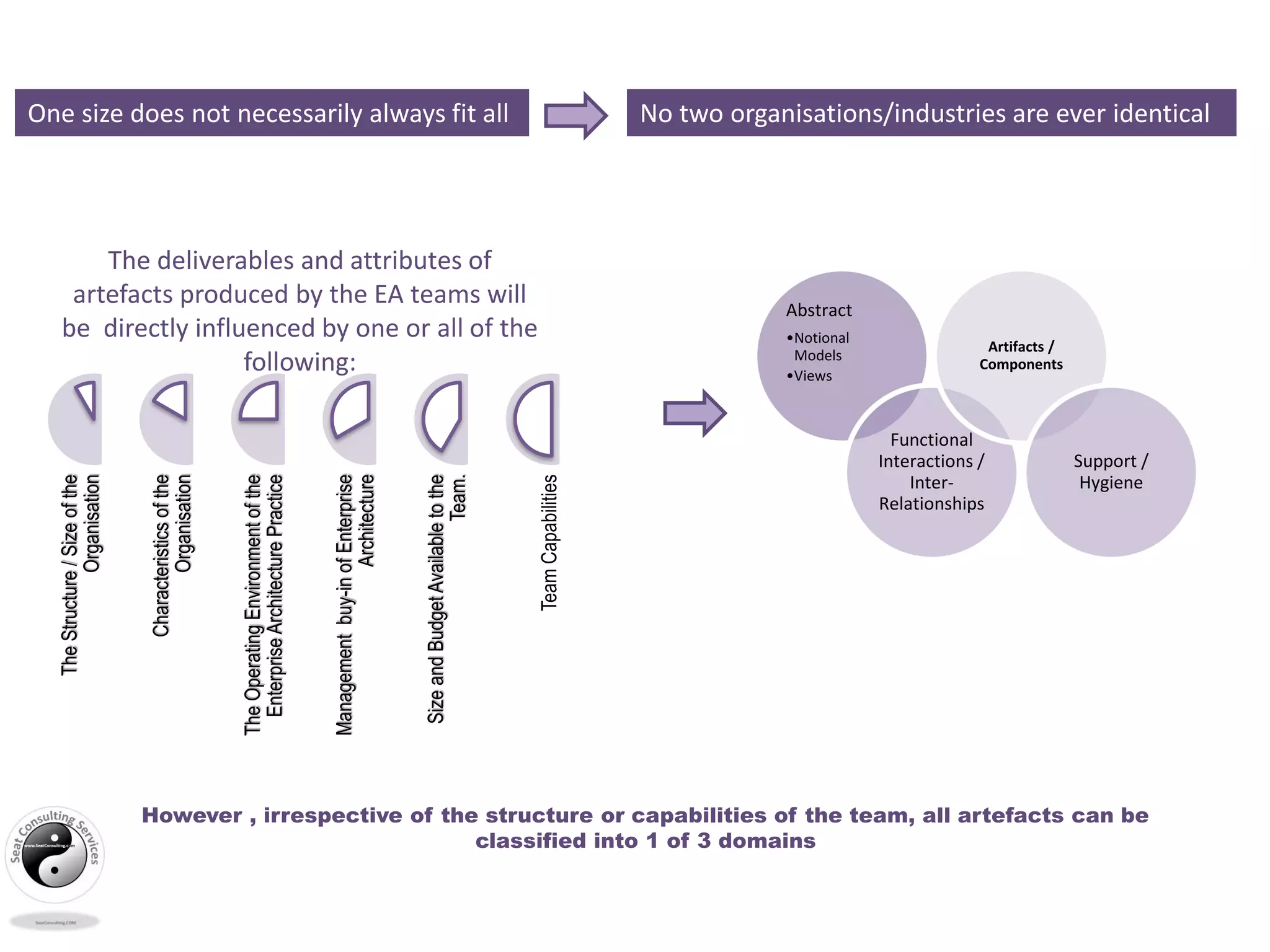

However , irrespective of the structure or capabilities of the team, all artefacts can be
classified into 1 of 3 domains
One size does not necessarily always fit all No two organisations/industries are ever identical
Abstract
•Notional
Models
•Views
Functional
Interactions /
Inter-
Relationships
Artifacts /
Components
Support /
Hygiene
Control
Governance –
Process
Boards –
Review,
Technical,
Business
Boards
Programme /
Project
Engagement
Business /
Partner
Engagements
Stakeholder
Management
Inform
Principles
Policies
Portfolio
Manageme
nt
Funding
Models
Reference
Models
• Technical
• ApplicationBest
Practices
Patterns
Impact
Assessmen
ts
Marketing
Plans
Standards /
Notations
Direct
Stakeholder
Engagement
Business
Architecture
Target
Definition
Application
Target
Architecture
Data &
Information
(Master Data
Management
Strategy)
Infrastructure
Target
Architecture –
Enabling
Technology &
Platforms
Roadmaps
(Product /
Technology)
Gap Analysis –
Transitional
States
Impact
Assessments
Service
promotion,
catalogue
etc…

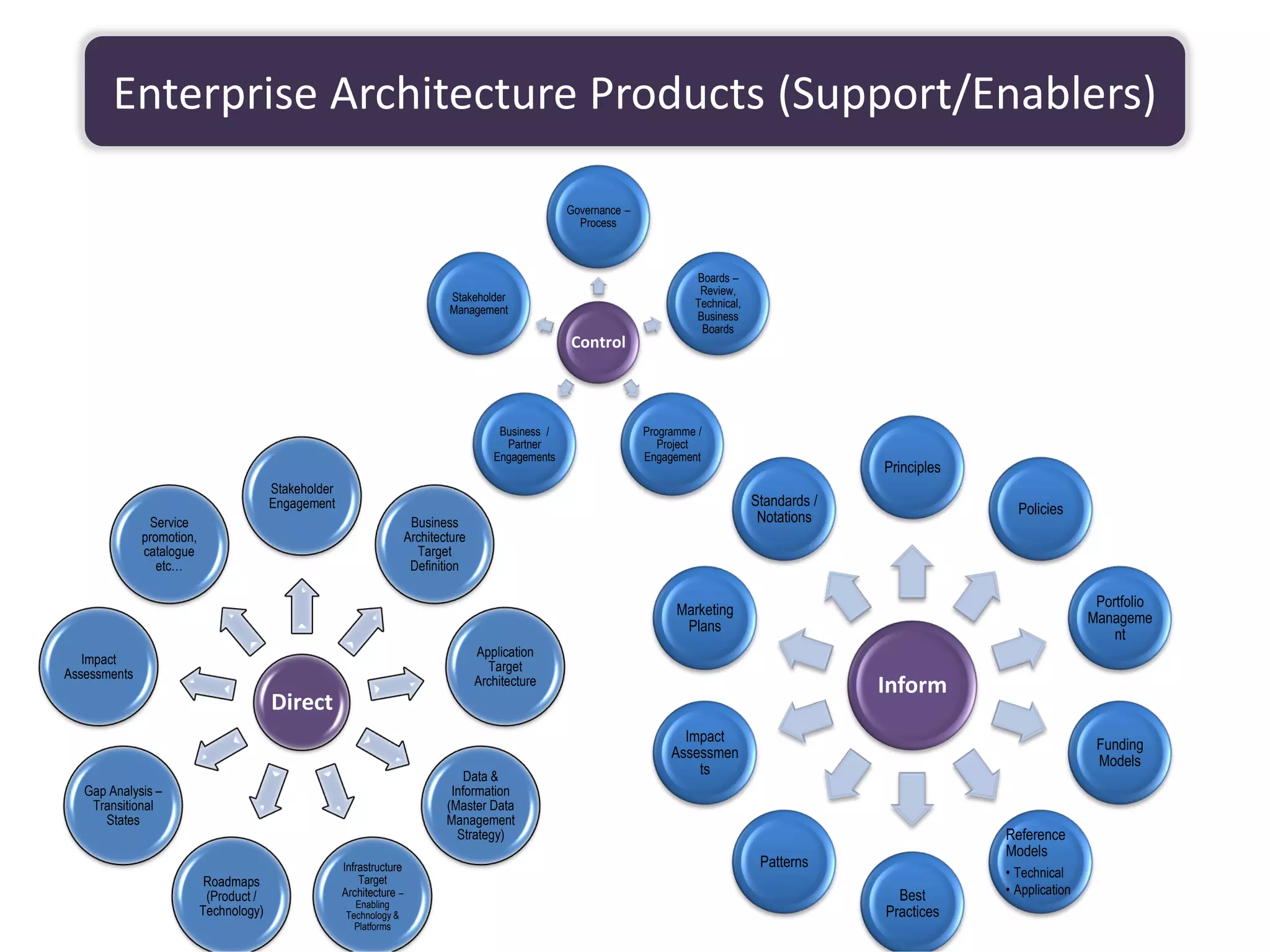

Enterprise Architecture Products (Support/Enablers)

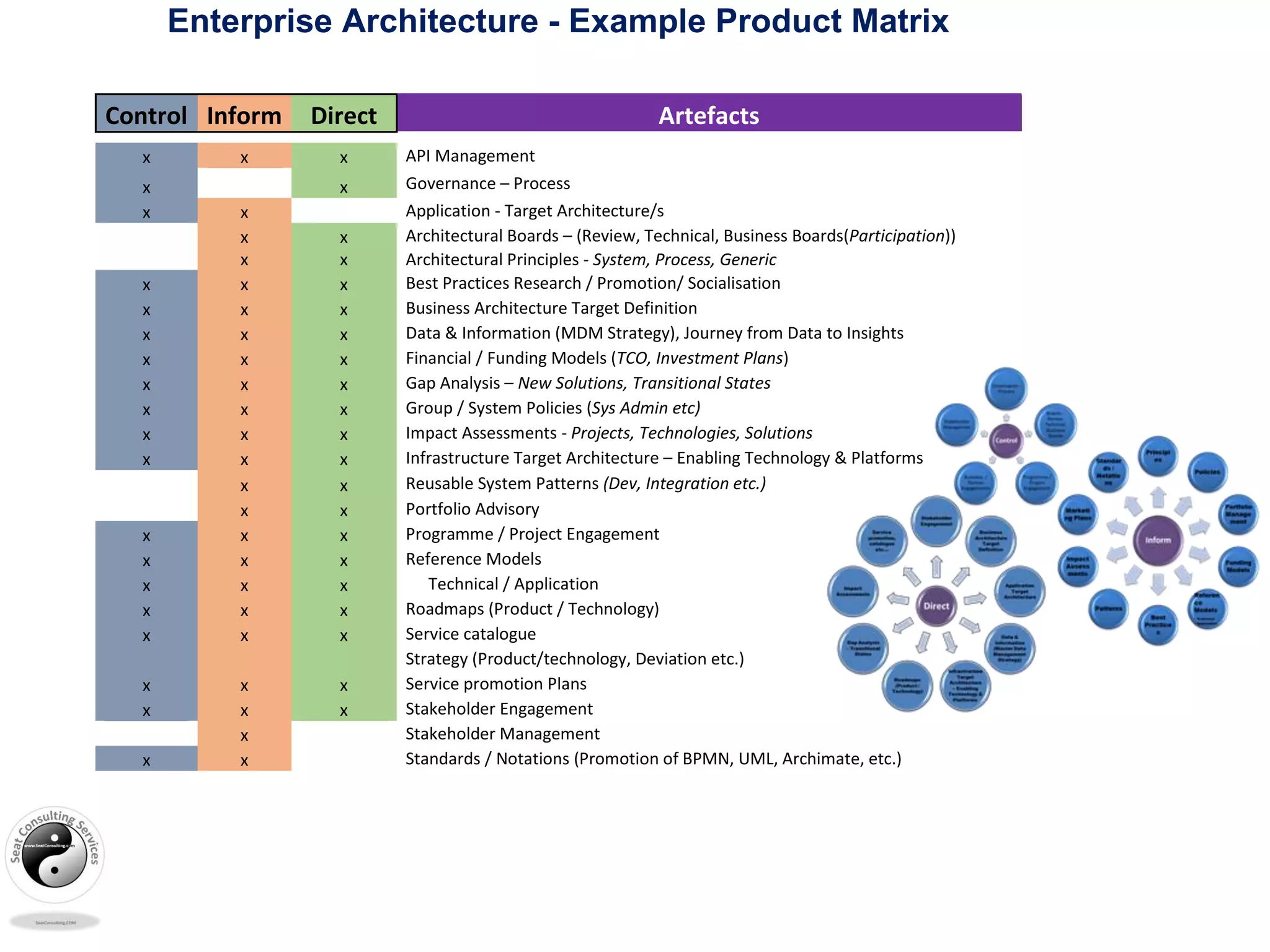

Enterprise Architecture - Example Product Matrix
Control Inform Direct Artefacts
x x x API Management
x x Governance – Process
x x Application - Target Architecture/s
x x Architectural Boards – (Review, Technical, Business Boards(Participation))
x x Architectural Principles - System, Process, Generic
x x x Best Practices Research / Promotion/ Socialisation
x x x Business Architecture Target Definition
x x x Data & Information (MDM Strategy), Journey from Data to Insights
x x x Financial / Funding Models (TCO, Investment Plans)
x x x Gap Analysis – New Solutions, Transitional States
x x x Group / System Policies (Sys Admin etc)
x x x Impact Assessments - Projects, Technologies, Solutions
x x x Infrastructure Target Architecture – Enabling Technology & Platforms
x x Reusable System Patterns (Dev, Integration etc.)
x x Portfolio Advisory
x x x Programme / Project Engagement
x x x Reference Models
x x x Technical / Application
x x x Roadmaps (Product / Technology)
x x x Service catalogue
Strategy (Product/technology, Deviation etc.)
x x x Service promotion Plans
x x x Stakeholder Engagement
x Stakeholder Management
x x Standards / Notations (Promotion of BPMN, UML, Archimate, etc.)

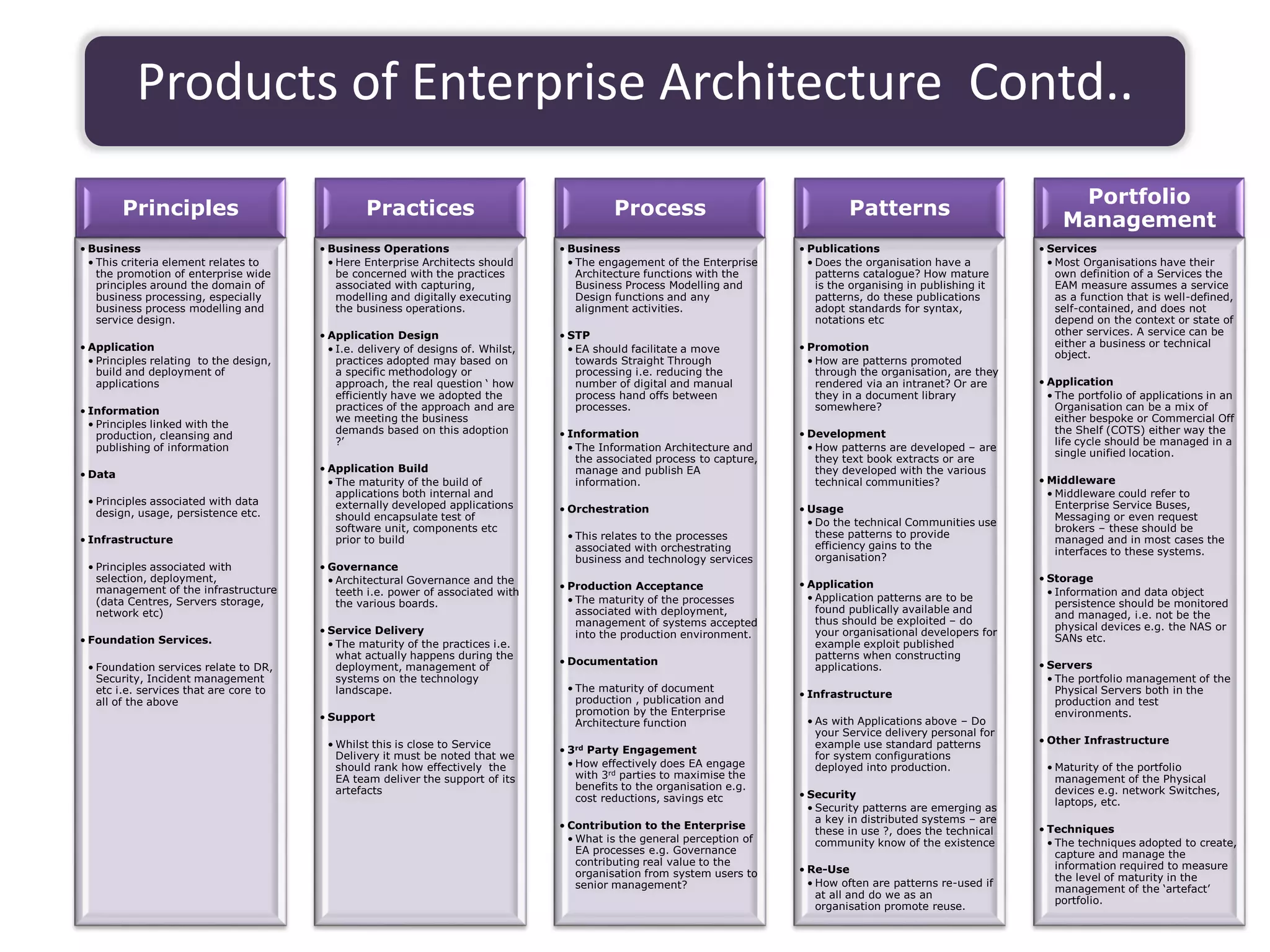

Principles
• Business
• This criteria element relates to
the promotion of enterprise wide
principles around the domain of
business processing, especially
business process modelling and
service design.
• Application
• Principles relating to the design,
build and deployment of
applications
• Information
• Principles linked with the
production, cleansing and
publishing of information
• Data
• Principles associated with data
design, usage, persistence etc.
• Infrastructure
• Principles associated with
selection, deployment,
management of the infrastructure
(data Centres, Servers storage,
network etc)
• Foundation Services.
• Foundation services relate to DR,
Security, Incident management
etc i.e. services that are core to
all of the above
Practices
• Business Operations
• Here Enterprise Architects should
be concerned with the practices
associated with capturing,
modelling and digitally executing
the business operations.
• Application Design
• I.e. delivery of designs of. Whilst,
practices adopted may based on
a specific methodology or
approach, the real question ‘ how
efficiently have we adopted the
practices of the approach and are
we meeting the business
demands based on this adoption
?’
• Application Build
• The maturity of the build of
applications both internal and
externally developed applications
should encapsulate test of
software unit, components etc
prior to build
• Governance
• Architectural Governance and the
teeth i.e. power of associated with
the various boards.
• Service Delivery
• The maturity of the practices i.e.
what actually happens during the
deployment, management of
systems on the technology
landscape.
• Support
• Whilst this is close to Service
Delivery it must be noted that we
should rank how effectively the
EA team deliver the support of its
artefacts
Process
• Business
• The engagement of the Enterprise
Architecture functions with the
Business Process Modelling and
Design functions and any
alignment activities.
• STP
• EA should facilitate a move
towards Straight Through
processing i.e. reducing the
number of digital and manual
process hand offs between
processes.
• Information
• The Information Architecture and
the associated process to capture,
manage and publish EA
information.
• Orchestration
• This relates to the processes
associated with orchestrating
business and technology services
• Production Acceptance
• The maturity of the processes
associated with deployment,
management of systems accepted
into the production environment.
• Documentation
• The maturity of document
production , publication and
promotion by the Enterprise
Architecture function
• 3rd Party Engagement
• How effectively does EA engage
with 3rd parties to maximise the
benefits to the organisation e.g.
cost reductions, savings etc
• Contribution to the Enterprise
• What is the general perception of
EA processes e.g. Governance
contributing real value to the
organisation from system users to
senior management?
Patterns
• Publications
• Does the organisation have a
patterns catalogue? How mature
is the organising in publishing it
patterns, do these publications
adopt standards for syntax,
notations etc
• Promotion
• How are patterns promoted
through the organisation, are they
rendered via an intranet? Or are
they in a document library
somewhere?
• Development
• How patterns are developed – are
they text book extracts or are
they developed with the various
technical communities?
• Usage
• Do the technical Communities use
these patterns to provide
efficiency gains to the
organisation?
• Application
• Application patterns are to be
found publically available and
thus should be exploited – do
your organisational developers for
example exploit published
patterns when constructing
applications.
• Infrastructure
• As with Applications above – Do
your Service delivery personal for
example use standard patterns
for system configurations
deployed into production.
• Security
• Security patterns are emerging as
a key in distributed systems – are
these in use ?, does the technical
community know of the existence
• Re-Use
• How often are patterns re-used if
at all and do we as an
organisation promote reuse.
Portfolio
Management
• Services
• Most Organisations have their
own definition of a Services the
EAM measure assumes a service
as a function that is well-defined,
self-contained, and does not
depend on the context or state of
other services. A service can be
either a business or technical
object.
• Application
• The portfolio of applications in an
Organisation can be a mix of
either bespoke or Commercial Off
the Shelf (COTS) either way the
life cycle should be managed in a
single unified location.
• Middleware
• Middleware could refer to
Enterprise Service Buses,
Messaging or even request
brokers – these should be
managed and in most cases the
interfaces to these systems.
• Storage
• Information and data object
persistence should be monitored
and managed, i.e. not be the
physical devices e.g. the NAS or
SANs etc.
• Servers
• The portfolio management of the
Physical Servers both in the
production and test
environments.
• Other Infrastructure
• Maturity of the portfolio
management of the Physical
devices e.g. network Switches,
laptops, etc.
• Techniques
• The techniques adopted to create,
capture and manage the
information required to measure
the level of maturity in the
management of the ‘artefact’
portfolio.
Products of Enterprise Architecture Contd..

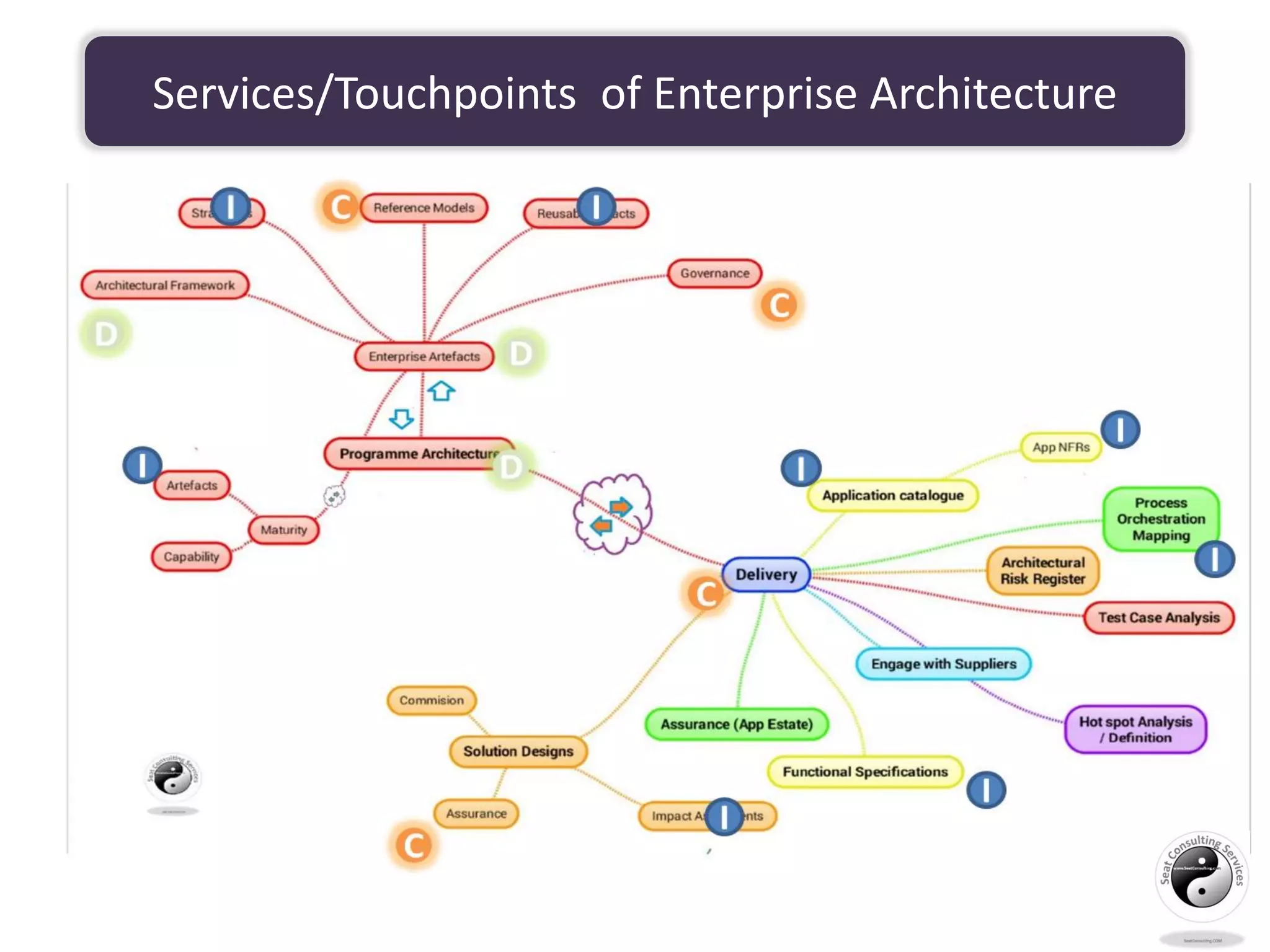

Services/Touchpoints of Enterprise Architecture
The Role..

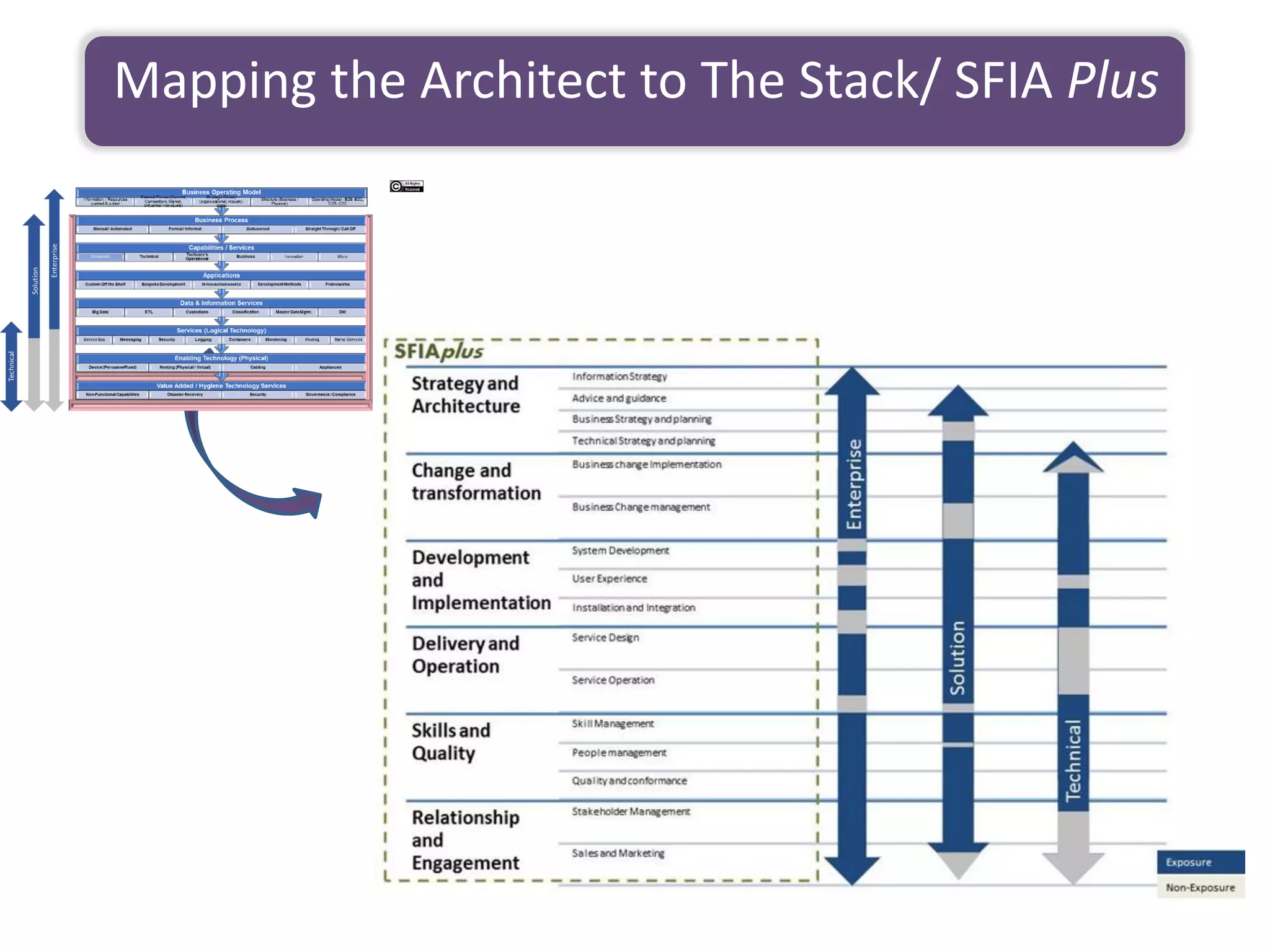

Mapping the Architect to The Stack/ SFIA Plus

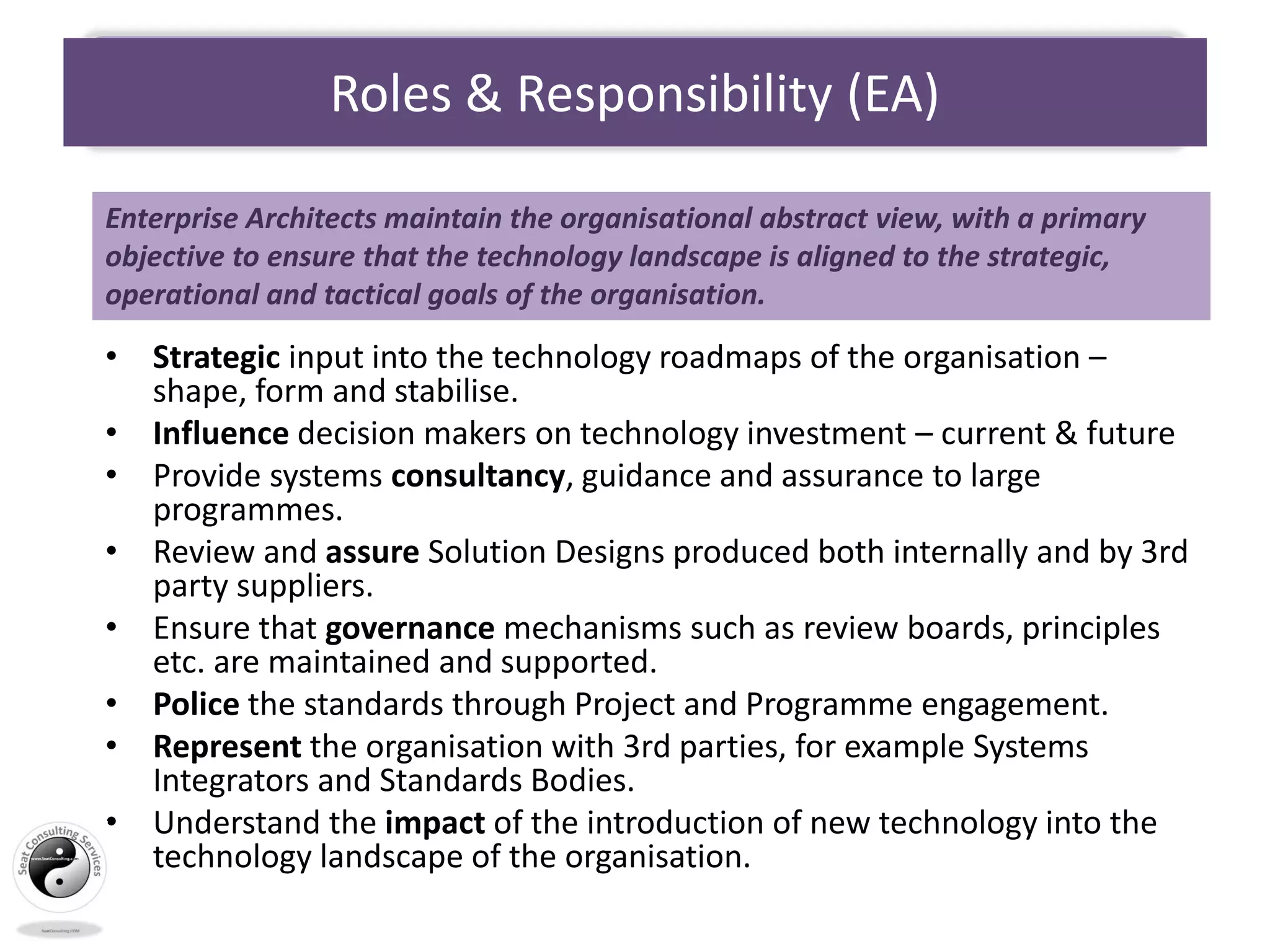

Roles & Responsibility (EA)
• Strategic input into the technology roadmaps of the organisation –
shape, form and stabilise.
• Influence decision makers on technology investment – current & future
• Provide systems consultancy, guidance and assurance to large
programmes.
• Review and assure Solution Designs produced both internally and by 3rd
party suppliers.
• Ensure that governance mechanisms such as review boards, principles
etc. are maintained and supported.
• Police the standards through Project and Programme engagement.
• Represent the organisation with 3rd parties, for example Systems
Integrators and Standards Bodies.
• Understand the impact of the introduction of new technology into the
technology landscape of the organisation.
Enterprise Architects maintain the organisational abstract view, with a primary
objective to ensure that the technology landscape is aligned to the strategic,
operational and tactical goals of the organisation.

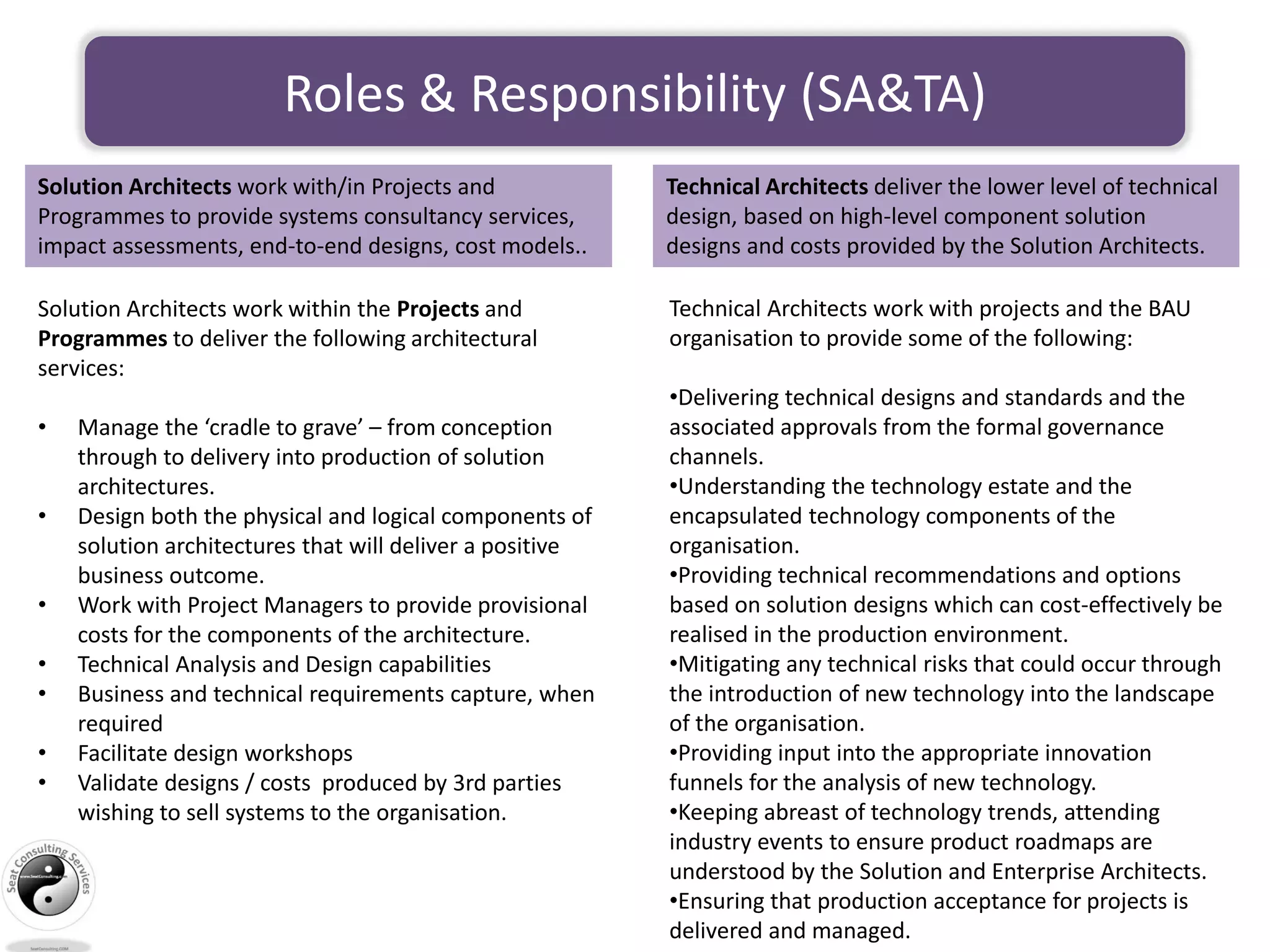

Roles & Responsibility (SA&TA)
Solution Architects work with/in Projects and
Programmes to provide systems consultancy services,
impact assessments, end-to-end designs, cost models..
Solution Architects work within the Projects and
Programmes to deliver the following architectural
services:
• Manage the ‘cradle to grave’ – from conception
through to delivery into production of solution
architectures.
• Design both the physical and logical components of
solution architectures that will deliver a positive
business outcome.
• Work with Project Managers to provide provisional
costs for the components of the architecture.
• Technical Analysis and Design capabilities
• Business and technical requirements capture, when
required
• Facilitate design workshops
• Validate designs / costs produced by 3rd parties
wishing to sell systems to the organisation.
Technical Architects deliver the lower level of technical
design, based on high-level component solution
designs and costs provided by the Solution Architects.
Technical Architects work with projects and the BAU
organisation to provide some of the following:
•Delivering technical designs and standards and the
associated approvals from the formal governance
channels.
•Understanding the technology estate and the
encapsulated technology components of the
organisation.
•Providing technical recommendations and options
based on solution designs which can cost-effectively be
realised in the production environment.
•Mitigating any technical risks that could occur through
the introduction of new technology into the landscape
of the organisation.
•Providing input into the appropriate innovation
funnels for the analysis of new technology.
•Keeping abreast of technology trends, attending
industry events to ensure product roadmaps are
understood by the Solution and Enterprise Architects.
•Ensuring that production acceptance for projects is
delivered and managed.

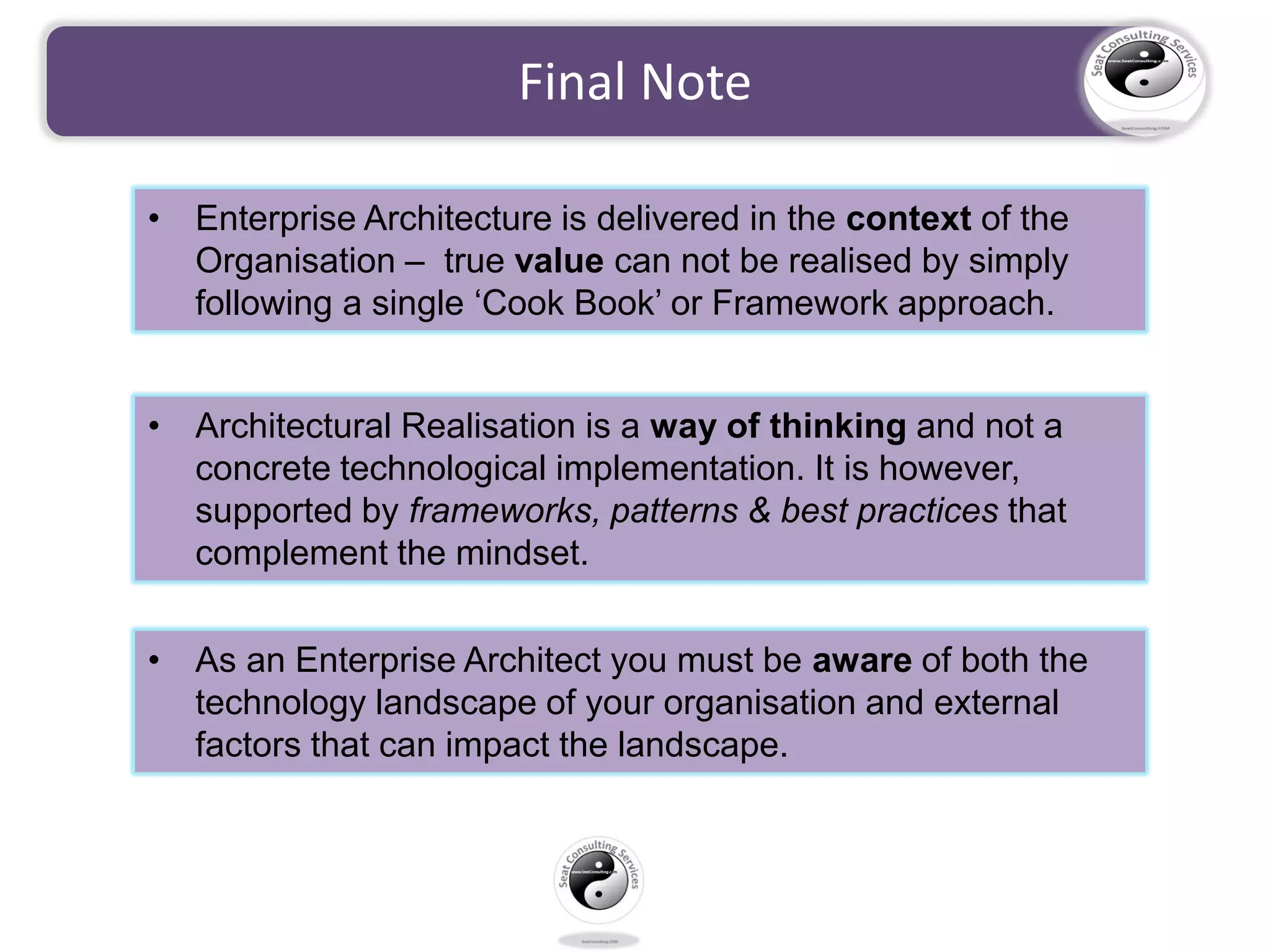

Final Note
• Enterprise Architecture is delivered in the context of the
Organisation – true value can not be realised by simply
following a single ‘Cook Book’ or Framework approach.
• Architectural Realisation is a way of thinking and not a
concrete technological implementation. It is however,
supported by frameworks, patterns & best practices that
complement the mindset.
• As an Enterprise Architect you must be aware of both the
technology landscape of your organisation and external
factors that can impact the landscape.
Website : www.s-ea-t.com (Tools, Papers Downloads)
Blog : https://dalbanger.wordpress.com/
Email : dal@s-ea-t.com
Thank You

More Related Content

What's hot

Enterprise Architecture
Enterprise ArchitectureEnterprise Architecture
Enterprise Architecture
Vikas Grover

Integrating architecture and itil
Integrating architecture and itilIntegrating architecture and itil
Integrating architecture and itil
wweinmeyer79

Using ITIL 4 and IT4IT together
Using ITIL 4 and IT4IT togetherUsing ITIL 4 and IT4IT together
Using ITIL 4 and IT4IT together
Rob Akershoek

TOGAF 9.2 - Transforming Business
TOGAF 9.2  -  Transforming BusinessTOGAF 9.2  -  Transforming Business
TOGAF 9.2 - Transforming Business
Real IRM

Review of Information Technology Function Critical Capability Models
Review of Information Technology Function Critical Capability ModelsReview of Information Technology Function Critical Capability Models
Review of Information Technology Function Critical Capability Models
Alan McSweeney

Stepping-stones of enterprise-architecture: Process and practice in the real...
Stepping-stones of enterprise-architecture: Process and practice in the real...Stepping-stones of enterprise-architecture: Process and practice in the real...
Stepping-stones of enterprise-architecture: Process and practice in the real...
Tetradian Consulting

A Brief Introduction to Enterprise Architecture
A Brief Introduction to  Enterprise Architecture A Brief Introduction to  Enterprise Architecture
A Brief Introduction to Enterprise Architecture
Daljit Banger

Defining Services for a Service Catalog
Defining Services for a Service CatalogDefining Services for a Service Catalog
Defining Services for a Service Catalog
Axios Systems

What is a secure enterprise architecture roadmap?
What is a secure enterprise architecture roadmap?What is a secure enterprise architecture roadmap?
What is a secure enterprise architecture roadmap?
Ulf Mattsson

Simple and Effective Enterprise Architecture with Tools you Already Own
Simple and Effective Enterprise Architecture with Tools you Already OwnSimple and Effective Enterprise Architecture with Tools you Already Own
Simple and Effective Enterprise Architecture with Tools you Already Own
Chandra Knabel

What is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAFWhat is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAF
xavblai

TOGAF 9 Architectural Artifacts
TOGAF 9  Architectural ArtifactsTOGAF 9  Architectural Artifacts
TOGAF 9 Architectural Artifacts
Maganathin Veeraragaloo

Whole-of-enterprise architecture
Whole-of-enterprise architectureWhole-of-enterprise architecture
Whole-of-enterprise architecture
Tetradian Consulting

A tailored enterprise architecture maturity model
A tailored enterprise architecture maturity modelA tailored enterprise architecture maturity model
A tailored enterprise architecture maturity model
Paul Sullivan

Togaf introduction and core concepts
Togaf introduction and core conceptsTogaf introduction and core concepts
Togaf introduction and core concepts
Paul Sullivan

Practical Enterprise Architecture in Medium-size Corporation using TOGAF
Practical Enterprise Architecture in Medium-size Corporation using TOGAFPractical Enterprise Architecture in Medium-size Corporation using TOGAF
Practical Enterprise Architecture in Medium-size Corporation using TOGAF
Michael Sukachev

Enterprise Architecture & Project Portfolio Management 1/2
Enterprise Architecture & Project Portfolio Management 1/2Enterprise Architecture & Project Portfolio Management 1/2
Enterprise Architecture & Project Portfolio Management 1/2
Jean Gehring

Enterprise architecture
Enterprise architectureEnterprise architecture
Enterprise architecture
sandeep gosain

Digital Operating Model & IT4IT
Digital Operating Model & IT4ITDigital Operating Model & IT4IT
Digital Operating Model & IT4IT
David Favelle

Enterprise Security Architecture
Enterprise Security ArchitectureEnterprise Security Architecture
Enterprise Security Architecture
Priyanka Aash


What's hot (20)

Enterprise Architecture
Enterprise ArchitectureEnterprise Architecture
Enterprise Architecture

Integrating architecture and itil
Integrating architecture and itilIntegrating architecture and itil
Integrating architecture and itil

Using ITIL 4 and IT4IT together
Using ITIL 4 and IT4IT togetherUsing ITIL 4 and IT4IT together
Using ITIL 4 and IT4IT together

TOGAF 9.2 - Transforming Business
TOGAF 9.2  -  Transforming BusinessTOGAF 9.2  -  Transforming Business
TOGAF 9.2 - Transforming Business

Review of Information Technology Function Critical Capability Models
Review of Information Technology Function Critical Capability ModelsReview of Information Technology Function Critical Capability Models
Review of Information Technology Function Critical Capability Models

Stepping-stones of enterprise-architecture: Process and practice in the real...
Stepping-stones of enterprise-architecture: Process and practice in the real...Stepping-stones of enterprise-architecture: Process and practice in the real...
Stepping-stones of enterprise-architecture: Process and practice in the real...

A Brief Introduction to Enterprise Architecture
A Brief Introduction to  Enterprise Architecture A Brief Introduction to  Enterprise Architecture
A Brief Introduction to Enterprise Architecture

Defining Services for a Service Catalog
Defining Services for a Service CatalogDefining Services for a Service Catalog
Defining Services for a Service Catalog

What is a secure enterprise architecture roadmap?
What is a secure enterprise architecture roadmap?What is a secure enterprise architecture roadmap?
What is a secure enterprise architecture roadmap?

Simple and Effective Enterprise Architecture with Tools you Already Own
Simple and Effective Enterprise Architecture with Tools you Already OwnSimple and Effective Enterprise Architecture with Tools you Already Own
Simple and Effective Enterprise Architecture with Tools you Already Own

What is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAFWhat is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAF

TOGAF 9 Architectural Artifacts
TOGAF 9  Architectural ArtifactsTOGAF 9  Architectural Artifacts
TOGAF 9 Architectural Artifacts

Whole-of-enterprise architecture
Whole-of-enterprise architectureWhole-of-enterprise architecture
Whole-of-enterprise architecture

A tailored enterprise architecture maturity model
A tailored enterprise architecture maturity modelA tailored enterprise architecture maturity model
A tailored enterprise architecture maturity model

Togaf introduction and core concepts
Togaf introduction and core conceptsTogaf introduction and core concepts
Togaf introduction and core concepts

Practical Enterprise Architecture in Medium-size Corporation using TOGAF
Practical Enterprise Architecture in Medium-size Corporation using TOGAFPractical Enterprise Architecture in Medium-size Corporation using TOGAF
Practical Enterprise Architecture in Medium-size Corporation using TOGAF

Enterprise Architecture & Project Portfolio Management 1/2
Enterprise Architecture & Project Portfolio Management 1/2Enterprise Architecture & Project Portfolio Management 1/2
Enterprise Architecture & Project Portfolio Management 1/2

Enterprise architecture
Enterprise architectureEnterprise architecture
Enterprise architecture

Digital Operating Model & IT4IT
Digital Operating Model & IT4ITDigital Operating Model & IT4IT
Digital Operating Model & IT4IT

Enterprise Security Architecture
Enterprise Security ArchitectureEnterprise Security Architecture
Enterprise Security Architecture


Viewers also liked

EAPJ Vol IV July 2017
EAPJ Vol IV July 2017EAPJ Vol IV July 2017
EAPJ Vol IV July 2017
Darryl_Carr

Albertin Hp - Unified communication
Albertin Hp - Unified communicationAlbertin Hp - Unified communication
Albertin Hp - Unified communication
eGgov Regione Veneto Veneto

14.1 features
14.1 features14.1 features
14.1 features
Curtis Tsang

European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0
Friso de Jong

Delivering enterprise architecture
Delivering enterprise architectureDelivering enterprise architecture
Delivering enterprise architecture
Bas van Gils

Enterprise Architecture Overview
Enterprise Architecture OverviewEnterprise Architecture Overview
Enterprise Architecture Overview
Tim Murphy

What Can We Do With The ArchiMate Language?
What Can We Do With The ArchiMate Language?What Can We Do With The ArchiMate Language?
What Can We Do With The ArchiMate Language?
Iver Band

ArchiMate 3.0: A New Standard for Architecture
ArchiMate 3.0: A New Standard for ArchitectureArchiMate 3.0: A New Standard for Architecture
ArchiMate 3.0: A New Standard for Architecture
Iver Band

Agile, TOGAF and Enterprise Architecture: Will They Blend?
Agile, TOGAF and Enterprise Architecture:  Will They Blend?Agile, TOGAF and Enterprise Architecture:  Will They Blend?
Agile, TOGAF and Enterprise Architecture: Will They Blend?
Danny Greefhorst

Structured Approach to Solution Architecture
Structured Approach to Solution ArchitectureStructured Approach to Solution Architecture
Structured Approach to Solution Architecture
Alan McSweeney

An introduction to fundamental architecture concepts
An introduction to fundamental architecture conceptsAn introduction to fundamental architecture concepts
An introduction to fundamental architecture concepts
wweinmeyer79

Archimate 2.1 an introduction
Archimate 2.1   an introductionArchimate 2.1   an introduction
Archimate 2.1 an introduction
Daan Bakboord

Iasa UK Archimate Overview
Iasa UK Archimate OverviewIasa UK Archimate Overview
Iasa UK Archimate Overview
Iasa UK

Introduction to Enterprise Architecture and TOGAF 9.1
Introduction to Enterprise Architecture and TOGAF 9.1Introduction to Enterprise Architecture and TOGAF 9.1
Introduction to Enterprise Architecture and TOGAF 9.1
iasaglobal

Archi mate views_and_viewpoints
Archi mate views_and_viewpointsArchi mate views_and_viewpoints
Archi mate views_and_viewpoints
Igor Igoroshka

An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
Iver Band

Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overviewEnterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Winton Winton


Viewers also liked (17)

EAPJ Vol IV July 2017
EAPJ Vol IV July 2017EAPJ Vol IV July 2017
EAPJ Vol IV July 2017

Albertin Hp - Unified communication
Albertin Hp - Unified communicationAlbertin Hp - Unified communication
Albertin Hp - Unified communication

14.1 features
14.1 features14.1 features
14.1 features

European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0

Delivering enterprise architecture
Delivering enterprise architectureDelivering enterprise architecture
Delivering enterprise architecture

Enterprise Architecture Overview
Enterprise Architecture OverviewEnterprise Architecture Overview
Enterprise Architecture Overview

What Can We Do With The ArchiMate Language?
What Can We Do With The ArchiMate Language?What Can We Do With The ArchiMate Language?
What Can We Do With The ArchiMate Language?

ArchiMate 3.0: A New Standard for Architecture
ArchiMate 3.0: A New Standard for ArchitectureArchiMate 3.0: A New Standard for Architecture
ArchiMate 3.0: A New Standard for Architecture

Agile, TOGAF and Enterprise Architecture: Will They Blend?
Agile, TOGAF and Enterprise Architecture:  Will They Blend?Agile, TOGAF and Enterprise Architecture:  Will They Blend?
Agile, TOGAF and Enterprise Architecture: Will They Blend?

Structured Approach to Solution Architecture
Structured Approach to Solution ArchitectureStructured Approach to Solution Architecture
Structured Approach to Solution Architecture

An introduction to fundamental architecture concepts
An introduction to fundamental architecture conceptsAn introduction to fundamental architecture concepts
An introduction to fundamental architecture concepts

Archimate 2.1 an introduction
Archimate 2.1   an introductionArchimate 2.1   an introduction
Archimate 2.1 an introduction

Iasa UK Archimate Overview
Iasa UK Archimate OverviewIasa UK Archimate Overview
Iasa UK Archimate Overview

Introduction to Enterprise Architecture and TOGAF 9.1
Introduction to Enterprise Architecture and TOGAF 9.1Introduction to Enterprise Architecture and TOGAF 9.1
Introduction to Enterprise Architecture and TOGAF 9.1

Archi mate views_and_viewpoints
Archi mate views_and_viewpointsArchi mate views_and_viewpoints
Archi mate views_and_viewpoints

An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...

Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overviewEnterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview


Similar to Enterprise Architecture - An Introduction from the Real World

Supporting material for my Webinar to the ACS - June2017
Supporting material for my Webinar to the ACS - June2017Supporting material for my Webinar to the ACS - June2017
Supporting material for my Webinar to the ACS - June2017
Daljit Banger

Enterprise Architecture - An Introduction
Enterprise Architecture - An Introduction Enterprise Architecture - An Introduction
Enterprise Architecture - An Introduction
Daljit Banger

EA Consolidated Slides from Q1-Q2 (2015)
EA Consolidated Slides from Q1-Q2 (2015) EA Consolidated Slides from Q1-Q2 (2015)
EA Consolidated Slides from Q1-Q2 (2015)
Daljit Banger

Togaf 9.1 basic concepts
Togaf 9.1 basic concepts Togaf 9.1 basic concepts
Togaf 9.1 basic concepts
Mohamed Zakarya Abdelgawad

ICT Industry standards overview
ICT Industry standardsoverviewICT Industry standardsoverview
ICT Industry standards overview
anandbajaj

Week 2-What is Enterprise Architecure (1).pptx
Week 2-What is Enterprise Architecure (1).pptxWeek 2-What is Enterprise Architecure (1).pptx
Week 2-What is Enterprise Architecure (1).pptx
RizalPrambudi3

Building a ICT Strategy with an Enterprise Architecture Mindset
Building a ICT Strategy  with an Enterprise Architecture MindsetBuilding a ICT Strategy  with an Enterprise Architecture Mindset
Building a ICT Strategy with an Enterprise Architecture Mindset
Daljit Banger

Enterprise Architecture Approach Togaf 9
Enterprise Architecture Approach   Togaf 9Enterprise Architecture Approach   Togaf 9
Enterprise Architecture Approach Togaf 9
Prashant Patade

ERP for IT
ERP for ITERP for IT
Architecture with a Purpose
Architecture with a PurposeArchitecture with a Purpose
Architecture with a Purpose
Heinz Tonn

Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...
Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...
Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...
wepc2016

Visualizing BI technical cyber risks. Enterprise Risk and Security
Visualizing BI technical cyber risks. Enterprise Risk and SecurityVisualizing BI technical cyber risks. Enterprise Risk and Security
Visualizing BI technical cyber risks. Enterprise Risk and Security
BiZZdesign

Bending the IT Op-Ex Cost Curve Through IT Simplification
Bending the IT Op-Ex Cost Curve Through IT SimplificationBending the IT Op-Ex Cost Curve Through IT Simplification
Bending the IT Op-Ex Cost Curve Through IT Simplification
Cognizant

TOGAF
TOGAFTOGAF
IndEA.pptx
IndEA.pptxIndEA.pptx
IndEA.pptx
Prashant Singh

Transformação Digital de TI com EA
Transformação Digital de TI com EATransformação Digital de TI com EA
Transformação Digital de TI com EA
Blue Hawk - B&IT Management

Online Togaf 9.1 Training in USA
Online Togaf 9.1 Training in USAOnline Togaf 9.1 Training in USA
Online Togaf 9.1 Training in USA
Xoom Trainings

The foundations of EA
The foundations of EAThe foundations of EA
The foundations of EA
yazilimmimarisi

Who needs EA… when we have DevOps?
Who needs EA… when we have DevOps?Who needs EA… when we have DevOps?
Who needs EA… when we have DevOps?
Jeff Jakubiak

1. Introduction to EA -Session1 .pptx
1. Introduction to EA -Session1 .pptx1. Introduction to EA -Session1 .pptx
1. Introduction to EA -Session1 .pptx
MohammadMahdiKargar2


Similar to Enterprise Architecture - An Introduction from the Real World (20)

Supporting material for my Webinar to the ACS - June2017
Supporting material for my Webinar to the ACS - June2017Supporting material for my Webinar to the ACS - June2017
Supporting material for my Webinar to the ACS - June2017

Enterprise Architecture - An Introduction
Enterprise Architecture - An Introduction Enterprise Architecture - An Introduction
Enterprise Architecture - An Introduction

EA Consolidated Slides from Q1-Q2 (2015)
EA Consolidated Slides from Q1-Q2 (2015) EA Consolidated Slides from Q1-Q2 (2015)
EA Consolidated Slides from Q1-Q2 (2015)

Togaf 9.1 basic concepts
Togaf 9.1 basic concepts Togaf 9.1 basic concepts
Togaf 9.1 basic concepts

ICT Industry standards overview
ICT Industry standardsoverviewICT Industry standardsoverview
ICT Industry standards overview

Week 2-What is Enterprise Architecure (1).pptx
Week 2-What is Enterprise Architecure (1).pptxWeek 2-What is Enterprise Architecure (1).pptx
Week 2-What is Enterprise Architecure (1).pptx

Building a ICT Strategy with an Enterprise Architecture Mindset
Building a ICT Strategy  with an Enterprise Architecture MindsetBuilding a ICT Strategy  with an Enterprise Architecture Mindset
Building a ICT Strategy with an Enterprise Architecture Mindset

Enterprise Architecture Approach Togaf 9
Enterprise Architecture Approach   Togaf 9Enterprise Architecture Approach   Togaf 9
Enterprise Architecture Approach Togaf 9

ERP for IT
ERP for ITERP for IT
ERP for IT

Architecture with a Purpose
Architecture with a PurposeArchitecture with a Purpose
Architecture with a Purpose

Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...
Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...
Day 1: ICT Strategic Planning, Mr. Soufiane Ben Moussa, CTO, House of Commons...

Visualizing BI technical cyber risks. Enterprise Risk and Security
Visualizing BI technical cyber risks. Enterprise Risk and SecurityVisualizing BI technical cyber risks. Enterprise Risk and Security
Visualizing BI technical cyber risks. Enterprise Risk and Security

Bending the IT Op-Ex Cost Curve Through IT Simplification
Bending the IT Op-Ex Cost Curve Through IT SimplificationBending the IT Op-Ex Cost Curve Through IT Simplification
Bending the IT Op-Ex Cost Curve Through IT Simplification

TOGAF
TOGAFTOGAF
TOGAF

IndEA.pptx
IndEA.pptxIndEA.pptx
IndEA.pptx

Transformação Digital de TI com EA
Transformação Digital de TI com EATransformação Digital de TI com EA
Transformação Digital de TI com EA

Online Togaf 9.1 Training in USA
Online Togaf 9.1 Training in USAOnline Togaf 9.1 Training in USA
Online Togaf 9.1 Training in USA

The foundations of EA
The foundations of EAThe foundations of EA
The foundations of EA

Who needs EA… when we have DevOps?
Who needs EA… when we have DevOps?Who needs EA… when we have DevOps?
Who needs EA… when we have DevOps?

1. Introduction to EA -Session1 .pptx
1. Introduction to EA -Session1 .pptx1. Introduction to EA -Session1 .pptx
1. Introduction to EA -Session1 .pptx


More from Daljit Banger

Enterprise Architecture -A Recap : What, Why and Value
Enterprise Architecture  -A  Recap : What, Why and ValueEnterprise Architecture  -A  Recap : What, Why and Value
Enterprise Architecture -A Recap : What, Why and Value
Daljit Banger

Presentation to the AEA (June 23)
Presentation to the AEA (June 23) Presentation to the AEA (June 23)
Presentation to the AEA (June 23)
Daljit Banger

Aligning The Business Model to Technology Landscapes Enterprise Systems Arch...
Aligning The Business Model to  Technology Landscapes Enterprise Systems Arch...Aligning The Business Model to  Technology Landscapes Enterprise Systems Arch...
Aligning The Business Model to Technology Landscapes Enterprise Systems Arch...
Daljit Banger

Architectural Engagement Through the Project Lifecycle
Architectural Engagement Through the Project LifecycleArchitectural Engagement Through the Project Lifecycle
Architectural Engagement Through the Project Lifecycle
Daljit Banger

Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...
Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...
Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...
Daljit Banger

Developing a Strategy - A Reusable Pattern
Developing a Strategy - A Reusable PatternDeveloping a Strategy - A Reusable Pattern
Developing a Strategy - A Reusable Pattern
Daljit Banger

Life Cycle An informal discussion - Interaction & Control Points for Enterpr...
Life Cycle An informal discussion  - Interaction & Control Points for Enterpr...Life Cycle An informal discussion  - Interaction & Control Points for Enterpr...
Life Cycle An informal discussion - Interaction & Control Points for Enterpr...
Daljit Banger

Enterprise Architecture Workshop London - July 17th 2017
Enterprise Architecture Workshop London - July 17th 2017Enterprise Architecture Workshop London - July 17th 2017
Enterprise Architecture Workshop London - July 17th 2017
Daljit Banger

A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016
A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016
A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016
Daljit Banger

ICT Strategy Development Slides
ICT Strategy Development SlidesICT Strategy Development Slides
ICT Strategy Development Slides
Daljit Banger

EA Secuity Thinking - Practical Exercise
EA Secuity Thinking - Practical Exercise EA Secuity Thinking - Practical Exercise
EA Secuity Thinking - Practical Exercise
Daljit Banger

BCS EA Practitioners Day Intro Slides
BCS EA Practitioners Day Intro SlidesBCS EA Practitioners Day Intro Slides
BCS EA Practitioners Day Intro Slides
Daljit Banger


More from Daljit Banger (12)

Enterprise Architecture -A Recap : What, Why and Value
Enterprise Architecture  -A  Recap : What, Why and ValueEnterprise Architecture  -A  Recap : What, Why and Value
Enterprise Architecture -A Recap : What, Why and Value

Presentation to the AEA (June 23)
Presentation to the AEA (June 23) Presentation to the AEA (June 23)
Presentation to the AEA (June 23)

Aligning The Business Model to Technology Landscapes Enterprise Systems Arch...
Aligning The Business Model to  Technology Landscapes Enterprise Systems Arch...Aligning The Business Model to  Technology Landscapes Enterprise Systems Arch...
Aligning The Business Model to Technology Landscapes Enterprise Systems Arch...

Architectural Engagement Through the Project Lifecycle
Architectural Engagement Through the Project LifecycleArchitectural Engagement Through the Project Lifecycle
Architectural Engagement Through the Project Lifecycle

Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...
Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...
Moving from the Business Strategy to Technology Strategy - A Top-Down Approac...

Developing a Strategy - A Reusable Pattern
Developing a Strategy - A Reusable PatternDeveloping a Strategy - A Reusable Pattern
Developing a Strategy - A Reusable Pattern

Life Cycle An informal discussion - Interaction & Control Points for Enterpr...
Life Cycle An informal discussion  - Interaction & Control Points for Enterpr...Life Cycle An informal discussion  - Interaction & Control Points for Enterpr...
Life Cycle An informal discussion - Interaction & Control Points for Enterpr...

Enterprise Architecture Workshop London - July 17th 2017
Enterprise Architecture Workshop London - July 17th 2017Enterprise Architecture Workshop London - July 17th 2017
Enterprise Architecture Workshop London - July 17th 2017

A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016
A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016
A Day in the Life of an Enterprise Architect (Role Play Exercise) 2016

ICT Strategy Development Slides
ICT Strategy Development SlidesICT Strategy Development Slides
ICT Strategy Development Slides

EA Secuity Thinking - Practical Exercise
EA Secuity Thinking - Practical Exercise EA Secuity Thinking - Practical Exercise
EA Secuity Thinking - Practical Exercise

BCS EA Practitioners Day Intro Slides
BCS EA Practitioners Day Intro SlidesBCS EA Practitioners Day Intro Slides
BCS EA Practitioners Day Intro Slides


Recently uploaded

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure
KAMAL CHOUDHARY

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps
HackersList

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
kumarjarun2010

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides
Google Developer Group - Harare

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna


Recently uploaded (20)

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt


Enterprise Architecture - An Introduction from the Real World

  • 1. Enterprise Architecture An Introduction from the Real World Daljit Roy Banger MSc FBCS24th April 2017 Hosted By Deloitte
  • 2. • Introduction / Context • A Quick Introduction • Products of Enterprise Architecture ▪ The Role / Responsibilities • Q&A Agenda
  • 3. Open Groups TOGAF Framework Zachman Framework™ MODAF Federal Enterprise Architecture Framework (FEAF) Public Architectural Frameworks ETOM (Enhanced Telecom Operations Map Numerous Frameworks exist which provide views, approaches and general support to help deliver / manage an Enterprise Architecture Capability
  • 4. ▪ Enterprise Architecture supports how one builds a reusable Unified Information Systems/Management Capability that supports and meets Organisational needs. ▪ The EA Goal is to Align and Manage the Technology landscape of an Organisation with its Strategic / Operational Goals/Objectives for both today and tomorrow. Food for Thought … ▪ Enterprise Architecture is NOT Enterprise Systems Architecture. ▪ Enterprise Architecture is NOT a methodology for building a stand-alone single information system.
  • 6. The Stack – (BOM to Technology Mapping) Each layer in the Stack can be further decomposed, with each layer pushing or consuming to the layer above and below.
  • 7. The Stack (Methods/Questions) Each layer of the Stack is a complex view in its own right of a specific element of how the layer above and below maps and interacts to support the Business Operating Model What are the tools available to us to analyse, visualise and render to stakeholders the alignment ?
  • 8. The Stack (Points in time )
  • 9. • What if a new piece of legislation is imposed by a Local, Central or International body with which the organisation must comply? ➢ One such piece of legislation that is coming in 2018 is the General Data Protection Regulation (GDPR) • Full text of GDPR can be found at http://ec.europa.eu/justice/data- protection/reform/files/regulation_oj_en.pdf ) • “Do nothing” is not an option as GDPR significantly raises the stakes in terms of compliance, with maximum penalties of 4% annual global turnover or up to 20m Euros (whichever is higher). • How do we ensure that we are compliant using an Enterprise Architectural Approach and that we have factored most areas of our technology estate to the problem? • More info available at my blog : https://dalbanger.wordpress.com/2017/03/18/general-data-protection-regulation- gdpr-and-the-enterprise-technology-landscape/ Example Scenario
  • 10. General Data Protection Regulation (GDPR) Guidance Consent • freely given ? Transparency Profiling High risk processing Certification Administrative fines • 4% annual global turnover or up to 20m Euros (whichever is higher). Breach notification • where feasible, within 72 hours of becoming aware! Data transfers Privacy by Design
  • 11. Impact of GDPR on the Enterprise / Actions http:www.s-ea-t.com CopyrightDaljitRBanger Impact / Touchpoints Data Breach Policy Audit / Trace Reporting Info Exchange Policies Info Processing controls refactoring refactored Controls DR Systems Compliance Procedures Reporting SQL Extracts Audit Privacy by Design principle
  • 12. Products of Enterprise Architecture
  • 13. The deliverables and attributes of artefacts produced by the EA teams will be directly influenced by one or all of the following: TheStructure/Sizeofthe Organisation Characteristicsofthe Organisation TheOperatingEnvironmentofthe EnterpriseArchitecturePractice Managementbuy-inofEnterprise Architecture SizeandBudgetAvailabletothe Team. TeamCapabilities However , irrespective of the structure or capabilities of the team, all artefacts can be classified into 1 of 3 domains One size does not necessarily always fit all No two organisations/industries are ever identical Abstract •Notional Models •Views Functional Interactions / Inter- Relationships Artifacts / Components Support / Hygiene
  • 14. Control Governance – Process Boards – Review, Technical, Business Boards Programme / Project Engagement Business / Partner Engagements Stakeholder Management Inform Principles Policies Portfolio Manageme nt Funding Models Reference Models • Technical • ApplicationBest Practices Patterns Impact Assessmen ts Marketing Plans Standards / Notations Direct Stakeholder Engagement Business Architecture Target Definition Application Target Architecture Data & Information (Master Data Management Strategy) Infrastructure Target Architecture – Enabling Technology & Platforms Roadmaps (Product / Technology) Gap Analysis – Transitional States Impact Assessments Service promotion, catalogue etc… Enterprise Architecture Products (Support/Enablers)
  • 15. Enterprise Architecture - Example Product Matrix Control Inform Direct Artefacts x x x API Management x x Governance – Process x x Application - Target Architecture/s x x Architectural Boards – (Review, Technical, Business Boards(Participation)) x x Architectural Principles - System, Process, Generic x x x Best Practices Research / Promotion/ Socialisation x x x Business Architecture Target Definition x x x Data & Information (MDM Strategy), Journey from Data to Insights x x x Financial / Funding Models (TCO, Investment Plans) x x x Gap Analysis – New Solutions, Transitional States x x x Group / System Policies (Sys Admin etc) x x x Impact Assessments - Projects, Technologies, Solutions x x x Infrastructure Target Architecture – Enabling Technology & Platforms x x Reusable System Patterns (Dev, Integration etc.) x x Portfolio Advisory x x x Programme / Project Engagement x x x Reference Models x x x Technical / Application x x x Roadmaps (Product / Technology) x x x Service catalogue Strategy (Product/technology, Deviation etc.) x x x Service promotion Plans x x x Stakeholder Engagement x Stakeholder Management x x Standards / Notations (Promotion of BPMN, UML, Archimate, etc.)
  • 16. Principles • Business • This criteria element relates to the promotion of enterprise wide principles around the domain of business processing, especially business process modelling and service design. • Application • Principles relating to the design, build and deployment of applications • Information • Principles linked with the production, cleansing and publishing of information • Data • Principles associated with data design, usage, persistence etc. • Infrastructure • Principles associated with selection, deployment, management of the infrastructure (data Centres, Servers storage, network etc) • Foundation Services. • Foundation services relate to DR, Security, Incident management etc i.e. services that are core to all of the above Practices • Business Operations • Here Enterprise Architects should be concerned with the practices associated with capturing, modelling and digitally executing the business operations. • Application Design • I.e. delivery of designs of. Whilst, practices adopted may based on a specific methodology or approach, the real question ‘ how efficiently have we adopted the practices of the approach and are we meeting the business demands based on this adoption ?’ • Application Build • The maturity of the build of applications both internal and externally developed applications should encapsulate test of software unit, components etc prior to build • Governance • Architectural Governance and the teeth i.e. power of associated with the various boards. • Service Delivery • The maturity of the practices i.e. what actually happens during the deployment, management of systems on the technology landscape. • Support • Whilst this is close to Service Delivery it must be noted that we should rank how effectively the EA team deliver the support of its artefacts Process • Business • The engagement of the Enterprise Architecture functions with the Business Process Modelling and Design functions and any alignment activities. • STP • EA should facilitate a move towards Straight Through processing i.e. reducing the number of digital and manual process hand offs between processes. • Information • The Information Architecture and the associated process to capture, manage and publish EA information. • Orchestration • This relates to the processes associated with orchestrating business and technology services • Production Acceptance • The maturity of the processes associated with deployment, management of systems accepted into the production environment. • Documentation • The maturity of document production , publication and promotion by the Enterprise Architecture function • 3rd Party Engagement • How effectively does EA engage with 3rd parties to maximise the benefits to the organisation e.g. cost reductions, savings etc • Contribution to the Enterprise • What is the general perception of EA processes e.g. Governance contributing real value to the organisation from system users to senior management? Patterns • Publications • Does the organisation have a patterns catalogue? How mature is the organising in publishing it patterns, do these publications adopt standards for syntax, notations etc • Promotion • How are patterns promoted through the organisation, are they rendered via an intranet? Or are they in a document library somewhere? • Development • How patterns are developed – are they text book extracts or are they developed with the various technical communities? • Usage • Do the technical Communities use these patterns to provide efficiency gains to the organisation? • Application • Application patterns are to be found publically available and thus should be exploited – do your organisational developers for example exploit published patterns when constructing applications. • Infrastructure • As with Applications above – Do your Service delivery personal for example use standard patterns for system configurations deployed into production. • Security • Security patterns are emerging as a key in distributed systems – are these in use ?, does the technical community know of the existence • Re-Use • How often are patterns re-used if at all and do we as an organisation promote reuse. Portfolio Management • Services • Most Organisations have their own definition of a Services the EAM measure assumes a service as a function that is well-defined, self-contained, and does not depend on the context or state of other services. A service can be either a business or technical object. • Application • The portfolio of applications in an Organisation can be a mix of either bespoke or Commercial Off the Shelf (COTS) either way the life cycle should be managed in a single unified location. • Middleware • Middleware could refer to Enterprise Service Buses, Messaging or even request brokers – these should be managed and in most cases the interfaces to these systems. • Storage • Information and data object persistence should be monitored and managed, i.e. not be the physical devices e.g. the NAS or SANs etc. • Servers • The portfolio management of the Physical Servers both in the production and test environments. • Other Infrastructure • Maturity of the portfolio management of the Physical devices e.g. network Switches, laptops, etc. • Techniques • The techniques adopted to create, capture and manage the information required to measure the level of maturity in the management of the ‘artefact’ portfolio. Products of Enterprise Architecture Contd..
  • 19. Mapping the Architect to The Stack/ SFIA Plus
  • 20. Roles & Responsibility (EA) • Strategic input into the technology roadmaps of the organisation – shape, form and stabilise. • Influence decision makers on technology investment – current & future • Provide systems consultancy, guidance and assurance to large programmes. • Review and assure Solution Designs produced both internally and by 3rd party suppliers. • Ensure that governance mechanisms such as review boards, principles etc. are maintained and supported. • Police the standards through Project and Programme engagement. • Represent the organisation with 3rd parties, for example Systems Integrators and Standards Bodies. • Understand the impact of the introduction of new technology into the technology landscape of the organisation. Enterprise Architects maintain the organisational abstract view, with a primary objective to ensure that the technology landscape is aligned to the strategic, operational and tactical goals of the organisation.
  • 21. Roles & Responsibility (SA&TA) Solution Architects work with/in Projects and Programmes to provide systems consultancy services, impact assessments, end-to-end designs, cost models.. Solution Architects work within the Projects and Programmes to deliver the following architectural services: • Manage the ‘cradle to grave’ – from conception through to delivery into production of solution architectures. • Design both the physical and logical components of solution architectures that will deliver a positive business outcome. • Work with Project Managers to provide provisional costs for the components of the architecture. • Technical Analysis and Design capabilities • Business and technical requirements capture, when required • Facilitate design workshops • Validate designs / costs produced by 3rd parties wishing to sell systems to the organisation. Technical Architects deliver the lower level of technical design, based on high-level component solution designs and costs provided by the Solution Architects. Technical Architects work with projects and the BAU organisation to provide some of the following: •Delivering technical designs and standards and the associated approvals from the formal governance channels. •Understanding the technology estate and the encapsulated technology components of the organisation. •Providing technical recommendations and options based on solution designs which can cost-effectively be realised in the production environment. •Mitigating any technical risks that could occur through the introduction of new technology into the landscape of the organisation. •Providing input into the appropriate innovation funnels for the analysis of new technology. •Keeping abreast of technology trends, attending industry events to ensure product roadmaps are understood by the Solution and Enterprise Architects. •Ensuring that production acceptance for projects is delivered and managed.
  • 22. Final Note • Enterprise Architecture is delivered in the context of the Organisation – true value can not be realised by simply following a single ‘Cook Book’ or Framework approach. • Architectural Realisation is a way of thinking and not a concrete technological implementation. It is however, supported by frameworks, patterns & best practices that complement the mindset. • As an Enterprise Architect you must be aware of both the technology landscape of your organisation and external factors that can impact the landscape.
  • 23. Website : www.s-ea-t.com (Tools, Papers Downloads) Blog : https://dalbanger.wordpress.com/ Email : dal@s-ea-t.com Thank You
