ArchiMate 3.0: A New Standard for Architecture
- 1. ArchiMate® 3.0: A NewStandard for Architecture Marc Lankhorst Iver Band

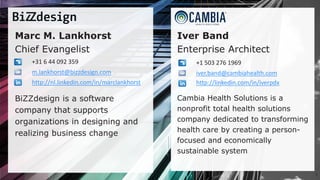

- 2. 2 Iver Band Enterprise Architect CambiaHealth Solutions is a nonprofit total health solutions company dedicated to transforming health care by creating a person- focused and economically sustainable system Marc M. Lankhorst Chief Evangelist BiZZdesign is a software company that supports organizations in designing and realizing business change +31 6 44 092 359 m.lankhorst@bizzdesign.com http://nl.linkedin.com/in/marclankhorst +1 503 276 1969 iver.band@cambiahealth.com http://linkedin.com/in/iverpdx

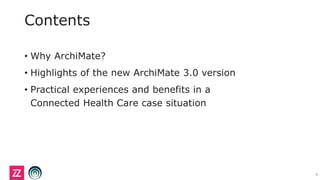

- 3. Contents 3 • Why ArchiMate? •Highlights of the new ArchiMate 3.0 version • Practical experiences and benefits in a Connected Health Care case situation
- 4. Why One Language? •Get away from the “fuzzy pictures” image • Clear communication • No ambiguity • Coherence • Consistency • Visualization • Analysis 4

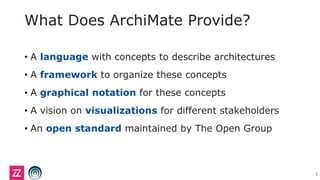

- 5. What Does ArchiMateProvide? • A language with concepts to describe architectures • A framework to organize these concepts • A graphical notation for these concepts • A vision on visualizations for different stakeholders • An open standard maintained by The Open Group 5
- 6. Positioning ArchiMate 6 Strategy models Architecturemodels Design/implementation models Business Model Canvas Balanced Score Card SWOT analysis … ArchiMate models BPMN models UML models DMN models …

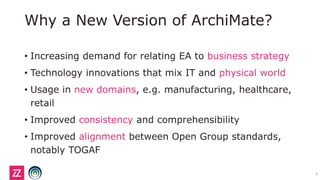

- 7. Why a NewVersion of ArchiMate? • Increasing demand for relating EA to business strategy • Technology innovations that mix IT and physical world • Usage in new domains, e.g. manufacturing, healthcare, retail • Improved consistency and comprehensibility • Improved alignment between Open Group standards, notably TOGAF 7
- 8. ArchiMate Industry Usage(N=199) 8 27% 21% 13% 7% 6% 5% 4% 1% 1% 1%1%0.5% 13% Government Finance Information technology Healthcare Retail Manufacturing Telecommunications Mining, oil & gas Media Logistics Utilities Energy Other Poll on ArchiMate LinkedIn group, June 2015
- 9.

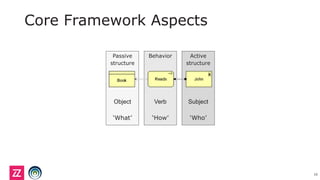

- 10.

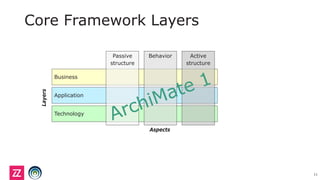

- 11. Core Framework Layers 11 Application Technology Business Passive structure BehaviorActive structure Aspects Layers
- 12.

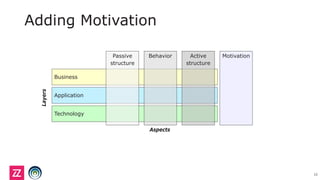

- 13. Implementation & Migration Adding Implementation& Migration 13 Application Technology Business Motivation Layers Passive structure Behavior Active structure Aspects

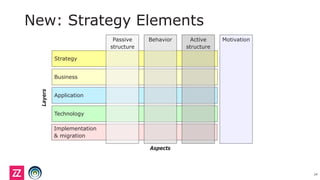

- 14. New: Strategy Elements Strategy Implementation &migration Application Technology Business MotivationPassive structure Behavior Active structure Aspects Layers 14

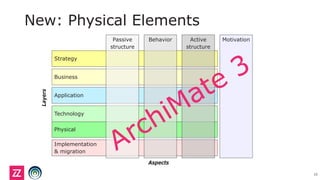

- 15. New: Physical Elements Strategy Implementation &migration Physical Application Technology Business MotivationPassive structure Behavior Active structure Aspects Layers 15

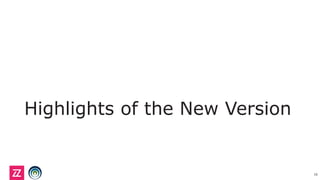

- 16. Highlights of theNew Version 16
- 17. New Strategy Elements •Added concepts for modeling strategy, capability-based planning and related domains • This supports the increased usage of EA in supporting strategy execution • New concepts are in line with approaches like TOGAF, BizBOK, BMM • Work is proceeding on Capability-Based Planning with the ArchiMate language 17

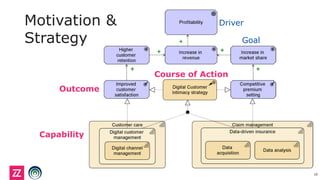

- 18. Outcome Motivation & Strategy 18 Capability Course ofAction Goal Driver

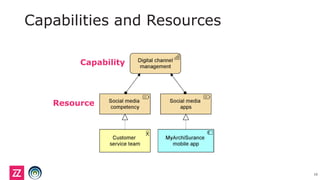

- 19.
- 20.

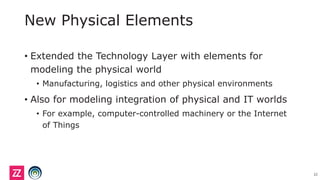

- 21. New Physical Elements •Extended the Technology Layer with elements for modeling the physical world • Manufacturing, logistics and other physical environments • Also for modeling integration of physical and IT worlds • For example, computer-controlled machinery or the Internet of Things 22

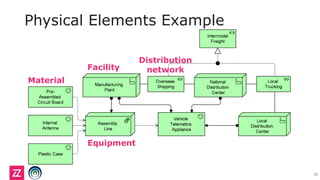

- 22.

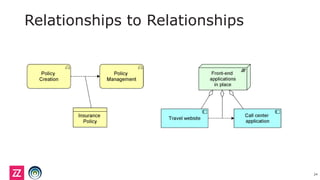

- 23.

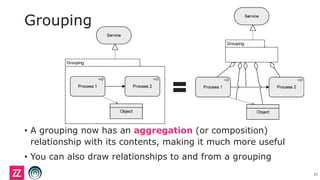

- 24. Grouping • A groupingnow has an aggregation (or composition) relationship with its contents, making it much more useful • You can also draw relationships to and from a grouping 25
- 25.

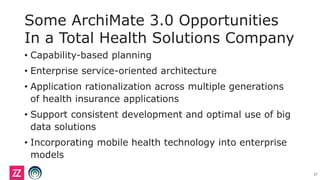

- 26. Some ArchiMate 3.0Opportunities In a Total Health Solutions Company • Capability-based planning • Enterprise service-oriented architecture • Application rationalization across multiple generations of health insurance applications • Support consistent development and optimal use of big data solutions • Incorporating mobile health technology into enterprise models 27

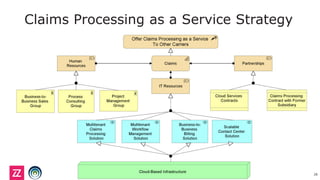

- 27. Claims Processing asa Service Strategy 28

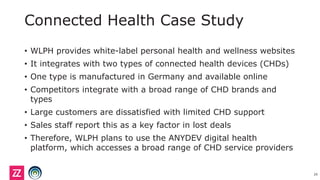

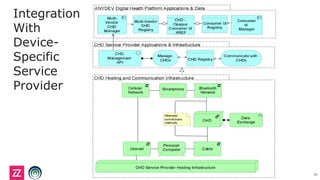

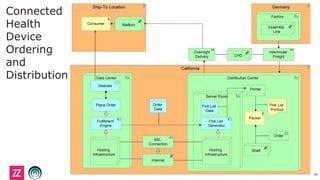

- 28. Connected Health CaseStudy • WLPH provides white-label personal health and wellness websites • It integrates with two types of connected health devices (CHDs) • One type is manufactured in Germany and available online • Competitors integrate with a broad range of CHD brands and types • Large customers are dissatisfied with limited CHD support • Sales staff report this as a key factor in lost deals • Therefore, WLPH plans to use the ANYDEV digital health platform, which accesses a broad range of CHD service providers 29
- 29.

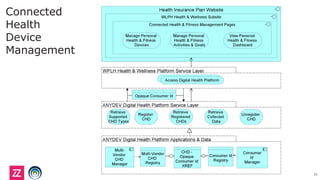

- 30.
- 31.
- 32.

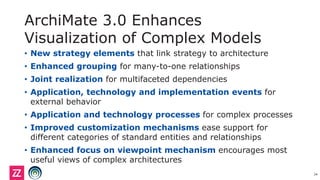

- 33. ArchiMate 3.0 Enhances Visualizationof Complex Models • New strategy elements that link strategy to architecture • Enhanced grouping for many-to-one relationships • Joint realization for multifaceted dependencies • Application, technology and implementation events for external behavior • Application and technology processes for complex processes • Improved customization mechanisms ease support for different categories of standard entities and relationships • Enhanced focus on viewpoint mechanism encourages most useful views of complex architectures 34

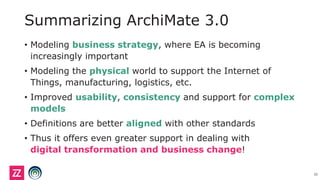

- 34. Summarizing ArchiMate 3.0 •Modeling business strategy, where EA is becoming increasingly important • Modeling the physical world to support the Internet of Things, manufacturing, logistics, etc. • Improved usability, consistency and support for complex models • Definitions are better aligned with other standards • Thus it offers even greater support in dealing with digital transformation and business change! 35

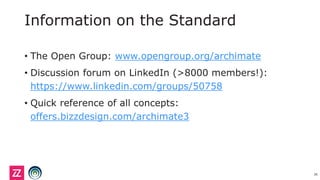

- 35. Information on theStandard • The Open Group: www.opengroup.org/archimate • Discussion forum on LinkedIn (>8000 members!): https://www.linkedin.com/groups/50758 • Quick reference of all concepts: offers.bizzdesign.com/archimate3 36
