Master of Science
Business Information Systems
Enterprise Architecture Views and
Viewpoints in ArchiMate - Reference
Source: ArchiMate 2.0 Specification, chapter 8, http://pubs.opengroup.org/architecture/archimate2-doc/chap08.html
Prof. Dr. Knut Hinkelmann
MSc BIS

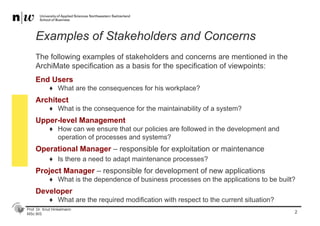

Examples of Stakeholders and Concerns
The following examples of stakeholders and concerns are mentioned in the
ArchiMate specification as a basis for the specification of viewpoints:
End Users
♦ What are the consequences for his workplace?
Architect
♦ What is the consequence for the maintainability of a system?
Upper-level Management
♦ How can we ensure that our policies are followed in the development and
operation of processes and systems?
Operational Manager – responsible for exploitation or maintenance
♦ Is there a need to adapt maintenance processes?
Project Manager – responsible for development of new applications
♦ What is the dependence of business processes on the applications to be built?
Developer
♦ What are the required modification with respect to the current situation?
2
Prof. Dr. Knut Hinkelmann
MSc BIS
Two-Dimensional Classification of Enterprise
Architecture Viewpoints
3
Content Dimension
■ Details:
♦ one layer and one aspect
■ Coherence:
♦ multiple layers or multiple aspects
♦ focus on architecture relations
between layers or aspects
■ Overview:
♦ both multiple layers and aspects
Purpose Dimension
■ Designing
♦ support design process from
initial sketch to detailed design
■ Deciding:
♦ offering insight into cross-domain
architecture relations
■ Informing:
♦ achieve understanding, obtain
commitment, convince
ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS
Views and Viewpoints in ArchiMate
■ In ArchiMate, architects and other stakeholders can define
their own views on the enterprise architecture
■ A viewpoint in ArchiMate is a selection of
♦ a relevant subset of the ArchiMate concepts and their
relationships
♦ For each viewpoint one model kind exists
■ A view is (a set of) models
♦ representing a part of an architecture
♦ using the concepts and relationships of the corresponding
viewpoint
ArchiMate - Views and Viewpoints 4
Prof. Dr. Knut Hinkelmann
MSc BIS

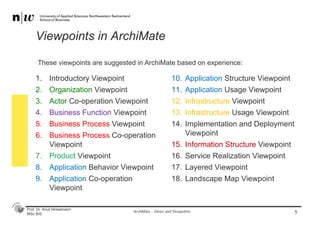

Viewpoints in ArchiMate
1. Introductory Viewpoint
2. Organization Viewpoint
3. Actor Co-operation Viewpoint
4. Business Function Viewpoint
5. Business Process Viewpoint
6. Business Process Co-operation
Viewpoint
7. Product Viewpoint
8. Application Behavior Viewpoint
9. Application Co-operation
Viewpoint
10. Application Structure Viewpoint
11. Application Usage Viewpoint
12. Infrastructure Viewpoint
13. Infrastructure Usage Viewpoint
14. Implementation and Deployment
Viewpoint
15. Information Structure Viewpoint
16. Service Realization Viewpoint
17. Layered Viewpoint
18. Landscape Map Viewpoint
5ArchiMate - Views and Viewpoints
These viewpoints are suggested in ArchiMate based on experience:
Prof. Dr. Knut Hinkelmann
MSc BIS
Introductory Viewpoint
6
A subset of the full ArchiMate language using a simplified notation. Typically used
at the start of a design trajectory, when not everything needs to be detailed or to
avoid the impression that the architectural design is already fixed.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

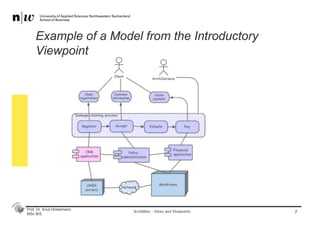

Example of a Model from the Introductory
Viewpoint
7ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

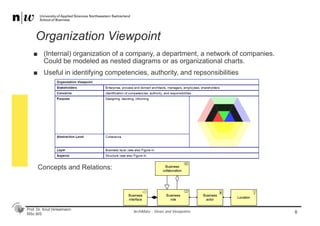

Organization Viewpoint
ArchiMate - Views and Viewpoints 8
Concepts and Relations:
■ (Internal) organization of a company, a department, a network of companies.
Could be modeled as nested diagrams or as organizational charts.
■ Useful in identifying competencies, authority, and repsonsibilities
Prof. Dr. Knut Hinkelmann
MSc BIS
Example of a Model from the Organization
Viewpoint
9ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

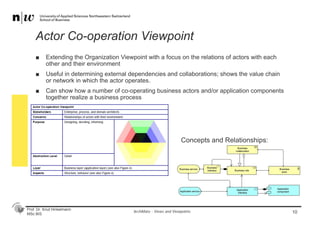

Actor Co-operation Viewpoint
10
■ Extending the Organization Viewpoint with a focus on the relations of actors with each
other and their environment
■ Useful in determining external dependencies and collaborations; shows the value chain
or network in which the actor operates.
■ Can show how a number of co-operating business actors and/or application components
together realize a business process
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

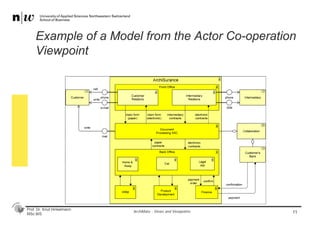

Example of a Model from the Actor Co-operation
Viewpoint
11ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

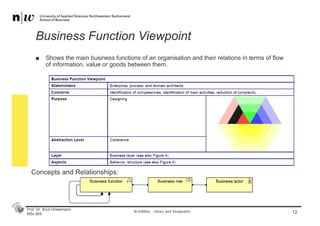

Business Function Viewpoint
12
■ Shows the main business functions of an organisation and their relations in terms of flow
of information, value or goods between them.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

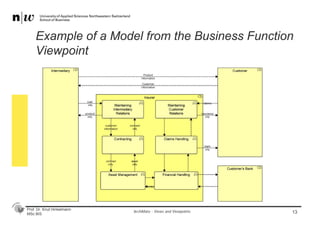

Example of a Model from the Business Function
Viewpoint
13ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

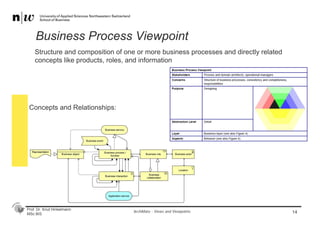

Business Process Viewpoint
14
Structure and composition of one or more business processes and directly related
concepts like products, roles, and information
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

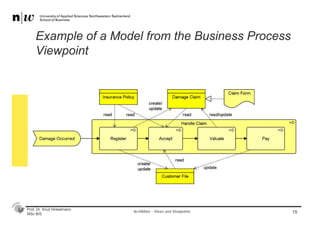

Example of a Model from the Business Process
Viewpoint
15ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

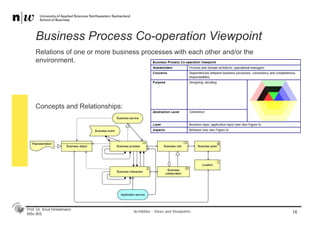

Business Process Co-operation Viewpoint
16
Relations of one or more business processes with each other and/or the
environment.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

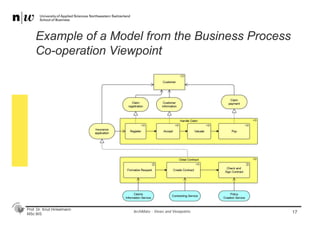

Example of a Model from the Business Process
Co-operation Viewpoint
17ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

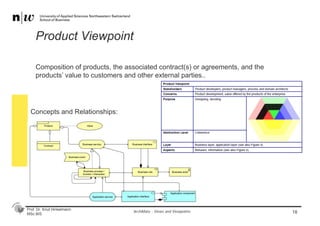

Product Viewpoint
18
Composition of products, the associated contract(s) or agreements, and the
products’ value to customers and other external parties..
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

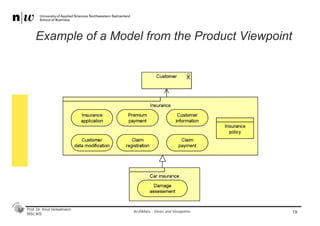

Example of a Model from the Product Viewpoint
19ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

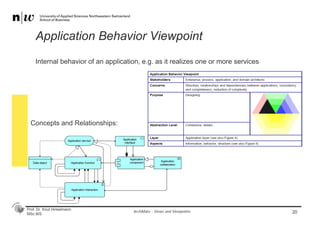

Application Behavior Viewpoint
20
Internal behavior of an application, e.g. as it realizes one or more services
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

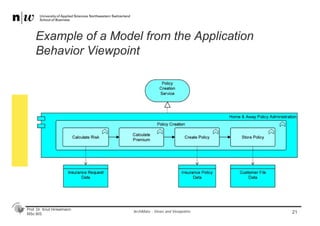

Example of a Model from the Application
Behavior Viewpoint
21ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

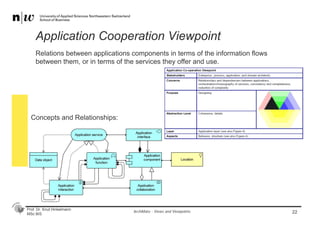

Application Cooperation Viewpoint
22ArchiMate - Views and Viewpoints
Relations between applications components in terms of the information flows
between them, or in terms of the services they offer and use.
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

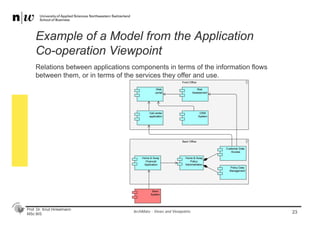

Example of a Model from the Application
Co-operation Viewpoint
23
Relations between applications components in terms of the information flows
between them, or in terms of the services they offer and use.
ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS
Application Structure Viewpoint
24
Structure of one or more applications or components. This viewpoint is useful in
designing or understanding the main structure of applications or components and
the associated data
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

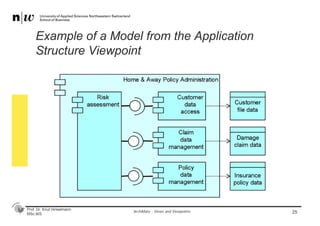

Example of a Model from the Application
Structure Viewpoint
25ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS
Application Usage Viewpoint
26
Describes how applications are used to support one or more business processes,
and how they are used by other applications
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS
Example of a Model from the Application Usage
Viewpoint
27ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

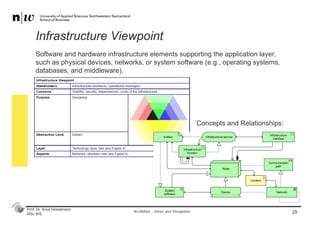

Infrastructure Viewpoint
28
Software and hardware infrastructure elements supporting the application layer,
such as physical devices, networks, or system software (e.g., operating systems,
databases, and middleware).
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

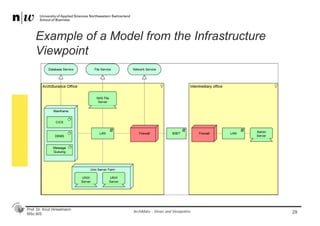

Example of a Model from the Infrastructure
Viewpoint
29ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

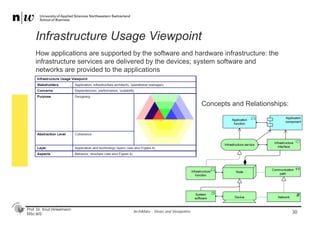

Infrastructure Usage Viewpoint
30
How applications are supported by the software and hardware infrastructure: the
infrastructure services are delivered by the devices; system software and
networks are provided to the applications
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

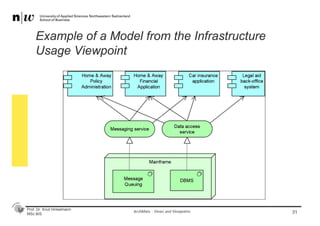

Example of a Model from the Infrastructure
Usage Viewpoint
31ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

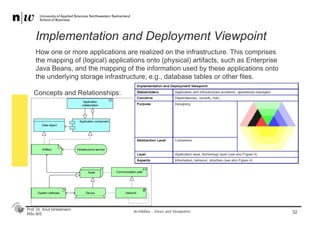

Implementation and Deployment Viewpoint
32
How one or more applications are realized on the infrastructure. This comprises
the mapping of (logical) applications onto (physical) artifacts, such as Enterprise
Java Beans, and the mapping of the information used by these applications onto
the underlying storage infrastructure; e.g., database tables or other files.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

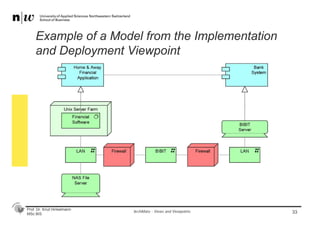

Example of a Model from the Implementation
and Deployment Viewpoint
33ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

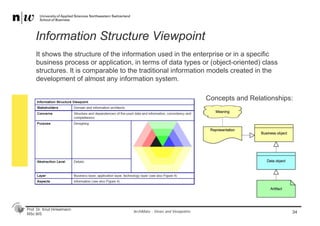

Information Structure Viewpoint
34
It shows the structure of the information used in the enterprise or in a specific
business process or application, in terms of data types or (object-oriented) class
structures. It is comparable to the traditional information models created in the
development of almost any information system.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

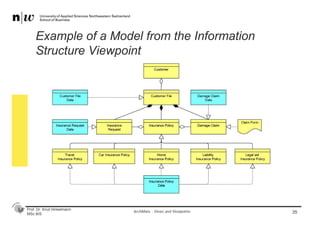

Example of a Model from the Information
Structure Viewpoint
35ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS
Service Realization Viewpoint
36
How one or more business services are realized by the underlying processes (and
sometimes by application components). Thus, it forms the bridge between the
business products viewpoint and the business process view.
ArchiMate - Views and Viewpoints
Concepts and Relationships:
Prof. Dr. Knut Hinkelmann
MSc BIS

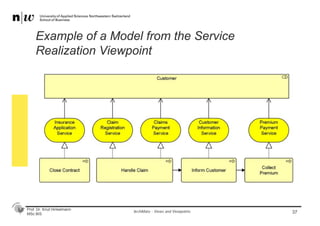

Example of a Model from the Service
Realization Viewpoint
37ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

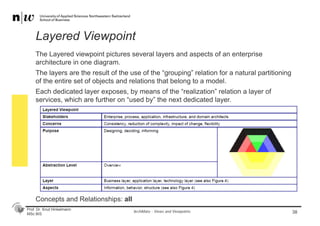

Layered Viewpoint
38
The Layered viewpoint pictures several layers and aspects of an enterprise
architecture in one diagram.
The layers are the result of the use of the “grouping” relation for a natural partitioning
of the entire set of objects and relations that belong to a model.
Each dedicated layer exposes, by means of the “realization” relation a layer of
services, which are further on “used by” the next dedicated layer.
ArchiMate - Views and Viewpoints
Concepts and Relationships: all
Prof. Dr. Knut Hinkelmann
MSc BIS
Example of a Model from
the Layered Viewpoint
39ArchiMate - Views and Viewpoints
Prof. Dr. Knut Hinkelmann
MSc BIS

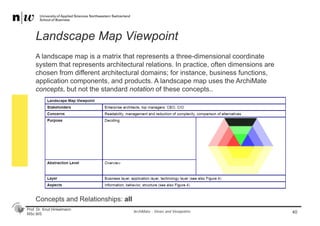

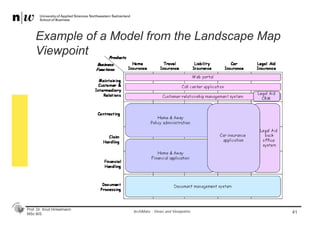

Landscape Map Viewpoint
40
A landscape map is a matrix that represents a three-dimensional coordinate
system that represents architectural relations. In practice, often dimensions are
chosen from different architectural domains; for instance, business functions,
application components, and products. A landscape map uses the ArchiMate
concepts, but not the standard notation of these concepts..
ArchiMate - Views and Viewpoints
Concepts and Relationships: all
Prof. Dr. Knut Hinkelmann
MSc BIS
Example of a Model from the Landscape Map
Viewpoint
41ArchiMate - Views and Viewpoints

More Related Content

What's hot

Value analysis with Value Stream and Capability modeling
Value analysis with Value Stream and Capability modelingValue analysis with Value Stream and Capability modeling
Value analysis with Value Stream and Capability modelingCOMPETENSIS

Introduction to Enterprise architecture and the steps to perform an Enterpris...
Introduction to Enterprise architecture and the steps to perform an Enterpris...Introduction to Enterprise architecture and the steps to perform an Enterpris...
Introduction to Enterprise architecture and the steps to perform an Enterpris...Prashanth Panduranga

EA foundations (Views, Repository, Artifacts and Metamodel)
EA foundations (Views, Repository, Artifacts and Metamodel)EA foundations (Views, Repository, Artifacts and Metamodel)
EA foundations (Views, Repository, Artifacts and Metamodel)Mohamed Zakarya Abdelgawad

EA Intensive Course "Building Enterprise Architecture" by mr.danairat
EA Intensive Course "Building Enterprise Architecture" by mr.danairatEA Intensive Course "Building Enterprise Architecture" by mr.danairat
EA Intensive Course "Building Enterprise Architecture" by mr.danairatSoftware Park Thailand

Enterprise communication using archiMate
Enterprise communication using archiMateEnterprise communication using archiMate
Enterprise communication using archiMateLouw Labuschagne

Enterprise Architecture
Enterprise ArchitectureEnterprise Architecture
Enterprise ArchitectureVikas Grover

Understanding and Applying The Open Group Architecture Framework (TOGAF)
Understanding and Applying The Open Group Architecture Framework (TOGAF)Understanding and Applying The Open Group Architecture Framework (TOGAF)
Understanding and Applying The Open Group Architecture Framework (TOGAF)Nathaniel Palmer

Enterprise Architecture Implementation And The Open Group Architecture Framew...
Enterprise Architecture Implementation And The Open Group Architecture Framew...Enterprise Architecture Implementation And The Open Group Architecture Framew...
Enterprise Architecture Implementation And The Open Group Architecture Framew...Alan McSweeney

Introduction to business architecture
Introduction to business architectureIntroduction to business architecture
Introduction to business architectureAniekan Okono

Enterprise Architecture - An Introduction from the Real World
Enterprise Architecture - An Introduction from the Real World Enterprise Architecture - An Introduction from the Real World
Enterprise Architecture - An Introduction from the Real World Daljit Banger

What is Enterprise Architecture?
What is Enterprise Architecture?What is Enterprise Architecture?
What is Enterprise Architecture?Brett Colbert

What is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAFWhat is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAFxavblai

ArchiMate introduction
ArchiMate introductionArchiMate introduction
ArchiMate introductionAshraf Fouad

Business Architecture Explained
Business Architecture ExplainedBusiness Architecture Explained
Business Architecture Explainedaaronwilliamson

Enterprise Architecture - TOGAF Overview
Enterprise Architecture - TOGAF OverviewEnterprise Architecture - TOGAF Overview
Enterprise Architecture - TOGAF OverviewMohamed Sami El-Tahawy

Enterprise Architecture, Project Management & Digital Transformation
Enterprise Architecture, Project Management & Digital TransformationEnterprise Architecture, Project Management & Digital Transformation
Enterprise Architecture, Project Management & Digital TransformationRiaz A. Khan, OpenCA, TOGAF

Bringing Architecture Thinking to the People - An introduction into the PEOPL...
Bringing Architecture Thinking to the People - An introduction into the PEOPL...Bringing Architecture Thinking to the People - An introduction into the PEOPL...
Bringing Architecture Thinking to the People - An introduction into the PEOPL...Craig Martin

2019 07 Bizbok with Archimate 3 v3 [UPDATED !]
 2019 07 Bizbok with Archimate 3 v3 [UPDATED !] 2019 07 Bizbok with Archimate 3 v3 [UPDATED !]
2019 07 Bizbok with Archimate 3 v3 [UPDATED !]COMPETENSIS

Togaf introduction and core concepts
Togaf introduction and core conceptsTogaf introduction and core concepts
Togaf introduction and core conceptsPaul Sullivan


What's hot (20)

Value analysis with Value Stream and Capability modeling
Value analysis with Value Stream and Capability modelingValue analysis with Value Stream and Capability modeling
Value analysis with Value Stream and Capability modeling

Introduction to Enterprise architecture and the steps to perform an Enterpris...
Introduction to Enterprise architecture and the steps to perform an Enterpris...Introduction to Enterprise architecture and the steps to perform an Enterpris...
Introduction to Enterprise architecture and the steps to perform an Enterpris...

Archimate Viewpoints
Archimate ViewpointsArchimate Viewpoints
Archimate Viewpoints

EA foundations (Views, Repository, Artifacts and Metamodel)
EA foundations (Views, Repository, Artifacts and Metamodel)EA foundations (Views, Repository, Artifacts and Metamodel)
EA foundations (Views, Repository, Artifacts and Metamodel)

EA Intensive Course "Building Enterprise Architecture" by mr.danairat
EA Intensive Course "Building Enterprise Architecture" by mr.danairatEA Intensive Course "Building Enterprise Architecture" by mr.danairat
EA Intensive Course "Building Enterprise Architecture" by mr.danairat

Enterprise communication using archiMate
Enterprise communication using archiMateEnterprise communication using archiMate
Enterprise communication using archiMate

Enterprise Architecture
Enterprise ArchitectureEnterprise Architecture
Enterprise Architecture

Understanding and Applying The Open Group Architecture Framework (TOGAF)
Understanding and Applying The Open Group Architecture Framework (TOGAF)Understanding and Applying The Open Group Architecture Framework (TOGAF)
Understanding and Applying The Open Group Architecture Framework (TOGAF)

Enterprise Architecture Implementation And The Open Group Architecture Framew...
Enterprise Architecture Implementation And The Open Group Architecture Framew...Enterprise Architecture Implementation And The Open Group Architecture Framew...
Enterprise Architecture Implementation And The Open Group Architecture Framew...

Introduction to business architecture
Introduction to business architectureIntroduction to business architecture
Introduction to business architecture

Enterprise Architecture - An Introduction from the Real World
Enterprise Architecture - An Introduction from the Real World Enterprise Architecture - An Introduction from the Real World
Enterprise Architecture - An Introduction from the Real World

What is Enterprise Architecture?
What is Enterprise Architecture?What is Enterprise Architecture?
What is Enterprise Architecture?

What is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAFWhat is the Value of Mature Enterprise Architecture TOGAF
What is the Value of Mature Enterprise Architecture TOGAF

ArchiMate introduction
ArchiMate introductionArchiMate introduction
ArchiMate introduction

Business Architecture Explained
Business Architecture ExplainedBusiness Architecture Explained
Business Architecture Explained

Enterprise Architecture - TOGAF Overview
Enterprise Architecture - TOGAF OverviewEnterprise Architecture - TOGAF Overview
Enterprise Architecture - TOGAF Overview

Enterprise Architecture, Project Management & Digital Transformation
Enterprise Architecture, Project Management & Digital TransformationEnterprise Architecture, Project Management & Digital Transformation
Enterprise Architecture, Project Management & Digital Transformation

Bringing Architecture Thinking to the People - An introduction into the PEOPL...
Bringing Architecture Thinking to the People - An introduction into the PEOPL...Bringing Architecture Thinking to the People - An introduction into the PEOPL...
Bringing Architecture Thinking to the People - An introduction into the PEOPL...

2019 07 Bizbok with Archimate 3 v3 [UPDATED !]
 2019 07 Bizbok with Archimate 3 v3 [UPDATED !] 2019 07 Bizbok with Archimate 3 v3 [UPDATED !]
2019 07 Bizbok with Archimate 3 v3 [UPDATED !]

Togaf introduction and core concepts
Togaf introduction and core conceptsTogaf introduction and core concepts
Togaf introduction and core concepts


Viewers also liked

An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...Iver Band

Iasa UK Archimate Overview
Iasa UK Archimate OverviewIasa UK Archimate Overview
Iasa UK Archimate OverviewIasa UK

Archimate 2.1 an introduction
Archimate 2.1   an introductionArchimate 2.1   an introduction
Archimate 2.1 an introductionDaan Bakboord

Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overviewEnterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overviewWinton Winton

TOGAF Classroom Series - M1 intro-ea-togaf
TOGAF Classroom Series - M1 intro-ea-togafTOGAF Classroom Series - M1 intro-ea-togaf
TOGAF Classroom Series - M1 intro-ea-togafCuneyt Kaya

TOGAF Classroom Series - M7 business-scenarios
TOGAF Classroom Series - M7 business-scenariosTOGAF Classroom Series - M7 business-scenarios
TOGAF Classroom Series - M7 business-scenariosCuneyt Kaya

Using Software Architecture Principles in Practice
Using Software Architecture Principles in PracticeUsing Software Architecture Principles in Practice
Using Software Architecture Principles in PracticeEoin Woods

Software Architecture as Systems Dissolve
Software Architecture as Systems DissolveSoftware Architecture as Systems Dissolve
Software Architecture as Systems DissolveEoin Woods

Software Architecture Views and Viewpoints
Software Architecture Views and ViewpointsSoftware Architecture Views and Viewpoints
Software Architecture Views and ViewpointsHenry Muccini

TOGAF Classroom Series - M2 togaf-9-components
TOGAF Classroom Series - M2 togaf-9-componentsTOGAF Classroom Series - M2 togaf-9-components
TOGAF Classroom Series - M2 togaf-9-componentsCuneyt Kaya

Software Architecture: Why and What?
Software Architecture: Why and What?Software Architecture: Why and What?
Software Architecture: Why and What?Chris F Carroll

TOGAF Classroom Series - M3 intro-adm
TOGAF Classroom Series - M3 intro-admTOGAF Classroom Series - M3 intro-adm
TOGAF Classroom Series - M3 intro-admCuneyt Kaya

Software Architecture: views and viewpoints
Software Architecture: views and viewpointsSoftware Architecture: views and viewpoints
Software Architecture: views and viewpointsHenry Muccini

Enterprise Architecture Overview
Enterprise Architecture OverviewEnterprise Architecture Overview
Enterprise Architecture OverviewTim Murphy

Delivering enterprise architecture
Delivering enterprise architectureDelivering enterprise architecture
Delivering enterprise architectureBas van Gils

European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0Friso de Jong

EAPJ Vol IV July 2017
EAPJ Vol IV July 2017EAPJ Vol IV July 2017
EAPJ Vol IV July 2017Darryl_Carr


Viewers also liked (20)

An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...
An Introduction to Enterprise Architecture Visual Modeling With The ArchiMate...

Iasa UK Archimate Overview
Iasa UK Archimate OverviewIasa UK Archimate Overview
Iasa UK Archimate Overview

Archimate 2.1 an introduction
Archimate 2.1   an introductionArchimate 2.1   an introduction
Archimate 2.1 an introduction

Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overviewEnterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview
Enterprise Architecture for Dummies - TOGAF 9 enterprise architecture overview

TOGAF Classroom Series - M1 intro-ea-togaf
TOGAF Classroom Series - M1 intro-ea-togafTOGAF Classroom Series - M1 intro-ea-togaf
TOGAF Classroom Series - M1 intro-ea-togaf

TOGAF Classroom Series - M7 business-scenarios
TOGAF Classroom Series - M7 business-scenariosTOGAF Classroom Series - M7 business-scenarios
TOGAF Classroom Series - M7 business-scenarios

Using Software Architecture Principles in Practice
Using Software Architecture Principles in PracticeUsing Software Architecture Principles in Practice
Using Software Architecture Principles in Practice

Software Architecture as Systems Dissolve
Software Architecture as Systems DissolveSoftware Architecture as Systems Dissolve
Software Architecture as Systems Dissolve

Software Architecture Views and Viewpoints
Software Architecture Views and ViewpointsSoftware Architecture Views and Viewpoints
Software Architecture Views and Viewpoints

TOGAF Classroom Series - M2 togaf-9-components
TOGAF Classroom Series - M2 togaf-9-componentsTOGAF Classroom Series - M2 togaf-9-components
TOGAF Classroom Series - M2 togaf-9-components

Software Architecture: Why and What?
Software Architecture: Why and What?Software Architecture: Why and What?
Software Architecture: Why and What?

TOGAF Classroom Series - M3 intro-adm
TOGAF Classroom Series - M3 intro-admTOGAF Classroom Series - M3 intro-adm
TOGAF Classroom Series - M3 intro-adm

Software Architecture: views and viewpoints
Software Architecture: views and viewpointsSoftware Architecture: views and viewpoints
Software Architecture: views and viewpoints

Archimate Introduction
Archimate IntroductionArchimate Introduction
Archimate Introduction

Enterprise Architecture Overview
Enterprise Architecture OverviewEnterprise Architecture Overview
Enterprise Architecture Overview

Delivering enterprise architecture
Delivering enterprise architectureDelivering enterprise architecture
Delivering enterprise architecture

14.1 features
14.1 features14.1 features
14.1 features

European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0European Interoperability Framework For European Public Services Draft 2.0
European Interoperability Framework For European Public Services Draft 2.0

Albertin Hp - Unified communication
Albertin Hp - Unified communicationAlbertin Hp - Unified communication
Albertin Hp - Unified communication

EAPJ Vol IV July 2017
EAPJ Vol IV July 2017EAPJ Vol IV July 2017
EAPJ Vol IV July 2017


Similar to Archi mate views_and_viewpoints

System Engineering with Project & Risk Management
System Engineering with Project & Risk ManagementSystem Engineering with Project & Risk Management
System Engineering with Project & Risk ManagementRAMKUMAR P

Learn Togaf 9.1 in 100 slides!
Learn Togaf 9.1 in 100 slides!Learn Togaf 9.1 in 100 slides!
Learn Togaf 9.1 in 100 slides!Sam Mandebvu

Requirements Engineering - System Vision
Requirements Engineering - System VisionRequirements Engineering - System Vision
Requirements Engineering - System VisionBirgit Penzenstadler

PLA and the SC 2002-04-15
PLA and the SC 2002-04-15PLA and the SC 2002-04-15
PLA and the SC 2002-04-15Jay van Zyl

Unit iii-Architecture in the lifecycle
Unit iii-Architecture in the lifecycleUnit iii-Architecture in the lifecycle
Unit iii-Architecture in the lifecycleDhivyaa C.R

Interactive solutions - Web usability
Interactive solutions - Web usabilityInteractive solutions - Web usability
Interactive solutions - Web usabilityIdeo Agency

Lecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdfLecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdfAkilaGamage2

Compliance driven process development with DCR graphs
Compliance driven process development with DCR graphsCompliance driven process development with DCR graphs
Compliance driven process development with DCR graphsHugo Andrés López

Enterprise Architecture Visualization
Enterprise ArchitectureVisualization Enterprise ArchitectureVisualization
Enterprise Architecture Visualization Shkumbin Rrushaj

Evolutionary Architecture And Design
Evolutionary Architecture And DesignEvolutionary Architecture And Design
Evolutionary Architecture And DesignNaresh Jain

A Technical Focus on Business Process Management – Past, Present, and Emergin...
A Technical Focus on Business Process Management – Past, Present, and Emergin...A Technical Focus on Business Process Management – Past, Present, and Emergin...
A Technical Focus on Business Process Management – Past, Present, and Emergin...Ingo Weber

Intranet governance and information management
Intranet governance and information managementIntranet governance and information management
Intranet governance and information managementGabrieleSani3

Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...
Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...
Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...MysoreMuleSoftMeetup

Continuity in the development of seamless mobility: An approach for a system-...
Continuity in the development of seamless mobility: An approach for a system-...Continuity in the development of seamless mobility: An approach for a system-...
Continuity in the development of seamless mobility: An approach for a system-...IRJET Journal

New approaches for collaborative product-service design
New approaches for collaborative product-service designNew approaches for collaborative product-service design
New approaches for collaborative product-service designOlgaRodrguezLargo

Environmental building design performance modelling and simulation
Environmental building design performance modelling and simulationEnvironmental building design performance modelling and simulation
Environmental building design performance modelling and simulationnagham ali hasan


Similar to Archi mate views_and_viewpoints (20)

System Engineering with Project & Risk Management
System Engineering with Project & Risk ManagementSystem Engineering with Project & Risk Management
System Engineering with Project & Risk Management

Learn Togaf 9.1 in 100 slides!
Learn Togaf 9.1 in 100 slides!Learn Togaf 9.1 in 100 slides!
Learn Togaf 9.1 in 100 slides!

Requirements Engineering - System Vision
Requirements Engineering - System VisionRequirements Engineering - System Vision
Requirements Engineering - System Vision

12786246.ppt
12786246.ppt12786246.ppt
12786246.ppt

PLA and the SC 2002-04-15
PLA and the SC 2002-04-15PLA and the SC 2002-04-15
PLA and the SC 2002-04-15

Unit iii-Architecture in the lifecycle
Unit iii-Architecture in the lifecycleUnit iii-Architecture in the lifecycle
Unit iii-Architecture in the lifecycle

Erp 03
Erp 03Erp 03
Erp 03

MIS.ppt
MIS.pptMIS.ppt
MIS.ppt

Interactive solutions - Web usability
Interactive solutions - Web usabilityInteractive solutions - Web usability
Interactive solutions - Web usability

Lecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdfLecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdf

Compliance driven process development with DCR graphs
Compliance driven process development with DCR graphsCompliance driven process development with DCR graphs
Compliance driven process development with DCR graphs

Enterprise Architecture Visualization
Enterprise ArchitectureVisualization Enterprise ArchitectureVisualization
Enterprise Architecture Visualization

Evolutionary Architecture And Design
Evolutionary Architecture And DesignEvolutionary Architecture And Design
Evolutionary Architecture And Design

A Technical Focus on Business Process Management – Past, Present, and Emergin...
A Technical Focus on Business Process Management – Past, Present, and Emergin...A Technical Focus on Business Process Management – Past, Present, and Emergin...
A Technical Focus on Business Process Management – Past, Present, and Emergin...

Intranet governance and information management
Intranet governance and information managementIntranet governance and information management
Intranet governance and information management

Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...
Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...
Application Design Thinking wrt Integration Architecture - Part II | MuleSoft...

Continuity in the development of seamless mobility: An approach for a system-...
Continuity in the development of seamless mobility: An approach for a system-...Continuity in the development of seamless mobility: An approach for a system-...
Continuity in the development of seamless mobility: An approach for a system-...

New approaches for collaborative product-service design
New approaches for collaborative product-service designNew approaches for collaborative product-service design
New approaches for collaborative product-service design

Environmental building design performance modelling and simulation
Environmental building design performance modelling and simulationEnvironmental building design performance modelling and simulation
Environmental building design performance modelling and simulation

Syylabus
SyylabusSyylabus
Syylabus


Recently uploaded

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMKumar Satyam

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxFIDO Alliance

Modernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using BallerinaModernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using BallerinaWSO2

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewDianaGray10

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Victor Rentea

Navigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern EnterpriseNavigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern EnterpriseWSO2

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024Lorenzo Miniero

WSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...FIDO Alliance

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe中 央社

Event-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingEvent-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingScyllaDB

CNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In PakistanCNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In Pakistandanishmna97

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfdanishmna97

Platformless Horizons for Digital Adaptability
Platformless Horizons for Digital AdaptabilityPlatformless Horizons for Digital Adaptability
Platformless Horizons for Digital AdaptabilityWSO2

API Governance and Monetization - The evolution of API governance
API Governance and Monetization -  The evolution of API governanceAPI Governance and Monetization -  The evolution of API governance
API Governance and Monetization - The evolution of API governanceWSO2

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityVictorSzoltysek

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptxFIDO Alliance

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxFIDO Alliance

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsLeah Henrickson

TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....rightmanforbloodline


Recently uploaded (20)

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDM

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

Modernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using BallerinaModernizing Legacy Systems Using Ballerina
Modernizing Legacy Systems Using Ballerina

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overview

Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024
Modular Monolith - a Practical Alternative to Microservices @ Devoxx UK 2024

Navigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern EnterpriseNavigating Identity and Access Management in the Modern Enterprise
Navigating Identity and Access Management in the Modern Enterprise

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

WSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering Developers

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

Event-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingEvent-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream Processing

CNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In PakistanCNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In Pakistan

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cf

Platformless Horizons for Digital Adaptability
Platformless Horizons for Digital AdaptabilityPlatformless Horizons for Digital Adaptability
Platformless Horizons for Digital Adaptability

API Governance and Monetization - The evolution of API governance
API Governance and Monetization -  The evolution of API governanceAPI Governance and Monetization -  The evolution of API governance
API Governance and Monetization - The evolution of API governance

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps Productivity

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptx

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....


Archi mate views_and_viewpoints

  • 1. Master of Science Business Information Systems Enterprise Architecture Views and Viewpoints in ArchiMate - Reference Source: ArchiMate 2.0 Specification, chapter 8, http://pubs.opengroup.org/architecture/archimate2-doc/chap08.html
  • 2. Prof. Dr. Knut Hinkelmann MSc BIS Examples of Stakeholders and Concerns The following examples of stakeholders and concerns are mentioned in the ArchiMate specification as a basis for the specification of viewpoints: End Users ♦ What are the consequences for his workplace? Architect ♦ What is the consequence for the maintainability of a system? Upper-level Management ♦ How can we ensure that our policies are followed in the development and operation of processes and systems? Operational Manager – responsible for exploitation or maintenance ♦ Is there a need to adapt maintenance processes? Project Manager – responsible for development of new applications ♦ What is the dependence of business processes on the applications to be built? Developer ♦ What are the required modification with respect to the current situation? 2
  • 3. Prof. Dr. Knut Hinkelmann MSc BIS Two-Dimensional Classification of Enterprise Architecture Viewpoints 3 Content Dimension ■ Details: ♦ one layer and one aspect ■ Coherence: ♦ multiple layers or multiple aspects ♦ focus on architecture relations between layers or aspects ■ Overview: ♦ both multiple layers and aspects Purpose Dimension ■ Designing ♦ support design process from initial sketch to detailed design ■ Deciding: ♦ offering insight into cross-domain architecture relations ■ Informing: ♦ achieve understanding, obtain commitment, convince ArchiMate - Views and Viewpoints
  • 4. Prof. Dr. Knut Hinkelmann MSc BIS Views and Viewpoints in ArchiMate ■ In ArchiMate, architects and other stakeholders can define their own views on the enterprise architecture ■ A viewpoint in ArchiMate is a selection of ♦ a relevant subset of the ArchiMate concepts and their relationships ♦ For each viewpoint one model kind exists ■ A view is (a set of) models ♦ representing a part of an architecture ♦ using the concepts and relationships of the corresponding viewpoint ArchiMate - Views and Viewpoints 4
  • 5. Prof. Dr. Knut Hinkelmann MSc BIS Viewpoints in ArchiMate 1. Introductory Viewpoint 2. Organization Viewpoint 3. Actor Co-operation Viewpoint 4. Business Function Viewpoint 5. Business Process Viewpoint 6. Business Process Co-operation Viewpoint 7. Product Viewpoint 8. Application Behavior Viewpoint 9. Application Co-operation Viewpoint 10. Application Structure Viewpoint 11. Application Usage Viewpoint 12. Infrastructure Viewpoint 13. Infrastructure Usage Viewpoint 14. Implementation and Deployment Viewpoint 15. Information Structure Viewpoint 16. Service Realization Viewpoint 17. Layered Viewpoint 18. Landscape Map Viewpoint 5ArchiMate - Views and Viewpoints These viewpoints are suggested in ArchiMate based on experience:
  • 6. Prof. Dr. Knut Hinkelmann MSc BIS Introductory Viewpoint 6 A subset of the full ArchiMate language using a simplified notation. Typically used at the start of a design trajectory, when not everything needs to be detailed or to avoid the impression that the architectural design is already fixed. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 7. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Introductory Viewpoint 7ArchiMate - Views and Viewpoints
  • 8. Prof. Dr. Knut Hinkelmann MSc BIS Organization Viewpoint ArchiMate - Views and Viewpoints 8 Concepts and Relations: ■ (Internal) organization of a company, a department, a network of companies. Could be modeled as nested diagrams or as organizational charts. ■ Useful in identifying competencies, authority, and repsonsibilities
  • 9. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Organization Viewpoint 9ArchiMate - Views and Viewpoints
  • 10. Prof. Dr. Knut Hinkelmann MSc BIS Actor Co-operation Viewpoint 10 ■ Extending the Organization Viewpoint with a focus on the relations of actors with each other and their environment ■ Useful in determining external dependencies and collaborations; shows the value chain or network in which the actor operates. ■ Can show how a number of co-operating business actors and/or application components together realize a business process ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 11. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Actor Co-operation Viewpoint 11ArchiMate - Views and Viewpoints
  • 12. Prof. Dr. Knut Hinkelmann MSc BIS Business Function Viewpoint 12 ■ Shows the main business functions of an organisation and their relations in terms of flow of information, value or goods between them. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 13. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Business Function Viewpoint 13ArchiMate - Views and Viewpoints
  • 14. Prof. Dr. Knut Hinkelmann MSc BIS Business Process Viewpoint 14 Structure and composition of one or more business processes and directly related concepts like products, roles, and information ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 15. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Business Process Viewpoint 15ArchiMate - Views and Viewpoints
  • 16. Prof. Dr. Knut Hinkelmann MSc BIS Business Process Co-operation Viewpoint 16 Relations of one or more business processes with each other and/or the environment. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 17. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Business Process Co-operation Viewpoint 17ArchiMate - Views and Viewpoints
  • 18. Prof. Dr. Knut Hinkelmann MSc BIS Product Viewpoint 18 Composition of products, the associated contract(s) or agreements, and the products’ value to customers and other external parties.. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 19. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Product Viewpoint 19ArchiMate - Views and Viewpoints
  • 20. Prof. Dr. Knut Hinkelmann MSc BIS Application Behavior Viewpoint 20 Internal behavior of an application, e.g. as it realizes one or more services ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 21. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Application Behavior Viewpoint 21ArchiMate - Views and Viewpoints
  • 22. Prof. Dr. Knut Hinkelmann MSc BIS Application Cooperation Viewpoint 22ArchiMate - Views and Viewpoints Relations between applications components in terms of the information flows between them, or in terms of the services they offer and use. Concepts and Relationships:
  • 23. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Application Co-operation Viewpoint 23 Relations between applications components in terms of the information flows between them, or in terms of the services they offer and use. ArchiMate - Views and Viewpoints
  • 24. Prof. Dr. Knut Hinkelmann MSc BIS Application Structure Viewpoint 24 Structure of one or more applications or components. This viewpoint is useful in designing or understanding the main structure of applications or components and the associated data ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 25. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Application Structure Viewpoint 25ArchiMate - Views and Viewpoints
  • 26. Prof. Dr. Knut Hinkelmann MSc BIS Application Usage Viewpoint 26 Describes how applications are used to support one or more business processes, and how they are used by other applications ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 27. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Application Usage Viewpoint 27ArchiMate - Views and Viewpoints
  • 28. Prof. Dr. Knut Hinkelmann MSc BIS Infrastructure Viewpoint 28 Software and hardware infrastructure elements supporting the application layer, such as physical devices, networks, or system software (e.g., operating systems, databases, and middleware). ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 29. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Infrastructure Viewpoint 29ArchiMate - Views and Viewpoints
  • 30. Prof. Dr. Knut Hinkelmann MSc BIS Infrastructure Usage Viewpoint 30 How applications are supported by the software and hardware infrastructure: the infrastructure services are delivered by the devices; system software and networks are provided to the applications ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 31. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Infrastructure Usage Viewpoint 31ArchiMate - Views and Viewpoints
  • 32. Prof. Dr. Knut Hinkelmann MSc BIS Implementation and Deployment Viewpoint 32 How one or more applications are realized on the infrastructure. This comprises the mapping of (logical) applications onto (physical) artifacts, such as Enterprise Java Beans, and the mapping of the information used by these applications onto the underlying storage infrastructure; e.g., database tables or other files. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 33. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Implementation and Deployment Viewpoint 33ArchiMate - Views and Viewpoints
  • 34. Prof. Dr. Knut Hinkelmann MSc BIS Information Structure Viewpoint 34 It shows the structure of the information used in the enterprise or in a specific business process or application, in terms of data types or (object-oriented) class structures. It is comparable to the traditional information models created in the development of almost any information system. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 35. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Information Structure Viewpoint 35ArchiMate - Views and Viewpoints
  • 36. Prof. Dr. Knut Hinkelmann MSc BIS Service Realization Viewpoint 36 How one or more business services are realized by the underlying processes (and sometimes by application components). Thus, it forms the bridge between the business products viewpoint and the business process view. ArchiMate - Views and Viewpoints Concepts and Relationships:
  • 37. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Service Realization Viewpoint 37ArchiMate - Views and Viewpoints
  • 38. Prof. Dr. Knut Hinkelmann MSc BIS Layered Viewpoint 38 The Layered viewpoint pictures several layers and aspects of an enterprise architecture in one diagram. The layers are the result of the use of the “grouping” relation for a natural partitioning of the entire set of objects and relations that belong to a model. Each dedicated layer exposes, by means of the “realization” relation a layer of services, which are further on “used by” the next dedicated layer. ArchiMate - Views and Viewpoints Concepts and Relationships: all
  • 39. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Layered Viewpoint 39ArchiMate - Views and Viewpoints
  • 40. Prof. Dr. Knut Hinkelmann MSc BIS Landscape Map Viewpoint 40 A landscape map is a matrix that represents a three-dimensional coordinate system that represents architectural relations. In practice, often dimensions are chosen from different architectural domains; for instance, business functions, application components, and products. A landscape map uses the ArchiMate concepts, but not the standard notation of these concepts.. ArchiMate - Views and Viewpoints Concepts and Relationships: all
  • 41. Prof. Dr. Knut Hinkelmann MSc BIS Example of a Model from the Landscape Map Viewpoint 41ArchiMate - Views and Viewpoints
