- 1. Delivering Enterprise Architecture with TOGAF® and ArchiMate® Dr. Bas van Gils b.vangils@bizzdesign.com
- 2. Bas van Gils +31-(0)6-484 320 88 b.vangils@bizzdesign.nl http://linkedin.com/in/basvg http://blog.bizzdesign.com http://www.twitter.com/basvg 2
- 3. Integrated service offering Enterprise Business Business Business Architecture Modeling Process Requirements Management Management Management Consulting services Tooling Training Best practices 3
- 4. Clients and officesworldwide • Netherlands: Amersfoort, Enschede • North America: Toronto, Boston • Belgium: Leuven • UK: London • Germany: Dusseldorf • France: Paris
- 5. Agenda Introduction: TOGAF and ArchiMate The challenge for EA Tips and best practices for success More information 5
- 6.
- 7. Enterprise definition © OpenGroup 7
- 8. Architecture definiton The Architecture(of a system) is the fundamental organization of that system embodied in its components, their relationships to each other, and to the environment, and the principles guiding its design and evolution. ISO/IEC 42010:2007 More simply put: structure with a vision 8
- 9. Enterprise Architecture EA is a conceptual tool that helps organizations get a deeper understanding of their own structure and of the way they work. It provides a map of the enterprise and it is a “route planner” for business and technology change. Important uses of it are in systematic IT planning/ architecting and in enhanced analysis and support for decision-making. handbook enterprise architecture, BiZZdesign, 2012 9

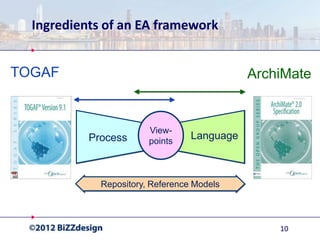

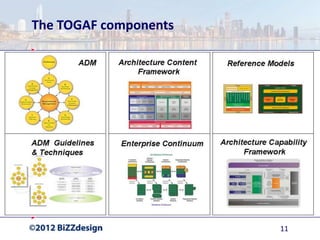

- 10. Ingredients of anEA framework TOGAF ArchiMate View- Process points Language Repository, Reference Models 10
- 11.

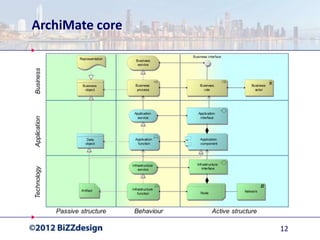

- 12.
- 13.
- 14. In many organizations,EA is still considered to be an IT discipline rather than a strategic partner to deliver business value 14
- 15.

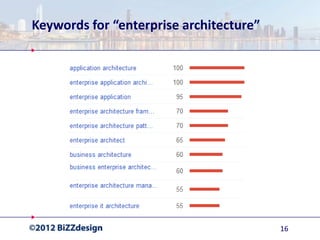

- 16. Keywords for “enterprisearchitecture” 16

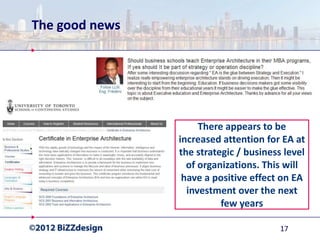

- 17. The good news There appears to be increased attention for EA at the strategic / business level of organizations. This will have a positive effect on EA investment over the next few years 17
- 18. Implications • Rule #1for EA: focus on adding value • Rule #2 for EA: be prepared • Fact: not following #1 and #2 will crush your reputation • Corollary: work with the business, not for the business 18

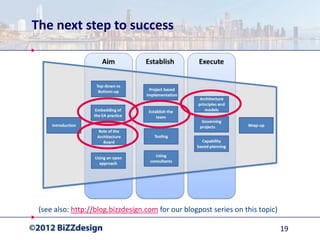

- 19. The next stepto success (see also: http://blog.bizzdesign.com for our blogpost series on this topic) 19

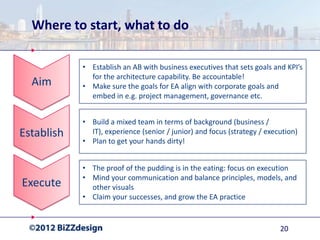

- 20. Where to start,what to do • Establish an AB with business executives that sets goals and KPI’s for the architecture capability. Be accountable! Aim • Make sure the goals for EA align with corporate goals and embed in e.g. project management, governance etc. • Build a mixed team in terms of background (business / Establish IT), experience (senior / junior) and focus (strategy / execution) • Plan to get your hands dirty! • The proof of the pudding is in the eating: focus on execution • Mind your communication and balance principles, models, and Execute other visuals • Claim your successes, and grow the EA practice 20
- 21. Setting • IT departmentof a large telecom organization in North America • TOGAF’s ADM is to support the solution process • The solution process is mostly based on waterfall principles • Key question: how do we add value to this process with TOGAF? 21

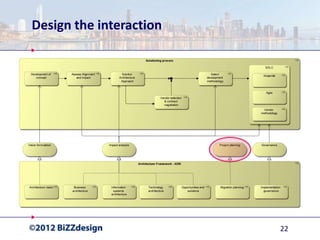

- 22.
- 23. … and atthe same time … While designing the “service oriented engagement model”: • We worked with the team to specify what type of models would best support the organization I with respect to each of the services • These functional questions were translated to ArchiMate models (viewpoints) • A customized metamodel was built, tailored to the specific needs of this organization 23
- 24. Setting • Large (Dutch)organization in the social security sector • A few years ago: on the verge of large enterprise transformation • Use ArchiMate to investigate the impact of this transformation • Challenge: simplify the metamodel for use in the architecture team and improve enterprise-wide communication about architecture 24

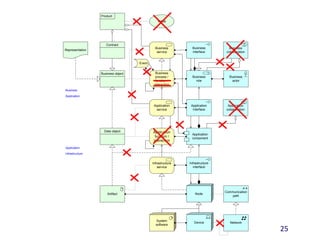

- 25. Product Value Contract Business Business Business Representation service interface collaboration Event Business object Business process / Business Business function / role actor interaction Business Application Application Application Application service interface collaboration Data object Application Application function / component interaction Application Infrastructure Infrastructure Infrastructure service interface Communication Artifact Node path System Device Network software 25

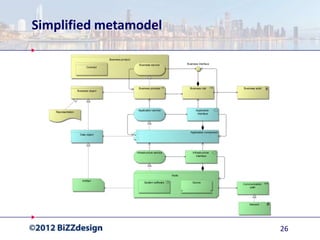

- 26.
- 27. Added value ofTOGAF and ArchiMate • TOGAF is designed to be used in many different situations: – Tailor it to your needs – Major focus on getting results – Many guidelines and techniques that will help you be successful • ArchiMate has built-in capabilities for cross-domain modeling, analysis as well as advanced visualizations for various stakeholders • Both open standards: – Work well for incremental adoption – Are supported with tools, including BiZZdesign Architect – Have an extensive track record in practice 27
- 28. More information LinkedIn groups Blog.bizzdesign.com • Anything Enterprise Architecture • TOGAF series • ArchiMate • Architecture standards • TOGAF for Architecture • ArchiMate series • Global Enterprise Architecture Forum • Roadmap to success • Downloadable versions of the full • http://www.bizzdesign.com specifications of ArchiMate and TOGAF • http://bizzdesign.com/training • Many whitepapers, and recorded • http://bizzdesign.com/tools/bizzdesign-architect/ webinars 28

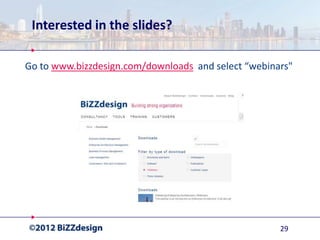

- 29. Interested in theslides? Go to www.bizzdesign.com/downloads and select “webinars" 29
- 30. © 2012, BiZZdesign.All rights reserved. BiZZdesign and BiZZdesign logos are registered trademarks of BiZZdesign Company. 30
