Eccentric Fixation A failure of an eye in monocular vision to take up fixation with the fovea, but with some other point.  This hardly occurs except in clinical conditions as the patient is generally not fixing with that eye anyway.  It is only shown when the better eye is covered (Exception = microtropia with identity)

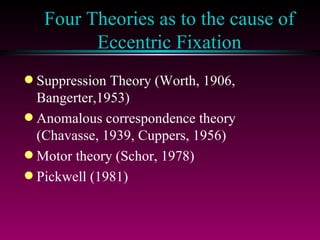

Four Theories as to the cause of Eccentric Fixation Suppression Theory (Worth, 1906, Bangerter,1953)  Anomalous correspondence theory (Chavasse, 1939, Cuppers, 1956) Motor theory (Schor, 1978) Pickwell (1981)

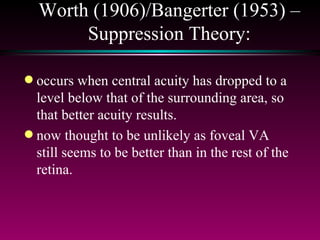

Worth (1906)/Bangerter (1953) – Suppression Theory: occurs when central acuity has dropped to a level below that of the surrounding area, so that better acuity results.  now thought to be unlikely as foveal VA still seems to be better than in the rest of the retina.

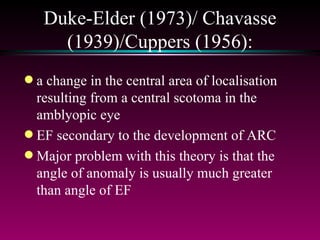

Duke-Elder (1973)/ Chavasse (1939)/Cuppers (1956): a change in the central area of localisation resulting from a central scotoma in the amblyopic eye EF secondary to the development of ARC Major problem with this theory is that the angle of anomaly is usually much greater than angle of EF

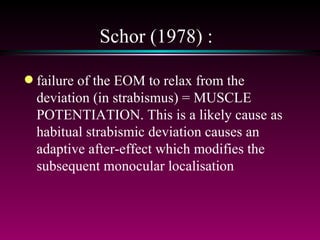

Schor (1978) :  failure of the EOM to relax from the deviation (in strabismus) = MUSCLE POTENTIATION. This is a likely cause as habitual strabismic deviation causes an adaptive after-effect which modifies the subsequent monocular localisation

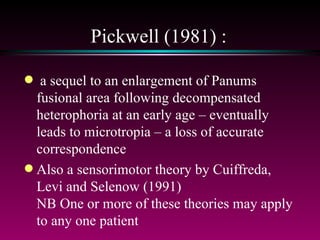

Pickwell (1981) : a sequel to an enlargement of Panums fusional area following decompensated heterophoria at an early age – eventually leads to microtropia – a loss of accurate correspondence Also a sensorimotor theory by Cuiffreda, Levi and Selenow (1991) NB One or more of these theories may apply to any one patient

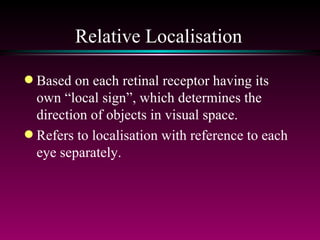

Relative Localisation Based on each retinal receptor having its own “local sign”, which determines the direction of objects in visual space.  Refers to localisation with reference to each eye separately.

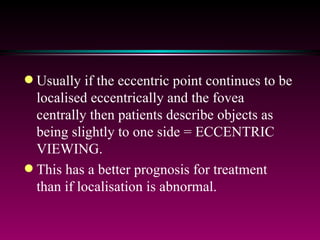

In EF the relative localisation may be as follows: - Normal or abnormal at eccentrically fixing retinal point -  Normal or abnormal at the fovea of the same eye Usually if the eccentric point continues to be localised eccentrically and the fovea centrally then patients describe objects as being slightly to one side = ECCENTRIC VIEWING. This has a better prognosis for treatment than if localisation is abnormal.
Investigation of EF is best to use two methods.  EF is nearly always present in strabismic amblyopia

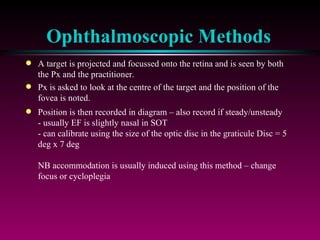

Ophthalmoscopic Methods A target is projected and focussed onto the retina and is seen by both the Px and the practitioner.  Px is asked to look at the centre of the target and the position of the fovea is noted. Position is then recorded in diagram – also record if steady/unsteady - usually EF is slightly nasal in SOT - can calibrate using the size of the optic disc in the graticule Disc = 5 deg x 7 deg NB accommodation is usually induced using this method – change focus or cycloplegia

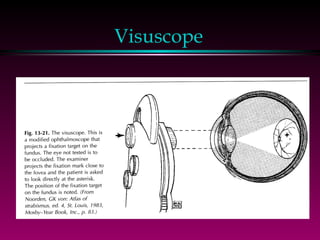

Visuscope

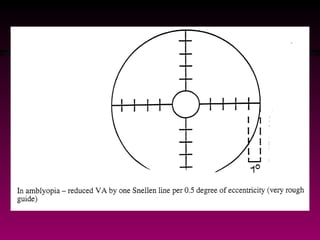

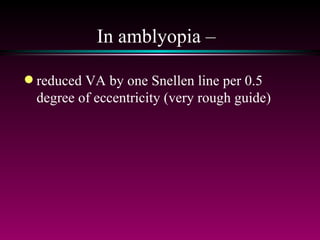

In amblyopia –  reduced VA by one Snellen line per 0.5 degree of eccentricity (very rough guide)

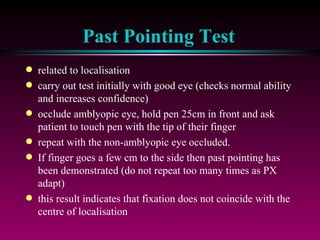

Past Pointing Test related to localisation carry out test initially with good eye (checks normal ability and increases confidence) occlude amblyopic eye, hold pen 25cm in front and ask patient to touch pen with the tip of their finger repeat with the non-amblyopic eye occluded.  If finger goes a few cm to the side then past pointing has been demonstrated (do not repeat too many times as PX adapt) this result indicates that fixation does not coincide with the centre of localisation

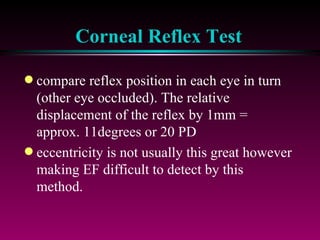

Corneal Reflex Test compare reflex position in each eye in turn (other eye occluded). The relative displacement of the reflex by 1mm = approx. 11degrees or 20 PD eccentricity is not usually this great however making EF difficult to detect by this method.
Bjerrum Screen Method In normal subjects the blind spot is the same angular distance from fixation in both eyes. Plot the blind spot carefully in both eyes and compare positions Degree of eccentricity can be measured by the difference in angular distance of blind spot from fixation in each eye Requires good co-operation

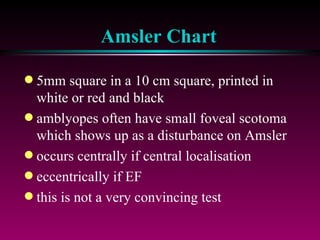

Amsler Chart 5mm square in a 10 cm square, printed in white or red and black amblyopes often have small foveal scotoma which shows up as a disturbance on Amsler occurs centrally if central localisation eccentrically if EF this is not a very convincing test
After-image Transfer Test After images are transferred to normally corresponding points in the other eye. photography flashgun that is masked to provide a very bright strip of light occlude amblyopic eye and PX fixates the centre of the strip  flash then produces a central after-image occluder is then changed to the good eye and PX looks at a small fixation target (eg Snellen letter) the after image then appears after a few seconds (transferred at cortical level) Px is then asked to locate position of after-image in  relation to the fixation point. If it appears at one side of the letter = EF

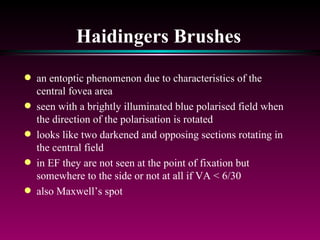

Haidingers Brushes an entoptic phenomenon due to characteristics of the central fovea area seen with a brightly illuminated blue polarised field when the direction of the polarisation is rotated looks like two darkened and opposing sections rotating in the central field in EF they are not seen at the point of fixation but somewhere to the side or not at all if VA < 6/30 also Maxwell’s spot

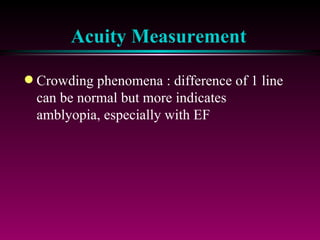

Acuity Measurement Crowding phenomena : difference of 1 line can be normal but more indicates amblyopia, especially with EF
Neutral density Filters If a ND filter is added and no reduction in VA occurs then EF is likely to be present

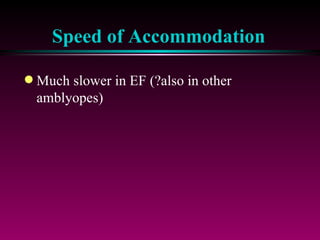

Speed of Accommodation Much slower in EF (?also in other amblyopes)

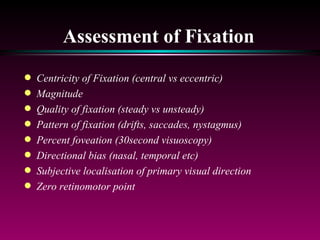

Assessment of Fixation Centricity of Fixation (central vs eccentric) Magnitude Quality of fixation (steady vs unsteady) Pattern of fixation (drifts, saccades, nystagmus) Percent foveation (30second visuoscopy) Directional bias (nasal, temporal etc) Subjective localisation of primary visual direction Zero retinomotor point

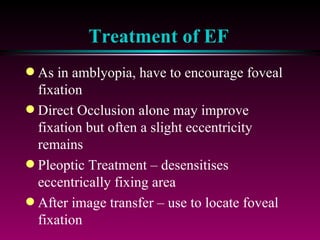

Treatment of EF As in amblyopia, have to encourage foveal fixation Direct Occlusion alone may improve fixation but often a slight eccentricity remains Pleoptic Treatment – desensitises eccentrically fixing area After image transfer – use to locate foveal fixation NB Established EF is hard to remove. Remember in amblyopia treatment VA will not improve beyond that expected for eccentrically fixating point

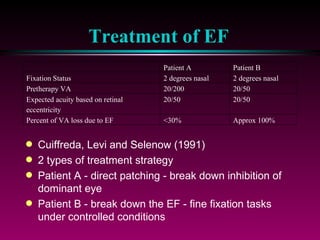

Treatment of EF Cuiffreda, Levi and Selenow (1991) 2 types of treatment strategy Patient A - direct patching - break down inhibition of dominant eye Patient B - break down the EF - fine fixation tasks under controlled conditions

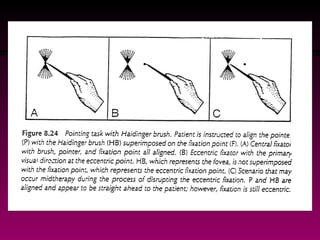

Haidinger’s Brushes  brain to look to side to make centre at fixation point Not usually very successful and can not be done at home.

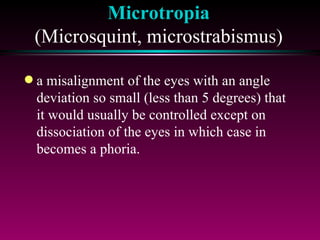

Microtropia (Microsquint, microstrabismus) a misalignment of the eyes with an angle deviation so small (less than 5 degrees) that it would usually be controlled except on dissociation of the eyes in which case in becomes a phoria.

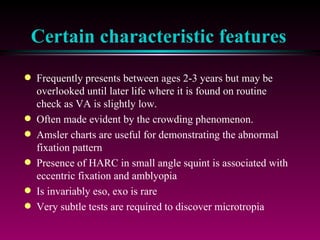

Certain characteristic features Frequently presents between ages 2-3 years but may be overlooked until later life where it is found on routine check as VA is slightly low. Often made evident by the crowding phenomenon.  Amsler charts are useful for demonstrating the abnormal fixation pattern Presence of HARC in small angle squint is associated with eccentric fixation and amblyopia Is invariably eso, exo is rare Very subtle tests are required to discover microtropia

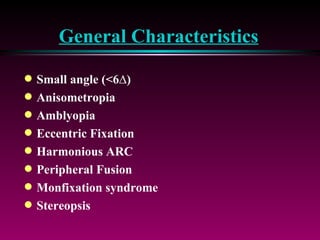

General Characteristics Small angle (<6∆) Anisometropia  Amblyopia Eccentric Fixation   Harmonious ARC Peripheral Fusion Monfixation syndrome   Stereopsis
Anisometropia  usually 1.50D or more. Occassionally the patient has equal refractive errors.

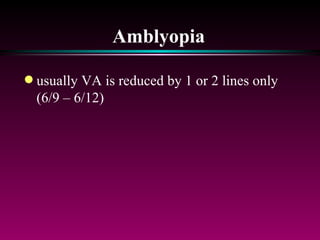

Amblyopia usually VA is reduced by 1 or 2 lines only (6/9 – 6/12)

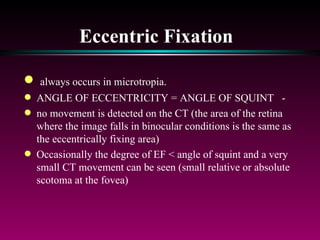

Eccentric Fixation   always occurs in microtropia.  ANGLE OF ECCENTRICITY = ANGLE OF SQUINT  - no movement is detected on the CT (the area of the retina where the image falls in binocular conditions is the same as the eccentrically fixing area)  Occasionally the degree of EF < angle of squint and a very small CT movement can be seen (small relative or absolute scotoma at the fovea)

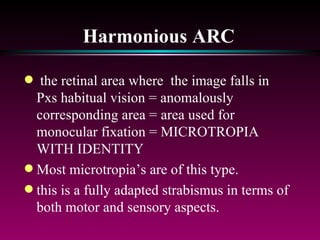

Harmonious ARC the retinal area where  the image falls in Pxs habitual vision = anomalously corresponding area = area used for monocular fixation = MICROTROPIA WITH IDENTITY Most microtropia’s are of this type.  this is a fully adapted strabismus in terms of both motor and sensory aspects.
Peripheral Fusion   peripheral vision provides fusional impulses that help maintain the eyes in their straight position.  Can be measured like prism vergences.

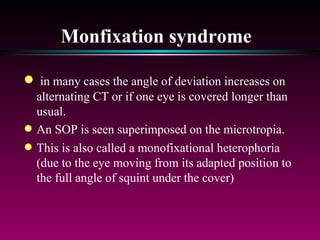

Monfixation syndrome   in many cases the angle of deviation increases on alternating CT or if one eye is covered longer than usual.  An SOP is seen superimposed on the microtropia.  This is also called a monofixational heterophoria (due to the eye moving from its adapted position to the full angle of squint under the cover)
Stereopsis   a low grade stereopsis has been reported.
Investigation and Diagnosis

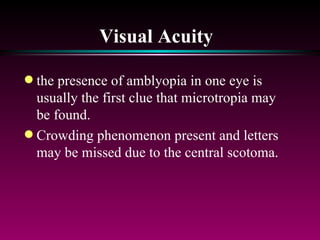

Visual Acuity   the presence of amblyopia in one eye is usually the first clue that microtropia may be found.  Crowding phenomenon present and letters may be missed due to the central scotoma.

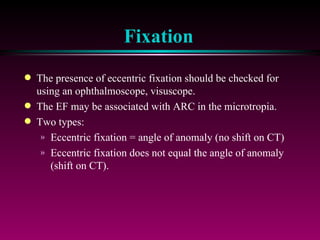

Fixation The presence of eccentric fixation should be checked for using an ophthalmoscope, visuscope.  The EF may be associated with ARC in the microtropia.  Two types: Eccentric fixation = angle of anomaly (no shift on CT) Eccentric fixation does not equal the angle of anomaly (shift on CT).

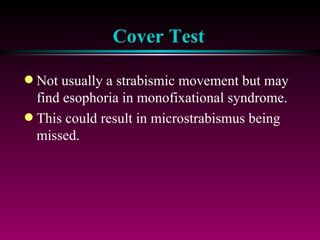

Cover Test Not usually a strabismic movement but may find esophoria in monofixational syndrome. This could result in microstrabismus being missed.

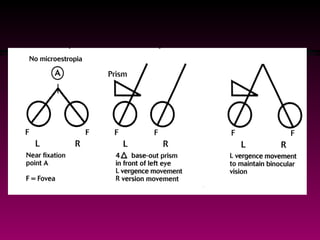

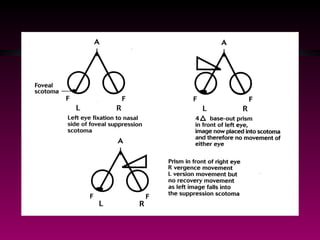

4-Dioptre Prism Test  4 base out prism is placed before the dominant eye the image moves across the retina and the eye moves to take up fixation. The non-dominant eye moves laterally in the same direction (Herings Law of equal innervation) as it is not fixing – VERSIONAL movement is seen. The prism is then removed and a recovery versional movement is seen. The prism is then place before the amblyopic eye.  This time the image is moved across the retina within the suppression area: no movement of either eye. AMBLYOPIA + NO CT MOVEMENT + POSITIVE 4∆ TEST = MICROTROPIA


Bagolini Lens Test Should get HARC – streak passes through the spot, with or without a suppression gap.

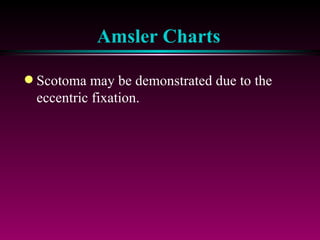

Amsler Charts Scotoma may be demonstrated due to the eccentric fixation.
Classification of Microtropia Primary – remains constant throughout life and is rare. A primary microtropia which becomes decompensated particularly between 1 –3 years as a result of an accommodative element or superimposed phoria Secondary – follows optical or surgical correction of a concomitant squint

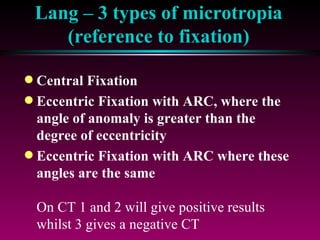

Lang – 3 types of microtropia (reference to fixation) Central Fixation Eccentric Fixation with ARC, where the angle of anomaly is greater than the degree of eccentricity Eccentric Fixation with ARC where these angles are the same On CT 1 and 2 will give positive results whilst 3 gives a negative CT Also 3 gives a sensory adaptation to the deviation envisaged by Cuppers in his correspondence theory for the development of eccentric fixation
Development The mechanism is not fully understood.  It is likely that the condition arises as a response to a scotoma that occurs in the foveal area of one eye, usually due to a blurred retinal image caused by uncorrected anisometropia.  Fixation is therefore established at the edge of the scotoma in an area of the retina that is not suppressed.  This implies that it develops on the basis of eccentric viewing.  It is natural that the onset of EF should be followed by the development of HARC.

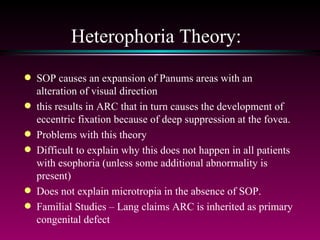

Heterophoria Theory:  SOP causes an expansion of Panums areas with an alteration of visual direction this results in ARC that in turn causes the development of eccentric fixation because of deep suppression at the fovea. Problems with this theory Difficult to explain why this does not happen in all patients with esophoria (unless some additional abnormality is present) Does not explain microtropia in the absence of SOP. Familial Studies – Lang claims ARC is inherited as primary congenital defect

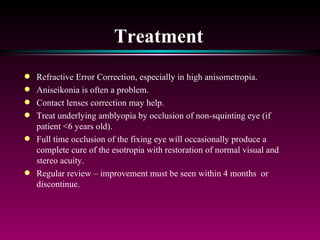

Treatment Refractive Error Correction, especially in high anisometropia.  Aniseikonia is often a problem.  Contact lenses correction may help. Treat underlying amblyopia by occlusion of non-squinting eye (if patient <6 years old).  Full time occlusion of the fixing eye will occasionally produce a complete cure of the esotropia with restoration of normal visual and stereo acuity.  Regular review – improvement must be seen within 4 months  or discontinue.

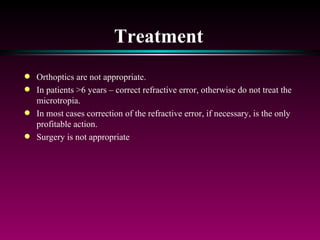

Treatment Orthoptics are not appropriate. In patients >6 years – correct refractive error, otherwise do not treat the microtropia. In most cases correction of the refractive error, if necessary, is the only profitable action. Surgery is not appropriate

More Related Content

What's hot

Progressive addition lenses
Progressive addition lensesProgressive addition lenses
Progressive addition lenses
Sanjana Chouhan

Binocular anomalies What we should know?
Binocular anomalies What we should know?Binocular anomalies What we should know?
Binocular anomalies What we should know?
Anis Suzanna Mohamad

Binocular refraction techniques, binocular balancing &amp; binocular
Binocular refraction techniques, binocular balancing &amp; binocularBinocular refraction techniques, binocular balancing &amp; binocular
Binocular refraction techniques, binocular balancing &amp; binocular
sabina paudel

Slit lamp techniques.pptx
Slit lamp techniques.pptxSlit lamp techniques.pptx
Slit lamp techniques.pptx
Raju Kaiti

Soft toric Contact Lens
Soft toric Contact LensSoft toric Contact Lens
Soft toric Contact Lens
Manish Dahal

Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar
Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism barMaddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar
Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar
Bhageesh Bhaskar

Ac/a ratio
Ac/a ratio Ac/a ratio
Ac/a ratio
anupama manoharan

ARC: abnormal retinal correspondence, eccentric fixation
ARC: abnormal retinal correspondence, eccentric fixationARC: abnormal retinal correspondence, eccentric fixation
ARC: abnormal retinal correspondence, eccentric fixation
aditi Jain

fitting RGP lenses
fitting RGP lensesfitting RGP lenses
fitting RGP lenses
Hossein Mirzaie

Corneal topography
Corneal topographyCorneal topography
Corneal topography
Satish Jeria

Measuring interpupillary distance
Measuring interpupillary distanceMeasuring interpupillary distance
Measuring interpupillary distance
Indra Prasad Sharma

Vergence and its anomalies
Vergence and its anomaliesVergence and its anomalies
Vergence and its anomalies
Nandhu Krishna

DUOCHROM TEST.pptx
DUOCHROM TEST.pptxDUOCHROM TEST.pptx
DUOCHROM TEST.pptx
Khulesh Sahu

Amblyopia : classification & Occlusion therapy
Amblyopia : classification & Occlusion therapy Amblyopia : classification & Occlusion therapy
Amblyopia : classification & Occlusion therapy
Aayush Chandan

Hirschberg and krimsky test.pptx
Hirschberg and krimsky test.pptxHirschberg and krimsky test.pptx
Hirschberg and krimsky test.pptx
jyotishah48

Pediatric contact lens
Pediatric contact lensPediatric contact lens
Pediatric contact lens
Noor Munirah Aab

Non- Accommodative Convergent Squint
Non- Accommodative Convergent SquintNon- Accommodative Convergent Squint
Non- Accommodative Convergent Squint
Vivek Chaudhary

Introduction to binocular single vision (BSV)
Introduction to binocular single vision (BSV)Introduction to binocular single vision (BSV)
Introduction to binocular single vision (BSV)
Anis Suzanna Mohamad

Aniseikonia
Aniseikonia Aniseikonia
Aniseikonia
Azizul Islam

Amsler grid
Amsler gridAmsler grid
Amsler grid
Suhail Wahab


What's hot (20)

Progressive addition lenses
Progressive addition lensesProgressive addition lenses
Progressive addition lenses

Binocular anomalies What we should know?
Binocular anomalies What we should know?Binocular anomalies What we should know?
Binocular anomalies What we should know?

Binocular refraction techniques, binocular balancing &amp; binocular
Binocular refraction techniques, binocular balancing &amp; binocularBinocular refraction techniques, binocular balancing &amp; binocular
Binocular refraction techniques, binocular balancing &amp; binocular

Slit lamp techniques.pptx
Slit lamp techniques.pptxSlit lamp techniques.pptx
Slit lamp techniques.pptx

Soft toric Contact Lens
Soft toric Contact LensSoft toric Contact Lens
Soft toric Contact Lens

Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar
Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism barMaddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar
Maddox rod, Maddox wing, Bagolini striated glasses, RAF ruler and Prism bar

Ac/a ratio
Ac/a ratio Ac/a ratio
Ac/a ratio

ARC: abnormal retinal correspondence, eccentric fixation
ARC: abnormal retinal correspondence, eccentric fixationARC: abnormal retinal correspondence, eccentric fixation
ARC: abnormal retinal correspondence, eccentric fixation

fitting RGP lenses
fitting RGP lensesfitting RGP lenses
fitting RGP lenses

Corneal topography
Corneal topographyCorneal topography
Corneal topography

Measuring interpupillary distance
Measuring interpupillary distanceMeasuring interpupillary distance
Measuring interpupillary distance

Vergence and its anomalies
Vergence and its anomaliesVergence and its anomalies
Vergence and its anomalies

DUOCHROM TEST.pptx
DUOCHROM TEST.pptxDUOCHROM TEST.pptx
DUOCHROM TEST.pptx

Amblyopia : classification & Occlusion therapy
Amblyopia : classification & Occlusion therapy Amblyopia : classification & Occlusion therapy
Amblyopia : classification & Occlusion therapy

Hirschberg and krimsky test.pptx
Hirschberg and krimsky test.pptxHirschberg and krimsky test.pptx
Hirschberg and krimsky test.pptx

Pediatric contact lens
Pediatric contact lensPediatric contact lens
Pediatric contact lens

Non- Accommodative Convergent Squint
Non- Accommodative Convergent SquintNon- Accommodative Convergent Squint
Non- Accommodative Convergent Squint

Introduction to binocular single vision (BSV)
Introduction to binocular single vision (BSV)Introduction to binocular single vision (BSV)
Introduction to binocular single vision (BSV)

Aniseikonia
Aniseikonia Aniseikonia
Aniseikonia

Amsler grid
Amsler gridAmsler grid
Amsler grid


Similar to Eccentric Fixation

Ophthalmology 5th year, 4th lecture (Dr. Tara)
Ophthalmology 5th year, 4th lecture (Dr. Tara)Ophthalmology 5th year, 4th lecture (Dr. Tara)
Ophthalmology 5th year, 4th lecture (Dr. Tara)
College of Medicine, Sulaymaniyah

Anomalies Of Convergence
Anomalies Of ConvergenceAnomalies Of Convergence
Anomalies Of Convergence
mahendra singh

Aphakia by SURAJ CHHETRI
Aphakia  by SURAJ CHHETRIAphakia  by SURAJ CHHETRI
Aphakia by SURAJ CHHETRI
Suraj Chhetri

Convergence &amp; its anomalies
Convergence  &amp;  its anomaliesConvergence  &amp;  its anomalies
Convergence &amp; its anomalies
Bipin Koirala

Refrective errors of eyes
Refrective errors of eyesRefrective errors of eyes
Refrective errors of eyes
Raghu Veer

Amblyopia
AmblyopiaAmblyopia
Amblyopia
DrSwapnil Jain

Correcting presbyopia - Modern Options
Correcting presbyopia - Modern OptionsCorrecting presbyopia - Modern Options
Correcting presbyopia - Modern Options
Jason Higginbotham

Refraction and refractive errors
Refraction and refractive errorsRefraction and refractive errors
Refraction and refractive errors
Dr Mohd Najmussadiq Khan

MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx
MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptxMECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx
MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx
kajal bhagat

Evaluation of squint - The Basics
Evaluation of squint - The BasicsEvaluation of squint - The Basics
Evaluation of squint - The Basics
drindeevarmishra

Refractive errors correction
Refractive  errors correctionRefractive  errors correction
Refractive errors correction
Desta Genete

Amblyopia
AmblyopiaAmblyopia
Amblyopia
Nedhina

optics.Dr.Mutaz.ppt
optics.Dr.Mutaz.pptoptics.Dr.Mutaz.ppt
optics.Dr.Mutaz.ppt
Adel930879

anomalous retinal correspondence
anomalous retinal correspondenceanomalous retinal correspondence
anomalous retinal correspondence
Rajeshwori

Esotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and managementEsotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and management
DrAzmat Ali

Sensory Adaptation to Strabismus
Sensory Adaptation to StrabismusSensory Adaptation to Strabismus
Sensory Adaptation to Strabismus
Hossein Mirzaie

Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...
Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...
Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...
TONY SCARIA

Synoptophore.pptx
Synoptophore.pptxSynoptophore.pptx
Synoptophore.pptx
Anisha Heka

Accommodative ET
Accommodative ETAccommodative ET
Accommodative ET
Sheim Elteb

Retinoscopy @adi
Retinoscopy @adiRetinoscopy @adi
Retinoscopy @adi
Farhana Adi


Similar to Eccentric Fixation (20)

Ophthalmology 5th year, 4th lecture (Dr. Tara)
Ophthalmology 5th year, 4th lecture (Dr. Tara)Ophthalmology 5th year, 4th lecture (Dr. Tara)
Ophthalmology 5th year, 4th lecture (Dr. Tara)

Anomalies Of Convergence
Anomalies Of ConvergenceAnomalies Of Convergence
Anomalies Of Convergence

Aphakia by SURAJ CHHETRI
Aphakia  by SURAJ CHHETRIAphakia  by SURAJ CHHETRI
Aphakia by SURAJ CHHETRI

Convergence &amp; its anomalies
Convergence  &amp;  its anomaliesConvergence  &amp;  its anomalies
Convergence &amp; its anomalies

Refrective errors of eyes
Refrective errors of eyesRefrective errors of eyes
Refrective errors of eyes

Amblyopia
AmblyopiaAmblyopia
Amblyopia

Correcting presbyopia - Modern Options
Correcting presbyopia - Modern OptionsCorrecting presbyopia - Modern Options
Correcting presbyopia - Modern Options

Refraction and refractive errors
Refraction and refractive errorsRefraction and refractive errors
Refraction and refractive errors

MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx
MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptxMECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx
MECHANISMS AND TERMINOLOGIES IN BINOCULAR VISION.pptx

Evaluation of squint - The Basics
Evaluation of squint - The BasicsEvaluation of squint - The Basics
Evaluation of squint - The Basics

Refractive errors correction
Refractive  errors correctionRefractive  errors correction
Refractive errors correction

Amblyopia
AmblyopiaAmblyopia
Amblyopia

optics.Dr.Mutaz.ppt
optics.Dr.Mutaz.pptoptics.Dr.Mutaz.ppt
optics.Dr.Mutaz.ppt

anomalous retinal correspondence
anomalous retinal correspondenceanomalous retinal correspondence
anomalous retinal correspondence

Esotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and managementEsotropia , classification , diagnosis and management
Esotropia , classification , diagnosis and management

Sensory Adaptation to Strabismus
Sensory Adaptation to StrabismusSensory Adaptation to Strabismus
Sensory Adaptation to Strabismus

Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...
Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...
Refractive errors of eye ophthalmology astigmatism hypermetropia myopia medic...

Synoptophore.pptx
Synoptophore.pptxSynoptophore.pptx
Synoptophore.pptx

Accommodative ET
Accommodative ETAccommodative ET
Accommodative ET

Retinoscopy @adi
Retinoscopy @adiRetinoscopy @adi
Retinoscopy @adi


More from Hossein Mirzaie

Marketing an optometric practice
Marketing an optometric practiceMarketing an optometric practice
Marketing an optometric practice
Hossein Mirzaie

Mba monograph13 0412_marketinganoptometricpractice
Mba monograph13 0412_marketinganoptometricpracticeMba monograph13 0412_marketinganoptometricpractice
Mba monograph13 0412_marketinganoptometricpractice
Hossein Mirzaie

Presbyopia
PresbyopiaPresbyopia
Presbyopia
Hossein Mirzaie

Goldman applanation tonometry
 Goldman applanation tonometry Goldman applanation tonometry
Goldman applanation tonometry
Hossein Mirzaie

Myopia
MyopiaMyopia
keratometry
 keratometry keratometry
keratometry
Hossein Mirzaie

Funduscopy
Funduscopy Funduscopy
Funduscopy
Hossein Mirzaie

Optometry, a focus on vision
Optometry, a focus on visionOptometry, a focus on vision
Optometry, a focus on vision
Hossein Mirzaie

Astigmatism 2
Astigmatism 2Astigmatism 2
Astigmatism 2
Hossein Mirzaie

Spectacle prescription fulfillment in medical optometry cope approved
Spectacle prescription fulfillment in medical optometry cope approvedSpectacle prescription fulfillment in medical optometry cope approved
Spectacle prescription fulfillment in medical optometry cope approved
Hossein Mirzaie

Non surgical management of strabismus .ppt
Non surgical management of strabismus .pptNon surgical management of strabismus .ppt
Non surgical management of strabismus .ppt
Hossein Mirzaie

Biometry
BiometryBiometry
Biometry
Hossein Mirzaie

Contact Lens-Induced Acute Red Eye(CLARE)
Contact Lens-Induced Acute Red Eye(CLARE)Contact Lens-Induced Acute Red Eye(CLARE)
Contact Lens-Induced Acute Red Eye(CLARE)
Hossein Mirzaie

Blepharitis
BlepharitisBlepharitis
Blepharitis
Hossein Mirzaie

Amblyopia treatment dr mirzajani
Amblyopia treatment dr mirzajaniAmblyopia treatment dr mirzajani
Amblyopia treatment dr mirzajani
Hossein Mirzaie

optometric prescription
optometric prescriptionoptometric prescription
optometric prescription
Hossein Mirzaie

Peripheral refraction in myopia
Peripheral refraction in myopiaPeripheral refraction in myopia
Peripheral refraction in myopia
Hossein Mirzaie

Intermittent exotropia
Intermittent exotropiaIntermittent exotropia
Intermittent exotropia
Hossein Mirzaie

Auto perimetry
Auto perimetryAuto perimetry
Auto perimetry
Hossein Mirzaie


More from Hossein Mirzaie (20)

Marketing an optometric practice
Marketing an optometric practiceMarketing an optometric practice
Marketing an optometric practice

Mba monograph13 0412_marketinganoptometricpractice
Mba monograph13 0412_marketinganoptometricpracticeMba monograph13 0412_marketinganoptometricpractice
Mba monograph13 0412_marketinganoptometricpractice

Presbyopia
PresbyopiaPresbyopia
Presbyopia

Goldman applanation tonometry
 Goldman applanation tonometry Goldman applanation tonometry
Goldman applanation tonometry

Myopia
MyopiaMyopia
Myopia

keratometry
 keratometry keratometry
keratometry

Funduscopy
Funduscopy Funduscopy
Funduscopy

Optometry, a focus on vision
Optometry, a focus on visionOptometry, a focus on vision
Optometry, a focus on vision

Astigmatism 2
Astigmatism 2Astigmatism 2
Astigmatism 2

Spectacle prescription fulfillment in medical optometry cope approved
Spectacle prescription fulfillment in medical optometry cope approvedSpectacle prescription fulfillment in medical optometry cope approved
Spectacle prescription fulfillment in medical optometry cope approved

Non surgical management of strabismus .ppt
Non surgical management of strabismus .pptNon surgical management of strabismus .ppt
Non surgical management of strabismus .ppt

Biometry
BiometryBiometry
Biometry

Contact Lens-Induced Acute Red Eye(CLARE)
Contact Lens-Induced Acute Red Eye(CLARE)Contact Lens-Induced Acute Red Eye(CLARE)
Contact Lens-Induced Acute Red Eye(CLARE)

Primetry
PrimetryPrimetry
Primetry

Blepharitis
BlepharitisBlepharitis
Blepharitis

Amblyopia treatment dr mirzajani
Amblyopia treatment dr mirzajaniAmblyopia treatment dr mirzajani
Amblyopia treatment dr mirzajani

optometric prescription
optometric prescriptionoptometric prescription
optometric prescription

Peripheral refraction in myopia
Peripheral refraction in myopiaPeripheral refraction in myopia
Peripheral refraction in myopia

Intermittent exotropia
Intermittent exotropiaIntermittent exotropia
Intermittent exotropia

Auto perimetry
Auto perimetryAuto perimetry
Auto perimetry


Recently uploaded

Introduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptxIntroduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptx
Dr. Dheeraj Kumar

Introduction to Dental Implant for undergraduate student
Introduction to Dental Implant for undergraduate studentIntroduction to Dental Implant for undergraduate student
Introduction to Dental Implant for undergraduate student
Shamsuddin Mahmud

General Endocrinology and mechanism of action of hormones
General Endocrinology and mechanism of action of hormonesGeneral Endocrinology and mechanism of action of hormones
General Endocrinology and mechanism of action of hormones
MedicoseAcademics

BCBR MCQs with Answers.pdf for exam for NMC promotions
BCBR MCQs with Answers.pdf for exam for NMC promotionsBCBR MCQs with Answers.pdf for exam for NMC promotions
BCBR MCQs with Answers.pdf for exam for NMC promotions
sathya swaroop patnaik

intermine.bio2rdf.org : A QLever SPARQL endpoint
intermine.bio2rdf.org : A QLever SPARQL endpointintermine.bio2rdf.org : A QLever SPARQL endpoint
intermine.bio2rdf.org : A QLever SPARQL endpoint
François Belleau

Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...
Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...
Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...
NephroTube - Dr.Gawad

2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
CarriePoppy

STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY
STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHYSTAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY
STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY
DRPREETHIJAMESP

High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...
High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...
High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...
hf66550

Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery
Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home DeliverySurat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery
Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery
khandiya#G05

The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...
The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...
The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...
MARIALUISADELROGONZL

Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...
Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...
Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...
ailynolive

2nd week of Human development .embryology
2nd week of Human development .embryology2nd week of Human development .embryology
2nd week of Human development .embryology
Mithilesh Chaurasia

Building a Strong Partnership with Your Medical Team
Building a Strong Partnership with Your Medical TeamBuilding a Strong Partnership with Your Medical Team
Building a Strong Partnership with Your Medical Team
bkling

PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptxPICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
Aloy Okechukwu Ugwu

ONYDA XR clonidine liquid preparation by Dr. Amrutha
ONYDA XR clonidine liquid preparation by Dr. AmruthaONYDA XR clonidine liquid preparation by Dr. Amrutha
ONYDA XR clonidine liquid preparation by Dr. Amrutha
Amrutha Gudimetla

MEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate careMEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate care
Debre Berhan University

Interpretation of ECG - Cardiac Arrhythmias
Interpretation of ECG - Cardiac ArrhythmiasInterpretation of ECG - Cardiac Arrhythmias
Interpretation of ECG - Cardiac Arrhythmias
MedicoseAcademics

Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
PVI, PeerView Institute for Medical Education

STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
Niranjan Chavan


Recently uploaded (20)

Introduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptxIntroduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptx

Introduction to Dental Implant for undergraduate student
Introduction to Dental Implant for undergraduate studentIntroduction to Dental Implant for undergraduate student
Introduction to Dental Implant for undergraduate student

General Endocrinology and mechanism of action of hormones
General Endocrinology and mechanism of action of hormonesGeneral Endocrinology and mechanism of action of hormones
General Endocrinology and mechanism of action of hormones

BCBR MCQs with Answers.pdf for exam for NMC promotions
BCBR MCQs with Answers.pdf for exam for NMC promotionsBCBR MCQs with Answers.pdf for exam for NMC promotions
BCBR MCQs with Answers.pdf for exam for NMC promotions

intermine.bio2rdf.org : A QLever SPARQL endpoint
intermine.bio2rdf.org : A QLever SPARQL endpointintermine.bio2rdf.org : A QLever SPARQL endpoint
intermine.bio2rdf.org : A QLever SPARQL endpoint

Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...
Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...
Hemodialysis: Chapter 11, Venous Catheter - Basics, Insertion, Use and Care -...

2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf

STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY
STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHYSTAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY
STAPHYSAGRIA.BHMS.MATERIA MEDICA.HOMOEOPATHY

High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...
High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...
High Girls Call Ranchi 000XX00000 Provide Best And Top Girl Service And No1 i...

Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery
Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home DeliverySurat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery
Surat @Girls @ℂall 👄 XX000000XX 👄 With Cash Payment Home Delivery

The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...
The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...
The impact of CD160 deficiency on alloreactive CD8 T cell responses and allog...

Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...
Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...
Verified Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service...

2nd week of Human development .embryology
2nd week of Human development .embryology2nd week of Human development .embryology
2nd week of Human development .embryology

Building a Strong Partnership with Your Medical Team
Building a Strong Partnership with Your Medical TeamBuilding a Strong Partnership with Your Medical Team
Building a Strong Partnership with Your Medical Team

PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptxPICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx

ONYDA XR clonidine liquid preparation by Dr. Amrutha
ONYDA XR clonidine liquid preparation by Dr. AmruthaONYDA XR clonidine liquid preparation by Dr. Amrutha
ONYDA XR clonidine liquid preparation by Dr. Amrutha

MEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate careMEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate care

Interpretation of ECG - Cardiac Arrhythmias
Interpretation of ECG - Cardiac ArrhythmiasInterpretation of ECG - Cardiac Arrhythmias
Interpretation of ECG - Cardiac Arrhythmias

Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...

STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...


Eccentric Fixation

  • 1. Eccentric Fixation A failure of an eye in monocular vision to take up fixation with the fovea, but with some other point. This hardly occurs except in clinical conditions as the patient is generally not fixing with that eye anyway. It is only shown when the better eye is covered (Exception = microtropia with identity)

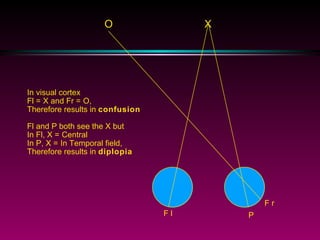

  • 2.
  • 3. Four Theories as to the cause of Eccentric Fixation Suppression Theory (Worth, 1906, Bangerter,1953) Anomalous correspondence theory (Chavasse, 1939, Cuppers, 1956) Motor theory (Schor, 1978) Pickwell (1981)
  • 4. Worth (1906)/Bangerter (1953) – Suppression Theory: occurs when central acuity has dropped to a level below that of the surrounding area, so that better acuity results. now thought to be unlikely as foveal VA still seems to be better than in the rest of the retina.
  • 5. Duke-Elder (1973)/ Chavasse (1939)/Cuppers (1956): a change in the central area of localisation resulting from a central scotoma in the amblyopic eye EF secondary to the development of ARC Major problem with this theory is that the angle of anomaly is usually much greater than angle of EF
  • 6. Schor (1978) : failure of the EOM to relax from the deviation (in strabismus) = MUSCLE POTENTIATION. This is a likely cause as habitual strabismic deviation causes an adaptive after-effect which modifies the subsequent monocular localisation
  • 7. Pickwell (1981) : a sequel to an enlargement of Panums fusional area following decompensated heterophoria at an early age – eventually leads to microtropia – a loss of accurate correspondence Also a sensorimotor theory by Cuiffreda, Levi and Selenow (1991) NB One or more of these theories may apply to any one patient

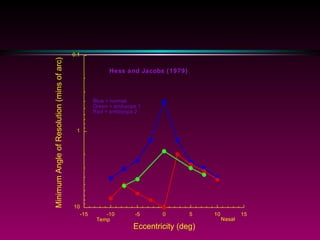

  • 8.
  • 9. Relative Localisation Based on each retinal receptor having its own “local sign”, which determines the direction of objects in visual space. Refers to localisation with reference to each eye separately.
  • 10. In EF the relative localisation may be as follows: - Normal or abnormal at eccentrically fixing retinal point - Normal or abnormal at the fovea of the same eye Usually if the eccentric point continues to be localised eccentrically and the fovea centrally then patients describe objects as being slightly to one side = ECCENTRIC VIEWING. This has a better prognosis for treatment than if localisation is abnormal.
  • 11. Investigation of EF is best to use two methods. EF is nearly always present in strabismic amblyopia
  • 12. Ophthalmoscopic Methods A target is projected and focussed onto the retina and is seen by both the Px and the practitioner. Px is asked to look at the centre of the target and the position of the fovea is noted. Position is then recorded in diagram – also record if steady/unsteady - usually EF is slightly nasal in SOT - can calibrate using the size of the optic disc in the graticule Disc = 5 deg x 7 deg NB accommodation is usually induced using this method – change focus or cycloplegia
  • 13.

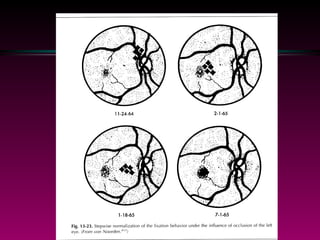

  • 15.
  • 16. In amblyopia – reduced VA by one Snellen line per 0.5 degree of eccentricity (very rough guide)
  • 17. Past Pointing Test related to localisation carry out test initially with good eye (checks normal ability and increases confidence) occlude amblyopic eye, hold pen 25cm in front and ask patient to touch pen with the tip of their finger repeat with the non-amblyopic eye occluded. If finger goes a few cm to the side then past pointing has been demonstrated (do not repeat too many times as PX adapt) this result indicates that fixation does not coincide with the centre of localisation
  • 18. Corneal Reflex Test compare reflex position in each eye in turn (other eye occluded). The relative displacement of the reflex by 1mm = approx. 11degrees or 20 PD eccentricity is not usually this great however making EF difficult to detect by this method.
  • 19. Bjerrum Screen Method In normal subjects the blind spot is the same angular distance from fixation in both eyes. Plot the blind spot carefully in both eyes and compare positions Degree of eccentricity can be measured by the difference in angular distance of blind spot from fixation in each eye Requires good co-operation
  • 20. Amsler Chart 5mm square in a 10 cm square, printed in white or red and black amblyopes often have small foveal scotoma which shows up as a disturbance on Amsler occurs centrally if central localisation eccentrically if EF this is not a very convincing test
  • 21. After-image Transfer Test After images are transferred to normally corresponding points in the other eye. photography flashgun that is masked to provide a very bright strip of light occlude amblyopic eye and PX fixates the centre of the strip flash then produces a central after-image occluder is then changed to the good eye and PX looks at a small fixation target (eg Snellen letter) the after image then appears after a few seconds (transferred at cortical level) Px is then asked to locate position of after-image in relation to the fixation point. If it appears at one side of the letter = EF
  • 22. Haidingers Brushes an entoptic phenomenon due to characteristics of the central fovea area seen with a brightly illuminated blue polarised field when the direction of the polarisation is rotated looks like two darkened and opposing sections rotating in the central field in EF they are not seen at the point of fixation but somewhere to the side or not at all if VA < 6/30 also Maxwell’s spot
  • 23.
  • 24. Acuity Measurement Crowding phenomena : difference of 1 line can be normal but more indicates amblyopia, especially with EF
  • 25. Neutral density Filters If a ND filter is added and no reduction in VA occurs then EF is likely to be present
  • 26. Speed of Accommodation Much slower in EF (?also in other amblyopes)
  • 27. Assessment of Fixation Centricity of Fixation (central vs eccentric) Magnitude Quality of fixation (steady vs unsteady) Pattern of fixation (drifts, saccades, nystagmus) Percent foveation (30second visuoscopy) Directional bias (nasal, temporal etc) Subjective localisation of primary visual direction Zero retinomotor point
  • 28. Treatment of EF As in amblyopia, have to encourage foveal fixation Direct Occlusion alone may improve fixation but often a slight eccentricity remains Pleoptic Treatment – desensitises eccentrically fixing area After image transfer – use to locate foveal fixation NB Established EF is hard to remove. Remember in amblyopia treatment VA will not improve beyond that expected for eccentrically fixating point
  • 29. Treatment of EF Cuiffreda, Levi and Selenow (1991) 2 types of treatment strategy Patient A - direct patching - break down inhibition of dominant eye Patient B - break down the EF - fine fixation tasks under controlled conditions
  • 30. Haidinger’s Brushes brain to look to side to make centre at fixation point Not usually very successful and can not be done at home.
  • 31. Microtropia (Microsquint, microstrabismus) a misalignment of the eyes with an angle deviation so small (less than 5 degrees) that it would usually be controlled except on dissociation of the eyes in which case in becomes a phoria.
  • 32. Certain characteristic features Frequently presents between ages 2-3 years but may be overlooked until later life where it is found on routine check as VA is slightly low. Often made evident by the crowding phenomenon. Amsler charts are useful for demonstrating the abnormal fixation pattern Presence of HARC in small angle squint is associated with eccentric fixation and amblyopia Is invariably eso, exo is rare Very subtle tests are required to discover microtropia
  • 33. General Characteristics Small angle (<6∆) Anisometropia Amblyopia Eccentric Fixation Harmonious ARC Peripheral Fusion Monfixation syndrome Stereopsis
  • 34. Anisometropia usually 1.50D or more. Occassionally the patient has equal refractive errors.
  • 35. Amblyopia usually VA is reduced by 1 or 2 lines only (6/9 – 6/12)
  • 36. Eccentric Fixation always occurs in microtropia. ANGLE OF ECCENTRICITY = ANGLE OF SQUINT - no movement is detected on the CT (the area of the retina where the image falls in binocular conditions is the same as the eccentrically fixing area) Occasionally the degree of EF < angle of squint and a very small CT movement can be seen (small relative or absolute scotoma at the fovea)
  • 37. Harmonious ARC the retinal area where the image falls in Pxs habitual vision = anomalously corresponding area = area used for monocular fixation = MICROTROPIA WITH IDENTITY Most microtropia’s are of this type. this is a fully adapted strabismus in terms of both motor and sensory aspects.
  • 38. Peripheral Fusion peripheral vision provides fusional impulses that help maintain the eyes in their straight position. Can be measured like prism vergences.
  • 39. Monfixation syndrome in many cases the angle of deviation increases on alternating CT or if one eye is covered longer than usual. An SOP is seen superimposed on the microtropia. This is also called a monofixational heterophoria (due to the eye moving from its adapted position to the full angle of squint under the cover)
  • 40. Stereopsis a low grade stereopsis has been reported.
  • 42. Visual Acuity the presence of amblyopia in one eye is usually the first clue that microtropia may be found. Crowding phenomenon present and letters may be missed due to the central scotoma.
  • 43. Fixation The presence of eccentric fixation should be checked for using an ophthalmoscope, visuscope. The EF may be associated with ARC in the microtropia. Two types: Eccentric fixation = angle of anomaly (no shift on CT) Eccentric fixation does not equal the angle of anomaly (shift on CT).
  • 44. Cover Test Not usually a strabismic movement but may find esophoria in monofixational syndrome. This could result in microstrabismus being missed.
  • 45. 4-Dioptre Prism Test 4 base out prism is placed before the dominant eye the image moves across the retina and the eye moves to take up fixation. The non-dominant eye moves laterally in the same direction (Herings Law of equal innervation) as it is not fixing – VERSIONAL movement is seen. The prism is then removed and a recovery versional movement is seen. The prism is then place before the amblyopic eye. This time the image is moved across the retina within the suppression area: no movement of either eye. AMBLYOPIA + NO CT MOVEMENT + POSITIVE 4∆ TEST = MICROTROPIA
  • 46.
  • 47.
  • 48. Bagolini Lens Test Should get HARC – streak passes through the spot, with or without a suppression gap.
  • 49. Amsler Charts Scotoma may be demonstrated due to the eccentric fixation.
  • 50. Classification of Microtropia Primary – remains constant throughout life and is rare. A primary microtropia which becomes decompensated particularly between 1 –3 years as a result of an accommodative element or superimposed phoria Secondary – follows optical or surgical correction of a concomitant squint
  • 51. Lang – 3 types of microtropia (reference to fixation) Central Fixation Eccentric Fixation with ARC, where the angle of anomaly is greater than the degree of eccentricity Eccentric Fixation with ARC where these angles are the same On CT 1 and 2 will give positive results whilst 3 gives a negative CT Also 3 gives a sensory adaptation to the deviation envisaged by Cuppers in his correspondence theory for the development of eccentric fixation
  • 52. Development The mechanism is not fully understood. It is likely that the condition arises as a response to a scotoma that occurs in the foveal area of one eye, usually due to a blurred retinal image caused by uncorrected anisometropia. Fixation is therefore established at the edge of the scotoma in an area of the retina that is not suppressed. This implies that it develops on the basis of eccentric viewing. It is natural that the onset of EF should be followed by the development of HARC.
  • 53. Heterophoria Theory: SOP causes an expansion of Panums areas with an alteration of visual direction this results in ARC that in turn causes the development of eccentric fixation because of deep suppression at the fovea. Problems with this theory Difficult to explain why this does not happen in all patients with esophoria (unless some additional abnormality is present) Does not explain microtropia in the absence of SOP. Familial Studies – Lang claims ARC is inherited as primary congenital defect
  • 54. Treatment Refractive Error Correction, especially in high anisometropia. Aniseikonia is often a problem. Contact lenses correction may help. Treat underlying amblyopia by occlusion of non-squinting eye (if patient <6 years old). Full time occlusion of the fixing eye will occasionally produce a complete cure of the esotropia with restoration of normal visual and stereo acuity. Regular review – improvement must be seen within 4 months or discontinue.
  • 55. Treatment Orthoptics are not appropriate. In patients >6 years – correct refractive error, otherwise do not treat the microtropia. In most cases correction of the refractive error, if necessary, is the only profitable action. Surgery is not appropriate
