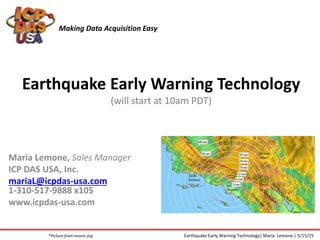

1. Earthquake Early Warning Technology
(will start at 10am PDT)
Maria Lemone, Sales Manager
ICP DAS USA, Inc.
mariaL@icpdas-usa.com
1-310-517-9888 x105
www.icpdas-usa.com
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15*Picture from moore.org

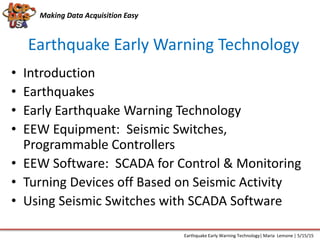

2. Earthquake Early Warning Technology
• Introduction
• Earthquakes
• Early Earthquake Warning Technology
• EEW Equipment: Seismic Switches,
Programmable Controllers
• EEW Software: SCADA for Control & Monitoring
• Turning Devices off Based on Seismic Activity
• Using Seismic Switches with SCADA Software
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

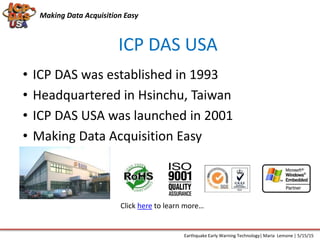

3. Making Data Acquisition Easy
ICP DAS USA
• ICP DAS was established in 1993
• Headquartered in Hsinchu, Taiwan
• ICP DAS USA was launched in 2001
• Making Data Acquisition Easy
ICP DAS USA
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Click here to learn more…

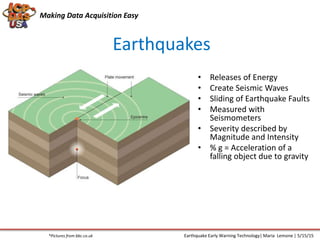

4. Earthquakes
*Pictures from bbc.co.uk
Making Data Acquisition Easy
• Releases of Energy
• Create Seismic Waves
• Sliding of Earthquake Faults
• Measured with
Seismometers
• Severity described by
Magnitude and Intensity
• % g = Acceleration of a
falling object due to gravity
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

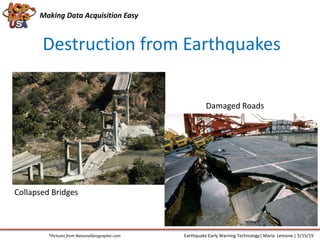

5. Destruction from Earthquakes
*Pictures from NationalGeographic.com
Collapsed Bridges
Damaged Roads
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

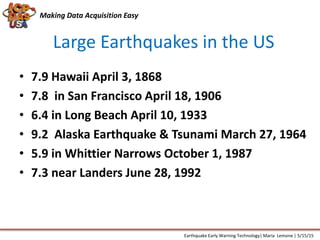

6. Large Earthquakes in the US
Making Data Acquisition Easy
• 7.9 Hawaii April 3, 1868
• 7.8 in San Francisco April 18, 1906
• 6.4 in Long Beach April 10, 1933
• 9.2 Alaska Earthquake & Tsunami March 27, 1964
• 5.9 in Whittier Narrows October 1, 1987
• 7.3 near Landers June 28, 1992
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

7. Highest Hazard Areas
*Picture from usgs.gov
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

8. States with Most Earthquakes
1. Alaska
2. California
3. Hawaii
4. Nevada
5. Washington
6. Idaho
7. Wyoming
8. Montana
9. Utah
10. Oregon
*Picture from usgs.gov
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

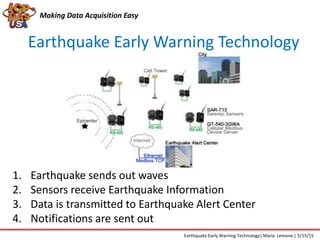

9. Earthquake Early Warning Technology
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
1. Earthquake sends out waves
2. Sensors receive Earthquake Information
3. Data is transmitted to Earthquake Alert Center
4. Notifications are sent out

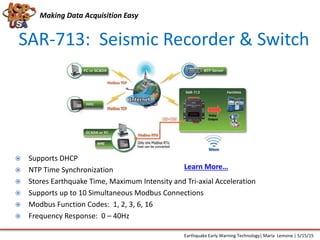

10. SAR-713: Seismic Recorder & Switch
 Supports DHCP
 NTP Time Synchronization
 Stores Earthquake Time, Maximum Intensity and Tri-axial Acceleration
 Supports up to 10 Simultaneous Modbus Connections
 Modbus Function Codes: 1, 2, 3, 6, 16
 Frequency Response: 0 – 40Hz
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Learn More…

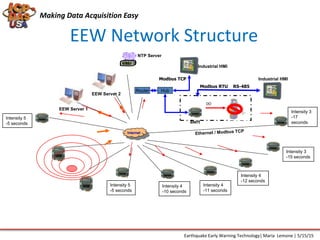

11. EEW Network Structure
EEW Server 1
Industrial HMI
RS-485Modbus RTU
DO
alert
NTP Server
Router Hub
Modbus TCP
Industrial HMI
EEW Server 2
Internet
Intensity 4
-10 seconds
Intensity 4
-12 seconds
Intensity 4
-11 seconds
Intensity 5
-5 seconds
Intensity 3
-15 seconds
Intensity 3
-17
seconds
Intensity 5
-5 seconds
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

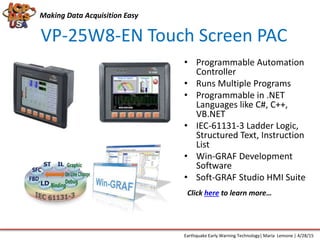

12. VP-25W8-EN Touch Screen PAC
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 4/28/15
• Programmable Automation
Controller
• Runs Multiple Programs
• Programmable in .NET
Languages like C#, C++,
VB.NET
• IEC-61131-3 Ladder Logic,
Structured Text, Instruction
List
• Win-GRAF Development
Software
• Soft-GRAF Studio HMI Suite
Click here to learn more…

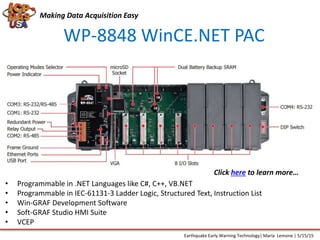

13. WP-8848 WinCE.NET PAC
Making Data Acquisition Easy
• Programmable in .NET Languages like C#, C++, VB.NET
• Programmable in IEC-61131-3 Ladder Logic, Structured Text, Instruction List
• Win-GRAF Development Software
• Soft-GRAF Studio HMI Suite
• VCEP
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Click here to learn more…

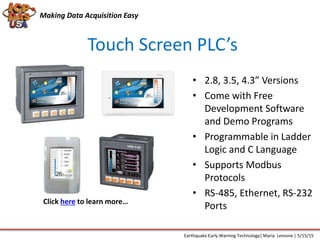

14. Making Data Acquisition Easy
Touch Screen PLC’s
• 2.8, 3.5, 4.3” Versions
• Come with Free
Development Software
and Demo Programs
• Programmable in Ladder
Logic and C Language
• Supports Modbus
Protocols
• RS-485, Ethernet, RS-232
Ports
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Click here to learn more…

15. Making Data Acquisition Easy
HMIWorks HMI & PLC Development
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Click here to learn more

16. SCADA Control & Monitoring Software
InduSoft
A powerful HMI SCADA software platform that provides supervisory control
and data acquisition applications.
Making Data Acquisition Easy
• Data Logging
• Data Collection
• Reports
• Display Information
• Send Alerts
• Magnitude
• Intensity
• Trend Graphing
• Database Storage
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Learn More

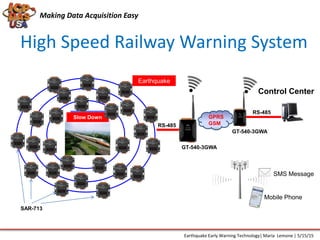

17. High Speed Railway Warning System
Full speed
running
Fake signalEarthquake
Slow Down
Control Center
RS-485
GT-540-3GWA
SMS Message
Mobile Phone
RS-485
GPRS
GSM
GT-540
GT-540-3GWA
SAR-713
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

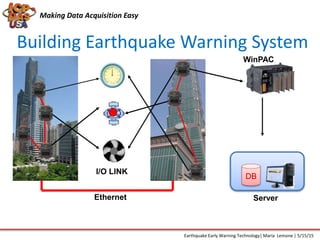

18. Building Earthquake Warning System
Ethernet
DB
I/O LINK
WinPAC
Server
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

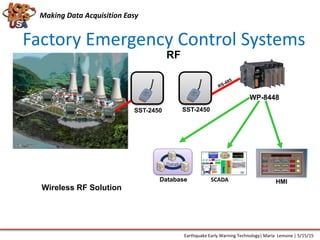

19. Factory Emergency Control Systems
SST-2450
Wireless RF Solution
RF
SST-2450
WP-8448
SCADA HMI
Database
Database
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

20. Bridge Real-Time Control & Monitoring
RF
Wireless GPRS/GSM solution
GPRS
Internet
SCADA
G-4500P
RS-485
Making Data Acquisition Easy
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
Learn More…

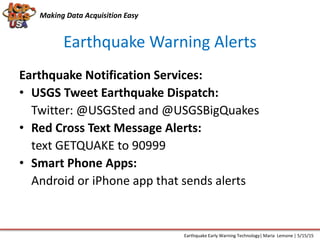

21. Earthquake Warning Alerts
Making Data Acquisition Easy
Earthquake Notification Services:
• USGS Tweet Earthquake Dispatch:
Twitter: @USGSted and @USGSBigQuakes
• Red Cross Text Message Alerts:
text GETQUAKE to 90999
• Smart Phone Apps:
Android or iPhone app that sends alerts
Earthquake Early Warning Technology| Maria Lemone | 5/15/15

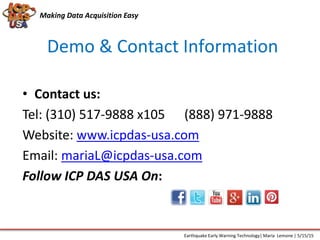

22. Demo & Contact Information
Making Data Acquisition Easy
• Contact us:
Tel: (310) 517-9888 x105 (888) 971-9888
Website: www.icpdas-usa.com
Email: mariaL@icpdas-usa.com
Follow ICP DAS USA On:
Earthquake Early Warning Technology| Maria Lemone | 5/15/15
