Making dataacquisitioneasy

Making Data Acquisition Easy
Maria Lemone, Sales Manager
ICP DAS USA, Inc.
mariaL@icpdas-usa.com
1-310-517-9888 x105
www.icpdas-usa.com
Making Data Acquisition Easy | Maria Lemone | 2015

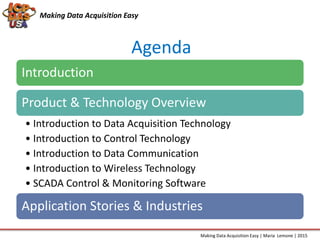

Agenda
Introduction
Product & Technology Overview
• Introduction to Data Acquisition Technology
• Introduction to Control Technology
• Introduction to Data Communication
• Introduction to Wireless Technology
• SCADA Control & Monitoring Software
Application Stories & Industries

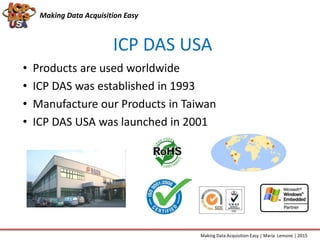

ICP DAS USA
• Products are used worldwide
• ICP DAS was established in 1993
• Manufacture our Products in Taiwan
• ICP DAS USA was launched in 2001

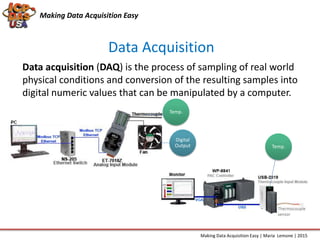

Data Acquisition
Data acquisition (DAQ) is the process of sampling of real world
physical conditions and conversion of the resulting samples into
digital numeric values that can be manipulated by a computer.
Temp.
Temp.
Digital
Output

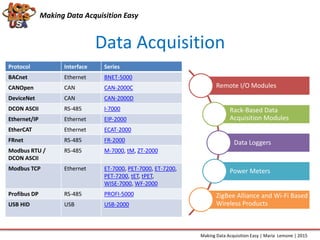

Data Acquisition
Protocol Interface Series
BACnet Ethernet BNET-5000
CANOpen CAN CAN-2000C
DeviceNet CAN CAN-2000D
DCON ASCII RS-485 I-7000
Ethernet/IP Ethernet EIP-2000
EtherCAT Ethernet ECAT-2000
FRnet RS-485 FR-2000
Modbus RTU /
DCON ASCII
RS-485 M-7000, tM, ZT-2000
Modbus TCP Ethernet ET-7000, PET-7000, ET-7200,
PET-7200, tET, tPET,
WISE-7000, WF-2000
Profibus DP RS-485 PROFI-5000
USB HID USB USB-2000
Remote I/O Modules
Rack-Based Data
Acquisition Modules
Data Loggers
Power Meters
ZigBee Alliance and Wi-Fi Based
Wireless Products

RS-485 I/O Solutions: I-7000
Use RS-485
based DCON
protocol
Labview,
DasyLab, DDE,
dll, OPC and OCX
drivers
Communicates to
PLC, DCS, PC or
many other
controllers
70 + selections of
analog, digital,
and I/O specialty
modules
Auto tunes data
rate and data
format

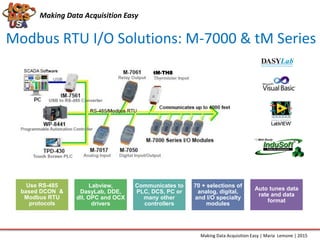

Modbus RTU I/O Solutions: M-7000 & tM Series
Use RS-485
based DCON &
Modbus RTU
protocols
Labview,
DasyLab, DDE,
dll, OPC and OCX
drivers
Communicates to
PLC, DCS, PC or
many other
controllers
70 + selections of
analog, digital,
and I/O specialty
modules
Auto tunes data
rate and data
format
tM-TH8

Power&Data
Modbus TCP
Ethernet
Ethernet / Modbus TCP
Ethernet I/O Solutions: ET, PET, tET, tPET, WISE
Ethernet
Modbus TCP
Ethernet
Modbus TCP
tPET-A4
ET-7255
Power & Data
PET-7060 or WISE-7167
ET-7217
ET-7215
tET-C4
Ethernet
ModbusTCP
Ethernet / Modbus TCP
Modbus TCP protocol
Digital, Relay, Current, Voltage, RTD,
Thermistor, Thermocouple I/O
Works with PC, PLC, DCS, TouchPads and
many other Controllers
NS-205PSE

Rack Based Solutions
Uses Modbus
TCP or TCP/IP
protocols
Labview,
DasyLab, DDE,
dll, OPC and
OCX drivers
70+ selections of
analog, digital,
and I/O specialty
modules

WF-2000 Series

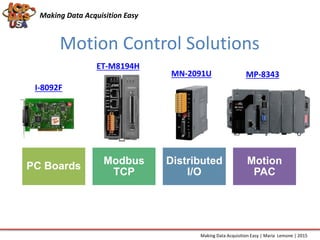

Motion Control Solutions
PC Boards Modbus
TCP
Distributed
I/O
Motion
PAC
ET-M8194H
I-8092F
MN-2091U MP-8343

WF-2000 Series
Wireless Data Acquisition
Zigbee Modbus
RTU
Wi-Fi
Modbus
TCP

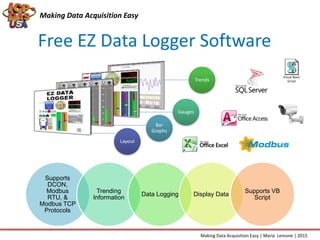

Free EZ Data Logger Software
Trends
Gauges
Bar
Graphs
Layout
Supports
DCON,
Modbus
RTU, &
Modbus TCP
Protocols
Trending
Information
Data Logging Display Data
Supports VB
Script

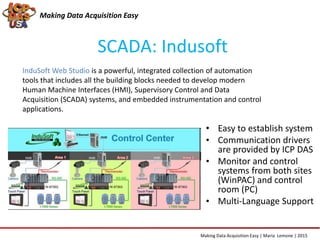

SCADA: Indusoft
• Easy to establish system
• Communication drivers
are provided by ICP DAS
• Monitor and control
systems from both sites
(WinPAC) and control
room (PC)
• Multi-Language Support
InduSoft Web Studio is a powerful, integrated collection of automation
tools that includes all the building blocks needed to develop modern
Human Machine Interfaces (HMI), Supervisory Control and Data
Acquisition (SCADA) systems, and embedded instrumentation and control
applications.

SCADA: Indusoft

WF-2000 Series

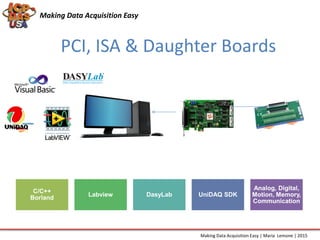

PCI, ISA & Daughter Boards
C/C++
Borland Labview DasyLab UniDAQ SDK
Analog, Digital,
Motion, Memory,
Communication

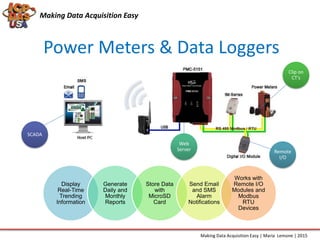

Power Meters & Data Loggers
Clip on
CT’s
Remote
I/O
SCADA
Display
Real-Time
Trending
Information
Generate
Daily and
Monthly
Reports
Store Data
with
MicroSD
Card
Send Email
and SMS
Alarm
Notifications
Works with
Remote I/O
Modules and
Modbus
RTU
Devices
Web
Server

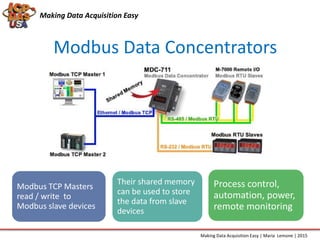

Modbus Data Concentrators
Modbus TCP Masters
read / write to
Modbus slave devices
Their shared memory
can be used to store
the data from slave
devices
Process control,
automation, power,
remote monitoring

WF-2000 Series

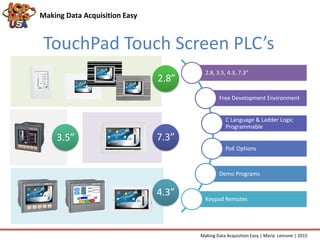

TouchPad Touch Screen PLC’s
2.8”
3.5”
4.3”
7.3”
2.8, 3.5, 4.3, 7.3”
Free Development Environment
C Language & Ladder Logic
Programmable
PoE Options
Demo Programs
Keypad Remotes

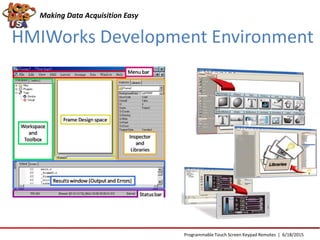

HMIWorks Development Environment
Programmable Touch Screen Keypad Remotes | 6/18/2015

WinCE.NET Operating System
VB.NET, VC.NET, C#, IEC-61131
SDK, Libraries, Demo Programs
RS-232, RS-485, USB, Ethernet
Expandable I/O
MicroSD Card for Data Logging

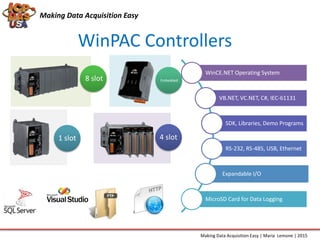

WinPAC Controllers
Embedded
4 slot
8 slot
1 slot

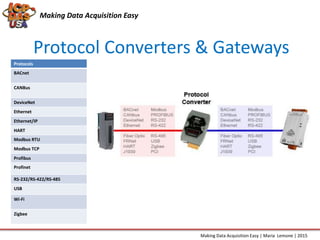

Protocol Converters & Gateways
Protocols
BACnet
CANBus
DeviceNet
Ethernet
Ethernet/IP
HART
Modbus RTU
Modbus TCP
Profibus
Profinet
RS-232/RS-422/RS-485
USB
Wi-Fi
Zigbee

Up to -40C to 85C (-40F to 185F)
10/100, 10/1000, Fiber
10-30VDC, 12-48VDC Power
Input
Plastic & Metal Case Options
Managed & Unmanaged
10-30VDC or 12-48VDC Power Input

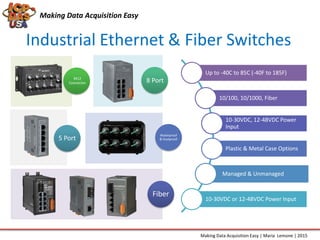

Industrial Ethernet & Fiber Switches
8 Port
Waterproof
& Dustproof
M12
Connector
5 Port
Fiber

WF-2000 Series

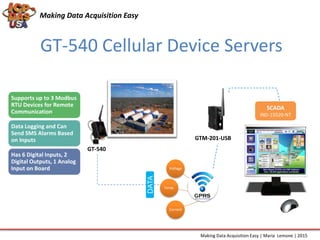

GT-540 Cellular Device Servers
Voltage
Temp.
Current
DATA
SCADA
IND-15520-NT
GT-540
GTM-201-USB
Supports up to 3 Modbus
RTU Devices for Remote
Communication
Data Logging and Can
Send SMS Alarms Based
on Inputs
Has 6 Digital Inputs, 2
Digital Outputs, 1 Analog
Input on Board

Solar Monitoring Systems
Photovoltaic systems
use solar panels to
convert energy from
sunlight into electricity.
Allow for retrieval of
status and data logging
of solar panel energy
applications
Trending and Data
Logging via SCADA
Software on a PC

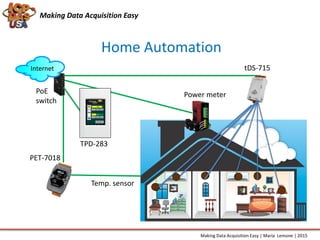

Home Automation
PoE
switch
PET-7018
Temp. sensor
Internet tDS-715
Power meter
TPD-283

Application Stories

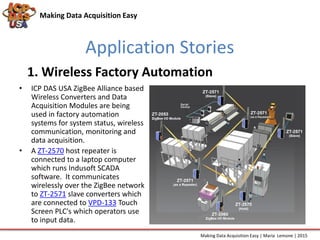

• ICP DAS USA ZigBee Alliance based
Wireless Converters and Data
Acquisition Modules are being
used in factory automation
systems for system status, wireless
communication, monitoring and
data acquisition.
• A ZT-2570 host repeater is
connected to a laptop computer
which runs Indusoft SCADA
software. It communicates
wirelessly over the ZigBee network
to ZT-2571 slave converters which
are connected to VPD-133 Touch
Screen PLC's which operators use
to input data.
1. Wireless Factory Automation

Application Stories

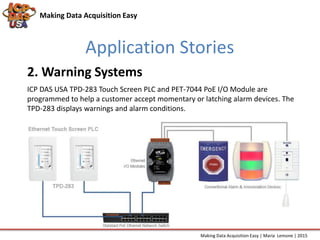

ICP DAS USA TPD-283 Touch Screen PLC and PET-7044 PoE I/O Module are
programmed to help a customer accept momentary or latching alarm devices. The
TPD-283 displays warnings and alarm conditions.
2. Warning Systems

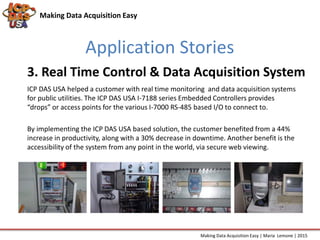

Application Stories
ICP DAS USA helped a customer with real time monitoring and data acquisition systems
for public utilities. The ICP DAS USA I-7188 series Embedded Controllers provides
“drops” or access points for the various I-7000 RS-485 based I/O to connect to.
By implementing the ICP DAS USA based solution, the customer benefited from a 44%
increase in productivity, along with a 30% decrease in downtime. Another benefit is the
accessibility of the system from any point in the world, via secure web viewing.
3. Real Time Control & Data Acquisition System

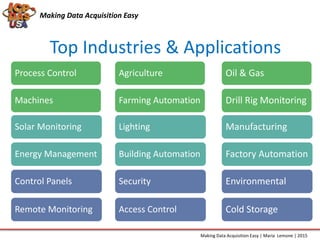

Top Industries & Applications
Process Control
Machines
Solar Monitoring
Energy Management
Control Panels
Remote Monitoring
Agriculture
Farming Automation
Lighting
Building Automation
Security
Access Control
Oil & Gas
Drill Rig Monitoring
Manufacturing
Factory Automation
Environmental
Cold Storage

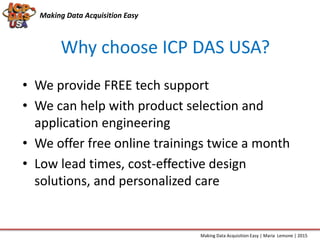

• We provide FREE tech support
• We can help with product selection and
application engineering
• We offer free online trainings twice a month
• Low lead times, cost-effective design
solutions, and personalized care
Why choose ICP DAS USA?

Please ask any questions you may have.
Contact us:
Tel: +1 (310) 517-9888 x105
Website: www.icpdas-usa.com
Email: mariaL@icpdas-usa.com
Follow ICP DAS USA On:
Questions?
