Zigbee Alliance based technology is used in many industries including Building Automation, Remote Control, Smart Energy, Home Automation, Lighting Control, and Healthcare. The ZigBee Alliance published a standard that groups of companies can conform to so their products can be used together, similar to how commonly used Wi-Fi devices can be used together. ICP DAS wireless Zigbee Alliance products conform to the standard. If you have any questions, please let us know. We provide free technical support. For more info, please visit www.icpdas-usa.com

1. Making Data Acquisition Easy
ZigBee Wireless Data Acquisition
Maria Lemone, Sales Manager
ICP DAS USA, Inc.
mariaL@icpdas-usa.com
1-310-517-9888 x105
www.icpdas-usa.com
ZigBee Wireless Data Acquisition | 10/10/2014

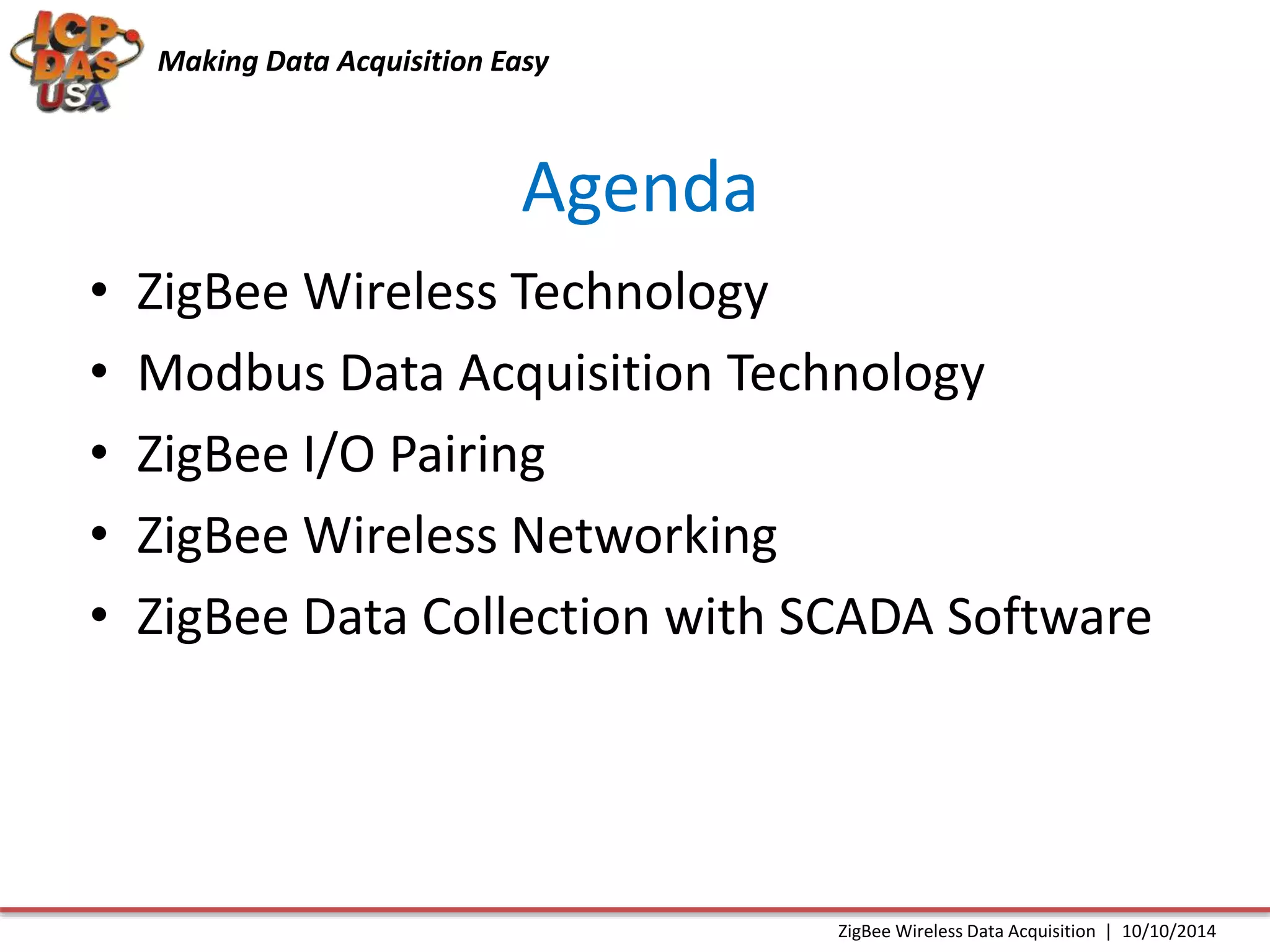

2. Making Data Acquisition Easy
Agenda
• ZigBee Wireless Technology
• Modbus Data Acquisition Technology
• ZigBee I/O Pairing
• ZigBee Wireless Networking
• ZigBee Data Collection with SCADA Software
ZigBee Wireless Data Acquisition | 10/10/2014

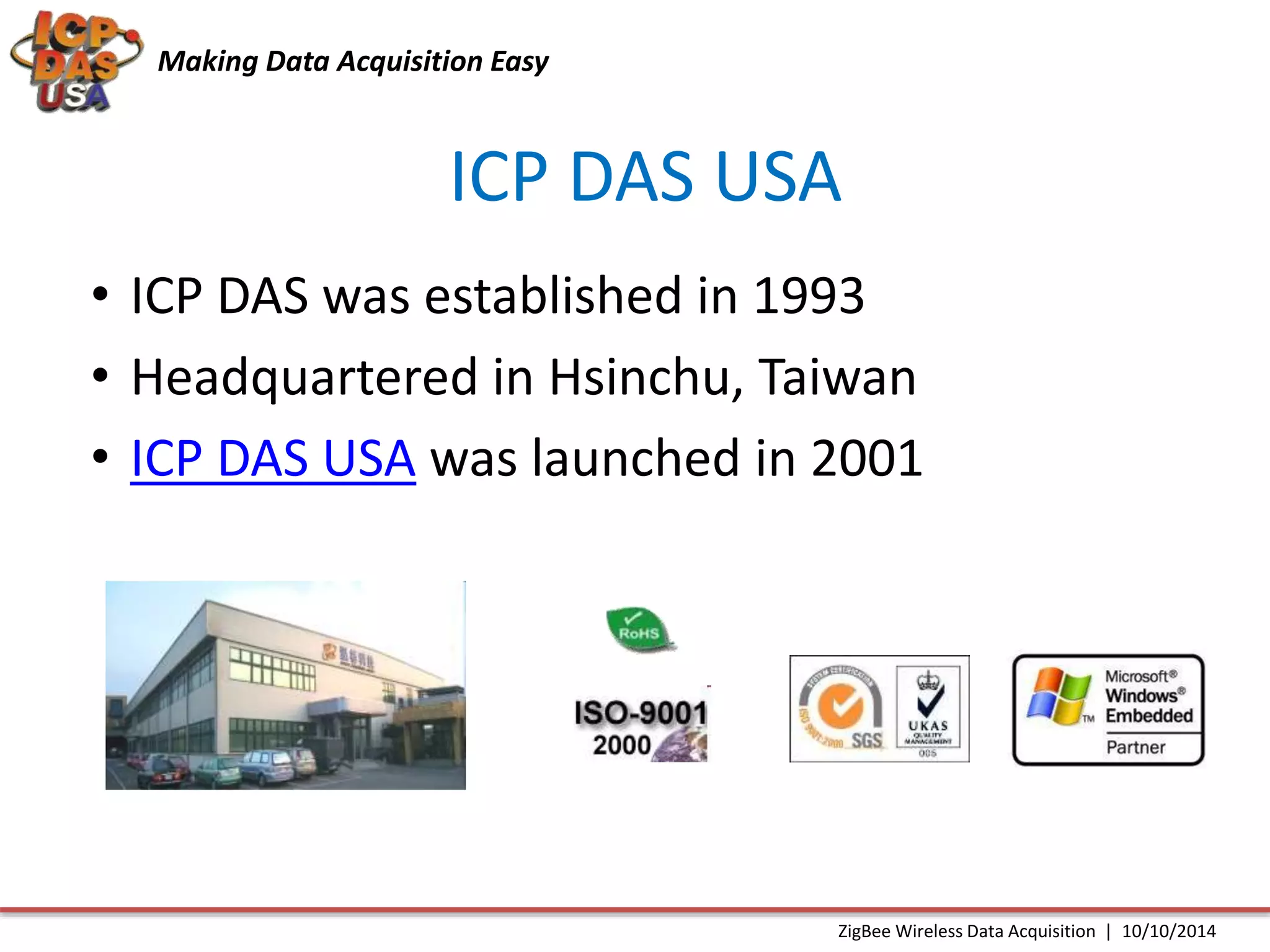

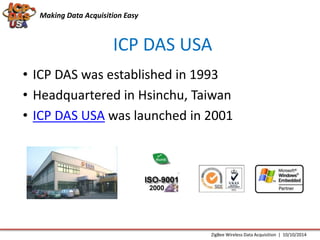

3. Making Data Acquisition Easy
ICP DAS USA
• ICP DAS was established in 1993
• Headquartered in Hsinchu, Taiwan
• ICP DAS USA was launched in 2001
ZigBee Wireless Data Acquisition | 10/10/2014

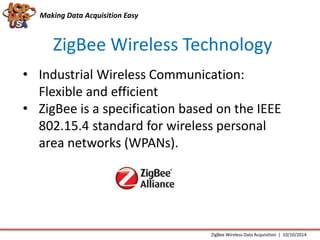

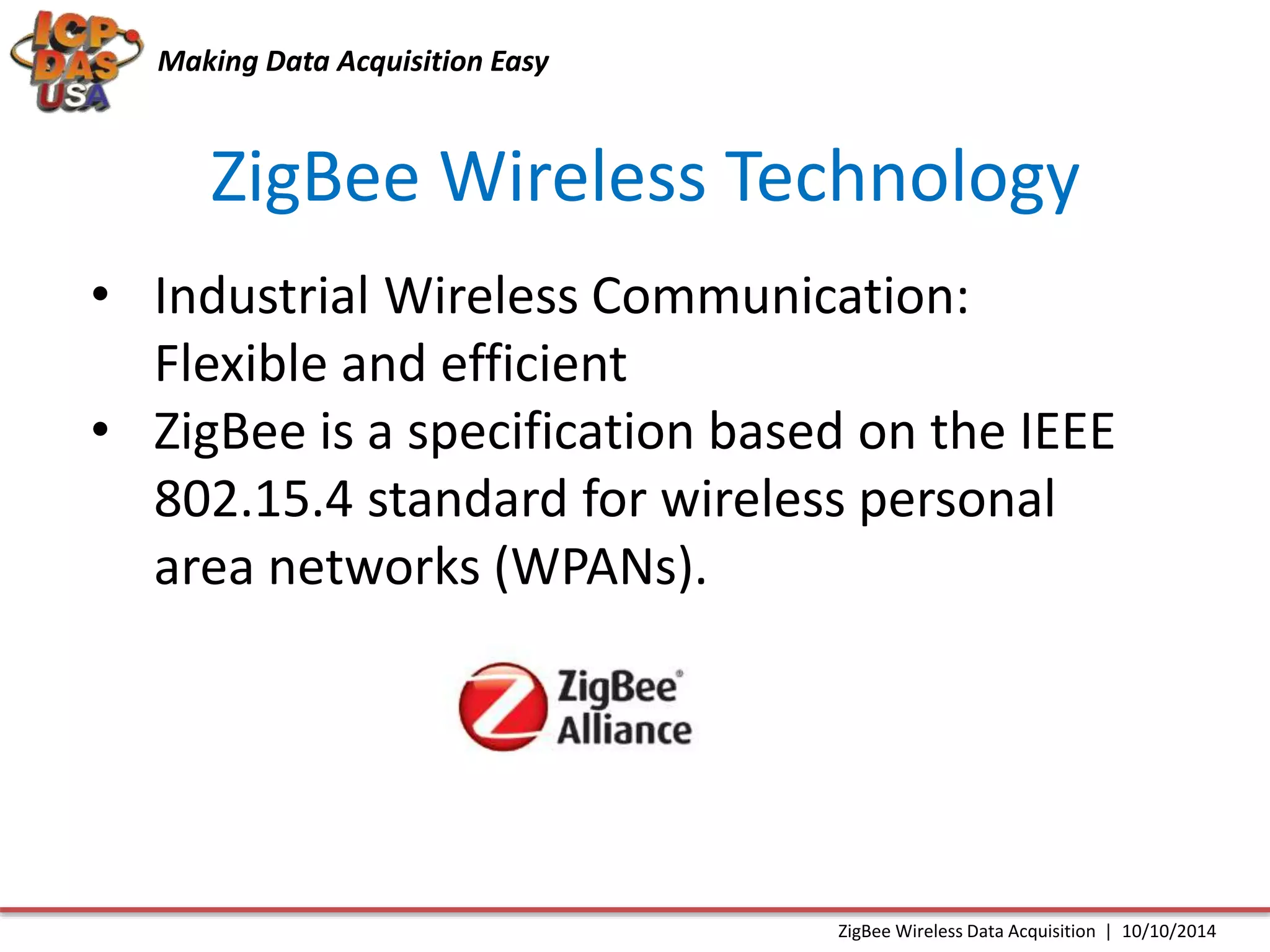

4. Making Data Acquisition Easy
ZigBee Wireless Technology
• Industrial Wireless Communication:
Flexible and efficient
• ZigBee is a specification based on the IEEE
802.15.4 standard for wireless personal
area networks (WPANs).
ZigBee Wireless Data Acquisition | 10/10/2014

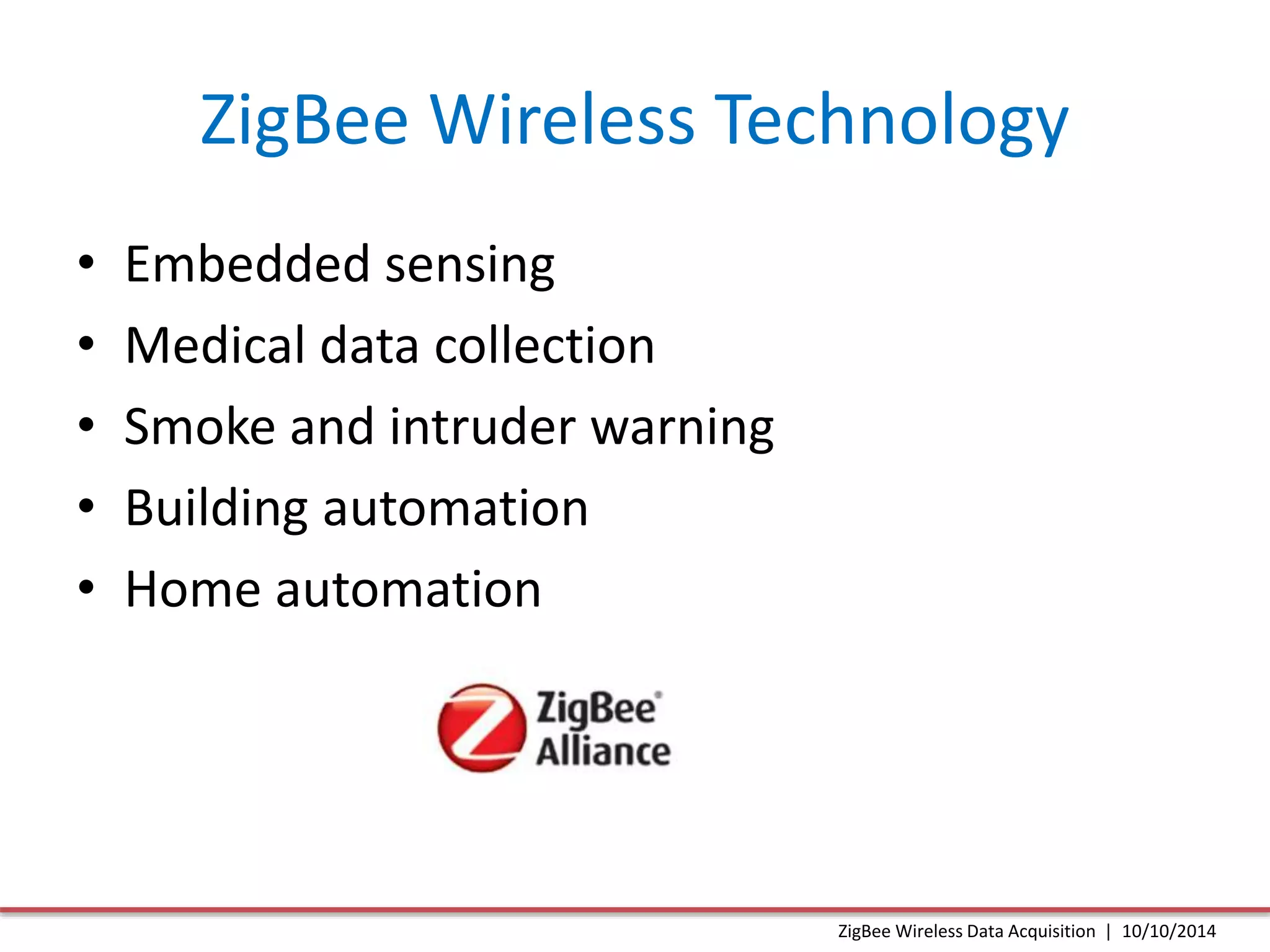

5. ZigBee Wireless Technology
• Embedded sensing
• Medical data collection
• Smoke and intruder warning
• Building automation
• Home automation
ZigBee Wireless Data Acquisition | 10/10/2014

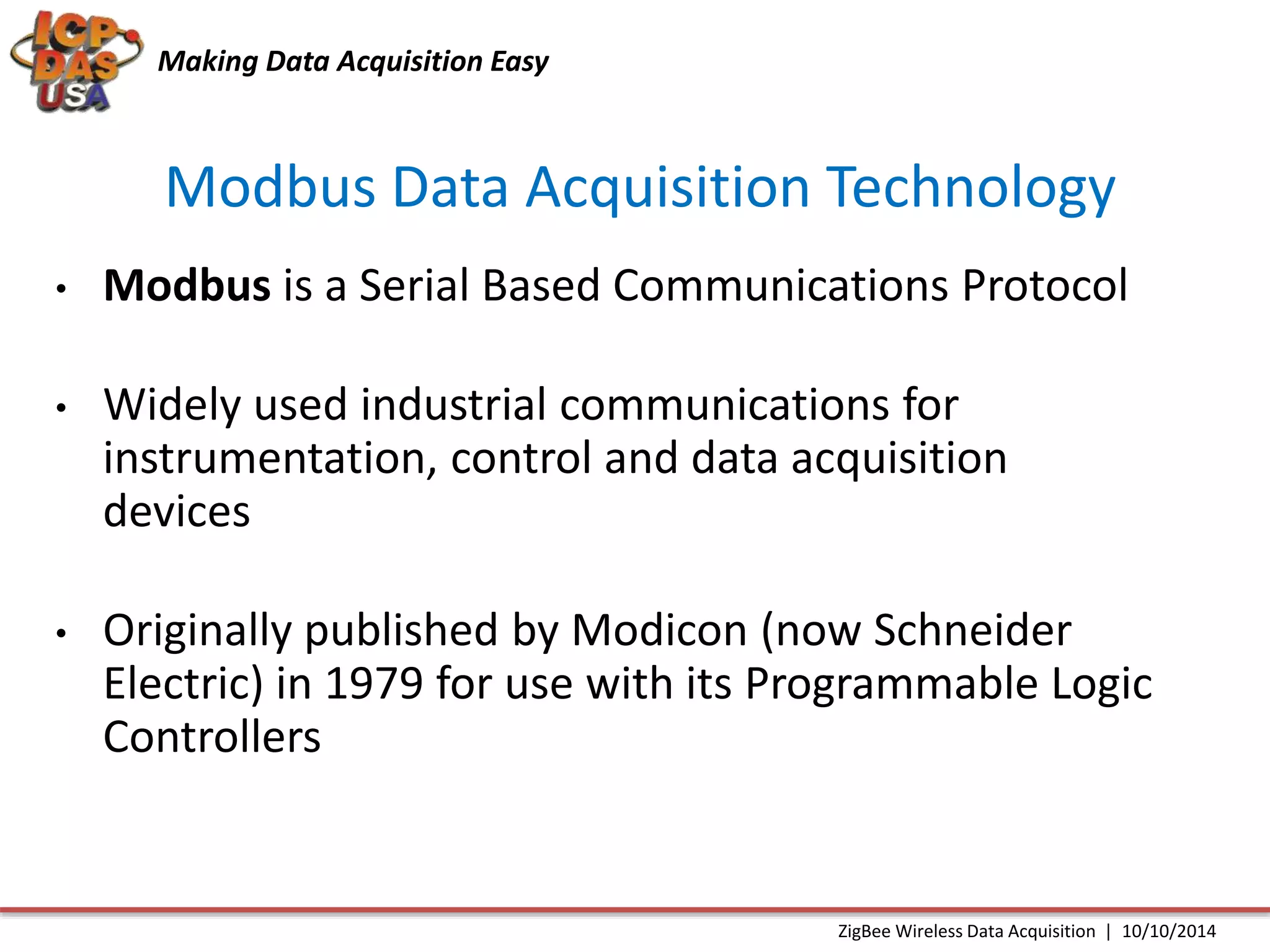

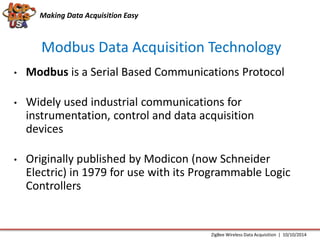

6. Making Data Acquisition Easy
Modbus Data Acquisition Technology
• Modbus is a Serial Based Communications Protocol
• Widely used industrial communications for
instrumentation, control and data acquisition
devices
• Originally published by Modicon (now Schneider
Electric) in 1979 for use with its Programmable Logic
Controllers
ZigBee Wireless Data Acquisition | 10/10/2014

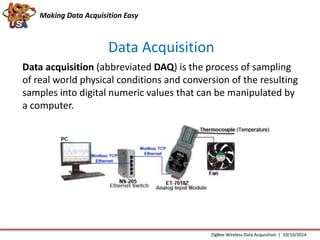

7. Making Data Acquisition Easy

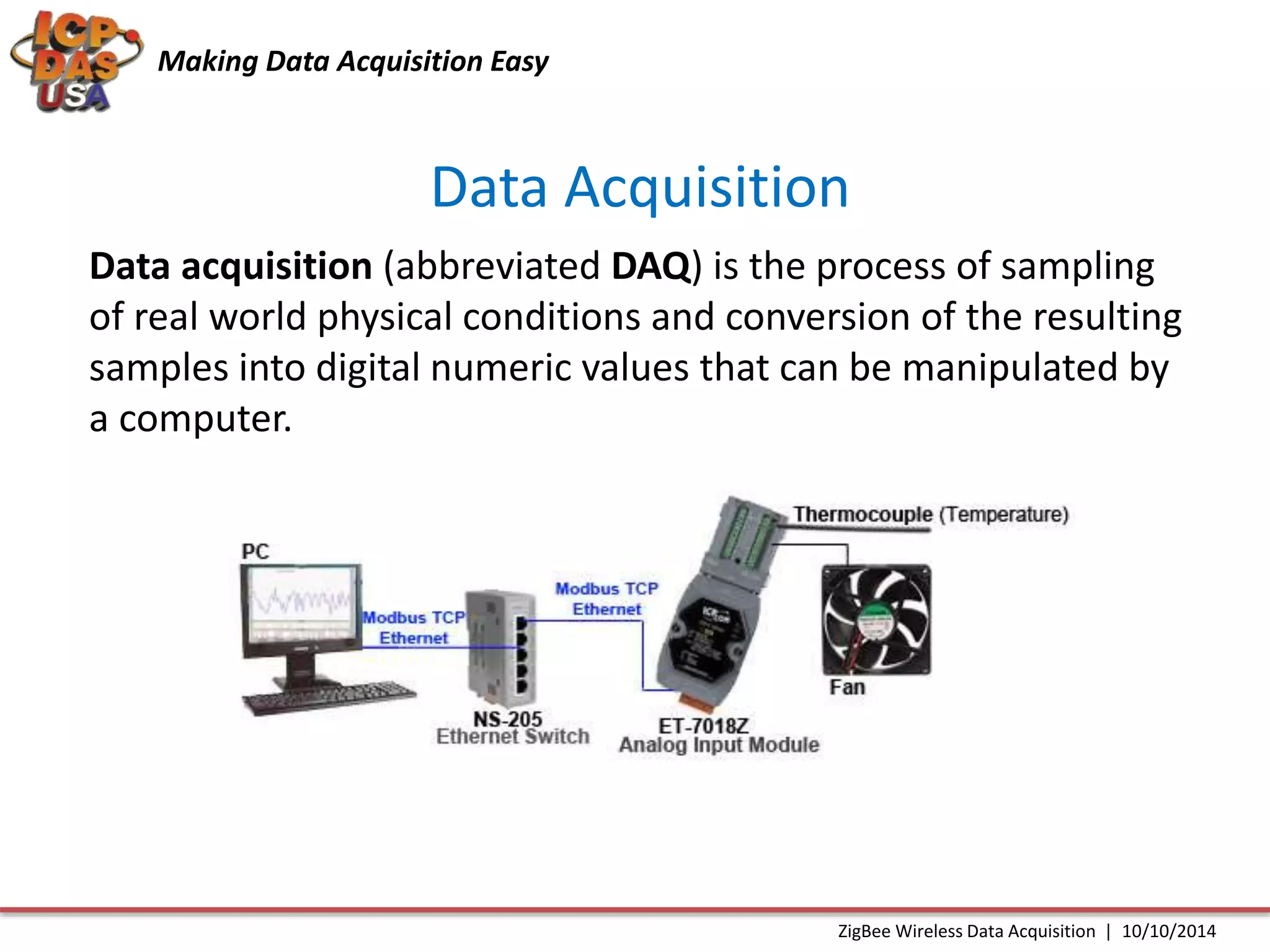

Data Acquisition
Data acquisition (abbreviated DAQ) is the process of sampling
of real world physical conditions and conversion of the resulting
samples into digital numeric values that can be manipulated by
a computer.
ZigBee Wireless Data Acquisition | 10/10/2014

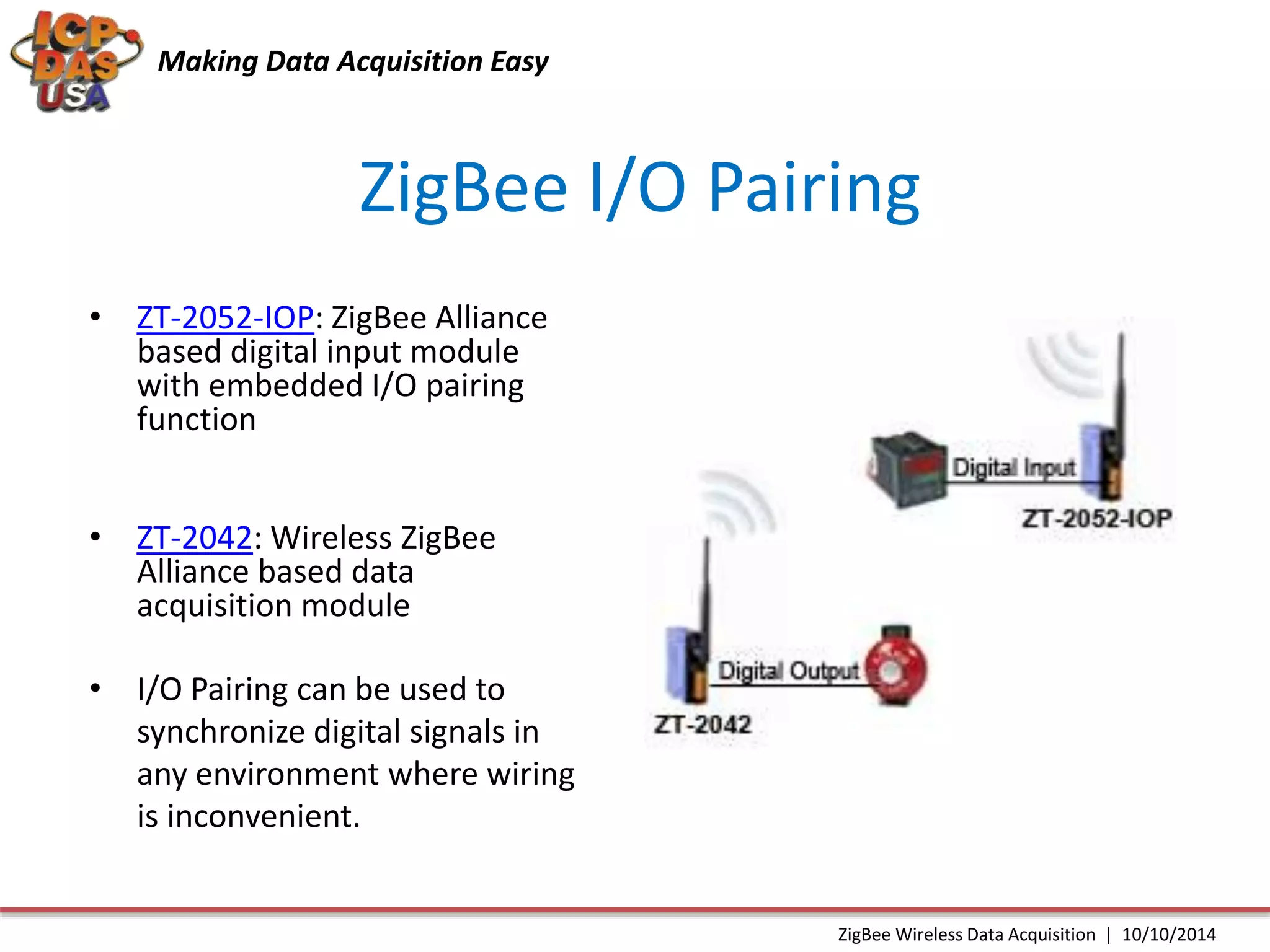

8. Making Data Acquisition Easy
ZigBee I/O Pairing
• ZT-2052-IOP: ZigBee Alliance
based digital input module
with embedded I/O pairing
function
• ZT-2042: Wireless ZigBee
Alliance based data
acquisition module
• I/O Pairing can be used to
synchronize digital signals in
any environment where wiring
is inconvenient.
ZigBee Wireless Data Acquisition | 10/10/2014

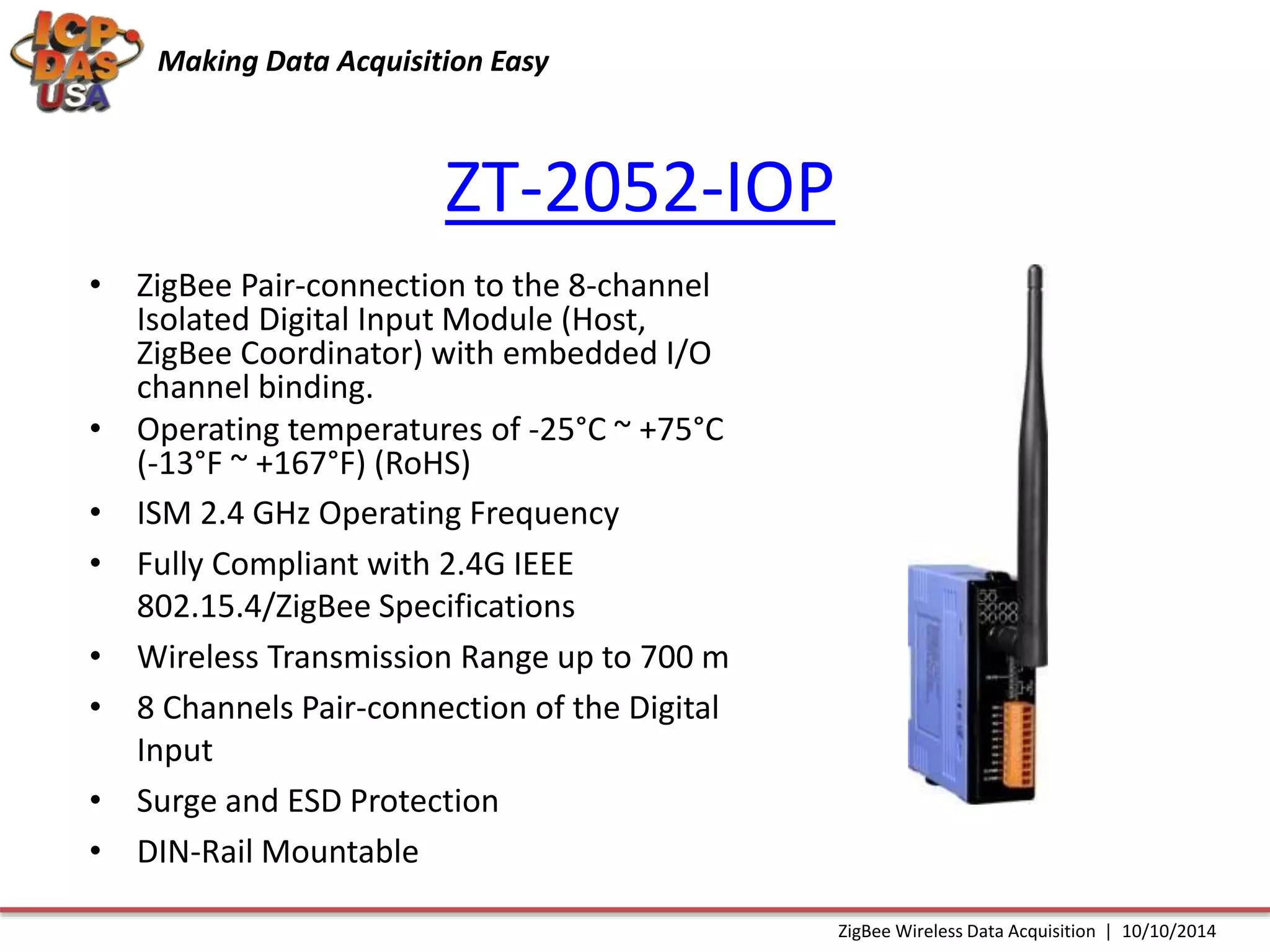

9. Making Data Acquisition Easy
ZT-2052-IOP
• ZigBee Pair-connection to the 8-channel
Isolated Digital Input Module (Host,
ZigBee Coordinator) with embedded I/O
channel binding.
• Operating temperatures of -25°C ~ +75°C
(-13°F ~ +167°F) (RoHS)
• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G IEEE
802.15.4/ZigBee Specifications
• Wireless Transmission Range up to 700 m
• 8 Channels Pair-connection of the Digital
Input
• Surge and ESD Protection
• DIN-Rail Mountable
ZigBee Wireless Data Acquisition | 10/10/2014

10. Making Data Acquisition Easy

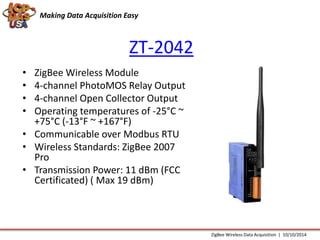

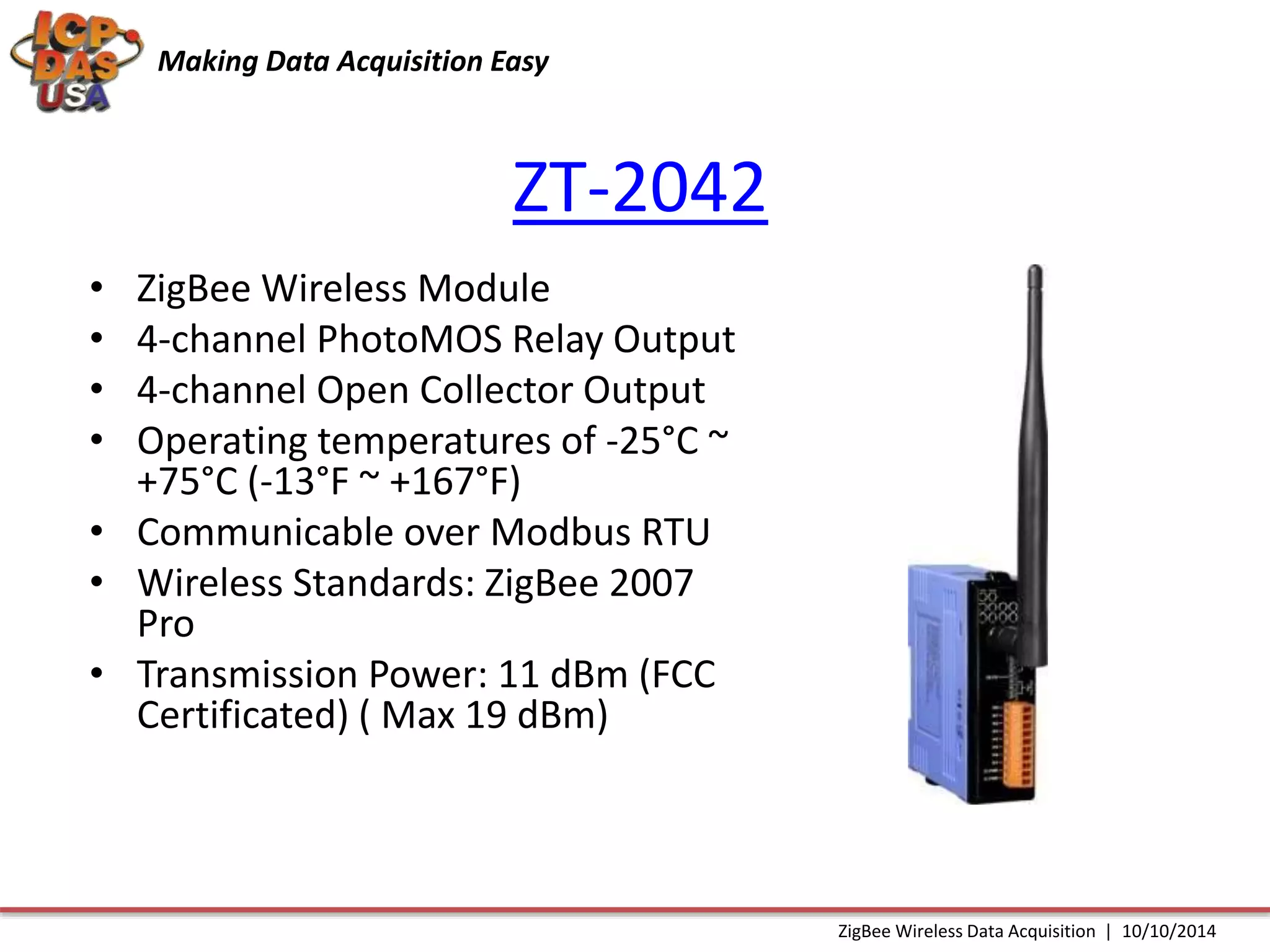

ZT-2042
• ZigBee Wireless Module
• 4-channel PhotoMOS Relay Output
• 4-channel Open Collector Output
• Operating temperatures of -25°C ~
+75°C (-13°F ~ +167°F)
• Communicable over Modbus RTU
• Wireless Standards: ZigBee 2007
Pro
• Transmission Power: 11 dBm (FCC
Certificated) ( Max 19 dBm)
ZigBee Wireless Data Acquisition | 10/10/2014

11. Making Data Acquisition Easy

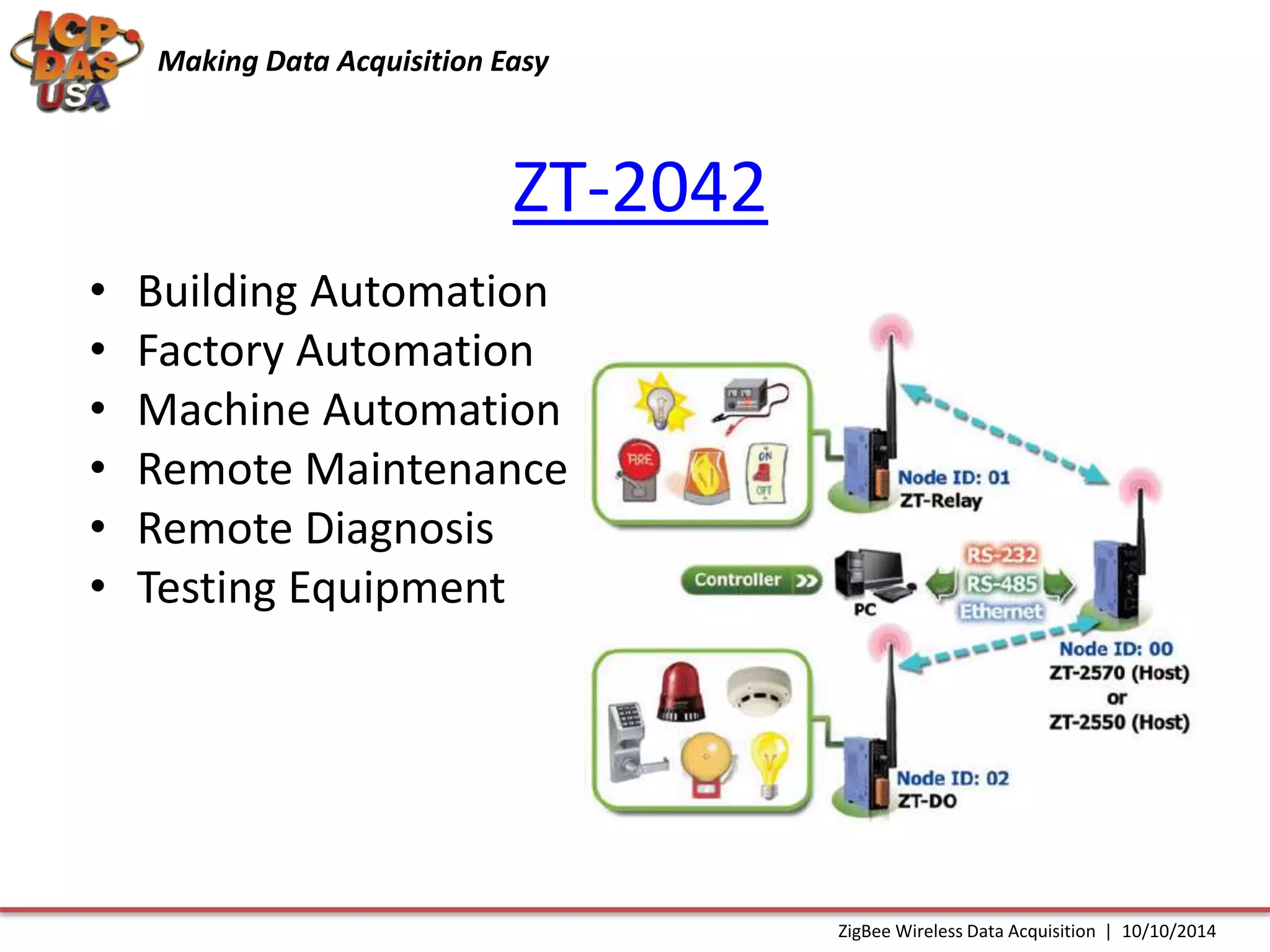

ZT-2042
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
ZigBee Wireless Data Acquisition | 10/10/2014

12. Making Data Acquisition Easy

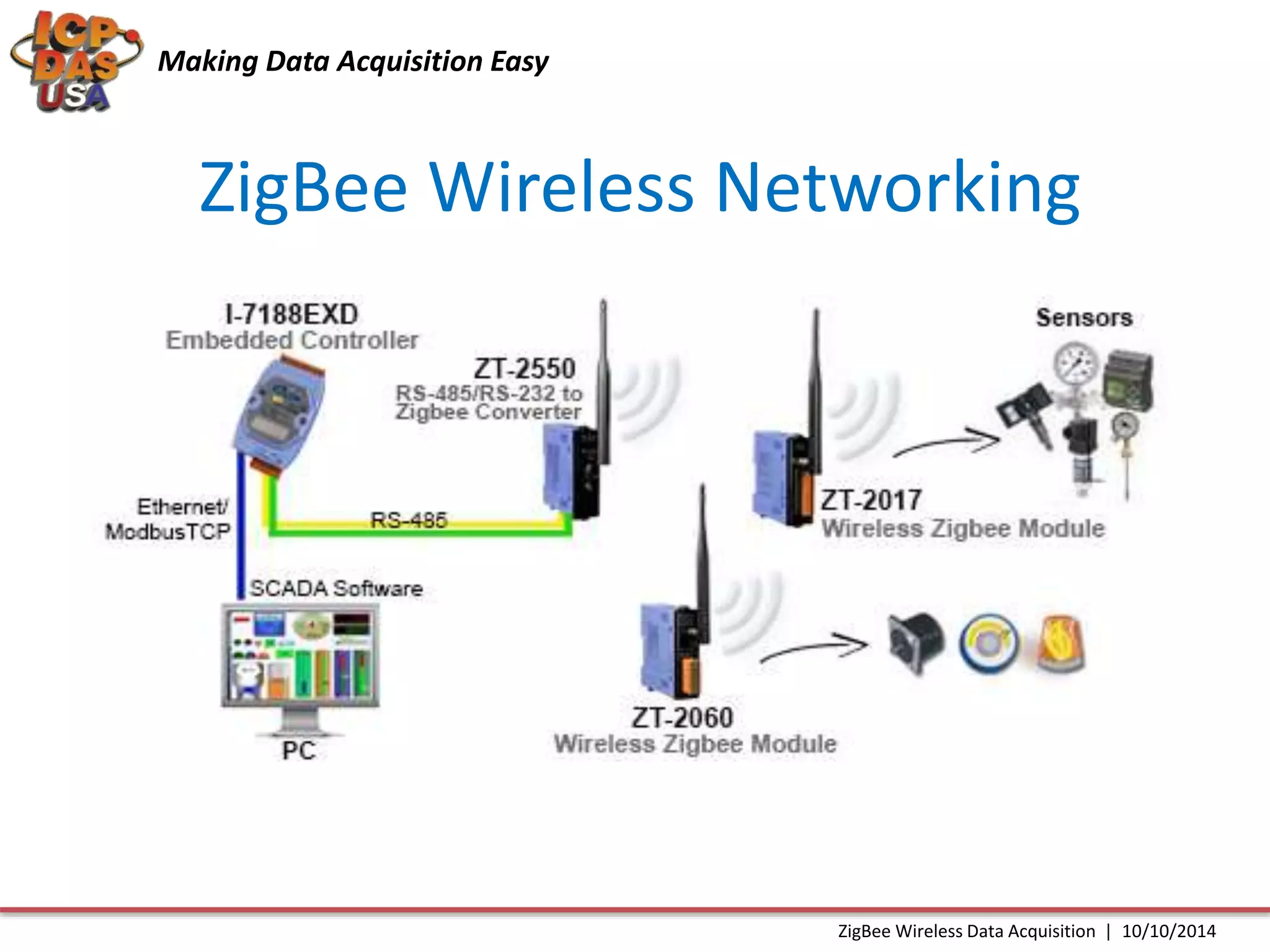

ZigBee Wireless Networking
ZigBee Wireless Data Acquisition | 10/10/2014

13. Making Data Acquisition Easy

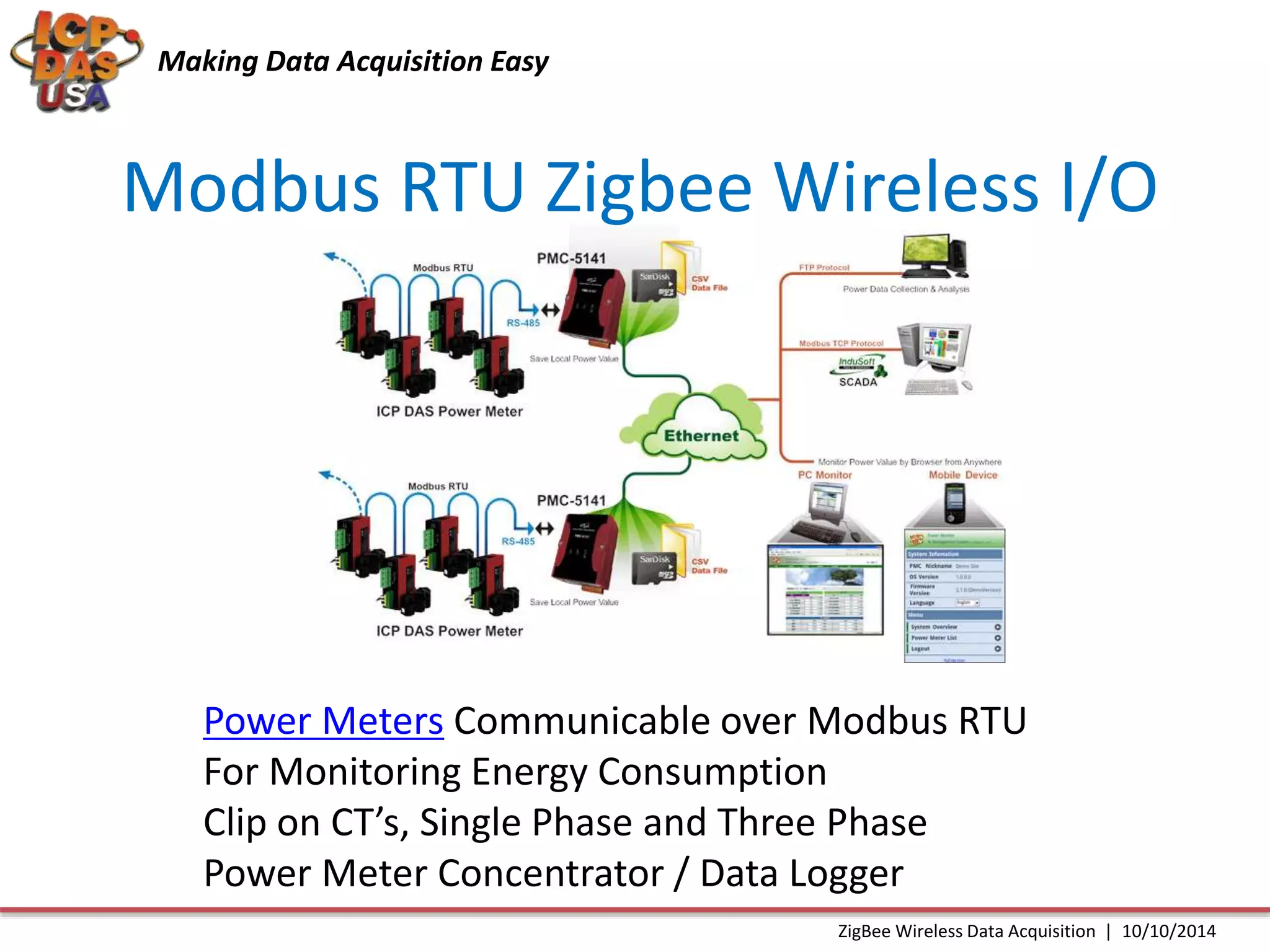

Modbus RTU Zigbee Wireless I/O
• Power Meters Communicable over Modbus RTU
• For Monitoring Energy Consumption
• Clip on CT’s, Single Phase and Three Phase
• Power Meter Concentrator / Data Logger
ZigBee Wireless Data Acquisition | 10/10/2014

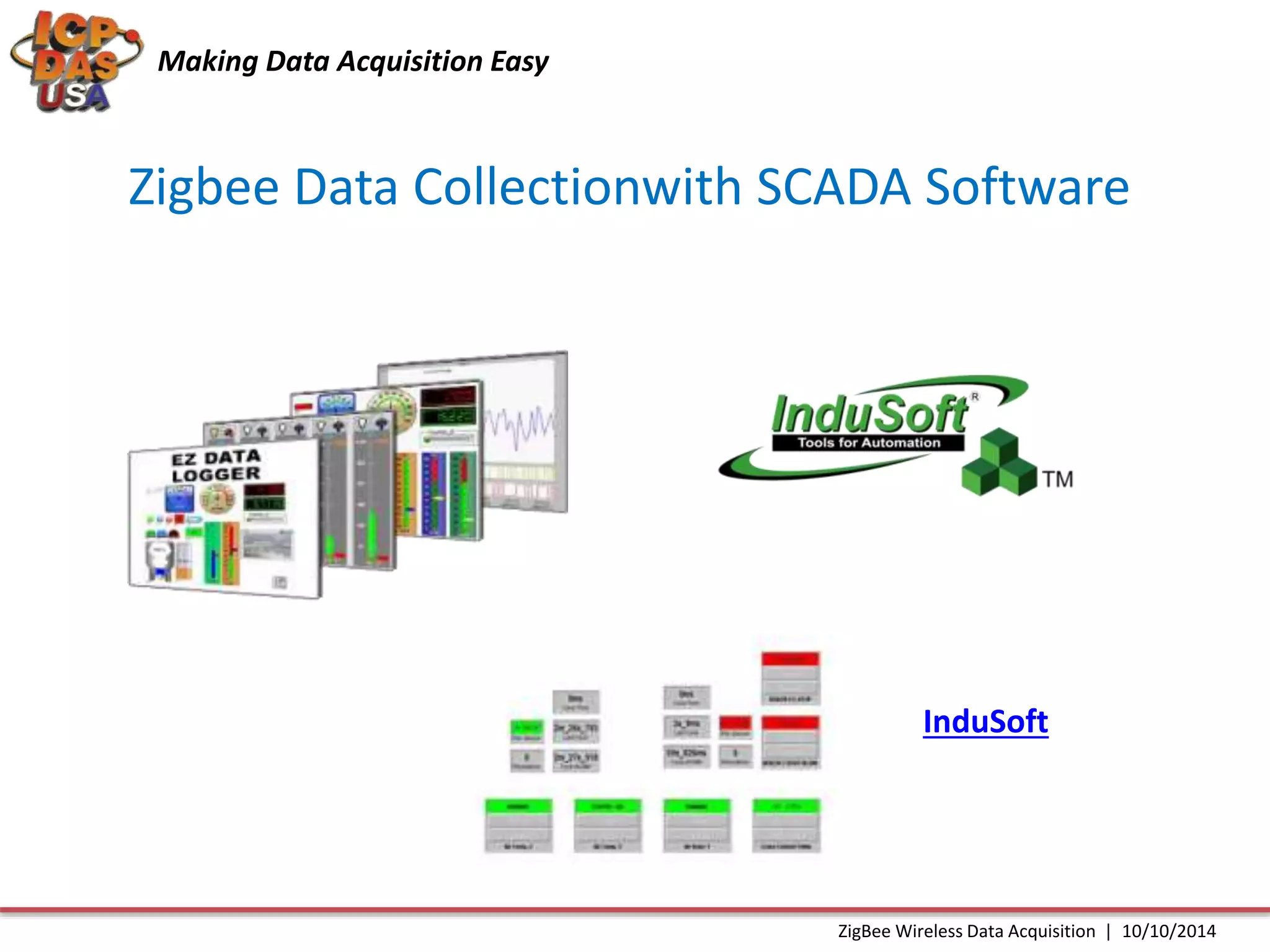

14. Making Data Acquisition Easy
Zigbee Data Collectionwith SCADA Software
InduSoft
ZigBee Wireless Data Acquisition | 10/10/2014

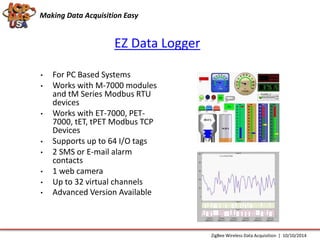

15. Making Data Acquisition Easy

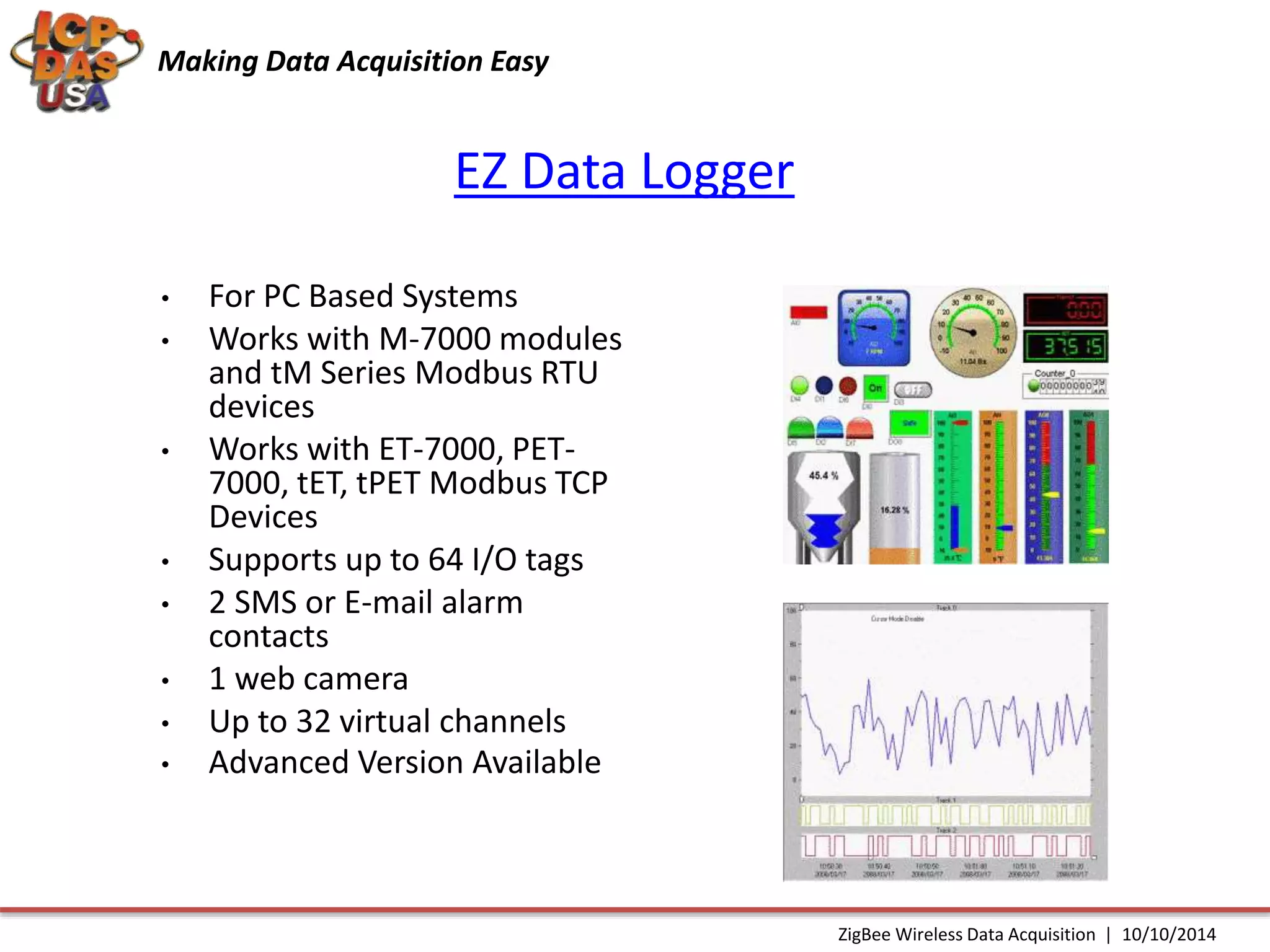

EZ Data Logger
• For PC Based Systems
• Works with M-7000 modules
and tM Series Modbus RTU
devices
• Works with ET-7000, PET-
7000, tET, tPET Modbus TCP
Devices
• Supports up to 64 I/O tags
• 2 SMS or E-mail alarm
contacts
• 1 web camera
• Up to 32 virtual channels
• Advanced Version Available
ZigBee Wireless Data Acquisition | 10/10/2014

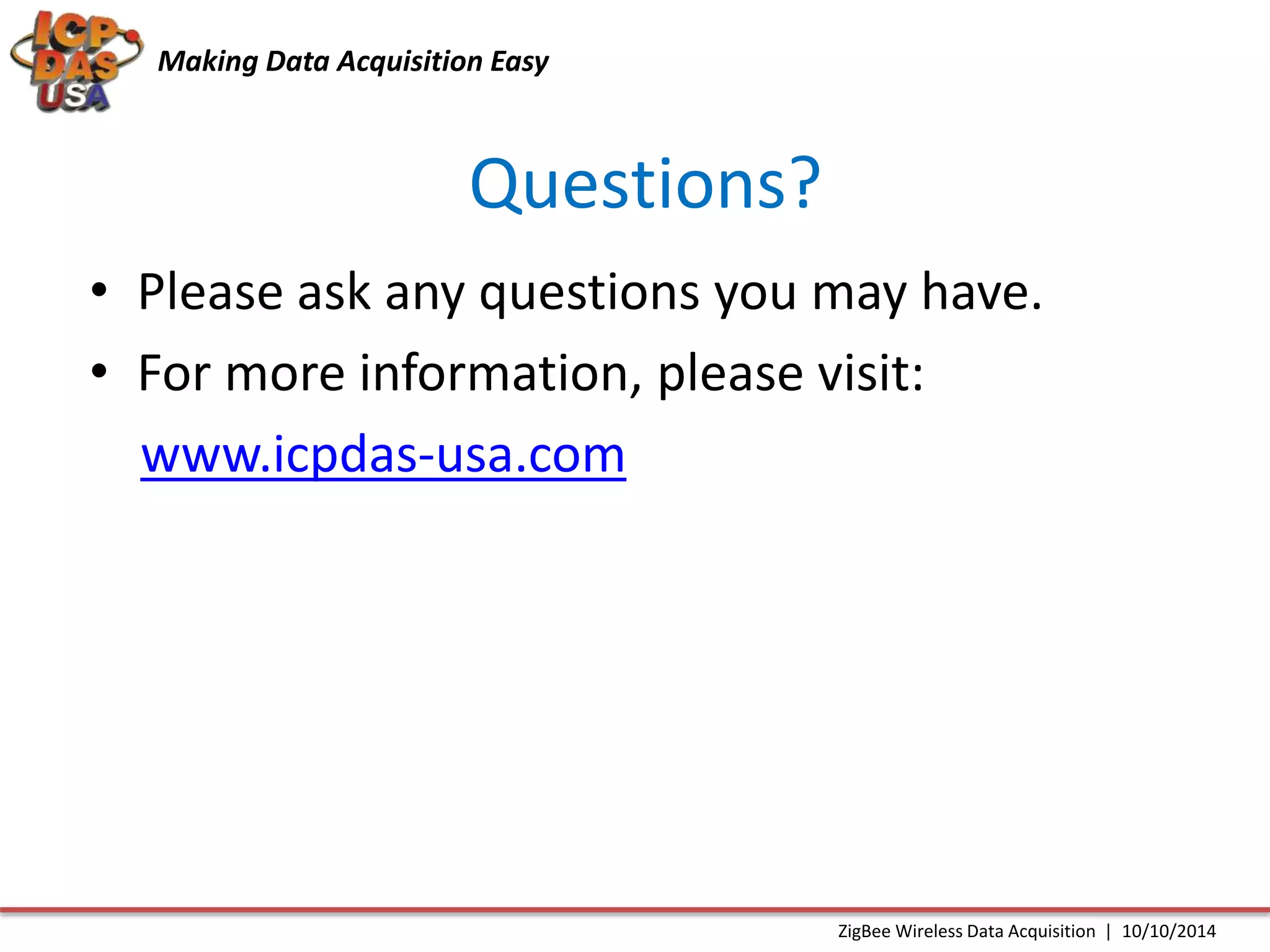

16. Making Data Acquisition Easy
Questions?
• Please ask any questions you may have.
• For more information, please visit:
www.icpdas-usa.com
ZigBee Wireless Data Acquisition | 10/10/2014
