Data acquisition is the process of sampling real world physical information and the conversion of the samples into digital numeric values that computers and controllers can understand. Modbus based Data Acquisition devices include RTD, Thermistor, Thermocouple, Voltage, Current, Strain Gauge, Counter, Frequency, Relay, Digital Input, and Digital Ouptut and are widely used in industrial automation, remote monitoring, wastewater monitoring, process control, and building automation. This training talks about Modbus RTU and Modbus TCP Protocols, Modbus Data Acquisition Technology, Modbus Data Logging, Stand Alone Modbus Systems, and how to configure PC Based Modbus Systems with SCADA Software. More info: www.icpdas-usa.com?r=slideshare

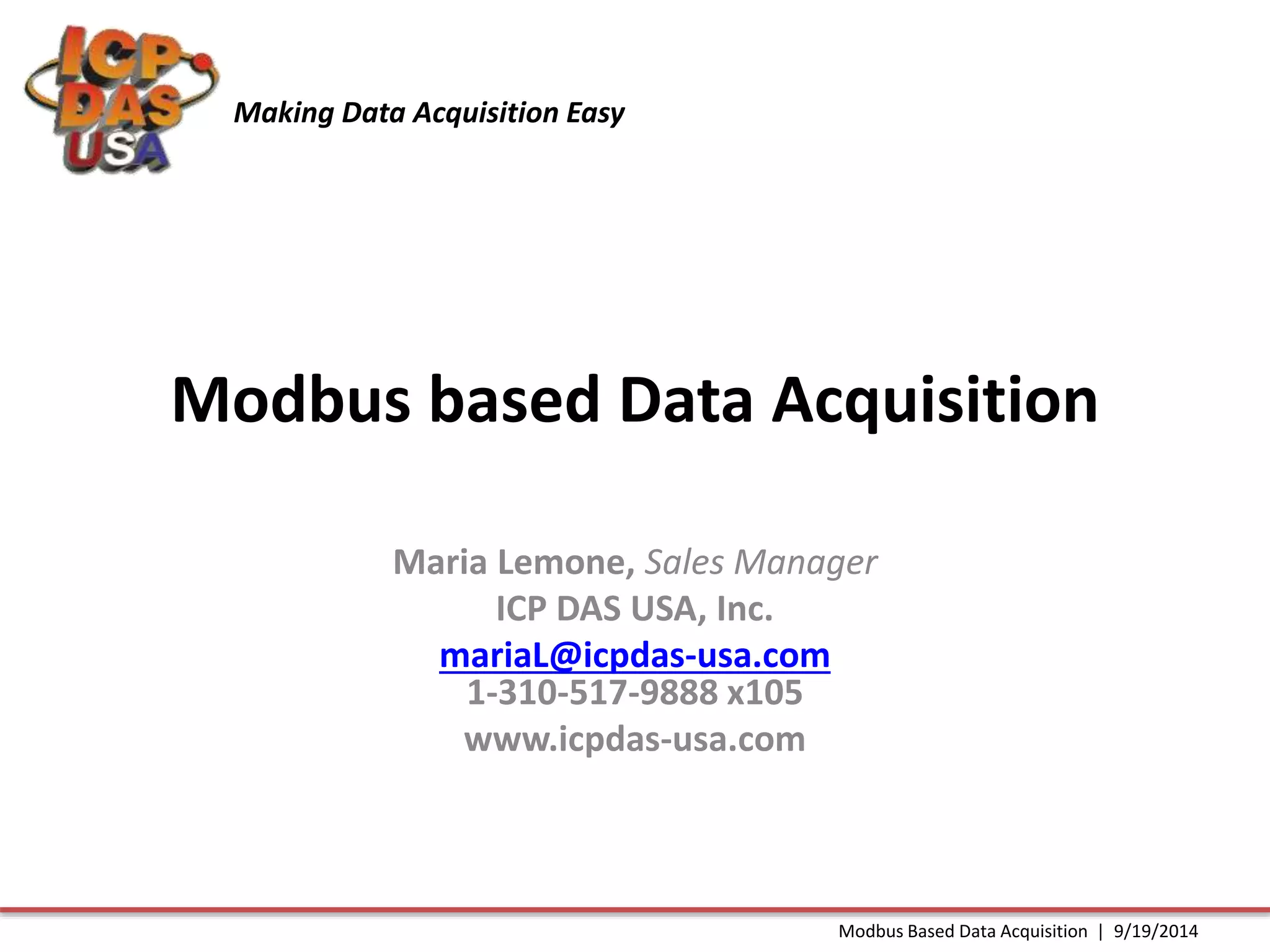

1. Making Data Acquisition Easy
Modbus based Data Acquisition
Maria Lemone, Sales Manager
ICP DAS USA, Inc.
mariaL@icpdas-usa.com
1-310-517-9888 x105
www.icpdas-usa.com
Modbus Based Data Acquisition | 9/19/2014

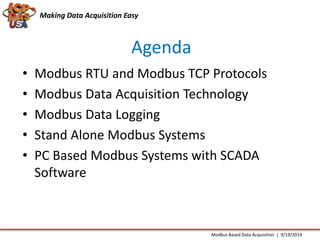

2. Making Data Acquisition Easy
Agenda
• Modbus RTU and Modbus TCP Protocols
• Modbus Data Acquisition Technology
• Modbus Data Logging
• Stand Alone Modbus Systems
• PC Based Modbus Systems with SCADA
Software
Modbus Based Data Acquisition | 9/19/2014

3. Making Data Acquisition Easy
ICP DAS USA
• ICP DAS was established in 1993
• Headquartered in Hsinchu, Taiwan
• ICP DAS USA was launched in 2001
Modbus Based Data Acquisition | 9/19/2014

4. Making Data Acquisition Easy
History of Modbus
• Modbus is a Serial Based Communications
Protocol
• Widely used industrial communications for
instrumentation, control and data acquisition
devices
• Originally published by Modicon (now Schneider
Electric) in 1979 for use with its Programmable
Logic Controllers
Modbus Based Data Acquisition | 9/19/2014

5. Making Data Acquisition Easy
Data Acquisition
Data acquisition (abbreviated DAQ) is the process of sampling of real
world physical conditions and conversion of the resulting samples into
digital numeric values that can be manipulated by a computer.
Modbus Based Data Acquisition | 9/19/2014

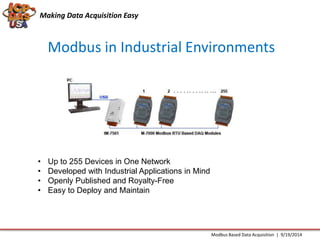

6. Making Data Acquisition Easy
Modbus in Industrial Environments
Modbus Based Data Acquisition | 9/19/2014
• Up to 255 Devices in One Network
• Developed with Industrial Applications in Mind
• Openly Published and Royalty-Free
• Easy to Deploy and Maintain

7. Making Data Acquisition Easy
Modbus RTU Protocol
• Modbus RTU: an open, serial (RS-232 or RS-485)
protocol derived from the Master/Slave
architecture.
• It is a widely accepted protocol due to its ease of
use and reliability.
• Modbus RTU is widely used in Industrial
Automation Systems.
Modbus Based Data Acquisition | 9/19/2014

8. Making Data Acquisition Easy
Modbus TCP Protocol
• Modbus TCP: simple, vendor-neutral communication
protocols intended for supervision and control of
automation equipment.
• Specifically, it covers the use of Modbus messaging in
an 'Intranet' or 'Internet' environment using the
TCP/IP protocols.
• The most common use is for Ethernet networking of
PLC's, I/O Modules, and ‘Gateways' to other simple
field buses or I/O Networks.
Modbus Based Data Acquisition | 9/19/2014

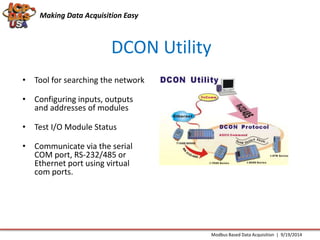

9. Making Data Acquisition Easy
DCON Utility
Modbus Based Data Acquisition | 9/19/2014
• Tool for searching the network
• Configuring inputs, outputs
and addresses of modules
• Test I/O Module Status
• Communicate via the serial
COM port, RS-232/485 or
Ethernet port using virtual
com ports.

10. Making Data Acquisition Easy
M-7017 Modbus RTU DAQ
Solar Panel & Wind Turbine Applications:
• DN-843I: 3-channel current input sensor
• M-7017: Analog Input Module with Voltage Input
• I-7561: RS-485 to USB Converter
Modbus Based Data Acquisition | 9/19/2014

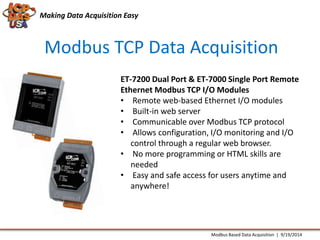

11. Making Data Acquisition Easy
Modbus TCP Data Acquisition
ET-7200 Dual Port & ET-7000 Single Port Remote
Ethernet Modbus TCP I/O Modules
• Remote web-based Ethernet I/O modules
• Built-in web server
• Communicable over Modbus TCP protocol
• Allows configuration, I/O monitoring and I/O
control through a regular web browser.
• No more programming or HTML skills are
needed
• Easy and safe access for users anytime and
anywhere!
Modbus Based Data Acquisition | 9/19/2014

12. Making Data Acquisition Easy
Using Modbus DAQ
Modbus Based Data Acquisition | 9/19/2014
• Link the ET-7000 and
host PC
• Click the Search on
MiniOS7 Utility’s main
menu to scan for
devices on the
Ethernet network.

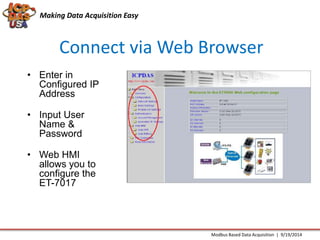

13. Making Data Acquisition Easy
Connect via Web Browser
Modbus Based Data Acquisition | 9/19/2014
• Enter in
Configured IP
Address
• Input User
Name &
Password
• Web HMI
allows you to
configure the
ET-7017

14. Making Data Acquisition Easy
Emergency Warning Systems
Modbus Based Data Acquisition | 9/19/2014
• Immediate and control
system through the
internet with ICP DAS ET-
7000 series.
• They are linked to
devices like cameras,
smoke sensors and
transmitters

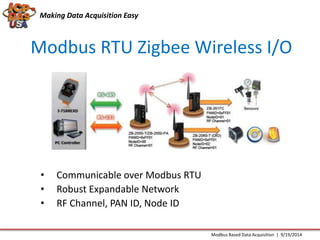

15. Making Data Acquisition Easy
Modbus RTU Zigbee Wireless I/O
Modbus Based Data Acquisition | 9/19/2014
• Communicable over Modbus RTU
• Robust Expandable Network
• RF Channel, PAN ID, Node ID

16. Making Data Acquisition Easy
Modbus RTU Zigbee Wireless I/O
• Power Meters Communicable over Modbus RTU
• For Monitoring Energy Consumption
• Clip on CT’s, Single Phase and Three Phase
• Power Meter Concentrator / Data Logger
Modbus Based Data Acquisition | 9/19/2014

17. Making Data Acquisition Easy
Modbus Data Logging
DL-302
• CO2, Temperature and Humidity Data Logger
with Touch Screen, Real Time Clock, PoE & CO2
relay alarm output
• Supports Modbus RTU and Modbus TCP
DL-100T
• CO2, Temperature and Humidity Data Logger
with Touch Screen, Real Time Clock, PoE & CO2
relay alarm output
• Supports Modbus RTU and Modbus TCP
Modbus Based Data Acquisition | 9/19/2014

18. Making Data Acquisition Easy
EZ Data Logger
Modbus Based Data Acquisition | 9/19/2014
• For PC Based Systems
• Works with M-7000 modules
and tM Series Modbus RTU
devices
• Works with ET-7000, PET-
7000, tET, tPET Modbus TCP
Devices
• Supports up to 64 I/O tags
• 2 SMS or E-mail alarm
contacts
• 1 web camera
• Up to 32 virtual channels
• Advanced Version Available

19. Making Data Acquisition Easy
PC Based Modbus System with SCADA Software
Modbus Based Data Acquisition | 9/19/2014

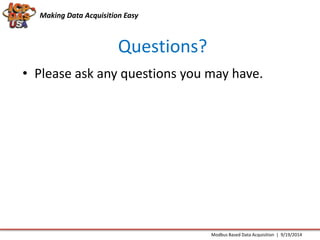

20. Making Data Acquisition Easy
Questions?
• Please ask any questions you may have.
Modbus Based Data Acquisition | 9/19/2014
