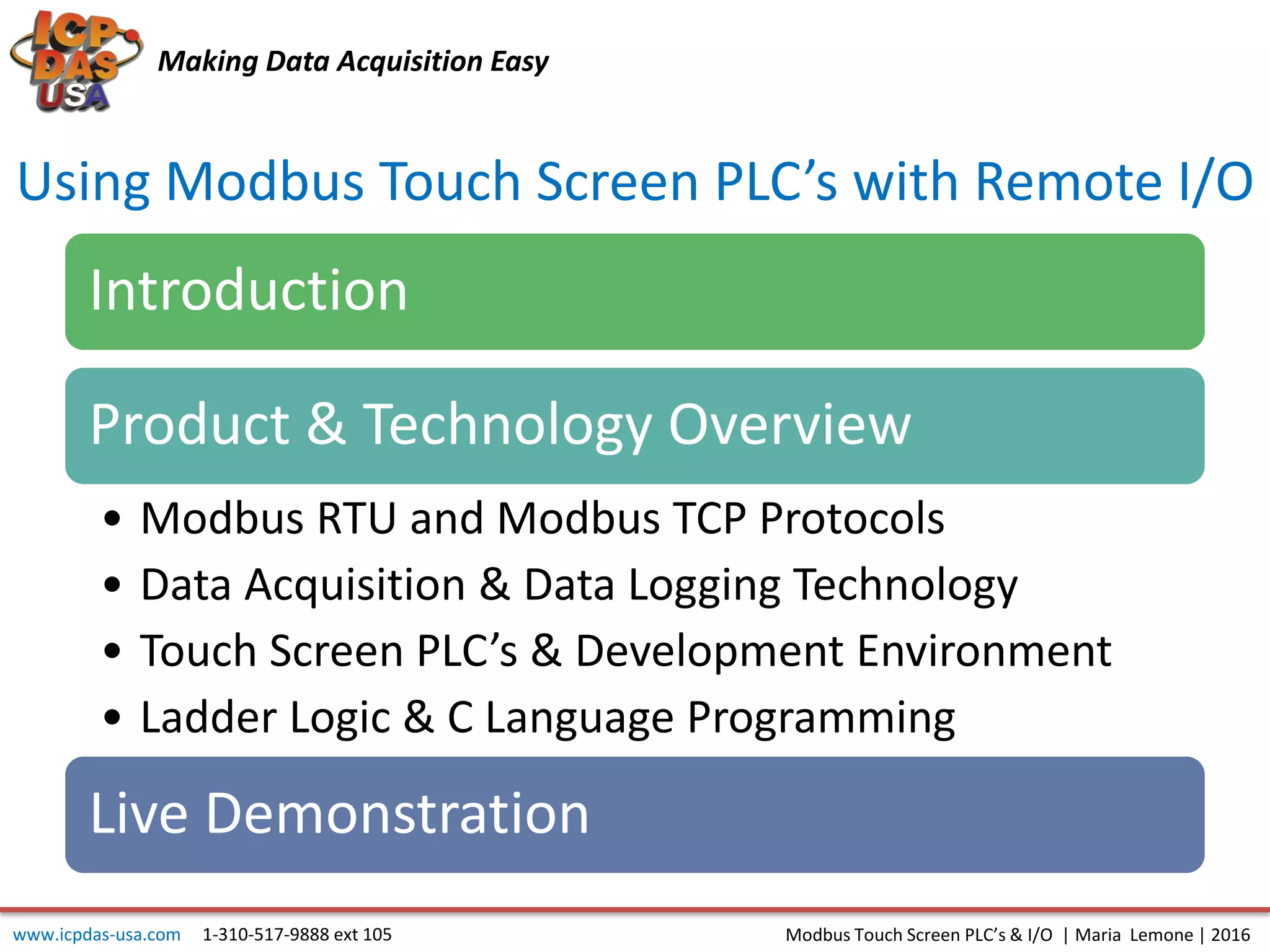

2. Using Modbus Touch Screen PLC’s with Remote I/O
Making Data Acquisition Easy
Introduction
Product & Technology Overview
• Modbus RTU and Modbus TCP Protocols
• Data Acquisition & Data Logging Technology
• Touch Screen PLC’s & Development Environment
• Ladder Logic & C Language Programming
Live Demonstration
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

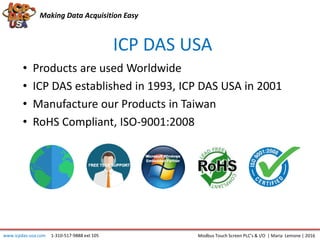

3. Making Data Acquisition Easy
ICP DAS USA
• Products are used Worldwide
• ICP DAS established in 1993, ICP DAS USA in 2001
• Manufacture our Products in Taiwan
• RoHS Compliant, ISO-9001:2008
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

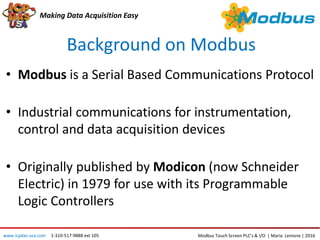

4. Background on Modbus
Making Data Acquisition Easy
• Modbus is a Serial Based Communications Protocol
• Industrial communications for instrumentation,
control and data acquisition devices
• Originally published by Modicon (now Schneider
Electric) in 1979 for use with its Programmable
Logic Controllers
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

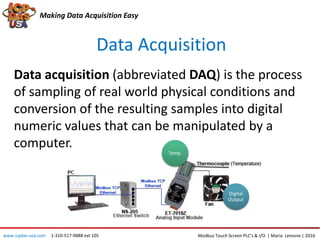

5. Data Acquisition
Making Data Acquisition Easy
Data acquisition (abbreviated DAQ) is the process
of sampling of real world physical conditions and
conversion of the resulting samples into digital
numeric values that can be manipulated by a
computer.
Temp.
Digital
Output
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

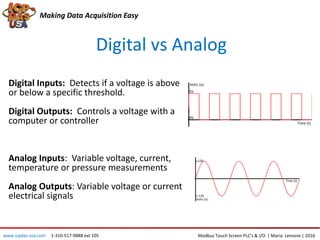

6. Digital vs Analog
Making Data Acquisition Easy
Digital Inputs: Detects if a voltage is above
or below a specific threshold.
Digital Outputs: Controls a voltage with a
computer or controller
Analog Inputs: Variable voltage, current,
temperature or pressure measurements
Analog Outputs: Variable voltage or current
electrical signals
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

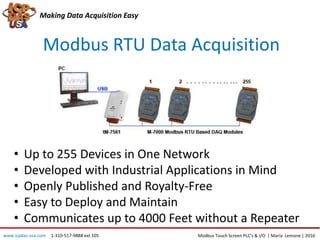

7. Modbus RTU Data Acquisition
Making Data Acquisition Easy
• Up to 255 Devices in One Network
• Developed with Industrial Applications in Mind
• Openly Published and Royalty-Free
• Easy to Deploy and Maintain
• Communicates up to 4000 Feet without a Repeater
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

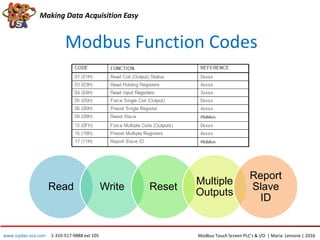

8. Modbus Function Codes
Making Data Acquisition Easy
Read Write Reset
Multiple
Outputs
Report
Slave
ID
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

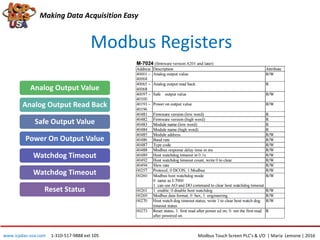

9. Modbus Registers
Making Data Acquisition Easy
Analog Output Value
Analog Output Read Back
Safe Output Value
Power On Output Value
Watchdog Timeout
Watchdog Timeout
Reset Status
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105
10. Making Data Acquisition Easy
Use RS-485
based DCON &
Modbus RTU
protocols
Labview,
DasyLab, DDE,
dll, OPC and OCX
drivers
Communicates to
PLC, DCS, PC or
many other
controllers
70 + selections of
analog, digital,
and I/O specialty
modules
Auto tunes data
rate and data
format
tM-TH8
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

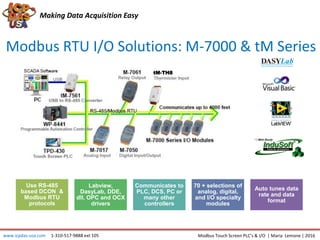

Modbus RTU I/O Solutions: M-7000 & tM Series
www.icpdas-usa.com 1-310-517-9888 ext 105

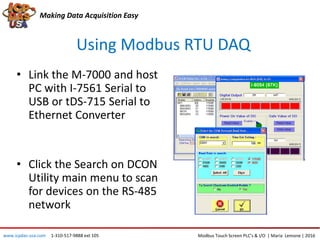

11. Using Modbus RTU DAQ
Making Data Acquisition Easy
• Link the M-7000 and host
PC with I-7561 Serial to
USB or tDS-715 Serial to
Ethernet Converter
• Click the Search on DCON
Utility main menu to scan
for devices on the RS-485
network
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105
12. Power&Data
Modbus TCP
Ethernet
Ethernet / Modbus TCP

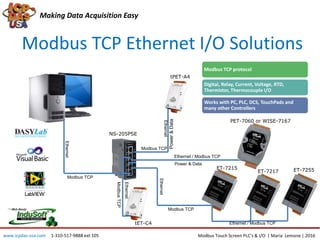

Modbus TCP Ethernet I/O Solutions
Making Data Acquisition Easy
Ethernet
Modbus TCP
Ethernet
Modbus TCP
tPET-A4
ET-7255
Power & Data
PET-7060 or WISE-7167
ET-7217
ET-7215
tET-C4
Ethernet
ModbusTCP
Ethernet / Modbus TCP
Modbus TCP protocol
Digital, Relay, Current, Voltage, RTD,
Thermistor, Thermocouple I/O
Works with PC, PLC, DCS, TouchPads and
many other Controllers
NS-205PSE
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

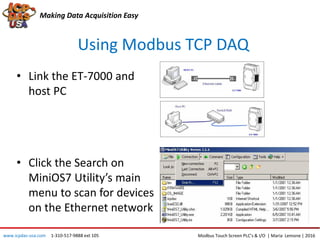

13. Using Modbus TCP DAQ
Making Data Acquisition Easy
• Link the ET-7000 and
host PC
• Click the Search on
MiniOS7 Utility’s main
menu to scan for devices
on the Ethernet network
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

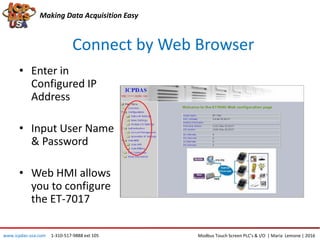

14. Connect by Web Browser
Making Data Acquisition Easy
• Enter in
Configured IP
Address
• Input User Name
& Password
• Web HMI allows
you to configure
the ET-7017
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

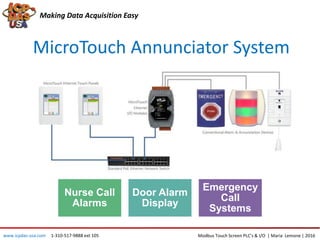

15. MicroTouch Annunciator System
Making Data Acquisition Easy
Nurse Call
Alarms
Door Alarm
Display
Emergency
Call
Systems
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

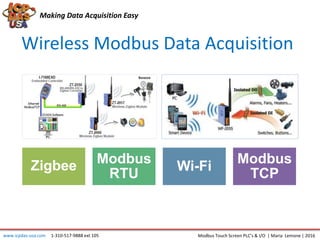

16. WF-2000 Series
Making Data Acquisition Easy
Wireless Modbus Data Acquisition
Zigbee Modbus
RTU
Wi-Fi
Modbus
TCP
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

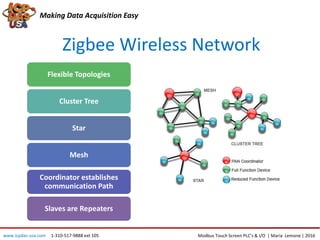

17. Zigbee Wireless Network
Making Data Acquisition Easy
Flexible Topologies
Cluster Tree
Star
Mesh
Coordinator establishes
communication Path
Slaves are Repeaters
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

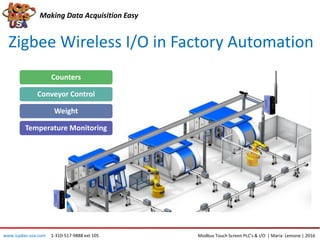

18. Zigbee Wireless I/O in Factory Automation
Making Data Acquisition Easy
Counters
Conveyor Control
Weight
Temperature Monitoring
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105
19. Modbus TCP vs Modbus RTU
Making Data Acquisition Easy
• Modbus TCP is over Ethernet networks
• Modbus RTU is over Serial networks
• Networks are Not the Same
• Can use a Modbus RTU to Modbus TCP Gateway like tGW-715
to Combine Networks
Modbus
Gateway
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

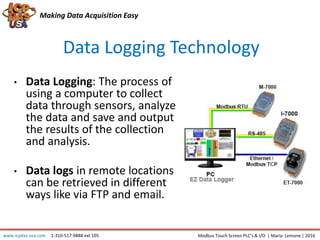

20. Data Logging Technology
Making Data Acquisition Easy
• Data Logging: The process of
using a computer to collect
data through sensors, analyze
the data and save and output
the results of the collection
and analysis.
• Data logs in remote locations
can be retrieved in different
ways like via FTP and email.
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

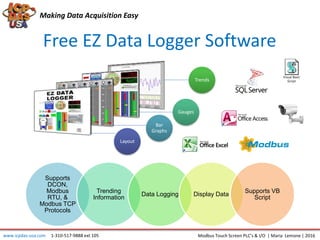

21. Free EZ Data Logger Software
Making Data Acquisition Easy
Trends
Gauges
Bar
Graphs
Layout
Supports
DCON,
Modbus
RTU, &
Modbus TCP
Protocols
Trending
Information
Data Logging Display Data
Supports VB
Script
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

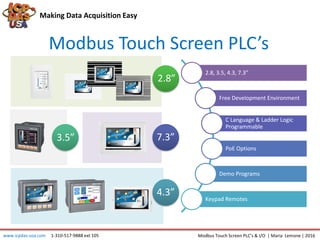

22. WF-2000 Series
Making Data Acquisition Easy
Modbus Touch Screen PLC’s
2.8”
3.5”
4.3”
7.3”
2.8, 3.5, 4.3, 7.3”
Free Development Environment
C Language & Ladder Logic
Programmable
PoE Options
Demo Programs
Keypad Remotes
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

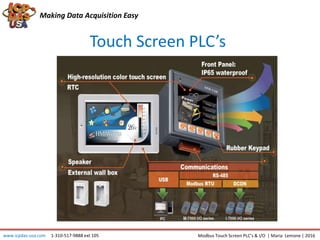

23. Making Data Acquisition Easy
Touch Screen PLC’s
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

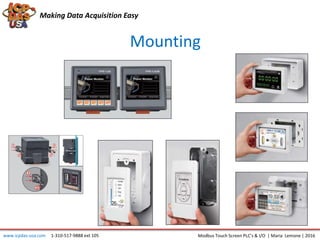

24. Making Data Acquisition Easy
Mounting
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016
25. HMIWorks Development Environment
Making Data Acquisition Easy
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105
26. Making Data Acquisition Easy
Drag & Drop Design
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

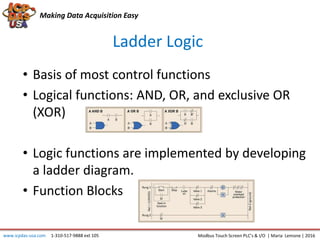

27. Making Data Acquisition Easy
Ladder Logic
• Basis of most control functions
• Logical functions: AND, OR, and exclusive OR
(XOR)
• Logic functions are implemented by developing
a ladder diagram.
• Function Blocks
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105

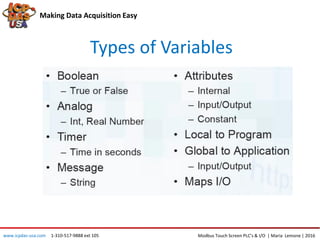

28. Types of Variables
Making Data Acquisition Easy
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

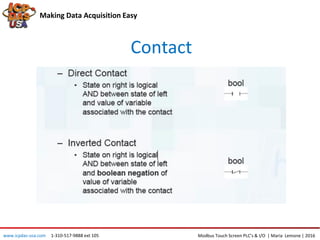

29. Contact
Making Data Acquisition Easy
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

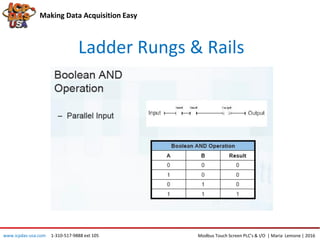

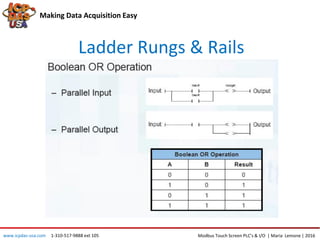

30. Ladder Rungs & Rails
Making Data Acquisition Easy
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016
31. Ladder Rungs & Rails
Making Data Acquisition Easy
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

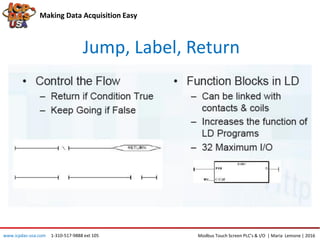

32. Jump, Label, Return
Making Data Acquisition Easy
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016
33. Making Data Acquisition Easy
Programming with Ladder Logic
• New Project > Ladder
Programming Type >
Add New Virtual Tag
• Pointer
• F2: Left Contact
• F3: Right Contact
• F4: Parallel Contact
• F5: Coil
• F6: Left Function Block
• F7: Right Function Block
• F8: Parallel FB
• Jump
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

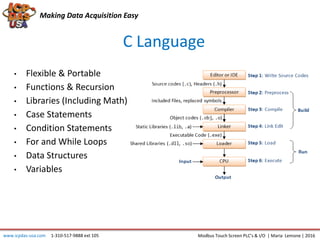

34. Making Data Acquisition Easy
C Language
• Flexible & Portable
• Functions & Recursion
• Libraries (Including Math)
• Case Statements
• Condition Statements
• For and While Loops
• Data Structures
• Variables
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016

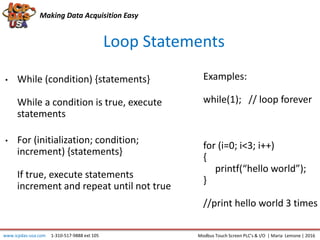

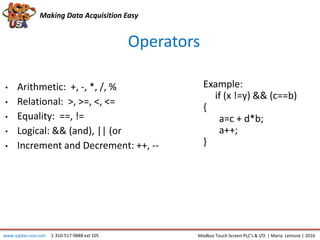

36. Making Data Acquisition Easy
Loop Statements
• While (condition) {statements}
While a condition is true, execute
statements
• For (initialization; condition;
increment) {statements}
If true, execute statements
increment and repeat until not true
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016
Examples:
while(1); // loop forever
for (i=0; i<3; i++)
{
printf(“hello world”);
}
//print hello world 3 times
37. Making Data Acquisition Easy

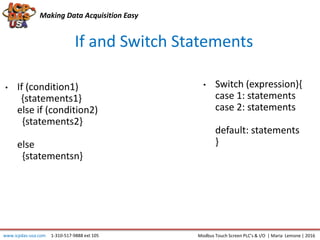

If and Switch Statements
• If (condition1)
{statements1}
else if (condition2)
{statements2}
else
{statementsn}
www.icpdas-usa.com 1-310-517-9888 ext 105 Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016
• Switch (expression){
case 1: statements
case 2: statements
default: statements
}
38. ICP DAS USA Benefits
• Customized Products & OEM Capability
• Low lead times, cost effective design solutions, and
personalized care
• Competitive price/performance ratio, while offering
the latest solutions for current industrial trends.
• We are able to provide hardware and software
solutions
• ICP DAS USA provides a great variety of products with
modular and universal solutions for your applications
and projects.
Making Data Acquisition Easy
Modbus Touch Screen PLC’s & I/O | Maria Lemone | 2016www.icpdas-usa.com 1-310-517-9888 ext 105
