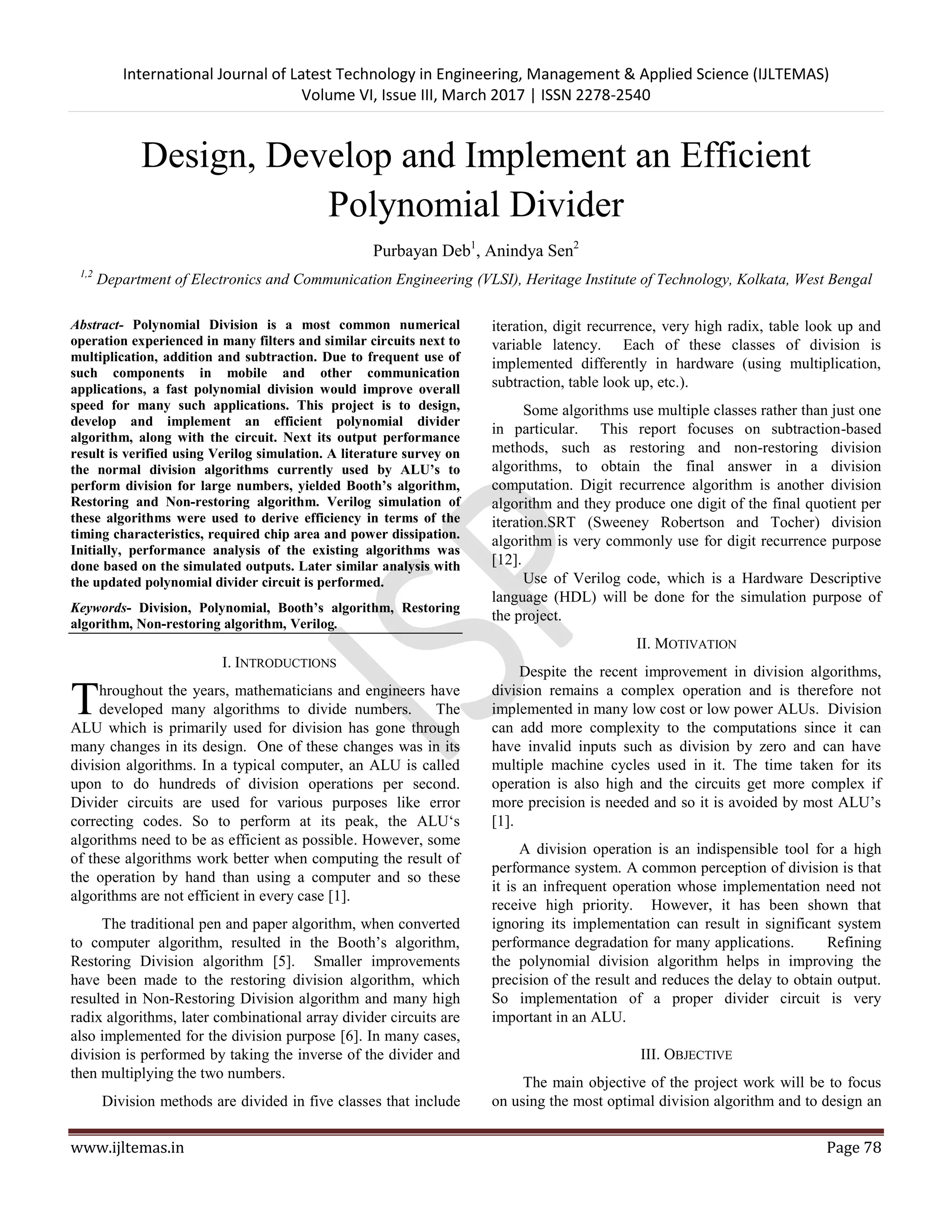

Polynomial Division is a most common numerical
operation experienced in many filters and similar circuits next to
multiplication, addition and subtraction. Due to frequent use of
such components in mobile and other communication
applications, a fast polynomial division would improve overall
speed for many such applications. This project is to design,
develop and implement an efficient polynomial divider
algorithm, along with the circuit. Next its output performance
result is verified using Verilog simulation. A literature survey on
the normal division algorithms currently used by ALU’s to
perform division for large numbers, yielded Booth’s algorithm,
Restoring and Non-restoring algorithm. Verilog simulation of
these algorithms were used to derive efficiency in terms of the
timing characteristics, required chip area and power dissipation.
Initially, performance analysis of the existing algorithms was
done based on the simulated outputs. Later similar analysis with
the updated polynomial divider circuit is performed.
Computerized layout design methods use algorithms to represent space requirements, activity relationships, and graphical information to generate layouts. There are two main algorithm types: constructive algorithms which build layouts and improvement algorithms which optimize initial layouts. Examples of constructive algorithms are ALDEP and CORELAP, while CRAFT is an improvement algorithm that starts with an initial layout and iteratively exchanges departments to reduce transportation costs until no further improvements are possible. These computerized methods require inputs like area requirements, relationship charts, and flow data to systematically generate optimized layouts.
1) The document outlines various algorithms and software for solving plant layout problems, including pairwise exchange, graph-based, CRAFT, MCRAFT, BLOCPLAN, MIP, and LOGIC algorithms.
2) It provides details on each algorithm, including the objectives, inputs, procedures, and example outputs.
3) Finally, it lists several commercial facility layout software packages available from vendors such as Unigraphics Solutions, Production Modeling Corporation, Systemes Escape Temps, and Techomatrix Technologies.
Activity Diagram Model An activity diagram visually presents a series of actions or flow of control in a system similar to a flowshart or a data flow diagram. Activity diagrams are often used in business process modeling.
1) CRAFT is a tool that helps improve existing facility layouts by swapping departments to find an optimal floor plan. It uses a pairwise exchange algorithm.
2) CRAFT is useful for large facilities with many departments that would be difficult to manually optimize. It works best with process layouts.
3) CRAFT considers swapping only adjacent or similarly sized departments to evaluate improvements in cost and distance metrics between departments. The final solution depends on the initial layout provided.
UML Activity Diagrams show the flow of activities and processes within a system. They represent activities as rectangles and can depict conditional or parallel flows. Activity diagrams are used to model the workflow or business process perspective of a system by showing the sequence and flow from one activity to another. Key elements include initial and final activities, decisions, concurrency, and fork/join nodes. Activity diagrams differ from sequence diagrams in that they model activity flow rather than object interactions.
Implementation of 32 Bit Binary Floating Point Adder Using IEEE 754 Single Pr...iosrjce
Field Programmable Gate Arrays (FPGA) are increasingly being used to design high- end
computationally intense microprocessors capable of handling both fixed and floating- point mathematical
operations. Addition is the most complex operation in a floating-point unit and offers major delay while taking
significant area. Over the years, the VLSI community has developed many floating-point adder algorithms
mainly aimed to reduce the overall latency. The Objective of this paper to implement the 32 bit binary floating
point adder with minimum time. Floating point numbers are used in various applications such as medical
imaging, radar, telecommunications Etc. Here pipelined architecture is used in order to increase the
performance and the design is achieved to increase the operating frequency. The logic is designed using VHDL.
This paper discusses in detail the best possible FPGA implementation will act as an important design resource.
The performance criterion is latency in all the cases. The algorithms are compared for overall latency, area,
and levels of logic and analyzed specifically for one of the latest FPGA architectures provided by Xilinx.
This document discusses various structures for implementing discrete-time linear systems, both finite impulse response (FIR) and infinite impulse response (IIR) systems. It describes direct form, cascade form, and parallel form implementations for IIR systems using blocks for addition, multiplication, and delay. For FIR systems it discusses direct form and cascade implementations using tapped delay lines. It also covers implementations for linear phase FIR systems that reduce the number of multipliers required.
Compensator Design for Speed Control of DC Motor by Root Locus Approach using...IRJET Journal
The document discusses designing a compensator for speed control of a DC motor using the root locus approach in MATLAB. It first presents the problem statement of controlling the speed of a DC motor and introduces using a compensator as a controller. It then provides the design procedure for three types of compensators: lead compensator, lag compensator, and lag-lead compensator. The procedures include calculating transfer functions, plotting root loci, and determining pole and zero locations. Flow charts of the MATLAB program for each compensator type are presented. Finally, the results of applying each compensator are shown and their effects on performance parameters like settling time are compared.
Computerized layout design methods use algorithms to represent space requirements, activity relationships, and graphical information to generate layouts. There are two main algorithm types: constructive algorithms which build layouts and improvement algorithms which optimize initial layouts. Examples of constructive algorithms are ALDEP and CORELAP, while CRAFT is an improvement algorithm that starts with an initial layout and iteratively exchanges departments to reduce transportation costs until no further improvements are possible. These computerized methods require inputs like area requirements, relationship charts, and flow data to systematically generate optimized layouts.
1) The document outlines various algorithms and software for solving plant layout problems, including pairwise exchange, graph-based, CRAFT, MCRAFT, BLOCPLAN, MIP, and LOGIC algorithms.
2) It provides details on each algorithm, including the objectives, inputs, procedures, and example outputs.
3) Finally, it lists several commercial facility layout software packages available from vendors such as Unigraphics Solutions, Production Modeling Corporation, Systemes Escape Temps, and Techomatrix Technologies.
Activity Diagram Model An activity diagram visually presents a series of actions or flow of control in a system similar to a flowshart or a data flow diagram. Activity diagrams are often used in business process modeling.
1) CRAFT is a tool that helps improve existing facility layouts by swapping departments to find an optimal floor plan. It uses a pairwise exchange algorithm.
2) CRAFT is useful for large facilities with many departments that would be difficult to manually optimize. It works best with process layouts.
3) CRAFT considers swapping only adjacent or similarly sized departments to evaluate improvements in cost and distance metrics between departments. The final solution depends on the initial layout provided.
UML Activity Diagrams show the flow of activities and processes within a system. They represent activities as rectangles and can depict conditional or parallel flows. Activity diagrams are used to model the workflow or business process perspective of a system by showing the sequence and flow from one activity to another. Key elements include initial and final activities, decisions, concurrency, and fork/join nodes. Activity diagrams differ from sequence diagrams in that they model activity flow rather than object interactions.
Implementation of 32 Bit Binary Floating Point Adder Using IEEE 754 Single Pr...iosrjce
Field Programmable Gate Arrays (FPGA) are increasingly being used to design high- end
computationally intense microprocessors capable of handling both fixed and floating- point mathematical
operations. Addition is the most complex operation in a floating-point unit and offers major delay while taking
significant area. Over the years, the VLSI community has developed many floating-point adder algorithms
mainly aimed to reduce the overall latency. The Objective of this paper to implement the 32 bit binary floating
point adder with minimum time. Floating point numbers are used in various applications such as medical
imaging, radar, telecommunications Etc. Here pipelined architecture is used in order to increase the
performance and the design is achieved to increase the operating frequency. The logic is designed using VHDL.
This paper discusses in detail the best possible FPGA implementation will act as an important design resource.
The performance criterion is latency in all the cases. The algorithms are compared for overall latency, area,
and levels of logic and analyzed specifically for one of the latest FPGA architectures provided by Xilinx.
This document discusses various structures for implementing discrete-time linear systems, both finite impulse response (FIR) and infinite impulse response (IIR) systems. It describes direct form, cascade form, and parallel form implementations for IIR systems using blocks for addition, multiplication, and delay. For FIR systems it discusses direct form and cascade implementations using tapped delay lines. It also covers implementations for linear phase FIR systems that reduce the number of multipliers required.
Compensator Design for Speed Control of DC Motor by Root Locus Approach using...IRJET Journal
The document discusses designing a compensator for speed control of a DC motor using the root locus approach in MATLAB. It first presents the problem statement of controlling the speed of a DC motor and introduces using a compensator as a controller. It then provides the design procedure for three types of compensators: lead compensator, lag compensator, and lag-lead compensator. The procedures include calculating transfer functions, plotting root loci, and determining pole and zero locations. Flow charts of the MATLAB program for each compensator type are presented. Finally, the results of applying each compensator are shown and their effects on performance parameters like settling time are compared.
IRJET- A Study on Algorithms for FFT ComputationsIRJET Journal
This document analyzes and compares several algorithms for computing the Fast Fourier Transform (FFT), including Radix-2, Radix-4, and Split Radix algorithms. It examines each algorithm in terms of the amount of computations required, computation speed, and memory requirements. The Radix-4 algorithm requires the fewest floating point additions and multiplications, while the Split Radix algorithm has the fastest computation speed, especially for larger data sizes. However, all three algorithms have similar memory requirements. In general, the choice of best algorithm depends on the specific constraints of the application, such as available memory or need for computational speed.
This document summarizes a survey paper on using intelligent techniques like expert systems, fuzzy logic, genetic algorithms, and neural networks to solve facility layout problems (FLP). FLP involves assigning facilities to locations to minimize costs associated with facility interactions. The paper discusses conventional algorithms and intelligent techniques for FLP, including optimal algorithms like branch and bound, and suboptimal algorithms like construction and improvement heuristics.
An activity diagram visually presents a series of actions or flow of control in a system similar to a flowchart or a data flow diagram. They can also describe the steps in a use case diagram.
Activity diagrams can model the dynamic aspects of a system by showing the flow of control from one activity to the next. They are essentially flowcharts that can model business workflows and operations. Activity diagrams contain activity states, action states, transitions, objects, branches, forks, joins, and swimlanes. Action states are atomic while activity states can be decomposed into further detail. Transitions show the flow of control between states. Branches specify alternate paths. Forks allow concurrent flows while joins synchronize them. Swimlanes group activities by actor or thread.
IRJET- A Review on Single Precision Floating Point Arithmetic Unit of 32 Bit ...IRJET Journal
This document reviews a single precision floating point arithmetic unit that performs operations like addition, subtraction, and multiplication on 32-bit operands according to the IEEE 754 standard. It discusses how floating point units are widely used in areas like scientific computing and signal processing. The review covers the IEEE 754 standard specification for single precision floating point numbers, which uses 1 sign bit, 8 exponent bits, and 23 fraction bits. It also summarizes several previous studies that have designed and optimized reversible floating point arithmetic units to reduce costs like quantum cost, garbage outputs, and constant inputs.
This summary provides an overview of a document describing a teleoperated robot arm and hand system using shared control:
1. The system uses shared control between autonomous control, teleoperation, and simulation modules to coordinate a robot arm, dexterous hand, sensors, and a teleoperated mechanical arm and data glove.
2. Key aspects of the shared control include sensor data sharing between various sensors, multi-agent based sharing to perform complex tasks using different sensors, and human-machine interactive sharing between high-level planning and low-level autonomous control.
3. Experiments showed the system could perform autonomous operations like pushing buttons and twisting objects using vision and force sensors, and the shared control approach was high-
Design and Implementation of Single Precision Pipelined Floating Point Co-Pro...Silicon Mentor
Floating point numbers are used in various applications such as medical imaging, radar, telecommunications Etc. This paper deals with the comparison of various arithmetic modules and the implementation of optimized floating point ALU. For more info download this file or visit us at:
http://www.siliconmentor.com/
This document presents a design for an approximate multiplier that is intended for error-tolerant applications. The proposed multiplier divides the input operands into an accurate part and approximate part. The accurate part uses a standard parallel multiplier for the most significant bits, while the approximate part generates the least significant bits using approximate product generators that can produce small errors but reduce area and power consumption compared to a standard design. Experimental results on 8-bit and 16-bit versions of the proposed multiplier show reductions in area, power, and delay of around 50% compared to standard parallel multipliers, at the cost of small losses in accuracy that are acceptable for many applications. The proposed approximate multiplier is well-suited for error-tolerant domains like multimedia and
IRJET - Design of a Low Power Serial- Parallel Multiplier with Low Transition...IRJET Journal
This document describes the design of a low power serial-parallel multiplier that uses a modified radix-4 Booth algorithm. It aims to improve performance over a standard serial-parallel Booth multiplier in terms of area, delay, and power. The proposed multiplier generates partial products conditionally, adding only non-zero Booth encodings and skipping zero operations to reduce transitions and increase throughput. It is implemented using FPGA technology to evaluate its utility for applications like digital signal processing and machine learning that require high performance multiplication.
IRJET- Approximate Multiplier and 8 Bit Dadda Multiplier Implemented through ...IRJET Journal
This document discusses the design and implementation of approximate multipliers for image processing applications. It proposes two new 4x4 approximate adders to reduce hardware complexity in a Dadda multiplier architecture. An 8x8 unsigned Dadda tree multiplier is modeled to evaluate the impact of using the proposed adders, which reduce the partial products into fewer columns while maintaining accuracy. Experimental results show the proposed multipliers achieve lower power-delay product compared to other approximate designs for similar precision in applications like JPEG image compression.
A Brief Review of Design of High Speed Low Power Area Efficient MultipliersIRJET Journal
This document reviews different types of multipliers and computing techniques to improve multiplier performance. It discusses array multipliers that use shift-and-add methods and Wallace tree multipliers that use parallel multiplication schemes. It also covers approximate computing techniques that can reduce complexity for error-tolerant applications by truncating partial products. Vedic multiplication and partitioning carry select adder algorithms are presented as well. The document concludes that Booth encoded Wallace tree multipliers have the lowest delay compared to other multipliers and approximate computing provides power savings for applications where exact results are not needed.
The document summarizes a research paper about designing a fast multiplier for FIR filters using a modified Booth encoding algorithm. It begins by introducing FIR filters and the need for high-speed multipliers in DSP systems. It then reviews existing memory-based algorithms like fixed-width multipliers and Booth multipliers. The proposed system is described as using a modified Booth encoding algorithm that reduces the number of partial products generated by half compared to other methods. It works by scanning triplet bit patterns to determine whether the partial product should be 0, +Y, -Y, +2Y, or -2Y. This allows for a high-speed parallel multiplier design with fewer computation stages.
Implementation of an arithmetic logic using area efficient carry lookahead adderVLSICS Design
An arithmetic logic unit acts as the basic building blocks or cell of a central processing unit of a computer.
And it is a digital circuit comprised of the basic electronics components, which is used to perform various
function of arithmetic and logic and integral operations further the purpose of this work is to propose the
design of an 8-bit ALU which supports 4-bit multiplication. Thus, the functionalities of the ALU in this
study consist of following main functions like addition also subtraction, increment, decrement, AND, OR,
NOT, XOR, NOR also two complement generation Multiplication. And the functions with the adder in the
airthemetic logic unit are implemented using a Carry Look Ahead adder joined by a ripple carry approach.
The design of the following multiplier is achieved using the Booths Algorithm therefore the proposed ALU
can be designed by using verilog or VHDL and can also be designed on Cadence Virtuoso platform.
IRJET - Comparison of Vedic, Wallac Tree and Array MultipliersIRJET Journal
This document compares three multiplication methods: Vedic, Wallace tree, and array multipliers. It implements 8-bit versions of each multiplier in Xilinx and compares their performance in terms of delay, power utilization, and speed. The results show that the Vedic multiplier has the lowest delay and utilizes less power and area than the other multipliers, making it the fastest and most efficient technique for complex mathematical problems according to this research.
IRJET- Realization of Decimal Multiplication using Radix-16 Modified Booth En...IRJET Journal
1) The document presents a decimal multiplication algorithm using a radix-16 modified Booth encoding scheme.
2) The radix-16 modified Booth encoding reduces the number of partial products generated during multiplication, improving the speed of the multiplier.
3) The algorithm was implemented and the RTL schematic and simulation results are presented, confirming the functionality of the decimal multiplication using radix-16 modified Booth encoding.
IRJET- Asic Implementation of Efficient Error Detection for Floating Poin...IRJET Journal
1) An area efficient floating point addition unit with error detection logic is proposed using a carry select adder with a binary to excess-1 converter instead of dual ripple carry adders to reduce area.
2) Simulation results show the proposed design reduces area and power compared to general floating point addition units, with a slight increase in delay.
3) The design is implemented using VHDL and tested on a Xilinx simulator.
VEDIVISION – A FAST BCD DIVISION ALGORITHM FACILITATED BY VEDIC MATHEMATICSijcsit
Of the four elementary operations, division is the most time consuming and expensive operation in modern day processors. This paper uses the tricks based on Ancient Indian Vedic Mathematics System to achieve a generalized algorithm for BCD division in a much time efficient and optimised manner than the conventional algorithms in literature. It has also been observed that the algorithm in concern exhibits remarkable results when executed on traditional mid range processors with numbers having size up to 15 digits (50 bits). The present form of the algorithm can divide numbers having 38 digits (127 bits) which can be further enhanced by simple modifications
Multipliers play an important role in today’s digital signal processing (DSP) and various other
applications. Multiplication is the most time consuming process in various signal processing operations like
convolution, circular convolution, auto-correlation and cross-correlation. With advances in technology, many
researchers have tried and are trying to design multipliers which offer either of the following- high speed, low
power consumption, regularity of layout and hence less area or even combination of them in multiplier. However
area and speed are two conflicting constraints. So improving speed results always in larger areas. So here we try
to find out the best trade off solution among the both of them. To have features like high speed and low power
consumption multipliers several algorithms have been introduced .In this paper, we describes Multipliers by using
various algorithm in VLSI technology.
IMPLEMENTATION OF UNSIGNED MULTIPLIER USING MODIFIED CSLAeeiej_journal
This document discusses the implementation of an unsigned multiplier using a modified carry select adder technique. It begins with an introduction to digital arithmetic operations like multiplication and addition. It then describes the proposed system, which uses a modified carry select adder based multiplier to reduce area over a traditional carry look ahead adder based multiplier, while maintaining similar delay times. The document provides details on the design of regular and modified square root carry select adders used in the multiplier. It discusses how replacing ripple carry adders with binary to excess-1 converters in the modified design can further reduce area and power consumption.
IRJET- Implementation of Ternary ALU using VerilogIRJET Journal
This document describes the design and implementation of a Ternary Arithmetic Logic Unit (TALU) using Verilog. Ternary logic uses three voltage levels (0, 1, Z) instead of the two levels used in binary, providing benefits like reduced gate counts, memory requirements, and faster speeds. The authors constructed truth tables and implemented simplified logic expressions using ternary multiplexers to build combinational circuits like a full adder. Their TALU design achieved 0% utilization of LUTs and slices on the FPGA, with a delay of 6.125ns which is 84.3% of the maximum delay. The document concludes that ternary logic designs require less memory and power than equivalent binary
Implementation and Performance Analysis of a Vedic Multiplier Using Tanner ED...ijsrd.com
high density, VLSI chips have led to rapid and innovative development in low power design during the recent years .The need for low power design is becoming a major issue in high performance digital systems such as microprocessor, digital signal processor and other applications. For these applications, Multiplier is the major core block. Based on the Multiplier design, an efficient processor is designed. Power and area efficient multiplier using CMOS logic circuits for applications in various digital signal processors is designed. This multiplier is implemented using Vedic multiplication algorithms mainly the "UrdhvaTriyakBhyam sutra., which is the most generalized one Vedic multiplication algorithm [1] . A multiplier is a very important element in almost all the processors and contributes substantially to the total power consumption of the system. The novel point is the efficient use of Vedic algorithm (sutras) that reduces the number of computational steps considerably compared with any conventional method . The schematic for this multiplier is designed using TANNER TOOL. Paper presents a systematic design methodology for this improved performance digital multiplier based on Vedic mathematics.
IRJET- A Study on Algorithms for FFT ComputationsIRJET Journal
This document analyzes and compares several algorithms for computing the Fast Fourier Transform (FFT), including Radix-2, Radix-4, and Split Radix algorithms. It examines each algorithm in terms of the amount of computations required, computation speed, and memory requirements. The Radix-4 algorithm requires the fewest floating point additions and multiplications, while the Split Radix algorithm has the fastest computation speed, especially for larger data sizes. However, all three algorithms have similar memory requirements. In general, the choice of best algorithm depends on the specific constraints of the application, such as available memory or need for computational speed.
This document summarizes a survey paper on using intelligent techniques like expert systems, fuzzy logic, genetic algorithms, and neural networks to solve facility layout problems (FLP). FLP involves assigning facilities to locations to minimize costs associated with facility interactions. The paper discusses conventional algorithms and intelligent techniques for FLP, including optimal algorithms like branch and bound, and suboptimal algorithms like construction and improvement heuristics.
An activity diagram visually presents a series of actions or flow of control in a system similar to a flowchart or a data flow diagram. They can also describe the steps in a use case diagram.
Activity diagrams can model the dynamic aspects of a system by showing the flow of control from one activity to the next. They are essentially flowcharts that can model business workflows and operations. Activity diagrams contain activity states, action states, transitions, objects, branches, forks, joins, and swimlanes. Action states are atomic while activity states can be decomposed into further detail. Transitions show the flow of control between states. Branches specify alternate paths. Forks allow concurrent flows while joins synchronize them. Swimlanes group activities by actor or thread.
IRJET- A Review on Single Precision Floating Point Arithmetic Unit of 32 Bit ...IRJET Journal
This document reviews a single precision floating point arithmetic unit that performs operations like addition, subtraction, and multiplication on 32-bit operands according to the IEEE 754 standard. It discusses how floating point units are widely used in areas like scientific computing and signal processing. The review covers the IEEE 754 standard specification for single precision floating point numbers, which uses 1 sign bit, 8 exponent bits, and 23 fraction bits. It also summarizes several previous studies that have designed and optimized reversible floating point arithmetic units to reduce costs like quantum cost, garbage outputs, and constant inputs.
This summary provides an overview of a document describing a teleoperated robot arm and hand system using shared control:
1. The system uses shared control between autonomous control, teleoperation, and simulation modules to coordinate a robot arm, dexterous hand, sensors, and a teleoperated mechanical arm and data glove.
2. Key aspects of the shared control include sensor data sharing between various sensors, multi-agent based sharing to perform complex tasks using different sensors, and human-machine interactive sharing between high-level planning and low-level autonomous control.
3. Experiments showed the system could perform autonomous operations like pushing buttons and twisting objects using vision and force sensors, and the shared control approach was high-
Design and Implementation of Single Precision Pipelined Floating Point Co-Pro...Silicon Mentor
Floating point numbers are used in various applications such as medical imaging, radar, telecommunications Etc. This paper deals with the comparison of various arithmetic modules and the implementation of optimized floating point ALU. For more info download this file or visit us at:
http://www.siliconmentor.com/
This document presents a design for an approximate multiplier that is intended for error-tolerant applications. The proposed multiplier divides the input operands into an accurate part and approximate part. The accurate part uses a standard parallel multiplier for the most significant bits, while the approximate part generates the least significant bits using approximate product generators that can produce small errors but reduce area and power consumption compared to a standard design. Experimental results on 8-bit and 16-bit versions of the proposed multiplier show reductions in area, power, and delay of around 50% compared to standard parallel multipliers, at the cost of small losses in accuracy that are acceptable for many applications. The proposed approximate multiplier is well-suited for error-tolerant domains like multimedia and
IRJET - Design of a Low Power Serial- Parallel Multiplier with Low Transition...IRJET Journal
This document describes the design of a low power serial-parallel multiplier that uses a modified radix-4 Booth algorithm. It aims to improve performance over a standard serial-parallel Booth multiplier in terms of area, delay, and power. The proposed multiplier generates partial products conditionally, adding only non-zero Booth encodings and skipping zero operations to reduce transitions and increase throughput. It is implemented using FPGA technology to evaluate its utility for applications like digital signal processing and machine learning that require high performance multiplication.
IRJET- Approximate Multiplier and 8 Bit Dadda Multiplier Implemented through ...IRJET Journal
This document discusses the design and implementation of approximate multipliers for image processing applications. It proposes two new 4x4 approximate adders to reduce hardware complexity in a Dadda multiplier architecture. An 8x8 unsigned Dadda tree multiplier is modeled to evaluate the impact of using the proposed adders, which reduce the partial products into fewer columns while maintaining accuracy. Experimental results show the proposed multipliers achieve lower power-delay product compared to other approximate designs for similar precision in applications like JPEG image compression.
A Brief Review of Design of High Speed Low Power Area Efficient MultipliersIRJET Journal
This document reviews different types of multipliers and computing techniques to improve multiplier performance. It discusses array multipliers that use shift-and-add methods and Wallace tree multipliers that use parallel multiplication schemes. It also covers approximate computing techniques that can reduce complexity for error-tolerant applications by truncating partial products. Vedic multiplication and partitioning carry select adder algorithms are presented as well. The document concludes that Booth encoded Wallace tree multipliers have the lowest delay compared to other multipliers and approximate computing provides power savings for applications where exact results are not needed.
The document summarizes a research paper about designing a fast multiplier for FIR filters using a modified Booth encoding algorithm. It begins by introducing FIR filters and the need for high-speed multipliers in DSP systems. It then reviews existing memory-based algorithms like fixed-width multipliers and Booth multipliers. The proposed system is described as using a modified Booth encoding algorithm that reduces the number of partial products generated by half compared to other methods. It works by scanning triplet bit patterns to determine whether the partial product should be 0, +Y, -Y, +2Y, or -2Y. This allows for a high-speed parallel multiplier design with fewer computation stages.
Implementation of an arithmetic logic using area efficient carry lookahead adderVLSICS Design
An arithmetic logic unit acts as the basic building blocks or cell of a central processing unit of a computer.
And it is a digital circuit comprised of the basic electronics components, which is used to perform various
function of arithmetic and logic and integral operations further the purpose of this work is to propose the
design of an 8-bit ALU which supports 4-bit multiplication. Thus, the functionalities of the ALU in this
study consist of following main functions like addition also subtraction, increment, decrement, AND, OR,
NOT, XOR, NOR also two complement generation Multiplication. And the functions with the adder in the
airthemetic logic unit are implemented using a Carry Look Ahead adder joined by a ripple carry approach.
The design of the following multiplier is achieved using the Booths Algorithm therefore the proposed ALU
can be designed by using verilog or VHDL and can also be designed on Cadence Virtuoso platform.
IRJET - Comparison of Vedic, Wallac Tree and Array MultipliersIRJET Journal
This document compares three multiplication methods: Vedic, Wallace tree, and array multipliers. It implements 8-bit versions of each multiplier in Xilinx and compares their performance in terms of delay, power utilization, and speed. The results show that the Vedic multiplier has the lowest delay and utilizes less power and area than the other multipliers, making it the fastest and most efficient technique for complex mathematical problems according to this research.
IRJET- Realization of Decimal Multiplication using Radix-16 Modified Booth En...IRJET Journal
1) The document presents a decimal multiplication algorithm using a radix-16 modified Booth encoding scheme.
2) The radix-16 modified Booth encoding reduces the number of partial products generated during multiplication, improving the speed of the multiplier.
3) The algorithm was implemented and the RTL schematic and simulation results are presented, confirming the functionality of the decimal multiplication using radix-16 modified Booth encoding.
IRJET- Asic Implementation of Efficient Error Detection for Floating Poin...IRJET Journal
1) An area efficient floating point addition unit with error detection logic is proposed using a carry select adder with a binary to excess-1 converter instead of dual ripple carry adders to reduce area.
2) Simulation results show the proposed design reduces area and power compared to general floating point addition units, with a slight increase in delay.
3) The design is implemented using VHDL and tested on a Xilinx simulator.
VEDIVISION – A FAST BCD DIVISION ALGORITHM FACILITATED BY VEDIC MATHEMATICSijcsit
Of the four elementary operations, division is the most time consuming and expensive operation in modern day processors. This paper uses the tricks based on Ancient Indian Vedic Mathematics System to achieve a generalized algorithm for BCD division in a much time efficient and optimised manner than the conventional algorithms in literature. It has also been observed that the algorithm in concern exhibits remarkable results when executed on traditional mid range processors with numbers having size up to 15 digits (50 bits). The present form of the algorithm can divide numbers having 38 digits (127 bits) which can be further enhanced by simple modifications
Multipliers play an important role in today’s digital signal processing (DSP) and various other
applications. Multiplication is the most time consuming process in various signal processing operations like
convolution, circular convolution, auto-correlation and cross-correlation. With advances in technology, many
researchers have tried and are trying to design multipliers which offer either of the following- high speed, low
power consumption, regularity of layout and hence less area or even combination of them in multiplier. However
area and speed are two conflicting constraints. So improving speed results always in larger areas. So here we try
to find out the best trade off solution among the both of them. To have features like high speed and low power
consumption multipliers several algorithms have been introduced .In this paper, we describes Multipliers by using
various algorithm in VLSI technology.
IMPLEMENTATION OF UNSIGNED MULTIPLIER USING MODIFIED CSLAeeiej_journal
This document discusses the implementation of an unsigned multiplier using a modified carry select adder technique. It begins with an introduction to digital arithmetic operations like multiplication and addition. It then describes the proposed system, which uses a modified carry select adder based multiplier to reduce area over a traditional carry look ahead adder based multiplier, while maintaining similar delay times. The document provides details on the design of regular and modified square root carry select adders used in the multiplier. It discusses how replacing ripple carry adders with binary to excess-1 converters in the modified design can further reduce area and power consumption.
IRJET- Implementation of Ternary ALU using VerilogIRJET Journal
This document describes the design and implementation of a Ternary Arithmetic Logic Unit (TALU) using Verilog. Ternary logic uses three voltage levels (0, 1, Z) instead of the two levels used in binary, providing benefits like reduced gate counts, memory requirements, and faster speeds. The authors constructed truth tables and implemented simplified logic expressions using ternary multiplexers to build combinational circuits like a full adder. Their TALU design achieved 0% utilization of LUTs and slices on the FPGA, with a delay of 6.125ns which is 84.3% of the maximum delay. The document concludes that ternary logic designs require less memory and power than equivalent binary
Implementation and Performance Analysis of a Vedic Multiplier Using Tanner ED...ijsrd.com
high density, VLSI chips have led to rapid and innovative development in low power design during the recent years .The need for low power design is becoming a major issue in high performance digital systems such as microprocessor, digital signal processor and other applications. For these applications, Multiplier is the major core block. Based on the Multiplier design, an efficient processor is designed. Power and area efficient multiplier using CMOS logic circuits for applications in various digital signal processors is designed. This multiplier is implemented using Vedic multiplication algorithms mainly the "UrdhvaTriyakBhyam sutra., which is the most generalized one Vedic multiplication algorithm [1] . A multiplier is a very important element in almost all the processors and contributes substantially to the total power consumption of the system. The novel point is the efficient use of Vedic algorithm (sutras) that reduces the number of computational steps considerably compared with any conventional method . The schematic for this multiplier is designed using TANNER TOOL. Paper presents a systematic design methodology for this improved performance digital multiplier based on Vedic mathematics.
IRJET - Design and Implementation of Double Precision FPU for Optimised SpeedIRJET Journal
This document describes the design and implementation of a double precision floating point unit (FPU) for optimized speed. It discusses the need for high-speed arithmetic operations in applications such as digital signal processing. It presents the architecture of the proposed FPU, which includes blocks for floating point multiplication and addition. It also discusses the implementation of pipelined 64-bit floating point multiplication and addition units using techniques like carry lookahead addition and hybrid multiplication. Simulation results on a FPGA platform show that the proposed pipelined design achieves higher throughput than existing non-pipelined approaches.
A FLOATING POINT DIVISION UNIT BASED ON TAYLOR-SERIES EXPANSION ALGORITHM AND...csandit
Floating point division, even though being an infrequent operation in the traditional sense, is
indis-pensable when it comes to a range of non-traditional applications such as K-Means
Clustering and QR Decomposition just to name a few. In such applications, hardware support
for floating point division would boost the performance of the entire system. In this paper, we
present a novel architecture for a floating point division unit based on the Taylor-series
expansion algorithm. We show that the Iterative Logarithmic Multiplier is very well suited to be
used as a part of this architecture. We propose an implementation of the powering unit that can
calculate an odd power and an even power of a number simultaneously, meanwhile having little
hardware overhead when compared to the Iterative Logarithmic Multiplier.
Multiplication is the most time consuming process in various signal processing operations like convolution,
circular convolution, auto-correlation and cross-correlation. With advances in technology, many researchers have
tried and are trying to design multipliers which offer either of the following- high speed, low power consumption,
regularity of layout and hence less area or even combination of them in multiplier. However area and speed are
two conflicting constraints. So improving speed results always in larger areas. So here we try to find out the best
trade off solution among the both of them. To have features like high speed and low power consumption
multipliers several algorithms have been introduced .In this paper, we describes Multipliers by using various
algorithm in VLSI technology. The Wallace Tree Multipliers are compared with existing multipliers in terms of
improvement in features like area, delay and power consumption by using different logical operation.
A High Speed Transposed Form FIR Filter Using Floating Point Dadda MultiplierIJRES Journal
There is a huge demand in high speed area efficient parallel FIR filter using floating point dadda algorithm, due to increase performance of processing units. Area and spped are usually confictiong constraints so that improving speed results mostly in large areas. In our research we will try to determine the best solution to this problem by comparing the results of different multipliers. Different sized of two algorithm for high speed hardware multipliers were studied and implemented ie.dadda and booth multipliers. The working of these two multipliers were studied and implementing each of them separately in VHDL. The results of this research will help us to choose the better option between multipliers for floating point multiplier for fabricating different system.
The aim of this paper is to prove that fuzzy logic algorithm is a suitable control technique for fast processes such as electrical machines. This theory has been experimented on different kinds of electrical machines such as stepping motors, dc motors and induction machines (with 6 phases) and the experimental results show that the proposed fuzzy logic algorithm is the most suitable control technique for electrical machines since this algorithm is not time consuming and it is also robust between plant parameters variations.
This document describes the design and implementation of a 32-bit floating point adder according to the IEEE 754 standard using VHDL. It includes block diagrams of the main components: a pre-adder block to prepare the operands, an adder block to perform the addition or subtraction, and a standardization block to normalize the result. It also provides details on the steps involved, including extracting the sign, exponent and mantissa of the operands, handling special cases like zero, infinity and NaN, aligning the exponents, performing the addition or subtraction, normalizing and rounding the result, and adjusting the exponent.
Similar to Design, Develop and Implement an Efficient Polynomial Divider (20)
Lithological Investigation at Tombia and Opolo Using Vertical Electrical Soun...IJLT EMAS
Vertical electrical soundings (VES) was carried out in Opolo and Tombia all in Yenagoa local government area, Bayelsa state, Nigeria to understand the resistivity distribution of its subsurface which serves as a tool in investigating subsurface lithology. All VES sounding were stacked together to generate 1D pseudo tomogram and was subsequently interpreted. The interpreted VES curve results shows that Opolo consists of three layers within the depth of investigation. Sandy clay with mixture of silt make up the first layer (Top layer) with resistance value ranging from 24-63Ωm. The second layer is made up of thick clay with very low resistivity values ranging from 3-19Ωm. The third layer is sandyclay with its resistance value ranging from 26-727Ωm.Tombia also reveals that the area is in three layers within the depth of investigation. Sandy clay with a mixture of fine sand made up the first layer (Top soil) with its resistance values ranging from 40-1194Ωm. The second layer is made up of fine sand with resistivity value ranging from 475-5285Ωm. The third layer is made up of sandy clay/sand with its resistance value ranging from 24-28943Ωm.The results of the 1D pseudo tomogram also reveals that Tombia and Opolo consists of three layers within the depth of investigation and pseudo tomograms serves as a basis tool for interpreting lithology and identifying lithological boundaries for the subsurface
Public Health Implications of Locally Femented Milk (Nono) and Antibiotic Sus...IJLT EMAS
The study is to determine the PH and moisture content
of Nono sold in Port Harcourt , the prevalence of Pseudomonas
aeruginosa in Fura da nono and finally the antibiotic resistance
pattern of Pseudomonas aeruginosa isolated from the fermented
products. nono samples were purchased from Borikiri in
portharcourt township. A total of 20 samples were assessed to
determine their microbiological quality and to conduct antibiotic
susceptibility test. Moisture content and pH of the samples were
also assessed. Enumeration of the total viable bacterial count
(TVBC), Total coliform count (TCC) and Total Pseudomonal
count (TPC) were also assessed to determine the sanitary quality
of the product. The PH ranges between 2.99 to 3.89 while the
moisture content ranges between 80% to 88%. The result
obtained from the microbial culture indicated that a wide array
of microorganism were present in Fura da nono including species
of Bacilu, klebsiella, Pseudomonas Staphylococcus aureus,
Streptococcus, Lactobacillus and Escherichia coli.. The highest
TVBC, TCC and TPC were 9.8x103
cfu/ml, 10x103
cfu/ml and
9.7x103
cfu/ml respectively. Antibiotic susceptibility was
conducted using 12 broad spectrum antibiotics and compared
against a standard provided by the Clinical laboratory standard
institute (CLSI). Gentamycin, Ofloxacin and Levofloxacin
recorded 100% resistance , while Cotrimoxazole, Ciprofloxacin,
Vancomycin, Nitrofurantoin, Norfloxacin and Azithromycin
recorded 100% susceptibility as indicated by the complete clear
zone of inhibition.It was discovered that the absence of
regulatory agencies like National Agency for Food Drug
Administration and Control (NAFDAC) in the regulation of the
quality of the product was the cause of the high contamination,
since there were no quality control measures in its production
line .It was recommended that NAFDAC should provide a
standard operating procedure for local food producers and
should include them in their scope for regulation.
Bioremediation Potentials of Hydrocarbonoclastic Bacteria Indigenous in the O...IJLT EMAS
Hydrocarbon pollution Remediation by Enhanced
Natural Attenuation method was adopted to remediate the
hydrocarbon impacted site in Ogoniland Rivers State, Nigeria .
The research lasted for 6 months. Samples were collected at
monthly intervals . samples were collected intermittently
between Feb 2019 to July 2019 . Mineral salt medium containing
crude oil was used as a sole source of carbon and energy for the
isolation of hydrocarbonoclastic bacteria. Samples were
collected from the four (4) local government that made up
Ogoniland and they includes Khana(k), Gokana (G),Tai (T),
Eleme (E) and transported immediately to the laboratory for
analysis. The microbial and physicochemical properties of the
soil samples varied with the different local government areas.
Seven bacteria genera were isolated from the samples from the
four locations, viz, Pseudomonas, Lactobacter, Micrococcus,
Arthrobacter, Bacillus, Brevibacterium and Mycobacterium
were isolated and identified. the seven isolate were indigenous in
the study area. Nutrient were added to identified plots of
hydrocarbon pollution polluted site within the four local
government and they were able degrade hydrocarbon within a
short of period of time. Reassessment of physicochemical
parameter impacted site was used to judge the bioremediation
potentials of microorganism
Comparison of Concurrent Mobile OS CharacteristicsIJLT EMAS
It is challenging for the mobile industry to supply the best features of the devices with its increasing customer requirements. Among the progress of technologies, the mobile industry is the fastest growing; as it keeps pace with rapidly changing market demands. This paper compares between the currently available mobile devices based on its user interface, security, memory utilization, processor, and device architecture. The mobile products launched from 2015-19 are used for comparison. Current results after comparison with earlier study found that many mobile devices and features became obsolete in a short time span supporting the aggressive growth of mobile industry.
Design of Complex Adders and Parity Generators Using Reversible GatesIJLT EMAS
This paper shows efficient design of an odd and even parity generator, a 4-bit ripple carry adder, and a 2-bit carry look ahead adder using reversible gates. Number of reversible gates used, garbage output, and percentage usage of outputs in implementing each combinational circuit is derived. The CLA used 10 reversible gates with 14 garbage outputs, with 50% percentage performance usage.
Design of Multiplexers, Decoder and a Full Subtractor using Reversible GatesIJLT EMAS
This paper shows an effective design of combinational circuits such as 2:1, 4:1 multiplexers, 2:4 decoder and a full subtractor using reversible gates. This paper also evaluates number of reversible gates used and garbage outputs in implementing each combinational circuit.
Multistage Classification of Alzheimer’s DiseaseIJLT EMAS
Alzheimer’s disease is a type of dementia that destroys
memory and other mental functions. During the progression of
the disease certain proteins called plaques and tangles get
deposited in hippocampus which is located in the temporal lobe
of brain. The disease is not a normal part of aging and gets
worsen over time. Medical imaging techniques like Magnetic
Resonance Imaging (MRI), Computed Tomography (CT) and
Positron Emission Tomography (PET) play significant role in the
disease diagnosis. In this paper, we propose a method for
classifying MRI into Normal Control (NC), Mild Cognitive
Impairment (MCI) and Alzheimer’s Disease(AD). An overall
outline of the methodology includes textural feature extraction,
feature reduction process and classification of the images into
various stages. Classification has been performed with three
classifiers namely Support Vector Machine (SVM), Artificial
Neural Network (ANN) and k-Nearest Neighbours (k-NN)
Design and Analysis of Disc Brake for Low Brake SquealIJLT EMAS
Vibration induced due to friction in disc brake is a
theme of major interest and related to the automotive industry.
Squeal noise generated during braking action is an indication of
a complicated dynamic problem which automobile industries
have faced for decades. For the current study, disc brake of 150
cc is considered. Vibration and sound level for different speed
are measured. Finite element and experimentation for modal
analysis of different element of disc brake and assembly are
carried out. In order to check that precision of the finite element
with those of experimentation, two stages are used both
component level and assembly level. Mesh sensitivity of the disc
brake component is considered. FE updating is utilized to reduce
the relative errors between the two measurements by tuning the
material. Different viscoelastic materials are selected and
constrained layer damping is designed. Constrained layer
damping applied on the back side of friction pads and compared
vibration and sound level of disc brake assembly without
constrained layer damping with disc brake assembly having
constrained layer. It was observed that there were reduction in
vibration and sound level. Nitrile rubber is most effective
material for constrained layer damping.
The aim of this article is to device strategies for
establishing and managing tomato processing industry, which
aims to enhance the taste experiences on different tomato
products for the people. Management needed for a successful
business is analyzed in each and every aspect. The five important
steps in management- planning, organizing, staffing, leading and
controlling are applied in management of the industry. Planning-
In the planning process, activities required to achieve desired
goals are thought about. This process involves the creation and
maintenance of a plan, those include psychological aspects that
require conceptual skills. Organizing- Organizing is a systematic
processing in order to attain objectives of structuring,
integrating, co-ordinating task, and activities. Staffing- Staffing is
the process of acquiring, deploying, and retaining a workforce of
sufficient quantity and quality to create positive impacts on the
organization’s effectiveness. Leading- Communicating,
motivating, inspiring and encouraging employees are key aspects
of process of leading, task of which is towards a higher level of
productivity of organization. Controlling- Controlling measures
the deviation of actual performance from the standard
performance, discovers the causes of such deviations and helps in
taking corrective actions.
This paper deals with the functioning of a Propylene
Recovery Unit (PRU) in a chemical industry and the various
Managerial and Human Resource considerations that need to be
accounted for, in this process. This report discusses various
aspects that are to be considered, before initializing the setup of
PRU, ranging from a Management perspective. Mission and
objective was decided and subsequently the managerial model
was developed. Propylene is an indispensible raw material that
has a variety of end use. A detailed analysis pertaining to
propylene demand in the market along with major sources has
been incorporated in this paper. Emphasis has been placed on
the type of departmentation required. Managerial aspects of
various functions ranging from warehousing to quality control
have also been taken into consideration. Delegations of functional
departments have been defined to prevent redundancy of duties
and major managerial functions of Planning, Organizing,
Staffing, Leading and Controlling has also been discussed.
Internal and External factors that affect the company have been
analyzed through SWOT Analysis and MBO strategies are also
broadly classified. Finally, Total Quality Management and
strategies for adoption of Lean Manufacturing as also touched
upon briefly.
This business model is intended to provide an online
platform connecting the general public customers with the
producers of groceries and food products such as fruits,
vegetables, meat and dairy products. The producers are selected
based on their production methods and their quality. The model
obtains the demand from the customers and the supply is found
from the producers. The prices of the products are fixed
according to the supply and demand. The customers' orders can
be classified into two different categories: 1. Bulk orders and 2.
Recipe based. The orders are obtained in a bulk quantity or for a
certain period of time and the products are delivered
periodically as per the customer's need. This model eliminates
the requirements of conventional storage units and also controls
the quality of the products using scientific devices. This model
reduces the wastage of resources as it enables the customer to
estimate their requirements using the help of recipe based
ordering system and also keeps the price constant for the bulk
orders.
Home textile exports are market driven, which implies that they deal with what the foreign market wants and how the home textile exporter could fulfil it, or product driven, where they deal with what the exporter has to offer and how can an appropriate strategy be applied to find the targeted buyers in the foreign market. The requisites of these are that the exporter must know the export plan, production procedure and export documentations. Exporter also must know his/her operational capacity, organizational nature and structure. An attempt is made in this project to understand and examine the nature and structure of the organization of the S3P exports.
Almost 80% of the population are coffee lovers.
Kaffinite sunshine café is guaranteed to become the daily
necessity for all the coffee addicts. A place with good ambience
where people can escape from their daily stress and cherish with
a morning cup of coffee. Our café offers home style delicious
breakfast and snacks. We focus on finding the most aromatic
and exotic coffee beans. We have our branches in many cities of
Tamil Nadu. We have a romantic ambience which attracts youth.
Our café has spectacular interior designs with stupendous taste
of coffee. We have attached our menu which contains multicuisines
at attractive prices. In this paper, we have done SWOT
analysis of our café to know our strengths and weaknesses. We
have also analyzed our opportunities and threats from the
external environment
Management of a Paper Manufacturing IndustryIJLT EMAS
This project focuses on how a paper manufacturing industry looks like and how it operates. For better understanding purpose, we have taken a hypothetical situation here. We have discussed on various factors that are to be considered before constructing a plant. For example, what kind of proprietorship is suitable for this case? We have developed a SWOT Analysis for the plant, thinking about the pros and cons. This project can be a guide for a person who is willing to start up a new manufacturing plant. This report can be used to streamline your approach to planning by outlining the responsibilities of plant managers and external factors, as well as identifying appropriate resources to assist you with the construction of plant.
Application of Big Data Systems to Airline ManagementIJLT EMAS
The business world is in the midst of the next
revolution following the IT revolution – the Big Data revolution.
The sheer volume of data produced is a major reason for the big
data revolution. Aviation and aerospace are typical areas that
can apply big data systems due to the scale of data produced, not
only by the plane sensors and passengers, but also by the
prospective passengers. Data that need to be considered include,
but are not limited to, aircraft sensor data, passenger data,
weather data, aircraft maintenance data and air traffic data.
This paper aims at identifying areas in aviation where big data
systems can be utilized to enhance operational performances
improve customer relations and thereby aiding the ultimate goal
of increased profits at reduced costs. An improved management
model built on a strong big data infrastructure will reduce
operation costs, improve safety, bring down the cost and time
spent on maintenance and drastically improve customer
relations.
Impact of Organisational behaviour and HR Practices on Employee Retention in ...IJLT EMAS
I. INTRODUCTION
Roads are constituted as the most significant component of
India‟s Logistics Industry, accounting for 60 percent of
the total freight movement in the country. A majority of
players in this industry are small entrepreneurs running their
family businesses. As a result, Man Power Development
Investments that pay off in the longer term, have been
minimised respectively. Moreover, these businesses are
typically controlled severely by the proprietor and his / her
family and consequently, making it unattractive for the
professionals. Poor working conditions, Low pay scales
relative to alternate careers, poor or non-existent Manpower
Policies and prevalence of unscrupulous practices have added
to the segment's woes for seeking employment. Thus, it could
be rightly stated that the Transportation, Logistics,
Warehousing and Packaging Sector is considered an
unattractive career option and fails to attract and retain skilled
manpower. Many Organizations have failed to recognize that
Human Resources play an important role in gaining an
immense advantage in today‟s highly competitive Global
Business Environment. While all aspects of managing Human
Resources is important, Employee Retention continues to be
an essential part of Human Resource Management activity
that help the Organizations to achieve their goals and
objectives.
Sustainable Methods used to reduce the Energy Consumption by Various Faciliti...IJLT EMAS
The purpose of this article is to identify the energy
challenges faced by airports especially with regards to the energy
consumed by the terminal building and suggest suitable energy
conservation techniques based on what has already been
implemented in few airports around the world.
We have identified the various facilities and systems which are
responsible for a major share of the consumption of energy by
airport terminals and we have suggested measures to effectively
overcome these problems.
Cake Walk is India's largest confectionery manufacturer known for innovative candy products. It aims to expand globally while contributing positively through social initiatives. The document discusses Cake Walk's vision, products, marketing environment analysis including PESTEL, SWOT and competitive strategies. Market research methods like blind testing and surveys are used to develop new products and improve existing ones. Cake Walk targets a wide customer segment with its diverse product range and strong brand image.
This document discusses the planning and organization of a tours and travel company called MACH Tours and Travels. It begins by outlining their mission and vision, which is to provide enjoyable and memorable experiences for customers by focusing on ease, luxury, quality time, and value. It then provides details on their planning process, including developing customized packages to meet different customer needs. It also discusses their application of Henri Fayol's management principles and considers decision making, risk management, organizational structure, and the business environment factors affecting the tourism industry.
The purpose of this paper is to highlight the general
terms and definitions that falls under the ‘common set’ in the
intersection of the sets Meteorology and Aerospace Engineering.
It begins with the universal explanations for the meteorological
phenomena under the ‘common set’ followed by the
categorization of clouds and their influences on the aerial
vehicles, the instrumentation used in Aeronautics to determine
the required Meteorological quantities, factors affecting aviation,
effects of aviation on the clouds, and the corresponding protocols
involved in deciphering the ‘common set’ elements.
It also talks about the relation between airport construction and
Geology prior to concluding with the uses and successes of
Meteorology in the field of Aerospace.
Digital Twins Computer Networking Paper Presentation.pptxaryanpankaj78
A Digital Twin in computer networking is a virtual representation of a physical network, used to simulate, analyze, and optimize network performance and reliability. It leverages real-time data to enhance network management, predict issues, and improve decision-making processes.
Build the Next Generation of Apps with the Einstein 1 Platform.
Rejoignez Philippe Ozil pour une session de workshops qui vous guidera à travers les détails de la plateforme Einstein 1, l'importance des données pour la création d'applications d'intelligence artificielle et les différents outils et technologies que Salesforce propose pour vous apporter tous les bénéfices de l'IA.
Road construction is not as easy as it seems to be, it includes various steps and it starts with its designing and
structure including the traffic volume consideration. Then base layer is done by bulldozers and levelers and after
base surface coating has to be done. For giving road a smooth surface with flexibility, Asphalt concrete is used.
Asphalt requires an aggregate sub base material layer, and then a base layer to be put into first place. Asphalt road
construction is formulated to support the heavy traffic load and climatic conditions. It is 100% recyclable and
saving non renewable natural resources.
With the advancement of technology, Asphalt technology gives assurance about the good drainage system and with
skid resistance it can be used where safety is necessary such as outsidethe schools.
The largest use of Asphalt is for making asphalt concrete for road surfaces. It is widely used in airports around the
world due to the sturdiness and ability to be repaired quickly, it is widely used for runways dedicated to aircraft
landing and taking off. Asphalt is normally stored and transported at 150’C or 300’F temperature
Blood finder application project report (1).pdfKamal Acharya
Blood Finder is an emergency time app where a user can search for the blood banks as
well as the registered blood donors around Mumbai. This application also provide an
opportunity for the user of this application to become a registered donor for this user have
to enroll for the donor request from the application itself. If the admin wish to make user
a registered donor, with some of the formalities with the organization it can be done.
Specialization of this application is that the user will not have to register on sign-in for
searching the blood banks and blood donors it can be just done by installing the
application to the mobile.
The purpose of making this application is to save the user’s time for searching blood of
needed blood group during the time of the emergency.
This is an android application developed in Java and XML with the connectivity of
SQLite database. This application will provide most of basic functionality required for an
emergency time application. All the details of Blood banks and Blood donors are stored
in the database i.e. SQLite.
This application allowed the user to get all the information regarding blood banks and
blood donors such as Name, Number, Address, Blood Group, rather than searching it on
the different websites and wasting the precious time. This application is effective and
user friendly.
Tools & Techniques for Commissioning and Maintaining PV Systems W-Animations ...Transcat
Join us for this solutions-based webinar on the tools and techniques for commissioning and maintaining PV Systems. In this session, we'll review the process of building and maintaining a solar array, starting with installation and commissioning, then reviewing operations and maintenance of the system. This course will review insulation resistance testing, I-V curve testing, earth-bond continuity, ground resistance testing, performance tests, visual inspections, ground and arc fault testing procedures, and power quality analysis.
Fluke Solar Application Specialist Will White is presenting on this engaging topic:
Will has worked in the renewable energy industry since 2005, first as an installer for a small east coast solar integrator before adding sales, design, and project management to his skillset. In 2022, Will joined Fluke as a solar application specialist, where he supports their renewable energy testing equipment like IV-curve tracers, electrical meters, and thermal imaging cameras. Experienced in wind power, solar thermal, energy storage, and all scales of PV, Will has primarily focused on residential and small commercial systems. He is passionate about implementing high-quality, code-compliant installation techniques.
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELijaia
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
Design, Develop and Implement an Efficient Polynomial Divider
1. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 78
Design, Develop and Implement an Efficient
Polynomial Divider
Purbayan Deb1
, Anindya Sen2
1,2
Department of Electronics and Communication Engineering (VLSI), Heritage Institute of Technology, Kolkata, West Bengal
Abstract- Polynomial Division is a most common numerical
operation experienced in many filters and similar circuits next to
multiplication, addition and subtraction. Due to frequent use of
such components in mobile and other communication
applications, a fast polynomial division would improve overall
speed for many such applications. This project is to design,
develop and implement an efficient polynomial divider
algorithm, along with the circuit. Next its output performance
result is verified using Verilog simulation. A literature survey on
the normal division algorithms currently used by ALU’s to
perform division for large numbers, yielded Booth’s algorithm,
Restoring and Non-restoring algorithm. Verilog simulation of
these algorithms were used to derive efficiency in terms of the
timing characteristics, required chip area and power dissipation.
Initially, performance analysis of the existing algorithms was
done based on the simulated outputs. Later similar analysis with
the updated polynomial divider circuit is performed.
Keywords- Division, Polynomial, Booth’s algorithm, Restoring
algorithm, Non-restoring algorithm, Verilog.
I. INTRODUCTIONS
hroughout the years, mathematicians and engineers have
developed many algorithms to divide numbers. The
ALU which is primarily used for division has gone through
many changes in its design. One of these changes was in its
division algorithms. In a typical computer, an ALU is called
upon to do hundreds of division operations per second.
Divider circuits are used for various purposes like error
correcting codes. So to perform at its peak, the ALU„s
algorithms need to be as efficient as possible. However, some
of these algorithms work better when computing the result of
the operation by hand than using a computer and so these
algorithms are not efficient in every case [1].
The traditional pen and paper algorithm, when converted
to computer algorithm, resulted in the Booth‟s algorithm,
Restoring Division algorithm [5]. Smaller improvements
have been made to the restoring division algorithm, which
resulted in Non-Restoring Division algorithm and many high
radix algorithms, later combinational array divider circuits are
also implemented for the division purpose [6]. In many cases,
division is performed by taking the inverse of the divider and
then multiplying the two numbers.
Division methods are divided in five classes that include
iteration, digit recurrence, very high radix, table look up and
variable latency. Each of these classes of division is
implemented differently in hardware (using multiplication,
subtraction, table look up, etc.).
Some algorithms use multiple classes rather than just one
in particular. This report focuses on subtraction-based
methods, such as restoring and non-restoring division
algorithms, to obtain the final answer in a division
computation. Digit recurrence algorithm is another division
algorithm and they produce one digit of the final quotient per
iteration.SRT (Sweeney Robertson and Tocher) division
algorithm is very commonly use for digit recurrence purpose
[12].
Use of Verilog code, which is a Hardware Descriptive
language (HDL) will be done for the simulation purpose of
the project.
II. MOTIVATION
Despite the recent improvement in division algorithms,
division remains a complex operation and is therefore not
implemented in many low cost or low power ALUs. Division
can add more complexity to the computations since it can
have invalid inputs such as division by zero and can have
multiple machine cycles used in it. The time taken for its
operation is also high and the circuits get more complex if
more precision is needed and so it is avoided by most ALU‟s
[1].
A division operation is an indispensible tool for a high
performance system. A common perception of division is that
it is an infrequent operation whose implementation need not
receive high priority. However, it has been shown that
ignoring its implementation can result in significant system
performance degradation for many applications. Refining
the polynomial division algorithm helps in improving the
precision of the result and reduces the delay to obtain output.
So implementation of a proper divider circuit is very
important in an ALU.
III. OBJECTIVE
The main objective of the project work will be to focus
on using the most optimal division algorithm and to design an
T
2. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 79
efficient polynomial divider circuit & simulate its
performance.
To find the most optimal algorithm timing characteristics
and area report generated by the Xilinx tool for various
division algorithms will be compared and analyzed.
IV. TOOL USED
For this project Verilog, HDL is used under Xilinx ISE
Design Suite 13.4 platform.
V. LITERATURE SURVEY
A. Booth’s Algorithm

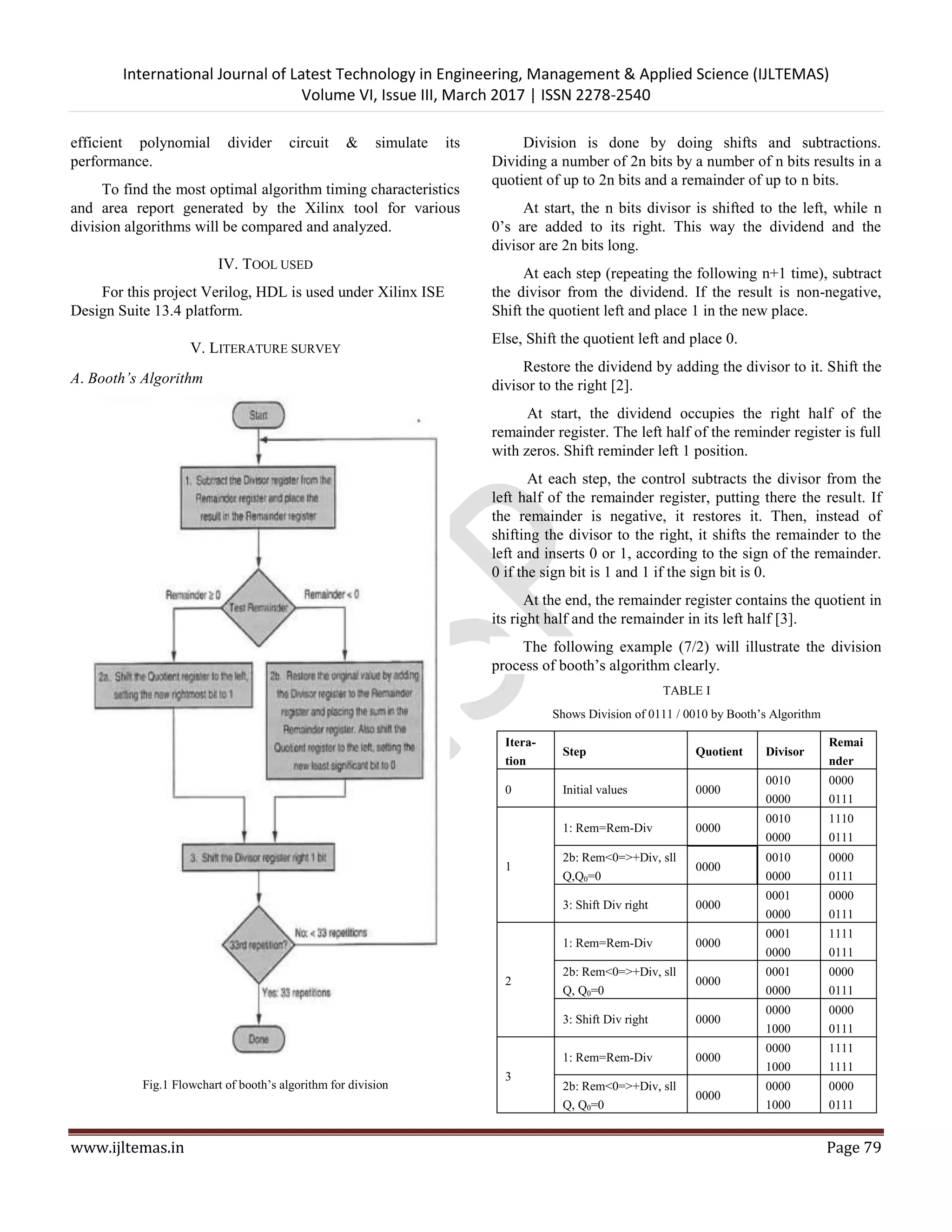

Fig.1 Flowchart of booth‟s algorithm for division
Division is done by doing shifts and subtractions.
Dividing a number of 2n bits by a number of n bits results in a
quotient of up to 2n bits and a remainder of up to n bits.
At start, the n bits divisor is shifted to the left, while n
0‟s are added to its right. This way the dividend and the
divisor are 2n bits long.
At each step (repeating the following n+1 time), subtract
the divisor from the dividend. If the result is non-negative,
Shift the quotient left and place 1 in the new place.
Else, Shift the quotient left and place 0.
Restore the dividend by adding the divisor to it. Shift the
divisor to the right [2].
At start, the dividend occupies the right half of the
remainder register. The left half of the reminder register is full
with zeros. Shift reminder left 1 position.
At each step, the control subtracts the divisor from the
left half of the remainder register, putting there the result. If
the remainder is negative, it restores it. Then, instead of
shifting the divisor to the right, it shifts the remainder to the
left and inserts 0 or 1, according to the sign of the remainder.
0 if the sign bit is 1 and 1 if the sign bit is 0.
At the end, the remainder register contains the quotient in
its right half and the remainder in its left half [3].
The following example (7/2) will illustrate the division
process of booth‟s algorithm clearly.
TABLE I
Shows Division of 0111 / 0010 by Booth‟s Algorithm
Itera-
tion
Step Quotient Divisor
Remai
nder
0 Initial values 0000
0010
0000
0000
0111
1
1: Rem=Rem-Div 0000
0010
0000
1110
0111
2b: Rem<0=>+Div, sll
Q,Q0=0
0000
0010
0000
0000
0111
3: Shift Div right 0000
0001
0000
0000
0111
2
1: Rem=Rem-Div 0000
0001
0000
1111
0111
2b: Rem<0=>+Div, sll
Q, Q0=0
0000
0001
0000
0000
0111
3: Shift Div right 0000
0000
1000
0000
0111
3
1: Rem=Rem-Div 0000
0000
1000
1111
1111
2b: Rem<0=>+Div, sll
Q, Q0=0
0000
0000
1000
0000
0111
3. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 80
3: Shift Div right 0000
0000
0100
0000
0111
4
1: Rem=Rem-Div 0000
0000
0100
0000
0011
2a: Rem≥0=> sll Q,
Q0=1
0001
0000
0100
0000
0011
3: Shift Div right 0001
0000
0010
0000
0011
5
1: Rem=Rem-Div 0001
0000
0010
0000
0001
2a: Rem≥0=> sll Q,
Q0=1
0011
0000
0010
0000
0001
3: Shift Div right 0011
0000
0001
0000
0001
B. Restoring Division Algorithm
Digital Recurrence algorithms use subtractive methods to
calculate quotients one digit per iteration. Restoring division
algorithm is based on the digital recurrence algorithm [1].
Fig.2 Flowchart for restoring division algorithm
Restoring division follows the same method as the pen
and paper long division algorithm. In the long division
algorithm, the divisor is compared to the left digits of the
dividend. If the divisor is bigger than the dividend numbers
being compared, then a 0 in appended to the quotient and
divisor is shifted to the right to compare with bigger dividend
digits. If the divisor is smaller than the dividend, then the
divisor being compared is subtracted from the dividend and
the result is stored as remainder, while the number of times
the divisor can go into the dividend is appended to the
quotient [4].
During the next loop, the dividend and the remainder
need to be appended together to form the new dividend. This
process is repeated until the dividend cannot be divided
further by the divisor. The same process is applied in the
Restoring division algorithm.
To decide whether the divisor is bigger than the dividend
bits it is being compared to, it subtracts the divisor from the
dividend bits and stores the result in remainder field. If the
divisor is bigger than the dividend bits, then the result will be
negative.
If the result is negative, then the remainder is wrong and
it must be “restored” to the previous value and a 0 must be
appended to the quotient before the divisor is shifted to the
right (or dividend shifted to the left) and subtraction is tried
again.
If the result is positive, then divisor is bigger than the
dividend bits being compared to and the result is valid.
Therefore, a 1 is appended to the quotient.
Below the algorithm for restoring division method is
explained with an example by dividing 0011 1101 (61), by
01010 (10) and how it works.
Following the Restoring division algorithm discussed
above, the first step is to shift the quotient 1 bit to the left.
Second, subtract the divisor from the left half of the
dividend and update the left half of the quotient with the
answer. This new dividend value now has the remainder and
rest of the quotient appended together.
To avoid destroying the initial dividend value, the
dividend can be copied into the remainder register and use
remainder register as the dividend value.
If the new dividend is less than zero, then shift the
quotient left 1 bit and restore the previous value of the
dividend. Otherwise, shift the quotient left 1 bit and set the
least significant bit to 1. Repeat for procedure 4 times to
evaluate all bits of the dividend [5].
At the end of the procedure, the quotient value will be the
4. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 81
remainder.
Dividend z: 0011 1101 (61),
Divisor d: 01010 (10)
Quotient : 0110 (6),
Remainder : 0001 (1)
TABLE II
Division of 00111101 / 01010 by Restoring Method
C. Non-Restoring Division Algorithm
The non-restoring divide does not “restore” the
remainder to the correct value but leaves it incorrect until the
next cycle [1]. In the restoring divide algorithm, if we had
restored the partial remainder to its correct value, we would
proceed with the next shift and trial subtraction getting the
result. Instead, because we used the incorrect partial
remainder, a shift and trial subtraction would yields result
which is not the intended. However, an addition would do the
trick.
The non-restoring algorithm can result in a negative
remainder, which is incorrect. Therefore, a correction step is
needed to obtain the correct remainder. The algorithm to
perform non-restoring division is as follows:
Non-restoring divide algorithm [6]:
i. Shift remainder left 1 bit.
ii. If remainder is negative, add divisor to the left half
of
iii. the remainder. Shift quotient left 1 bit.
iv. If remainder is positive, subtract divisor from the left
v. half of the remainder. Shift quotient left 1 bit and
add 1.
vi. Repeat for number of bits in divisor.
vii. Correction step: If remainder is negative, add divisor
to the remainder to obtain the correct value.
Fig.3 Flowchart for non-restoring division algorithm
Here, the dividend is not restored after each unsuccessful
subtraction operation as was in restoring algorithm.
Instead, the following logic is followed:
If the current remainder is positive,
Then Q0 = 1.
Next operation will be shift and subtract
Else (remainder negative),
Then Q0 = 0.
Next operation will be shift and add.
Example: 10 / 4
Quotient = 2, Remainder = 2, A = 0
Q = Dividend = 10 = 1010
B = Divisor = 4 =0100 ,
Iteration P Q
1 Shift z left once: 0111101
Subtract d from left half of z: 11111101
Result is negative. Restore to previous
value: 0111101
0
2 Shift z left once: 111101
Subtracting d from left half of z: 010101
Result is positive. New z is 010101
01
3 Shift z left once: 1010 1
Subtracting d from left half of z: 00001
Result is positive. New z is 00001
011
4 Shift z left once: 0001
Subtracting d from left half of z: 10111
Result is negative: Restore to previous
value: 0001
0110
5. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 82
- B means 2‟sComplement of B = 4
B =00100
11 011 1‟s Complement of B
+ 1 addition of 1 to 1‟s Complement of B
11100 2‟s Complement of B
If Q (Divisor) register contains 4 bits then Contents of A
register is 4+1=5 bits
TABLE III
Division of 1010 / 0100 by Non-Restoring Method
D. LFSR (Linear Feedback Shift Registers)
Linear Feedback Shift Registers (LFSR) can be used for
polynomial division, among its other uses.
Two example LFSRs are shown in Fig4 & Fig5. Note that
both these structures use D-type flip-flops and linear logic
elements (EOR gates) to realize LFSRs [8]. The basic
difference in these two structures being the circuit of Fig4
uses linear elements interspersed between the flip-flops
whereas the circuit of Fig5 has no linear element appearing
between the flip-flops instead the linear elements appear only
in the feedback path. It is for this reason the realization of
Fig4 is called internal-EOR LFSR and the realization of Fig5
is called external EOR LFSR. A equivalence exists between
the two structures in the sense that knowing the properties of
the first structure one can deduce the properties of the second
structure.
The circuit in Fig4 is better for its high-speed operation
since they don't have multiple adder combination propagation
delays [9].
Fig.4 Internal EOR type LFSR
Fig.5 External EOR type LFSR
Polynomial arithmetic can be performed using this
LFSR circuit. The LFSR here does the shifting operation at
each clock cycle and keeps on generating new patterns based
on the input values. One thing to be noted here during
polynomial division is that all these polynomials are not
usually written with minus signs, but they could be, therefore
a coefficient of –1 is equivalent to coefficient of 1 and
polynomials with co-efficient other than 1 cannot be used as
in digital domain we have only 0 & 1[10].
Fig.6 A basic polynomial division register
VI. METHODOLOGY
A. Preliminary Work
In this project firstly comparison of the restoring and non
Represents EOR gate
6. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 83
restoring algorithms for division are done and the results are
obtained.
The comparison is on the basis of area analysis, timing,
delay and power consumed. The algorithms are implemented
using Verilog code and done the comparison.
I have done the coding in Xilinx ISE Design Suite 13.4
tool.
B. Proposed Implementation in Polynomial Divider Circuit
Steps to be followed for implementation of polynomial
division-
i. Firstly the circuit is built on basis of the denominator
given.
ii. The input is given serially in the circuit.
iii. The output of each stage is calculated at each clock
cycle.
iv. The process continues until all the bits of input are
given.
v. The quotient is calculated from the outputs of the
final register.
vi. Finally, the remainder is calculated from the output
of all the registers in the final clock cycle.
Below two examples are given to explain the process of
polynomial division-
i) (X3
+X2
+1)/(X2
+1)
Fig.7 Circuit for (X3
+X2
+1)/(X2
+1)
Fig.8 Division using long division method
TABLE IV
LFSR Stages Corresponding to the Input Applied
INPUT D0 D1 OUTPUT STREAM
1 0 0 0
1 1 0 00
0 1 1 001
1 1 1 0011
0 1
Here the final output stream is 0011.
So the quotient is 0*X3
+ 0*X2
+ 1*X1
+ 1*X0
= X+1
The value of D0 and D1 in final cycle is 0 & 1 respectively.
So, remainder is 0*X0
+ 1*X1
=X
Here any numerator can be applied and the output result will
be obtained using the same denominator.
ii) (X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1)
Fig.9 Circuit for (X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1)
TABLE V
LFSR Stages Corresponding to the Input Applied
INPUT D0 D1 D2 D3 D4 OUTPUT
STREAM
1 0 0 0 0 0 0
1 1 0 0 0 0 00
1 1 1 0 0 0 000
1 1 1 1 0 0 0000
0 1 1 1 1 0 00000
1 0 1 1 1 1 000001
0 0 0 0 1 0 000010
1 0 0 0 0 1 0000101
0 0 1 0 1
7. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 84
Here the final output stream is 0000101.
So the quotient is
0*X6
+ 0*X5
+ 0*X4
+ 0*X3
+ 1*X2
+ 0*X1
+ 1*X0
=X2
+1
The value of D0,D1,D2,D3,D4 in final cycle is 0,0,1,0,1
respectively.
So, remainder is
0*X0
+ 0*X1
+ 1*X2
+ 0*X3
+ 1*X4
= X2
+X4
.
Fig.10 Division using long division method
These are simulated using the Xilinx tool and the results
are compared.
The max power of the denominator can be 9312 as this is
the number of Flip Flops supported by the Xilinx tool.
This division operation can also be performed using
multiplication of LFSR. But that will be a much more time
consuming process.
Example- X2
/X= X
This will be the process if it is done normally using
polynomial division method.
But if multiplication is used it will be, X2
* X-1
= X
So the number of operations needed to be performed in
this method will be more and hence more time will be
consumed [11].
VII. RESULT
Fig.11 Division of 13 by 5 using restoring division
Fig.12 Area analysis for restoring division
Fig.13 Timing analysis for restoring division
Fig.14 Power analysis for restoring division
Fig 11, Fig 12, Fig 13, Fig 14 represents the waveform of
output of the division, area analysis, timing analysis and
power analysis respectively.
Fig.15 Division of 13 by 5 using non-restoring division
8. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 85
Fig.16 Area analysis for non-restoring division
Fig.17 Timing analysis for non-restoring division
Fig.18 Power analysis for non-restoring division
Fig 15, Fig 16, Fig 17, Fig 18 represents the waveform of
output of the division, area analysis, timing analysis and
power analysis respectively.
Fig.19 (X3
+X2
+1)/(X2
+1) using LFSR
Fig.20 Area analysis for polynomial division of (X3
+X2
+1)/(X2
+1)
Fig.21 Timing analysis for polynomial division of (X3
+X2
+1)/(X2
+1)
Fig.22 Power analysis for polynomial division of (X3
+X2
+1)/(X2
+1)
Fig 19, Fig 20, Fig 21, Fig 22 represents the waveform of
output of the division, area analysis, timing analysis and
power analysis respectively.
Fig23 (X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1) using LFSR
Fig.24 Area analysis for polynomial division of
(X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1)
Fig.25 Timing analysis for polynomial division of
(X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1)
9. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 86
Fig.26 Power analysis for polynomial division of
(X7
+X6
+X5
+X4
+X2
+1)/(X5
+X4
+X2
+1)
Fig 23, Fig 24, Fig 25, Fig 26 represents the waveform of
output of the division, area analysis, timing analysis and
power analysis respectively.
TABLE VI
Comparison of Timing, Area and Power of Restoring, Non- Restoring and Polynomial Division
Restoring Division Non-Restoring Division Polynomial Division
1101 / 101 1101 / 101 (X3
+X2
+1)/(X2
+1)
(X7
+X6
+X5
+X4
+X2
+1)/
(X5
+X4
+X2
+1)
Timing
Analysis
Maximum input arrival time
after clock-18.650ns
Maximum output required
time after clock-4.283ns
Maximum input arrival
time after clock-14.849ns
Maximum output required
time after clock-4.283ns
Maximum input arrival
time after clock-3.700ns
Maximum output
required time after clock-
4.310ns
Maximum input arrival
time after clock-3.886ns
Maximum output required
time after clock-4.450ns
Area
Analysis
No. of Slice-18
No. of 4 input LUT- 30
No. of Slice-18
No. of 4 input LUT- 33
No. of Slice-1 No. of Slice-3
No. of Slice Flip-Flop-2 No. of Slice Flip-Flop-5
No. of 4 input LUT-2 No. of 4 input LUT-4
Power Analysis Total power- 0.083W Total power- 0.083W Total power- 0.081W Total power- 0.081W
VIII. CONCLUSION
In this paper analysis of various division algorithms are
done. Their timing, area & power comparison are obtained.
From the analysis I have seen that though the number of
LUT utilization in non-restoring algorithm is more but the
timing performance of the non-restoring algorithm is much
better. So from these to algorithm analysis it can be concluded
that the non restoring algorithm is by far better than restoring
algorithm.
Later in the next part a polynomial divider is
implemented using LFSR and the simulation is done using
Verilog. The results obtained are then compared and we see
that the delay is much less in this method. We also see that
more the maximum power of denominator more is the delay.
The power consumed by the polynomial divider circuit is also
bit less. Overall it can be said that by implementing the
polynomial division the delay and area can be minimized a
lot.
As the complexity in designing a polynomial divider
circuit is high, need for more efficient design is very high in
market. Thus seeing the growing needs my project can be
highly beneficial.
IX. FUTURE WORK TO BE DONE
Up to this point research on divider circuits like Booth‟s
algorithm, Restoring algorithm & Non-restoring algorithm are
done and a polynomial divider using LFSR‟s serially is
implemented.
So, the next work will be to implement the LFSRs in
parallel to reduce the time required for execution of the
division method.
ACKNOWLEDGEMENT
The road of knowledge is long and full of obstacles,
but going over those obstacles is what ultimately enlightens
the individual and strengthens ones spirit. I have been very
fortunate to walk through the road of knowledge, not alone,
but accompanied by the brightest and warm hearted individual
I have ever met.
I take this opportunity to thank my project guide Sri
Anindya Sen (Phd) for guiding me in this paper.
10. International Journal of Latest Technology in Engineering, Management & Applied Science (IJLTEMAS)
Volume VI, Issue III, March 2017 | ISSN 2278-2540
www.ijltemas.in Page 87
He has been a great source of motivation for me,
which inspired me a lot to take up the project and deliver it in
a nicest possible way.
Finally, I would also like to thank all the faculty
members and staff of Electronics and Communication
Engineering Department for their time to time support and co-
operation, which has helped me a lot.
PURBAYAN DEB
REFERENCES
[1]. Performance analysis of various multiplication and division
algorithms for large numbers Harpreet Kaur, 2010
[2]. Patterson, David and Hennessy, John. Computer Organization and
Design - The Hardware / Software Interface. San Francisco:
Morgan Kaufmann Publishers, 1998.
[3]. Lecture 5 Multiplication and Division. ECE 0142 Computer
Organization
[4]. Division Algorithms and Hardware Implementations, Sherif Galal
Dung Pham EE 213A: Advanced DSP Circuit Design
[5]. Computer Principles And Design In Verilog HDL Yamin Li Hosei
University, Japan
[6]. https://asnaikblog.wordpress.com/video-tutorial-for-non-restoring-
method-of-division-operation/
[7]. Linear Feedback Shift Registers Theory and. Applications. Kewal
K. Saluja. Department of Electrical and Computer Engineering.
University of Wisconsin-madison
[8]. Implementation and evaluation of a polynomial-based division
algorithm Examensarbete utfört vid Elektroniksystem, Linköpings
Tekniska Högskola Av Stefan Pettersson
[9]. Polynomial Multipliers and Dividers, Shift Register Generators
and Scramblers Phil Lucht Rimrock Digital Technology, Salt
Lake City, Utah 84103
[10]. Mr. Hiren G. Patel, Dr. D.M.Patel, Mr. Milan A. Chaudhari, Mr.
Mahavirsinh A. Zala “An Automated CRC Engine” International
Journal of Engineering Research And Management (IJERM) ISSN
: 2349- 2058, Volume-1, Issue-3, June 2014, PP. 11-15
[11]. https://www.freemathhelp.com/forum/archive/index.php/t-
56823.html
[12]. Oberman, Stuart F. and Flynn, Michael J. "Division Algorithms
and Implementations." IEEE Transcation on Computers (1997):
833-854.
