![More on Setting up VNC
• In case resolution is not set correctly, we will need to set the geometry
of the VNC Server, such as,
$ vncserver :1 -geometry 1440x900
Note: select the proper geometry
• In case we need the VNC Daemon to be up every time the R-Pi boots up,
then in the R-Pi,
$ cd ~/.config
$ mkdir autostart
$ cd autostart
$ vi tightvnc.desktop
Then write the following in the file,
[Desktop Entry]
Type=Application
Name=TightVNC
Exec=vncserver :1
StartupNotify=false](https://image.slidesharecdn.com/cucmp445lec07lab01preparingthepi-150520171953-lva1-app6891/85/Embedded-Systems-Lecture-7-Lab-1-Preparing-the-Raspberry-Pi-74-320.jpg)
Uploaded byAhmed El-Arabawy
Embedded Systems: Lecture 7: Lab 1: Preparing the Raspberry Pi
This document provides a comprehensive guide on setting up a Raspberry Pi with various operating systems, primarily focusing on Raspbian. It details the steps for loading the OS onto an SD card, configuring the Raspberry Pi, connecting to networks, and accessing the device remotely via SSH and VNC. Additional information on booting procedures, overclocking, and device management is also included.
More Related Content
Similar to Embedded Systems: Lecture 7: Lab 1: Preparing the Raspberry Pi
Embedded Systems: Lecture 7: Lab 1: Preparing the Raspberry Pi
- 1. Linux For EmbeddedSystems ForArabs Ahmed ElArabawy Cairo University Computer Eng. Dept. CMP445-Embedded Systems
- 2.
- 3. Steps to Preparethe Pi 1. Select the Operating System to use 2. Load the SD Card with the chosen Operating System 3. Plug in the SD Card in the Pi and make the other Connections 4. Boot the Raspberry Pi 5. Configure the Pi 6. Setup the Network (Using the Wired Ethernet Interface) 7. Setup the Wireless Network Connection (Using a WiFi Module) 8. Connect remotely to the Raspberry Pi from the host machine • Via SSH • Via VNC
- 4.

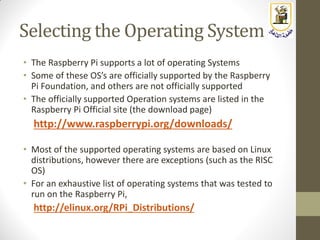

- 5. Selecting the OperatingSystem • The Raspberry Pi supports a lot of operating Systems • Some of these OS’s are officially supported by the Raspberry Pi Foundation, and others are not officially supported • The officially supported Operation systems are listed in the Raspberry Pi Official site (the download page) http://www.raspberrypi.org/downloads/ • Most of the supported operating systems are based on Linux distributions, however there are exceptions (such as the RISC OS) • For an exhaustive list of operating systems that was tested to run on the Raspberry Pi, http://elinux.org/RPi_Distributions/

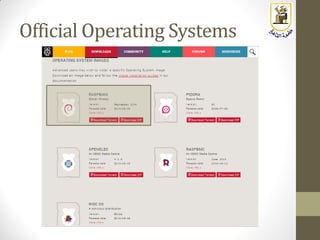

- 6.
- 7. Other OSs forthe Raspberry Pi And Many More …

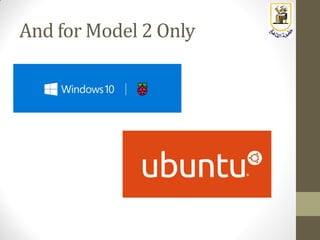

- 8. And for Model2 Only

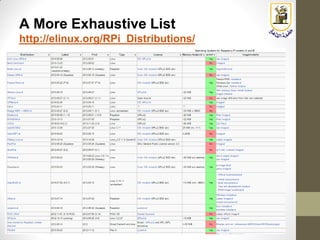

- 9. A More ExhaustiveList http://elinux.org/RPi_Distributions/
- 10. Raspbian http://www.raspbian.org/ • The mostpopular OS for the Raspberry Pi • Based on Debian Linux Distribution (Debian Wheezy) • Most projects available online use it, hence this will be our selection

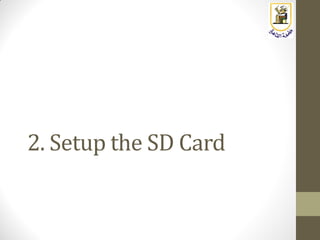

- 11. 2. Setup theSD Card
- 12. Method 1: Loading theSD Card The Traditional Way
- 13. Download Raspian • Wewill need to download the Raspbian OS image from, http://www.raspberrypi.org/downloads/
- 14. Loading the SDCard • Now we need to load the selected OS image to the SD Card • Note this is not a simple copy of a file, so simple cp will not work • A copy of a file means the file resides inside a file system • The file can be divided into multiple blocks • The file meta-data for the file will be written to the filesystem • Instead, we want to dump the raw image byte by byte to the desired location in the SD Card (no meta data, no inode, no dentry, just byte transfer) • This require using a different technique, • If the host is a Windows machine • Use Fedora ARM Installer • Use Win32 Disk Image Writer utility • If the host is a Linux machine • Use the dd command on the CLI
- 15. Windows Machine Host: UsingFedora ARM Installer • Download the zip file from http://fedoraproject.org/wiki/Fedora_ARM_Installer • Extract the zip file • Run the fedora-arm-installer-2 executable (as Administrator)
- 16. Windows Machine Host: UsingWin32 Disk Image Writer • Download the program from http://win32diskimager.sourceforge.net/ • Install the program • Run as administrator • Keep in mind that this operation will erase the contents of the chosen device • This program is designed to, • Write a raw disk image to a removable device • Backup a removable device to a raw image file
- 17. Linux Machine Host: Usingthe dd Command • First step, we need to identify the device name for the SD Card Reader in your host machine • This can be done by listing contents of /dev before and after inserting the SD Card, or using df -h command before and after inserting the SD Card • Note that sometimes, ubuntu fails to detect the SD card • Let us assume it is /dev/sdd1 • Next, we will need to unmount the device (the whole device, and not just the partition) $ sudo umount /dev/sdd • Next, we will need to dump the image file to the SD Card (assume that the file is ~/my-image.img) $ sudo dd bs=4M if=~/my-image.img of=/dev/sdd
- 18. Looking Inside theImage

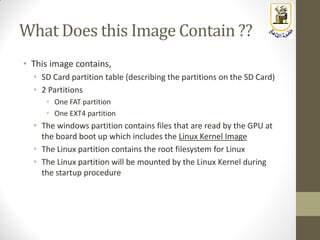

- 22. What Does thisImage Contain ?? • This image contains, • SD Card partition table (describing the partitions on the SD Card) • 2 Partitions • One FAT partition • One EXT4 partition • The windows partition contains files that are read by the GPU at the board boot up which includes the Linux Kernel Image • The Linux partition contains the root filesystem for Linux • The Linux partition will be mounted by the Linux Kernel during the startup procedure
- 23.

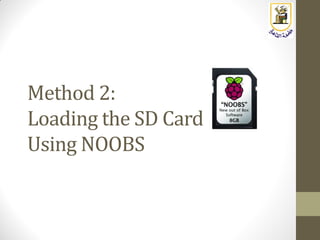

- 24. Method 2: Loading theSD Card Using NOOBS
- 25. Loading the SDCard Using NOOBS • NOOBS stands for (New Out Of Box Software) • It contains multiple Official Pi distributions • To set it up, you need first to download the NOOBS zip file and extract it in your host machine http://www.raspberrypi.org/downloads/
- 26.
- 28. Preparing the SDCard • You may go to the os/ folder and delete the distribution images that you are not interested in, this will reduce the data size that will need to be copied to the SD Card • First Step: • You need to make sure the SD Card is in its initial state (delete the partition table) • This is done via the windows command-line tool diskpart (note that other tools may not be able to perform this task) http://www.winability.com/delete-protected-efi-disk-partition/ • Second Step: • Format the SD Card as one FAT32 partition • Use the tool SD Formatter https://www.sdcard.org/ • Third Step: • Copy the downloaded NOOBS files into the SD Card (normal copying of files)

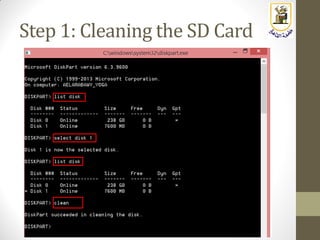

- 29. Step 1: Cleaningthe SD Card
- 30. Step 2: Formattingthe SD Card
- 31. Step 2: FormattedSD Card
- 32. Booting the Pi •Now prepare for booting the Pi, • Install the SD Card into the Pi • Connect a keyboard and a mouse to the Pi through the USB ports • Connect a monitor to the Pi through the HDMI Cable • After all connections are done, connect the power through the micro-USB connector • At the first boot of the Pi: • A graphical user interface will appear • A list of distributions will be shown, you need to select one of them to install (or multiple) • The GUI gives you the option to add an additional empty ext4 partition for data • Once done selection, push the install button • The Pi will run through installation of the distribution • This includes reorganizing the partition table on the SD card to create the needed ext4 partitions

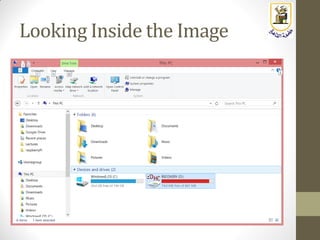

- 33. Looking Inside theImage
- 34. Partition Table (afterInstall)

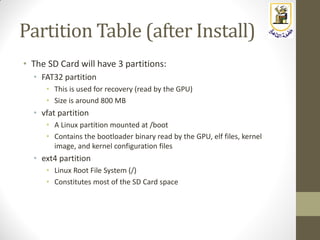

- 35. Partition Table (afterInstall) • The SD Card will have 3 partitions: • FAT32 partition • This is used for recovery (read by the GPU) • Size is around 800 MB • vfat partition • A Linux partition mounted at /boot • Contains the bootloader binary read by the GPU, elf files, kernel image, and kernel configuration files • ext4 partition • Linux Root File System (/) • Constitutes most of the SD Card space
- 36. Method 3 Loading theSD Card Using BerryBoot
- 37. Loading the SDCard Using BerryBoot • Berryboot is a boot management tool for the Raspberry Pi • It provides nice features, • It allows the user to install multiple OSs and select at boot time • It allows the user to put the distributions on another storage device (such as a hard disk connected to the USB interface). The SD card will still be the starting point, but the root file system will be on the other device • It allows the user to put non-official or customized distributions • It downloads the desired distribution directly from the internet (using either the wired or the wireless connection)

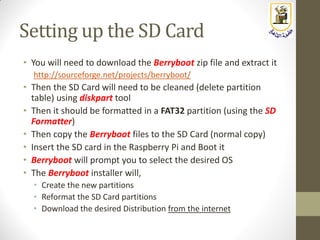

- 38. Setting up theSD Card • You will need to download the Berryboot zip file and extract it http://sourceforge.net/projects/berryboot/ • Then the SD Card will need to be cleaned (delete partition table) using diskpart tool • Then it should be formatted in a FAT32 partition (using the SD Formatter) • Then copy the Berryboot files to the SD Card (normal copy) • Insert the SD card in the Raspberry Pi and Boot it • Berryboot will prompt you to select the desired OS • The Berryboot installer will, • Create the new partitions • Reformat the SD Card partitions • Download the desired Distribution from the internet

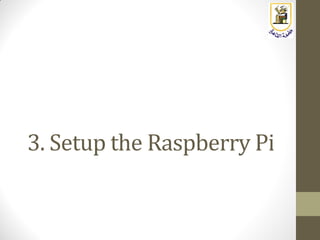

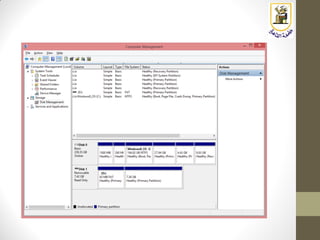

- 41. 3. Setup theRaspberry Pi
- 43. Setting Up thePi • Now you can connect the Pi to the needed peripherals • This includes, • Keyboard and Mouse using the USB connectors • Monitor using the HDMI interface • Network connection through the LAN cable (we will talk about setting it up later) • WiFi Dongle through the USB Connector (to be discussed later) • Of course you will need to insert the SD Card in its slot • Once all connections are done, you can connect the power through the micro-USB connector • WARNING: • All connections must be done before power is applied to the Pi • Even though the USB is theoretically hot pluggable, it is recommended that you don’t connect/disconnect any USB device while the board is powered • Not following that, may result in excessive current surges that may reboot the Pi or even destroy it • Also, keep in mind that the Pi power may not be able to support too many peripherals, so consider connecting one of the USB connectors to a powered USB Hub, and connect the other devices to it
- 44. 4. Booting theRaspberry Pi

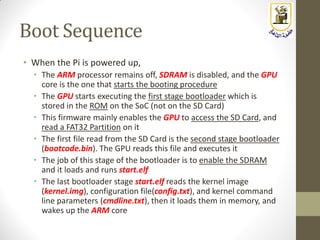

- 45. Boot Sequence • Whenthe Pi is powered up, • The ARM processor remains off, SDRAM is disabled, and the GPU core is the one that starts the booting procedure • The GPU starts executing the first stage bootloader which is stored in the ROM on the SoC (not on the SD Card) • This firmware mainly enables the GPU to access the SD Card, and read a FAT32 Partition on it • The first file read from the SD Card is the second stage bootloader (bootcode.bin). The GPU reads this file and executes it • The job of this stage of the bootloader is to enable the SDRAM and it loads and runs start.elf • The last bootloader stage start.elf reads the kernel image (kernel.img), configuration file(config.txt), and kernel command line parameters (cmdline.txt), then it loads them in memory, and wakes up the ARM core
- 46. Boot Sequence GPU On-ChipFirst Stage Bootloader bootcode.bin start.elf Linux Kernel GPU ARM Enables GPU to read the SD Card Enables GPU to read a FAT32 Partition Enables the SDRAM Loads and runs start.elf Loads the Kernel image Starts the ARM Core Boot the Kernel Normal Operation
- 47. cmdline.txt • The cmdline.txtfile contains parameters that are passed to the kernel when it is booting • There are a lot of possible parameters that can be passed to the kernel • Some important parameters: console=tty1 (Kernel messages should be sent to tty1) root=/dev/mmcblk0p2 (Root filesystem exists in this device) rootfstype=ext4 (Root filesystem type is ext4)
- 48. Booting the Pi •The first time the Pi boots, it will open an initial configuration screen (will be discussed later in this lecture) • Perform the required configuration, or exit the configuration tool • Then, the Pi shows the login prompt, and asks the user to login to it, the factory settings for login info are, Username: pi Password: raspberry • Now the user will be accessing the command line interface • To use the GUI, just use the command, $ startx
- 49.
- 50.
- 51.

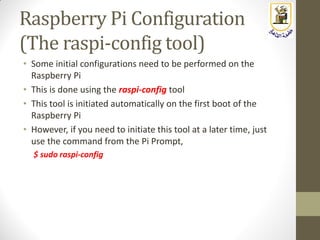

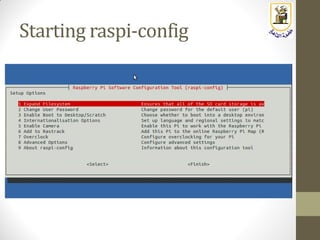

- 52. Raspberry Pi Configuration (Theraspi-config tool) • Some initial configurations need to be performed on the Raspberry Pi • This is done using the raspi-config tool • This tool is initiated automatically on the first boot of the Raspberry Pi • However, if you need to initiate this tool at a later time, just use the command from the Pi Prompt, $ sudo raspi-config
- 53.
- 54. Overclocking the Pi •By default, the ARM core runs at 700MHz • Sometimes, it is required to boost the ARM Core performance by increasing its clock speed (overclocking it) • The ARM Core can be overclocked up to 1GHz • Both the GPU Core and the SDRAM can be overclocked as well • Keep in mind that overclocking the Pi is not recommended unless you really need it. It generates more heat and may destroy the SoC or reduce its lifetime • If you overclock the Pi, it is recommended to use a heatsink or a fan to dissipate the generated heat from the chip
- 55.
- 56.
- 57.
- 58. Memory Split (ARM& GPU)
- 59. 6. Setup theEthernet Connection

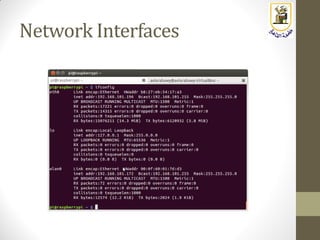

- 60. Setup the EthernetConnection • All you need is to plug the LAN cable into the Ethernet port, and your Raspberry Pi should be connected (notice that the network LEDs will start to flicker) • To know the selected IP Address, do, $ ifconfig Note that this IP Address is assigned by the DHCP in your router, and hence it may change every time you boot • You can fix the IP address of the R-Pi to a certain value by, • Log on to the router and configure it to assign a fixed IP address to the Pi
- 61.
- 62. 7. Setup theWiFi Connection

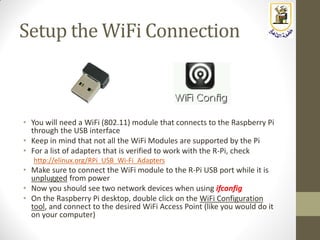

- 63. Setup the WiFiConnection • You will need a WiFi (802.11) module that connects to the Raspberry Pi through the USB interface • Keep in mind that not all the WiFi Modules are supported by the Pi • For a list of adapters that is verified to work with the R-Pi, check http://elinux.org/RPi_USB_Wi-Fi_Adapters • Make sure to connect the WiFi module to the R-Pi USB port while it is unplugged from power • Now you should see two network devices when using ifconfig • On the Raspberry Pi desktop, double click on the WiFi Configuration tool, and connect to the desired WiFi Access Point (like you would do it on your computer)
- 64.
- 65.
- 66.
- 67.

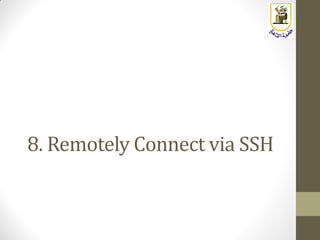

- 68. 8. Remotely Connectvia SSH
- 69. Remotely Connect viaSSH • The first step to use SSH with the Raspberry Pi is to enable the SSH Daemon on the Pi • Using the raspi-config tool, enable SSH • Then on the host machine, use an SSH Client • On Windows hosts, this can be done using the PuTTY program • On Linux hosts, SSH client is part of the openssh-client package $ sudo apt-get install openssh-client • From the host machine $ ssh pi@192.168.0.113 • When prompted for the password, set it as raspberry • Notes, • If the host is a Linux machine, and the IP address of the Pi is fixed, we can assign the PI a name in /etc/hosts and use it in the SSH command $ ssh pi@my-pi

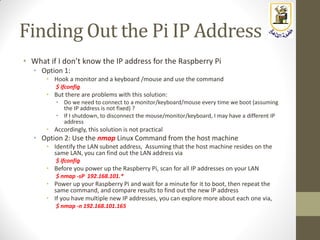

- 70. Finding Out thePi IP Address • What if I don’t know the IP address for the Raspberry Pi • Option 1: • Hook a monitor and a keyboard /mouse and use the command $ ifconfig • But there are problems with this solution: • Do we need to connect to a monitor/keyboard/mouse every time we boot (assuming the IP address is not fixed) ? • If I shutdown, to disconnect the mouse/monitor/keyboard, I may have a different IP address • Accordingly, this solution is not practical • Option 2: Use the nmap Linux Command from the host machine • Identify the LAN subnet address, Assuming that the host machine resides on the same LAN, you can find out the LAN address via $ ifconfig • Before you power up the Raspberry Pi, scan for all IP addresses on your LAN $ nmap -sP 192.168.101.* • Power up your Raspberry Pi and wait for a minute for it to boot, then repeat the same command, and compare results to find out the new IP address • If you have multiple new IP addresses, you can explore more about each one via, $ nmap -n 192.168.101.165
- 71. Using SSH withoutPassword (Using SSH Public Keys) • To avoid entering the password every time you use ssh or scp to the R-Pi, we use security keys for logging in • To enable that, we do the following: • On the host machine generate a key-pair $ ssh-keygen • You will need to answer a few questions, default values are ok • When asked about a pass phrase, any password is good (just remember it) • This will generate two key files in ~/.ssh directory • Private Key: ~/.ssh/id_rsa • Public key: ~/.ssh/id_rsa.pub • Then copy the public key to the R-Pi $ scp ~/.ssh/id_rsa.pub pi@my-pi:~/.ssh/any-file-name • On the R-Pi, add the key to the file ~/.ssh/authorized_keys $ echo `cat ~/.ssh/any-file-name` >> ~/.ssh/authorized_keys • Note that, the last two steps can be replaced with, from the host, $ cat ~/.ssh/id_rsa.pub | ssh pi@my-pi ‘cat >> ~/.ssh/authorized_keys’ • Then we try to ssh from the host into the pi, a prompt will ask for the password, and an option will appear to store it locally, accept that option • That’s it, now we can use ssh and scp without the need for a password • Note, if you want to login as root, then you need to do the same in /root/.ssh folder in the pi

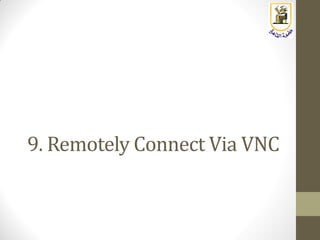

- 72. 9. Remotely ConnectVia VNC
- 73. Remotely Connect ViaVNC • First we will need to install the VNC Server on the Raspberry Pi • Issue the following commands on a terminal on the R-Pi or via an SSH session $ sudo apt-get update $ sudo apt-get install tightvncserver • After installation, we will need to start the VNC Daemon in the Pi $ vncserver :1 Note that it will ask you to enter a password • On the host machine, we need to install a VNC Client, there are a lot of VNC Clients available for both Windows and Linux host machines • Run the VNC Client on the host, make sure to state the server IP address and display number as : $ vncviewer 192.168.0.113:1 Use the password that you set in the server
- 74. More on Settingup VNC • In case resolution is not set correctly, we will need to set the geometry of the VNC Server, such as, $ vncserver :1 -geometry 1440x900 Note: select the proper geometry • In case we need the VNC Daemon to be up every time the R-Pi boots up, then in the R-Pi, $ cd ~/.config $ mkdir autostart $ cd autostart $ vi tightvnc.desktop Then write the following in the file, [Desktop Entry] Type=Application Name=TightVNC Exec=vncserver :1 StartupNotify=false
- 75.
